Chapter 1  Product Overview

1.1  Overview

H3C S5510 Series Ethernet Switches (hereinafter referred to as S5510 series) are wire speed Layer 2/3 Ethernet switches developed by Hangzhou H3C Technologies Co., Ltd. They are intelligent network-manageable switches intended for network environments requiring high performance, dense port distribution, and ease of installation.

Table 1-1 lists the models in the S5510 series:

Table 1-1 Models in the S5510 series

Model	Power supply	Total service ports	Port	Console port
H3C S5510-24P-AC	AC-input	28 (up to 24 can be used at the same time)	24 x 10/100/1000 Mbps electrical ports 4 x 1000 Mbps Combo SFP ports	1
H3C S5510-24P-DC	DC-input	28 (up to 24 can be used at the same time)	24 x 10/100/1000 Mbps electrical ports 4 x 1000 Mbps Combo SFP ports	1
H3C S5510-24F-AC	AC-input	28 (up to 24 can be used at the same time)	24 x 1000 Mbps SFP ports 4 x 10/100/1000 Mbps Combo electrical ports	1
H3C S5510-24F-DC	DC-input	28 (up to 24 can be used at the same time)	24 x 1000 Mbps SFP ports 4 x 10/100/1000 Mbps Combo electrical ports	1





1.2  S5510-24P-AC/S5510-24P-DC Ethernet Switch

1.2.1  Front Panel

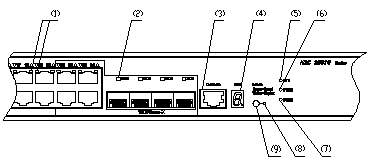

The S5510-24P-AC and S5510-24P-DC have the same front panel. On the front panel, the S5510-24P-AC/S5510-24P-DC provides 24 fixed 10/100/1000Base-T auto-negotiation Ethernet ports, four 1000 Mbps Combo SFP ports and one Console port, as shown in Figure 1-1.

(1) 10/100/1000Base-T auto-negotiation auto-negotiation Ethernet port status LEDs
(2) 1000 Mbps SFP port status LEDs
(3) Console port	(4) 7-segment numerical display
(5) Host status LEDs	(6) PWR1 status LEDs
(7) PWR2 status LEDs	(8) Port mode switch LED
(9) Port mode switch button

Figure 1-1 Front panel of an S5510-24P-AC/S5510-24P-DC Ethernet switch

Each of the four 1000 Mbps Combo SFP ports corresponds to a 10/100/1000Base-T auto-negotiation Ethernet port, so there are four pairs of associated ports, as show in Table 1-2. In each pair of ports, you can use only one port at a time.

Table 1-2 Combo ports

Module	Combo port	Corresponding Enthernet port
S5510-24P-AC/S5510-24P-DC	25	22
	26	24
	27	21
	28	23



1.2.2  Rear Panel

I. Rear panel Illustration of the S5510-24P-AC

As shown in Figure 1-2, the S5510-24P-AC provides a power module handle, power fan, cable clip, AC-input power socket, dummy panel and grounding screw (from left to right) on its rear panel.

(1) Power module handle	(2) Power fan
(3) Cable clip	(4) AC-input power socket
(5) Dummy panel	(6) Grounding screw

Figure 1-2 Rear panel of the S5510-24P-AC

II. Rear panel Illustration of the S5510-24P-DC

As shown in Figure 1-3, the S5510-24P-DC provides a power module handle, power fan, DC-input power socket, dummy panel and grounding screw (from left to right) on its rear panel.

(1) Power module handle	(2) Power fan
(3) DC-input power socket	(4) Dummy panel
(5) Grounding screw

Figure 1-3 Rear panel of the S5510-24P-DC

1.2.3  Power Supply System

I. AC-input voltage range

Rated voltage range: 100 VAC to 240 VAC, 50 Hz or 60 Hz

Max voltage range: 90 VAC to 264 VAC, 50 Hz or 60 Hz

II. DC-input voltage range

Rated voltage range: –48 VDC to –60 VDC

Rated voltage range: –36 VDC to –72 VDC

1.2.4  Cooling System

S5510-24P-AC/S5510-24P-DC Ethernet switch provide two fans for heat dissipation.

1.3  S5510-24F-AC/S5510-24F-DC Ethernet Switch

1.3.1  Front Panel

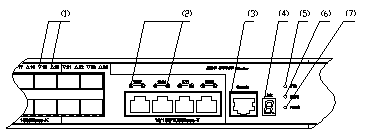

The S5510-24F-AC and S5510-24F-DC have the same front panel. On the front panel, the S5510-24F-AC/S5510-24F-DC provides 24 x 1000 Mbps SFP ports, four fixed 10/100/1000Base-T Combo ports and one Console port, as shown in Figure 1-4.

(1) 1000 Mbps SFP port status LEDs
(2) 10/100/1000Base-T Combo port status LEDs: S represents speed LED and D represents duplex LED
(3) Console port	(4) 7-segment numerical display LED
(5) Host status LED	(6) Power module 1 LED
(7) Power module 2 LED

Figure 1-4 Front panel of the S5510-24F-AC/S5510-24F-DC

Each of the four 1000 Mbps Combo SFP ports corresponds to a 10/100/1000Base-T auto-negotiation Ethernet port, so there are four pairs of associated ports, as show in Table 1-3. In each pair of ports, you can use only one port at a time.

Table 1-3 Combo ports

Module	Combo port	Corresponding SFP port
S5510-24F-AC/S5510-24F-DC	25	22
	26	24
	27	21
	28	23



1.3.2  Rear Panel

I. Rear panel Illustration of the S5510-24F-AC

As shown in Figure 1-5, the S5510-24F-AC provides a power module handle, power fan, cable clip, AC-input power socket, dummy panel and grounding screw (from left to right) on its rear panel.

(1) Power module handle	(2) Power fan
(3) Cable clip	(4) AC-input power socket
(5) Dummy panel	(6) Grounding screw

Figure 1-5 Rear panel of the S5510-24F-AC

II. Rear panel illustration of the S5510-24F-DC

As shown in Figure 1-6, the S5510-24F-DC provides a power module handle, power fan, DC-input power socket, dummy panel and grounding screw (from left to right) on its rear panel.

(1) Power module handle	(2) Power fan
(3) DC-input power socket	(4) Dummy panel
(5) Grounding screw

Figure 1-6 Rear panel of the S5510-24F-DC

1.3.3  Power Supply System

I. AC-input voltage range

Rated voltage range: 100 VAC to 240 VAC, 50 Hz or 60 Hz

Max voltage range: 90 VAC to 264 VAC, 50 Hz or 60 Hz

II. DC-input voltage range

Rated voltage range: –48 VDC to –60 VDC

Max voltage range: –36 VDC to –72 VDC

1.3.4  Cooling System

S5510-24F-AC/S5510-24F-DC Ethernet switch provide three fans for heat dissipation.

1.4  LEDs

1.4.1  LEDs of the S5510-24P-AC/S5510-24P-DC Ethernet switch

For your convenience to monitor the operation of the switch, the S5510-24P-AC/S5510-24P-DC provides one host status LED, two power module LEDs, one 7-segment numerical display LED, 24 10/100/1000 Mbps Combo port status LEDs and 4 SFP port status LEDs on its front panel. Table 1-4 describes the meanings of these LEDs:

Table 1-4 LEDs on the front panel of the S5510-24P-AC/S5510-24P-DC

LED	Mark	Status			Meaning
Port mode switch LED	Mode	Speed	Solid green		The port status LEDs are showing their current port speeds.
		Duplex	Solid yellow		The port status LEDs are showing their current duplex modes.
Host status LED	SYS	Solid green			The switch works normally.
		Flashing green (at 1 Hz)			The switch is running power-on self-test (POST) or is loading software. (1) When running POST, The system displays the number of current POST item on the 7-segment numerical display LED, for example: (2) When loading software, the system lights the short bars one after another in clockwise direction on the 7-segment numerical display LED:
		Solid red			The switch fan is in trouble. At this time, the system displays "F" on the 7-segment numerical display LED:
		Flashing red			The system fails the POST and does not work. At this time, the system displays the number of the failed POST item on the 7-segment numerical display LED, for example:
		Flashing yellow (at 1 Hz)			Some of the ports on the switch fails the POST and do not work.
		OFF			The switch is powered off.
Power module 1 LED	PWR1	Solid green			The power slot 1 accommodates a power module, which is working normally.
		Solid yellow			The power slot 1 accommodates a power module, which is not used now.
		Solid red			The power slot 1 accommodates a power module, which is in trouble now.
		OFF			The power slot 1 does not accommodate a power module.
Power module 2 LED	PWR2	Solid green			The power slot 2 accommodates a power module, which is working normally.
		Solid yellow			The power slot 2 accommodates a power module, which is not used now.
		Solid red			The power slot 2 accommodates a power module, which is in trouble now.
		OFF			The power slot 2 does not accommodate a power module.
7-segment numerical display LED	Unit	In the process of POST			The number of current POST item is displayed.
		Post failure			The number of the failed POST item is displayed.
		Loading software			The short bars are lighted one after another in clockwise direction during the loading.
		Fan failure			"F" is displayed.
10/100/1000BASE-T port status LED	—	In speed Mode		Green	The port works at 1000/100/10Mbps in speed mode; when it receives/sends data, the LED flashes quickly.
				Flashing yellow (at 3 Hz)	The port fails the POST.
				OFF	The port is disconnected.
		In duplex mode		Green	The port works in full duplex mode; when it receives/sends data, the LED flashes quickly.
				Yellow	The port works at 10/100 Mbps; when it receives/sends data, the LED flashes quickly.
				Flashing yellow (at 3 Hz)	The port fails the POST.
				OFF	The port is disconnected.
1000Base SFP port status LED	—	In speed Mode		Green	The port works at 1000 Mbps in full duplex mode; when it receives/sends data, the LED flashes quickly.
				Flashing yellow (at 3 Hz)	The port fails the POST.
				OFF	The port is disconnected.
		In duplex mode		Green	The port works at 1000 Mbps; when it receives/sends data, the LED flashes quickly.
				Flashing yellow (at 3 Hz)	The port fails the POST.
				OFF	The port is disconnected.



1.4.2  LEDs of the S5510-24F-AC/S5510-24F-DC Ethernet switch

For your convenience to monitor the operation of the switch, the S5510-24F-AC/S5510-24F-DC provides one host status LED, two power module LEDs, one 7-segment numerical display LED, 24 SFP port status LEDs, four 10/100/1000 Mbps Combo port status LEDs on its front panel. Table 1-5 describes the meanings of these LEDs:

Table 1-5 LEDs on the front panel of the S5510-24F-AC/S5510-24F-DC

LED	Mark	Status		Meaning
Host status LED	SYS	Solid green		The switch works normally.
		Flashing green (at 1 Hz)		The switch is running power-on self-test (POST) or is loading software. (1) When running POST, The system displays the number of current POST item on the 7-segment numerical display LED, for example: (2) When loading software, the system lights the short bars one after another in clockwise direction on the 7-segment numerical display LED:
		Solid red		The switch fan is in trouble. At this time, the system displays "F" on the 7-segment numerical display LED:
		Flashing red		The system fails the POST and does not work. At this time, the system displays the number of the failed POST item on the 7-segment numerical display LED, for example:
		Flashing yellow (at 1 Hz)		Some of the ports on the switch fails the POST and do not work.
		OFF		The switch is powered off.
Power module 1 LED	PWR1	Solid green		The power slot 1 accommodates a power module, which is working normally.
		Solid yellow		The power slot 1 accommodates a power module, which is not used now.
		Solid red		The power slot 1 accommodates a power module, which is in trouble now.
		OFF		The power slot 1 does not accommodate a power module.
Power module 2 LED	PWR2	Solid green		The power slot 2 accommodates a power module, which is working normally.
		Solid yellow		The power slot 2 accommodates a power module, which is not used now.
		Solid red		The power slot 2 accommodates a power module, which is in trouble now.
		OFF		The power slot 2 does not accommodate a power module.
7-segment numerical display LED	Unit	In the process of POST		The number of current POST item is displayed.
		Post failure		The number of the failed POST item is displayed.
		Loading software		The short bars are lighted one after another in clockwise direction during the loading.
		Fan failure		"F" is displayed.
1000Base SFP port status LED	—	Green		The port works at 1000 Mbps in full duplex mode; when it receives/sends data, the LED flashes quickly.
		Flashing yellow (at 3 Hz)		The port fails the POST.
		OFF		The port is disconnected.
10/100/1000Base-T Ethernet port status LED	S	In speed mode	Green	The port works at 1000 Mbps; when it receives/sends data, the LED flashes quickly.
			Yellow	The port works at 10/100 Mbps; when it receives/sends data, the LED flashes quickly.
			Flashing yellow (at 3 Hz)	The port fails the POST.
			OFF	The port is disconnected.
	D	In duplex mode	Green	The port works in full duplex mode; when it receives/sends data, the LED flashes quickly.
			Yellow	The port works in half duplex mode; when it receives/sends data, the LED flashes quickly.
			Flashing yellow (at 3 Hz)	The port fails the POST.
			OFF	The port is disconnected



1.5  Technical Specifications of S5510 Series

Table 1-6 Technical specifications of S5510 series

Item	S5510-24P	S5510-24F
Physical dimensions (H x W x D)	43.6 x 440 x 360 mm (1.7 x 17.3 x 14.2 in.)
Weight	< 5 kg (11.0 lb.)
Management port	One Console port
Service port	24 x 10/100/1000 Mbps electrical ports and four 1000 Mbps Combo SFP ports	24 x 1000 Mbps SFP ports and four 10/100/1000M Combo electrical ports
Input voltage	The S5510 series supports both AC and DC input. AC input: Rated voltage range: 100 VAC to 240 VAC; 50 Hz or 60 Hz Max voltage range: 90 VAC to 264 VAC; 50 Hz or 60 Hz DC input: Rated voltage range: –48 VDC to –60 VDC Max voltage range: –36 VDC to –72 VDC
Power consumption (fully loaded)	80 W	75 W
Operating temperature	0°C to 45°C (32°F to 113 °F)
Relative humidity (noncondensing)	10% to 90%



1.6  SFP Modules Supported by S5510 Ethernet Switches

The front panel of S5510-24P-AC/S5510-24P-DC Ethernet switches provides four 1000 Mbps SFP ports, the front panel of S5510-24F-AC/S5510-24F-DC Ethernet switches provides twenty-four 1000 Mbps SFP ports, you can select the required small form-factor pluggable (SFP) modules to insert. For the models of SFP modules, see Table 1-7.

Table 1-7 SFP Modules Supported by S5510 Ethernet Switches

Type	Model
1000 Mbps SFP module	l      SFP-GE-SX-MM850-A l      SFP-GE-LX-SM1310-A l      SFP-GE-LH40-SM1310 l      SFP-GE-LH40-SM1550 l      SFP-GE-LH70-SM1550
100 Mbps SFP module	l      SFP-FE-SX-MM1310-A l      SFP-FE-LX-SM1310-A l      SFP-FE-LH40-SM1310 l      SFP-FE-LH80-SM1550
1000 Mbps BIDI module	l      SFP-GE-LX-SM1310-BIDI l      SFP-GE-LX-SM1490-BIDI
100 Mbps BIDI module	l      SFP-FE-LX-SM1310-BIDI l      SFP-FE-LX-SM1550-BIDI
SFP electrical module	SFP-GE-T





Chapter 2  Installation Preparation

2.1  Safety Precautions

To avoid any device impairment and bodily injury caused by improper use, observe these rules:

l           Before cleaning the switch, unplug the power plug of the switch first. Do not clean the switch with wet cloth or liquid.

l           Do not place the switch near water or any damp area. Prevent water or moisture from entering the switch chassis.

l           Do not place the switch on an unstable case or desk. The switch might be damaged severely in case of a fall.

l           Ensure proper ventilation of the equipment room and keep the ventilation vents of the switch free of obstruction.

l           Make sure that the operating voltage is the same one labeled on the switch.

l           Do not open the chassis while the switch is operating or when electrical hazards are present to avoid electrical shocks.

l           When replacing interface cards, wear ESD-protective gloves to avoid damaging the cards.

2.2  Installation Site

The S5510 series must be used indoors. You can mount your switch in a rack or on a tabletop/workbench, but make sure:

l           Adequate clearance is reserved at the air inlet/exhaust vents for ventilation.

l           The rack or table/workbench has a good ventilation system.

l           The rack is sturdy enough to support the device and its accessories.

l           The rack or table/workbench is well earthed.

To ensure normal operation and long service life of your VG, install it in an environment that meets the requirements described in the following subsections.

2.2.1  Temperature/Humidity

You must maintain a proper temperature and humidity in the equipment room. Long-term high humidity may lead to bad insulation, electricity leakage, mechanical property changes, and corrosion. However, if the relative humidity is two low, captive screws may become loose as the result of contraction of insulation washers and static electricity may be produced in a dry environment to jeopardize the CMOS circuits on the device. High temperature is the most undesirable condition, because it accelerates aging of insulation materials and can thus significantly lower reliability and service life of your switch.

For the temperature and humidity requirements of different models, refer to section 1.5  Technical Specifications of S5510 Series.

2.2.2  Cleanness

Dust is a hazard to the operating safety of your device. The dust accumulated on the chassis can be adsorbed by static electricity and result in poor contact of metal connectors or metal contact points. This can not only shorten the service life of your device but also cause communications failures. When the relative indoor humidity is low, electrostatic adsorption is more likely to happen. The contents of the dust must be limited as shown in the following table:

Table 2-1 Dust content limits in an equipment room

Substance	Unit	Concentration limit
Dust	Particles/m³	≤ 3 X 104 (No visible dust on the tabletop for three days)
Remark: the diameter of a dust particle ≥ 5μm



Besides dust, there are rigorous limits on the harmful gases that can accelerate the erosion and aging of metals, such as salts, acids, and sulfides, as shown in the following table.

Table 2-2 Harmful gas limits in the equipment room

Gas	Maximum concentration (mg/m3)
SO2	0.2
H2S	0.006
NH3	0.05
Cl2	0.01



2.2.3  Electromagnetic Susceptibility

The operation of your switch can be affected by external interferences, such as conducted emission by capacitance coupling, inductance coupling, electromagnetic wave radiation, and common impedance (including the grounding system) coupling, and leads (power cords, signaling cables and output wires. To eliminate the interferences, make sure to:

l           For the AC power supply that adopts TN system, use a monophase three-line power socket with Protection Earth (PE) to effectively filter interference from the power grid.

l           Keep the device far from radio transmitting stations, radar stations, and high-frequency devices.

l           Use electromagnetic shielding when necessary, for example, use shielded interface cables.

l           Route interface cables only indoors to prevent signal ports from getting damaged by overvoltage or overcurrent caused by lightning strikes.

2.2.4  Laser Safety

The S5510 series are class-1 laser devices.

When the optical ports on your switch are operating, do not stare into the optical ports because the laser light emitted by the optical fiber can hurt your retina.





2.3  Installation Tools

l           Flat-blade screwdriver

l           Phillips screwdriver

l           ESD-preventive wrist strap





Chapter 3  Installing the Switch





3.1  Installing a Switch

3.1.1  Cabinet Mounting

You can install a switch into a 19-inch standard cabinet in one of the following three ways:

l           Use front mounting ears and a tray

l           Use front mounting ears and rear mounting ears

l           Use front mounting ears and guide rails





I. Introduction to mounting ear

Figure 3-1 shows the appearance of a front mounting ear.

(1) Screw hole used to fix the mounting ear to the cabinet (Use one M6 screw)

(2) Screw hole used to fix the switch to the mounting ear

Figure 3-1 Appearance of a standard front mounting ear

Figure 3-2 shows the appearance of a rear mounting ear.

(1) Screw hole used to fix the mounting ear to the cabinet (Use one M6 screw)

Figure 3-2 Appearance of a rear mounting ear





II. Introduction to guide rail

Figure 3-3 shows the appearance of a guide rail.

Slotted hole 1: Used to fix the guide rail to the rear bracket. You can adjust the screw hole position according to the position of the switch.

Cooling hole: Used for heat dissipation between switch and cabinet

Slotted hole 2: Used to fix the guide rail to the front bracket

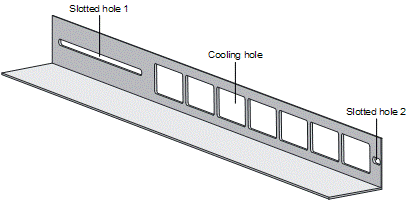

Figure 3-3 Appearance of a guide rail





III. Use front mounting ears and a tray

Follow these steps to install a switch into a 19-inch standard cabinet:

1)         Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.

2)         Fix the delivered tray horizontally in a proper position.

3)         Take out the screws which are packed together with the front mounting ears, and fix one end of mounting ears to the switch, as shown in Figure 3-4.

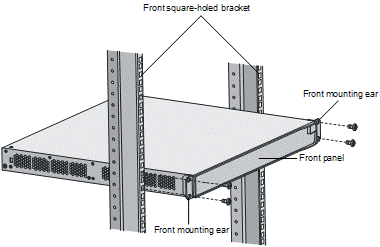

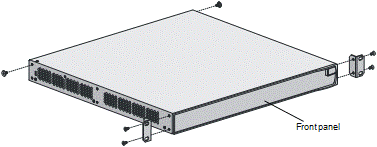

Figure 3-4 Fix front mounting ears

4)         Place the switch on the tray horizontally, slide the tray into the cabinet, and fix the other end of mounting ears to the front brackets with crews and captive nuts, as shown in Figure 3-5.

Figure 3-5 Fix front mounting ears and tray

IV. Use front and rear mounting ears

Follow these steps to install a switch into a 19-inch standard cabinet:

1)         Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.

2)         Take out the screws which are packed together with the front mounting ears, and fix one end of mounting ears to the switch, as shown in Figure 3-4.

3)         Take out the load-bearing screws (packed together with the rear mounting ears) and place them in a proper position on the sides of the switch, as shown in Figure 3-6.

Screw 1: Load-bearing screw

Figure 3-6 Fix front mounting ears and load-bearing screws





4)         Select a position to install the switch and fix the rear mounting ears to the rear brackets with screws and captive nuts, as shown in Figure 3-7.

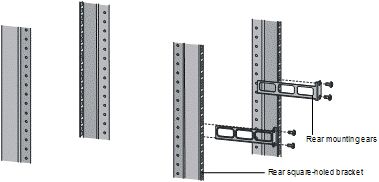

Figure 3-7 Fix rear mounting ears

5)         Hold the bottom of the switch with one hand and the front part of the switch with the other hand, and push the switch into the cabinet gently, as shown in Figure 3-8.

Screw 1: Used to bear the weight

Screw 2: Used to fix rear mounting ears to rear brackets

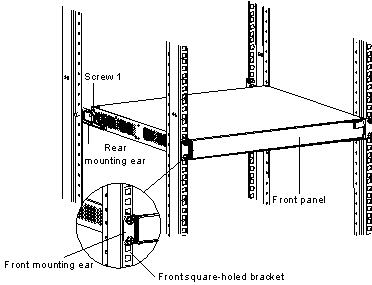

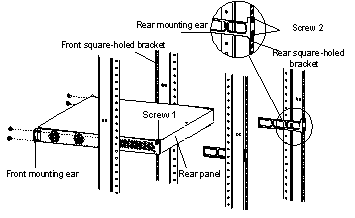

Figure 3-8 Fix front and rear mounting ears

After the switch is pushed into the cabinet, ensure that the upper edge of rear mounting ears is tightly contacted with the load-bearing screw, as shown in Figure 3-9.

Screw 1: Load-bearing screw

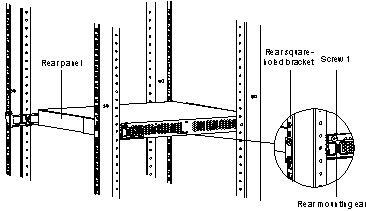

Figure 3-9 Effect diagram of front and rear mounting ear installation (1)

6)         Fix the other end of the front mounting ears to the front brackets with screws and captive nuts and ensure that front and rear mounting ears have fixed the switch in the cabinet securely, as shown in Figure 3-10.

Screw 1: Load-bearing screw

Figure 3-10 Effect diagram of front and rear mounting ear installation (2)

V. Use front mounting ears and guide rails

Follow these steps to install a switch into a 19-inch standard cabinet:

1)         Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.

2)         Take out the screws packed together with the front mounting ears and fix one end of the front mounting ears to the switch, as shown in Figure 3-4.

3)         Install guide rails on the brackets on both sides of the cabinet with M5 self-tapping screws, as shown in Figure 3-11.

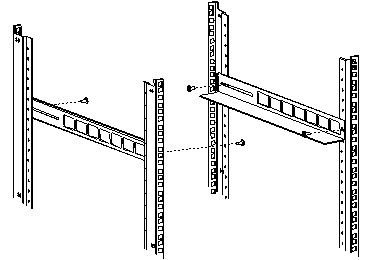

Figure 3-11 Install guide rails

4)         Hold the two sides of the switch and slide it gently along the guide rails into the cabinet until it is located in a proper position, as shown in Figure 3-12. Ensure that the bottom side of the guide rails and the switch are in close contact.

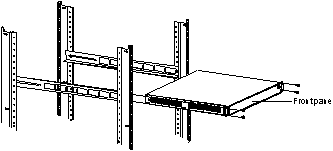

Figure 3-12 Install front mounting ears and guide rails

5)         Fix the other end of front mounting ears to the front brackets of the cabinet with M6 screws and captive nuts and ensure that the front mounting ears and guide rails have fixed the switch in the cabinet securely, as shown in Figure 3-13.

Figure 3-13 Effect diagram of front mounting ear and guide rail installation





3.1.2  Desk Mounting

When a 19-inch standard cabinet is not available, you can simply place the switch on a clean desk. When doing so, you should ensure that:

l           The desk is stable and well grounded.

l           A clearance about 10 cm (3.9 in) is reserved around the switch for heat dissipation.

l           No heavy object is placed on the switch.

3.2  Installing Power Module





3.2.1  Installing a Power Module

Step 1: Draw on the ESD-preventive wrist strap and ensure that the strap is well grounded.

Step 2: Remove the dummy panel from the power slot.

Step 3: Keeping the power module to be installed in the right direction, with one hand taking hold of the handle before the module and the other hand holding the module on the palm, smoothly slide the module into the power slot until the plug on the module completely fits into the socket in the chassis. Note that, the right direction is that the letters on the module is in the up direction; if you install the module with upset down, being restricted by the specially-designed structure inside the chassis, you will not be able to completely insert the module into the slot.

Step 4: Fasten the captive screws at both sides of the power module with a Phillips screwdriver.

3.2.2  Removing a Power Module

Step 1: Draw on the ESD-preventive wrist strap and ensure that the strap is well grounded.

Step 2: Power down the module to be removed.

Step 3: Loosen the captive screws at both sides of the power module with a Phillips screwdriver.

Step 4: With one hand taking hold of the handle before the power module to be removed and the other hand press down on the top of the switch, pull the module completely out off the socket in the chassis and smoothly out of the power slot.





3.3  Connecting the Power Cord and the Ground Wire

3.3.1  Connecting the AC-Input Power Cord

I. AC-input power socket (recommended)

You are recommended to use a monophase three-line power socket with a ground contact or a general purpose PC power socket, making sure that the power point is well connected to building ground. Normally, the ground point of the power source in a building was buried in the ground during the construction and wiring. Still, you must make sure of that.

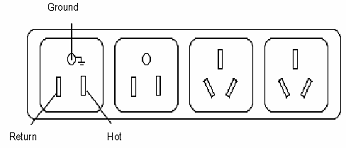

Figure 3-14 Power socket (recommended)

II. Connecting the AC-input power cord

Step 1: Connect one end of the chassis ground wire to the grounding screw on the rear of the chassis and the other end to the ground as near as possible.

Step 2: Connect one end of the power cord to the power socket on the rear of the chassis, and plug the other end to the AC power jack of the power source.

Step 3: Verify that the PWR LED on the front panel of the switch is ON.





3.3.2  Connecting the DC-Input Power Cord

+: -48V working ground

-: -48 to -60 V

NULL: reserved

Figure 3-15 DC-input power connector (partial)

Step 1: Connect one end of the chassis ground wire to the grounding screw on the rear of the chassis and the other end to the ground as near as possible.

Step 2: Directly insert the component into DC-input socket on the cabinet, and then fix the screws 1 and 2 carried by the connector itself to the appropriate holes on the cabinet socket using a small flathead screwdriver, see Figure 3-16.

Figure 3-16 Illustration for fixing RPS connector to the cabinet

Step 3: Verify that the power LED PWR1/PWR2 on the front panel of the switch is ON.





3.3.3  Connecting the Ground Wire





The power input end of the switch is connected with a noise filter, whose central ground is directly connected to the chassis, forming the chassis ground (commonly known as PGND). This chassis ground must be securely connected to the earth ground so that the faradism and leakage electricity can be safely released to the ground, enhancing the EMS capability of the switch.

Ground your switch as follows:

l           When a grounding strip is available at the installation site, attach one end of the yellow/green ground wire of the switch to the grounding screw on the grounding strip and fasten the captive nut. (Note that the fire main and lightning rod of a building are not suitable for grounding the switch. The ground wire of the switch should be connected to the grounding device for the equipment room.)

(1) Power input on the switch	(2) Grounding screw on the switch
(3) Ground wire	(4) Grounding strip

Figure 3-17 Grounding the switch through a grounding strip

l           When there is no grounding strip but earth near the equipment room that allows a grounding body to be buried, hammer an angle iron/steel pipe longer than 0.5 m into the earth, weld the yellow-green ground wire of the switch onto the angle iron/steel pipe, and process the joint against erosion.

(1) Power input	(2) Grounding screw	(3) Ground wire
(4) Earth	(5) Angle iron

Figure 3-18 Grounding the switch by burying the grounding body into the earth

l           For an AC-powered switch, if none of the above two conditions is available, ground it through the PE wire of the AC power supply. In this case, make sure this PE wire is well connected to the ground at the power distribution room or AC transformer side.

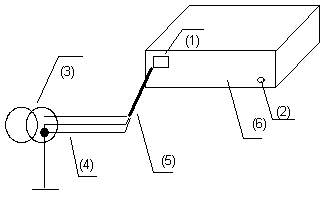

(1) AC-input	(2) Grounding screw	(3) Power transformer
(4) PE wire	(5) AC-input (with 3-wire cable)	(6) Ethernet switch

Figure 3-19 Grounding through the AC PE wire

l           For a DC-powered switch, if none of the first two conditions is available, ground it through the return wire (RTN) of the DC power supply. In this case, make sure this RTN wire is well connected to the ground at the DC output of the DC power cabinet.

(1) AC/DC power cabinet	(2) -48V strip	(3) -48V
(4) RTN strip	(5) RTN	(6) PGND strip
(7) Grounding	(8) Ground wire	(9) Grounding screw
(10) Ethernet switch	(11) DC-input

Figure 3-20 Grounding through the PGND of a power cabinet

3.3.4  Multi-power Input





3.4  Connecting Optical Fiber





3.5  Connecting the Switch to a Console Terminal

3.5.1  Console Cable

Console cable is an 8-core cable. At one end of the cable is a crimped RJ-45 connector for the connection to the Console port of the switch; at the other end of the cable is one DB-9 (female) connector for the connection to the serial port on the console terminal. See Figure 3-21.

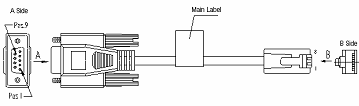

Figure 3-21 Console cable

Table 3-1 Console cable pinouts

RJ-45	Signal	Direction	DB-9
1	RTS	←	7
2	DTR	←	4
3	TXD	←	3
4	CD	→	1
5	GND	––	5
6	RXD	→	2
7	DSR	→	6
8	CTS	→	8



3.5.2  Connecting the Console Cable

Follow these steps to connect a terminal device, a PC for example, to the switch:

Step 1: Plug the DB-9 (female) connector of the Console cable to the serial port of the PC where the switch is to be configured.

Step 2: Connect the RJ-45 connector of the console cable to the Console port of the switch.







3.6  Verifying Installation

l           The correct power source is used.

l           The ground wire is securely connected.

l           Both of the console cable and power cord are correctly connected.

l           All the interface cables are routed indoors. If there are cables outdoors, verify that the socket strip with lightning protection and lightning arresters for network ports have been correctly connected.



Chapter 4  Lightning Protection of the Switch

4.1  Installation of Lightning Arrester for AC Power (Socket Strip with Lightning Protection)





If an outdoor AC power cord should be directly led to the switch, please serially connect the lightning arrester for AC power (Socket Strip with Lightning Protection) before you plug AC power cord into the switch, thus to prevent the possible damage to the switch due to lightning strike. You can use cable clips and screws to fasten the lightning arrester for AC power on the cabinet, workbench or the wall of equipment room.

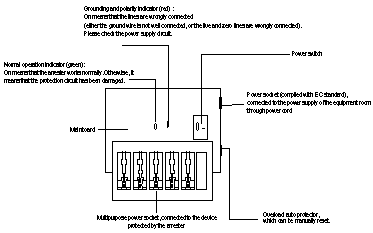

Figure 4-1 Diagram of lightning arrester





4.2  Installation of Lightning Arrester for Network Port







If an outdoor network cable should be led to the switch, please serially connect the lightning arrester for network port before you plug this cable into the interface on the switch, in case of the possibility that the switch may be damaged due to lightning strike.

I. Required tools

l           Phillips screwdriver or Flat-blade screwdriver

l           Multimeter

l           Tilted wire cutter

II. Installation procedure

Step 1: Tear the protection paper at one side of the double faced adhesive tape apart from the tape, and stick the tape on the surface of the arrester. Tear the protection paper at another side apart from the tape, and stick the arrester onto the chassis of the switch. The arrester should be attached on the chassis as close to the grounding screw as possible.

Step 2: According to the distance to the grounding screw of the switch, cut the ground wire of the arrester, and securely tightening its ground wire to the grounding screw of the switch.

Step 3: Use the multimeter to measure whether the ground wire of the arrester contacts well with the grounding screw of chassis.

Step 4: According to the instruction of arrester for network port, connect the arrester with switch by the cables (be carefully with the cable direction. Outdoor network cable should be inserted into the arrester‘s IN end, and the cable connected to the switch should be inserted into the arrester’s OUT end). When you do that, observe whether the arrester indicators normally display.





Step 5: Use the nylon ties to bundle the cables neatly.

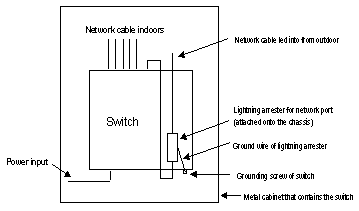

Figure 4-2 Installation diagram of lightning arrester for network port

III. Installation precautions

Fully consider the following items in the installation process, otherwise, the performance of the lightning arrester for network port will be affected:

Lightning arrester for network port is installed in reverse direction. In practice, the “IN” end should be connected to the outdoor network cable and the “OUT” end to the network port on the switch.

Lightning arrester for the network port is not well grounded. The ground wire for the arrester should be as short as possible, so to ensure its good contact with the grounding screw of the switch. After the connection, use the multimeter to confirm that.

The lightning arrester for the network port is not installed completely. If the switch has more than one network ports to interconnect with other devices via cables outdoor, you should install lightning arresters for all these network ports for protection.
