Chapter 1 Product Overview
1.1 Overview
H3C S3100 Series Ethernet Switches are high-performance, high-density, easy-to-install, NMS-manageable intelligent Ethernet switches which support wire-speed Layer 2 switching.
Table 1-1 lists the models of H3C S3100 Series Ethernet Switches.
Table 1-1 Models of H3C S3100 Series Ethernet Switches
Name |
Subseries |
Model |
|
H3C S3100 Series Ethernet Switches |
S3100-SI |
S3100-C-SI |
l S3100-8C-SI l S3100-16C-SI l S3100-26C-SI |
S3100-T-SI |
l S3100-8T-SI l S3100-16T-SI l S3100-26T-SI |
||
S3100-EI |
S3100-TP-EI-W |
l S3100-8TP-EI-W l S3100-16TP-EI-W l S3100-26TP-EI-W |
|
S3100-TP-PWR-EI |
l S3100-8TP-PWR-EI l S3100-16TP-PWR-EI l S3100-26TP-PWR-EI |
||
S3100-C-EPON-EI |
l S3100-8C-EPON-EI l S3100-16C-EPON-EI l S3100-26C-EPON-EI |
1.1.1 S3100-SI Series Ethernet Switches
Currently, S3100-SI Series Ethernet switches include S3100-T-SI and S3100-C-SI, as listed in Table 1-2 and Table 1-3.
Table 1-2 H3C S3100-T-SI Series Ethernet switches
Model |
Power supply |
Number of 10/100M electrical ports |
Number of gigabit uplink ports |
Number of console ports |
S3100-26T-SI |
AC |
24 |
2 Ethernet ports |
1 |
S3100-16T-SI |
16 |
1 Ethernet port |
||
S3100-8T-SI |
8 |
Table 1-3 H3C S3100-C-SI Series Ethernet Switches
Model |
Power supply |
Number of 10/100M electrical ports |
Number of expansion slots |
Number of console ports |
S3100-26C-SI |
AC input for AC-powered switch. DC input for DC-powered switch |
24 |
2 |
1 |
S3100-16C-SI |
16 |
2 |
||
S3100-8C-SI |
8 |
1 |
For details about each model, refer to H3C S3100 Series Ethernet Switches Installation Manual (For Japan).
1.1.2 S3100-EI Series Ethernet Switches
Currently, the H3C S3100-EI Series Ethernet Switches include the S3100-TP-EI-W, the S3100-TP-PWR-EI and the S3100-C-EPON-EI, as listed in Table 1-4 and Table 1-5.
Table 1-4 Models of H3C S3100-TP-EI-W and S3100-TP-PWR- EI Series Ethernet switches
Model |
Power supply |
Number of 10/100M electrical ports |
1000M uplink ports |
Number of console ports |
S3100-26TP-EI-W |
AC input or 12V-RPS DC input |
24 |
2 Combo ports |
1 |
S3100-16TP-EI-W |
AC input |
16 |
2 Combo ports |
1 |
S3100-8TP-EI-W |
8 |
1 Combo port |
1 |
|
H3C S3100-26TP- PWR-EI |
AC input or 52V-RPS DC input |
24 |
2 Combo ports |
1 |
H3C S3100-16TP- PWR-EI |
AC input |
16 |
2 Combo ports |
1 |
H3C S3100-8TP- PWR-EI |
8 |
1 Combo port |
1 |
Table 1-5 Models of the H3C S3100-C-EPON-EI Series Ethernet Switches
Model |
Power input |
Number of 10/100 Mbps electrical ports |
Number of 1000 Mbps uplink PON ports |
Number of expansion slots |
Number of console ports |
S3100-26C-EPON-EI |
AC input |
24 |
1 |
1 |
1 |
S3100-16C-EPON-EI |
16 |
1 |
Disabled |
||
S3100-8C-EPON-EI |
8 |
1 |
— |
For details about each model, refer to H3C S3100 Series Ethernet Switches Installation Manual (For Japan).
1.2 Introduction to Front Panel Power LEDs
Table 1-6 Description of the power LED on S3100 series
LED |
Mark on the panel |
Status |
Description |
Power LED |
PWR |
ON |
The switch is powered on. |
OFF |
The switch is powered off. |
||
RPS DC power LED |
RPS |
ON |
DC input is normal. |
OFF |
There is no DC input. |
& Note:
Only S3100-26TP-EI-W AC-powered Ethernet switches have an RPS DC power LED.
1.3 Technical Specifications
1.3.1 S3100-SI Series Ethernet Switch
I. S3100-T-SI Series
Table 1-7 Technical specifications for S3100-T-SI Series Ethernet switches
Model |
S3100-26T-SI |
S3100-16T-SI |
S3100-8T-SI |
Physical dimensions (H x W x D) |
42 x 436 x 240 mm (1.65 x 17.2 x 9.4 in) |
42 x 436 x 200 mm (1.65 x 17.2 x 7.9 in) |
42 x 326 x 200 mm (1.65 x 12.8 x 7.9 in) |
Weight |
≤ 3.2 kg (7.1 lb) |
||
Number of fixed ports |
24 x auto-sensing 10/100Base- TX Ethernet port 2 x 10/100/1000 Base-T Ethernet port |
16 x auto-sensing 10/100Base- TX Ethernet port 1 x 10/100/1000 Base-T Ethernet port |
8 x auto-sensing 10/100Base- TX Ethernet port 1 x 10/100/1000 Base-T Ethernet port |
Number of management port |
1 x console port |
||
Power system |
Only AC input is supported. Rated voltage range: 100 VAC to 240 VAC, 50 Hz /60 Hz Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz |
||
PoE (as powered device) |
Not supported |
Not supported |
Not supported |
System power consumption (full load) |
20 W |
12 W |
10 W |
Fan |
None |
None |
None |
Operating temperature |
0°C to 45°C (30°F to 113°F) |
||
Relative humidity (non- condensing) |
10% to 90% |
II. S3100-C-SI Series
Table 1-8 Technical specifications for S3100-C-SI Series Ethernet switches
Model |
S3100-26C-SI |
S3100-16C-SI |
S3100-8C-SI |
|
Physical dimensions (H x W x D) |
42 x 436 x 240 mm (1.65 x 17.2 x 9.4 in) |
42 x 436 x 200 mm (1.65 x 17.2 x 7.9 in) |
42 x 326 x 200 mm (165 x 12.8 x 7.9 in) |
|
Weight |
≤ 3.2 kg (7.1 lb) |
|||
Number of fixed ports |
24 x auto-sensing 10/100Base- TX Ethernet port |
16 x auto-sensing 10/100Base- TX Ethernet port |
8 x auto-sensing 10/100Base- TX Ethernet port |
|
Number of expansion slots |
2 |
2 |
1 |
|
Number of management port |
1 x Console port |
|||
Supported expansion interface module type |
10/100/1000BASE-T interface module with max transmission distance of 100 m (328.1 feet) 100BASE-SX (SC, 2 km (1.2 mi)) 100BASE-LX (SC, 15 km (9.3 mi)) 100BASE-LH40 (SC, 40 km (24.9 mi)) 1000BASE-SX (SC, 0.5 km (0.3 mi)) 1000BASE-LX (SC, 10 km (6.2 mi)) 1000BASE-LH40 (LC, 40 km (24.9 mi)) 1000BASE-LH70 (LC, 70 km (43.5 mi)) 1000BASE-STACK (not supported by S3100-8C-SI) 100BASE-TX PD (powered device) interface module (only supported by S3100-16C-SI DC-powered switch and S3100-8C-SI DC-powered switch) 1000BASE-PX10 (SC, 10 km (6.2 mi)) 1000BASE-PX20 (SC, 20 km (12.4 mi)) 100Base-LX-SM1310-BIDI (SC, 15 km (9.3 mi)) 100Base-LX-SM1550-BIDI (SC, 15 km (9.3 mi)) |
|||
Power system |
Both DC-powered switch and AC-powered switch are available to each model. The AC-powered switch supports only AC input. and the DC-powered switch supports only DC input. AC input: l Rated voltage range: 100 VAC to 240 VAC, 50 Hz /60Hz l Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz DC input: l Rated voltage range: –48 VDC to –60 VDC l Input voltage range: –36 VDC to –72 VDC |
|||
PoE (as powered device) |
Not supported |
Supported by DC-powered switch |
||
System power consumption (full load) |
20 W |
12 W |
10 W |
|
Fan |
None |
None |
None |
|
Operating temperature |
0°C to 45°C (30°F to 113°F) |
|||
Relative humidity (non- condensing) |
10% to 90% |
|||
& Note:
l Only S3100-16C-SI DC-powered switch or S3100-8C-SI DC-powered switch supports 100BASE-TX PD interface module. Notice that S3100-16C-SI DC-powered switch can accommodate only one PD interface module.
l The PoE configuration is on the remote power source device, on the powered device (S3100-16C-SI DC-powered switch or S3100-8C-SI DC-powered switch), you only need to insert the cable into the interface of 100BASE-TX PD.
l BIDI interface card must used in couple, i.e., if the local end uses 100Base-LX-SM1310-BIDI, the remote end need to use 100Base-LX-SM1550-BIDI.
l An S3100-16C-SI or S3100-26C-SI switch can accommodate only one ONU card (1000Base-PX10/20). For details about ONU modules, refer to section 1.5 “ONU Modules”.
1.3.2 S3100-EI Series Ethernet Switch
I. S3100-TP-EI-W Series
Table 1-9 Technical specifications for S3100-TP-EI-W Series Ethernet switches
Model |
S3100-26TP-EI-W |
S3100-16TP-EI-W |
S3100-8TP-EI-W |
Physical dimensions (H x W x D) |
43.6 x 440 x 260 mm (1.7 x 17.2 x 10.2 in) |
43.6 x 300 x 220 mm (1.7 x 11.8 x 8.7 in) |
43.6 x 230 x 200 mm (1.7 x 9.1 x 7.9 in) |
Weight |
<3.5 kg (7.7 lb) |
<2.5 kg (5.5 lb) |
<1.8 kg (4 lb) |
Number of fixed ports |
24 x auto-sensing 10/100BASE- TX Ethernet port 2 x 1000M Combo port |
16 x auto-sensing 10/100BASE- TX Ethernet port 2 x 1000M Combo port |
8 x auto-sensing 10/100BASE- TX Ethernet port 1 x 1000M Combo port |
Number of management port |
1 x console port |
||
Power system |
S3100-16TP-EI-W/S3100-8TP-EI-W Ethernet switches support only AC input. S3100-26TP-EI-W AC-powered switches support AC input and RPS DC input. AC input: l Rated voltage range: 100 VAC to 240 VAC, 50 Hz /60 Hz l Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63Hz RPS DC input: l Input voltage range: 10.8 VDC to 13.2 VDC |
||
PoE (as powered device) |
Not supported |
Not supported |
Not supported |
System power consumption (full load) |
22 W |
17 W |
14 W |
Fan |
None |
None |
None |
Operating temperature |
0°C to 45°C (30°F to 113°F) |
||
Relative humidity (non- condensing) |
10% to 90% |
Caution:
Only the recommended 12V-RPS DC power supply can be used for S3100-26TP-EI Ethernet switches.
II. S3100-TP-PWR-EI Series
Table 1-10 Technical specifications for S3100-TP-PWR-EI Ethernet switches
Model |
S3100-26TP- PWR-EI |
S3100-16TP- PWR-EI |
S3100-8TP- PWR-EI |
|
Physical dimensions (H x W x D) |
43.6 x 440 x 420 mm (1.7 x 17.2 x 10.2 in) |
43.6 x 300 x 260 mm (11.8 x 8.7 x 1.7 in) |
43.6 x 300 x 220 mm (1.7 x 9.1 x 7.9 in) |
|
Weight |
<6.5 kg (14.3 lb) |
<3.5 kg (7.7 lb) |
<3.0 kg (6.6 lb) |
|
Number of fixed ports |
24 x 10/100BASE-TX auto-sensing Ethernet port 2 x 1000M Combo port |
16 x 10/100BASE- TX auto-sensing Ethernet port 2 x 1000M Combo port |
8 x 10/100BASE- TX auto-sensing Ethernet port 1 x 1000M Combo port |
|
Number of management ports |
1 x Console port |
|||
Power system |
S3100-26TP-PWR-EI Ethernet switches supports AC input and RPS DC input. S3100-16TP-PWR-EI/S3100-8TP-PWR-EI Ethernet switches support only AC input. AC input: l Rated voltage range: 100 VAC to 240 VAC, 50 Hz /60 Hz l Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz RPS DC input: l Input voltage range: –52 VDC to –56 VDC |
|||
All ports serve as PoE ports |
System power consumption (full load) |
AC input: 465 W DC input: 400 W |
160 W |
95 W |
PoE power maximum |
15.4 W x 24 |
15.4 W x 8 |
15.4 W x 4 |
|
Number of fans |
4 |
2 |
2 |
|
Operating temperature |
0°C to 45°C (30°F to 113°F) |
|||
Relative humidity (non- condensing) |
10% to 90% |
& Note:
S3100-26TP-PWR-EI, S3100-16TP-PWR-EI, and S3100-8TP-PWR-EI Ethernet switches provide an over-temperature protection mechanism. When the internal temperature exceeds 65°C (149°F), they will stop providing power from all ports. When the temperature is below 60°C (140°F), they will continue to provide power from all ports.
Only the recommended RPS can be used for S3100-26TP-PWR-EI Ethernet switches. The –48 VDC in the equipment room cannot be used directly. Otherwise, the device may be damaged.
III. S3100-C-EPON-EI Series
Table 1-11 Technical specifications for S3100-C-EPON-EI Series Ethernet switches
Model |
S3100-26C-EPON-EI |
S3100-16C-EPON-EI |
S3100-8C-EPON-EI |
Physical dimensions (H x W x D) |
42 x 436 x 240 mm (1.65 x 17.2 x 9.4 in) |
42 x 436 x 200 mm (1.65 x 17.2 x 7.9 in) |
42 x 326 x 200 mm (165 x 12.8 x 7.9 in) |
Weight |
≤ 3.2 kg (7.05 lb) |
||
Number of fixed ports |
24 x auto-sensing 10/100Base- TX Ethernet port 1 × 1000 Mbps PON port |
16 x auto-sensing 10/100Base- TX Ethernet port 1 × 1000 Mbps PON port |
8 x auto-sensing 10/100Base- TX Ethernet port 1 × 1000 Mbps PON port |
Number of expansion slots |
1 |
Disabled |
— |
Optional module |
ONU module (1000Base-PX20) |
— |
— |
Number of management port |
1 x console port |
||
Power system |
AC input: l Rated voltage range: 100 VAC to 240 VAC, 50 Hz /60Hz l Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz |
||
PoE (as powered device) |
Not supported |
Not supported |
Not supported |
System power consumption (full load) |
20 W |
13 W |
11 W |
Fan |
1 |
None |
None |
Operating temperature |
0°C to 45°C (30°F to 113°F) |
||
Relative humidity (non- condensing) |
10% to 90% |
1.4 SFP Modules Supported by S3100-EI Ethernet Switches
The front panel of S3100-TP-EI-W and S3100-TP-PWR-EI Ethernet switches provides one or two 1000M SFP ports in which you can select the required small form-factor pluggable (SFP) modules to insert. For the models of SFP modules, see Table 1-12.
Table 1-12 SFP modules supported by S3100-TP-EI-W and S3100-TP-PWR-EI Ethernet switches
Type |
Model |
|
SFP module |
100 Mbps SFP module |
l SFP-FE-SX-MM1310-A l SFP-FE-LX-SM1310-A |
1000 Mbps SFP module |
l SFP-GE-SX-MM850-A l SFP-GE-LX-SM1310-A |
|
SFP stack module |
SFP-STACK-Kit |
|
100 Mbps bidirectional (BIDI) module |
l SFP-FE-LX-SM1310-BIDI l SFP-FE-LX-SM1550-BIDI |
|
1000 Mbps BIDI module |
l SFP-GE-LX-SM1310-BIDI l SFP-GE-LX-SM1490-BIDI |
& Note:
l The types of SFP modules may vary over time. Consult H3C marketing personnel or technical support personnel to obtain the latest information about SFP modules.
l For specifications of SFP modules, refer to H3C Low End Series Ethernet Switches Pluggable Module Manual.
1.5 ONU Modules
When equipped with one or two ONU modules, the S3100-C-SI and S3100-C-EPON-EI series can serve as ONU devices. Table 1-13 shows the ONU module support of the S3100 series.
Table 1-13 ONU module support of the S3100 series
Switch model |
Number of ONU modules |
Required or optional |
ONU module model |
S3100-8C-SI |
1 |
Optional |
l 1000Base-PX10 (LS6M1PU1SA) l 1000Base-PX20 (LS6M1PU1SB) |
S3100-16C-SI |
1 |
Optional |
|
S3100-26C-SI |
1 |
Optional |
|
S3100-8C-EPON-EI |
1 |
Required |
1000Base-PX20 (LS6M2PU1SB) |
S3100-16C-EPON-EI |
1 |
Required |
|
S3100-26C-EPON-EI |
2 |
1 required 1 optional |
All models of ONU modules look alike. Figure 1-1 and Figure 1-2 depict the LS6M2PU1SB.
Figure 1-1 Appearance of the LS6M2PU1SB
(1): Fastening screws |
(2): 1000 Mbps PON port |
(3): ACT LED of the PON port |
(4): LINK LED for the PON port |
Figure 1-2 Front panel of the LS6M2PU1SB
The ONU module provides one 1000 Mbps uplink PON port. Table 1-14 lists the technical specifications for the PON port.
Table 1-14 Technical specifications for the ONU port
Item |
Specifications |
Connector type |
SC |
Number of interfaces |
1 |
Interface speed |
1000 Mbps |
Medium |
9/125 µm single-mode fiber |
Maximum transmission distance |
l 1000Base- PX10: 10 km (6.21 miles) l 1000Base- PX20: 20 km (12.43 miles) |
For how to install and remove an ONU module, refer to section 3.2 “Installing an Expansion Interface Module”. Table 1-15 describes the LED indications.
Table 1-15 Description of ONU module LEDs
LED |
Status |
Meaning |
LINK |
ON |
The port is connected properly. |
OFF |
The port has no connectivity or is incorrectly connected. |
|
ACT |
Blinking |
The port is in active state and there is traffic on it. |
OFF |
The port is in active state but there is no traffic on it. |
Chapter 2 Installation Preparation
2.1 Precautions
To avoid any device impairment and body injury resulting from improper use, please take the following precautions:
l Before cleaning the switch, disconnect the power. Do not clean the switch with wet cloth or liquid.
l Keep the switch away from water or dampness. Prevent water or moisture from entering the switch chassis.
l Do not place the switch on an unstable case or desk, because the switch might be damaged severely in case of a fall.
l Keep the switch room drafty and the switch ventilation hole free of obstruction.
l The switch can operate normally only under correct voltage input. Make sure that the operating voltage is consistent with that labeled on the switch.
l To prevent electric shock, do not open the chassis while the switch is operating, and do not open the chassis arbitrarily even when the switch is powered off.
l Before changing interface cards, wear an ESD-preventive wrist strap to prevent the cards from being damaged by electrostatic discharge.
2.2 Requirements on Environment
S3100 Series Ethernet Switches must be used indoors. When you install your switch in a cabinet or on a desk, you must ensure:
l Enough space is reserved near the air-intake hole and the ventilation hole of the switch for heat dissipation of the switch chassis.
l The cabinet or the workbench takes good ventilation and heat dissipation system.
l The cabinet or the desk is solid enough to bear the weight of the switch and the accessories.
l The cabinet or the desk is well grounded.
To ensure normal operation and to prolong the life span of the switch, the following requirements on the installation site must also be satisfied.
2.2.1 Temperature/Humidity Requirements
You should keep your equipment room within the proper temperature and humidity ranges to ensure the normal operation and working life of your switch. If the humidity in the equipment room is too high for a long time, it may decrease the insulation attribute of insulating material or even cause electric leakage of insulating material, and, sometimes, may change the mechanical performance of material and cause the rustiness and corrosion of metal parts. If the relative humidity is too low, the captive screws may become loose due to the shrinking of insulation washers; in addition, electrostatic is more likely to be produced in a dry environment, which may damage the circuit of the switch. High temperature may cause even greater damage to the switch. High temperature for a long time will speed up the aging of insulation material, greatly lower the reliability of the switch and greatly reduce the life span of the switch.
For the temperature and humidity requirements of different models, refer to section 1.3 “Technical Specifications”.
2.2.2 Cleanness Requirements
Dust is a potential hazard to the safe operation of the switch. Falling on the equipment, it may cause electrostatic adsorption, and hence result in poor contact of the metal connectors or connection points. This is more likely to happen when the indoor relative humidity is low; in this case, it may not only shorten the device’s working life, but also incur communication failure. The requirements on dust content and particle diameter in the equipment room are shown in the following table.
Table 2-1 Requirements on dust content in the equipment room
Physical active substance |
Unit |
Content |
Dust particle |
particle/m³ |
≤ 3 x 104 (No visible dust on desk in three days) |
Note: Dust particle diameter ≥ 5µm |
Besides the requirements on dust, rigorous requirements are also set on the content of chloride, acid, and sulfide in the air of the equipment room. These kinds of harmful gas will accelerate metal corrosion and aging of certain parts. The equipment room should be protected from the intrusion of harmful gases such as SO2, H2S, NH3 and Cl2. The limits of these kinds of harmful gas are shown in the following Table.
Table 2-2 Limits on harmful gas in the equipment room
Gas |
Max content (mg/m³) |
SO2 |
0.2 |
H2S |
0.006 |
NH3 |
0.05 |
Cl2 |
0.01 |
2.2.3 Anti-interference Requirements
A switch in use may be affected by the interference from outside the system by way of capacitance coupling, inductance coupling, electromagnetic radiation, public impedance (including the grounding system) coupling or conducting line (power line, signaling line and transmission line). Therefore, you should pay attention to the following:
l If AC supply system is TN system, AC power socket should be a single-phase three-line power socket with Protection Earth (PE) so that the filter circuit on the equipment can effectively filter out the interference coming from the power supply system.
l Keep the switch far away from high-power radio transmitters, radars, and high-frequency heavy-current devices.

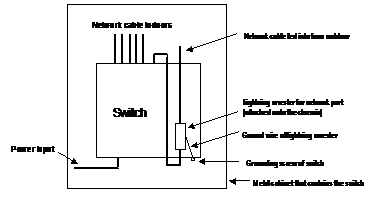

l Adopt electromagnetic shielding measure if necessary. For example, you can adopt shielded interface cable.
l Wire interface cables indoors. Do not wire cables outdoors in case that overvoltage and overcurrent damage the device.
2.2.4 Laser Usage Security
S3100 series are category-1 laser equipment.
When an optional optical interface card of the S3100 series is operating, it is prohibited to stare into the optical interface because the laser beam emitted from the optical fiber takes high energy and may hurt your retina.
Caution:
Staring at the laser beam inside the fiber could hurt your eyes.
2.3 Installation Tools
l Phillips screwdriver
l Flat-blade screwdriver
l ESD-preventive wrist strap
Caution:
These installation tools are not shipped with S3100 series. You will have to prepare them beforehand.
Chapter 3 Installation
Caution:
On a mounting screw of the chassis of H3C S3100 Series Ethernet Switches, there is a seal labeled with H3C. You must keep it intact before asking the agent to maintain the switch. You must get the permission of the local agent before you can open the chassis. Otherwise, you will be responsible for irreversible damages caused by your operations.
3.1 Installing a Switch
3.1.1 Cabinet Mounting
You can install a switch into a 19-inch standard cabinet in one of the following four ways:
l Use front mounting ears
l Use front mounting ears and a tray
l Use front mounting ears and rear mounting ears
l Use front mounting ears and guide rails
The installation methods of a switch depend on the depth and width of the switch. For the specific installation methods, see Table 3-1 and Table 3-2.
Table 3-1 Installation methods for a switch with a width of 440 or 436 mm (17.3 or 17.2 in)
Method Depth |
Use front mounting ears |
Use front and rear mounting ears |
Use front mounting ears and a tray |
Use front mounting ears and guide rails |
≤ 300 mm (11.8 in) |
√ |
— |
√ |
√ |
360 mm (14.2 in) |
— |
√ |
√ |
√ |
420 mm (16.5 in) |
— |
√ |
√ |
√ |
Table 3-2 Installation method for a switch with a width less than 436 mm (17.2 in)
Method Depth |
Use front mounting ears |
Use front and rear mounting ears |
Use front mounting ears and a tray |
Use front mounting ears and guide rails |
≤300 mm (11.8 in) |
√ |
— |
√ |
— |
360 mm (14.2 in) |
— |
— |
√ |
— |
420 mm (16.5 in) |
— |
— |
√ |
— |
& Note:
l When the depth of a switch is greater than 300 mm (11.8 in), the front mounting ears only secure the switch rather than bear its weight.
l Guide rails purchased from H3C apply only to standard cabinets 1,000 mm (39.4 in) deep. Use other supports to substitute for guide rails in the case of other cabinet depths.
I. Introduction to mounting ear
Figure 3-1 shows the appearance of a front mounting ear.
(1) Screw hole used to fix the mounting ear to the cabinet (Use one M6 screw) |
(2) Screw hole used to fix the switch to the mounting ear |
Figure 3-1 Appearance of a front mounting ear
Figure 3-2 shows the appearance of a rear mounting ear.
(1) Screw hole used to fix the mounting ear to the cabinet (Use one M6 screw) |
Figure 3-2 Appearance of a rear mounting ear
When you install S3100 Series Ethernet Switches into 19-inch standard cabinets, you should select front mounting ears with a proper length (L1 as shown in Figure 3-1) according to the physical dimensions of switches. For the selection of front and rear mounting ears, see Table 3-3.
Table 3-3 Selection of mounting ear for S3100 Series Ethernet Switches
Model |
Physical dimensions (H x W x D) |
Configuration type of front mounting ear |
Configuration type of rear mounting ear |
S3100-26T-SI S3100-26C-SI S3100-26C-EPON-EI |
42 x 436 x 240 mm (1.65 x 17.2 x 9.4 in) |
Standard |
— |
S3100-16T-SI S3100-16C-SI S3100-16C-EPON-EI |
42 x 436 x 200 mm (1.65 x 17.2 x 7.9 in) |
Standard |
|
S3100-8T-SI S3100-8C-SI S3100-8C-EPON-EI |
42 x 326 x 200 mm (1.65 x 12.8 x 7.9 in) |
Optional |
|
S3100-26TP-EI-W |
43.6 x 440 x 260 mm (1.7 x 17.3 x 10.2 in) |
Standard |
— |
S3100-16TP-EI-W |
43.6 x 300 x 220 mm (1.7 x 11.8 x 8.7 in) |
Optional |
|
S3100-8 TP-EI-W |
43.6 x 230 x 200 mm (1.7 x 9.1 x 7.9 in) |
Optional |
|
S3100-26TP- PWR-EI |
43.6 x 440 x 420 mm (1.7 x 17.3 x 16.5 in) |
Standard |
Standard |
S3100-16TP- PWR-EI |
43.6 x 300 x 260 mm (1.7 x 11.8 x 10.2 in) |
Optional |
— |
S3100-8 TP- PWR-EI |
43.6 x 300 x 220 mm (1.7 x 11.8 x 8.7 in) |
Optional |
— |
II. Use front mounting ears to install a switch
Follow these steps to mount a switch into a 19-inch standard cabinet:
1) Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.
2) Take out the screws which are packed together with the front mounting ears, and fix one end of mounting ears to the switch, as shown in Figure 3-3.

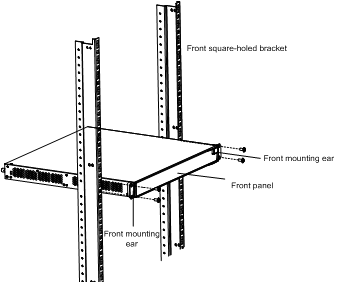

Figure 3-3 Fix front mounting ears (1)
3) Place the switch horizontally in a proper position, and fix the other end of mounting ears to the front brackets with screws and captive nuts, as shown in Figure 3-4.

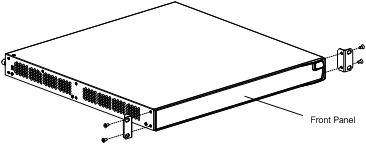

Figure 3-4 Fix front mounting ears (2)
III. Use front mounting ears and a tray
Follow these steps to install a switch into a 19-inch standard cabinet:
1) Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.
2) Fix the delivered tray horizontally in a proper position.
3) Take out the screws which are packed together with the front mounting ears, and fix one end of mounting ears to the switch, as shown in Figure 3-3.

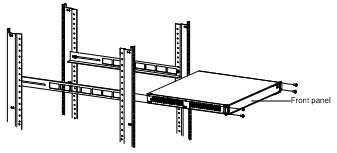

4) Place the switch on the tray horizontally, slide the tray into the cabinet, and fix the other end of mounting ears to the front brackets with crews and captive nuts, as shown in Figure 3-4.
IV. Use front and rear mounting ears
Follow these steps to install a switch into a 19-inch standard cabinet:
1) Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.
2) Take out the screws which are packed together with the front mounting ears, and fix one end of mounting ears to the switch, as shown in Figure 3-3.
3) Take out the load-bearing screws (packed together with the rear mounting ears) and place them in a proper position on the sides of the switch, as shown in Figure 3-5.

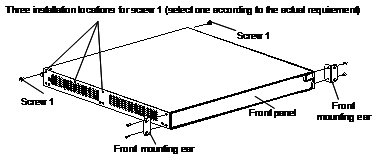

Figure 3-5 Fix front mounting ears and load-bearing screws
& Note:
There are three positions to mount a load-bearing screw on both sides of a switch. You should select a proper position according to the actual requirements. The rear mounting ears tightly contacted with the load-bearing screws can support the switch.
4) Select a position to install the switch and fix the rear mounting ears to the rear brackets with screws and captive nuts, as shown in Figure 3-6.

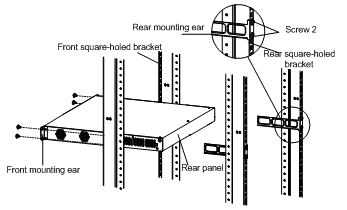

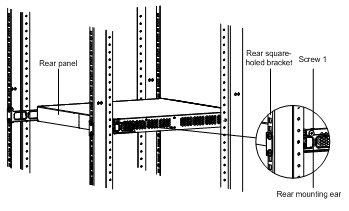

Figure 3-6 Fix rear mounting ears
5) Hold the bottom of the switch with one hand and the front part of the switch with the other hand, and push the switch into the cabinet gently, as shown in Figure 3-7.
Screw 1: Used to bear the weight |
Screw 2: Used to fix rear mounting ears to rear brackets |
Figure 3-7 Fix front and rear mounting ears
After the switch is pushed into the cabinet, ensure that the upper edge of rear mounting ears is tightly contacted with the load-bearing screw, as shown in Figure 3-8.
Screw 1: Load-bearing screw |

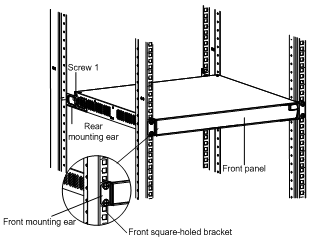

Figure 3-8 Effect diagram of front and rear mounting ear installation (1)
6) Fix the other end of the front mounting ears to the front brackets with screws and captive nuts and ensure that front and rear mounting ears have fixed the switch in the cabinet securely, as shown in Figure 3-9.
Screw 1: Load-bearing screw |
Figure 3-9 Effect diagram of front and rear mounting ear installation (2)
V. Use front mounting ears and guide rails
l Introduction to guide rail
Figure 3-10 shows the appearance of a guide rail.

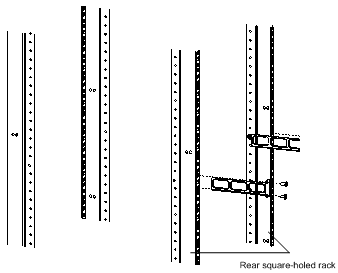

Slotted hole 1: Used to fix the guide rail to the rear bracket. You can adjust the screw hole position according to the position of the switch. |
Cooling hole: Used for heat dissipation between switch and cabinet |
Slotted hole 2: Used to fix the guide rail to the front bracket |
Figure 3-10 Appearance of a guide rail
& Note:
Guide rails purchased from H3C apply only to standard cabinets 1,000 mm (39.4 in) deep. Use other supports to substitute for guide rails in the case of other cabinet depths.
l Installation procedure
Follow these steps to install a switch into a 19-inch standard cabinet
1) Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.
2) Take out the screws packed together with the front mounting ears and fix one end of the front mounting ears to the switch, as shown in Figure 3-3.
3) Install guide rails on the brackets on both sides of the cabinet with M5 self-tapping screws. Figure 3-11 is for reference only.

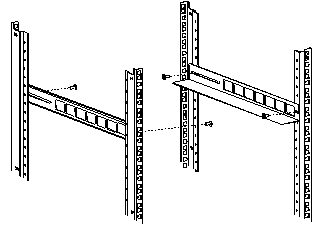

Figure 3-11 Install guide rails
4) Hold the two sides of the switch and slide it gently along the guide rails into the cabinet until it is located in a proper position, as shown in Figure 3-12. Ensure that the bottom side of the guide rails and the switch are in close contact.
Figure 3-12 Install front mounting ears and guide rails
5) Fix the other end of front mounting ears to the front brackets of the cabinet with M6 screws and captive nuts and ensure that the front mounting ears and guide rails have fixed the switch in the cabinet securely, as shown in Figure 3-13.
Figure 3-13 Effect diagram of front mounting ear and guide rail installation
& Note:
l No guide rails are delivered with the device.
l Ensure a clearance of 1U (44.45 mm, namely, 1.75 inches) between devices for the purpose of heat dissipation.
3.1.2 Desk Mounting
When a 19-inch standard cabinet is not available, you can simply place the switch on a clean desk. When doing so, you should ensure that:
l The desk is stable and well grounded.
l A clearance about 10 cm (3.9 in) is reserved around the switch for heat dissipation.
l No heavy object is placed on the switch.
l S3100-SI and S3100-TP-EI-W Series Ethernet Switches are designed with no fan. Therefore, you should install them in a drafty environment, and keep at least a vertical distance of 1.5 cm (0.6 in) between devices if you need to stack switches one upon another.
3.1.3 Wall Mounting
You can mount some models of S3100 Series Ethernet Switches on concrete walls or wood walls. Table 3-4 lists the models that support wall mounting.
Table 3-4 Models supporting wall mounting
Subseries |
Models supporting wall mounting |
Hole distance (mm) |
S3100-SI Ethernet switches |
S3100-8T-SI |
169 mm (6.65 in.) |
S3100-8C-SI |
||
S3100-TP-EI-W Ethernet switches |
S3100-8TP-EI-W |
170 mm (6.69 in.) |
S3100-16TP-EI-W |
||
S3100-TP-PWR-EI Ethernet switches |
S3100-8TP-PWR-EI |
170 mm (6.69 in.) |
S3100-16TP-PWR-EI |
I. Introduction to screw and anchor kit
Figure 3-14 and Figure 3-15 show the recommended sizes (in mm) of screws and anchor kits used for mounting:
(1) Outside edge of anchor kit |
II. Installation procedure
The wall-mounting procedure is as follows:

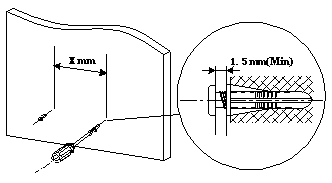

1) As shown in Figure 3-16, drill two holes 5 mm across in the wall on the same horizontal line, with a distance of X mm.
& Note:
l The distance X between holes varies with devices. For specific distances, see Table 3-4.
l Drill two holes according to the sizes of anchor kits and screws so that anchor kits could go into the holes, only the edges could remain outside the wall, and the screws could be fixed on the wall tightly.
2) Insert anchor kits into the holes and keep only the edges outside the wall.
3) Drive screws into the anchor kits, keeping the inside of screw head at least 1.5 mm (0.06 in) away from the edge of the anchor kit so that the switch could hang on the screws securely.
4) Align the two installation holes at the bottom of the switch with these two screws to hang the switch.
Caution:
When mounting the switch, keep the Ethernet ports of the switch facing downwards and the two sides with ventilation holes vertical to the ground.
3.1.4 Magnet Mounting
The following four models support magnet mounting:
l S3100-8TP-EI-W
l S3100-8TP-PWR-EI
l S3100-16TP-EI-W
l S3100-16TP-PWR-EI
I. Introduction to magnetic accessories
A set of magnetic mounting accessories consists of one permanent magnets and one M3*6 countersunk head screws, as shown in Figure 3-17. Four sets of magnetic mounting accessories are needed for each S3100 switch.
(1) Permanent magnet |
(2) M3*6 countersunk head screw |
Figure 3-17 Magnets and countersunk head screws
II. Installation procedure
Follow these steps to complete magnet mounting:
1) As shown in Figure 3-18, use a Phillips screwdriver to pass the countersunk head screw through the round hole at the center of the permanent magnet, fasten it to a blind nut in the dent of the switch bottom, and ensure that the permanent magnet and the switch are fastened reliably.
& Note:
l Remove the cushion, if any, from the dent before installation.
l To ensure the firmness of installation, be sure to use four permanent magnets to secure each S3100 switch.
2) Attach the magnet-mounted device to the specified location. Take care not to get your fingers stuck between because the magnetism is very huge.
(1) Blind nut in the dent of the switch bottom |
|
(2) Permanent magnet |
(3) M3*6 countersunk head screw |
Caution:
l Apply magnet mounting to only the above four models. Otherwise, a falloff or mis-operation may occur.
l Select the installation location carefully. In the case of poor surface, magnet mounting may not be reliable.
l Put the device at a stable place free from vibrations or shocks. Otherwise, personal injuries or equipment damage may occur.
l Avoid installing the device at a high place because personal injuries or equipment damage may occur in case of a falloff.
l Avoid frequently moving the desk-mounted device because such movements may damage the surface coating.
l Keep the front panel of the device facing downwards and the two sides with ventilation holes vertical to the ground, if you want to install the device vertically.
l Pay attention that the weight of external cables should not bring about a falloff, which may result in personal injuries or equipment damage.
l Keep floppy disks and magnetic cards away from magnets to avoid erasure of any information.
l Keep computers and monitors that are easily influenced by magnetic fields away from magnets. Otherwise, faults may occur to these electronic devices.
3.2 Installing an Expansion Interface Module
I. Installation procedure
Step 1: Put on an ESD-preventive wrist strap and make sure that the ESD-preventive wrist strap is properly grounded. Then take the expansion interface module out of the package.
Step 2: Unscrew the mounting screws on the filler panel installed on the expansion module slot of the switch, and then remove the filler panel.
Step 3: Slide in the expansion interface module along the guide rails until the module is fully inserted into the switch.
Step 4: Use a screwdriver to fasten the fastening screws on both sides of the expansion interface module.
II. Removal procedure
Step 1: Put on an ESD-preventive wrist strap and ensure that the ESD-preventive wrist strap is properly grounded.
Step 2: Loosen the fastening screws on both sides of the expansion interface module using a screwdriver.
Step 3: Draw back the expansion interface module until the module is fully separated from the switch.
Caution:
l Do not apply excessive force to install/remove an expansion interface module, and do not touch the surface-mounted components directly with your hands.
l After removing an expansion interface module, if no new module is to be installed, install the filler panel in time to prevent dust and ensure normal ventilation in the switch.
3.3 Connection of Power Cord and Grounding Cable
3.3.1 Connecting AC Power Cord
I. AC power socket (recommended)
You are recommended to use a mono-phase three-core power socket with a neutral point or a multi-function power socket for computers. The neutral point of the power in your building must be well grounded. Normally, the neutral point of the power supply system in your building has already been grounded during the construction and wiring; but you should make sure this is the fact.
Figure 3-19 Recommended AC power socket
II. Connecting AC power cord
1) Connect one end of the chassis grounding cable (coming with the switch) to the grounding screw on the rear of the chassis and the other end to the ground nearby.
2) Connect one end of the power cord to the power socket on the rear panel of the chassis and the other end to an outside AC power socket.
3) Install the power cord retainer for the AC power cord on S3100-TP-PWR-EI series Ethernet Switches. Insert the two ends of the power cord retainer into the slots at both sides of the AC power input, and then set the power cord into the notch of the power cord retainer, as shown in Figure 3-20.

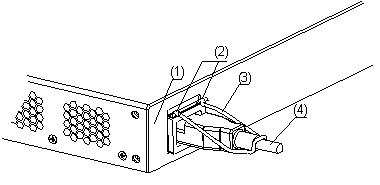

(1): Rear panel |
(2): Power cord retainer holder |
(3): Power cord retainer |
(4): Power cord |
Figure 3-20 Install the power cord retainer
& Note:
l Currently, only the S3100-TP-PWR-EI series Ethernet Switches are equipped with an AC power cord retainer to prevent the power cord from accidentally falling off.
l The location of the power cord retainer holder varies with S3100-TP-PWR-EI series Ethernet Switches.
4) Check whether the PWR LED on the front panel of the switch is ON. If the LED is ON, it shows the power cord is properly connected.
Caution:
Before powering on the switch, you should properly connect the grounding cable.
3.3.2 Connecting DC Power Cable
I. DC power cable connection for S3100-C-SI DC-powered Ethernet switch
(1) Screw 1 |
(2) Screw 2 |
(3) RTN (+) terminal |
(4) NEG(-) terminal (–48 V to –60 V) |
(5) Grounding screw |
|
Figure 3-21 DC input terminal block of S3100-C-SI DC-powered Ethernet switch
& Note:
The location of the DC input terminal block varies with devices.
1) Connect one end of the grounding cable (delivered with the switch) to the grounding screw and the other end to the ground nearby.
2) Use a flat-blade screwdriver to loosen the two screws on the DC input terminal blocks. Connect the power ground return cable to the RTN(+) terminal and the power output cable to the NEG(-) terminal. Tighten the two screws respectively to fix the power cables.
3) Check whether the PWR LED on the front panel of the switch is ON. If yes, the power is properly connected.
Caution:
l Before powering on the switch, you should properly connect the grounding cable.
l The DC power cable should be less than 3 meters long.
II. DC power cable connection for S3100-26TP-PWR-EI Ethernet switch
+: Working ground |
|
–: Voltage input (–52 VDC to –56 VDC) |
NULL: Reserved |
Figure 3-22 RPS DC power socket for S3100-26TP-PWR-EI Ethernet switch
1) Connect one end of the grounding cable (delivered with the switch) to the grounding screw and the other end to the ground nearby.
2) Assemble the DC power connector as follows:
Figure 3-23 RPS DC power connector
l As shown in Figure 3-23, pass the two power cables through the air filter, insert them into the corresponding holes, and tighten them with screw 1 and screw 2. The positive and negative poles of the power cables must correspond to the silkscreen above the holes.
l Use a flat-blade screwdriver to fix the air filter on the connector with screw 3 and screw 4, as shown in Figure 3-23.
l Use cable ties to bind the two power cables to the protruding part at the back of the air filter, as shown in Figure 3-23.
Figure 3-24 Fix the RPS DC power connector to the chassis
3) Insert the connector into the DC socket directly. Use the flat-blade screwdriver to fix the connector with screw 1 and screw 2 (delivered with the switch), as shown in Figure 3-24.
& Note:
The location of the DC power socket varies with devices.
4) Check whether the PWR LED on the front panel of the switch is ON. If yes, the power is properly connected.
Caution:
l Before powering on the switch, you must properly connect the grounding cable.
l The DC power cable should be less than 3 meters long.
l Only the recommended RPS can be used for S3100-26TP-PWR-EI Ethernet switches. The –48 VDC from the equipment in cannot be used directly. Otherwise, the device may be damaged.
III. 12V-RPS DC power cable connection for S3100-26TP-EI-W AC-powered Ethernet switch
Pin Number |
Designation |
Pin Number |
Designation |
1 |
GND |
8 |
GND |
2 |
— |
9 |
— |
3 |
12V |
10 |
RPS_pres |
4 |
12V |
11 |
— |
5 |
12V |
12 |
— |
6 |
12V |
13 |
Control Pin |
7 |
GND |
14 |
GND |
Figure 3-25 12V-RPS DC power socket
1) Connect one end of the grounding cable (delivered with the switch) to the grounding screw and the other end to the ground nearby.
2) Connect the 12V-RPS DC power supply as follows:
l As shown in Figure 3-26, loosen the fastening screws and remove the air filter from the 12V-RPS DC power socket. (In the case of no 12V-RPS DC power supply, re-install the air filter.)

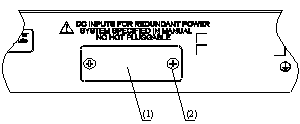

(1) Air filter |
(2) Fastening screw |
Figure 3-26 12V-RPS power socket for an S3100-26TP-EI-W AC-powered Ethernet switch
l Connect one connector (in A direction) of the 12V-RPS DC power cable (Figure 3-27 shows a recommended 12V-RPS DC power cable) to the RPS DC power socket of the switch, and the other connector (in B direction) to the corresponding 12 V power output socket of the RPS power module.
Figure 3-27 12V-RPS DC power cable
l Connect one end of the delivered AC power cable to the power socket of the RPS power module and the other end to the socket of an external AC power supply.
3) Check whether the PWR LED on the front panel of the switch is ON. If yes, the power is properly connected.
Caution:
l Before powering on the switch, you should properly connect the grounding cable.
l The DC power cable should be less than 3 meters long.
l Only the recommended 12V-RPS DC power supply and power cables can be used.
3.3.3 Connecting Grounding Cable
Caution:
You should properly connect the switch grounding cable since it is crucial to the lightning protection and electromagnetic shield (EMS) of your switch.
Ground your switch as follows:
l When a grounding strip is available at the installation site, attach one end of the yellow-green grounding cable of the switch to the grounding screw on the grounding strip and fasten the captive nut. (Note that the fire main and lightning rod of your building are not suitable for grounding the switch. The grounding cable of the switch should be connected to the construction engineering ground of the equipment room.)
(2) Grounding screw |
|
(3) Grounding cable |
(4) Grounding strip |
Figure 3-28 Grounding the switch through a grounding strip
l When there is no grounding strip but there is cement floor nearby where a grounding body is allowed to be buried, hammer an angle steel/steel pipe no shorter than 0.5 m (19.7 in.) into the earth, with the yellow-green grounding cable of the switch welded onto the angle steel/steel pipe and the jointing point being processed against erosion.
(2) Grounding screw |
|
(3) Grounding cable |
(4) Earth |
(5) Angle steel |
|
Figure 3-29 Grounding the switch by burying the grounding body into the earth

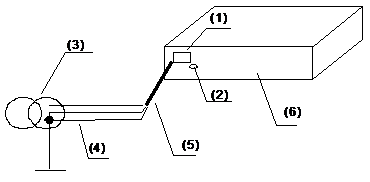

l For an AC-powered switch, if none of the above two conditions is available, ground it through the PE cable of the AC power supply. In this case, make sure this PE cable is well connected to the ground at the power distribution room or AC transformer.
(1) AC power input |
(2) Grounding screw |
(3) Power transformer |
(4) PE cable |
(5) 3-core cable for AC power input |
(6) Ethernet switch |
Figure 3-30 Grounding the switch through AC PE cable

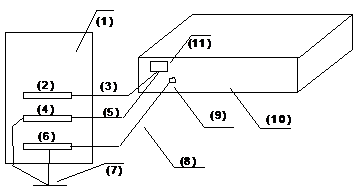

l For a DC-powered switch (–48 VDC), if none of the first two conditions is available, ground it through the return cable (RTN) of the DC power supply. In this case, make sure this RTN cable is well connected to the ground at the DC output of the DC power cabinet.
(2) –48V strip |
(3) –48V |
|
(4) RTN strip |
(5) RTN |
(6) PGND strip |
(7) Grounding to the earth |
(8) Grounding cable |
(9) screw |
(10) Ethernet switch |
(11) DC power input |
|
Figure 3-31 Grounding the switch through the PGND of the power cabinet
3.4 Connecting Optical Fiber
Caution:
l After a switch starts, the optical port may emit invisible radial when there is no optical connector connected to it and the protective cap is removed from it. Therefore, do not stare into the optical interface.
l Be sure to cover the protective cap within 10 seconds if an optical connector is not in use to keep the optical connector clean.
l Be sure to cover the protective cap if an optical port has no optical connector attached.
l Place the protective caps in a safe place when an optical port has fiber connected to prepare for the cases the fiber is pulled out.
& Note:
The following section describes the procedures to connect optical fiber to an ONU card. The procedures also apply to other subcards.
Step 1: Remove the protective cap from the optical connector of the fiber.
Step 2: Remove the protective cap from the PON interface of the ONU card.
Step 3: Plug the optical connector into the PON interface of the ONU subcard.
3.5 Connection of Console Cable
3.5.1 Console Cable
The console cable is an 8-core shielded cable. At one end of the cable is a crimped RJ45 connector to be connected to the console port of the switch; at the other end of the cable is a DB-9 (female) connector to be connected to the 9-core (pin) serial port on the console terminal. See the following figure.
Table 3-5 Console cable connector pinouts and mapping relation
RJ-45 |
Signal |
Direction |
DB-9 |
1 |
RTS |
← |
7 |
2 |
DTR |
← |
4 |
3 |
TXD |
← |
3 |
4 |
CD |
→ |
1 |
5 |
GND |
— |
5 |
6 |
RXD |
→ |
2 |
7 |
DSR |
→ |
6 |
8 |
CTS |
→ |
8 |
3.5.2 Connecting Console Cable
Follow these steps to connect a terminal device, a PC for example, to the switch:
Step 1: Connect the DB-9 female connector of the console cable to the serial port of the PC or the terminal device used to configure the switch.
Step 2: Connect the RJ-45 connector of the console cable to the console port of the switch.
Identify the label of the port before connecting a connector.
& Note:
When connecting a PC to a powered-on switch, you are recommended to connect the DB-9 connector of the console cable to the PC before connecting the RJ45 connector to the switch. When disconnecting a PC from a powered-on switch, you are recommended to disconnect the DB-9 connector of the console cable from the PC after disconnecting the RJ45 connector from the switch.
3.6 Installation Verification
After completing the installation, check that:
l The correct power is used.
l The grounding cable is connected.
l Both console cable and power cord are properly connected.
l All the interface cables are wired indoors. If there is any cable wired outdoors, verify that socket strip with lightning protection and lightning arresters for network ports have been properly connected.
Chapter 4 Lightning Protection of the Switch
4.1 Installation of Lightning Arrester for AC Power (Socket Strip with Lightning Protection)
Caution:
Lightning arrester will not be shipped with the switch. You should purchase it by yourself if needed.
If an outdoor AC power cord should be directly led to the switch, please serially connect the lightning arrester for AC power (Socket Strip with Lightning Protection) before you plug AC power cord into the switch, thus to prevent the possible damage to the switch due to lightning strike. You can use cable clips and screws to fasten the lightning arrester for AC power on the cabinet, workbench or the wall of equipment room.
Figure 4-1 Diagram of lightning arrester
Caution:
l Make sure that the arrester is well grounded before using the lightning arrester for power.
l After inserting AC power cord plug of switch into the socket of lightning arrester, if the green LED is on and the red LED does not alarm, it means that the lightning arrester of power is running and the function of lightning protection has taken effect.
l Pay adequate attention if the red LED is on. You should correctly locate the problem, whether it is caused because the ground cable of the arrester is not well grounded or because the live and zero cables are connected in reverse direction. You may check that in the following way. When the red LED is on, use a multimeter to examine polarity at the power socket of the arrester. If it is same to that of the power socket in the equipment room, it means that arrester is not well grounded. If it is adverse to that of the power socket in the equipment room, it means that the power socket of the arrester is set to the reverse polarity. In this case, you should open the power socket of arrester to correct polarity. After that, if the red LED still alarms, it means that the arrester is not well grounded yet.
4.2 Installation of Lightning Arrester for Network Port
& Note:
Lightning arrester for network port is specially designed for the Ethernet port of 10/100M electrical interface (RJ-45 connector is adopted in this case).
Caution:
Lightning arrester for network port will not be provided along with the switch, and you should purchase it by yourself if needed.
If an outdoor network cable should be led to the switch, please serially connect the lightning arrester for network port before you plug this cable into the interface on the switch, in case of the possibility that the switch may be damaged due to lightning strike.
I. Required tools
l Phillips screwdriver or Flat-blade screwdriver
l Multimeter
l Tilted cable cutter
II. Installation procedure
Step 1: Tear the protection paper at one side of the double faced adhesive tape apart from the tape, and stick the tape on the surface of the arrester. Tear the protection paper at another side apart from the tape, and stick the arrester onto the chassis of the switch. The arrester should be attached on the chassis as close to the grounding screw as possible.
Step 2: According to the distance to the grounding screw of the switch, cut the ground cable of the arrester, and securely tightening its ground cable to the grounding screw of the switch.
Step 3: Use the multimeter to measure whether the ground cable of the arrester contacts well with the grounding screw of chassis.
Step 4: According to the instruction of arrester for network port, connect the arrester with switch by the cables (be carefully with the cable direction. Outdoor network cable should be inserted into the arrester‘s IN end, and the cable connected to the switch should be inserted into the arrester’s OUT end). When you do that, observe whether the arrester indicators normally display.
& Note:
The instruction of lightning arrester for network port contains the technical specifications, installation and maintenance guide of the arrester. Please carefully read it before installing the arrester.
Step 5: Use the nylon ties to bundle the cables neatly.
Figure 4-2 Installation diagram of lightning arrester for network port
III. Installation precautions
Fully consider the following items in the installation process, otherwise, the performance of the lightning arrester for network port will be affected:
l Lightning arrester for network port is installed in reverse direction. In practice, the “IN” end should be connected to the outdoor network cable and the “OUT” end to the network port on the switch.
l Lightning arrester for the network port is not well grounded. The ground cable for the arrester should be as short as possible, so to ensure its good contact with the grounding screw of the switch. After the connection, use the multimeter to confirm that.
l The lightning arrester for the network port is not installed completely. If the switch has more than one network ports to interconnect with other devices via cables outdoor, you should install lightning arresters for all these network ports for protection.
