2 FRUs and compatibility matrixes
For compatibility between the cards and the software release, see the release notes.
For compatibility between the cards and transceiver modules, see the cards and transceiver modules compatibility matrixes for the device.
|
NOTE: This document uses the identifier printed on a card or subcard as its model name. |
IMPORTANT: All cards are hot swappable except for the MIC-SM network data encryption interface card. |
MPUs
You can install one MPU, or two MPUs for redundancy for the router. To install two MPUs for the router, make sure they are the same model.
CSR05SRP1P1
View
Figure2-1 CSR05SRP1P1 view
(1) USB console port |
(2) USB 2.0 port |
(3) 10/100/1000BASE-T management Ethernet ports (port 1 reserved for future use) |
(4) Console port |
(5) System reset button |
(6) MPU active/standby LED. For the LED description, see Table2-1. |
(7) Card status LEDs. For the LED description, see Table2-2. |
(8) Power supply status LEDs. For the LED description, see Table2-3. |
(9) Fan tray status LEDs. For the LED description, see Table2-4. |
(10) Management Ethernet port LED. For the LED description, see Table2-5. |
LEDs
Table2-1 MPU active/standby LED description
LED mark |
Status |
Description |
ACTIVE |
Steady green |
The MPU is in active state. |
Off |
· The MPU is in standby state. · The MPU is faulty. To further determine the MPU status, see the card status LED description for the MPU. |
Table2-2 Card status LED description
LED status |
Description |
|
RUN (green) |
ALM (red) |
|
Flashing green (once every 2 seconds) |
Off |
The card in the corresponding slot is operating correctly. |
Fast flashing green (once every 4 seconds) |
Steady on |
The card in the corresponding slot is loading software. If the card keeps in this state, the software version of the card is not compatible with that of the device. |
Flashing green (once every 2 seconds) |
Flashing red (once every 4 seconds) |
The temperature of the card in the corresponding slot is abnormal. The temperature has exceeded the upper warning temperature threshold or dropped below the lower temperature threshold. |
Steady on |
Steady on |
The card in the corresponding slot is starting or faulty. |
Off |
Off |
No card is available in the corresponding slot. |
|
NOTE: The ALM LED being on for a while at the system startup does not mean that the card is faulty. |
Table2-3 Power supply status LED description
LED status |
Description |
|
OK (green) |
FAIL (red) |
|
Steady on |
Off |
All power supplies in the chassis are operating correctly. |
Off |
Steady on |
A minimum of one power supply in the chassis does not have power output. Possible reasons include: · The power supply is faulty. · The power switch for the power supply has not been turned on. · Power cord connection failure. · Power outage of the external power supply system. |
Off |
Off |
· No power supplies are present in the chassis. · No power supply in the chassis has power output. Possible reasons include: ¡ The power supplies are faulty. ¡ The power switches for the power supplies have not been turned on. ¡ Power cord connection failure. ¡ Power outage of the external power supply system. |
Table2-4 Fan tray status LED description
LED status |
Description |
|
OK (green) |
FAIL (red) |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
One or multiple fans in the fan tray are faulty or the fan tray is installed incorrectly. |
Off |
Off |
The router is not powered on. |
Table2-5 Management Ethernet port LED description
LED mark |
Status |
Description |
LINK/ACT |
Flashing green |
The port is in sending or receiving data. |
Steady green |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Console port
The console port can be connected to a computer for system debugging, configuration, maintenance, management, and host software loading.
Table2-6 Console port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
Asynchronous EIA/TIA-232 |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
Common asynchronous serial interface cable, with a maximum transmission distance of 15 m (49.21 ft) |
Services |
Connects to the serial port on a local PC running a terminal emulation program. |
Table2-7 USB console port specifications
Item |
Description |
Connector type |
USB-AB |
Compliant standard |
USB 2.0, full speed |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
USB-AB cable, with a maximum transmission distance of 2 m (6.56 ft) |
Services |
Connects to the USB port on a local PC running a terminal emulation program to provide a command-line interface for the router. A generic USB to serial port driver is required on the PC. Connects routers to PCs or similar terminals that do not have a serial port. |
Management Ethernet port
Connects to a computer for router program loading and router debugging, or connects to a remote NMS for remote management.
Table2-8 Management Ethernet port specifications
Item |
Description |
Connector type |
RJ-45 |
Port quantity |
2 (port 1 reserved for future use) |
Transmission baud rate |
10/100/1000 Mbps |
Transmission medium and max transmission distance |
Category-5 or above twisted pair cable, with a transmission distance of 100 m (328.08 ft) |
Services |
For router software upgrade and network management |
USB port
USB ports can connect multiple types of devices and provide a higher data transfer rate than common parallel interfaces and serial interfaces.
Table2-9 USB port specifications
Item |
Description |
Connector type |
USB A |
Compliant standard |
USB 2.0 |
Services |
External storage media |
|
NOTE: The USB port does not support an extension cable. |
Technical specifications
Table2-10 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.2 × 399 × 352 mm (2.06 × 15.71 × 13.86 in) |
Weight |
4.30 kg (9.48 lb) |
Maximum power consumption |
64 W |
Typical power consumption |
60 W |
Minimum power consumption |
58 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SDRAM |
8 GB |
CSR05SRP1P3-G
View

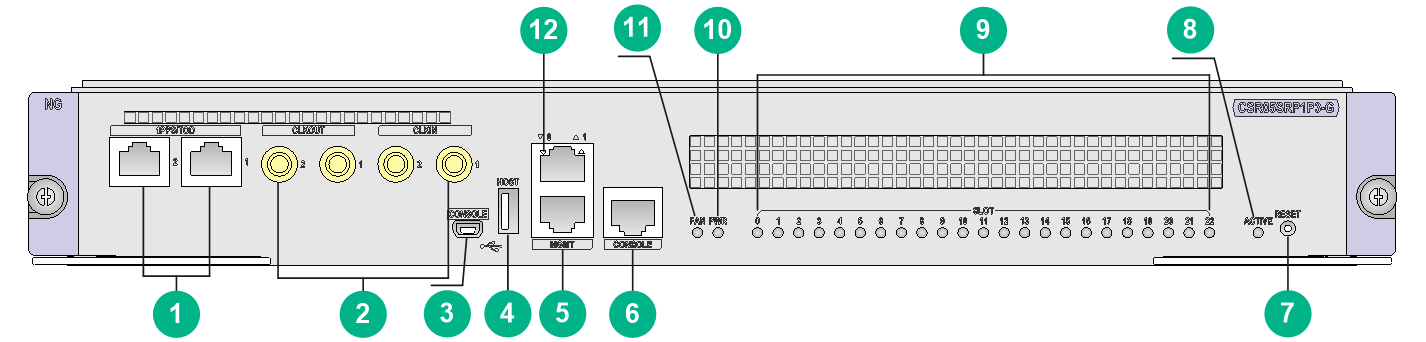

Figure2-2 CSR05SRP1P3-G view
(1) High-precision time synchronization ports (Both are input ports by default. When both ports are input ports, only port 1 is valid.) |
(2) SMB coaxial clock ports (2 input ports and 2 output ports) |
(3) USB console port |
(4) USB 2.0 port |
(5) 1000BASE-T management Ethernet ports |
(6) Console port |
(7) System reset button |
(8) MPU active/standby LED. For the LED description, see Table2-11. |
(9) Card status LEDs. For the LED description, see Table2-12. |
(10) Power supply status LED. For the LED description, see Table2-13. |
(11) Fan tray status LED. For the LED description, see Table2-14. |
(12) Management Ethernet port LED. For the LED description, see Table2-15. |
LEDs
Table2-11 MPU active/standby LED description
LED mark |
Status |
Description |
ACTIVE |
Steady green |
The MPU is in active state. |
Off |
· The MPU is in standby state. · The MPU is faulty. To further determine the MPU status, see the card status LED description for the MPU. |
Table2-12 Card status LED description
Status (RUN/ALM) |
Description |
Flashing green |
The card in the corresponding slot is operating correctly. |
Flashing green (4 Hz) |
The card in the corresponding slot is loading software. If the card keeps in this state, the software version of the card is not compatible with that of the device. |
Steady red |
The card in the corresponding slot is starting or faulty. |
Flashing red |
The temperature of the card in the corresponding slot is abnormal. The temperature has exceeded the upper warning temperature threshold or dropped below the lower temperature threshold. |
Off |
No card is available in the corresponding slot. |
Table2-13 Power supply status LED description
LED mark |
Status |
Description |
PWR (red or green) |
Green |
All power supplies in the chassis are operating correctly. |
Steady red |
A minimum of one power supply in the chassis does not have power output. Possible reasons include: · The power supply is faulty. · The power switch for the power supply has not been turned on. · Power cord connection failure. · Power outage of the external power supply system. |
|
Off |
· No power supplies are present in the chassis. · No power supply in the chassis has power output. Possible reasons include: ¡ The power supplies are faulty. ¡ The power switches for the power supplies have not been turned on. ¡ Power cord connection failure. ¡ Power outage of the external power supply system. |
Table2-14 Fan tray status LED description
LED mark |
Status |
Description |
FAN |
Steady green |
The fan tray is operating correctly. |
Steady red |
One or multiple fans in the fan tray are faulty or the fan tray is installed incorrectly. |
|
Off |
The router is not powered on. |
Table2-15 Management Ethernet port LED description
LED mark |
Status |
Description |
LINK/ACT |
Flashing green |
The port is in sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Console port
The console port can be connected to a computer for system debugging, configuration, maintenance, management, and host software loading.
Table2-16 Console port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
Asynchronous EIA/TIA-232 |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
Common asynchronous serial interface cable, with a maximum transmission distance of 15 m (49.21 ft) |
Services |
Connects to the serial port on a local PC running a terminal emulation program. |
Table2-17 USB console port specifications
Item |
Description |
Connector type |
USB-AB |
Compliant standard |
USB 2.0, full speed |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
USB-AB cable, with a maximum transmission distance of 2 m (6.56 ft) |
Services |
Connects to the USB port on a local PC running a terminal emulation program to provide a command-line interface for the router. A generic USB to serial port driver is required on the PC. Connects routers to PCs or similar terminals that do not have a serial port. |
Management Ethernet port
Connects to a computer for router program loading and router debugging, or connects to a remote NMS for remote management.
Table2-18 Management Ethernet port specifications
Item |
Description |
Connector type |
RJ-45 |
Port quantity |
2 |
Transmission baud rate |
1000 Mbps, full duplex |
Transmission medium and max transmission distance |
Category-5 or above twisted pair cable, with a transmission distance of 100 m (328.08 ft) |
Services |
For router software upgrade and network management |
USB port
USB ports can connect multiple types of devices and provide a higher data transfer rate than common parallel interfaces and serial interfaces.
Table2-19 USB port specifications
Item |
Description |
Connector type |
USB A |
Compliant standard |
USB 2.0 |
Services |
External storage media |
|
NOTE: The USB port does not support an extension cable. |
SMB coaxial clock input/output port
SMB coaxial clock ports provide input or output clock references at 2.048 Mbps (2.048 MHz). You can set the data rate mode or frequency mode through CLI. Two of them are input ports and two are output ports.
Table2-20 SMB coaxial clock input/output port specifications
Item |
Description |
Connector type |
SMB coaxial |
Compliant standard |
GJB681 |
Transmission baud rate |
2.048 Mbps |
Transmission medium |
75 ohm coaxial cable |
Services |
Sends and receives 2.048 MHz clocks and 2.048 Mbps signals to synchronize the clocks of the router and other devices, such as routers and the terminals. |
Table2-21 High-precision time synchronization port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
QB-B-016-2010 |
Transmission baud rate |
9600 bps |
Transmission medium |
Category-5 or above twisted pair cable |
Services |
You can configure the port as an input port or output port at the CLI. Synchronizes the clocks of the router and other devices, such as GPS receivers and terminals. |
Technical specifications
Table2-22 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.2 × 399 × 352 mm (2.06 × 15.71 × 13.86 in) |
Weight |
4.50 kg (9.92 lb) |
Maximum power consumption |
65 W |
Typical power consumption |
50 W |
Minimum power consumption |
40 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SDRAM |
16 GB |
CSR05SRP1R3
View
Figure2-3 CSR05SRP1R3 view
(1) High-precision time synchronization ports (Both are input ports by default. When both ports are input ports, only port 1 is valid.) |
(2) SMB coaxial clock ports (2 input ports and 2 output ports) |
(3) USB console port |
(4) USB 2.0 port |
(5) 1000BASE-T Management Ethernet ports (port 1 reserved for future use) |
(6) Console port |
(7) System reset button |
(8) MPU active/standby LED. For the LED description, see Table2-23. |
(9) Card status LEDs. For the LED description, see Table2-24. |
(10) Power supply status LEDs. For the LED description, see Table2-25. |
(11) Fan tray status LEDs. For the LED description, see Table2-26. |
(12) Management Ethernet port LED. For the LED description, see Table2-27. |
LEDs
Table2-23 MPU active/standby LED description
LED mark |
Status |
Description |
ACTIVE |
Steady green |
The MPU is in active state. |
Off |
· The MPU is in standby state. · The MPU is faulty. To further determine the MPU status, see the card status LED description for the MPU. |
Table2-24 Card status LED description
LED status |
Description |
|
RUN (green) |
ALM (red) |
|
Flashing green (once every 2 seconds) |
Off |
The card in the corresponding slot is operating correctly. |
Fast flashing green (once every 4 seconds) |
Steady on |
The card in the corresponding slot is loading software. If the card keeps in this state, the software version of the card is not compatible with that of the device. |
Flashing green (once every 2 seconds) |
Flashing red (once every 4 seconds) |
The temperature of the card in the corresponding slot is abnormal. The temperature has exceeded the upper warning temperature threshold or dropped below the lower temperature threshold. |
Steady on |
Steady on |
The card in the corresponding slot is starting or faulty. |
Off |
Off |
No card is available in the corresponding slot. |
|
NOTE: The ALM LED being on for a while at the system startup does not mean that the card is faulty. |
Table2-25 Power supply status LED description
LED status |
Description |
|
OK (green) |
FAIL (red) |
|
Steady on |
Off |
All power supplies in the chassis are operating correctly. |
Off |
Steady on |
A minimum of one power supply in the chassis does not have power output. Possible reasons include: · The power supply is faulty. · The power switch for the power supply has not been turned on. · Power cord connection failure. · Power outage of the external power supply system. |
Off |
Off |
· No power supplies are present in the chassis. · No power supply in the chassis has power output. Possible reasons include: ¡ The power supplies are faulty. ¡ The power switches for the power supplies have not been turned on. ¡ Power cord connection failure. ¡ Power outage of the external power supply system. |
Table2-26 Fan tray status LED description
LED status |
Description |
|
OK (green) |
FAIL (red) |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
One or multiple fans in the fan tray are faulty or the fan tray is installed incorrectly. |
Off |
Off |
The router is not powered on. |
Table2-27 Management Ethernet port LED description
LED mark |
LED |
Description |
LINK/ACT |
Flashing green |
The port is in sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Console port
The console port can be connected to a computer for system debugging, configuration, maintenance, management, and host software loading.
Table2-28 Console port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
Asynchronous EIA/TIA-232 |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
Common asynchronous serial interface cable, with a maximum transmission distance of 15 m (49.21 ft) |
Services |
Connects to the serial port on a local PC running a terminal emulation program. |
Table2-29 USB console port specifications
Item |
Description |
Connector type |
USB-AB |
Compliant standard |
USB 2.0, full speed |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
USB-AB cable, with a maximum transmission distance of 2 m (6.56 ft) |
Services |
Connects to the USB port on a local PC running a terminal emulation program to provide a command-line interface for the router. A generic USB to serial port driver is required on the PC. Connects routers to PCs or similar terminals that do not have a serial port. |
Management Ethernet port
Connects to a computer for router program loading and router debugging, or connects to a remote NMS for remote management.
Table2-30 Management Ethernet port specifications
Item |
Description |
Connector type |
RJ-45 |
Port quantity |
2 (port 1 reserved for future use) |
Transmission baud rate |
1000 Mbps, full duplex |
Transmission medium and max transmission distance |
Category-5 or above twisted pair cable, with a transmission distance of 100 m (328.08 ft) |
Services |
For router software upgrade and network management |
USB port
USB ports can connect multiple types of devices and provide a higher data transfer rate than common parallel interfaces and serial interfaces.
Table2-31 USB port specifications
Item |
Description |
Connector type |
USB A |
Compliant standard |
USB 2.0 |
Services |
External storage media |
|
NOTE: The USB port does not support an extension cable. |
SMB coaxial clock input/output port
SMB coaxial clock ports provide input or output clock references at 2.048 Mbps (2.048 MHz). You can set the data rate mode or frequency mode through CLI. Two of them are input ports and two are output ports.
Table2-32 SMB coaxial clock input/output port specifications
Item |
Description |
Connector type |
SMB coaxial |
Compliant standard |
GJB681 |
Transmission baud rate |
2.048 Mbps |
Transmission medium |
75 ohm coaxial cable |
Services |
Sends and receives 2.048 MHz clocks and 2.048 Mbps signals to synchronize the clocks of the router and other devices, such as routers and the terminals. |
Table2-33 High-precision time synchronization port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
QB-B-016-2010 |
Transmission baud rate |
9600 bps |
Transmission medium |
Category-5 or above twisted pair cable |
Services |
You can configure the port as an input port or output port at the CLI. Synchronizes the clocks of the router and other devices, such as GPS receivers and terminals. |
Technical specifications
Table2-34 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.2 × 399 × 352 mm (2.06 × 15.71 × 13.86 in) |
Weight |
4.90 kg (10.80 lb) |
Maximum power consumption |
130 W |
Typical power consumption |
95 W |
Minimum power consumption |
89 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SDRAM |
2 × 16 GB |
CSR05SRP1R3-G
View
Figure2-4 CSR05SRP1R3-G view
(1) High-precision time synchronization ports (Both are input ports by default. When both ports are input ports, only port 1 is valid.) |
(2) SMB coaxial clock output ports (2 in total) |
(3) SMB coaxial clock input ports (2 in total) |
(4) USB 2.0 port |
(5) 1000BASE-T management Ethernet ports |
(6) Console port |
(7) System reset button |
(8) MPU active/standby LED. For the LED description, see Table2-35. |
(9) Card status LEDs. For the LED description, see Table2-36. |
(10) Power supply status LED. For the LED description, see Table2-37. |
(11) Fan tray status LED. For the LED description, see Table2-38. |
(12) Management Ethernet port LED. For the LED description, see Table2-39. |
LEDs
Table2-35 MPU active/standby LED description
LED mark |
Status |
Description |
ACTIVE |
Steady green |
The MPU is in active state. |
Off |
· The MPU is in standby state. · The MPU is faulty. To further determine the MPU status, see the card status LED description for the MPU. |
Table2-36 Card status LED description
LED mark |
Status |
Description |
RUN/ALM |
Flashing green |
The card in the corresponding slot is operating correctly. |
Fast flashing green (4 Hz) |
The card in the corresponding slot is loading software. If the card keeps in this state, the current software version of the device is not running the software version compatible with the card. |
|
Steady red |
The card in the corresponding slot is starting or faulty. |
|
Flashing red |
The temperature of the card in the corresponding slot is abnormal. The temperature has exceeded the upper warning temperature threshold or dropped below the lower temperature threshold. |
|
Off |
No card is available in the corresponding slot. |
Table2-37 Power supply status LED description
Power supply status LED |
Status |
Description |
PWR (red or green) |
Steady green |
All power supplies in the chassis are operating correctly. |
Steady red |
A minimum of one power supply in the chassis does not have power output. Possible reasons include: · The power supply is faulty. · The power switch for the power supply has not been turned on. · Power cord connection failure. Power outage of the external power supply system. |
|
Off |
· No power supplies are present in the chassis. · No power supply in the chassis has power output. Possible reasons include: ¡ The power supplies are faulty. ¡ The power switches for the power supplies have not been turned on. ¡ Power cord connection failure. ¡ Power outage of the external power supply system. |
Table2-38 Fan tray status LED description
Fan tray status LED |
Status |
Description |
FAN (Red or green) |
Steady green |
The fan tray is operating correctly. |
Steady red |
One or more fans in the fan tray have failed or the fan tray is installed incorrectly. |
|
Off |
The router is not powered on. |
Table2-39 Management Ethernet port LED description
LED mark |
Status |
Description |
LINK/ACT |
Flashing green |
The port is in sending or receiving data. |
Steady green |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Console port
The console port can be connected to a computer for system debugging, configuration, maintenance, management, and host software loading.
Table2-40 Console port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
Asynchronous EIA/TIA-232 |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
Common asynchronous serial interface cable, with a maximum transmission distance of 15 m (49.21 ft) |
Services |
Connects to the serial port on a local PC running a terminal emulation program. |
Management Ethernet port
Connects to a computer for router program loading and router debugging, or connects to a remote NMS for remote management.
Table2-41 Management Ethernet port specifications
Item |
Description |
Connector type |
RJ-45 |
Port quantity |
2 |
Transmission baud rate |
1000 Mbps, full duplex |
Transmission medium and max transmission distance |
Category-5 or above twisted pair cable, with a transmission distance of 100 m (328.08 ft) |
Services |
For router software upgrade and network management |
USB port
USB ports can connect multiple types of devices and provide a higher data transfer rate than common parallel interfaces and serial interfaces.
Table2-42 USB port specifications
Item |
Description |
Connector type |
USB A |
Compliant standard |
USB 2.0 |
Services |
External storage media |
|
NOTE: The USB port does not support an extension cable. |
SMB coaxial clock input/output port
SMB coaxial clock ports provide input or output clock references at 2.048 Mbps (2.048 MHz). You can set the data rate mode or frequency mode through the CLI. Two of them are input ports and two are output ports.
Table2-43 SMB coaxial clock input/output port specifications
Item |
Description |
Connector type |
SMB coaxial |
Compliant standard |
GJB681 |
Transmission baud rate |
2.048 Mbps |
Transmission medium |
75-ohm coaxial cable |
Services |
Sends and receives 2.048 MHz clocks and 2.048 Mbps signals to synchronize the clocks of the router and other devices, such as routers and the terminals. |
High-precision time synchronization port
Table2-44 High-precision time synchronization port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
QB-B-016-2010 |
Transmission baud rate |
9600 bps |
Transmission medium |
Category-5 or above twisted pair cable |
Services |
You can configure the port as an input port or output port at the CLI. Synchronizes the clocks of the router and other devices, such as GPS receivers and terminals. |
Technical specifications
Table2-45 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.2 × 399 × 352 mm (2.06 × 15.71 × 13.86 in) |
Weight |
4.55 kg (10.03 lb) |
Maximum power consumption |
130 W |
Typical power consumption |
117 W |
Minimum power consumption |
55 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SDRAM |
16 GB or 32 GB (subject to the card specifications) |
SR05SRP1L1
View
Figure2-5 SR05SRP1L1 view
(1) CF card |
(2) Console port |
(3) USB console port |
(4) 10/100/1000BASE-T Management Ethernet port |
(5) USB 2.0 port |
(6) System reset button |
(7) MPU active/standby LED. For the LED description, see Table2-46. |
(8) Card status LEDs. For the LED description, see Table2-47. |
(9) Fan tray status LEDs. For the LED description, see Table2-48. |
(10) Management Ethernet port LEDs. For the LED description, see Table2-49. |
(11) CF card LED. For the LED description, see Table2-50. |
LEDs
Table2-46 MPU active/standby LED description
LED mark |
LED |
Description |
ACTIVE |
Steady green |
The MPU is in active state. |
Off |
· The MPU is in standby state. · The MPU is faulty. To further determine the MPU status, see the card status LED description for the MPU. |
Table2-47 Card status LED description
LED status |
Description |
|
RUN (green) |
ALM (red) |
|
Flashing green (once every 2 seconds) |
Off |
The card in the corresponding slot is operating correctly. |
Fast flashing green (once every 4 seconds) |
Steady on |
The card in the corresponding slot is loading software. If the card keeps in this state, the software version of the card is not compatible with that of the card. |
Flashing green (once every 2 seconds) |
Flashing red (once every 4 seconds) |
The temperature of the card in the corresponding slot is abnormal. The temperature has exceeded the upper warning temperature threshold or dropped below the lower temperature threshold. |
Steady on |
Steady on |
The card in the corresponding slot is starting or faulty. |
Off |
Off |
No card is available in the corresponding slot. |
|
NOTE: The ALM LED being on for a while at the system startup does not mean that the card is faulty. |
Table2-48 Fan tray status LED description
LED status |
Description |
|
OK (green) |
FAIL (red) |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
One or multiple fans in the fan tray are faulty or the fan tray is installed incorrectly. |
Off |
Off |
The router is not powered on. |
Table2-49 Management Ethernet port LED description
Status |
Description |
|
LINK (green) |
ACT (yellow) |
|
Steady on |
Flashing green |
The port is in sending or receiving data. |
Steady on |
Off |
A link is present on the port. |
Off |
Off |
No link is present on the port. |
Table2-50 CF card LED description
LED |
Status |
Description |
CF card (green) |
Steady on |
The CF card is present and idle. Do not hot swap it. |
Flashing green |
The CF card is present and the system is reading/writing the card. Do not hot swap it. |
|
Off |
The CF card is not present, or the CF card is in offline state. You can hot swap it. |
Ports
Console port
The console port can be connected to a computer for system debugging, configuration, maintenance, management, and host software loading.
Table2-51 Console port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
Asynchronous EIA/TIA-232 |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
Common asynchronous serial interface cable, with a maximum transmission distance of 15 m (49.21 ft) |
Services |
Connects to the serial port on a local PC running a terminal emulation program. |
Table2-52 USB console port specifications
Item |
Description |
Connector type |
USB-AB |
Compliant standard |
USB 2.0, full speed |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
USB-AB cable, with a maximum transmission distance of 2 m (6.56 ft) |
Services |
Connects to the USB port on a local PC running a terminal emulation program to provide a command-line interface for the router. A generic USB to serial port driver is required on the PC. Connects routers to PCs or similar terminals that do not have a serial port. |
Management Ethernet port
Connects to a computer for router program loading and router debugging, or connects to a remote NMS for remote management.
Table2-53 Management Ethernet port specifications
Item |
Description |
Connector type |
RJ-45 |
Port quantity |
1 |
Transmission baud rate |
10/100/1000 Mbps |
Transmission medium and max transmission distance |
Category-5 or above twisted pair cable, with a transmission distance of 100 m (328.08 ft) |
Services |
For router software upgrade and network management |
USB port
USB ports can connect multiple types of devices and provide a higher data transfer rate than common parallel interfaces and serial interfaces.
Table2-54 USB port specifications
Item |
Description |
Connector type |
USB A |
Compliant standard |
USB 2.0 |
Services |
External storage media |
|
NOTE: The USB port does not support an extension cable. |
CF card slot
A CF card is a mobile storage device that features fast speed, large capacity, small size, light weight, and low power consumption.
Table2-55 External CF card specifications
Item |
Description |
CF card slots |
1 |
CF card capacity |
4 GB |
Services |
You can use a CF card to store logs, application program files, and configuration files. |
|
NOTE: Before you use a CF card, insert the CF card into the card slot and fasten the card cover. |
Technical specifications
Table2-56 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.05 kg (6.72 lb) |
Maximum power consumption |
53 W |
Typical power consumption |
47 W |
Minimum power consumption |
46 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SDRAM |
8 GB or 16 GB (subject to the card specifications) |
SR05SRP1L3
View
Figure2-6 SR05SRP1L3 view
(1) High-precision time synchronization ports (Both are input ports by default. When both ports are input ports, only port 1 is valid.) |
(2) CF card |
(3) SMB coaxial clock ports (2 input ports and 2 output ports) |
(4) Console port |
(5) USB console port |
(6) 10/100/1000BASE-T management Ethernet port |
(7) USB 2.0 port |
(8) System reset button |
(9) MPU active/standby LED. For the LED description, see Table2-57. |
(10) Card status LEDs. For the LED description, see Table2-58. |
(11) Fan tray status LEDs. For the LED description, see Table2-59. |
(12) Management Ethernet port LEDs. For the LED description, see Table2-60. |
(13) Card status LED. For the LED description, see Table2-61. |
LEDs
Table2-57 MPU active/standby LED description
LED mark |
LED |
Description |
ACTIVE |
Steady green |
The MPU is in active state. |
Off |
· The MPU is in standby state. · The MPU is faulty. To further determine the MPU status, see the card status LED description for the MPU. |
Table2-58 Card status LED description
LED status |
Description |
|
RUN (green) |
ALM (red) |
|
Flashing green (once every 2 seconds) |
Off |
The card in the corresponding slot is operating correctly. |
Fast flashing green (once every 4 seconds) |
Steady on |
The card in the corresponding slot is loading software. If the card keeps in this state, the software version of the card is not compatible with that of the device. |
Flashing green (once every 2 seconds) |
Flashing red (once every 4 seconds) |
The temperature of the card in the corresponding slot is abnormal. The temperature has exceeded the upper warning temperature threshold or dropped below the lower temperature threshold. |
Steady on |
Steady on |
The card in the corresponding slot is starting or faulty. |
Off |
Off |
No card is available in the corresponding slot. |
|
NOTE: The ALM LED being on for a while at the system startup does not mean that the card is faulty. |
Table2-59 Fan tray status LED description
LED status |
Description |
|
OK (green) |
FAIL (red) |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
One or multiple fans in the fan tray are faulty or the fan tray is installed incorrectly. |
Off |
Off |
The router is not powered on. |
Table2-60 Management Ethernet port LED description
Status |
Description |
|
LINK (green) |
ACT (yellow) |
|
Steady on |
Flashing green |
The port is in sending or receiving data. |
Steady on |
Off |
A link is present on the port. |
Off |
Off |
No link is present on the port. |
Table2-61 CF card LED description
LED |
Status |
Description |
CF card (green) |
Steady on |
The CF card is present and idle. Do not hot swap it. |
Flashing green |
The CF card is present and the system is reading/writing the card. Do not hot swap it. |
|
Off |
The CF card is not present, or the CF card is in offline state. You can hot swap it. |
Ports
Console port
The console port can be connected to a computer for system debugging, configuration, maintenance, management, and host software loading.
Table2-62 Console port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
Asynchronous EIA/TIA-232 |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
Common asynchronous serial interface cable, with a maximum transmission distance of 15 m (49.21 ft) |
Services |
Connects to the serial port on a local PC running a terminal emulation program. |
Table2-63 USB console port specifications
Item |
Description |
Connector type |
USB-AB |
Compliant standard |
USB 2.0, full speed |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
USB-AB cable, with a maximum transmission distance of 2 m (6.56 ft) |
Services |
Connects to the USB port on a local PC running a terminal emulation program to provide a command-line interface for the router. A generic USB to serial port driver is required on the PC. Connects routers to PCs or similar terminals that do not have a serial port. |
Management Ethernet port
Connects to a computer for router program loading and router debugging, or connects to a remote NMS for remote management.
Table2-64 Management Ethernet port specifications
Item |
Description |
Connector type |
RJ-45 |
Port quantity |
1 |
Transmission baud rate |
10/100/1000 Mbps |
Transmission medium and max transmission distance |
Category-5 or above twisted pair cable, with a transmission distance of 100 m (328.08 ft) |
Services |
For router software upgrade and network management |
USB port
USB ports can connect multiple types of devices and provide a higher data transfer rate than common parallel interfaces and serial interfaces.
Table2-65 USB port specifications
Item |
Description |
Connector type |
USB A |
Compliant standard |
USB 2.0 |
Services |
External storage media |
|
NOTE: The USB port does not support an extension cable. |
CF card slot
A CF card is a mobile storage device that features fast speed, large capacity, small size, light weight, and low power consumption.
Table2-66 External CF card specifications
Item |
Description |
CF card slots |
1 |
CF card capacity |
4 GB |
Services |
You can use a CF card to store logs, application program files, and configuration files. |
|
NOTE: Before you use a CF card, insert the CF card into the card slot and fasten the card cover. |
SMB coaxial clock input/output port
SMB coaxial clock ports provide input or output clock references at 2.048 Mbps (2.048 MHz). You can set the data rate mode or frequency mode through CLI. Two of them are input ports and two are output ports.
Table2-67 SMB coaxial clock input/output port specifications
Item |
Description |
Connector type |
SMB coaxial |
Compliant standard |
GJB681 |
Transmission baud rate |
2.048Mbps |
Transmission medium |
75 ohm coaxial cable |
Services |
Sends and receives 2.048 MHz clocks and 2.048 Mbps signals to synchronize the clocks of the router and other devices, such as routers and the terminals. |
Table2-68 High-precision time synchronization port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
QB-B-016-2010 |
Transmission baud rate |
9600 bps |
Transmission medium |
Category-5 or above twisted pair cable |
Services |
You can configure the port as an input port or output port at the CLI. Synchronizes the clocks of the router and other devices, such as GPS receivers and terminals. |
Technical specifications
Table2-69 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.18 kg (7.01 lb) |
Maximum power consumption |
53 W |
Typical power consumption |
52 W |
Minimum power consumption |
50 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SDRAM |
8 GB or 16 GB (subject to the card specifications) |
SR05SRP1P3
View
Figure2-7 SR05SRP1P3 view
(1) High-precision time synchronization ports (Both are input ports by default. When both ports are input ports, only port 1 is valid.) |
(2) CF card |
(3) USB console port |
(4) SMB coaxial clock ports (2 input ports and 2 output ports) |
(5) USB 2.0 port |
(6) 10/100/1000BASE-T management Ethernet ports (port 1 reserved for future use) |
(7) Console port |
(8) System reset button |
(9) MPU active/standby LED. For the LED description, see Table2-70. |
(10) Card status LEDs. For the LED description, see Table2-71. |
(11) Power supply status LEDs. For the LED description, see Table2-72. |
(12) Fan tray status LEDs. For the LED description, see Table2-73. |
(13) Management Ethernet port LED. For the LED description, see Table2-74. |
(14) CF card LED. For the LED description, see Table2-75. |
LED
Table2-70 MPU active/standby LED description
LED mark |
LED |
Description |
ACTIVE |
Steady green |
The MPU is in active state. |
Off |
· The MPU is in standby state. · The MPU is faulty. To further determine the MPU status, see the card status LED description for the MPU. |
Table2-71 Card status LED description
LED status |
Description |
|
RUN (green) |
ALM (red) |
|
Flashing green (once every 2 seconds) |
Off |
The card in the corresponding slot is operating correctly. |
Fast flashing green (once every 4 seconds) |
Steady on |
The card in the corresponding slot is loading software. If the card keeps in this state, the software version of the card is not compatible with that of the card. |
Flashing green (once every 2 seconds) |
Flashing red (once every 4 seconds) |
The temperature of the card in the corresponding slot is abnormal. The temperature has exceeded the upper warning temperature threshold or dropped below the lower temperature threshold. |
Steady on |
Steady on |
The card in the corresponding slot is starting or faulty. |
Off |
Off |
No card is available in the corresponding slot. |
|
NOTE: The ALM LED being on for a while at the system startup does not mean that the card is faulty. |
Table2-72 Power supply status LED description
LED status |
Description |
|
OK (green) |
FAIL (red) |
|
Steady on |
Off |
All power supplies in the chassis are operating correctly. |
Off |
Steady on |
A power supply in the chassis does not have power output. Possible reasons include: · The power supply is faulty. · The power switch for the power supply has not been turned on. · Power cord connection failure. · Power outage of the external power supply system. |
Off |
Off |
· No power supplies are present in the chassis. · No power supply in the chassis has power output. Possible reasons include: ¡ The power supplies are faulty. ¡ The power switches for the power supplies have not been turned on. ¡ Power cord connection failure. ¡ Power outage of the external power supply system. |
Table2-73 Fan tray status LED description
LED status |
Description |
|
OK (green) |
FAIL (red) |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
One or multiple fans in the fan tray are faulty or the fan tray is installed incorrectly. |
Off |
Off |
The router is not powered on. |
Table2-74 Management Ethernet port LED description
LED mark |
LED |
Description |
LINK/ACT |
Flashing green |
The port is in sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-75 CF card LED description
LED |
Status |
Description |
CF card (green) |
Steady on |
The CF card is present and idle. Do not hot swap it. |
Flashing green |
The CF card is present and the system is reading/writing the card. Do not hot swap it. |
|
Off |
The CF card is not present, or the CF card is in offline state. You can hot swap it. |
Ports
Console port
The console port can be connected to a computer for system debugging, configuration, maintenance, management, and host software loading.
Table2-76 Console port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
Asynchronous EIA/TIA-232 |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
Common asynchronous serial interface cable, with a maximum transmission distance of 15 m (49.21 ft) |
Services |
Connects to the serial port on a local PC running a terminal emulation program. |
Table2-77 USB console port specifications
Item |
Description |
Connector type |
USB-AB |
Compliant standard |
USB 2.0, full speed |
Transmission baud rate |
≤ 115200 bps. The default value is 9600 bps. |
Transmission medium and max transmission distance |
USB-AB cable, with a maximum transmission distance of 2 m (6.56 ft) |
Services |
Connects to the USB port on a local PC running a terminal emulation program to provide a command-line interface for the router. A generic USB to serial port driver is required on the PC. Connects routers to PCs or similar terminals that do not have a serial port. |
Management Ethernet port
Connects to a computer for router program loading and router debugging, or connects to a remote NMS for remote management.
Table2-78 Management Ethernet port specifications
Item |
Description |
Connector type |
RJ-45 |
Port quantity |
2 (port 1 reserved for future use) |
Transmission baud rate |
10/100/1000 Mbps |
Transmission medium and max transmission distance |
Category-5 or above twisted pair cable, with a transmission distance of 100 m (328.08 ft) |
Services |
For router software upgrade and network management |
USB port
USB ports can connect multiple types of devices and provide a higher data transfer rate than common parallel interfaces and serial interfaces.
Table2-79 USB port specifications
Item |
Description |
Connector type |
USB A |
Compliant standard |
USB 2.0 |
Services |
External storage media |
|
NOTE: The USB port does not support an extension cable. |
CF card slot
A CF card is a mobile storage device that features fast speed, large capacity, small size, light weight, and low power consumption.
Table2-80 External CF card specifications
Item |
Description |
CF card slots |
1 |
CF card capacity |
4 GB |
Services |
You can use a CF card to store logs, application program files, and configuration files. |
|
NOTE: Before you use a CF card, insert the CF card into the card slot and fasten the card cover. |
SMB coaxial clock input/output port
SMB coaxial clock ports provide input or output clock references at 2.048 Mbps (2.048 MHz). You can set the data rate mode or frequency mode through CLI. Two of them are input ports and two are output ports.
Table2-81 SMB coaxial clock input/output port specifications
Item |
Description |
Connector type |
SMB coaxial |
Compliant standard |
GJB681 |
Transmission baud rate |
2.048Mbps |
Transmission medium |
75 ohm coaxial cable |
Services |
Sends and receives 2.048 MHz clocks and 2.048 Mbps signals to synchronize the clocks of the router and other devices, such as routers and the terminals. |
Table2-82 High-precision time synchronization port specifications
Item |
Description |
Connector type |
RJ-45 |
Compliant standard |
QB-B-016-2010 |
Transmission baud rate |
9600 bps |
Transmission medium |
Category-5 or above twisted pair cable |
Services |
You can configure the port as an input port or output port at the CLI. Synchronizes the clocks of the router and other devices, such as GPS receivers and terminals. |
Technical specifications
Table2-83 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.2 × 399 × 352 mm (2.06 × 15.71 × 13.86 in) |
Weight |
4.80 kg (10.58 lb) |
Maximum power consumption |
64 W |
Typical power consumption |
60 W |
Minimum power consumption |
58 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SDRAM |
16 GB |
Compatibility information
Table2-84 Compatibility matrix between MPUs and routers
Card model |
Applicable router models |
SR05SRP1L1 |
SR8804-X, SR8808-X, SR8812-X |
SR05SRP1L3 |
SR8804-X, SR8808-X, SR8812-X |
CSR05SRP1P1 |
SR8808H-X, SR8816-X |
SR05SRP1P3 |
SR8808H-X, SR8816-X |
CSR05SRP1P3-G |
SR8808H-X, SR8816-X |
CSR05SRP1R3 |
SR8808H-X, SR8816-X |
CSR05SRP1R3-G |
SR8808H-X, SR8816-X |
SPC/CSPC LPUs (interface modules)
A combo interface is a logical interface that contains an SFP port and an RJ-45 Ethernet port. Only one of them can be activated at a time.
CSPC-GE16XP4L-E
View
Figure2-8 CSPC-GE16XP4L-E view
(1) 10GBASE-R-SFP+ fiber ports (4 in total) (10GE SFP+ modules supported) |
(2) Combo interfaces (16 in total) (10GE SFP+ modules supported in 1000BASE-X-SFP fiber ports) |
(3) SFP port LED. For the LED description, see Table2-86. |
(4) RJ-45 Ethernet Interface LED. For the LED description, see Table2-85. |
(5) SFP+ port LED. For the LED description, see Table2-87. |
LEDs
Table2-85 RJ-45 Ethernet port LED description
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-86 SFP port LED description
LED |
Status |
Description |
SFP port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-87 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-88 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CSPC-GE16XP4L-E |
16-port GE combo interface + 4-port 10GE optical interface module |
RJ-45 |
16 |
10/100/1000 Mbps |
LC |
16 |
1000 Mbps |
||
4 |
10 Gbps |
Technical specifications
Table2-89 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.35 kg (9.59 lb) |
Maximum power consumption |
127 W |
Typical power consumption |
114 W |
Minimum power consumption |
107 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPC-GE24L-E
View

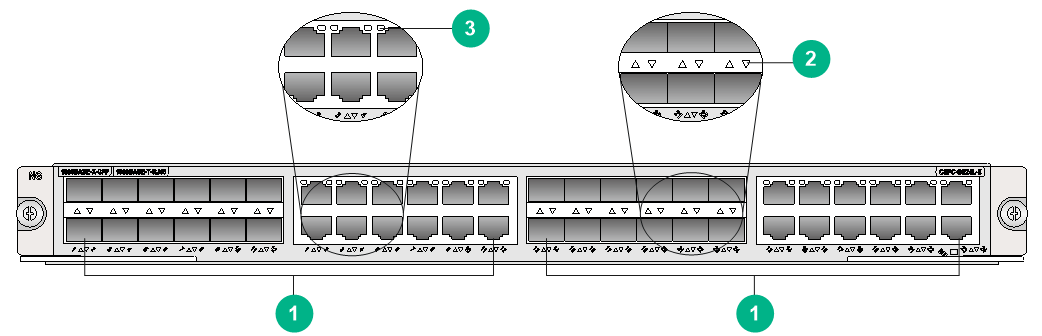

Figure2-9 CSPC-GE24L-E view
(1) Combo interfaces (24 in total) (10GE SFP+ modules supported in 1000BASE-X-SFP fiber ports) |
(2) SFP port LED. For the LED description, see Table2-91. |
(3) RJ-45 Ethernet Interface LED. For the LED description, see Table2-90. |
LEDs
Table2-90 RJ-45 Ethernet port LED description
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-91 SFP port LED description
LED |
Status |
Description |
SFP port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Table2-92 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CSPC-GE24L-E |
24-port GE Combo interface service module |
RJ-45 |
24 |
10/100/1000 Mbps |
LC |
24 |
1000 Mbps |
Technical specifications
Table2-93 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.45 kg (9.81 lb) |
Maximum power consumption |
114 W |
Typical power consumption |
110 W |
Minimum power consumption |
108 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPC-GP24GE8XP2L-E

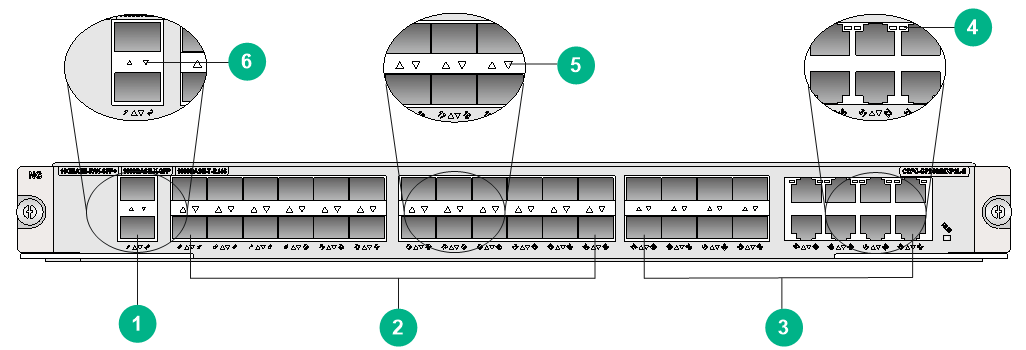

View
Figure2-10 CSPC-GP24GE8XP2L-E view
(1) 10GBASE-R-SFP+ fiber ports (2 in total) (10GE SFP+ modules supported) |
(2) 1000BASE-X-SFP fiber ports (24 in total) (GE SFP modules supported) |
(3) Combo interfaces (8 in total) (10GE SFP+ modules supported in 1000BASE-X-SFP fiber ports) |
(4) RJ-45 Ethernet Interface LED. For the LED description, see Table2-94. |
(5) SFP port LED. For the LED description, see Table2-95. |
(6) SFP+ port LED. For the LED description, see Table2-96. |
LEDs
Table2-94 RJ-45 Ethernet port LED description
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-95 SFP port LED description
LED |
Status |
Description |
SFP port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-96 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-97 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CSPC-GP24GE8XP2L-E |
24-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port 1000BASE-X Ethernet combo interface + 2-port 10GBASE-R/W Ethernet optical interface line processing unit (SFP+, LC) (E Type) |
RJ45 |
8 |
10/100/1000 Mbps |
LC |
32 |
1000 Mbps |
||
2 |
10 Gbps |
Technical specifications
Table2-98 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.45 kg (9.81 lb) |
Maximum power consumption |
126 W |
Typical power consumption |
113 W |
Minimum power consumption |
101 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-CP1LAX/SPC-CP1LCX
View

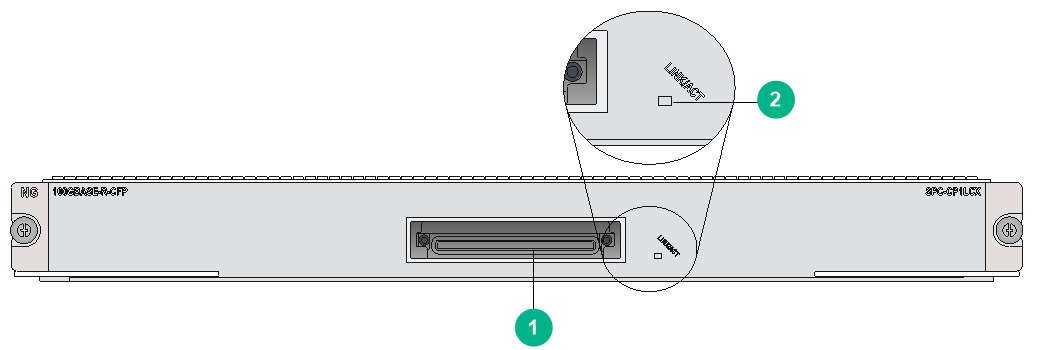

Figure2-11 SPC-CP1LCX view
(1) 100GBASE-R-CFP fiber port (1 in total) |
(2) CFP port LED. For the LED description, see Table2-99. |
The views of the SPC-CP1LAX and SPC-CP1LCX are similar. This figure uses the SPC-CP1LCX as an example.
LEDs
Table2-99 CFP port LED description
LED |
Status |
Description |
CFP port LED |
Flashing |
The CFP port is sending or receiving data. |
Steady on |
A link is present on the CFP port. |
|
Off |
No link is present on the CFP port. |
Ports
Table2-100 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-CP1LAX |
1-port 100GBASE Ethernet optical interface module (CFP, LC) (A Type) |
LC |
1 |
100 Gbps |
SPC-CP1LCX |
1-port 100GBASE Ethernet optical interface module (CFP, LC) (C Type) |
LC |
1 |
100 Gbps |
Technical specifications
Table2-101 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.50 kg (7.72 lb) |
Maximum power consumption |
173 W |
Typical power consumption |
156 W |
Minimum power consumption |
115 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-CP2LA/SPC-CP2LB
View

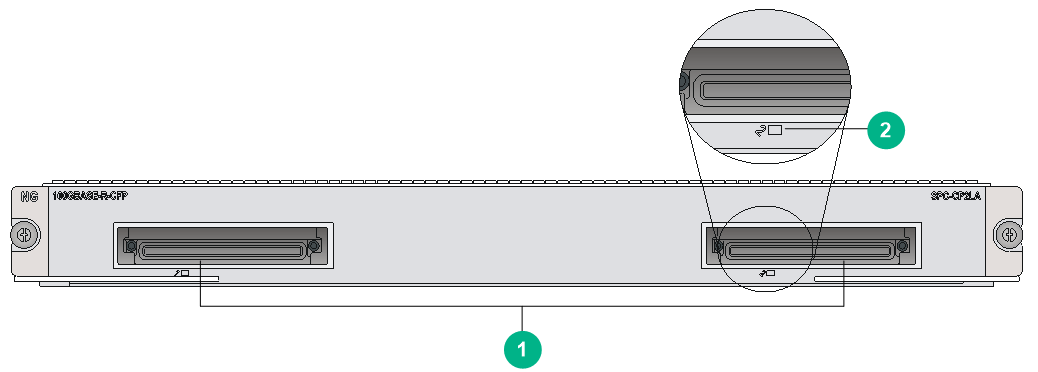

Figure2-12 SPC-CP2LA view
(1) 100GBASE-R-CFP fiber ports (2 in total) |
(2) CFP port LED. For the LED description, see Table2-102. |
The views of the SPC-CP2LA and SPC-CP2LB are similar. This figure uses the SPC-CP2LA as an example.
LEDs
Table2-102 CFP port LED description
LED |
Status |
Description |
CFP port LED |
Flashing |
The CFP port is sending or receiving data. |
Steady on |
A link is present on the CFP port. |
|
Off |
No link is present on the CFP port. |
Ports
Table2-103 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-CP2LA |
2-port 100GBASE Ethernet optical interface module (CFP, LC) (A Type) |
LC |
2 |
100 Gbps |
SPC-CP2LB |
2-port 100GBASE Ethernet optical interface module (CFP, LC) (B Type) |
LC |
2 |
100 Gbps |
Technical specifications
Table2-104 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.06 kg (8.96 lb) |
Maximum power consumption |
197 W |
Typical power consumption |
178 W |
Minimum power consumption |
150 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-GP24LA1
View

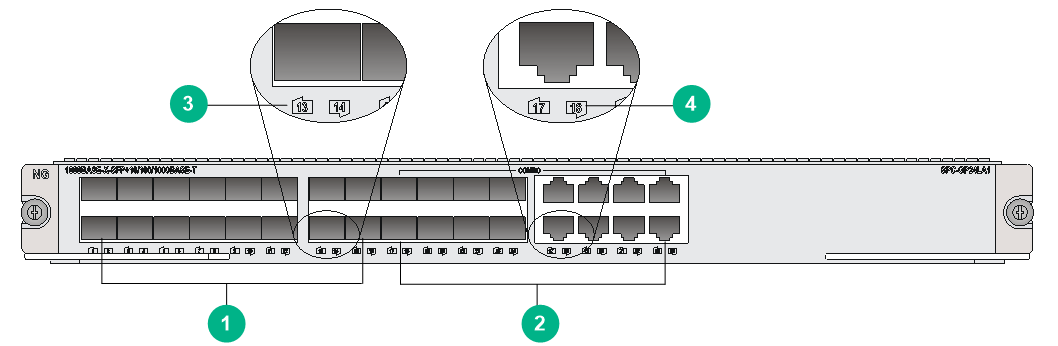

Figure2-13 SPC-GP24LA1 view
(1) 1000BASE-X-SFP fiber ports (16 in total) |
(2) Combo interfaces (8 in total) |
(3) SFP port LED. For the LED description, see Table2-106. |
(4) RJ-45 Ethernet port LED. For the LED description, see Table2-105. |
|
NOTE: · A combo interface is a logical interface that contains an SFP fiber port and an RJ-45 copper port. The two ports share one forwarding channel. As a result, they cannot work simultaneously. When you activate one port, the other port is automatically disabled. You can activate the fiber or copper port as needed. By default, the copper port is activated. · Use a category 5 or above twisted pair cable to connect a 1000BASE-T RJ-45 copper port. The maximum transmission distance is 100 m (328.08 ft). |
LEDs
Table2-105 RJ-45 Ethernet port LED description
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-106 SFP port LED description
LED |
Status |
Description |
SFP port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Table2-107 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-GP24LA1 |
16-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port combo interface module (A Type) |
RJ45 |
8 |
10/100/1000 Mbps |
LC |
24 |
100 Mbps |
||
155 Mbps |
||||
1000 Mbps |
Technical specifications
Table2-108 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.01 kg (6.64 lb) |
Maximum power consumption |
75 W |
Typical power consumption |
68 W |
Minimum power consumption |
47 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-GP24XP2LA/SPC-GP24XP2LB
Views

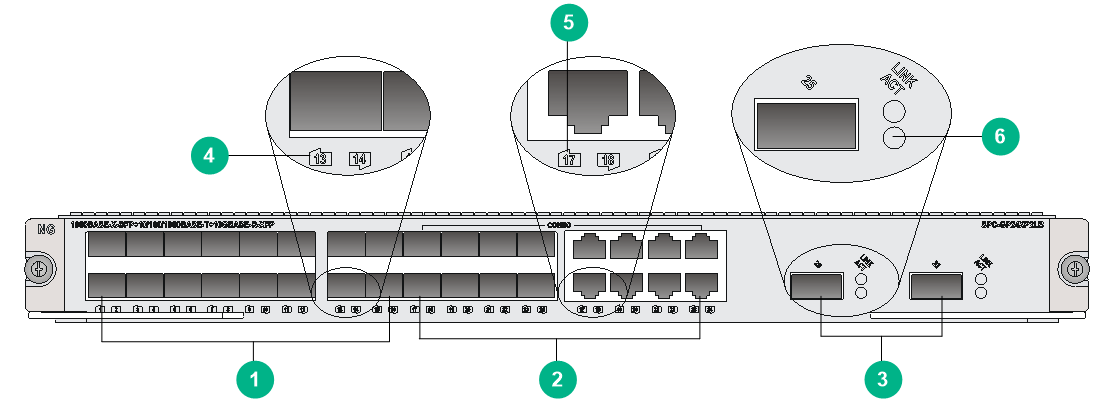

Figure2-14 SPC-GP24XP2LB view
(1) 1000BASE-X-SFP fiber ports (16 in total) |
(2) Combo interfaces (8 in total) |
(3) 10GBASE-R-XFP fiber ports (2 in total) |
(4) SFP port LED. For the LED description, see Table2-110. |
(5) RJ-45 Ethernet port LED. For the LED description, see Table2-109. |
(6) XFP port LED. For the LED description, see Table2-111. |
The views of the SPC-GP24XP2LA and SPC-GP24XP2LB are similar. This figure uses the SPC-GP24XP2LB as an example.
LEDs
Table2-109 RJ-45 Ethernet port LED description
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-110 SFP port LED description
LED |
Status |
Description |
SFP port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-111 XFP port LED description
XFP port LED status |
Description |
|
LINK |
ACT |
|
Steady on |
Flashing green |
A link is present, and the XFP port is sending or receiving data. |
Steady on |
Off |
A link is present, but the XFP port is not sending or receiving data. |
Off |
Off |
No link is present on the XFP port. |
Ports
Table2-112 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-GP24XP2LA |
16-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port combo interface + 2-port 10GE optical interface module (XFP, LC) (A Type) |
RJ45 |
8 |
10/100/1000 Mbps |
LC |
24 |
100 Mbps |
||
155 Mbps |
||||
1000 Mbps |
||||
LC |
2 |
10 Gbps |
||
SPC-GP24XP2LB |
16-port 1000BASE-X optical interface (SFP, LC) + 8-port combo interface + 2-port 10GE optical interface module (XFP, LC) (B Type) |
RJ45 |
8 |
10/100/1000 Mbps |
LC |
24 |
100 Mbps |
||
155 Mbps |
||||
1000 Mbps |
||||
LC |
2 |
10 Gbps |
Technical specifications
Table2-113 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.08 kg (6.79 lb) |
Maximum power consumption |
100 W |
Typical power consumption |
90 W |
Minimum power consumption |
51 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-GP44XP4LAX/SPC-GP44XP4LCX
View
Figure2-15 SPC-GP44XP4LCX view
(1) 1000BASE-X-SFP fiber ports (44 in total) |
(2) 10GBASE-R-SFP+ fiber ports (4 in total) |
(3) SFP port LED. For the LED description, see Table2-114. |
(4) SFP+ port LED. For the LED description, see Table2-115. |
The views of the SPC-GP44XP4LAX and SPC-GP44XP4LCX are similar. This figure uses the SPC-GP44XP4LCX as an example.
LEDs
Table2-114 SFP port LED description
LED |
Status |
Description |
SFP port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-115 SFP+ port LED description
LED |
Status |
Description |
SFP+ port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-116 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-GP44XP4LAX |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type) |
LC |
44 |
100 Mbps |
155 Mbps |
||||
1000 Mbps |
||||
4 |
10 Gbps |
|||
SPC-GP44XP4LCX |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type) |
LC |
44 |
100 Mbps |
155 Mbps |
||||
1000 Mbps |
||||
4 |
10 Gbps |
Technical specifications
Table2-117 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.60 kg (7.94 lb) |
Maximum power consumption |
142 W |
Typical power consumption |
128 W |
Minimum power consumption |
118 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-GP48LA1/SPC-GP48LB
View

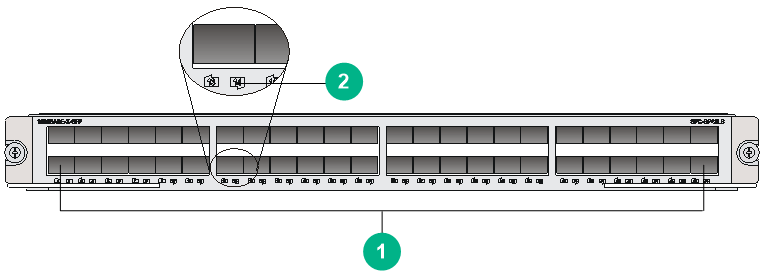

Figure2-16 SPC-GP48LA1 view
(1) 1000BASE-X-SFP fiber ports (48 in total) |
(2) SFP port LED. For the LED description, see Table2-118. |
The views of the SPC-GP48LB and SPC-GP48LA1 are similar. This figure uses the SPC-GP48LA1 as an example.
LEDs
Table2-118 SFP port LED description
LED |
Status |
Description |
SFP port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Table2-119 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-GP48LA1 |
48-port 1000BASE-X Ethernet optical interface module (SFP, LC) (A Type) |
LC |
48 |
100 Mbps |
155 Mbps |
||||
1000 Mbps |
||||
SPC-GP48LB |
48-port enhanced 1000BASE-X Ethernet optical interface module (SFP, LC) (B Type) |
LC |
48 |
100 Mbps |
155 Mbps |
||||
1000 Mbps |
Technical specifications
Table2-120 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.25 kg (7.17 lb) |
Maximum power consumption |
110 W |
Typical power consumption |
99 W |
Minimum power consumption |
43 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-GT48LA1
View

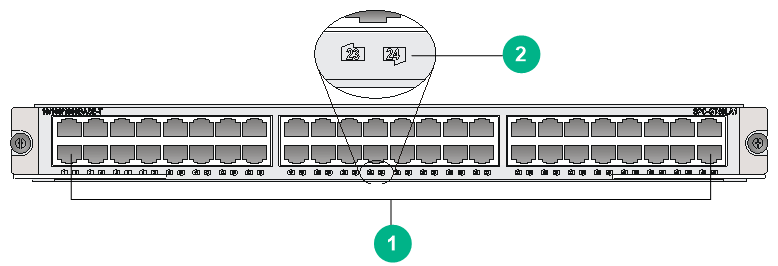

Figure2-17 SPC-GT48LA1 view
(1) 10/100/1000BASE-T copper ports (48 in total) |
(2) RJ-45 Ethernet port LED. For the LED description, see Table2-121. |
LEDs
Table2-121 RJ-45 Ethernet port LED description
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Table2-122 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-GT48LA1 |
48-port 10/100/1000BASE-T Ethernet interface module (RJ45) (A Type) |
RJ45 |
48 |
10/100/1000 Mbps |
Technical specifications
Table2-123 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.31 kg (7.30 lb) |
Maximum power consumption |
95 W |
Typical power consumption |
86 W |
Minimum power consumption |
67 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-XLP6LAX/SPC-XLP6LCX
View

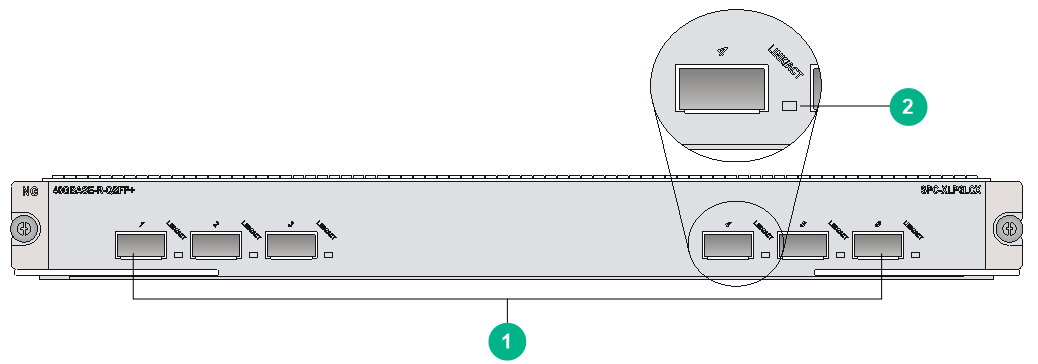

Figure2-18 SPC-XLP6LCX view
(1) 40GBASE-R-QSFP+ fiber ports (6 in total) |
(2) QSFP+ port LED. For the LED description, see Table2-124. |
The views of the SPC-XLP6LAX and SPC-XLP6LCX are similar. This figure uses the SPC-XLP6LCX as an example.
LEDs
Table2-124 QSFP + port LED description
LED |
Status |
Description |
QSFP + port LED |
Flashing |
The QSFP+ port is sending or receiving data. |
Steady on |
A link is present on the QSFP+ port. |
|
Off |
No link is present on the QSFP+ port. |
Ports
Table2-125 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-XLP6LAX |
6-port 40GBASE Ethernet optical interface module (QSFP+, MPO) (A Type) |
LC/MPO |
6 |
40 Gbps |
SPC-XLP6LCX |
6-port 40GBASE Ethernet optical interface module (QSFP+, MPO) (C Type) |
LC/MPO |
6 |
40 Gbps |
Technical specifications
Table2-126 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.95 kg (8.71 lb) |
Maximum power consumption |
290 W |
Typical power consumption |
261 W |
Minimum power consumption |
181 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-XP12LAX/SPC-XP12LCX
View

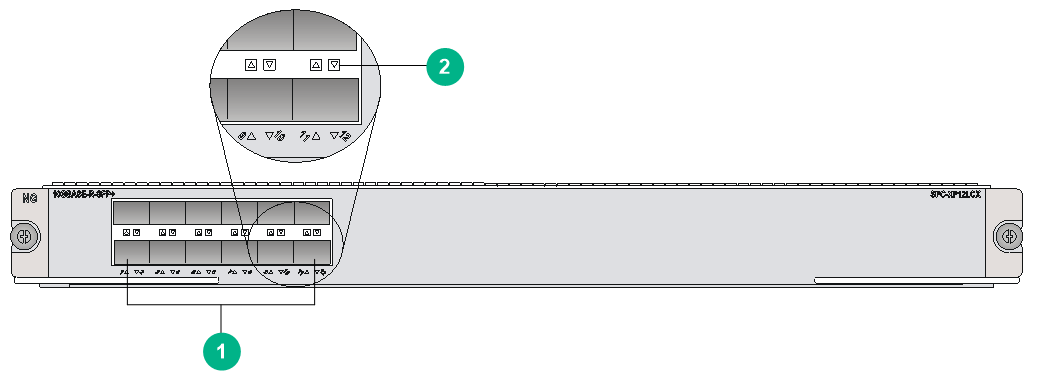

Figure2-19 SPC-XP12LCX view
(1) 10GBASE-R-SFP+ fiber ports (12 in total) |
(2) SFP+ port LED. For the LED description, see Table2-127. |
The views of the SPC-XP12LAX and SPC-XP12LCX are similar. This figure uses the SPC-XP12LCX as an example.
LEDs
Table2-127 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-128 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CSPC-XP12LAX |
12-port 10GE optical interface module |
LC |
12 |
10 Gbps |
CSPC-XP12LCX |
12-port 10GE optical interface module |
LC |
12 |
10 Gbps |
Technical specifications
Table2-129 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.65 kg (8.05 lb) |
Maximum power consumption |
· SPC-XP12LAX: 130 W · SPC-XP12LCX: 173 W |
Typical power consumption |
· SPC-XP12LAX: 117 W · SPC-XP12LCX: 156 W |
Minimum power consumption |
· SPC-XP12LAX: 107 W · SPC-XP12LCX: 122 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-XP24LAX/SPC-XP24LCX
View

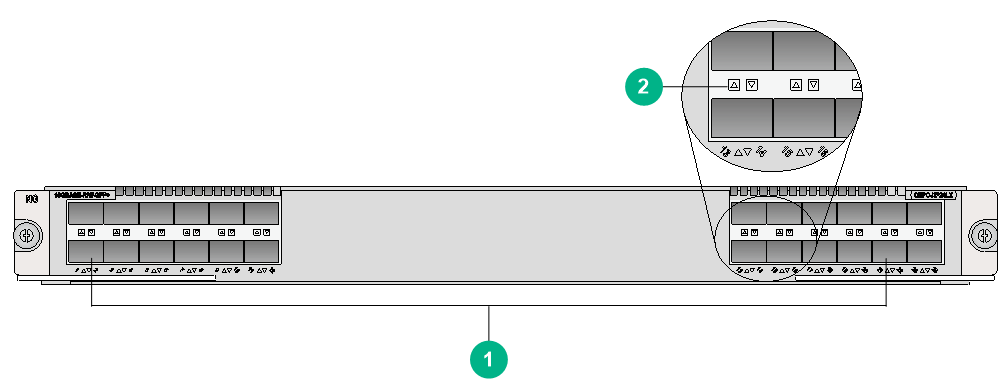

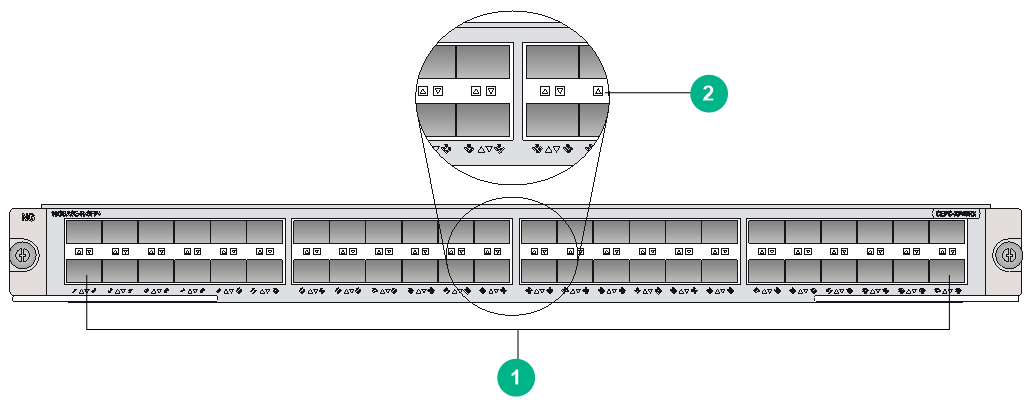

Figure2-20 SPC-XP24LCX view
(1) 10GBASE-R-SFP+ fiber ports (24 in total) |
(2) SFP+ port LED. For the LED description, see Table2-130. |
The views of the SPC-XP24LAX and SPC-XP24LCX are similar. This figure uses the SPC-XP24LCX as an example.
LEDs
Table2-130 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-131 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-XP24LAX |
24-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type) |
LC |
24 |
10 Gbps |
SPC-XP24LCX |
4-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type) |
LC |
24 |
10 Gbps |
Technical specifications
Table2-132 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.15 kg (9.15 lb) |
Maximum power consumption |
· SPC-XP24LAX: 209 W · SPC-XP24LCX: 294 W |
Typical power consumption |
· SPC-XP24LAX: 189 W · SPC-XP24LCX: 265 W |
Minimum power consumption |
· SPC-XP24LAX: 153 W · SPC-XP24LCX: 178 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-XP2LA1
View
Figure2-21 SPC-XP2LA1 view
(1) 10GBASE-R-XFP fiber ports (2 in total) |
(2) XFP port LED. For the LED description, see Table2-133. |
LEDs
Table2-133 XFP port LED description
XFP port LED status |
Description |
|
LINK |
ACT |
|
Steady on |
Flashing green |
A link is present, and the XFP port is sending or receiving data. |
Steady on |
Off |
A link is present, but the XFP port is not sending or receiving data. |
Off |
Off |
No link is present on the XFP port. |
Ports
Table2-134 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-XP2LA1 |
2-port 10GBASE Ethernet optical interface module (XFP, LC) (A Type) |
LC |
2 |
10 Gbps |
Technical specifications
Table2-135 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in)) |
Weight |
2.93 kg (6.46 lb) |
Maximum power consumption |
55 W |
Typical power consumption |
50 W |
Minimum power consumption |
43 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-XP4LA1/SPC-XP4LB
View

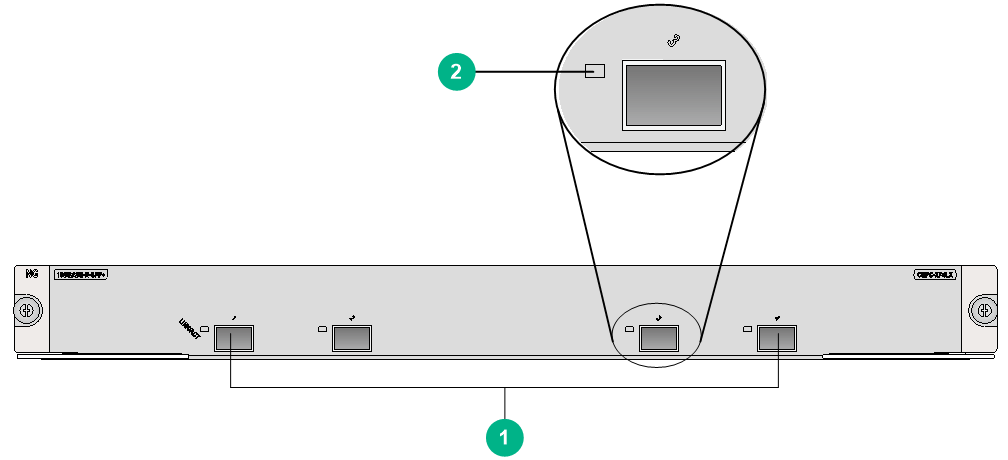

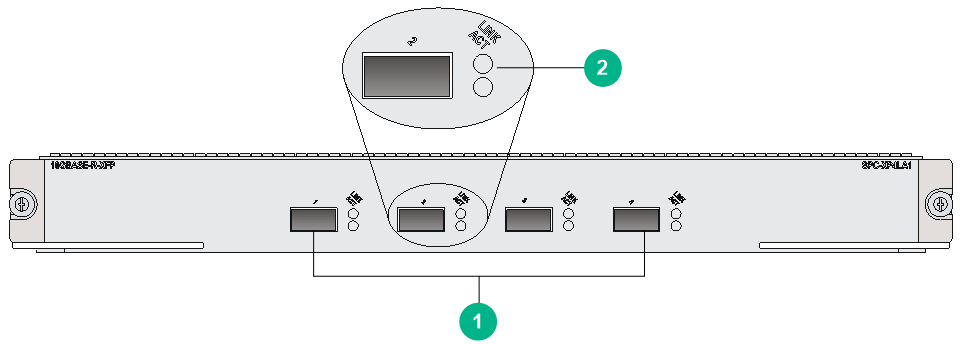

Figure2-22 SPC-XP4LA1 view
(1) 10GBASE-R-XFP fiber ports (2 in total) |
(2) XFP port LED. For the LED description, see Table2-136. |
The views of the SPC-XP4LB and SPC-XP4LA1 are similar. This figure uses the SPC-XP4LA1 as an example.
LEDs
Table2-136 XFP port LED description
XFP port LED status |
Description |
|
LINK |
ACT |
|
Steady on |
Flashing green |
A link is present, and the XFP port is sending or receiving data. |
Steady on |
Off |
A link is present, but the XFP port is not sending or receiving data. |
Off |
Off |
No link is present on the XFP port. |
Ports
Table2-137 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-XP4LA1 |
4-port 10GBASE Ethernet optical interface module (XFP, LC) (A Type) |
LC |
4 |
10 Gbps |
SPC-XP4LB |
4-port Enhanced 10GBASE Ethernet optical interface module (XFP, LC) (B Type) |
LC |
4 |
10 Gbps |
Technical specifications
Table2-138 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
2.93 kg (6.46 lb) |
Maximum power consumption |
80 W |
Typical power consumption |
72 W |
Minimum power consumption |
53 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
SPC-XP8LA/SPC-XP8LB
View

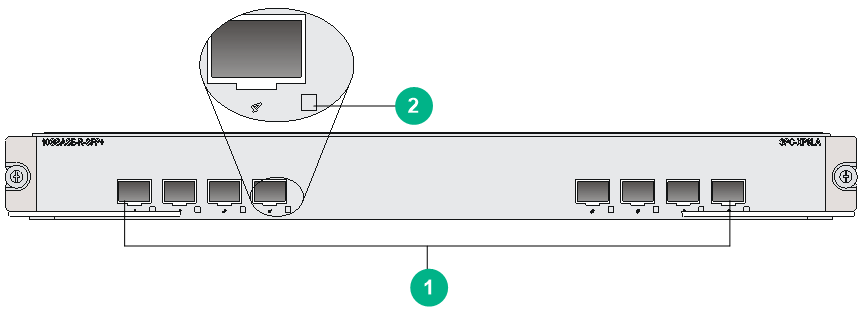

Figure2-23 SPC-XP8LA view
(1) 10GBASE-R-SFP+ fiber ports (8 in total) |
(2) SFP+ port LED. For the LED description, see Table2-139. |
The views of the SPC-XP8LB and SPC-XP8LA are similar. This figure uses the SPC-XP8LA as an example.
LED
Table2-139 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-140 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
SPC-XP8LA |
8-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type) |
LC |
8 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
||||
SPC-XP8LB |
8-port Enhanced 10GBASE Ethernet optical interface module (SFP+, LC) (B Type) |
LC |
8 |
10 Gbps |
Technical specifications
Table2-141 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.44 kg (7.58 lb) |
Maximum power consumption |
170 W |
Typical power consumption |
153 W |
Minimum power consumption |
117 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
Compatibility information
Table2-142 Compatibility matrix between SPC/CSPC cards and routers
Card model |
SR8804-X, SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
SPC-GT48LA1 |
Supported |
Not supported |
CSPC-GE24L-E |
Supported |
Not supported |
SPC-GP24LA1 |
Supported |
Not supported |
SPC-GP24XP2LA |
Supported |
Not supported |
SPC-GP24XP2LB |
Supported |
Not supported |
CSPC-GP24GE8XP2L-E |
Supported |
Not supported |
CSPC-GE16XP4L-E |
Supported |
Not supported |
SPC-XP2LA1 |
Supported |
Not supported |
SPC-XP4LA1 |
Supported |
Not supported |
SPC-XP4LB |
Supported |
Not supported |
SPC-XP8LA |
Supported |
Not supported |
SPC-XP8LB |
Supported |
Not supported |
SPC-GP48LA1 |
Supported |
Not supported |
SPC-GP48LB |
Supported |
Not supported |
SPC-GP44XP4LCX |
Supported |
Not supported |
SPC-GP44XP4LAX |
Supported |
Not supported |
SPC-XP24LCX |
Supported |
Not supported |
SPC-XP24LAX |
Supported |
Not supported |
SPC-XP12LCX |
Supported |
Not supported |
SPC-XP12LAX |
Supported |
Not supported |
SPC-XLP6LCX |
Supported |
Not supported |
SPC-XLP6LAX |
Supported |
Not supported |
SPC-CP1LCX |
Supported |
Not supported |
SPC-CP1LAX |
Supported |
Not supported |
SPC-CP2LB |
Supported |
Not supported |
SPC-CP2LA |
Supported |
Not supported |
CEPC LPUs (interface modules)
CEPC-CP4RX
View

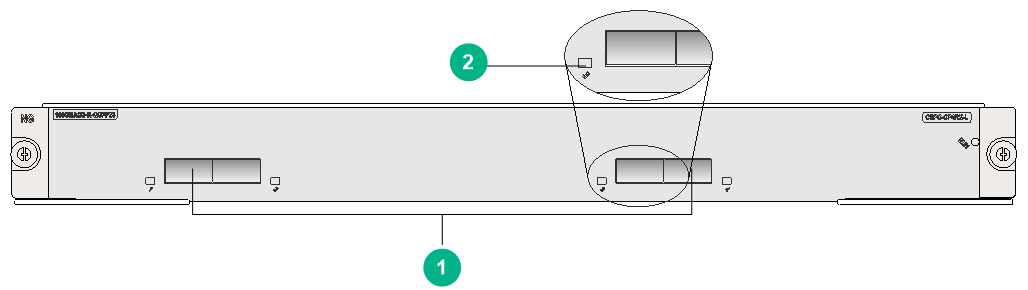

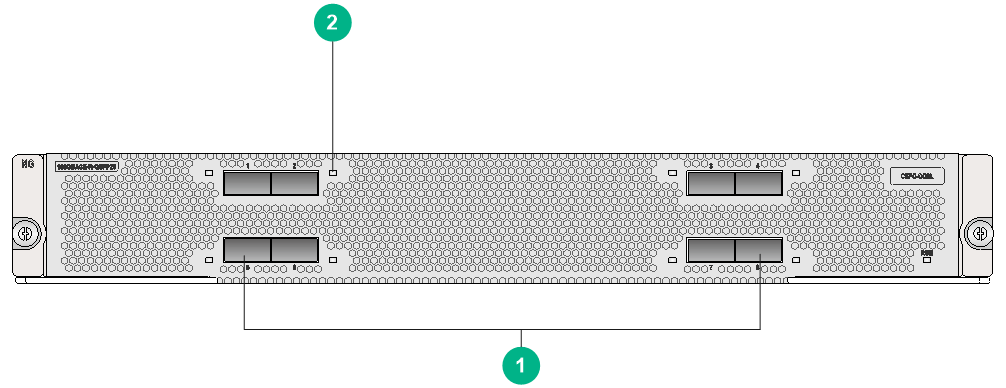

Figure2-24 CEPC-CP4RX view
(1) 100GBASE-R-CFP2 fiber ports (4 in total) |
(2) CFP2 port LED. For the LED description, see Table2-143. |
LEDs
Table2-143 CFP2 port LED description
LED |
Status |
Description |
CFP2 port LED |
Flashing |
The CFP2 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the CFP2 port. |
|
Off |
No link is present on the CFP2 port. |
Ports
Table2-144 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CEPC-CP4RX |
4-port 100GBASE Ethernet optical interface module (CFP2) |
LC |
4 |
100 Gbps |
Technical specifications
Table2-145 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.20 kg (9.26 lb) |
Maximum power consumption |
368 W |
Typical power consumption |
331 W |
Minimum power consumption |
228.5 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CEPC-CP4RX-L
Views
Figure2-25 CEPC-CP4RX-L view
(1) 100GBASE-QSFP28 fiber ports (4 in total) (100G QSFP 28 modules supported) |
(2) QSFP 28 port LED. For the LED description, see Table2-146. |
LEDs
Table2-146 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-147 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CEPC-CP4RX-L |
4-port 100G Ethernet optical interface line processing unit (QSFP28, LC) |
LC |
4 |
100 Gbps |
40 Gbps |
Technical specifications
Table2-148 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
8.30 kg (18.30 lb) |
Maximum power consumption |
354 W |
Typical power consumption |
252 W |
Minimum power consumption |
191 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CEPC-CQ16L1
View

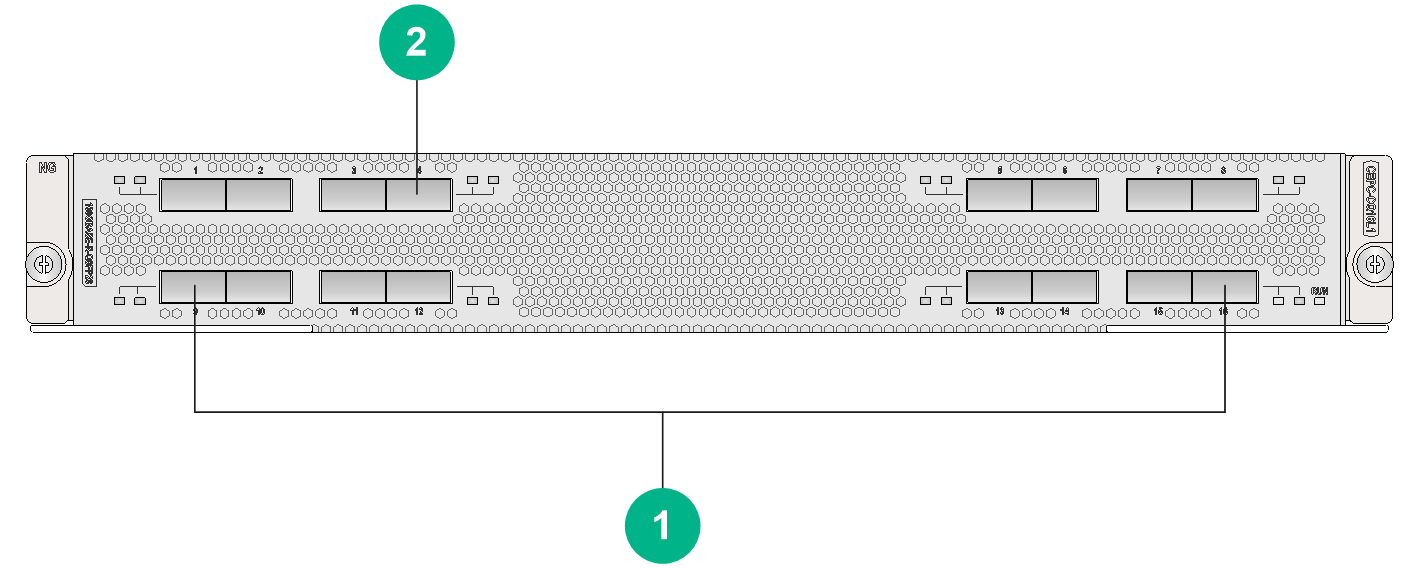

Figure2-26 CEPC-CQ16L1 view
(1) 100GBASE-QSFP28 fiber ports (16 in total) |
(2) QSFP 28 port LED. For the LED description, see Table2-149. |
LEDs
Table2-149 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
IMPORTANT: Only ports 1, 2, 7, 8, 9, 10, 15, and 16 support switching the speed between 100 Gbps and 40 Gbps. |
Table2-150 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CEPC-CQ16L1 |
16-port 100G Ethernet optical interface line processing unit (QSFP28,LC) |
LC |
16 |
100 Gbps |
40 Gbps |
Technical specifications
Table2-151 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 mm × 399 mm × 370 mm (2.07 in × 15.71 in × 14.57 in) |
Weight |
8.25 kg (18.19 lb) |
Maximum power consumption |
1240 W |
Typical power consumption |
970 W |
Minimum power consumption |
760 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CEPC-CQ8L
View
Figure2-27 CEPC-CQ8L view
(1) 100GBASE-QSFP28 fiber ports (8 in total) (100G QSFP 28 modules supported) |
(2) QSFP 28 port LED. For the LED description, see Table2-152. |
LEDs
Table2-152 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-153 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CEPC-CQ8L |
8-port 100G Ethernet optical interface line processing unit (QSFP28, LC) |
LC |
8 |
100 Gbps |
Technical specifications
Table2-154 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 mm × 399 mm × 370 mm (2.07 in × 15.71 in × 14.57 in) |
Weight |
8.00 kg (17.64 lb) |
Maximum power consumption |
CEPC-CQ8L: 1100 W |
Typical power consumption |
CEPC-CQ8L: 880 W |
Minimum power consumption |
CEPC-CQ8L: 653 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CEPC-DQ2L1-G
View

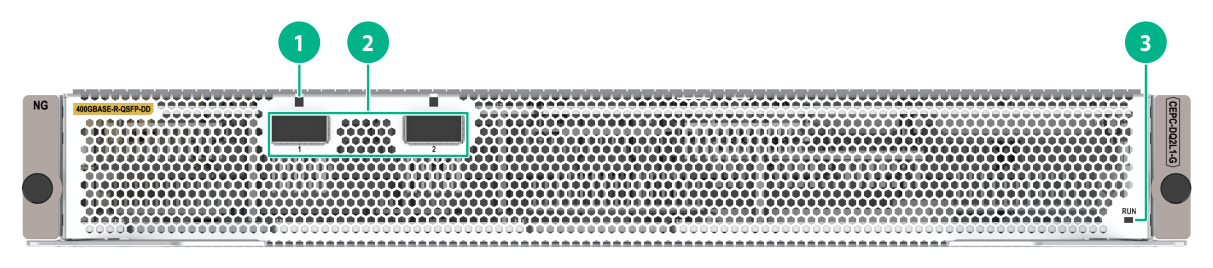

Figure2-28 CEPC-DQ2L1-G view
(1) QSFP-DD port LED. For the LED description, see Table2-155. |
(2) 400GBASE-R-QSFP-DD fiber ports (2 in total) (400G QSFP-DD transceiver modules supported) |
(3) Card status LED. For the LED description, see Table2-156. |
LEDs
Table2-155 QSFP-DD port LED description
LED |
Status |
Description |
QSFP-DD port LED |
Flashing |
The QSFP-DD port is sending or receiving data. |
On |
A link is present on the QSFP-DD port. |
|
Off |
No link is present on the QSFP-DD port. |
Table2-156 Card status LED description
LED |
Status |
Description |
RUN (Green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Ports
Table2-157 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CEPC-DQ2L1-G |
2-port 400G Ethernet optical interface line processing unit (QSFP-DD,LC) |
LC |
2 |
400 Gbps |
Technical specifications
Table2-158 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 370 mm (2.07 × 15.71 × 14.57 in) |
Weight |
6.96 kg (15.34 lb) |
Maximum power consumption |
540 W |
Typical power consumption |
510 W |
Minimum power consumption |
450 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CEPC-XP24LX
View
Figure2-29 CEPC-XP24LX view
(1) 10GBASE-R/W-SFP+ fiber ports (24 in total) (10GE SFP+ modules supported) |
(2) SFP+ port LED. For the LED description, see Table2-159. |
LEDs
Table2-159 SFP+ port LED description
LED |
Status |
Description |
SFP+ port LED |
Flashing |
The SFP+ port is sending or receiving data. |
Steady on |
A link is present on the SFP+ port. |
|
Off |
No link is present on the SFP+ port. |
Ports
Table2-160 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CEPC-XP24LX |
24-port 10GBASE-R/W Ethernet optical interface line processing unit (SFP+, LC) |
LC |
24 |
10 Gbps |
Technical specifications
Table2-161 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.70 kg (10.36 lb) |
Maximum power consumption |
321 W |
Typical power consumption |
289 W |
Minimum power consumption |
237.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CEPC-XP48RX
View
Figure2-30 CEPC-XP48RX view
(1) 10GBASE-R-SFP+ fiber ports (48 in total) |
(2) SFP+ port LED. For the LED description, see Table2-162. |
LEDs
Table2-162 SFP+ port LED description
LED |
Status |
Description |
SFP+ port LED |
Flashing |
The SFP+ port is sending or receiving data. |
Steady on |
A link is present on the SFP+ port. |
|
Off |
No link is present on the SFP+ port. |
Ports
Table2-163 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CEPC-XP48RX |
48-port 10GBASE-R/W Ethernet optical interface module (SFP+, LC) |
LC |
48 |
10 Gbps |
Technical specifications
Table2-164 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.75 kg (10.47 lb) |
Maximum power consumption |
407 W |
Typical power consumption |
336 W |
Minimum power consumption |
234.8 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CEPC-XP4LX
View

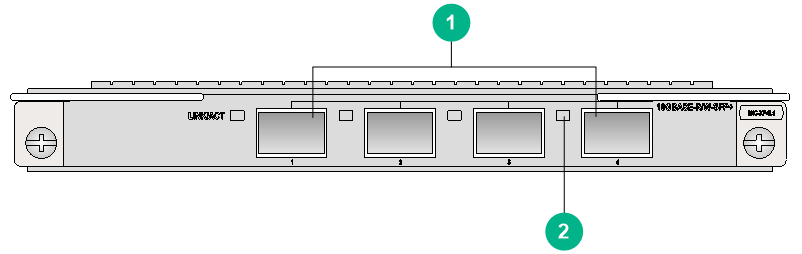

Figure2-31 CEPC-XP4LX view
(1) 10GBASE-R/W-SFP+ fiber ports (4 in total) (10GE SFP+ modules supported) |
(2) SFP+ port LED. For the LED description, see Table2-165. |
LEDs
Table2-165 SFP+ port LED description
LED |
Status |
Description |
SFP+ port LED |
Flashing |
The SFP+ port is sending or receiving data. |
Steady on |
A link is present on the SFP+ port. |
|
Off |
No link is present on the SFP+ port. |
Ports
Table2-166 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
CEPC-XP4LX |
4-port 10GBASE-R/W Ethernet optical interface line processing unit module (SFP+, LC) |
LC |
4 |
10 Gbps |
Technical specifications
Table2-167 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.90 kg (10.80 lb) |
Maximum power consumption |
184 W |
Typical power consumption |
117 W |
Minimum power consumption |
102 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
Configuration restrictions and guidelines
For adequate ventilation and cooling, you can install the CEPC-CP4RX, CEPC-XP48RX, and CEPC-XP24LX cards in the following slots only when the other slots are not available.
· SR8808-X router—Slots 0, 8 and 9.
· SR8812-X router—Slots 0 and 13.
Compatibility information
Table2-168 Compatibility matrix between CEPC cards and routers
Card model |
SR8804-X |
SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
CEPC-CP4RX |
Not supported |
Supported |
Supported |
CEPC-CP4RX-L |
Not supported |
Supported |
Supported |
CEPC-XP48RX |
Not supported |
Supported |
Supported |
CEPC-XP24LX |
Not supported |
Supported |
Supported |
CEPC-XP4LX |
Supported |
Supported |
Supported |
CEPC-CQ8L |
Not supported |
Not supported |
Supported |
CEPC-CQ16L1 |
Not supported |
Not supported |
Supported |
CEPC-DQ2L1-G |
Not supported |
Not supported |
Supported |
SPEX/CSPEX base cards
SPEX-1204/CSPEX-1104-E/CSPEX-1304X/CSPEX-1404X/CSPEX-1504X
IMPORTANT: A CSPEX-1104-E card supports a maximum of three MIC-XP4L1 and MIC-GP4L subcards in total. |
View

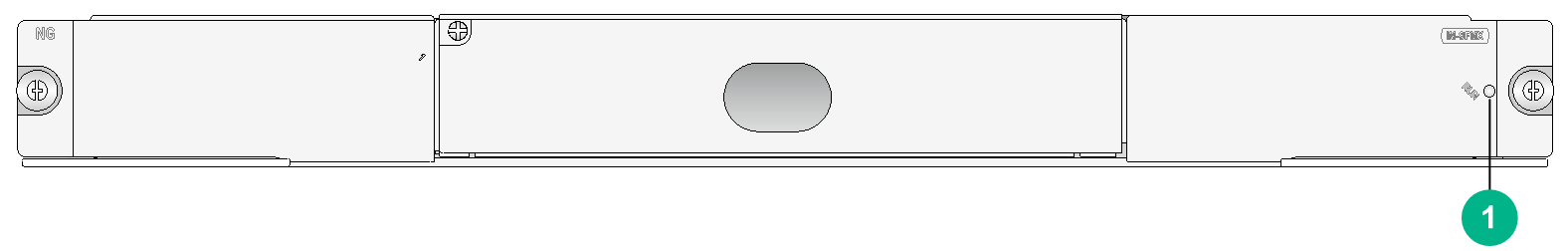

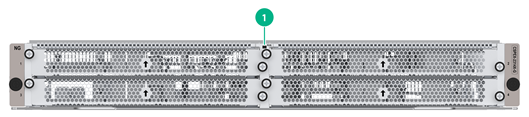

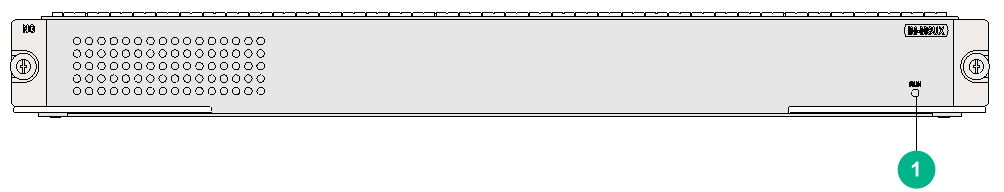

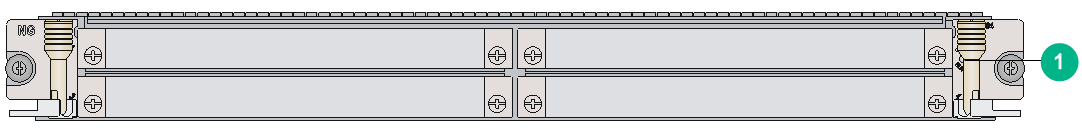

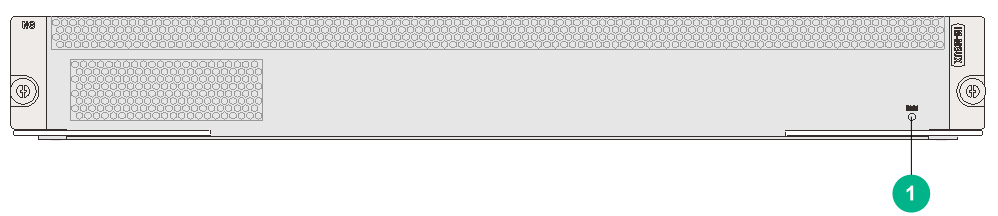

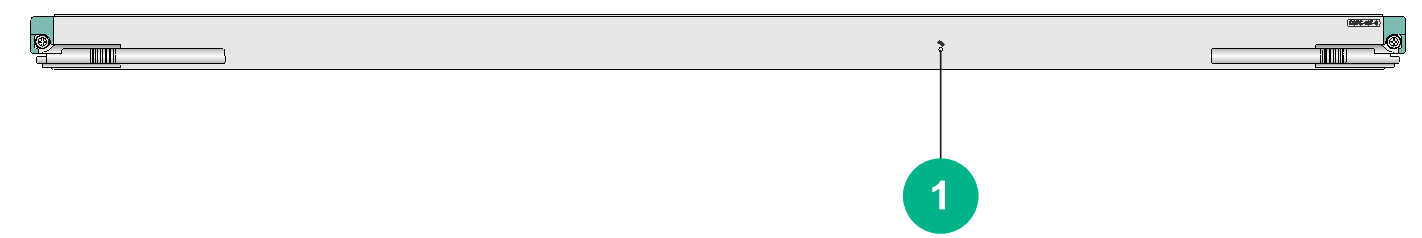

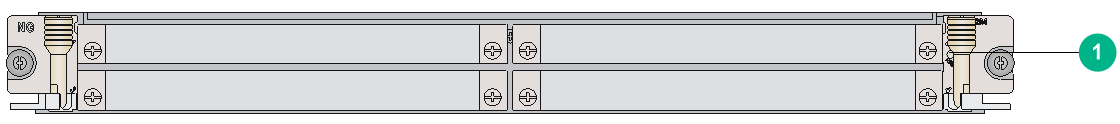

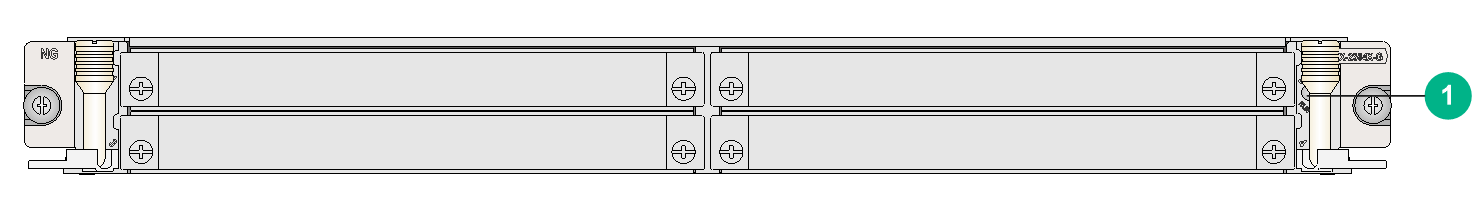

Figure2-32 SPEX-1204 view
(1) Card status LED. For the LED description, see Table2-169. |
The views of SPEX-1204, CSPEX-1304X, CSPEX-1404X, CSPEX-1504X, CSPEX-1504XA, and CSPEX-1104-E are similar. This figure uses the SPEX-1204 as an example.
LEDs
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-170 Subcard slots
Card model |
Number of subcard slots |
CSPEX-1104-E |
4 |
SPEX-1204 |
4 |
CSPEX-1304X |
4 |
CSPEX-1404X |
4 |
CSPEX-1504X |
4 |
Technical specifications
Table2-171 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
· CSPEX-1104-E: 3.45 kg (7.61 lb) · SPEX-1204: 3.50 kg (7.72 lb) · CSPEX-1304X: 3.75 kg (8.27 lb) · CSPEX-1404X: 7.20 kg (15.87 lb) · CSPEX-1504X: 7.20 kg (15.87 lb) |
Maximum power consumption |
· CSPEX-1104-E: 164 W · SPEX-1204: 190 W · CSPEX-1304X: 184 W · CSPEX-1404X: 230 W · CSPEX-1504X: 261 W |
Typical power consumption |
· CSPEX-1104-E: 88 W · SPEX-1204: 104 W · CSPEX-1304X: 101 W · CSPEX-1404X: 138 W · CSPEX-1504X: 154 W |
Minimum power consumption |
· CSPEX-1104-E: 79 W · SPEX-1204: 88 W · CSPEX-1304X: 90 W · CSPEX-1404X: 111.6 W · CSPEX-1504X: 112.1 W |
Operating temperature |
· 0°C to 45°C (32°F to 113°F) |
CSPEX-1502X/CSPEX-1602X
View

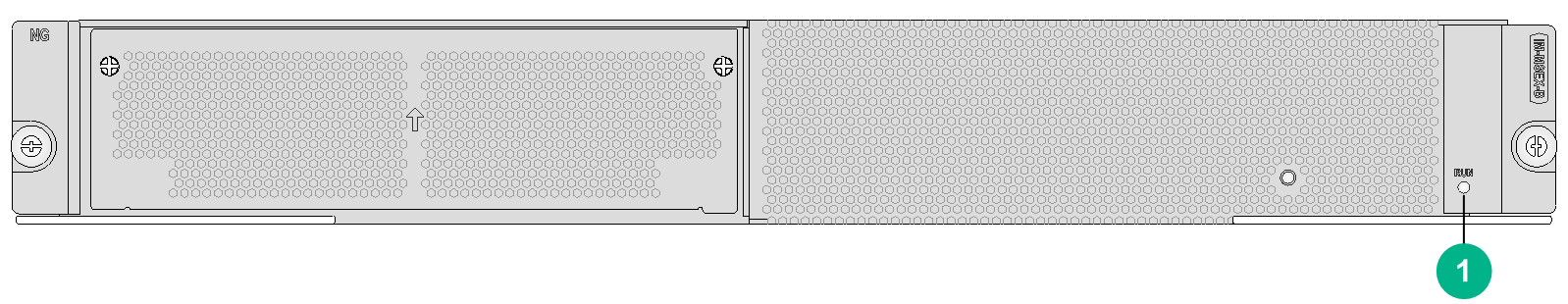

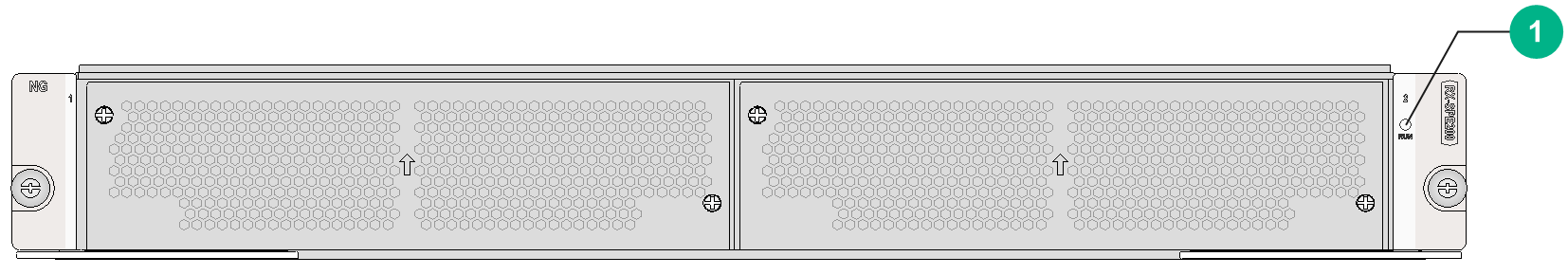

Figure2-33 CSPEX-1602X view
(1) Card status LED. For the LED description, see Table2-172. |
The views of the CSPEX-1602X and CSPEX-1502X are similar. This figure uses the CSPEX-1602X as an example.
LEDs
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-173 Subcard slots
Card model |
Number of subcard slots |
CSPEX-1502X |
2 |
CSPEX-1602X |
2 |
Technical specifications
Table2-174 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
· 40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
· CSPEX-1502X: 3.95 kg (8.71 lb) · CSPEX-1602X: 7.50 kg (16.53 lb) |
Maximum power consumption |
· CSPEX-1502X: 270 W · CSPEX-1602X: 354 W |
Typical power consumption |
· CSPEX-1502X: 135 W · CSPEX-1602X: 222 W |
Minimum power consumption |
· CSPEX-1502X: 120 W · CSPEX-1602X: 174.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPEX-1512X/CSPEX-1612X/CSPEX-1812X/CSPEX-1812X-E/CSPEX-1802X/CSPEX-1802XB/CSPEX-2612X-E
View

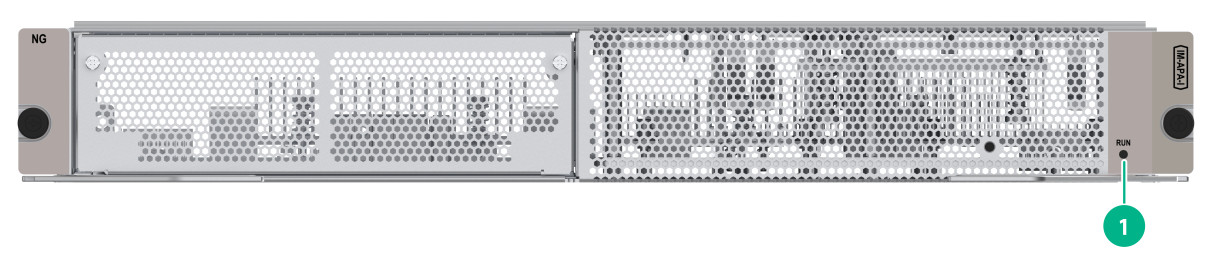

Figure2-34 CSPEX-1512X view
(1) Card status LED. For the LED description, see Table2-175. |
The views of the CSPEX-1512X, CSPEX-1612X, CSPEX-1812X, CSPEX-1812X-E, CSPEX-1802X, CSPEX-1802XB, and CSPEX-2612X-E are similar. This figure uses the CSPEX-1512X as an example.
LEDs
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-176 Subcard slots
Card model |
Number of subcard slots |
CSPEX-1512X |
2 |
CSPEX-1612X |
2 |
CSPEX-1812X |
2 |
CSPEX-1812X-E |
2 |
CSPEX-1802X |
2 |
CSPEX-1802XB |
2 |
CSPEX-2612X-E |
2 |
Technical specifications
Table2-177 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 mm × 399 mm × 352 mm (2.07 in × 15.71 in × 13.86 in) |
Weight |
· CSPEX-1512X: 5.40 kg (11.90 lb) · CSPEX-1612X: 8.75 kg (19.29 lb) · CSPEX-1812X: 5.95 kg (13.12 lb) · CSPEX-1812X-E, CSPEX-1802X, CSPEX-1802XB: 9.00 kg (19.84 lb) · CSPEX-2612X-E: 6.00 kg (13.23 lb) |
Maximum power consumption |
· CSPEX-1512X: 281 W · CSPEX-1612X: 320 W · CSPEX-1812X: 657 W · CSPEX-1812X-E, CSPEX-1802X, CSPEX-1802XB: 486 W · CSPEX-2612X-E: 538 W |
Typical power consumption |
· CSPEX-1512X: 202 W · CSPEX-1612X: 238 W · CSPEX-1812X: 426 W · CSPEX-1812X-E, CSPEX-1802X, CSPEX-1802XB: 333 W · CSPEX-2612X-E: 457 W |
Minimum power consumption |
· CSPEX-1512X: 185 W · CSPEX-1612X: 200 W · CSPEX-1812X: 413 W · CSPEX-1812X-E, CSPEX-1802X, CSPEX-1802XB: 275 W · CSPEX-2612X-E: 330 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPEX-1804X
View

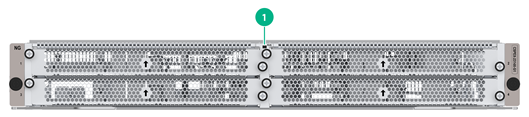

Figure2-35 CSPEX-1804X view
(1) Card status LED. For the LED description, see Table2-178. |
LEDs
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-179 Subcard slots
Card model |
Number of subcard slots |
CSPEX-1804X |
4 |
Technical specifications
Table2-180 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 mm × 399 mm × 352 mm (2.07 in × 15.71 in × 13.86 in) |
Weight |
6.30 kg (13.89 lb) |
Maximum power consumption |
625 W |
Typical power consumption |
510 |
Minimum power consumption |
460 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPEX-2304X-G
View
Figure2-36 CSPEX-2304X-G view
(1) Card status LED. For the LED description, see Table2-181. |
LEDs
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-182 Subcard slots
Card model |
Number of subcard slots |
CSPEX-2304X-G |
4 |
Technical specifications
Table2-183 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.65 kg (10.25 lb) |
Maximum power consumption |
280 W |
Typical power consumption |
242 W |
Minimum power consumption |
200 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPEX-2304X-LG
View

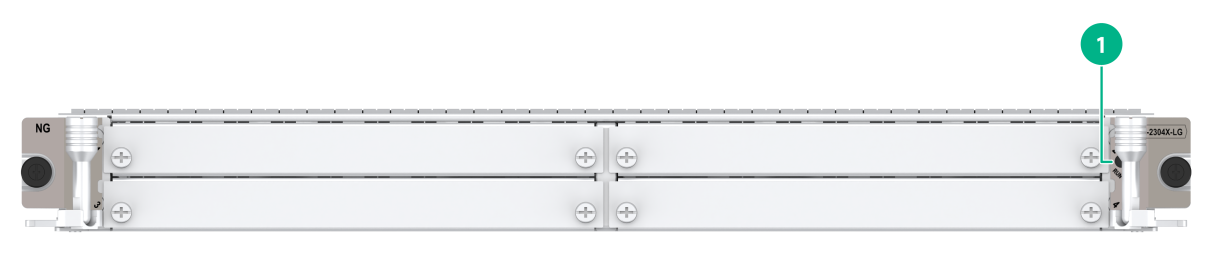

Figure2-37 CSPEX-2304X-LG view
(1) Card status LED. For the LED description, see Table2-184. |
LEDs
LED |
Status |
Description |
RUN (Green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-185 Subcard slots
Card model |
Number of subcard slots |
CSPEX-2304X-LG |
4 |
Technical specifications
Table2-186 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.65 kg (10.25 lb) |
Maximum power consumption |
280 W |
Typical power consumption |
242 W |
Minimum power consumption |
200 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPEX-2314X-G
View
Figure2-38 CSPEX-2314X-G view
(1) Card status LED. For the LED description, see Table2-187. |
LEDs
LED |
Status |
Description |
RUN (Green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not in position. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-188 CSPEX-2314X-G subcard slots
Card model |
Number of subcard slots |
CSPEX-2314X-G |
4 |
Technical specifications
Table2-189 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
Weight |
11.57 kg (25.51 lb) |
Maximum power consumption |
385 W |
Power consumption (with typical configuration) |
333 W |
Minimum power consumption |
185 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPEX-2314X-G1
View
Figure2-39 CSPEX-2314X-G1 view
(1) Card status LED. For the LED description, see Table2-190. |
LEDs
LED |
Status |
Description |
RUN (Green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not in position. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-191 Subcard slots
Card model |
Number of subcard slots |
CSPEX-2314X-G1 |
4 |
Technical specifications
Table2-192 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
Weight |
5.15 kg (11.35 lb) |
Maximum power consumption |
320 W |
Power consumption (with typical configuration) |
268 W |
Minimum power consumption |
120 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
CSPEX-2314X-G2
View
Figure2-40 CSPEX-2314X-G2 view
(1) Card status LED. For the LED description, see Table2-193. |
LEDs
LED |
Status |
Description |
RUN (Green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not in position. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-194 Subcard slots
Card model |
Number of subcard slots |
CSPEX-2314X-G2 |
4 |
Technical specifications
Table2-195 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
Weight |
5.15 kg (11.35 lb) |
Maximum power consumption |
320 W |
Power consumption (with typical configuration) |
268 W |
Minimum power consumption |
120 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
Configuration restrictions and guidelines
An SR8804-X router installed with Type-A switching fabric modules does not support the CSPEX-1304X, CSPEX-1404X, or CSPEX-1504X cards.
For adequate ventilation and cooling, you can install the CSPEX-1602X cards in the following slots only when the other slots are not available.
· SR8808-X router—Slots 0, 8 and 9.
· SR8812-X router—Slots 0 and 13.
Compatibility information
Table2-196 Compatibility matrix between SPEX/CSPEX cards and routers
Card model |
SR8804-X |
SR8808-X |
SR8812-X |
SR8808H-X, SR8816-X |
SPEX-1204 |
Supported |
Supported |
Supported |
Not supported |
CSPEX-1104-E |
Supported |
Supported |
Supported |
Not supported |
CSPEX-1304X |
Supported |
Supported |
Supported |
Supported |
CSPEX-1404X |
Supported |
Supported |
Supported |
Supported |
CSPEX-1502X |
Not supported |
Supported |
Supported |
Supported |
CSPEX-1504X |
Supported |
Supported |
Supported |
Supported |
CSPEX-1602X |
Not supported |
Supported |
Supported |
Supported |
CSPEX-1802X |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-1802XB |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-1804X |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-1512X |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-1612X |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-1812X |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-1812X-E |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-2304X-G |
Supported |
Supported |
Not supported |
Supported |
CSPEX-2304X-LG |
Supported |
Supported |
Not supported |
Supported |
CSPEX-2314X-G |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-2314X-G1 |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-2314X-G2 |
Not supported |
Not supported |
Not supported |
Supported |
CSPEX-2612X-E |
Not supported |
Not supported |
Not supported |
Supported |
Table2-197 Compatibility matrixes between SPEX/CSPEX cards and subcards (1)
Subcard model |
SPEX/CSPEX card |
|||||
SPEX-1204 |
CSPEX-1304X |
CSPEX-1504X/CSPEX-1404X |
CSPEX-1502X |
CSPEX-1602X |
CSPEX-1804X |
|
GIC-CLP2L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-CQ1L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-ET16L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-GP12L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-TCP8L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-XP4L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-XP6L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-XP12L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-GP10L |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-TCP8L |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
PIC-PSP4L |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
PIC-PS2G4L |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-PUP1L |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
PIC-XP1L |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GT20L |
Not supported |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
MIC-GT20L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-ET16L |
Supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CLP2L |
Supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CLP4L |
Supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-SP4L |
Supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-SP8L |
Supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-GP4L |
Subcard slots 1 and 2: Not supported. Subcard slots 3 and 4: Supported. |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-GP8L |
Subcard slots 1 and 2: Not supported. Subcard slots 3 and 4: Supported. |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L1 |
Subcard slots 1 and 2: Not supported. Subcard slots 3 and 4: Supported. |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L-V2 |
Not supported |
Subcard slots 1, 2, and 3: Supported. Subcard slot 4: Not supported. |
Supported |
Not supported |
Not supported |
Not supported |
MIC-GP20L |
Not supported |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
MIC-GP20L1 |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
MIC-XP2L |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP2L-LAN |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP4L1 |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L1 |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L2 |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP8L |
Not supported |
Not supported |
Not supported |
Supported |
Not supported |
Not supported |
MIC-XP10LF |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP10L-LAN |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP20L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
MIC-QP1L |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CP1L |
Not supported |
Not supported |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
MIC-CP1L-V2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
MIC-CP2L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
MIC-CP2L-V2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
MIC-CQ1L1 |
Not supported |
Not supported |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
MIC-CQ1L2 |
Not supported |
Not supported |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
MIC-CQ1LF |
Not supported |
Not supported |
Not supported. |
Not supported |
Not supported |
Not supported |
MIC-CQ2L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
MIC-PSP4L |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-TCP8L |
Not supported |
Subcard slots 1, 2, and 3: Supported. Subcard slot 4: Not supported. |
Supported |
Not supported |
Not supported |
Not supported |
MIC-SEC |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GT20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-QP3L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GP24L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GP24L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GP24L1B |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-XP5L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-XP10L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-XP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-XP20L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-XP20L1B |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CC1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CC2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CQ1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CQ2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CQ2LB |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-GP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-XP5L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-XP10L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-XP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-YGS4L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-LGQ2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-LGQ4L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-CQ1LF |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-CQ2LF |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-CC1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-CC2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Table2-198 Compatibility matrixes between SPEX/CSPEX cards and subcards (2)
Subcard model |
SPEX/CSPEX card |
|||||
CSPEX-1104-E |
CSPEX-1512X |
CSPEX-1612X |
CSPEX-1812X |
CSPEX-1812X-E |
CSPEX-1802X |
|
GIC-CLP2L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-CQ1L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-ET16L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-GP12L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-TCP8L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-XP4L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-XP6L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
GIC-XP12L-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-GP10L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-XP1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-TCP8L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-PS2G4L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-PSP4L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-PUP1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP4L |
Supported, a maximum of 3. |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP8L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-SP4L |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CLP2L |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CLP4L |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-SP8L |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-ET16L |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP20L |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP20L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GT20L |
Subcard slots 1 and 2: Supported. Subcard slots 3 and 4: Not supported. |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GT20L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CP1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L-V2 |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP2L |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP2L-LAN |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP4L1 |
Supported, a maximum of 3 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP8L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP10LF |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP10L-LAN |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CP2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-QP1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CP1L-V2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CP2L-V2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CQ1L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CQ1L2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CQ1LF |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CQ2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-PSP4L |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-TCP8L |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-SEC |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GT20L |
Not supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
NIC-QP3L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
NIC-GP20L |
Not supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
NIC-GP24L |
Not supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
NIC-GP24L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
NIC-GP24L1B |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
NIC-XP5L |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
NIC-XP10L |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
NIC-XP20L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
NIC-XP20L1 |
Not supported |
Not supported |
Not supported |
Supported |
Not supported |
Supported |
NIC-XP20L1B |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CC1L |
Not supported |
Not supported |
Supported |
Supported |
Supported |
Supported |
NIC-CC2L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
NIC-CQ1L |
Not supported |
Not supported |
Supported |
Supported |
Supported |
Supported |
NIC-CQ2L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
NIC-CQ2LB |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-GP20L |
Not supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
RX-NIC-XP5L |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
RX-NIC-XP10L |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
RX-NIC-XP20L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
RX-NIC-YGS4L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
RX-NIC-LGQ2L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
RX-NIC-LGQ4L |
Not supported |
Not supported |
Not supported |
Supported |
Not supported |
Supported |
RX-NIC-CQ1LF |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
RX-NIC-CQ2LF |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
RX-NIC-CC1L |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
RX-NIC-CC2L |
Not supported |
Not supported |
Not supported |
Supported |
Supported |
Supported |
Table2-199 Compatibility matrixes between SPEX/CSPEX cards and subcards (3)
Subcard model |
SPEX/CSPEX card |
||||
CSPEX-1802XB |
CSPEX-2304X-G CSPEX-2304X-LG |
CSPEX-2314X-G |
CSPEX-2314X-G1 CSPEX-2314X-G2 |
CSPEX-2612X-E |
|
GIC-CLP2L-G |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
GIC-CQ1L-G |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
GIC-ET16L-G |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
GIC-GP12L-G |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
GIC-TCP8L-G |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
GIC-XP4L-G |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
GIC-XP6L-G |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
GIC-XP12L-G |
Not supported |
Not supported |
Supported |
Supported |
Not supported |
PIC-GP10L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-XP1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-TCP8L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-PS2G4L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-PSP4L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
PIC-PUP1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP4L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-GP8L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L2 |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-SP4L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CLP2L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CLP4L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-SP8L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-ET16L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-GP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP20L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GT20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GT20L1 |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CP1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-GP10L-V2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP2L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP2L-LAN |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP4L1 |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP8L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-XP10LF |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP10L-LAN |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L1 |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP5L2 |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-XP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CP2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-QP1L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CP1L-V2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CP2L-V2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CQ1L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-CQ1L2 |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CQ1LF |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-CQ2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MIC-PSP4L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-TCP8L |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
MIC-SEC |
Not supported |
Supported |
Not supported |
Not supported |
Not supported |
NIC-GT20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-QP3L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GP24L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-GP24L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
NIC-GP24L1B |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-XP5L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
NIC-XP10L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
NIC-XP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-XP20L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
NIC-XP20L1B |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CC1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CC2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
NIC-CQ1L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
NIC-CQ2L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
NIC-CQ2LB |
Supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-GP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-XP5L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
RX-NIC-XP10L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
RX-NIC-XP20L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
RX-NIC-YGS4L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
RX-NIC-LGQ2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-LGQ4L |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
RX-NIC-CQ1LF |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-CQ2LF |
Not supported |
Not supported |
Not supported |
Not supported |
Supported |
RX-NIC-CC1L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-NIC-CC2L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MPE base cards
MPE-1104
View

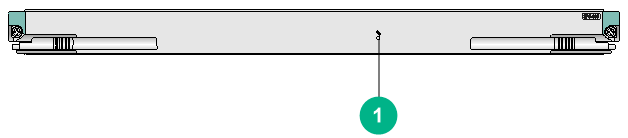

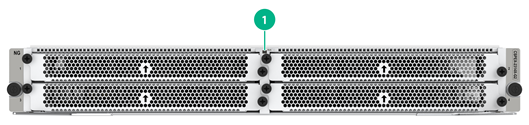

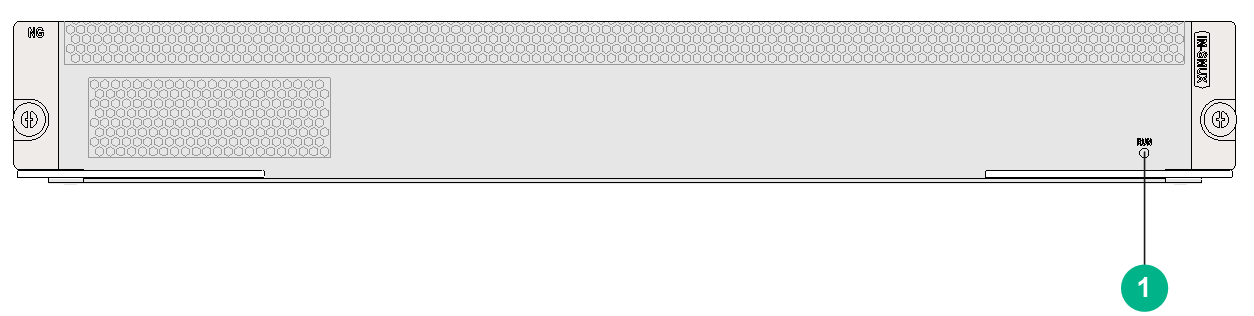

Figure2-41 MPE-1104 view
(1) Card status LED. For the LED description, see Table2-200. |
LEDs
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-201 Subcard slots
Card model |
Number of subcard slots |
MPE-1104 |
4 |
Technical specifications
Table2-202 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.52 kg (7.76 lb) |
Maximum power consumption |
158 W |
Typical power consumption |
94 W |
Minimum power consumption |
91 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
Configuration restrictions and guidelines
The subslot restrictions of an MPE card depend on the subslot mode. For more information about subslot modes, see H3C SR8800-X Routers Configuration Guides.
Compatibility information
Table2-203 Compatibility matrix between MPE cards and routers
Card model |
SR8804-X |
SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
MPE-1104 |
Supported |
Supported |
Not supported |
Table2-204 Compatibility matrix between MPE cards and subcards
Subcard model |
MPE cards |
GIC-CLP2L-G |
Not supported |
GIC-CQ1L-G |
Not supported |
GIC-ET16L-G |
Not supported |
GIC-GP12L-G |
Not supported |
GIC-TCP8L-G |
Not supported |
GIC-XP4L-G |
Not supported |
GIC-XP6L-G |
Not supported |
GIC-XP12L-G |
Not supported |
PIC-GP10L |
Not supported |
PIC-TCP8L |
Not supported |
PIC-PSP4L |
Not supported |
PIC-PS2G4L |
Not supported |
PIC-PUP1L |
Not supported |
PIC-XP1L |
Not supported |
MIC-GT20L |
Not supported |
MIC-GT20L1 |
Not supported |
MIC-CLP4L |
Supported |
MIC-ET16L |
Supported |
MIC-CLP2L |
Supported |
MIC-SP8L |
Only one is supported. Can be installed only slot 1 or slot 2. |
MIC-SP4L |
Supported |
MIC-GP4L |
Supported |
MIC-GP8L |
Not supported in slot 3 or slot 4 |
MIC-GP10L1 |
Not supported |
MIC-GP10L2 |
Not supported |
MIC-GP10L-V2 |
Not supported |
MIC-GP20L |
Not supported |
MIC-GP20L1 |
Not supported |
MIC-XP2L |
Not supported |
MIC-XP2L-LAN |
Not supported |
MIC-XP4L1 |
Not supported |
MIC-XP5L |
Not supported |
MIC-XP5L1 |
Not supported |
MIC-XP5L2 |
Not supported |
MIC-XP8L |
Not supported |
MIC-XP10LF |
Not supported |
MIC-XP10L-LAN |
Not supported |
MIC-XP20L |
Not supported |
MIC-QP1L |
Not supported |
MIC-CP1L |
Not supported |
MIC-CP1L-V2 |
Not supported |
MIC-CP2L |
Not supported |
MIC-CP2L-V2 |
Not supported |
MIC-CQ1L1 |
Not supported |
MIC-CQ1L2 |
Not supported |
MIC-CQ1LF |
Not supported |
MIC-CQ2L |
Not supported |
MIC-PSP4L |
Not supported |
MIC-TCP8L |
Not supported |
MIC-SEC |
Not supported |
NIC-GT20L |
Not supported |
NIC-QP3L |
Not supported |
NIC-GP20L |
Not supported |
NIC-GP24L |
Not supported |
NIC-GP24L1 |
Not supported |
NIC-GP24L1B |
Not supported |
NIC-XP5L |
Not supported |
NIC-XP10L |
Not supported |
NIC-XP20L |
Not supported |
NIC-XP20L1 |
Not supported |
NIC-XP20L1B |
Not supported |
NIC-CC1L |
Not supported |
NIC-CC2L |
Not supported |
NIC-CQ1L |
Not supported |
NIC-CQ2L |
Not supported |
NIC-CQ2LB |
Not supported |
RX-NIC-GP20L |
Not supported |
RX-NIC-XP5L |
Not supported |
RX-NIC-XP10L |
Not supported |
RX-NIC-XP20L |
Not supported |
RX-NIC-YGS4L |
Not supported |
RX-NIC-LGQ2L |
Not supported |
RX-NIC-LGQ4L |
Not supported |
RX-NIC-CQ1LF |
Not supported |
RX-NIC-CQ2LF |
Not supported |
RX-NIC-CC1L |
Not supported |
RX-NIC-CC2L |
Not supported |
SPE base cards
RX-SPE200/RX-SPE200-E
View
Figure2-42 RX-SPE200 view
(1) Card status LED. For the LED description, see Table2-205. |
The views of the RX-SPE200 and RX-SPE200-E are similar. This figure uses the RX-SPE200 as an example.
LEDs
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing (about eight times per second) |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Subcard slots
Table2-206 Subcard slots
Card model |
Number of subcard slots |
RX-SPE200 |
2 |
RX-SPE200-E |
2 |
Technical specifications
Table2-207 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 mm × 399 mm × 352 mm (2.07 in × 15.71 in × 13.86 in) |
Weight |
· RX-SPE200: 5.35 kg (11.79 lb) · RX-SPE200-E: 5.00 kg (11.02 lb) |
Maximum power consumption |
· RX-SPE200: 530 W · RX-SPE200-E: 270 W |
Typical power consumption |
· RX-SPE200: 300 W · RX-SPE200-E: 135 W |
Minimum power consumption |
· RX-SPE200: 280 W · RX-SPE200-E: 120 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
Compatibility information
Table2-208 Compatibility matrix between SPE cards and routers
Card model |
SR8804-X |
SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
RX-SPE200 |
Not supported |
Not supported |
Supported |
RX-SPE200-E |
Not supported |
Not supported |
Supported |
Table2-209 Compatibility matrix between SPE cards and subcards
Subcard model |
RX-SPE200 |
RX-SPE200-E |
GIC-CLP2L-G |
Not supported |
Not supported |
GIC-CQ1L-G |
Not supported |
Not supported |
GIC-ET16L-G |
Not supported |
Not supported |
GIC-GP12L-G |
Not supported |
Not supported |
GIC-TCP8L-G |
Not supported |
Not supported |
GIC-XP4L-G |
Not supported |
Not supported |
GIC-XP6L-G |
Not supported |
Not supported |
GIC-XP12L-G |
Not supported |
Not supported |
PIC-GP10L |
Not supported |
Not supported |
PIC-TCP8L |
Not supported |
Not supported |
PIC-PSP4L |
Not supported |
Not supported |
PIC-PS2G4L |
Not supported |
Not supported |
PIC-PUP1L |
Not supported |
Not supported |
PIC-XP1L |
Not supported |
Not supported |
MIC-GT20L |
Not supported |
Not supported |
MIC-GT20L1 |
Not supported |
Not supported |
MIC-CLP4L |
Not supported |
Not supported |
MIC-ET16L |
Not supported |
Not supported |
MIC-CLP2L |
Not supported |
Not supported |
MIC-SP8L |
Not supported |
Not supported |
MIC-SP4L |
Not supported |
Not supported |
MIC-GP4L |
Not supported |
Not supported |
MIC-GP8L |
Not supported |
Not supported |
MIC-GP10L1 |
Not supported |
Not supported |
MIC-GP10L2 |
Not supported |
Not supported |
MIC-GP10L-V2 |
Not supported |
Not supported |
MIC-GP20L |
Not supported |
Not supported |
MIC-GP20L1 |
Not supported |
Not supported |
MIC-XP2L |
Not supported |
Not supported |
MIC-XP2L-LAN |
Not supported |
Not supported |
MIC-XP4L1 |
Not supported |
Not supported |
MIC-XP5L |
Not supported |
Not supported |
MIC-XP5L1 |
Not supported |
Not supported |
MIC-XP5L2 |
Not supported |
Not supported |
MIC-XP8L |
Not supported |
Not supported |
MIC-XP10LF |
Not supported |
Not supported |
MIC-XP10L-LAN |
Not supported |
Not supported |
MIC-XP20L |
Not supported |
Not supported |
MIC-QP1L |
Not supported |
Not supported |
MIC-CP1L |
Not supported |
Not supported |
MIC-CP1L-V2 |
Not supported |
Not supported |
MIC-CP2L |
Not supported |
Not supported |
MIC-CP2L-V2 |
Not supported |
Not supported |
MIC-CQ1L1 |
Not supported |
Not supported |
MIC-CQ2L |
Not supported |
Not supported |
MIC-PSP4L |
Not supported |
Not supported |
MIC-TCP8L |
Not supported |
Not supported |
MIC-SEC |
Not supported |
Not supported |
NIC-GT20L |
Supported |
Not supported |
NIC-QP3L |
Supported |
Supported |
NIC-GP20L |
Supported |
Not supported |
NIC-GP24L |
Not supported |
Not supported |
NIC-GP24L1 |
Not supported |
Supported |
NIC-GP24L1B |
Not supported |
Not supported |
NIC-XP5L |
Not supported |
Not supported |
NIC-XP10L |
Supported |
Not supported |
NIC-XP20L |
Not supported |
Not supported |
NIC-XP20L1 |
Not supported |
Not supported |
NIC-XP20L1B |
Not supported |
Not supported |
NIC-CC1L |
Not supported |
Not supported |
NIC-CC2L |
Not supported |
Not supported |
NIC-CQ1L |
Supported |
Not supported |
MIC-CQ1L2 |
Not supported |
Not supported |
MIC-CQ1LF |
Not supported |
Not supported |
NIC-CQ2L |
Not supported |
Not supported |
NIC-CQ2LB |
Not supported |
Not supported |
RX-NIC-GP20L |
Supported |
Not supported |
RX-NIC-XP5L |
Supported |
Supported |
RX-NIC-XP10L |
Supported |
Supported |
RX-NIC-XP20L |
Not supported |
Not supported |
RX-NIC-YGS4L |
Supported |
Supported |
RX-NIC-LGQ2L |
Supported |
Supported |
RX-NIC-LGQ4L |
Not supported |
Not supported |
RX-NIC-CQ1LF |
Supported |
Supported |
RX-NIC-CQ2LF |
Not supported |
Not supported |
RX-NIC-CC1L |
Supported |
Supported |
RX-NIC-CC2L |
Not supported |
Not supported |
GIC subcards
IMPORTANT: · To use a GIC interface card, you must install it on a CSPEX base card. You cannot install it directly on the router. · For the compatibility between GIC interface cards and CSPEX base cards, see the compatibility information for the base cards. · Some GIC subcards support changing the speed. For more information, see H3C SR8800-X Routers Configuration Guides. |
GIC-CLP2L-G
View

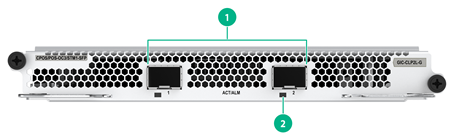

Figure2-43 GIC-CLP2L-G view
(1) OC-3/STM-1 SFP fiber ports (2 in total) |
(2) Port LED. For the LED description, see Table2-210. |
LEDs
Table2-210 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Flashing green |
The port is up and is receiving or sending data correctly. |
Steady green |
The port is up and no services are running on the port. |
|
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-211 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
GIC-CLP2L-G |
2-port OC-3/STM-1 (155M) channelized POS optical interface card |
LC |
2 |
155 Mbps (OC-3/STM-1 ) |
Technical specifications
Table2-212 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
22.3 × 190 × 154 mm (0.88 × 7.48 × 6.06 in) |
Weight |
1.05 kg (2.31 lb) |
Maximum power consumption |
18 W |
Minimum power consumption |
16 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
GIC-CQ1L-G
View

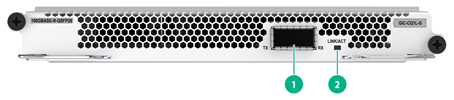

Figure2-44 GIC-CQ1L-G view
(1) 100GBASE-R QSFP28 fiber port (1 in total) |
(2) QSFP28 port LED. For the LED description, see Table2-213. |
LEDs
Table2-213 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is receiving or sending data. |
On |
A link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-214 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
GIC-CQ1L-G |
1-port 100G Ethernet optical interface card |
LC |
1 |
100 Gbps |
40 Gbps |
Technical specifications
Table2-215 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
22.3 × 190 × 154 mm (0.88 × 7.48 × 6.06 in) |
Weight |
1.00 kg (2.20 lb) |
Maximum power consumption |
15 W |
Minimum power consumption |
13 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
GIC-ET16L-G
View
Figure2-45 GIC-ET16L-G view
(1) E1-HM96 copper ports (16 in total) |
(2) Port LED. For the LED description, see Table2-216. |
LEDs
Table2-216 WAN port LED description
LED |
Status |
Description |
ACT/ALM |
Flashing green |
The port is receiving or sending data. |
Steady green |
A link is present, but the port is not receiving or sending data. |
|
Steady red |
An alarm has occurred. |
|
Off |
No link is present on the port. |
Ports
Table2-217 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
GIC-ET16L-G |
16-port E1 copper interface card |
HM96 male connector |
16 |
E1 |
Technical specifications
Table2-218 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
22.3 × 190 × 154 mm (0.88 × 7.48 × 6.06 in) |
Weight |
1.00 kg (2.20 lb) |
Maximum power consumption |
14 W |
Minimum power consumption |
12 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
GIC-GP12L-G
View

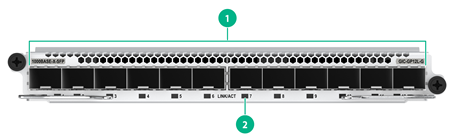

Figure2-46 GIC-GP12L-G view
(1) 1000BASE-X SFP fiber ports (12 in total) |
(2) SFP port LED. For the LED description, see Table2-219. |
LEDs
Table2-219 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is receiving or sending data. |
Steady green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-220 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
GIC-GP12L-G |
12-port 1000BASE-X Ethernet optical interface card |
LC |
12 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-221 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
22.3 × 190 × 154 mm (0.88 × 7.48 × 6.06 in) |
Weight |
1.05 kg (2.31 lb) |
Maximum power consumption |
26 W |
Minimum power consumption |
15 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
GIC-TCP8L-G
View

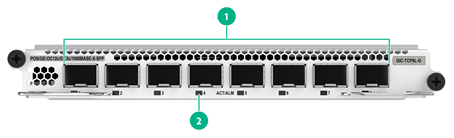

Figure2-47 GIC-TCP8L-G view
(1) OC-3c/OC-12c POS/GE fiber ports (8 in total) |
(2) Port LED. For the LED description, see Table2-222. |
LEDs
Table2-222 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Flashing green |
The port is up and is receiving or sending data correctly. |
Steady green |
The port is up and no services are running on the port. |
|
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-223 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
GIC-TCP8L-G |
8-port OC-3c/OC-12c (622M/155M) POS/GE optical interface card |
LC |
8 |
100 Mbps |
155 Mbps (OC-3/STM-1 ) |
||||
622 Mbps (OC-12/STM-4) |
||||
1000 Mbps |
Technical specifications
Table2-224 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
22.3 × 190 × 154 mm (0.88 × 7.48 × 6.06 in) |
Weight |
1.05 kg (2.31 lb) |
Maximum power consumption |
24 W |
Minimum power consumption |
16 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
GIC-XP4L-G
View

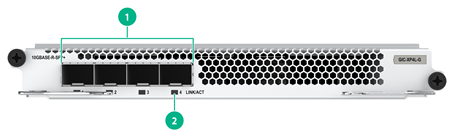

Figure2-48 GIC-XP4L-G view
(1) 10GBASE-R/W SFP+ fiber ports (4 in total) |
(2) SFP+ port LED. For the LED description, see Table2-225. |
LEDs
Table2-225 SFP+ port LED description
LED |
Status |
Description |
10GE SFP+ port LED (LINK/ACT) |
Flashing |
The SFP+ port is receiving or sending data. |
On |
A link is present on the SFP+ port. |
|
Off |
No link is present on the SFP+ port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-226 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
GIC-XP4L-G |
4-port 10GBASE-R/W Ethernet optical interface card |
LC |
4 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-227 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
22.3 × 190 × 154 mm (0.88 × 7.48 × 6.06 in) |
Weight |
1.05 kg (2.31 lb) |
Maximum power consumption |
23 W |
Minimum power consumption |
15 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
GIC-XP6L-G
View

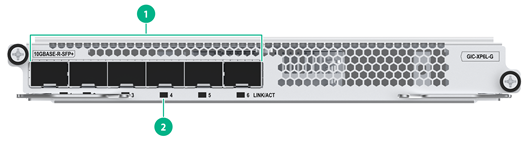

Figure2-49 GIC-XP6L-G view
(1) 10GBASE-R/W SFP+ fiber ports (6 in total) |
(2) SFP+ port LED. For the LED description, see Table2-228. |
LEDs
Table2-228 SFP+ port LED description
LED |
Status |
Description |
10GE SFP+ port LED (LINK/ACT) |
Flashing |
The SFP+ port is receiving or sending data. |
On |
A link is present on the SFP+ port. |
|
Off |
No link is present on the SFP+ port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-229 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
GIC-XP6L-G |
6-port 10GBASE-R/W Ethernet optical interface card |
LC |
6 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-230 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
22.3 × 190 × 154 mm (0.88 × 7.48 × 6.06 in) |
Weight |
1.05 kg (2.31 lb) |
Maximum power consumption |
24 W |
Minimum power consumption |
15 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
GIC-XP12L-G
View

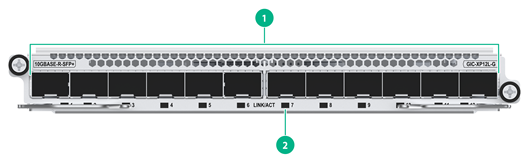

Figure2-50 GIC-XP12L-G view
(1) 10GBASE-R/W SFP+ fiber ports (12 in total) |
(2) SFP+ port LED. For the LED description, see Table2-231. |
LEDs
Table2-231 SFP+ port LED description
LED |
Status |
Description |
10GE SFP+ port LED (LINK/ACT) |
Flashing |
The SFP+ port is receiving or sending data. |
On |
A link is present on the SFP+ port. |
|
Off |
No link is present on the SFP+ port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-232 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
GIC-XP12L-G |
12-port 10GBASE-R/W Ethernet optical interface card |
LC |
12 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-233 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
22.3 × 190 × 154 mm (0.88 × 7.48 × 6.06 in) |
Weight |
1.05 kg (2.31 lb) |
Maximum power consumption |
28 W |
Minimum power consumption |
15 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC subcards
IMPORTANT: · To use a MIC interface card, you must install it on a CMPE, SPE, or SPEX/CSPEX base card. You cannot install it directly on the router. · For the compatibility between MIC interface cards and CMPE, SPE, or SPEX/CSPEX base cards, see the compatibility information for the base cards. · A combo interface is a logical interface that contains an SFP port and an RJ-45 Ethernet port. Only one of them can be activated at a time. · Some MIC subcards support changing the speed. For more information, see H3C SR8800-X Routers Configuration Guides. |
MIC-CLP2L
View

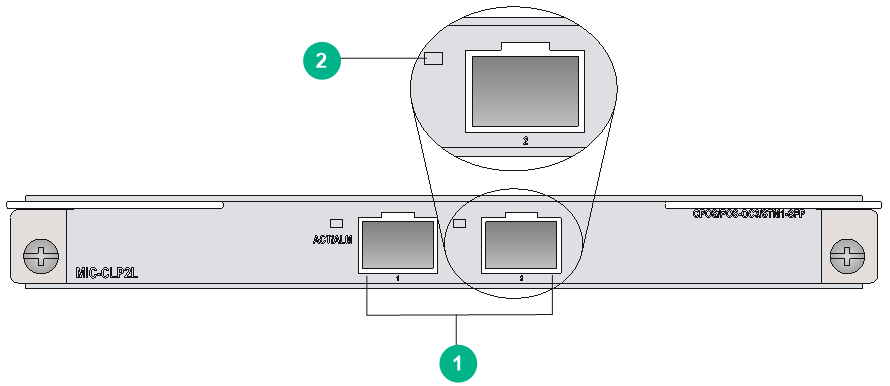

Figure2-51 MIC-CLP2L view
(1) CPOS-OC3/STM1-SFP port (2 in total) |
(2) Port LED. For the LED description, see Table2-234. |
LEDs
Table2-234 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Flashing green |
The port is up and is receiving or sending data correctly. |
Steady green |
The port is up and no services are running on the port. |
|
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-235 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CLP2L |
2-port OC-3/STM-1 CPOS optical interface card |
LC |
2 |
155 Mbps (OC-3/STM-1 ) |
Technical specifications
Table2-236 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.32 kg (0.71 lb) |
Maximum power consumption |
10.9 W |
Minimum power consumption |
9.8 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CLP4L
View

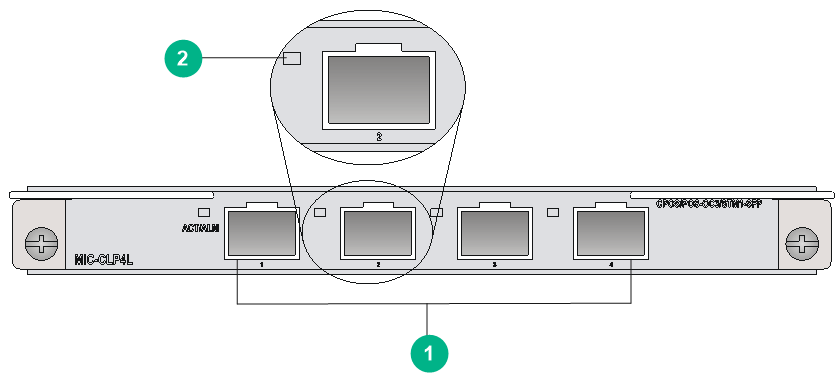

Figure2-52 MIC-CLP4L view
(1) CPOS-OC3/STM1-SFP port (4 in total) |
(2) Port LED. For the LED description, see Table2-237. |
LEDs
Table2-237 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Flashing green |
The port is up and is receiving or sending data correctly. |
Steady green |
The port is up and no services are running on the port. |
|
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-238 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CLP4L |
4-port OC-3/STM-1 CPOS optical interface card |
LC |
4 |
155 Mbps (OC-3/STM-1 ) |
Technical specifications
Table2-239 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.30 kg (0.66 lb) |
Maximum power consumption |
12.9 W |
Minimum power consumption |
9.8 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CP1L
View

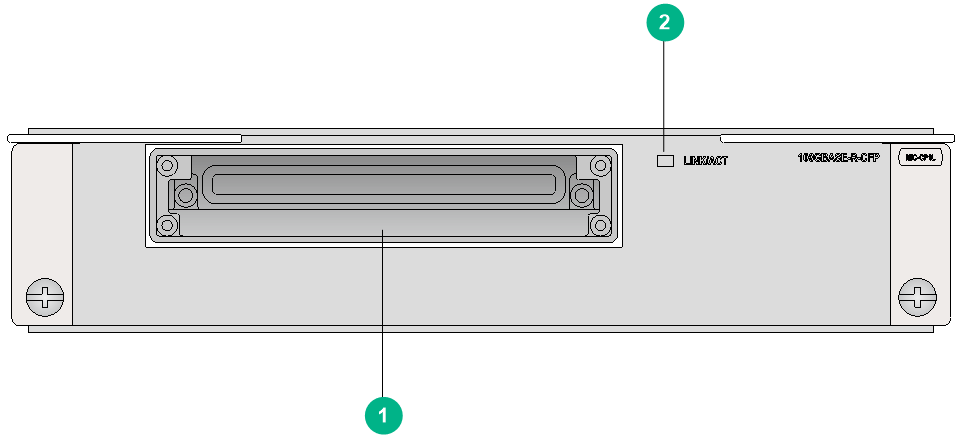

Figure2-53 MIC-CP1L view
(1) 100GBASE-R-CFP fiber ports (1 in total) |
(2) CFP port LED. For the LED description, see Table2-240 |
LEDs
Table2-240 CFP port LED description
LED |
Status |
Description |
CFP port LED |
Flashing |
The CFP port is sending or receiving data. |
Steady on |
A link is present on the CFP port. |
|
Off |
No link is present on the CFP port. |
Ports
Table2-241 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CP1L |
1-port 100G optical interface card (CFP, LC) |
LC |
1 |
100 Gbps |
Technical specifications
Table2-242 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
37 mm × 171 mm × 157 mm (1.46 in × 6.73 in × 6.18 in) |
Weight |
0.55 kg (1.21 lb) |
Maximum power consumption |
11.8 W |
Minimum power consumption |
3.3 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CP1L-V2
View

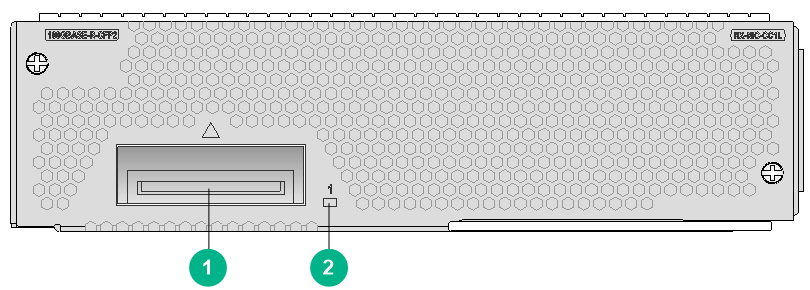

Figure2-54 MIC-CP1L-V2 view
(1) CFP2 port LED. For the LED description, see Table2-243. |
(2) 100GBASE-R-CFP2 fiber ports (1 in total) |
LEDs
Table2-243 CFP2 port LED description
LED |
Status |
Description |
CFP2 port LED |
Flashing |
The CFP2 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the CFP2 port. |
|
Off |
No link is present on the CFP2 port. |
Ports
Table2-244 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CP1L-V2 |
1-port 100G Ethernet optical interface card (CFP2, LC) |
LC |
1 |
100 Gbps |
Technical specifications
Table2-245 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
23 mm × 137 mm × 119 mm (0.91 in × 5.39 in × 4.69 in) |
Weight |
0.45 kg (0.99 lb) |
Maximum power consumption |
8.7 W |
Minimum power consumption |
6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CP2L
View

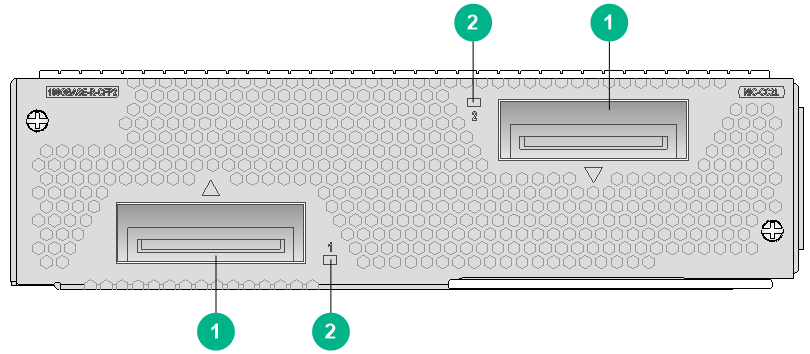

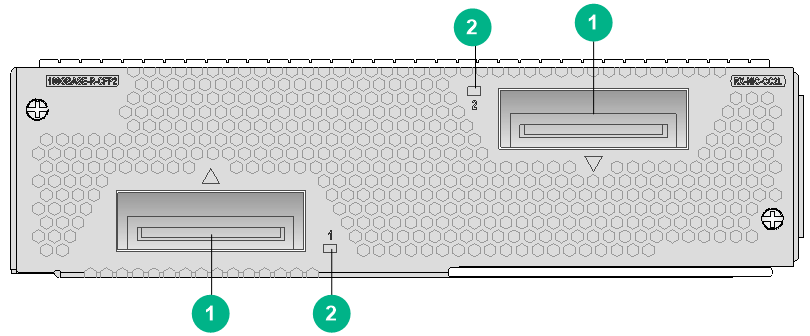

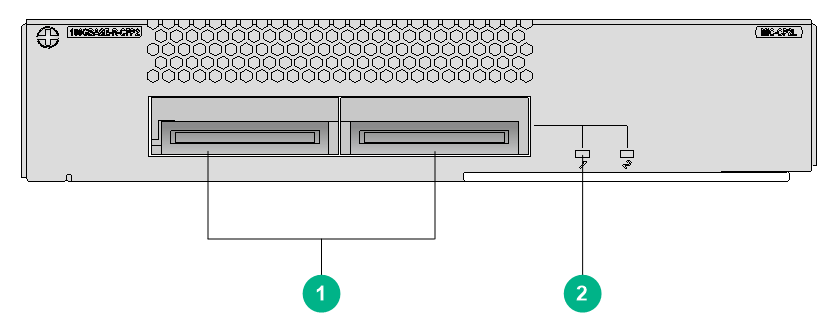

Figure2-55 MIC-CP2L view
(1) 100GBASE-R-CFP2 fiber ports (2 in total) (100G CFP2 modules supported) |
(2) CFP2 port LED. For the LED description, see Table2-246. |
LEDs
Table2-246 CFP2 port LED description
LED |
Status |
Description |
CFP2 port LED |
Flashing |
The CFP2 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the CFP2 port. |
|
Off |
No link is present on the CFP2 port. |
Ports
Table2-247 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CP2L |
2-port 100G Ethernet optical interface card (CFP2, LC) |
LC |
2 |
100 Gbps |
Technical specifications
Table2-248 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
38 mm × 179 mm × 149 mm (1.50 in × 7.05 in × 5.87 in) |
Weight |
0.80 kg (1.76 lb) |
Maximum power consumption |
18.1 W |
Minimum power consumption |
8.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CP2L-V2
View
Figure2-56 MIC-CP2L-V2 view
(1) QSFP28 port LED. For the LED description, see Table2-249. |
(2) 100GBASE-R-QSFP28 fiber ports (2 in total) |
LEDs
Table2-249 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-250 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CP2L-V2 |
2-port 100G Ethernet optical interface card (QSFP28) |
LC |
2 |
100 Gbps |
Technical specifications
Table2-251 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
23 mm × 137 mm × 119 mm (0.91 in × 5.39 in × 4.69 in) |
Weight |
0.40 kg (0.88 lb) |
Maximum power consumption |
15 W |
Minimum power consumption |
9.3 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CQ1L1
View

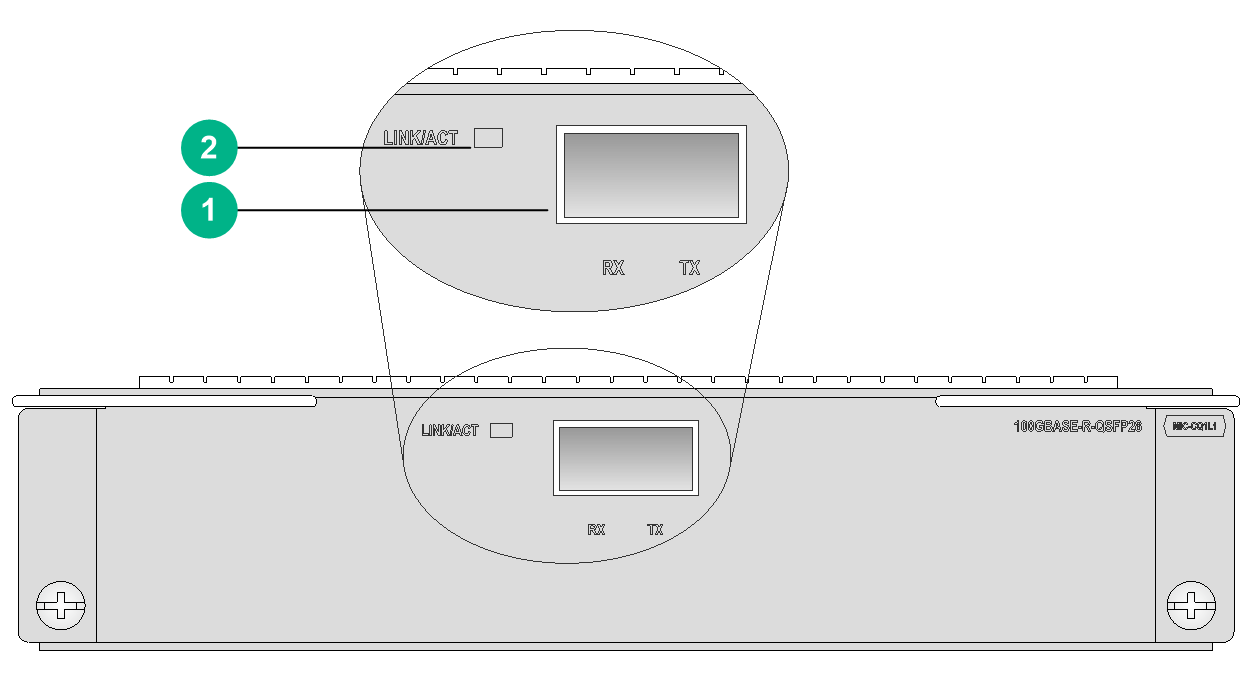

Figure2-57 MIC-CQ1L1 view
(1) 100GBASE-R-QSFP28 port (1 in total) |
(2) QSFP28 port LED. For the LED description, see Table2-252 |
LEDs
Table2-252 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-253 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CQ1L1 |
1-port 100G Ethernet optical interface card |
LC |
1 |
100 Gbps |
40 Gbps |
Technical specifications
Table2-254 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
37 mm × 171 mm × 157 mm (1.46 in × 6.73 in × 6.18 in) |
Weight |
0.50 kg (1.10 lb) |
Maximum power consumption |
15 W |
Minimum power consumption |
9 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CQ1L2
View

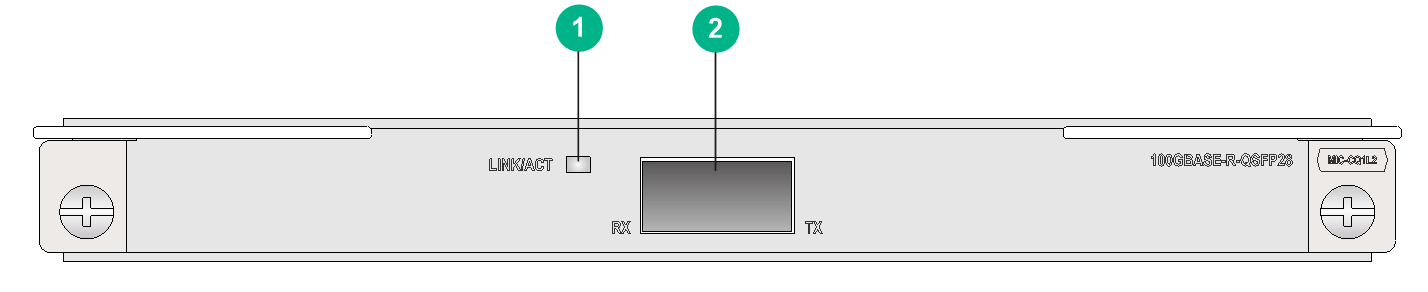

Figure2-58 MIC-CQ1L2 view
(1) QSFP28 port LED. For the LED description, see Table2-255. |
(2) 100GBASE-R-QSFP28 fiber ports (1 in total) |
LEDs
Table2-255 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-256 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CQ1L2 |
1-port 100G Ethernet optical interface card |
LC |
1 |
· 100 Gbps |
· 40 Gbps |
Technical specifications
Table2-257 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.45 kg (0.99 lb) |
Maximum power consumption |
15 W |
Minimum power consumption |
9 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CQ1LF
View

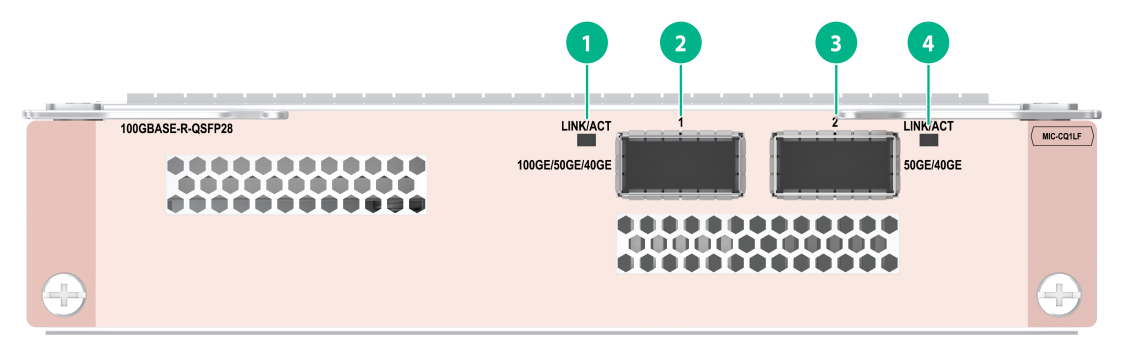

Figure2-59 MIC-CQ1LF view
(1) 100G/50G/40G fiber port LED. For the LED description, see Table2-258. |
(2) 100G/50G/40G fiber port (1 in total) |
(3) 50G/40G fiber port (1 in total) |
(4) 50G/40G fiber port LED. For the LED description, see Table2-258. |
LEDs
Table2-258 Fiber port LED description
LED |
Status |
Description |
Fiber port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Table2-259 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CQ1LF |
2-port 50G/1-port 100G flexible Ethernet optical interface card (QSFP28,LC) |
LC |
2 |
· 100 Gbps · 50 Gbps · 40 Gbps |
Technical specifications
Table2-260 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
36 × 171 × 157 mm (1.42 × 6.73 × 6.18 in) |
Weight |
0.58 kg (1.28 lb) |
Maximum power consumption |
27 W |
Minimum power consumption |
21 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-CQ2L
View

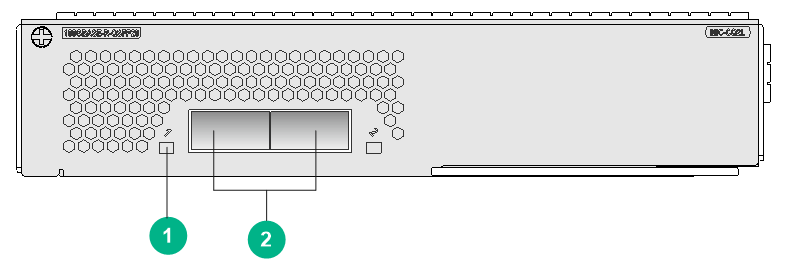

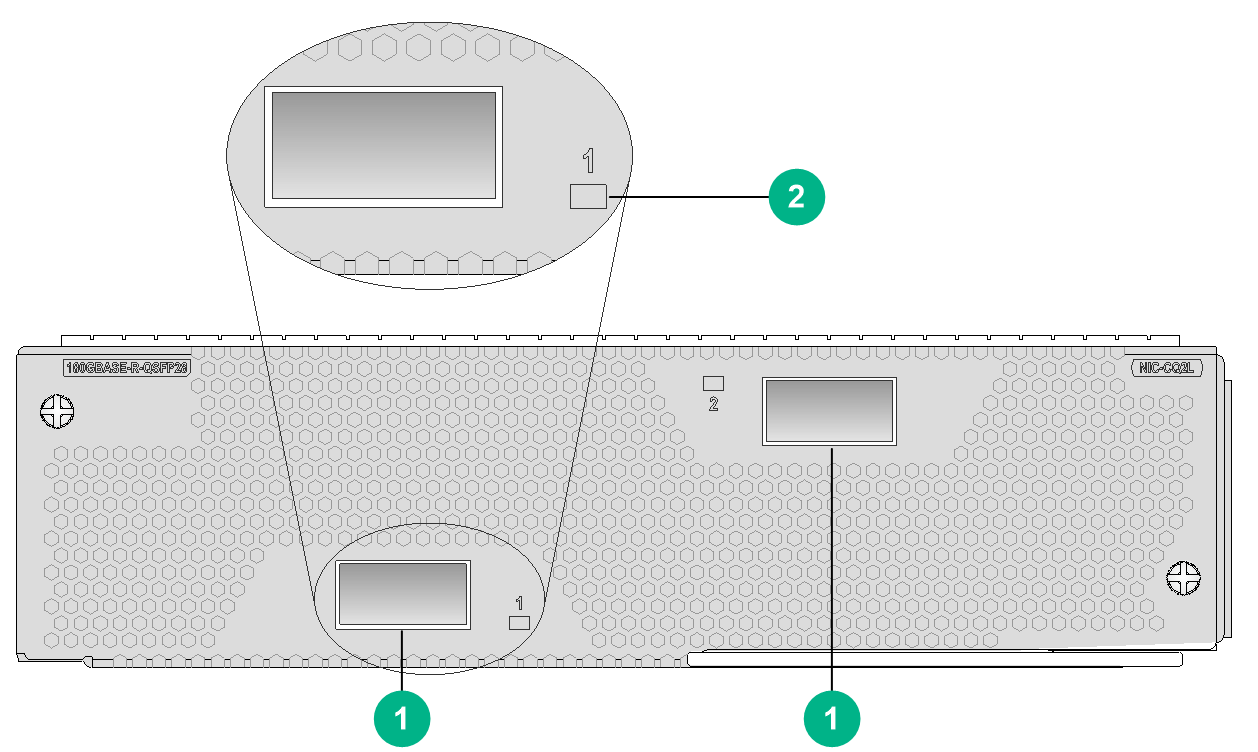

Figure2-60 MIC-CQ2L view
(1) QSFP28 port LED. For the LED description, see Table2-261. |
(2) 100GBASE-R-QSFP28 fiber ports (2 in total) |
LEDs
Table2-261 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-262 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-CQ2L |
2-port 100G Ethernet optical interface card (QSFP28) |
LC |
2 |
100 Gbps |
40 Gbps |
Technical specifications
Table2-263 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
38 mm × 179 mm × 149 mm (1.50 in × 7.05 in × 5.87 in) |
Weight |
0.40 kg (0.88 lb) |
Maximum power consumption |
16 W |
Minimum power consumption |
8 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-ET16L
View
Figure2-61 MIC-ET16L view
(1) E1-HM96 copper ports (16 in total) |
(2) Port LED. For the LED description, see Table2-264. |
LED
LED |
Status |
Description |
ACT/ALM |
Flashing green |
The port is sending or receiving data. |
Steady green |
A link is present, but the port is not receiving or sending data. |
|
Steady red |
An alarm has occurred. |
|
Off |
No link is present on the port. |
Ports
Table2-265 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-ET16L |
16-port E1 electrical interface card (HM96 male connector) |
HM96 male |
16 |
E1 |
Technical specifications
Table2-266 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.30 kg (0.66 lb) |
Maximum power consumption |
8.7W |
Minimum power consumption |
8.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-GP10L1/MIC-GP10L2
View

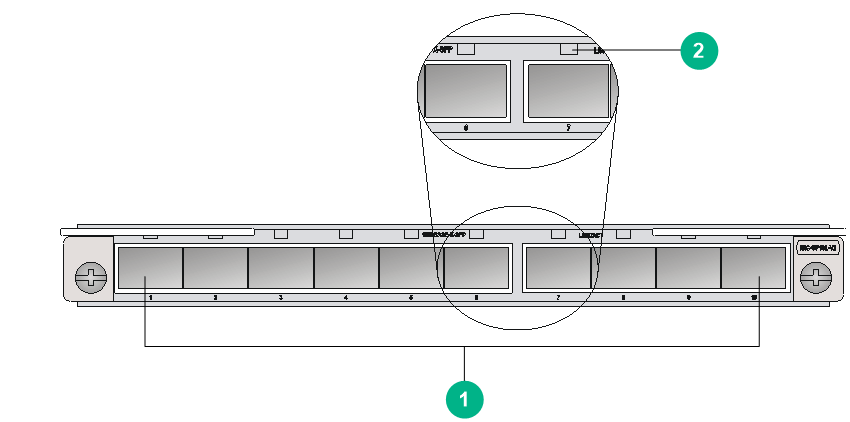

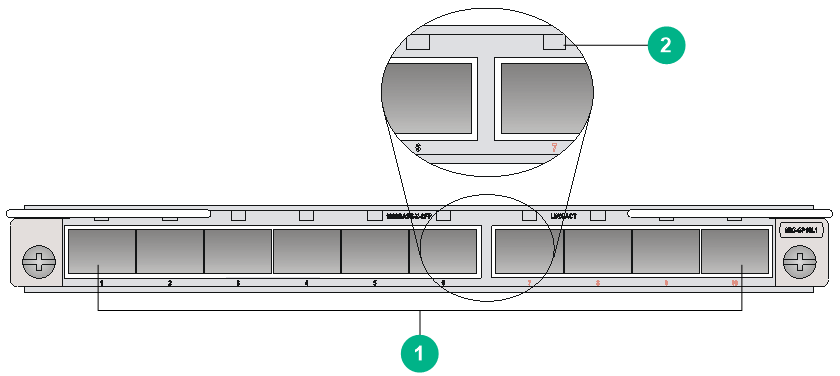

Figure2-62 MIC-GP10L1 view
(1) 1000BASE-X-SFP fiber ports (10 in total) |
(2) SFP port LED. For the LED description, see Table2-267. |
The views of the MIC-GP10L1 and MIC-GP10L2 are similar. This figure uses the MIC-GP10L1 as an example.
LEDs
Table2-267 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-268 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-GP10L1 |
10-port 1000BASE-X optical interface card (SFP, LC) |
LC |
10 |
100 Mbps |
1000 Mbps |
||||
MIC-GP10L2 |
10-port 1000BASE-X Ethernet optical interface card (SFP, LC) |
LC |
10 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-269 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
· MIC-GP10L1: 0.30 kg (0.66 lb) · MIC-GP10L2: 0.48 kg (1.06 lb) |
Maximum power consumption |
· MIC-GP10L1: 7.9 W · MIC-GP10L2: 30 W |
Minimum power consumption |
· MIC-GP10L1: 2.1 W · MIC-GP10L2: 20 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-GP10L-V2
View
Figure2-63 MIC-GP10L-V2 view
(1) 1000BASE-X-SFP fiber ports (10 in total) |
(2) SFP port LED. For the LED description, see Table2-270. |
LEDs
Table2-270 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-271 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-GP10L-V2 |
10-port 1000BASE-X Ethernet optical interface card (SFP, LC) |
LC |
10 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-272 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.35 kg (0.77 lb) |
Maximum power consumption |
9.4 W |
Minimum power consumption |
9.3 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-GP20L
View

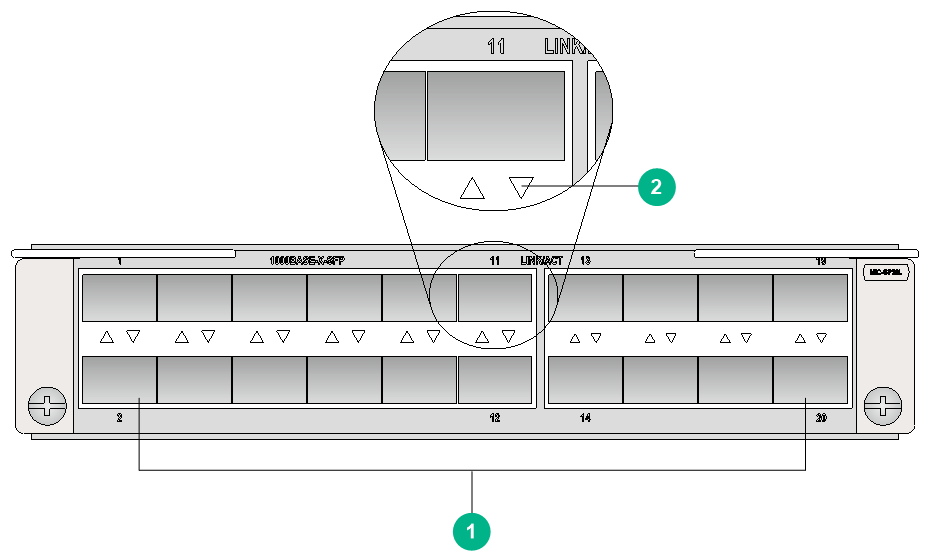

Figure2-64 MIC-GP20L view
(1) 1000BASE-X-SFP fiber ports (20 in total) |
(2) SFP port LED. For the LED description, see Table2-273. |
LEDs
Table2-273 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Steady green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-274 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-GP20L |
20-port 1000BASE-X Ethernet optical interface card (SFP, LC) |
LC |
20 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-275 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
37 mm × 171 mm × 157 mm (1.46 in × 6.73 in × 6.18 in) |
Weight |
0.55 kg (1.21 lb) |
Maximum power consumption |
23 W |
Minimum power consumption |
7.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-GP20L1
View

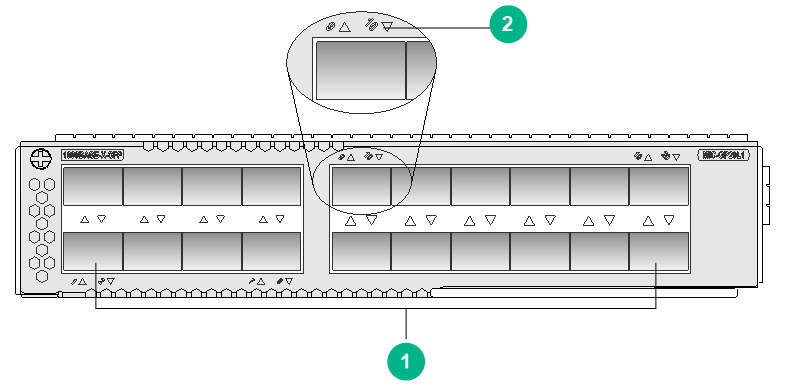

Figure2-65 MIC-GP20L1 view
(1) 1000BASE-X-SFP fiber ports (20 in total) |
(2) SFP port LED. For the LED description, see Table2-276. |
LEDs
Table2-276 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-277 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-GP20L1 |
20-port 1000BASE-X Ethernet optical interface card (SFP, LC) |
LC |
20 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-278 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
38 mm × 179 mm × 149 mm (1.50 in × 7.05 in × 5.87 in) |
Weight |
0.80 kg (1.76 lb) |
Maximum power consumption |
18 W |
Minimum power consumption |
7 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-GP4L
View

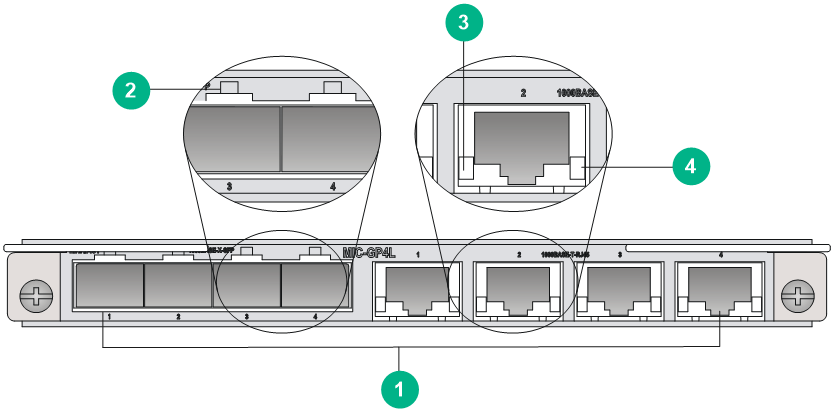

Table2-279 MIC-GP4L view
(1) Combo interfaces (4 in total) |
(2) Combo fiber port LINK/ACT LED. For the LED description, see Table2-280. |
(3) Combo copper LINK LED. For the LED description, see Table2-280. |
(4) Combo copper ACT LED. For the LED description, see Table2-280. |
LEDs
Table2-280 Combo ports LED description
Port type |
LED |
Status |
Description |
Combo fiber port |
LINK/ACT |
Steady on |
The port is up. |
Flashing green |
The port is receiving or sending data correctly. |
||
Off |
The port is down. |
||
Combo copper port |
LINK (Green) |
Steady on |
The port is up. |
Off |
The port is down. |
||
ACT (Orange) |
Flashing green |
The port is receiving or sending data correctly. |
|
Off |
The port is not receiving or sending data. |
Ports
Table2-281 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-GP4L |
4-port 1000BASE-X/1000BASE-T combo interface card |
RJ45 |
4 |
10/100/1000 Mbps |
LC |
4 |
100 Mbps |
||
1000 Mbps |
Technical specifications
Table2-282 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.31 kg (0.68 lb) |
Maximum power consumption |
5.5 W |
Minimum power consumption |
0.8 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-GP8L
View
Figure2-66 MIC-GP8L view
(1) 1000BASE-X-SFP fiber ports (8 in total) |
(2) SFP port LED. For the LED description, see Table2-283. |
LEDs
Table2-283 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-284 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-GP8L |
8-port 1000BASE-X optical interface card (SFP, LC) |
LC |
8 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-285 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.29 kg (0.64 lb) |
Maximum power consumption |
4.7 W |
Minimum power consumption |
0.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-GT20L/MIC-GT20L1
View

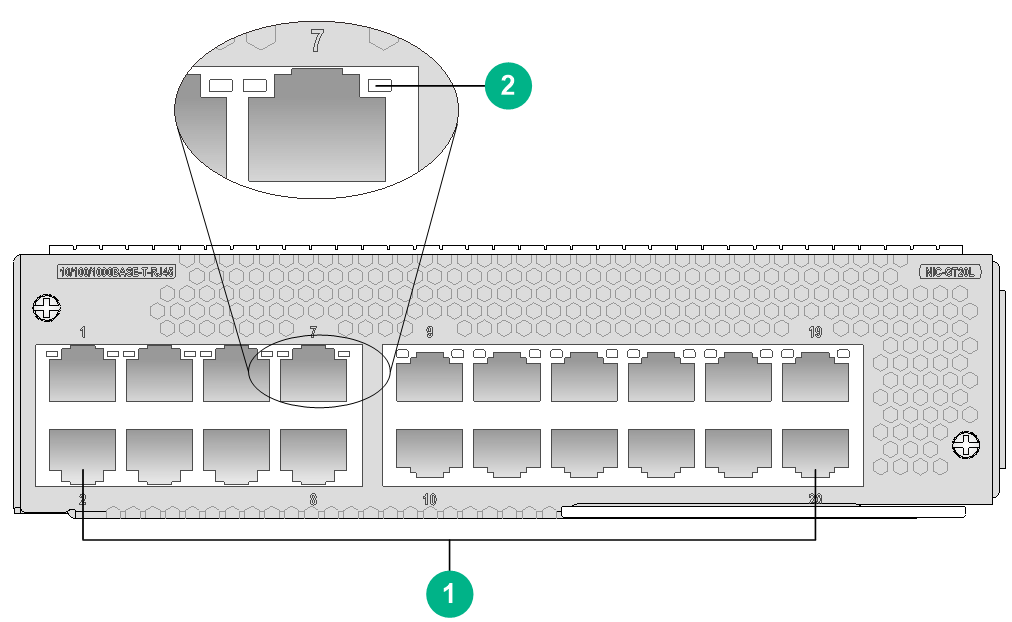

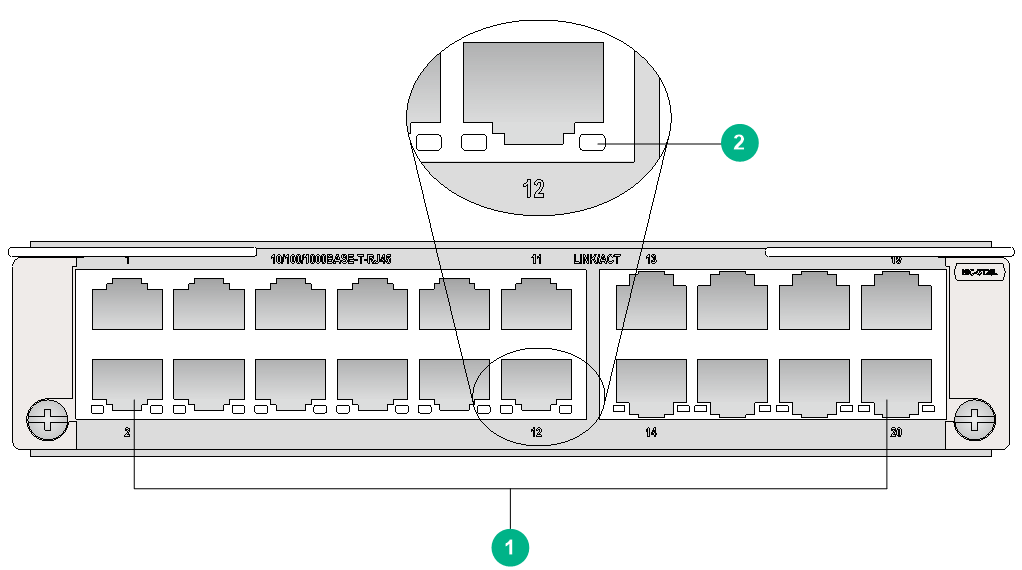

Figure2-67 MIC-GT20L view
(1) 10/100/1000BASE-T copper ports (20 in total) |
(2) RJ45 Ethernet port LED. For the description for the RJ45 port LEDs on the MIC-GT20L, see Table2-286. For the description for the RJ45 port LEDs on the MIC-GT20L1, see Table2-287. |
The views of the MIC-GT20L and MIC-GT20L1 are similar. This figure uses the MIC-GT20L as an example.
LEDs
Table2-286 RJ45 Ethernet port LED description (1)
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Table2-287 RJ45 Ethernet port LED description (2)
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing green |
The port is receiving or sending data at 1000 Mbps. |
Steady green |
A link is present on the port, and the port operates at 1000 Mbps. |
|
Flashing yellow |
The port is receiving or sending data at 10/100 Mbps. |
|
Steady yellow |
A link is present on the port, and the port operates at 10/100 Mbps. |
|
Off |
No link is present on the port. |
Ports
Table2-288 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-GT20L |
20-port 1000BASE-X Ethernet electrical interface card (RJ45) |
RJ45 |
20 |
10/100/1000 Mbps |
MIC-GT20L1 |
20-port 1000BASE-T Ethernet copper interface card (RJ45) |
RJ45 |
20 |
10/100/1000 Mbps |
Technical specifications
Table2-289 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
37 mm × 171 mm × 157 mm (1.46 in × 6.73 in × 6.18 in) |
Weight |
· MIC-GT20L: 0.50 kg (1.10 lb) · MIC-GT20L1: 0.40 kg (0.88 lb) |
Maximum power consumption |
· MIC-GT20L: 11.9 W · MIC-GT20L1: 39 W |
Minimum power consumption |
· MIC-GT20L: 9.2 W · MIC-GT20L1: 28 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-PSP4L
View

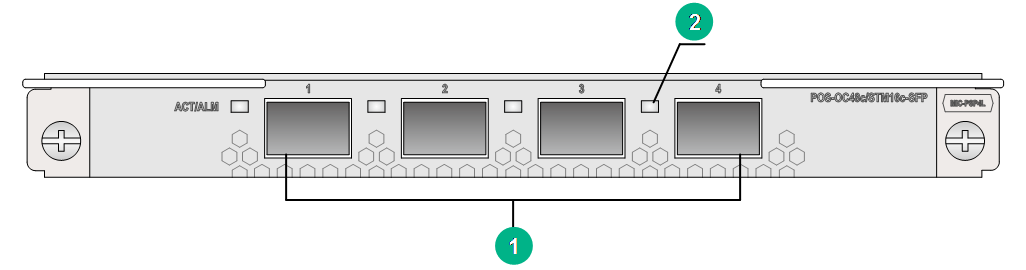

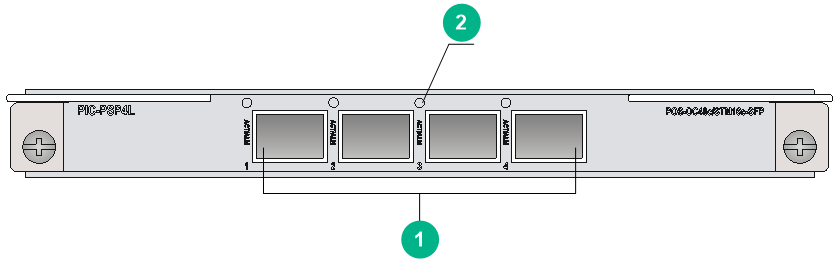

Figure2-68 MIC-PSP4L view
(1) OC-48c/STM-16c POS fiber ports (4 in total) |
(2) Port LED. For the LED description, see Table2-290. |
LEDs
Table2-290 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Flashing green |
The port is up and is receiving or sending data correctly. |
Steady green |
The port is up and no services are running on the port. |
|
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-291 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-PSP4L |
4-port OC-48c/STM-16c POS optical interface card (SFP, LC) |
LC |
4 |
2.5 Gbps |
Technical specifications
Table2-292 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.40 kg (0.88 lb) |
Maximum power consumption |
33 W |
Minimum power consumption |
29 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-QP1L
View

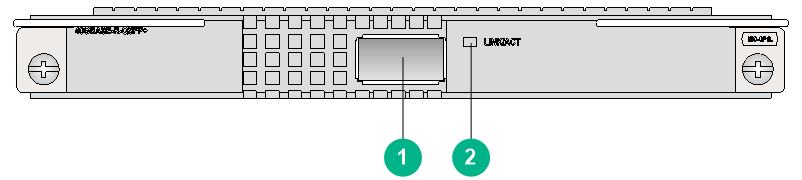

Figure2-69 MIC-QP1L view
(1) 40GBASE-R-QSFP+ fiber port (1 in total) |
(2) QSFP+ port LED. For the LED description, see Table2-293. |
LEDs
Table2-293 QSFP + port LED description
LED |
Status |
Description |
QSFP + port LED |
Flashing |
The QSFP+ port is sending or receiving data. |
Steady on |
A link is present on the QSFP+ port. |
|
Off |
No link is present on the QSFP+ port. |
Ports
Table2-294 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-QP1L |
1-port 40G Ethernet optical interface card (QSFP+, LC) |
LC |
1 |
40 Gbps |
4 |
10 Gbps |
Technical specifications
Table2-295 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.35 kg (0.77 lb) |
Maximum power consumption |
7 W |
Minimum power consumption |
3 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-SP4L
View

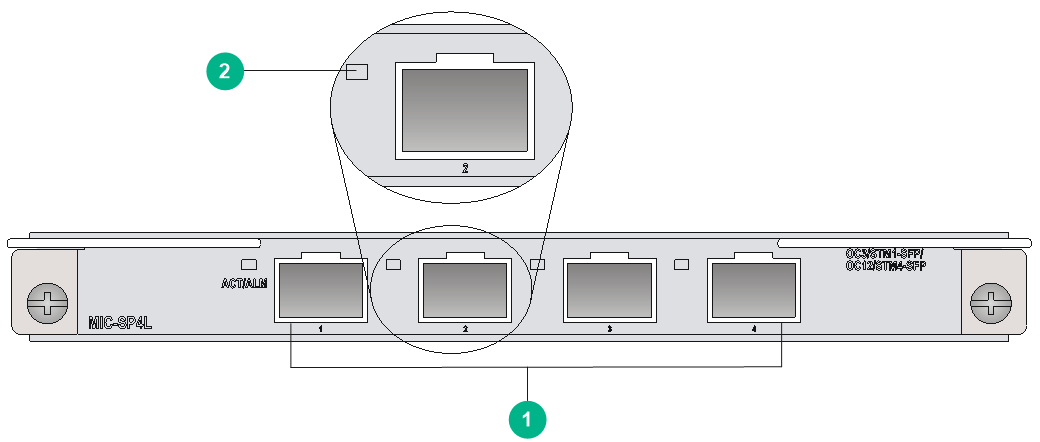

Figure2-70 MIC-SP4L view
(1) OC-3c/STM-1c POS/ATM fiber ports (4 in total) or OC-12c/STM-4c POS/ATM fiber port (port 1) |
(2) Port LED. For the LED description, see Table2-296. |
LEDs
Table2-296 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Flashing green |
The port is up and is receiving or sending data correctly. |
Steady green |
The port is up and no services are running on the port. |
|
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-297 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-SP4L |
4-port OC-3c/STM-1c POS/ATM or 1-port OC-12c/STM-4c POS/ATM optical interface card (SFP, LC) |
LC |
4 |
155 Mbps (OC-3/STM-1 ) |
1 |
622 Mbps (OC-12/STM-4) |
Technical specifications
Table2-298 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.30 kg (0.66 lb) |
Maximum power consumption |
13.5 W |
Minimum power consumption |
9.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-SP8L
View

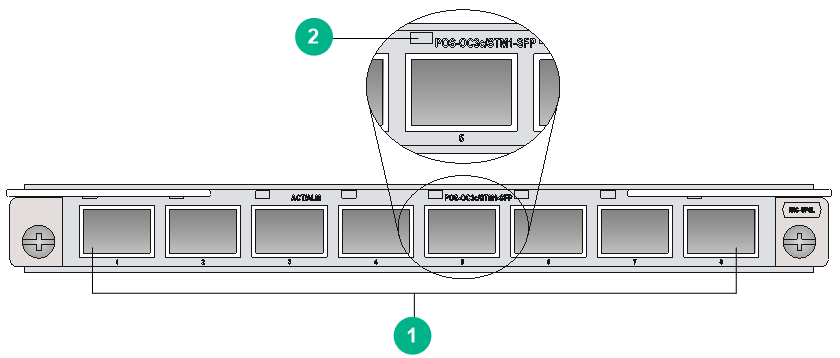

Figure2-71 MIC-SP8L view
(1) OC-3c/STM-1c POS fiber ports (8 in total) |
(2) Port LED. For the LED description, see Table2-299. |
LEDs
Table2-299 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Flashing green |
The port is up and is receiving or sending data correctly. |
Steady green |
The port is up and no services are running on the port. |
|
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-300 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-SP8L |
8-port OC-3c/STM-1c POS optical interface card (SFP, LC) |
LC |
8 |
155 Mbps (OC-3/STM-1 ) |
Technical specifications
Table2-301 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.30 kg (0.66 lb) |
Maximum power consumption |
16.3 W |
Minimum power consumption |
14 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-TCP8L
View

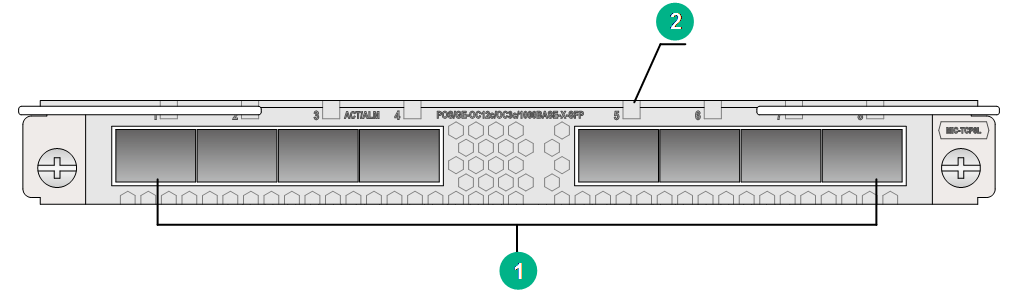

Figure2-72 MIC-TCP8L view
(1) OC-3c/OC-12c POS/GE fiber ports (8 in total) |
(2) Port LED. For the LED description, see Table2-302. |
LEDs
Table2-302 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Flashing green |
The port is up and is receiving or sending data correctly. |
Steady green |
The port is up and no services are running on the port. |
|
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-303 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-TCP8L |
8-port OC-3c/OC-12c POS/GE optical interface card (SFP, LC) |
LC |
8 |
100 Mbps |
155 Mbps (OC-3/STM-1) |
||||
622 Mbps (OC-12/STM-4) |
||||
1000 Mbps |
Technical specifications
Table2-304 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.40 kg (0.88 lb) |
Maximum power consumption |
30 W |
Minimum power consumption |
28 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP10LF
View

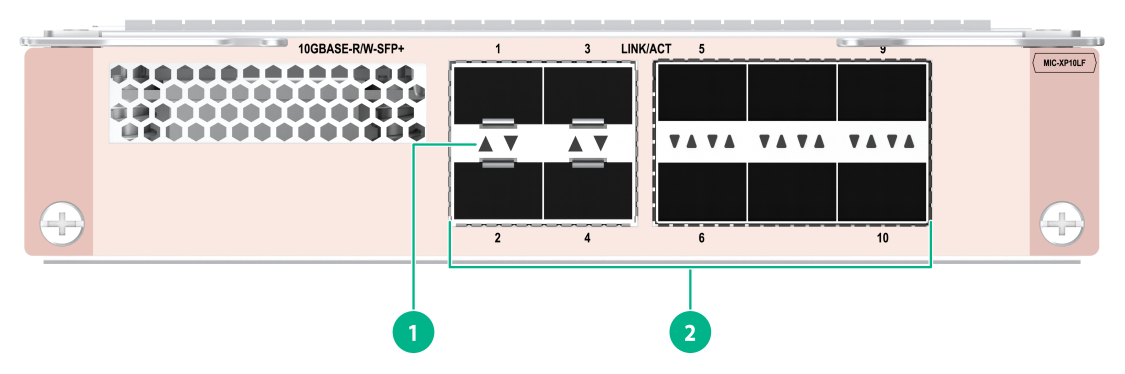

Figure2-73 MIC-XP10LF view
(1) Port LED. For the LED description, see Table2-305. |
(2) 25GBASE-R-SFP28 fiber ports (ports 1 to 4) or 10GBASE-R-SFP+ fiber ports |
LEDs
Table2-305 Port LED description
LED |
Status |
Description |
Port LED |
Flashing |
The port is receiving or sending data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP28 port by observing the color of its LED. Green indicates a speed of 25 Gbps, and yellow indicates a speed of 10 Gbps or 1000 Mbps. |
Ports
Table2-306 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP10LF |
10-port 10GBASE-R flexible Ethernet optical interface card (SFP+,LC) |
LC |
10 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
||||
4 |
25 Gbps |
Technical specifications
Table2-307 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
36 × 171 × 157 mm (1.42 × 6.73 × 6.18 in) |
Weight |
0.61 kg (1.34 lb) |
Maximum power consumption |
37 W |
Minimum power consumption |
30 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP10L-LAN
View

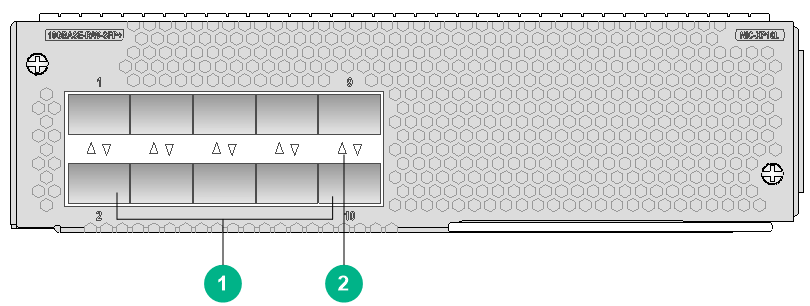

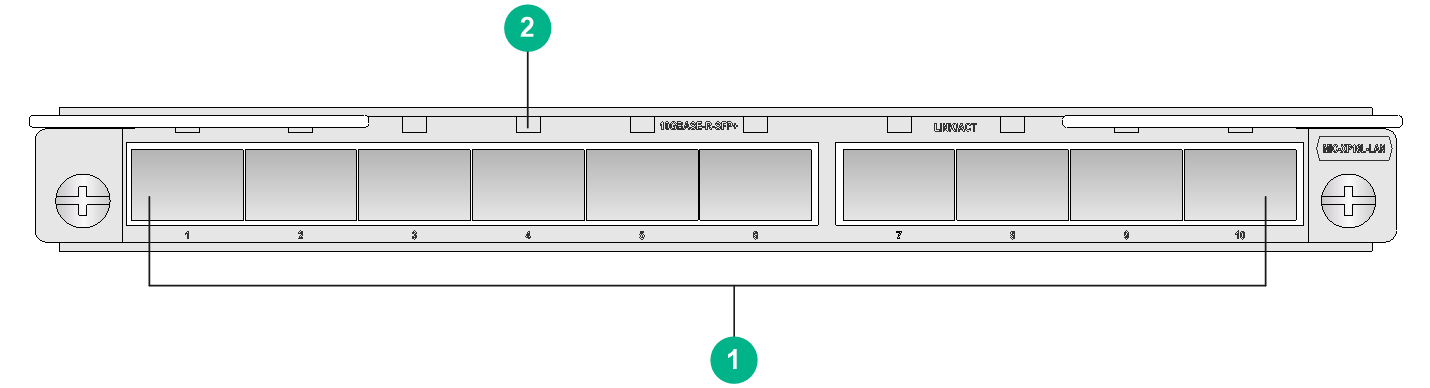

Figure2-74 MIC-XP10L-LAN view
(1) 10GBASE-R-SFP+ fiber ports or 1000BASE-X-SFP fiber ports (10 in total) |
(2) SFP+ port LED. For the LED description, see Table2-308. |
LEDs
Table2-308 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-309 Port specifications
Card model |

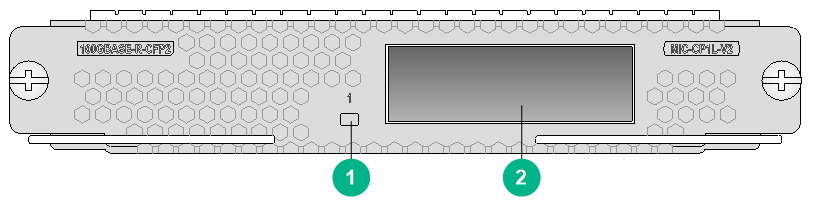

Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP10L-LAN |
10-port 10GBASE-R Ethernet optical interface card (SFP+, LC)-LAN |
LC |
10 |
10 Gbps |
1000 Mbps |
Technical specifications
Table2-310 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.46 kg (1.01 lb) |
Maximum power consumption |
20 W |
Minimum power consumption |
12 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP20L
View

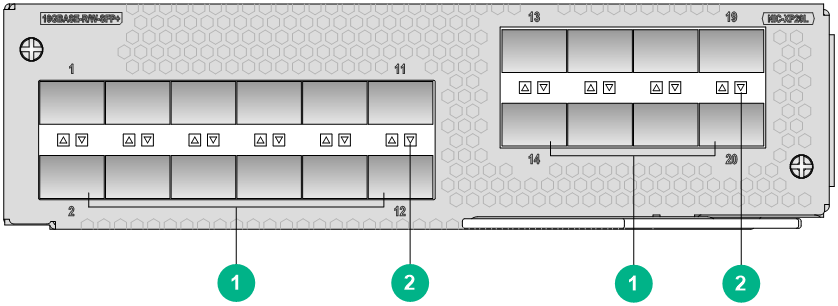

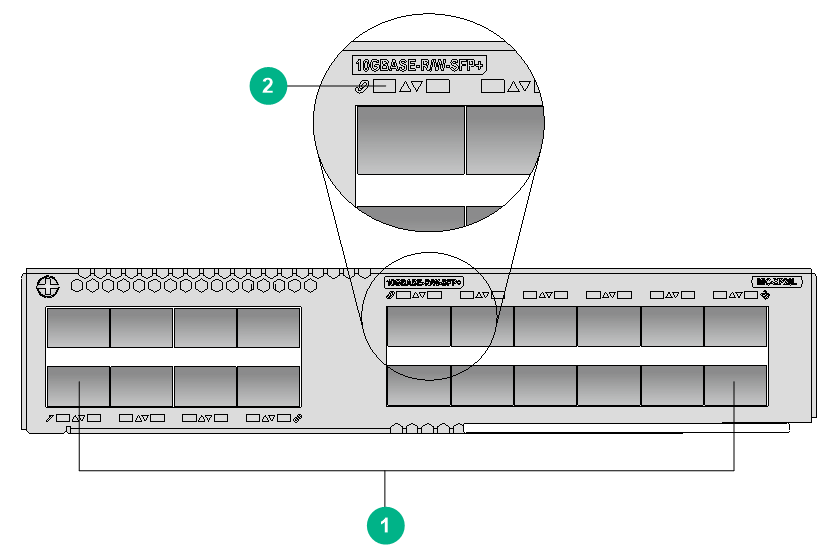

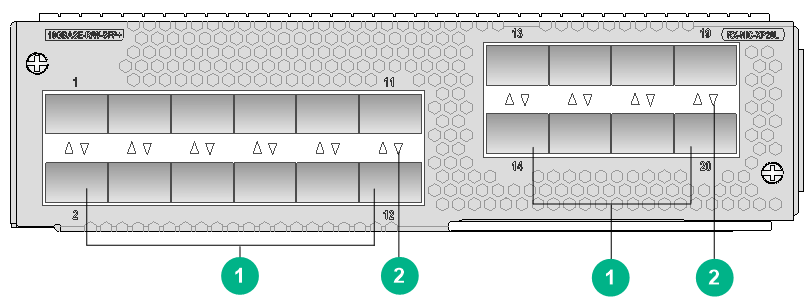

Figure2-75 MIC-XP20L view
(1) 10GBASE-R/W-SFP+ fiber ports (20 in total) (10GE SFP+ modules supported) |
(2) SFP+ port LED. For the LED description, see Table2-311. |
LEDs
Table2-311 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-312 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP20L |
20-port 10GBASE-R/W Ethernet optical interface card (SFP+, LC) |
LC |
20 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-313 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
38 mm × 179 mm × 149 mm (1.50 in × 7.05 in × 5.87 in) |
Weight |
0.95 kg (2.09 lb) |
Maximum power consumption |
53 W |
Minimum power consumption |
38.3 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP2L
View

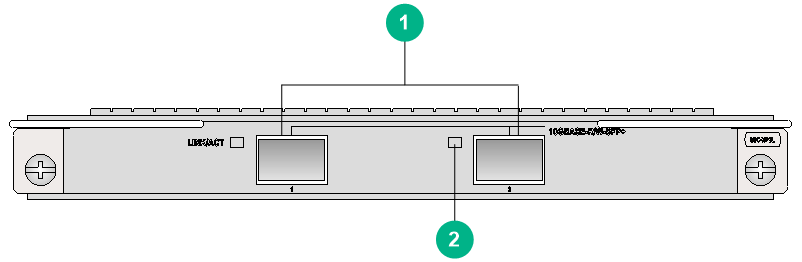

Figure2-76 MIC-XP2L view
(1) 10GBASE-R/W-SFP+ fiber ports (2 in total) |
(2) SFP+ port LED. For the LED description, see Table2-314. |
LEDs
Table2-314 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-315 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP2L |
2-port 10GBASE-R Ethernet optical interface card (SFP+, LC) |
LC |
2 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-316 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.29 kg (0.64 lb) |
Maximum power consumption |
13 W |
Minimum power consumption |
10 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP2L-LAN
View

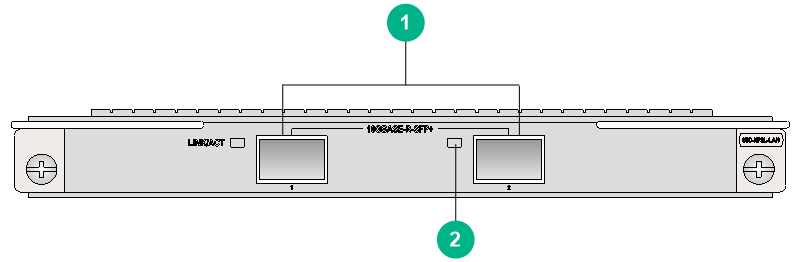

Figure2-77 MIC-XP2L-LAN view
(1) 10GBASE-R-SFP+ fiber ports (2 in total) |
(2) SFP+ port LED. For the LED description, see Table2-317. |
LEDs
Table2-317 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-318 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP2L-LAN |
2-port 10GBASE-R Ethernet optical interface card (SFP+, LC)-LAN |
LC |
2 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-319 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.28 kg (0.62 lb) |
Maximum power consumption |
9 W |
Minimum power consumption |
6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP4L1
View
Figure2-78 MIC-XP4L1 view
(1) 10GBASE-R/W-SFP+ fiber ports (4 in total) |
(2) SFP+ port LED. For the LED description, see Table2-320. |
LEDs
Table2-320 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-321 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP4L1 |
4-port 10GBASE-R/W Ethernet optical interface card 1 (SFP+, LC) |
LC |
4 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-322 MIC-XP4L1
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.30 kg (0.66 lb) |
Maximum power consumption |
13 W |
Minimum power consumption |
11 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP5L
View

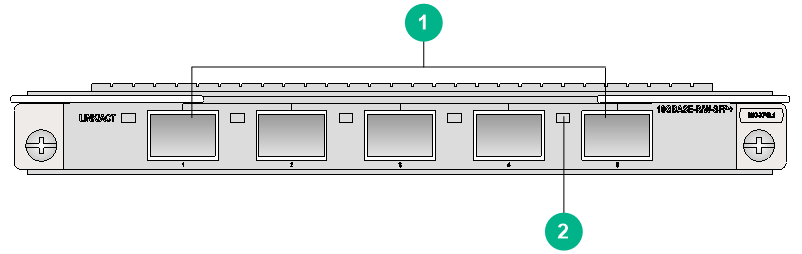

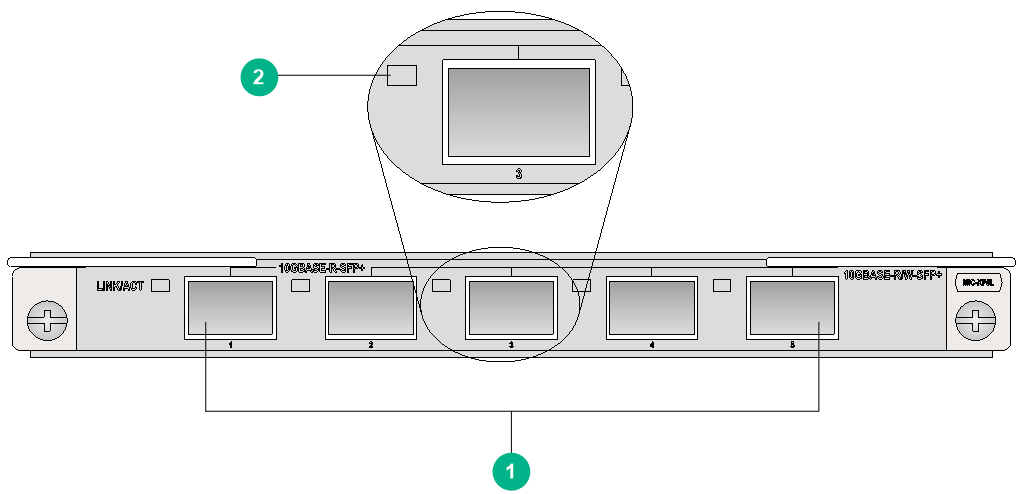

Figure2-79 MIC-XP5L view
(1) 10GBASE-R/W-SFP+ fiber ports (5 in total) |
(2) SFP+ port LED. For the LED description, see Table2-323. |
LEDs
Table2-323 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-324 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP5L |
5-port 10GBASE-R/W Ethernet optical interface card (SFP+, LC) |
LC |
5 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-325 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.30 kg (0.66 lb) |
Maximum power consumption |
14.2 W |
Minimum power consumption |
10.4 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP5L1/MIC-XP5L2
View
Figure2-80 MIC-XP5L1 view
(1) 10GBASE-R/W-SFP+ fiber ports (5 in total) |
(2) SFP+ port LED. For the LED description, see Table2-326. |
The views of the MIC-XP5L1 and MIC-XP5L2 are similar. This figure uses the MIC-XP5L1 as an example.
LEDs
Table2-326 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-327 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP5L1 |
5-port 10GBASE-R/W Ethernet optical interface card |
LC |
5 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
||||
MIC-XP5L2 |
5-port 10GBASE-R Ethernet optical interface card |
LC |
5 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-328 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.35 kg (0.77 lb) |
Maximum power consumption |
· MIC-XP5L1: 13 W · MIC-XP5L2: 6.4 W |
Minimum power consumption |
· MIC-XP5L1: 11 W · MIC-XP5L2: 2.3 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-XP8L
View

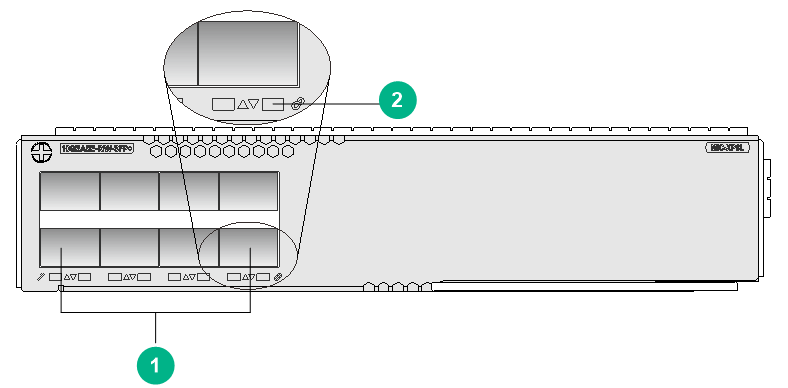

Figure2-81 MIC-XP8L view
(1) 10GBASE-R/W-SFP+ fiber ports (8 in total) |
(2) SFP+ port LED. For the LED description, see Table2-329. |
LEDs
Table2-329 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-330 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-XP8L |
8-port 10GBASE-R/W Ethernet optical interface card (SFP+, LC) |
LC |
8 |
10 Gbps |
Technical specifications
Table2-331 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
38 mm × 179 mm × 149 mm (1.50 in × 7.05 in × 5.87 in) |
Weight |
0.70 kg (1.54 lb) |
Maximum power consumption |
22 W |
Minimum power consumption |
16 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC subcards
IMPORTANT: · To use a NIC interface card, you must install it on a CMPE, SPE, or SPEX/CSPEX base card. You cannot install it directly on the router. · For the compatibility between NIC interface cards and CMPE, SPE, or SPEX/CSPEX base cards, see the compatibility information for the base cards. · Some NIC subcards support changing the speed. For more information, see H3C SR8800-X Routers Configuration Guides. |
NIC-CC1L
View

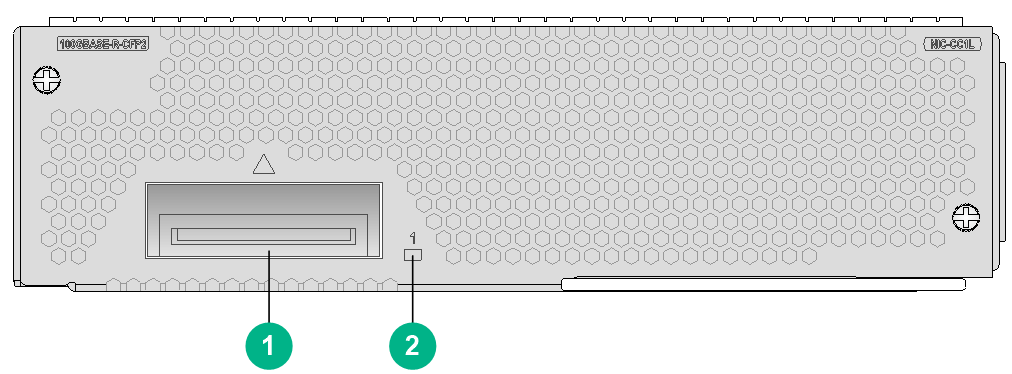

Figure2-82 NIC-CC1L view
(1) 100GBASE-R-CFP2 fiber ports (1 in total) |
(2) CFP2 port LED. For the LED description, see Table2-332. |
LEDs
Table2-332 CFP2 port LED description
LED |
Status |
Description |
CFP2 port LED |
Flashing |
The CFP2 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the CFP2 port. |
|
Off |
No link is present on the CFP2 port. |
Ports
Table2-333 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-CC1L |
1-port 100G Ethernet optical interface card |
LC |
1 |
100 Gbps |
Technical specifications
Table2-334 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.60 kg (1.32 lb) |
Maximum power consumption |
9.7 W |
Minimum power consumption |
9.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-CC2L
View
Figure2-83 NIC-CC2L view
(1) 100GBASE-R-CFP2 fiber ports (2 in total) |
(2) CFP2 port LED. For the LED description, see Table2-335. |
LEDs
Table2-335 CFP2 port LED description
LED |
Status |
Description |
CFP2 port LED |
Flashing |
The CFP2 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the CFP2 port. |
|
Off |
No link is present on the CFP2 port. |
Ports
Table2-336 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-CC2L |
2-port 100G Ethernet optical interface card |
LC |
2 |
100 Gbps |
Technical specifications
Table2-337 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.85 kg (1.87 lb) |
Maximum power consumption |
21 W |
Minimum power consumption |
19.2 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-CQ1L
View
Figure2-84 NIC-CQ1L view
(1) 100GBASE-R-QSFP28 fiber ports (1 in total) |
(2) QSFP28 port LED. For the LED description, see Table2-338. |
LEDs
Table2-338 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-339 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-CQ1L |
1-port 100G Ethernet optical interface card |
LC |
1 |
100 Gbps |
Technical specifications
Table2-340 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.35 kg (0.77 lb) |
Maximum power consumption |
13 W |
Minimum power consumption |
8 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-CQ2L/NIC-CQ2LB
View
Figure2-85 NIC-CQ2L view
(1) 100GBASE-R-QSFP28 fiber ports (2 in total) |
(2) QSFP28 port LED. For the LED description, see Table2-341. |
The views of NIC-CQ2L and NIC-CQ2LB are similar. This figure uses the NIC-CQ2L as an example.
LEDs
Table2-341 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-342 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-CQ2L |
2-port 100G Ethernet optical interface card |
LC |
2 |
100 Gbps |
NIC-CQ2LB |
2-port 100G Ethernet optical interface card B |
LC |
2 |
100 Gbps |
Technical specifications
Table2-343 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
· NIC-CQ2L: 0.35 kg (0.77 lb) · NIC-CQ2LB: 0.75 kg (1.65 lb) |
Maximum power consumption |
26 W |
Minimum power consumption |
16 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-GP20L
View
Figure2-86 NIC-GP20L view
(1) 1000BASE-X-SFP fiber ports (20 in total) |
(2) SFP port LED. For the LED description, see Table2-344. |
LEDs
Table2-344 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-345 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-GP20L |
20-port 1000BASE-X Ethernet optical interface card |
LC |
20 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-346 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.65 kg (1.43 lb) |
Maximum power consumption |
13.8 W |
Minimum power consumption |
12 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-GP24L
View

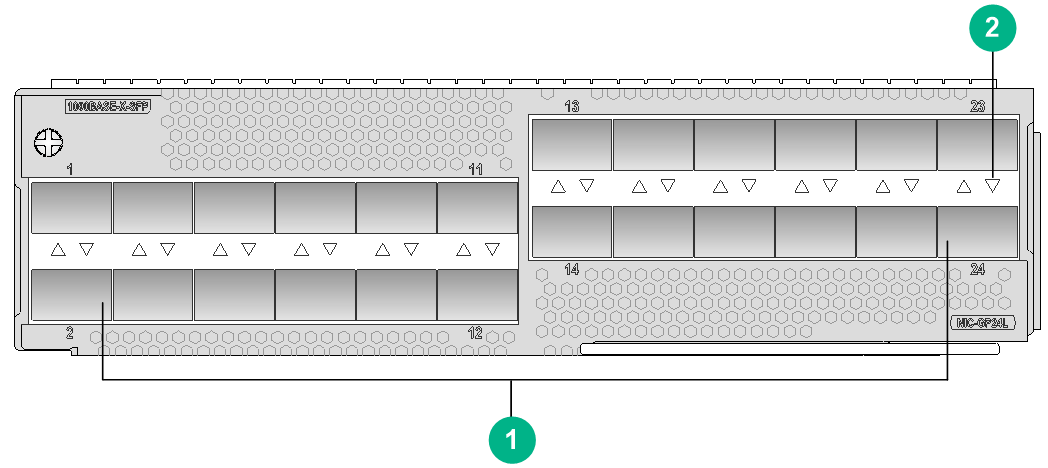

Figure2-87 NIC-GP24L view
(1) 1000BASE-X-SFP fiber ports (24 in total) |
(2) SFP port LED. For the LED description, see Table2-347. |
LEDs
Table2-347 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-348 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-GP24L |
24-port 1000BASE-X Ethernet optical interface card |
LC |
24 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-349 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.50 kg (1.10 lb) |
Maximum power consumption |
28 W |
Minimum power consumption |
20 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-GP24L1/NIC-GP24L1B
View

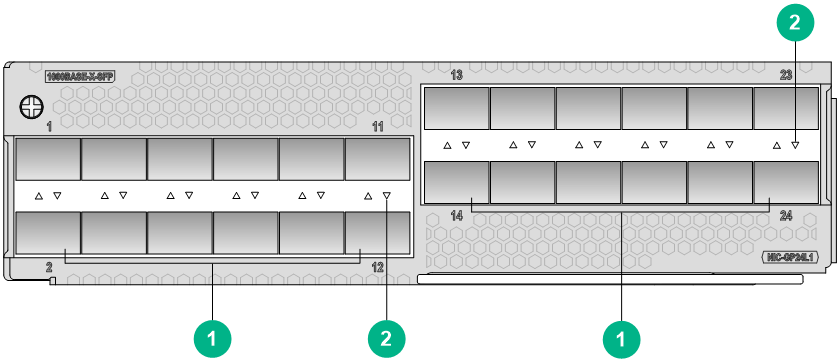

Figure2-88 NIC-GP24L1 view
(1) 1000BASE-X-SFP fiber ports (24 in total) |
(2) SFP port LED. For the LED description, see Table2-350. |
The views of the NIC-GP24L1 and NIC-GP24L1B are similar. This figure uses the NIC-GP24L1 as an example.
LEDs
Table2-350 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-351 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-GP24L1 |
24-port 1000BASE-X Ethernet optical interface card |
LC |
24 |
100 Mbps |
1000 Mbps |
||||
NIC-GP24L1B |
24-port 1000BASE-X Ethernet optical interface card B |
LC |
24 |
1000 Mbps |
Technical specifications
Table2-352 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
1.00 kg (2.20 lb) |
Maximum power consumption |
47 W |
Minimum power consumption |
41 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-GT20L
View
Figure2-89 NIC-GT20L view
(1) 10/100/1000BASE-T copper ports (20 in total) |
(2) RJ-45 Ethernet port LED. For the LED description, see Table2-353. |
LEDs
Table2-353 RJ-45 Ethernet port LED description
LED |
Status |
Description |
RJ-45 Ethernet port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Table2-354 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-GT20L |
20-port 1000BASE-T Ethernet copper interface card |
RJ45 |
20 |
10/100/1000 Mbps |
Technical specifications
Table2-355 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.75 kg (1.65 lb) |
Maximum power consumption |
16.5 W |
Minimum power consumption |
14.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-QP3L
View

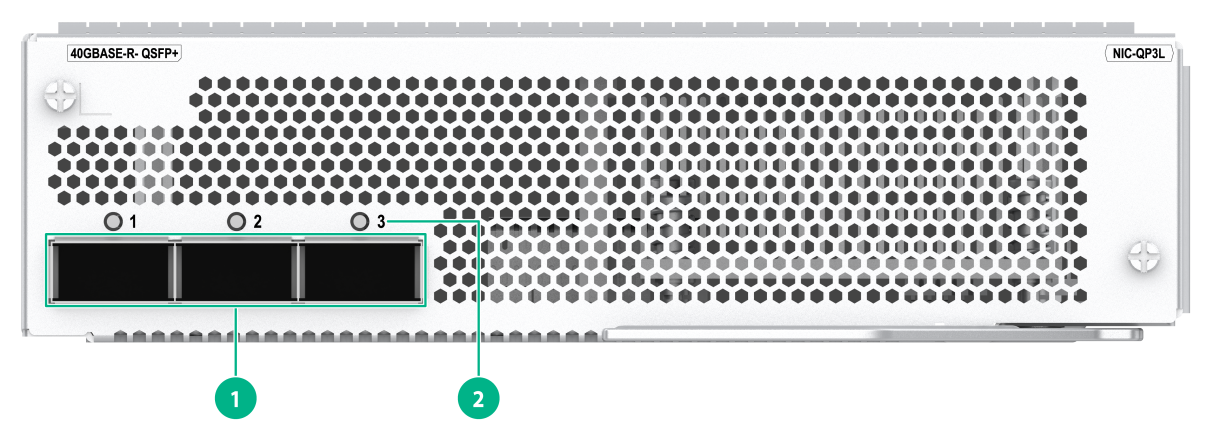

Figure2-90 NIC-QP3L view
(1) 40GBASE-R-QSFP+ fiber ports (3 in total) |
(2) QSFP+ port LED. For the LED description, see Table2-356. |
LEDs
Table2-356 QSFP+ port LED description
LED |
Status |
Description |
QSFP+ port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
Ports
Table2-357 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-QP3L |
3-port 40G Ethernet optical interface card (QSFP+,LC) |
LC |
3 |
40 Gbps |
Technical specifications
Table2-358 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 × 179 × 118 mm (1.87 × 7.05 × 4.65 in) |
Weight |
0.75 kg (1.65 lb) |
Maximum power consumption |
34 W |
Minimum power consumption |
33 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-XP10L
View
Figure2-91 NIC-XP10L view
(1) 10GBASE-R/W-SFP+ fiber ports (10 in total) |
(2) SFP+ port LED. For the LED description, see Table2-359. |
LEDs
Table2-359 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-360 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-XP10L |
10-port 10GBASE-R/W Ethernet optical interface card |
LC |
10 |
10 Gbps |
1000 Mbps |
Technical specifications
Table2-361 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.65 kg (1.43 lb) |
Maximum power consumption |
27.4 W |
Minimum power consumption |
26.9 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-XP20L
View
Figure2-92 NIC-XP20L view
(1) 10GBASE-R/W-SFP+ fiber ports (20 in total) |
(2) SFP+ port LED. For the LED description, see Table2-362. |
LEDs
Table2-362 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-363 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-XP20L |
20-port 10GBASE-R/W Ethernet optical interface card |
LC |
20 |
10 Gbps |
1000 Mbps |
Technical specifications
Table2-364 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.90 kg (1.98 lb) |
Maximum power consumption |
58 W |
Minimum power consumption |
39 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-XP20L1/NIC-XP20L1B
View

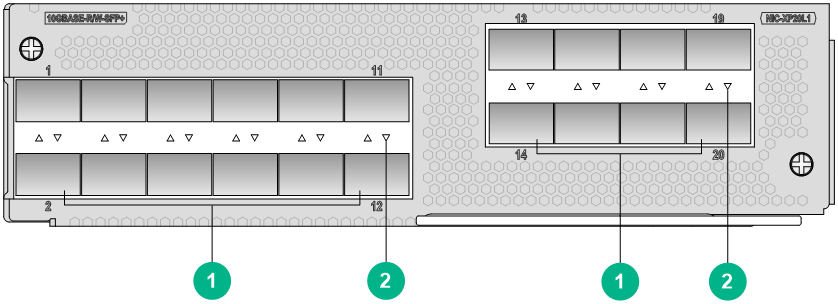

Figure2-93 NIC-XP20L1 view
(1) 10GBASE-R/W-SFP+ fiber ports or 1000BASE-X-SFP fiber ports (20 in total) |
(2) SFP+ port/SFP port LED. For the SFP+ port LED description, see Table2-365. For the SFP port LED description, see Table2-366 |
The views of the NIC-XP20L1 and NIC-XP20L1B are similar. This figure uses the NIC-XP20L1 as an example.
LEDs
Table2-365 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Table2-366 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-367 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-XP20L1 |
20-port 10GBASE-R/W Ethernet optical interface card |
LC |
20 |
10 Gbps |
1000 Mbps |
||||
NIC-XP20L1B |
20-port 10GBASE-R/W Ethernet optical interface card B |
LC |
20 |
10 Gbps |
1000 Mbps |
Technical specifications
Table2-368 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
· NIC-XP20L1: 1.00 kg (2.20 lb) · NIC-XP20L1B: 0.90 kg (1.98 lb) |
Maximum power consumption |
60 W |
Minimum power consumption |
50 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
NIC-XP5L
View

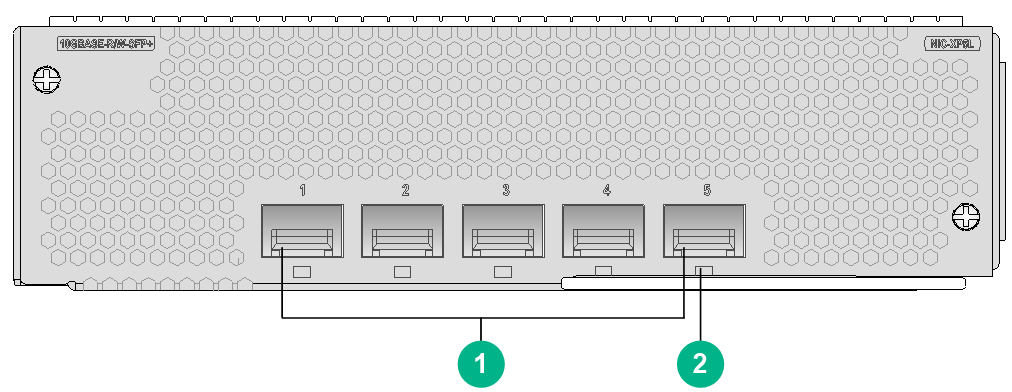

Figure2-94 NIC-XP5L view
(1) 10GBASE-R/W-SFP+ fiber ports (5 in total) |
(2) SFP+ port LED. For the LED description, see Table2-369. |
LEDs
Table2-369 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-370 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
NIC-XP5L |
5-port 10GBASE-R/W Ethernet optical interface card |
LC |
5 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-371 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.60 kg (1.32 lb) |
Maximum power consumption |
14.9 W |
Minimum power consumption |
11 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
RX-NIC-CC1L
View
Figure2-95 RX-NIC-CC1L view
(1) 100GBASE-R-CFP2 fiber ports (1 in total) |
(2) CFP2 port LED. For the LED description, see Table2-372. |
LEDs
Table2-372 CFP2 port LED description
LED |
Status |
Description |
CFP2 port LED |
Flashing |
The CFP2 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the CFP2 port. |
|
Off |
No link is present on the CFP2 port. |
Ports
Table2-373 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-CC1L |
1-port 100G Ethernet optical interface card |
LC |
1 |
100 Gbps |
Technical specifications
Table2-374 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.60 kg (1.32 lb) |
Maximum power consumption |
9.7 W |
Minimum power consumption |
9.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
RX-NIC-CC2L
View
Figure2-96 RX-NIC-CC2L view
(1) 100GBASE-R-CFP2 fiber ports (2 in total) |
(2) CFP2 port LED. For the LED description, see Table2-375. |
LEDs
Table2-375 CFP2 port LED description
LED |
Status |
Description |
CFP2 port LED |
Flashing |
The CFP2 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the CFP2 port. |
|
Off |
No link is present on the CFP2 port. |
Ports
Table2-376 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-CC2L |
2-port 100G Ethernet optical interface card |
LC |
2 |
100 Gbps |
Technical specifications
Table2-377 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.85 kg (1.87 lb) |
Maximum power consumption |
21 W |
Minimum power consumption |
19.2 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
RX-NIC-CQ1LF
View
Figure2-97 RX-NIC-CQ1LF view
(1) 100GBASE-R-QSFP28 port (1 in total) |
(2) QSFP28 port LED. For the description, see Table2-378. |
LEDs
Table2-378 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
|
NOTE: You can identify the speed of a QSFP28 port by observing the color of its LED. Green indicates a speed of 100 Gbps, and yellow indicates a speed of 50 Mbps. |
Ports
Table2-379 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-CQ1LF |
1-port 100G flexible Ethernet optical interface card |
LC |
1 |
Standard Ethernet mode: 100 Gbps Flexible Ethernet mode: 100 Gbps |
Technical specifications
Table2-380 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.85 kg (1.87 lb) |
Maximum power consumption |
53 W |
Minimum power consumption |
35 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
RX-NIC-CQ2LF
View

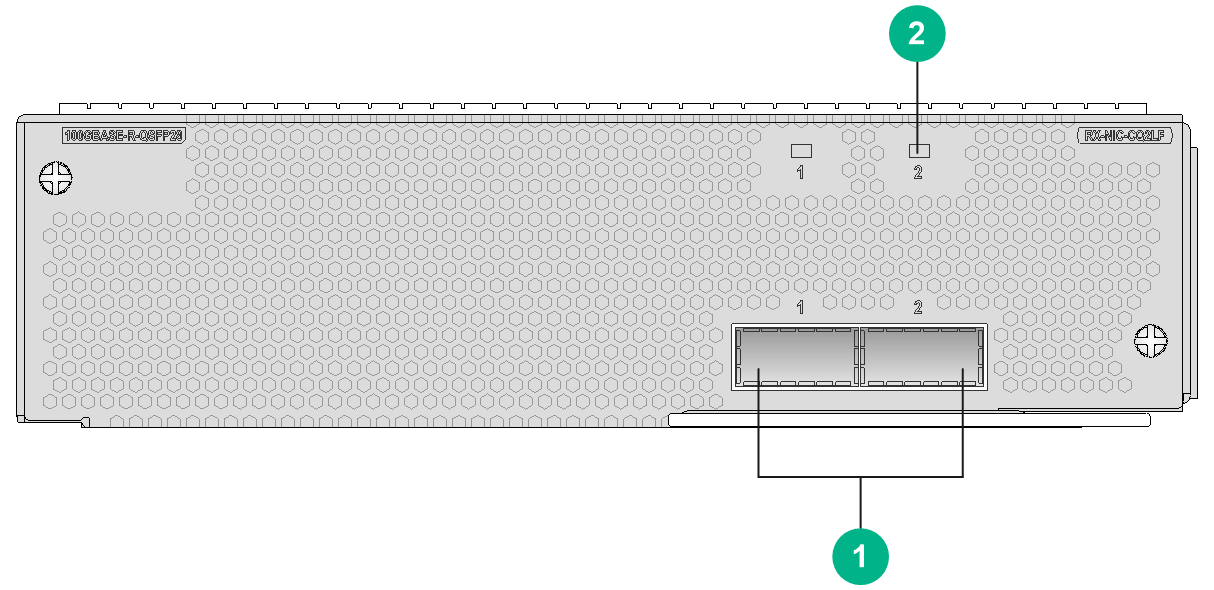

Figure2-98 RX-NIC-CQ1LF view
(1) 100GBASE-R-QSFP28 fiber ports (2 in total). |
(2) QSFP28 port LED. For the description, see Table2-381. |
LEDs
Table2-381 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
|
NOTE: You can identify the speed of a QSFP28 port by observing the color of its LED. Green indicates a speed of 100 Gbps, and yellow indicates a speed of 50 Mbps. |
Ports
Table2-382 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-CQ2LF |
2-port 100G flexible Ethernet optical interface card |
LC |
2 |
Standard Ethernet mode: 100 Gbps Flexible Ethernet mode: 100 Gbps |
Technical specifications
Table2-383 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
1.00 kg (2.20 lb) |
Maximum power consumption |
61 W |
Minimum power consumption |
38 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
RX-NIC-GP20L
View
Figure2-99 RX-NIC-GP20L view
(1) 1000BASE-X-SFP fiber ports (20 in total) |
(2) SFP port LED. For the LED description, see Table2-384. |
LEDs
Table2-384 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-385 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-GP20L |
20-port 1000BASE-X Ethernet optical interface card |
LC |
20 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-386 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.65 kg (1.43 lb) |
Maximum power consumption |
13.8 W |
Minimum power consumption |
12 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
RX-NIC-LGQ2L
View

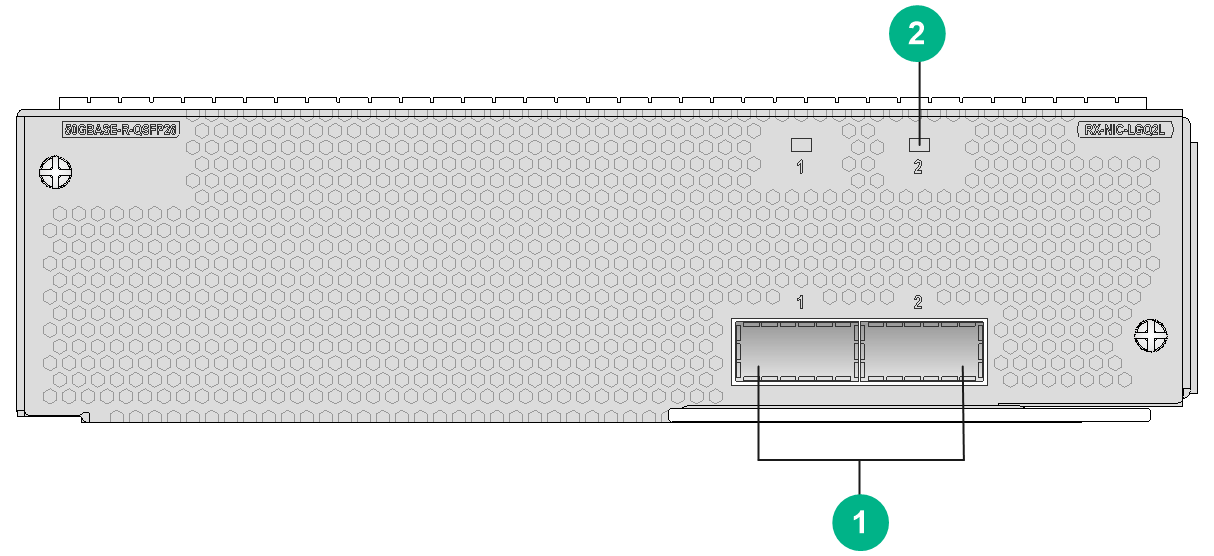

Figure2-100 RX-NIC-LGQ2L view
(1) 50GBASE-R-QSFP28 fiber ports (2 in total) |
(2) QSFP28 port LED. For the LED description, see Table2-387. |
LEDs
Table2-387 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LEDs |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-388 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-LGQ2L |
2-port 50G Ethernet optical interface card |
LC |
2 |
Standard Ethernet mode: 50 Gbps Flexible Ethernet mode: 50 Gbps |
Technical specifications
Table2-389 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.85 kg (1.87 lb) |
Maximum power consumption |
61 W |
Minimum power consumption |
38 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
RX-NIC-LGQ4L
View
Figure2-101 RX-NIC-LGQ4L view
(1) 50GBASE-R-QSFP28 fiber ports (4 in total) |
(2) QSFP28 port LED. For the description, see Table2-390. |
LEDs
Table2-390 QSFP28 port LED description
LED |
Status |
Description |
QSFP28 port LED |
Flashing |
The QSFP28 port is sending or receiving data at 100 Gbps. |
Steady on |
A 100 Gbps link is present on the QSFP28 port. |
|
Off |
No link is present on the QSFP28 port. |
Ports
Table2-391 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-LGQ4L |
4-port 50G Ethernet optical interface card |
LC |
4 |
Standard Ethernet mode: 50 Gbps Flexible Ethernet mode: 50 Gbps |
Technical specifications
Table2-392 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.90 kg (1.98 lb) |
Maximum power consumption |
92 W |
Minimum power consumption |
55 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
RX-NIC-XP10L
View

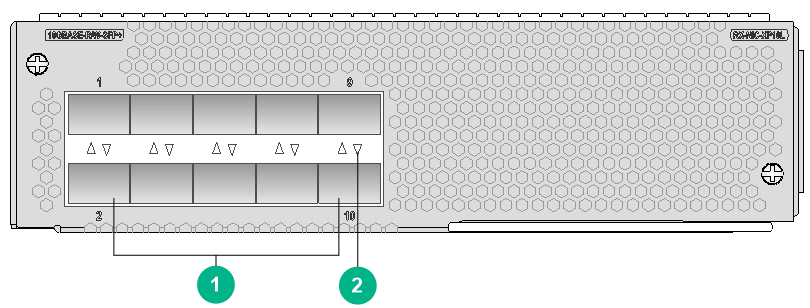

Figure2-102 RX-NIC-XP10L view
(1) 10GBASE-R/W-SFP+ fiber ports (10 in total) |
(2) SFP+ port LED. For the LED description, see Table2-393. |
LEDs
Table2-393 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-394 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-XP10L |
10-port 10GBASE-R/W Ethernet optical interface card |
LC |
10 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-395 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.65 kg (1.43 lb) |
Maximum power consumption |
27.4 W |
Minimum power consumption |
26.9 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
RX-NIC-XP20L
View
Figure2-103 RX-NIC-XP20L view
(1) 10GBASE-R/W-SFP+ fiber ports (20 in total) |
(2) SFP+ port LED. For the LED description, see Table2-396. |
LEDs
Table2-396 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-397 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-XP20L |
20-port 10GBASE-R/W Ethernet optical interface card |
LC |
20 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-398 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
1.00 kg (2.20 lb) |
Maximum power consumption |
58 W |
Minimum power consumption |
39 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
RX-NIC-XP5L
View

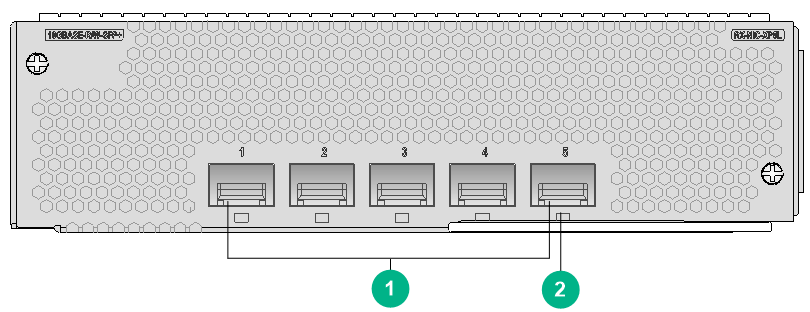

Figure2-104 RX-NIC-XP5L view
(1) 10GBASE-R/W-SFP+ fiber ports (5 in total) |
(2) SFP+ port LED. For the LED description, see Table2-399. |
LEDs
Table2-399 SFP + port LED description
LED |
Status |
Description |
SFP + port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of an SFP+ port by observing the color of its LED. Green indicates a speed of 10 Gbps, and yellow indicates a speed of 1000 Mbps. |
Ports
Table2-400 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-XP5L |
5-port 10GBASE-R/W Ethernet optical interface card |
LC |
5 |
100 Mbps |
1000 Mbps |
||||
10 Gbps |
Technical specifications
Table2-401 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.60 kg (1.32 lb) |
Maximum power consumption |
14.9 W |
Minimum power consumption |
11 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
RX-NIC-YGS4L
View
Figure2-105 RX-NIC-YGS4L view
(1) 10GBASE-R-SFP+ port or 25GBASE-R-SFP28 port (4 in total) |
(2) SFP28 port LED. For the LED description, see Table2-402. |
LEDs
Table2-402 SFP28 port LED description
LED |
Status |
Description |
SFP28 port LED |
Flashing |
The port is sending or receiving data. |
Steady on |
A link is present on the port. |
|
Off |
No link is present on the port. |
|
NOTE: You can identify the speed of a QSFP28 port by observing the color of its LED. Green indicates a speed of 100 Gbps, and yellow indicates a speed of 50 Mbps. |
Ports
Table2-403 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
RX-NIC-YGS4L |
4-port 25G Ethernet optical interface card |
LC |
4 |
10 Gbps |
25 Gbps |
Technical specifications
Table2-404 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 mm × 179 mm × 118 mm (1.87 in × 7.05 in × 4.65 in) |
Weight |
0.80 kg (1.76 lb) |
Maximum power consumption |
38 W |
Minimum power consumption |
25 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
PIC subcards
IMPORTANT: · To use a PIC interface card, you must install it on a CMPE, SPE, or SPEX/CSPEX base card. You cannot install it directly on the router. · For the compatibility between PIC interface cards and CMPE, SPE, or SPEX/CSPEX base cards, see the compatibility information for the base cards. |
PIC-GP10L
View
Figure2-106 PIC-GP10L view
(1) 1000BASE-X-SFP Ethernet fiber port (10 in total) |
(2) SFP port LED. For the LED description, see Table2-405. |
LEDs
Table2-405 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-406 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
PIC-GP10L |
10-port 1000BASE-X optical interface card (SFP, LC) |
LC |
10 |
100 Mbps |
1000 Mbps |
Technical specifications
Table2-407 PIC-GP10L
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.45 kg (0.99 lb) |
Maximum power consumption |
21 W |
Minimum power consumption |
9.5 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
PIC-PS2G4L
View
Figure2-107 PIC-PS2G4L view
(1) OC48c/STM16c-SFP POS fiber ports (2 in total) |
(2) 1000BASE-X-SFP GE fiber ports (4 in total) |
(3) POS port LED. For the LED description, see Table2-408. |
(4) GE port LED. For the LED description, see Table2-409. |
LEDs
Table2-408 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Green |
The port is up and is receiving or sending data correctly. |
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Table2-409 GE SFP port LED description
LED |
Status |
Description |
GE SFP port LED (LINK/ACT) |
Flashing green |
The SFP port is sending or receiving data. |
Green |
A link is present on the SFP port. |
|
Off |
No link is present on the SFP port. |
Ports
Table2-410 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
PIC-PS2G4L |
2-port OC-48c/STM-16c POS optical interface (SFP, LC) + 4-port 1000BASE-X optical interface card (SFP, LC) |
LC |
2 |
2.5 Gbps (OC-48/STM-16) |
4 |
100 Mbps |
|||
1000 Mbps |
Technical specifications
Table2-411 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.40 kg (0.88 lb) |
Maximum power consumption |
16 W |
Minimum power consumption |
9.3 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
PIC-PSP4L
View
Figure2-108 PIC-PSP4L view
(1) OC48c/STM16c-SFP POS fiber ports (4 in total) |
(2) Port LED. For the LED description, see Table2-412. |
LEDs
Table2-412 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Green |
The port is up and is receiving or sending data correctly. |
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-413 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
PIC-PSP4L |
4-port OC-48c/STM-16c POS optical interface card (SFP, LC) |
LC |
4 |
2.5 Gbps (OC-48/STM-16) |
Technical specifications
Table2-414 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.40 kg (0.88 lb) |
Maximum power consumption |
18 W |
Minimum power consumption |
9.7 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
PIC-PUP1L
View
Figure2-109 PIC-PUP1L view
(1) OC192c/STM64c-XFP POS fiber port (1 in total) |
(2) Port LED. For the LED description, see Table2-415. |
LEDs
Table2-415 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Green |
The port is up and is receiving or sending data correctly. |
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-416 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
PIC-PUP1L |
1-port OC-192c/STM-64c POS optical interface card (XFP, LC) |
LC |
1 |
10 Gbps (OC-192/STM-64) |
Technical specifications
Table2-417 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.50 kg (1.10 lb) |
Maximum power consumption |
19 W |
Minimum power consumption |
14.3 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
PIC-TCP8L
View
Figure2-110 PIC-TCP8L view
(1) OC3c/OC12c/1000BASE-X-SFP POS/GE fiber ports (8 in total) |
(2) Port LED. For the LED description, see Table2-418. |
LEDs
Table2-418 WAN port LED description
LED |
Status |
Description |
WAN port LED (ACT/ALM) |
Green |
The port is up and is receiving or sending data correctly. |
Steady red |
An alarm has occurred. |
|
Off |
The port is down. |
Ports
Table2-419 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
PIC-TCP8L |
8-port OC-3c/OC-12c POS/GE optical interface card (SFP, LC) |
LC |
8 |
100 Mbps |
155 Mbps (OC-3/STM-1) |
||||
622 Mbps (OC-12/STM-4) |
||||
1000 Mbps |
Technical specifications
Table2-420 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.40 kg (0.88 lb) |
Maximum power consumption |
17 W |
Minimum power consumption |
9.7 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
PIC-XP1L
View
Figure2-111 PIC-XP1L view
(1) 10GBASE-R/W-XFP Ethernet fiber port (1 in total) |
(2) XFP port LED. For the LED description, see Table2-421. |
LEDs
Table2-421 10GE XFP port LED description
LED |
Status |
Description |
10GE XFP port LED (LINK/ACT) |
Flashing green |
The XFP port is sending or receiving data. |
Green |
A link is present on the XFP port. |
|
Off |
No link is present on the XFP port. |
Ports
Table2-422 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
PIC-XP1L |
1-port 10GBASE-R/W Ethernet optical interface card (XFP, LC) |
LC |
1 |
10 Gbps |
Technical specifications
Table2-423 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.45 kg (0.99 lb) |
Maximum power consumption |
23.7 W |
Minimum power consumption |
12.5 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
OAA modules
A combo interface is a logical interface that contains an SFP port and an RJ-45 Ethernet port. Only one of them can be activated at a time.
LSU1ADECEA0
View
Figure2-112 LSU1ADECEA0 view
(1) Console port (CONSOLE) |
(2) USB port (reserved for future use) |
(3) Combo copper port (10/100/1000BASE-T) |
(4) Combo copper port LED (LINK/ACT) |
(5) Combo fiber port (1000BASE-X) |
(6) Combo fiber port LED (LINK/ACT) |
(7) Alarm LED (ALM) |
(8) System LED (RUN) |
(9) Ejector lever |
(10) Captive screw |
LEDs
Table2-424 LED description
LED |
Mark |
Status |
Description |
Alarm LED |
ALM |
Off |
The system is operating correctly. |
Steady red |
A critical fault is present on the system and the fault must be handled immediately. |
||
System LED |
RUN |
Off |
No power is input or the service module has failed. |
Steady green |
The system is running incorrectly. |
||
Slow flashing green (1 Hz) |
The system is operating correctly. |
||
Fast flashing green (8 Hz) |
The system is loading software or has not started. |
||
Combo interface LED |
LINK/ACT |
Off |
No link is present. |
Steady green |
A link is present. |
||
Flashing green |
The interface is sending or receiving data. |
Ports
Table2-425 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
LSU1ADECEA0 |
Application delivery service module |
RJ-45 |
2 |
10/100/1000 Mbps |
LC |
2 |
1000 Mbps |
Technical specifications
Table2-426 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.90 kg (8.60 lb) |
Maximum power consumption |
150 W |
Minimum power consumption |
109 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
IM-ACG1000X-IV
View
Figure2-113 IM-ACG1000X-IV view
(1) Captive screw |
(2) Ejector lever |
(3) Drive slot |
(4) Console port (CONSOLE) |
(5) GE Ethernet copper interface (10/100/1000BASE-T) |
(6) USB port |
(7) Drive LED (HD) |
(8) System LED (SYS) |
LEDs
Table2-427 LED description
LED |
Mark |
Status |
Description |
Drive LED |
HD |
Fast flashing green |
Data is being read from or written to the drive. |
Steady green |
The drive is running correctly. |
||
Off |
The drive is absent. |
||
System LED |
SYS |
Off |
No power is input or the service module has failed. |
Slow flashing green |
The system is operating correctly. |
||
Fast flashing green |
The system is loading software. |
Ports
Table2-428 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
IM-ACG1000X-IV |
Application control gateway module |
RJ45 |
1 |
10/100/1000 Mbps |
Technical specifications
Table2-429 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.80 kg (10.60 lb) |
Maximum power consumption |
235 W |
Minimum power consumption |
175 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
IM-IPSX-IV
View
Figure2-114 IM-IPSX-IV view
(1) Captive screw |
(2) Ejector lever |
(3) Drive slot |
(4) Console port (CONSOLE) |
(5) GE Ethernet copper interface (10/100/1000BASE-T) |
(6) USB port |
(7) Drive LED (HD) |
(8) System LED (SYS) |
LEDs
Figure2-115 LED description
LED |
Mark |
Status |
Description |
Drive LED |
HD |
Fast flashing green |
Data is being read from or written to the drive. |
Steady green |
The drive is running correctly. |
||
Off |
The drive is absent. |
||
System LED |
SYS |
Off |
No power is input or the service module has failed. |
Slow flashing green |
The system is operating correctly. |
||
Fast flashing green |
The system is loading software. |
Ports
Table2-430 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
IM-IPSX-IV |
Intrusion prevention system module |
RJ45 |
1 |
10/100/1000 Mbps |
Technical specifications
Table2-431 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.80 kg (10.58 lb) |
Maximum power consumption |
235 W |
Minimum power consumption |
175 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
IM-NGFWX-IV
View
Figure2-116 IM-NGFWX-IV view
(1) Captive screw |
(2) Ejector lever |
(3) Drive slot |
(4) Console port (CONSOLE) |
(5) GE Ethernet copper interface (10/100/1000BASE-T) |
(6) USB port |
(7) Drive LED (HD) |
(8) System LED (SYS) |
LEDs
Table2-432 LED description
LED |
Mark |
Status |
Description |
Drive LED |
HD |
Fast flashing green |
Data is being read from or written to the drive. |
Steady green |
The drive is running correctly. |
||
Off |
The drive is absent. |
||
System LED |
SYS |
Off |
No power is input or the service module has failed. |
Slow flashing green |
The system is operating correctly. |
||
Fast flashing green |
The system is loading software. |
Ports
Table2-433 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
IM-NGFWX-IV |
Firewall module |
RJ45 |
1 |
10/100/1000 Mbps |
Technical specifications
Table2-434 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 mm × 399 mm × 352 mm (1.57 in × 15.71 in × 13.86 in) |
Weight |
4.80 kg (10.58 lb) |
Maximum power consumption |
235 W |
Minimum power consumption |
175 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
LSU1FWCEA0
View
Figure2-117 LSU1FWCEA0 view
(1) Console port (CONSOLE) |
(2) USB port (reserved for future use) |
(3) Combo copper port (10/100/1000BASE-T) |
(4) Combo copper port LED (LINK/ACT) |
(5) Combo fiber port (1000BASE-X) |
(6) Combo fiber port LED (LINK/ACT) |
(7) Alarm LED (ALM) |
(8) System LED (RUN) |
(9) Ejector lever |
(10) Captive screw |
LEDs
Table2-435 LED description
LED |
Mark |
Status |
Description |
Alarm LED |
ALM |
Off |
The system is operating correctly. |
Steady red |
A critical fault has occurred to the system and the fault must be handled immediately. |
||
System LED |
RUN |
Off |
No power is input or the service module has failed. |
Steady green |
The system is running incorrectly. |
||
Slow flashing green (1 Hz) |
The system is operating correctly. |
||
Fast flashing green (8 Hz) |
The system is loading software or has not started. |
||
Combo interface LED |
LINK/ACT |
Off |
No link is present. |
Steady green |
A link is present. |
||
Flashing green |
The interface is sending or receiving data. |
Ports
Table2-436 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
LSU1FWCEA0 |
Firewall module |
RJ45 |
2 |
10/100/1000 Mbps |
LC |
2 |
1000 Mbps |
Technical specifications
Table2-437 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.90 kg (8.60 lb) |
Maximum power consumption |
150 W |
Minimum power consumption |
109 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
LSU1IPSBEA0
View
Figure2-118 LSU1IPSBEA0 view
(1) Console port (CONSOLE) |
(2) USB port ( Control power supply of the external PFC power fail safeguard module) |
(3) Combo copper port (10/100/1000BASE-T) |
(4) Combo copper port LED (LINK/ACT) |
(5) Combo fiber port (1000BASE-X) |
(6) Combo fiber port LED (LINK/ACT) |
(7) Alarm LED (ALM) |
(8) System LED (RUN) |
(9) Ejector lever |
(10) Captive screw |
LEDs
Table2-438 LED description
LED |
Mark |
Status |
Description |
Alarm LED |
ALM |
Off |
The system is operating correctly. |
Steady red |
A critical fault has occurred to the system and the fault must be handled immediately. |
||
System LED |
RUN |
Off |
No power is input or the service module has failed. |
Steady green |
The system is running incorrectly. |
||
Slow flashing green (1 Hz) |
The system is operating correctly. |
||
Fast flashing green (8 Hz) |
The system is loading software or has not started. |
||
Combo interface LED |
LINK/ACT |
Off |
No link is present. |
Steady green |
A link is present. |
||
Flashing green |
The interface is sending or receiving data. |
Ports
Table2-439 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
LSU1IPSBEA0 |
Intrusion prevention system module |
RJ45 |
2 |
10/100/1000 Mbps |
LC |
2 |
1000 Mbps |
Technical specifications
Table2-440 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.90 kg (8.60 lb) |
Maximum power consumption |
150 W |
Minimum power consumption |
109 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
LSU3FWCEA0
View
Figure2-119 LSU3FWCEA0 view
(1) Console port (CONSOLE) |
(2) USB port (reserved for future use) |
(3) Combo copper port (10/100/1000BASE-T) |
(4) Combo copper port LED (LINK/ACT) |
(5) Combo fiber port (1000BASE-X) |
(6) Combo fiber port LED (LINK/ACT) |
(7) Alarm LED (ALM) |
(8) System LED (RUN) |
(9) Ejector lever |
(10) Captive screw |
LEDs
Table2-441 LED description
LED |
Mark |
Status |
Description |
Alarm LED |
ALM |
Off |
The system is operating correctly. |
Steady red |
A critical fault has occurred to the system and the fault must be handled immediately. |
||
System LED |
RUN |
Off |
No power is input or the service module has failed. |
Steady green |
The system is running incorrectly. |
||
Slow flashing green (1 Hz) |
The system is operating correctly. |
||
Fast flashing green (8 Hz) |
The system is loading software or has not started. |
||
Combo interface LED |
LINK/ACT |
Off |
No link is present. |
Steady green |
A link is present. |
||
Flashing green |
The interface is sending or receiving data. |
Ports
Table2-442 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
LSU3FWCEA0 |
Firewall module |
RJ45 |
2 |
10/100/1000 Mbps |
LC |
2 |
1000 Mbps |
Technical specifications
Table2-443 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
3.90 kg (8.60 lb) |
Maximum power consumption |
150 W |
Minimum power consumption |
109 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
Configuration restrictions and guidelines
For adequate ventilation and cooling, install the IM-NGFWX-IV, IM-IPSX-IV, and IM-ACG1000X-IV cards in the following slots only when the other slots are not available.
· SR8808-X router—Slots 0, 8 and 9.
· SR8812-X router—Slots 0 and 13.
Compatibility information
Table2-444 Compatibility matrix between OAA cards and routers
Card model |
SR8804-X, SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
IM-NGFWX-IV |
Supported |
Supported |
LSU1FWCEA0 |
Supported |
Not supported |
LSU3FWCEA0 |
Supported |
Not supported |
IM-IPSX-IV |
Supported |
Supported |
LSU1IPSBEA0 |
Supported |
Not supported |
IM-ACG1000X-IV |
Supported |
Supported |
LSU1ADECEA0 |
Supported |
Not supported |
IM modules (Universal line processing unit)
IM-APA-I
View
Figure2-120 IM-APA-I view
(1) Card status LED. For the LED description, see Table2-445. |
LEDs
Table2-445 Card status LED description
LED |
Status |
Description |
RUN (Green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not in position. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Ports
Table2-446 Port specifications
Card model |
Description |
IM-APA-I |
iBRAS application-aware line processing unit |
Technical specifications
Table2-447 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
Weight |
3.12 kg (6.88 lb) |
Maximum power consumption |
400 W |
Power consumption (with typical configuration) |
260 W |
Minimum power consumption |
248 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
IM-MSUX (1 U)
View
Figure2-121 IM-MSUX (1 U) view
(1) Card status LED. For the LED description, see Table2-448. |
LED
Table2-448 Card status LED description
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Ports
Table2-449 Port specifications
Card model |
Description |
IM-MSUX (1 U) |
Universal line processing unit |
Technical specifications
Table2-450 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.95 kg (10.91 lb) |
Maximum power consumption |
186 W |
Typical power consumption |
175 W |
Minimum power consumption |
158.2 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
IM-MSUX (1.2 U)
View
Figure2-122 IM-MSUX (1.2 U) view
(1) Card status LED. For the LED description, see Table2-451. |
LEDs
Table2-451 Card status LED description
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Ports
Table2-452 Port specifications
Card model |
Description |
IM-MSUX (1.2 U) |
Universal line processing unit |
Technical specifications
Table2-453 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
Weight |
4.85 kg (10.69 lb) |
Maximum power consumption |
186 W |
Typical power consumption |
175 W |
Minimum power consumption |
158.2 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
IM-MSEX-B
|
NOTE: The IM-MSEX-B provides one subcard slot. You can use it without a subcard, or use it with an IM-SP-B for double CGN packet processing rate. |
View
Figure2-123 IM-MSEX-B view
(1) Card status LED. For the LED description, see Table2-454. |
LEDs
Table2-454 Card status LED description
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Ports
Table2-455 Port specifications
Card model |
Description |
IM-MSEX-B |
Service processing unit |
Technical specifications
Table2-456 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
Weight |
3.12 kg (6.88 lb) |
Maximum power consumption |
400 W |
Typical power consumption |
260 W |
Minimum power consumption |
248 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
IM-SP-B
|
NOTE: The IM-SP-B must be installed on an IM-APA-I or IM-MSEX-B for use. It occupies one subcard slot and does not provide ports. |
View
Figure2-124 IM-SP-B view
(1) Card status LED. For the LED description, see Table2-457. |
LEDs
Table2-457 Card status LED description
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Ports
Table2-458 Port specifications
Card model |
Description |
IM-SP-B |
Universal expansion service processing module |
Technical specifications
Table2-459 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
47.5 × 170 × 192 mm (1.87 × 6.69 × 7.56 in) |
Weight |
1.20 kg (2.65 lb) |
Maximum power consumption |
130 W |
Minimum power consumption |
95 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
Configuration restrictions and guidelines
For adequate ventilation and cooling, install the IM-MSUX cards in the following slots only when the other slots are not available:
· SR8808-X router—Slots 0, 8 and 9.
· SR8812-X router—Slots 0 and 13.
Compatibility information
Table2-460 Compatibility matrix between universal line processing units and routers
Card model |
SR8804-X |
SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
IM-APA-I |
Not supported |
Not supported |
Supported |
IM-MSUX (1 U) |
Supported |
Supported |
Supported |
IM-MSUX (1.2 U) |
Not supported |
Not supported |
Supported |
IM-MSEX-B |
Not supported |
Not supported |
Supported |
IM modules (Security monitor line processing unit)
IM-SMUX
View
Figure2-125 IM-SMUX view
(1) Card status LED. For the LED description, see Table2-457. |
LEDs
Table2-461 Card status LED description
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, the card fails registration. |
Ports
Table2-462 Port specifications
Card model |
Description |
IM-SMUX |
Security monitor line processing unit |
Technical specifications
Table2-463 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
Weight |
4.85 kg (10.69 lb) |
Maximum power consumption |
186 W |
Typical power consumption |
175 W |
Minimum power consumption |
159 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
Compatibility information
Table2-464 Compatibility matrix between security monitor line processing units and routers
Card model |
SR8804-X |
SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
IM-SMUX |
Not supported |
Not supported |
Supported |
IM modules (Network data encryption service processing unit)
IM-SFMX
|
NOTE: The IM-SFMX provides one subcard slot. When used without a subcard, it uses non-SM algorithms to encrypt and decrypt network data. When used with an MIC-SM, it uses SM algorithms to encrypt and decrypt network data. |
View
Figure2-126 IM-SFMX view
(1) Card status LED. For the LED description, see Table2-465. |
LEDs
Table2-465 Card status LED description
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Ports
Table2-466 Port specifications
Card model |
Description |
IM-SFMX |
Network data encryption service processing unit |
Technical specifications
Table2-467 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 399 × 355 mm (1.57 × 15.71 × 13.86 in) |
Weight |
4.05 kg (8.93 lb) |
Maximum power consumption |
165 W |
Typical power consumption |
113 W |
Minimum power consumption |
90 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
MIC-SEC
|
NOTE: The MIC-SEC occupies one subcard slot. It must be installed on a base card for use. For compatibilities between the MIC-SEC subcard and MPE, SPE, or SPEX/CSPEX base cards, see compatibility information for the base cards. |
View
Figure2-127 MIC-SEC view
Ports
Table2-468 Port specifications
Card model |
Description |
Connector type |
Port quantity |
Port transmission speed |
MIC-SEC |
Network data encryption service processing interface card |
N/A |
N/A |
N/A |
Technical specifications
Table2-469 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
18 × 171 × 157 mm (0.71 × 6.73 × 6.18 in) |
Weight |
0.40 kg (0.88 lb) |
Maximum power consumption |
31 W |
Minimum power consumption |
29 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) |
MIC-SM
|
NOTE: · The MIC-SM is not hot swappable. · The MIC-SM must be installed on an IM-SFMX for use. It occupies one subcard slot. · The MIC-SM is provided with six USB keys for you to obtain user roles to manage the card. To obtain a user role, first insert a USB key into USB port AUTH. For more information about the encryption card configuration, see H3C SR8800-X Routers Configuration Guides. |
View
Figure2-128 MIC-SM view
(1) Card status LED. For the LED description, see Table2-470. |
(2) USB port KEY (reserved for future use) |
(3) USB port AUTH |
LEDs
Table2-470 Card status LED description
LED |
Status |
Description |
RUN (green) |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (about once per second) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Ports
Table2-471 Port specifications
Card model |
Description |
MIC-SM |
Network data encryption interface card |
Technical specifications
Table2-472 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
37 × 179 × 149 mm (1.46 in × 7.05 in × 5.87 in) |
Weight |
0.90 kg (1.98 lb) |
Maximum power consumption |
40 W |
Minimum power consumption |
25 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
Compatibility information
Table2-473 Compatibility matrix between security monitor line processing units and routers
Card model |
SR8804-X |
SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
IM-SMUX |
Not supported |
Not supported |
Supported |
IM modules (Universal open application platform)
IM-OAPX
View
Figure2-129 IM-OAPX view
No. |
Description |
(1) |
Power on/standby button and system power LED |
(2) |
2.5 in SATA drive slot |
(3) |
Drive Present/Active LED |
(4) |
Drive Fault/UID LED |
(5) |
BMC network port (1 Gb, RJ45) with default IP 192.168.1.2/24 |
(6) |
Shared network port, which can be used as the following: · Ethernet port (1Gb, RJ45) · BMC network port (1Gb, RJ45), with default IP automatically obtained through DHCP) |
(7) |
BMC network port status LED |
(8) |
Shared network port status LED |
(9) |
VGA connector |
(10) |
USB 2.0 port |
(11) |
USB 3.0 port |
(12) |
Console port |
(13) |
UID LED |
(14) |
RUN LED |
(15) |
Health LED |
LEDs
Table2-474 System power LED description
LED |
Status |
Description |
Power on/standby button and system power LED |
Steady green |
The system has started up. |
Flashing green (1 Hz) |
The system is starting up. |
|
Steady amber |
The system is in standby mode. |
|
Off |
The system is powered off. |
Table2-475 Health LED description
LED |
Status |
Description |
Health LED |
Steady green |
The system is operating correctly. |
Flashing green (4 Hz) |
The BMC is currently resetting and initializing. |
|
Flashing yellow and green (1 Hz) |
A minor alarm occurs in the system, including an alarm on an error monitored by BMC or an alarm on hardware. |
|
Flashing yellow (1 Hz) |
A major alarm occurs in the system, including an alarm on an error monitored by BMC, an alarm on hardware or CPU. |
Table2-476 RUN LED description
LED |
Status |
Description |
RUN LED |
Steady on |
The card is faulty. |
Off |
The card is faulty or is not present. |
|
Flashing (1 Hz) |
The card is operating correctly. |
|
Fast flashing |
The card is starting up. If the LED keeps fast flashing, card registration has failed. |
Table2-477 UID LED description
LED |
Status |
Description |
UID LED |
Steady blue |
The UID LED is activated. You can activate the UID LED in the following methods: · Press down the UID LED. · Power on the UID LED from BMC. |
Flashing blue |
· 1 Hz: The system is being remote managed by BMC or performing software update. · 4Hz: BMC is restarting by pressing the UID button or LED for 8 seconds. |
|
Off |
The UID LED is not activated. |
Table2-478 Drive LED description
Fault/UID LED (orange/blue) |
Present/Active LED (green) |
Description |
Flashing orange (0.5 Hz) |
Steady green/flashing green (4 Hz) |
A predictive alarm occurs on the drive. Replace the drive in time.* |
Steady orange |
Steady green/flashing green (4 Hz) |
An error occurs on the drive. Replace the drive immediately. |
Steady blue |
Steady green/flashing green (4 Hz) |
The drive is operating correctly and has been selected by the array management tool. |
Off |
Flashing (4 Hz) |
The drive is present. Data is being read from or written to the drive, or the drive is being used for array migration or rebuilding. |
Off |
Steady on |
The drive is present but no data being read from or written to the drive. |
Off |
Off |
The drive is not installed properly. |
Table2-479 BMC network port LED description
LED |
Status |
Description |
BMC network port LED |
Steady green |
The network port is being activated. |
Flashing green (1 Hz) |
The network port is receiving or sending data. |
|
Off |
The network port is disconnected. |
Table2-480 Shared network port LED description
LED |
Status |
Description |
Shared network port LED |
Steady green |
The network port is being activated. |
Flashing green (1 Hz) |
The network port is receiving or sending data. |
|
Off |
The network port is disconnected. |
Ports
Table2-481 Port specifications
Card model |
Description |
IM-OAPX |
Universal open application platform |
Technical specifications
Table2-482 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
Weight |
6.25 kg (13.78 lb) |
Maximum power consumption |
320 W |
Typical power consumption |
310 W |
Minimum power consumption |
295 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
Processor |
Intel Skylake Xeon CPU · A maximum power consumption of 205 W · A maximum of 2.6 GHz CPU clock speed · 38.5 MB cache |
Memory |
Support six DDR4 memory modules · Single DIMM capacity: 32 GB · Total memory capacity: 192 GB |
Storage |
Maximum storage capacity: 2 × 960 GB |
Chipset |
Intel C62x Lewisburg chipset compatible with LBG-T SKU |
User port |
· 2 × console ports · 1 × BMC network port · 1 × shared network port (used as an Ethernet port or a BMC network port) · 1 × VGA connector · 1 × USB port (USB 3.0) · 2 × USB ports (USB 2.0) |
Table2-483 Drive specifications
Model |
Capacity |
Interface type |
Interface rate |
UIS-SSD-960GB-SATA-6G-SFF-EV |
960 G |
SATA |
6 Gbps |
UN-SSD-960G-SATA-6G-SFF-EV-1 |
960 G |
SATA |
6 Gbps |
Configuration restrictions and guidelines
To avoid data loss on drives, you must shut down the universal open application platform before performing the following operations:
· Reboot or hot swap the universal open application platform.
· Reboot or shut down the router.
Do not install the universal open application platform in slot 6 of the SR8808-X router or slot 8 of the SR8812-X router.
The console port on the panel of the universal open application platform is only for users. The internal console port of the universal open application platform is only for H3C Support to perform maintenance and updates. Operations without permission are not allowed. H3C will not be liable for any consequences caused thereby.
The shared network interface can operate only at 1000 Mbps and can be connected only with a GE Ethernet port.
USB ports on the universal open application platform do not support extension cable connection.
Compatibility information
Table2-484 Compatibility matrix between the universal open application platform and routers
Card model |
SR8804-X |
SR8808-X, SR8812-X |
SR8808H-X, SR8816-X |
IM-OAPX |
Supported |
Supported |
Supported |
Switching fabric modules
SFC-04-1/SFC-04-2/SFC-04-3/SFC-04-4
View
Figure2-130 SFC-04-1 view
|
NOTE: The views of the SFC-04-1, SFC-04-2, SFC-04-3, and SFC-04-4 are similar. This figure uses the SFC-04-1 as an example. |
Technical specifications
Table2-485 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 256 × 298 mm (1.57 × 10.08 × 11.73 in) |
Weight |
1.00 kg (2.20 lb) |
Maximum power consumption |
N/A |
Minimum power consumption |
N/A |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
SFC-04B/SFC-04D
View
Figure2-131 SFC-04B view
(1) Switching fabric module status LED. For the LED description, see Table2-486. |
(2) Console port |
|
NOTE: The views of the SFC-04B and SFC-04D are similar. This figure uses the SFC-04B as an example. |
LEDs
Table2-486 Switching fabric module status LED description
LED status |
Description |
|
RUN |
ALM |
|
Flashing (0.5 Hz) |
Off |
The switching fabric module is operating correctly. |
Off |
Steady on |
The switching fabric module is faulty. |
Flashing (0.5 Hz) |
Steady on |
The temperature of the switching fabric module has exceeded the upper limit or dropped below the lower limit. |
Off |
Off |
The switching fabric module has not started up. |
Steady on |
Off |
The switching fabric module is starting up. |
Technical specifications
Table2-487 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 256 × 298 mm (1.57 × 10.08 × 11.73 in) |
Weight |
· SFC-04B: 1.75 kg (3.86 lb) · SFC-04D: 1.71 kg (3.77 lb) |
Maximum power consumption |
· SFC-04B: 65 W · SFC-04D: 80 W |
Typical power consumption |
· SFC-04B: 59 W · SFC-04D: 72 W |
Minimum power consumption |
· SFC-04B: 48 W · SFC-04D: 60 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
SFC-08B/SFC-08D
View
Figure2-132 SFC-08B view
(1) Console port |
(2) Switching fabric module status LED. For the LED description, see Table2-488. |
|
NOTE: The views of the SFC-08B and SFC-08D are similar. This figure uses the SFC-08B as an example. |
LEDs
Table2-488 Switching fabric module status LED description
LED status |
Description |
|
RUN |
ALM |
|
Flashing (0.5 Hz) |
Off |
The switching fabric module is operating correctly. |
Off |
Steady on |
The switching fabric module is faulty. |
Flashing (0.5 Hz) |
Steady on |
The temperature of the switching fabric module has exceeded the upper limit or dropped below the lower limit. |
Off |
Off |
The switching fabric module has not started up. |
Steady on |
Off |
The switching fabric module is starting up. |
Technical specifications
Table2-489 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 426 × 298 mm (1.57 × 16.77 × 11.73 in) |
Weight |
· SFC-08B: 2.50 kg (5.51 lb) · SFC-08D: 2.77 kg (6.11 lb) |
Maximum power consumption |
· SFC-08B: 60 W · SFC-08D: 135 W |
Typical power consumption |
· SFC-08B: 54 W · SFC-08D: 122 W |
Minimum power consumption |
· SFC-08B: 44 W · SFC-08D: 101 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
SFC-12B/SFC-12D
View
Figure2-133 SFC-12B view
(1) Console port |
(2) Switching fabric module status LED. For the LED description, see Table2-490. |
|
NOTE: The views of the SFC-12B and SFC-12D are similar. This figure uses the SFC-12B as an example. |
LEDs
Table2-490 Switching fabric module status LED description
LED status |
Description |
|
RUN |
ALM |
|
Flashing (0.5 Hz) |
Off |
The switching fabric module is operating correctly. |
Off |
Steady on |
The switching fabric module is faulty. |
Flashing (0.5 Hz) |
Steady on |
The temperature of the switching fabric module has exceeded the upper limit or dropped below the lower limit. |
Off |
Off |
The switching fabric module has not started up. |
Steady on |
Off |
The switching fabric module is starting up. |
Technical specifications
Table2-491 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 602 × 298 mm (1.57 × 23.70 × 11.73 in) |
Weight |
· SFC-12B: 3.89 kg (8.58 lb) · SFC-12D: 4.51 kg (9.94 lb) |
Maximum power consumption |
· SFC-12B: 140 W · SFC-12D: 255 W |
Typical power consumption |
· SFC-12B: 126 W · SFC-12D: 230 W |
Minimum power consumption |
· SFC-12B: 107 W · SFC-12D: 195 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
SFC-08E
View
Figure2-134 SFC-08E view
(1) Switching fabric module status LED. For the LED description, see Table2-492. |
LEDs
Table2-492 Switching fabric module status LED description
LED status |
Description |
|
RUN |
ALM |
|
Flashing (0.5 Hz) |
Off |
The switching fabric module is operating correctly. |
Off |
Steady on |
The switching fabric module is faulty. |
Flashing (0.5 Hz) |
Steady on |
The temperature of the switching fabric module has exceeded the upper limit or dropped below the lower limit. |
Off |
Off |
The switching fabric module has not started up. |
Steady on |
Off |
The switching fabric module is starting up. |
Technical specifications
Table2-493 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 426 × 298 mm (1.57 × 16.77 × 11.73 in) |
Weight |
3.55 kg (7.83 lb) |
Maximum power consumption |
140 W |
Typical power consumption |
130 W |
Minimum power consumption |
73 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
SFC-08E1/SFC-08T
View
Figure2-135 SFC-08T view
(1) Switching fabric module status LED. For the LED description, see Table2-494. |
|
NOTE: The views of the SFC-08E1 and SFC-08T are similar. This figure uses the SFC-08T as an example. |
LEDs
Table2-494 Switching fabric module status LED description
RUN LED status |
Description |
Flashing (0.5 Hz) |
The switching fabric module is operating correctly. |
Flashing (8 Hz) |
The switching fabric module is starting up. |
Off |
The switching fabric module has not started up. |
Technical specifications
Table2-495 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 562 × 298 mm (1.57 × 22.13 × 11.73 in) |
Weight |
· CSFC-08E1: 5.20 kg (11.46 lb) · CSFC-08T: 5.15 kg (11.35 lb) |
Maximum power consumption |
· CSFC-08E1: 125 W · CSFC-08T: 129 W |
Typical power consumption |
· CSFC-08E1: 112 W · CSFC-08T: 116 W |
Minimum power consumption |
· CSFC-08E1: 75 W · CSFC-08T: 100 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
SFC-12E
View
Figure2-136 SFC-12E view
(1) Console port |
(2) Air inlet vents |
(3) Switching fabric module status LED. For the LED description, see Table2-496. |
LEDs
Table2-496 Switching fabric module status LED description
LED status |
Description |
|
RUN |
ALM |
|
Flashing (0.5 Hz) |
Off |
The switching fabric module is operating correctly. |
Off |
Steady on |
The switching fabric module is faulty. |
Flashing (0.5 Hz) |
Steady on |
The temperature of the switching fabric module has exceeded the upper limit or dropped below the lower limit. |
Off |
Off |
The switching fabric module has not started up. |
Steady on |
Off |
The switching fabric module is starting up. |
Technical specifications
Table2-497 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 602 × 298 mm (1.57 × 23.70 × 11.73 in) |
Weight |
5.30 kg (11.68 lb) |
Maximum power consumption |
178 W |
Typical power consumption |
161 W |
Minimum power consumption |
146 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
SFC-16T/SFC-16E
View
Figure2-137 SFC-16E view
(1) Switching fabric module status LED. For the LED description, see Table2-498. |
|
NOTE: The views of the SFC-16T and SFC-16E are similar. This figure uses the SFC-16E as an example. |
LEDs
Table2-498 Switching fabric module status LED description
RUN LED status |
Description |
Flashing (0.5 Hz) |
The switching fabric module is operating correctly. |
Flashing (8 Hz) |
The switching fabric module is starting up. |
Off |
The switching fabric module has not started up. |
Technical specifications
Table2-499 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 961 × 298 mm (1.57 × 37.83 × 11.73 in) |
Weight |
· CSFC-16T: 10.25 kg (22.60 lb) · CSFC-16E: 10.50 kg (23.15 lb) |
Maximum power consumption |
· CSFC-16T: 402 W · CSFC-16E: 248 W |
Typical power consumption |
· CSFC-16T: 361 W · CSFC-16E: 220 W |
Minimum power consumption |
· CSFC-16T: 267 W · CSFC-16E: 159 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
CSFC-08T-G
View
Figure2-138 CSFC-08T-G view
(1) Switching fabric module status LED. For the LED description, see Table2-500. |
LEDs
Table2-500 Switching fabric module status LED description
RUN LED status |
Description |
Flashing (0.5 Hz) |
The switching fabric module is operating correctly. |
Flashing (8 Hz) |
The switching fabric module is starting up. |
Off |
The switching fabric module has not started up. |
Technical specifications
Table2-501 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 562 × 298 mm (1.57 × 22.13 × 11.73 in) |
Weight |
5.30 kg (11.68 lb) |
Maximum power consumption |
130 W |
Typical power consumption |
110 W |
Minimum power consumption |
100 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
CSFC-16T-G
View
Figure2-139 CSFC-16T-G view
(1) Switching fabric module status LED. For the LED description, see Table2-502. |
LEDs
Table2-502 Switching fabric module status LED description
RUN LED status |
Description |
Flashing (0.5 Hz) |
The switching fabric module is operating correctly. |
Flashing (8 Hz) |
The switching fabric module is starting up. |
Off |
The switching fabric module has not started up. |
Technical specifications
Table2-503 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
40 × 961 × 298 mm (1.57 × 37.83 × 11.73 in) |
Weight |
10.30 kg (22.71 lb) |
Maximum power consumption |
120 W |
Typical power consumption |
110 W |
Minimum power consumption |
100 W |
Operating temperature |
0 °C to 45 °C (32 °F to 113 °F) |
Configuration restrictions and guidelines
Do not mix Type-B, Type-D, Type-E, Type-T, and Type-TG switching fabric modules in any combinations on the same router.
If you use Type-B, Type-D, Type-E, Type-T, or Type-TG switching fabric modules for the router, a minimum of two are required. For an SR8808H-X router, you must install switching fabric modules in slots 10 and 12. Slot 11 can be used only when five switching fabric modules are required. For an SR8816-X router, you must install switching fabric modules in slots 18 and 20. Slot 19 can be used only when five switching fabric modules are required. For other routers, slots 1, 3, and 4 take precedence over the other slots for switching fabric module installation.
The console port on a switching fabric module is only for H3C Support to perform maintenance and updates. Operations without permission are not allowed. H3C will not be liable for any consequences caused thereby.
If Type-A switching fabric modules are used, use the four together and install each into the specified slot. Each Type-A switching fabric module has a mark specifying the slot for installation. For example, the SFC-04-1 has the mark Notes:Please insert to Slot 6.
Compatibility information
Table2-504 Compatibility matrix between switching fabric modules and routers
Chassis model |
Available switching fabric module model |
Number |
SR8804-X |
Type-A: SFC-04-1, SFC-04-2, SFC-04-3, and SFC-04-4 |
4 (1 for each switching fabric module model) |
· Type-B: SFC-04B · Type-D: SFC-04D |
2 to 4 |
|
SR8808-X |
· Type-B: SFC-08B · Type-D: SFC-08D · Type-E: SFC-08E |
2 to 4 |
SR8808H-X |
· Type-E: SFC-08E1 · Type-T: SFC-08T · Type-TG: CSFC-08T-G |
2 to 5 |
SR8812-X |
· Type-B: SFC-12B · Type-D: SFC-12D · Type-E: SFC-12E |
2 to 4 |
SR8816-X |
· Type-E: SFC-16E · Type-T: SFC-16T · Type-TG: CSFC-16T-G |
2 to 5 |
Table2-505 Compatibility matrix between switching fabric modules and service modules (1)
Service module |
Type-A switching fabric module |
SFC-04B |
SFC-04D |
SFC-08B |
SFC-08D |
SFC-12B SFC-12D |
SPC-GT48LA1 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPC-GE24L-E |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-GP24LA1 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-GP48LA1 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-GP48LB |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-GP24XP2LA |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-GP24XP2LB |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPC-GP24GE8XP2L-E |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPC-GE16XP4L-E |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-GP44XP4LAX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-GP44XP4LCX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP2LA1 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP4LA1 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP4LB |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP8LA |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP8LB |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP12LAX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP12LCX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP24LAX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XP24LCX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XLP6LAX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-XLP6LCX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-CP1LAX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-CP1LCX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-CP2LA |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
SPC-CP2LB |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CEPC-XP4LX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CEPC-XP24LX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CEPC-XP48RX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CEPC-CP4RX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CEPC-CP4RX-L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CEPC-CQ8L |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CEPC-CQ16L1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CEPC-DQ2L1-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPEX-1204 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPEX-1104-E |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPEX-1304X |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPEX-1404X |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPEX-1502X |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1504X |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPEX-1602X |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1802X |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1802XB |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1804X |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1512X |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1612X |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1812X |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1812X-E |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-2304X-G |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
CSPEX-2304X-LG |
Not supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
CSPEX-2314X-G |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-2314X-G1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-2314X-G2 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-2612X-E |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
MPE-1104 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
RX-SPE200 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-SPE200-E |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
IM-NGFWX-IV |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
LSU1FWCEA0 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
LSU3FWCEA0 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
IM-IPSX-IV |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
LSU1IPSBEA0 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
IM-ACG1000X-IV |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
LSU1ADECEA0 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
IM-APA-I |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
IM-MSUX (1 U) |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
IM-MSUX (1.2 U) |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
IM-MSEX-B |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
IM-SMUX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Not supported |
IM-SFMX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
IM-OAPX |
Not supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Table2-506 Compatibility matrix between switching fabric modules and service modules (2)
Service module |
SFC-08E |
SFC-08E1 SFC-16E |
SFC-12E |
SFC-08T SFC-16T |
CSFC-08T-G |
CSFC-16T-G |
SPC-GT48LA1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPC-GE24L-E |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-GP24LA1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-GP48LA1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-GP48LB |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-GP24XP2LA |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-GP24XP2LB |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPC-GP24GE8XP2L-E |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPC-GE16XP4L-E |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-GP44XP4LAX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-GP44XP4LCX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP2LA1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP4LA1 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP4LB |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP8LA |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP8LB |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP12LAX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP12LCX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP24LAX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XP24LCX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XLP6LAX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-XLP6LCX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-CP1LAX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-CP1LCX |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-CP2LA |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
SPC-CP2LB |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CEPC-XP4LX |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CEPC-XP24LX |
Supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
CEPC-XP48RX |
Supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
CEPC-CP4RX |
Supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
CEPC-CP4RX-L |
Supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
CEPC-CQ8L |
Not supported |
Not supported |
Not supported |
Supported |
Not supported |
Not supported |
CEPC-CQ16L1 |
Not supported |
Not supported |
Not supported |
Supported |
Not supported |
Not supported |
CEPC-DQ2L1-G |
Not supported |
Supported |
Not supported |
Supported |
Not supported |
Not supported |
SPEX-1204 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1104-E |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
CSPEX-1304X |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPEX-1404X |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPEX-1502X |
Supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
CSPEX-1504X |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
CSPEX-1602X |
Supported |
Supported |
Supported |
Supported |
Not supported |
Not supported |
CSPEX-1802X |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Not supported |
CSPEX-1802XB |
Not supported |
Supported |
Not supported |
Supported |
Not supported |
Not supported |
CSPEX-1804X |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-1512X |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-1612X |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-1812X |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-1812X-E |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-2304X-G |
Supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-2304X-LG |
Supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-2314X-G |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-2314X-G1 |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-2314X-G2 |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
CSPEX-2612X-E |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Not supported |
MPE-1104 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
RX-SPE200 |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Supported |
RX-SPE200-E |
Not supported |
Supported |
Not supported |
Supported |
Supported |
Not supported |
IM-NGFWX-IV |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
LSU1FWCEA0 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
LSU3FWCEA0 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
IM-IPSX-IV |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
LSU1IPSBEA0 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
IM-ACG1000X-IV |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
LSU1ADECEA0 |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
Not supported |
IM-APA-I |
Not supported |
Supported |
Not supported |
Supported |
Not supported |
Not supported |
IM-MSUX (1 U) |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
IM-MSUX (1.2 U) |
Not supported |
Supported |
Not supported |
Supported |
Not supported |
Not supported |
IM-MSEX-B |
Not supported |
Supported |
Not supported |
Supported |
Not supported |
Not supported |
IM-SMUX |
Not supported |
Supported |
Not supported |
Supported |
Not supported |
Supported |
IM-SFMX |
Supported |
Supported |
Supported |
Not supported |
Not supported |
Not supported |
IM-OAPX |
Supported |
Supported |
Supported |
Supported |
Not supported |
Supported |
Power supplies
The router supports the PSR1200B-12A, PSR1200B-12A1-F, LSUM1AC1200, LSUM1AC2500, PSR2500-12A, LSUM1DC2400, PSR2400-12D, PSR2400-D, and PSR2500B-12AHD-F power supplies.
PSR1200B-12A/LSUM1AC1200
View
(1) Captive screw |
(2) Power supply handle |
(3) Power input receptacle |
(4) Air inlet vent |
(5) Power output status LED |
(6) Power input status LED |
|
NOTE: The views of the PSR1200B-12A and LSUM1AC1200 power supplies are similar. This figure uses the PSR1200B-12A as an example. |
LEDs
Table2-507 PSR1200B-12A/LSUM1AC1200 LED description
LED mark |
Status |
Description |
AC |
Steady green |
The power supply is operating correctly. |
Off |
No power input. |
|
The input voltage is too low and the power supply has entered self-protection state. |
||
DC |
Steady green |
Power output of the power supply is normal. |
Steady red |
Power output of the power supply is abnormal. The power supply has an output short circuit, output overcurrent, output overvoltage, input undervoltage, or remote shutdown alarm and has entered self-protection state. |
|
Steady amber |
An overtemperature alarm is present and the power supply has entered self-protection state. |
Technical specifications
Table2-508 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
41 × 102 × 410 mm (1.61 × 4.02 × 16.14 in) |
Weight |
2.27 kg (5.00 lb) |
Inputs |
1 |
Rated input voltage range |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
Input voltage range |
90 VAC to 290 VAC |
Maximum input current |
16 A |
Rated output voltage |
12 VDC |
Rated output current |
100 A |
Rated output power |
1200 W |
Front-level circuit breaker/fuse |
≥ 20 A |
Heat dissipation |
Built-in fans |
Power cable |
Standard C19 cable (3*1.5mm²) |
PSR1200B-12A1-F
View
Figure2-141 PSR1200B-12A1-F power supply view
(1) Captive screw |
(2) Power supply handle |
(3) Power input receptacle |
(4) Air inlet vent |
(5) Power output status LED |
(6) Power input status LED |
LEDs
Table2-509 PSR1200B-12A1-F LED description
LED mark |
Status |
Description |
AC |
Steady green |
The power supply is operating correctly. |
Off |
No power input. |
|
The input voltage is too low and the power supply has entered self-protection state. |
||
DC |
Steady green |
Normal power output. |
Steady red |
Power output of the power supply is abnormal. The power supply has an output short circuit, output overcurrent, output overvoltage, input undervoltage, or remote shutdown alarm and has entered self-protection state. |
|
Steady amber |
An overtemperature alarm is present and the power supply has entered self-protection state. |
Technical specifications
Table2-510 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
41 × 102 × 410 mm (1.61 × 4.02 × 16.14 in) |
Weight |
2.27 kg (5.00 lb) |
Inputs |
1 |
Rated input voltage range |
200 VAC to 240 VAC @ 50 Hz or 60 Hz |
Input voltage range |
180 VAC to 264 VAC |
Maximum input current |
10 A |
Rated output voltage |
12 VDC |
Rated output current |
100 A |
Rated output power |
1200 W |
Front-level circuit breaker/fuse |
≥ 20 A |
Heat dissipation |
Built-in fans |
Power cable |
Standard C13 cable (3*1.0mm²) |
PSR2500-12A/LSUM1AC2500
View
Figure2-142 PSR2500-12A view
(1) Captive screw |
(2) Power supply handle |
(3) Power input receptacle |
(4) Air inlet vent |
(5) Power output status LED |
(6) Power input status LED |
|
NOTE: The views of the PSR2500-12A and LSUM1AC2500 power supplies are similar. This figure uses the PSR2500-12A as an example. |
LEDs
Table2-511 PSR2500-12A/LSUM1AC2500 LED description
LED mark |
Status |
Description |
AC |
Steady green |
The power supply is operating correctly. |
Off |
No power input. |
|
The input voltage is too low and the power supply has entered self-protection state. |
||
DC |
Steady green |
Power output of the power supply is normal. |
Steady red |
Power output of the power supply is abnormal. The power supply has an output short circuit, output overcurrent, output overvoltage, input undervoltage, or remote shutdown alarm and has entered self-protection state. |
|
Steady amber |
An overtemperature alarm is present and the power supply has entered self-protection state. |
Technical specifications
Table2-512 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
41 × 102 × 410 mm (1.61 × 4.02 × 16.14 in) |
Weight |
2.50 kg (5.51 lb) |
Inputs |
1 |
Rated input voltage range |
· 100 VAC to 240 VAC @ 50 Hz or 60 Hz · 240 VDC |
Input voltage range |
· 90 VAC to 264 VAC · 190 VDC to 290 VDC |
Maximum input current |
16 A |
Rated output voltage |
12 VDC |
Rated output current |
· 100 A (100 VAC to 180 VAC input) · 208 A (180 VAC to 240 VAC or 240 VDC input) |
Rated output power |
· 1200 W (100 VAC to 180 VAC input) · 2500 W (180 VAC to 240 VAC or 240 VDC input) |
Front-level circuit breaker/fuse |
≥ 20 A |
Heat dissipation |
Built-in fans |
Power cable |
Standard C19 cable (3*1.5mm²) |
PSR2400-12D/LSUM1DC2400
View
Figure2-143 PSR2400-12D view
(1) Captive screw |
(2) Power supply handle |
(3) Power input status LED |
(4) Power output status LED |
(5) DC input negative terminal (–) |
(6) DC input positive terminal (+) |
|
NOTE: The views of the PSR2400-12D and LSUM1DC2400 power supplies are similar. This figure uses the PSR2400-12D as an example. |
LEDs
Table2-513 PSR2400-12D/LSUM1DC2400 LED description
LED mark |
Status |
Description |
INP OK |
Steady green |
The power supply is operating correctly. |
Off |
No power input. |
|
The input voltage is too low and the power supply has entered self-protection state. |
||
DC/FLT |
Steady green |
Power output of the power supply is normal. |
Steady red |
Power output of the power supply is abnormal. The power supply has an output short circuit, output overcurrent, output overvoltage, input undervoltage, or remote shutdown alarm and has entered self-protection state. |
|
Steady amber |
An overtemperature alarm is present and the power supply has entered self-protection state. |
Technical specifications
Table2-514 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
41 × 102 × 410 mm (1.61 × 4.02 × 16.14 in) |
Weight |
2.40 kg (5.29 lb) |
Inputs |
1 |
Rated input voltage range |
–48 VDC to –60 VDC |
Input voltage range |
–36 V to –72 V |
Maximum input current |
78 A |
Rated output voltage |
12 VDC |
Rated output current |
200 A |
Rated output power |
2400 W |
Front-level circuit breaker/fuse |
≥ 100 A |
Heat dissipation |
Built-in fans |
Power cable |
PWC01 2P cable |
PSR2400-D
View
Figure2-144 PSR2400-D view
(1) Captive screw |
(2) Power supply handle |
(3) Power input status LED |
(4) Power output status LED |
(5) DC input negative terminal (–) |
(6) DC input positive terminal (+) |
LEDs
Table2-515 PSR2400-D LED description
LED mark |
Status |
Description |
INP OK |
Steady green |
The power supply is operating correctly. |
Off |
No power input. |
|
The input voltage is too low and the power supply has entered self-protection state. |
||
DC/FLT |
Steady green |
Power output of the power supply is normal. |
Steady red |
Power output of the power supply is abnormal. The power supply has an output short circuit, output overcurrent, output overvoltage, input undervoltage, or remote shutdown alarm and has entered self-protection state. |
|
Steady amber |
An overtemperature alarm is present and the power supply has entered self-protection state. |
Technical specifications
Table2-516 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
41 × 102 × 410 mm (1.61 × 4.02 × 16.14 in) |
Weight |
2.40 kg (5.29 lb) |
Inputs |
1 |
Rated input voltage range |
–48 VDC to –60 VDC |
Input voltage range |
–36 V to –72 V |
Maximum input current |
78 A |
Rated output voltage |
12 VDC |
Rated output current |
200 A |
Rated output power |
2400 W |
Front-level circuit breaker/fuse |
≥ 100 A |
Heat dissipation |
Built-in fans |
Power cable |
ST M5 cable |
PSR2500B-12AHD-F
View
Figure2-145 PSR2500B-12AHD-F view
(1) Captive screw |
(2) Power supply handle |
(3) Power input receptacle |
(4) Power output status LED |
(5) Power input status LED |
(6) Air inlet vent |
LEDs
Table2-517 PSR2500B-12AHD-F LED description
LED mark |
Status |
Description |
IN |
Steady green |
The power supply is operating correctly. |
Off |
No power input. |
|
The input voltage is too low and the power supply has entered self-protection state. |
||
OUT |
Steady green |
Power output of the power supply is normal. |
Steady red |
Power output of the power supply is abnormal. The power supply has an output short circuit, output overcurrent, output overvoltage, input undervoltage, or remote shutdown alarm and has entered self-protection state. |
|
Steady amber |
An overtemperature alarm is present and the power supply has entered self-protection state. |
Technical specifications
Table2-518 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
41 × 102 × 410 mm (1.61 × 4.02 × 16.14 in) |
Weight |
2.75 kg (6.06 lb) |
Inputs |
1 |
Rated input voltage range |
· 100 VAC to 240 VAC @ 50 Hz or 60 Hz · 240 VDC to 380 VDC |
Input voltage range |
· 90 VAC to 290 VAC · 180 VDC to 400 VDC |
Maximum input current |
16 A |
Rated output voltage |
12 VDC |
Rated output current |
· 100 A (90 VAC to 180 VAC input) · 208 A (180 VAC to 290 VAC or 180 VDC to 400 VDC input) |
Rated output power |
· 1200 W (90 VAC to 180 VAC input) · 2500 W (180 VAC to 290 VAC or 180 VDC to 400 VDC input) |
Front-level circuit breaker/fuse |
≥ 20 A |
Heat dissipation |
Built-in fans |
Power cable |
Standard HVDCB cable (3*1.5mm²) |
Configuration restrictions and guidelines
As a best practice, make sure the rated current of a single circuit breaker is not less than 1.2 times the maximum input current of the power supply.
You can select a certain number of power supplies according to the power supply conditions at the installation site and actual power consumption of your router. Make sure the total maximum output power of the installed power supplies is greater than the system power consumption. As a best practice, reserve 20% of the maximum output power.
Do not install power supplies of different models on the same router.
When the temperature of a power supply exceeds the upper limit or drops below the lower limit, the power supply shuts down automatically. When the temperature returns into the normal range, the power supply starts up automatically.
Compatibility information
Table2-519 Compatibility matrix between power supplies and routers
Power supply model |
SR8804-X |
SR8808-X (one fan tray)/SR8808-X (dual fan trays) |
SR8808H-X |
SR8812-X |
SR8816-X |
LSUM1AC1200 |
● |
● |
● |
● |
● |
PSR1200B-12A |
● |
● |
● |
● |
● |
PSR1200B-12A1-F |
● |
● |
● |
● |
● |
LSUM1AC2500 |
● |
● |
● |
● |
● |
PSR2500-12A |
● |
● |
● |
● |
● |
LSUM1DC2400 |
● |
● |
● |
● |
● |
PSR2400-12D |
● |
● |
● |
● |
● |
PSR2400-D |
● |
● |
● |
● |
● |
PSR2500B-12AHD-F |
● |
● |
● |
● |
● |
|
NOTE: · "●" indicates that the power supply is compatible with the chassis. · "—" indicates that the power supply is not compatible with the chassis. |
Fan trays
The router came with fan trays installed. To replace a fan tray, make sure the new fan tray is compatible with the router.
SR8804-X fan tray
View
Figure2-146 SR8804-X fan tray view
(1) Captive screw |
(2) Status LED |
(3) Fan tray handle |
(4) Fan tray handle pivot |
(5) Fan |
LEDs
Table2-520 Fan tray LED description
LED status |
Description |
|
OK |
FAIL |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
The fan tray is faulty. |
Off |
Off |
The fan tray has not been powered on. |
Technical specifications
Table2-521 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
106 × 255 × 643 mm (4.17 × 10.04 × 25.32 in) |
Weight |
4.70 kg (10.36 lb) |
Maximum power consumption |
240 W |
Typical power consumption |
190 W |
Minimum power consumption |
12 W |
Number of fans |
8 |
Fan diameter |
92 mm (3.62 in) |
Max fan speed |
6000 RPM |
Maximum air flow rate |
960 CFM (27.18 m3/min) |
SR8808-X (one fan tray) fan tray
View
Figure2-147 SR8808-X (one fan tray) fan tray view
(1) Fan |
(2) Status LED |
(3) Captive screw |
(4) Fan tray handle |
(5) Fan tray handle pivot |
LEDs
Table2-522 Fan tray LED description
LED status |
Description |
|
OK |
FAIL |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
The fan tray is faulty. |
Off |
Off |
The fan tray has not been powered on. |
Technical specifications
Table2-523 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
80 × 440 × 654 mm (3.15 × 17.32 × 25.75 in) |
Weight |
8.30 kg (18.30 lb) |
Maximum power consumption |
300 W |
Typical power consumption |
260 W |
Minimum power consumption |
13 W |
Number of fans |
12 |
Fan diameter |
120 mm (4.72 in) |
Max fan speed |
5200 RPM |
Maximum air flow rate |
1152 CFM (32.62 m3/min) |
SR8808-X (dual fan trays) fan tray
View
Figure2-148 SR8808-X (dual fan trays) fan tray view
(1) Fan |
(2) Status LED |
(3) Captive screw |
(4) Fan tray handle |
(5) Fan tray handle pivot |
LEDs
Table2-524 Fan tray LED description
LED status |
Description |
|
OK |
FAIL |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
The fan tray is faulty. |
Off |
Off |
The fan tray has not been powered on. |
Technical specifications
The SR8808-X (dual fan trays) has two fan trays, which are the same in technical specifications. Table2-525 describes the specifications for a single SR8808-X (dual fan trays) fan tray.
Table2-525 Single SR8808-X (dual fan trays) fan tray specifications
Item |
Description |
Dimensions (H × W × D) |
49 × 440 × 654 mm (1.93 × 17.32 × 25.75 in) |
Weight |
7.40 kg (16.31 lb) |
Maximum power consumption |
320 W |
Typical power consumption |
63 W |
Minimum power consumption |
18 W |
Number of fans |
12 |
Fan diameter |
120 mm (4.72 in) |
Max fan speed |
5200 RPM |
Maximum air flow rate |
1152 CFM (32.62 m3/min) |
SR8808H-X/SR8816-X fan tray
View
Figure2-149 SR8808H-X fan tray view
(1) Captive screw |
(2) Status LED |
(3) Fan tray handle |
(4) Fan |
|
NOTE: The views of the SR8808H-X fan tray and SR8816-X fan tray are similar. This figure uses the SR8808H-X fan tray as an example. |
LEDs
Table2-526 Fan tray LED description
LED mark |
Status |
Description |
RUN |
Steady green |
The fan tray is operating correctly. |
Steady red |
· The fan tray is faulty. · The fan tray is installed incorrectly. |
|
Off |
The fan tray has not been powered on. |
Technical specifications
The SR8808H-X router has eight fan trays, and the SR8816-X router has fifteen fan trays, which are the same in technical specifications. Table2-529 describes the technical specifications of a single SR8808H-X router fan tray.
Table2-527 Single SR8808H-X router fan tray technical specifications
Item |
Description |
Dimensions (H × W × D) |
191 × 81 × 159 mm (7.52 × 3.19 × 6.26 in) |
Weight |
1.35 kg (2.98 lb) |
Maximum power consumption |
143 W |
Typical power consumption |
114 W |
Minimum power consumption |
18 W |
Number of fans |
2 |
Fan diameter |
80 mm (3.15 in) |
Max fan speed |
12800 RPM |
Maximum air flow rate |
350 CFM (9.91 m3/min) |
SR8812-X fan tray
View
Figure2-150 SR8812-X fan tray view
(1) Captive screw |
(2) Status LED |
(3) Fan tray handle |
(4) Fan tray handle pivot |
(5) Fan |
LEDs
Table2-528 Fan tray LED description
LED status |
Description |
|
OK |
FAIL |
|
Steady on |
Off |
The fan tray is operating correctly. |
Off |
Steady on |
The fan tray is faulty. |
Off |
Off |
The fan tray has not been powered on. |
Technical specifications
Table2-529 Technical specifications
Item |
Description |
Dimensions (H × W × D) |
84 × 301 × 646 mm (3.31 × 11.85 × 25.43 in) |
Weight |
· Upper fan tray: 4.49 kg (9.90 lb) · Lower fan tray: 3.61 kg (7.96 lb) |
Maximum power consumption |
· Upper fan tray: 190 W · Lower fan tray: 110 W |
Typical power consumption |
· Upper fan tray: 160 W · Lower fan tray: 100 W |
Minimum power consumption |
· Upper fan tray: 9 W · Lower fan tray: 7 W |
Number of fans |
· Upper fan tray: 8 · Lower fan tray: 4 |
Fan diameter |
120 mm (4.72 in) |
Max fan speed |
5200 RPM |
Maximum air flow rate |
· Upper fan tray: 1040 CFM (29.45 m3/min) · Lower fan tray: 720 CFM (20.39 m3/min) |
Air filters
CAUTION: Clean air filters periodically (once or more times every three months) to guarantee adequate ventilation and to avoid overtemperature. |
To prevent dusts from entering the chassis, you can configure air filters for the router as needed and install them at the air intakes.
H3C SR8800-X air filters include the SR8804-X air filter, SR8808-X air filter, and SR8812-X air filter. Order air filters compatible with your router.
Slide rails
Before rack-mounting the router, install slide rails on the rack.
LSXM1BSR
Views
Figure2-151 LSXM1BSR view
(1) Positioning tongue |
(2) Slide rail installation hole |
(3) Front plate installation hole |
(4) Sign |
(5) Guide rail |
Figure2-152 Front plate
(1) Installation hole |
Technical specifications
Table2-530 Technical specifications
Item |
Description |
Maximum loading capacity |
650 kg (1432.98 lb) |
Adjustment range |
630 to 900 mm (24.80 to 35.43 in) |
Occupied rack space |
1 RU |
LSTM1KSGD0
Views
Figure2-153 LSTM1KSGD0 view
(1) Installation hole |
(2) Sign |
(3) Guide rail |
Technical specifications
Table2-531 Technical specifications
Item |
Description |
Maximum loading capacity |
280 kg (617.28 lb) |
Adjustment range |
300 to 500 mm (11.81 to 19.69 in) |
Occupied rack space |
2 RU |
LSTM2KSGD0
Views
Figure2-154 LSTM2KSGD0 view
(1) Installation hole |
(2) Sign |
(3) Guide rail |
Technical specifications
Table2-532 Technical specifications
Item |
Description |
Maximum loading capacity |
400 kg (881.83 lb) |
Adjustment range |
500 to 800 mm (19.69 to 31.50 in) |
Occupied rack space |
2 RU |
Configuration restrictions and guidelines
Select slide rails for the router based on the chassis weight.
To rack-mount an SR8816-X router, reserve a 2 RU space between the router (including slide rails) and the rack bottom.
Compatibility information
Table2-533 Chassis weights and applicable slide rails
Model |
Chassis weight (fully configured) |
Applicable slide rails |
SR8804-X |
76 kg (167.55 lb) |
LSXM1BSR LSTM1KSGD0 LSTM2KSGD0 |
SR8808-X (one fan tray) |
120 kg (264.55 lb) |
LSXM1BSR LSTM1KSGD0 LSTM2KSGD0 |
SR8808-X (dual fan trays) |
170 kg (374.78 lb) |
LSXM1BSR LSTM1KSGD0 LSTM2KSGD0 |
SR8808H-X |
245 kg (540.12 lb) |
LSXM1BSR LSTM1KSGD0 LSTM2KSGD0 |
SR8812-X |
174 kg (383.60 lb) |
LSXM1BSR LSTM1KSGD0 LSTM2KSGD0 |
SR8816-X |
440 kg (970.02 lb) |
LSXM1BSR LSTM2KSGD0 |
DC power cords
DC power cords are used for connecting the DC power supplies of an SR8800-X router to the external DC power supply system.
Table2-534 DC power cord specifications
DC power cord |
Cable length |
Description |
0404A0E1 |
3 m (9.84 ft) |
Used for connecting the LSUM1DC2400/PSR2400-12D power supply |
0404A0H8 |
3 m (9.84 ft) |
|
0404A0E2 |
15 m (49.21 ft) |
|
0404A0H9 |
15 m (49.21 ft) |
|
0404A1BE |
20 m (65.62 ft) |
|
0404A1BF |
20 m (65.62 ft) |
|
0404A0J5 |
30 m (98.43 ft) |
|
0404A1BD |
40 m (131.23 ft) |
|
0404A1M7 |
10 m (32.81 ft) |
Used for connecting the PSR2400-D power supply |
0404A1M6 |
15 m (49.21 ft) |
|
0404A1M5 |
20 m (65.62 ft) |
|
0404A1MD |
30 m (98.43 ft) |
AC power cords
AC power cords are used for connecting the AC power supplies of an SR8800-X router to the external AC power supply system.
To select an AC power cord for an AC power supply, consider the following items:
· Power capacity of the power supply.
· Current-carrying capacity of the power cord.
· Region-and country-specific plug type.
The AC power supplies available for the router require a 16A or 10A AC power cord. Table2-535 and Table2-536 describe the region-and country-specific plug types for 10A and 16A AC power cords, respectively.
Table2-535 10A AC power cords used in different countries or regions
1 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
I type |
04041104: 3 m (9.8 ft) |
Mainland China |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
2 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
B type |
04020728: 3 m (9.8 ft) |
Canada and U.S.A |
Mexico, Argentina, Brazil, Columbia, Venezuela, Thailand, Peru, Philippine, and A6 countries or regions |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
3 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
F type |
04041056: 3 m (9.8 ft) |
Holland, Denmark, Sweden, Finland, Norway, Germany, France, Austria, Belgium, and Italy |
Indonesia, Türkiye, Russia, and CIS |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
4 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
G type |
04040890: 3 m (9.8 ft) |
United Kingdom |
Malaysia, Hong Kong, and Egypt |
N/A |
|||||
Connector outline |
Power cord outline |
Connector outline |
|||||||
5 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
B type |
04040887: 3 m (9.8 ft) |
Japan |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
6 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
I type |
04040888: 3 m (9.8 ft) |
Australia |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
7 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
J type |
04041119: 3 m (9.8 ft) |
Switzerland |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
8 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
L type |
04041120: 3 m (9.8 ft) |
Italy |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
9 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
D type |
0404A0Q0: 3 m (9.8 ft) |
India |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
Table2-536 16A AC power cords used in different countries or regions
1 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
I type |
04043396: 3 m (9.8 ft) |
Mainland China |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
2 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
C20 type |
0404A0C2: 3 m (9.8 ft) |
Mainland China |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
3 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
B type |
0404A063: 3 m (9.8 ft) |
Canada and U.S.A |
Mexico, Argentina, Brazil, Columbia, Venezuela, Thailand, Peru, Philippine, and A6 countries or regions |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
4 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
F type |
0404A061: 3 m (9.8 ft) |
Holland, Denmark, Sweden, Finland, Norway, Germany, France, Austria, Belgium, and Italy |
Indonesia, Türkiye, Russia, and CIS |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
5 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
B type |
0404A062: 3 m (9.8 ft) |
Japan |
N/A |
N/A |
|||||
Connector outline |
Power cord outline |
Connector outline |
|||||||
6 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
I type |
0404A01A: 3 m (9.8 ft) |
Australia |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
7 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||
I type |
0404A0RQ: 3 m (9.8 ft) |
Mainland China |
N/A |
N/A |
|||||
Plug outline |
Power cord outline |
Connector outline |
|||||||
