2 Removable components
Interface modules
The MSR3600 router series supports SIC, DSIC, HMIM, and MIM interface modules. For more information about the interface module specifications, see H3C MSR Router Series Interface Module Guide.
Power supplies
You can install one power supply, or two power supplies for redundancy.
PSR75-12A
View
Figure2-1 PSR75-12A AC power supply view
|
(1) Captive screw |
(2) Air vent |
|
(3) Power receptacle |
(4) Captive screw |
Technical specifications
Table2-1 Technical specifications
|
Item |
Specification |
|
Rated input voltage |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
2.5 A |
|
Max power |
75 W |
PSR150-A1
View
Figure2-2 PSR150-A1 AC power supply view
|
(1) Captive screw |
(2) Fan |
|
(3) Power receptacle |
(4) Captive screw |
Technical specifications
Table2-2 Technical specifications
|
Item |
Specification |
|
Rated input voltage |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
2 A |
|
Max power |
150 W |
PSR300-12A2
View

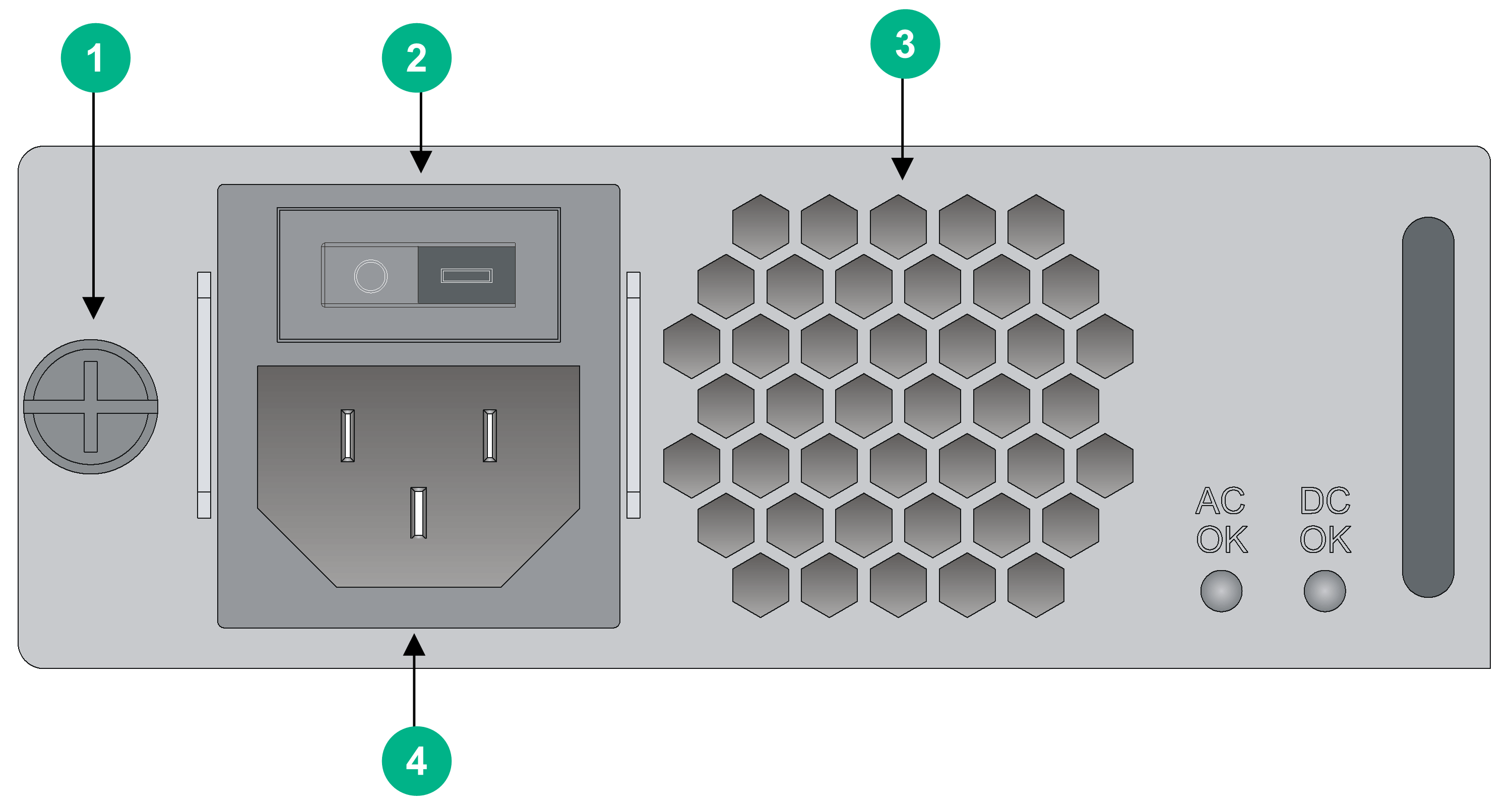

Figure2-3 PSR300-12A2 AC power supply view
|
(1) Captive screw |
(2) Power switch |
|
(3) Air outlet vent |
(4) Power receptacle |
LEDs

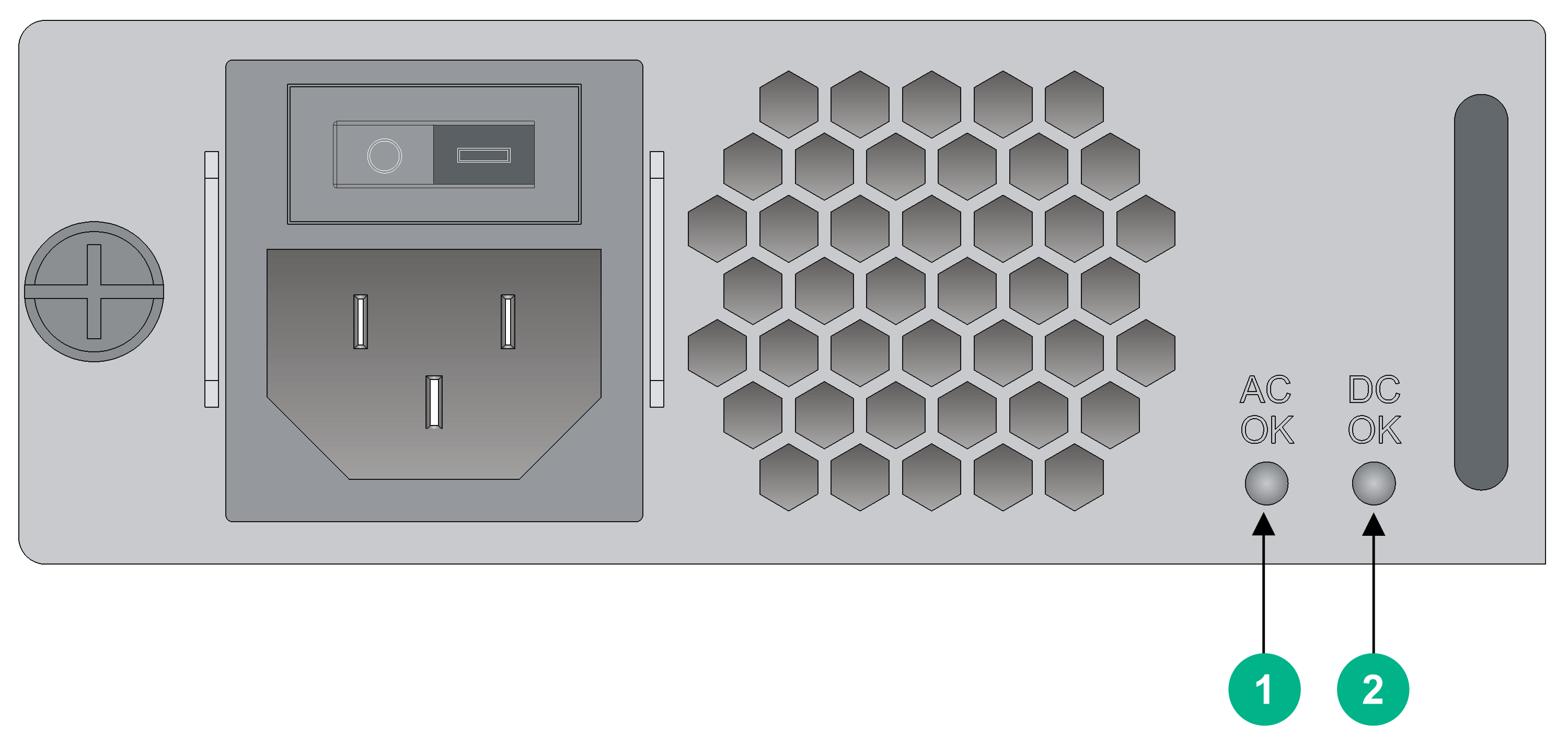

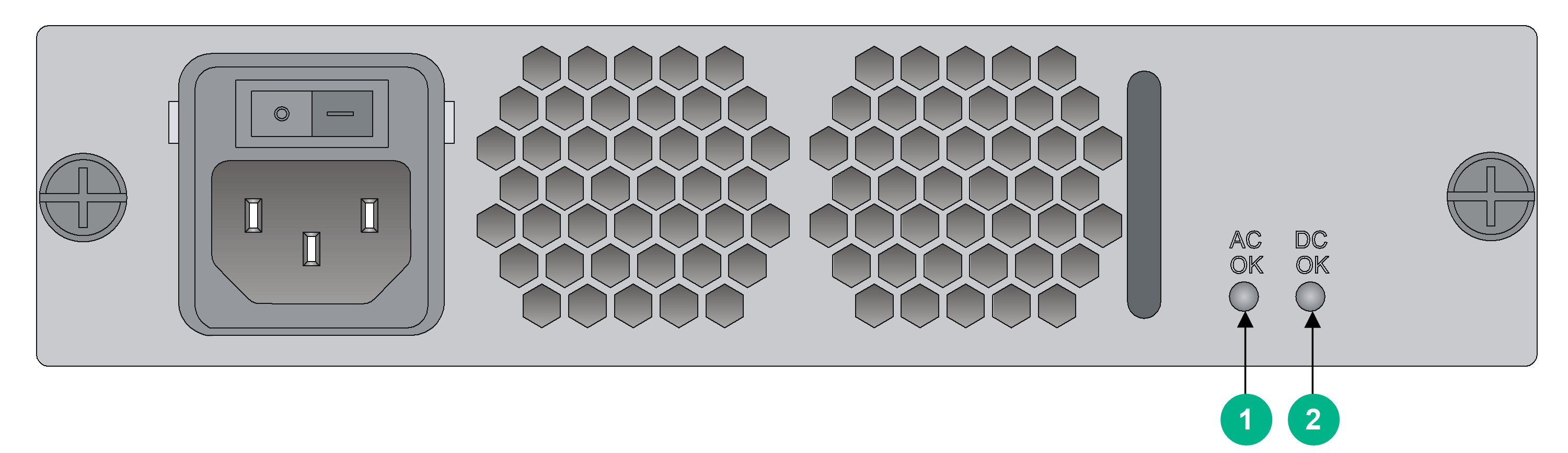

Figure2-4 PSR300-12A2 power supply LEDs
|
(1) Input status LED (AC OK) |
(2) Output status LED (DC OK) |
Table2-3 LED description
|
LED |
Status |
Description |
|
AC OK |
Off |
No power input or the power input is faulty. |
|
Steady green |
The power is input correctly. |
|
|
DC OK |
Off |
No power output or the power output is faulty. |
|
Steady green |
The power is output correctly. |
Technical specifications
Table2-4 Technical specifications
|
Item |
Specification |
|
Rated input voltage |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
4 A |
|
Max power |
300 W |
PSR300-12A3-B
View
Figure2-5 PSR300-12A3-B AC power supply view
|
(1) Captive screw |
(2) Power switch |
|
(3) Air outlet vent |
(4) Power receptacle |
LEDs
Figure2-6 PSR300-12A3-B power supply LEDs
|
(1) Input status LED (AC OK) |
(2) Output status LED (DC OK) |
Table2-5 LED description
|
LED |
Status |
Description |
|
AC OK |
Off |
No power input or the power input is faulty. |
|
Steady green |
The power is input correctly. |
|
|
DC OK |
Off |
No power output or the power output is faulty. |
|
Steady green |
The power is output correctly. |
Technical specifications
Table2-6 Technical specifications
|
Item |
Specification |
|
Rated input voltage |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
4 A |
|
Max power |
300 W |
PSR150-D1
View

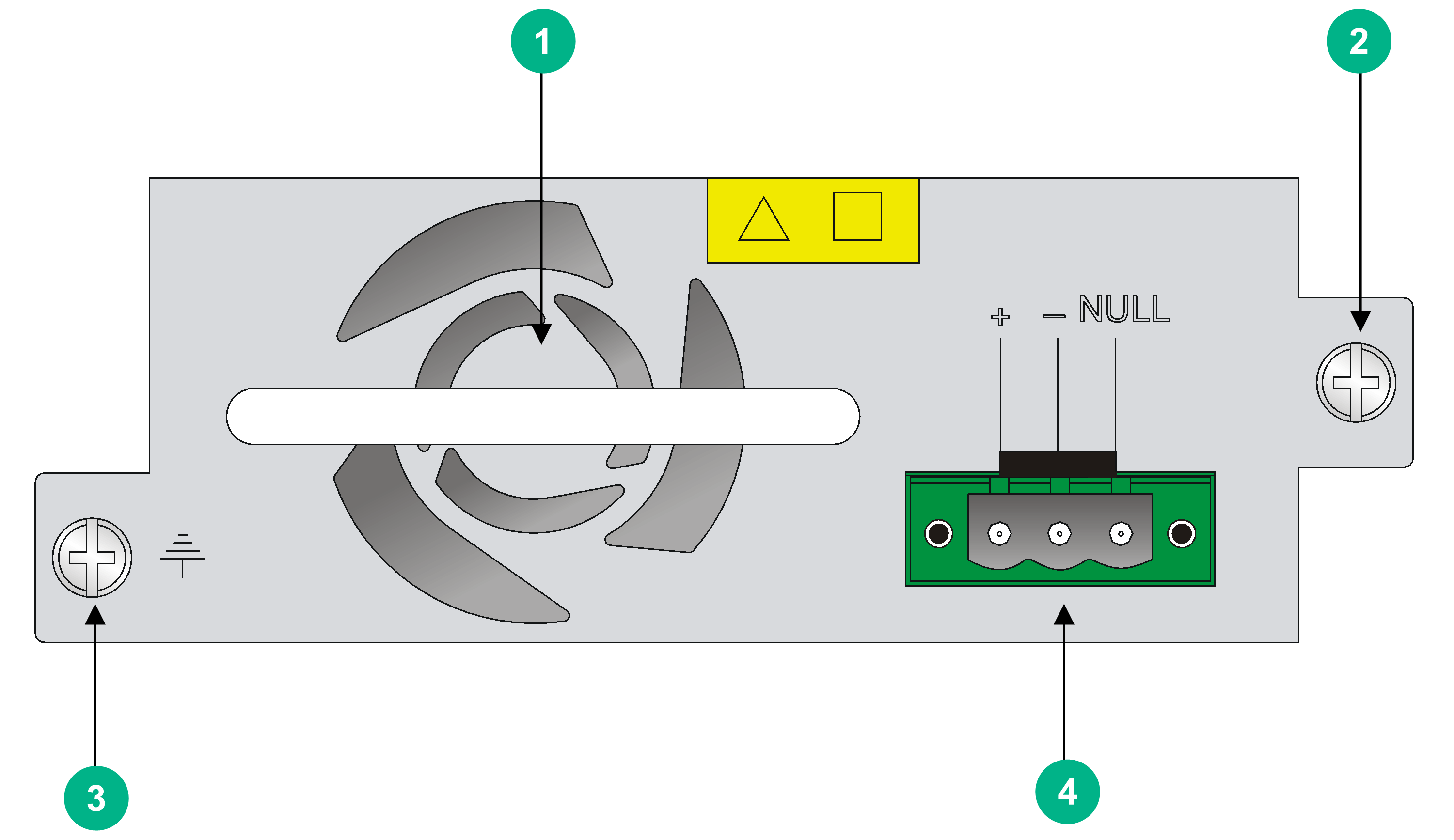

Figure2-7 PSR150-D1 DC power supply view
|
(1) Fan |
(2) Captive screw |
|
(3) Captive screw |
(4) Power receptacle |
Technical specifications
Table2-7 Technical specifications
|
Item |
Specification |
|
Rated input voltage |
–48 VDC to –60 VDC |
|
Max input current |
6 A |
|
Max power |
150 W |
PSR300-12D2
View

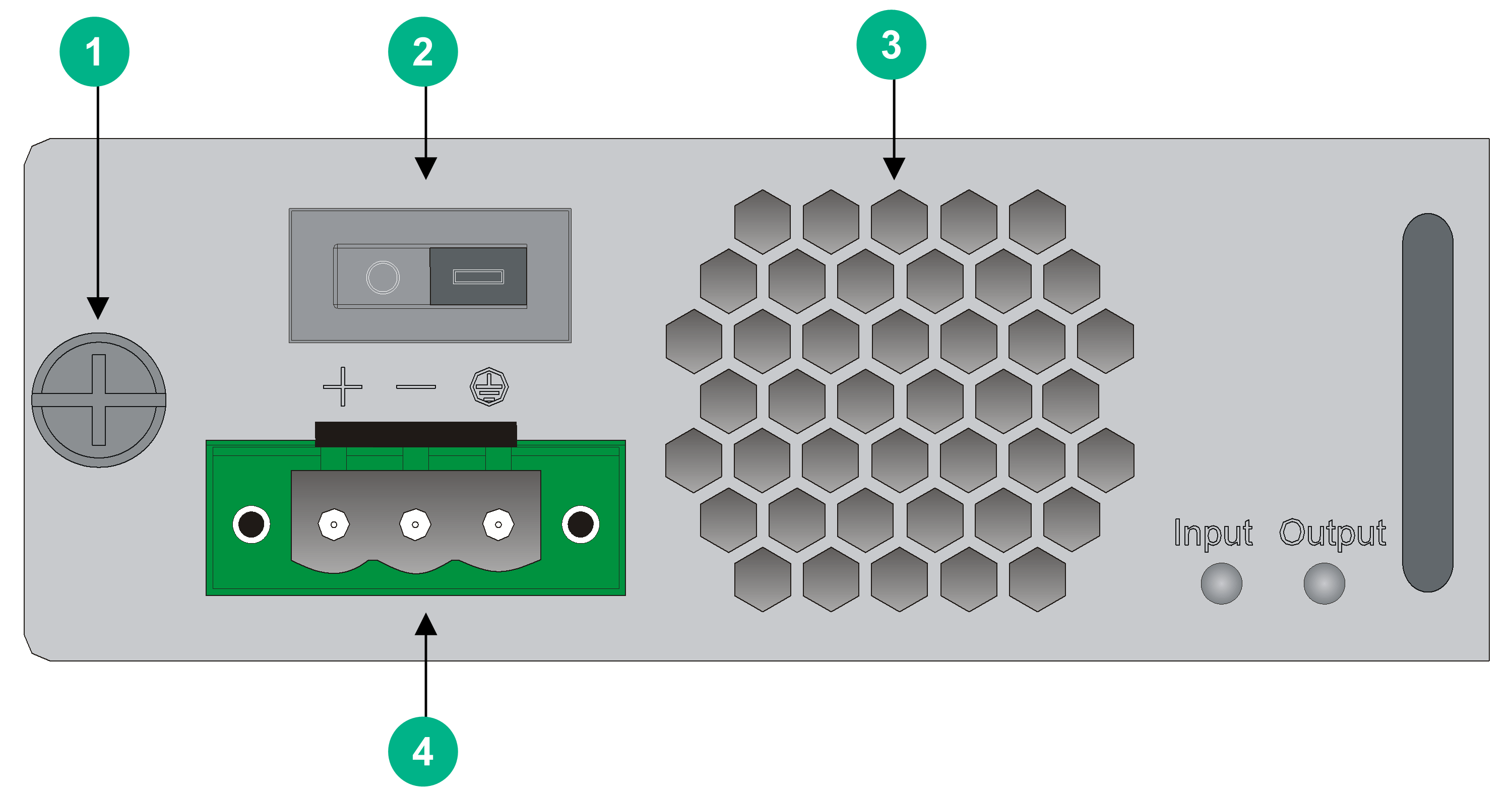

Figure2-8 PSR300-12D2 DC power supply view
|
(1) Captive screw |
(2) Power switch |
|
(3) Air outlet vent |
(4) Power receptacle |
LEDs

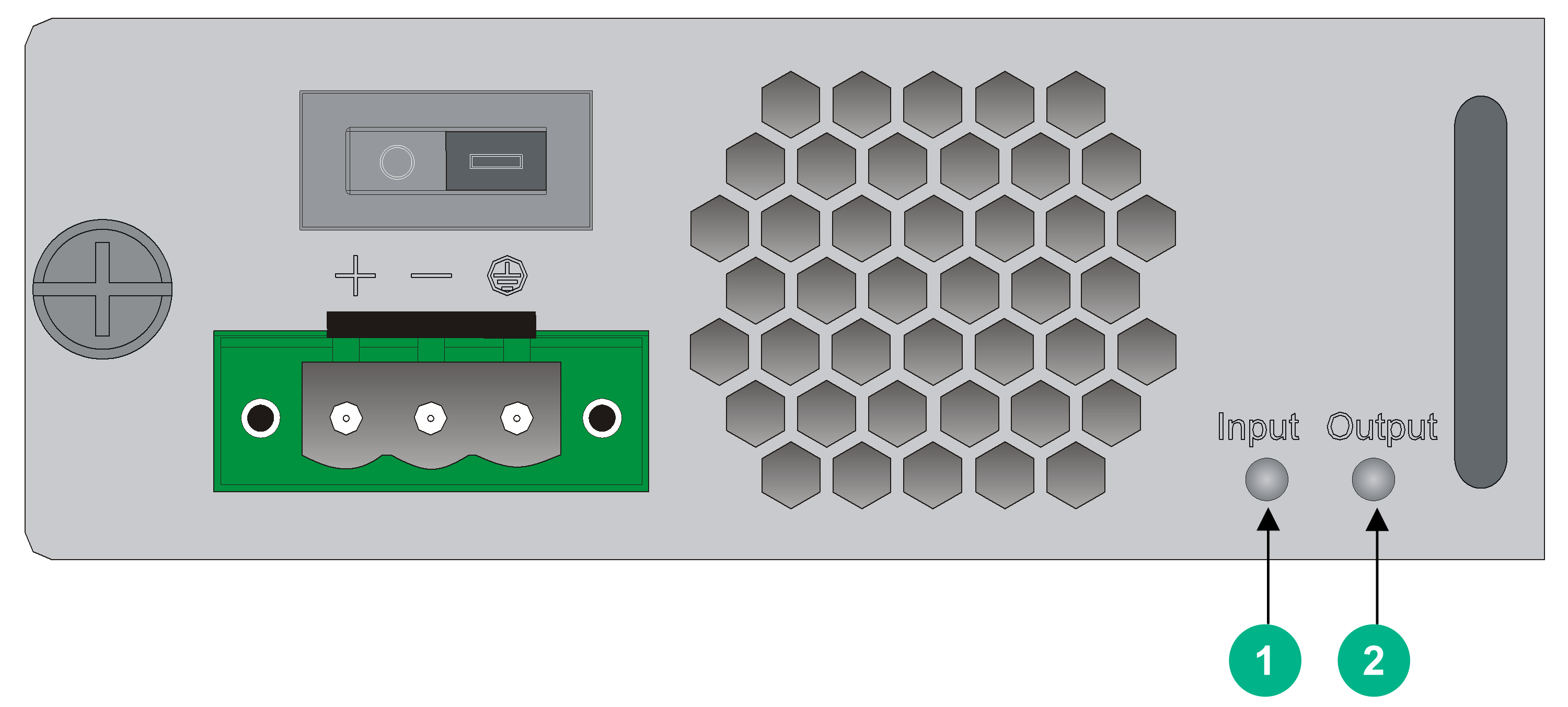

Figure2-9 PSR300-12D2 power supply LEDs
|
(1) Input status LED (Input) |
(2) Output status LED (Output) |
Table2-8 LED description
|
LED |
Status |
Description |
|
Input |
Off |
No power input or the power input is faulty. |
|
Steady green |
The power is input correctly. |
|
|
Output |
Off |
No power output or the power output is faulty. |
|
Steady green |
The power is output correctly. |
Technical specifications
Table2-9 Technical specifications
|
Item |
Specification |
|
Rated input voltage |
–48 VDC to –60 VDC |
|
Max input current |
10 A |
|
Max power |
300 W |
PSR300-12D3-B
View
Figure2-10 PSR300-12D3-B DC power supply view
|
(1) Captive screw |
(2) Power switch |
|
(3) Air outlet vent |
(4) Power receptacle |
LEDs
Figure2-11 PSR300-12D3-B power supply LEDs
|
(1) Input status LED (Input) |
(2) Output status LED (Output) |
Table2-10 LED description
|
LED |
Status |
Description |
|
Input |
Off |
No power input or the power input is faulty. |
|
Steady green |
The power is input correctly. |
|
|
Output |
Off |
No power output or the power output is faulty. |
|
Steady green |
The power is output correctly. |
Technical specifications
Table2-11 Technical specifications
|
Item |
Specification |
|
Rated input voltage |
–48 VDC to –60 VDC |
|
Max input current |
10 A |
|
Max power |
300 W |
PSR750-A
View

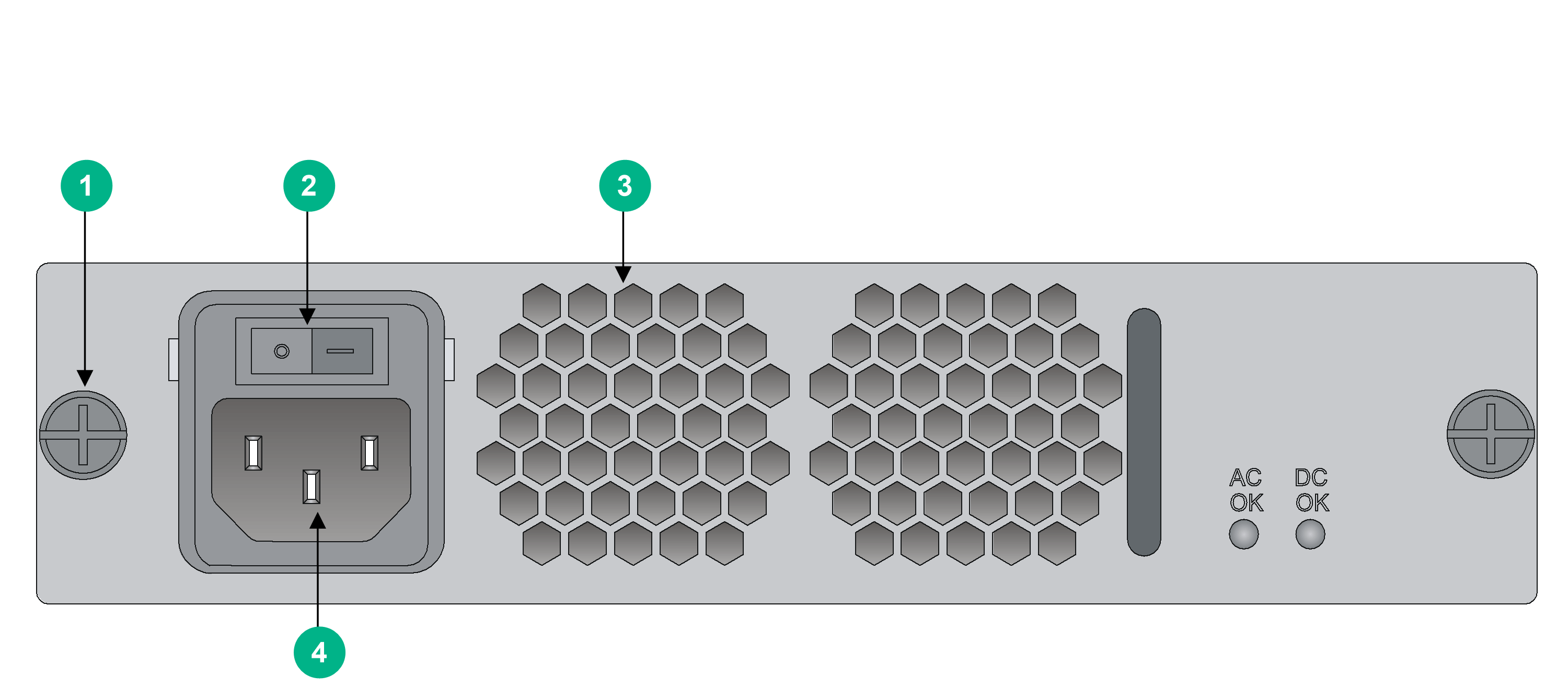

Figure2-12 PSR750-A PoE power supply view
|
(1) Captive screw |
(2) Power switch |
|
(3) Air outlet vent |
(4) Power receptacle |
LEDs
Figure2-13 PSR750-A PoE power supply LEDs
|
(1) Input status LED (AC OK) |
(2) Output status LED (DC OK) |
Table2-12 LED description
|
LED |
Status |
Description |
|
AC OK |
Off |
No power input or the power input is faulty. |
|
Steady green |
The power is input correctly. |
|
|
DC OK |
Off |
No power output or the power output is faulty. |
|
Steady green |
The power is output correctly. |
Technical specifications
Table2-13 Technical specifications
|
Item |
Specification |
|
Rated input voltage |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
10 A |
|
Rated power |
Power for the system: 300 W Power for the PD: 450 W |
Power supply compatibility with routers
Table2-14 Power supply compatibility with routers (1)
|
Router model |
PSR75-12A |
PSR150-A1 |
PSR300-12A2 |
PSR300-12A3-B |
|
MSR3610-G |
No |
Yes |
No |
No |
|
MSR3620-G |
No |
Yes |
No |
No |
|
MSR3600-51 |
Yes |
Yes |
No |
No |
|
MSR3620-X1/MSR3620-X1-XS |
Yes |
Yes |
No |
No |
|
MSR3620-DP/MSR3620-XS |
Yes |
Yes |
No |
No |
|
MSR 36-40 |
No |
No |
Yes |
No |
|
MSR 36-60 |
No |
No |
Yes |
No |
|
MSR3640-G (BOM code: 0235A4G9) |
No |
No |
Yes |
No |
|
MSR3640-G (BOM code: 0235A4W8) |
No |
No |
No |
Yes |
|
MSR3640-X1/MSR3640-XS/MSR3640-X1-HI/MSR3660-XS |
No |
No |
Yes |
No |
Table2-15 Power supply compatibility with routers (2)
|
Router model |
PSR150-D1 |
PSR300-12D2 |
PSR300-12D3-B |
PSR750-A |
|
MSR3610-G |
Yes |
No |
No |
No |
|
MSR3620-G |
Yes |
No |
No |
No |
|
MSR3600-51 |
Yes |
No |
No |
No |
|
MSR3620-X1/MSR3620-X1-XS |
Yes |
No |
No |
No |
|
MSR3620-DP/MSR3620-XS |
Yes |
No |
No |
No |
|
MSR 36-40 |
No |
Yes |
No |
Yes |
|
MSR 36-60 |
No |
Yes |
No |
Yes |
|
MSR3640-G (BOM code: 0235A4G9) |
No |
Yes |
No |
No |
|
MSR3640-G (BOM code: 0235A4W8) |
No |
No |
Yes |
No |
|
MSR3640-X1/MSR3640-XS/MSR3640-X1-HI/MSR3660-XS |
No |
Yes |
No |
No |
