H3C UniServer R4900 G5 2U Front 25SFF with Expander Drive Backplane CPLD V007 Release Notes
Copyright © 2023 New H3C Technologies Co., Ltd. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd. Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners. The information in this document is subject to change without notice. |
Contents
Hardware and software compatibility matrix
Upgrade restrictions and guidelines
Upgrade restrictions and guidelines
Hardware feature updates in V007
Hardware feature updates in V006
Hardware feature updates in V005
Hardware feature updates in V004
Hardware feature updates in V003
Hardware feature updates in V002
Software feature and command updates
Version information
Version number
Version: V007
You can access the HDM Web interface of the server to identify the version on the System > System Overview > Others page as shown in the following figure. The figure is for illustration only.

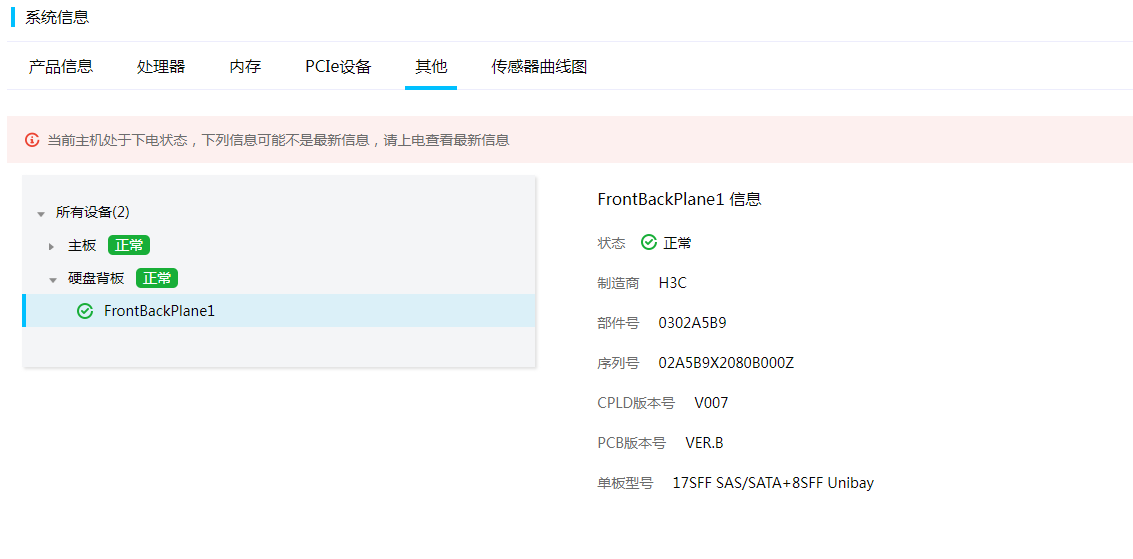

Figure 1 Viewing CPLD version
| NOTE: To view the drive backplane version, access the System > System Overview > Others section and select the target backplane. The figure is for illustration only. |
Version number | Last version | Release date | Version type | Remarks |
V007 | V006 | 6/17/2023 | Release version | Changed version number. Fixed bugs. This version is required. |
V006 | V005 | 9/17/2022 | Release version | Changed version number. Fixed bugs. This version is required. |
V005 | V004 | 4/12/2022 | Release version | Changed version number. Fixed bugs. This version is required. |
V004 | V003 | 3/02/2021 | Release version | Changed version number. Fixed bugs. This version is required. |
V003 | V002 | 11/24/2020 | Release version | Changed version number. Fixed bugs. This version is required. |
V002 | V001 | 8/13/2020 | Release version | Changed version number. Fixed bugs. This version is required. |
V001 | First release | 7/21/2020 | Release version | None. |
Supported languages
English
Chinese
Supported devices
H3C UniServer R4300 G5
H3C UniServer R4900 G5
H3C UniServer R6900 G5
Hardware and software compatibility matrix
IMPORTANT: To avoid an update failure, use the following table to verify the hardware and software compatibility before performing an update. |
Table 3 Hardware and software compatibility matrix
Product series | H3C UniServer R4900 G5 |
Model | H3C UniServer R4900 G5 |
CPLD | V007 and later |
BIOS | 2.00.48 and later |
HDM | 2.9 and later |
VR | 002 and later |
Target file name and MD5 checksum | Based on the MD5 file |
Remarks | None. |
Upgrade suggestions
This version is recommended for upgrade.
Upgrade restrictions and guidelines
Make sure the server and the HDM client (such as a PC) can reach each other.
For a successful bulk update, make sure you can update one server successfully before you update the remaining servers.
During the update, make sure the network connection is available and do not refresh the webpage.
Do not refresh the page during the update.
To avoid CPLD or operating system errors, do not power on or power off the server during the firmware update.
After the firmware is updated, clear the browser cache before you re-log in to HDM.
When using .rpm packages for online upgrade, use an OS with a version lower than RHL9.0.
Hardware feature updates
Hardware feature updates in V007
None.
Hardware feature updates in V006
None.
Hardware feature updates in V005
None.
Hardware feature updates in V004
None.
Hardware feature updates in V003
None.
Hardware feature updates in V002
None.
Software feature and command updates
N/A
MIB updates
N/A
Operation changes
Operation changes in V007
None.
Operation changes in V006
None.
Operation changes in V005
None.
Operation changes in V004
None.
Operation changes in V003
None.
Operation changes in V002
None.
Restrictions and cautions
N/A
Open problems and workarounds
N/A
List of resolved problems
Resolved problems in V007
Added rpm files to the target files for online upgrade in OSs.
Resolved the issue where ACTIVE LEDs of NVMe drives cannot flash in stress tests.
Resolved problems in V006
Optimized NVMe hot swapping.
Resolved the issue where BMC cannot identify drives when the server is in standby state.
Optimized compatibility with Kunpeng servers.
Resolved problems in V005
Resolved the issue where a new NVMe drive cannot be identified after the old hot spare NVMe drive is replaced with its data copied to the new NVMe drive while VMD is enabled.
Optimized internal modules.
Resolved problems in V004
Resolved the issue where a new NVMe drive might not be identified after managed hot removal of the old hot spare NVMe drive with its data copied to the new NVMe drive while VMD is enabled.
Resolved problems in V003
Resolved the OME interrupt-related issues.
Resolved problems in V002
First release.
Troubleshooting
To obtain troubleshooting information, access the H3C official website at https://www.h3c.com/en/Support/Resource_Center/EN/Home/Severs/00-Public/Diagnose___Maintain/Troubleshooting/H3C_Servers_TG/.
Related documentation
Documentation set
H3C Servers Firmware Update Guide
H3C Servers HDM User Guide
Obtaining the documentation
Access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com/
To obtain maintenance documentation such as installation guides and configuration guide, access
https://www.h3c.com/en/Support/Resource_Center/Technical_Documents/
To obtain software release documentation such as release notes, access
https://www.h3c.com/en/Support/Resource_Center/Software_Download/
Select the product category and product model. Then, you can query and download documents related to the product.
Technical support
Email: [email protected]
Telephone: 400-810-0504
Telephone: 400-600-9999
Website: http://www.h3c.com/en
Item | Description |
Module name | 25SFF drive backplane |
Module version | RS65B25SXP8Y VB |
Module number | 0302A5B9 |
N/A
Appendix B Updating CPLD firmware online from HDM
The following information describes how to update the CPLD firmware from HDM through an RJ-45 port.
Hardware and software requirements
Hardware: PC with an RJ-45 port.
Software: Browser.
None.
Before uploading the version file for update, first verify that the MD5 checksum is correct.
Screenshots in this section are for illustration only.

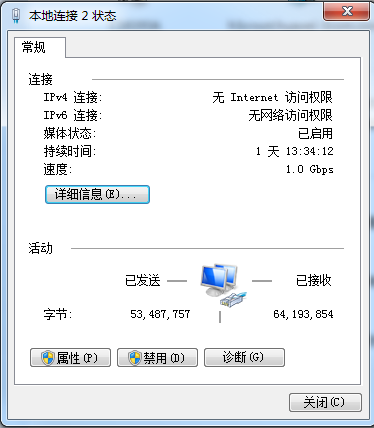

Connect the RJ-45 port on the local PC to the HDM network port on the server.

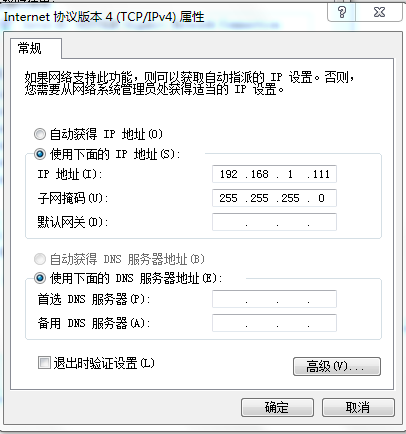

Configure the PC to use an IP address in the same network segment as the HDM IP address, for example: 192.168.1.2.

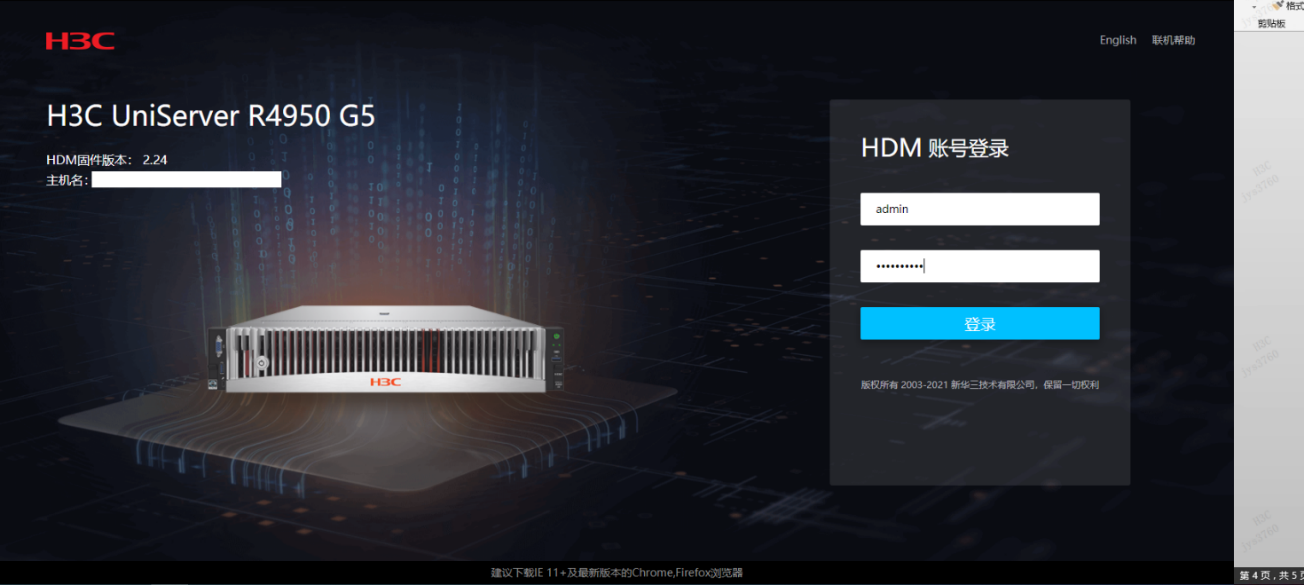

Log in to the HDM Web interface. This example uses IP address 192.168.1.2. The username and password are admin and Password@_, respectively.
CAUTION: Do not refresh the page during the update. To avoid CPLD or operating system errors, do not power on or power off the server during the firmware update. |
1.Select the firmware type and the firmware image file.
The figure is for illustration only. Make sure a corresponding xxxx.bin file is selected.
The firmware type for CPLD(0502A7AM) is BPCPLD.

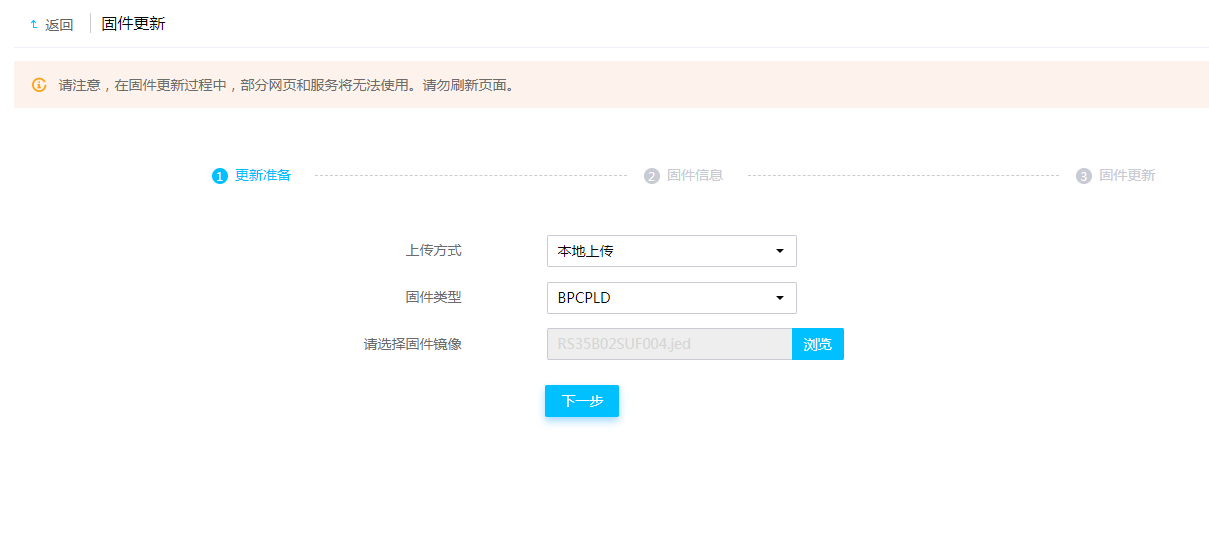

Figure 2 Selecting the firmware type and the firmware image file
2.Upload the firmware image file and verify the firmware version.

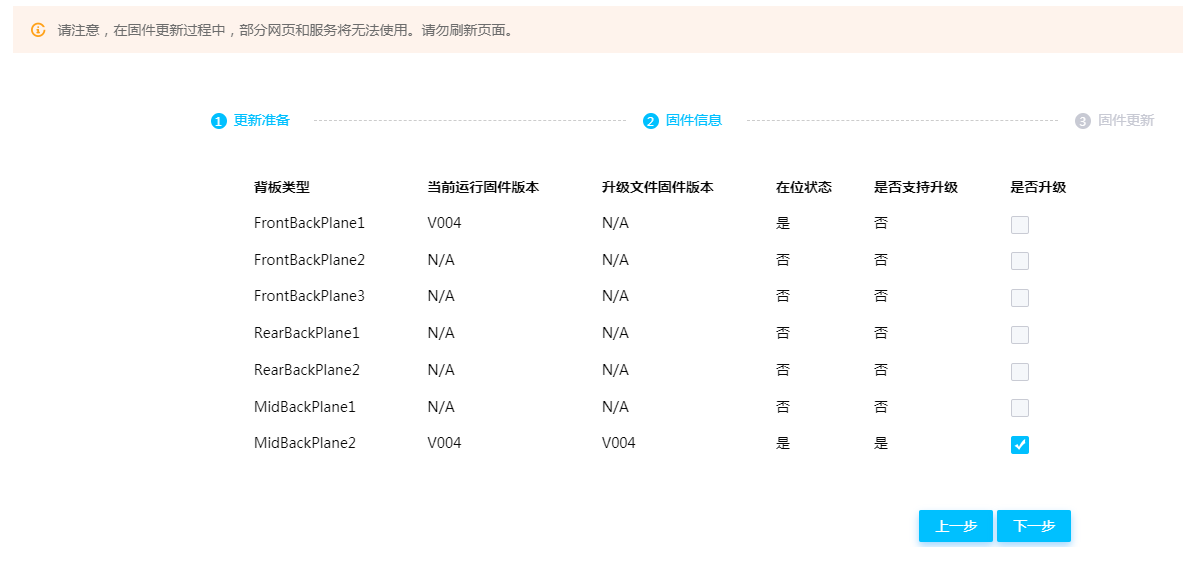

Figure 3 Uploading the firmware image file and selecting drive backplanes

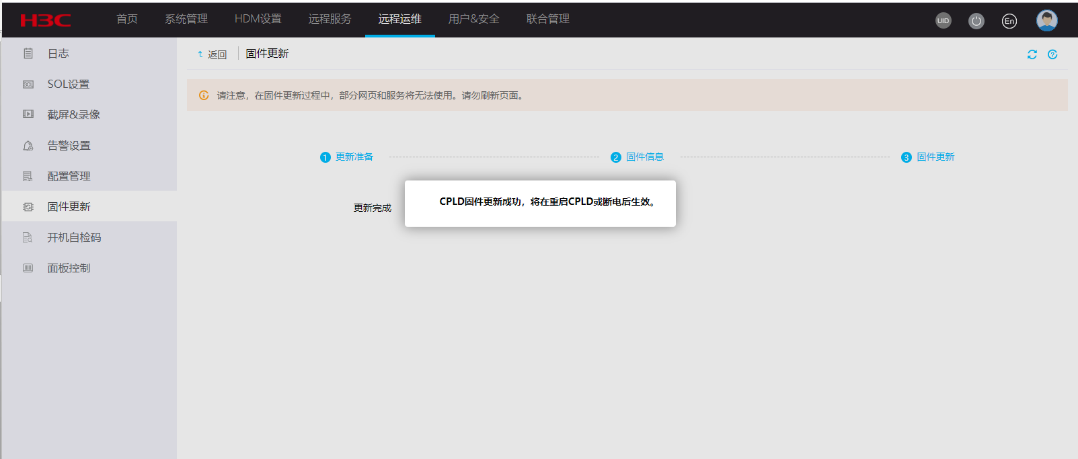

Wait for the update to be completed.
3.Use one of the following methods to have the new firmware take effect:
Remove the AC power for 30 seconds, and then power on the device again.
Log in to HDM, and access the Remote O&M > Update Firmware page to restart CPLD.
Handling firmware update failures
If a firmware update fails, the system starts up with the original firmware version. To resolve the firmware update failure issue:
1.Verify that the network ports are connected correctly.
2.Verify that the correct firmware file is uploaded.
3.Verify that no power-off operations are performed during the update.
4.Verify that the server is power cycled after the update.
Appendix C Updating CPLD from the OS
This procedure is applicable to scenarios where you can access the OS correctly.
Hardware and software requirements
The system disk with a version lower than RHL9.0.
Make sure the version of the OS lower than RHL9.0.
Before uploading the version file for update, first verify that the MD5 checksum is correct.
Screenshots in this section are for illustration only.
Powering on the server and accessing the OS
Copying the file to the directory for update

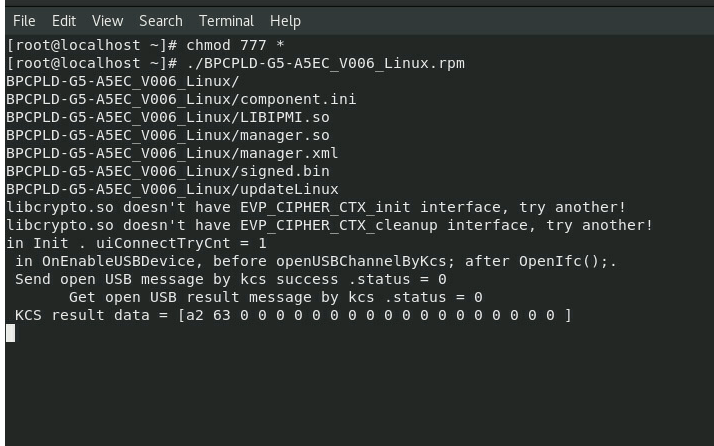

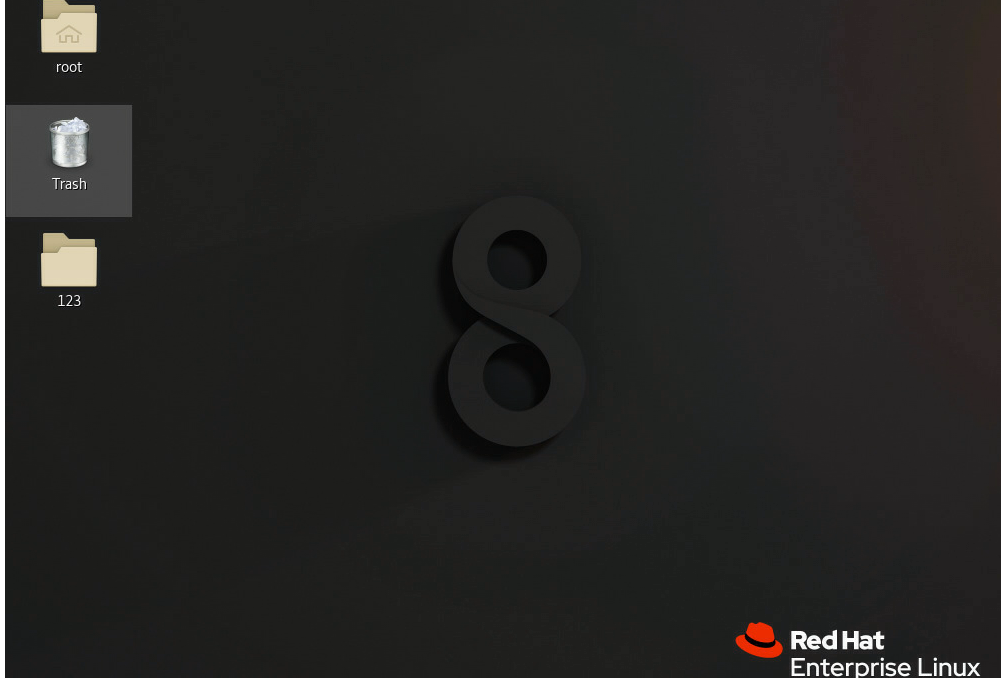

Copy the file to the directory, and execute the chmod 777 * and ./XXX commands, where XXX represents the name of the .rpm package. The figure is for illustration only.
CAUTION: Do not execute other commands during the update. To avoid CPLD or operating system errors, do not power on or power off the server during the firmware update. |

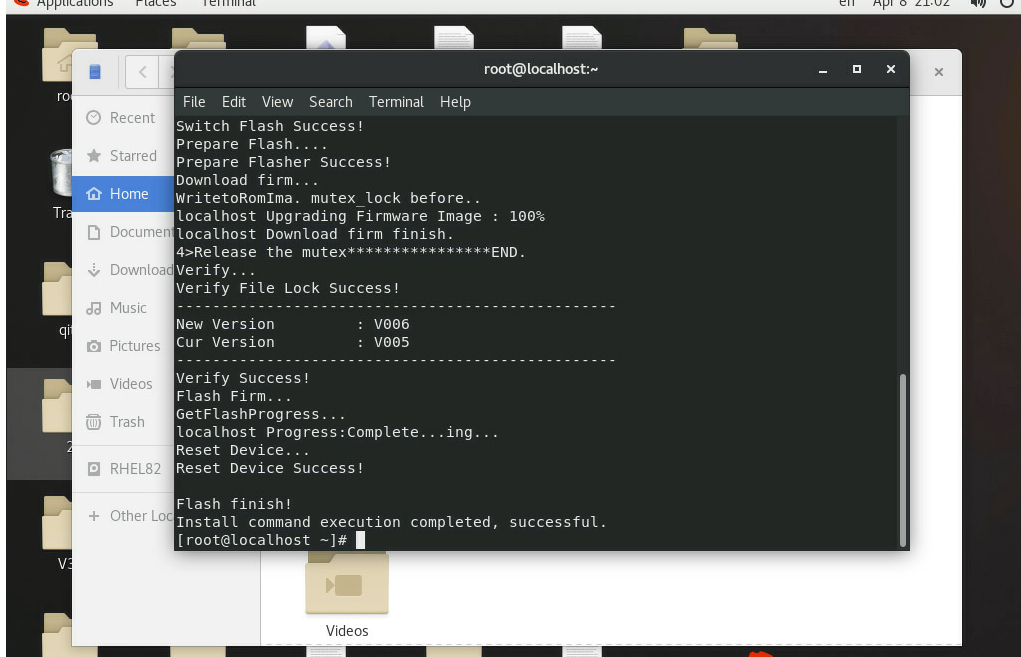

1.Waiting for the update to finish.
2.Use one of the following methods to have the new firmware take effect:
Remove the AC power for 30 seconds, and then power on the device again.
Log in to HDM, and access the Remote O&M > Update Firmware page to restart CPLD.
Handling firmware update failures
If a firmware update fails, the system starts up with the original firmware version. To resolve the firmware update failure issue:
1.Verify that OS version is lower than RHL9.0.
2.Verify that the RPM package for update corresponds to the backplane.
