SE-S5130 switch series

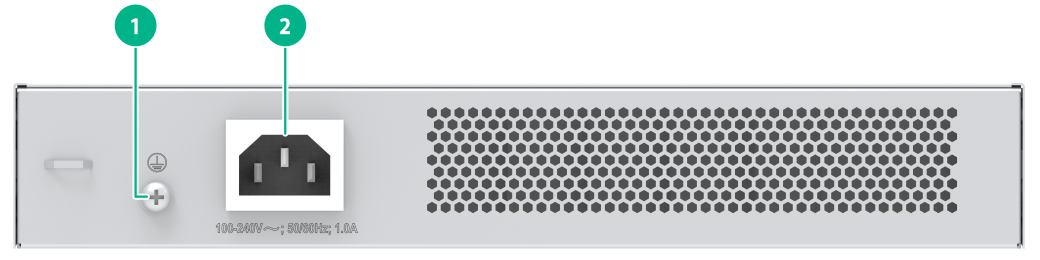

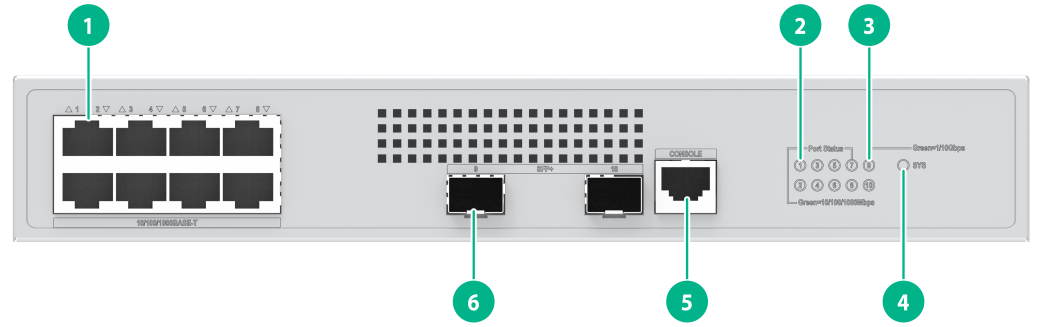

SE-S5130-10S

LS-SE-S5130-10S

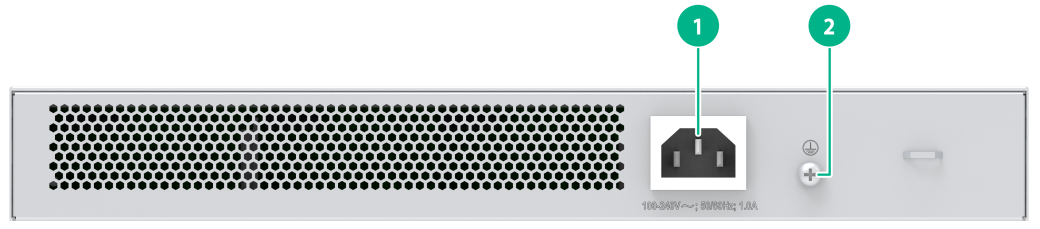

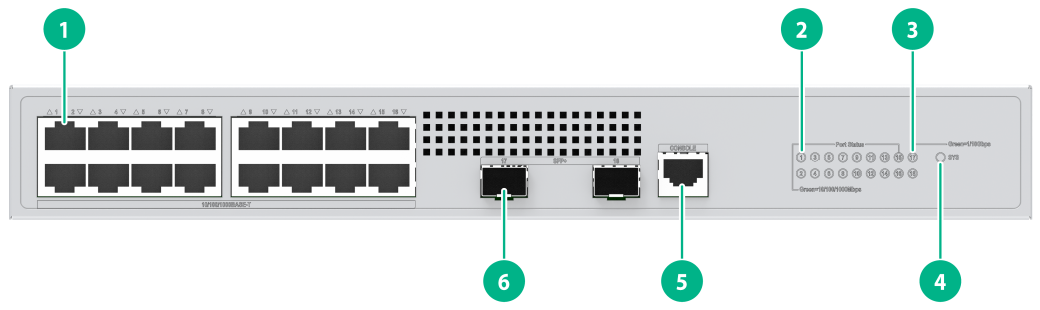

SE-S5130-18S

LS-SE-S5130-18S

Item

SE-S5130-10S

SE-S5130-18S

Physical specifications

Dimensions (H × W × D)

Without package: 43.6 × 266 × 160 mm (1.72 × 10.47 × 6.30 in)

With package: 90 × 356 × 270 mm (3.54 × 14.02 × 10.63 in)

Without package: 43.6 × 330 × 230 mm (1.72 × 12.99 × 9.06 in)

With package: 105 × 460 × 370 mm (4.13 × 18.11 × 14.57 in)

Weight

≤1.2 kg (2.65 lb)

≤1.9 kg (4.19 lb)

Technical specifications

Memory (RAM)

4 GB

4 GB

Flash

256 MB

256 MB

Interface types and quantity

Console port

1 × serial console port

10/100/1000BASE-T autosensing Ethernet port

8

16

SFP+ port

2

Power supply specifications

Power input

AC input

Power specifications

·     Rated voltage 100 VAC to 240 VAC @ 50 or 60 Hz

·     Max voltage 90 VAC to 264 VAC @ 47 to 63 Hz

Power consumption

Static power consumption

(Unloaded)

11 W

12 W

Typical power consumption

(Fully configured with DAC cables or twisted pair cables, 30% loaded)

12 W

15 W

Maximum power consumption

(Fully configured with transceiver modules or twisted pair cables, 100% loaded)

17 W

18 W

Thermal consumption

Static thermal consumption

(Unloaded)

38 BTU/hr

41 BTU/hr

Typical thermal consumption

(Fully configured with DAC cables or twisted pair cables, 30% loaded)

41 BTU/hr

51 BTU/hr

Maximum thermal consumption

(Fully configured with transceiver modules or  twisted pair cables, 100% loaded)

58 BTU/hr

52 BTU/hr

Heat dissipation

Heat dissipation method

Fan-free natural heat dissipation

Mean Time Between Failure (MTBF)(Year)

265.924

242.195

Mean time to repair (MTTR) (Hour)

1

Availability

99.999957%

99.999953%

Environment specifications

Operating temperature

–5°C to +45°C (23°F to 113°F)

Note:

The maximum acceptable temperature decreases by 0.33°C (32.59°F) for every 100 m (328.08 ft) increase in altitude from 0 m (0 ft).

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Humidity

5% RH to 95% RH, noncondensing

Compliance

Product compliance

·     Safety standards

·     EMC standards

·     Environmental protection and eco-friendly standards

Item

Serial console port

Connector type

RJ-45

Compliant standard

EIA/TIA-232

Operating mode

Duplex Universal Asynchronous Receiver/Transmitter (duplex UART)

Transmission baud rate

9600 bps (default) to 115200 bps

Services

·     Provides connection to an ASCII terminal.

·     Provides connection to the serial port of a local PC running terminal emulation program.

Switch models that provide a console port

All switch models

Item

Specification

Port name

10GE SFP+ Ethernet fiber port

Switch models that provide an SFP+ port

All switch models

Connector

LC

Description

The 10GE SFP+ Ethernet fiber ports are mainly used for transmitting and receiving GE fiber port services.

Compatible standard

IEEE802.3ae

Fiber port attribute

Depending on the used transceiver module or cable

Operating mode

10 G autosensing

Available transceiver modules and cables

·     GE SFP transceiver modules and cables described in Table 6.

·     10-GE SFP+ transceiver modules and cables described in Table 7

Restrictions

To use 10-GE transceiver modules with a maximum transmission distance of 80 km (49.71 miles), do not install them into adjacent SFP+ ports.

SFP transceiver modules

SFP-GE-T

N/A

RJ-45

Twisted pair cable

N/A

100 m (328.08 ft)

SFP-GE-T-D

N/A

RJ-45

Twisted pair cable

N/A

100 m (328.08 ft)

SFP-GE-SX-MM850-A

850 nm

LC

50/125 µm, MMF

500

550 m (1804.46 ft)

400

500 m (1640.42 ft)

62.5/125 µm, MMF

200

275 m (902.23 ft)

160

200 m (656.17 ft)

SFP-GE-LX-SM1310-A

1310 nm

LC

9/125 µm, SMF

N/A

10 km (6.21 miles)

50/125 µm, MMF

500/400

550 m (1804.46 ft)

62.5/125 µm, MMF

500

550 m (1804.46 ft)

SFP-GE-LH40-SM1310

1310 nm

LC

9/125 µm, SMF

N/A

40 km (24.86 miles)

SFP-GE-LH40-SM1310-D

1310 nm

LC

9/125 µm, SMF

N/A

40 km (24.86 miles)

SFP-GE-LH40-SM1310-I

1310 nm

LC

9/125 µm, SMF

N/A

40 km (24.86 miles)

SFP-GE-LH20-SM1310-I

1310 nm

LC

9/125 µm, SMF

N/A

20 km (12.43 miles)

SFP-GE-LH40-SM1550

1550 nm

LC

9/125 µm, SMF

N/A

40 km (24.86 miles)

SFP-GE-LH80-SM1550

1550 nm

LC

9/125 µm, SMF

N/A

80 km (49.71 miles)

SFP-GE-LX-SM1310-BIDI

TX: 1310 nm

RX: 1490 nm

LC

9/125 µm, SMF

N/A

10 km (6.21 miles)

SFP-GE-LX-SM1490-BIDI

TX: 149 nm

RX: 1310  nm

N/A

SFP-GE-LH40-SM1310-BIDI

TX: 1310 nm

RX: 550 nm

LC

9/125 µm, SMF

N/A

40 km (24.86 miles

SFP-GE-LH40-SM1550-BIDI

TX: 1550 nm

RX: 1310 nm

LC

9/125 µm, SMF

N/A

40 km (24.86 miles

SFP-GE-LH70-SM1490-BIDI

TX: 1490 nm

RX: 1550 nm

LC

9/125 µm, SMF

N/A

70 km (43.50 miles)

SFP-GE-LH70-SM1550-BIDI

TX: 1550 nm

RX: 490 nm

LC

9/125 µm, SMF

N/A

70 km (43.50 miles)

SFP cables

SFP-STACK-Kit

1.5 m (4.92 ft)

SFP+ transceiver module/cable model

Central wavelength

Interface connector

Interface cable

Modal bandwidth (MHz*km)

Max transmission distance

SFP+ transceiver modules

SFP-XG-SX-MM850-D

850 nm

LC

50/125 µm, MMF

2000

300 m (984.25 ft)

500

82 m (269.03 ft)

400

66 m (216.54 ft)

62.5/125 µm, MMF

200

33 m (108.27 ft)

160

26 m (85.30 ft)

SFP-XG-LX-SM1310-D

1310 nm

LC

9/125 µm, SMF

N/A

10 km (6.21 miles)

SFP-XG-CPRI-IR-SM1310

1310 nm

LC

9/125 µm, SMF

N/A

1.4 km (0.87 miles)

SFP-XG-CPRI-LR-SM1310

1310 nm

LC

9/125 µm, SMF

N/A

10 km (6.21 miles)

SFP-XG-LX-SM1270-BIDI

TX: 1270 nm

RX: 330 nm

LC

9/125 µm, SMF

N/A

10 km (6.21 miles)

SFP-XG-LX-SM1330-BIDI

TX: 1330 nm

RX: 1270 nm

LC

9/125 µm, SMF

N/A

10 km (6.21 miles)

SFP+ AOC cables

SFP-XG-D-AOC-7M

7 m (22.97 ft)

SFP-XG-D-AOC-10M

10 m (32.81 ft)

SFP-XG-D-AOC-20M

20 m (65.62 ft)

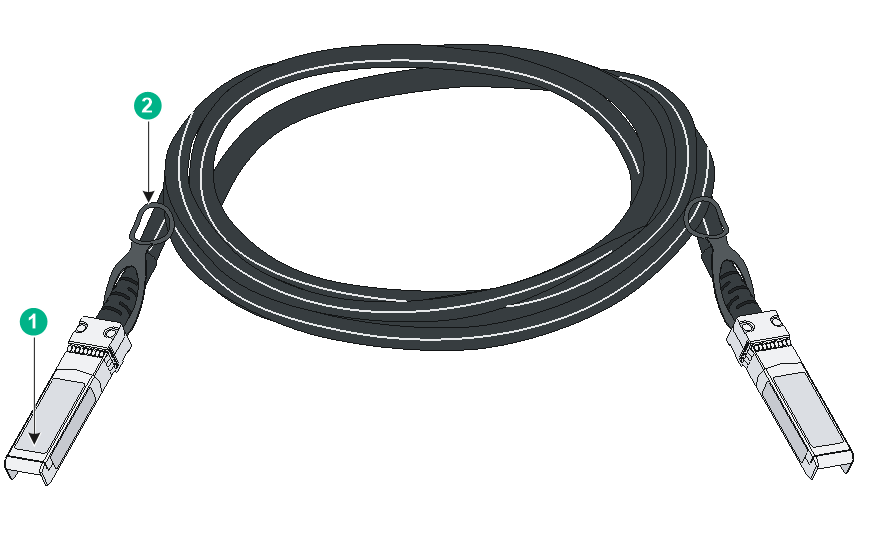

SFP+ copper cables

LSWM1STK

0.65 m (2.13 ft)

LSTM1STK

5 m (16.40 ft)

LSWM2STK

1.2 m (3.94 ft)

LSWM3STK

3 m (9.84 ft)

LED status

Description

Steady green

A link is present on the port.

Flashing green

The port is sending or receiving data.

Off

No module has been installed or no link is present on the port
