Contents
1 About the router
The MSR830 router series includes the models in Table1-1.
Table1-1 MSR830 router series models
|
Model |
Product code |
|
MSR830-6EI-GL |
RT-MSR830-6EI-GL |
|
MSR830-6HI-GL |
RT-MSR830-6HI-GL |
|
MSR830-10HI-GL |
RT-MSR830-10HI-GL |
|
MSR830-10EI-GL |
RT-MSR830-10EI-GL |
Chassis views
The router provides a RESET button. You can use the button to reboot the system or restore the factory settings.
· Press the RESET button for a short time to reboot the router.
· Press and hold the RESET button for more than 4 seconds to reboot the router and restore the factory settings.
The following figures are for illustration only.
MSR830-6EI-GL

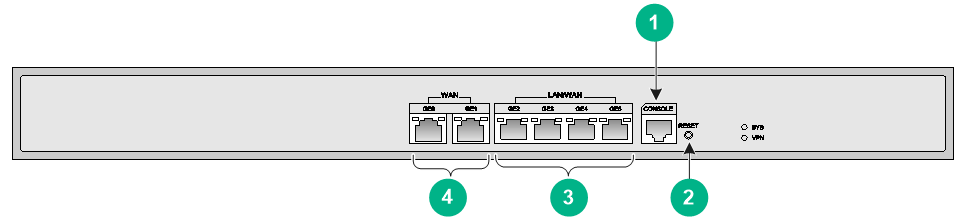

Figure1-1 MSR830-6EI-GL front view
|
(1) Console port |
(2) Reset button |
|
(3) GE LAN/WAN ports GE2 to GE5 |
(4) GE WAN ports GE0 and GE1 |

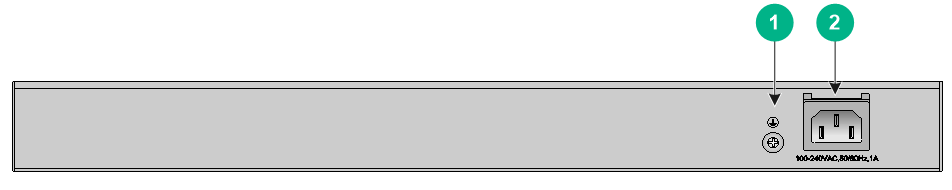

Figure1-2 MSR830-6EI-GL rear view
|
(1) Grounding terminal |
(2) AC-input power receptacle |
MSR830-6HI-GL

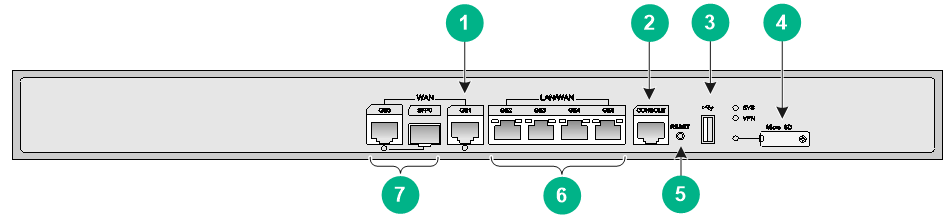

Figure1-3 MSR830-6HI-GL front view
|
(1) GE WAN port GE1 |
(2) Console port |
|
(3) USB port |
(4) Micro SD card slot |
|
(5) Reset button |
(6) GE LAN/WAN ports GE2 to GE5 |
|
(7) Combo interface 0 |
|
Figure1-4 MSR830-6HI-GL rear view
|
(1) Grounding terminal |
(2) AC-input power receptacle |
MSR830-10HI-GL

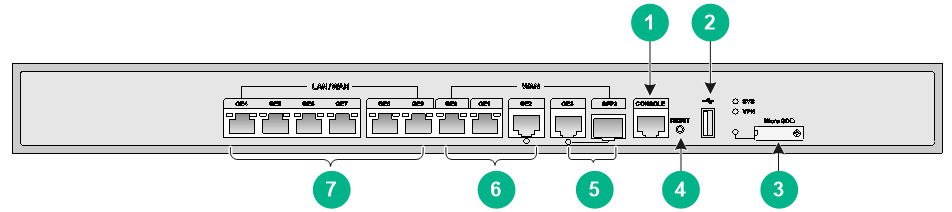

Figure1-5 MSR830-10HI-GL front view
|
(1) Console port |
(2) USB port |
|
(3) Micro SD card slot |
(4) Reset button |
|
(5) Combo interface 3 |
(6) GE WAN ports GE0 to GE2 |
|
(7) GE LAN/WAN ports GE4 to GE9 |
|
Figure1-6 MSR830-10HI-GL rear view
|
(1) Grounding terminal |
(2) AC-input power receptacle |
MSR830-10EI-GL

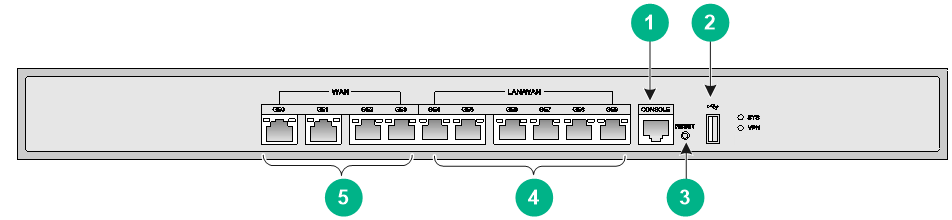

Figure1-7 MSR830-10EI-GL front view
|
(1) Console port |
(2) USB port |
|
(3) Reset button |
(4) GE LAN/WAN ports GE4 to GE9 |
|
(6) GE WAN ports (GE0 to GE3) |
|
Figure1-8 MSR830-10EI-GL rear view
|
(1) Grounding terminal |
(2) AC-input power receptacle |
LEDs
Panel LEDs
MSR830-6EI-GL

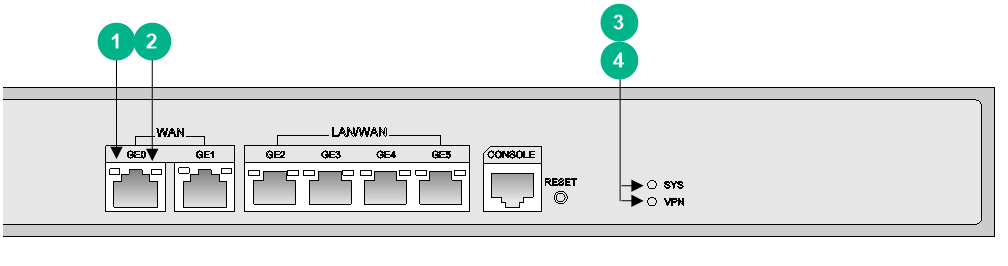

Figure1-9 MSR830-6EI-GL LEDs
|
(1) GE port yellow LED |
(2) GE port green LED |
|
(3) System status LED (SYS) |
(4) VPN status LED |
MSR830-6HI-GL

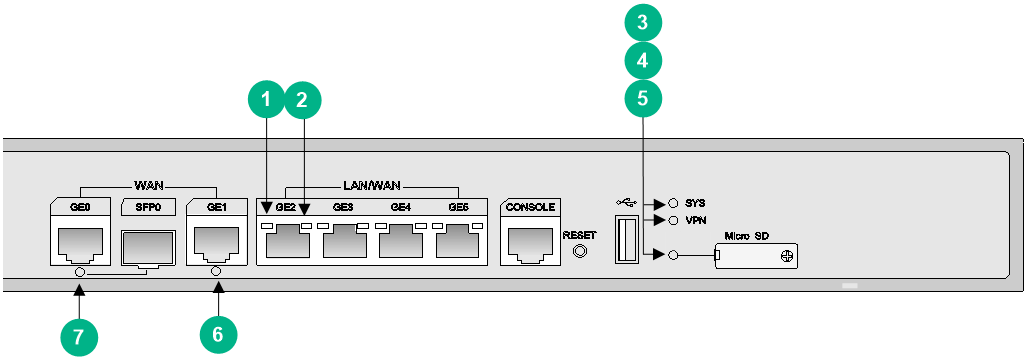

Figure1-10 MSR830-6HI-GL LEDs
|
(1) GE port yellow LED |
(2) GE port green LED |
|
(3) System status LED (SYS) |
(4) VPN status LED |
|
(5) Micro SD card LED |
(6) GE port LED |
|
(7) Combo interface LED |
|
MSR830-10HI-GL

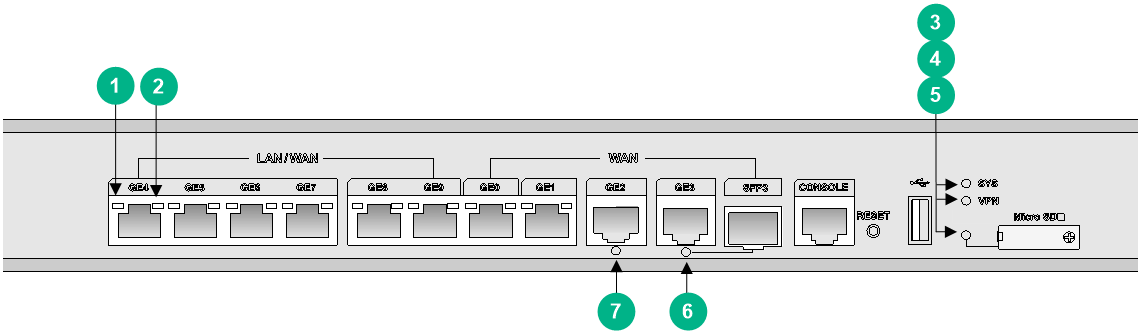

Figure1-11 MSR830-10HI-GL LEDs
|
(1) GE port yellow LED |
(2) GE port green LED |
|
(3) System status LED (SYS) |
(4) VPN status LED |
|
(5) Micro SD card LED |
(6) Combo interface LED |
|
(7) GE port LED |
|
MSR830-10EI-GL

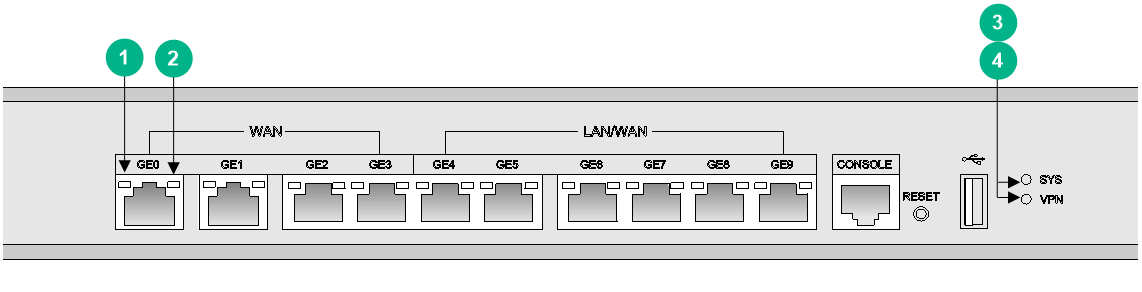

Figure1-12 MSR830-10EI-GL LEDs
|
(1) GE port yellow LED |
(2) GE port green LED |
|
(3) System status LED (SYS) |
(4) VPN status LED |
LED description
|
LEDs |
State |
Description |
|
GE port LED |
Steady green |
A 1000 Mbps link is present. |
|
Flashing green |
Data is being received or transmitted at 1000 Mbps. |
|
|
Steady yellow |
A 10/100 Mbps link is present. |
|
|
Flashing yellow |
Data is being received or transmitted at 10/100 Mbps |
|
|
Off |
No link is present. |
|
|
System status LED (SYS) |
Steady green |
The SDRAM is performing self-test. |
|
Flashing green (8 Hz) |
The system software image is being copied and decompressed. |
|
|
Flashing green (1 Hz) |
Comware has started with the configuration file and the router has booted up. |
|
|
Flashing yellow (1 Hz) |
The SDRAM has failed the self-test. |
|
|
Flashing yellow (8 Hz) |
The extended segment does not exist. |
|
|
Steady yellow |
The boot image does not exist. |
|
|
Off |
No power input, or exceptions have occurred. |
|
|
VPN status LED |
Steady on |
A minimum of one IPsec VPN tunnel is present. |
|
Off |
No IPsec VPN tunnel is present. |
|
|
Micro SD card LED |
Steady green |
An inserted Micro SD card has passed the detection. |
|
Off |
No Micro SD card is inserted or a Micro SD card is incorrectly inserted. |
|
|
Combo interface LED |
Steady green |
A 1000 Mbps link is present. |
|
Flashing green |
Data is being received or transmitted at 1000 Mbps. |
|
|
Steady yellow |
A 10/100 Mbps link is present. |
|
|
Flashing yellow |
Data is being received or transmitted at 10/100 Mbps. |
|
|
Off |
No link is present. |
Technical specifications
Table1-2 Technical specifications
|
Item |
MSR830-6EI-GL |
MSR830-10EI-GL |
MSR830-6HI-GL |
MSR830-10HI-GL |
|
Console ports |
1 |
1 |
1 |
1 |
|
USB ports |
N/A |
1 |
1 |
1 |
|
GE ports |
6 |
10 |
6 |
10 |
|
SFP ports |
N/A |
N/A |
1 |
1 |
|
Micro SD slots |
N/A |
N/A |
1 |
1 |
|
Reset button |
1 |
1 |
1 |
1 |
|
Memory |
1GB DDR3 |
1GB DDR3 |
1GB DDR3 |
1GB DDR3 |
|
Flash |
256 MB |
256 MB |
256 MB |
256 MB |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
44 × 440 × 225 mm (1.73 × 17.32 × 8.86 in) |
44 × 440 × 225 mm (1.73 × 17.32 × 8.86 in) |
44 × 440 × 225 mm (1.73 × 17.32 × 8.86 in) |
44 × 440 × 225 mm (1.73 × 17.32 × 8.86 in) |
|
Rated AC voltage |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|||
|
Relative humidity |
5% RH to 95% RH (noncondensing) |
|||
Link mode of interfaces
Table1-3 Interfaces that can operate only as Layer 3 Ethernet interfaces
|
Device model |
Interfaces |
|
MSR830-6EI-GL |
GE0, GE1 |
|
MSR830-6HI-GL |
Combo 0 (GE0, SFP0), GE1 |
|
MSR830-10HI-GL |
GE0 |
|
MSR830-10EI-GL |
GE0, GE1 |
Table1-4 Interfaces that support link mode change
|
Device model |
Interfaces |
|
MSR830-6EI-GL |
GE2 to GE5 |
|
MSR830-6HI-GL |
GE2 to GE5 |
|
MSR830-10HI-GL |
GE1, GE2, Combo 3 (GE3, SFP3), GE4 to GE9 |
|
MSR830-10EI-GL |
GE2 to GE9 |
|
|
NOTE: · As from E0821P05, you can change the GE1, GE2, and Combo 3 interfaces on the MSR830-10HI-GL router as LAN interfaces by using the command line. · As from R0809P21, you can change the GE2 and GE3 interfaces on the MSR830-10EI-GL router as LAN interfaces by using the command line. |
