Ethernet Operation, Administration, and Maintenance (OAM) is a tool that monitors Layer 2 link status and addresses common link-related issues on the "last mile." Ethernet OAM improves Ethernet management and maintainability. You can use it to monitor the status of the point-to-point link between two directly connected devices.

Major functions of Ethernet OAM

Ethernet OAM provides the following functions:

· Link performance monitoring—Monitors the performance indices of a link, including packet loss, delay, and jitter, and collects traffic statistics of various types.

· Fault detection and alarm—Checks the connectivity of a link by sending OAM protocol data units (OAMPDUs) and reports to the network administrators when a link error occurs.

· Remote loopback—Checks link quality and locates link errors by looping back OAMPDUs.

Ethernet OAMPDUs

Ethernet OAM operates on the data link layer. Ethernet OAM reports the link status by periodically exchanging OAMPDUs between devices, so that the administrator can effectively manage the network.

Ethernet OAMPDUs include the following types shown in Table 1.

Table 1 Functions of different types of OAMPDUs

OAMPDU type	Function
Information OAMPDU	Used for transmitting state information of an Ethernet OAM entity, including the information about the local device and remote devices, and customized information, to the remote Ethernet OAM entity, and maintaining OAM connections.
Event Notification OAMPDU	Used by link monitoring to notify the remote OAM entity when it detects problems on the link in between.
Loopback Control OAMPDU	Used for remote loopback control. By inserting the information used to enable/disable loopback to a loopback control OAMPDU, you can enable/disable loopback on a remote OAM entity.

NOTE:

Throughout this document, an Ethernet OAM-enabled port is called an Ethernet OAM entity or an OAM entity.

How Ethernet OAM works

This section describes the working procedures of Ethernet OAM.

Ethernet OAM connection establishment

OAM connection establishment is also known as the Discovery phase, where an Ethernet OAM entity discovers the remote OAM entity to establish a session.

In this phase, two connected OAM entities exchange Information OAMPDUs to advertise their OAM configuration and capabilities to each other for a comparison. If their Loopback, link detection, and link event settings match, the OAM entities establish an OAM connection.

An OAM entity operates in active mode or passive mode. OAM entities in active mode initiate OAM connections, and OAM entities in passive mode wait and respond to the OAM connection requests. To set up an OAM connection between two OAM entities, you must set at least one entity to operate in active mode.

Table 2 shows the actions that a device can perform in different modes.

Table 2 Active Ethernet OAM mode and passive Ethernet OAM mode

Item	Active Ethernet OAM mode	Passive Ethernet OAM mode
Initiating OAM Discovery	Available	Unavailable
Responding to OAM Discovery	Available	Available
Transmitting Information OAMPDUs	Available	Available
Transmitting Event Notification OAMPDUs	Available	Available
Transmitting Information OAMPDUs without any TLV	Available	Available
Transmitting Loopback Control OAMPDUs	Available	Unavailable
Responding to Loopback Control OAMPDUs	Available	Available

After an Ethernet OAM connection is established, the Ethernet OAM entities exchange Information OAMPDUs at the handshake packet transmission interval to detect the availability of the Ethernet OAM connection. If an Ethernet OAM entity receives no Information OAMPDU within the Ethernet OAM connection timeout time, the Ethernet OAM connection is considered disconnected.

Link monitoring

Error detection in an Ethernet is difficult, especially when the physical connection in the network is not disconnected, but network performance is degrading gradually.

Link monitoring detects link faults in various environments. Ethernet OAM entities monitor link status by exchanging Event Notification OAMPDUs. When detecting one of the link error events listed in Table 3, an OAM entity sends an Event Notification OAMPDU to its peer OAM entity. The network administrator can keep track of network status changes by retrieving the log.

Table 3 Ethernet OAM link error events

Ethernet OAM link events	Description
Errored symbol event	An errored symbol event occurs when the number of detected symbol errors in the detection window (specified number of received symbols) exceeds the predefined threshold.
Errored frame event	An errored frame event occurs when the number of detected error frames in the detection window (specified detection interval) exceeds the predefined threshold.
Errored frame period event	An errored frame period event occurs when the number of frame errors in the detection window (specified number of received frames) exceeds the predefined threshold.
Errored frame seconds event	An errored frame seconds event occurs when the number of errored frame seconds (the second in which an errored frame appears is called an errored frame second) detected on a port in the detection window (specified detection interval) reaches the predefined threshold.

Remote fault detection

Information OAMPDUs are exchanged periodically among Ethernet OAM entities across established OAM connections. When traffic is interrupted due to device failure or unavailability, the Ethernet OAM entity at the faulty end sends error information to its peer. The Ethernet OAM entity uses the flag field in Information OAMPDUs to indicate the error information (any critical link event type as shown in Table 4). You can use the log information to track ongoing link status and troubleshoot problems promptly.

Table 4 Critical link events

Type	Description	OAMPDU transmission frequencies
Link Fault	Peer link signal is lost.	Once per second.
Dying Gasp	An unexpected fault, such as power failure, occurred.	Non-stop.
Critical Event	An undetermined critical event happened.	Non-stop.

Protocols and standards

IEEE 802.3ah, Carrier Sense Multiple Access with Collision Detection (CSMA/CD) Access Method and Physical Layer Specifications

Restrictions and guidelines: Ethernet OAM configuration

The device's support for sending and receiving Information OAMPDUs carrying critical link events is as follows:

· Can receive Information OAMPDUs carrying the critical link events listed in Table 4.

· Cannot send Information OAMPDUs carrying Link Fault events.

· Can send Information OAMPDUs carrying Dying Gasp events when the device is rebooted or relevant ports are manually shut down. Physical IRF ports, however, are unable to send this type of OAMPDUs.

· Cannot send Information OAMPDUs carrying Critical Events.

Ethernet OAM tasks at a glance

To configure Ethernet OAM, perform the following tasks:

1. Configuring basic Ethernet OAM functions

2. (Optional.) Configuring the Ethernet OAM connection detection timers

3. (Optional.) Configuring link event detection

¡ Configuring errored symbol event detection

¡ Configuring errored frame event detection

¡ Configuring errored frame period event detection

¡ Configuring errored frame seconds event detection

4. (Optional.) Configuring the action a port takes after it receives an Ethernet OAM event from the remote end

Configuring basic Ethernet OAM functions

About this task

To set up an Ethernet OAM connection between two Ethernet OAM entities, you must set at least one entity to operate in active mode. An Ethernet OAM entity can initiate OAM connection only in active mode.

Restrictions and guidelines

To change the Ethernet OAM mode on an Ethernet OAM-enabled port, first disable Ethernet OAM on the port.

Procedure

1. Enter system view.

System-view

2. Enter Layer 2/Layer 3 Ethernet port view.

interface interface-type interface-number

3. Set the Ethernet OAM mode.

oam mode { active | passive }

The default is active Ethernet OAM mode.

4. Enable Ethernet OAM.

oam enable

Ethernet OAM is disabled by default.

Configuring the Ethernet OAM connection detection timers

About the Ethernet OAM connection detection timers

By adjusting the handshake packet transmission interval and the connection timeout timer, you can change the detection time resolution for Ethernet OAM connections.

Restrictions and guidelines for configuring Ethernet OAM connection detection timers

When you configure Ethernet OAM, follow these restrictions and guidelines:

· You can configure this command in system view or port view. The configuration in system view takes effect on all ports, and the configuration in port view takes effect on the specified port. For a port, the configuration in port view takes precedence.

· After the timeout timer of an Ethernet OAM connection expires, the local OAM entity ages out and terminates its connection with the peer OAM entity. To keep the Ethernet OAM connections stable, set the connection timeout timer to be at least five times the handshake packet transmission interval.

Configuring the Ethernet OAM connection detection timers globally

1. Enter system view.

System-view

2. Configure the Ethernet OAM handshake packet transmission interval.

oam global timer hello interval

The default is 1000 milliseconds.

3. Configure the Ethernet OAM connection timeout timer.

oam global timer keepalive interval

The default is 5000 milliseconds.

Configuring the Ethernet OAM connection detection timers on a port

1. Enter system view.

System-view

2. Enter Layer 2/Layer 3 Ethernet port view.

interface interface-type interface-number

3. Configure the Ethernet OAM handshake packet transmission interval.

oam timer hello interval

By default, an interface uses the value configured globally.

4. Configure the Ethernet OAM connection timeout timer.

oam timer keepalive interval

By default, an interface uses the value configured globally.

Configuring errored symbol event detection

Restrictions and guidelines for configuring errored symbol event detection

You can configure this function in system view or port view. The configuration in system view takes effect on all ports, and the configuration in port view takes effect on the specified port. For a port, the configuration in port view takes precedence.

Configuring errored symbol event detection globally

1. Enter system view.

system-view

2. Configure the errored symbol event detection window.

oam global errored-symbol-period window window-value

By default, the errored symbol event detection window is 100000000.

3. Configure the errored symbol event triggering threshold.

oam global errored-symbol-period threshold threshold-value

By default, the errored symbol event triggering threshold is 1.

Configuring errored symbol event detection on a port

1. Enter system view.

system-view

2. Enter Layer 2/Layer 3 Ethernet port view.

interface interface-type interface-number

3. Configure the errored symbol event detection window.

oam errored-symbol-period window window-value

By default, an interface uses the value configured globally.

4. Configure the errored symbol event triggering threshold.

oam errored-symbol-period threshold threshold-value

By default, an interface uses the value configured globally.

Configuring errored frame event detection

Restrictions and guidelines for configuring errored frame event detection

Configuring errored frame event detection globally

1. Enter system view.

system-view

2. Configure the errored frame event detection window.

oam global errored-frame window window-value

By default, the errored frame event detection window is 1000 milliseconds.

3. Configure the errored frame event triggering threshold.

oam global errored-frame threshold threshold-value

By default, the errored frame event triggering threshold is 1.

Configuring errored frame event detection on a port

1. Enter system view.

system-view

2. Enter Layer 2/Layer 3 Ethernet port view.

interface interface-type interface-number

3. Configure the errored frame event detection window.

oam errored-frame window window-value

By default, an interface uses the value configured globally.

4. Configure the errored frame event triggering threshold.

oam errored-frame threshold threshold-value

By default, an interface uses the value configured globally.

Configuring errored frame period event detection

Restrictions and guidelines for configuring errored frame period event detection

Configuring errored frame period event detection globally

1. Enter system view.

system-view

2. Configure the errored frame period event detection window.

oam global errored-frame-period window window-value

By default, the errored frame period event detection window is 10000000.

3. Configure the errored frame period event triggering threshold.

oam global errored-frame-period threshold threshold-value

By default, the errored frame period event triggering threshold is 1.

Configuring errored frame period event detection on a port

1. Enter system view.

system-view

2. Enter Layer 2/Layer 3 Ethernet port view.

interface interface-type interface-number

3. Configure the errored frame period event detection window.

oam errored-frame-period window window-value

By default, an interface uses the value configured globally.

4. Configure the errored frame period event triggering threshold.

oam errored-frame-period threshold threshold-value

By default, an interface uses the value configured globally.

Configuring errored frame seconds event detection

Restrictions and guidelines for configuring errored frame seconds event detection

· You can configure this function in system view or port view. The configuration in system view takes effect on all ports, and the configuration in port view takes effect on the specified port. For a port, the configuration in port view takes precedence.

· Make sure the errored frame seconds triggering threshold is less than the errored frame seconds detection window. Otherwise, no errored frame seconds event can be generated.

Configuring errored frame seconds event detection globally

1. Enter system view.

system-view

2. Configure the errored frame seconds event detection window.

oam global errored-frame-seconds window window-value

By default, the errored frame seconds event detection window is 60000 milliseconds.

3. Configure the errored frame seconds event triggering threshold.

oam global errored-frame-seconds threshold threshold-value

By default, the errored frame seconds event triggering threshold is 1.

Configuring errored frame seconds event detection on a port

1. Enter system view.

system-view

2. Enter Layer 2/Layer 3 Ethernet port view.

interface interface-type interface-number

3. Configure the errored frame seconds event detection window.

oam errored-frame-seconds window window-value

By default, an interface uses the value configured globally.

4. Configure the errored frame seconds event triggering threshold.

oam errored-frame-seconds threshold threshold-value

By default, an interface uses the value configured globally.

Configuring the action a port takes after it receives an Ethernet OAM event from the remote end

About this task

This feature enables a port to log events and automatically terminate the OAM connection and set the link state to down.

Procedure

1. Enter system view.

system-view

2. Enter Layer 2/Layer 3 Ethernet port view.

interface interface-type interface-number

3. Configure the action the port takes after it receives an Ethernet OAM event from the remote end.

oam remote-failure { connection-expired | critical-event | dying-gasp | link-fault } action error-link-down

By default, the port only logs the Ethernet OAM event it receives from the remote end.

Display and maintenance commands for Ethernet OAM

Execute display commands in any view and reset commands in user view:

Task	Command
Display information about an Ethernet OAM connection.	display oam { local \| remote } [ interface interface-type interface-number ]
Display Ethernet OAM configuration.	display oam configuration [ interface interface-type interface-number ]
Display the statistics on critical events after an Ethernet OAM connection is established.	display oam critical-event [ interface interface-type interface-number ]
Display the statistics on Ethernet OAM link error events after an Ethernet OAM connection is established.	display oam link-event { local \| remote } [ interface interface-type interface-number ]
Clear statistics on Ethernet OAM packets and Ethernet OAM link error events.	reset oam [ interface interface-type interface-number ]

Ethernet OAM configuration examples

Example: Configuring Ethernet OAM

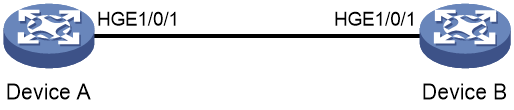

Network configuration

On the network shown in Figure 1, perform the following operations:

· Enable Ethernet OAM on Device A and Device B to auto-detect link errors between the two devices

· Determine the performance of the link between Device A and Device B by collecting statistics about the error frames received by Device A

Figure 1 Network diagram

‌

Procedure

1. Configure Device A:

# Configure HundredGigE 1/0/1 to operate in active Ethernet OAM mode, and enable Ethernet OAM for it.

<DeviceA> system-view

[DeviceA] interface hundredgige 1/0/1

[DeviceA-HundredGigE1/0/1] oam mode active

[DeviceA-HundredGigE1/0/1] oam enable

# Set the errored frame event detection window to 20000 milliseconds, and set the errored frame event triggering threshold to 10.

[DeviceA-HundredGigE1/0/1] oam errored-frame window 200

[DeviceA-HundredGigE1/0/1] oam errored-frame threshold 10

[DeviceA-HundredGigE1/0/1] quit

2. Configure Device B:

# Configure HundredGigE 1/0/1 to operate in passive Ethernet OAM mode (the default), and enable Ethernet OAM for it.

<DeviceB> system-view

[DeviceB] interface hundredgige 1/0/1

[DeviceB-HundredGigE1/0/1] oam mode passive

[DeviceB-HundredGigE1/0/1] oam enable

[DeviceB-HundredGigE1/0/1] quit

Verifying the configuration

Use the display oam critical-event command to display the statistics of Ethernet OAM critical link events. For example:

# Display the statistics of Ethernet OAM critical link events on all the ports of Device A.

[DeviceA] display oam critical-event

-----------[HundredGigE1/0/1] -----------

Local link status : UP

Event statistics

Link fault : Not occurred

Dying gasp : Not occurred

Critical event : Not occurred

The output shows that no critical link event occurred on the link between Device A and Device B.

Use the display oam link-event command to display the statistics of Ethernet OAM link events. For example:

# Display Ethernet OAM link event statistics of the local end of Device A.

[DeviceA] display oam link-event local

------------ [HundredGigE1/0/1] -----------

Link status: UP

OAM local errored frame event

Event time stamp : 5789 x 100 milliseconds

Errored frame window : 200 x 100 milliseconds

Errored frame threshold : 10 error frames

Errored frame : 13 error frames

Error running total : 350 error frames

Event running total : 17 events

The output shows the following:

¡ 350 errors occurred after Ethernet OAM is enabled on Device A.

¡ 17 errors were caused by error frames.

¡ The link is unstable.

10-High Availability Configuration Guide

Configuring Ethernet OAM

Ethernet OAMPDUs

How Ethernet OAM works

Ethernet OAM connection establishment

Link monitoring

Ethernet OAM tasks at a glance

About this task

Restrictions and guidelines

Procedure

Configuring the Ethernet OAM connection detection timers

About this task

Procedure

Ethernet OAM configuration examples

Network configuration

Procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
