Introduction

The following information provides an example for configuring local 802.1X authentication on a wireless network.

Prerequisites

The following information applies to Comware-based access controllers and access points. Procedures and information in the examples might be slightly different depending on the software or hardware version of the access controllers and access points.

The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

The following information is provided based on the assumption that you have basic knowledge of WLAN access, WLAN user access authentication, and 802.1X authentication.

Example: Configuring local 802.1X authentication for wireless clients

Network configuration

As shown in Figure 1, the switch acts as a DHCP server to assign IP addresses to the AP and the client.

Configure the AC to meet the following requirements:

·     Perform local 802.1X authentication to control the network access of the client.

·     Use open system authentication to authenticate the client at the data link layer. This is the default authentication method.

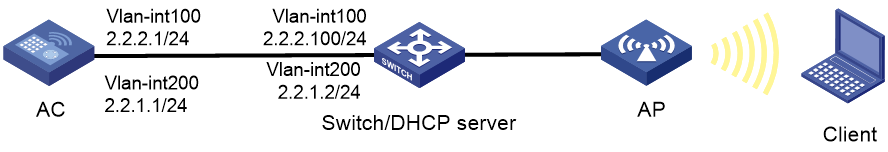

Figure 1 Network diagram



Restrictions and guidelines

When you configure local 802.1X authentication for wireless clients, follow these restrictions and guidelines:

·     Use the serial ID labeled on the AP's rear panel to specify an AP.

·     Local 802.1X authentication does not support EAP relay.

Procedures

Configuring the AC

1.     Configure interfaces on the AC:

# Create VLAN 100 and VLAN-interface 100, and assign an IP address to the VLAN interface. The AC will use this IP address to establish CAPWAP control and data tunnels with the AP.

<AC> system-view

[AC] vlan 100

[AC-vlan100] quit

[AC] interface vlan-interface 100

[AC-Vlan-interface100] ip address 2.2.2.1 24

[AC-Vlan-interface100] quit

# Create VLAN 200 and VLAN-interface 200, and assign an IP address to the VLAN interface. VLAN 200 will be used for client access.

[AC] vlan 200

[AC-vlan200] quit

[AC] interface vlan-interface 200

[AC-Vlan-interface200] ip address 2.2.1.1 24

[AC-Vlan-interface200] quit

# Configure GigabitEthernet 1/0/1 (the port connected to the switch) as a trunk port, and assign the port to VLAN 100 and VLAN 200.

[AC] interface gigabitethernet 1/0/1

[AC-GigabitEthernet1/0/1] port link-type trunk

[AC-GigabitEthernet1/0/1] port trunk permit vlan 100 200

[AC-GigabitEthernet1/0/1] quit

2.     Configure a local user:

# Create a network access user named localuser and set the password to localpass in plaintext form.

[AC] local-user localuser class network

[AC-luser-network-localuser] password simple localpass

# Set the service type to lan-access.

[AC-luser-network-localuser] service-type lan-access

[AC-luser-network-localuser] quit

3.     Configure a local authentication domain:

# Create ISP domain bbb and enter its view.

[AC] domain bbb

# Configure the ISP domain to use local authentication, authorization, and accounting for LAN access wireless clients.

[AC-isp-bbb] authentication lan-access local

[AC-isp-bbb] authorization lan-access local

[AC-isp-bbb] accounting lan-access local

[AC-isp-bbb] quit

4.     Set the 802.1X authentication method to CHAP.

[AC] dot1x authentication-method chap

5.     Configure a service template:

# Create service template service and enter its view.

[AC] wlan service-template service

# Set the SSID of the service template to service.

[AC-wlan-st-service] ssid service

# Assign VLAN 200 to the matching clients.

[AC-wlan-st-service] vlan 200

# Set the user access authentication mode to 802.1X authentication.

[AC-wlan-st-service] client-security authentication-mode dot1x

# Specify ISP domain bbb for 802.1X authentication clients in the service template.

[AC-wlan-st-service] dot1x domain bbb

# Enable the AC to forward client data traffic. If the AC forwards client data traffic by default, skip this step.

[AC-wlan-st-service] client forwarding-location ac

# Enable the service template.

[AC-wlan-st-service] service-template enable

[AC-wlan-st-service] quit

6.     Configure AP settings:



IMPORTANT: In a large-scale network, configure AP groups as a best practice.



# Create manual AP office, and specify the AP model and serial ID.

[AC] wlan ap office model WA6320

[AC-wlan-ap-office] serial-id 219801A28N819CE0003T

[AC-wlan-ap-office] quit

# Create AP group group1 and create an AP grouping rule by AP names to add AP office to AP group group1.

[AC] wlan ap-group group1

[AC-wlan-ap-group-group1] ap office

# Bind service template service to radio 1 in AP group group1.

[AC-wlan-ap-group-group1] ap-model WA6320

[AC-wlan-ap-group-group1-ap-model-WA6320] radio 1

[AC-wlan-ap-group-group1-ap-model-WA6320-radio-1] service-template service

# Enable radio 1.

[AC-wlan-ap-group-group1-ap-model-WA6320-radio-1] radio enable

[AC-wlan-ap-group-group1-ap-model-WA6320-radio-1] quit

[AC-wlan-ap-group-group1-ap-model-WA6320] quit

[AC-wlan-ap-group-group1] quit

Configuring the switch

# Enable the DHCP server.

<Switch> system-view

[Switch] dhcp enable

# Create VLAN 100. The switch will use this VLAN to forward the traffic on the CAPWAP tunnels between the AC and AP.

[Switch] vlan 100

[Switch-vlan100] quit

# Create VLAN 200. The switch will use this VLAN to forward packets for wireless clients.

[Switch] vlan 200

[Switch-vlan200] quit

# Configure GigabitEthernet 1/0/1 (the port connected to the AC) as a trunk port, and assign the trunk port to VLAN 100 and VLAN 200.

[Switch] interface gigabitethernet 1/0/1

[Switch-GigabitEthernet1/0/1] port link-type trunk

[Switch-GigabitEthernet1/0/1] port trunk permit vlan 100 200

[Switch-GigabitEthernet1/0/1] quit

# Configure GigabitEthernet 1/0/2 (the port connected to the AP) as a trunk port, assign the port to VLAN 100 and VLAN 200, and set the PVID of the port to 100.

[Switch] interface gigabitethernet 1/0/2

[Switch-GigabitEthernet1/0/2] port link-type trunk

[Switch-GigabitEthernet1/0/2] port trunk permit vlan 100 200

[Switch-GigabitEthernet1/0/2] port trunk pvid vlan 100

# Enable PoE on GigabitEthernet 1/0/2.

[Switch-GigabitEthernet1/0/2] poe enable

[Switch-GigabitEthernet1/0/2] quit

# Assign IP address 2.2.2.100/24 to VLAN-interface 100.

[Switch] interface vlan-interface 100

[Switch-Vlan-interface100] ip address 2.2.2.100 255.255.255.0

[Switch-Vlan-interface100] quit

# Assign IP address 2.2.1.2/24 to VLAN-interface 200.

[Switch] interface vlan-interface 200

[Switch-Vlan-interface200] ip address 2.2.1.2 255.255.255.0

[Switch-Vlan-interface200] quit

# Create a DHCP address pool named 100, and specify subnet 2.2.2.0/24 and gateway IP address 2.2.2.1 in the DHCP address pool.

[Switch] dhcp server ip-pool 100

[Switch-dhcp-pool-100] network 2.2.2.0 mask 255.255.255.0

[Switch-dhcp-pool-100] gateway-list 2.2.2.1

[Switch-dhcp-pool-100] option 138 ip-address 2.2.2.1

[Switch-dhcp-pool-100] quit

# Create a DHCP address pool named 200, and specify subnet 2.2.1.0/24 and gateway IP address 2.2.1.1 in the DHCP address pool.

[Switch] dhcp server ip-pool 200

[Switch-dhcp-pool-200] network 2.2.1.0 mask 255.255.255.0

[Switch-dhcp-pool-200] gateway-list 2.2.1.1

[Switch-dhcp-pool-200] quit

Configuring the iNode client

Prerequisites

In this example, the client version is iNode PC 7.1.

Connecting to the wireless network

1.     Run the iNode client, and then click Wireless Connection, as shown in Figure 2.

Figure 2 iNode Client

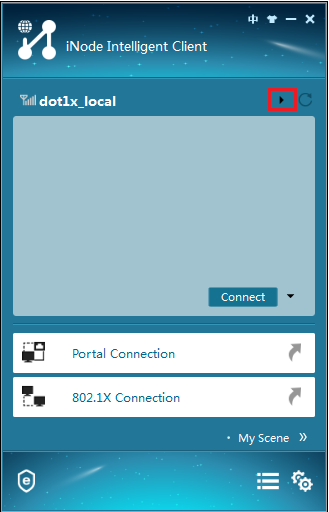

2.     Click triangle icon in the wireless connection title bar, as shown in Figure 3.

Figure 3 Wireless connection

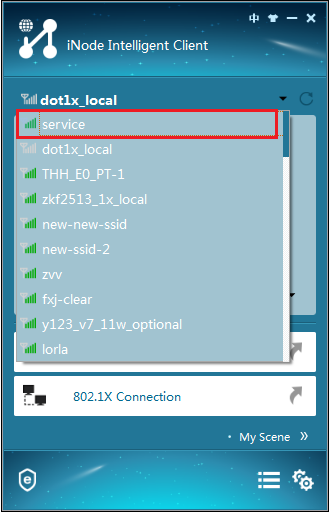

3.     Double-click the wireless service with SSID service, as shown in Figure 4.

Figure 4 Selecting a wireless service

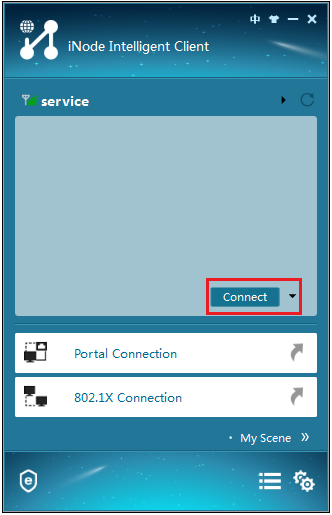

4.     Click Connect, as shown in Figure 5.

Figure 5 Connecting to the wireless network



Configuring 802.1X authentication

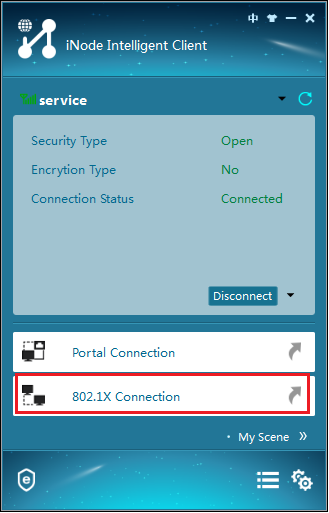

1.     Click 802.1X Connection, as shown in Figure 6.

Figure 6 802.1X connection

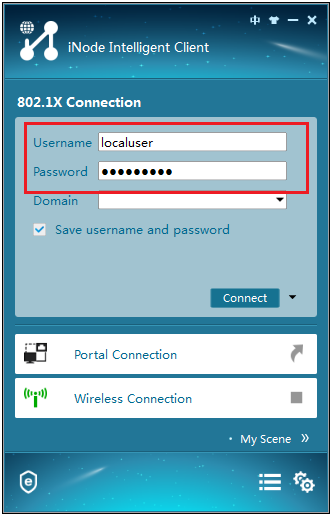

2.     Enter username localuser and password localpass, as shown in Figure 7.

Figure 7 Entering the username and password



3.     Click the inverted triangle icon next to Connect and select Properties.

4.     In the dialog box that opens, select a wireless NIC and clear the option for uploading the client version.

5.     Return to the iNode 802.1X connection screen.

6.     Click Connect.

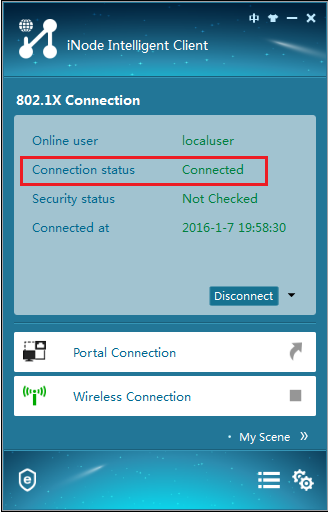

The iNode client displays the connection state as shown in Figure 8.

Figure 8 Successful 802.1X authentication



Verifying the configuration

# Display online 802.1X user information.

[AC] display dot1x connection

User MAC address           : 0015-00bf-e84d

AP name                    : office

Radio ID                   : 1

SSID                       : service

BSSID                      : 741f-4ad4-1fe0

Username                   : localuser

Authentication domain      : bbb

IPv4 address               : 2.2.1.3

Authentication method      : CHAP

Initial VLAN               : 200

Authorization VLAN         : 200

Authorization ACL number   : N/A

Authorization user profile : N/A

Termination action         : N/A

Session timeout period     : N/A

Online from                : 2019/12/04 17:37:55

Online duration            : 0h 4m 20s

# Display service template information.

[AC] display wlan service-template service

Service template name        : service

SSID                         : service

SSID-hide                    : Disabled

User-isolation               : Disabled

Service template status      : Enabled

Maximum clients per BSS      : Not configured

Frame format                 : Dot3

Seamless roam status         : Disabled

Seamless roam RSSI threshold : 50

Seamless roam RSSI gap       : 20

VLAN ID                      : 200

AKM mode                     : Not configured

Security IE                  : Not configured

Cipher suite                 : Not configured

TKIP countermeasure time     : 0 sec

PTK lifetime                 : 43200 sec

GTK rekey                    : Enabled

GTK rekey method             : Time-based

GTK rekey time               : 86400 sec

GTK rekey client-offline     : Disabled

User authentication mode     : 802.1X

Intrusion protection         : Disabled

Intrusion protection mode    : Temporary-block

Temporary block time         : 180 sec

Temporary service stop time  : 20 sec

Fail VLAN ID                 : Not configured

802.1X handshake             : Disabled

802.1X handshake secure      : Disabled

802.1X domain                : bbb

MAC-auth domain              : Not configured

Max 802.1X users             : 4096

Max MAC-auth users           : 4096

802.1X re-authenticate       : Disabled

Authorization fail mode      : Online

Accounting fail mode         : Online

Authorization                : Permitted

Key derivation               : SHA1

PMF status                   : Disabled

Hotspot policy number        : Not configured

Forwarding policy status     : Disabled

Forwarding policy name       : Not configured

FT status                    : Disabled

QoS trust                    : Port

QoS priority                 : 0

Configuration files

·     AC:

#

vlan 100

#

vlan 200

#

wlan service-template service

 ssid service

 vlan 200

 client forwarding-location ac

 client-security authentication-mode dot1x

 dot1x domain bbb

 service-template enable

#

interface Vlan-interface100

 ip address 2.2.2.1 255.255.255.0

#

interface Vlan-interface200

 ip address 2.2.1.1 255.255.255.0

#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 1 100 200

#

domain bbb

 authentication lan-access local

 authorization lan-access local

 accounting lan-access local

#

local-user localuser class network

 password cipher $c$3$+5Yra0KsaLci/RxEa4lyYKxxiw6jwMCcOg==

 service-type lan-access

#

wlan ap-group group1

 ap office

 ap-model WA6320

  radio 1

   radio enable

   service-template service

  radio 2

#

wlan ap office model WA6320

 serial-id 219801A28N819CE0003T

#

·     Switch:

#

dhcp enable

#

vlan 100

#

vlan 200

#

dhcp server ip-pool 100

 network 2.2.2.0 mask 255.255.255.0

 gateway-list 2.2.2.1

 option 138 ip-address 2.2.2.1

#

dhcp server ip-pool 200

 network 2.2.1.0 mask 255.255.255.0

 gateway-list 2.2.1.1

#

interface Vlan-interface100

 ip address 2.2.2.100 255.255.255.0

#

interface Vlan-interface200

 ip address 2.2.1.2 255.255.255.0

#

interface GigabitEthernet1/0/1

 port link-type trunk

 port trunk permit vlan 1 100 200

#

interface GigabitEthernet1/0/2

 port link-type trunk

 port access permit vlan 100 200

 port trunk pvid vlan 100

 poe enable

#

Related documentation

·     AP and WT Management Configuration Guide in H3C Access Controllers Configuration Guides

·     AP and WT Management Command Reference in H3C Access Controllers Command References

·     Network Connectivity Configuration Guide in H3C Access Controllers Configuration Guides

·     Network Connectivity Command Reference in H3C Access Controllers Command References

·     User Access and Authentication Configuration Guide in H3C Access Controllers Configuration Guides

·     User Access and Authentication Command Reference in H3C Access Controllers Command References

·     WLAN Access Configuration Guide in H3C Access Controllers Configuration Guides

·     WLAN Access Command Reference in H3C Access Controllers Command References
