Configuring uRPF
About uRPF
Unicast Reverse Path Forwarding (uRPF) protects a network against source address spoofing attacks, such as DoS and DDoS attacks.
uRPF application scenario
Attackers send packets with a forged source address to access a system that uses IPv4-based authentication, in the name of authorized users or even the administrator. Even if the attackers or other hosts cannot receive any response packets, the attacks are still disruptive to the attacked target.

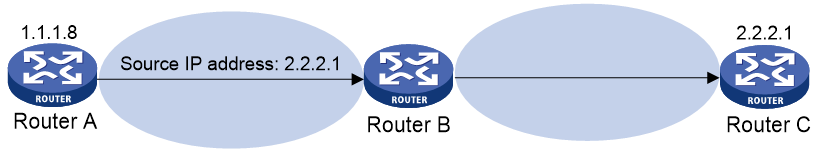

Figure 1 Source address spoofing attack
As shown in Figure 1, an attacker on Router A sends the server (Router B) requests with a forged source IP address 2.2.2.1 at a high rate. Router B sends response packets to IP address 2.2.2.1 (Router C). Consequently, both Router B and Router C are attacked. If the administrator disconnects Router C by mistake, the network service is interrupted.
Attackers can also send packets with different forged source addresses or attack multiple servers simultaneously to block connections or even break down the network.
uRPF can prevent these source address spoofing attacks. It checks whether an interface that receives a packet is the output interface of the FIB entry that matches the source address of the packet. If not, uRPF considers it a spoofing attack and discards the packet.
uRPF check modes
uRPF supports strict and loose modes.
Strict uRPF check
To pass strict uRPF check, the source address of a packet and the receiving interface must match the destination address and output interface of a FIB entry. In some scenarios (for example, asymmetrical routing), strict uRPF might discard valid packets.
Strict uRPF is often deployed between a PE and a CE.
Loose uRPF check
To pass loose uRPF check, the source address of a packet must match the destination address of a FIB entry. Loose uRPF can avoid discarding valid packets, but might let go attack packets.
Loose uRPF is often deployed between ISPs, especially in asymmetrical routing.
uRPF extended functions
Using the default route in uRPF check
When a default route exists, all packets that fail to match a specific FIB entry match the default route during uRPF check and thus are permitted to pass. To avoid this situation, you can disable uRPF from using any default route to discard such packets. If you allow using the default route (set by using allow-default-route), uRPF permits packets that only match the default route.
By default, uRPF discards packets that can only match a default route.
uRPF operation
uRPF checks a received packet as follows:
1. uRPF checks address validity:
¡ If the received packet carries a multicast destination address, uRPF permits the packet.
¡ For a received packet with an all-zero source address:
- If the destination address of the packet is a broadcast address, uRPF permits the packet.
A packet with source address 0.0.0.0 and destination address 255.255.255.255 might be a DHCP or BOOTP packet and cannot be discarded.
- If the destination address of the packet is not a broadcast address, the packet is discarded.
¡ For other packets, uRPF proceeds to step 2.
2. uRPF checks whether the source address matches a unicast route:
¡ If yes, uRPF proceeds to step 3.
¡ If no, the packet is discarded.
A non-unicast source address matches a non-unicast route.
3. uRPF checks whether the matching route is to the host itself (whether the output interface of the matching route is an InLoop interface):
¡ If yes, uRPF checks whether the receiving interface of the packet is an InLoop interface.
- If yes, uRPF permits the packet.
- If no, the packet is discarded.
¡ If no, uRPF proceeds to step 4.
4. uRPF checks whether the matching route is a default route:
¡ If yes, uRPF checks whether the allow-default-route keyword is configured to allow using the default route.
- If yes, uPRF proceeds to step 5.
- If no, the packet is discarded.
¡ If no, uRPF proceeds to step 5.
5. uRPF checks whether the source address matches the receiving interface:
uRPF uses the source address as the destination address to search for a matching route and checks the outgoing interface in the matching route or that in the default route.
¡ If the outgoing interface is the same as the packet's incoming interface, uRPF forwards the packet.
¡ If the outgoing interface and the packet incoming interface are not the same, uRPF checks whether the check mode is loose:
- If yes, the packet is forwarded.
- If no, the packet is discarded.
Network application
As shown in Figure 2, strict uRPF check is configured between an ISP network and a customer network. Loose uRPF check is configured between ISPs.
Restrictions and guidelines: uRPF configuration
Do not configure the allow-default-route keyword for loose uRPF check. Otherwise, uRPF might fail to work.
Do not use strict uRPF if ECMP routing is available in the network. Service packets that travel along ECMP routes cannot pass the strict uRPF check and will be dropped.
Enabling uRPF globally
Restrictions and guidelines
Global uRPF takes effect on all interfaces of the device.
Procedure
1. Enter system view.
system-view
2. Enable uRPF globally.
ip urpf { loose [ allow-default-route ] | strict [ allow-default-route ] }
By default, uRPF is disabled.
Display and maintenance commands for uRPF
Execute display commands in any view.
|
Task |
Command |
|
Display uRPF configuration. |
display ip urpf [ slot slot-number ] |
Configuring IPv6 uRPF
About IPv6 uRPF
IPv6 Unicast Reverse Path Forwarding (uRPF) protects a network against source address spoofing attacks, such as DoS and DDoS attacks.
IPv6 uRPF application scenario
Attackers send packets with a forged source address to access a system that uses IPv6-based authentication, in the name of authorized users or even the administrator. Even if the attackers or other hosts cannot receive any response packets, the attacks are still disruptive to the attacked target.

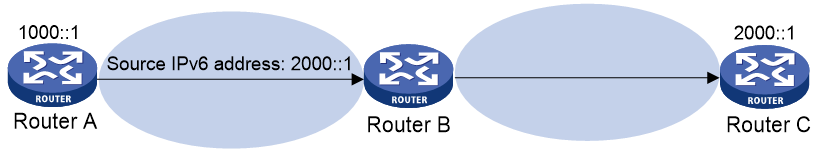

Figure 3 Source address spoofing attack
As shown in Figure 3, an attacker on Router A sends the server (Router B) requests with a forged source IPv6 address 2000::1 at a high rate. Router B sends response packets to IPv6 address 2000::1 (Router C). Consequently, both Router B and Router C are attacked. If the administrator disconnects Router C by mistake, the network service is interrupted.
Attackers can also send packets with different forged source addresses or attack multiple servers simultaneously to block connections or even break down the network.
IPv6 uRPF can prevent these source address spoofing attacks. It checks whether an interface that receives a packet is the output interface of the FIB entry that matches the source address of the packet. If not, IPv6 uRPF considers it a spoofing attack and discards the packet.
IPv6 uRPF check modes
IPv6 uRPF supports strict and loose check modes.
Strict IPv6 uRPF check
To pass strict IPv6 uRPF check, the source address of a packet and the receiving interface must match the destination address and output interface of an IPv6 FIB entry. In some scenarios (for example, asymmetrical routing), strict IPv6 uRPF might discard valid packets.
Strict IPv6 uRPF is often deployed between a PE and a CE.
Loose IPv6 uRPF check
To pass loose IPv6 uRPF check, the source address of a packet must match the destination address of an IPv6 FIB entry. Loose IPv6 uRPF can avoid discarding valid packets, but might let go attack packets.
Loose IPv6 uRPF is often deployed between ISPs, especially in asymmetrical routing.
IPv6 uRPF extended functions
Using the default route in IPv6 uRPF check
When a default route exists, all packets that fail to match a specific IPv6 FIB entry match the default route during IPv6 uRPF check and thus are permitted to pass. If you allow using the default route (by using allow-default-route), IPv6 uRPF permits packets that only match the default route.
By default, IPv6 uRPF discards packets that can only match a default route.
IPv6 uRPF operation
IPv6 uRPF checks a received packet as follows:
1. IPv6 uRPF checks whether the received packet carries a multicast destination address:
¡ If yes, IPv6 uRPF permits the packet.
¡ If no, IPv6 uRPF proceeds to step 2.
2. IPv6 uRPF checks whether the source address matches a unicast route:
¡ If yes, IPv6 uRPF proceeds to step 3.
¡ If no, the packet is discarded.
A non-unicast source address matches a non-unicast route.
3. IPv6 uRPF checks whether the matching route is to the host itself (whether the output interface of the matching route is an InLoop interface):
¡ If yes, IPv6 uRPF checks whether the receiving interface of the packet is an InLoop interface (including the situation when the source address is a link-local address and is the receiving interface address).
- If yes, IPv6 uRPF permits the packet.
- If no, the packet is discarded.
¡ If no, IPv6 uRPF proceeds to step 4.
4. IPv6 uRPF checks whether the source address matches the receiving interface:
IPv6 uRPF uses the source address as the destination address to search for a matching route and checks the outgoing interface in the matching route or that in the default route.
¡ If the outgoing interface is the same as the packet's incoming interface, IPv6 uRPF proceeds to step 5.
¡ If the outgoing interface and the packet incoming interface are not the same, IPv6 uRPF checks whether the check mode is loose:
- If yes, IPv6 uRPF proceeds to step 5.
- If no, the packet is discarded.
5. IPv6 uRPF checks whether the matching route is a default route:
¡ If yes, IPv6 uRPF checks whether the allow-default-route keyword is configured to allow using the default route.
- If yes, the packet is forwarded.
- If no, the packet is discarded.
¡ If no, the packet is forwarded.
Network application
As shown in Figure 4, strict IPv6 uRPF check is configured between an ISP network and a customer network. Loose IPv6 uRPF check is configured between ISPs.
Restrictions and guidelines: IPv6 uRPF configuration
Do not configure the allow-default-route keyword for loose IPv6 uRPF check. Otherwise, IPv6 uRPF might fail to work.
Do not use strict IPv6 uRPF if ECMP routing is available in the network. Service packets that travel along ECMP routes cannot pass the strict uRPF check and will be dropped.
Enabling IPv6 uRPF globally
Restrictions and guidelines
Global IPv6 uRPF takes effect on all interfaces of the device.
Procedure
1. Enter system view.
system-view
2. Enable global IPv6 uRPF.
ipv6 urpf { loose | strict } [ allow-default-route ]
By default, IPv6 uRPF is disabled.
Display and maintenance commands for IPv6 uRPF
Execute display commands in any view.
|
Task |
Command |
|
Display IPv6 uRPF configuration. |
display ipv6 urpf [ slot slot-number ] |
