Configuring the network adapter
The figures in this section are for illusion only.
Viewing mapping relations between network adapter ports and ICM ports

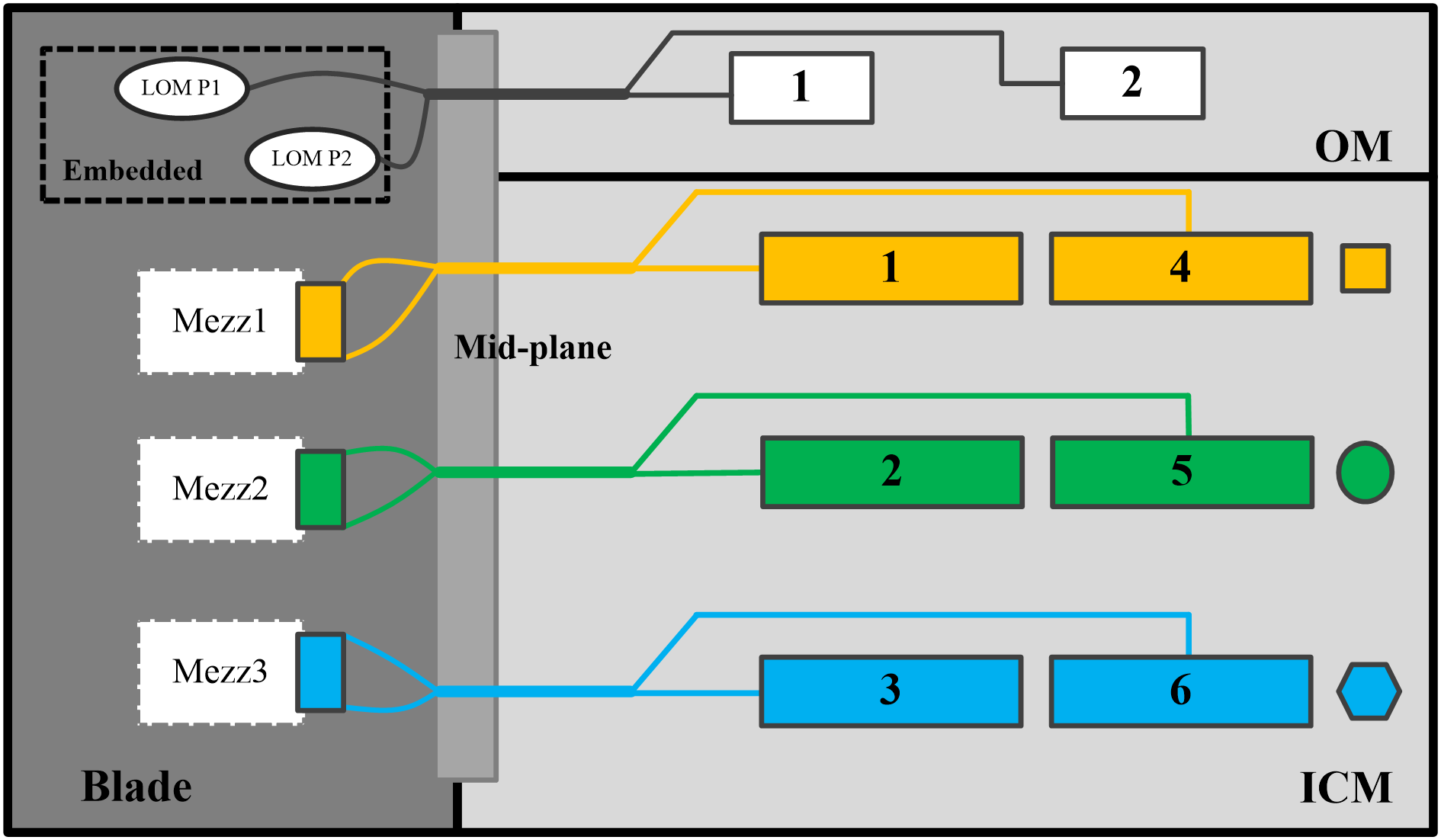

For detailed information about ICM and network adapter connections, contact Technical Support.

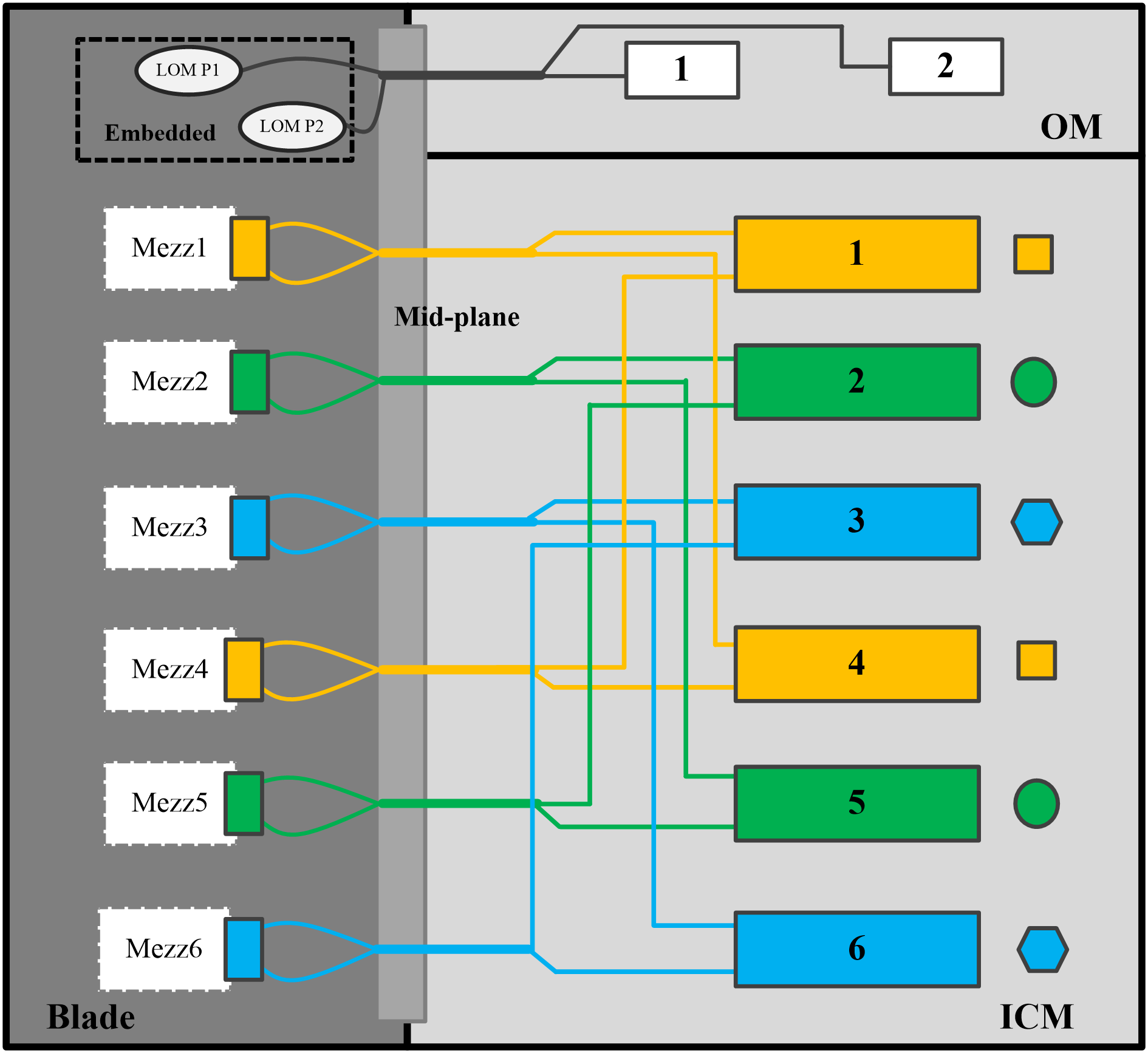

To view the actual mapping relations between the network adapter ports and ICM ports, log in to OM and access the Compute Nodes > Port Mapping page.
Verifying the identification status of the network adapter in the operating system
This section describes how to verify if the network adapter port has been identified in the operating system. It uses CentOS 7.5 and Windows Server 2016 as examples.
Linux operation systems

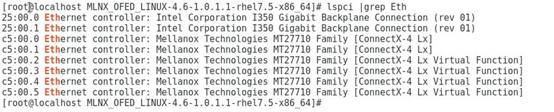

1. Execute the lspci | grep MT27710 command to view PCI device information for the ETH640i network adapter.
As shown in Figure 1, two PCIe devices represent the two ports on the network adapter.
Figure 1 Viewing PCI device information
2. Execute the ifconfig -a command to verify that the two network adapter ports have been identified. The port names are determined by the operating system naming rule. If no ports are identified, install the most recent driver and try again. For more information, see "Installing and removing a network adapter driver in the operating system."

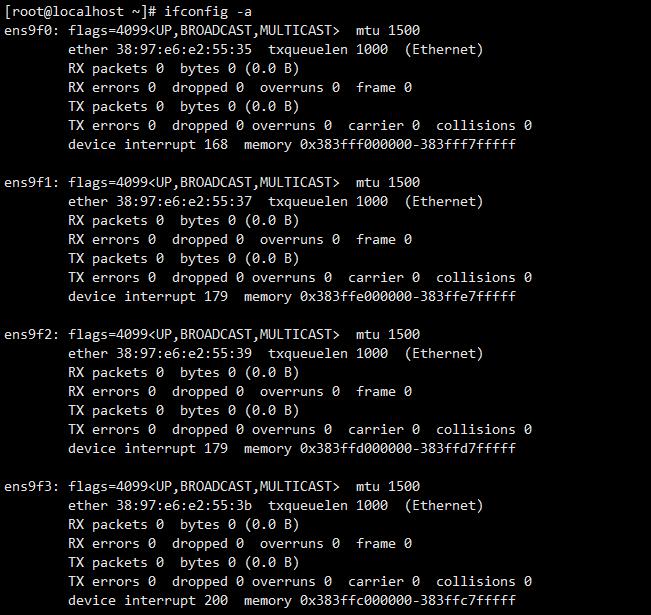

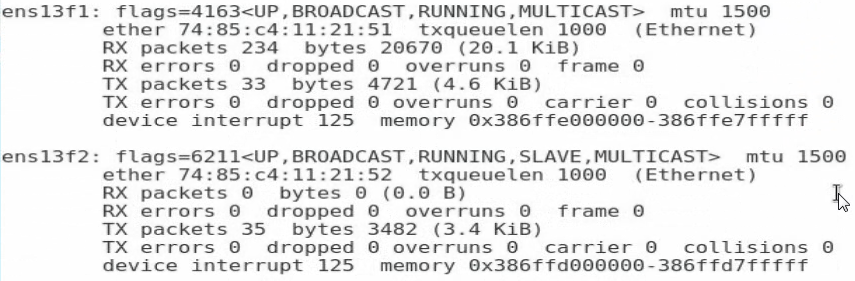

Figure 2 Viewing information about network adapter ports
Windows operating systems
1. Open Network Connections and verify that the Mellanox network adapters can be displayed correctly.

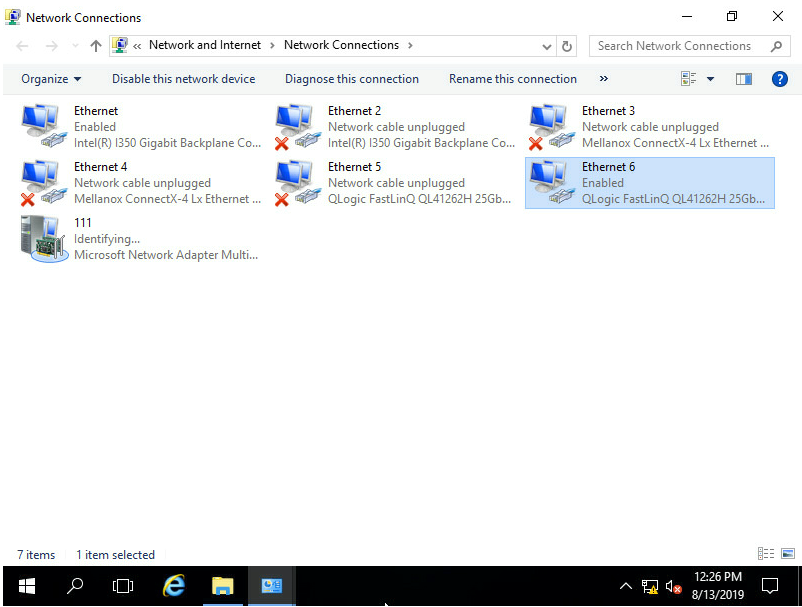

Figure 3 Viewing network adapters
2. If the network adapter is not displayed, open Device Manager, and examine if a PCI device exists in the Network adapters > Other devices window.
¡ If a PCI device exists, an error has occurred on the driver. Install the most recent driver and try again. For more information, see "Installing and removing a network adapter driver in the operating system."
¡ If no PCI devices exist, verify that the network adapter is installed securely.

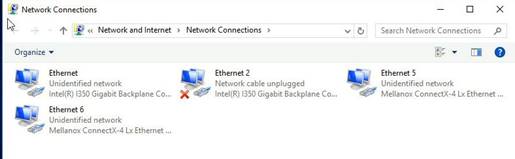

Figure 4 Viewing network adapters
Installing and removing a network adapter driver in the operating system
The driver used by the network adapter and the installation method for the driver varies by operating system. This section uses CentOS 7.5 and Windows Server 2016 as examples.
Linux operating systems

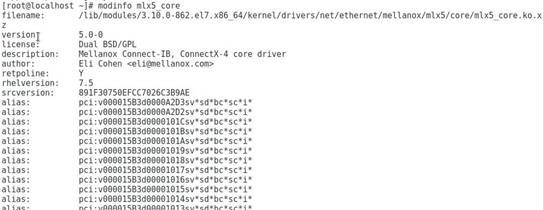

1. Execute the modinfo mlx5_core command to view the current driver version.
Figure 5 Viewing the driver version
2. If the driver is a .tgz file, run the executable file and install the driver directly.
a. Copy the .tgz driver file (for example, MLNX_OFED_LINUX-4.6-1.0.1.1-rhel7.5-x86_64.tgz) to the operating system.
b. Execute the tar -xvf file_name.tgz command to decompress the driver.
c. Execute the cd MLNX_OFED_LINUX-<ver> command to access the directory of the source code package and install the driver.

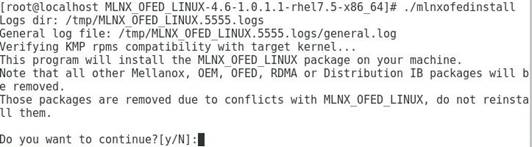

Figure 6 Installing the driver
d. After the installation finishes, restart the operating system or execute the rmmod mlx5_core and modprobe mlx5_core commands to reload the driver for the driver to take effect.
e. Execute the modinfo mlx5_core or ethtool -i ethX command to verify that the driver version is correct.
The ethX argument represents the port on the network adapter.

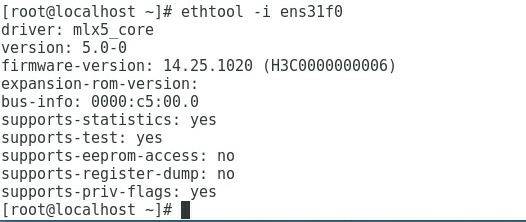

Figure 7 Verifying the driver version
3. To uninstall the driver, run the ./uninstall.sh script in the driver installation directory. Restart the operating system or execute the rmmod mlx5_core and modprobe mlx5_core commands to load the old driver.
Windows operating systems
1. Verify the current driver for the network adapter.
a. Click the Start icon to enter the menu.
b. Select Control Panel > Hardware > Device Manager.

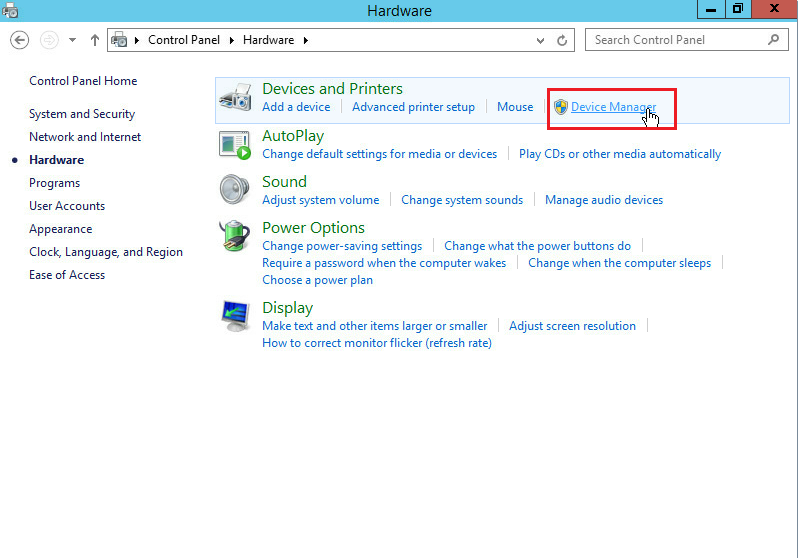

Figure 8 Opening Device Manager

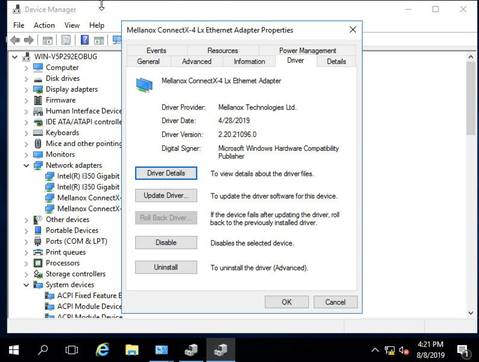

c. Right click the port on the network adapter, and then select Properties > Driver.

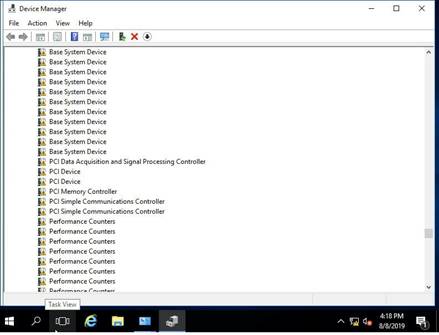

Figure 9 Device Manager
2. Install the driver.
a. Obtain the driver from the H3C official website.
b. Double click the driver and then click Next >.

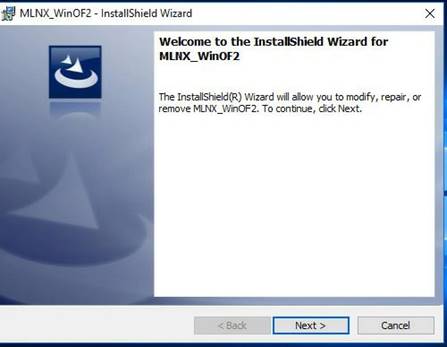

Figure 10 Installing the driver
c. After the installation finishes, restart the operating system to have the driver take effect.
d. Verify that the driver version has been updated.
Figure 11 Verifying the driver version
3. Remove the driver.
a. Click the Start icon to enter the menu page.
b. Select Control Panel > Hardware > Device Manager.
c. Right click the network adapter whose driver is to be removed, select Properties > Driver, and then click Uninstall.

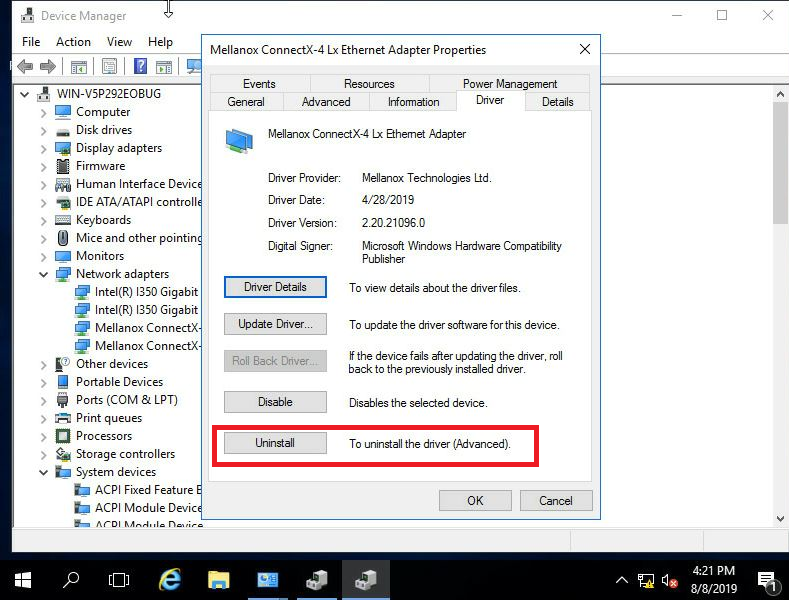

Figure 12 Removing a driver
Configuring PXE
This section describes how to enable PXE on a network adapter in the BIOS. To use the PXE feature, you must set up a PXE server. You can obtain the setup method for a PXE server from the Internet.
To configure PXE:
1. During startup of the server, press Delete or ESC as prompted to enter the BIOS Setup utility.
2. Enable PXE.
In UEFI boot mode:
a. Click the Advanced tab, select Network Stack Configuration, and then press Enter.

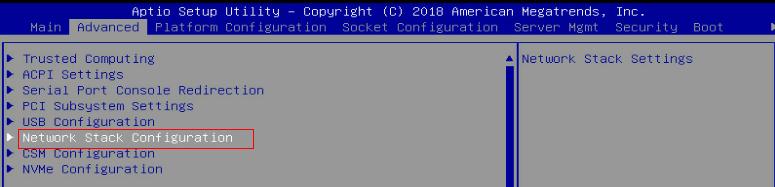

Figure 13 Advanced page
b. Set Ipv4 PXE Support and Ipv6 PXE Support to Enabled.

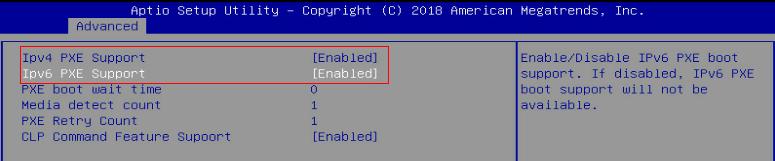

Figure 14 Enabling PXE in UEFI mode
In Legacy boot mode:

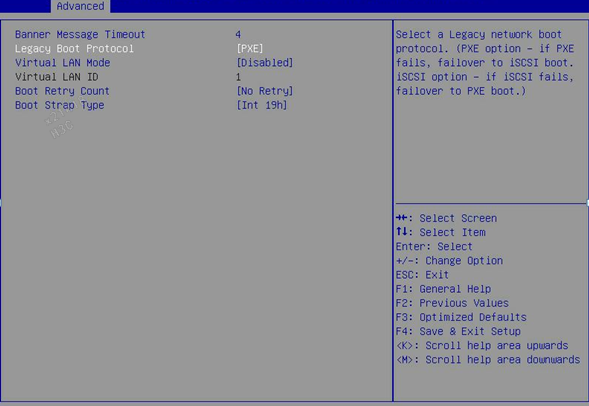

a. Click the Advanced tab, select Network_Adapter > NIC Configuration, and then press Enter.
b. Set Legacy Boot Protocol to PXE.
Figure 15 Advanced page
3. Press F4 to save the configuration.
The server restarts automatically. During startup, press F12 at the POST phase to boot the server from PXE.
Configuring iSCSI SAN
The iSCSI feature must cooperate with a remote network storage device. The configuration methods for network storage devices vary by device. For more information, see the related document for the storage device. This document describes only configuration on the local server.
This document uses Windows and RHEL 7.5 as examples to describe how to configure iSCSI SAN for the network adapter.
Configuring iSCSI SAN in a Windows operating system
1. Assign an IP address to the network interface on the network adapter that connects to the iSCSI network storage device. Make sure the host and iSCSI storage device can reach each other.

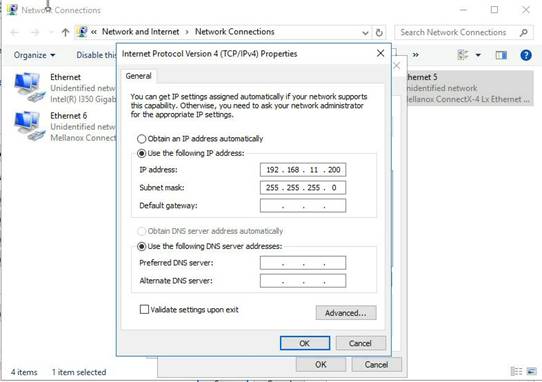

Figure 16 Configuring the local IP address
2. Enable and configure iSCSI.

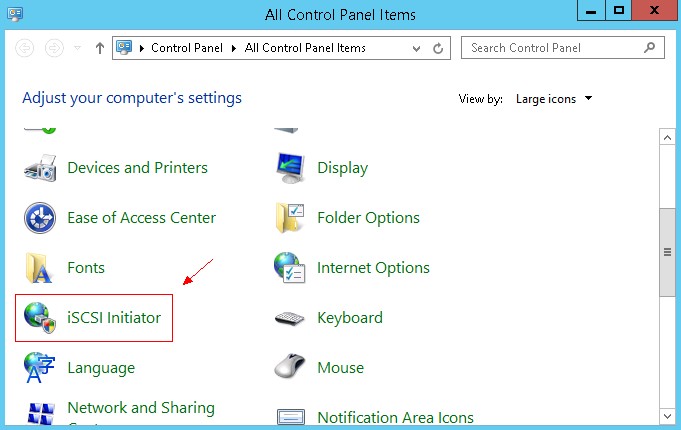

a. Open Control Panel, and then click iSCSI Initiator. Click OK on the dialog box that opens.
Figure 17 Clicking iSCSI Initiator
b. Click the Configuration tab, click Change…, and then configure the name of the local iSCSI initiator.

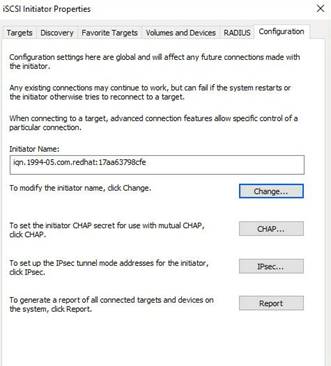

Figure 18 Configuring the name of the iSCSI initiator

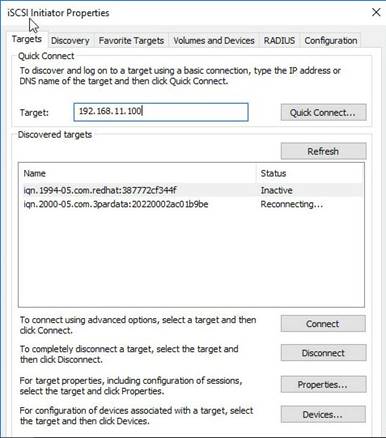

c. Click the Targets tab, specify the peer storage IP address, and click Quick Connect to scan address information about the peer device (network storage device).
Figure 19 Adding the address information about the peer device
d. Click the Targets tab and view the status of the discovered target. If the status is inactive, click Connect to change the target status to Connected. Then, close the dialog box.

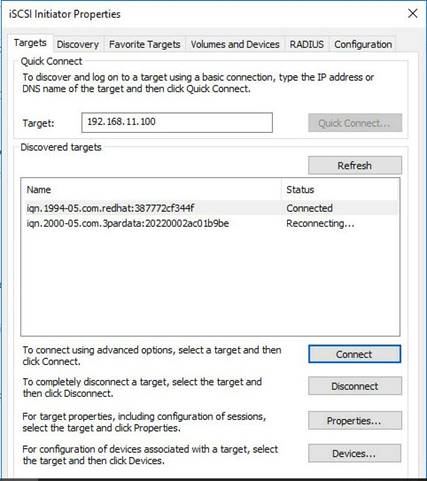

Figure 20 Connecting the target
3. Adding the network disk.
Before adding the network disk, make sure the related configuration has been completed on the network storage device.

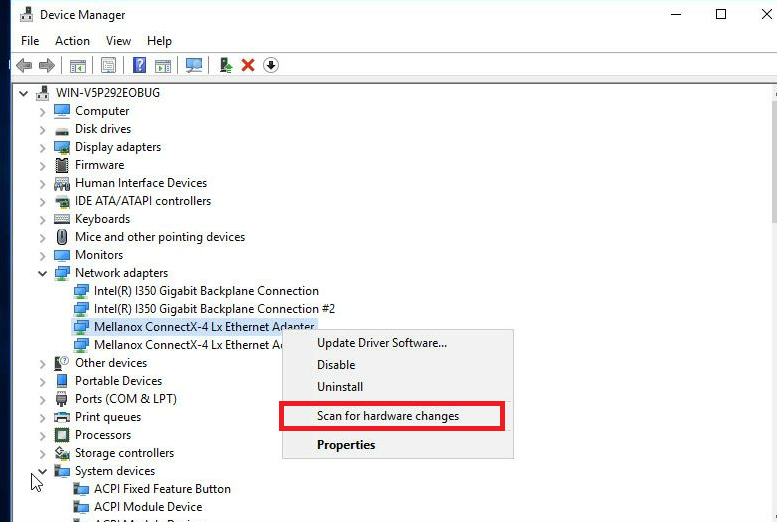

a. Open Control Panel, and then select Hardware > Device Manager > Network adapters. Right click the network adapter port, and then select Scan for hardware changes.
Figure 21 Scanning iSCSI network storage device
b. Click the Start icon at the left bottom of the system. Open Disk Management to verify that a disk which is in Unknown state is displayed.

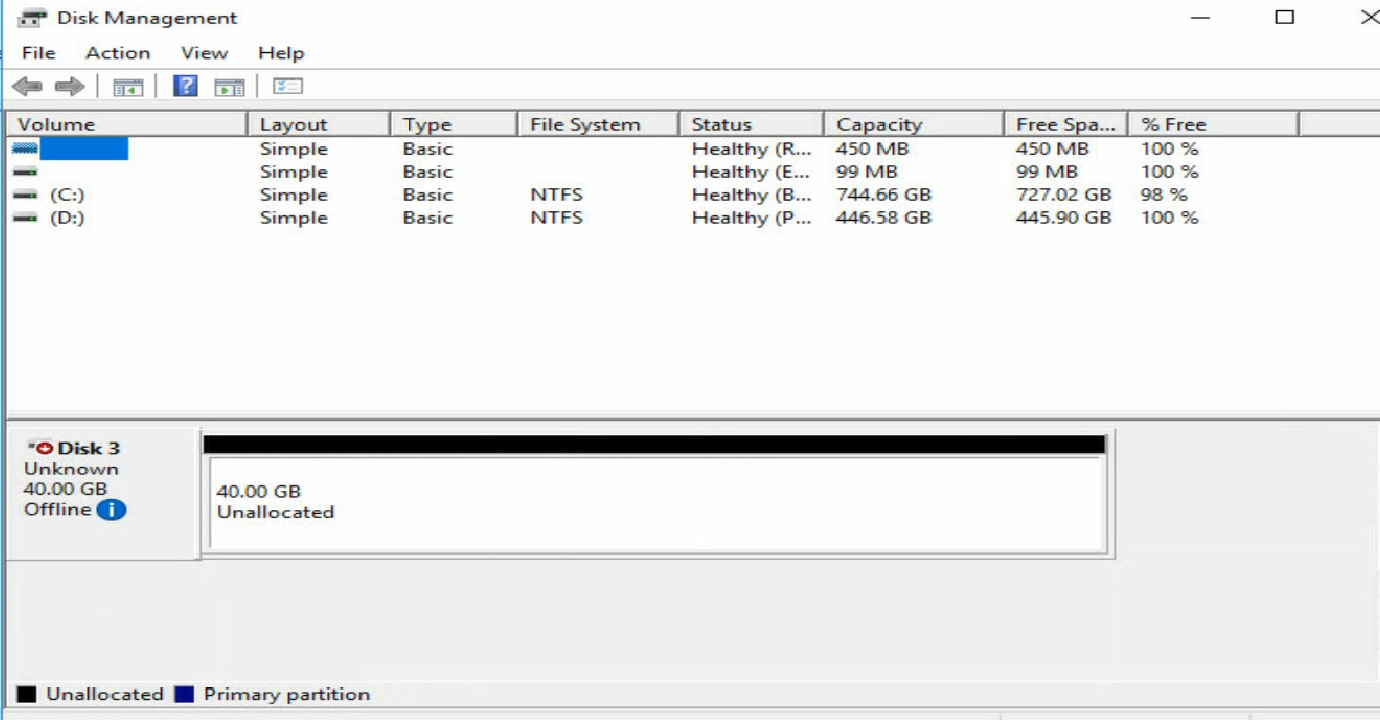

Figure 22 Disk Management
c. Right click the disk name, and then select Online.

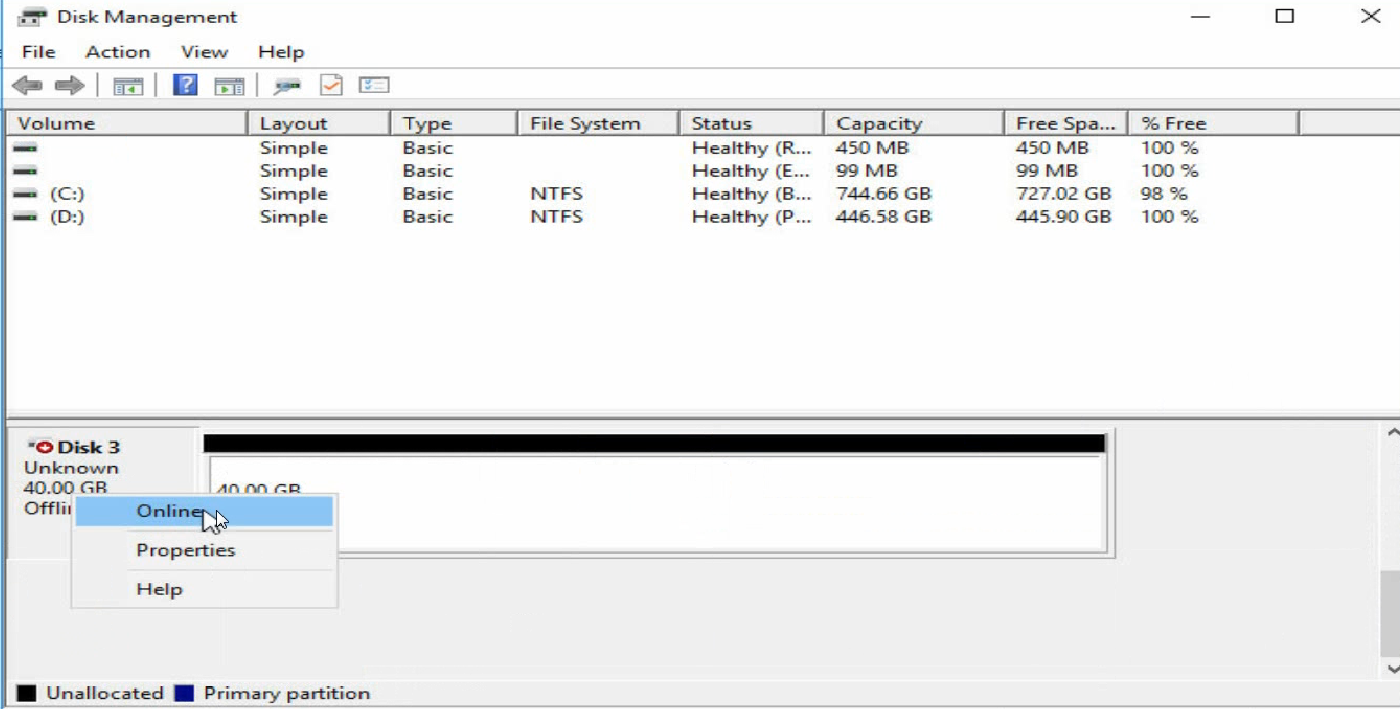

Figure 23 Bringing the disk online
d. Right click the disk name, and then select Initialize Disk.

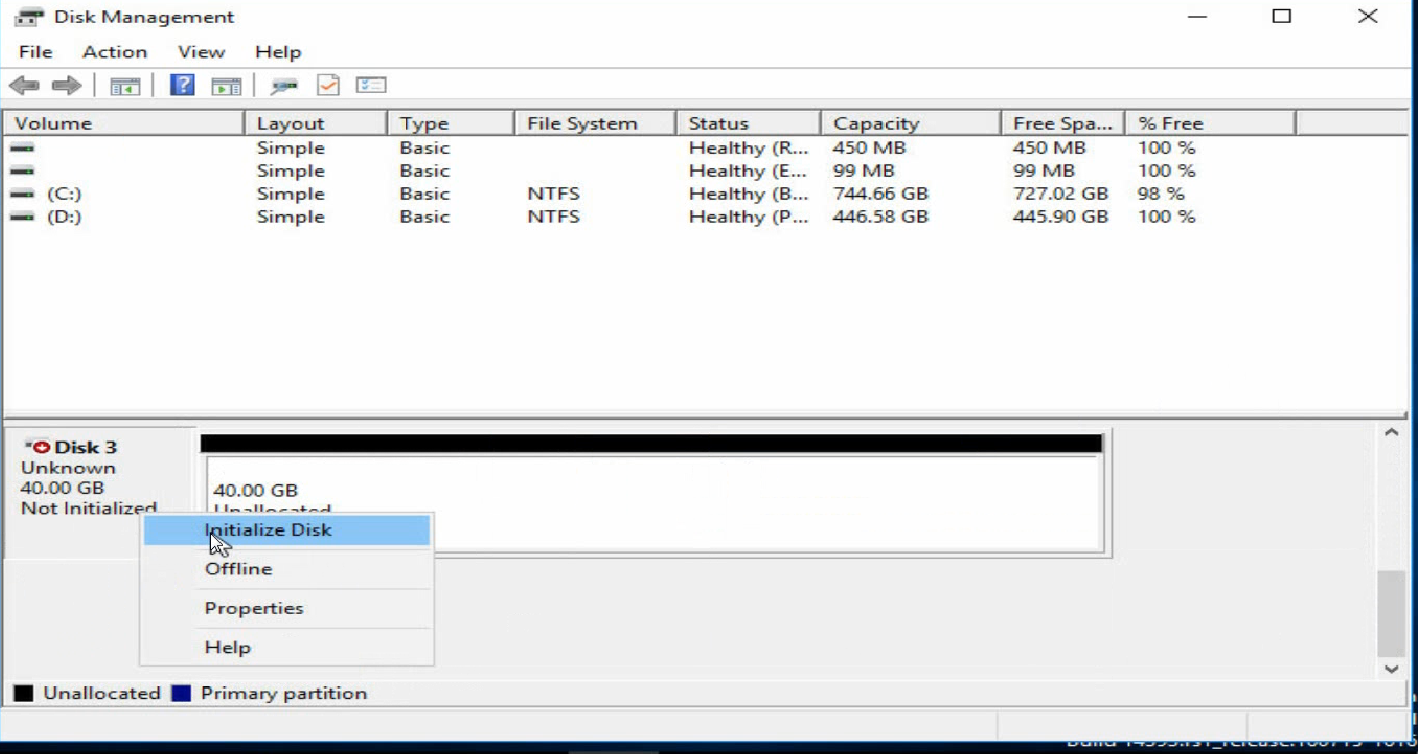

Figure 24 Initializing the disk
e. Right click the Unallocated area to assign a volume to the disk as prompted.

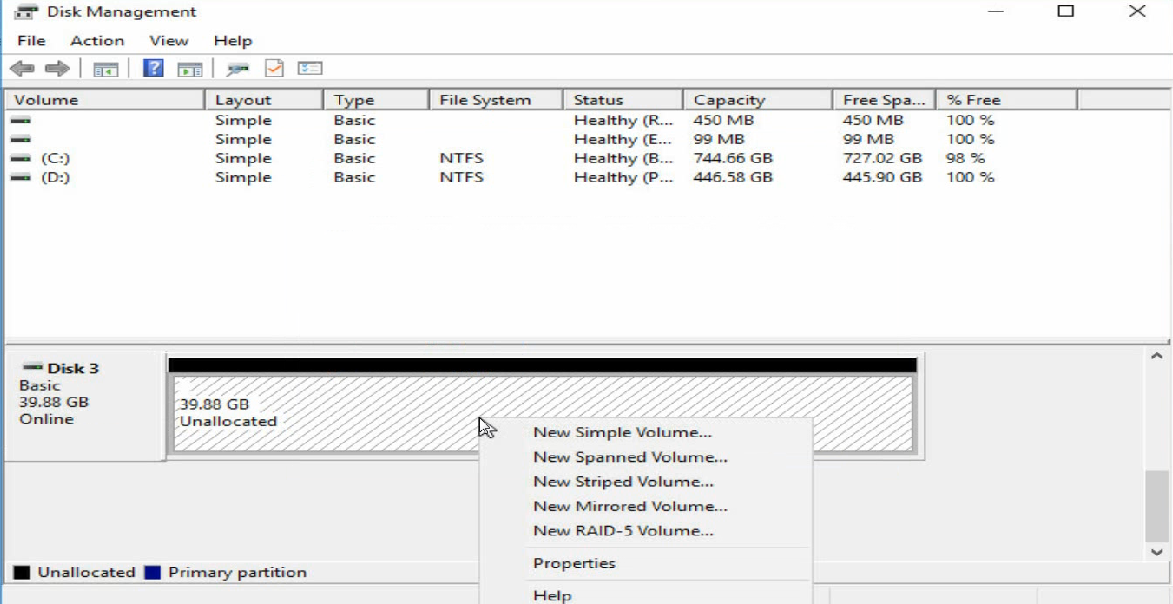

Figure 25 Assigning a volume to the disk
Figure 26 Volume assignment completed
4. Verify that the new volume has been added.

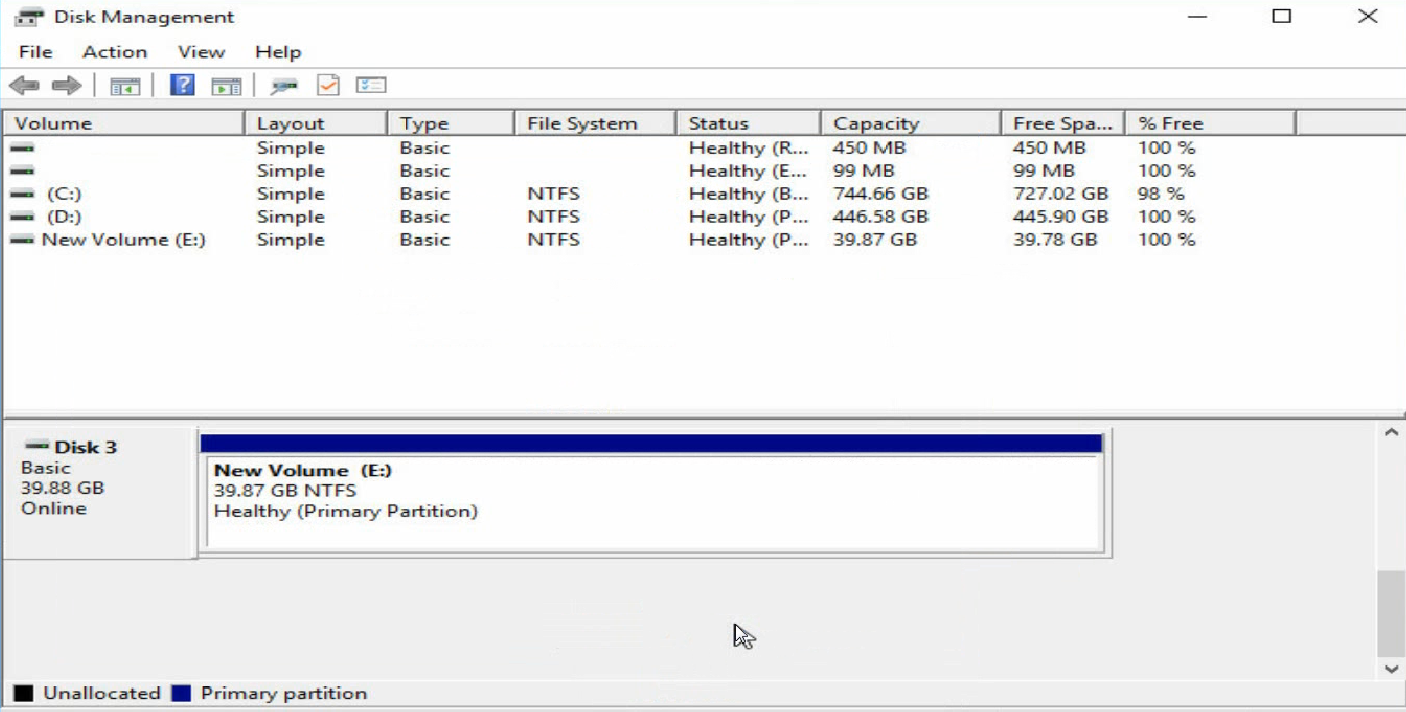

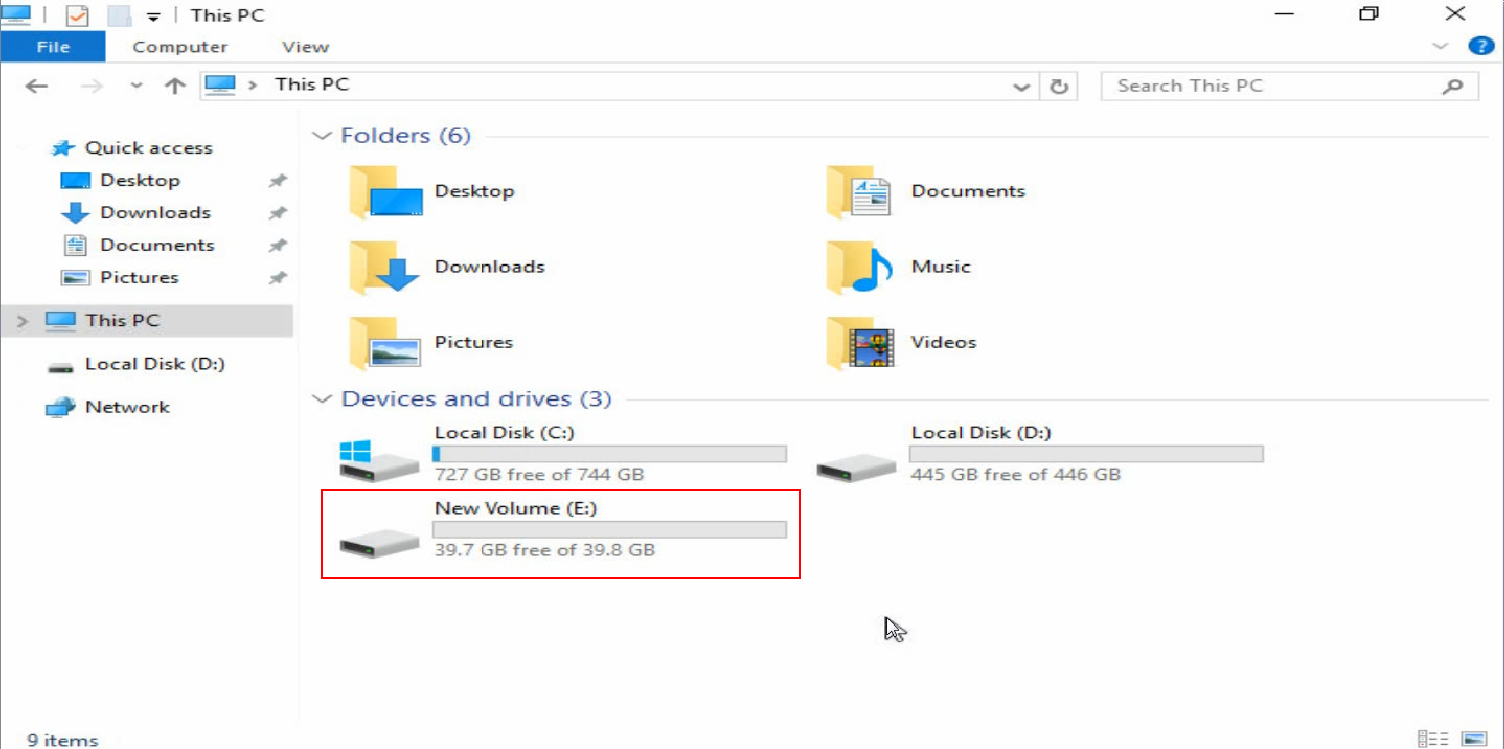

Figure 27 Verifying the new volume
Configuring iSCSI SAN in a Red Hat system
Before configuring iSCSI SAN, make sure the iSCSI client software package has been installed on the server.
To configure iSCSI SAN in RHEL 7.5:
1. Assign an IP address to the network interface which connects to the iSCSI network storage device. Make sure the server and the iSCSI storage device can reach each other.
Figure 28 Configuring the local IP address
2. Execute the cat initiatorname.iscsi command in the /etc/iscsi directory to view the IQN of the local iSCSI initiator. If no IQN is specified, use the vi command to specify one manually.
Figure 29 Configuring the name of the local iSCSI initiator
3. Execute the iscsiadm -m -discovery -t st -p target-ip command to probe the IQN of the iSCSI target (peer iSCSI storage device). The target-ip argument represents the IP address of the peer iSCSI storage device.
Figure 30 Probing the IQN of the iSCSI target
4. Execute the iscsiadm -m node -T iqn-name -p target-ip -l command to connect the iSCSI target. The iqn-name argument represents the IQN of the iSCSI target. The target-ip argument represents the IP address of the iSCSI target.
Figure 31 Connecting the iSCSI target
|
|
NOTE: · To disconnect the iSCSI target, execute the iscsiadm -m node -T iqn-name -p target-ip -u command. · To delete the iSCSI target node information, execute the iscsiadm -m node -o delete -T iqn-name -p target-ip command. |
5. Execute the lsblk command to view the newly-added network disks.
Before viewing the newly-added network disks, make sure related configuration has been finished on the network storage device.

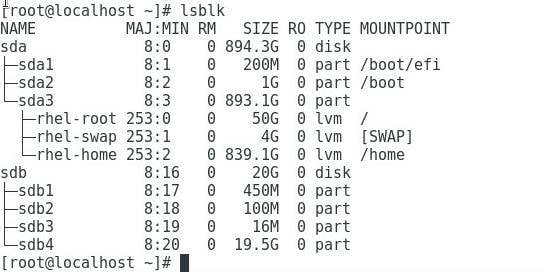

Figure 32 Viewing the newly-added network disks
|
|
NOTE: In this example, two volumes have been created on the storage server so that two network disks are added. |
6. Execute the mkfs command to format the newly-added disks.
Figure 33 Formatting a newly-added disk
7. Execute the mount command to mount the disk.
Figure 34 Mounting the disk
Configuring SR-IOV
1. Enter the BIOS Setup utility.

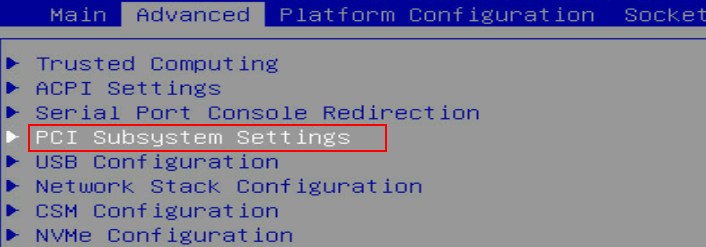

2. Select Advanced > PCI Subsystem Settings, and then press Enter.
Figure 35 Advanced screen
3. Select SR-IOV Support and set it to Enabled. Press ESC until you return to the BIOS Setup main screen.

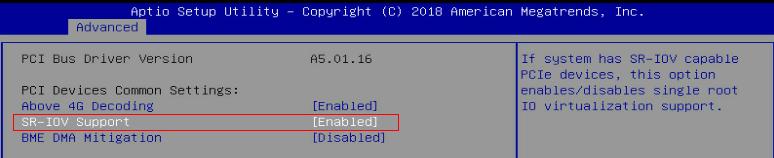

Figure 36 Setting SR-IOV Support to Enabled
4. Select Socket Configuration > IIO Configuration > Intel@ VT for Directed I/O (VT-d), and then press Enter.

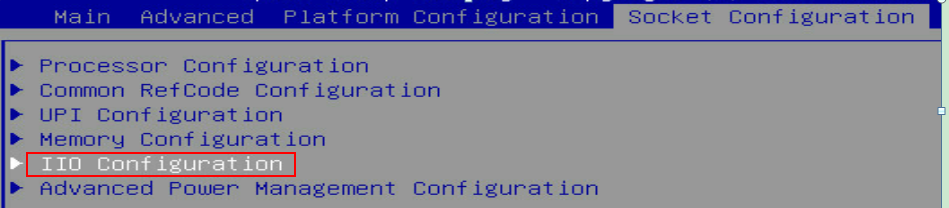

Figure 37 Socket Configuration screen
5. Select Intel@ VT for Directed I/O (VT-d) and set it to Enable. Press ESC until you return to the BIOS Setup main screen.

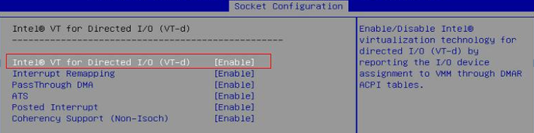

Figure 38 Intel@ VT for Directed I/O (VT-d) screen
6. Click the Advanced tab, select a port of the network adapter, and press Enter. Select Device Level Configuration and set Virtualization Mode to SR-IOV. Perform the task for both ports of the network adapter. Save the configuration and restart the server.

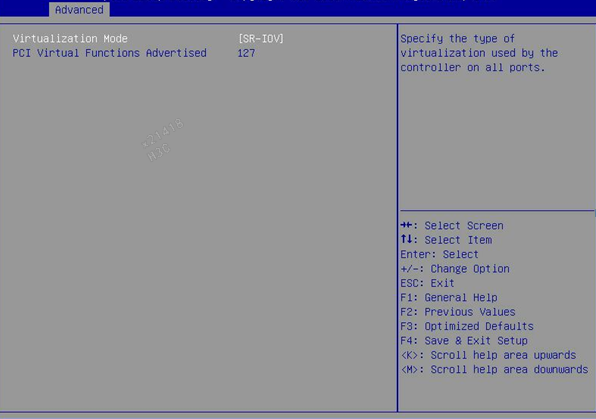

Figure 39 Enabling Virtualization Mode
7. During startup, press E. Press the arrow keys to turn pages. Add intel_iommu=on to the specified position to enable IOMMU. Press Ctrl-x to continue to start the server.

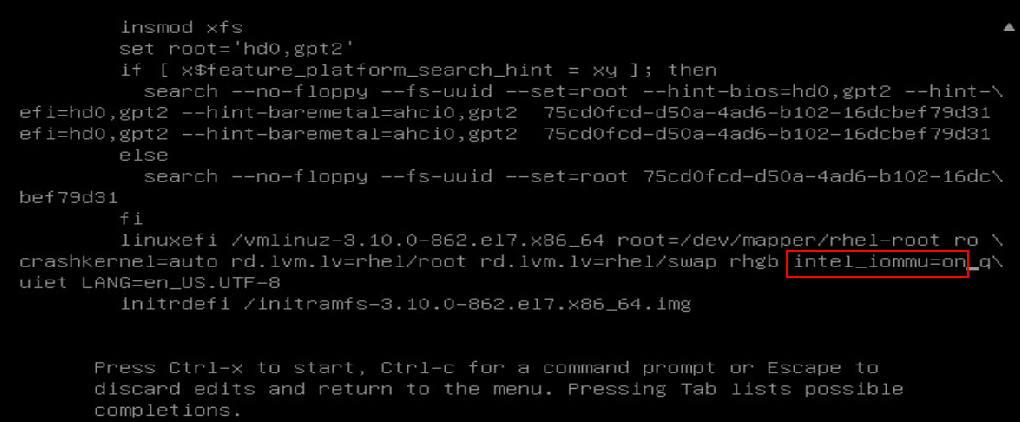

Figure 40 Enabling IOMMU

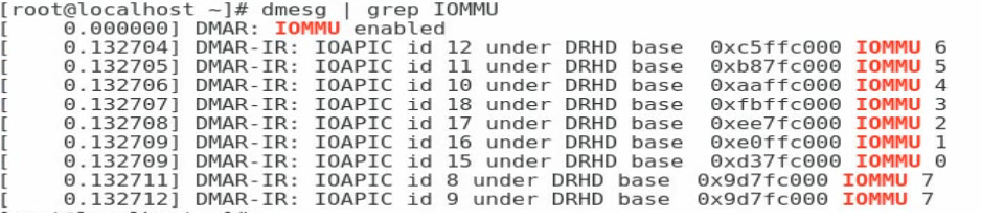

8. After you enter the system, execute the dmesg | grep IOMMU command to verify that IOMMU is enabled.
Figure 41 Verifying that IOMMU is enabled
9. Execute the echo NUM > /sys/class/infiniband/mlx5_X/device/sriov_numvfs command to assign a specified number of VFs to a PF port.
The NUM argument represents the number of VFs to be assigned. The mlx5_X argument represents the PF port name.
Figure 42 Assigning VFs to a PF port
10. Execute the lspc | grep MT27710 command to verify that VFs have been assigned successfully.
Figure 43 Verifying VF assignment
11. Execute the virt-manager command to run the VM manager. Select File > New Virtual Machine to create a VM.

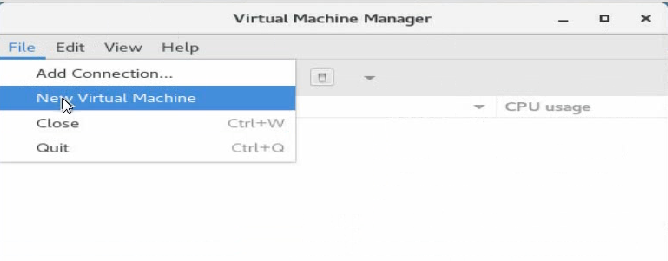

Figure 44 Creating a VM
12. On the New Virtual Machine page, add a virtual NIC as instructed by the callouts in Figure 45.

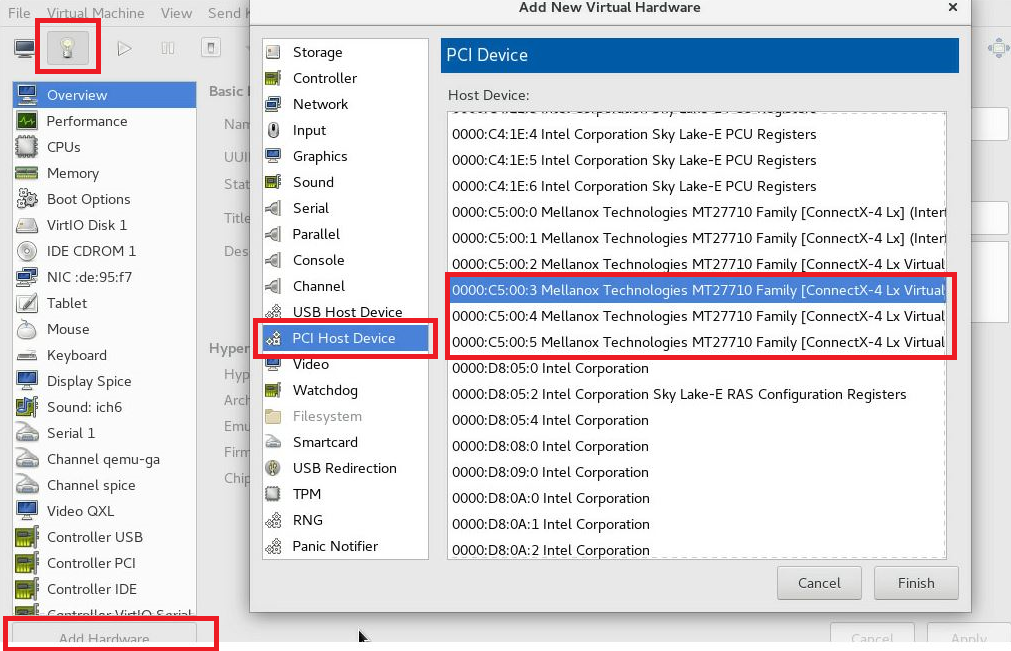

Figure 45 Adding a virtual NIC
13. Install the vNIC driver and execute the ifconfig ethVF hw ether xx:xx:xx:xx:xx:xx command to configure an MAC address for the vNIC. The ethVF argument represents the virtual NIC name. The xx:xx:xx:xx:xx:xx argument represents the MAC address.
Configuring advanced features
Configuring VLAN (802.1Q VLAN)
This section uses RHEL 7.5 as an example.
To configure 802.1Q VLAN in the operating system:
1. Execute the modprobe 8021q command to load the 802.1Q module.
2. Execute the ip link add link ethX name ethX.id type vlan id id command to create a VLAN interface on a physical port. The ethX argument represents the physical port name. The id argument represents the VLAN ID.
3. Execute the ip -d link show ethX.id command to verify that the VLAN interface has been created successfully.

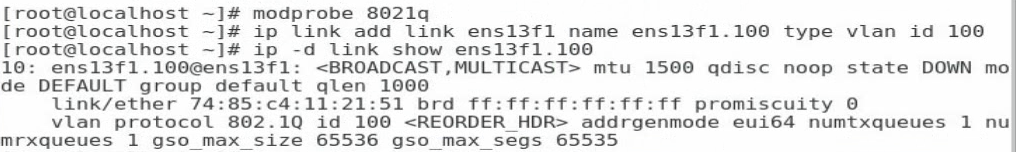

Figure 46 Creating a VLAN interface
4. Execute the ip addr add ipaddr/mask brd brdaddr dev ethX.id and ip link set dev ethX.id up commands to assign an IP address to the VLAN interface and set the VLAN interface state to UP, respectively. The ipaddr/mask argument represents the IP address and mask of the VLAN interface. The brdaddr argument represents the broadcast address. The ethX.id argument represents the VLAN ID.
To delete a VLAN interface, execute the ip link set dev ethX.id down and ip link delete ethX.id commands.

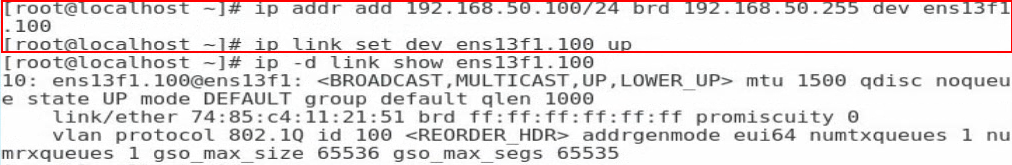

Figure 47 Assigning an IP address to the VLAN interface and set the VLAN interface state to UP
Configuring 802.1Q double-tagging
1. Use either of the following method to add a VLAN tag to a VF on a network adapter port.
¡ Use the sysfs command:
echo '100:0:802.1q' > /sys/class/net/ens1f0/device/sriov/0/vlan
¡ Use the ip link command:
ip link set dev ens1f0 vf 0 vlan 100
This method requires the most recent kernel version.
2. Execute the ip link show command to verify the configuration result.

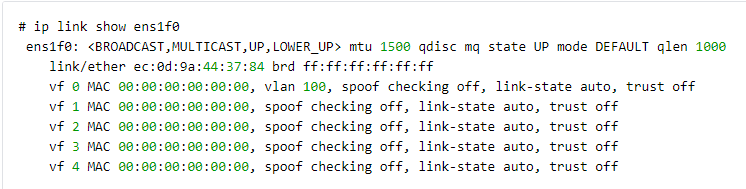

Figure 48 Verifying the configuration result
3. Assign the VF configured with VLAN to a VM, and then create another VLAN for the interface of the VM.
Figure 49 Creating another VLAN
4. Configure another VM in the same way. The two VMs can communicate with each other in double-tagging format.
Configuring bonding (Linux)
This section uses RHEL 7.5 as an example to describes how to configure bonding in mode 6.

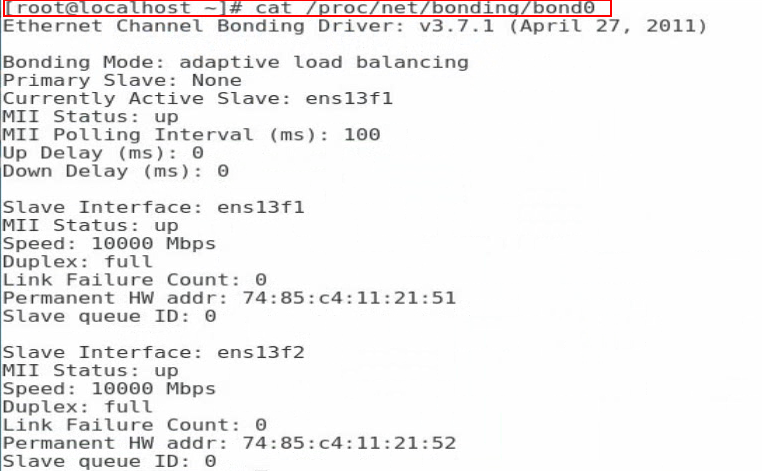

To configure bonding in mode 6:

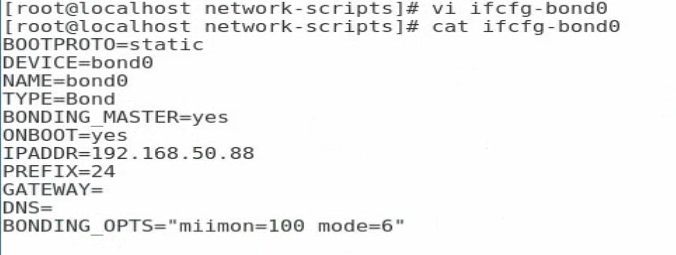

1. Execute the vi ifcfg-bond0 command in the /etc/sysconfig/network-scripts/ directory to create a configuration file for bond0 and add the following information:
BOOTPROTO=static
DEVICE=bond0
NAME=bond0
TYPE=Bond
BONDING_MASTER=yes
ONBOOT=yes
IPADDR=192.168.50.88 //Configure the interface IP address for bond0
PREFIX=24 //Configure the subnet mask
GATEWAY=
DNS=
BONDING_OPTS=”miimon=100 mode=6” //Set the detection interval to 100 ms and the bonding mode to 6
Figure 50 Configuring bond0
2. Edit the configuration file for a slave interface. Execute the vi ifcfg-ethX command and add the following information to the configuration file:
ONBOOT=yes
MASTER=bond0
SLAVE=yes
For other slave interfaces to be added to bond0, repeat this step.
Figure 51 Editing the configuration file for a slave interface
3. Execute the service network restart command to restart the network service and have bond0 take effect.
Figure 52 Restarting the network service
4. Execute the cat /proc/net/bonding/bond0 command to view information about bond0 and network adapter. In this example, bond0 and the two slave interfaces are in all in up state.

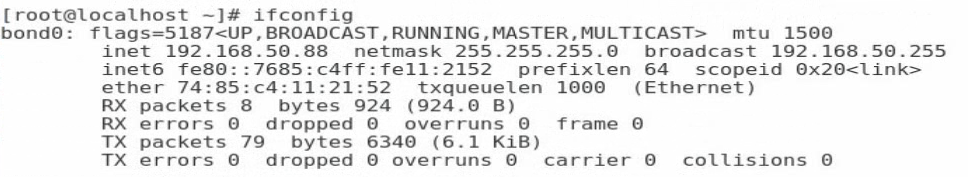

Figure 53 Viewing information about bond0
Figure 54 Viewing information about the network adapter (1)
Figure 55 Viewing information about the network adapter (2)
Configuring teaming (Windows)
1. Open Server Manager, and then select Local Server > NIC Teaming > Disabled to enter the NIC Teaming page.

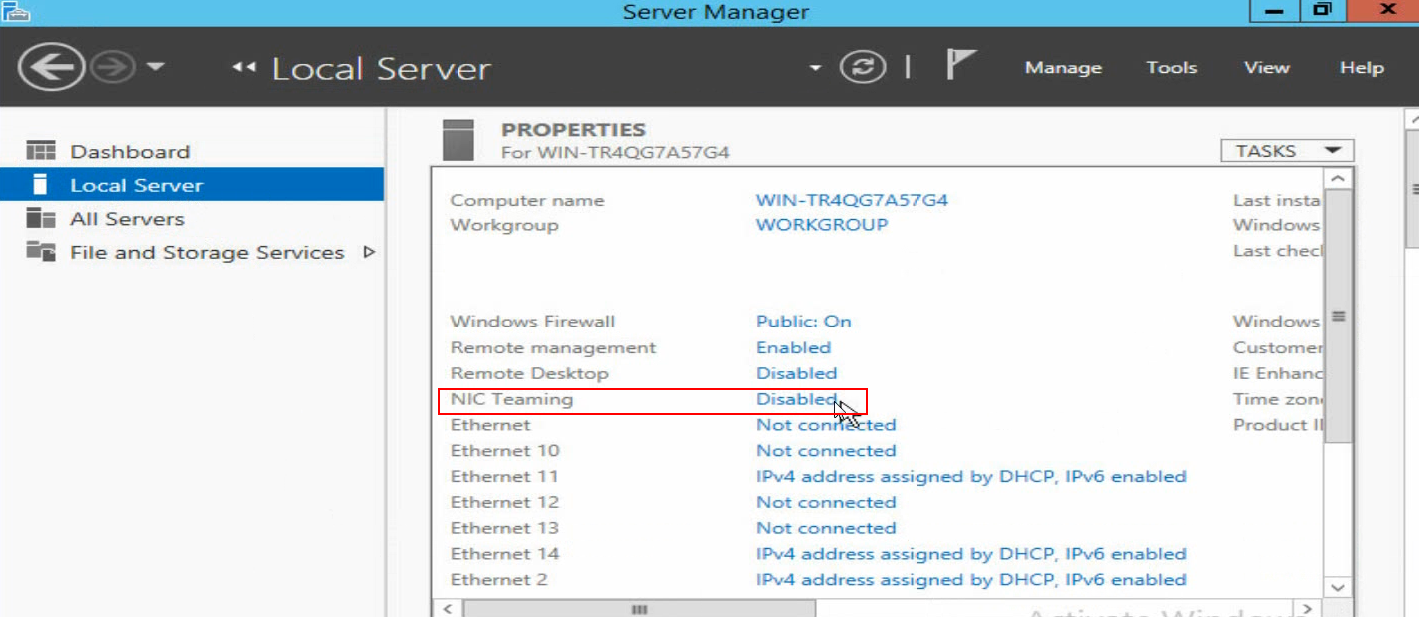

Figure 56 Entering the NIC Teaming page
2. Select TASKS > New Team to create a team.

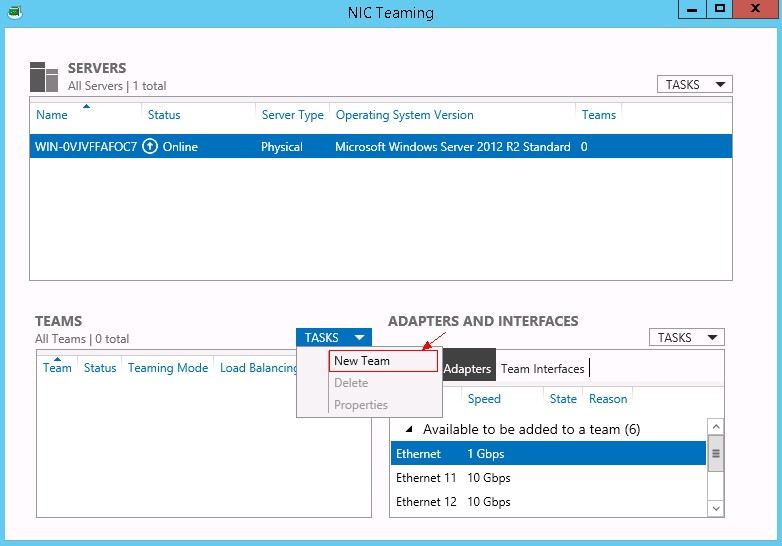

Figure 57 Creating a team
3. Configure the team name and select the network adapters to be added to the team. Select Additional properties, configure the properties, and then click OK.
Team creation in Switch Independent mode takes a long time.

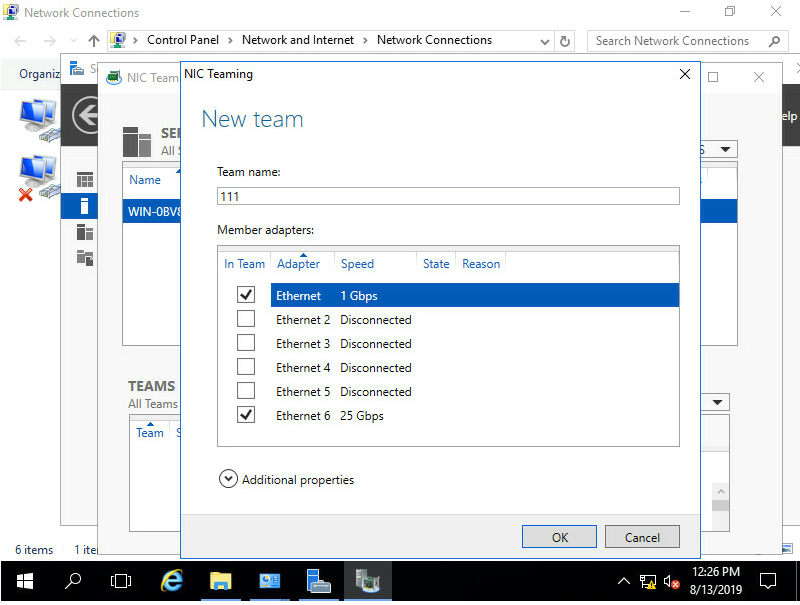

Figure 58 Configuring a new team
4. After team creation finishes, you can view the network adapter 111 on the Network Connections page.
Figure 59 Viewing the new network adapter
Configuring TCP offloading
1. Execute the ethtool -k ethx command to view the support and enabling state for the offload features. The ethx argument represents the port name of the network adapter.
Figure 60 Viewing the support and enabling state for the offload features
2. Execute the ethtool -K ethX feature on/off command to enable or disable an offload feature. The ethx argument represents the port name of the network adapter. The feature argument represents the offload feature name. The value for the argument includes tso, lso, lro, gso, and gro.
Figure 61 Disabling offload features
Appendix A Specifications and features
The ETH640i network adapter (product model: NIC-ETH640i-Mb-2*25G) is an Ethernet adapter that provides two 25-GE ports. It can be applied to the B16000 blade server chassis to provide network interfaces connecting blade servers to ICMs. The network adapter exchanges data with blade servers by using PCIe 3.0 x8 channels and uses the two 25-GE ports to connect to the ICMs through the mid plane. It supports applications such as NIC and iSCSI.
Figures in this section are for illustration only.
Network adapter view
The ETH640i network adapter can be applied to 2-processor half-width, 2-processor full-width, and 4-processor full-width blade servers. For the installation positions of the network adapter, see "Compatible blade servers."
Figure 62 ETH640i network adapter
Specifications
Product specifications
Table 1 ETH640i network adapter product specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Network adapter type |
Ethernet adapter |
|
Chip model |
Mellanox MT27712A0-FDCF-AE |
|
Max power consumption |
10 W |
|
Input voltage |
12 VDC |
|
Bus type |
PCIe 3.0 x8 |
|
Network properties |
|
|
Connectors |
2 × 25G KR |
|
Data rate |
25 Gbps |
|
Duplex mode |
Full duplex |
|
Standards |
802.3ba, 802.3ae, 802.1Qaz, 802.1Qap, 802.1Qad, 802.1Q, 802.1p, 802.1Qau, 802.1Qbb, 802.1Qbg |
Technical specifications
Table 2 ETH640i network adapter technical specifications
|
Category |
Item |
Specifications |
|
Physical parameters |
Dimensions (H × W × D) |
25.05 × 61.60 × 95.00 mm (0.99 × 2.43 × 3.74 in) |
|
Weight |
100 g (3.53 oz) |
|
|
Environment parameters |
Temperature |
· Operating: 5°C to 45°C (41°F to 113°F) · Storage: –40°C to +70°C (–40°F to 158°F) |
|
Humidity |
· Operating: 8% RH to 90% RH, noncondensing · Storage: 5% RH to 95% RH, noncondensing |
|
|
Altitude |
· Operating: –60 to +5000 m (–196.85 to +16404.20 ft) The maximum acceptable temperature decreases by 0.33°C (32.59°F) for every 100 m (328.08 ft) increase in altitude from 900 m (2952.76 ft). · Storage: –60 to +5000 m (–196.85 to +16404.20 ft) |
Features
Feature compatibility
Table 3 Features supported by the network adapter
|
Feature |
Supported |
|
Jumbo frames |
√ |
|
Load balancing |
√ |
|
802.1Q VLANs |
√ |
|
QinQ |
√ |
|
Auto negotiation |
√ |
|
PXE Boot |
√ |
|
FCoE |
× |
|
FCoE Boot |
× |
|
iSCSI |
√* |
|
iSCSI Boot |
× |
|
SR-IOV |
√ |
|
VMDq |
√* |
|
Multiple Rx Queues (RSS) |
√* |
|
TCP/IP Stateless Offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
× |
|
RDMA |
√ (RoCE only) |
|
NPAR |
× |
|
NCSI |
× |
|
NIC bonding |
√ |
|
|
NOTE: An asterisk (*) indicates that the feature is not available for VMware ESXi. |
Feature description
PXE
The network adapter supports PXE boot. During booting, the network adapter, which acts as the PXE client, obtains an IP address from the PXE server and uses TFTP to download and run the PXE boot file.
iSCSI
Both ports on the network adapter support iSCSI SAN, but do not support iSCSI remote boot.
iSCSI is a new storage technology which integrates SCSI interfaces and Ethernet. Based on iSCSI, the device can transmit commands and data through SCSI interfaces on the network so that cross-province and cross-city storage resource sharing can be realized among equipment rooms. iSCSI supports storage capacity expansion without service interruption, and provides storage resources for multiple servers.
SR-IOV
Both ports on the network adapter support SR-IOV.
SR-IOV allows users to integrate network hardware resources and multiple VMs to operate on the integrated hardware. The provided virtualization functions include I/O sharing, integration, isolation, migration, and simplified management. Virtualization might reduce system performance because of management program cost. To resolve the performance issue, PCI-SIG introduces the SR-IOV standard to create Virtual Functions (VFs). A VF is a lightweight PCIe function directly assigned to a VM, which bypasses the management program layer to move main data.
A PF is a complete PCIe function and a VF is a lightweight PCIe function separated from a PF. You can assign a VF to an application. A VF shares physical device resources and executes I/O with no cost of the CPU and VM management program.
The network adapter supports a maximum of 127 VFs on each port. You can change the maximum number of VFs from the BIOS.
VLAN
· 802.1Q VLAN
Each port on the network adapter supports a maximum of 4094 VLANs.
A network adapter only transmits packets, and does not tag or untag packets. The VLAN ID is in the range of 1 to 4094 and is assigned by the operating system.
VLAN refers to a group of logical devices and users working at Layer 2 and Layer 3. A VLAN is a broadcast domain. Communication between VLANs is supported by Layer 3 routers. Compared with LAN, VLAN has less adding and modification overhead and can control broadcasts to enhance network security and bring flexibility.
· IEEE 802.1ad Provider Bridges (QinQ)
QinQ is the achievement of the IEEE 802.1ad Provider Bridges standard and an extension of the IEEE 802.1Q VLAN. By adding an extra 802.1Q flag (VLAN ID field) to Ethernet packets, QinQ creates VLANs in a VLAN to further isolate traffic.
Bonding (Linux)
Bonding has the following modes:
· mode=0, round-robin policy (balance-rr)—Transmits data packets between backup devices in sequence. This mode is used commonly.
· mode=1, active-backup policy (active-backup)—Only the master device is in active state. A backup device takes over the services when the master device fails. This mode is used commonly.
· mode=2, XOR policy (balance-xor)—Transmits data packets based on a specified transmission hash policy.
· mode=3, broadcast policy—Transmits data packets out of each interface of a backup device. This mode is error tolerant.
· mode=4, IEEE 802.3ad dynamic link aggregation (802.3ad)—Creates an aggregation group where group members share the same rated speed and full duplex mode settings. Backup device selection for traffic output is based on transmission hash policy. In this mode, the switch must support IEEE 802.3ad and have specific configurations.
· mode=5, adaptive transmit load balancing (balance-tlb)—Does not require specific switches. This mode allocates outgoing traffic to backup devices according to the device loads. If a backup device that is receiving traffic fails, another backup device takes over the MAC address of the faulty backup device.
· mode=6, adaptive load balancing (balance-alb)—Does not require switches. This mode integrates the balance-tlb mode and load balancing of IPv4 packet receiving. It is realized by ARP negotiation. The bonding driver intercepts the ARP replies sent by the local device and changes the source MAC address into a unique MAC address of a backup device in bonding, allowing different peers to communicate with different MAC addresses. This mode is used commonly.
Teaming (Windows)
This section uses the Windows Server 2012 R2 operating system as an example.
NIC teaming has the following modes:
· Static teaming—A switch-dependent mode in which member NICs must connect to the same physical switch. This mode requires the support of the switch.
· Switch independent—Member NICs can be connected to different switches in active/standby mode. Load balancing aggregation can be realized only when the member NICs connect to the same switch.
· LACP—You must enable LACP on the switch first. This mode integrates multiple NICs into one logical link. Data is transmitted at the fastest speed in LACP mode.
After teaming finishes, you must configure the load balancing mode. Load balancing has the following modes:
· Address hash mode—In this mode, when a packet arrives at the team, the device uses the hash algorithm to calculate the packet sending physical NIC based on the destination address information (MAC address, IP address, and port number). This mode cannot control traffic direction. If a large amount of traffic goes to the same destination address, the traffic will be sent by the same physical NIC.
· Hyper-V port mode—Used for Hyper-V mode. Compared with the address hash mode, the Hyper-V port mode has higher traffic distribution efficiency. In this mode, data are transmitted by different physical NICs bound to the vNIC and the binding is based on vNICs instead of VMs. As a best practice, enable this mode when you use a Hyper-V external virtual switch.
· Dynamic mode—Introduced for Windows Server 2012 R2 and later. In this mode, data is evenly distributed to all NICs to make full use of bandwidth resources. This mode is the most optimal load balancing mode.
TCP offloading
TCP offloading is a TCP acceleration technology. It offloads TCP/IP work to network interface controllers for the workload to be processed by hardware. On a high-speed Ethernet, for example, 10-GE Ethernet, processing TCP/IP packet headers consumes great CPU resources. Using NIC hardware to process the headers can ease the CPU burden.
Offload allocates some data processing work (for example, fragmentation and reassembly) which should be done by the operating system to the NIC hardware to reduce CPU resource consumption and enhance processing performance.
Features related to TCP are as follows:
· TCP segmentation offload (TSO)—Segments TCP packets.
· Large segment offload (LSO)/large receive offload (LRO)—When the sending data exceeds the specified MTU, the operating system submits a transmission request to the NIC only once. The NIC then automatically segments, encapsulates, and sends the data packets. If a large number of fragments are received, LRO helps to assemble multiple fragments to a larger one and submits the larger fragment to the operating system.
· Generic segmentation offload (GSO) and generic receive offload (GRO)—Detects features supported by the NIC automatically. If the NIC supports fragmentation, the system sends TCP fragments to the NIC directly. If the network adapter does not support fragmentation, the system fragments the packets first, and then sends the fragments to the NIC.
RDMA
RDMA is a remote direct memory access technology, aiming to deal with the data processing delay on the server during network transmission. It transmits materials to the storage area of a computer through network directly and moves data from a system to a remote system storage media rapidly without impacting the operating system. It reduces the overhead of copying and context switching for the external storage media, and frees memory bandwidth and CPU cycles, optimizing the application system performance.
Appendix B Hardware and software compatibility
Compatible operating systems
For operating systems compatible with the network adapter, contact Technical Support.
Compatible blade servers
Table 4 Compatible blade servers
|
Blade server model |
Blade server type |
Network adapter slots |
Applicable slots |
Installation positions |
|
H3C UniServer B5700 G3 |
2-processor half-width |
3 |
Mezz1, Mezz2, Mezz3 |
See Figure 63 |
|
H3C UniServer B5800 G3 |
2-processor full-width |
3 |
Mezz1, Mezz2, Mezz3 |
See Figure 64 |
|
H3C UniServer B7800 G3 |
4-processor full-width |
6 |
Mezz1, Mezz2, Mezz3, Mezz4, Mezz5, Mezz6 |
See Figure 65 |
|
H3C UniServer B5700 G5 |
2-processor half-width |
3 |
Mezz1, Mezz2, Mezz3 |
See Figure 63 |

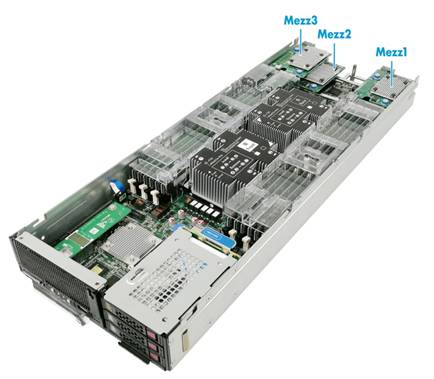

Figure 63 Network adapter installation positions on a 2-processor half-width blade server

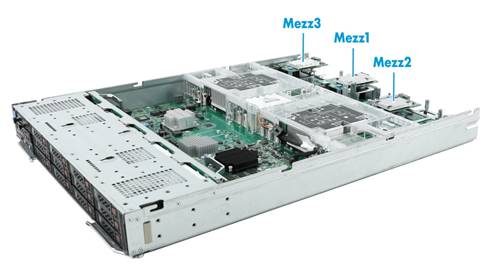

Figure 64 Network adapter installation positions on a 2-processor full-width blade server

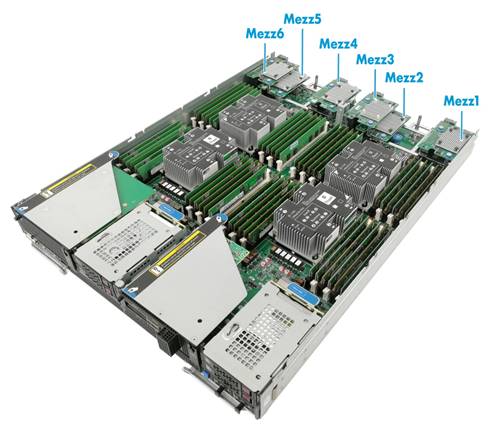

Figure 65 Network adapter installation positions on a 4-processor full-width blade server
Compatible ICMs
Network adapters and ICM compatibility
The network adapter supports the following ICMs:
· H3C UniServer BX1010E
· H3C UniServer BT616E
· H3C UniServer BT1004E
Network adapter and ICM interconnection
For details about ICM and mezzanine network adapter connections, contact Technical Support.
Mapping relations between network adapter slot and ICM slot

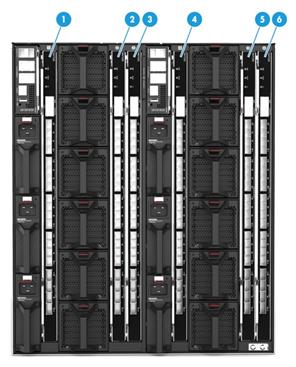

Network adapters connect to ICMs through the mid plane. The mapping relations between a network adapter and ICMs depend on the blade server on which the network adapter resides. For installation locations of ICMs, see Figure 68.
For network adapters installed in a 2-processor half-width or full-width blade server, their mapping relations with ICMs are as shown in Figure 66.
· Network adapter in Mezz1 is connected to ICMs in slots 1 and 4.
· Network adapter in Mezz2 is connected to ICMs in slots 2 and 5.
· Network adapter in Mezz3 is connected to ICMs in slots 3 and 6.
For network adapters installed in a 4-processor full-width blade server, their mapping relations with ICMs are as shown in Figure 67.
· Network adapters in Mezz1 and Mezz4 are connected to ICMs in slots 1 and 4.
· Network adapters in Mezz2 and Mezz5 are connected to ICMs in slots 2 and 5.
· Network adapters in Mezz3 and Mezz6 are connected to ICMs in slots 3 and 6.
Figure 67 Network adapter and ICM mapping relations (4-processor full-width blade server)
Mapping relations between network adapter port and ICM internal port
For mapping relations between ICM port and mezzanine network adapter port, contact Technical Support.
Networking applications
As shown in Figure 69, the network adapters are connected to the ICMs. Each internal port of the ICMs support 25GE service applications, and the external ports are connected to the Internet to provide Internet access for the blade server on which the network adapter resides.
Figure 69 Mezzanine network and ICM interconnection
Appendix C Acronyms
|
Acronym |
Full name |
|
F |
|
|
FC |
Fiber Channel |
|
FCoE |
Fiber Channel Over Ethernet |
|
I |
|
|
Internet Small Computer System Interface |
|
|
N |
|
|
NCSI |
Network Controller Sideband Interface |
|
NIC Partitioning |
|
|
P |
|
|
PCIe |
Peripheral Component Interconnect Express |
|
PF |
Physical Function |
|
PXE |
Preboot Execute Environment |
|
R |
|
|
RDMA |
Remote Direct Memory Access |
|
RoCE |
RDMA over Converged Ethernet |
|
S |
|
|
Storage Area Network |
|
|
SR-IOV |
Single Root I/O Virtualization |
|
T |
|
|
TCP |
Transmission Control Protocol |
|
V |
|
|
VF |
Virtual Function |
|
Virtual Machine Data Queue |
|
