Configuring EVPN-DCI

About EVPN-DCI

EVPN data center interconnect (EVPN-DCI) uses VXLAN-DCI tunnels to provide connectivity for data centers over an IP transport network.

EVPN-DCI network model

As shown in Figure 1, the EVPN-DCI network contains VTEPs and edge devices (EDs) located at the edge of the transport network. A VXLAN tunnel is established between a VTEP and an ED, and a VXLAN-DCI tunnel is established between two EDs. VXLAN-DCI tunnels use VXLAN encapsulation. Each ED de-encapsulates incoming VXLAN packets and re-encapsulates them based on the destination before forwarding the packets through a VXLAN or VXLAN-DCI tunnel.

Figure 1 EVPN-DCI network model



Working mechanisms

In an EVPN-DCI network, BGP EVPN peer relationships are established between EDs and between EDs and VTEPs. When advertising routes to a VTEP or another ED, an ED replaces the routes' nexthop IP address and router MAC address with its IP address and router MAC address.

In an EVPN-DCI network, a VTEP and an ED use a VXLAN tunnel to send traffic, and two EDs use a VXLAN-DCI tunnel to send traffic. An ED de-encapsulates incoming VXLAN packets and re-encapsulates them before forwarding the packets through a VXLAN or VXLAN-DCI tunnel.



EVPN-DCI tasks at a glance

To configure EVPN-DCI, perform the following tasks on EDs:

1.     Enabling DCI

2.     Enabling route nexthop replacement and route router MAC replacement

3.     (Optional.) Configuring VXLAN mapping

Perform this task to provide Layer 2 connectivity for a tenant subnet that uses different VXLAN IDs in multiple data centers.

4.     Configuring the BGP EVPN address family and the BGP VPNv4 address family to exchange routes

You must perform this task if data centers are interconnected through an MPLS L3VPN network.

Prerequisites for EVPN-DCI

Before you configure EVPN-DCI, complete basic EVPN configuration for each data center. For more information about basic EVPN configuration, see "Configuring basic EVPN features."

Enabling DCI

About this task

For EDs to automatically establish VXLAN-DCI tunnels, you must enable DCI on the Layer 3 interfaces that interconnect the EDs.

An ED establishes VXLAN-DCI tunnels based on BGP EVPN routes. If DCI is disabled on the outgoing interfaces to remote sites, EDs cannot establish VXLAN-DCI tunnels.

Procedure

1.     Enter system view.

system-view

2.     Enter interface view.

interface interface-type interface-number

Subinterfaces of a DCI-enabled interface inherit configuration of the interface.

3.     Enable DCI.

dci enable

By default, DCI is disabled on an interface.

Enabling route nexthop replacement and route router MAC replacement

1.     Enter system view.

system-view

2.     Configure a global router ID.

router id router-id

By default, no global router ID is configured.

3.     Enable a BGP instance and enter BGP instance view.

bgp as-number [ instance instance-name ]

By default, BGP is disabled, and no BGP instances exist.

4.     Specify local VTEPs and remote EDs as BGP peers.

peer { group-name | ipv4-address [ mask-length ] } as-number as-number

5.     Create the BGP EVPN address family and enter BGP EVPN address family view.

address-family l2vpn evpn

6.     Enable BGP to exchange BGP EVPN routes with a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } enable

By default, BGP does not exchange BGP EVPN routes with peers.

7.     Set the local router as the next hop for routes advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } next-hop-local

The default settings for this command are as follows:

¡     BGP sets the local router as the next hop for all routes advertised to an EBGP peer or peer group.

¡     BGP does not modify the next hop for EBGP routes advertised to an IBGP peer or peer group.

The peers specified in this task must be VTEPs in the local data center.

8.     Enable route router MAC replacement for a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } router-mac-local

By default, the device does not modify the router MAC address of routes before advertising the routes.

This command enables the device to use its router MAC address to replace the router MAC address of routes received from and advertised to a peer or peer group.

The peers specified in this task must be remote EDs.

Configuring VXLAN mapping

About this task

The VXLAN mapping feature provides Layer 2 connectivity for a tenant subnet that uses different VXLAN IDs in multiple data centers.

If you map a local VXLAN to a remote VXLAN on an ED, the ED processes routes as follows:

·     When the ED receives the local VXLAN's MAC/IP advertisement routes from local VTEPs, it performs the following operations:

¡     Adds the routes to the local VXLAN.

¡     Replaces the VXLAN ID of the routes with the remote VXLAN ID and advertises the routes to remote EDs.

·     When the ED receives the remote VXLAN's MAC/IP advertisement routes from a remote data center, it adds the routes to the local VXLAN.

VXLAN mapping includes the following types:

·     Non-intermediate VXLAN mapping—When two data centers use different VXLAN IDs for a subnet, map the local VXLAN to the remote VXLAN on the ED of one data center. For example, for VXLAN 10 of data center 1 to communicate with VXLAN 20 of data center 2, map VXLAN 10 to VXLAN 20 on the ED of data center 1.

·     Intermediate VXLAN mapping—When multiple data centers use different VXLAN IDs for a subnet, map the VXLANs to an intermediate VXLAN on all EDs. For example, data center 1 uses VXLAN 10, data center 2 uses VXLAN 20, and data center 3 uses VXLAN 30. To provide connectivity for the VXLANs, map them to intermediate VXLAN 500 on EDs of the data centers. You must use intermediate VXLAN mapping if more than two data centers use different VXLAN IDs. The intermediate VXLAN can be used only for VXLAN mapping, and it cannot be used for common VXLAN services.

Restrictions and guidelines

You must create mapped remote VXLANs on the device, create an EVPN instance for each remote VXLAN, and configure RD and route target settings for the EVPN instances.

When you use VXLAN mapping, follow these route target restrictions:

·     EVPN instances and EVPN address family of VPN instances do not have the same export targets.

·     EVPN instances and EVPN address family of the public instance do not have the same export targets.

Procedure

1.     Enter system view.

system-view

2.     Enter VSI view.

vsi vsi-name

3.     Enter EVPN instance view.

evpn encapsulation vxlan

4.     Map the local VXLAN to a remote VXLAN.

mapping vni vxlan-id

By default, a local VXLAN is not mapped to any remote VXLAN.

The remote VXLAN ID cannot be the reserved VXLAN ID specified by using the reserved vxlan command or the L3 VXLAN ID specified by using the l3-vni command. For more information about the reserved vxlan command, see VXLAN Command Reference.

Configuring the BGP EVPN address family and the BGP VPNv4 address family to exchange routes

About route exchange

When data centers are interconnected through an MPLS L3VPN network, EVPN EDs also act as MPLS L3VPN PEs. To enable communication between the data centers, you must perform the following tasks on the EDs:

·     Configure both MPLS L3VPN and EVPN.

·     Configure the BGP EVPN address family and the BGP VPNv4 address family to exchange routes.

Figure 2 Data centers interconnected through an MPLS L3VPN network



Enabling BGP VPNv4 route advertisement for the BGP EVPN address family

1.     Enter system view.

system-view

2.     Enter BGP instance view.

bgp as-number [ instance instance-name ]

3.     Enter BGP EVPN address family view.

address-family l2vpn evpn

4.     Enable BGP VPNv4 route advertisement for the BGP EVPN address family.

advertise l3vpn route [ replace-rt ][ advertise-policy policy-name ]

By default, BGP VPNv4 routes are not advertised through the BGP EVPN address family.

After you execute this command, the device advertises BGP VPNv4 routes as IP prefix advertisement routes through the BGP EVPN address family.

Enabling BGP EVPN route advertisement for the BGP VPNv4 address family

1.     Enter system view.

system-view

2.     Enter BGP instance view.

bgp as-number [ instance instance-name ]

3.     Enter BGP VPNv4 address family view.

address-family vpnv4

4.     Enable BGP EVPN route advertisement for the BGP VPNv4 address family.

advertise evpn route [ replace-rt ][ advertise-policy policy-name ]

By default, BGP EVPN routes are not advertised through the BGP VPNv4 address family.

After you execute this command, the device advertises IP prefix advertisement routes and MAC/IP advertisement routes that contain host route information through the BGP VPNv4 address family.

EVPN-DCI configuration examples

Example: Configuring a basic EVPN-DCI network

Network configuration

As shown in Figure 3:

·     Configure VXLAN 10 on Switch A through Switch D to provide connectivity for the VMs in the data centers.

·     Configure Switch A and Switch D as VTEPs, and configure Switch B and Switch C as EDs.

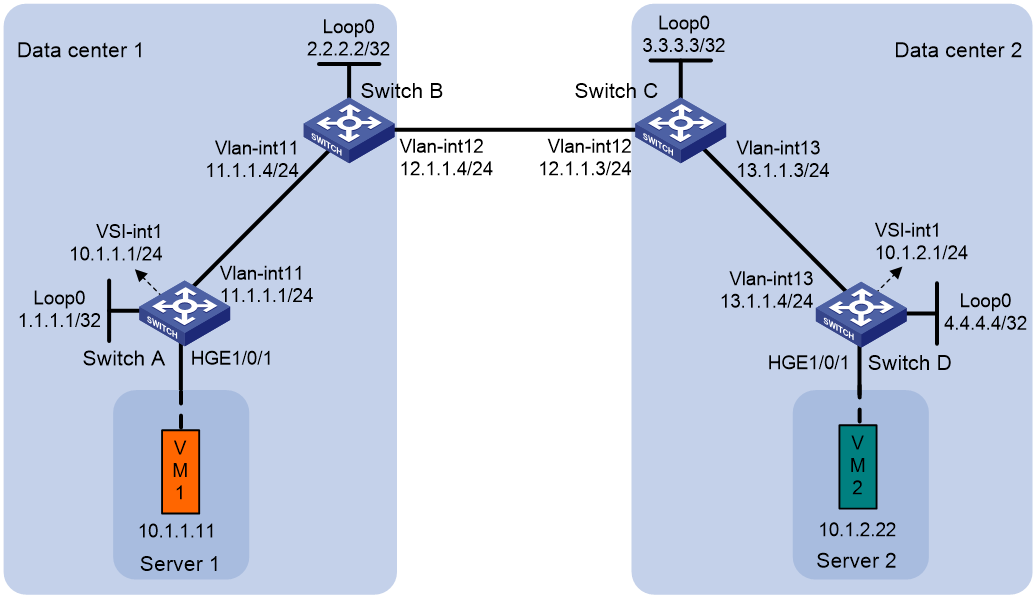

Figure 3 Network diagram



Procedure

IMPORTANT

IMPORTANT:

By default, interfaces on the device are operating in Layer 3 mode. Before you configure Ethernet service instances on an interface, you must use the port link-mode command to configure the interface to operate in Layer 2 mode.





1.     Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 3. (Details not shown.)

# Configure OSPF on the transport network for the switches to reach one another. (Details not shown.)

2.     Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Configure Layer 2 forwarding for VXLAN tunnels.

[SwitchA] undo vxlan ip-forwarding

# Disable remote MAC address learning.

[SwitchA] vxlan tunnel mac-learning disable

# Create VXLAN 10 on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD, and manually configure a route target for the EVPN instance.

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target 123:456

[SwitchA-vsi-vpna-evpn-vxlan] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 100

[SwitchA-bgp-default] peer 2.2.2.2 as-number 100

[SwitchA-bgp-default] peer 2.2.2.2 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 2.2.2.2 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 100.

[SwitchA] interface hundredgige 1/0/1

[SwitchA-HundredGigE1/0/1] service-instance 1000

[SwitchA-HundredGigE1/0/1-srv1000] encapsulation s-vid 100

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/1-srv1000] quit

3.     Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Configure Layer 2 forwarding for VXLAN tunnels.

[SwitchB] undo vxlan ip-forwarding

# Disable remote MAC address learning.

[SwitchB] vxlan tunnel mac-learning disable

# Enable DCI on the Layer 3 interface that connects Switch B to Switch C for the switches to establish a VXLAN-DCI tunnel.

[SwitchB] interface vlan-interface 12

[SwitchB-Vlan-interface12] dci enable

[SwitchB-Vlan-interface12] quit

# Create VXLAN 10 on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD, and manually configure a route target for the EVPN instance.

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target 123:456

[SwitchB-vsi-vpna-evpn-vxlan] quit

[SwitchB-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes. Enable nexthop replacement for routes advertised to Switch A, and enable router MAC replacement for routes advertised to and received from Switch C.

[SwitchB] bgp 100

[SwitchB-bgp-default] peer 3.3.3.3 as-number 200

[SwitchB-bgp-default] peer 3.3.3.3 connect-interface loopback 0

[SwitchB-bgp-default] peer 3.3.3.3 ebgp-max-hop 64

[SwitchB-bgp-default] peer 1.1.1.1 as-number 100

[SwitchB-bgp-default] peer 1.1.1.1 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 3.3.3.3 enable

[SwitchB-bgp-default-evpn] peer 3.3.3.3 router-mac-local

[SwitchB-bgp-default-evpn] peer 1.1.1.1 enable

[SwitchB-bgp-default-evpn] peer 1.1.1.1 next-hop-local

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

4.     Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Configure Layer 2 forwarding for VXLAN tunnels.

[SwitchC] undo vxlan ip-forwarding

# Disable remote MAC address learning.

[SwitchC] vxlan tunnel mac-learning disable

# Enable DCI on the Layer 3 interface that connects Switch C to Switch B for the switches to establish a VXLAN-DCI tunnel.

[SwitchC] interface vlan-interface 12

[SwitchC-Vlan-interface12] dci enable

[SwitchC-Vlan-interface12] quit

# Create VXLAN 10 on VSI vpna.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] vxlan 10

[SwitchC-vsi-vpna-vxlan-10] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD, and manually configure a route target for the EVPN instance.

[SwitchC-vsi-vpna] evpn encapsulation vxlan

[SwitchC-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpna-evpn-vxlan] vpn-target 123:456

[SwitchC-vsi-vpna-evpn-vxlan] quit

[SwitchC-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes. Enable nexthop replacement for routes advertised to Switch D, and enable router MAC replacement for routes advertised to and received from Switch B.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 2.2.2.2 as-number 100

[SwitchC-bgp-default] peer 2.2.2.2 connect-interface loopback 0

[SwitchC-bgp-default] peer 2.2.2.2 ebgp-max-hop 64

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 2.2.2.2 enable

[SwitchC-bgp-default-evpn] peer 2.2.2.2 router-mac-local

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] peer 4.4.4.4 next-hop-local

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

5.     Configure Switch D:

# Enable L2VPN.

<SwitchD> system-view

[SwitchD] l2vpn enable

# Configure Layer 2 forwarding for VXLAN tunnels.

[SwitchD] undo vxlan ip-forwarding

# Disable remote MAC address learning.

[SwitchD] vxlan tunnel mac-learning disable

# Create VXLAN 10 on VSI vpna.

[SwitchD] vsi vpna

[SwitchD-vsi-vpna] vxlan 10

[SwitchD-vsi-vpna-vxlan-10] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD, and manually configure a route target for the EVPN instance.

[SwitchD-vsi-vpna] evpn encapsulation vxlan

[SwitchD-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchD-vsi-vpna-evpn-vxlan] vpn-target 123:456

[SwitchD-vsi-vpna-evpn-vxlan] quit

[SwitchD-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchD] bgp 200

[SwitchD-bgp-default] peer 3.3.3.3 as-number 200

[SwitchD-bgp-default] peer 3.3.3.3 connect-interface Loopback 0

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer 3.3.3.3 enable

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 200.

[SwitchD] interface hundredgige 1/0/1

[SwitchD-HundredGigE1/0/1] service-instance 1000

[SwitchD-HundredGigE1/0/1-srv1000] encapsulation s-vid 200

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchD-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchD-HundredGigE1/0/1-srv1000] quit

Verifying the configuration

1.     Verify the configuration on EDs. (This example uses Switch B.)

# Verify that the ED has discovered Switch A and Switch C through IMET routes and has established VXLAN and VXLAN-DCI tunnels to the switches.

[SwitchB] display evpn auto-discovery imet

Total number of automatically discovered peers: 2



VSI name: vpna

RD                    PE_address      Tunnel_address  Tunnel mode VXLAN ID

1:10                  1.1.1.1         1.1.1.1         VXLAN       10

1:10                  3.3.3.3         3.3.3.3         VXLAN-DCI   10

# Verify that the VXLAN and VXLAN-DCI tunnels on the ED are up.

[SwitchB] display interface tunnel

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 2.2.2.2, destination 1.1.1.1

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops



Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 2.2.2.2, destination 3.3.3.3

Tunnel protocol/transport UDP_VXLAN-DCI/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Verify that the VXLAN and VXLAN-DCI tunnels have been assigned to the VXLAN.

[SwitchB] display l2vpn vsi name vpna verbose

VSI Name: vpna

  VSI Index               : 0

  VSI State               : Up

  MTU                     : -

  Bandwidth               : -

  Broadcast Restrain      : -

  Multicast Restrain      : -

  Unknown Unicast Restrain: -

  MAC Learning            : -

  MAC Table Limit         : -

  MAC Learning rate       : -

  Drop Unknown            : -

  Flooding                : Enabled

  Statistics              : Disabled

  VXLAN ID                : 10

  Tunnels:

    Tunnel Name          Link ID    State    Type        Flood proxy

    Tunnel0              0x5000000  UP       Auto        Disabled

    Tunnel1              0x5000001  UP       Auto        Disabled

# Verify that the ED has generated EVPN MAC address entries for the VMs.

[SwitchB] display evpn route mac

Flags: D - Dynamic   B - BGP      L - Local active

       G - Gateway   S - Static   M - Mapping



VSI name: vpna

MAC address     Link ID/Name     Flags   Next hop

0001-0001-0011  Tunnel0          B       1.1.1.1

0001-0001-0033  Tunnel1          B       3.3.3.3

2.     Verify that VM 1 and VM 2 can communicate. (Details not shown.)

Example: Configuring EVPN-DCI intermediate VXLAN mapping

Network configuration

As shown in Figure 4:

·     Configure VXLAN 10 on VTEP Switch A and ED Switch B, and configure VXLAN 30 on VTEP Switch D and ED Switch C.

·     Configure intermediate VXLAN mapping for VXLAN 10 and VXLAN 30 to have Layer 2 connectivity:

¡     Map VXLAN 10 to intermediate VXLAN 500 on Switch B.

¡     Map VXLAN 30 to intermediate VXLAN 500 on Switch C.

Figure 4 Network diagram



Procedure

IMPORTANT

IMPORTANT:

By default, interfaces on the device are operating in Layer 3 mode. Before you configure Ethernet service instances on an interface, you must use the port link-mode command to configure the interface to operate in Layer 2 mode.





1.     Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 4. (Details not shown.)

# Configure OSPF on the transport network for the switches to reach one another. (Details not shown.)

2.     Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Configure Layer 2 forwarding for VXLAN tunnels.

[SwitchA] undo vxlan ip-forwarding

# Disable remote MAC address learning.

[SwitchA] vxlan tunnel mac-learning disable

# Create VXLAN 10 on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 100

[SwitchA-bgp-default] peer 2.2.2.2 as-number 100

[SwitchA-bgp-default] peer 2.2.2.2 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 2.2.2.2 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 100.

[SwitchA] interface hundredgige 1/0/1

[SwitchA-HundredGigE1/0/1] service-instance 1000

[SwitchA-HundredGigE1/0/1-srv1000] encapsulation s-vid 100

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/1-srv1000] quit

3.     Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Configure Layer 2 forwarding for VXLAN tunnels.

[SwitchB] undo vxlan ip-forwarding

# Disable remote MAC address learning.

[SwitchB] vxlan tunnel mac-learning disable

# Enable DCI on the Layer 3 interface that connects Switch B to Switch C for the switches to establish a VXLAN-DCI tunnel.

[SwitchB] interface vlan-interface 12

[SwitchB-Vlan-interface12] dci enable

[SwitchB-Vlan-interface12] quit

# Create VXLAN 10 on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

# Map local VXLAN 10 to intermediate VXLAN 500.

[SwitchB-vsi-vpna-evpn-vxlan] mapping vni 500

[SwitchB-vsi-vpna-evpn-vxlan] quit

[SwitchB-vsi-vpna] quit

# Create VXLAN 500 on VSI vpnb. The switch will replace the VXLAN ID of VXLAN 10's traffic with VXLAN ID 500 when performing Layer 2 forwarding.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] vxlan 500

[SwitchB-vsi-vpnb-vxlan-500] quit

# Create an EVPN instance on VSI vpnb. Configure the switch to automatically generate an RD, and manually configure a route target for the EVPN instance.

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target 123:456

[SwitchB-vsi-vpnb-evpn-vxlan] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes. Enable nexthop replacement for routes advertised to Switch A, and enable router MAC replacement for routes advertised to and received from Switch C.

[SwitchB] bgp 100

[SwitchB-bgp-default] peer 3.3.3.3 as-number 200

[SwitchB-bgp-default] peer 3.3.3.3 connect-interface loopback 0

[SwitchB-bgp-default] peer 3.3.3.3 ebgp-max-hop 64

[SwitchB-bgp-default] peer 1.1.1.1 as-number 100

[SwitchB-bgp-default] peer 1.1.1.1 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 3.3.3.3 enable

[SwitchB-bgp-default-evpn] peer 3.3.3.3 router-mac-local

[SwitchB-bgp-default-evpn] peer 1.1.1.1 enable

[SwitchB-bgp-default-evpn] peer 1.1.1.1 next-hop-local

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

4.     Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Configure Layer 2 forwarding for VXLAN tunnels.

[SwitchC] undo vxlan ip-forwarding

# Disable remote MAC address learning.

[SwitchC] vxlan tunnel mac-learning disable

# Enable DCI on the Layer 3 interface that connects Switch C to Switch B for the switches to establish a VXLAN-DCI tunnel.

[SwitchC] interface vlan-interface 12

[SwitchC-Vlan-interface12] dci enable

[SwitchC-Vlan-interface12] quit

# Create VXLAN 30 on VSI vpna.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] vxlan 30

[SwitchC-vsi-vpna-vxlan-30] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC-vsi-vpna] evpn encapsulation vxlan

[SwitchC-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpna-evpn-vxlan] vpn-target auto

# Map local VXLAN 30 to intermediate VXLAN 500.

[SwitchC-vsi-vpna-evpn-vxlan] mapping vni 500

[SwitchC-vsi-vpna-evpn-vxlan] quit

[SwitchC-vsi-vpna] quit

# Create VXLAN 500 on VSI vpnb. The switch will replace the VXLAN ID of VXLAN 30's traffic with VXLAN ID 500 when performing Layer 2 forwarding.

[SwitchC] vsi vpnb

[SwitchC-vsi-vpnb] vxlan 500

[SwitchC-vsi-vpnb-vxlan-500] quit

# Create an EVPN instance on VSI vpnb. Configure the switch to automatically generate an RD, and manually configure a route target for the EVPN instance.

[SwitchC-vsi-vpnb] evpn encapsulation vxlan

[SwitchC-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpnb-evpn-vxlan] vpn-target 123:456

[SwitchC-vsi-vpnb-evpn-vxlan] quit

[SwitchC-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes. Enable nexthop replacement for routes advertised to Switch D, and enable router MAC replacement for routes advertised to and received from Switch B.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 2.2.2.2 as-number 100

[SwitchC-bgp-default] peer 2.2.2.2 connect-interface loopback 0

[SwitchC-bgp-default] peer 2.2.2.2 ebgp-max-hop 64

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 2.2.2.2 enable

[SwitchC-bgp-default-evpn] peer 2.2.2.2 router-mac-local

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] peer 4.4.4.4 next-hop-local

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

5.     Configure Switch D:

# Enable L2VPN.

<SwitchD> system-view

[SwitchD] l2vpn enable

# Configure Layer 2 forwarding for VXLAN tunnels.

[SwitchD] undo vxlan ip-forwarding

# Disable remote MAC address learning.

[SwitchD] vxlan tunnel mac-learning disable

# Create VXLAN 30 on VSI vpna.

[SwitchD] vsi vpna

[SwitchD-vsi-vpna] vxlan 30

[SwitchD-vsi-vpna-vxlan-30] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchD-vsi-vpna] evpn encapsulation vxlan

[SwitchD-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchD-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchD-vsi-vpna-evpn-vxlan] quit

[SwitchD-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchD] bgp 200

[SwitchD-bgp-default] peer 3.3.3.3 as-number 200

[SwitchD-bgp-default] peer 3.3.3.3 connect-interface Loopback 0

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer 3.3.3.3 enable

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 200.

[SwitchD] interface hundredgige 1/0/1

[SwitchD-HundredGigE1/0/1] service-instance 1000

[SwitchD-HundredGigE1/0/1-srv1000] encapsulation s-vid 200

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchD-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchD-HundredGigE1/0/1-srv1000] quit

Verifying the configuration

1.     Verify the configuration on EDs. (This example uses Switch B.)

# Verify that the ED has discovered Switch A and Switch C through IMET routes and has established VXLAN and VXLAN-DCI tunnels to the switches.

[SwitchB] display evpn auto-discovery imet

Total number of automatically discovered peers: 2



VSI name: vpna

RD                    PE_address      Tunnel_address  Tunnel mode VXLAN ID

1:10                  1.1.1.1         1.1.1.1         VXLAN       10

1:500                 3.3.3.3         3.3.3.3         VXLAN-DCI   500

# Verify that the VXLAN and VXLAN-DCI tunnels on the ED are up.

[SwitchB] display interface tunnel

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 2.2.2.2, destination 1.1.1.1

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops



Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 2.2.2.2, destination 3.3.3.3

Tunnel protocol/transport UDP_VXLAN-DCI/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Verify that the VXLAN and VXLAN-DCI tunnels have been assigned to VXLAN 10, and that no tunnels are assigned to intermediate VXLAN 500.

[SwitchB] display l2vpn vsi verbose

VSI Name: vpna

  VSI Index               : 0

  VSI State               : Up

  MTU                     : -

  Bandwidth               : -

  Broadcast Restrain      : -

  Multicast Restrain      : -

  Unknown Unicast Restrain: -

  MAC Learning            : -

  MAC Table Limit         : -

  MAC Learning rate       : -

  Drop Unknown            : -

  Flooding                : Enabled

  Statistics              : Disabled

  VXLAN ID                : 10

  Tunnels:

    Tunnel Name          Link ID    State    Type        Flood proxy

    Tunnel0              0x5000000  UP       Auto        Disabled

    Tunnel1              0x5000001  UP       Auto        Disabled



VSI Name: vpnb

  VSI Index               : 1

  VSI State               : Down

  MTU                     : -

  Bandwidth               : -

  Broadcast Restrain      : -

  Multicast Restrain      : -

  Unknown Unicast Restrain: -

  MAC Learning            : -

  MAC Table Limit         : -

  MAC Learning rate       : -

  Drop Unknown            : -

  Flooding                : Enabled

  Statistics              : Disabled

  VXLAN ID                : 500

# Verify that the ED has generated EVPN MAC address entries for the VMs, and the remote MAC address entry has the M flag.

[SwitchB] display evpn route mac

Flags: D - Dynamic   B - BGP      L - Local active

       G - Gateway   S - Static   M - Mapping



VSI name: vpna

MAC address     Link ID/Name     Flags   Next hop

0001-0001-0011  Tunnel0          B       1.1.1.1

0001-0001-0033  Tunnel1          BM      3.3.3.3

2.     Verify that VM 1 and VM 2 can communicate. (Details not shown.)

Example: Configuring EVPN-DCI IPv4 Layer 3 communication

Network configuration

As shown in Figure 5:

·     Configure VXLAN 10 for data center 1, and configure VXLAN 20 for data center 2.

·     Configure Switch A and Switch D as distributed EVPN gateways to perform Layer 3 forwarding between VXLAN 10 and VXLAN 20.

·     Configure Switch B and Switch C as EDs.

Figure 5 Network diagram



Procedure

IMPORTANT

IMPORTANT:

By default, interfaces on the device are operating in Layer 3 mode. Before you configure Ethernet service instances on an interface, you must use the port link-mode command to configure the interface to operate in Layer 2 mode.





1.     Configure IP addresses and unicast routing settings:

# On VM 1, specify 10.1.1.1 as the gateway address. On VM 2, specify 10.1.2.1 as the gateway address. (Details not shown.)

# Assign IP addresses to interfaces, as shown in Figure 5. (Details not shown.)

# Configure OSPF on the transport network for the switches to reach one another. (Details not shown.)

2.     Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create VXLAN 10 on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

# Create an EVPN instance on VSI vpna. Configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 100

[SwitchA-bgp-default] peer 2.2.2.2 as-number 100

[SwitchA-bgp-default] peer 2.2.2.2 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 2.2.2.2 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 100.

[SwitchA] interface hundredgige 1/0/1

[SwitchA-HundredGigE1/0/1] service-instance 1000

[SwitchA-HundredGigE1/0/1-srv1000] encapsulation s-vid 100

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/1-srv1000] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchA] ip vpn-instance vpn1

[SwitchA-vpn-instance-vpn1] route-distinguisher 1:1

[SwitchA-vpn-instance-vpn1] address-family ipv4

[SwitchA-vpn-ipv4-vpn1] vpn-target 2:2

[SwitchA-vpn-ipv4-vpn1] quit

[SwitchA-vpn-instance-vpn1] address-family evpn

[SwitchA-vpn-evpn-vpn1] vpn-target 1:1

[SwitchA-vpn-evpn-vpn1] quit

[SwitchA-vpn-instance-vpn1] quit

# Configure VSI-interface 1 as a distributed gateway.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] quit

# Create VSI-interface 2. Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchA-Vsi-interface2] l3-vni 1000

[SwitchA-Vsi-interface2] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

3.     Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Enable DCI on the Layer 3 interface that connects Switch B to Switch C for the switches to establish a VXLAN-DCI tunnel.

[SwitchB] interface vlan-interface 12

[SwitchB-Vlan-interface12] dci enable

[SwitchB-Vlan-interface12] quit

# Configure BGP to advertise BGP EVPN routes. Enable nexthop replacement for routes advertised to Switch A, and enable router MAC replacement for routes advertised to and received from Switch C.

[SwitchB] bgp 100

[SwitchB-bgp-default] peer 3.3.3.3 as-number 200

[SwitchB-bgp-default] peer 3.3.3.3 connect-interface loopback 0

[SwitchB-bgp-default] peer 3.3.3.3 ebgp-max-hop 64

[SwitchB-bgp-default] peer 1.1.1.1 as-number 100

[SwitchB-bgp-default] peer 1.1.1.1 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 3.3.3.3 enable

[SwitchB-bgp-default-evpn] peer 3.3.3.3 router-mac-local

[SwitchB-bgp-default-evpn] peer 1.1.1.1 enable

[SwitchB-bgp-default-evpn] peer 1.1.1.1 next-hop-local

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchB] ip vpn-instance vpn1

[SwitchB-vpn-instance-vpn1] route-distinguisher 1:2

[SwitchB-vpn-instance-vpn1] address-family ipv4

[SwitchB-vpn-ipv4-vpn1] vpn-target 2:2

[SwitchB-vpn-ipv4-vpn1] quit

[SwitchB-vpn-instance-vpn1] address-family evpn

[SwitchB-vpn-evpn-vpn1] vpn-target 1:1

[SwitchB-vpn-evpn-vpn1] quit

[SwitchB-vpn-instance-vpn1] quit

# Create VSI-interface 2. Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchB-Vsi-interface2] l3-vni 1000

[SwitchB-Vsi-interface2] quit

4.     Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Enable DCI on the Layer 3 interface that connects Switch C to Switch B For the switches to establish a VXLAN-DCI tunnel.

[SwitchC] interface vlan-interface 12

[SwitchC-Vlan-interface12] dci enable

[SwitchC-Vlan-interface12] quit

# Configure BGP to advertise BGP EVPN routes. Enable nexthop replacement for routes advertised to Switch D, and enable router MAC replacement for routes advertised to and received from Switch B.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 2.2.2.2 as-number 100

[SwitchC-bgp-default] peer 2.2.2.2 connect-interface Loopback 0

[SwitchC-bgp-default] peer 2.2.2.2 ebgp-max-hop 64

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface Loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 2.2.2.2 enable

[SwitchC-bgp-default-evpn] peer 2.2.2.2 router-mac-local

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] peer 4.4.4.4 next-hop-local

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchC] ip vpn-instance vpn1

[SwitchC-vpn-instance-vpn1] route-distinguisher 1:3

[SwitchC-vpn-instance-vpn1] address-family ipv4

[SwitchC-vpn-ipv4-vpn1] vpn-target 2:2

[SwitchC-vpn-ipv4-vpn1] quit

[SwitchC-vpn-instance-vpn1] address-family evpn

[SwitchC-vpn-evpn-vpn1] vpn-target 1:1

[SwitchC-vpn-evpn-vpn1] quit

[SwitchC-vpn-instance-vpn1] quit

# Create VSI-interface 2. Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchC-Vsi-interface2] l3-vni 1000

[SwitchC-Vsi-interface2] quit

5.     Configure Switch D:

# Enable L2VPN.

<SwitchD> system-view

[SwitchD] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchD] vxlan tunnel mac-learning disable

[SwitchD] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpnb. Configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchD] vsi vpnb

[SwitchD-vsi-vpnb] evpn encapsulation vxlan

[SwitchD-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchD-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchD-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20 on VSI vpnb.

[SwitchD-vsi-vpnb] vxlan 20

[SwitchD-vsi-vpnb-vxlan-20] quit

[SwitchD-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchD] bgp 200

[SwitchD-bgp-default] peer 3.3.3.3 as-number 200

[SwitchD-bgp-default] peer 3.3.3.3 connect-interface Loopback 0

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer 3.3.3.3 enable

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 3000 to match VLAN 3.

[SwitchD] interface hundredgige 1/0/1

[SwitchD-HundredGigE1/0/1] service-instance 3000

[SwitchD-HundredGigE1/0/1-srv3000] encapsulation s-vid 3

# Map Ethernet service instance 3000 to VSI vpnb.

[SwitchD-HundredGigE1/0/1-srv3000] xconnect vsi vpnb

[SwitchD-HundredGigE1/0/1-srv3000] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchD] ip vpn-instance vpn1

[SwitchD-vpn-instance-vpn1] route-distinguisher 1:4

[SwitchD-vpn-instance-vpn1] address-family ipv4

[SwitchD-vpn-ipv4-vpn1] vpn-target 2:2

[SwitchD-vpn-ipv4-vpn1] quit

[SwitchD-vpn-instance-vpn1] address-family evpn

[SwitchD-vpn-evpn-vpn1] vpn-target 1:1

[SwitchD-vpn-evpn-vpn1] quit

[SwitchD-vpn-instance-vpn1] quit

# Configure VSI-interface 1 as a distributed gateway.

[SwitchD] interface vsi-interface 1

[SwitchD-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchD-Vsi-interface1] ip address 10.1.2.1 255.255.255.0

[SwitchD-Vsi-interface1] mac-address 1-2-1

[SwitchD-Vsi-interface1] distributed-gateway local

[SwitchD-Vsi-interface1] quit

# Create VSI-interface 2. Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchD] interface vsi-interface 2

[SwitchD-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchD-Vsi-interface2] l3-vni 1000

[SwitchD-Vsi-interface2] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpnb.

[SwitchD] vsi vpnb

[SwitchD-vsi-vpnb] gateway vsi-interface 1

[SwitchD-vsi-vpnb] quit

Verifying the configuration

1.     Verify the configuration on EDs. (This example uses Switch B.)

# Verify that the ED has discovered Switch A and Switch C through MAC/IP advertisement routes and IP prefix advertisement routes, and has established VXLAN and VXLAN-DCI tunnels to the switches.

[SwitchB] display evpn auto-discovery macip-prefix

Destination IP  Source IP       L3VNI           Tunnel mode OutgoingInterface

1.1.1.1         2.2.2.2         1000            VXLAN       Vsi-interface2

3.3.3.3         2.2.2.2         1000            VXLAN-DCI   Vsi-interface2

# Verify that the VXLAN and VXLAN-DCI tunnels on the ED are up.

[SwitchB] display interface tunnel

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 2.2.2.2, destination 1.1.1.1

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops



Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 2.2.2.2, destination 3.3.3.3

Tunnel protocol/transport UDP_VXLAN-DCI/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Verify that the ED has EVPN ARP entries and EVPN routes for the VMs.

[SwitchB] display arp vpn-instance vpn1

  Type: S-Static   D-Dynamic   O-Openflow   R-Rule  I-Invalid

IP address      MAC address    VLAN/VSI name Interface                Aging Type

1.1.1.1         0031-1900-0000 0             Tunnel0                  N/A   R

3.3.3.3         0031-3900-0000 0             Tunnel1                  N/A   R

[SwitchB] display ip routing-table vpn-instance vpn1

Destinations : 4        Routes : 4

Destination/Mask   Proto   Pre Cost        NextHop         Interface

10.1.1.0/24        BGP     255 0           1.1.1.1         Vsi2

10.1.1.11/32       BGP     255 0           1.1.1.1         Vsi2

10.1.2.0/24        BGP     255 0           3.3.3.3         Vsi2

10.1.2.22/32       BGP     255 0           3.3.3.3         Vsi2

2.     Verify that VM 1 and VM 2 can communicate. (Details not shown.)

  • Cloud & AI
  • InterConnect
  • Intelligent Computing
  • Security
  • SMB Products
  • Intelligent Terminal Products
  • Product Support Services
  • Technical Service Solutions
All Services
  • Resource Center
  • Policy
  • Online Help
All Support
  • Become a Partner
  • Partner Resources
  • Partner Business Management
All Partners
  • Profile
  • News & Events
  • Online Exhibition Center
  • Contact Us
All About Us
新华三官网
