| 02-Hardware Information and Specifications | 2.19 MB |
1 Product models and technical specifications
3 Removable components and compatibility matrixes
Connecting cables to the ports on interface cards
10/100/1000BASE-T autosensing Ethernet port
10G/5G/2.5G/1000BASE-T autosensing Ethernet ports
5G/2.5G/1000BASE-T autosensing Ethernet ports
10/100/1000BASE-T autosensing Ethernet port LED
Port status LED on an expansion module
Input/output status LED on a power supply
Fan tray status LED on a fan tray
1 Product models and technical specifications
Product models
The H3C S5560X-HI Switch Series includes the following models:
· S5560X-34C-HI
· S5560X-30F-HI
· S5560X-54F-HI
· S5560X-58C-HI
Technical specifications
Table1-1 Technical specifications
|
Item |
S5560X-34C-HI |
S5560X-30F-HI |
S5560X-54F-HI |
S5560X-58C-HI |
|
Dimensions (H × W × D) |
44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in) |
|
Weight |
≤ 6.7 kg (14.77 lb) |
≤ 7.0 kg (15.43 lb) |
≤ 7.2 kg (15.87 lb) |
≤ 7.0 kg (15.43 lb) |
|
Console port |
· 1 × micro USB console port · 1 × serial console port Only the micro USB console port is available when you connect both ports. |
|||
|
USB port |
1 |
|||
|
Management Ethernet port |
1 |
|||
|
QSFP+ port |
N/A |
2 |
N/A |
|
|
SFP+ port |
6 |
|||
|
SFP port |
N/A |
18 |
42 |
N/A |
|
10/100/1000BASE-T autosensing Ethernet port |
24 |
N/A |
48 |
|
|
Expansion slot |
2, on the rear panel |
|||
|
Power supply slot |
2, on the rear panel |
|||
|
Fan tray slot |
2, on the rear panel |
|||
|
Input voltage |
PSR250-12A/PSR250-12A1: · AC input ¡ Rated voltage range: 100 to 240 VAC @ 50/60 Hz ¡ Max voltage range: 90 to 290 VAC @ 47 to 63 Hz · High-voltage DC input ¡ Rated voltage range: 240 VDC ¡ Max voltage range: 180 to 320 VDC PSR450-12D: · Rated voltage range: –48 to –60 VDC · Max voltage range: –36 to –72 VDC |
|||
|
Minimum power consumption |
PSR250-12A/PSR250-12A1: · Single power supply: 44 W · Dual power supplies: 52 W PSR450-12D: · Single power supply: 46 W · Dual power supplies: 55 W |
PSR250-12A/PSR250-12A1: · Single power supply: 38 W · Dual power supplies: 43 W PSR450-12D: · Single power supply: 40 W · Dual power supplies: 45 W |
PSR250-12A/PSR250-12A1: · Single power supply: 39 W · Dual power supplies: 44 W PSR450-12D: · Single power supply: 41 W · Dual power supplies: 46 W |
PSR250-12A/PSR250-12A1: · Single power supply: 50 W · Dual power supplies: 58 W PSR450-12D: · Single power supply: 51 W · Dual power supplies: 59 W |
|
Maximum power consumption |
PSR250-12A/PSR250-12A1: · Single power supply: 157 W · Dual power supplies: 160 W PSR450-12D: · Single power supply: 157 W · Dual power supplies: 163 W |
PSR250-12A/PSR250-12A1: · Single power supply: 172 W · Dual power supplies: 176 W PSR450-12D: · Single power supply: 174 W · Dual power supplies: 178 W |
PSR250-12A/PSR250-12A1: · Single power supply: 214 W · Dual power supplies: 217 W PSR450-12D: · Single power supply: 216 W · Dual power supplies: 219 W |
PSR250-12A/PSR250-12A1: · Single power supply: 174 W · Dual power supplies: 177 W PSR450-12D: · Single power supply: 175 W · Dual power supplies: 183 W |
|
Chassis leakage current compliance |
UL 62368-1/EN 62368-1/IEC 62368-1/UL 60950-1/EN 60950-1/IEC 60950-1/GB4943.1 |
|||
|
Melting current of power supply fuse |
· PSR250-12A/PSR250-12A1 power supply (AC or high-voltage DC input): 6.3 A/250 V · PSR450-12D power supply (DC input): 20 A/125 V |
|||
|
Operating temperature |
–5°C to +45°C (23°F to 113°F) |
|||
|
Humidity |
5% RH to 95% RH, noncondensing |
|||
|
Fire resistance compliance |
UL 62368-1/EN 62368-1/IEC 62368-1/UL 60950-1/EN 60950-1/IEC 60950-1/GB4943.1 |
|||
2 Chassis views
S5560X-34C-HI

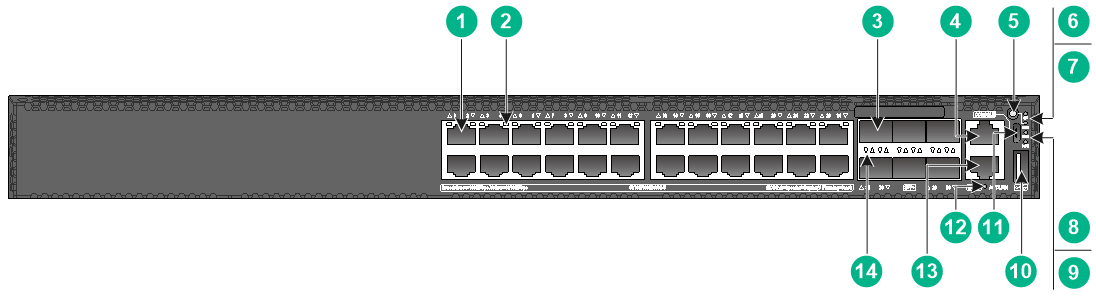

Figure2-1 Front panel
|
(1) 10/100/1000BASE-T autosensing Ethernet port |
|
|
(2) 10/100/1000BASE-T autosensing Ethernet port LED |
|
|
(3) SFP+ port |
(4) Console port (CONSOLE) |
|
(5) Mode button |
(6) System status LED (SYS) |
|
(7) Mode LED (MODE) |
(8) Expansion module 1 status LED (SLOT1) |
|
(9) Expansion module 2 status LED (SLOT2) |
(10) USB port |
|
(11) Micro USB console port |
(12) Management Ethernet port LED (ACT/LINK) |
|
(13) Management Ethernet port |
(14) SFP+ port LED |
|

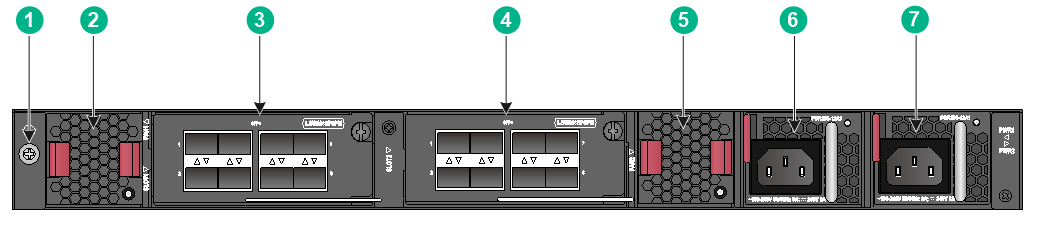

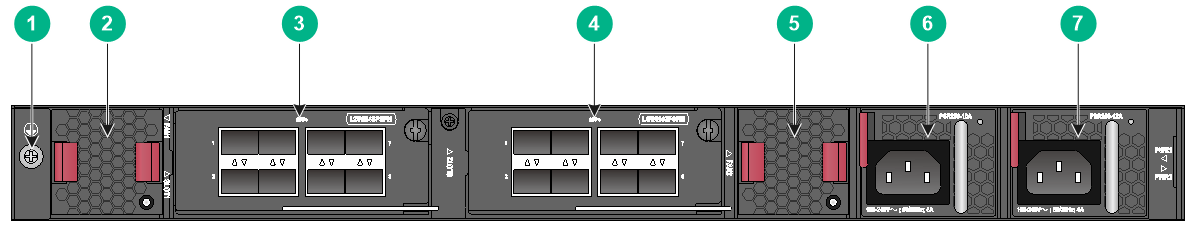

(1) Grounding screw |
(2) Fan tray 1 (FAN1) |
|
(3) Expansion module 1 (SLOT1) |
(4) Expansion module 2 (SLOT2) |
|
(5) Fan tray 2 (FAN2) |
(6) Power supply 1 (PWR1) |
|
(7) Power supply 2 (PWR2) |
|
The S5560X-34C-HI switch comes with power supply slot PWR1 empty and power supply slot PWR2 installed with a filler panel. You can install one or two power supplies for the switch as required. In Figure2-2, two PSR250-12A1 power supplies are installed in the power supply slots.
The S5560X-34C-HI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In Figure2-2, two LSWM1FANSCBE fan trays are installed in the fan tray slots.
The S5560X-34C-HI switch comes with a filler panel in each expansion slot. You can select expansion modules for the switch as required. In Figure2-2, two LSWM4SP8PM interface cards are installed in the expansion slots.
S5560X-30F-HI

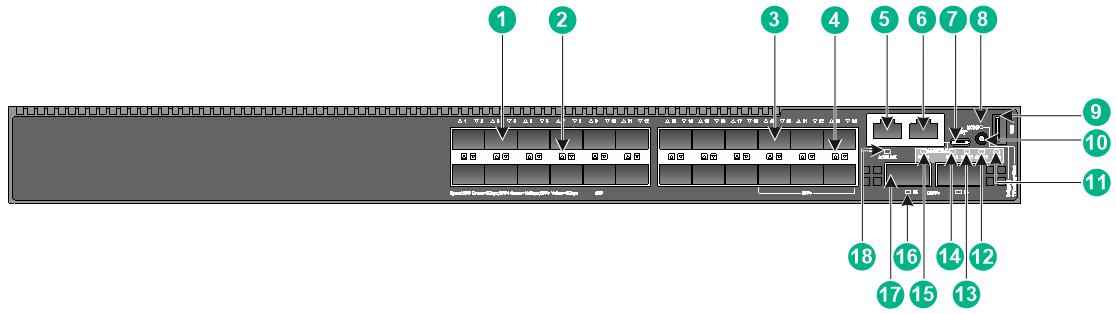

Figure2-3 Front panel
|
(1) SFP port |
(2) SFP port LED |
|
(3) SFP+ port |
(4) SFP+ port LED |
|
(5) Management Ethernet port |
(6) Console port (CONSOLE) |
|
(7) Micro USB console port |
(8) Mode LED (MODE) |
|
(9) USB port |
(10) Mode button |
|
(11) System status LED (SYS) |
(12) Expansion module 2 status LED (SLOT2) |
|
(13) Expansion module 1 status LED (SLOT1) |
(14) Power supply 2 status LED (PWR2) |
|
(15) Power supply 1 status LED (PWR1) |
(16) QSFP+ port LED |
|
(17) QSFP+ port |
(18) Management Ethernet port LED (ACT/LINK) |
|
(1) Grounding screw |
(2) Fan tray 1 (FAN1) |
|
(3) Expansion module 1 (SLOT1) |
(4) Expansion module 2 (SLOT2) |
|
(5) Fan tray 2 (FAN2) |
(6) Power supply 1 (PWR1) |
|
(7) Power supply 2 (PWR2) |
|
The S5560X-30F-HI switch comes with power supply slot PWR1 empty and power supply slot PWR2 installed with a filler panel. You can install one or two power supplies for the switch as required. In Figure2-4, two PSR250-12A1 power supplies are installed in the power supply slots.
The S5560X-30F-HI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In Figure2-4, two LSWM1FANSCBE fan trays are installed in the fan tray slots.
The S5560X-30F-HI switch comes with a filler panel in each expansion slot. You can select expansion modules for the switch as required. In Figure2-4, two LSWM4SP8PM interface cards are installed in the expansion slots.
S5560X-54F-HI

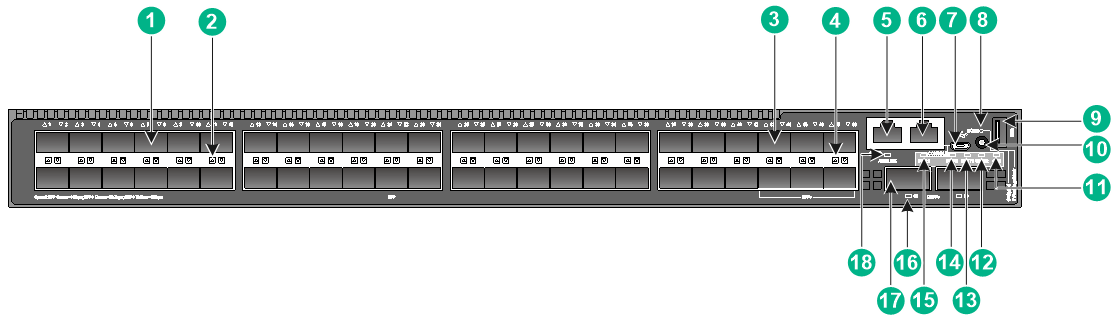

Figure2-5 Front panel
|
(1) SFP port |
(2) SFP port LED |
|
(3) SFP+ port |
(4) SFP+ port LED |
|
(5) Management Ethernet port |
(6) Console port (CONSOLE) |
|
(7) Micro USB console port |
(8) Mode LED (MODE) |
|
(9) USB port |
(10) Mode button |
|
(11) System status LED (SYS) |
(12) Expansion module 2 status LED (SLOT2) |
|
(13) Expansion module 1 status LED (SLOT1) |
(14) Power supply 2 status LED (PWR2) |
|
(15) Power supply 1 status LED (PWR1) |
(16) QSFP+ port LED |
|
(17) QSFP+ port |
(18) Management Ethernet port LED (ACT/LINK) |
|
(1) Grounding screw |
(2) Fan tray 1 (FAN1) |
|
(3) Expansion module 1 (SLOT1) |
(4) Expansion module 2 (SLOT2) |
|
(5) Fan tray 2 (FAN2) |
(6) Power supply 1 (PWR1) |
|
(7) Power supply 2 (PWR2) |
|
The S5560X-54F-HI switch comes with power supply slot PWR1 empty and power supply slot PWR2 installed with a filler panel. You can install one or two power supplies for the switch as required. In Figure2-6, two PSR250-12A1 power supplies are installed in the power supply slots.
The S5560X-54F-HI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In Figure2-6, two LSWM1FANSCBE fan trays are installed in the fan tray slots.
The S5560X-54F-HI switch comes with a filler panel in each expansion slot. You can select expansion modules for the switch as required. In Figure2-6, two LSWM4SP8PM interface cards are installed in the expansion slots.
S5560X-58C-HI
Figure2-7 Front panel
|
(1) 10/100/1000BASE-T autosensing Ethernet port |
|
|
(2) 10/100/1000BASE-T autosensing Ethernet port LED |
|
|
(3) SFP+ port |
(4) Console port (CONSOLE) |
|
(5) Mode button |
(6) System status LED (SYS) |
|
(7) Mode LED (MODE) |
(8) Expansion module 1 status LED (SLOT1) |
|
(9) Expansion module 2 status LED (SLOT2) |
(10) USB port |
|
(11) Micro USB console port |
(12) Management Ethernet port LED (ACT/LINK) |
|
(13) Management Ethernet port |
(14) SFP+ port LED |
Figure2-8 Rear panel
|
(1) Grounding screw |
(2) Fan tray 1 (FAN1) |
|
(3) Expansion module 1 (SLOT1) |
(4) Expansion module 2 (SLOT2) |
|
(5) Fan tray 2 (FAN2) |
(6) Power supply 1 (PWR1) |
|
(7) Power supply 2 (PWR2) |
|
The S5560X-58C-HI switch comes with power supply slot PWR1 empty and power supply slot PWR2 installed with a filler panel. You can install one or two power supplies for the switch as required. In Figure2-2, two PSR250-12A1 power supplies are installed in the power supply slots.
The S5560X-58C-HI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In Figure2-2, two LSWM1FANSCBE fan trays are installed in the fan tray slots.
The S5560X-58C-HI switch comes with a filler panel in each expansion slot. You can select expansion modules for the switch as required. In Figure2-2, two LSWM4SP8PM interface cards are installed in the expansion slots.
3 Removable components and compatibility matrixes
Table3-1 Compatibility matrix between switches and removable components
|
Removable component model |
S5560X-34C-HI |
S5560X-30F-HI |
S5560X-54F-HI |
S5560X-58C-HI |
|
Removable power supplies |
||||
|
PSR250-12A |
Supported |
Supported |
Supported |
Supported |
|
PSR250-12A1 |
Supported |
Supported |
Supported |
Supported |
|
PSR450-12D |
Supported |
Supported |
Supported |
Supported |
|
Removable fan trays |
||||
|
LSWM1FANSCE |
Supported |
Supported |
Supported |
Supported |
|
LSWM1FANSCBE |
Supported |
Supported |
Supported |
Supported |
|
FAN-40F-1-A |
Supported |
N/A |
N/A |
Supported |
|
FAN-40B-1-A |
Supported |
N/A |
N/A |
Supported |
|
Expansion modules |
||||
|
LSWM2QP2P |
Supported |
Supported |
Supported |
Supported |
|
LSWM2SP8P |
Supported |
Supported |
Supported |
Supported |
|
LSWM4SP8PM |
Supported |
Supported |
Supported |
Supported |
|
LSPM6FWD |
Supported |
Supported |
Supported |
Supported |
|
LSPM6FWD8 |
Supported |
Supported |
Supported |
Supported |
|
LSWM2XMGT8P |
Supported |
Supported |
Supported |
Supported |
|
LSWM2MGT8P |
Supported |
Supported |
Supported |
Supported |
|
LSWM2SP2PB |
Supported |
Supported |
Supported |
Supported |
|
LSWM2SP4PB |
Supported |
Supported |
Supported |
Supported |
|
LSWM2ZSP2P |
Supported |
Supported |
Supported |
Supported |
Removable power supplies
The switch uses removable power supplies. You can install one power supply, or two power supplies in 1+1 redundancy for the switch.
Table3-2 Power supplies available for the switch
|
Power supply model |
Item |
Specifications |
Reference |
|
|
PSR250-12A PSR250-12A1 |
AC input |
Rated input voltage range |
100 to 240 VAC @ 50/60 Hz |
H3C PSR250-12A & PSR250-12A1 Power Modules User Manual |
|
Max input voltage range |
90 to 290 VAC @ 47 to 63 Hz |
|||
|
Max output power |
250 W |
|||
|
High-voltage DC input |
Rated input voltage range |
240 VDC |
||
|
Max input voltage range |
180 to 320 VDC |
|||
|
Max output power |
250 W |
|||
|
PSR450-12D |
DC input |
Rated input voltage range |
40 to 60 VDC |
H3C PSR450 Power Module Series User Manual |
|
Max input voltage range |
36 to 72 VDC |
|||
|
Max output power |
450 W |
|||
Removable fan trays
|
|
CAUTION: You can power on the switch only when the switch has two fan trays of the same model installed. |
The switch supports the LSWM1FANSCE, LSWM1FANSCBE, FAN-40F-1-A, and FAN-40B-1-A fan trays.
Table3-3 Fan trays available for the switch
|
Fan tray model |
Item |
Specifications |
Reference |
|
LSWM1FANSCE (from the power supply side to the port side) LSWM1FANSCBE (from the port side to the power supply side) |
Dimensions (H × W × D) |
40.6 × 40 × 117 mm (1.60 × 1.57 × 4.61 in) |
H3C LSWM1FANSCE & LSWM1FANSCBE Fan Trays User Guide |
|
Fan speed |
21000 R.P.M |
||
|
Max airflow |
26 CFM |
||
|
Input voltage |
12 V |
||
|
Maximum power consumption |
27.72 W |
||
|
FAN-40F-1-A (from the power supply side to the port side) FAN-40B-1-A (from the port side to the power supply side) |
Dimensions (H × W × D) |
40.6 × 40 × 117 mm (1.60 × 1.57 × 4.61 in) |
H3C FAN-40F-1-A & FAN-40B-1-A Fan Trays User Guide |
|
Fan speed |
21000 R.P.M |
||
|
Max airflow |
26 CFM |
||
|
Input voltage |
12 V |
||
|
Maximum power consumption |
27.72 W |
Expansion modules
Table3-4 Expansion modules available for the switch
|
Item |
Specifications |
|
LSWM2QP2P |
|
|
Description |
2-port 40GE QSFP+ interface card |
|
Port type and quantity |
2 × 40 Gbps QSFP+ fiber ports |
|
Available transceiver modules and cables |
See QSFP+ transceiver modules and cables described in Table4-10, Table4-11, and Table4-12. |
|
Reference |
H3C LSWM2QP2P Interface Card User Manual |
|
LSWM2SP8P |
|
|
Description |
8-port 10GE SFP+ interface card |
|
Port type and quantity |
8 × 1/10 Gbps SFP+ fiber ports |
|
Available transceiver modules and cables |
See GE SFP transceiver modules and cables described in Table4-4 and 10-GE SFP+ transceiver modules and cables described in Table4-5 and Table4-6. |
|
Reference |
H3C LSWM2SP8PM & LSWM2SP8P Interface Cards User Manual |
|
LSWM4SP8PM |
|
|
Description |
8-port 10GE SFP+ interface module |
|
Port type and quantity |
8 × 1/10 Gbps SFP+ fiber ports |
|
Available transceiver modules and cables |
See GE SFP transceiver modules and cables described in Table4-4 and 10-GE SFP+ transceiver modules and cables described in Table4-5 and Table4-6. |
|
Reference |
H3C LSWM4SP8PM Interface Card User Manual |
|
LSPM6FWD |
|
|
Description |
The card is a fourth-generation high performance firewall module. It provides features including firewall, VPN, content filtering, content identification, URL filtering, and NAT. By using this card on a switch, you can enhance the switch security capabilities without changing the network topology. |
|
Reference |
H3C LSPM6FWD Card Manual |
|
LSPM6FWD8 |
|
|
Description |
The card is a fourth-generation high performance firewall module. It provides features including firewall, VPN, content filtering, content identification, URL filtering, and NAT. By using this card on a switch, you can enhance the switch security capabilities without changing the network topology. |
|
Reference |
H3C LSPM6FWD8 Card Manual |
|
LSWM2XMGT8P |
|
|
Description |
8-port 1/2.5/5/10GBASE-T interface card |
|
Port type and quantity |
8 × 10G/5G/2.5G/1000BASE-T autosensing Ethernet ports |
|
Port specifications |
See Table4-14 for the port specifications. |
|
Reference |
H3C LSWM2MGT8P & LSWM2XMGT8P Interface Cards User Manual |
|
LSWM2MGT8P |
|
|
Description |
8-port 1/2.5/5GBASE-T interface module |
|
Port type and quantity |
8 × 5G/2.5G/1000BASE-T autosensing Ethernet ports |
|
Port specifications |
See Table4-15 for the port specifications. |
|
Reference |
H3C LSWM2MGT8P & LSWM2XMGT8P Interface Cards User Manual |
|
LSWM2SP2PB |
|
|
Description |
2-port 10GE SFP+ interface module |
|
Port type and quantity |
2 × 1/10 Gbps SFP+ fiber ports |
|
Available transceiver modules and cables |
See GE SFP transceiver modules and cables described in Table4-4 and 10-GE SFP+ transceiver modules and cables described in Table4-5 and Table4-6. |
|
Reference |
H3C LSWM2SP2PB & LSWM2SP4PB Interface Cards User Manual |
|
LSWM2SP4PB |
|
|
Description |
4-port 10GE SFP+ interface module |
|
Port type and quantity |
4 × 1/10 Gbps SFP+ fiber ports |
|
Available transceiver modules and cables |
See GE SFP transceiver modules and cables described in Table4-4 and 10-GE SFP+ transceiver modules and cables described in Table4-5 and Table4-6. |
|
Reference |
H3C LSWM2SP2PB & LSWM2SP4PB Interface Cards User Manual |
|
LSWM2ZSP2P |
|
|
Description |
2-port 25GE SFP28 interface module |
|
Port type and quantity |
2 × 25 Gbps SFP28 fiber ports |
|
Available transceiver modules and cables |
See SFP28 transceiver modules and cables described in Table4-8 and Table4-9. |
|
Reference |
H3C LSWM2ZSP2P Interface Card User Manual |
|
LSWM2FPGA |
|
|
Description |
4-port 10GE SFP+ NetStream interface module |
|
Port type and quantity |
4 × 10 Gbps SFP+ fiber ports (supporting NetStream) |
|
Available transceiver modules and cables |
See GE SFP transceiver modules and cables described in Table4-4 and 10-GE SFP+ transceiver modules and cables described in Table4-5 and Table4-6. |
|
Reference |
H3C LSWM2FPGA NetStream Interface Module User Manual |
|
LSWM2FPGAB |
|
|
Description |
The LSWM2FPGAB NetStream interface module is developed by H3C to offer unidirectional NetStream and session-based bidirectional NetStream. After the device copies traffic to the LSWM2FPGAB NetStream interface module, the field programmable gate array (FPGA) chip in the module collects and analyzes traffic statistics and creates NetStream entries. This NetStream approach saves ACL resources, improves NetStream entry creation performance, and greatly reduces NetStream impact on the device forwarding performance. |
|
Reference |
H3C LSWM2FPGAB NetStream Interface Module User Manual |
Connecting cables to the ports on interface cards
To connect cables to the ports on interface cards, follow these guidelines:
· Do not bundle cables in their first 20 m (65.62 ft).
· Separate power cords and twisted pair cables at and around the distribution frame.
· For ports adjacent to one another on the device, the peer ports on the distribution frame is preferably not adjacent, for example:
· If the device connects to one distribution frame, connect port 1 on the device to port 1 on the distribution frame and port 2 on the device to port 3 on the distribution frame.
· If the device connects to two distribution frames, connect port 1 on the device to port 1 on distribution frame 1 and port 2 on the device to port 1 on distribution frame 2.
· Keep the device and cables away from the interference source, such as a two-way radio and a high-power variable-frequency drive.
4 Ports and LEDs
Ports
Console port
The switch has two console ports: a serial console port and a micro USB console port.
Table4-1 Console port specifications
|
Item |
Serial console port |
Micro USB console port |
|
Connector type |
RJ-45 |
Micro USB Type B |
|
Compliant standard |
EIA/TIA-232 |
USB 2.0 |
|
Transmission baud rate |
9600 bps (default) to 115200 bps |
|
|
Services |
· Provides connection to an ASCII terminal. · Provides connection to the serial port of a local PC running terminal emulation program. |
Provides connection to the USB port of a local PC running terminal emulation program. |
Management Ethernet port
The switch provides a management Ethernet port on the front panel. You can connect this port to a PC or management station for loading and debugging software or remote management.
Table4-2 Management Ethernet port specifications
|
Item |
Specification |
|
Connector type |
RJ-45 |
|
Port transmission rate |
· 10/100 Mbps, half/full duplex, MDI/MDI-X autosensing · 1000 Mbps, full duplex, MDI/MDI-X autosensing |
|
Transmission medium and max transmission distance |
100 m (328.08 ft) over category-5 twisted pair cable |
|
Functions and services |
Switch software and Boot ROM upgrade, network management |
10/100/1000BASE-T autosensing Ethernet port
The S5560X-34C-HI and S5560X-58C-HI switches provide 10/100/1000BASE-T autosensing Ethernet ports on the front panel.
Table4-3 10/100/1000BASE-T autosensing Ethernet port specifications
|
Item |
Specification |
|
Connector type |
RJ-45 |
|
Data rate and duplex mode |
· 10/100 Mbps, full/half duplex · 1 Gbps, full duplex |
|
Auto-MDI/MDI-X |
Supported |
|
Max transmission distance |
100 m (328.08 ft) |
|
Transmission medium |
Category-5 or above twisted pair cable |
|
Standards |
IEEE 802.3i, 802.3u, 802.3ab |
USB port
The switch has one OHC-compliant USB2.0 port that can upload and download data at a rate up to 480 Mbps. You can use this USB port to access the file system on the flash of the switch, for example, to upload or download application and configuration files.
|
|
NOTE: USB devices from different vendors vary in compatibilities and drivers. H3C does not guarantee the correct operation of USB devices from all vendors on the switch. If a USB device fails to operate on the switch, replace it with one from another vendor. |
SFP port
The S5560X-30F-HI and S5560X-54F-HI switches provide SFP ports on the front panel. You can install GE SFP transceiver modules and cables in Table4-4 in the SFP ports.
SFP+ port
The switch provides fixed SFP+ ports on the front panel. The LSWM2SP2PB, LSWM2SP4PB, LSWM4SP8PM, and LSWM2SP8P interface cards also provide SFP+ ports. To connect peer SFP+ ports over a long distance, use SFP/SFP+ transceiver modules and fibers. To connect peer SFP+ ports over a short distance, use SFP/SFP+ cables. You can install GE SFP transceiver modules and cables in Table4-4, 10-GE SFP+ transceiver modules in Table4-5, and 10-GE SFP+ cables in Table4-6 in the SFP+ ports.
Table4-4 GE SFP transceiver modules and cables available for the SFP+ ports
|
GE SFP transceiver module and cable |
Central wavelength (nm) |
Connector |
Cable/Fiber type and diameter (µm) |
Modal bandwidth (MHz × km) |
Max transmission distance |
|
GE SFP transceiver modules |
|||||
|
SFP-GE-T |
N/A |
RJ-45 |
Twisted pair cable |
N/A |
100 m (328.08 ft) |
|
SFP-GE-T-D |
N/A |
RJ-45 |
Twisted pair cable |
N/A |
100 m (328.08 ft) |
|
SFP-GE-SX-MM850-A |
850 |
LC |
Multi-mode, 50/125 |
500 |
550 m (1804.46 ft) |
|
400 |
500 m (1640.42 ft) |
||||
|
Multi-mode, 62.5/125 |
200 |
275 m (902.23 ft) |
|||
|
160 |
220 m (721.78 ft) |
||||
|
SFP-GE-SX-MM850-D |
850 |
LC |
Multi-mode, 50/125 |
500 |
550 m (1804.46 ft) |
|
400 |
500 m (1640.42 ft) |
||||
|
Multi-mode, 62.5/125 |
200 |
275 m (902.23 ft) |
|||
|
160 |
220 m (721.78 ft) |
||||
|
SFP-GE-SX-MM850-S |
850 |
LC |
Multi-mode, 50/125 |
500 |
550 m (1804.46 ft) |
|
400 |
500 m (1640.42 ft) |
||||
|
Multi-mode, 62.5/125 |
200 |
275 m (902.23 ft) |
|||
|
160 |
220 m (721.78 ft) |
||||
|
SFP-GE-LX-SM1310-A |
1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
Multi-mode, 50/125 |
500 or 400 |
550 m (1804.46 ft) |
|||
|
Multi-mode, 62.5/125 |
500 |
550 m (1804.46 ft) |
|||
|
SFP-GE-LX-SM1310-D |
1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-GE-LX-SM1310-S |
1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-GE-LH40-SM1310 |
1310 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
SFP-GE-LH40-SM1310-D |
1310 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
SFP-GE-LH40-SM1550 |
1550 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
SFP-GE-LH80-SM1550 |
1550 |
LC |
Single-mode, 9/125 |
N/A |
80 km (49.71 miles) |
|
SFP-GE-LH80-SM1550-D |
1550 |
LC |
Single-mode, 9/125 |
N/A |
80 km (49.71 miles) |
|
SFP-GE-LH100-SM1550 |
1550 |
LC |
Single-mode, 9/125 |
N/A |
100 km (62.14 miles) |
|
SFP-GE-LX-SM1310-BIDI |
TX: 1310 RX: 1490 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-GE-LX-SM1490-BIDI |
TX: 1490 RX: 1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-GE-LH40-SM1310-BIDI |
TX: 1310 RX: 1550 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
SFP-GE-LH40-SM1550-BIDI |
TX: 1550 RX: 1310 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
SFP-GE-LH70-SM1490-BIDI |
TX: 1490 RX: 1550 |
LC |
Single-mode, 9/125 |
N/A |
70 km (43.50 miles) |
|
SFP-GE-LH70-SM1550-BIDI |
TX: 1550 RX: 1490 |
LC |
Single-mode, 9/125 |
N/A |
70 km (43.50 miles) |
|
GE SFP cable |
|||||
|
SFP-STACK-Kit |
N/A |
N/A |
N/A |
N/A |
1.5 m (4.92 ft) |
|
|
IMPORTANT: The SFP-GE-LX-SM1310-BIDI and SFP-GE-LX-SM1490-BIDI transceiver modules, the SFP-GE-LH40-SM1310-BIDI and SFP-GE-LH40-SM1550-BIDI transceiver modules, and the SFP-GE-LH70-SM1490-BIDI and SFP-GE-LH70-SM1550-BIDI transceiver modules must be used in pairs. For example, if one end uses the SFP-GE-LX-SM1310-BIDI transceiver module, the other end must use the SFP-GE-LX-SM1490-BIDI transceiver module. |
Table4-5 10-GE SFP+ transceiver modules available for the SFP+ ports
|
10-GE SFP+ module |
Central wavelength (nm) |
Connector |
Fiber diameter (µm) |
Modal bandwidth (MHz × km) |
Max transmission distance |
|
SFP-XG-SX-MM850-D |
850 |
LC |
Multi-mode, 50/125 |
2000 |
300 m (984.25 ft) |
|
500 |
82 m (269.03 ft) |
||||
|
400 |
66 m (216.54 ft) |
||||
|
Multi-mode, 62.5/125 |
200 |
33 m (108.27 ft) |
|||
|
160 |
26 m (85.30 ft) |
||||
|
SFP-XG-SX-MM850-E |
850 |
LC |
Multi-mode, 50/125 |
2000 |
300 m (984.25 ft) |
|
500 |
82 m (269.03 ft) |
||||
|
400 |
66 m (216.54 ft) |
||||
|
Multi-mode, 62.5/125 |
200 |
33 m (108.27 ft) |
|||
|
160 |
26 m (85.30 ft) |
||||
|
SFP-XG-SX-MM850-S |
850 |
LC |
Multi-mode, 50/125 |
2000 |
300 m (984.25 ft) |
|
500 |
82 m (269.03 ft) |
||||
|
400 |
66 m (216.54 ft) |
||||
|
Multi-mode, 62.5/125 |
200 |
33 m (108.27 ft) |
|||
|
160 |
26 m (85.30 ft) |
||||
|
SFP-XG-LX-SM1310 |
1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-XG-LX-SM1310-D |
1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-XG-LX-SM1310-S |
1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-XG-LX-SM1310-E |
1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-XG-LH40-SM1550 |
1550 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
SFP-XG-LH40-SM1550-D |
1550 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
SFP-XG-LH80-SM1550 |
1550 |
LC |
Single-mode, 9/125 |
N/A |
80 km (49.71 miles) |
|
SFP-XG-LH80-SM1550-D |
1550 |
LC |
Single-mode, 9/125 |
N/A |
80 km (49.71 miles) |
|
SFP-XG-LX-SM1270-BIDI |
· TX:1270 · RX:1330 |
LC |
9/125 µm single-mode optical fiber |
N/A |
10 km (6.21 miles) |
|
SFP-XG-LX-SM1330-BIDI |
· TX:1330 · RX:1270 |
LC |
9/125 µm single-mode optical fiber |
N/A |
10 km (6.21 miles) |
|
SFP-XG-LH40-SM1270-BIDI |
· TX:1270 · RX:1330 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
SFP-XG-LH40-SM1330-BIDI |
· TX:1330 · RX:1270 |
LC |
Single-mode, 9/125 |
N/A |
40 km (24.86 miles) |
|
|
IMPORTANT: The SFP-XG-LX-SM1270-BIDI and SFP-XG-LX-SM1330-BIDI transceiver modules and the SFP-XG-LH40-SM1270-BIDI and SFP-XG-LH40-SM1330-BIDI transceiver modules must be used in pairs. For example, if one ends uses an SFP-XG-LX-SM1270-BIDI transceiver module, the other end must use an SFP-XG-LX-SM1330-BIDI transceiver module. |
Table4-6 SFP+ copper cables available for the SFP+ ports
|
SFP+ copper cable |
Cable length |
|
LSWM1STK |
0.65 m (2.13 ft) |
|
LSWM2STK |
1.2 m (3.94 ft) |
|
LSWM3STK |
3 m (9.84 ft) |
|
LSTM1STK |
5 m (16.40 ft) |
Table4-7 SFP+ fiber cables available for the SFP+ ports
|
SFP+ fiber cable |
Max transmission distance |
|
SFP-XG-D-AOC-7M |
7 m (22.97 ft) |
|
SFP-XG-D-AOC-10M |
10 m (32.81 ft) |
|
SFP-XG-D-AOC-20M |
20 m (65.62 ft) |

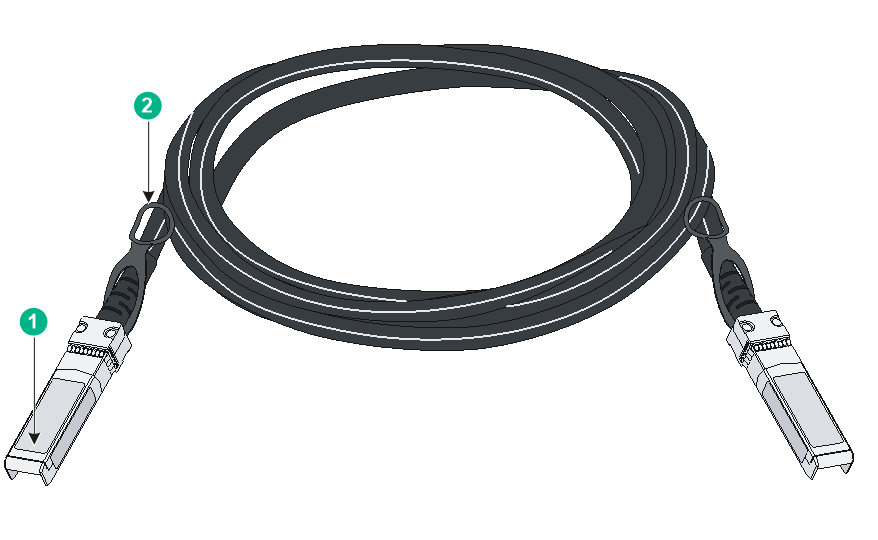

Figure4-1 SFP+ cable
|
(1) SFP+ module |
(2) Pull latch |
|
|
NOTE: · As a best practice, use H3C transceiver modules and network cables for the switch. · The H3C transceiver modules and network cables are subject to change over time. For the most recent list of H3C transceiver modules and cables, contact H3C Support or marketing staff. · For the specifications of H3C transceiver modules and network cables, see H3C Transceiver Modules User Guide. |
SFP28 port
An LSWM2ZSP2P interface card provides SFP28 ports. To connect peer SFP28 ports over a long distance, use SFP28 transceiver modules and fibers. To connect peer SFP28 ports over a short distance, use SFP28 cables. You can install SFP28 transceiver modules in Table4-8 and SFP28 cables in Table4-9 in the SFP28 ports.
Table4-8 SFP28 transceiver modules available for the SFP28 ports
|
SFP28 transceiver module |
Central wavelength (nm) |
Connector |
Fiber type and diameter (µm) |
Modal bandwidth (MHz × km) |
Max transmission distance |
|
SFP-25G-LR-SM1310 |
1310 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
SFP-25G-SR-MM850 |
850 |
LC |
Multi-mode, 50/125 |
2000 |
70 m (229.66 ft) |
|
4700 |
100 m (328.08 ft) |
Table4-9 SFP28 cables available for the SFP28 ports
|
SFP28 cable |
Max transmission distance |
|
SFP-25G-D-CAB-1M |
1 m (3.28 ft) |
|
SFP-25G-D-CAB-3M |
3 m (9.84 ft) |
|
SFP-25G-D-CAB-5M |
5 m (16.40 ft) |
|
SFP-25G-D-AOC-3M |
3 m (9.84 ft) |
|
SFP-25G-D-AOC-5M |
5 m (16.40 ft) |
|
SFP-25G-D-AOC-7M |
7 m (22.97 ft) |
|
SFP-25G-D-AOC-10M |
10 m (32.81 ft) |
|
SFP-25G-D-AOC-20M |
20 m (65.62 ft) |
Figure4-2 SFP28 cable
|
(1) SFP28 module |
(2) Pull latch |
|
|
NOTE: · As a best practice, use H3C transceiver modules and network cables for the switch. · The H3C transceiver modules and network cables are subject to change over time. For the most recent list of H3C transceiver modules and cables, contact H3C Support or marketing staff. · For the specifications of H3C transceiver modules and network cables, see H3C Transceiver Modules User Guide. |
QSFP+ port
The switch and the LSWM2QP2P interface card provide QSFP+ ports. You can install QSFP+ transceiver modules in Table4-10, QSFP+ cables in Table4-11, and QSFP+ to SFP+ cables in Table4-12 in the QSFP+ ports.
Table4-10 QSFP+ transceiver modules available for the QSFP+ ports
|
QSFP+ transceiver module |
Central wavelength (nm) |
Connector |
Fiber type and diameter (µm) |
Modal bandwidth (MHz × km) |
Max transmission distance |
|
QSFP-40G-SR4-MM850 |
850 |
MPO |
Multi-mode, 50/125 |
2000 |
100 m (328.08 ft) |
|
4700 |
150 m (492.12 ft) |
||||
|
QSFP-40G-CSR4-MM850 |
850 |
MPO |
Multi-mode, 50/125 |
2000 |
300 m (984.25 ft) |
|
4700 |
400 m (1312.33 ft) |
||||
|
QSFP-40G-LR4-PSM1310 |
1310 |
MPO |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
QSFP-40G-LR4-WDM1300 |
Four lanes: · 1271 · 1291 · 1311 · 1331 |
LC |
Single-mode, 9/125 |
N/A |
10 km (6.21 miles) |
|
QSFP-40G-LR4L-WDM1300 |
Four lanes: · 1271 · 1291 · 1311 · 1331 |
LC |
Single-mode, 9/125 |
N/A |
2 km (1.24 miles) |
|
QSFP-40G-BIDI-SR-MM850 |
Two lanes: · 850 · 900 |
LC |
Multi-mode, 50/125 |
2000 |
100 m (328.08 ft) |
|
4700 |
150 m (492.12 ft) |
||||
|
QSFP-40G-BIDI-WDM850 |
Four lanes: · 850 · 880 · 910 · 940 |
LC |
Multi-mode, 50/125 |
2000 |
240 m (787.40 ft) |
|
4700 |
350 m (1148.29 ft) |
Table4-11 QSFP+ cables available for the QSFP+ ports
|
QSFP+ cable |
Max transmission distance |
|
LSWM1QSTK0 |
1 m (3.28 ft) |
|
LSWM1QSTK1 |
3 m (9.84 ft) |
|
LSWM1QSTK2 |
5 m (16.40 ft) |
Table4-12 QSFP+ to SFP+ cables available for the QSFP+ ports
|
QSFP+ to SFP+ cable |
Max transmission distance |
|
LSWM1QSTK3 |
1 m (3.28 ft) |
|
LSWM1QSTK4 |
3 m (9.84 ft) |
|
LSWM1QSTK5 |
5 m (16.40 ft) |
Table4-13 QSFP+ fiber cables available for the QSFP+ ports
|
QSFP+ fiber cable |
Max transmission distance |
|
QSFP-40G-D-AOC-3M |
3 m (9.84 ft) |
|
QSFP-40G-D-AOC-7M |
7 m (22.97 ft) |
|
QSFP-40G-D-AOC-10M |
10 m (32.81 ft) |
|
QSFP-40G-D-AOC-20M |
20 m (65.62 ft) |
Figure4-3 40G QSFP+ cable
|

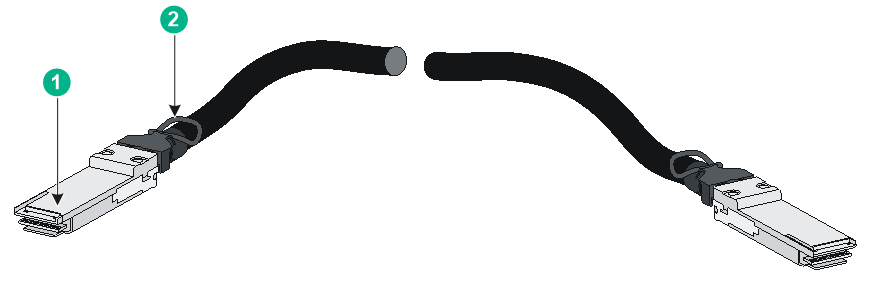

(1) QSFP+ module |
(2) Pull latch |
Figure4-4 40G QSFP+ to SFP+ cable
|
(1) QSFP+ module |
(2) QSFP+ module side pull latch |
|
(3) SFP+ module side pull latch |
(4) SFP+ module |
|
|
IMPORTANT: · The QSFP+ ports on an LSWM2QP2P interface card do not support the QSFP-40G-LR4-PSM1310 transceiver module. · You can use a QSFP-40G-SR4-MM850, QSFP-40G-CSR4-MM850, or QSFP-40G-LR4-PSM1310 transceiver module to connect a QSFP+ port to four SFP+ ports. The QSFP+ transceiver module and SFP+ transceiver modules to be connected must be the same in specifications, including central wavelength and fiber type. |
|
|
NOTE: · As a best practice, use H3C transceiver modules and network cables for the switch. · The H3C transceiver modules and network cables are subject to change over time. For the most recent list of H3C transceiver modules and cables, contact H3C Support or marketing staff. · For the specifications of H3C transceiver modules and network cables, see H3C Transceiver Modules User Guide. |
10G/5G/2.5G/1000BASE-T autosensing Ethernet ports
The LSWM2XMGT8P interface module provides 10G/5G/2.5G/1000BASE-T autosensing Ethernet ports. Table4-14 describes the 10G/5G/2.5G/1000BASE-T autosensing Ethernet port specifications.
Table4-14 10G/5G/2.5G/1000BASE-T autosensing Ethernet port specifications
|
Item |
Specification |
|
Connector type |
RJ-45 |
|
Rate, duplex mode, and auto-MDI/MDI-X |
1/2.5/5/10 Gbps, full-duplex, auto MDI/MDI-X |
|
Transmission medium and max transmission distance |
· 10G mode ¡ Category 6 unshielded twisted pair cable: 55 m (180.45 ft) ¡ Category 6 shielded twisted pair cable: 100 m (328.08 ft) ¡ Category 6A twisted pair cable: 100 m (328.08 ft) · 5G mode ¡ Category 5e unshielded twisted pair cable: 55 m (180.45 ft) ¡ Category 5e shielded twisted pair cable: 100 m (328.08 ft) ¡ Category 6 twisted pair cable: 100 m (328.08 ft) ¡ Category 6A twisted pair cable: 100 m (328.08 ft) · 2.5G mode: Category 5e or above twisted pair cable (100 m, 328.08 ft) |
|
Standard |
IEEE 802.3ab, IEEE 802.3an |
5G/2.5G/1000BASE-T autosensing Ethernet ports
The LSWM2MGT8P interface module provides 5G/2.5G/1000BASE-T autosensing Ethernet ports. Table4-14 describes the 5G/2.5G/1000BASE-T autosensing Ethernet port specifications.
Table4-15 5G/2.5G/1000BASE-T autosensing Ethernet port specifications
|
Item |
Specification |
|
Connector type |
RJ-45 |
|
Rate, duplex mode, and auto-MDI/MDI-X |
1/2.5/5 Gbps, full-duplex, auto MDI/MDI-X |
|
Transmission medium and max transmission distance |
· 5G mode ¡ Category 5e unshielded twisted pair cable: 55 m (180.45 ft) ¡ Category 5e shielded twisted pair cable: 100 m (328.08 ft) ¡ Category 6 twisted pair cable: 100 m (328.08 ft) ¡ Category 6A twisted pair cable: 100 m (328.08 ft) · 2.5G mode: Category 5e or above twisted pair cable (100 m, 328.08 ft) |
|
Standard |
IEEE 802.3ab, IEEE 802.3an |
LEDs
System status LED
The system status LED shows the operating state of the switch.
Table4-16 System status LED description
|
LED mark |
Status |
Description |
|
SYS |
Steady green |
The switch is operating correctly. |
|
Flashing green (1 Hz) |
The switch is performing power-on self test (POST). |
|
|
Steady red |
The switch has failed the POST or is faulty. |
|
|
Off |
The switch is powered off. |
Power supply status LED
The switch provides two power supply slots on the rear panel. The power status LEDs PWR1 and PWR2 on the front panel show the operating status of power supply 1 (PWR1) and power supply 2 (PWR2), respectively.
Table4-17 Power supply status LED description
|
LED mark |
Status |
Description |
|
PWR1/PWR2 |
Steady green |
A power supply is installed in the power supply slot, and the power supply is outputting power correctly. |
|
Steady yellow |
A power supply is installed in the power supply slot, but the power supply has failed or no power is input to the power supply. |
|
|
Off |
No power supply is installed in the power supply slot. |
MODE LED
To show more information about the switch through the port LEDs, the switch provides a MODE LED (MODE) to indicate the type of information that the port status LEDs are showing.
You can use the mode button to change the indication of the MODE LED.
Table4-18 Description for the mode LED
|
LED mark |
Status |
Description |
|
MODE |
Steady green |
The port status LEDs indicate port rates. |
|
Flashing yellow |
The port status LEDs indicate the IRF member ID of the switch. For example, if the LEDs for ports 1 to 5 are steady green and the other LEDs are off, the IRF member ID of the switch is 5. |
Management Ethernet port LED
Table4-19 Management Ethernet port LED description
|
Management Ethernet port LED (ACT/LINK) status |
Description |
|
Steady green |
A link is present on the port. |
|
Flashing yellow |
The port is sending or receiving data. |
|
Off |
No link is present on the port. |
10/100/1000BASE-T autosensing Ethernet port LED
Table4-20 10/100/1000BASE-T autosensing Ethernet port LED description
|
10/100/1000BASE-T autosensing Ethernet port LED status |
Description |
|
Steady green |
A link is present on the port and the port is operating at 1000 Mbps. |
|
Flashing green |
The port is sending or receiving data at 1000 Mbps. |
|
Steady yellow |
A link is present on the port and the port is operating at 10 or 100 Mbps. |
|
Flashing yellow |
The port is sending or receiving data at 10 or 100 Mbps. |
|
Off |
No link is present on the port. |
SFP port LED
Table4-21 SFP port LED description
|
Mode LED status |
SFP port LED status |
Description |
|
Steady green (rate mode) |
Steady green |
A link is present on the port and the port is operating at 1000 Mbps. |
|
Flashing green |
The port is sending or receiving data at 1000 Mbps. |
|
|
Off |
No link is present on the port. |
|
|
Flashing yellow (IRF mode) |
Steady green |
The SFP port LEDs on the switch work in conjunction to indicate the IRF member ID of the switch. For example, if the LEDs for ports 1 to 5 are steady green, the IRF member ID of the switch is 5. |
SFP+ port LED
Table4-22 SFP+ port LED description
|
SFP+ port LED status |
Description |
|
Steady green |
A link is present on the port and the port is operating at 10 Gbps. |
|
Flashing green |
The port is sending or receiving data at 10 Gbps. |
|
Steady yellow |
A link is present on the port and the port is operating at 1 Gbps. |
|
Flashing yellow |
The port is sending or receiving data at 1 Gbps. |
|
Off |
· No link is present on the port. · The mode LED operates in IRF mode. |
QSFP+ port LED
Table4-23 QSFP+ port LED description
|
LED status |
Description |
|
Steady green |
A link is present on the port and the port is operating at 40 Gbps. |
|
Flashing green |
The port is sending or receiving data at 40 Gbps. |
|
Steady yellow |
A link is present on the port and the port is operating at 10 Gbps. |
|
Flashing yellow |
The port is sending or receiving data at 10 Gbps. |
|
Off |
· No transceiver module or cable has been installed or no link is present on the port. · The mode LED operates in IRF mode. |
Expansion module status LED
The switch provides two expansion slots on the rear panel. The expansion module status LEDs SLOT1 and SLOT2 on the front panel indicate the operating state of the expansion modules in slot 1 and slot 2, respectively.
Table4-24 Expansion module status LED description
|
LED mark |
Status |
Description |
|
SLOT1/SLOT2 |
Steady green |
The expansion module is present and is operating correctly. |
|
Flashing yellow |
The switch does not support the card, or the card has failed. |
|
|
Off |
The expansion slot is empty. |
Port status LED on an expansion module
An expansion module provides a port status LED for each port. For more information about the LEDs, see the manual for the expansion module.
Input/output status LED on a power supply
The PSR250-12A, PSR250-12A1, and PSR450-12D power supplies each have a LED on the front panel to indicate the power input and output status. For more information about the LED, see the manual for the power supply.
Fan tray status LED on a fan tray
The LSWM1FANSCE, LSWM1FANSCBE, FAN-40F-1-A, and FAN-40B-1-A fan trays each have a LED to indicate the fan tray operating status. For more information about the LED, see the manual for the fan tray.
5 Cooling system
To dissipate heat timely and enhance system stability, the switch uses a high-performance cooling system. Consider the site ventilation design when you plan the installation site for the switch.
The switch uses removable fan trays. It provides airflow from the port side to the power supply side or from power supply side to the port side by using different types of fan trays. You must install two fan trays of the same model for the switch. Table5-1 describes fan trays available for the switch.
Table5-1 Cooling system of the switch
|
Device model |
Fan tray model |
Airflow direction |
|
S5560X-30F-HI S5560X-54F-HI |
LSWM1FANSCE |

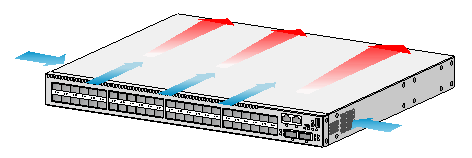

From the power supply side to the port side and chassis sides (S5560X-54F-HI switch as an example)
|
|
LSWM1FANSCBE |
From the port side and chassis sides to the power supply side (S5560X-54F-HI switch as an example)
|
|
|
S5560X-34C-HI S5560X-58C-HI |
LSWM1FANSCE FAN-40F-1-A |

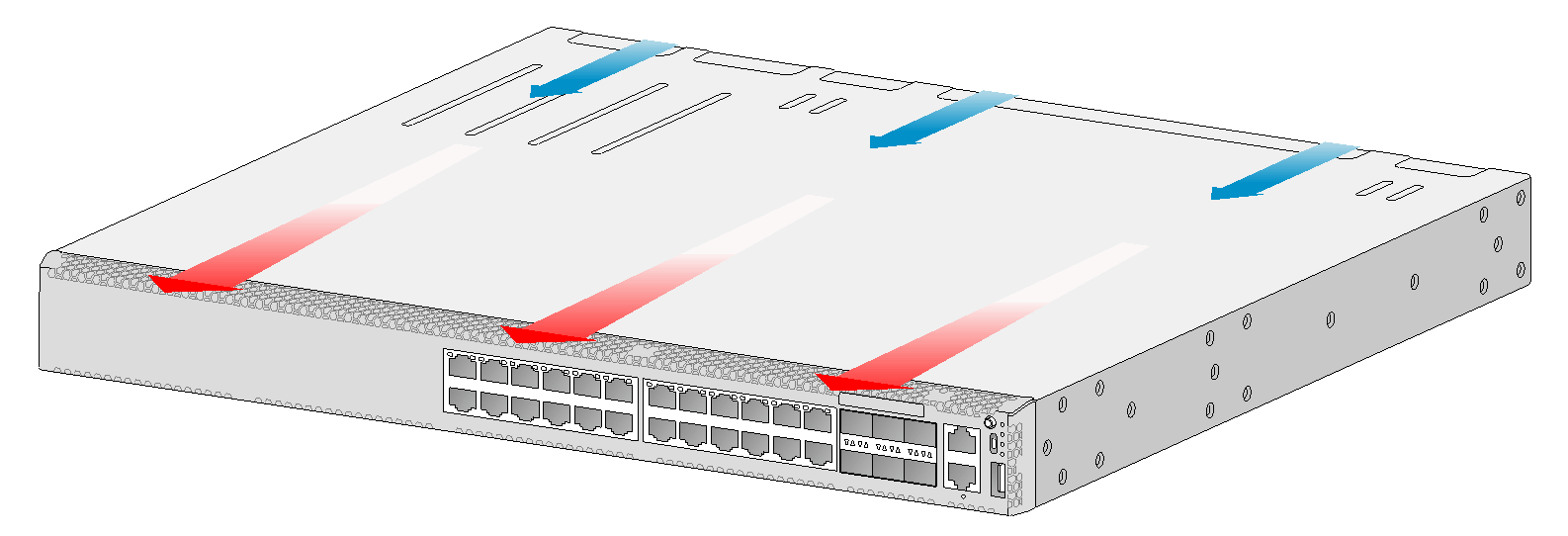

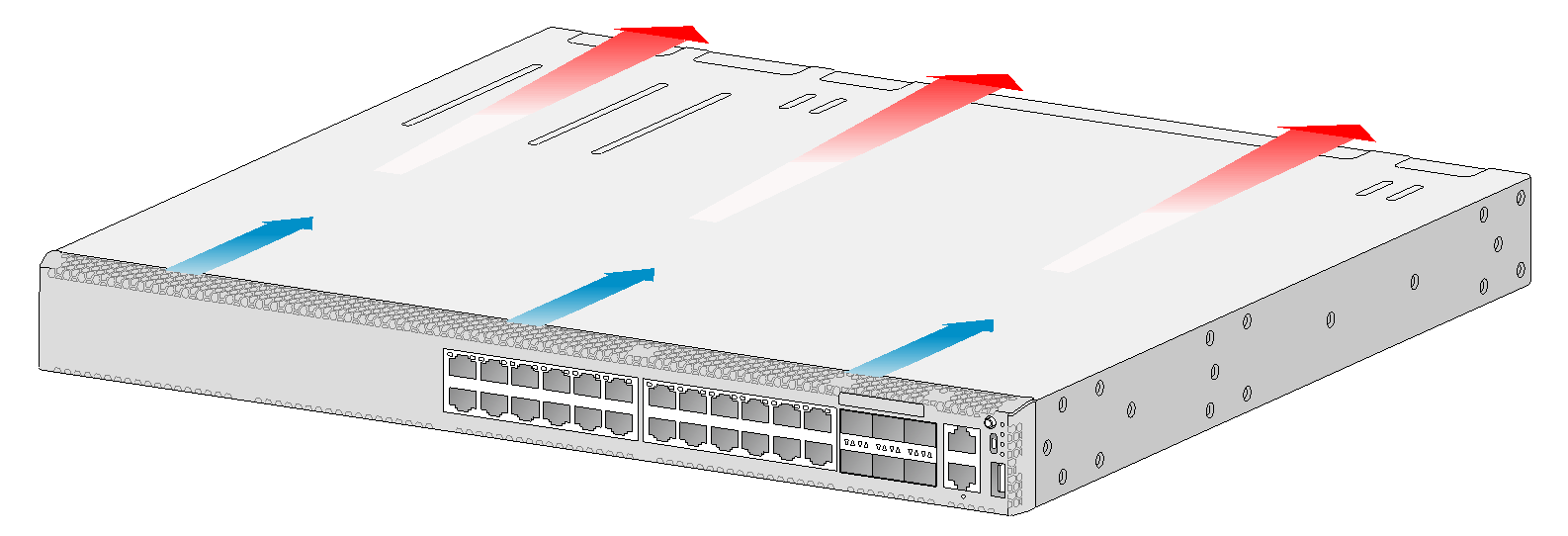

From the power supply side to the port side (S5560X-34C-HI switch as an example)
|
|
LSWM1FANSCBE FAN-40B-1-A |
From the port side to the power supply side (S5560X-34C-HI switch as an example)
|
