The expected bandwidth of an interface affects the link costs in OSPF, OSPFv3, and IS-IS. For more information, see Layer 3—IP Routing Configuration Guide.

Examples

# Set the expected bandwidth of Virtual-Template 10 to 1000 kbps.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] bandwidth 1000

# Set the expected bandwidth of MP-group 2/0/0 to 1000 kbps.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] bandwidth 1000

default

Use default to restore the default settings for an interface.

Syntax

default

Views

VT interface view

MP-group interface view

Predefined user roles

network-admin

Usage guidelines

CAUTION:

The default command might interrupt ongoing network services. Make sure you are fully aware of the impact of this command before using it on a live network.

‌

This command might fail to restore the default settings for some commands for reasons such as command dependencies or system restrictions. Use the display this command in interface view to identify these commands. Use the undo forms of these commands or follow the command reference to individually restore their default settings. If your restoration attempt still fails, follow the error message instructions to resolve the problem.

Examples

# Restore the default settings of Virtual-Template 10.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] default

# Restore the default settings of MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] default

description

Use description to set the description for an interface.

Use undo description to restore the default.

Syntax

description text

undo description

Default

The description for a VT or MP-group interface is interface name Interface (for example, Virtual-Template1 Interface or MP-group2/0/0 Interface).

Views

VT interface view

MP-group interface view

Predefined user roles

network-admin

Parameters

text: Specifies the interface description, a case-sensitive string of 1 to 255 characters.

Examples

# Set the description for Virtual-Template 10 to virtual-interface.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] description virtual-interface

# Set the description for MP-group 2/0/0 to mpgroup-interface.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] description mpgroup-interface

display interface virtual-access

Use display interface virtual-access to display information about VA interfaces.

Syntax

display interface [ virtual-access [ interface-number ] ] [ brief [ description | down ] ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

virtual-access [ interface-number ]: Specifies an existing VA interface by its number. If you do not specify the virtual-access keyword, the command displays information about all interfaces except VA interfaces on the device. If you specify the virtual-access keyword without the interface-number argument, the command displays information about all VA interfaces.

brief: Displays brief interface information. If you do not specify this keyword, the command displays detailed interface information.

description: Displays interface description information. This keyword does not apply to VA interfaces because VA interfaces do not support description configuration.

down: Displays information about interfaces in physically down state and the causes. If you do not specify this keyword, the command displays information about all interfaces.

Examples

# Display information about Virtual-Access 1.

<Sysname> display interface virtual-access 1

Virtual-Access1

Current state: UP

Line protocol state: UP

Description: Virtual-Access1 Interface

Bandwidth: 1920kbps

Maximum transmission unit: 1500

Hold timer: 10 seconds, retry times: 5

Internet address: 122.1.1.1/24 (primary)

Link layer protocol: PPP

LCP: opened, MP: opened, IPCP: opened

Physical: MP, baudrate: 1920000 bps

Main interface: Virtual-Template1

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last link flapping: Never

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 2 packets, 24 bytes, 0 drops

Output: 2 packets, 24 bytes, 0 drops

# Display brief information about Virtual-Access 1.

<Sysname> display interface virtual-access 1 brief

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface Link Protocol Primary IP Description

VA1 DOWN DOWN --

# Display brief information about VA interfaces in physically down state and the causes.

<Sysname> display interface virtual-access brief down

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Interface Link Cause

VA1 DOWN Not connected

Table 1 Command output

Field	Description
Current state	Physical and administrative states of the interface: · DOWN—The interface is administratively up but physically down. · UP—The interface is both administratively and physically up.
Line protocol state	Data link layer state: UP or DOWN.
Description	Interface description.
Bandwidth	Expected bandwidth of the interface.
Hold timer	Interval at which the interface sends keepalive packets.
retry times	Keepalive retry limit. The interface determines that its peer has been down if it does not receive a keepalive response when the keepalive retry limit is reached.
Internet protocol processing: Disabled	The interface cannot process IP packets currently.
Internet address: ip-address/mask-length (Type)	IP address of the interface and type of the address in parentheses. Possible IP address types include: · Primary—Manually configured primary IP address. · Sub—Manually configured secondary IP address. If the interface has both primary and secondary IP addresses, the primary IP address is displayed. If the interface has only secondary IP addresses, the lowest secondary IP address is displayed. · DHCP-allocated—DHCP allocated IP address. For more information, see DHCP client configuration in Layer 3—IP Services Configuration Guide. · BOOTP-allocated—BOOTP allocated IP address. For more information, see BOOTP client configuration in Layer 3—IP Services Configuration Guide. · PPP-negotiated—IP address assigned by a PPP server during PPP negotiation. For more information, see PPP configuration in Layer 2—WAN Access Configuration Guide. · Unnumbered—IP address borrowed from another interface. · Cellular-allocated—IP address allocated through the modem-manufacturer's proprietary protocol. For more information, see 3G/4G modem management in Layer 2—WAN Access Configuration Guide. · MAD—IP address assigned to an IRF member device for MAD on the interface. For more information, see IRF configuration in Virtual Technologies Configuration Guide. · MTunnel—IP address of the multicast tunnel interface (MTI), which is the same as the IP address of the MVPN source interface. For more information, see multicast VPN configuration in IP Multicast Configuration Guide.
LCP: opened, MP: opened, IPCP: opened	The PPP connection has been successfully established.
Physical	Physical type of the interface.
Main interface	VT interface associated with the VA interface.
Output queue - Urgent queuing: Size/Length/Discards 0/100/0 Output queue - Protocol queuing: Size/Length/Discards 0/500/0 Output queue - FIFO queuing: Size/Length/Discards 0/75/0	Traffic statistics of the interface output queues.
Last link flapping	The amount of time that has elapsed since the most recent physical state change of the interface. This field displays Never if the interface has been physically down since device startup.
Last clearing of counters: Never	Last time when statistics on the interface were cleared. Never indicates that statistics on the interface were never cleared.
Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec	Average rate of input packets and output packets in the last 300 seconds.
Input: 2 packets, 24 bytes, 0 drops	Total number of inbound packets of the interface (in the number of packets and in bytes), and the number of packets dropped among the inbound packets.
Output: 2 packets, 24 bytes, 0 drops	Total number of outbound packets of the interface (in the number of packets and in bytes), and the number of packets dropped among the outbound packets.
Brief information on interfaces in route mode	Brief information about Layer 3 interfaces.
Link: ADM - administratively down; Stby - standby	Link status: · ADM—The interface has been administratively shut down. To recover its physical state, execute the undo shutdown command. · Stby—The interface is a backup interface. To see the primary interface, use the display interface-backup state command in High Availability Command Reference.
Protocol: (s) - spoofing	Indicates the line protocol is UP, but the physical link is an on-demand link or is not present.
Interface	Abbreviated interface name.
Link	Physical link state of the interface: · UP—The interface is physically up. · DOWN—The interface is physically down.
Protocol	Line protocol state: · UP—The line protocol is up. · DOWN—The line protocol is down. · UP(s)—The line protocol is up, but the physical link is an on-demand link or is not present.
Primary IP	Primary IP address of the interface.
Description	Interface description configured by using the description command. This field does not apply to VA interfaces because VA interfaces do not support description configuration.
Cause	Cause for the physical state of the interface to be Down. Not connected indicates no physical link exists (possibly because the network cable is disconnected or faulty).

‌

Related commands

reset counters interface virtual-access

display interface virtual-template

Use display interface virtual-template to display information about VT interfaces.

Syntax

display interface [ virtual-template [ interface-number ] ] [ brief [ description | down ] ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

virtual-template [ interface-number ]: Specifies an existing VT interface by its number. If you do not specify the virtual-template keyword, the command displays information about all interfaces except VA interfaces on the device. If you specify the virtual-template keyword without the interface-number argument, the command displays information about all existing VT interfaces.

brief: Displays brief interface information. If you do not specify this keyword, the command displays detailed interface information.

description: Displays complete interface description. If you do not specify this keyword, the command displays only the first 27 characters of the interface description if the description contains more than 27 characters.

down: Displays information about interfaces in physically down state and the causes. If you do not specify this keyword, the command displays information about all interfaces.

Examples

# Display detailed information about Virtual-Template 1.

<Sysname> display interface virtual-template 1

Virtual-Template1

Current state: DOWN

Line protocol state: DOWN

Description: Virtual-Template1 Interface

Bandwidth: 100000kbps

Maximum transmission unit: 1500

Hold timer: 10 seconds, retry times: 5

Internet address: 192.168.1.200/24 (primary)

Link layer protocol: PPP

LCP: initial

Physical: None, baudrate: 100000000 bps

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

# Display brief information about Virtual-Template 1.

<Sysname> display interface virtual-template 1 brief

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface Link Protocol Primary IP Description

VT1 DOWN DOWN --

# Display brief information about the VT interfaces in physically down state and the causes.

<Sysname> display interface Virtual-Template brief down

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Interface Link Cause

VT0 DOWN Not connected

VT12 DOWN Not connected

VT1023 DOWN Not connected

Table 2 Command output

Field	Description
Current state	Physical state of the interface. This field for a VT interface can only be DOWN.
Line protocol state	Data link layer state. This field for a VT interface can only be DOWN.
Description	Interface description.
Bandwidth	Expected bandwidth of the interface.
Hold timer	Interval at which the interface sends keepalive packets.
retry times	Keepalive retry limit. The interface determines that its peer has been down if it does not receive a keepalive response when the keepalive retry limit is reached.
Internet protocol processing: Disabled	The interface cannot process IP packets currently.
Internet address: ip-address/mask-length (Type)	IP address of the interface and type of the address in parentheses. Possible IP address types include: · Primary—Manually configured primary IP address. · Sub—Manually configured secondary IP address. If the interface has both primary and secondary IP addresses, the primary IP address is displayed. If the interface has only secondary IP addresses, the lowest secondary IP address is displayed. · DHCP-allocated—DHCP allocated IP address. For more information, see DHCP client configuration in Layer 3—IP Services Configuration Guide. · BOOTP-allocated—BOOTP allocated IP address. For more information, see BOOTP client configuration in Layer 3—IP Services Configuration Guide. · PPP-negotiated—IP address assigned by a PPP server during PPP negotiation. For more information, see PPP configuration in Layer 2—WAN Access Configuration Guide. · Unnumbered—IP address borrowed from another interface. · Cellular-allocated—IP address allocated through the modem-manufacturer's proprietary protocol. For more information, see 3G/4G modem management in Layer 2—WAN Access Configuration Guide. · MAD—IP address assigned to an IRF member device for MAD on the interface. For more information, see IRF configuration in Virtual Technologies Configuration Guide. · MTunnel—IP address of the multicast tunnel interface (MTI), which is the same as the IP address of the MVPN source interface. For more information, see multicast VPN configuration in IP Multicast Configuration Guide.
LCP initial	LCP initialization is complete.
Physical	Physical type of the interface.
Output queue - Urgent queuing: Size/Length/Discards 0/100/0) Output queue - Protocol queuing: Size/Length/Discards 0/500/0) Output queue - FIFO queuing: Size/Length/Discards 0/75/0)	Traffic statistics of the interface output queues.
Brief information on interfaces in route mode	Brief information about Layer 3 interfaces.
Link: ADM - administratively down; Stby - standby	Link status: · ADM—The interface has been administratively shut down. To recover its physical state, use the undo shutdown command. · Stby—The interface is operating as a backup interface. To see the primary interface, use the display interface-backup state command in High Availability Command Reference.
Protocol: (s) - spoofing	Indicates the line protocol is UP, but the physical link is an on-demand link or is not present.
Interface	Abbreviated interface name.
Link	Physical link state of the interface. This field for a VT interface can only be DOWN.
Protocol	Line protocol state of the interface. This field for a VT interface can only be DOWN.
Primary IP	Primary IP address of the interface.
Description	Interface description configured by using the description command. If you do not specify the description keyword, the display interface brief command displays a maximum of 27 characters of the description. If you specify the description keyword, the command displays the complete description.
Cause	Causes for the physical state of the interface to be Down. Not connected indicates no physical link exists (possibly because the network cable is disconnected or faulty).

‌

display ip pool

Use display ip pool to display PPP address pools.

Syntax

display ip pool [ pool-name | group group-name ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

pool-name: Specifies a PPP address pool by its name, a case-sensitive string of 1 to 31 characters.

group group-name: Displays PPP address pools in a group specified by its name, a case-sensitive string of 1 to 31 characters.

Usage guidelines

If you do not specify any parameters, the command displays brief information about all PPP address pools.

If you specify an address pool, the command displays detailed information about the specified PPP address pool.

Examples

# Display brief information about all PPP address pools.

<Sysname> display ip pool

Group name: a

Pool name Start IP address End IP address Free In use

aaa1 1.1.1.1 1.1.1.5 5 0

aaa2 1.1.1.6 1.1.1.10 5 0

Group name: b

Pool name Start IP address End IP address Free In use

bbb 1.1.2.1 1.1.2.5 4 1

2.2.2.1 2.2.2.5 5 0

# Display brief information about the PPP address pools in group a.

<Sysname> display ip pool group a

Group name: a

Pool name Start IP address End IP address Free In use

aaa1 1.1.1.1 1.1.1.5 5 0

aaa2 1.1.1.6 1.1.1.10 5 0

# Display detailed information about PPP address pool bbb.

<Sysname> display ip pool bbb

Group name: b

Pool name Start IP address End IP address Free In use

bbb 1.1.2.1 1.1.2.5 4 1

2.2.2.1 2.2.2.5 5 0

In use IP addresses:

IP address Interface

1.1.2.1 POS2/2/0

# Display detailed information about PPP address pool bbb.

<Sysname> display ip pool bbb

Group name: b

Pool name Start IP address End IP address Free In use

bbb 1.1.2.1 1.1.2.5 4 1

2.2.2.1 2.2.2.5 5 0

In use IP addresses:

IP address Interface

1.1.2.1 Virtual-Template1

Table 3 Command output

Field	Description
Free	Number of free IP addresses.
In use	Number of IP addresses that have been assigned.
In use IP addresses	Information about the IP addresses that have been assigned.
Interface	Local interface that requests the IP address for the peer interface.

‌

Related commands

ip pool

display ppp access-user

Use display ppp access-user to display PPP user information.

Syntax

display ppp access-user { domain domain-name | interface interface-type interface-number [ count ] | ip-address ipv4-address | ipv6-address ipv6-address| username user-name | user-type { lac | lns | pppoa| pppoe } [ count ] }

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

domain domain-name: Displays information about PPP access users coming online through an ISP domain specified by its name, a case-sensitive string of 1 to 255 characters.

interface interface-type interface-number: Displays brief information about PPP users on the specified interface.

ip-address ipv4-address: Displays detailed information about the PPP user specified by its IPv4 address.

ipv6-address ipv6-address: Displays detailed information about the PPP user specified by its IPv6 address.

username user-name: Displays detailed information about the PPP user specified by its username, a case-sensitive string of 1 to 80 characters.

user-type: Displays brief information about online users of the specified type.

lac: Displays brief information about L2TP users for an LAC.

lns: Displays brief information about L2TP users for an LNS.

pppoa: Displays brief information about PPPoA users.

pppoe: Displays brief information about PPPoE users.

Usage guidelines

Brief information about a PPP user includes the following:

· Brief name of the VA interface.

· Username.

· MAC address.

· IPv4 address, IPv6 address, or IPv6 prefix of the PPP user.

Detailed information about a PPP user includes the following:

· Brief name of the VA interface.

· User ID.

· Username.

· Authentication information.

· Uplink and downlink traffic.

· Access start time of the PPP user.

In an L2TP network, this command is supported on an LAC only if a remote system dials in to the LAC through a PPPoE network. For more information about L2TP, see "Configuring L2TP."

Examples

# Display brief information about PPP users on GigabitEthernet 1/0/1.

<Sysname> display ppp access-user interface gigabitethernet 1/0/1

Interface Username MAC address IP address IPv6 address IPv6 PDPrefix

VA0 user1@dm1 0001-0101-9101 192.168.100.173 - -

VA1 user2@dm2 0001-0101-9101 192.168.80.173 2000::1 -

# Display the total number of PPP users on GigabitEthernet 1/0/1.

<Sysname> display ppp access-user interface gigabitethernet 1/0/1 count

Total users: 2

Table 4 Command output

Field	Description
Interface	Name of the VA interface corresponding to the user.
Username	Username of the user. A hyphen (-) means that the user does not need authentication.
MAC address	MAC address of the user. A hyphen (-) means that the user is not a PPPoE user.
IP address	IP address of the user. A hyphen (-) means that no IP address is assigned to the user.
IPv6 address	‌IPv6 address of the user. A hyphen (-) means that no IPv6 address is assigned to the user.
IPv6 PD prefix	‌IPv6 prefix of the user. A hyphen (-) means that no IPv6 prefix is assigned to the user.
Total users	Total number of PPP users.

‌

# Display detailed information about the PPP user whose IP address is 50.50.50.3.

<Sysname> display ppp access-user ip-address 50.50.50.3

Basic:

Interface: VA0

User ID: 0x28000002

Username: user1@hrss

Domain: hrss

Access interface: RAGG2

Service-VLAN/Customer-VLAN: -/-

MAC address: 0000-0000-0001

IP address: 50.50.50.3

IPv6 address: -

IPv6 PD prefix: -

VPN instance: 123

Access type: PPPoE

Authentication type: CHAP

AAA:

Authentication state: Authenticated

Authorization state: Authorized

Realtime accounting switch: Open

Realtime accounting interval: 60s

Accounting start time: 2013-1-19 2:42:3:382

Online time(hh:mm:ss): 0:7:34

Accounting state: Accounting

Idle cut: 0 sec 0 byte

Session timeout: 12000 s

Time remained: 8000 s

Byte remained: 20971520 bytes

Redirect WebURL: http://6.6.6.6

ACL&QoS:

User profile: profile123 (active)

User group profile: -

Inbound CAR: CIR 64000bps PIR 640000bps CBS 500bit

Outbound CAR: CIR 64000bps PIR 640000bps CBS 500bit

NAT:

Global IP address: 111.8.0.200

Port block: 28744-28748

Flow Statistic:

IPv4 uplink packets/bytes: 7/546

IPv4 downlink packets/bytes: 0/0

IPv6 uplink packets/bytes: 0/0

IPv6 downlink packets/bytes: 0/0

ITA:

Level-1 uplink packets/bytes: 100/128000

downlink packets/bytes: 200/256000

Level-2 uplink packets/bytes: 100/128000

downlink packets/bytes: 200/256000

Table 5 Command output

Field	Description
Basic	Basic information.
Interface	Brief name of the VA interface that corresponds to the user.
Username	Username of the user. A hyphen (-) means that the user does not need authentication.
Domain	ISP domain name for authentication. A hyphen (-) means that no ISP domain is specified for authentication.
Access interface	Name of the access interface of the user.
Service-VLAN/Customer-VLAN	Service provider VLAN and customer VLAN information of the user. A hyphen (-) means that no VLAN information is available.
IP address	IP address of the user. A hyphen (-) means that no IP address is assigned to the user.
IPv6 address	‌IPv6 address of the user. A hyphen (-) means that no IPv6 address is assigned to the user.
IPv6 PD prefix	‌Delegated IPv6 prefix of the user. A hyphen (-) means that no delegated IPv6 prefix is assigned to the user.
VPN instance	‌VPN instance to which the user belongs. A hyphen (-) means that the user is not bound to any VPN instance.
Access type	Access type of the user: · PPPoE. · PPPoA. · L2TP.
Authentication type	Authentication type of the user: · PAP. · CHAP. · MS-CHAP. · MS-CHAP-V2.
Authentication state	Authentication state of the user: · Idle—The user has not been authenticated. · Authenticating—The user is being authenticated. · Authenticated—The user has been authenticated.
Authorization state	Authorization state of the user: · Idle—The user has not been authorized. · Authorizing—The user is being authorized. · Authorized—The user has been authorized.
Realtime accounting switch	· Open—The switch is on. · Closed—The switch is off.
Realtime accounting interval	Realtime accounting interval in seconds. A hyphen (-) means that no real-time accounting interval is authorized.
Login time	Time when the user accessed the device through PPP.
Accounting start time	Time when accounting started. A hyphen (-) means that no accounting is performed on the user.
Online time(hh:mm:ss)	Online duration of the current login.
Accounting state	Accounting state of the user: · Accounting—Accounting is on. · Stop—Accounting stops.
Idle cut	Traffic threshold for logging off the user in idle state. If the traffic is less than the threshold within the specified period, the user is forcibly logged off.
Session timeout	Authorization time for the user, in seconds. A hyphen (-) means that no authorization time is specified for the user.
Time remained	Remaining time for the user to stay online, in seconds. A hyphen (-) means that no authorization time is specified for the user.
Byte remained	Remaining traffic for the user. A hyphen (-) means that no authorization traffic is specified for the user.
Redirect WebURL	Redirect Web URL address for the user. A hyphen (-) means that no redirect Web URL address is specified for the user.
User profile	Name of the authorized user profile. The hyphen (-) means that no user profile is authorized. The user profile has two states: · active—The authorized user profile is successfully issued. · inactive—The authorized user profile fails to be issued.
User group profile	Name of the authorized user group profile. The hyphen (-) means that no user group profile is authorized. The user group profile has two states: · active—The authorized user group profile is successfully issued. · inactive—The authorized user group profile fails to be issued.
Inbound CAR	Authorized inbound CAR parameters, which contain the CIR (in bps), the PIR (in bps), and the CBS (in bits).
Outbound CAR	Authorized outbound CAR parameters, which contain the CIR (in bps), the PIR (in bps), and the CBS (in bits).
Global IP address	Global IP address of the user. This field is displayed if NAT444 is used. For information about NAT444, see Layer 3—IP Services Configuration Guide.
Port block	Port block of the user, from the start port to the end port. This field is displayed if NAT444 is used.
IPv4 uplink packets/bytes	Number of packets and bytes for IPv4 uplink traffic.
IPv4 downlink packets/bytes	Number of packets and bytes for IPv4 downlink traffic.
IPv6 uplink packets/bytes	‌Number of packets and bytes for IPv6 uplink traffic.
IPv6 downlink packets/bytes	‌Number of packets and bytes for IPv6 downlink traffic.
Level-n uplink packets/bytes downlink packets/bytes	Number of packets and bytes for uplink traffic at accounting level n. The value for n depends on the traffic level command, and its value range is 1 to 8.

Related commands

reset ppp access-user

display ppp compression iphc

Use display ppp compression iphc to display IP header compression (IPHC) statistics.

Syntax

display ppp compression iphc { rtp | tcp } [ interface interface-type interface-number ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

rtp: Displays IPHC RTP header compression statistics.

tcp: Displays IPHC TCP header compression statistics.

interface interface-type interface-number: Specifies an interface by its type and number. If you do not specify this option, the command displays IPHC statistics on all interfaces.

Usage guidelines

When IPHC applies to an MP link:

· If an MP template is used, such as a VT interface or a dialer interface, the associated VA interface performs IPHC. You can view the compression information on the VA interface.

· If an MP-group interface is used, the MP-group interface performs IPHC. You can view the compression information on the MP-group interface.

When IPHC applies to a normal PPP link, the physical interface performs IPHC. You can view the compression information on the physical interface.

Examples

# (In standalone mode.) Display IPHC RTP header compression statistics.

<Sysname> display ppp compression iphc rtp

----------------------Slot1----------------------

Interface: Virtual-Access0

Received:

Compressed/Error/Total: 0/0/0 packets

Sent:

Compressed/Total: 0/0 packets

Sent/Saved/Total: 0/0/0 bytes

Packet-based compression ratio: 0%

Byte-based compression ratio: 0%

Connections:

Rx/Tx: 16/16

Five-Minute-Miss: 0 (Misses/5Mins)

Max-Miss: 0

----------------------Slot2----------------------

Interface: Virtual-Access0

Received:

Compressed/Error/Total: 20/5/40 packets

Sent:

Compressed/Total: 34/40 packets

Sent/Saved/Total: 1131/1210/2341 bytes

Packet-based compression ratio: 85%

Byte-based compression ratio: 51%

Connections:

Rx/Tx: 16/16

Five-Minute-Miss: 0 (Misses/5Mins)

Max-Miss: 0

# (In standalone mode.) Display IPHC TCP header compression statistics.

<Sysname>display ppp compression iphc tcp

----------------------Slot1----------------------

Interface: Virtual-Access0

Received:

Compressed/Error/Total: 0/0/0 packets

Sent:

Compressed/Total: 0/0 packets

Sent/Saved/Total: 0/0/0 bytes

Packet-based compression ratio: 0%

Byte-based compression ratio: 0%

Connections:

Rx/Tx: 16/16

Five-Minute-Miss: 0 (Misses/5Mins)

Max-Miss: 0

----------------------Slot2----------------------

Interface: Virtual-Access0

Received:

Compressed/Error/Total: 20/5/40 packets

Sent:

Compressed/Total: 34/40 packets

Sent/Saved/Total: 1131/1210/2341 bytes

Packet-based compression ratio: 85%

Byte-based compression ratio: 51%

Connections:

Rx/Tx: 16/16

Five-Minute-Miss: 0 (Misses/5Mins)

Max-Miss: 0

Table 6 Command output

Field	Description
Received: Compressed/Error/Total	Statistics for received packets: · Compressed—Number of compressed packets. · Error—Number of error packets. · Total—Total number of received packets.
Sent: Compressed/Total Sent/Saved/Total Packet-based compression ratio Byte-based compression ratio	Statistics for sent packets: · Compressed—Number of compressed packets. · Total—Total number of sent packets. · Sent—Bytes of sent packets. · Saved—Bytes of saved packets. · Total—Total bytes to be sent if packets are not compressed. · Packet-based compression ratio—Ratio of compressed packets to the total sent packets. · Byte-based compression ratio—Ratio of saved bytes to the total sent bytes.
Connections: Rx/Tx Five-Minute-Miss Max-Miss	Number of connections. · Rx—Number of connections that the receiver can decompress. · Tx—Number of connections that the sender can compress. · Five-Minute-Miss—Number of search failures within the last 5 minutes. · Max-Miss—Maximum number of search failures within 5 minutes.

Field

Description

Received:

Compressed/Error/Total

Statistics for received packets:

· Compressed—Number of compressed packets.

· Error—Number of error packets.

· Total—Total number of received packets.

Sent:

Compressed/Total

Sent/Saved/Total

Packet-based compression ratio

Byte-based compression ratio

Statistics for sent packets:

· Compressed—Number of compressed packets.

· Total—Total number of sent packets.

· Sent—Bytes of sent packets.

· Saved—Bytes of saved packets.

· Total—Total bytes to be sent if packets are not compressed.

· Packet-based compression ratio—Ratio of compressed packets to the total sent packets.

· Byte-based compression ratio—Ratio of saved bytes to the total sent bytes.

Connections:

Rx/Tx

Five-Minute-Miss

Max-Miss

Number of connections.

· Rx—Number of connections that the receiver can decompress.

· Tx—Number of connections that the sender can compress.

· Five-Minute-Miss—Number of search failures within the last 5 minutes.

· Max-Miss—Maximum number of search failures within 5 minutes.

Related commands

ppp compression iphc enable

reset ppp compression iphc

display ppp packet statistics

Use display ppp packet statistics to display PPP negotiation packet statistics.

Syntax

In standalone mode:

display ppp packet statistics [ slot slot-number ]

In IRF mode:

display ppp packet statistics [ chassis chassis-number slot slot-number ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

slot slot-number: Specifies a card by its slot number. If you do not specify a card, this command displays PPP negotiation packet statistics for all cards. (In standalone mode.)

chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. If you do not specify a card, this command displays PPP negotiation packet statistics for all cards. (In IRF mode.)

Examples

# (In IRF mode.) Display PPP negotiation packet statistics for slot 1.

<Sysname> display ppp packet statistics slot 1

PPP packet statistics in slot 1:

-------------------------------LCP------------------------------------

SEND_LCP_CON_REQ : 0 RECV_LCP_CON_REQ : 0

SEND_LCP_CON_NAK : 0 RECV_LCP_CON_NAK : 0

SEND_LCP_CON_REJ : 0 RECV_LCP_CON_REJ : 0

SEND_LCP_CON_ACK : 0 RECV_LCP_CON_ACK : 0

SEND_LCP_CODE_REJ : 0 RECV_LCP_CODE_REJ : 0

SEND_LCP_PROT_REJ : 0 RECV_LCP_PROT_REJ : 0

SEND_LCP_TERM_REQ : 0 RECV_LCP_TERM_REQ : 0

SEND_LCP_TERM_ACK : 0 RECV_LCP_TERM_ACK : 0

SEND_LCP_ECHO_REQ : 0 RECV_LCP_ECHO_REQ : 0

SEND_LCP_ECHO_REP : 0 RECV_LCP_ECHO_REP : 0

SEND_LCP_FAIL : 0

-------------------------------IPCP-----------------------------------

SEND_IPCP_CON_REQ : 0 RECV_IPCP_CON_REQ : 0

SEND_IPCP_CON_NAK : 0 RECV_IPCP_CON_NAK : 0

SEND_IPCP_CON_REJ : 0 RECV_IPCP_CON_REJ : 0

SEND_IPCP_CON_ACK : 0 RECV_IPCP_CON_ACK : 0

SEND_IPCP_CODE_REJ : 0 RECV_IPCP_CODE_REJ : 0

SEND_IPCP_PROT_REJ : 0 RECV_IPCP_PROT_REJ : 0

SEND_IPCP_TERM_REQ : 0 RECV_IPCP_TERM_REQ : 0

SEND_IPCP_TERM_ACK : 0 RECV_IPCP_TERM_ACK : 0

SEND_IPCP_FAIL : 0

-------------------------------IPV6CP---------------------------------

SEND_IPV6CP_CON_REQ : 0 RECV_IPV6CP_CON_REQ : 0

SEND_IPV6CP_CON_NAK : 0 RECV_IPV6CP_CON_NAK : 0

SEND_IPV6CP_CON_REJ : 0 RECV_IPV6CP_CON_REJ : 0

SEND_IPV6CP_CON_ACK : 0 RECV_IPV6CP_CON_ACK : 0

SEND_IPV6CP_CODE_REJ : 0 RECV_IPV6CP_CODE_REJ : 0

SEND_IPV6CP_PROT_REJ : 0 RECV_IPV6CP_PROT_REJ : 0

SEND_IPV6CP_TERM_REQ : 0 RECV_IPV6CP_TERM_REQ : 0

SEND_IPV6CP_TERM_ACK : 0 RECV_IPV6CP_TERM_ACK : 0

SEND_IPV6CP_FAIL : 0

-------------------------------OSICP---------------------------------

SEND_OSICP_CON_REQ : 0 RECV_OSICP_CON_REQ : 0

SEND_OSICP_CON_NAK : 0 RECV_OSICP_CON_NAK : 0

SEND_OSICP_CON_REJ : 0 RECV_OSICP_CON_REJ : 0

SEND_OSICP_CON_ACK : 0 RECV_OSICP_CON_ACK : 0

SEND_OSICP_CODE_REJ : 0 RECV_OSICP_CODE_REJ : 0

SEND_OSICP_PROT_REJ : 0 RECV_OSICP_PROT_REJ : 0

SEND_OSICP_TERM_REQ : 0 RECV_OSICP_TERM_REQ : 0

SEND_OSICP_TERM_ACK : 0 RECV_OSICP_TERM_ACK : 0

SEND_OSICP_FAIL : 0

-------------------------------MPLSCP---------------------------------

SEND_MPLSCP_CON_REQ : 0 RECV_MPLSCP_CON_REQ : 0

SEND_MPLSCP_CON_NAK : 0 RECV_MPLSCP_CON_NAK : 0

SEND_MPLSCP_CON_REJ : 0 RECV_MPLSCP_CON_REJ : 0

SEND_MPLSCP_CON_ACK : 0 RECV_MPLSCP_CON_ACK : 0

SEND_MPLSCP_CODE_REJ : 0 RECV_MPLSCP_CODE_REJ : 0

SEND_MPLSCP_PROT_REJ : 0 RECV_MPLSCP_PROT_REJ : 0

SEND_MPLSCP_TERM_REQ : 0 RECV_MPLSCP_TERM_REQ : 0

SEND_MPLSCP_TERM_ACK : 0 RECV_MPLSCP_TERM_ACK : 0

SEND_MPLSCP_FAIL : 0

--------------------------------AUTH ----------------------------------

SEND_PAP_AUTH_REQ : 0 RECV_PAP_AUTH_REQ : 0

SEND_PAP_AUTH_ACK : 0 RECV_PAP_AUTH_ACK : 0

SEND_PAP_AUTH_NAK : 0 RECV_PAP_AUTH_NAK : 0

SEND_CHAP_AUTH_CHALLENGE : 0 RECV_CHAP_AUTH_CHALLENGE : 0

SEND_CHAP_AUTH_RESPONSE : 0 RECV_CHAP_AUTH_RESPONSE : 0

SEND_CHAP_AUTH_ACK : 0 RECV_CHAP_AUTH_ACK : 0

SEND_CHAP_AUTH_NAK : 0 RECV_CHAP_AUTH_NAK : 0

SEND_PAP_AUTH_FAIL : 0 SEND_CHAP_AUTH_FAIL : 0

Table 7 Command output

Field	Description
LCP	LCP packet statistics. · SEND_LCP_CON_REQ—Number of sent link configuration request packets. · RECV_LCP_CON_REQ—Number of received link configuration request packets. · SEND_LCP_CON_NAK—Number of sent link configuration NAK packets. · RECV_LCP_CON_NAK—Number of received link configuration NAK packets. · SEND_LCP_CON_REJ—Number of sent link configuration reject packets. · RECV_LCP_CON_REJ—Number of received link configuration reject packets. · SEND_LCP_CON_ACK—Number of sent link configuration ACK packets. · RECV_LCP_CON_ACK—Number of received link configuration ACK packets. · SEND_LCP_CODE_REJ—Number of sent link configuration code reject packets. · RECV_LCP_CODE_REJ—Number of received link configuration code reject packets. · SEND_LCP_PROT_REJ—Number of sent link configuration protocol reject packets. · RECV_LCP_PROT_REJ—Number of received link configuration protocol reject packets. · SEND_LCP_TERM_REQ—Number of sent link termination request packets. · RECV_LCP_TERM_REQ—Number of received link termination request packets. · SEND_LCP_TERM_ACK—Number of sent link termination ACK packets. · RECV_LCP_TERM_ACK—Number of received link termination ACK packets. · SEND_LCP_ECHO_REQ—Number of sent LCP echo request packets. · RECV_LCP_ECHO_REQ—Number of received LCP echo request packets. · SEND_LCP_ECHO_REP—Number of sent LCP echo reply packets. · RECV_LCP_ECHO_REP—Number of received LCP echo reply packets. · SEND_LCP_FAIL—Number of sent link failure packets.
IPCP	IPCP packet statistics. · SEND_IPCP_CON_REQ—Number of sent IP address negotiation request packets. · RECV_IPCP_CON_REQ—Number of received IP address negotiation request packets. · SEND_IPCP_CON_NAK—Number of sent IP address negotiation NAK packets. · RECV_IPCP_CON_NAK—Number of received IP address negotiation NAK packets. · SEND_IPCP_CON_REJ—Number of sent IP address negotiation reject packets. · RECV_IPCP_CON_REJ—Number of received IP address negotiation reject packets. · SEND_IPCP_CON_ACK—Number of sent IP address negotiation ACK packets. · RECV_IPCP_CON_ACK—Number of received IP address negotiation ACK packets. · SEND_IPCP_CODE_REJ—Number of sent IP address negotiation code reject packets. · RECV_IPCP_CODE_REJ—Number of received IP address negotiation code reject packets. · SEND_IPCP_PROT_REJ—Number of sent IP address negotiation protocol reject packets. · RECV_IPCP_PROT_REJ—Number of received IP address negotiation protocol reject packets. · SEND_IPCP_TERM_REQ—Number of sent IP address negotiation termination request packets. · RECV_IPCP_TERM_REQ—Number of received IP address negotiation termination request packets. · SEND_IPCP_TERM_ACK—Number of sent IP address negotiation termination ACK packets. · RECV_IPCP_TERM_ACK—Number of received IP address negotiation termination ACK packets. · SEND_IPCP_FAIL—Number of sent IP address negotiation failure packets.
IPV6CP	‌IPv6CP packet statistics. · SEND_IPV6CP_CON_REQ—Number of sent IPv6 address negotiation request packets. · RECV_IPV6CP_CON_REQ—Number of received IPv6 address negotiation request packets. · SEND_IPV6CP_CON_NAK—Number of sent IPv6 address negotiation NAK packets. · RECV_IPV6CP_CON_NAK—Number of received IPv6 address negotiation NAK packets. · SEND_IPV6CP_CON_REJ—Number of sent IPv6 address negotiation reject packets. · RECV_IPV6CP_CON_REJ—Number of received IPv6 address negotiation reject packets. · SEND_IPV6CP_CON_ACK—Number of sent IPv6 address negotiation ACK packets. · RECV_IPV6CP_CON_ACK—Number of received IPv6 address negotiation ACK packets. · SEND_IPV6CP_CODE_REJ—Number of sent IPv6 address negotiation code reject packets. · RECV_IPV6CP_CODE_REJ—Number of received IPv6 address negotiation code reject packets. · SEND_IPV6CP_PROT_REJ—Number of sent IPv6 address negotiation protocol reject packets. · RECV_IPV6CP_PROT_REJ—Number of received IPv6 address negotiation protocol reject packets. · SEND_IPV6CP_TERM_REQ—Number of sent IPv6 address negotiation termination request packets. · RECV_IPV6CP_TERM_REQ—Number of received IPv6 address negotiation termination request packets. · SEND_IPV6CP_TERM_ACK—Number of sent IPv6 address negotiation termination ACK packets. · RECV_IPV6CP_TERM_ACK—Number of received IPv6 address negotiation termination ACK packets. · SEND_IPV6CP_FAIL—Number of sent IPv6 address negotiation failure packets.
OSICP	OSICP packet statistics. · SEND_OSICP_CON_REQ—Number of sent OSI address negotiation request packets. · RECV_OSICP_CON_REQ—Number of received OSI address negotiation request packets. · SEND_OSICP_CON_NAK—Number of sent OSI address negotiation NAK packets. · RECV_OSICP_CON_NAK—Number of received OSI address negotiation NAK packets. · SEND_OSICP_CON_REJ—Number of sent OSI address negotiation reject packets. · RECV_OSICP_CON_REJ—Number of received OSI address negotiation reject packets. · SEND_OSICP_CON_ACK—Number of sent OSI address negotiation ACK packets. · RECV_OSICP_CON_ACK—Number of received OSI address negotiation ACK packets. · SEND_OSICP_CODE_REJ—Number of sent OSI address negotiation code reject packets. · RECV_OSICP_CODE_REJ—Number of received OSI address negotiation code reject packets. · SEND_OSICP_PROT_REJ—Number of sent OSI address negotiation protocol packets. · RECV_OSICP_PROT_REJ—Number of received OSI address negotiation protocol reject packets. · SEND_OSICP_TERM_REQ—Number of sent OSI address negotiation termination request packets. · RECV_OSICP_TERM_REQ—Number of received OSI address negotiation termination request packets. · SEND_OSICP_TERM_ACK—Number of sent OSI address negotiation termination ACK packets. · RECV_OSICP_TERM_ACK—Number of received OSI address negotiation termination ACK packets. · SEND_OSICP_FAIL—Number of sent OSI address negotiation failure packets.
MPLSCP	MPLSCP packet statistics. · SEND_MPLSCP_CON_REQ—Number of sent MPLS address negotiation request packets. · RECV_MPLSCP_CON_REQ—Number of received MPLS address negotiation request packets. · SEND_MPLSCP_CON_NAK—Number of sent MPLS address negotiation NAK packets. · RECV_MPLSCP_CON_NAK—Number of received MPLS address negotiation NAK packets. · SEND_MPLSCP_CON_REJ—Number of sent MPLS address negotiation reject packets. · RECV_MPLSCP_CON_REJ—Number of received MPLS address negotiation reject packets. · SEND_MPLSCP_CON_ACK—Number of sent MPLS address negotiation ACK packets. · RECV_MPLSCP_CON_ACK—Number of received MPLS address negotiation ACK packets. · SEND_MPLSCP_CODE_REJ—Number of sent MPLS address negotiation code reject packets. · RECV_MPLSCP_CODE_REJ—Number of received MPLS address negotiation code reject packets. · SEND_MPLSCP_PROT_REJ—Number of sent MPLS address negotiation protocol packets. · RECV_MPLSCP_PROT_REJ—Number of received MPLS address negotiation protocol reject packets. · SEND_MPLSCP_TERM_REQ—Number of sent MPLS address negotiation termination request packets. · RECV_MPLSCP_TERM_REQ—Number of received MPLS address negotiation termination request packets. · SEND_MPLSCP_TERM_ACK—Number of sent MPLS address negotiation termination ACK packets. · RECV_MPLSCP_TERM_ACK—Number of received MPLS address negotiation termination ACK packets. · SEND_MPLSCP_FAIL—Number of sent MPLS address negotiation failure packets.
AUTH	Authentication packet statistics. · SEND_PAP_AUTH_REQ—Number of sent PAP authentication request packets. · RECV_PAP_AUTH_REQ—Number of received PAP authentication request packets. · SEND_PAP_AUTH_ACK—Number of sent PAP authentication ACK packets. · RECV_PAP_AUTH_ACK—Number of received PAP authentication ACK packets. · SEND_PAP_AUTH_NAK—Number of sent PAP authentication NAK packets. · RECV_PAP_AUTH_NAK—Number of received PAP authentication NAK packets. · SEND_CHAP_AUTH_CHALLENGE—Number of sent CHAP authentication request packets. · RECV_CHAP_AUTH_CHALLENGE—Number of received CHAP authentication request packets. · SEND_CHAP_AUTH_RESPONSE—Number of sent CHAP authentication response packets. · RECV_CHAP_AUTH_RESPONSE—Number of received CHAP authentication response packets. · SEND_CHAP_AUTH_ACK—Number of sent CHAP authentication ACK packets. · RECV_CHAP_AUTH_ACK—Number of received CHAP authentication ACK packets. · SEND_CHAP_AUTH_NAK—Number of sent CHAP authentication NAK packets. · RECV_CHAP_AUTH_NAK—Number of received CHAP authentication NAK packets. · SEND_PAP_AUTH_FAIL—Number of sent PAP authentication failure packets. · SEND_CHAP_AUTH_FAIL—Number of sent CHAP authentication failure packets.

‌

Related commands

reset ppp packet statistics

interface virtual-template

Use interface virtual-template to create a VT interface and enter its view, or enter the view of an existing VT interface.

Use undo interface virtual-template to remove a VT interface.

Syntax

interface virtual-template number

undo interface virtual-template number

Default

No VT interfaces exist.

Views

System view

Predefined user roles

network-admin

Parameters

number: Specifies a VT interface by its number. The value range for this argument is 0 to 4095.

Usage guidelines

To remove a VT interface, make sure all the corresponding VA interfaces are removed and the VT interface is not in use.

To successfully roll back the interface virtual-template command configuration of a VT interface by using the configuration replace file command, make sure the following tasks have been performed on the VT interface:

· Log out all PPPoE users.

· Remove all the corresponding VA pools.

· Remove all the corresponding VA interfaces.

Examples

# Create interface Virtual-Template 10.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10]

ip address ppp-negotiate

Use ip address ppp-negotiate to enable IP address negotiation on an interface, so that the interface can accept the IP address allocated by the server.

Use undo ip address ppp-negotiate to restore the default.

Syntax

ip address ppp-negotiate

undo ip address ppp-negotiate

Default

IP address negotiation is disabled on an interface.

Views

Interface view

Predefined user roles

network-admin

Usage guidelines

If you execute the ip address ppp-negotiate and ip address commands multiple times, the most recent configuration takes effect.

Examples

# Enable IP address negotiation on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ip address ppp-negotiate

# Enable IP address negotiation on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ip address ppp-negotiate

Related commands

ip address (Layer 3—IP Services Command Reference)

remote address

ip pool

Use ip pool to configure a PPP address pool.

Use undo ip pool to remove a PPP address pool or an IP address range of the PPP address pool.

Syntax

ip pool pool-name start-ip-address [ end-ip-address ] [ group group-name ]

undo ip pool pool-name [ start-ip-address [ end-ip-address ] ]

Default

No PPP address pool is configured.

Views

System view

Predefined user roles

network-admin

Parameters

pool-name: Specifies a name for the PPP address pool to be created, a case-sensitive string of 1 to 31 characters.

start-ip-address [ end-ip-address ]: Specifies an IP address range. If you do not specify the end-ip-address argument, the PPP address pool has only the start IP address.

group group-name: Specifies a group by its name to which the PPP address pool belongs. The group name is a case-sensitive string of 1 to 31 characters. If you do not specify this option, the group name is default (the default group).

Usage guidelines

The system supports multiple address spaces that each correspond to a VPN instance. The same IP addresses can exist in different address spaces.

Each address space is represented by a group. One group can contain multiple PPP address pools, but one PPP address pool can belong to only one group.

One PPP address pool can contain multiple IP address ranges. You can execute this command multiple times to specify multiple IP address ranges for a PPP address pool. A PPP address pool can contain a maximum of 65535 IP addresses, and so can an IP address range.

IP address ranges in different groups can be overlapping, but those in the same group cannot.

Changes to a PPP address pool do not affect assigned IP addresses. For example, if you delete a PPP address pool from which an IP address has been assigned, the IP address can still be used.

When assigning IP address to users through a PPP address pool, make sure the PPP address pool excludes the gateway IP address of the PPP address pool.

Examples

# Configure PPP address pool aaa that contains IP addresses 129.102.0.1 through 129.102.0.10 for group a.

<Sysname> system-view

[Sysname] ip pool aaa 129.102.0.1 129.102.0.10 group a

Related commands

display ip pool

ip pool gateway

Use ip pool gateway to configure a gateway address for a PPP address pool.

Use undo ip pool gateway to remove the gateway address for the specified PPP address pool.

Syntax

ip pool pool-name gateway ip-address [ vpn-instance vpn-instance-name ]

undo ip pool pool-name gateway

Default

A PPP address pool is not configured with a gateway address.

Views

System view

Predefined user roles

network-admin

Parameters

pool-name: Specifies an existing PPP address pool by its name, a case-sensitive string of 1 to 31 characters.

ip-address: Specifies a gateway address for the PPP address pool.

vpn-instance vpn-instance-name: Specifies an existing MPLS L3VPN instance by its name, a case-sensitive string of 1 to 31 characters. If you do not specify this option, the specified gateway belongs to the public network.

Usage guidelines

An interface on a BRAS must have an IP address before it can assign an IP address from a PPP or DHCP address pool to a client. This command enables interfaces that have no IP address to use a gateway address for IPCP negotiation and address allocation.

When you configure a gateway address for a PPP address pool, follow these restrictions and guidelines:

· If you also specify an IP address for an interface, the interface uses its own IP address to perform IPCP negotiation.

· You can specify only one gateway address for a PPP address pool. Different PPP address pools must have different gateway addresses (different combinations of ip-address and vpn-instance-name).

· You can specify any gateway address for a PPP address pool.

Examples

# Specify gateway address 1.1.1.1 for PPP address pool aaa.

<Sysname> system-view

[Sysname] ip pool aaa gateway 1.1.1.1

Related commands

ip pool

link-protocol ppp

Use link-protocol ppp to enable PPP encapsulation on an interface.

Syntax

link-protocol ppp

Default

PPP encapsulation is enabled on all interfaces except Ethernet, VLAN, and ATM interfaces.

Views

Interface view

Predefined user roles

network-admin

Examples

# Enable PPP encapsulation on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] link-protocol ppp

mtu

Use mtu to set the MTU size of an interface.

Use undo mtu to restore the default.

Syntax

mtu size

undo mtu

Default

The MTU size of an interface is 1500 bytes.

Views

VT interface view

MP-group interface view

Predefined user roles

network-admin

Parameters

size: Specifies the MTU size. The value range is 128 to 1650.

Usage guidelines

The MTU size setting of an interface affects the fragmentation and reassembly of IP packets on that interface.

For the configured MTU size to take effect, you must execute the shutdown command and then the undo shutdown command on the interface.

Examples

# Set the MTU size of Virtual-Template 10 to 1400 bytes.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] mtu 1400

# Set the MTU size of MP-group 2/0/0 to 1200 bytes.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] mtu 1200

nas-port-type

Use nas-port-type to configure the NAS-Port-Type attribute on a VT interface.

Use undo nas-port-type to restore the default.

Syntax

nas-port-type { 802.11 | adsl-cap | adsl-dmt | async | cable | ethernet | g.3-fax | hdlc |idsl | isdn-async-v110 | isdn-async-v120 | isdn-sync | piafs | sdsl | sync | virtual | wireless-other | x.25 | x.75 | xdsl }

undo nas-port-type

Default

The NAS-Port-Type attribute is determined by the service type and link type of the PPP user, as shown in Table 8.

Table 8 Default NAS-Port-Type attribute

Service type	Link type	NAS-Port-Type attribute
PPPoE	VEth interface	xdsl
PPPoE	Other interfaces	ethernet
PPPoA	Any	xdsl
L2TP	Any	virtual

‌

Views

VT interface view

Predefined user roles

network-admin

Parameters

802.11: Specifies IEEE 802.11. The code value is 19.

adsl-cap: Specifies asymmetric DSL, Carrierless Amplitude Phase. The code value is 12.

adsl-dmt: Specifies asymmetric DSL, Discrete Multi-Tone. The code value is 13.

async: Specifies async. The code value is 0.

cable: Specifies cable. The code value is 17.

ethernet: Specifies Ethernet. The code value is 15.

g.3-fax: Specifies G.3 Fax. The code value is 10.

hdlc: Specifies HDLC Clear Channel. The code value is 7.

idsl: Specifies ISDN Digital Subscriber Line. The code value is 14.

isdn-async-v110: Specifies ISDN Async V.110. The code value is 4.

isdn-async-v120: Specifies ISDN Async V.120. The code value is 3.

isdn-sync: Specifies ISDN Sync. The code value is 2.

piafs: Specifies PHS Internet Access Forum Standard. The code value is 6.

sdsl: Specifies symmetric DSL. The code value is 11.

sync: Specifies sync. The code value is 1.

virtual: Specifies virtual. The code value is 5.

wireless-other: Specifies wireless–other. The code value is 18.

x.25: Specifies X.25. The code value is 8.

x.75: Specifies X.75. The code value is 9.

xdsl: Specifies Digital Subscriber Line of unknown type. The code value is 16.

Usage guidelines

The NAS-Port-Type attribute is used for RADIUS authentication and accounting. For more information about the NAS-Port-Type attribute, see RFC 2865.

This command does not affect existing users.

Examples

# Set the NAS-Port-Type attribute to sync for Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] nas-port-type sync

ppp access-user log enable

Use ppp access-user log enable to enable PPP user logging.

Use undo ppp access-user log enable to disable PPP user logging.

Syntax

ppp access-user log enable [ abnormal-logout | failed-login | normal-logout | successful-login ] *

undo ppp access-user log enable [ abnormal-logout | failed-login | normal-logout | successful-login ] *

Default

Logging is disabled for PPP users.

Views

System view

Predefined user roles

network-admin

mdc-admin

Parameters

successful-login: Specifies login success logs.

failed-login: Specifies login failure logs.

normal-logout: Specifies normal logout logs.

abnormal-logout: Specifies abnormal logout logs.

Usage guidelines

IMPORTANT:

Typically, disable this feature to prevent excessive PPP log output.

‌

The PPP user logging feature enables the device to generate PPP logs and send them to the information center. Logs are generated after a user comes online, goes offline, or fails to come online. A log entry contains information such as the username, IP address, interface name, inner VLAN, outer VLAN, MAC address, and failure causes. For information about the log destination and output rule configuration in the information center, see Network Management and Monitoring Configuration Guide.

When you execute this command without specifying any keyword, this command enables or disables logging for login successes, login failures, normal logouts, and abnormal logouts.

In a VSRP environment, no log is output when the access interface of a user goes down. For more information about VSRP, see VSRP in High Availability Configuration Guide.

Examples

# Enable PPP user logging.

<Sysname> system-view

[Sysname] ppp access-user log enable

ppp account-statistics enable

Use ppp account-statistics enable to enable PPP accounting on an interface.

Use undo ppp account-statistics enable to disable PPP accounting on an interface.

Syntax

ppp account-statistics enable [ acl { acl-number | name acl-name } ]

undo ppp account-statistics enable

Default

PPP accounting is disabled on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

acl: Specifies an ACL to match traffic. If no ACL is specified, the device generates statistics for all PPP traffic.

acl-number: Specifies an ACL by its number in the range of 2000 to 3999, where:

· 2000 to 2999 are numbers for basic IPv4 and IPv6 ACLs.

· 3000 to 3999 are numbers for advanced IPv4 and IPv6 ACLs.

If the specified ACL number corresponds to an IPv4 ACL and an IPv6 ACL, both ACLs take effect.

name acl-name: Specifies an ACL by its name, a case-insensitive string of 1 to 63 characters that start with an alphabetical character. To avoid confusion, do not use all as an ACL name.

Examples

# Enable PPP accounting on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp account-statistics enable

# Enable PPP accounting on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp account-statistics enable

ppp acfc local-request

Use ppp acfc local-request to configure an interface to send ACFC requests by including the ACFC option in outbound LCP negotiation requests.

Use undo ppp acfc local-request to restore the default.

Syntax

ppp acfc local-request

undo ppp acfc local-request

Default

An interface does not include the ACFC option in outbound LCP negotiation requests.

Views

Interface view

Predefined user roles

network-admin

Examples

# Configure Serial 2/1/0 to send ACFC requests to the peer in PPP negotiation.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp acfc local-request

# Configure Virtual-Template 1 to send ACFC requests to the peer in PPP negotiation.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp acfc local-request

ppp acfc remote-reject

Use ppp acfc remote-reject to configure an interface to reject ACFC requests received from the remote peer.

Use undo ppp acfc remote-reject to restore the default.

Syntax

ppp acfc remote-reject

undo ppp acfc remote-reject

Default

An interface accepts ACFC requests received from the remote peer, and it performs ACFC on frames sent to the peer.

Views

Interface view

Predefined user roles

network-admin

Examples

# Configure Serial 2/1/0 to reject ACFC requests received from the remote peer.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp acfc remote-reject

# Configure Virtual-Template 1 to reject ACFC requests received from the remote peer.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp acfc remote-reject

ppp authentication-mode

Use ppp authentication-mode to configure PPP authentication on an interface.

Use undo ppp authentication-mode to restore the default.

Syntax

ppp authentication-mode { chap | ms-chap | ms-chap-v2 | pap } * [ [ call-in ] domain { isp-name | default enable isp-name } ]

undo ppp authentication-mode

Default

PPP authentication is disabled on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

chap: Uses CHAP authentication.

ms-chap: Uses MS-CHAP authentication.

ms-chap-v2: Uses MS-CHAP-V2 authentication.

pap: Uses PAP authentication.

call-in: Authenticates the call-in users only. This keyword can be configured when the local end acts as the receiving end of DDR calls. For more information about DDR, see Layer 2—WAN Access Configuration Guide.

domain isp-name: Specifies the ISP domain name for authentication, a case-insensitive string of 1 to 255 characters. The ISP domain name cannot be d, de, def, defa, defau, defaul, or default.

default enable isp-name: Specifies the default ISP domain name for authentication, a case-insensitive string of 1 to 255 characters.

Usage guidelines

PPP authentication includes the following categories:

· PAP—Two-way handshake authentication. The password is in plain text or cipher text.

· CHAP—Three-way handshake authentication. The password is in plain text or cipher text.

· MS-CHAP—Three-way handshake authentication. The password is in cipher text.

· MS-CHAP-V2—Three-way handshake authentication. The password is in cipher text.

You can configure multiple authentication modes.

In any PPP authentication mode, AAA determines whether a user can pass the authentication through a local authentication database or an AAA server. For more information about AAA authentication, see Security Configuration Guide.

If multiple ISP domains are available, the ISP domains are used in the following order:

1. ISP domain specified by the domain isp-name option in this command.

Associate a PPP address pool with this ISP domain for address allocation if necessary.

2. ISP domain contained in the username.

If the ISP domain does not exist on the local device, the user's access request is denied.

3. ISP domain specified by the domain default enable isp-name option in this command.

4. Default system ISP domain.

You can use the domain default command to configure the default system ISP domain. If no system default ISP domain is configured, ISP domain system is used.

For authentication on a dialup interface, configure authentication on both the physical interface and the dialer interface. When a physical interface receives a DDR call request, it first initiates PPP negotiation and authenticates the dial-in user. Then it passes the call to the upper layer protocol.

Examples

# Configure Serial 2/1/0 to authenticate the peer by using PAP.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp authentication-mode pap

# Configure Serial 2/1/0 to authenticate the peer by using PAP, CHAP, and MS-CHAP.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp authentication-mode pap chap ms-chap

# Configure Virtual-Template 1 to authenticate the peer by using PAP.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp authentication-mode pap

# Configure Virtual-Template 1 to authenticate the peer by using PAP and CHAP.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp authentication-mode pap chap

Related commands

domain default (Security Command Reference)

local-user (Security Command Reference)

ppp chap password

ppp chap user

ppp pap local-user

ppp chap password

Use ppp chap password to set the password for CHAP authentication on an interface.

Use undo ppp chap password to restore the default.

Syntax

ppp chap password { cipher | simple } string

undo ppp chap password

Default

No password is set for CHAP authentication on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

cipher: Specifies a password in encrypted form.

simple: Specifies a password in plaintext form. For security purposes, the password specified in plaintext form will be stored in encrypted form.

string: Specifies the password. Its plaintext form is a case-sensitive string of 1 to 255 characters. Its encrypted form is a case-sensitive string of 1 to 373 characters.

Examples

# Set the password for CHAP authentication to plaintext password sysname on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp chap password simple sysname

# Set the password for CHAP authentication to plaintext password sysname on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp chap password simple sysname

Related commands

ppp authentication-mode

ppp chap user

Use ppp chap user to set the username for CHAP authentication on an interface.

Use undo ppp chap user to restore the default.

Syntax

ppp chap user username

undo ppp chap user

Default

The username for CHAP authentication is null on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

username: Specifies the username for CHAP authentication, a case-sensitive string of 1 to 80 characters. The username is sent to the peer for the local device to be authenticated.

Usage guidelines

To pass CHAP authentication, the username/password of one side must be the local username/password on the peer.

Examples

# Set the username for CHAP authentication to Root on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp chap user Root

# Set the username for CHAP authentication to Root on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp chap user Root

Related commands

ppp authentication-mode

ppp compression iphc enable

Use ppp compression iphc enable to enable IPHC on an interface.

Use undo ppp compression iphc enable to disable IPHC on an interface.

Syntax

ppp compression iphc enable [ nonstandard ]

undo ppp compression iphc enable

Default

IPHC is disabled on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

nonstandard: Specifies the nonstandard encapsulation format. If you do not specify this keyword, packets are encapsulated in standard format. You must specify this keyword when the device communicates with a non-H3C device. If you specify this keyword, this command enables RTP header compression.

Usage guidelines

IPHC includes RTP header compression and TCP header compression.

Enabling or disabling IPHC enables or disables both RTP header compression and TCP header compression.

To use IPHC, you must enable it on both sides of a PPP link.

When you enable IPHC on a VT, dialer, or ISDN interface, the setting does not immediately take effect. For the setting to take effect, execute the shutdown and then undo shutdown commands on the interface or its bound physical interface.

Examples

# Enable IPHC on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp compression iphc enable

# Enable IPHC on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp compression iphc enable

ppp compression iphc rtp-connections

Use ppp compression iphc rtp-connections to set the maximum number of connections for which an interface can perform RTP header compression.

Use undo ppp compression iphc rtp-connections to restore the default.

Syntax

ppp compression iphc rtp-connections number

undo ppp compression iphc rtp-connections

Default

An interface can perform RTP header compression for a maximum of 16 connections.

Views

Interface view

Predefined user roles

network-admin

Parameters

number: Specifies the maximum number of connections for which an interface can perform RTP header compression. The value range for this argument is 3 to 1000:

· When the number argument is set to a value less than or equal to 256, packets are compressed in the format of COMPRESSED RTP 8.

· When the number argument is set to a value greater than 256, packets are compressed in the format of COMPRESSED RTP 16.

Usage guidelines

RTP is a connection-oriented protocol. An interface can accommodate multiple RTP connections.

RTP header compression occupies memory resources for maintaining connection information. This command can limit memory resources used by compression. For example, if you set the limit to 3, RTP header compression only applies to a maximum of three RTP connections.

After you execute this command, you must shut down and then bring up the interface to make the command take effect.

You can configure this command only when IPHC is enabled. The configuration is removed after IPHC is disabled.

Examples

# Set the maximum number of connections for which Serial 2/1/0 can perform RTP header compression to 10.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp compression iphc enable

[Sysname-Serial2/1/0] ppp compression iphc rtp-connections 10

# Set the maximum number of connections for which Virtual-Template 1 can perform RTP header compression to 10.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp compression iphc enable

[Sysname-Virtual-Template1] ppp compression iphc rtp-connections 10

Related commands

ppp compression iphc enable

ppp compression iphc tcp-connections

Use ppp compression iphc tcp-connections to set the maximum number of connections for which an interface can perform TCP header compression.

Use undo ppp compression iphc tcp-connections to restore the default.

Syntax

ppp compression iphc tcp-connections number

undo ppp compression iphc tcp-connections

Default

An interface can perform TCP header compression for a maximum of 16 connections.

Views

Interface view

Predefined user roles

network-admin

Parameters

number: Specifies the maximum number of connections for which an interface can perform TCP header compression. The value range for this argument is 3 to 256.

Usage guidelines

TCP is a connection-oriented protocol. A link can accommodate multiple TCP connections.

TCP header compression occupies memory resources for maintaining connection information. This command can limit memory resources used by compression. For example, if you set the limit to 3, TCP header compression only applies to a maximum of three TCP connections.

After you execute this command, you must shut down and then bring up the interface to make the command take effect.

You can configure this command only when IPHC is enabled and packets are encapsulated in standard format. The configuration is removed after IPHC is disabled or packets are encapsulated in nonstandard format.

Examples

# Set the maximum number of connections for which Serial 2/1/0 can perform TCP header compression to 10.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp compression iphc enable

[Sysname-Serial2/1/0] ppp compression iphc tcp-connections 10

# Set the maximum number of connections for which Virtual-Template 1 can perform TCP header compression to 10.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp compression iphc enable

[Sysname-Virtual-Template1] ppp compression iphc tcp-connections 10

Related commands

ppp compression iphc enable

ppp ipcp dns

Use ppp ipcp dns to configure the primary and secondary DNS server IP addresses to be allocated in PPP negotiation on an interface.

Use undo ppp ipcp dns to delete the primary and secondary DNS server IP addresses to be allocated in PPP negotiation on an interface.

Syntax

ppp ipcp dns primary-dns-address [ secondary-dns-address ]

undo ppp ipcp dns primary-dns-address [ secondary-dns-address ]

Default

The DNS server IP addresses to be allocated in PPP negotiation are not configured on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

primary-dns-address: Specifies a primary DNS server IP address.

secondary-dns-address: Specifies a secondary DNS server IP address.

Usage guidelines

A device can assign DNS server IP addresses to its peer during PPP negotiation when the peer initiates requests.

To check the allocated DNS server IP addresses, execute the winipcfg or ipconfig /all command on the host.

Examples

# Set the primary and secondary DNS server IP addresses to 100.1.1.1 and 100.1.1.2 for the peer on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp ipcp dns 100.1.1.1 100.1.1.2

# Set the primary and secondary DNS server IP addresses to 100.1.1.1 and 100.1.1.2 for the peer on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp ipcp dns 100.1.1.1 100.1.1.2

ppp ipcp dns admit-any

Use ppp ipcp dns admit-any to configure an interface to accept the DNS server IP addresses assigned by the peer even though it does not request DNS server IP addresses from the peer.

Use undo ppp ipcp dns admit-any to restore the default.

Syntax

ppp ipcp dns admit-any

undo ppp ipcp dns admit-any

Default

An interface does not accept the DNS server IP addresses assigned by the peer if it does not request DNS server IP addresses from the peer.

Views

Interface view

Predefined user roles

network-admin

Usage guidelines

You can configure an interface to accept the DNS server IP addresses assigned by the peer, through which domain names can be resolved for the device.

Typically, the server assigns a DNS server address to a client in PPP negotiation only when the client is configured with the ppp ipcp dns request command. Some servers, however, forcibly assign DNS server addresses to clients. You must configure the ppp ipcp dns admit-any command on the client devices to accept the DNS server addresses.

Examples

# Configure Serial 2/1/0 to accept DNS server IP addresses allocated by the peer.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp ipcp dns admit-any

# Configure Virtual-Template 1 to accept DNS server IP addresses allocated by the peer.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp ipcp dns admit-any

Related commands

ppp ipcp dns request

Use ppp ipcp dns request to enable an interface to actively request the DNS server IP address from its peer.

Use undo ppp ipcp dns request to restore the default.

Syntax

ppp ipcp dns request

undo ppp ipcp dns request

Default

An interface does not actively request the DNS server IP address from its peer.

Views

Interface view

Predefined user roles

network-admin

Usage guidelines

If a device is connected to a provider's access server through a PPP link, you can use this command. Then, the device can obtain the specified DNS server IP address from the access server during IPCP negotiation.

You can check the DNS server IP addresses by displaying information about the interface.

Examples

# Enable Serial 2/1/0 to actively request the DNS server IP address from its peer.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp ipcp dns request

# Enable Virtual-Template 1 to actively request the DNS server IP address from its peer.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp ipcp dns request

ppp ipcp remote-address match

Use ppp ipcp remote-address match to enable the IP segment match feature for PPP IPCP negotiation on an interface.

Use undo ppp ipcp remote-address match to restore the default.

Syntax

ppp ipcp remote-address match

undo ppp ipcp remote-address match

Default

The IP segment match feature is disabled for PPP IPCP negotiation on an interface.

Views

Interface view

Predefined user roles

network-admin

Usage guidelines

This command enables the local interface to check whether its IP address and the IP address of the remote interface are in the same network segment. If they are not, IPCP negotiation fails.

Examples

# Enable the IP segment match feature on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp ipcp remote-address match

ppp ip-pool route

Use ppp ip-pool route to configure a PPP address pool route.

Use undo ppp ip-pool route to remove a PPP address pool route.

Syntax

ppp ip-pool route ip-address { mask-length | mask } [ vpn-instance vpn-instance-name ]

undo ppp ip-pool route ip-address { mask-length | mask } [ vpn-instance vpn-instance-name ]

Default

No PPP address pool route is configured.

Views

System view

Predefined user roles

network-admin

Parameters

ip-address: Specifies the destination IP address of the PPP address pool route, in dotted decimal notation.

mask-length: Specifies a mask length for the IP address, in the range of 0 to 32.

mask: Specifies a mask for the IP address, in dotted decimal notation.

vpn-instance vpn-instance-name: Specifies an MPLS L3VPN instance by its name, a case-sensitive string of 1 to 31 characters. If you do not specify this option, the PPP address pool route applies to the public network.

Usage guidelines

The BRAS uses PPP address pool routes to control downlink traffic forwarding.

After you configure a PPP address pool route, the BRAS generates a static blackhole route destined for the specified network. All traffic matching the blackhole route is discarded. When a legal user logs in, the BRAS adds a host route destined for the specified network. In addition, the BRAS uses a dynamic routing protocol to redistribute the PPP address pool route to the upstream device.

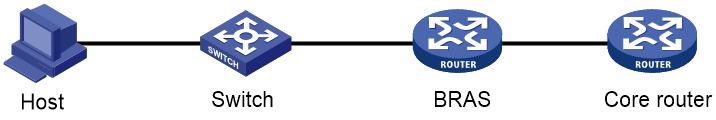

Figure 1 Network diagram for the PPP address pool route

Make sure the destination network of the PPP address pool route includes the PPP address pool. You can execute this command multiple times to configure multiple PPP address pool routes.

Examples

# Configure the PPP address pool route as 2.2.2.2/24.

<Sysname> system-view

[Sysname] ppp ip-pool route 2.2.2.2 24

ppp lcp delay

Use ppp lcp delay to set the LCP negotiation delay timer.

Use undo ppp lcp delay to restore the default.

Syntax

ppp lcp delay milliseconds

undo ppp lcp delay

Default

PPP starts LCP negotiation immediately after the physical layer comes up.

Views

Interface view

Predefined user roles

network-admin

Parameters

milliseconds: Specifies the LCP negotiation delay timer in the range of 1 to 10000 milliseconds.

Usage guidelines

If two ends of a PPP link vary greatly in the LCP negotiation packet processing rate, configure this command on the end with a higher processing rate. The LCP negotiation delay timer prevents frequent LCP negotiation packet retransmission. After the physical layer comes up, PPP starts LCP negotiation when the delay timer expires. If PPP receives LCP negotiation packets before the delay timer expires, it starts LCP negotiation immediately.

Examples

# Set the LCP negotiation delay timer to 130 milliseconds.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp lcp delay 130

ppp pap local-user

Use ppp pap local-user to set the local username and password for PAP authentication on an interface.

Use undo ppp pap local-user to restore the default.

Syntax

ppp pap local-user username password { cipher | simple } string

undo ppp pap local-user

Default

The local username and password for PAP authentication are blank on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

username: Specifies the username of the local device for PAP authentication, a case-sensitive string of 1 to 80 characters.

cipher: Specifies a password in encrypted form.

simple: Specifies a password in plaintext form. For security purposes, the password specified in plaintext form will be stored in encrypted form.

string: Specifies the password. Its plaintext form is a case-sensitive string of 1 to 255 characters. Its encrypted form is a case-sensitive string of 1 to 373 characters.

Usage guidelines

For the local device to pass PAP authentication on the peer, make sure the username and password configured for the local device are also configured on the peer. You can configure the peer's username and password by using the local-user username and password { cipher | simple } string commands, respectively.

Examples

# Set the local username and password for PAP authentication to user1 and plaintext pass1 on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp pap local-user user1 password simple pass1

# Set the local username and password for PAP authentication to user1 and plaintext pass1 on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp pap local-user user1 password simple pass1

Related commands

local-user (Security Command Reference)

password (Security Command Reference)

ppp pfc local-request

Use ppp pfc local-request to configure an interface to send PFC requests by including the PFC option in outbound LCP negotiation requests.

Use undo ppp pfc local to restore the default.

Syntax

ppp pfc local-request

undo ppp pfc local-request

Default

An interface does not include the PFC option in outbound LCP negotiation requests.

Views

Interface view

Predefined user roles

network-admin

Examples

# Configure Serial 2/1/0 to send PFC requests during PPP negotiation.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp pfc local-request

# Configure Virtual-Template 1 to send PFC requests during PPP negotiation.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp pfc local-request

ppp pfc remote-reject

Use ppp pfc remote-reject to configure an interface to reject PFC requests received from the remote peer.

Use undo ppp pfc remote to restore the default.

Syntax

ppp pfc remote-reject

undo ppp pfc remote-reject

Default

An interface accepts PFC requests received from the remote peer, and it performs PFC on frames sent to the peer.

Views

Interface view

Predefined user roles

network-admin

Examples

# Configure Serial 2/1/0 to reject PFC requests received from the remote peer.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp pfc remote-reject

# Configure Virtual-Template 1 to reject PFC requests received from the remote peer.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp pfc remote-reject

ppp timer negotiate

Use ppp timer negotiate to set the PPP negotiation timeout time on an interface.

Use undo ppp timer negotiate to restore the default.

Syntax

ppp timer negotiate seconds

undo ppp timer negotiate

Default

The PPP negotiation timeout time is 3 seconds on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

seconds: Specifies the negotiation timeout time in the range of 1 to 10 seconds.

Usage guidelines

In PPP negotiation, if the local device receives no response from the peer during the timeout time after it sends a packet, the local device sends the last packet again.

Examples

# Set the PPP negotiation timeout time to 5 seconds on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp timer negotiate 5

# Set the PPP negotiation timeout time to 5 seconds on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ppp timer negotiate 5

remote address

Use remote address to configure an interface to assign an IP address to the client.

Use undo remote address to restore the default.

Syntax

remote address { ip-address | pool pool-name }

undo remote address

Default

An interface does not assign an IP address to the client.

Views

Interface view

Predefined user roles

network-admin

Parameters

ip-address: Specifies the IP address to be assigned to the client.

pool pool-name: Specifies a PPP or DHCP address pool by its name from which an IP address is assigned to the client. The pool name is a case-sensitive string of 1 to 31 characters.

Usage guidelines

This command can be used when the local interface is configured with an IP address, but the peer has no IP address. To enable the peer to accept the IP address assigned by the local interface (server), you must configure the ip address ppp-negotiate command on the peer to make the peer act as a client.

This command enables the local interface to forcibly assign an IP address to the peer. If the peer is not configured with the ip address ppp-negotiate command but configured with an IP address, the peer will not accept the assigned IP address. This results in an IPCP negotiation failure.

PPP supports IP address assignment from a PPP or DHCP address pool, but the PPP address pool takes precedence over the DHCP address pool. For example, if you use a pool name that identifies both a PPP address pool and a DHCP address pool, the system uses only the PPP address pool for address assignment.

To make the configuration of the remote address command take effect, configure this command before the ip address command, which triggers IPCP negotiation. If you configure the remote address command after the ip address command, the server assigns an IP address to the client during the next IPCP negotiation.

After you use the remote address command to assign an IP address to the client, you can configure the remote address command again or the undo remote address command for the peer. However, the new configuration does not take effect until the next IPCP negotiation.

Examples

# Specify the IP address to be assigned to the client as 10.0.0.1 on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] remote address 10.0.0.1

# Configure Serial 2/1/0 to assign an IP address from address pool aaa to the client.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] remote address pool aaa

# Specify the IP address to be assigned to the client as 10.0.0.1 on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] remote address 10.0.0.1

# Configure Virtual-Template 1 to assign an IP address from address pool aaa to the client.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] remote address pool aaa

Related commands

ip address ppp-negotiate

ip pool

remote address dhcp client-identifier

Use remote address dhcp client-identifier username to configure the DHCP client IDs for PPP users acting as DHCP clients.

Use undo remote address dhcp client-identifier to restore the default.

Syntax

remote address dhcp client-identifier { callingnum | username }

undo remote address dhcp client-identifier

Default

No DHCP client IDs are configured for PPP users acting as DHCP clients.

Views

Interface view

Predefined user roles

network-admin

Parameters

callingnum: Uses the calling numbers as the DHCP client IDs. The calling numbers are carried in the calling number AVPs in L2TP negotiation packets. A calling number is formed by the user MAC address and the VLAN to which the user belongs. For example, if the MAC address of a user is 000f-e235-dc71, and the inner VLAN and outer VLAN of the user are VLAN 1 and VLAN 2, respectively, the calling number of the user is 000f-e235-dc71-00010002.

username: Uses the PPP usernames as the DHCP client IDs.

Usage guidelines

By default, a PPP client randomly selects a DHCP client ID when the PPP client requests an IP address through DHCP. In this case, the DHCP server cannot assign specific IP addresses to specific clients based on client IDs. For the DHCP server to assign specific IP addresses to specific clients based on client IDs, use this command to configure the calling numbers or usernames as the DHCP client IDs.

When PPP usernames are used as the DHCP client IDs, make sure different users use different PPP usernames to come online.

Examples

# Use the PPP usernames as the DHCP client IDs for PPP users acting as DHCP clients on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] remote address dhcp client-identifier username

# Use the PPP usernames as the DHCP client IDs for PPP users acting as DHCP clients on Virtual-template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] remote address dhcp client-identifier username

reset counters interface virtual-access

Use reset counters interface virtual-access to clear statistics on VA interfaces.

Syntax

reset counters interface [ virtual-access [ interface-number ] ]

Views

User view

Predefined user roles

network-admin

Parameters

virtual-access: Clears statistics on VA interfaces.

interface-number: Specifies an existing VA interface by its number.

Usage guidelines

Before collecting traffic statistics regularly on a VA interface, clear the existing statistics.

If you do not specify the virtual-access keyword, the command clears statistics on all interfaces.

If you specify the virtual-access keyword without the interface-number argument, the command clears statistics on all VA interfaces.

If you specify both virtual-access and interface-number, the command clears statistics on the specified VA interface.

Examples

# Clear statistics on Virtual-Access 10.

<Sysname> reset counters interface virtual-access 10

Related commands

display interface virtual-access

reset ppp access-user

Use reset ppp access-user to log off a PPP user.

Syntax

reset ppp access-user { ip-address ipv4-address [ vpn-instance ipv4-vpn-instance-name ] | ipv6-address ipv6-address [ vpn-instance ipv6-vpn-instance-name ] | username user-name }

Views

User view

Predefined user roles

network-admin

Parameters

ip-address ipv4-address: Specifies a PPP user by its IPv4 address.

ipv6-address ipv6-address: Specifies a PPP user by its IPv6 address.

vpn-instance ipv4-vpn-instance-name: Specifies a PPP user by the VPN to which the user belongs. The ipv4-vpn-instance-name argument specifies the name of the IPv4 MPLS L3VPN instance, a case-sensitive string of 1 to 31 characters. If you do not specify this option, the specified user belongs to the public network.

vpn-instance ipv6-vpn-instance-name: Specifies a PPP user by the VPN to which the user belongs. The ipv6-vpn-instance-name argument specifies the name of the IPv6 MPLS L3VPN instance, a case-sensitive string of 1 to 31 characters. If you do not specify this option, the specified user belongs to the public network.

username user-name: Specifies a PPP user by username, a case-sensitive string of 1 to 80 characters.

Usage guidelines

This command takes effect only on the current login for a PPP user. The user can come online after it is logged off.

Examples

# Log off the PPP user at 192.168.100.2.

<Sysname> reset ppp access-user ip-address 192.168.100.2

Related commands

display ppp access-user

reset ppp compression iphc

Use reset ppp compression iphc to clear IPHC statistics.

Syntax

reset ppp compression iphc [ rtp | tcp ] [ interface interface-type interface-number ]

Views

User view

Predefined user roles

network-admin

Parameters

rtp: Clears IPHC RTP header compression statistics.

tcp: Clears IPHC TCP header compression statistics.

interface interface-type interface-number: Specifies an interface by its type and number. If you do not specify this option, the command clears IPHC statistics on all interfaces.

Usage guidelines

If neither rtp nor tcp is specified, this command clears both RTP header compression and TCP header compression statistics.

Examples

# Clear IPHC statistics on all interfaces.

<Sysname> reset ppp compression iphc

Related commands

display ppp compression iphc

reset ppp packet statistics

Use reset ppp packet statistics to clear PPP negotiation packet statistics.

Syntax

In standalone mode:

reset ppp packet statistics [ slot slot-number ]

In IRF mode:

reset ppp packet statistics [ chassis chassis-number slot slot-number ]

Views

User view

Predefined user roles

network-admin

Parameters

slot slot-number: Specifies a card by its slot number. If you do not specify a card, this command clears PPP negotiation packet statistics for all cards. (In standalone mode.)

chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. If you do not specify a card, this command clears PPP negotiation packet statistics for all cards. (In IRF mode.)

Examples

# (In standalone mode.) Clear PPP negotiation packet statistics for slot 2.

<Sysname> reset ppp packet statistics slot 2

# (In IRF mode.) Clear PPP negotiation packet statistics for slot 2 of IRF member device 1.

<Sysname> reset ppp packet statistics chassis 1 slot 2

Related commands

display ppp packet statistics

service

Use service to specify a primary traffic processing slot for an interface.

Use undo service to restore the default.

Syntax

In standalone mode:

service slot slot-number

undo service slot

In IRF mode:

service chassis chassis-number slot slot-number

undo service chassis

Default

No primary traffic processing slot is specified for an interface.

Views

VT interface view

Predefined user roles

network-admin

Parameters

slot slot-number: Specifies a card by its slot number. (In standalone mode.)

Usage guidelines

This command is supported on distributed devices and IRF-capable centralized devices.

Specify traffic processing slots if a feature requires that all traffic on an VA interface be processed on the same slot.

For high availability, you can specify one primary and one backup traffic processing slot by using the service command and the service standby command, respectively.

To avoid processing slot switchover, specify the primary slot before specifying the backup slot. If you specify the backup slot before specifying the primary slot, traffic is switched over to the primary slot immediately after you specify the primary slot.

If you specify both primary and backup slots for an interface, traffic on that interface is processed as follows:

· The backup slot takes over when the primary slot becomes unavailable. The backup slot continues to process traffic for the interface after the primary slot becomes available again. The switchover will not occur until the backup slot becomes unavailable.

· When no specified traffic processing slots are available, the traffic is processed on the slot at which it arrives. Then, the processing slot that first becomes available again takes over.

If you do not specify a primary or a backup traffic processing slot for an interface, traffic on that interface is processed on the slot at which the traffic arrives.

Examples

# (In standalone mode.) Specify slot 2 as the primary traffic processing slot for the VA interfaces on Virtual-Template 10.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] service slot 2

# (In IRF mode.) Specify slot 2 on IRF member device 2 as the primary traffic processing slot for the VA interfaces on Virtual-Template 10.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] service chassis 2 slot 2

Related commands

service standby

Use service standby to specify a backup traffic processing slot for an interface.

Use undo service standby to restore the default.

Syntax

In standalone mode:

service standby slot slot-number

undo service standby slot

In IRF mode:

service standby chassis chassis-number slot slot-number

undo service standby chassis

Default

No backup traffic processing slot is specified for an interface.

Views

VT interface view

Predefined user roles

network-admin

Parameters

slot slot-number: Specifies a card by its slot number. (In standalone mode.)

Usage guidelines

This command is supported on distributed devices and IRF-capable centralized devices.

Specify traffic processing slots if a feature requires that all traffic on an VA interface be processed on the same slot.

For high availability, you can specify one primary and one backup traffic processing slot by using the service command and the service standby command, respectively.

If you specify both primary and backup slots for an interface, traffic on that interface is processed as follows:

· When no specified traffic processing slots are available, the traffic is processed on the slot at which it arrives. Then, the processing slot that first becomes available again takes over.

If you do not specify a primary or a backup traffic processing slot for an interface, traffic on that interface is processed on the slot at which the traffic arrives.

Examples

# (In standalone mode.) Specify slot 2 as the primary traffic processing slot for the VA interfaces on Virtual-Template 10. Specify slot 3 as the backup traffic processing slot for the VA interfaces on Virtual-Template 10.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] service slot 2

[Sysname-Virtual-Template10] service standby slot 3

# (In IRF mode.) Specify slot 2 on IRF member device 2 as the primary traffic processing slot for the VA interfaces on Virtual-Template 10. Specify slot 3 on IRF member device 2 as the backup traffic processing slot for the VA interfaces on Virtual-Template 10.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] service chassis 2 slot 2

[Sysname-Virtual-Template10] service standby chassis 2 slot 3

Related commands

service

timer-hold

Use timer-hold to set the keepalive interval on an interface.

Use undo timer-hold to restore the default.

Syntax

timer-hold seconds

undo timer-hold

Default

The keepalive interval is 10 seconds on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

seconds: Specifies the interval for sending keepalive packets, in the range of 0 to 32767 seconds. The value 0 disables an interface from sending keepalive packets. In this case, the interface can respond to keepalive packets from the peer.

Usage guidelines

An interface sends keepalive packets at keepalive intervals to detect the availability of the peer. If the interface receives no response to keepalive packets when the keepalive retry limit is reached, it determines that the link fails and reports a link layer down event.

To set the keepalive retry limit, use the timer-hold retry command.

On a slow link, increase the keepalive interval to prevent false shutdown of the interface. This situation might occur when keepalive packets are delayed because a large packet is being transmitted on the link.

Examples

# Set the keepalive interval to 20 seconds on Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] timer-hold 20

# Set the keepalive interval to 20 seconds on Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] timer-hold 20

Related commands

timer-hold retry

Use timer-hold retry to set the keepalive retry limit on an interface.

Use undo timer-hold retry to restore the default.

Syntax

timer-hold retry retries

undo timer-hold retry

Default

The keepalive retry limit is 5 on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

retries: Specifies the maximum number of keepalive attempts in the range of 1 to 255.

Usage guidelines

To set the keepalive interval, use the timer-hold command.

On a slow link, increase the keepalive retry limit to prevent false shutdown of the interface. This situation might occur when keepalive packets are delayed because a large packet is being transmitted on the link.

Examples

# Set the keepalive retry limit to 10 for Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] timer-hold retry 10

# Set the keepalive retry limit to 10 for Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] timer-hold retry 10

Related commands

timer-hold

MP commands

display interface m p-group

Use display interface mp-group to display information about a specified MP-group interface or all MP-group interfaces.

Syntax

display interface [ mp-group [ interface-number ] ] [ brief [ description | down ] ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

mp-group [ interface-number ]: Specifies an existing MP-group interface by its number. If you do not specify the mp-group keyword, the command displays information about all interfaces except VA interfaces on the device. If you specify the mp-group keyword without the interface-number argument, the command displays information about all existing MP-group interfaces.

brief: Displays brief interface information. If you do not specify this keyword, the command displays detailed interface information.

down: Displays information about interfaces in physically down state and the causes. If you do not specify this keyword, the command displays information about all interfaces.

Examples

# Display detailed information about MP-group 2/0/0.

<Sysname> display interface mp-group 2/0/0

MP-group2/0/0

Current state: UP

Line protocol state: UP

Description: MP-group2/0/0 Interface

Bandwidth: 2048kbps

Maximum transmission unit: 1500

Hold timer: 10 seconds,retry times: 5

Internet address: 192.168.1.200/24 (primary)

Link layer protocol: PPP

LCP: opened, MP: opened

Physical: MP, baudrate: 2048000 bps

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Display brief information about MP-group 2/0/0.

<Sysname> display interface mp-group 2/0/0 brief

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface Link Protocol Primary IP Description

MP2/0/0 DOWN DOWN --

# Display brief information about the MP-group interfaces in physically down state and the causes.

<Sysname> display interface mp-group brief down

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Interface Link Cause

MP2/0/0 ADM Administratively

MP2/0/1 DOWN Not connected

Table 9 Command output

Field	Description
Current state	Physical and administrative states of the interface: · DOWN (Administratively)—The interface was administratively shut down with the shutdown command. · DOWN—The interface is administratively up but physically down (possibly because no physical link is present or the link is faulty). · UP—The interface is both administratively and physically up.
Line protocol state	Data link layer state: UP or DOWN.
Description	Interface description.
Bandwidth	Expected bandwidth of the interface.
Hold timer	Interval at which the interface sends keepalive packets.
retry times	Keepalive retry limit. The interface determines that its peer has been down if it does not receive a keepalive response when the keepalive retry limit is reached.
Internet protocol processing: Disabled	The interface cannot process IP packets currently.
Internet address: ip-address/mask-length (Type)	IP address of the interface and type of the address in parentheses. Possible IP address types include: · Primary—Manually configured primary IP address. · Sub—Manually configured secondary IP address. If the interface has both primary and secondary IP addresses, the primary IP address is displayed. If the interface has only secondary IP addresses, the lowest secondary IP address is displayed. · DHCP-allocated—DHCP allocated IP address. For more information, see DHCP client configuration in Layer 3—IP Services Configuration Guide. · BOOTP-allocated—BOOTP allocated IP address. For more information, see BOOTP client configuration in Layer 3—IP Services Configuration Guide. · PPP-negotiated—IP address assigned by a PPP server during PPP negotiation. For more information, see PPP configuration in Layer 2—WAN Access Configuration Guide. · Unnumbered—IP address borrowed from another interface. · Cellular-allocated—IP address allocated through the modem-manufacturer's proprietary protocol. For more information, see 3G/4G modem management in Layer 2—WAN Access Configuration Guide. · MAD—IP address assigned to an IRF member device for MAD on the interface. For more information, see IRF configuration in Virtual Technologies Configuration Guide. · MTunnel—IP address of the multicast tunnel interface (MTI), which is the same as the IP address of the MVPN source interface. For more information, see multicast VPN configuration in IP Multicast Configuration Guide.
LCP: opened, MP: opened	LCP negotiation is complete.
Physical	Physical type of the interface.
baudrate	Baud rate of the interface.
Output queue - Urgent queuing: Size/Length/Discards 0/100/0 Output queue - Protocol queuing: Size/Length/Discards 0/500/0 Output queue - FIFO queuing: Size/Length/Discards 0/75/0	Traffic statistics of the interface output queues.
Last clearing of counters: Never	Last time when statistics on the interface were cleared. Never indicates that statistics on the interface were never cleared.
Last 300 seconds input rate: 0 bytes/sec, 0 packets/sec Last 300 seconds output rate: 0 bytes/sec, 0 packets/sec	Average rate of input packets and output packets in the last 300 seconds.
Input: 0 packets, 0 bytes, 0 drops	Total number of inbound packets of the interface (in the number of packets and in bytes), and the number of dropped incoming packets.
Output: 0 packets, 0 bytes, 0 drops	Total number of outbound packets of the interface (in the number of packets and in bytes), and the number of dropped outgoing packets.
Brief information on interfaces in route mode	Brief information about Layer 3 interfaces.
Link: ADM - administratively down; Stby - standby	Link status: · ADM—The interface has been administratively shut down. To recover its physical state, execute the undo shutdown command. · Stby—The interface is operating as a backup interface. To see the primary interface, use the display interface-backup state command in High Availability Command Reference.
Protocol: (s) - spoofing	Indicates the line protocol is UP, but the physical link is an on-demand link or is not present.
Interface	Abbreviated interface name.
Link	Physical link state of the interface: · UP—The interface is physically up. · DOWN—The interface is physically down. · ADM—The interface has been administratively shut down. To recover its physical state, use the undo shutdown command. · Stby—The interface is a backup interface.
Protocol	Line protocol state: · UP—The line protocol is up. · DOWN—The line protocol is down. · UP(s)—The line protocol is up, but the physical link is an on-demand link or is not present.
Primary IP	Primary IP address of the interface.
Description	Interface description configured by using the description command. If you do not specify the description keyword, the display interface brief command displays a maximum of 27 characters of the description. If you specify the description keyword, the command displays the complete description.
Cause	Causes for the physical state of the interface to be Down: · Not connected—No physical connection exists (possibly because the network cable is disconnected or faulty). · Administratively—The interface was shut down with the shutdown command. To restore the physical state of the interface, use the undo shutdown command.

Related commands

reset counters interface mp-group

display ppp mp

Use display ppp mp to display MP information for MP-group interfaces.

Syntax

display ppp mp [ interface interface-type interface-number ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

interface interface-type interface-number: Specifies an interface by its number. If you do not specify this option, the command displays MP information for all interfaces.

Examples

# Display MP information. (MP is configured through an MP-group interface.)

<Sysname> display ppp mp

Template: MP-group2/0/0

max-bind: 20, fragment: enabled, min-fragment: 128

Master link: MP-group2/0/0, Active members: 2, Bundle Multilink

Peer's endPoint descriptor: MP-group2/0/0

Sequence format: short (rcv)/long (sent)

Bundle Up Time: 2012/11/05 07:29:33:612

0 lost fragments, 0 reordered, 0 unassigned, 0 interleaved

Sequence: 0 (rcv)/0 (sent)

Active member channels: 2 members

Serial2/1/0:15 Up-Time: 2012/11/05 07:29:33:613

Serial2/1/0:16 Up-Time: 2012/11/05 07:30:10:945

Inactive member channels: 2 members

Serial2/1/0:17

Serial2/1/0:18

Table 10 Command output

Field	Description
max-bind	Maximum number of links that can be bound.
fragment	Indicates whether MP fragmentation is enabled or disabled.
min-fragment	Minimum size of an MP fragment.
Sequence format: short (rcv)/long (sent)	Sequence number header format of MP. The short sequence number format is used in the incoming direction, and the long sequence number format is used in the outgoing direction.
reordered	Number of reassembled packets.
unassigned	Number of packets waiting for being reassembled.
interleaved	Number of interleaved fragments. LFI breaks larger packets into fragments and interleaves the fragments between smaller packets for transmission.
Sequence: 0 (rcv)/0 (sent)	Received sequence number/sent sequence number.
Up-Time	Uptime of a member channel.

interface mp-group

Use interface mp-group to create an MP-group interface and enter its view, or enter the view of an existing MP-group interface.

Use undo interface mp-group to remove an MP-group interface.

Syntax

interface mp-group mp-number

undo interface mp-group mp-number

Default

No MP-group interfaces exists.

Views

System view

Predefined user roles

network-admin

Parameters

mp-number: Specifies an MP-group interface by its number. The MP-group interface number is in the range of 0 to 1023.

Usage guidelines

You must use the interface mp-group command together with the ppp mp mp-group command. You can execute the two commands in either order.

Examples

# Create interface MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0]

ppp mp

Use ppp mp to enable MP for an interface.

Use undo ppp mp to disable MP on an interface.

Syntax

ppp mp

undo ppp mp

Default

An interface is enabled with PPP.

Views

Interface view

Predefined user roles

network-admin

Usage guidelines

To obtain more bandwidth, you can bind multiple PPP links to form a logical MP interface.

Examples

# Enable MP for Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp mp

# Enable MP for Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template1

[Sysname-Virtual-Template1] ppp mp

ppp mp binding-mode

Use ppp mp binding-mode to set the MP binding mode on an interface.

Use undo ppp mp binding-mode to restore the default.

Syntax

ppp mp binding-mode { authentication | both | descriptor }

undo ppp mp binding-mode

Default

Both the username and the descriptor are used for MP binding on an interface.

Views

VT interface view

Dialer interface view

Predefined user roles

network-admin

Parameters

authentication: Uses the username for MP binding.

both: Uses both the username and the endpoint descriptor for MP binding.

descriptor: Uses the endpoint descriptor for MP binding.

Usage guidelines

The username is obtained from the peer during PAP, CHAP, MS-CHAP, or MS-CHAP-V2 authentication. The endpoint descriptor, which uniquely identifies a device, is obtained from the peer during LCP negotiation. Based on the username or endpoint descriptor, the system can locate the corresponding VT interface and create an MP bundle according to the template.

The descriptor mode cannot differentiate users. To bind users to different bundles, use the both mode.

The authentication mode cannot differentiate peer devices. When multiple peer devices exist, use the both mode.

Examples

# Specify Virtual-Template 1 to use the username for MP binding.

<Sysname> system-view

[Sysname] interface virtual-template1

[Sysname-Virtual-Template1] ppp mp binding-mode authentication

ppp mp endpoint

Use ppp mp endpoint to set the endpoint option.

Use undo ppp mp endpoint to restore the default.

Syntax

ppp mp endpoint endpoint

undo ppp mp endpoint

Default

The endpoint option carries the device name on an interface.

Views

Interface view

Predefined user roles

network-admin

Parameters

endpoint: Specifies the content of the endpoint option, a case-sensitive string of 1 to 20 characters.

Usage guidelines

The endpoint option (terminal descriptor) is negotiated during MP LCP negotiation.

When MP is configured by using a VT interface, an MP endpoint bases its link binding decisions on the remote endpoint descriptors, and assigns the links that receive the same endpoint descriptor to the same bundle. To avoid incorrect link binding on a VT interface, make sure the link descriptors used by different devices are unique. You must reconfigure an endpoint descriptor for a device if the default endpoint descriptor (device name) cannot uniquely identify the MP bundle at the remote end.

When MP is configured by using an MP-group interface, the negotiating endpoints do not base their binding decisions on the endpoint descriptor. By default, the endpoint descriptor of an interface in an MP-group is the MP-group interface name. If you configure an endpoint descriptor for the interface, the configured MP endpoint descriptor takes effect.

If the endpoint descriptor exceeds 20 bytes, the first 20 bytes are taken as the endpoint descriptor.

Examples

# Configure the endpoint descriptor of Serial 2/1/0 as 123456.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp mp endpoint 123456

# Configure the endpoint descriptor of Virtual-Template 1 as 123456.

<Sysname> system-view

[Sysname] interface virtual-template1

[Sysname-Virtual-Template1] ppp mp endpoint 123456

ppp mp fragment disable

Use ppp mp fragment disable to disable MP fragmentation on an interface.

Use undo ppp mp fragment disable to enable MP fragmentation on an interface.

Syntax

ppp mp fragment disable

undo ppp mp fragment disable

Default

MP fragmentation is enabled on an interface.

Views

VT interface view

Dialer interface view

MP-group interface view

Predefined user roles

network-admin

Usage guidelines

If the peer device does not support fragment reassembly, you must configure the ppp mp fragment disable command to disable MP fragmentation on the local device. This enables the two devices to communicate. After that, outgoing packets are not fragmented, but they still carry an MP sequence number and fragment tag.

After you configure the ppp mp fragment disable command on an interface, the settings configured with the ppp mp lfi enable and ppp mp min-fragment commands do not take effect on the interface.

Examples

# Disable MP fragmentation on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] ppp mp fragment disable

Related commands

ppp mp lfi enable

ppp mp min-fragment

ppp mp lfi delay-per-frag

Use ppp mp lfi delay-per-frag to set the maximum LFI fragment transmission delay on an interface.

Use undo ppp mp lfi delay-per-frag to restore the default.

Syntax

ppp mp lfi delay-per-frag time

undo ppp mp lfi delay-per-frag

Default

The maximum LFI fragment transmission delay is 10 ms on an interface.

Views

VT interface view

Dialer interface view

MP-group interface view

Predefined user roles

network-admin

Parameters

time: Specifies the maximum LFI fragment transmission delay, in the range of 1 to 1000 ms.

Examples

# Set the maximum LFI fragment transmission delay to 20 ms on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] ppp mp lfi delay-per-frag 20

Related commands

ppp mp lfi enable

ppp mp lfi size-per-frag

ppp mp load-sharing mode strict-round-robin

Use ppp mp load-sharing mode strict-round-robin to enable the strict load sharing mode for an MP-group interface.

Use undo ppp mp load-sharing mode strict-round-robin to restore the default.

Syntax

ppp mp load-sharing mode strict-round-robin

undo ppp mp load-sharing mode strict-round-robin

Default

An MP-group interface uses the smart load sharing mode.

Views

MP-group interface view

Predefined user roles

network-admin

Usage guidelines

For an MP-group interface in smart load sharing mode, the idle interfaces that have been recently used are used for sending packet fragments. For an MP-group interface in strict load sharing mode, interfaces are used in the order that they join the MP-group interface.

Examples

# Enable the strict loading sharing mode on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group2/0/0

[Sysname-MP-group2/0/0] ppp mp load-sharing mode strict-round-robin

ppp mp lfi enable

Use ppp mp lfi enable to enable LFI on an interface.

Use undo ppp mp lfi to disable LFI on an interface.

Syntax

ppp mp lfi enable

undo ppp mp lfi enable

Default

LFI is disabled on an interface.

Views

VT interface view

Dialer interface view

MP-group interface view

Predefined user roles

network-admin

Usage guidelines

Disabling LFI also removes the user-configured settings of the maximum LFI fragment transmission delay and size.

Examples

# Enable LFI on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] ppp mp lfi enable

Related commands

ppp mp lfi delay-per-frag

ppp mp lfi size-per-frag

Use ppp mp lfi size-per-frag to set the maximum LFI fragment size (in bytes) on an interface.

Use undo ppp mp lfi size-per-frag to restore the default.

Syntax

ppp mp lfi size-per-frag size

undo ppp mp lfi size-per-frag

Default

On an interface, the maximum LFI fragment size is derived from this formula: (Expected bandwidth of the interface x Maximum LFI fragment transmission delay)/8.

Views

VT interface view

Dialer interface view

MP-group interface view

Predefined user roles

network-admin

Parameters

size: Specifies the maximum LFI fragment size in the range of 40 to 1500 bytes.

Usage guidelines

When LFI is enabled and both this command and the ppp mp lfi delay-per-frag command are configured, the maximum LFI fragment size is the value configured with the ppp mp lfi size-per-frag command.

Examples

# Set the maximum LFI fragment size to 80 bytes on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] ppp mp lfi size-per-frag 80

Related commands

ppp mp lfi enable

ppp mp lfi delay-per-frag

ppp mp max-bind

Use ppp mp max-bind to set the maximum number of PPP links in an MP bundle on an interface.

Use undo ppp mp max-bind to restore the default.

Syntax

ppp mp max-bind max-bind-num

undo ppp mp max-bind

Default

The maximum number of PPP links in an MP bundle is 16 on an interface.

Views

VT interface view

Dialer interface view

MP-group interface view

Predefined user roles

network-admin

Parameters

max-bind-num: Specifies the maximum number of PPP links in an MP bundle, in the range of 1 to 128.

Usage guidelines

IMPORTANT:

Use the default setting in most situations. Inappropriate use of this command can cause PPP performance degradation. Make sure you understand the impact of this command on your network before you use it.

‌

Set the maximum number of PPP links in an MP bundle to be greater than the actual number of bound links. Otherwise, MP binding fails.

The maximum number of PPP links configured for an MP bundle takes effect immediately. If the configured maximum number is smaller than the number of existing PPP links, the existing links are not affected.

Examples

# Set the maximum number of PPP links in an MP bundle to 12 on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] ppp mp max-bind 12

ppp mp min-bind

Use ppp mp min-bind to set the minimum number of PPP links in an MP bundle on a dialer interface.

Use undo ppp mp min-bind to restore the default.

Syntax

ppp mp min-bind min-bind-num

undo ppp mp min-bind

Default

On a dialer interface, the minimum number of PPP links in an MP bundle is 0, which means that MP dial-up relies on traffic detection.

Views

Dialer interface view

Predefined user roles

network-admin

Parameters

min-bind-num: Specifies the minimum number of PPP links in an MP bundle, in the range of 0 to 128.

Usage guidelines

This command specifies the minimum number of PPP links in a MP bundle to ensure the minimum bandwidth for the service.

When the minimum number of PPP links is set to a non-zero value, subsequent MP dial-up operations will not depend on traffic detection, but existing dial-up connections will be removed upon timeout.

The min-bind-num argument cannot be greater than the maximum number set with the ppp mp max-bind command.

Examples

# Set the minimum number of PPP links in an MP bundle to 4 on Dialer 0.

<Sysname> system-view

[Sysname] interface dialer 0

[Sysname-Dialer0] ppp mp min-bind 4

Related commands

ppp mp max-bind

ppp mp min-fragment

Use ppp mp min-fragment to set the minimum MP packet fragmentation size on an interface.

Use undo ppp mp min-fragment to restore the default.

Syntax

ppp mp min-fragment size

undo ppp mp min-fragment

Default

The minimum MP packet fragmentation size is 128 bytes on an interface.

Views

VT interface view

Dialer interface view

MP-group interface view

Predefined user roles

network-admin

Parameters

size: Specifies the minimum MP packet fragmentation size in the range of 128 to 1500 bytes. Outgoing MP packets less than the minimum value will not be fragmented, and those greater than or equal to the minimum value will be fragmented.

Usage guidelines

If MP binding is implemented through hardware (for example, CPOS chip), the minimum MP packet fragmentation size varies with chips. The minimum MP packet fragmentation size on certain chips can only be 128, 256, or 512 bytes. To successfully create the MP bundle and establish the sub-channel LCP link, make sure the setting configured with the ppp mp min-fragment command conforms to the hardware specifications.

Examples

# Set the minimum MP packet fragmentation size to 500 bytes on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] ppp mp min-fragment 500

ppp mp mp-group

Use ppp mp mp-group to assign an interface to an MP group, and enable MP for the interface.

Use undo ppp mp to restore the default.

Syntax

ppp mp mp-group mp-number

undo ppp mp

Default

An interface is enabled with PPP.

Views

Interface view

Predefined user roles

network-admin

Parameters

mp-number: Specifies an MP-group interface by its number. The MP-group interface number is in the range of 0 to 1023.

Usage guidelines

This command should be used with the interface mp-group command. You can create an MP group interface and then assign an interface to the MP group. You can also assign an interface to an MP group and then create the MP group.

Examples

# Assign Serial 2/1/0 to MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp mp mp-group 2/0/0

Related commands

interface mp-group

ppp mp short-sequence

Use ppp mp short-sequence to trigger MP short sequence number header format negotiation on an interface. After the negotiation succeeds, the local end receives packets with short sequence numbers.

Use undo ppp mp short-sequence to restore the default.

Syntax

ppp mp short-sequence

undo ppp mp short-sequence

Default

The long sequence number header format is used on an interface.

Views

Interface view

Predefined user roles

network-admin

Usage guidelines

This command applies to the incoming direction only. To enable the local end to transmit packets with short sequence numbers, configure this command on the remote end.

The sequence number format (long or short) of an MP bundle depends on the configuration of the first channel joining the MP bundle.

To negotiate the use of short sequence numbers on a dialer MP bundle, configure the command on the dialer interfaces and the ISDN D channels. To negotiate the use of short sequence numbers on a common MP bundle, use the command on all its channels. The command will cause PPP re-negotiation.

Examples

# Configure the short sequence number header format of MP in the incoming direction of Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp mp mp-group 2/0/0

[Sysname-Serial2/1/0] ppp mp short-sequence

# Configure the short sequence number header format of MP in the incoming direction of Virtual-Template 1.

<Sysname> system-view

[Sysname] interface virtual-template1

[Sysname-Virtual-Template1] ppp mp short-sequence

ppp mp sort-buffer-size

Use ppp mp sort-buffer-size to set the MP sort buffer size factor on an interface.

Use undo ppp mp sort-buffer-size to restore the default.

Syntax

ppp mp sort-buffer-size size

undo ppp mp sort-buffer-size

Default

The MP sort buffer size factor is 1 on an interface.

Views

VT interface view

Dialer interface view

MP-group interface view

Predefined user roles

network-admin

Parameters

size: Specifies the MP sort buffer size factor in the range of 1 to 64.

Usage guidelines

The MP sort buffer size = the number of channels in the current MP bundle × size. You can use the display ppp mp command to view the number of member channels in an MP bundle. If the calculated MP sort buffer size is 20, the MP sort buffer can sort 20 packets.

When MP is used, the received packets might be out of order. The sort buffer is used to re-sort packets. A large sort buffer results in better re-sorting but increases delay. For voice packets, the transmission delay should be minimized.

Examples

# Set the MP sort buffer size factor to 64 on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] ppp mp sort-buffer-size 64

ppp mp timer lost-fragment

Use ppp mp timer lost-fragment to set the timer for MP to wait for the expected fragments on an interface.

Use undo ppp mp timer lost-fragment to restore the default.

Syntax

ppp mp timer lost-fragment seconds

undo ppp mp timer lost-fragment

Default

The timer for MP to wait for the expected fragments is 30 seconds on an interface.

Views

VT interface view

Dialer interface view

MP-group interface view

Predefined user roles

network-admin

Parameters

seconds: Specifies the timer for MP to wait for the expected fragment, in the range of 1 to 255 seconds.

Usage guidelines

A receiving end puts the received fragments in the buffer and reassembles them when it receives all the packet's fragments. You can configure a timer for MP to wait for the expected fragments. When the receiving end receives the first fragment of a packet, it starts the timer. When the timer expires, the system checks whether or not all fragments have arrived. If they have all arrived, the system reassembles the fragments. If they have not all arrived, the system discards all received fragments to release the buffer space.

Examples

# Set the timer for MP to wait for the expected fragment to 20 seconds on MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] ppp mp timer lost-fragment 20

ppp mp user

Use ppp mp user to associate a username with a VT interface.

Use undo ppp mp user to remove the association.

Syntax

ppp mp user username bind virtual-template number

undo ppp mp user username

Default

No username is associated with a VT interface.

Views

System view

Predefined user roles

network-admin

Parameters

username: Specifies a username, a case-sensitive string of 1 to 80 characters.

bind virtual-template number: Specifies a VT interface by its number in the range of 0 to 4095.

Usage guidelines

This command associates a username with a VT interface. After the user passes authentication, the system uses the settings on the VT interface to create an MP bundle and a VA interface to transmit data.

You can configure the following parameters for a VT interface:

· Local IP address and the peer IP address (or address pool).

· ppp mp-commands.

Examples

# Associate username user 1 with Virtual-Template 1, and set the IP address of the VT interface to 202.38.60.1/24.

<Sysname> system-view

[Sysname] ppp mp user user1 bind virtual-template 1

[Sysname] interface virtual-template 1

[Sysname-Virtual-Template1] ip address 202.38.60.1 255.255.255.0

Related commands

ppp mp

ppp mp virtual-template

Use ppp mp virtual-template to bind an interface to a VT interface and enable MP for the interface.

Use undo ppp mp to restore the default.

Syntax

ppp mp virtual-template number

undo ppp mp

Default

An interface is enabled with PPP.

Views

Interface view

Predefined user roles

network-admin

Parameters

number: Specifies a VT interface by its number. The value range for this argument is 0 to 4095.

Usage guidelines

After you bind an interface to a VT interface, you can optionally enable PAP, CHAP, MS-CHAP, or MS-CHAP-V2 authentication.

The interfaces bound to the same VT interface are bound together. The ppp mp virtual-template command and the ppp mp command are mutually exclusive.

Examples

# Bind Serial 2/1/0 to Virtual-Template 1, and enable MP for Serial 2/1/0.

<Sysname> system-view

[Sysname] interface serial 2/1/0

[Sysname-Serial2/1/0] ppp mp virtual-template 1

Related commands

ppp mp

reset counters interface mp-group

Use reset counters interface mp-group to clear statistics on MP-group interfaces.

Syntax

reset counters interface [ mp-group [ interface-number ] ]

Views

User view

Predefined user roles

network-admin

Parameters

mp-group: Clears traffic statistics on MP-group interfaces.

interface-number: Specifies an existing MP-group interface by its number.

Usage guidelines

Before collecting traffic statistics regularly on an MP-group interface, clear the existing statistics.

If you do not specify the mp-group keyword, the command clears statistics on all interfaces.

If you specify the mp-group keyword without the interface-number argument, the command clears statistics on all MP-group interfaces.

If you specify both mp-group and interface-number, the command clears statistics on the specified MP-group interface.

Examples

# Clear the statistics of MP-group 2/0/0.

<Sysname> reset counters interface mp-group 2/0/0

Related commands

display interface mp-group

shutdown

Use shutdown to shut down an MP-group interface.

Use undo shutdown to bring up an MP-group interface.

Syntax

shutdown

undo shutdown

Default

An MP-group interface is up.

Views

MP-group interface view

Predefined user roles

network-admin

Examples

# Shut down MP-group 2/0/0.

<Sysname> system-view

[Sysname] interface mp-group 2/0/0

[Sysname-MP-group2/0/0] shutdown

PPPoE commands

PPPoE server commands

display pppoe-server packet statistics

Use display pppoe-server packet statistics to display PPPoE server negotiation packet statistics.

Syntax

In standalone mode:

display pppoe-server packet statistics [ slot slot-number ]

In IRF mode:

display pppoe-server packet statistics [ chassis chassis-number slot slot-number ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

slot slot-number: Specifies a card by its slot number. If you do not specify a card, this command displays PPPoE server negotiation packet statistics for all cards. (In standalone mode.)

chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. If you do not specify a card, this command displays PPPoE server negotiation packet statistics for all cards. (In IRF mode.)

Examples

# (In standalone mode.) Display PPPoE server negotiation packet statistics for slot 2.

<Sysname> display pppoe-server packet statistics slot 2

PPPoE Server packet statistics in slot 2:

RECV_PADI_PKT : 10 DISCARD_PADI_PKT : 0

SEND_PADO_PKT : 10

RECV_PADR_PKT : 10 DISCARD_PADR_PKT : 0

SEND_PADS_PKT : 10

RECV_PADT_PKT : 9 DISCARD_PADT_PKT : 0

SEND_PADT_PKT : 9

# (In IRF mode.) Display PPPoE server negotiation packet statistics for IRF member device 1 in slot 2.

<Sysname> display pppoe-server packet statistics chassis 1 slot 2

PPPoE Server packet statistics in chassis 1 slot 2:

RECV_PADI_PKT : 834826 DISCARD_PADI_PKT : 1277

SEND_PADO_PKT : 833471

RECV_PADR_PKT : 833357 DISCARD_PADR_PKT : 0

SEND_PADS_PKT : 833357

RECV_PADT_PKT : 833253 DISCARD_PADT_PKT : 0

SEND_PADT_PKT : 295671

Table 11 Command output

Field	Description
RECV_PADI_PKT	Number of received PADI packets.
DISCARD_PADI_PKT	Number of discarded PADI packets.
SEND_PADO_PKT	Number of sent PADO packets.
RECV_PADR_PKT	Number of received PADR packets.
DISCARD_PADR_PKT	Number of discarded PADR packets.
SEND_PADS_PKT	Number of sent PADS packets.
RECV_PADT_PKT	Number of received PADT packets.
DISCARD_PADT_PKT	Number of discarded PADT packets.
SEND_PADT_PKT	Number of sent PADT packets.

Related commands

reset pppoe-server packet statistics

display pppoe-server session packet

Use display pppoe-server session packet to display packet statistics for PPPoE sessions.

Syntax

In standalone mode:

display pppoe-server session packet { slot slot-number | interface interface-type interface-number }

In IRF mode:

display pppoe-server session packet { chassis chassis-number slot slot-number | interface interface-type interface-number }

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

interface interface-type interface-number: Specifies an interface by its type and number.

slot slot-number: Specifies a card by its slot number. If you do not specify a card, the command displays packet statistics for PPPoE sessions on all cards. (In standalone mode.)

chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. If you do not specify a card, the command displays packet statistics for PPPoE sessions on all cards. (In IRF mode.)

Examples

# Display packet statistics for PPPoE sessions on GigabitEthernet 1/0/1.

<Sysname> display pppoe-server session packet interface gigabitethernet 1/0/1

Total PPPoE sessions: 2

Ethernet interface: GE1/0/1 Session ID: 1

InPackets: 37 OutPackets: 38

InBytes: 390 OutBytes: 406

InDrops: 0 OutDrops: 0

Ethernet interface: GE1/0/1 Session ID: 2

InPackets: 67 OutPackets: 48

InBytes: 490 OutBytes: 806

InDrops: 1 OutDrops: 2

Table 12 Command output

Field	Description
Ethernet interface	Interface where the PPPoE session is present.
Session ID	PPPoE session ID.
InPackets	Number of packets received.
OutPackets	Number of packets transmitted.
InBytes	Number of bytes received.
OutBytes	Number of bytes transmitted.
InDrops	Number of discarded incoming packets.
OutDrops	Number of discarded outgoing packets.

Related commands

display interface virtual-access

display pppoe-server session summary

Use display pppoe-server session summary to display summary PPPoE session information.

Syntax

In standalone mode:

display pppoe-server session summary { slot slot-number | interface interface-type interface-number }

In IRF mode:

display pppoe-server session summary { chassis chassis-number slot slot-number | interface interface-type interface-number }

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

interface interface-type interface-number: Specifies an interface by its type and number.

slot slot-number: Specifies a card by its slot number. If you do not specify a card, the command displays summary PPPoE session information for all cards. (In standalone mode.)

chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. If you do not specify a card, the command displays summary PPPoE session information for all cards. (In IRF mode.)

Usage guidelines

Summary PPPoE session information on a physical interface can be displayed only on the card where the interface resides. Summary PPPoE session information on a logical interface can be displayed on all cards.

Examples

# Display summary PPPoE session information on GigabitEthernet 1/0/1.

<Sysname> display pppoe-server session summary interface gigabitethernet 1/0/1

Total PPPoE sessions: 2

Ethernet interface: GE1/0/1 Session ID: 1

PPP interface: VA1 State: PADR_RCVD

Remote MAC: 00e0-1500-7100 Local MAC: 00e0-1400-7300

Service VLAN: N/A Customer VLAN: N/A

Ethernet interface: GE1/0/1 Session ID: 2

PPP interface: VA2 State: OPEN

Remote MAC:00e0-1600-7200 Local MAC: 00e0-1400-7400

Service VLAN: 2 Customer VLAN: 155

# (In standalone mode.) Display summary PPPoE session information on slot 2.

<Sysname> display pppoe-server session summary slot 2

Total PPPoE sessions on slot 2: 2

Local PPPoE sessions on slot 2: 1

Ethernet interface: GE2/0/2 Session ID: 1

PPP interface: VA1 State: OPEN

Remote MAC: 0000-0000-0005 Local MAC: 0000-5e00-0101

Service VLAN: N/A Customer VLAN: N/A

Ethernet interface: RAGG1 Session ID: 1

PPP interface: VA0 State: OPEN

Remote MAC: 0050-56c0-0005 Local MAC: 0000-5e00-0102

Service VLAN: N/A Customer VLAN: N/A

Table 13 Command output

Field	Description
Total PPPoE sessions	Total number of PPPoE sessions on physical interfaces and logical interfaces.
Local PPPoE sessions	Total number of PPPoE sessions on physical interfaces. When an interface is specified, this field is not displayed.
Ethernet interface	Interface where the PPPoE session is present.
Session ID	PPPoE session ID.
PPP interface	Virtual access interface created for the PPPoE session.
State	PPPoE session state: · PADR RCVD—The PPPoE session is being negotiated. · Open—The PPPoE session has been successfully established.
RemoteMAC	MAC address of the remote end.
LocalMAC	MAC address of the local end.
Service VLAN	Service provider VLAN. N/A means no service provider VLAN is available.
Customer VLAN	Customer VLAN. N/A means no customer VLAN is available.

display pppoe-server throttled-mac

Use display pppoe-server throttled-mac to display information about blocked users.

Syntax

In standalone mode:

display pppoe-server throttled-mac { slot slot-number | interface interface-type interface-number }

In IRF mode:

display pppoe-server throttled-mac { chassis chassis-number slot slot-number | interface interface-type interface-number }

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

interface interface-type interface-number: Specifies an interface by its type and number.

slot slot-number: Specifies a card by its slot number. If you do not specify a card, the command displays information about blocked users on all cards. (In standalone mode.)

chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. If you do not specify a card, the command displays information about blocked users on all cards. (In IRF mode.)

Examples

# Display information about blocked users on GigabitEthernet 1/0/1.

<Sysname> display pppoe-server throttled-mac interface gigabitethernet 1/0/1

Total 3 client MACs:

Interface Remote MAC Start time Remaining time(s)

GE1/0/1 00e0-1500-4100 2010-12-01,12:10:30 55

GE1/0/1 00e0-1500-4000 2010-12-01,12:10:40 65

GE1/0/1 00e0-1500-3300 2010-12-01,12:10:50 75

Table 14 Command output

Field	Description
Interface	Interface at which the user is blocked.
Remote MAC	MAC address of the user.
Start time	Time to start blocking users.
Remaining time(s)	Time left for blocking users, in seconds.

Related commands

pppoe-server throttle per-mac

display pppoe-server va-pool

Use display pppoe-server va-pool to display information about VA pools.

Syntax

display pppoe-server va-pool

Views

Any view

Predefined user roles

network-admin

network-operator

Examples

# (In standalone mode.) Display information about VA pools.

<Sysname> display pppoe-server va-pool

Location VT interface Size Unused/State

Virtual-Template1 1000 900

0/cpu1 Virtual-Template2 1000 1000

Table 15 Command output

Field	Description
Location	IRF member device, card, and CPU where the VA pool resides. When the field displays a hyphen (-), it indicates a global VA pool. If the device cannot display the CPU, an asterisks () is displayed, for example, 1/0/.
VT interface	Virtual-Template interface that uses the VA pool.
Unused/State	VA pool capacity available for PPP users/current state of the VA pool. · Creating—The VA pool is being created. · Destroying—The VA pool is being removed.

Related commands

pppoe-server virtual-template va-pool

ppp lcp echo mru verify

Use ppp lcp echo mru verify to enable maximum receive unit (MRU) verification for PPPoE on a VT interface.

Use undo ppp lcp echo mru verify to disable MRU verification for PPPoE.

Syntax

ppp lcp echo mru verify [minimum value ]

undo ppp lcp echo mru verify

Default

MRU verification for PPPoE is disabled on a VT interface.

Views

VT interface view

Predefined user roles

network-admin

Parameters

minimum value: Specifies the minimum MRU in the range of 64 to 1500 bytes.

Usage guidelines

To support an MTU larger than 1492, PPPoE adds the PPP-Max-Payload option during PPPoE negotiation. This option identifies the MTU for the current PPPoE session. If the MTU is larger than 1492, PPP uses the MTU as the MRU during LCP negotiation, and reports the MTU after negotiation.

MRU verification prevents the negotiated MRU from exceeding the receiving and sending capabilities of the interface. If the negotiated MRU is larger than 1492, the PPPoE server sends an echo request that has the same size as the negotiated MRU. If the PPPoE server receives a reply, it uses the MRU as the MTU. If the PPPoE server fails to receive a reply, the following situations occur:

· If the minimum MRU is configured, the PPPoE server sends a packet that has the same size as the minimum MRU.

· If the minimum MRU is not configured, the PPPoE server sends a packet that has the same size as the negotiated MRU.

If the second verification still fails, the PPPoE server tears down the link.

NCP negotiation starts after the MRU verification succeeds.

Examples

# Enable MRU verification for PPPoE and set the minimum MRU to 1200 bytes on Virtual-Template 10.

<Sysname> system-view

[Sysname] interface virtual-template 10

[Sysname-Virtual-Template10] ppp lcp echo mru verify minimum 1200

pppoe-server access-delay

Use pppoe-server access-delay to set the response delay time on an interface.

Use undo pppoe-server access-delay to restore the default.

Syntax

pppoe-server access-delay delay-time

undo pppoe-server access-delay

Default

No response delay time is set on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

delay-time: Specifies the response delay time, in the range of 10 to 25500 milliseconds.

Usage guidelines

The system responds to the first packet of a PPP connection on the interface after the configured delay time elapses.

Examples

# Set the response delay time to 100 milliseconds on GigabitEthernet 1/0/1.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server access-delay 100

pppoe-server access-line-id bas-info

Use pppoe-server access-line-id bas-info to configure the NAS-Port-ID attribute to automatically include BAS information on an interface.

Use undo pppoe-server access-line-id bas-info to restore the default.

Syntax

pppoe-server access-line-id bas-info [ cn-163 ]

undo pppoe-server access-line-id bas-info

Default

The NAS-Port-ID attribute does not automatically include BAS information on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

cn-163: Specifies the China Telecom 163 format for the BAS information. If you do not specify this keyword, BAS information in the China Telecom format is included.

Usage guidelines

The bas-info formats include China Telecom and China Telecom 163.

The China Telecom format is {atm|eth|trunk} NAS_slot/NAS_subslot/NAS_port:XPI.XCI. The format refers to the user access interface information on the BAS device, including upstream interface, VLAN, and VPI/VCI information:

· When ATM/DSL is used, XPI.XCI refers to VPI/VCI information.

· When Ethernet/DSL is used, XPI.XCI refers to VLAN information.

For example, eth 1/0/1:4096.2345 includes the following user access interface information:

· The type of the upstream interface is Ethernet interface.

· The interface is located at slot 1, subslot 0, and port 1.

· The outer VLAN ID is 4096 (which means an invalid VLAN), and the inner VLAN ID is 2345.

Table 16 shows the China Telecom 163 format, where:

· NAS_slot, NAS_subslot, and NAS_port refer to the numbering information of the PPPoE user access interface on the BAS device.

· vpi and vci refer to VPI and VCI information.

· vlanid and vlanid2 refer to inner VLAN and outer VLAN, respectively. The value for the vlanid of the primary interface is fixed at 0.

Table 16 BAS information in China Telecom 163 format

Interface type	Format
ATM interface‌	slot=NAS_slot;subslot=NAS_subslot;port=NAS_port;vpi=XPI;vci=XCI;
Primary interface or interface that does not carry inner VLAN or outer VLAN information.	slot=NAS_slot;subslot=NAS_subslot;port=NAS_port;vlanid=VLAN id;
Interface that carries inner VLAN and outer VLAN information.	slot=NAS_slot;subslot=NAS_subslot;port=NAS_port;vlanid=VLAN id;vlanid2=VLAN id2;

‌

This command determines the content of the NAS-Port-ID attribute that the PPPoE server delivers to the RADIUS server.

· If the cn-163 keyword is specified, the PPPoE server automatically inserts the corresponding BAS information before the parsed circuit-id. Then it sends the combination of the bas-info and circuit-id as the NAS-Port-ID attribute to the RADIUS server.

· If the cn-163 keyword is not specified, the PPPoE server creates a new circuit-id in China Telecom format. Then it sends the new circuit-id as the NAS-Port-ID attribute to the RADIUS server. The new circuit-id contains the corresponding BAS information and the DSLAM user access information in the original circuit-id.

If this command is not executed, the NAS-Port-ID attribute that the PPPoE server delivers to the RADIUS server is determined by the pppoe-server access-line-id content command.

The RADIUS server cannot correctly parse a NAS-Port-ID attribute that includes the remote-id and BAS information. When you configure this command together with the pppoe-server access-line-id trust command, make sure the NAS-Port-ID attribute sent to the RADIUS sever does not include the remote-id.

Examples

# Configure the NAS-Port-ID attribute to automatically include BAS information on GigabitEthernet 1/0/1.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id bas-info

Related commands

pppoe-server access-line-id circuit-id parse-mode

pppoe-server access-line-id content

pppoe-server access-line-id trust

pppoe-server access-line-id circuit-id parse-mode

Use pppoe-server access-line-id circuit-id parse-mode to configure the format that an interface uses to parse the circuit-id in the access line ID.

Use undo pppoe-server access-line-id circuit-id parse-mode to restore the default.

Syntax

pppoe-server access-line-id circuit-id parse-mode { cn-telecom | tr-101 }

undo pppoe-server access-line-id circuit-id parse-mode

Default

An interface uses the TR-101 format to parse the circuit-id.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

cn-telecom: Specifies China Telecom format.

tr-101: Specifies TR-101 format.

Usage guidelines

The circuit-id formats include TR-101 and China Telecom.

The TR-101 format is Access-Node-Identifier atm slot/port:vpi.vci for ATM/DSL, and is Access-Node-Identifier eth slot/port[:vlan-id] for Ethernet/DSL. The entire ID refers to the user access information on the DSLAM, where

· Access-Node-Identifier refers to the identifier of the DSLAM.

· The remainder refers to information about the user access interface on the DSLAM.

The China Telecom format is AccessNodeIdentifier/ANI_rack/ANI_frame/ANI_slot/ANI_subslot/ANI_port[:ANI_XPI.ANI_XCI]. The format refers to user access information on the DSLAM, including DSLAM identifier and user access interface.

For example, the circuit-id guangzhou001/1/31/63/31/127 includes the following information:

· The identifier of the access node DSLAM is guangzhou001.

· The rack number of the DSLAM is 1.

· The user access interface is located at port 127, subslot 31, slot 63, and frame 31.

Examples

# Configure GigabitEthernet 1/0/1 to use China Telecom format to parse the circuit-id.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id circuit-id parse-mode cn-telecom

Related commands

pppoe-server access-line-id circuit-id trans-format

Use pppoe-server access-line-id circuit-id trans-format to configure the transmission format for the circuit-id in access line ID on an interface.

Use undo pppoe-server access-line-id circuit-id trans-format to restore the default.

Syntax

pppoe-server access-line-id circuit-id trans-format { ascii | hex }

undo pppoe-server access-line-id circuit-id trans-format

Default

The transmission format for the circuit-id in access line ID is a string of characters on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

ascii: Specifies the character string format. For example, the circuit-id 00010002 is transmitted in the form of 01 08 30 30 30 31 30 30 30 32.

hex: Specifies the hexadecimal format. For example, the circuit-id 00010002 is transmitted in the form of 01 04 00 01 00 02.

Examples

# Configure GigabitEthernet 1/0/1 to use the hexadecimal format to transmit the circuit-id.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id circuit-id trans-format hex

pppoe-server access-line-id content

Use pppoe-server access-line-id content to configure the content of the NAS-Port-ID attribute delivered to the RADIUS server on an interface.

Use undo pppoe-server access-line-id content to restore the default.

Syntax

pppoe-server access-line-id content { all [ separator ] | circuit-id | remote-id }

undo pppoe-server access-line-id content

Default

The NAS-Port-ID attribute contains only the circuit-id on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

all: Sends both the circuit-id and remote-id.

separator: Specifies a separator that is one character long. By default, the value is a blank space. The circuit-id and remote-id are connected by the separator.

circuit-id: Sends only the circuit-id.

remote-id: Sends only the remote-id.

Usage guidelines

The PPPoE server on a BAS device uses the RADIUS NAS-Port-ID attribute to send the access line ID received from a DSLAM device to the RADIUS server. The access line ID contains the circuit-id and remote-id. The RADIUS server compares the received NAS-Port-ID attribute with the local line ID information to verify the location of the user.

For more information about the circuit-id, see the pppoe-server access-line-id circuit-id parse-mode command.

For more information about the remote-id, see pppoe-server access-line-id remote-id trans-format the command.

Do not use a character that exists in the circuit-id or remote-id as the separator. Otherwise, the RADIUS server might fail to parse the ID information.

This command determines the content of the NAS-Port-ID attribute only when the pppoe-server access-line-id bas-info command is not configured. Otherwise, the pppoe-server access-line-id bas-info command determines the content of the NAS-Port-ID attribute.

Examples

# Configure GigabitEthernet 1/0/1 to deliver only the circuit-id to the RADIUS server.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id content circuit-id

Related commands

pppoe-server access-line-id bas-info

pppoe-server access-line-id circuit-id parse-mode

pppoe-server access-line-id remote-id trans-format

Use pppoe-server access-line-id remote-id trans-format to configure the transmission format for the remote-id in the access line ID on an interface.

Use undo pppoe-server access-line-id remote-id trans-format to restore the default.

Syntax

pppoe-server access-line-id remote-id trans-format { ascii | hex }

undo pppoe-server access-line-id remote-id trans-format

Default

The transmission format for the remote-id is a string of characters on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

ascii: Specifies the character string format.

hex: Specifies the hexadecimal format.

Usage guidelines

The remote-id is the system MAC address of a PPPoE relay device (for example, DSLAM). It can be transmitted in character strings or hexadecimal format.

Examples

# Configure GigabitEthernet 1/0/1 to use the hexadecimal format to transmit the remote-id.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id remote-id trans-format hex

pppoe-server access-line-id trust

Use pppoe-server access-line-id trust to configure the PPPoE server to trust the access line ID in received packets on an interface.

Use undo pppoe-server access-line-id trust to restore the default.

Syntax

pppoe-server access-line-id trust

undo pppoe-server access-line-id trust

Default

The PPPoE server does not trust the access line ID in received packets on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Usage guidelines

This command enables the PPPoE server to parse the circuit-id and remote-id in a received packet, and creates a new circuit-id and remote-id. If the PPPoE server fails to parse the circuit-id or remote-id in a PADR packet, it discards the packet and does not return a PADS packet.

If this command is not executed, the PPPoE server does not parse the circuit-id and remote-id in a received packet. The contents of both the new circuit-id and the remote-id are null.

Examples

# Configure GigabitEthernet 1/0/1 to trust the access line ID in received packets.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id trust

Related commands

pppoe-server access-line-id circuit-id parse-mode

pppoe-server bind

Use pppoe-server bind to enable the PPPoE server on an interface and bind the interface to a VT interface.

Use undo pppoe-server bind to disable the PPPoE server on an interface.

Syntax

pppoe-server bind virtual-template number

undo pppoe-server bind

Default

The PPPoE server is disabled on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

virtual template number: Specifies a VT interface by its number. The value range for the number argument is 0 to 4095.

Usage guidelines

A PPPoE server-enabled interface can be bound to a nonexistent VT interface.

If the interface has been bound to a VT interface, you cannot use this command to bind the interface to another VT interface. To do that, disable the PPPoE server on the interface first.

If both the PPPoE client and PPPoE server are enabled on an interface, the PPPoE client feature does not take effect.

Examples

# Enable the PPPoE server on GigabitEthernet 1/0/1 and bind the interface to Virtual-Template 1.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server bind virtual-template 1

pppoe-server session-limit

Use pppoe-server session-limit to set the maximum number of PPPoE sessions on an interface.

Use undo pppoe-server session-limit to restore the default.

Syntax

pppoe-server session-limit number

undo pppoe-server session-limit

Default

The number of PPPoE sessions on an interface is not limited.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

number: Specifies the maximum number of PPPoE sessions on an interface, in the range of 1 to 65534.

Usage guidelines

PPPoE can establish a session when none of the following limits are reached:

· Limit for a user on an interface.

· Limit for a VLAN on an interface.

· Limit on an interface.

· Limit on a card.

New maximum number settings only apply to subsequently established PPPoE sessions.

Examples

# Set the maximum number of PPPoE sessions on GigabitEthernet 1/0/1 to 50.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server session-limit 50

Related commands

pppoe-server session-limit per-mac

pppoe-server session-limit per-vlan

pppoe-server session-limit total

pppoe-server session-limit per-mac

Use pppoe-server session-limit per-mac to set the maximum number of PPPoE sessions for a user on an interface.

Use undo pppoe-server session-limit per-mac to restore the default.

Syntax

pppoe-server session-limit per-mac number

undo pppoe-server session-limit per-mac

Default

A user can create a maximum of 100 PPPoE sessions on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

number: Specifies the maximum number of PPPoE sessions for a user, in the range of 1 to 65534.

Usage guidelines

A user is identified by a MAC address.

PPPoE can establish a session when none of the following limits are reached:

· Limit for a user on an interface.

· Limit for a VLAN on an interface.

· Limit on an interface.

· Limit on a card.

New maximum number settings only apply to subsequently established PPPoE sessions.

Examples

# Set the maximum number of PPPoE sessions for a user on GigabitEthernet 1/0/1 to 50.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server session-limit per-mac 50

Related commands

pppoe-server session-limit

pppoe-server session-limit per-vlan

pppoe-server session-limit total

pppoe-server session-limit per-vlan

Use pppoe-server session-limit per-vlan to set the maximum number of PPPoE sessions for a VLAN on an interface.

Use undo pppoe-server session-limit per-vlan to restore the default.

Syntax

pppoe-server session-limit per-vlan number

undo pppoe-server session-limit per-vlan

Default

The number of PPPoE sessions for a VLAN on an interface is not limited.

Views

Layer 3 Ethernet subinterface view

VEth subinterface view

Layer 3 aggregate subinterface view

L3VE subinterface view

EFM subinterface view

Predefined user roles

network-admin

Parameters

number: Specifies the maximum number of PPPoE sessions for a VLAN, in the range of 1 to 65534.

Usage guidelines

PPPoE can establish a session when none of the following limits are reached:

· Limit for a user on an interface.

· Limit for a VLAN on an interface.

· Limit on an interface.

· Limit on a card.

New maximum number settings only apply to subsequently established PPPoE sessions.

Examples

# Set the maximum number of PPPoE sessions for a VLAN on GigabitEthernet 1/0/1.1 to 50.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1.1

[Sysname-GigabitEthernet1/0/1.1] pppoe-server session-limit per-vlan 50

Related commands

pppoe-server sessions limit

pppoe-server sessions limit per-mac

pppoe-server sessions limit total

pppoe-server session-limit total

Use pppoe-server session-limit total to set the maximum number of PPPoE sessions on a device.

Use undo pppoe-server session-limit total to restore the default.

Syntax

In standalone mode:

pppoe-server session-limit slot slot-number total number

undo pppoe-server session-limit slot slot-number total

In IRF mode:

pppoe-server session-limit chassis chassis-number slot slot-number total number

undo pppoe-server session-limit chassis chassis-number slot slot-number total

Default

The number of PPPoE sessions on a card is not limited.

Views

System view

Predefined user roles

network-admin

Parameters

number: Specifies the maximum number of PPPoE sessions on a device, in the range of 1 to 65534.

slot slot-number: Specifies a card by its slot number. (In standalone mode.)

Usage guidelines

PPPoE can establish a session when none of the following limits are reached:

· Limit for a user on an interface.

· Limit for a VLAN on an interface.

· Limit on an interface.

· Limit on a card.

New maximum number settings only apply to subsequently established PPPoE sessions.

Examples

# (In standalone mode.) Set the maximum number of PPPoE sessions for slot 2 to 3000.

<Sysname> system-view

[Sysname] pppoe-server session-limit slot 2 total 3000

# (In IRF mode.) Set the maximum number of PPPoE sessions on card 2 of IRF member device 1 to 3000.

<Sysname> system-view

[Sysname] pppoe-server session-limit chassis 1 slot 2 total 3000

Related commands

pppoe-server session-limit

pppoe-server session-limit per-mac

pppoe-server session-limit per-vlan

pppoe-server tag ac-name

Use pppoe-server tag ac-name to set the access concentrator (AC) name for the PPPoE server on an interface.

Use undo pppoe-server tag ac-name to restore the default.

Syntax

pppoe-server tag ac-name name

undo pppoe-server tag ac-name

Default

The AC name for the PPPoE server is the device name on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

Usage guidelines

The PPPoE server sends its AC name in PADO packets. PPPoE clients choose a PPPoE server by AC name. The PPPoE clients on H3C devices cannot identify PPPoE servers by AC name.

The device does not support an AC name comprised of all blank spaces.

Examples

# Specify the AC name for the PPPoE server on GigabitEthernet 1/0/1 as pppoes.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server tag ac-name pppoes

pppoe-server tag ppp-max-payload

Use pppoe-server tag ppp-max-payload to enable the PPPoE server to support the ppp-max-payload tag and set a range for the tag on an interface.

Use undo pppoe-server tag ppp-max-payload to restore the default.

Syntax

pppoe-server tag ppp-max-payload [ minimum min-number maximum max-number ]

undo pppoe-server tag ppp-max-payload

Default

The PPPoE server does not support ppp-max-payload tag on an interface. The PPPoE server ignores the ppp-max-payload tag in PADI or PADS packets from clients, and returns a PADO or PADS packets without the ppp-max-payload tag.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Reth interface/subinterface view

Predefined user roles

network-admin

Parameters

minimum min-number: Specifies the minimum value for the PPP maximum payload, in the range of 64 to 4470 bytes. The default value is 1492 bytes.

maximum max-number: Specifies the maximum value for the PPP maximum payload, in the range of 64 to 4470 bytes. The default value is 1500 bytes. The max-number argument must be equal or greater than the min-number argument.

Usage guidelines

This command enables the PPPoE server to forward large PPP packets with a payload larger than 1492 bytes and reduces fragmentation. If the ppp-max-payload tag sent by the PPPoE client is within the tag range, the PPPoE server returns a PADO or PADS packet that includes the tag. If not, the PPPoE server considers the received packets invalid, and it does not return a PADO or PADS packet.

The jumboframe enable command can change the size of jumbo frames supported by the interface. The maximum size of the jumbo frames configured by the jumboframe enable command should be larger than the maximum value configured by the pppoe-server tag ppp-max-payload command.

Examples

# Enable the PPPoE server to support the ppp-max-payload tag and set the value for the PPP maximum payload to be in the range of 1494 to 1580 bytes on GigabitEthernet 1/0/1.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server tag ppp-max-payload minimum 1494 maximum 1508

Related commands

jumboframe enable (Interface Command References)

pppoe-server tag service-name

Use pppoe-server tag service-name to set a service name for a PPPoE server on an interface.

Use undo pppoe-server tag service-name to restore the default.

Syntax

pppoe-server tag service-name name

undo pppoe-server tag service-name

Default

A PPPoE server does not have a service name.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

Usage guidelines

Service names identify the traffic destined for PPPoE servers when multiple PPPoE servers are providing services on the network. A PPPoE client establishes a session with the target PPPoE server by using the following process:

1. The client broadcasts a PADI packet.

2. The server compares its service name with the service-name tag field of the PADI packet. The server sends a PADO packet to the client if either of the following conditions exists:

¡ The field matches the service name.

¡ No service name is configured.

3. The client sends a PADR packet to the server.

4. The server compares its service name with the service-name tag field of the PADR packet. The server sends a PADS packet and sets up a session with the client if either of the following conditions exists:

¡ The field matches the service name.

¡ No service name is configured.

Examples

# Set the service name to pppoes for the PPPoE server on GigabitEthernet 1/0/1.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server tag service-name pppoes

pppoe-server throttle per-mac

Use pppoe-server throttle per-mac to set the PPPoE access limit on an interface.

Use undo pppoe-server throttle per-mac to restore the default.

Syntax

pppoe-server throttle per-mac session-requests session-request-period blocking-period

undo pppoe-server throttle per-mac

Default

The PPPoE access rate is not limited on an interface.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

L3VE interface/subinterface view

EFM interface/subinterface view

Predefined user roles

network-admin

Parameters

session-requests: Specifies the maximum number of PPPoE session requests from a user within the monitoring time. The value range is 1 to 100000.

session-request-period: Specifies the monitoring time in the range of 1 to 3600 seconds.

blocking-period: Specifies the blocking time in the range of 1 to 3600 seconds.

Usage guidelines

This command limits the rate at which a user (identified by MAC address) can create PPPoE sessions on an interface. If the number of PPPoE requests within the monitoring time exceeds the configured threshold, the device discards the excessive requests, and outputs log messages. If the blocking time is set to 0, the device does not block any requests, and it only outputs log messages.

The device uses a monitoring table and a blocking table to control PPP access rates.

· Monitoring table—Stores a maximum of 8000 monitoring entries. Each entry records the number of PPPoE sessions created by a user within the monitoring time. When the monitoring entries reach the maximum, the system stops monitoring and blocking session requests from new users. The aging time of monitoring entries is determined by the session-request-period argument. When the timer expires, the system starts a new round of monitoring for the user.

· Blocking table—Stores a maximum of 8000 blocking entries. The system creates a blocking entry if the access rate of a user reaches the threshold, and blocks requests from that user. When the blocking entries reach the maximum, the system stops blocking session requests from new users and it only outputs log messages. The aging time of the blocking entries is determined by the blocking-period argument. When the timer expires, the system starts a new round of monitoring for the user.

If the access rate setting is changed, the system removes all monitoring and blocking entries, and uses the new settings to limit PPPoE access rates.

Examples

# Limit the rate at which a user can create PPPoE sessions on GigabitEthernet 1/0/1.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-server throttle per-mac 100 100 5

Related commands

display pppoe-server throttled-mac

pppoe-server virtual-template va-pool

Use pppoe-server virtual-template va-pool to configure a VA pool.

Use undo pppoe-server virtual-template va-pool to remove a VA pool.

Syntax

In standalone mode:

pppoe-server virtual-template template-number [ slot slot-number ] va-pool va-volume

undo pppoe-server virtual-template template-number [ slot slot-number ] va-pool

In IRF mode:

pppoe-server virtual-template template-number [ chassis chassis-number slot slot-number ] va-pool va-volume

undo pppoe-server virtual-template template-number [ chassis chassis-number slot slot-number ] va-pool

Default

No VA pool is configured.

Views

System view

Predefined user roles

network-admin

Parameters

virtual-template template-number: Specifies an existing VT interface to use the VA pool.

va-pool va-volume: Specifies the maximum number of VA interfaces contained in the VA pool, in the range of 1 to 65534.

slot slot-number: Specifies a card by its slot number. If you do not specify a card, a global VA pool is created. (In standalone mode.)

chassis chassis-number slot slot-number: Specifies a card of an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. If you do not specify a card, a global VA pool is created. (In IRF mode.)

Usage guidelines

The PPPoE server creates a VA interface for a PPPoE session to transmit packets between PPPoE and PPP, and removes the VA interface when the user goes offline. Creating and removing VA interfaces take time.

You can configure VA pools to improve the performance of PPPoE session establishment and termination. A VA pool contains a group of automatically numbered VA interfaces. The PPPoE server selects a VA interface from the pool for a requesting user and release the VA interface when the user goes offline. When a VA pool is exhausted, the system creates VA interfaces for new PPPoE sessions, and removes those VA interfaces when the users go offline.

On a VT interface, you can create one global VA pool and one regional VA pool per member device for interfaces bound with the VT interface.

· The global VA pool contains VA interfaces for logical interfaces that might span multiple devices, such as Ethernet aggregate interfaces.

· The regional VA pool contains VA interfaces for interfaces that do not span multiple devices, such as Ethernet interfaces.

When you configure a VA pool, follow these guidelines:

· To change the capacity of a VA pool, you must delete the previous configuration, and reconfigure the VA pool.

· Creating or removing a VA pool takes time. During the process of creating or removing a VA pool, users can go online or offline, but the VA pool does not take effect.

· If the system fails to create a VA pool because of insufficient resources, you can view the available resources by using the display pppoe-server va-pool command.

· VA pools are memory intensive. Set their capacity depending on your network requirements.

· Deleting a VA pool does not log off the users who are using VA interfaces in the VA pool.

Examples

# Create a VA pool with a capacity of 1000 VA interfaces on Virtual-Template 2.

<Sysname> system-view

[Sysname] pppoe-server virtual-template 2 va-pool 1000

Related commands

display pppoe-server va-pool

reset pppoe-server

Use reset pppoe-server to clear PPPoE sessions on the PPPoE server.

Syntax

reset pppoe-server { all | interface interface-type interface-number | virtual-template number }

Views

User view

Predefined user roles

network-admin

Parameters

all: Clears all PPPoE sessions.

interface interface-type interface-number: Specifies an interface by its type and number.

virtual-template number: Specifies a VT interface by its number.

Examples

# Clear established sessions on Virtual-template 1 on the PPPoE server.

<Sysname> reset pppoe-server virtual-template 1

reset pppoe-server packet statistics

Use reset pppoe-server packet statistics to clear PPPoE server negotiation packet statistics.

Syntax

In standalone mode:

reset pppoe-server packet statistics [ slot slot-number ]

In IRF mode:

reset pppoe-server packet statistics [ chassis chassis-number slot slot-number ]

Views

Any view

Predefined user roles

network-admin

Parameters

slot slot-number: Specifies a card by its slot number. If you do not specify a card, this command clears PPPoE server negotiation packet statistics for all cards. (In standalone mode.)

chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. If you do not specify a card, this command clears PPPoE server negotiation packet statistics for all cards. (In IRF mode.)

Examples

# (In standalone mode.) Clear PPPoE server negotiation packet statistics for slot 2.

<Sysname> reset pppoe-server packet statistics slot 2

# (In IRF mode.) Clear PPPoE server negotiation packet statistics for slot 2 of IRF member device 1.

<Sysname> reset pppoe-server packet statistics chassis 1 slot 2

Related commands

display pppoe-server packet statistics

PPPoE client commands

dialer diagnose

Use dialer diagnose to configure DDR to operate in diagnostic mode.

Use undo dialer diagnose to restore the default.

Syntax

dialer diagnose [ interval interval ]

undo dialer diagnose

Default

DDR operates in non-diagnostic mode.

Views

Dialer interface view

Predefined user roles

network-admin

Parameters

interval: Specifies the diagnostic interval in the range of 5 to 65535 seconds. The default is 120 seconds.

Usage guidelines

This command takes effect only when a dialer interface is used with PPPoE client applications.

In diagnostic mode, the device performs the following operations:

· Dials a PPPoE connection immediately after the device configurations are complete.

· Automatically terminates the connection.

· Starts the auto-dial timer after a configurable diagnostic interval.

· Redials a connection when the auto-dial timer expires.

By establishing and terminating PPPoE sessions periodically, you can monitor the operating status of the PPPoE link.

In diagnostic mode, the link idle-timeout timer is ignored.

Examples

# Configure Dialer 1 to operate in diagnostic mode, with a diagnostic interval of 300 seconds.

<Sysname> system-view

[Sysname] interface dialer 1

[Sysname-Dialer1] dialer diagnose interval 300

Related commands

dialer timer autodial

dialer timer idle

display pppoe-client session packet

Use display pppoe-client session packet to display the protocol packet statistics for a PPPoE session.

Syntax

display pppoe-client session packet [ dial-bundle-number number ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

dial-bundle-number number: Specifies the dialer bundle number corresponding to a PPPoE session. The value range for the number argument is 0 to 1023. If you do not specify this option, the command displays the protocol packet statistics for all PPPoE sessions.

Usage guidelines

To display the data packet statistics for a PPPoE session, use the display interface virtual-access command to display information about the specified VA interface.

Examples

# Display the protocol packet statistics for all PPPoE sessions.

<Sysname> display pppoe-client session packet

Bundle: 1 Interface: GE1/0/1

InPackets: 19 OutPackets: 19

InBytes: 816 OutBytes: 816

InDrops: 0 OutDrops: 0

Bundle: 2 Interface: GE1/0/1

InPackets: 18 OutPackets: 18

InBytes: 730 OutBytes: 730

InDrops: 0 OutDrops: 0

Table 17 Command output

Field	Description
Bundle	Dialer bundle to which a PPPoE session belongs.
Interface	Ethernet interface where the PPPoE session is present.
InPackets	Number of packets received.
OutPackets	Number of packets transmitted.
InBytes	Number of bytes received.
OutBytes	Number of bytes transmitted.
InDrops	Number of discarded incoming packets.
OutDrops	Number of discarded outgoing packets.

Related commands

display interface virtual-access

reset pppoe-client session packet

display pppoe-client session summary

Use display pppoe-client session summary to display summary PPPoE session information.

Syntax

display pppoe-client session summary [ dial-bundle-number number ]

Views

Any view

Predefined user roles

network-admin

network-operator

Parameters

Examples

# Display summary information for all PPPoE sessions.

<Sysname> display pppoe-client session summary

Bundle ID Interface VA RemoteMAC LocalMAC State

1 1 GE1/0/1 VA0 00e0-1400-4300 00e0-1500-4100 SESSION

2 1 GE1/0/2 VA1 00e0-1500-4300 00e0-1600-4100 SESSION

Table 18 Command output

Field	Description
Bundle	Dialer bundle to which the PPPoE session belongs.
Interface	Ethernet interface where the PPPoE session is present.
VA	Virtual access interface created for the PPPoE session.
RemoteMAC	MAC address of the remote end.
LocalMAC	MAC address of the local end.
State	PPPoE session state: · IDLE—Initialization state. · PADI SENT—A PPPoE Active Discovery Initiation (PADI) packet has been sent, and a PPPoE Active Discovery Offer (PADO) packet is being expected. · PADR SENT—A PPPoE Active Discovery Request (PADR) packet has been sent, and a PPPoE Active Discovery Session-confirmation (PADS) packet is being expected. · SESSION—The PPPoE session has been successfully established.

pppoe-client

Use pppoe-client to establish a PPPoE session and specify the dialer bundle corresponding to the session.

Use undo pppoe-client to remove a PPPoE session.

Syntax

pppoe-client dial-bundle-number number [ no-hostuniq ]

undo pppoe-client dial-bundle-number number

Default

No PPPoE session is established.

Views

Layer 3 Ethernet interface/subinterface view

VEth interface/subinterface view

VLAN interface view

Layer 3 aggregate interface/subinterface view

Predefined user roles

network-admin

Parameters

dial-bundle-number number: Specifies the dialer bundle number corresponding to a PPPoE session. A dialer bundle number uniquely identifies a PPPoE session. It can also be used as a PPPoE session ID. The value range for this argument is 0 to 1023.

no-hostuniq: Configures the client not to carry the Host-Uniq field in discovery packets. If you do not specify this keyword, the client carries the Host-Unique field. The Host-Unique field uniquely identifies a PPPoE client when an interface is configured with multiple PPPoE sessions. When the PPPoE server receives a packet with this field, it must include this field unmodified in the response packet. The device identifies the PPPoE client where the response packet belongs based on the Host-Unique field in the response packet.

Examples

# Establish a PPPoE session on GigabitEthernet 1/0/1.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] pppoe-client dial-bundle-number 1

# Establish a PPPoE session on Virtual-Ethernet 0.

<Sysname> system-view

[Sysname] interface virtual-ethernet 0

[Sysname-Virtual-Ethernet0] pppoe-client dial-bundle-number 1

# Establish a PPPoE session on VLAN-Interface 1.

<Sysname> system-view

[Sysname] interface vlan-interface 1

[Sysname-Vlan-interface1] pppoe-client dial-bundle-number 1

reset pppoe-client

Use reset pppoe-client to reset a PPPoE session corresponding to a dialer bundle.

Syntax

reset pppoe-client { all | dial-bundle-number number }

Views

User view

Predefined user roles

network-admin

Parameters

all: Resets all the PPPoE sessions.

dial-bundle-number number: Specifies a dialer bundle by its number. The value range for this argument is 0 to 1023.

Usage guidelines

A PPPoE session in permanent mode and terminated by this command will be established again when the auto dial timer expires.

A PPPoE session in on-demand mode and terminated by this command will be established again only when there is a need for data transmission.

Examples

# Reset all PPPoE sessions.

<Sysname> reset pppoe-client all

Related commands

dialer timer autodial

reset pppoe-client session packet

Use reset pppoe-client session packet to reset the protocol packet statistics for a PPPoE session.

Syntax

reset pppoe-client session packet [ dial-bundle-number number ]

Views

User view

Predefined user roles

network-admin

Parameters

dial-bundle-number number: Specifies the dialer bundle number corresponding to a PPPoE session. The value range for this argument is 0 to 1023. If you do not specify this option, the command resets the protocol packet statistics for all PPPoE sessions.

Examples

# Reset the protocol packet statistics for all PPPoE sessions.

<Sysname> reset pppoe-client session packet

Related commands

display pppoe-client session packet

05-Layer 2—WAN Access Command Reference

PPP and MP commands

ppp acfc local-request

ppp acfc remote-reject

ppp ipcp dns admit-any

ppp ipcp dns request

ppp ipcp remote-address match

ppp lcp delay

ppp pfc remote-reject

display ppp mp

ppp mp

ppp mp load-sharing mode strict-round-robin

ppp mp lfi enable

ppp mp lfi size-per-frag

ppp mp short-sequence

display pppoe-server session packet

display pppoe-client session packet

reset pppoe-client

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
