5 Appendix A Chassis views and technical specifications
Transceiver module, fiber connector, and optical fiber views
Transceiver module specifications
5 Appendix A Chassis views and technical specifications
Chassis views
WX3508H

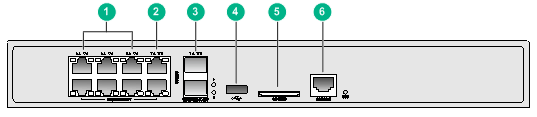

Figure5-1 Front panel
|
(1) 100/1000BASE-T autosensing Ethernet copper ports 1 through 6 |
||
|
(2) 100/1000BASE-T autosensing Ethernet copper ports 7 and 8 (combo interfaces) |
||
|
(3) 1000BASE-X SFP ports 7 and 8 (combo interfaces) |
||
|
(4) USB port |
(5) SD card slot |
(6) Console port |
Figure5-2 Rear panel
|
(1) AC power receptacle |
(2) Grounding screw |
WX3510H
Figure5-3 Front panel
|
(1) 100/1000BASE-T autosensing Ethernet copper ports 1 through 8 (combo interfaces) |
|
(2) 100BASE-FX/1000BASE-X SFP ports 1 through 8 (combo interfaces) |
|
(3) Console port |
Figure5-4 Rear panel
|
(1) Power module slot 1 (PWR1) |
(2) Power module slot 2 (PWR2) |
|
(3) Expansion slot |
(4) Grounding screw |

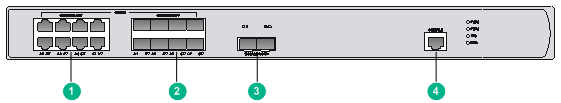

WX3520H
|
(1) 100/1000BASE-T autosensing Ethernet copper ports 1 through 8 (combo interfaces) |
|
|
(2) 100BASE-FX/1000BASE-X SFP ports 1 through 8 (combo interfaces) |
|
|
(3) 10GBASE-R SFP+ ports 9 and 10 |
(4) Console port |
Figure5-6 Rear panel
|
(1) Power module slot 1 (PWR1) |
(2) Power module slot 2 (PWR2) |
|
(3) Expansion slot |
(4) Grounding screw |
WX3540H

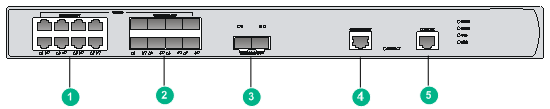

Figure5-7 Front panel
|
(1) 100/1000BASE-T autosensing Ethernet copper ports 1 through 8 (combo interfaces) |
|
|
(2) 100BASE-FX/1000BASE-X SFP ports 1 through 8 (combo interfaces) |
|
|
(3) 10GBASE-R SFP+ ports 9 and 10 |
(4) 100/1000BASE-T management Ethernet port |
|
(5) Console port |
|
Figure5-8 Rear panel
|
(1) Power module slot 1 (PWR1) |
(2) Power module slot 2 (PWR2) |
|
(3) Expansion slot |
(4) Grounding screw |
Power module views
AC power module

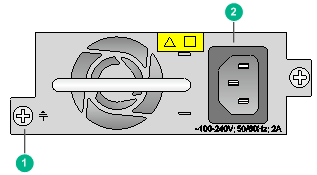

Figure5-9 AC power module
|
(1) Captive screw |
(2) Power receptacle |
DC power module

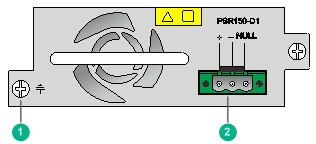

Figure5-10 DC power module
|
(1) Captive screw |
(2) Power receptacle |
Interface numbering
A combo interface is a logical interface that contains a fiber port and a copper port. Only one port is activated at a time. By default, the copper port is activated.
WX3508H
Fixed ports on a WX3508H access controller are numbered as follows:
· 100/1000BASE-T autosensing Ethernet copper ports marked 1 through 6 are represented by interface number GigabitEthernet 1/0/1 through GigabitEthernet 1/0/6, respectively.
· 100/1000BASE-T autosensing Ethernet ports marked 7 and 8 form combo interfaces (GigabitEthernet 1/0/7 and GigabitEthernet 1/0/8) with 1000BASE-X SFP ports marked 7 and 8, respectively.
WX3510H
100/1000BASE-T autosensing Ethernet copper ports marked 1 through 8 form combo interfaces (GigabitEthernet 1/0/1 through GigabitEthernet 1/0/8) with 100BASE-FX/1000BASE-X SFP ports marked 1 through 8, respectively.
WX3520H and WX3540H
Fixed ports on the WX3520H and WX3540H access controllers are numbered as follows:
· 100/1000BASE-T autosensing Ethernet copper ports marked 1 through 8 form combo interfaces (GigabitEthernet 1/0/1 through GigabitEthernet 1/0/8) with 100BASE-FX/1000BASE-X SFP ports marked 1 through 8, respectively.
· 10GBASE-R SFP+ port marked 9 and 10 are represented by interface number GigabitEthernet 1/0/9 and GigabitEthernet 1/0/10, respectively.
Technical specifications
WX3508H
Table5-1 WX3508H technical specifications
|
Item |
Specification |
|
Console port |
One, 9600 bps (default) to 115200 bps |
|
Gigabit Ethernet port |
8 × 100/1000BASE-T autosensing Ethernet copper port |
|
SFP port |
2 × 1000BASE-X SFP port. Each form a combo interface with the 100/1000BASE-T autosensing Ethernet port marked with the same number. |
|
Memory |
2GB DDR3 |
|
Storage media |
1GB NAND flash |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
43.6 × 330 × 230 mm (1.72 × 12.99 × 9.06 in) |
|
AC power module |
Rated voltage range: 100 to 240 VAC @ 50/60 Hz |
|
System power consumption |
20 W to 32 W |
|
Weight |
2 kg (4.41 lb) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating humidity |
5% RH to 95% RH, noncondensing |
WX3510H
Table5-2 WX3510H technical specifications
|
Item |
Specification |
|
Console port |
One, 9600 bps (default) to 115200 bps |
|
Gigabit Ethernet port |
8 × 100/1000BASE-T autosensing Ethernet copper port |
|
SFP port |
8 × 100BASE-FX/1000BASE-X SFP port |
|
Memory |
2 × 2GB DDR3 |
|
Storage media |
4GB CF Card |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
43.6 × 440 × 420 mm (1.72 × 17.32 × 16.54 in) |
|
AC power module |
Rated voltage range: 100 to 240 VAC @ 50/60 Hz |
|
DC power module |
Rated voltage range: –48 VDC to –60 VDC |
|
System power consumption |
86 W to 160 W |
|
Weight (excluding power modules and hard disk) |
5.4 kg (11.90 lb) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating humidity |
5% RH to 95% RH, noncondensing |
WX3520H
Table5-3 WX3520H technical specifications
|
Item |
Specification |
|
Console port |
One, 9600 bps (default) to 115200 bps |
|
Gigabit Ethernet port |
8 × 100/1000BASE-T autosensing Ethernet copper port |
|
SFP port |
8 × 100BASE-FX/1000BASE-X SFP port |
|
SFP+ port |
2 × 10GBASE-R SFP+ port |
|
Memory |
1 × 8GB DDR3 |
|
Storage media |
4GB CF Card |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
43.6 × 440 × 420 mm (1.72 × 17.32 × 16.54 in) |
|
AC power module |
Rated voltage range: 100 to 240 VAC @ 50/60 Hz |
|
DC power module |
Rated voltage range: –48 VDC to –60 VDC |
|
System power consumption |
86 W to 160 W |
|
Weight (excluding power modules and the hard disk) |
5.4 kg (11.90 lb) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating humidity |
5% RH to 95% RH, noncondensing |
WX3540H
Table5-4 WX3540H technical specifications
|
Item |
Specification |
|
Console port |
One, 9600 bps (default) to 115200 bps |
|
Gigabit Ethernet port |
8 × 100/1000BASE-T autosensing Ethernet copper port |
|
Management Ethernet port |
1 × 100/1000BASE-T management Ethernet port |
|
SFP port |
8 × 100BASE-FX/1000BASE-X SFP port |
|
SFP+ port |
2 × 10GBASE-R SFP+ port |
|
Memory |
2 × 8GB DDR3 |
|
Storage media |
4GB CF Card |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
43.6 × 440 × 420 mm (1.72 × 17.32 × 16.54 in) |
|
AC power module |
Rated voltage range: 100 to 240 VAC @ 50/60 Hz |
|
DC power module |
Rated voltage range: –48 VDC to –60 VDC |
|
System power consumption |
86 W to 160 W |
|
Weight (excluding power modules and hard disk) |
5.4 kg (11.90 lb) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating humidity |
5% RH to 95% RH, noncondensing |
AC power module
Table5-5 AC power module specifications
|
Item |
Specification |
|
Model |
PSR150-A1 |
|
Rated input voltage range |
100 VAC to 240 VAC @ 50/60 Hz |
|
Rated power capacity |
150 W |
DC power module
Table5-6 DC power module specifications
|
Item |
Specifications |
|
Model |
PSR150-D1 |
|
Rated input voltage range |
–48 VDC to –60 VDC |
|
Rated power capacity |
150 W |
Transceiver module, fiber connector, and optical fiber views
To connect a fiber port on the device, use an SFP or SFP+ transceiver module and an optical fiber with LC connectors.

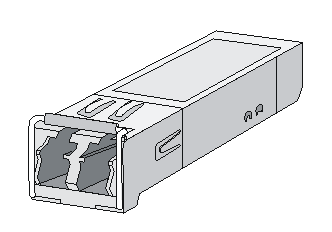

Figure5-11 SFP transceiver module
Figure5-12 SFP+ transceiver module
Figure5-13 Optical fiber with LC connectors
|
(1) LC connector |
(2) Optical fiber |
Transceiver module specifications
The transceiver modules whose names contain MM and SM support multi-mode optical fibers and single-mode optical fibers, respectively.
Table5-7 Transceiver modules available for the access controllers
|
Device model |
Available transceiver modules |
|
WX3508H |
· SFP-GE-SX-MM850-A (see Table5-11 ) · SFP-GE-LX-SM1310-A (seeTable5-9) · SFP-GE-LH40-SM1310 (see Table5-13) · SFP-GE-LH40-SM1550 (see Table5-14) · SFP-GE-LH70-SM1550 (see Table5-15) |
|
WX3510H WX3520H WX3540H |
· SFP-FE-SX-MM1310-A (see Table5-8) · SFP-FE-LX-SM1310-A (see Table5-9) · SFP-FE-LH40-SM1310 (see Table5-10) · SFP-GE-SX-MM850-A (see Table5-11) · SFP-GE-LX-SM1310-A (see Table5-12) · SFP-GE-LH40-SM1310 (see Table5-13) · SFP-GE-LH40-SM1550 (see Table5-14) · SFP-GE-LH70-SM1550 (see Table5-15) · SFP-XG-SX-MM850-A (see Table5-16) · SFP-XG-LX220-MM1310 (see Table5-17) · SFP-XG-LX-SM1310 (see Table5-18) · SFP-XG-LH40-SM1550 (see Table5-19) |
Table5-8 SFP-FE-SX-MM1310-A specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
2 km (1.24 miles) |
|
Transmission rate |
125 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
MMF |
|
Fiber diameter |
50 µm |
|
Transmit power |
–19 to –14 dBm |
|
Receive sensitivity |
≤ –30 dBm |
|
Saturation |
≤ –14 dBm |
Table5-9 SFP-FE-LX-SM1310-A specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
15 km (9.32 miles) |
|
Transmission rate |
125 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–15 to –8 dBm |
|
Receive sensitivity |
≤ –28 dBm |
|
Saturation |
≤ –7 dBm |
Table5-10 SFP-FE-LH40-SM1310 specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
40 km (24.86 miles) |
|
Transmission rate |
125 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–5 to 0 dBm |
|
Receive sensitivity |
≤ –34 dBm |
|
Saturation |
≤ –9 dBm |
Table5-11 SFP-GE-SX-MM850-A specifications
|
Item |
Specification |
|
Central wavelength |
850 nm |
|
Transmission distance |
550 m (1804.46 ft) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
MMF |
|
Fiber diameter |
50 µm |
|
Transmit power |
–9.5 to 0 dBm |
|
Receive sensitivity |
≤ –17 dBm |
|
Saturation |
≤ –3 dBm |
Table5-12 SFP-GE-LX-SM1310-A specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
10 km (6.21 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–9.5 to –3 dBm |
|
Receive sensitivity |
≤ –20 dBm |
|
Saturation |
≤ –3 dBm |
Table5-13 SFP-GE-LH40-SM1310 specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
40 km (24.86 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–2 to +5 dBm |
|
Receive sensitivity |
≤ –22 dBm |
|
Saturation |
≤ –3 dBm |
Table5-14 SFP-GE-LH40-SM1550 specifications
|
Item |
Specification |
|
Central wavelength |
1550 nm |
|
Transmission distance |
40 km (24.86 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–4 to +1 dBm |
|
Receive sensitivity |
≤ –21 dBm |
|
Saturation |
≤ –3 dBm |
Table5-15 SFP-GE-LH70-SM1550 specifications
|
Item |
Specification |
|
Central wavelength |
1550 nm |
|
Transmission distance |
70 km (43.50 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–4 to +5 dBm |
|
Receive sensitivity |
≤ –22 dBm |
|
Saturation |
≤ –3 dBm |
Table5-16 SFP-XG-SX-MM850-A specifications
|
Item |
Specification |
|
Central wavelength |
850 nm |
|
Transmission distance |
300 m (984.25 ft) |
|
Transmission rate |
10.3125 Gbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
MMF |
|
Fiber diameter |
50 µm |
|
Transmit power |
–7.3 to –1 dBm |
|
Receive sensitivity |
≤ –9.9 dBm |
|
Saturation |
≤ 0.5 dBm |
Table5-17 SFP-XG-LX220-MM1310 specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
220 m (721.78 ft) |
|
Transmission rate |
10.3125 Gbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
MMF |
|
Fiber diameter |
62.5 µm |
|
Transmit power |
–6.5 to +0.5 dBm |
|
Receive sensitivity |
≤ –6.5 dBm |
|
Saturation |
≤ 1.5 dBm |
Table5-18 SFP-XG-LX-SM1310 specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
10 km (6.21 miles) |
|
Transmission rate |
10.3125 Gbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–8.2 to +0.5 dBm |
|
Receive sensitivity |
≤ –14.4 dBm |
|
Saturation |
≤ 0.5 dBm |
Table5-19 SFP-XG-LH40-SM1550 specifications
|
Item |
Specification |
|
Central wavelength |
1550 nm |
|
Transmission distance |
40 km (24.86 miles) |
|
Transmission rate |
10.3125 Gbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–4.7 to +4 dBm |
|
Receive sensitivity |
≤ –15.8 dBm |
|
Saturation |
≤ –1 dBm |
