5 Appendix A Chassis views and technical specifications
Transceiver module, fiber connector, and optical fiber views
Transceiver module specifications
5 Appendix A Chassis views and technical specifications
Chassis views
Figure5-1 Front view
|
(1) 100/1000BASE-T autosensing Ethernet copper ports (WAN 1 and WAN 2, LAN 1 to LAN 6) |
|
|
(2) 1000Base-X SFP ports 5 and 6 |
(3) USB port |
|
(4) SD card slot |
(5) Console port |

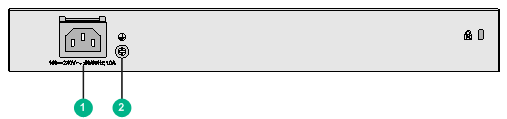

Figure5-2 Rear view
|
(1) AC power receptacle |
(2) Grounding screw |
Transceiver module, fiber connector, and optical fiber views
To connect a fiber port, use an SFP transceiver module and a pair of optical fibers that use an LC connector.
Figure5-3 SFP transceiver module
Figure5-4 A pair of optical fibers that uses an LC connector
|
(1) LC connector |
(2) Optical fiber |
Technical specifications
Table5-1 Technical specifications
|
Item |
Specification |
|
Console port |
One, 9600 bps (default) to 115200 bps |
|
Gigabit Ethernet port |
· 2 × 100/1000Base-T autosensing Ethernet copper WAN port · 6 ×100/1000Base-T autosensing Ethernet copper LAN port |
|
SFP port |
2 × 1000Base-X SFP port (Each forms a combo interface with its corresponding 100/1000Base-T autosensing Ethernet port.) |
|
Memory |
1 GB DDR3 |
|
Storage media |
1 GB NandFlash |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
43.6 × 330 × 230 mm (1.7165 × 12.9921 × 9.0551 in) |
|
Rated AC voltage range |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
System power consumption |
20 W to 32 W |
|
Weight |
2 kg (4.41 lb) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Relative humidity (noncondensing) |
5% to 95% |
Transceiver module specifications
The transceiver modules whose names contain MM and SM support multi-mode optical fibers and single-mode optical fibers, respectively.
Table5-2 SFP-GE-SX-MM850-A specifications
|
Item |
Specification |
|
Central wavelength |
850 nm |
|
Transmission distance |
550 m (1804.46 ft) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
MMF |
|
Fiber diameter |
50 µm |
|
Transmit power |
–9.5 to 0 dBm |
|
Receive sensitivity |
≤ –17 dBm |
|
Saturation |
≤ –3 dBm |
Table5-3 SFP-GE-LX-SM1310-A specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
10 km (6.21 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–9.5 to –3 dBm |
|
Receive sensitivity |
≤ –20 dBm |
|
Saturation |
≤ –3 dBm |
Table5-4 SFP-GE-LH40-SM1310 specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Transmission distance |
40 km (24.86 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–2 to +5 dBm |
|
Receive sensitivity |
≤ –22 dBm |
|
Saturation |
≤ –3 dBm |
Table5-5 SFP-GE-LH40-SM1550 specifications
|
Item |
Specification |
|
Central wavelength |
1550 nm |
|
Transmission distance |
40 km (24.86 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–4 to +1 dBm |
|
Receive sensitivity |
≤ –21 dBm |
|
Saturation |
≤ –3 dBm |
Table5-6 SFP-GE-LH70-SM1550 specifications
|
Item |
Specification |
|
Central wavelength |
1550 nm |
|
Transmission distance |
70 km (43.50 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–4 to +5 dBm |
|
Receive sensitivity |
≤ –22 dBm |
|
Saturation |
≤ –3 dBm |
Interface arrangement
The device provides six 100/1000Base-T autosensing Ethernet copper LAN ports. They are marked LAN 1 through LAN 6 on the front panel, represented by interface number GigabitEthernet 1/0/1 through GigabitEthernet 1/0/6, respectively.
The device provides two 100/1000Base-T autosensing Ethernet copper WAN ports. They are marked WAN 1 and WAN 2 on the front panel, represented by interface number GigabitEthernet 1/0/7 and GigabitEthernet 1/0/8, respectively.
The device provides also two 1000Base-X SFP ports. They are marked 5 and 6 on the front panel, each forming a combo interface with 100/1000Base-T autosensing Ethernet copper ports 5 and 6, respectively.
