LSCM3MPUS10B0 main processing unit with switching
1 Identifier
The module identifier LSCM3MPUS10B0 is in the upper right corner of the front panel.
2 Specifications
Table 1 Module specifications
|
Item |
Specifications |
|
Flash |
2 GB |
|
BootROM |
32 MB |
|
NVRAM |
1 MB |
|
SDRAM |
4 GB |
|
Dimensions (H × W × D) |
45 × 399 × 355 mm (1.77 × 15.71 × 13.98 in) |
|
Power consumption |
71 W to 99 W |
|
Ports |
· 1 × console port · 1 × USB console port · 2 × network management ports (one RJ-45 port and one SFP port) · 1 × primary USB port |
|
Port transmission rate |
· Console port: 9600 (default) to 115200 bps · USB console port: ≤ 115200 bps (default: 9600 bps) · RJ-45 network management port: 10/100/1000 Mbps, half/full duplex · SFP network management port: 1000 Mbps |
|
Available cable and maximum transmission distance |
· Console port: 15 m (49.21 ft) over an asynchronous EIA/TIA-232 cable · USB console port: 10 m (32.81 ft) over a micro USB Type-B cable · RJ-45 network management port: 100 m ( 328.08 ft ) over a Category 5 or above twisted pair cable · SFP network management port: GE SFP transceiver module |
|
Applicable device models |
S7510X-G |
|
|
NOTE: · The USB port does not support USB extension cables. · For more information about transceiver modules and cables available for the module, see H3C S7500X-G Switch Series Cards and Transceiver Modules Compatibility Matrixes. · To verify the compatibility of the module with the software release you are using, see the release notes. |
The 10/100/1000BASE-T copper port uses an RJ-45 connector.

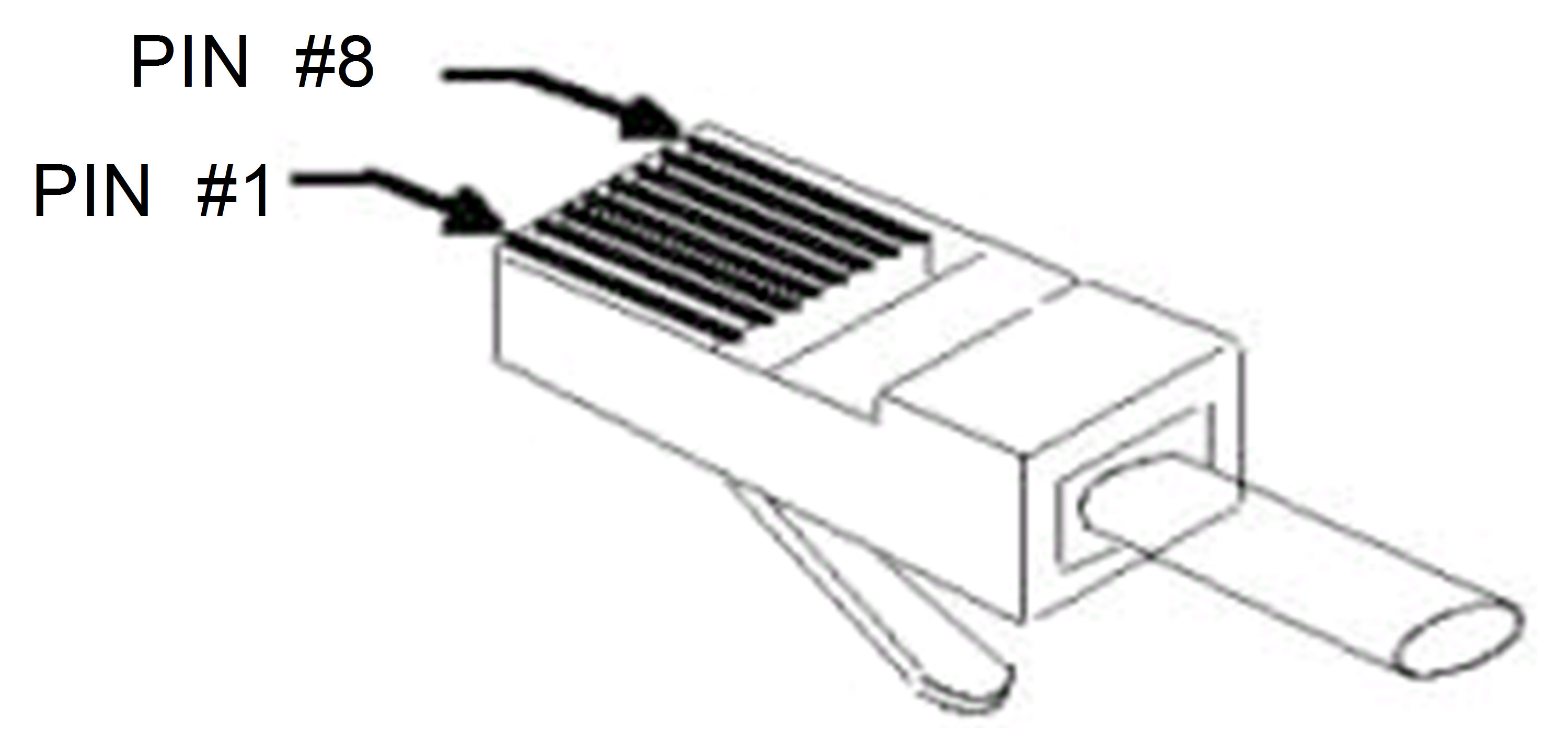

Figure 1 RJ-45 connector
Table 2 RJ-45 GE connector pinout
|
Pin |
10BASE-T/100BASE-TX/1000BASE-T |
|
|
Signal |
Function |
|
|
1 |
MX_0+ |
Transmits and receives data. |
|
2 |
MX_0- |
Transmits and receives data. |
|
3 |
MX_1+ |
Transmits and receives data. |
|
4 |
MX_2+ |
Transmits and receives data. |
|
5 |
MX_2- |
Transmits and receives data. |
|
6 |
MX_1- |
Transmits and receives data. |
|
7 |
MX_3+ |
Transmits and receives data. |
|
8 |
MX_3- |
Transmits and receives data. |
3 Related documentation
For information about installing the module, see the installation guide for the device.
For information about upgrading system software, see the release notes.
Copyright © 2021 New H3C Technologies Co ., Ltd.
The information in this document is subject to change without notice.
