H3C SR8800-X Router Series |
|
SPEX and CSPEX Base Card Datasheet |
|
|
|
|
Copyright © 2014 to 2022 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
The information in this document is subject to change without notice.
Contents
Broadband Remote Access Server (BRAS)
SPEX-1204/CSPEX-1304X/CSPEX-1304S/CSPEX-1404X/CSPEX-1404S/CSPEX-1504X/CSPEX-1504S/CSPEX-1104-E
CSPEX-1512X/CSPEX-1612X/CSPEX-1812X/CSPEX-1812X-E/CSPEX-1802X/CSPEX-1802XB/CSPEX-2612X-E
Overview
The SR8800-X routers support the following SPEX and CSPEX base cards:
· SPEX-1204
· CSPEX-1304X
· CSPEX-1304S
· CSPEX-1404X
· CSPEX-1404S
· CSPEX-1504X
· CSPEX-1504S
· CSPEX-1502X
· CSPEX-1602X
· CSPEX-1802X
· CSPEX-1802XB
· CSPEX-1804X
· CSPEX-1512X
· CSPEX-1612X
· CSPEX-1812X
· CSPEX-1812X-E
· CSPEX-1104-E
· CSPEX-2304X-G
· CSPEX-2612X-E
|
|
NOTE: For compatibility between SPEX/CSPEX base cards and switching fabric modules, see Appendix B FRUs and compatibility matrixes in H3C SR8800-X Routers Installation Guide. |
Key features
200 ms of packet buffering
The card can provide 200 ms of packet buffering, which enables 100% egress bandwidth usage and improves network performance.
Removable interface cards
Interface cards are not fixed on the base card but removable from the base card. You can install different interface cards on the base card to adapt to different configuration requirements, which protects user investment.
Subcard hot swapping
The base card supports hot swapping of subcards. Installing and removing a subcard on an operating router do not affect ongoing services on other subcards.
Distributed NAT
With support for distributed NAT architecture, twice NAT, and multiple-instance NAT instances, the cards can share NAT loads to improve NAT performance.
Distributed NetStream
With distributed NetStream performed on each card, the card can greatly improve statistical analysis efficiency. In addition, it offers packet filtering, packet sampling, statistics aggregation, and statistics export to improve processing efficiency.
Broadband Remote Access Server (BRAS)
BRAS enables the card to implement user authentication and connection management. It supports user access through various protocols, including L2TP, IPoE, and PPPoE.
|
|
IMPORTANT: The CSPEX-1104-E base card does not support BRAS. |
Specifications
The figures in this section are for illustration only.
SPEX-1204/CSPEX-1304X/CSPEX-1304S/CSPEX-1404X/CSPEX-1404S/CSPEX-1504X/CSPEX-1504S/CSPEX-1104-E

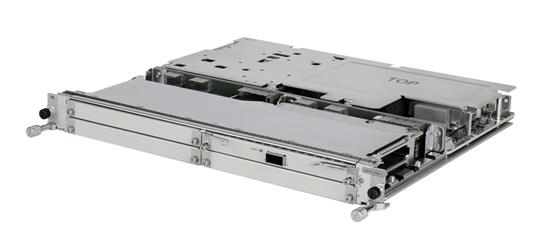

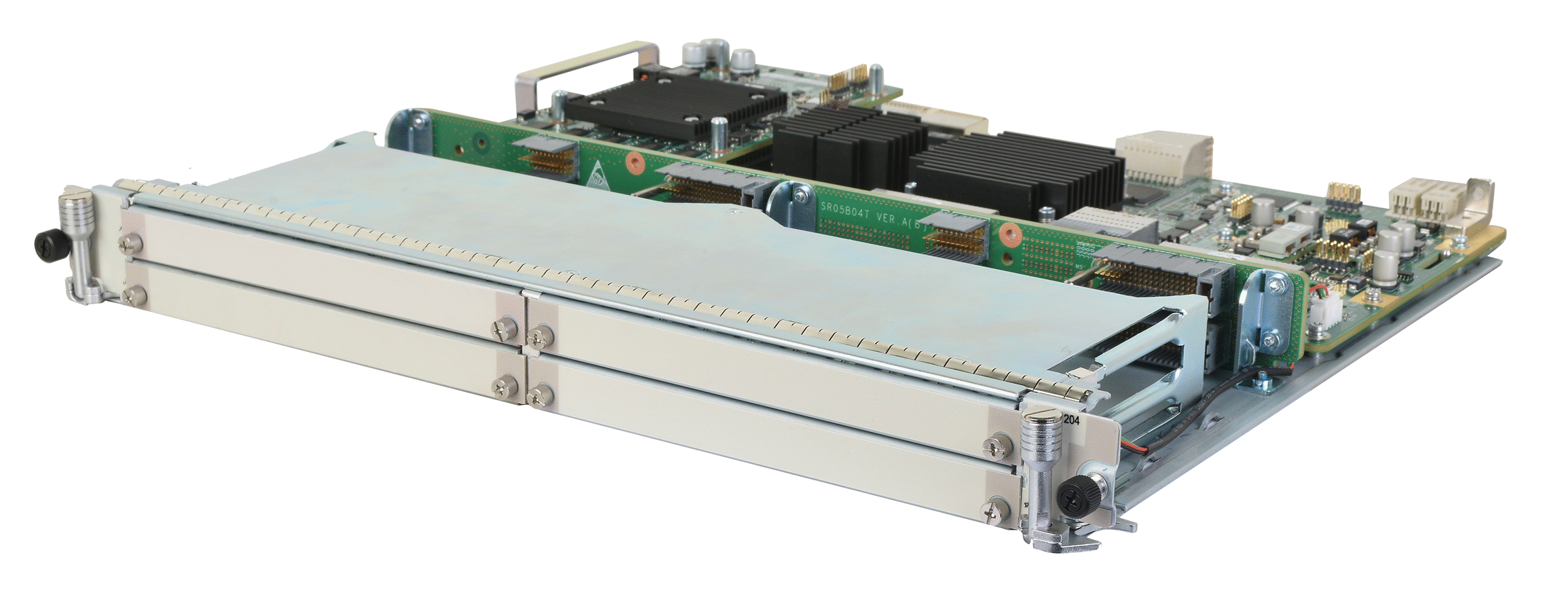

Figure 1 illustrates the card view by using the SPEX-1204 base card as an example.
Front panel
The SPEX-1204, CSPEX-1304X, CSPEX-1304S, CSPEX-1404X, CSPEX-1404S, CSPEX-1504X, CSPEX-1504S, and CSPEX-1104-E base cards have similar front panels. Figure 2 uses the SPEX-1204 base card as an example.

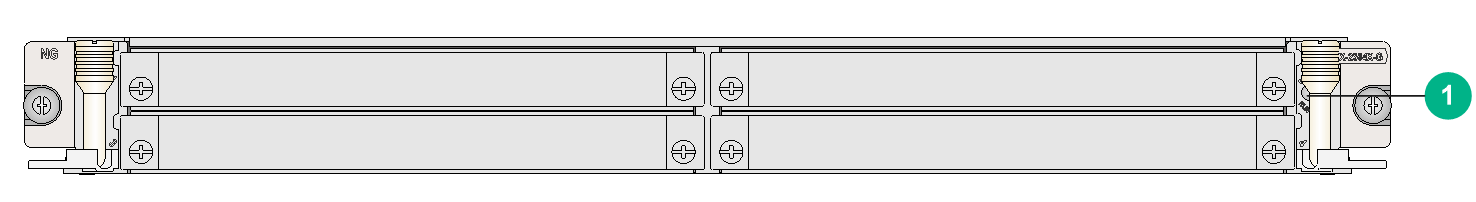

Figure 2 SPEX-1204 front panel
|
(1) Status LED (see Table 1 for the description) |
Technical specifications
|
Card model |
Dimensions (H × W × D) |
Power consumption |
Subcard slot |
Compatible software versions |
|
SPEX-1204 |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
88 W to 190 W |
4 |
7133 and later |
|
CSPEX-1304X |
90 W to 184 W |
4 |
7655P08 and later |
|
|
CSPEX-1304S |
92 W to 184 W |
4 |
7655P08 and later |
|
|
CSPEX-1404X |
112 W to 230 W |
4 |
7312 and later |
|
|
CSPEX-1404S |
120 W to 230 W |
4 |
7312 and later |
|
|
CSPEX-1504X |
112 W to 261 W |
4 |
7312 and later |
|
|
CSPEX-1504S |
128 W to 261 W |
4 |
7312 and later |
|
|
CSPEX-1104-E |
79 W to 164 W |
4 |
7907 and later |
|
|
NOTE: · For more information about SPEX/CSPEX base cards and subcards compatibility, see the installation guide for the device. · The maximum power consumption of an SPEX/CSPEX base card refers to the power usage when the card is fully configured with subcards that have the highest power consumption. |
CSPEX-1602X/CSPEX-1502X

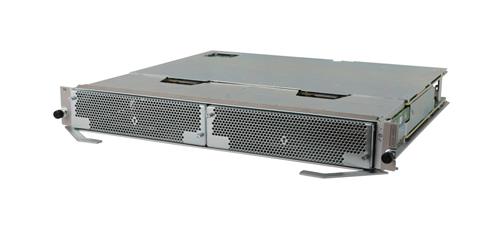

Figure 3 illustrates the card view by using the CSPEX-1602X base card as an example.
Front panel
The CSPEX-1602X and CSPEX-1502X base cards have similar front panels. Figure 4 uses the CSPEX-1602X base card as an example.

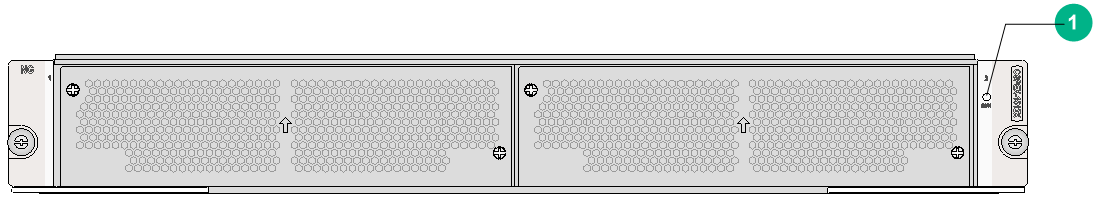

Figure 4 CSPEX-1602X front panel
|
(1) Status LED (see Table 1 for the description) |
Technical specifications
|
Item |
CSPEX-1602X |
CSPEX-1502X |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
175 W to 354 W |
175 W to 354 W |
|
Subslots |
2 |
2 |
|
Compatible system software versions |
7602 and later |
7751 and later |
CSPEX-1804X

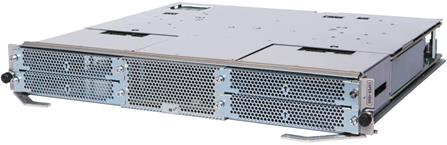

Figure 5 CSPEX-1804X
Front panel

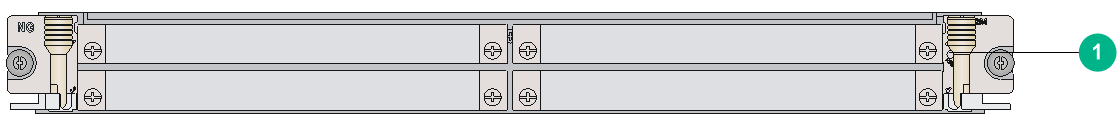

Figure 6 CSPEX-1804X front panel
|
(1) Status LED (see Table 1 for the description) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
|
Power consumption |
460 W to 625 W |
|
Subslots |
4 |
|
Compatible system software versions |
7751 and later |
|
|
NOTE: · For compatibility between a CSPEX-1804X base card and subcards, see the installation guide for the switch. · The maximum power consumption of a CSPEX-1804X base card refers to the power usage when the card is fully configured with subcards that have the highest power consumption. |
CSPEX-1512X/CSPEX-1612X/CSPEX-1812X/CSPEX-1812X-E/CSPEX-1802X/CSPEX-1802XB/CSPEX-2612X-E

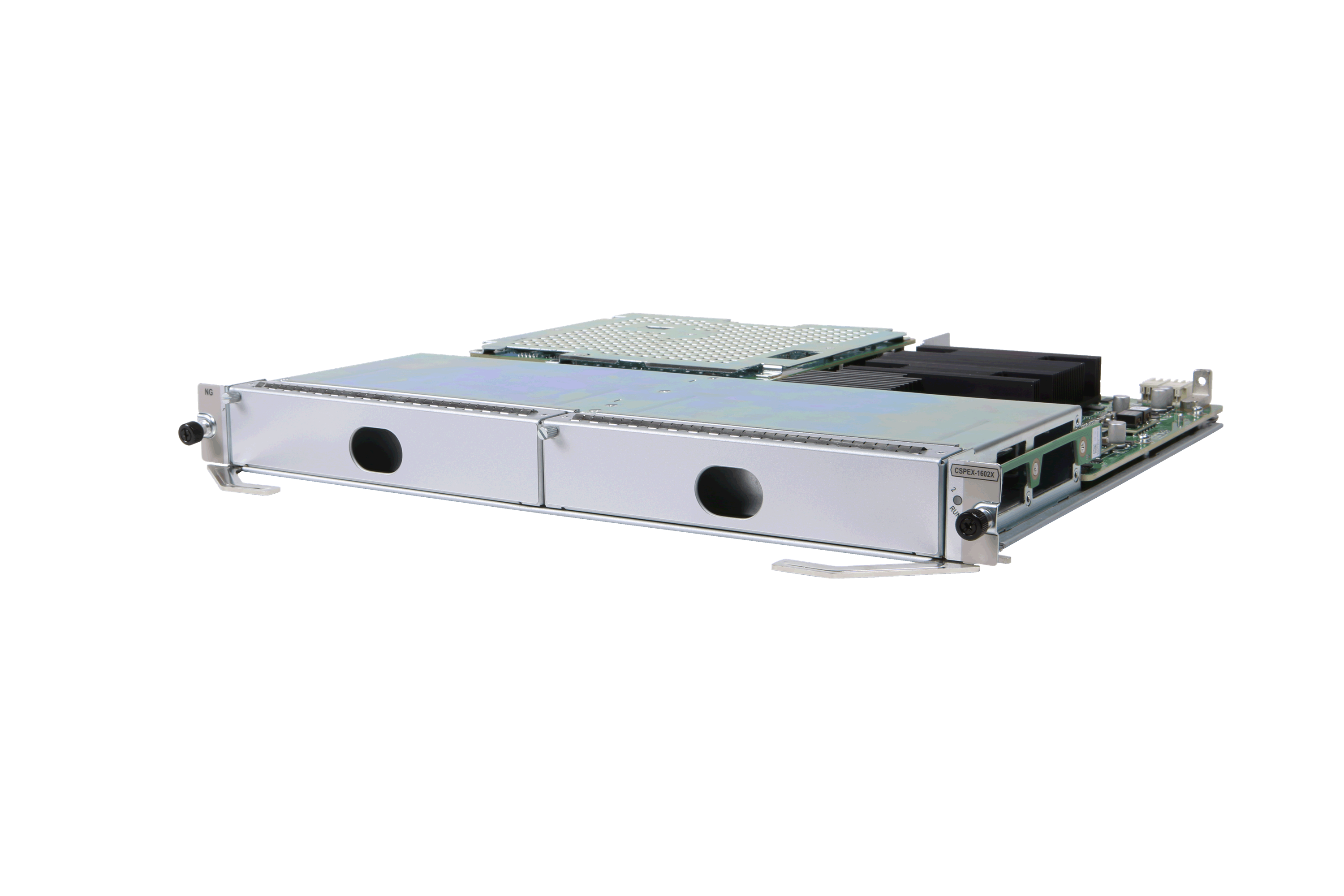

Figure 7 illustrates the base card view by using the CSPEX-1512X base card as an example.
Front panel
The CSPEX-1512X, CSPEX-1612X, CSPEX-1812X, CSPEX-1812X-E, CSPEX-1802X, CSPEX-1802XB, and CSPEX-2612X-E base cards have similar front panels. Figure 8 uses the CSPEX-1512X base card as an example.

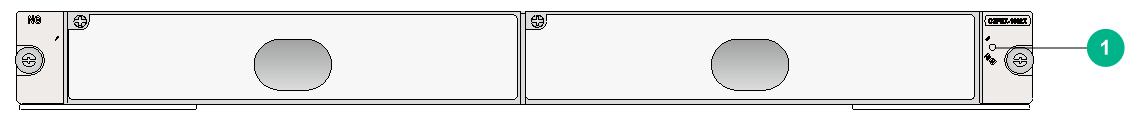

Figure 8 CSPEX-1512X front panel
|
(1) Status LED (see Table 1 for the description) |
Technical specifications
|
Card model |
Dimensions (H × W × D) |
Power consumption |
Subslots |
Compatible system software versions |
|
CSPEX-1512X |
52.5 × 399 × 352 mm (2.07 × 15.71 × 13.86 in) |
185 W to 281 W |
2 |
7751 and later |
|
CSPEX-1612X |
200 W to 320 W |
2 |
7751 and later |
|
|
CSPEX-1812X |
413 W to 657 W |
2 |
7907 and later |
|
|
CSPEX-1812X-E |
390 W to 750 W |
2 |
8151P54 and later |
|
|
CSPEX-1802X |
275 W to 486 W |
2 |
8209 and later |
|
|
CSPEX-1802XB |
275 W to 486 W |
2 |
8216 and later |
|
|
CSPEX-2612X-E |
390 W to 750 W |
2 |
8315 and later |
|
|
NOTE: · For more information about CSPEX base cards and subcards compatibility, see the installation guide for the device. · The maximum power consumption of a CSPEX base card refers to the power usage when the card is fully configured with subcards that have the highest power consumption. |
CSPEX-2304X-G
Figure 9 CSPEX-2304X-G
Front panel

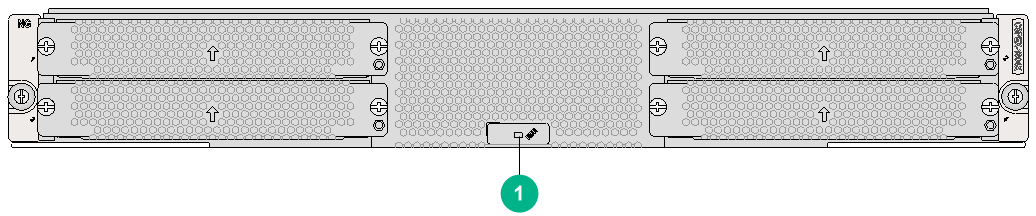

Figure 10 CSPEX-2304X-G front panel
|
(1) Status LED (see Table 1 for the description) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
200 W to 300 W |
|
Subslots |
4 |
|
Compatible system software versions |
8308 and later |
|
|
NOTE: · For compatibility between a CSPEX-2304X-G base card and subcards, see the installation guide for the router. · The maximum power consumption of a CSPEX-2304X-G base card refers to the power consumption when the card is fully configured with subcards that have the highest power consumption. |
LEDs
Table 1 Card status LED description
|
LED mark |
Status |
Description |
|
RUN |
Steady green |
The card is faulty. |
|
Off |
The card is faulty or not installed. |
|
|
Flashing green (1 Hz) |
The card is operating correctly. |
|
|
Fast flashing green |
The card is starting up. If the LED keeps fast flashing, the card registration has failed. |
Environment requirements
Make sure the ambient environment meets the following requirements:
· Temperature and humidity requirements
Table 2 Temperature and humidity requirements
|
Item |
Specifications |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
|
Operating humidity |
10% RH to 95% RH, non-condensing |
|
Storage humidity |
5% RH to 95% RH, non-condensing |
· Dust protection requirements
Table 3 Dust concentration limits in the equipment room
|
Substance |
Particle diameter |
Concentration limit |
|
Dust particles |
≥ 0.5 µm |
≤ 1.8 × 107 particles/m3 |
· Corrosive gas protection requirements
Table 4 Corrosive gas concentration limits in the equipment room
|
Gas |
Average concentration (mg/m3) |
Maximum concentration (mg/m3) |
|
SO2 |
0.3 |
1.0 |
|
H2S |
0.1 |
0.5 |
|
Cl2 |
0.1 |
0.3 |
|
HCI |
0.1 |
0.5 |
|
HF |
0.01 |
0.03 |
|
NH3 |
1.0 |
3.0 |
|
O3 |
0.05 |
0.1 |
|
NOX |
0.5 |
1.0 |
