H3C SR8800-F Router Series |
|
40G Ethernet Optical Interface Module Datasheet |
|
|
|
|
Copyright © 2015 to 2022 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
The information in this document is subject to change without notice.
Contents
Overview

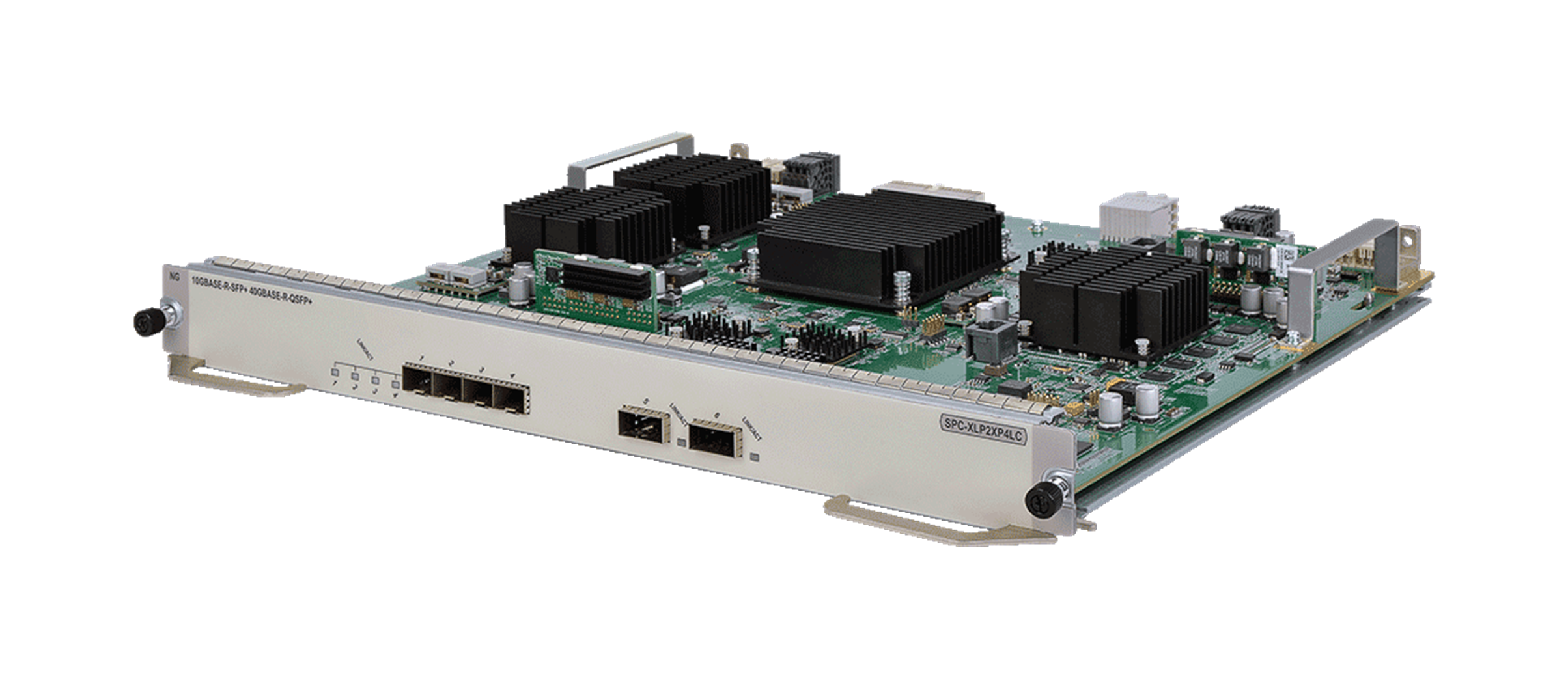

The following 40G Ethernet optical interface modules are available for the SR8800-F routers.
Table 1 40G Ethernet optical interface modules available for the SR8800-F routers
|
Module model |
Description |
|
SPC-XLP2XP4LC |
2-port 40GBASE Ethernet optical interface module (QSFP+) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) |
Key features
High-speed access rate
The interface module uses 40GE QSFP+ transceiver modules to provide an access rate of 40 Gbps per port, meeting data rate requirements for data centers.
High performance and scalability
With high-speed CPUs, the interface module greatly improves the service processing capability and provides an independent OAM engine for link status monitoring.
Environment-friendly design
The interface module is compliant with the Restriction of Hazardous Substances (RoHS) standard.
Hot swapping
The interface modules are hot swappable. Installing and removing such a module on an operating router does not affect ongoing services on other modules. The management system monitors the module in real time and implements automated configuration for the module to ensure service continuity.
Specifications
The figures in this section are for illustration only.
Front panel

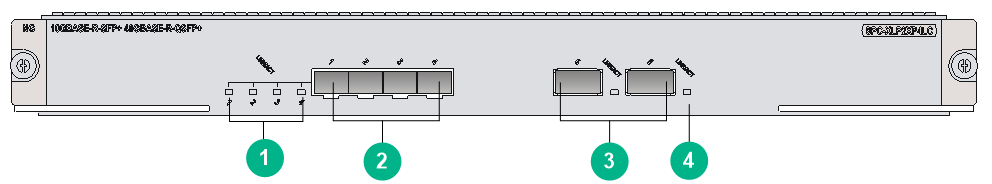

Figure 2 SPC-XLP2XP4LC front panel
|
(1) SFP+ port status LEDs (see Table 2 for the LED description) |
|
(2) 10GBASE-R-SFP+ fiber ports (4 in total) |
|
(3) 40GBASE-R-QSFP+ fiber ports (2 in total) |
|
(4) QSFP+ port status LED (see Table 3 for the LED description) |
Technical specifications
|
Item |
Specifications |
|
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 ×15.7 × 13.86 in) |
|
|
Power consumption |
91 W to 143 W |
|
|
Ports |
· 2 × 40GBASE-R-QSFP+ fiber ports · 4 × 10GBASE-R-SFP+ fiber ports |
|
|
Connector type |
· LC · MPO |
|
|
Port speed |
· 40GBASE-R-QSFP+ fiber port: 40 Gbps · 10GBASE-R-SFP+ fiber port: 10 Gbps |
|
|
Net weight |
3.2 kg (7.05 lb) |
|
|
Applicable system software versions |
7140P51 or later |
|
LEDs
Table 2 SFP+ port status LED description
|
Status |
Description |
|
Flashing |
The port is sending or receiving data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Table 3 QSFP+ port status LED description
|
Status |
Description |
|
Flashing |
The port is sending or receiving data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Environment requirements
Make sure the ambient environment meets the following requirements:
· Temperature and humidity requirements
Table 4 Temperature and humidity requirements
|
Item |
Specifications |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
|
Operating humidity |
10% RH to 95% RH, non-condensing |
|
Storage humidity |
5% RH to 95% RH, non-condensing |
· Dust protection requirements
Table 5 Dust concentration limits in the equipment room
|
Substance |
Particle diameter |
Concentration limit |
|
Dust particles |
≥ 0.5 µm |
≤ 1.8 × 107 particles/m3 |
· Corrosive gas protection requirements
Table 6 Corrosive gas concentration limits in the equipment room
|
Gas |
Average concentration (mg/m3) |
Maximum concentration (mg/m3) |
|
SO2 |
0.3 |
1.0 |
|
H2S |
0.1 |
0.5 |
|
Cl2 |
0.1 |
0.3 |
|
HCI |
0.1 |
0.5 |
|
HF |
0.01 |
0.03 |
|
NH3 |
1.0 |
3.0 |
|
O3 |
0.05 |
0.1 |
|
NOX |
0.5 |
1.0 |
