2 Fat AP WLAN Configuration
To view the video, click download link.
Software Version Used
This video was recorded based on the following versions:
iMC: iMC PLAT 3.20-R2602P08, iMC WSM 3.50-F5201P01
Video Description
This configuration case illustrates how to use the iMC Wireless Service Manager (WSM) to deploy a Fat AP network.
Experiment Environment
l One Fat AP with proper software versions and basic configuration.
l One Layer 3 switch that connects the Fat AP.
l One PC or laptop that is installed with wireless network card and will be used as wireless client.

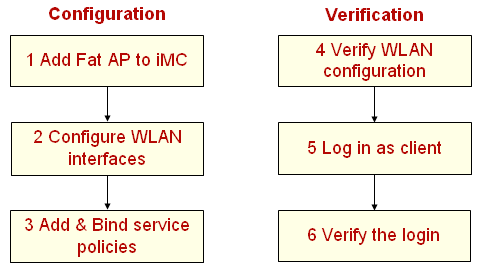

Recommended Configuration Flow
Step1 Add Fat AP to iMC
l Add the Fat AP to iMC through iMC PLAT.
l Check that the added device is recognized by the iMC as a Fat AP.
Step2 Configure WLAN interface
l Add a WLAN interface.
l Specify the VLAN to which the WLAN interface belongs.
Step3 Add & Bind service policy
l Add a service policy for the specified Fat AP.
l Set radio parameters and bind the radio to the service policy.
Step4 Verify WLAN configuration
l Check that the added WLAN exists in the ESS list, and check the counts of online Fat APs and clients.
l Check that the Fat AP is connected.
Step5 Log in as client
The PC or laptop with a wireless network card is used to log in to the WLAN as a wireless client.
Step6 Verify the client login
l Synchronize the information of the Fat AP
l Verify the login information in client view
l View the client information
