About the SeerEngine-Campus controller

SeerEngine-Campus is an SDN controller designed for the application-driven campus network. From a unified GUI, SeerEngine-Campus offers compressive campus network management capabilities, including zero-touch device deployment, user authentication, access control, micro-segmentation, and service orchestration.

Terms

·     Matrix—Docker containers-orchestration platform based on Kubernetes. On this platform, you can build Kubernetes clusters, deploy microservices, and implement O&M monitoring of systems, Docker containers, and microservices.

·     Master node—Master node in the cluster. A cluster must contain three master nodes. If you deploy Unified Platform on a single node, that node is the master node. The cluster selects one master node as active master node automatically and the others operate as standby master nodes. When the active master node fails, the cluster selects a new active master from the standby master nodes to take over to ensure service continuity.

¡     Active master node—Manages and monitors all nodes in the cluster. The northbound service VIP is assigned to the active master node. All master nodes are responsible for service operation.

¡     Standby master node—Standby master nodes are only responsible for service operation.

·     Worker node—Service node in the cluster. Worker nodes are only responsible for services and do not participate in active master node selection. When the CPU and memory usage is high, service responses are slow, or the number of pods reaches or approaches 300 on master nodes, you can add worker nodes to improve the cluster performance and service processing capability.

·     Graphical User Interface (GUI)—A type of user interface through which users interact with electronic devices via graphical icons and other visual indicators.

·     Redundant Arrays of Independent Disks (RAID)—A data storage virtualization technology that combines many small-capacity disk drives into one large-capacity logical drive unit to store large amounts of data and provide increased reliability and redundancy.

Features

SeerEngine-Campus provides the following features:

·     Zero-touch device deploymentProvides fully automated underlay network deployment. Network devices can be automatically configured in plug and play mode, which frees the administrator from the tedious, error-prone tasks of node-by-node device configuration.

·     User authenticationSupports various user authentication methods, including 802.1X, MAC authentication, and MAC portal authentication.

·     Access controlEnforces access control on users based on their user group membership.

·     Micro-segmentation—Decouples security groups from virtual networks, enabling service orchestration and deployment across management domains.

Deployment modes

SeerEngine-Campus can be deployed only as a containerized component on Unified Platform through the convergence deployment page of Matrix. Before deploying SeerEngine-Campus on a server, you must deploy Matrix and Unified Platform on the server first. See H3C Unified Platform Deployment Guide for the deployment procedure.




Preparing for installation

Software package verification

Before installing the software, first perform MD5 verification on each software package to ensure its integrity and correctness.

1.     Identify the uploaded installation packages.

[root@node1~]# cd /opt/matrix/app/install/packages/

[root@node1~]# ls

UDTP_Base_E7101_x86.zip    BMP_Connect_E7101_x86

2.     Obtain the MD5 value of an installation package, for example, UDTP_Base_E7101_x86.zip.

[root@node1~]# md5sum UDTP_Base_E7101_x86.zip

2b8daa20bfec12b199192e2f6e6fdeac  UDTP_Base_E7101_x86.zip

3.     Compare the obtained MD5 value with the MD5 value released with the software. If they are the same, the installation package is correct.

Component dependencies

You can deploy vDHCP, EIA, and iWM servers in addition to the SeerEngine-Campus component. The vDHCP servers are required and the other servers are optional.

DHCP servers are used for assigning IP addresses to network devices during the zero-touch deployment process and to endpoint users requesting network access on the campus network.

You can deploy one DHCP server in standalone mode, or deploy two DHCP servers in cluster mode for high availability.

The SeerEngine-Campus network supports Microsoft DHCP servers and vDHCP servers, of which vDHCP servers are more commonly used. The vDHCP server is provided by Unified Platform as a public service component.

To use Microsoft DHCP servers, see the related document for the deployment procedure.

To use vDHCP servers, deploy the vDHCP Server component together with SeerEngine-Campus from Unified Platform.

The EIA component manages endpoint authentication and access.

The iWM component monitors and configures wireless devices.

Standalone deployment restrictions

The following restrictions apply to standalone SeerEngine-Campus deployments:

·     The remote backup function must be enabled on the standalone SeerEngine-Campus controller. This function allows the controller to back up its configuration and data to a remote server periodically (typically once in a couple of days). In case that SeerEngine-Campus redeployment is required, you can restore the most recent backup files for the system with minimal data loss.

·     Failures of server hardware components such as physical drives or RAID controllers cannot be recovered by rebooting the server. The SeerEngine-Campus service will be affected or unavailable until the faulty hardware or server is replaced. However, the time required for the replacement cannot be directly evaluated since it might involve purchasing the replacement components.

Installation packages

Before the deployment, obtain the installation packages for the SeerEngine-Campus, vDHCP Server, EIA Server, and iWM Server components.

Table 1 Component installation packages

Scenario

Component

Component installation package

Campus network

SeerEngine-Campus

SeerEngine_CAMPUS-version-MATRIX.zip

vDHCP Server

vDHCPS_versversionion.zip

EIA Server

EIA-version.zip

iWM Server

iWM_version.zip



Server requirements

Hardware requirements

SeerEngine-Campus can be deployed on a single server or on a cluster of servers. You can deploy SeerEngine-Campus on physical servers or on VMs.

The controller supports the following deployment modes:

·     Deploy the controller separately.

·     Deploy the controller together with SeerAnalyzer on a server.

·     Deploy SeerAnalyzer separately.

For information about the hardware requirements for the controller in each deployment mode, see the AD-NET solution hardware configuration guide.

Software requirements

For Unified Platform E7101 and later versions, the application installation packages are split into two modules:

·     Basic Unified Platform application package—Includes operating system and other application component packages (identified by UDTP or BMP).

·     Basic network management application package—Provides the basic network management services (identified by NSM).

For more information about Unified Platform application packages, see the "Application installation packages" section in H3C Unified Platform Deployment Guide. This document describes only the Unified Platform application installation packages and basic network management application packages required for SeerEngine-Campus. For more information, see Table 2 and Table 3.

Table 2 Unified Platform application packages for SeerEngine-Campus

Installation package name

Description

Remarks

Dependencies

NingOS-V3-<version>.iso

Installation package for the H3C operating system.

Required.

N/A

UDTP_Base_version_platform.zip

Basic service component: Provides basic features such as convergence deployment, user management, permission management, resource management, tenant management, menu management, log center, backup and restoration, and health check.

Required.

N/A

BMP_Connect_version_platform.zip

Connection service component: Provides upper- and lower-level site management, WebSocket channel management, and NETCONF channel management.

Required.

N/A

BMP_Common_version_platform.zip

Common service component: Provides the dashboard management, alarm, alarm aggregation, and alarm subscription features.

Required.

N/A



Table 3 Basic network management application packages required for deploying SeerEngine-Campus

Installation package name

Description

Remarks

Dependencies

NSM_FCAPS-Res_version_x86.zip

Discovers and incorporates network devices and manages basic network device information.

Required.

N/A

NSM_FCAPS-Perf_version_x86.zip

Monitors and displays network device performance.

Required.

N/A

NSM_FCAPS-ICC_version_x86.zip

Deploys configuration and software, backs up configuration, and audits configuration for network devices.

Required.

N/A



Deployment procedure at a glance

For information about the procedure for deploying the controller in the campus scenario for the first time, see "Deploying the controller."

Table 4 Deployment procedure

Task

Procedure

Remarks

Install the NingOS operating system

Install the NingOS operating system on each server.

See H3C Unified Platform Deployment Guide.

Deploy Unified Platform

·     Deploy Matrix.

·     Configure Matrix cluster parameters.

·     Deploy the Matrix cluster.

·     Deploy Unified Platform.

See H3C Unified Platform Deployment Guide.

Deploy the SeerEngine-Campus, vDHCP Server, EIA, and iWM components

Deploy the required components.

See "Deploying the controller."



Client requirements

You can access Unified Platform from a Web browser without installing any client. For more information, see H3C Unified Platform Deployment Guide.

Pre-installation checklist

Table 5 Pre-installation checklist

Item

Requirements

Server

Hardware

·     The CPUs, memory, drives, and NICs meet the requirements.

·     The server supports Unified Platform.

Software

·     Verify that the operating system version meets the requirements.

·     Verify that the system time settings are configured correctly. As a best practice, configure NTP for time synchronization and make sure the devices synchronize to the same clock source.

·     Verify that the server has configured disk arrays.

Client

You can access Unified Platform from a Web browser without installing any client. As a best practice, use Google Chrome 55 or a later version.

Server and OS compatibility

To view the compatibility matrix between H3C servers and

operating systems, click http://www.h3c.com/en/home/qr/default.htm?id=65



Disk partitioning plan

Table 6 Partitioning scheme for a 2.4TB+50GB system disk (physical server, cluster deployment)

Mount point

Minimum capacity

Applicable mode

File system

Remarks

/var/lib/docker

400 GiB

BIOS mode/UEFI mode

xfs

Capacity expandable.

/boot

1024 MiB

BIOS mode/UEFI mode

xfs

N/A

swap

1024 MiB

BIOS mode/UEFI mode

swap

N/A

/var/lib/ssdata

450 GiB

BIOS mode/UEFI mode

xfs

Capacity expandable.

/

400 GiB

BIOS mode/UEFI mode

xfs

Capacity expandable.

As a best practice, do not save service data in the / directory.

/boot/efi

200 MiB

UEFI mode

EFI System Partition

Create this partition if UEFI mode is used.

biosboot

2048 KiB

BIOS mode

xfs

N/A

/var/lib/etcd

50 GiB

BIOS mode/UEFI mode

xfs

As a best practice, mount it on a separate disk.

This partition is required on a master node and not required on a worker node.

Free space

1205 GiB

N/A

N/A

Allocated to GlusterFS automatically.

The total capacity of system disks is 2.4 TB + 50 GB. The capacity of the above mounting points is 1.2 TB, and the remaining space will be automatically assigned to GlusterFS. If the GlusterFS partition does not need to be as large as 1205 GiB, you can manually expand the size of the other partitions, and reduce the remaining available space.




Deploying the controller

SeerEngine-Campus can be deployed on the convergence deployment page of Matrix as a component. After deployment, SeerEngine-Campus is deployed on the host where Unified Platform is located as a container. This section describes deployment on the convergence deployment page of Matrix.

Installation and deployment tasks at a glance

Step

Task

Remarks

1.     Accessing the convergence deployment page

Log in to the Matrix page and click convergence deployment.

Required.

2.     Uploading the installation packages

Select packages required for deploying components.

Required. You must first download the installation packages to the local host.

3.     Selecting applications

Select the campus network application group.

Required.

4.     Selecting installation packages

Select the installation package version for the dependencies and controller.

Required.

5.

6.     Configuring parameters

Configure nodes for deploying the controller.

Required.



Preparing for deployment

Enabling the NICs

SeerEngine-Campus and vDHCP Server run in containerized mode on a physical server and require NICs for processing their service traffic. You can use the NIC assigned to Unified Platform for this purpose, or enable new NICs. The latter is recommended to ensure network stability. To use bonding NICs, double the number of enabled NICs.

To enable a NIC:

1.     Log in to the server on which Unified Platform is deployed remotely and edit the NIC configuration file. This example edits the configuration file for NIC ens192.

a.     Open the NIC configuration file.

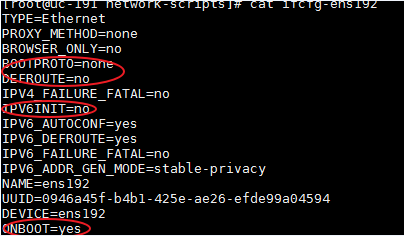

[root@UC01 /]# vi /etc/sysconfig/network-scripts/ifcfg-ens192

b.     Set the BOOTPROTO field to none to remove NIC startup protocols, and set the ONBOOT field to yes to enable automatic NIC connection at server startup.





2.     Restart the NIC.

[root@UC01 /]# ifdown ens192

[root@UC01 /]# ifup ens192

3.     Use the ifconfig command to display network information and verify that the NIC is in up state.

Planning the networks

The campus scenario uses the Layer 3 network scheme, where the controller NIC IP and the two IP addresses of the device are on different subnets. In this network scheme, device in multiple fabrics can come online automatically. For the controller to provide automated underlay network deployment function, you must configure DHCP relay agent on the Layer 3 gateway device between the server that hosts the controller and the spine and leaf devices.

The solution deploys the following networks:

·     Calico networkNetwork for containers to communicate with each other. The Calico network uses the IP address pool (177.177.0.0 by default) specified at Unified Platform cluster deployment. You do not need to configure addresses for the Calico network at component deployment. The network can share the same NIC as the MACVLAN network.

·     MACVLAN networkManagement network for the SeerEngine-Campus and the vDHCP components. You must plan network address pools for the MACVLAN network before deploying a component.

As a best practice, use Table 7 to calculate the number of required IP addresses in the subnet assigned to the MACVLAN network. For example:

·     If the SeerEngine-Campus cluster has three members and the vDHCP cluster has two members, the required number of IP addresses is: (1*3+1) + (1*2+1)=7.

·     If the SeerEngine-Campus cluster has three members, and the vDHCP cluster has two members and adopts dual-stack deployment, the required number of IP addresses is: (1*3+1) + (1*2+1)*2=10.

Table 7 IP address planning for the MACVLAN network

Component name

Max cluster members

Default cluster members

Required addresses for SeerEngine-Campus or vDHCP

SeerEngine-Campus

32

3

1*Member quantity + 1

The additional address is reserved as the cluster IP address.

vDHCP

2

2



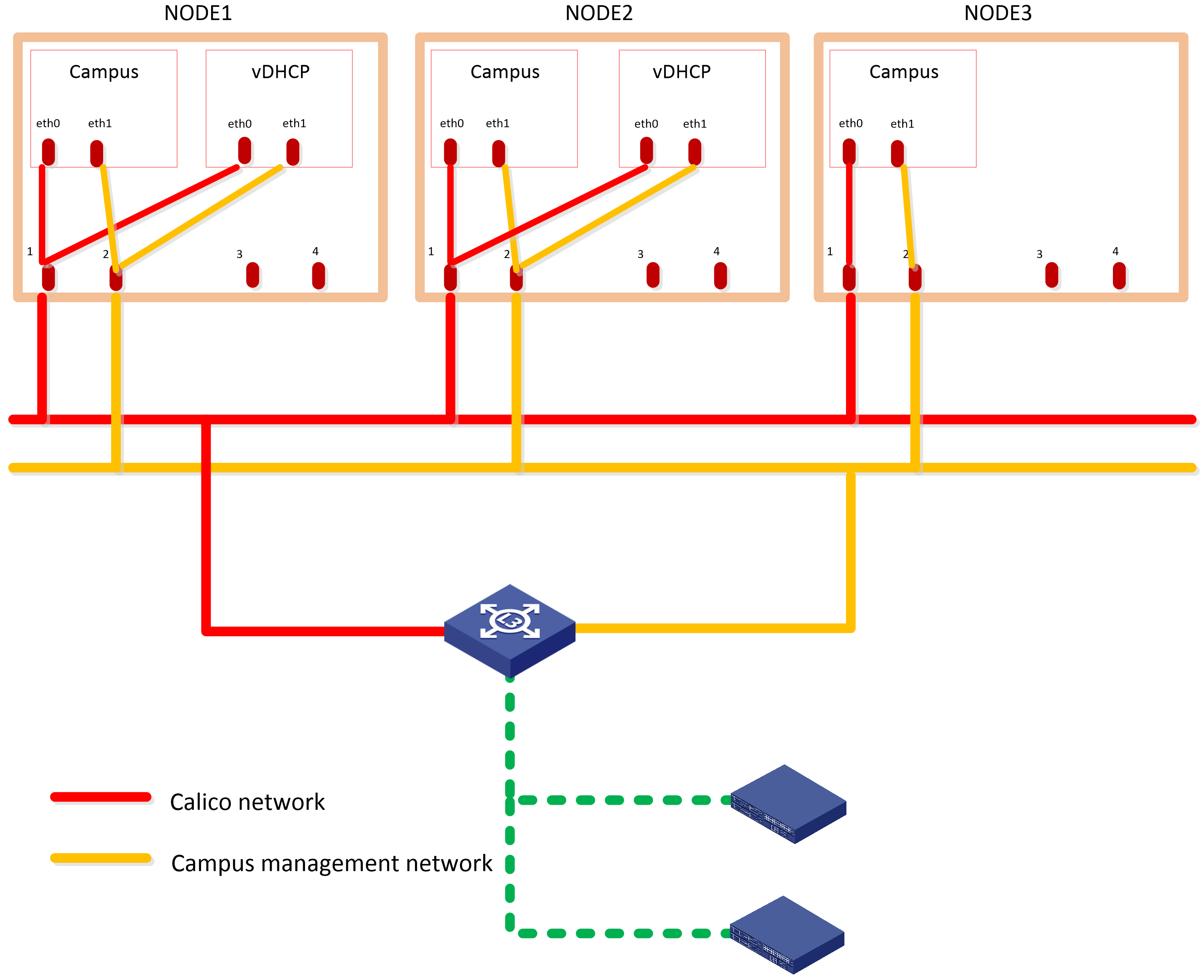

Figure 1 Network planning



Deploying SeerEngine-Campus and vDHCP

The SeerEngine-Campus controller depends on components shown in Table 2 and Table 3 Before installing SeerEngine-Campus, you must install the components. Other Unified Platform and basic network management application packages can be used as optional components. If you need a function, install the corresponding application package as needed. For the specific procedures, see H3C Unified Platform Deployment Guide.

Accessing the convergence deployment page

1.     In the address bar of the browser, enter https://ip_address:8443/matrix/ui to log in to Matrix.

The ip_address parameter specifies the northbound service VIP.

2.     Enter the username and password, and then click Login to enter the default Matrix cluster deployment page.

By default, the username is admin and the password is Pwd@12345. If you have changed the password when installing the operating system, enter the password as configured.

3.     On the top navigation bar, click DEPLOY. From the navigation pane, select Convergence Deployment, as shown in Figure 2.

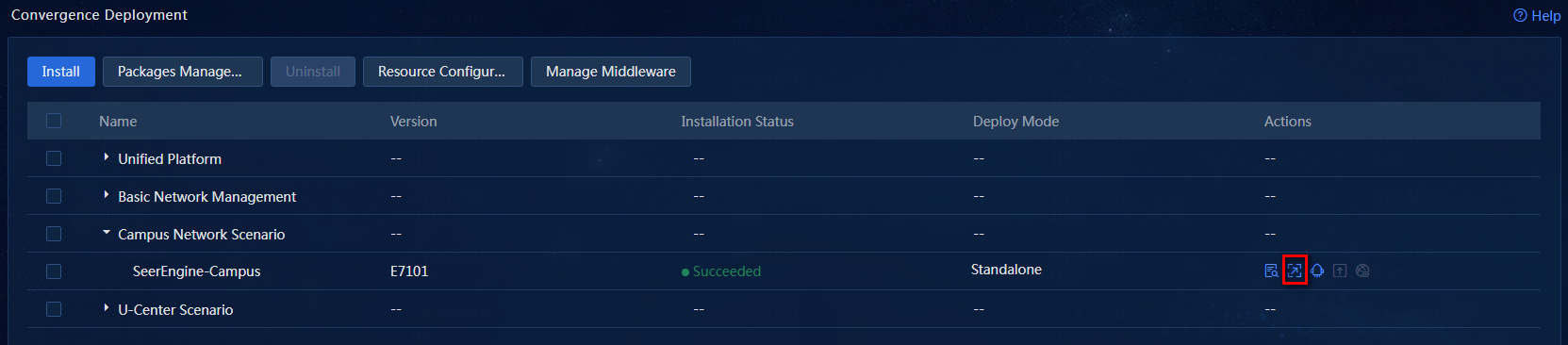

Figure 2 Convergence deployment



Uploading the installation packages

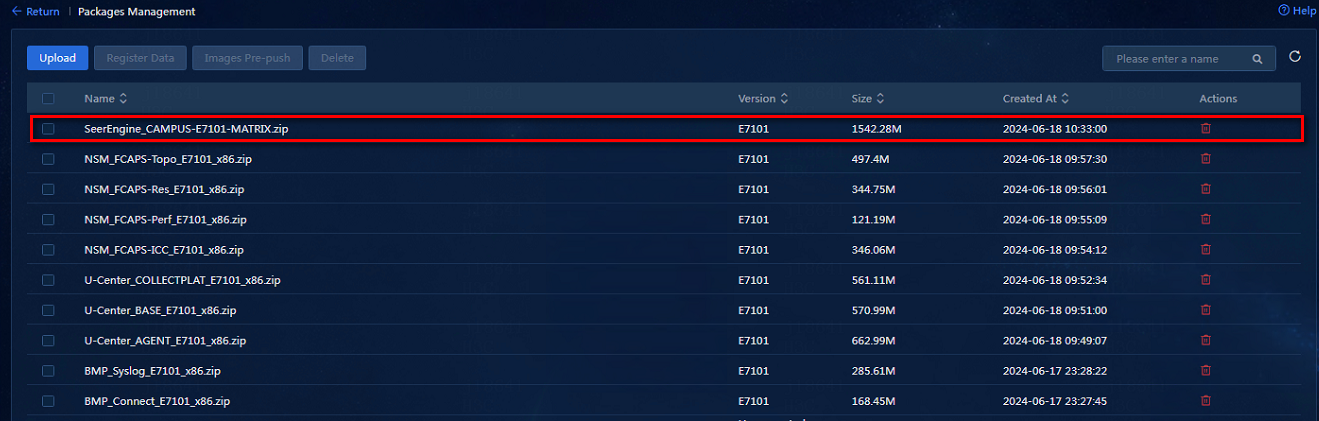

1.     Click Packages Management to access the installation package management page. Click Upload to upload installation packages. On this page, you can upload and delete installation packages.

The installation package list displays names, versions, sizes, creation time, and other information of the uploaded installation packages. The application installation packages support bulk uploading. You can bulk select and upload the installation packages as needed.

2.     Upload the installation packages of SeerEngine-Campus, vDHCP Server, EIA, and iWM components to the system. This section takes the installation procedure for SeerEngine-Campus as an example for illustration, as shown in Figure 3.

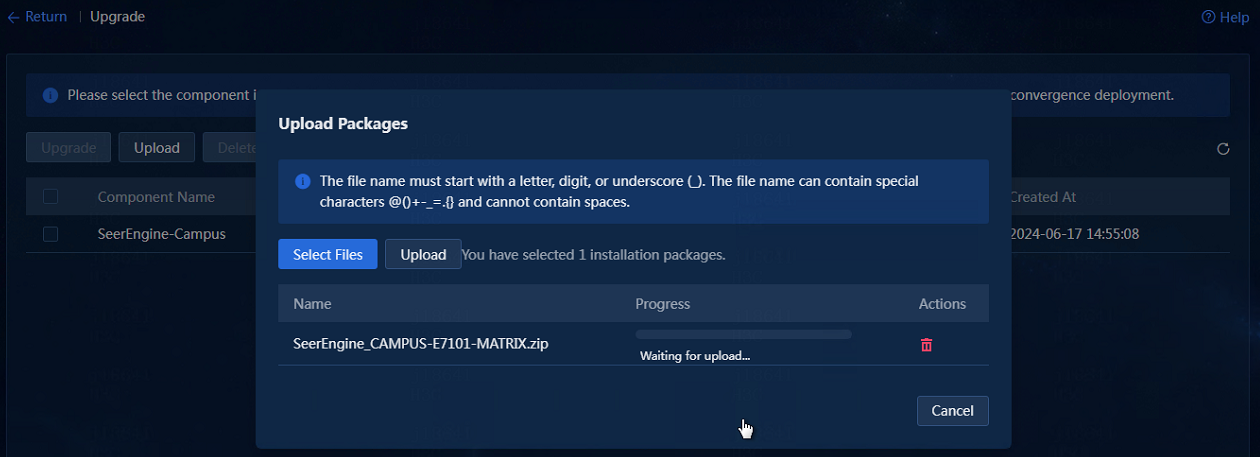

Figure 3 Uploading installation packages



Selecting applications

After the installation packages are uploaded, click Back to return to the convergence deployment page. Click Install to access the application selection page. Select SeerEngine-Campus and its dependent applications will be selected by default, as shown in Figure 4.

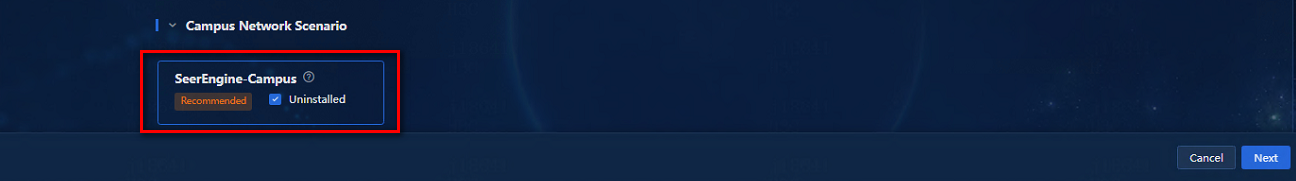

Figure 4 Selecting applications



Selecting installation packages

After selecting applications, click Next to access the package selection page, and select the packages as shown in Figure 5.

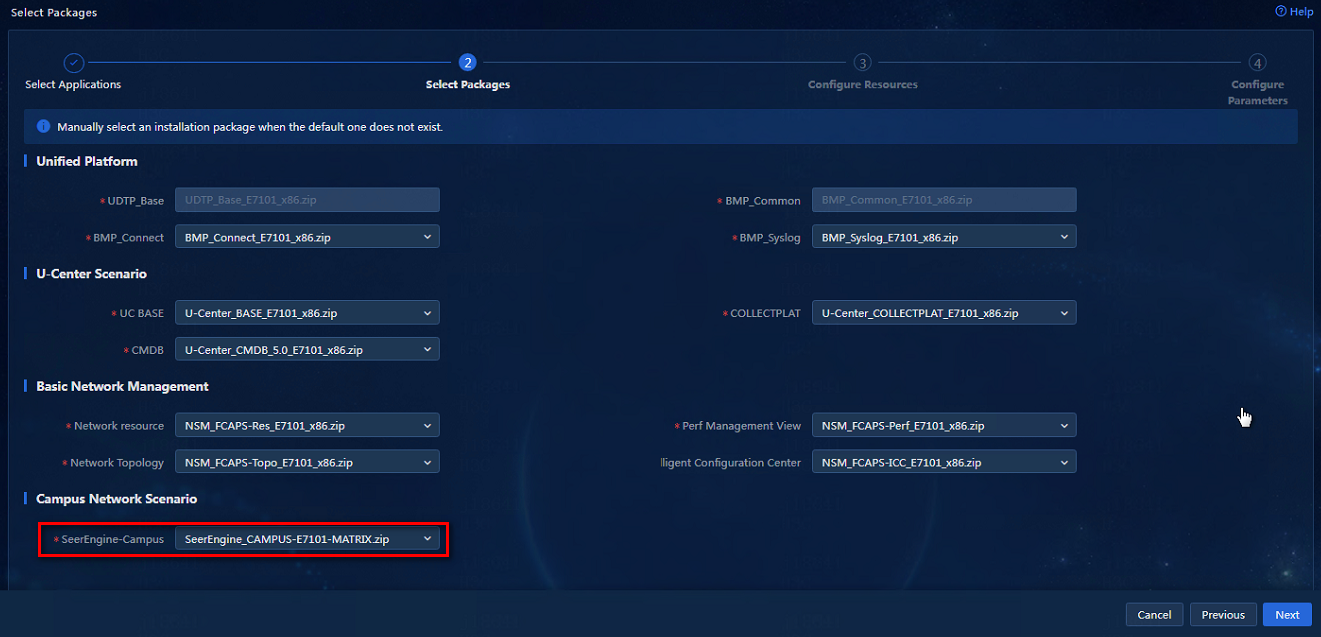

Figure 5 Selecting installation packages



Configuring resources

1.     Click Next to access the resource configuration page, and select a resource scale for the campus network management service set, as shown in Figure 6.

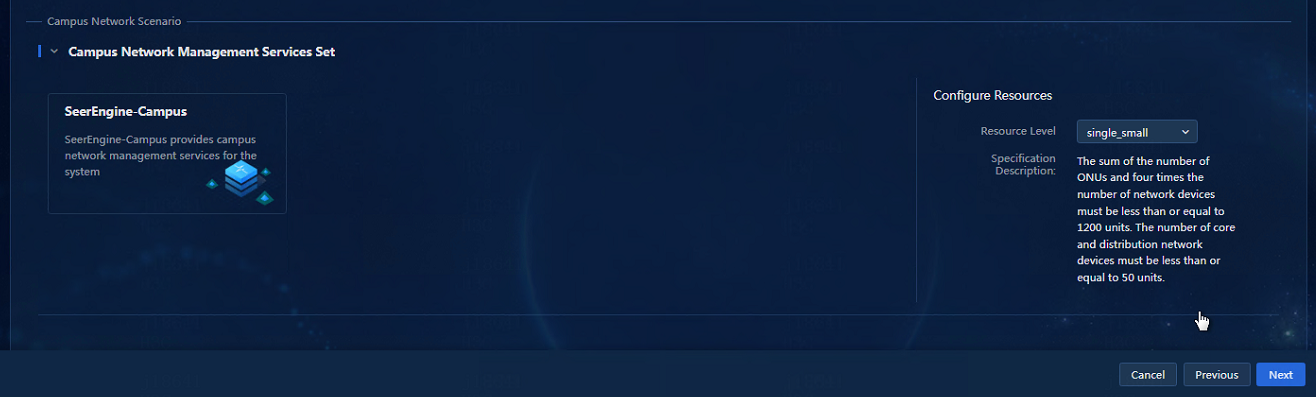

Figure 6 Resource configuration



Configuring parameters

1.     Click Next to enter the parameter configuration page, as shown in Figure 7.

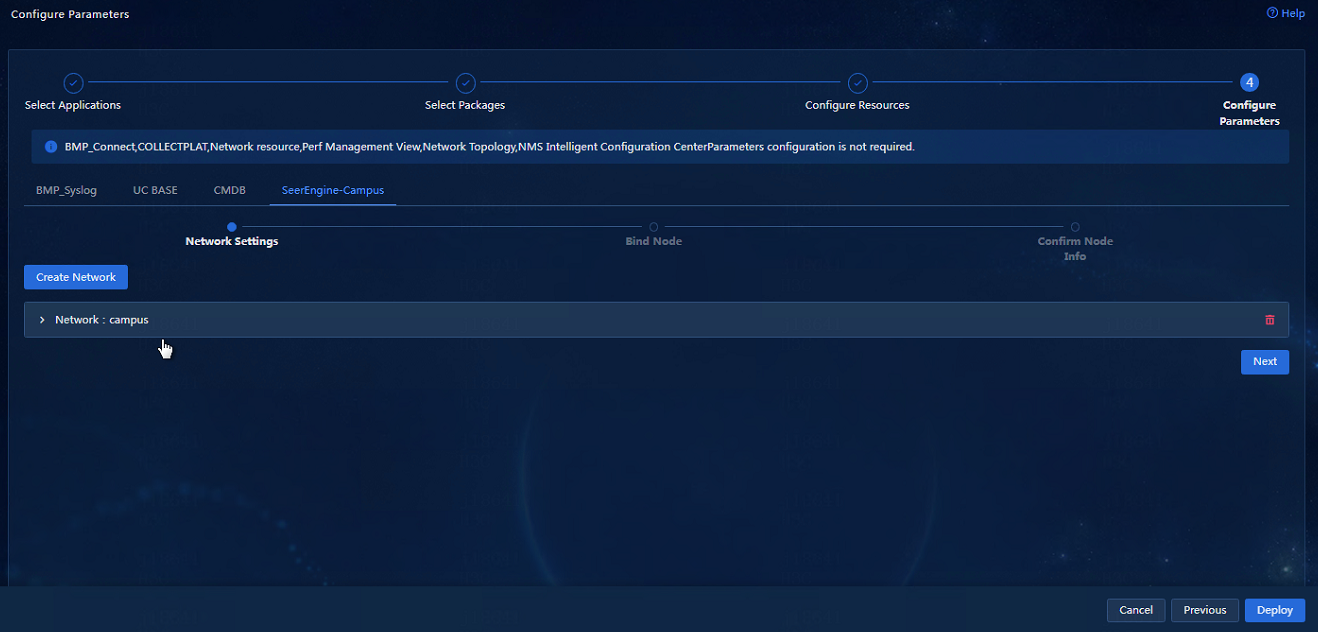

Figure 7 Parameter configuration



2.     Click Create Network to configure network parameters.

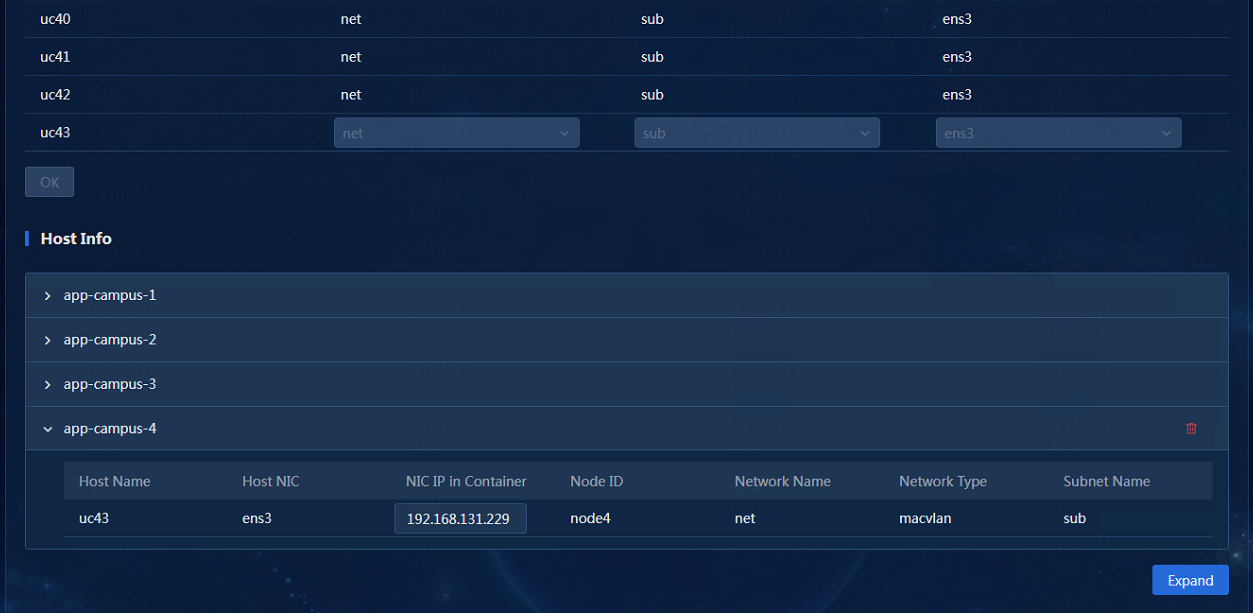

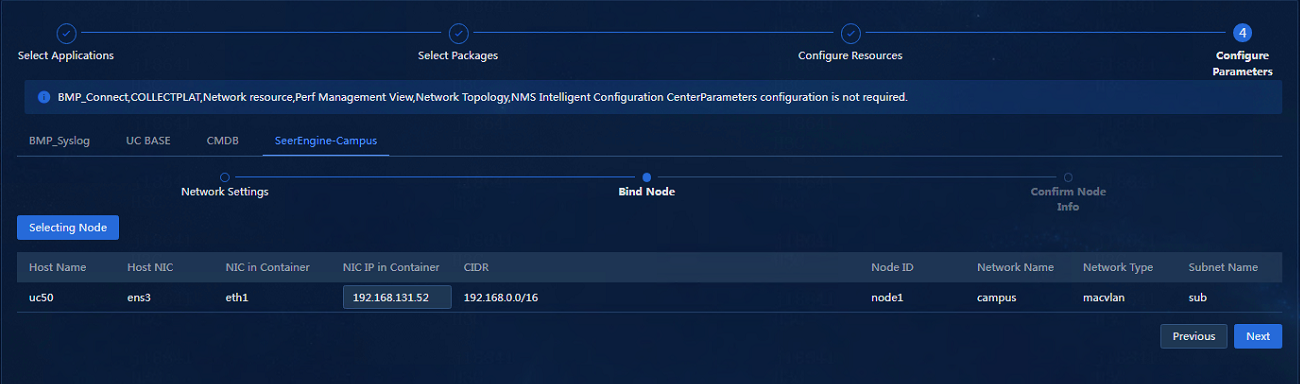

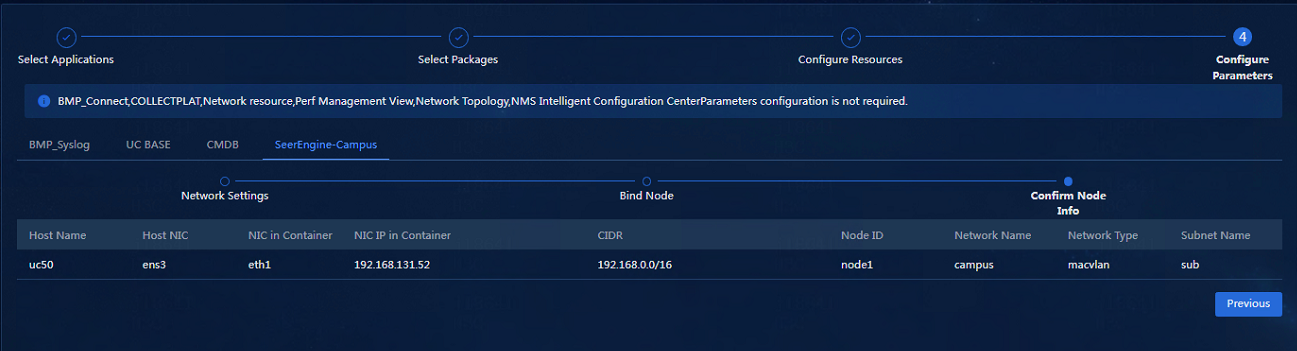

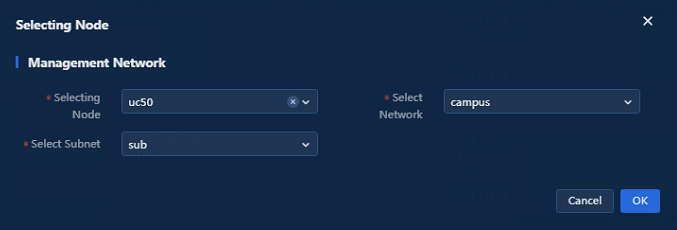

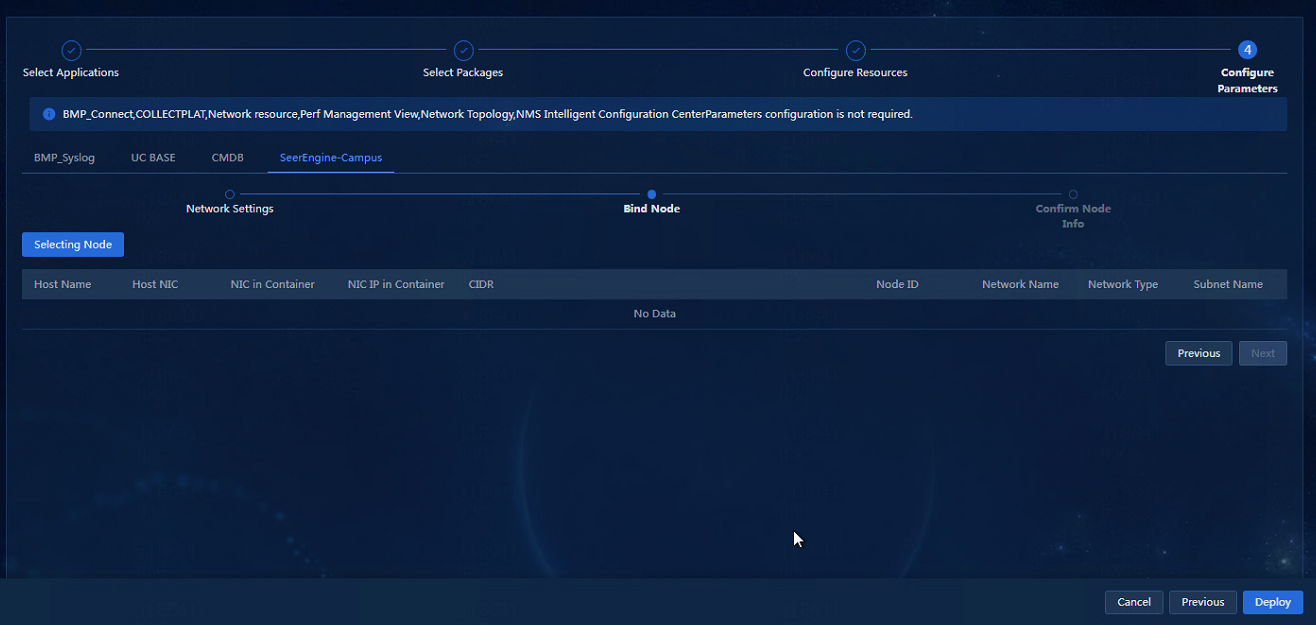

3.     Specify network information, create subnets, configure host information, and then click Next.

The controller uses the management network to manage southbound devices. Configure the following parameters as needed:

¡     VLANIf multiple networks use the same uplink interface on a host, configure VLANs to isolate the networks. By default, no VLAN is specified.

¡     Subnet CIDR, Gateway, Address PoolThe platform uses the subnet and address pool to assign IP addresses to components and uses the gateway as the default gateway for containers.

¡     Uplink InterfaceHosts use their uplink interface for providing services to SeerEngine-Campus and vDHCP Server containers.

Figure 8 Network Configuration





NOTE:

Address pool settings cannot be edited once applied. As a best practice, configure a minimum of 32 IP addresses in each address pool.



4.     Click Next to access the node binding page, as shown in Figure 9.

Figure 9 Binding to nodes



5.     Click Selecting Nodes. On the network binding page that opens, bind the networks and subnets to different nodes.

Then, the subnet IP address pool is used to assign IP addresses to the nodes as shown in Figure 10.

Figure 10 Binding networks



6.     After the configuration is completed, click OK to return to the node binding page, as shown in Figure 11.

Figure 11 Node binding completed



7.     Click Next to access the page for confirming node information, as shown in Figure 12. Confirm that the information is correct, and click Deploy.

Figure 12 Confirming node information



Viewing component details

1.     To view detailed information about a component, click the  icon to the left of a component, and then click  in the Actions column for that component.

Figure 13 Viewing component details



Accessing the SeerEngine-Campus page

1.     Enter the Unified Platform login address in your browser and then press Enter. The default login address is http://ip_address:30000/central/index.html. ip_address represents the virtual IP for the northbound service of Unified Platform. 30000 represents the port number.

2.     Enter the username and password, and then click Login to enter the main Unified Platform page.

By default, the username is admin and the password is Pwd@12345. If you have changed the password when installing the operating system, enter the password as configured.

3.     Click Automation on the top navigation bar and then select Campus Network from the left navigation pane to configure the campus network.

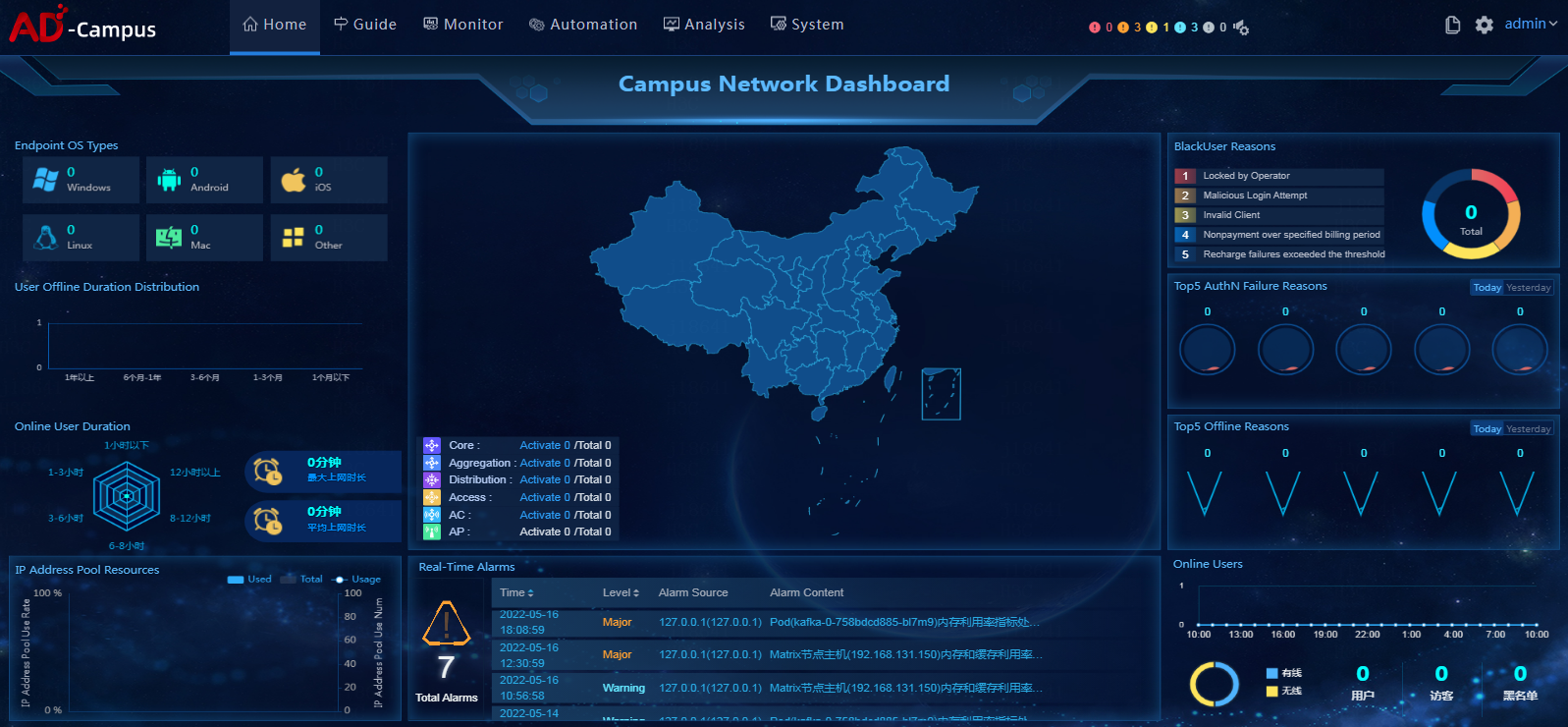

Figure 14 SeerEngine-Campus controller home page




Registering and installing licenses

After you install the controller, you can use its complete features and functions for a 90-day trial period. After the trial period expires, you must get the controller licensed. For how to license the vDHCP server, see the user guide for the vDHCP server.

Installing the activation file on the license server

For the activation file request and installation procedure, see H3C Software Products Remote Licensing Guide.

Obtaining licenses

1.     Log in to the SeerEngine-Campus controller.

2.     From the navigation pane, select System > License.

3.     Configure the parameters for the license server as described in Table 8.

Table 8 License server parameters

Item

Description

IP address

Specify the IP address configured on the license server used for internal communication in the cluster.

Port number

Specify the service port number of the license server. The default value is 5555.

Username

Specify the client username configured on the license server.

Password

Specify the client password configured on the license server.



4.     Click Connect to connect the controller to the license server.

The controller will automatically obtain licensing information after connecting to the license server.


Upgrading the controller

To upgrade controllers on the convergence deployment page:

1.     Log in to Matrix. Access the Deploy > Convergence Deployment page.

2.     Click the  button to the left of a component to expand the component information, and click Upgrade, as shown in Figure 15.

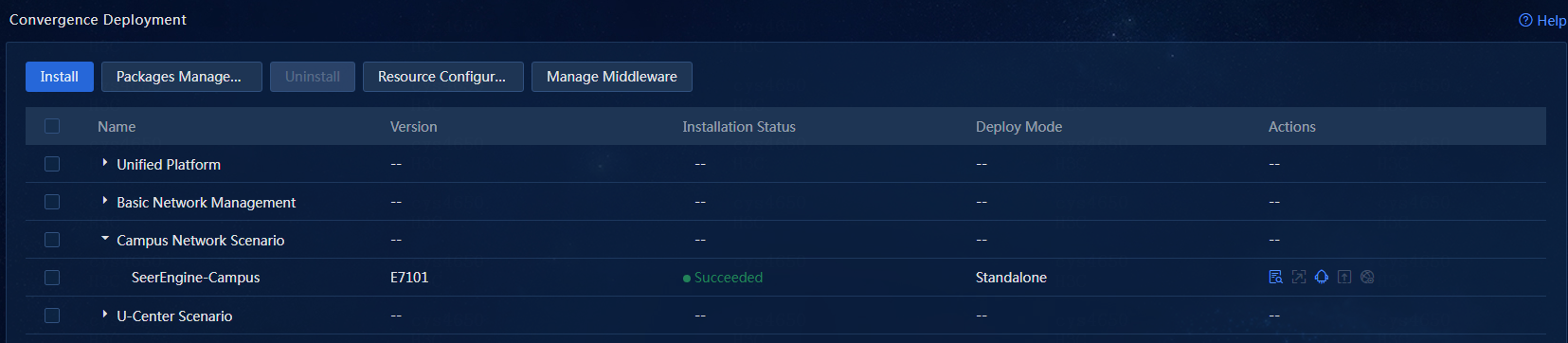

Figure 15 Deployment page



IMPORTANT

IMPORTANT:

Check the controller cluster state before upgrade. Node network failure will block the upgrade.



3.     Access the upgrade page, and click Upload. On the page for uploading installation packages, click Select Files, and select the installation packages to be uploaded, and then click Upload to upload the packages, as shown in Figure 16.

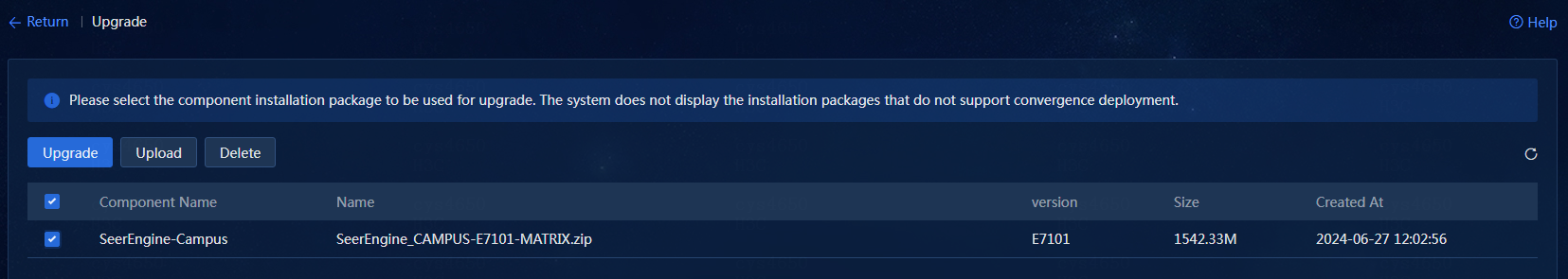

Figure 16 Uploading installation packages



4.     After the upload is completed, select the installation packages to be deployed on the upgrade page, and click Upgrade to proceed with the upgrade, as shown in Figure 17.

Figure 17 Upgrade



5.     After the upgrade, clear the browser cache and log in to the system again as a best practice.


Uninstalling the controller

To uninstall the controller on the convergence deployment page:

1.     Log in to Matrix. Access the Deploy > Convergence Deployment page.

2.     Select the controller to be deleted, and click Uninstall to uninstall the controller, as shown in Figure 18.

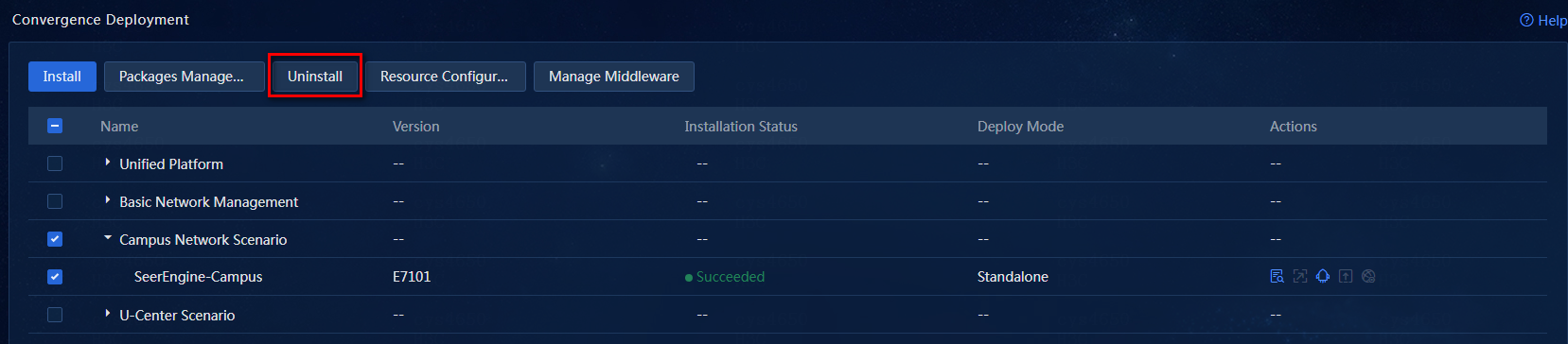

Figure 18 Uninstall




Scaling out/in the controller

You can scale out the controller from standalone mode to cluster mode or scale out the controller in cluster mode.

Scaling out the controller from standalone mode to cluster mode

To scale out the controller from standalone mode to cluster mode, add two master nodes on Matrix to form a three-node cluster with the existing master node. Then scale out Unified Platform and the controller sequentially.

To scale out the controller from standalone mode to cluster mode:

1.     Scale out Matrix. For more information, see H3C Unified Platform Deployment Guide.

2.     Scale out Unified Platform. For more information, see H3C Unified Platform Deployment Guide.

3.     Scale out SeerEngine-Campus.

a.     Log in to Matrix. Access the Deploy > Convergence Deployment page.

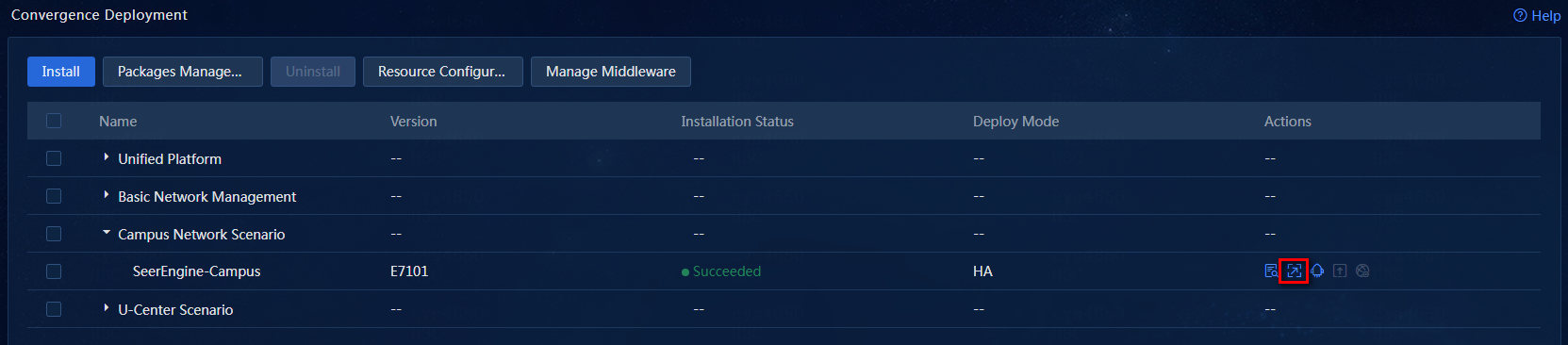

Figure 19 Deployment page



b.     Click the Scale Out icon in the Actions column for the SeerEngine-Campus controller to access the scale-out page, as shown in Figure 20.

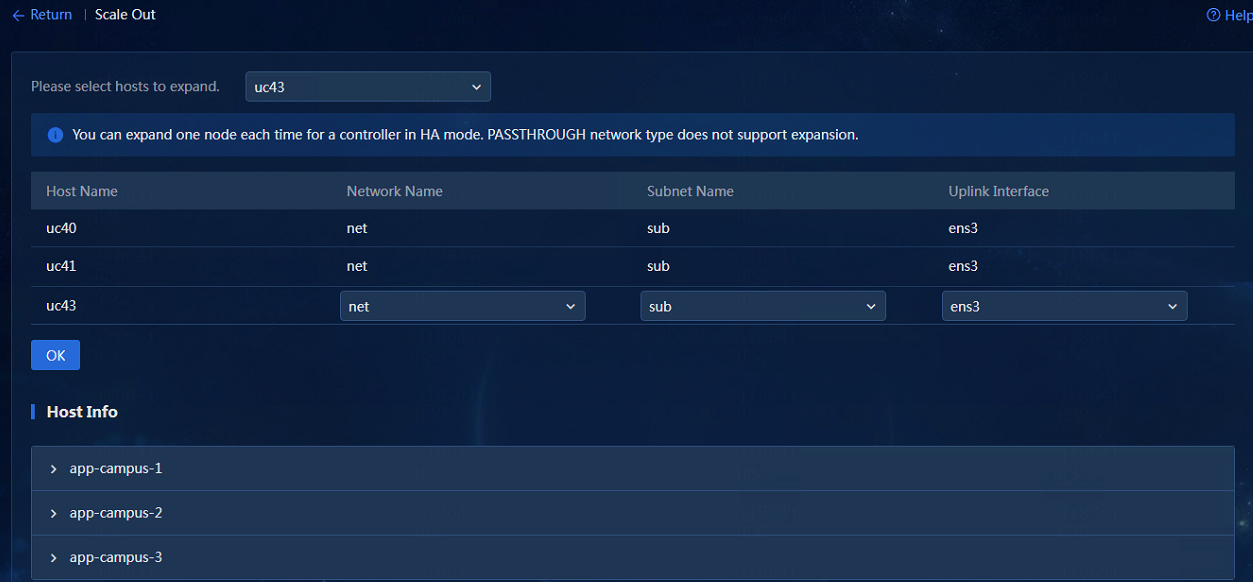

Figure 20 Scale-out



c.     Select the host to be scaled out, associate the network with the host uplink interfaces, and click OK. Then, click Scale Out to scale out the controller.

Scaling out the controller in cluster mode

In cluster mode, add worker nodes one by one.

To scale out the controller in cluster mode:

1.     Make sure you have added worker nodes to the Matrix cluster. For more information, see H3C Unified Platform Deployment Guide.

2.     Log in to Matrix. Access the Deploy > Convergence Deployment page.

Figure 21 Deployment page



3.     Click the Scale Out icon in the Actions column for the SeerEngine-Campus controller to access the scale-out page, as shown in Figure 22.

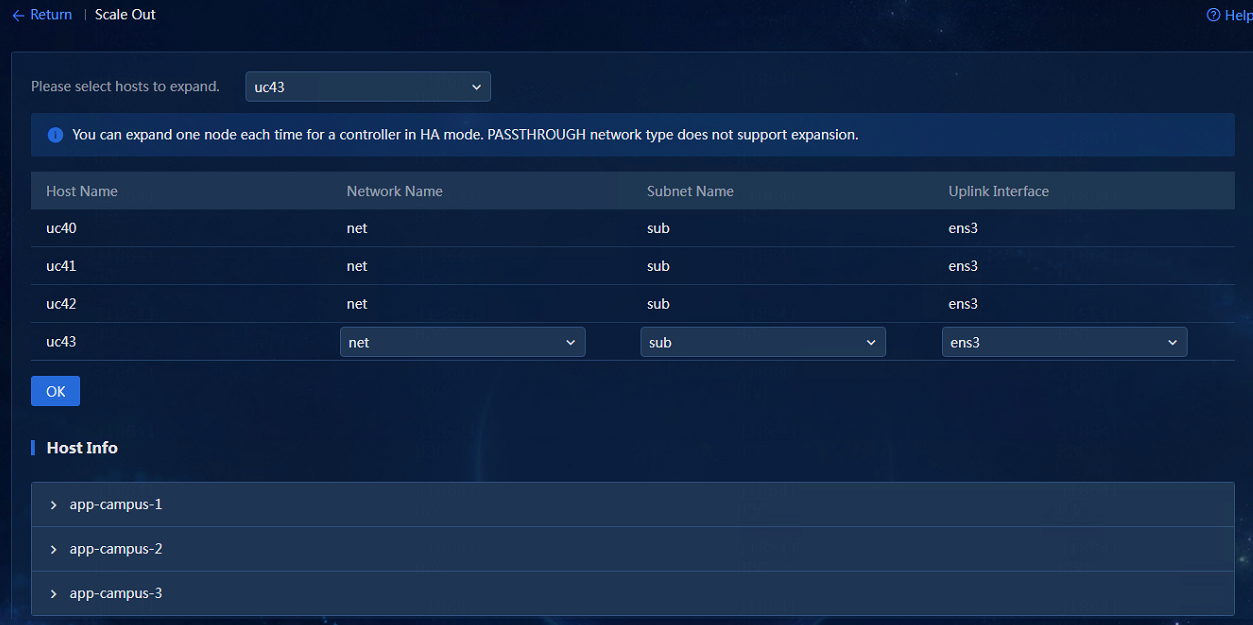

Figure 22 Scale-out



4.     Select the host to be scaled out, associate the network with the host uplink interfaces, and click OK, as shown in Figure 23.

Figure 23 Host information



5.     Click Scale Out to scale out the controller. Only one worker node can be scaled out at a time. After the previous worker node is scaled out, access the host information area again, click the Scale Out button, and scale out the remaining worker nodes one by one.

  • Cloud & AI
  • InterConnect
  • Intelligent Computing
  • Intelligent Storage
  • Security
  • SMB Products
  • Intelligent Terminal Products
  • Product Support Services
  • Technical Service Solutions
All Services
  • Resource Center
  • Policy
  • Online Help
  • Technical Blogs
All Support
  • Become A Partner
  • Partner Policy & Program
  • Global Learning
  • Partner Sales Resources
  • Partner Business Management
  • Service Business
All Partners
  • Profile
  • News & Events
  • Online Exhibition Center
  • Contact Us
All About Us
新华三官网
