H3C ET900 Series 10G PON ONU

Datasheet Download

ET900 series 10G PON ONU devices are corridor-side equipment for the H3C FTTB solution. ET900 series can be installed indoors and feature a built-in high-performance Gigabit Ethernet switching chip. ET900 series provide high performances such as low power consumption, and stability.

ET900 series 10G PON ONU includes multiple models such as ET904-H, ET904-H-P, ET908-H-PQ, ET916-H-A, ET924-H-POE, EGT924-H-R.

Learn More

The following contents are complex, and it is recommended to browse on PC.

Enter c.h3c.com.cn on the PC browser and operate according to the page to synchronize to the PC and continue browsing.

Continue by mobile

Features

Highly centralized operation and maintenance

ET900 series 10G PON ONUs support network management, self-fault detection, and reset functions. The ET900 series can quickly recover the previous configurations after power outages or reboots. Additionally, The ET900 series support remote batch software upgrades and automatic rollback in case of upgrade failure, thereby improving network administrators' efficiency and reducing operational costs for network operators.

Built-in security protection mechanisms

The ET900 series provide built-in security mechanisms that ensure comprehensive protection of network devices from control, management, and forwarding perspectives. They include CPU protection mechanisms and filtering of illegal protocol packets, as well as bidirectional packet rate suppression.

Enhanced Ethernet power supply capability (PoE+)

The ET900 series support enhanced Ethernet power supply function (PoE+), allowing PoE-enabled models to deliver a maximum output power of 30W per port.

The ET900 series provide Ethernet power supply capability for wireless APs, IP phones, high-definition

Specification

Hardware Specifications

Product Name	Size(mm) (WxDxH)	Weight	Power Consumption	PON ports	User-Side Interfaces	PoE	Power Supply	Operating Temperature
ET904-H	175x125x28	<1Kg	<6W	1*XGS-PON/10G-EPON	4*GE	/	12V DC	-10～55℃

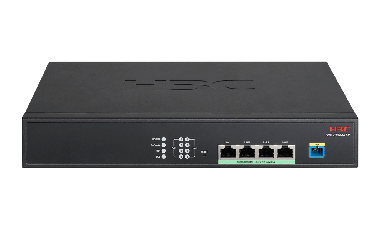

ET904-H-P	280x170x43.6	<2Kg	<80W	1*XGS-PON/10G-EPON	4*GE（PoE+）	Max. 30W per port, Max. 60W whole device	100-240V AC	-10～55℃
EGT908-H	280x170x43.6	<1.4Kg	<25W	1*XGS-PON/10G-EPON	8*GE	/	12V DC	-10～50℃

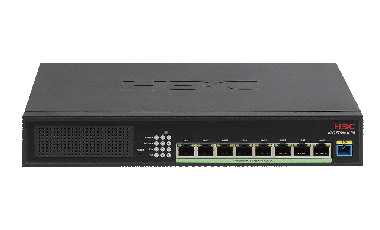

ET908-H-PQ	280x170x43.6	<2Kg	<150W	1*XGS-PON/10G-EPON	8*GE（PoE+）	Max. 30W per port, Max. 120W whole device	100-240V AC	-10～45℃

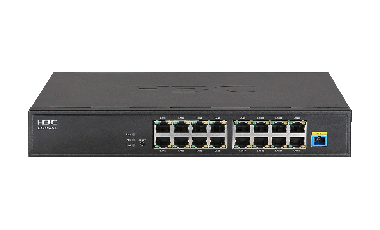

ET916-H-A	28017043.6	<1.5Kg	<12W	1*XGS-PON/10G-EPON	16*GE	/	100-240V AC	-10～55℃
ET924-H-POE	44026044	<4.5Kg	<420W	1*XGS-PON/10G-EPON	24*GE（PoE+）	Max. 30W per port, Max. 370W whole device	100-240V AC	-10～55℃
EGT924-H-R	28017043.6	＜1.6Kg	＜30W	2*XGS-PON/10G-EPON（SFP）	24GE+210GE(SFP+)	/	12V DC	-10 ~ 55℃
Operating Humidity: 5%～95% (noncondensing)

Software Specifications

Feature	H3C ET900 Series 10G PON ONU
PON	Dynamic Bandwidth Allocation (DBA)
	Forward Error Correction (FEC)
	Link Encryption Support
	Rogue ONU Detection
	ONU Optical Power Detection - ONU
	Maximum Effective Transmission Distance of 20 km
	Type B Protection
Ethernet	VLAN Partitioning, VLAN Transparent Transmission
	STP, RSTP
	User Loop Detection Function
	IPv4, IPv6 Transparent Transmission
Multicast	IGMP-Snooping, MLD Snooping Multicast Function
	Multicast VLAN
	Dynamic Controllable Multicast
QoS	Supports Ethernet Traffic Classification and Priority Tagging
	Supports 802.1p, DSCP Priority
	Supports 8 Priority Queues per Port
Management and Maintenance	Supports Ethernet Port Isolation, Rate Limiting
	Supports Packet Statistics Counting
	Supports Web UI, Telnet Management
	Supports remote software batch upgrade
	Supports log file recording and saving
	Long-press reset button to restore default configuration
	Supports PON port optical module parameter alarms, supports remote enable/disable PON port optical module transmitter power

Ordering Information

Product ID	Description	Quantity	Remarks
ET904-H	H3C ET904-H Passive Optical Network Unit(4GE),10G Symmetric ONU (SC)	1	Optional
ET904-H-P	H3C ET904-H-P Passive Optical Network Unit(4GE(POE+)),10G Symmetric ONU (SC)	1	Optional
EGT908-H	H3C EGT908-H Passive Optical Network Unit (8*GE),10GEPON Symmetry/XGSPON ONU (SC)	1	Optional
ET908-H-PQ	H3C ET908-H-PQ Passive Optical Network Unit(8GE(POE+)),10G Symmetric ONU (SC)	1	Optional
ET916-H-A	H3C ET916-H-A Passive Optical Network Unit(16GE),10G Symmetric ONU(SC)	1	Optional
ET924-H-POE	H3C ET924-H-POE Passive Optical Network Unit(24GE(POE+)),10G Symmetric ONU(SC)	1	Optional
EGT924-H-R	H3C ET924-H Passive Optical Network Unit(24GE),10G Symmetric ONU(SFP+,SC/PC)	1	Optional
