File Transfer Protocol (FTP) is an application layer protocol based on the client/server model. It is used to transfer files from one host to another over an IP network.

FTP server uses TCP port 20 to transfer data and TCP port 21 to transfer control commands. For more information about FTP, see RFC 959.

FTP supports the following transfer modes:

·           Binary mode—Used to transfer image files, such as .app, .bin, and .btm files.

·           ASCII mode—Used to transfer text files, such as .txt, .bat, and .cfg files.

By default, the FTP server uses ASCII mode.

FTP can operate in either of the following modes:

·           Active mode (PORT)—The FTP server initiates the TCP connection. This mode is not suitable when the FTP client is behind a firewall, for example, when the FTP client resides in a private network.

·           Passive mode (PASV)—The FTP client initiates the TCP connection. This mode is not suitable when the server does not allow the client to use a random unprivileged port greater than 1024.

The device can act as the FTP server or FTP client. Make sure the FTP server and the FTP client can reach each other before establishing the FTP connection.

Figure 1 FTP application scenario

Using the device as an FTP server

Perform the configuration tasks in this section to configure the device as an FTP server.

Configuring basic parameters



Step	Command	Remarks
1.     Enter system view.	system-view	N/A
2.     Enable the FTP server.	ftp server enable	By default, the FTP server is disabled.
3.     (Optional.) Use an ACL to control access to the FTP server.	ftp server acl { acl-number | ipv6 acl-number6 }	By default, no ACL is used for access control.
4.     (Optional.) Configure the idle-timeout interval.	ftp timeout minutes	The default idle-timeout interval is 30 minutes. If no data is transferred between the FTP server and FTP client within the idle-timeout interval, the connection is terminated.



Configuring authentication and authorization

Perform this task on the FTP server to authenticate FTP clients and set the authorized directories that authenticated clients can access.

The following authentication modes are available:

·           Local authentication—The device looks up the client's username and password in the local user account database. If a match is found, authentication succeeds.

·           Remote authentication—The device sends the client's username and password to a remote authentication server for authentication. The user account is configured on the remote authentication server rather than the device.

The following authorization modes are available:

·           Local authorization—The device assigns authorized directories to FTP clients based on the locally configured authorization attributes.

·           Remote authorization—A remote authorization server assigns authorized directories on the device to FTP clients.

For information about configuring authentication and authorization, see Security Configuration Guide.

Manually releasing FTP connections



Task	Command
Manually release FTP connections.	·       Release the FTP connection established using a specific user account: free ftp user username ·       Release the FTP connection to a specific IP address: free ftp user-ip [ ipv6 ] client-address [ port port-num ]



Displaying and maintaining the FTP server

Execute display commands in any view.



Task	Command
Display FTP server configuration and status information.	display ftp-server
Display detailed information about online FTP users.	display ftp-user



FTP server configuration example in standalone mode

Network requirements

Create a local user account with username abc and password 123456 on the FTP server. Use the user account to log in to the FTP server from the FTP client, upload the file temp.bin from the FTP client to the FTP server, and download the configuration file startup.cfg from the FTP server to the FTP client for backup.

Figure 2 Network diagram



Configuration procedure

1.      Configure IP addresses as shown in Figure 2, and make sure the device and PC can reach other. (Details not shown.)

2.      Configure the device (FTP server):

# Create a local user account abc, set the password to 123456, the user role to network-admin, the working directory to the Flash root directory of the active MPU, and the service type to FTP.

<Sysname> system-view

[Sysname] local-user abc class manage

[Sysname-luser-manage-abc] password simple 123456

[Sysname-luser-manage-abc] authorization-attribute work-directory flash:/

[Sysname-luser-manage-abc] authorization-attribute user-role network-admin

[Sysname-luser-manage-abc] service-type ftp

[Sysname-luser-manage-abc] quit

// To set the working directory to the Flash root directory of the standby MPU, replace flash:/ in the authorization-attribute command with slot1#flash:/. For more information about user roles, see Security Configuration Guide.

# Enable the FTP server.

[Sysname] ftp server enable

[Sysname] quit

# Examine the storage space for space insufficiency and delete unused files for more free space.

<Sysname> dir

Directory of flash:

     0      -rw-           0  Sep 27 2010 14:43:34     kernel.bin

     1      -rw-           0  Sep 27 2010 14:43:34     base.bin

     2      drw-           -  Jun 29 2011 18:30:38     logfile

     3      drw-           -  Jun 21 2011 14:51:38     diagfile

     4      drw-           -  Jun 21 2011 14:51:38     seclog

     5      -rw-        2943  Jul 02 2011 08:03:08     startup.cfg

     6      -rw-       63901  Jul 02 2011 08:03:08     startup.mdb

     7      -rw-         716  Jun 21 2011 14:58:02     hostkey

     8      -rw-         572  Jun 21 2011 14:58:02     serverkey

     9      -rw-     6541264  Aug 04 2011 20:40:49     backup.bin



473664 KB total (467080 KB free)

<Sysname> delete /unreserved flash:/backup.bin

3.      Perform FTP operations from the PC (FTP client):

# Log in to the FTP server at 1.1.1.1 using the username abc and password 123456.

c:\> ftp 1.1.1.1

Connected to 1.1.1.1.

220 FTP service ready.

User(1.1.1.1:(none)):abc

331 Password required for abc.

Password:

230 User logged in.

# Use the ASCII mode to download the configuration file startup.cfg from the device to the PC for backup.

ftp> ascii

200 TYPE is ASCII

ftp> get startup.cfg back-startup.cfg

# Use the binary mode to upload the file temp.bin from the PC to the Flash root directory of the active MPU.

ftp> binary

200 Type is Image (Binary)

ftp> put temp.bin

# Exit FTP.

ftp> bye

FTP server configuration example in IRF mode

Network requirements

An IRF fabric that comprises two member devices acts as the FTP server. The slot numbers of the active and standby MPUs on the master and subordinate members are 0 and 1.

Create a local user account with username abc and password 123456 on the FTP server. Use the user account to log in to the FTP server from the FTP client, upload the file temp.bin from the FTP client to the FTP server, and download the configuration file config.cfg from the FTP server to the FTP client for backup.

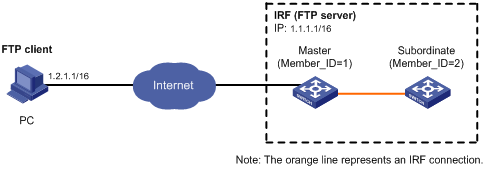

Figure 3 Network diagram



Configuration procedure

1.      Configure IP addresses as shown in Figure 3, and make sure the IRF fabric and the PC can reach each other. (Details not shown.)

2.      Configure the FTP server:

# Examine the storage space on the member devices. If the free space is insufficient, use the delete/unreserved file-url command to delete unused files. (Details not shown.)

# Create a local user account abc, set the password to 123456, the user role to network-admin, the working directory to the Flash root directory of the IRF fabric's active MPU, and the service type to FTP.

<Sysname> system-view

[Sysname] local-user abc class manage

[Sysname-luser-manage-abc] password simple 123456

[Sysname-luser-manage-abc] authorization-attribute work-directory flash:/

[Sysname-luser-manage-abc] authorization-attribute user-role network-admin

[Sysname-luser-manage-abc] service-type ftp

[Sysname-luser-manage-abc] quit

// To set the working directory to the Flash root directory of one of the IRF fabric's standby MPU, replace flash:/ in the authorization-attribute command with, for example, chassis2#slot1#flash:/. For more information about user roles, see Security Configuration Guide.

# Enable the FTP server.

[Sysname] ftp server enable

[Sysname] quit

3.      Perform FTP operations from the FTP client:

# Log in to the FTP server at 1.1.1.1 using the username abc and password 123456.

c:\> ftp 1.1.1.1

Connected to 1.1.1.1.

220 FTP service ready.

User(1.1.1.1:(none)):abc

331 Password required for abc.

Password:

230 User logged in.

# Use the ASCII mode to download the configuration file startup.cfg from the server to the client for backup.

ftp> ascii

200 TYPE is ASCII

ftp> get startup.cfg back-config.cfg

# Use the binary mode to upload the file temp.bin to the Flash root directory of the active MPU of the IRF fabric.

ftp> binary

200 Type is Image (Binary)

ftp> put temp.bin

# Exit FTP.

ftp> bye

Using the device as an FTP client

Perform the configuration in this section to use the device as an FTP client.

Establishing an FTP connection

To access the FTP server, you must establish a connection from the FTP client to the FTP server.

To establish an IPv4 FTP connection:



Step	Command	Remarks
1.     Enter system view.	system-view	N/A
2.     (Optional.) Specify a source IP address for outgoing FTP packets.	ftp client source { interface interface-type interface-number | ip source-ip-address }	By default, no source IP address is specified, and the primary IP address of the output interface is used as the source IP address.
3.     Return to user view.	quit	N/A
4.     Log in to the FTP server.	·       (Approach 1) Log in to the FTP server directly in user view: ftp server-address [ service-port ] [ vpn-instance vpn-instance-name ] [ source { interface { interface-name | interface-type interface-number } | ip source-ip-address } ] ·       (Approach 2) Log in to the FTP server in FTP client view: a.   ftp b.   open server-address [ service-port ]	Use either approach. The source IP address specified in the ftp command takes precedence over the one set by the ftp client source command.



To establish an IPv6 FTP connection:



Step	Command	Remarks
1.     Enter system view.	system-view	N/A
2.     (Optional.) Specify the source IPv6 address for FTP packets sent by the FTP client.	ftp client ipv6 source { interface interface-type interface-number | ipv6 source-ipv6-address }	By default, no source IPv6 address is specified. The source address is automatically selected as defined in RFC 3484.
3.     Return to user view.	quit	N/A
4.     Log in to the FTP server.	·       Log in to the FTP server directly in user view: ftp ipv6 server-address [ service-port ] [ vpn-instance vpn-instance-name ] [ source { interface interface-type interface-number | ipv6 source-ipv6-address } ] [ -i interface-type interface-number ] ·       Log in to the FTP server in FTP client view: a.   ftp ipv6 b.   open server-address [ service-port ]	Use either approach. The source IP address specified in the ftp ipv6 command takes precedence over the one set by the ftp client ipv6 source command.



Managing directories on the FTP server



Task	Command
Display directory and file information on the FTP server.	·       Display the detailed information of a directory or file on the FTP server: dir [ remotefile [ localfile ] ] ·       Display the name of a directory or file on the FTP server: ls [ remotefile [ localfile ] ]
Change the working directory on the FTP server.	cd { directory | .. | / }
Return to the upper level directory on the FTP server.	cdup
Display the working directory that is being accessed.	pwd
Create a directory on the FTP server.	mkdir directory
Remove the specified working directory on the remote FTP server.	rmdir directory



Working with files on the FTP server

After you log in to the server, you can upload a file to or download a file from the authorized directory by following these steps:

1.      Use the dir or ls command to display the directory and location of the file on the FTP server.

2.      Delete unused files to get more free storage space.

3.      Set the file transfer mode to ASCII for text files or binary for image files.

4.      Use the lcd command to change the local working directory of the FTP client. You can upload the file or save the downloaded file in this directory.

5.      Upload or download the file.

To work with files on an FTP server, execute the following commands in FTP client view:



Task	Command	Remarks
Display directory or file information on the FTP server.	·       Display the detailed information of a directory or file on the FTP server: dir [ remotefile [ localfile ] ] ·       Display the name of a directory or file on the FTP server: ls [ remotefile [ localfile ] ]	N/A
Delete the specified file on the FTP server permanently.	delete remotefile	N/A
Set the file transfer mode to ASCII.	ascii	The default file transfer mode is ASCII.
Set the file transfer mode to binary.	binary	The default file transfer mode is ASCII.
Set the FTP operation mode to passive.	passive	The default mode is passive.
Display or change the local working directory of the FTP client.	lcd [ directory | / ]	N/A
Upload a file to the FTP server.	put localfile [ remotefile ]	N/A
Download a file from the FTP server.	get remotefile [ localfile ]	N/A
Add the content of a file on the FTP client to a file on the FTP server.	append localfile [ remotefile ]	N/A
Specify the retransmit marker.	restart marker	Use this command together with the put, get, or append command.
Update the local file.	newer remotefile	N/A
Get the missing part of a file.	reget remotefile [ localfile ]	N/A
Rename the file.	rename [ oldfilename [ newfilename ] ]	N/A



Switching to another user account

After you log in to the FTP server with one user account, you can switch to another user account to get a different privilege without reestablishing the FTP connection. You must correctly enter the new username and password. A wrong username or password can cause the FTP connection to disconnect.

To switch to another user account, execute the following command in user view:



Task	Command
Switch to another user account.	user username [ password ]



Maintaining and troubleshooting the FTP connection



Task	Command	Remarks
Display FTP commands on the FTP server.	rhelp	N/A
Display FTP commands help information on the FTP server.	rhelp protocol-command	N/A
Display FTP server status.	rstatus	N/A
Display the detailed information of a specified directory or file on the FTP server.	rstatus remotefile	N/A
Display FTP connection status.	status	N/A
Display the system information of the FTP server.	system	N/A
Enable or disable FTP operation information display.	verbose	By default, this function is enabled.
Enable or disable FTP client debugging.	debug	By default, FTP client debugging is disabled.
Clear the reply information in the buffer.	reset	N/A



Terminating the FTP connection



Task	Command	Remarks
Terminate the connection to the FTP server without exiting FTP client view.	·       disconnect ·       close	Use either command in FTP client view.
Terminate the connection to the FTP server and return to user view.	·       bye ·       quit	Use either command in FTP client view.



Displaying command help information

To display command help information after you log in to the server:



Task	Command	Remarks
Display command help information	·       help [ command-name ] ·       ? [ command-name ]	Use either command.



Displaying and maintaining FTP client

Execute the display command in any view.



Task	Command
Display source IP address information on the FTP client	display ftp client source



FTP client configuration example in standalone mode

Network requirements

·           Use the device as the FTP client and the PC as the FTP server.

·           Log in to the FTP server from the FTP client using the user account with username abc and password 123456 (which has been created on the PC).

·           Download the file temp.bin from the PC to the device, and upload the configuration file startup.cfg from the device to the PC for backup.

Figure 4 Network diagram



Configuration procedure

# Configure IP addresses as shown in Figure 4 and make sure the device and PC can reach each other. (Details not shown.)

# Examine the storage space of the device. If the free space is insufficient, use the delete/unreserved file-url command to delete unused files. (Details not shown.)

# Log in to the FTP server at 10.1.1.1 using the username abc and password 123456.

<Sysname> ftp 10.1.1.1

Connected to 10.1.1.1.

220 WFTPD 2.0 service (by Texas Imperial Software) ready for new user

User (10.1.1.1:(none)): abc

331 Give me your password, please

Password:

230 Logged in successfully

Remote system type is MSDOS.

ftp>

# Set the file transfer mode to binary.

ftp> binary

200 Type is Image (Binary)

# Download the file temp.bin from the PC to the Flash root directory of the active MPU.

ftp> get temp.bin

227 Entering Passive Mode (192,168,3,51,6,167)

150 "D:\TEST\temp.bin" file ready to send (439291 bytes) in IMAGE / Binary mode

226 Transfer finished successfully.

439291 bytes received in 1.08 seconds (395.6 kbyte/s)

# Download the file temp.bin from the PC to the Flash root directory of the standby MPU (in slot 1).

ftp> get temp.bin slot1#flash:/temp.bin

# Set the file transfer mode to ASCII and upload the configuration file startup.cfg from the device to the PC for backup.

ftp> ascii

200 TYPE is ASCII

ftp> put startup.cfg back-startup.cfg

227 Entering Passive Mode (192,168,3,51,7,100)

150 "D:\test\startup.cfg" file ready to receive in ASCII mode

226 Transfer finished successfully.

2749 bytes sent in 0.000284 seconds (9.23 Mbyte/s)

ftp> bye

221 Windows FTP Server (WFTPD, by Texas Imperial Software) says goodbye

<Sysname>

FTP client configuration example in IRF mode

Network requirements

·           Use the IRF fabric that comprises two member devices as the FTP client and the PC as the FTP server.

·           Log in to the FTP server from the FTP client using the user account with username abc and password 123456 (which has been created on the PC).

·           Download the file temp.bin from the FTP server to the FTP client, and upload the configuration file config.cfg from the FTP client to the FTP server for backup.

Figure 5 Network diagram





Configuration procedure

# Configure IP addresses for devices and make sure they can reach other. (Details not shown.)

# Examine the storage space on the member devices. If the free space is insufficient, use the delete/unreserved file-url command to delete unused files. (Details not shown.)

# Log in to the FTP server using the username abc and password 123456.

<Sysname> ftp 10.1.1.1

Connected to 10.1.1.1.

220 WFTPD 2.0 service (by Texas Imperial Software) ready for new user

User (10.1.1.1:(none)): abc

331 Give me your password, please

Password:

230 Logged in successfully

Remote system type is MSDOS.

ftp>

# Set the file transfer mode to binary.

ftp> binary

200 Type is Image (Binary)

# Download the file temp.bin from the PC to the Flash root directory of the IRF fabric's active MPU.

ftp> get temp.bin

227 Entering Passive Mode (192,168,3,51,6,167)

150 "D:\TEST\temp.bin" file ready to send (439291 bytes) in IMAGE / Binary mode

226 Transfer finished successfully.

439291 bytes received in 1.08 seconds (395.6 kbyte/s)

# Download the file temp.bin from the PC to the Flash root directory of the IRF fabric's standby MPUs. (In this example the IRF fabric has three standby MPUs: one in slot 1 of member device 1, one in slot 0 of member device 2, and one in slot 1 of member device 2.)

ftp> get temp.bin chassis1#slot1#flash:/temp.bin

ftp> get temp.bin chassis2#slot0#flash:/temp.bin

ftp> get temp.bin chassis2#slot1#flash:/temp.bin

# Upload the configuration file startup.cfg from the IRF fabric to the PC for backup.

ftp> ascii

200 Type is ASCII

ftp> put startup.cfg back-config.cfg

227 Entering Passive Mode (192,168,3,51,7,100)

150 "D:\test\startup.cfg" file ready to receive in ASCII mode

226 Transfer finished successfully.

2749 bytes sent in 0.000284 seconds (9.23 Mbyte/s)

ftp> bye

221 Windows FTP Server (WFTPD, by Texas Imperial Software) says goodbye

<Sysname>

Trivial File Transfer Protocol (TFTP) is a simplified version of FTP for file transfer over secure reliable networks. TFTP uses UDP port 69 for data transmission. In contrast to TCP-based FTP, TFTP requires no authentication or complex message exchanges, and is easier to deploy. TFTP is suited for reliable network environments.

The device can only operate as a TFTP client. You can upload a file from the device to the TFTP server or download a file from the TFTP server to the device. If you download a file with a file name that exists in the target directory, the device deletes the existing file and saves the new one. If file download fails due to network disconnection or other reasons, the original file cannot be restored. Therefore, use a nonexistent file name instead.

Figure 6 TFTP application scenario



Configuring the device as an IPv4 TFTP client



Step	Command	Remarks
1.     Enter system view.	system-view	N/A
2.     (Optional.) Use an ACL to control the client's access to TFTP servers.	tftp-server acl acl-number	By default, no ACL is used for access control.
3.     Specify the source IP address for TFTP packets sent by the TFTP client.	tftp client source { interface interface-type interface-number | ip source-ip-address }	By default, no source IP address is specified, and the primary IP address of the output interface is used as the source IP address.
4.     Return to user view.	quit	N/A
5.     Download or upload a file in an IPv4 network.	tftp server-address { get | put } source-filename [ destination-filename ] [ vpn-instance vpn-instance-name ] [ source { interface interface-type interface-number | ip source-ip-address } ]	The source IP address specified in this command takes precedence over the one set by the tftp client source command. Use this command in user view.



Configuring the device as an IPv6 TFTP client



Step	Command	Remarks
1.     Enter system view.	system-view	N/A
2.     (Optional.) Use an ACL to control the client's access to TFTP servers.	tftp-server ipv6 acl acl-number	By default, no ACL is used for access control.
3.     Specify the source IPv6 address for TFTP packets sent by the TFTP client.	tftp client ipv6 source { interface interface-type interface-number | ipv6 source-ip-address }	By default, no source IPv6 address is specified. The source address is automatically selected as defined in RFC 3484.
4.     Return to user view.	quit	N/A
5.     Download or upload a file in an IPv6 network.	tftp ipv6 tftp-ipv6-server [ -i interface-type interface-number ] { get | put } source-filename [ destination-filename ] [ vpn-instance vpn-instance-name ] [ source { interface interface-type interface-number | ipv6 source-ipv6-address } ]	The source IP address specified in this command takes precedence over the one set by the tftp client ipv6 source command. Use this command in user view.
