Gigabit Ethernet Interface Module Datasheet |
|
|
|
|
Copyright © 2015 to 2022 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
The information in this document is subject to change without notice.
Overview
The following Gigabit Ethernet interface modules are available for the SR8800-X routers.
Table 1 Gigabit Ethernet interface modules available for the SR8800-X routers
|
Module model |
Description |
|
SPC-GT48LA1 |
48-port 10/100/1000BASE-T Ethernet interface module (RJ45) (A Type) |
|
SPC-GP24LA1 |
16-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port combo interface module (A Type) |
|
SPC-GP24XP2LA |
16-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port combo interface + 2-port 10GE optical interface module (XFP, LC) (A Type) |
|
SPC-GP24XP2LB |
16-port 1000BASE-X optical interface (SFP, LC) + 8-port combo interface + 2-port 10GE optical interface module (XFP, LC) (B Type) |
|
SPC-GP48LA1 |
48-port 1000BASE-X Ethernet optical interface module (SFP, LC) (A Type) |
|
SPC-GP48LB |
48-port enhanced 1000BASE-X Ethernet optical interface module (SFP, LC) (B Type) |
|
SPC-GP44XP4LA |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type), supported only on the SR8800-X-S |
|
SPC-GP44XP4LAX |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type), not supported on the SR8800-X-S |
|
SPC-GP44XP4LC |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type), supported only on the SR8800-X-S |
|
SPC-GP44XP4LCX |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type), not supported on the SR8800-X-S |
|
CSPC-GE24L-E |
24-port 1000BASE-X Ethernet combo interface line processing unit (E Type) |
|
CSPC-GP24GE8XP2L-E |
24-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port 1000BASE-X Ethernet combo interface + 2-port 10GBASE-R/W Ethernet optical interface line processing unit |
|
CSPC-GE16XP4L-E |
16-port 1000BASE-X Ethernet combo interface + 4-port 10GBASE-R/W Ethernet optical interface line processing unit |
|
|
NOTE: For compatibility between Gigabit Ethernet interface modules and switching fabric modules, see Appendix B FRUs and compatibility matrixes in H3C SR8800-X Routers Installation Guide. |
Key features
High performance and scalability
With high-speed CPUs, the interface modules greatly improve the service processing capability and provide independent OAM engine for link status monitoring.
You can select optical interface modules with different number of ports and select optical transceiver modules depending on actual applications and transmission distances.
Environment-friendly design
The interface modules are compliant with the Restriction of Hazardous Substances (RoHS) standard.
Hot swapping
The interface modules are hot swappable. Installing and removing such a module on an operating router does not affect ongoing services on other modules. The management system performs real-time monitoring on the interface modules and automatically adapts to the changed configuration upon detection of the change, ensuring service continuity.
Specifications
The figures in this section are for illustration only.
SPC-GT48LA1
Figure 1 SPC-GT48LA1
Front panel
Figure 2 SPC-GT48LA1 front panel
|
(1) 10/100/1000BASE-T copper ports (48 in total) |
(2) RJ-45 Ethernet port status LED |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
67 W to 95 W |
|
Ports |
48 |
|
Connector type |
RJ-45 |
|
Port speed |
10/100/1000 Mbps (half/full duplex) |
|
Net weight |
3.31 kg (7.30 lb) |
|
System software version |
7121 or later |
SPC-GP24LA1

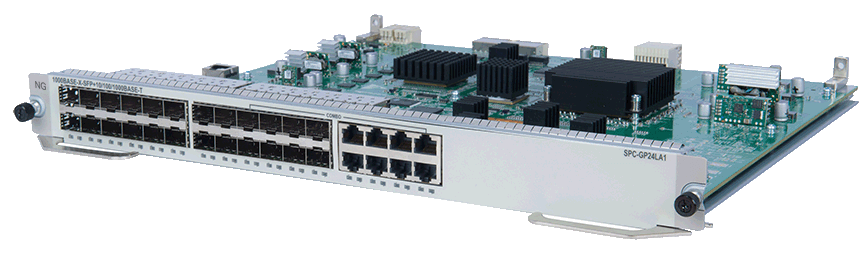

Figure 3 SPC-GP24LA1
Front panel
Figure 4 SPC-GP24LA1 front panel
|
(1) 1000BASE-X-SFP fiber ports (16 in total) |
(2) Combo interfaces (8 in total) |
|
(3) SFP port status LED |
(4) RJ-45 Ethernet port status LED |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
47 W to 75 W |
|
Ports |
· 16 × 1000BASE-X-SFP fiber ports · 8 × combo interfaces |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-X-SFP fiber ports: 100/1000 Mbps · 10/100/1000BASE-T copper ports: 10/100/1000 Mbps (half/full duplex) |
|
Net weight |
3.01 kg (6.64 lb) |
|
System software version |
7121 or later |
SPC-GP24XP2LA/SPC-GP24XP2LB
The SPC-GP24XP2LA and SPC-GP24XP2LB have the same appearance. This section uses the SPC-GP24XP2LB as an example.
Figure 5 SPC-GP24XP2LB
Front panel
Figure 6 SPC-GP24XP2LB front panel
|
(1) 1000BASE-X-SFP fiber ports (16 in total) |
(2) Combo interfaces (8 in total) |
|
(3) 10GBASE-R-XFP fiber ports (2 in total) |
(4) SFP port status LED |
|
(5) RJ-45 Ethernet port status LED |
(6) XFP port status LED |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-GP24XP2LA: 54 W to 95 W · SPC-GP24XP2LB: 51 W to 100 W |
|
Ports |
· 16 × 1000BASE-X-SFP fiber ports · 8 × combo interfaces · 2 × 10GBASE-R-XFP fiber ports |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-X-SFP fiber ports: 1000 Mbps · 10/100/1000BASE-T copper ports: 10/100/1000 Mbps (half/full duplex) · 10GBASE-R-XFP fiber ports: 10 Gbps |
|
Net weight |
3.08 kg (6.79 lb) |
|
System software version |
7121 or later |
SPC-GP48LA1/SPC-GP48LB
The SPC-GP48LB and SPC-GP48LA1 have the same appearance. This section uses the SPC-GP48LA1 as an example.
Figure 7 SPC-GP48LA1
Front panel
Figure 8 SPC-GP48LA1 front panel
|
(1) 1000BASE-X-SFP fiber ports (48 in total) |
(2) SFP port status LED |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-GP48LA1: 44 W to 95 W SPC-GP48LB: 43 W to 110 W |
|
Ports |
48 |
|
Connector type |
LC |
|
Port speed |
· 100 Mbps · 1000 Mbps 10/100/1000 Mbps |
|
Net weight |
3.25 kg (7.16 lb) |
|
System software version |
7121 or later |
SPC-GP44XP4LA/SPC-GP44XP4LAX/SPC-GP44XP4LC/SPC-GP44XP4LCX
The SPC-GP44XP4LA, SPC-GP44XP4LAX, SPC-GP44XP4LC, and SPC-GP44XP4LCX have the same appearance. This section uses the SPC-GP44XP4LCX as an example.

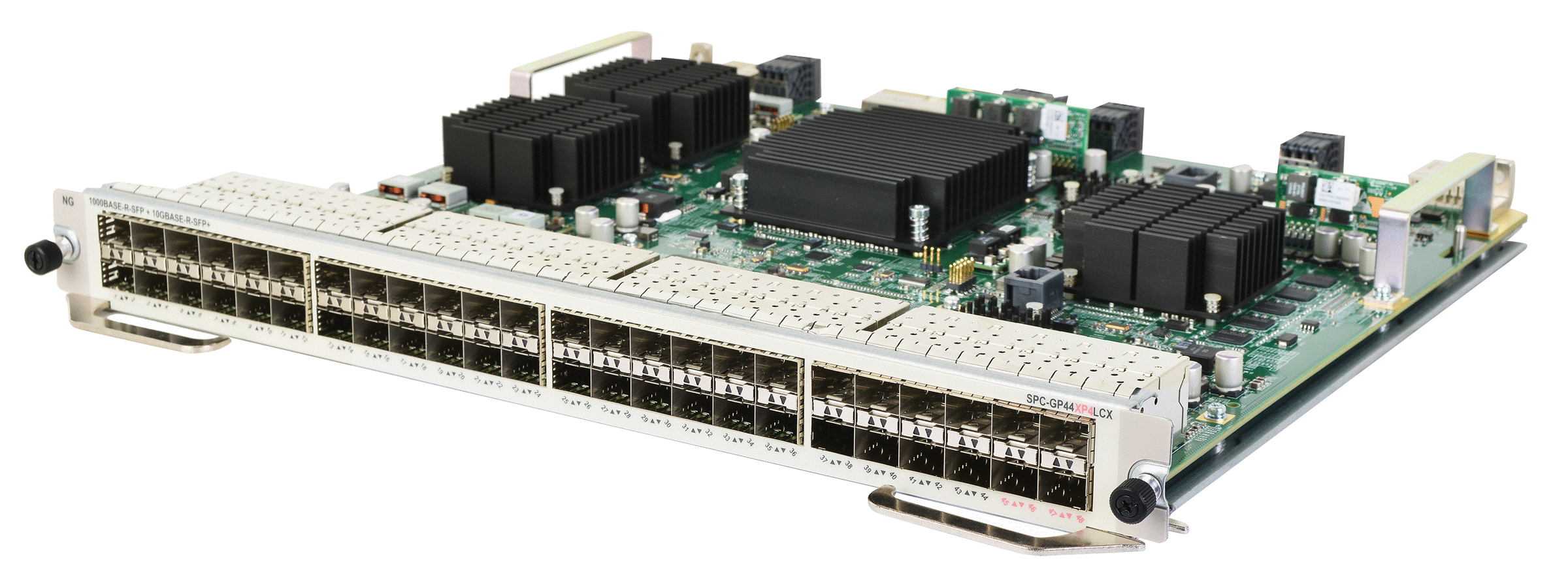

Figure 9 SPC-GP44XP4LCX
Front panel
Figure 10 SPC-GP44XP4LCX front panel
|
(1) 1000BASE-R-SFP fiber ports (44 in total) |
(2) 10GBASE-R-SFP+ fiber ports (4 in total) |
|
(3) SFP port status LED |
(4) SFP+ port status LED |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-GP44XP4LA: 83 W to 118 W · SPC-GP44XP4LAX: 110 W to 125 W · SPC-GP44XP4LC: 90 W to 146 W SPC-GP44XP4LCX: 118 W to 142 W |
|
Ports |
· 44 x 1000BASE-X-SFP fiber ports · 4 x 10GBASE-R-SFP+ fiber ports |
|
Connector type |
LC |
|
Port speed |
· 1000BASE-X-SFP fiber port: 1000 Mbps 10GBASE-R-SFP+ fiber port: 10 Gbps |
|
Net weight |
SPC-GP44XP4LA: 3.55 kg (7.83 lb) SPC-GP44XP4LAX/SPC-GP44XP4LC/SPC-GP44XP4LCX: 3.6 kg (7.94 lb) |
|
System software version |
· SPC-GP44XP4LAX/SPC-GP44XP4LCX: 7133 or later SPC-GP44XP4LA/SPC-GP44XP4LC: 7140P51 or later |
CSPC-GE24L-E
Figure 11 CSPC-GE24L-E
Front panel
Figure 12 CSPC-GE24L-E front panel
|
(1) Combo interfaces (24 in total, the 1000BASE-X-SFP fiber ports support GE SFP transceiver modules) |
|
|
(2) SFP port status LED |
(3) RJ-45 Ethernet port status LED |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
108 W to 114 W |
|
Ports |
24 × combo interfaces |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-X-SFP fiber port: 100/1000 Mbps · 1000BASE-T-RJ45 copper port: 10/100/1000 Mbps (half/full duplex) |
|
Net weight |
4.45 kg (9.81 lb) |
|
Applicable system software versions |
7907 or later |
CSPC-GP24GE8XP2L-E
Figure 13 CSPC-GP24GE8XP2L-E
Front panel
Figure 14 CSPC-GP24GE8XP2L-E front panel
|
(1) 10GBASE-R-SFP+ fiber ports (2 in total, support for 10GE SFP+ transceiver modules) |
|
|
(2) 1000BASE-X-SFP fiber ports (24 in total, support for GE SFP transceiver modules) |
|
|
(3) Combo interfaces (8 in total, the 1000BASE-X-SFP fiber ports support GE SFP transceiver modules) |
|
|
(4) RJ-45 Ethernet port status LED |
(5) SFP port status LED |
|
(6) SFP+ port status LED |
|
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
101 W to 126 W |
|
Ports |
· 24 × 1000BASE-X-SFP fiber ports · 8 × combo interfaces · 2 × 10GBASE-R/W-SFP+ fiber ports |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-X-SFP fiber port: 1000 Mbps · 1000BASE-T-RJ45 copper port: 10/100/1000 Mbps (half/full duplex) · 10GBASE-R/W-SFP+ fiber port: 10 Gbps |
|
Net weight |
4.45 kg (9.81 lb) |
|
Applicable system software versions |
7907 or later |
CSPC-GE16XP4L-E
Figure 15 CSPC-GE16XP4L-E
Front panel
Figure 16 CSPC-GE16XP4L-E front panel
|
(1) 10GBASE-R-SFP+ fiber ports (4 in total, support for 10GE SFP+ transceiver modules) |
|
|
(2) Combo interfaces (16 in total, the 1000BASE-X-SFP fiber ports support GE SFP transceiver modules) |
|
|
(3) SFP port status LED |
(4) RJ-45 Ethernet port status LED |
|
(5) SFP+ port status LED |
|
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
107 W to 127 W |
|
Ports |
· 16 × combo interfaces · 4 × 10GBASE-R/W-SFP+ fiber ports |
|
Connector type |
· RJ-45 · LC |
|
Port speed |
· 1000BASE-T-RJ45 copper port: 10/100/1000 Mbps (half/full duplex) · 1000BASE-X-SFP fiber port: 1000 Mbps · 10GBASE-R/W-SFP+ fiber port: 10 Gbps |
|
Net weight |
4.35 kg (9.59 lb) |
|
Applicable system software versions |
7907 or later |
LEDs
Table 2 RJ-45 Ethernet port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
Steady on |
A link is present. |
|
Off |
No link is present. |
Table 3 SFP port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
Steady on |
A link is present. |
|
Off |
No link is present. |
Table 4 SFP+ port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
Steady on |
A link is present. |
|
Off |
No link is present. |
Table 5 XFP port status LED description
|
LINK LED status |
ACT LED status |
Description |
|
Steady on |
Flashing |
The port is receiving or transmitting data. |
|
Steady on |
Off |
A link is present. |
|
Off |
Off |
No link is present. |
Environment requirements
Make sure the ambient environment meets the following requirements:
· Temperature and humidity requirements
Table 6 Temperature and humidity requirements
|
Item |
Specifications |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
|
Operating humidity |
10% RH to 95% RH, non-condensing |
|
Storage humidity |
5% RH to 95% RH, non-condensing |
· Dust protection requirements
Table 7 Dust concentration limits in the equipment room
|
Substance |
Particle diameter |
Concentration limit |
|
Dust particles |
≥ 0.5 µm |
≤ 1.8 × 107 particles/m3 |
· Corrosive gas protection requirements
Table 8 Corrosive gas concentration limits in the equipment room
|
Gas |
Average concentration (mg/m3) |
Maximum concentration (mg/m3) |
|
SO2 |
0.3 |
1.0 |
|
H2S |
0.1 |
0.5 |
|
Cl2 |
0.1 |
0.3 |
|
HCI |
0.1 |
0.5 |
|
HF |
0.01 |
0.03 |
|
NH3 |
1.0 |
3.0 |
|
O3 |
0.05 |
0.1 |
|
NOX |
0.5 |
1.0 |
