Overview
The following 10G Ethernet optical interface modules are available for the SR8800-X routers.
Table 1 10G Ethernet optical interface modules available for the SR8800-X routers
|
Module model |
Description |
|
SPC-XP2LA1 |
2-port 10GBASE Ethernet optical interface module (XFP, LC) (A Type) |
|
SPC-XP4LA1 |
4-port 10GBASE Ethernet optical interface module (XFP, LC) (A Type) |
|
SPC-XP4LB |
4-port Enhanced 10GBASE Ethernet optical interface module (XFP, LC) (B Type) |
|
SPC-XP8LA |
8-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type) |
|
SPC-XP8LB |
8-port Enhanced 10GBASE Ethernet optical interface module (SFP+, LC) (B Type) |
|
SPC-GP24XP2LA |
16-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port combo interface + 2-port 10GE optical interface module (XFP, LC) (A Type) |
|
SPC-GP24XP2LB |
16-port 1000BASE-X optical interface (SFP, LC) + 8-port combo interface + 2-port 10GE optical interface module (XFP, LC) (B Type) |
|
SPC-GP44XP4LA |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type), supported only on the SR8800-X-S |
|
SPC-GP44XP4LAX |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type), not supported on the SR8800-X-S |
|
SPC-GP44XP4LC |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type), supported only on the SR8800-X-S |
|
SPC-GP44XP4LCX |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type), not supported on the SR8800-X-S |
|
SPC-XP12LAX |
12-port 10GBASE Ethernet optical interface module (SFP+,LC) (A Type), not supported on the SR8800-X-S |
|
SPC-XP12LC |
12-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type), supported only on the SR8800-X-S |
|
SPC-XP12LCX |
12-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type), not supported on the SR8800-X-S |
|
SPC-XP24LAX |
24-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type), not supported on the SR8800-X-S |
|
SPC-XP24LC |
24-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type), supported only on the SR8800-X-S |
|
SPC-XP24LCX |
24-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type), not supported on the SR8800-X-S |
|
CSPC-GP24GE8XP2L-E |
24-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port 1000BASE-X Ethernet combo interface + 2-port 10GBASE-R/W Ethernet optical interface line processing unit (SFP+, LC) (E Type) |
|
CSPC-GE16XP4L-E |
16-port 1000BASE-X Ethernet combo interface + 4-port 10GBASE-R/W Ethernet optical interface line processing unit (SFP+,LC) (E Type) |
|
|
NOTE: For compatibility between 10G Ethernet optical interface modules and switching fabric modules, see "Appendix B FRUs and compatibility matrixes" in H3C SR8800-X Routers Installation Guide. |
Key features
High performance and scalability
With high-speed CPUs, the interface modules greatly improve the service processing capability and provide independent OAM engine for link status monitoring.
You can select optical interface modules with different number of ports and select optical transceiver modules depending on actual applications and transmission distances.
Environment-friendly design
The interface modules are compliant with the Restriction of Hazardous Substances (RoHS) standard.
Hot swapping
The interface modules are hot swappable. Installing and removing such a module on an operating router does not affect ongoing services on other modules. The management system monitors the module in real time and implements automated configuration for the module to ensure service continuity.
Specifications
The figures in this section are for illustration only.
SPC-XP2LA1

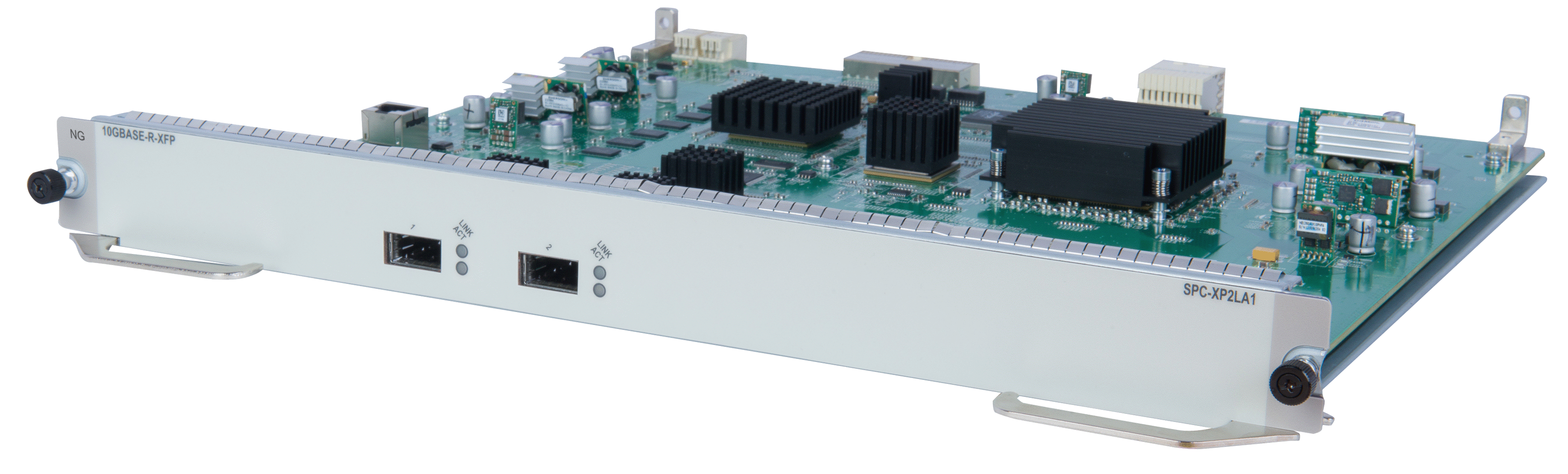

Figure 1 SPC-XP2LA1
Front panel

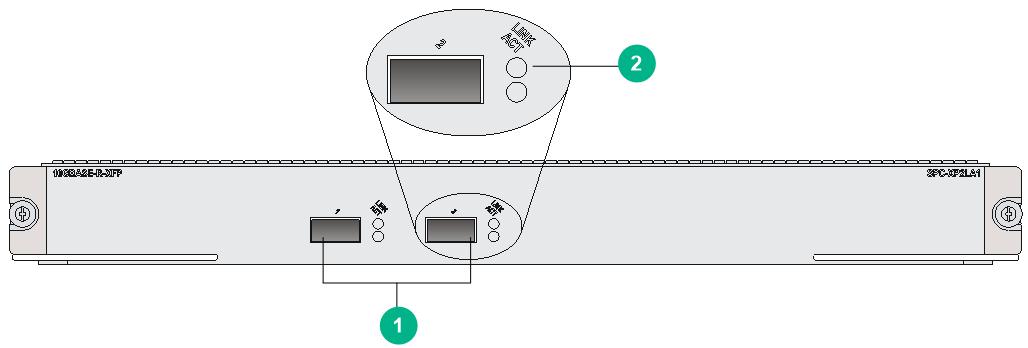

Figure 2 SPC-XP2LA1 front panel
|
(1) 10GBASE-R-XFP fiber ports (2 in total) |
(2) XFP port status LED (see Table 5) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 ×15.7 × 13.86 in) |
|
Power consumption |
43 W to 55 W |
|
Ports |
2 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
2.93 kg (6.46 lb) |
|
System software version |
7121 or later |
SPC-XP4LA1/SPC-XP4LB
The SPC-XP4LB and the SPC-XP4LA1 have the same appearance except for their marks. This section uses the SPC-XP4LA1 as an example.

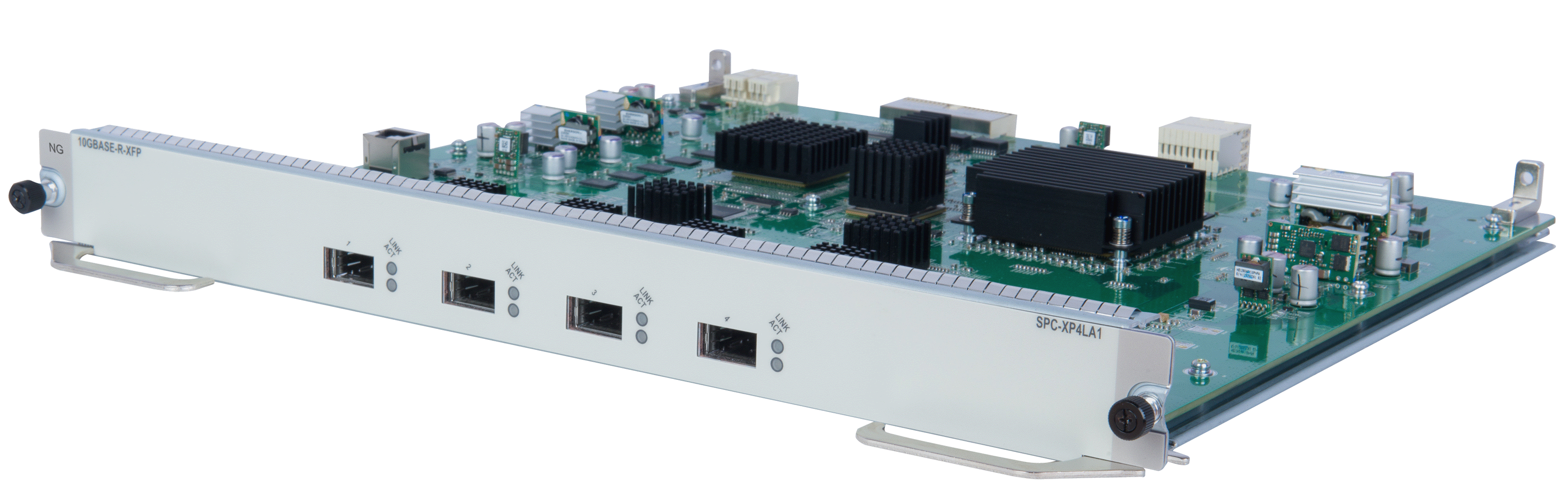

Figure 3 SPC-XP4LA1
Front panel

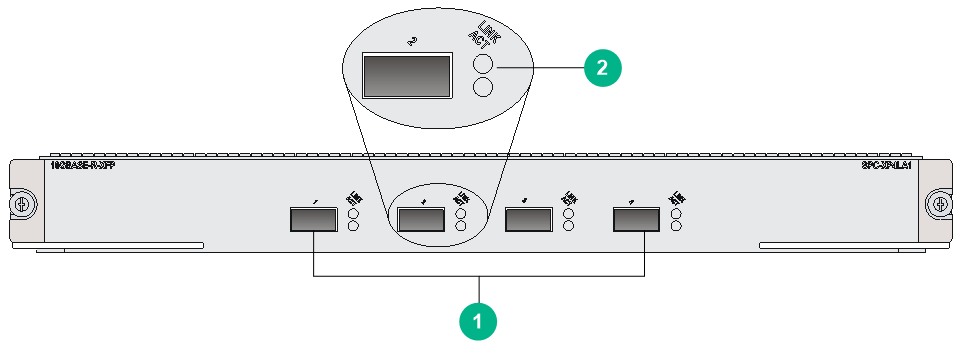

Figure 4 SPC-XP4LA1 front panel
|
(1) 10GBASE-R-XFP fiber ports (2 in total) |
(2) XFP port status LED (see Table 5) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 ×15.7 × 13.86 in) |
|
Power consumption |
53 W to 80 W |
|
Ports |
4 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
2.93 kg (6.46 lb) |
|
System software version |
7121 or later |
SPC-XP8LA/SPC-XP8LB
The SPC-XP8LB and the SPC-XP8LA have the same appearance except for their marks. This section uses the SPC-XP8LA as an example.

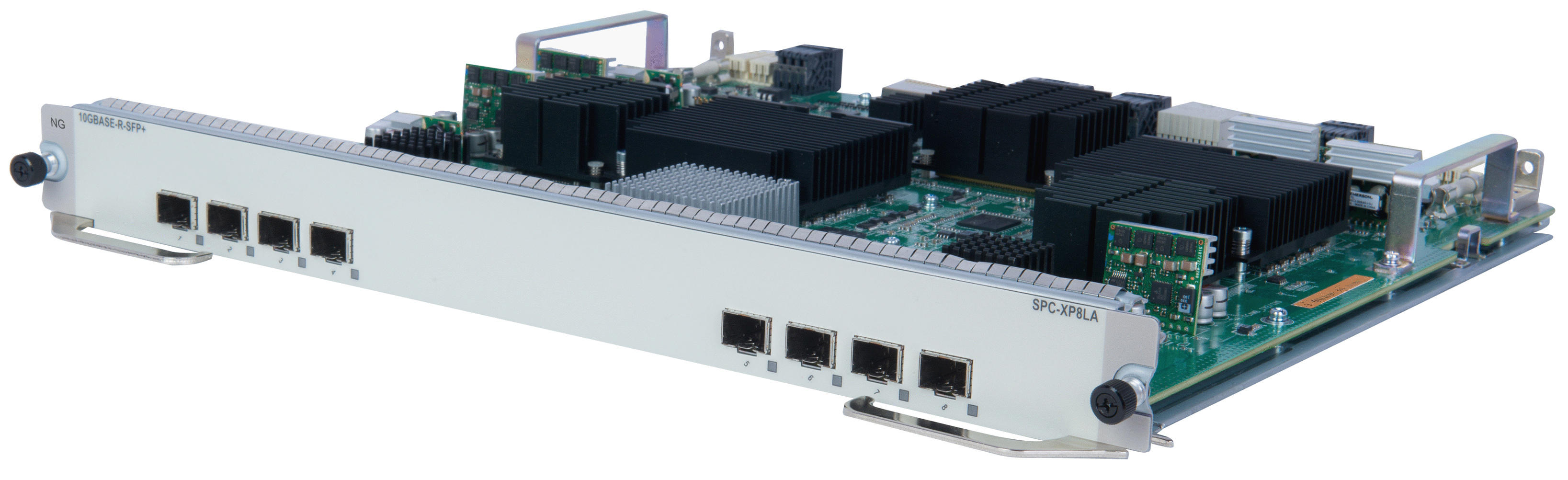

Figure 5 SPC-XP8LA
Front panel

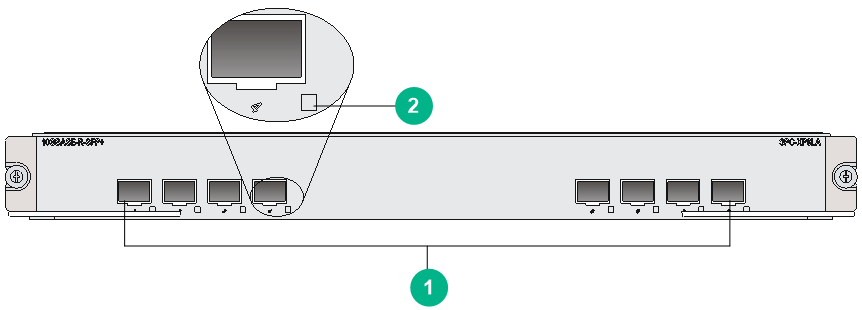

Figure 6 SPC-XP8LA front panel
|
(1) 10GBASE-R-SFP+ fiber ports (8 in total) |
(2) SFP+ port status LED (see Table 4) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-XP8LA: 117 W to 140 W · SPC-XP8LB: 117 W to 170 W |
|
Ports |
8 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
3.44 kg (7.58 lb) |
|
System software version |
7121 or later |
SPC-GP24XP2LA/SPC-GP24XP2LB
The SPC-GP24XP2LA and SPC-GP24XP2LB have the same appearance except for their marks. This section uses the SPC-GP24XP2LB as an example.

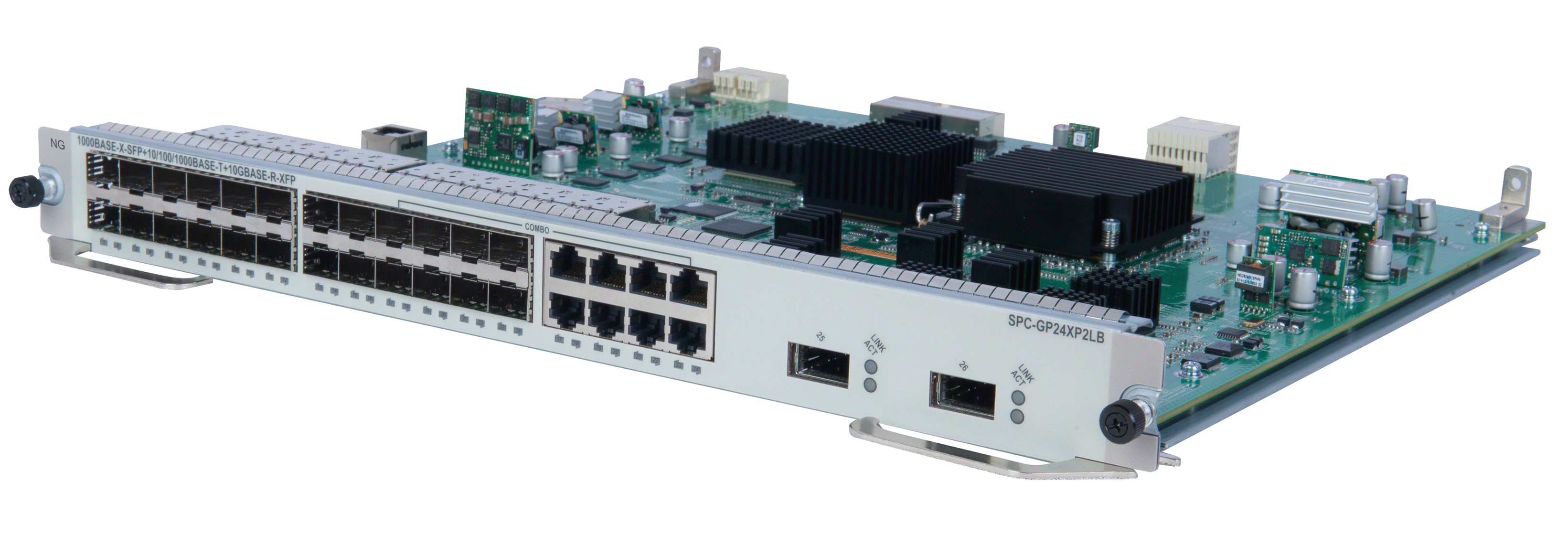

Figure 7 SPC-GP24XP2LB
Front panel

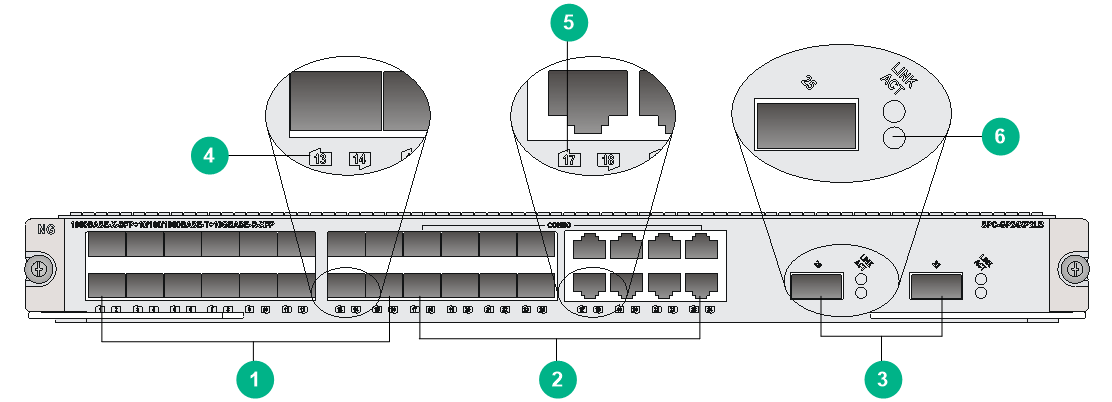

Figure 8 SPC-GP24XP2LB front panel
|
(1) 1000BASE-X-SFP fiber ports (16 in total) |
(2) Combo interfaces (8 in total) |
|
(3) 10GBASE-R-XFP fiber ports (2 in total) |
(4) SFP port status LED (see Table 3) |
|
(5) RJ-45 Ethernet port status LED (see Table 2) |
(6) XFP port status LED (see Table 5) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-GP24XP2LA: 54 W to 95 W · SPC-GP24XP2LB: 51 W to 100 W |
|
Ports |
· 16 × 1000BASE-X-SFP fiber ports · 8 × combo interfaces · 2 × 10GBASE-R-XFP fiber ports |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-X-SFP fiber port: ¡ 100 Mbps ¡ 1000 Mbps ¡ 10/100/1000 Mbps · 10/100/1000BASE-T copper port: 10/100/1000 Mbps (half/full duplex) · 10GBASE-R-XFP fiber port: 10 Gbps |
|
Net weight |
3.08 kg (6.79 lb) |
|
System software version |
7121 or later |
|
|
NOTE: A combo interface is a logical interface that contains an SFP port and an RJ-45 Ethernet port. Only one of them can be activated at a time. You can activate the SFP fiber port or the RJ-45 copper port at the CLI. By default, the copper port is activated. When the RJ-45 copper port is activated, the combo interface operates as a 1000BASE-T-RJ-45 copper port. It sends and receives data through a Category 5 or higher twisted pair cable at the maximum transmission distance of 100 m (328.08 ft). |
SPC-GP44XP4LA/SPC-GP44XP4LAX/SPC-GP44XP4LC/SPC-GP44XP4LCX
The SPC-GP44XP4LA, SPC-GP44XP4LAX, SPC-GP44XP4LC, and SPC-GP44XP4LCX have the same appearance except for their marks. This section uses the SPC-GP44XP4LCX as an example.

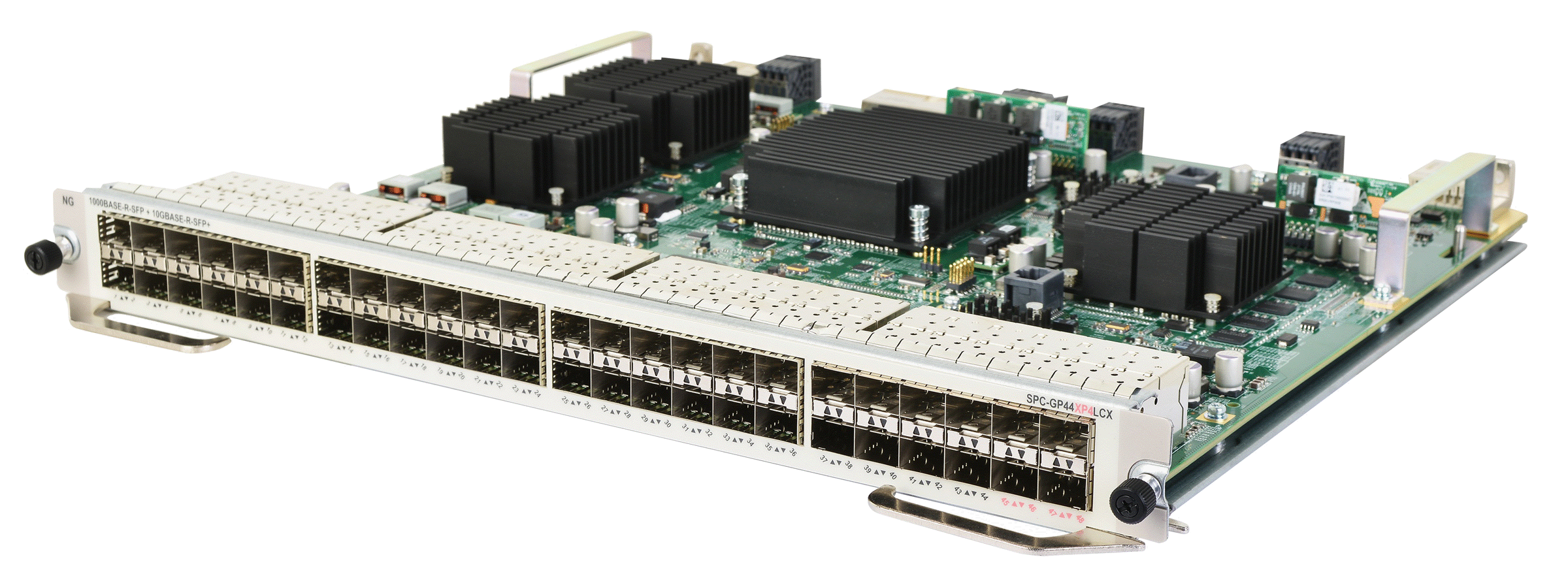

Figure 9 SPC-GP44XP4LCX
Front panel

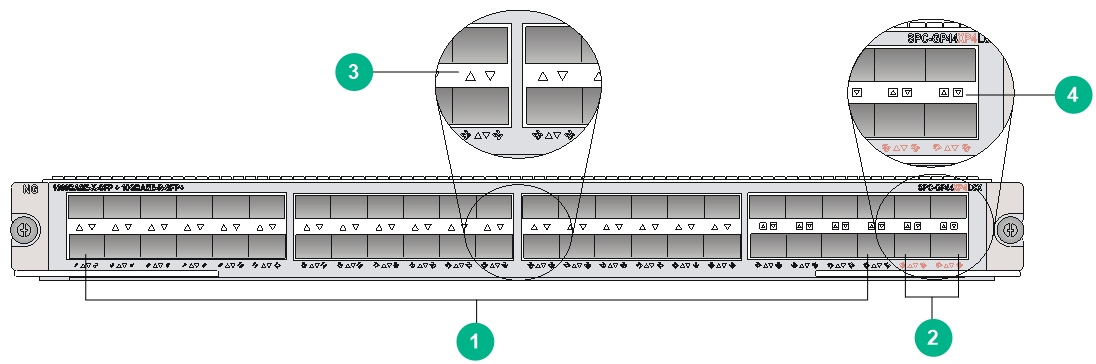

Figure 10 SPC-GP44XP4LCX front panel
|
(1) 1000BASE-X-SFP fiber ports (44 in total) |
(2) 10GBASE-R-SFP+ fiber ports (4 in total) |
|
(3) SFP port status LED (see Table 3) |
(4) SFP+ port status LED (see Table 4) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-GP44XP4LA: 83 W to 150 W · SPC-GP44XP4LAX: 110 W to 125 W · SPC-GP44XP4LC: 90 W to 150 W · SPC-GP44XP4LCX: 118 W to 142 W |
|
Ports |
· 44 × 1000BASE-X-SFP fiber ports · 4 × 10GBASE-R-SFP+ fiber ports |
|
Connector type |
LC |
|
Port speed |
· 1000BASE-X-SFP fiber ports: ¡ 100 Mbps ¡ 1000 Mbps ¡ 10/100/1000 Mbps · 10GBASE-R-SFP+ fiber ports: 10 Gbps |
|
Net weight |
· SPC-GP44XP4LA: 3.55 kg (7.83 lb) · SPC-GP44XP4LAX/SPC-GP44XP4LC/SPC-GP44XP4LCX: 3.6 kg (7.94 lb) |
|
System software version |
· SPC-GP44XP4LAX/SPC-GP44XP4LCX: 7133 or later · SPC-GP44XP4LA/SPC-GP44XP4LC: 7140P51 or later |
SPC-XP24LAX/SPC-XP24LC/SPC-XP24LCX
The SPC-XP24LAX, SPC-XP24LC, and SPC-XP24LCX have the same appearance except for their marks. This section uses the SPC-XP24LCX as an example.

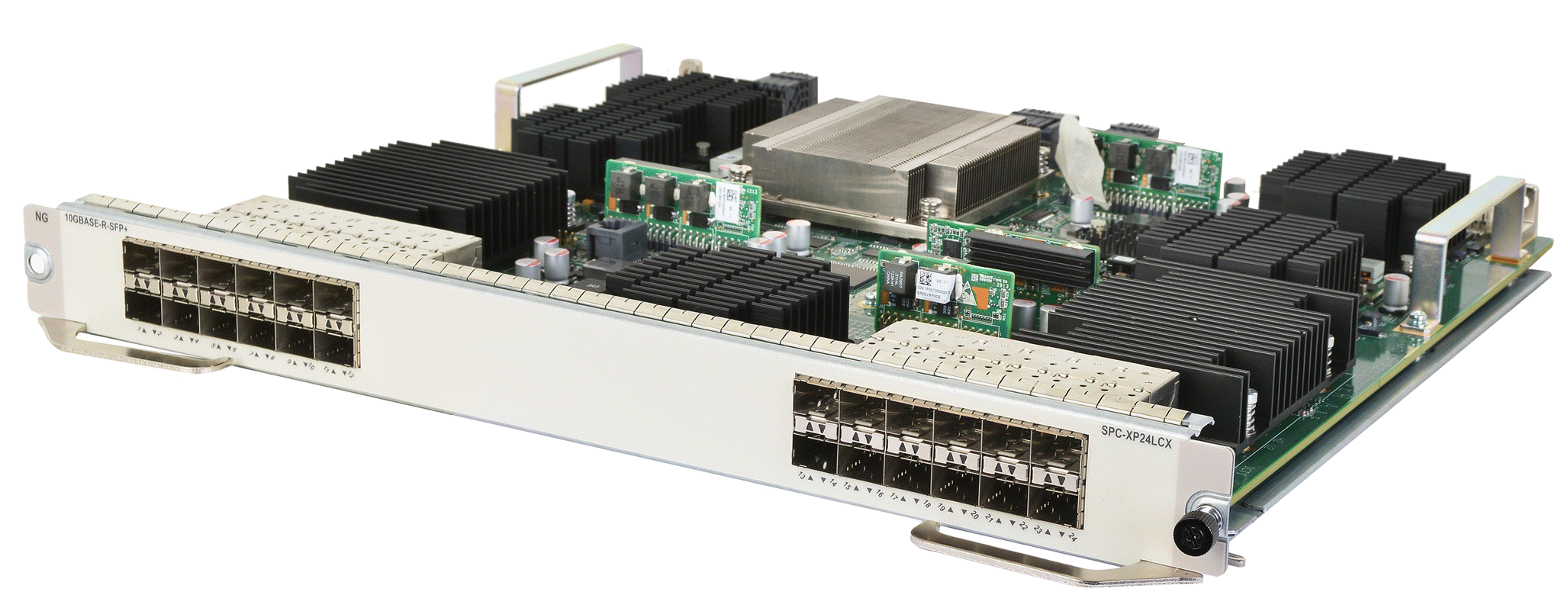

Figure 11 SPC-XP24LCX
Front panel

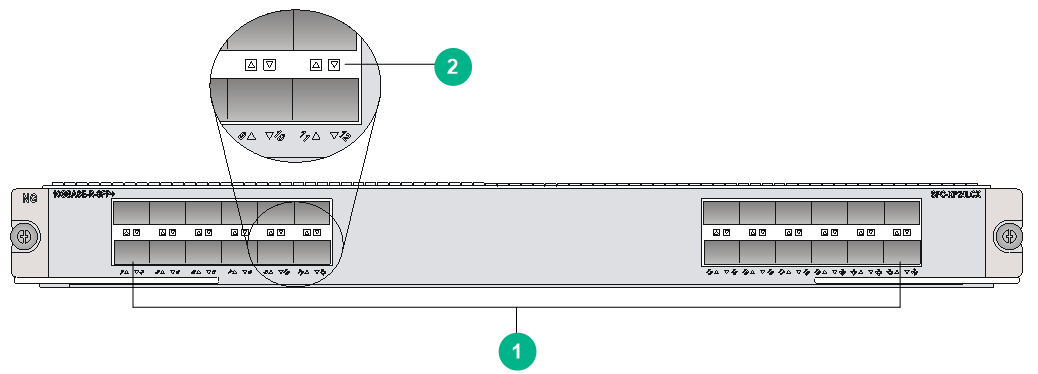

Figure 12 SPC-XP24LCX front panel
|
(1) 10GBASE-R-SFP+ fiber ports (24 in total) |
(2) SFP+ port status LED (see Table 4) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-XP24LAX: 153 W to 209 W · SPC-XP24LC: 174 W to 250 W · SPC-XP24LCX: 178 W to 294 W |
|
Ports |
24 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
· SPC-XP24LAX/SPC-XP24LCX: 4.15 kg (9.15 lb) · SPC-XP24LC: 4.2 kg (9.26 lb) |
|
System software version |
· SPC-XP24LAX/SPC-XP24LCX: 7133 or later · SPC-XP24LC: 7140P51 or later |
SPC-XP12LAX/SPC-XP12LC/SPC-XP12LCX
The SPC-XP12LAX and SPC-XP12LCX have the same appearance except for their marks. This section uses the SPC-XP12LCX as an example.

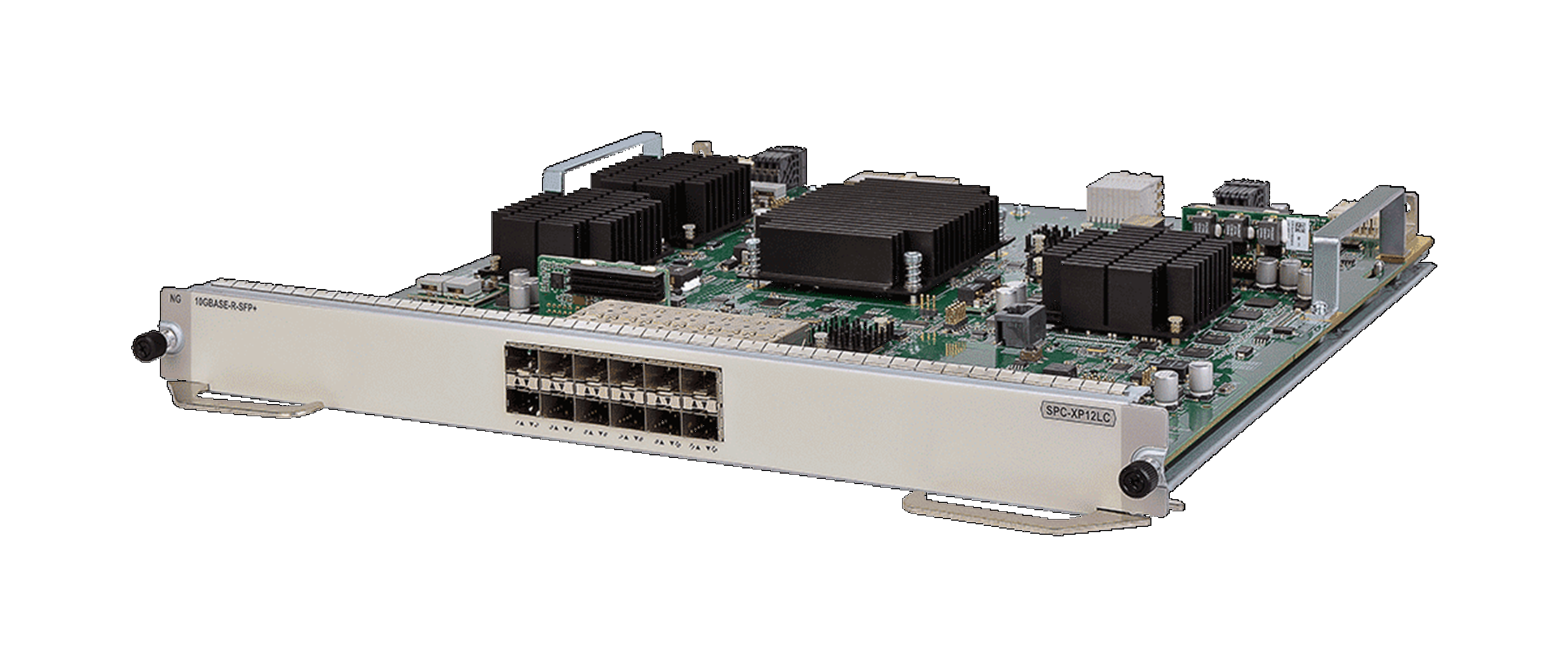

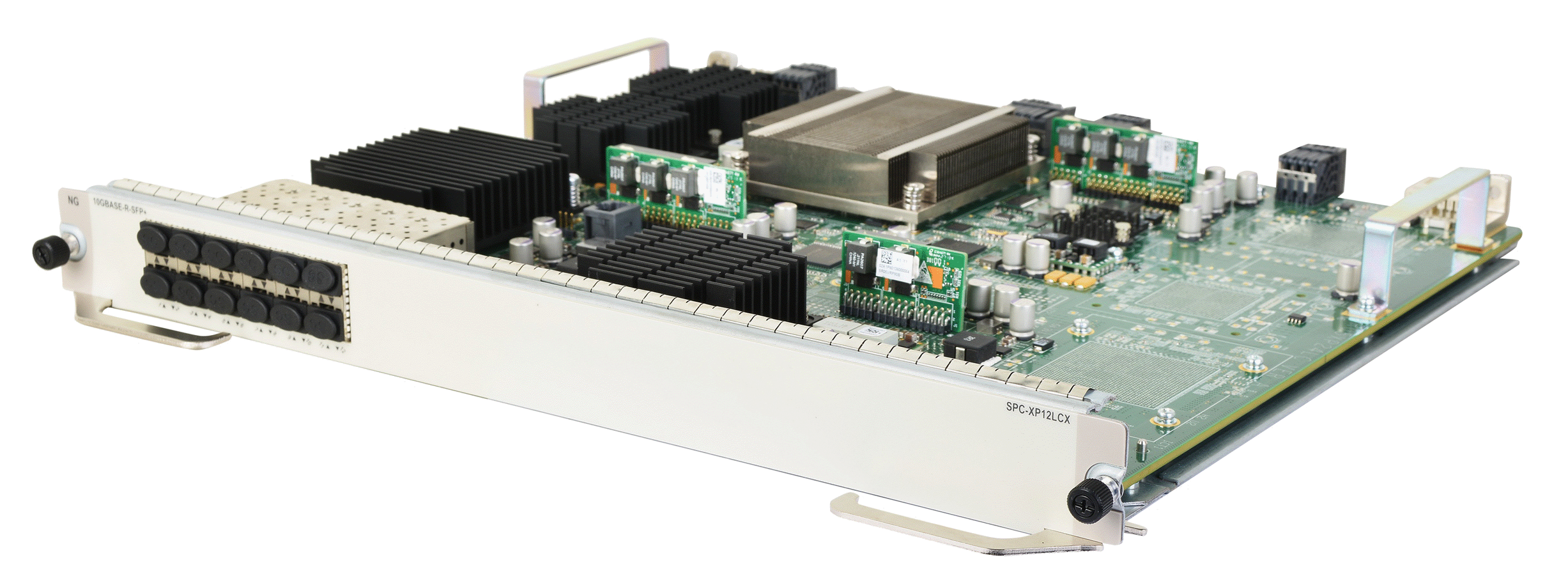

Figure 13 SPC-XP12LCX
Figure 14 SPC-XP12LC
Front panel
The mark and port locations on the SPC-XP12LC are different from those on the SPC-XP12LAX or SPC-XP12LCX, but the port quantity and type are the same. This section uses the SPC-XP12LCX as an example.

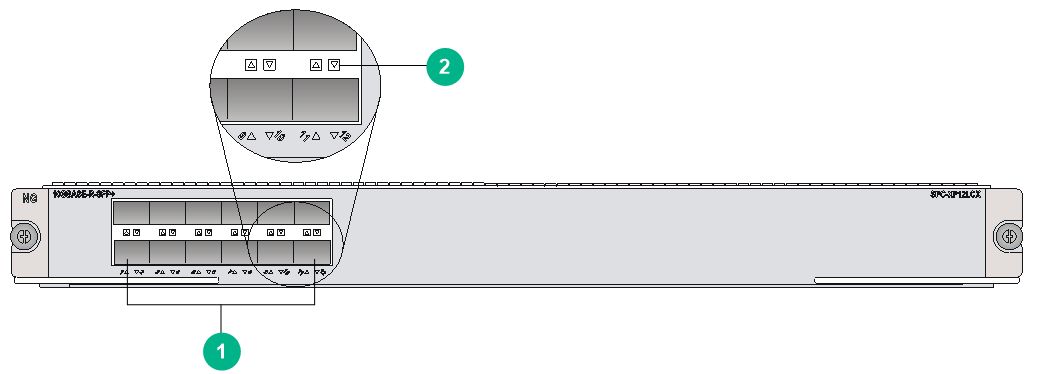

Figure 15 SPC-XP12LCX front panel
|
(1) 10GBASE-R-SFP+ fiber ports (12 in total) |
(2) SFP+ port status LED (see Table 4) |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-XP12LAX: 107 W to 130 W · SPC-XP12LC: 91 W to 146 W · SPC-XP12LCX: 122 W to 173 W |
|
Ports |
12 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
· SPC-XP12LAX/SPC-XP12LCX: 3.65 kg (8.05 lb) · SPC-XP12LC: 3.3 kg (7.26 lb) |
|
System software version |
· SPC-XP12LAX/SPC-XP12LCX: 7133 or later · SPC-XP12LC: 7140P51 or later |
CSPC-GP24GE8XP2L-E

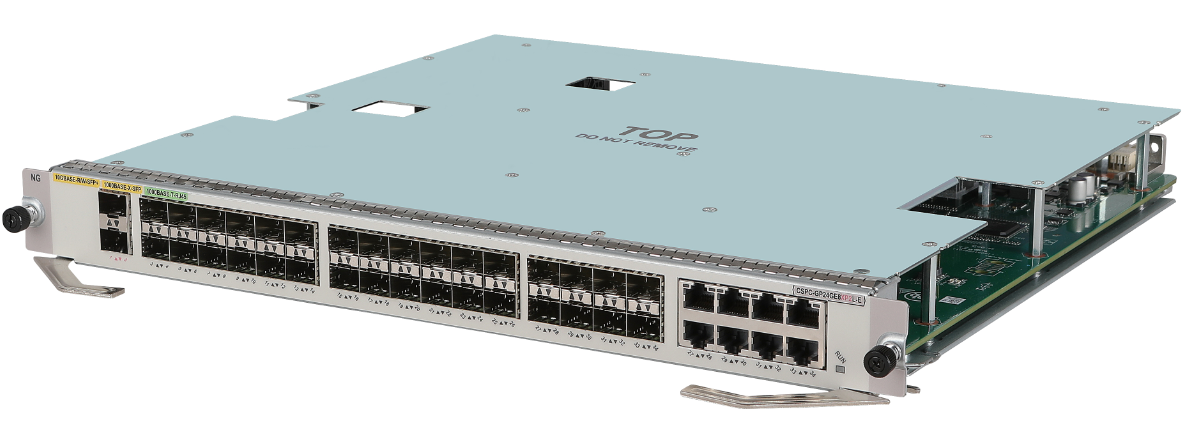

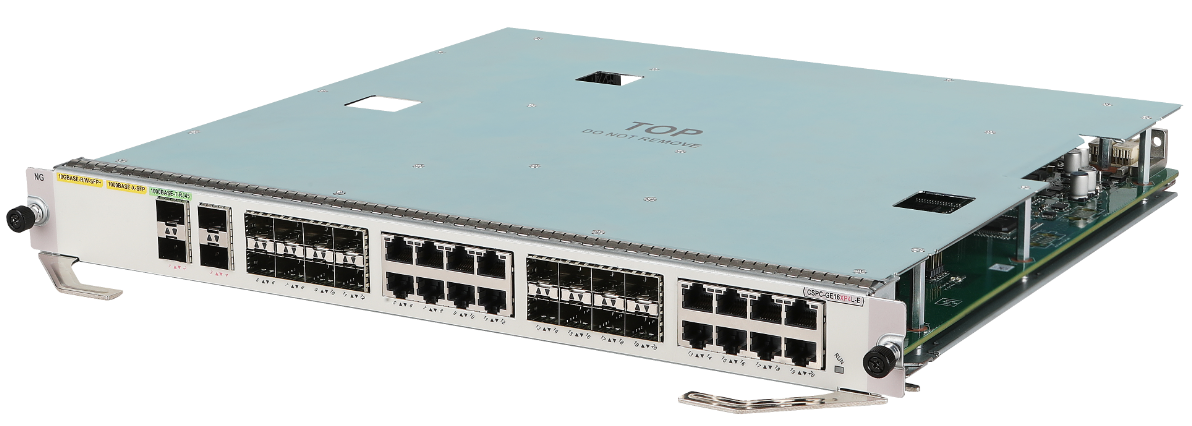

Figure 16 CSPC-GP24GE8XP2L-E
Front panel

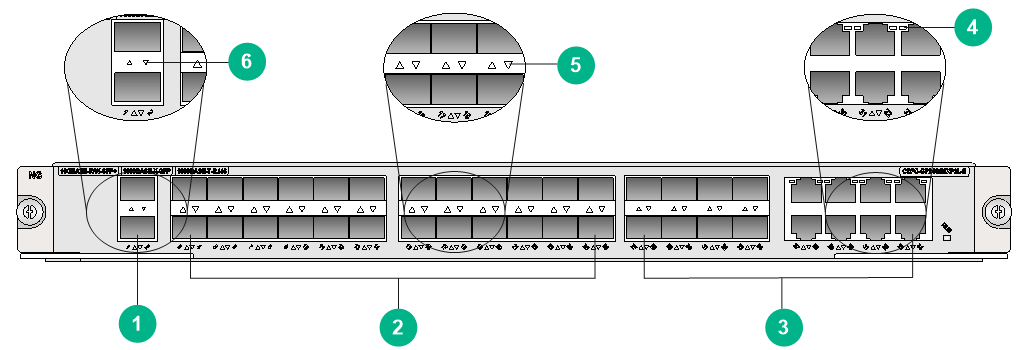

Figure 17 CSPC-GP24GE8XP2L-E front panel
|
(1) 10GBASE-R-SFP+ fiber ports (2 in total, support for 10GE SFP+ transceiver modules) |
|
|
(2) 1000BASE-X-SFP fiber ports (24 in total, support for GE SFP transceiver modules) |
|
|
(3) Combo interfaces (8 in total, the 1000BASE-X-SFP fiber ports support GE SFP transceiver modules) |
|
|
(4) RJ-45 Ethernet port status LED (see Table 2) |
(5) SFP port status LED (see Table 3) |
|
(6) SFP+ port status LED (see Table 4) |
|
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
101 W to 145 W |
|
Ports |
· 24 × 1000BASE-X-SFP fiber ports · 8 × combo interfaces · 2 × 10GBASE-R/W-SFP+ fiber ports |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-X-SFP fiber port: ¡ 100 Mbps ¡ 1000 Mbps · 1000BASE-T-RJ45 copper port: 10/100/1000 Mbps (half/full duplex) · 10GBASE-R/W-SFP+ fiber port: 10 Gbps |
|
Net weight |
4.45 kg (9.81 lb) |
|
Applicable system software versions |
7907 or later |
CSPC-GE16XP4L-E
Figure 18 CSPC-GE16XP4L-E
Front panel

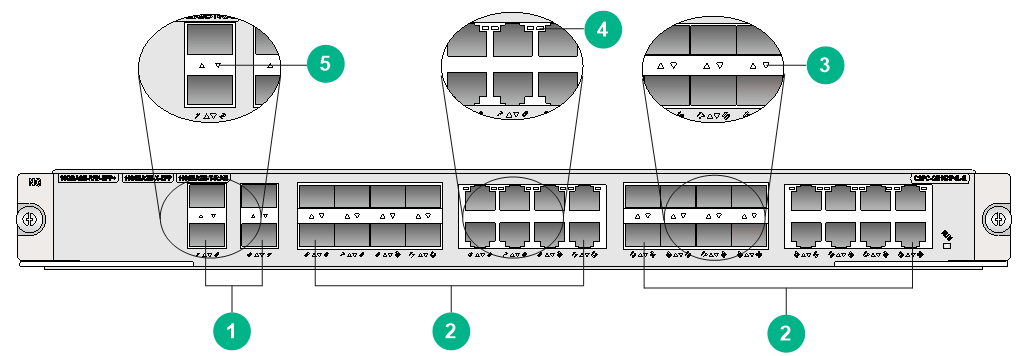

Figure 19 CSPC-GE16XP4L-E front panel
|
(1) 10GBASE-R-SFP+ fiber ports (4 in total, support for 10GE SFP+ transceiver modules) |
|
|
(2) Combo interfaces (16 in total, the 1000BASE-X-SFP fiber ports support GE SFP transceiver modules) |
|
|
(3) SFP port status LED (see Table 3) |
(4) RJ-45 Ethernet port status LED (see Table 2) |
|
(5) SFP+ port status LED (see Table 4) |
|
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
107 W to 145 W |
|
Ports |
· 16 × combo interfaces · 4 × 10GBASE-R/W-SFP+ fiber ports |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-T-RJ45 copper port: 10/100/1000 Mbps (half/full duplex) · 1000BASE-X-SFP fiber port: ¡ 100 Mbps ¡ 1000 Mbps · 10GBASE-R/W-SFP+ fiber port: 10 Gbps |
|
Net weight |
4.35 kg (9.59 lb) |
|
Applicable system software versions |
7907 or later |
LEDs
Table 2 RJ-45 Ethernet port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Table 3 SFP port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Table 4 SFP+ port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Table 5 XFP port status LED description
|
LINK LED status |
ACT LED status |
Description |
|
Steady on |
Flashing |
The port is receiving or transmitting data. |
|
Steady on |
Off |
A link is present. |
|
Off |
Off |
No link is present. |
Table 6 QSFP+ port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Environment requirements
Make sure the ambient environment meets the following requirements:
· Temperature and humidity requirements
Table 7 Temperature and humidity requirements
|
Item |
Specifications |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
|
Operating humidity |
10% RH to 95% RH, non-condensing |
|
Storage humidity |
5% RH to 95% RH, non-condensing |
· Dust protection requirements
Table 8 Dust concentration limits in the equipment room
|
Substance |
Particle diameter |
Concentration limit |
|
Dust particles |
≥ 0.5 µm |
≤ 1.8 × 107 particles/m3 |
· Corrosive gas protection requirements
Table 9 Corrosive gas concentration limits in the equipment room
|
Gas |
Average concentration (mg/m3) |
Maximum concentration (mg/m3) |
|
SO2 |
0.3 |
1.0 |
|
H2S |
0.1 |
0.5 |
|
Cl2 |
0.1 |
0.3 |
|
HCI |
0.1 |
0.5 |
|
HF |
0.01 |
0.03 |
|
NH3 |
1.0 |
3.0 |
|
O3 |
0.05 |
0.1 |
|
NOX |
0.5 |
1.0 |
