H3C SR8800-F Router Series |
|
10G Ethernet Optical Interface Module Datasheet |
|
|
|
|
Copyright © 2015 to 2022 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
The information in this document is subject to change without notice.
Contents
Overview
The following 10G Ethernet optical interface modules are available for the SR8800-F routers.
Table 1 10G Ethernet optical interface modules available for the SR8800-F routers
|
Card model |
Description |
|
CSPC-XP2LA1 |
2-port 10GBASE Ethernet optical interface module (XFP, LC) (A Type) |
|
CSPC-XP4LB |
4-port enhanced 10GBASE Ethernet optical interface module (XFP, LC) (B Type) |
|
CSPC-XP8LB |
8-port enhanced 10GBASE Ethernet optical interface module (SFP+, LC) (B Type) |
|
CSPC-GP24XP2LB |
16-port 1000BASE-X optical interface (SFP, LC) + 8-port combo interface + 2-port 10GE optical interface module (XFP, LC) (B Type) |
|
CSPC-GP24GE8XP2L-E |
24-port 1000BASE-X Ethernet optical interface (SFP, LC) + 8-port 1000BASE-X Ethernet combo interface + 2-port 10GBASE-R/W Ethernet optical interface line processing unit (SFP+, LC) (E Type) |
|
CSPC-GE16XP4L-E |
16-port 1000BASE-X Ethernet combo interface + 4-port 10GBASE-R/W Ethernet optical interface line processing unit (SFP+,LC) (E Type) |
|
SPC-GP44XP4LA |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (A Type) |
|
SPC-GP44XP4LC |
44-port 1000BASE-X Ethernet optical interface module (SFP, LC) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type) |
|
SPC-XLP2XP4LC |
2-port 40GBASE Ethernet optical interface module (QSFP+) + 4-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type) |
|
SPC-XP12LC |
12-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type) |
|
SPC-XP24LC |
24-port 10GBASE Ethernet optical interface module (SFP+, LC) (C Type) |
Key features
High performance and scalability
With high-speed CPUs, the interface modules greatly improve the service processing capability and provide independent OAM engine for link status monitoring.
You can select interface modules with different number of ports and select optical transceiver modules depending on actual applications and transmission distances.
Environment-friendly design
The interface modules are compliant with the Restriction of Hazardous Substances (RoHS) standard.
Hot swapping
The interface modules are hot swappable. Installing and removing such a module on an operating router does not affect ongoing services on other modules. The management system monitors the module in real time and implements automated configuration for the module to ensure service continuity.
Specifications
The figures in this section are for illustration only.
CSPC-XP2LA1

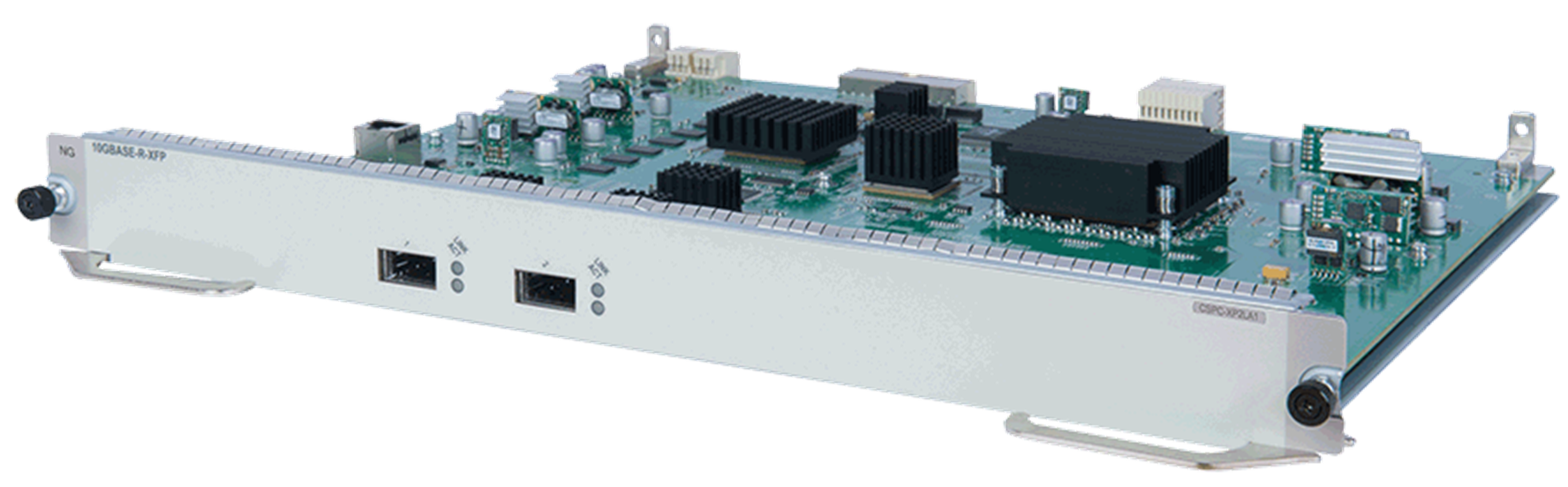

Figure 1 CSPC-XP2LA1
Front panel

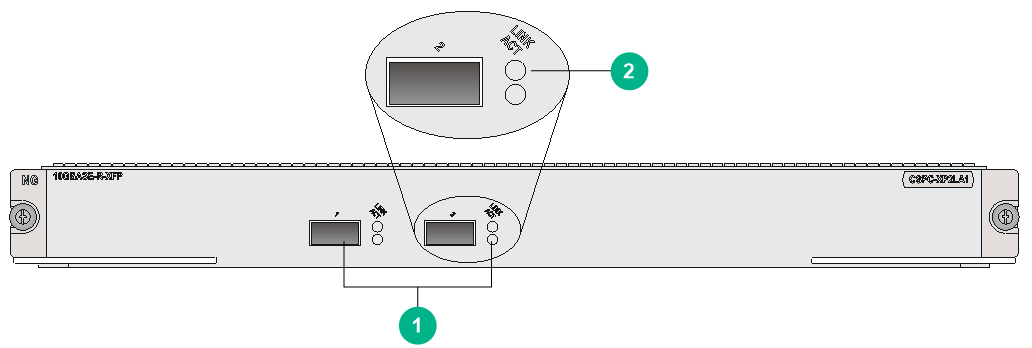

Figure 2 CSPC-XP2LA1 front panel
|
(1) 10GBASE-R-XFP fiber ports (2 in total) |
(2) XFP port status LEDs |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 ×15.7 × 13.86 in) |
|
Power consumption |
43 W to 55 W |
|
Ports |
2 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
2.93 kg (6.50 lb) |
|
Applicable system software versions |
7121 or later |
CSPC-XP4LB

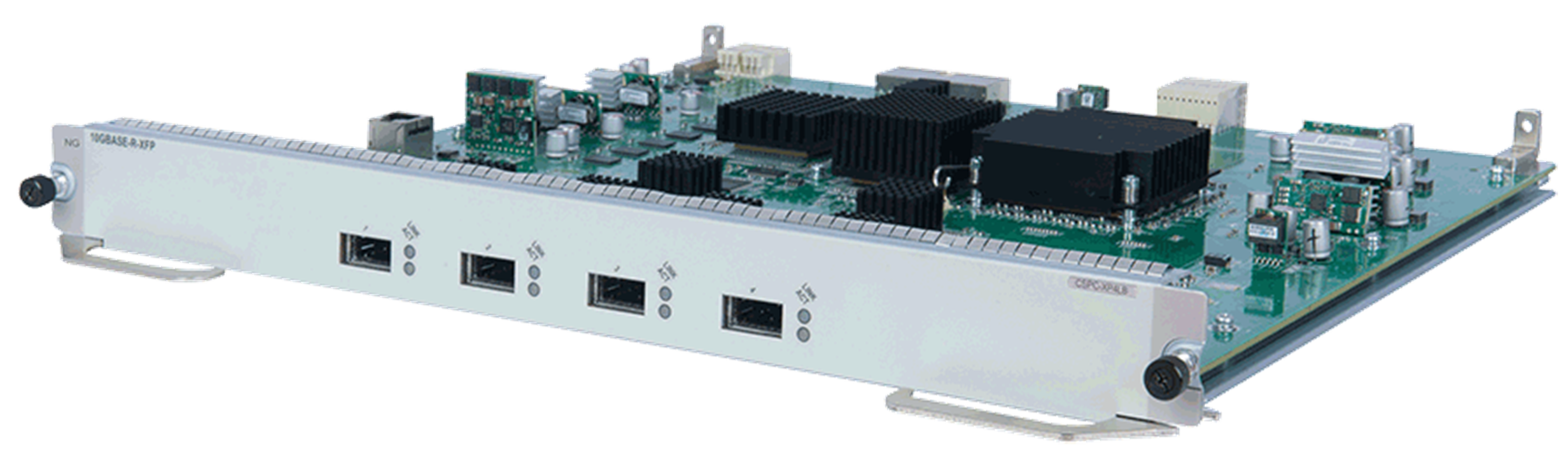

Figure 3 CSPC-XP4LB
Front panel

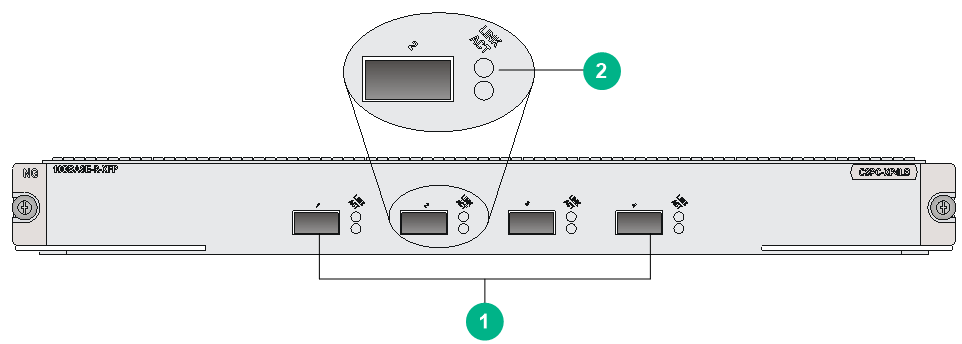

Figure 4 CSPC-XP4LB front panel
|
(1) 10GBASE-R-XFP fiber ports (2 in total) |
(2) XFP port status LEDs |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 ×352 mm (1.57 ×15.7 × 13.86 in) |
|
Power consumption |
53 W to 80 W |
|
Ports |
4 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
2.93 kg (6.46 lb) |
|
Applicable system software versions |
7121 or later |
CSPC-XP8LB

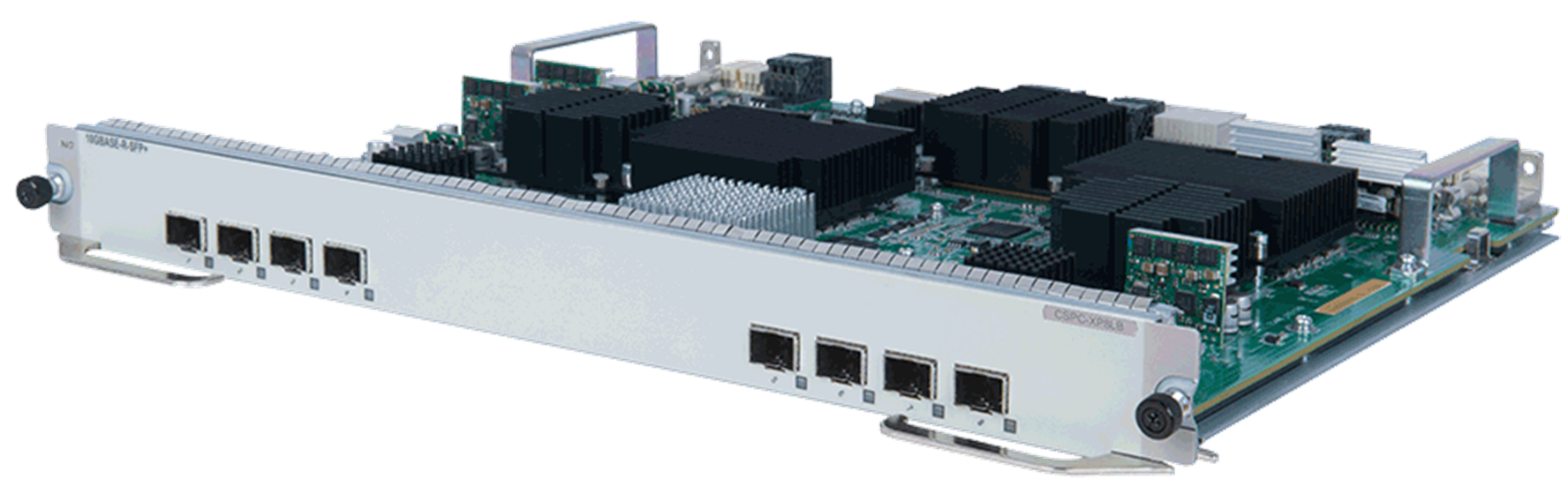

Figure 5 CSPC-XP8LB
Front panel

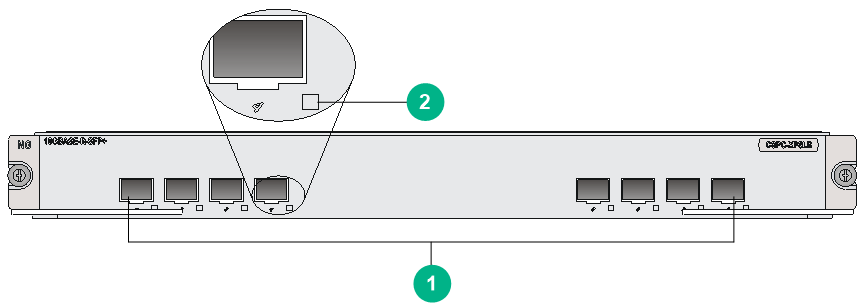

Figure 6 CSPC-XP8LB front panel
|
(1) 10GBASE-R-SFP+ fiber ports (8 in total) |
(2) SFP+ port status LEDs |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
117 W to 170 W |
|
Ports |
8 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
3.44 kg (7.58 lb) |
|
Applicable system software versions |
7121 or later |
CSPC-GP24XP2LB

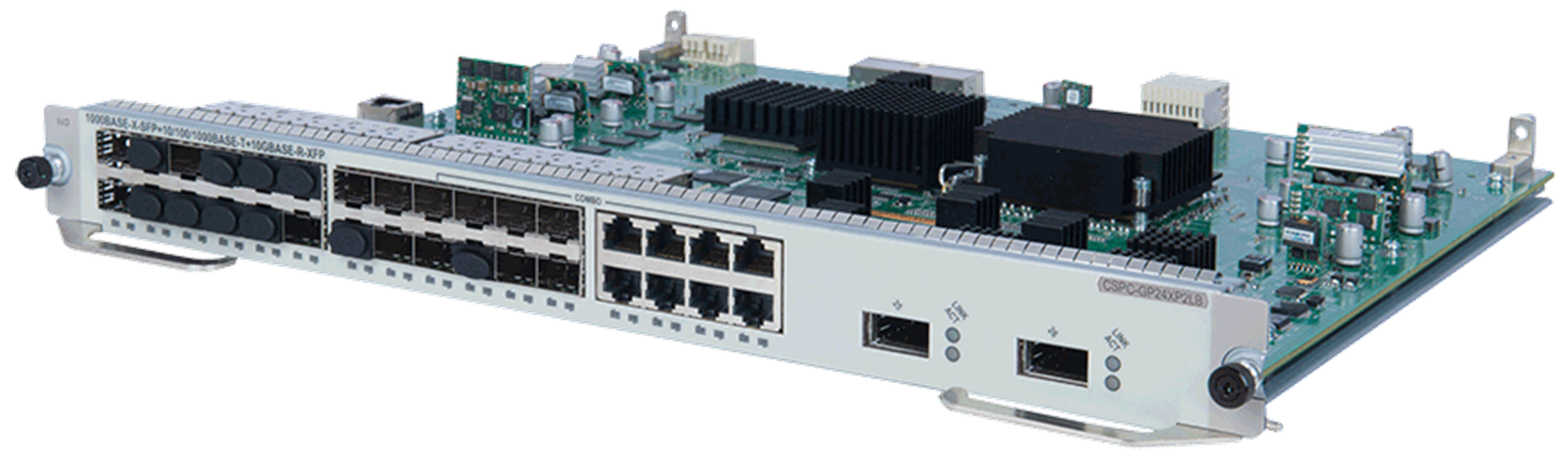

Figure 7 CSPC-GP24XP2LB
Front panel
Figure 8 CSPC-GP24XP2LB front panel
|
(1) 1000BASE-X-SFP fiber ports (16 in total) |
(2) Combo ports (8 in total) |
|
(3) 10GBASE-R-XFP fiber ports (2 in total) |
(4) SFP port status LED |
|
(5) RJ-45 Ethernet port status LED |
(6) XFP port status LED |
|
|
NOTE: · A combo interface is a logical interface that contains an SFP fiber port and a 1000BASE-T RJ-45 copper port. Only one port can be activated at a time. You can activate the SFP fiber port or the RJ-45 copper port at the CLI. By default, the RJ-45 copper port is activated. · Use a category 5 or above twisted pair cable to connect a 1000BASE-T RJ-45 copper port. The maximum transmission distance is 100 m (328.08 ft). |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
51 W to 100 W |
|
Ports |
· 16 × 1000BASE-X-SFP fiber ports · 8 × combo interfaces · 2 × 10GBASE-R-XFP fiber ports |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-X-SFP fiber port: ¡ 100 Mbps ¡ 1000 Mbps ¡ 10/100/1000 Mbps · 10/100/1000BASE-T copper port: 10/100/1000 Mbps (half/full duplex) · 10GBASE-R-XFP fiber port: 10 Gbps |
|
Net weight |
3.08 kg (6.79 lb) |
|
Applicable system software versions |
7121 or later |
CSPC-GP24GE8XP2L-E

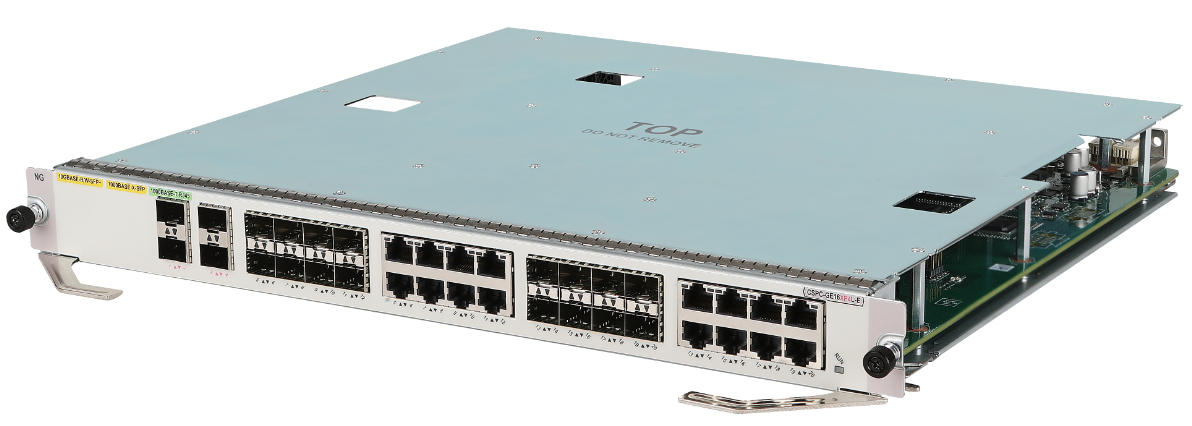

Figure 9 CSPC-GP24GE8XP2L-E
Front panel

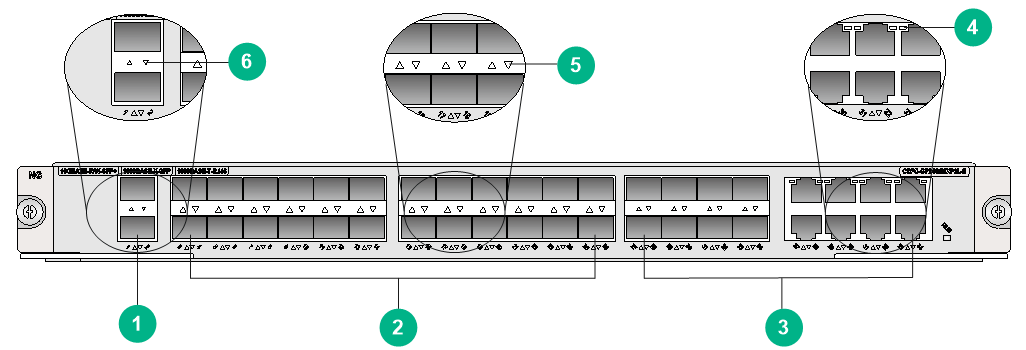

Figure 10 CSPC-GP24GE8XP2L-E front panel
|
(1) 10GBASE-R-SFP+ fiber ports (2 in total, support for 10GE SFP+ transceiver modules) |
|
|
(2) 1000BASE-X-SFP fiber ports (24 in total, support for GE SFP transceiver modules) |
|
|
(3) Combo interfaces (8 in total, the 1000BASE-X-SFP fiber ports support GE SFP transceiver modules) |
|
|
(4) RJ-45 Ethernet port status LED |
(5) SFP port status LED |
|
(6) SFP+ port status LED |
|
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
101 W to 145 W |
|
Ports |
· 24 × 1000BASE-X-SFP fiber ports · 8 × combo interfaces · 2 × 10GBASE-R/W-SFP+ fiber ports |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-X-SFP fiber port: ¡ 100 Mbps ¡ 1000 Mbps · 1000BASE-T-RJ45 copper port: 10/100/1000 Mbps (half/full duplex) · 10GBASE-R/W-SFP+ fiber port: 10 Gbps |
|
Net weight |
4.45 kg (9.81 lb) |
|
Applicable system software versions |
7907 or later |
CSPC-GE16XP4L-E
Figure 11 CSPC-GE16XP4L-E
Front panel

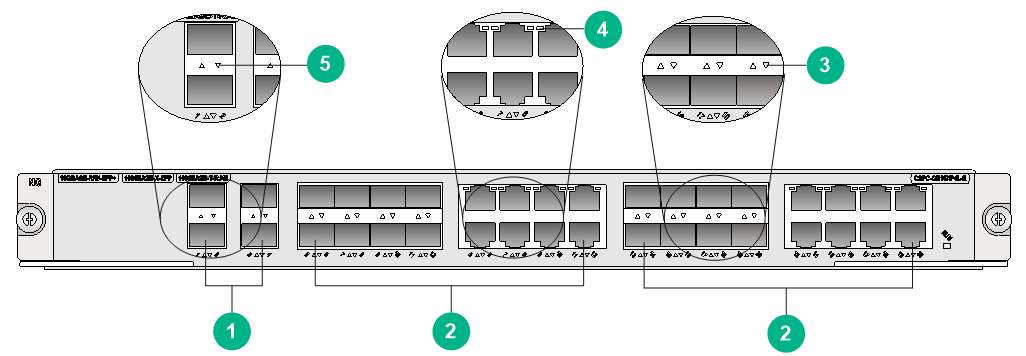

Figure 12 CSPC-GE16XP4L-E front panel
|
(1) 10GBASE-R-SFP+ fiber ports (4 in total, support for 10GE SFP+ transceiver modules) |
|
|
(2) Combo interfaces (16 in total, the 1000BASE-X-SFP fiber ports support GE SFP transceiver modules) |
|
|
(3) SFP port status LED |
(4) RJ-45 Ethernet port status LED |
|
(5) SFP+ port status LED |
|
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
107 W to 145 W |
|
Ports |
· 16 × combo interfaces · 4 × 10GBASE-R/W-SFP+ fiber ports |
|
Connector type |
· LC · RJ-45 |
|
Port speed |
· 1000BASE-T-RJ45 copper port: 10/100/1000 Mbps (half/full duplex) · 1000BASE-X-SFP fiber port: ¡ 100 Mbps ¡ 1000 Mbps · 10GBASE-R/W-SFP+ fiber port: 10 Gbps |
|
Net weight |
4.35 kg (9.59 lb) |
|
Applicable system software versions |
7907 or later |
SPC-GP44XP4LA/SPC-GP44XP4LC
The SPC-GP44XP4LA and SPC-GP44XP4LC cards have the same appearance except for their marks. The following uses the SPC-GP44XP4LC as an example.

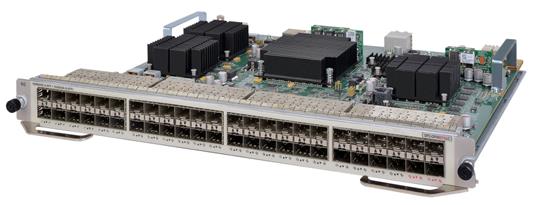

Figure 13 SPC-GP44XP4LC
Front panel

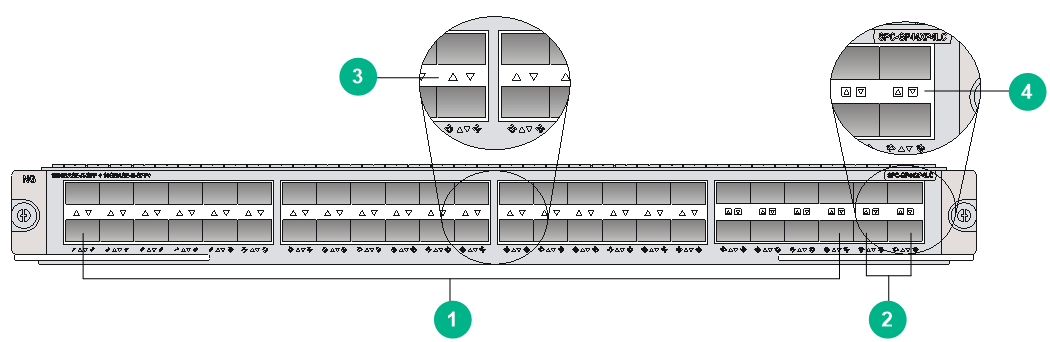

Figure 14 SPC-GP44XP4LC front panel
|
(1) 1000BASE-X-SFP fiber port (44 in total) |
(2) 10GBASE-R-SFP+ fiber ports (4 in total) |
|
(3) SFP port status LED |
(4) SFP+ port status LEDs |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
· SPC-GP44XP4LA: 83 W to 150 W · SPC-GP44XP4LC: 90 W to 150 W |
|
Ports |
· 44 × 40GBASE-R-QSFP+ fiber ports · 4 × 10GBASE-R-SFP+ fiber ports |
|
Connector type |
· LC |
|
Port speed |
· 1000BASE-X-SFP fiber port: ¡ 100 Mbps ¡ 1000 Mbps ¡ 10/100/1000 Mbps · 10GBASE-R-SFP+ fiber port: 10 Gbps |
|
Net weight |
· SPC-GP44XP4LA: 3.55 kg (7.83 lb) · SPC-GP44XP4LC: 3.6 kg (7.94 lb) |
|
Applicable system software versions |
7140P51 or later |
SPC-XLP2XP4LC

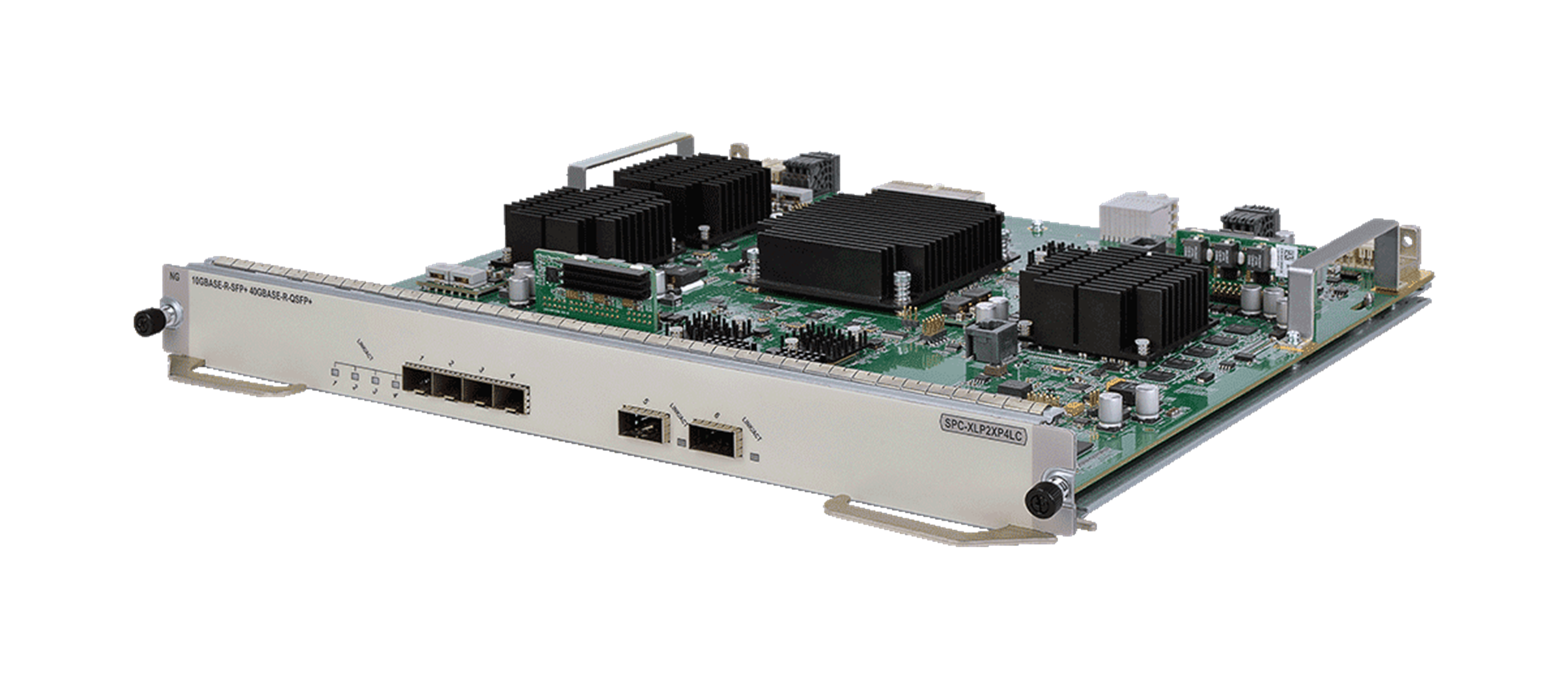

Figure 15 SPC-XLP2XP4LC
Front panel

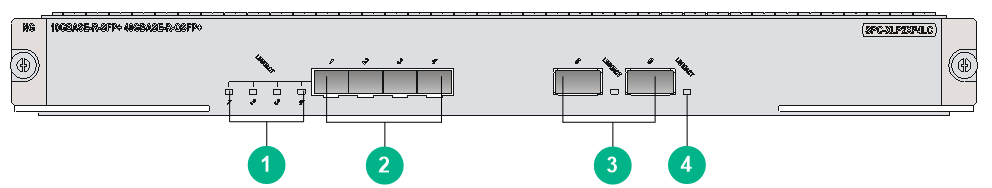

Figure 16 SPC-XLP2XP4LC front panel
|
(1) SFP+ port status LEDs |
(2) 10GBASE-R-SFP+ fiber ports (4 in total) |
|
(3) 40GBASE-R-QSFP+ ports (2 in total) |
(4) QSFP+ port status LEDs |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
91 W to 150 W |
|
Ports |
· 2 × 40GBASE-R-QSFP+ fiber ports · 4 × 10GBASE-R-SFP+ fiber ports |
|
Connector type |
· LC · MPO |
|
Port speed |
· 40GBASE-R-QSFP+ fiber port: 40 Gbps · 10GBASE-R-SFP+ fiber port: 10 Gbps |
|
Net weight |
3.2 kg (7.05 lb) |
|
Applicable system software versions |
7140P51 or later |
SPC-XP12LC

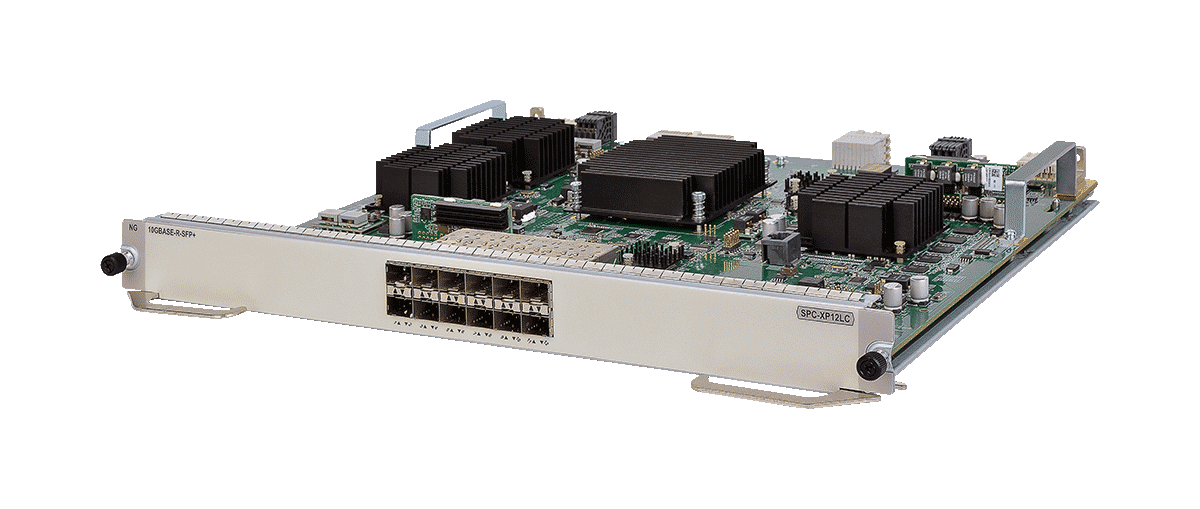

Figure 17 SPC-XP12LC
Front panel

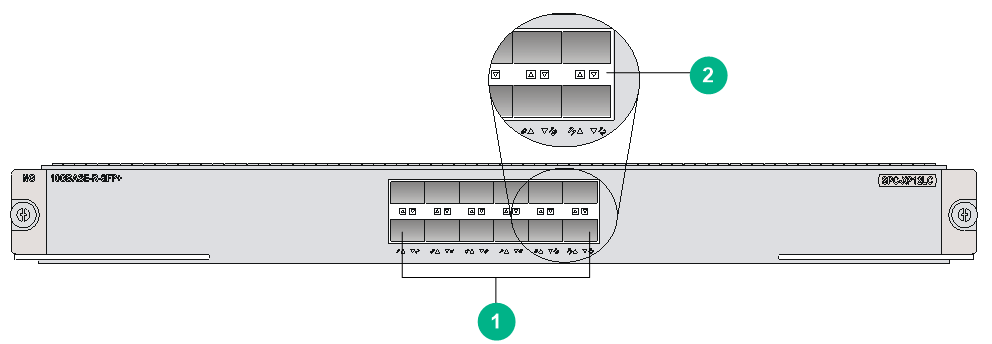

Figure 18 SPC-XP12LC front panel
|
(1) 10GBASE-R-SFP+ fiber ports (12 in total) |
(2) SFP+ port status LEDs |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
91 W to 146 W |
|
Ports |
12 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
3.3 kg (7.28 lb) |
|
Applicable system software versions |
7140P51 or later |
SPC-XP24LC

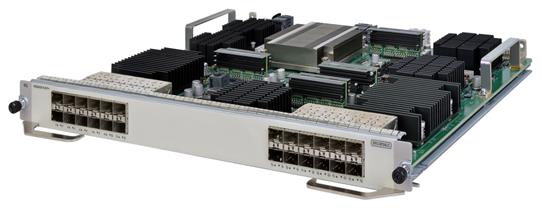

Figure 19 SPC-XP24LC
Front panel

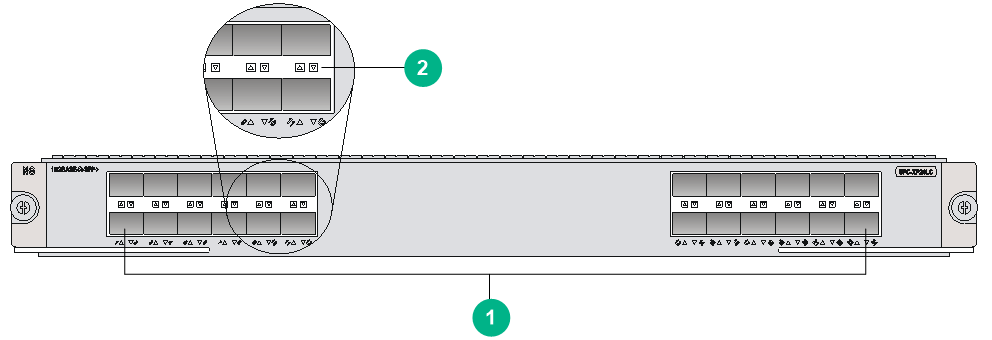

Figure 20 SPC-XP24LC front panel
|
(1) 10GBASE-R-SFP+ fiber ports (24 in total) |
(2) SFP+ port status LEDs |
Technical specifications
|
Item |
Specifications |
|
Dimensions (H × W × D) |
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in) |
|
Power consumption |
174 W to 250 W |
|
Ports |
24 |
|
Connector type |
LC |
|
Port speed |
10 Gbps |
|
Net weight |
4.2 kg (9.26 lb) |
|
Applicable system software versions |
7140P51 or later |
LEDs
Table 2 RJ-45 Ethernet port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Table 3 SFP port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Table 4 SFP+ port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Table 5 XFP port status LED description
|
LINK LED status |
ACT LED status |
Description |
|
Steady on |
Flashing |
The port is receiving or transmitting data. |
|
Steady on |
Off |
A link is present. |
|
Off |
Off |
No link is present. |
Table 6 QSFP+ port status LED description
|
Status |
Description |
|
Flashing |
The port is receiving or transmitting data. |
|
On |
A link is present. |
|
Off |
No link is present. |
Environment requirements
Make sure the ambient environment meets the following requirements:
· Temperature and humidity requirements
Table 7 Temperature and humidity requirements
|
Item |
Specifications |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
|
Operating humidity |
10% RH to 95% RH, non-condensing |
|
Storage humidity |
5% RH to 95% RH, non-condensing |
· Dust protection requirements
Table 8 Dust concentration limits in the equipment room
|
Substance |
Particle diameter |
Concentration limit |
|
Dust particles |
≥ 0.5 µm |
≤ 1.8 × 107 particles/m3 |
· Corrosive gas protection requirements
Table 9 Corrosive gas concentration limits in the equipment room
|
Gas |
Average concentration (mg/m3) |
Maximum concentration (mg/m3) |
|
SO2 |
0.3 |
1.0 |
|
H2S |
0.1 |
0.5 |
|
Cl2 |
0.1 |
0.3 |
|
HCI |
0.1 |
0.5 |
|
HF |
0.01 |
0.03 |
|
NH3 |
1.0 |
3.0 |
|
O3 |
0.05 |
0.1 |
|
NOX |
0.5 |
1.0 |
