H3C SecPath vFW[vLB] Products Installation and Startup Guide

















































Copyright © 2024 New H3C Technologies Co., Ltd. All rights reserved.

No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.

Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.

The information in this document is subject to change without notice.




Contents

About H3C NFV1000· 1

Installing H3C NFV1000 on a VM·· 1

Installation environment 1

Hardware environment 1

Software environment 1

Installing H3C NFV1000 on VMware ESXi 2

Installing vFW1000 from an ISO file· 2

Installing vFW1000 via PXE· 7

Installing vFW1000 via unattended PXE· 9

Installing vFW1000 from an OVA file· 10

Installing vFW1000 from an OVA file by using the auto-deploy tool 13

Installing H3C NFV1000 on Linux KVM·· 18

Installing vFW1000 from an ISO file· 18

Installing vFW1000 via PXE· 25

Installing vFW1000 via unattended PXE· 32

Installing H3C NFV1000 on H3C CAS· 38

Installing vFW1000 from an ISO file· 38

Deploying H3C NFV1000· 47

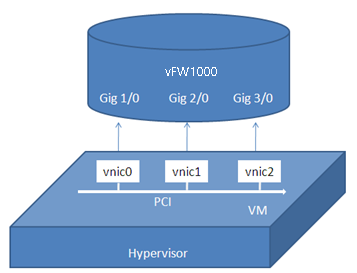

vFW1000 interface and vNIC mappings· 47

Adding or deleting a vFW1000 interface· 48

vSwitch interface or host physical interface mappings· 48

Mappings on KVM·· 50

Upgrading H3C NFV1000· 1

About startup software images· 1

Upgrade methods· 1

Upgrade from the CLI 1

Preparing for the upgrade· 1

Upgrading vFW1000 startup images through TFTP· 2

Upgrading vFW1000 startup images through FTP· 4

Restarting the vFW·· 7

Upgrade from an ISO file· 7

The upgrade procedure is the same as installing vFW1000 from the ISO file. For more information, see "Installing H3C NFV1000 on VMware ESXi 8

", "Installing H3C NFV1000 on Linux " or "Installing H3C NFV1000 on H3C CAS." 8

Restoring H3C NFV1000· 1

The restoration procedure is the same as the installation procedure. For more information, see "Installing H3C NFV1000 on VMware ESXi 1

", "Installing H3C NFV1000 on Linux " or "Installing H3C NFV1000 on H3C CAS." 1

Appendix A  Installing Linux KVM·· 1

About Linux KVM·· 1

Restrictions and guidelines· 1

Prerequisites· 1

Procedure· 1

Configuring network parameters· 13

Disabling the SELinux service· 15

Configuring Linux bridges on KVM·· 16

Appendix B  OVS bridge· 1

Configuring OVS bridges· 1

Configuring the MTU for an OVS NIC· 4

Deleting an OVS bridge· 4

Appendix C  Loading Intel 82599 VFs· 1

Restrictions and guidelines· 1

Configuration from the BIOS· 1

Configuration from the hypervisor 2

Loading Intel 82599 VFs from VMware ESXi 2

Configuring KVM·· 6

Loading Intel 82599 VFs from CAS· 11

Appendix D  Setting up a PXE server 16

Setting up a PXE server in CentOS· 16

Installing and configuring DHCP· 16

Installing and configuring TFTP· 17

Installing and configuring HTTP· 18

Installing and configuring NFS· 18

Shutting down the firewall 19

Installing and configuring Syslinux· 19

Setting up the PEX server in Ubuntu· 20

Installing and configuring DHCP· 21

Installing and configuring TFTP· 22

Installing and configuring HTTP· 22

Installing and configuring NFS· 23

Configuring the server 23




About H3C NFV1000

The Network Functions Virtualization (NFV) technology replaces network hardware devices with standardized VMs and enables separation of the network service plane from the dedicated hardware. H3C NFV products are developed based on Comware 7 and deliver the same functionalities and use experience as physical devices.

H3C NFV products include H3C NFV 1000 series. H3C NFV1000 series includes H3C SecPath vFW1000 series, H3C SecPath T5000 vIPS series, and H3C SecPath vLB1000 series.

H3C NFV1000 products are installed on standard servers.




Installing H3C NFV1000 on a VM

H3C NFV1000 is installed and runs on a VM of a server and can be installed on multiple hypervisors The installation procedure is the same for H3C NFV1000 products. This section uses vFW1000 as an example.

Installation environment

Hardware environment

Table 1 describes the minimum hardware configuration requirements for a VM to host H3C NFV1000.

Table 1 Minimum hardware configuration requirements for a VM to host H3C NFV1000

Item

Minimum requirement

Processor

1 vCPU

Memory

·     1 × vCPU (clock speed ≥ 2.0 GHz): 2 GB or above

·     4 × vCPUs (clock speed ≥ 2.0 GHz): 4 GB or above

·     8 × vCPUs (clock speed ≥ 2.0 GHz): 8 GB or above

Hard disk

1 × vHD, 8 GB

NIC

2 to 16 vNICs

vNIC

·     E1000 (VMware ESXi, Linux KVM)

·     VMXNET3 (VMware ESXi)

·     VirtIO (Linux KVM, H3C CAS)

·     InterI 82599 VF (VMware ESXi, Linux KVM)



Software environment

Table 2 describes the software environment requirements for installing H3C NFV1000.

Table 2 Software environment requirements for installing H3C NFV1000

Hypervisor

Version

VMware ESXi

VMware ESXi 4.1, 5.0, 5.1, 5.5

Linux KVM

Linux kernel 2.6.25 or higher

Recommended Linux distributions:

·     CentOS 7

·     Ubuntu 12.10

·     RedHat Enterprise Linux (RHEL) 6.3

·     Suse Server 11SP2

H3C CAS

H3C CAS 2.0 or later



The hypervisor versions provided in Table 2 are only for your reference. For the compatible hypervisor versions, see the release notes.

Multiple Linux distributions can be used for Linux KVM installation. This document installs CentOS 7 as an example to describe KVM installation in "Appendix A  Installing Linux KVM."

For information about installing other hypervisors, see the document for the hypervisors.

Installing H3C NFV1000 on VMware ESXi

The installation procedures on VMware ESXi are the same for H3C NFV1000 products. H The following information describes the installation procedures by using H3C vFW1000 as an example.

On VMware ESXi, you can install H3C vFW1000 by using one of the following five methods as needed:

·     Installing vFW1000 from an ISO file

·     Installing vFW1000

·     Installing vFW1000 via unattended PXE

·     Installing vFW1000

·     Installing vFW1000 from an OVA file by using the auto-deploy tool

Installing vFW1000 from an ISO file

Creating a VM

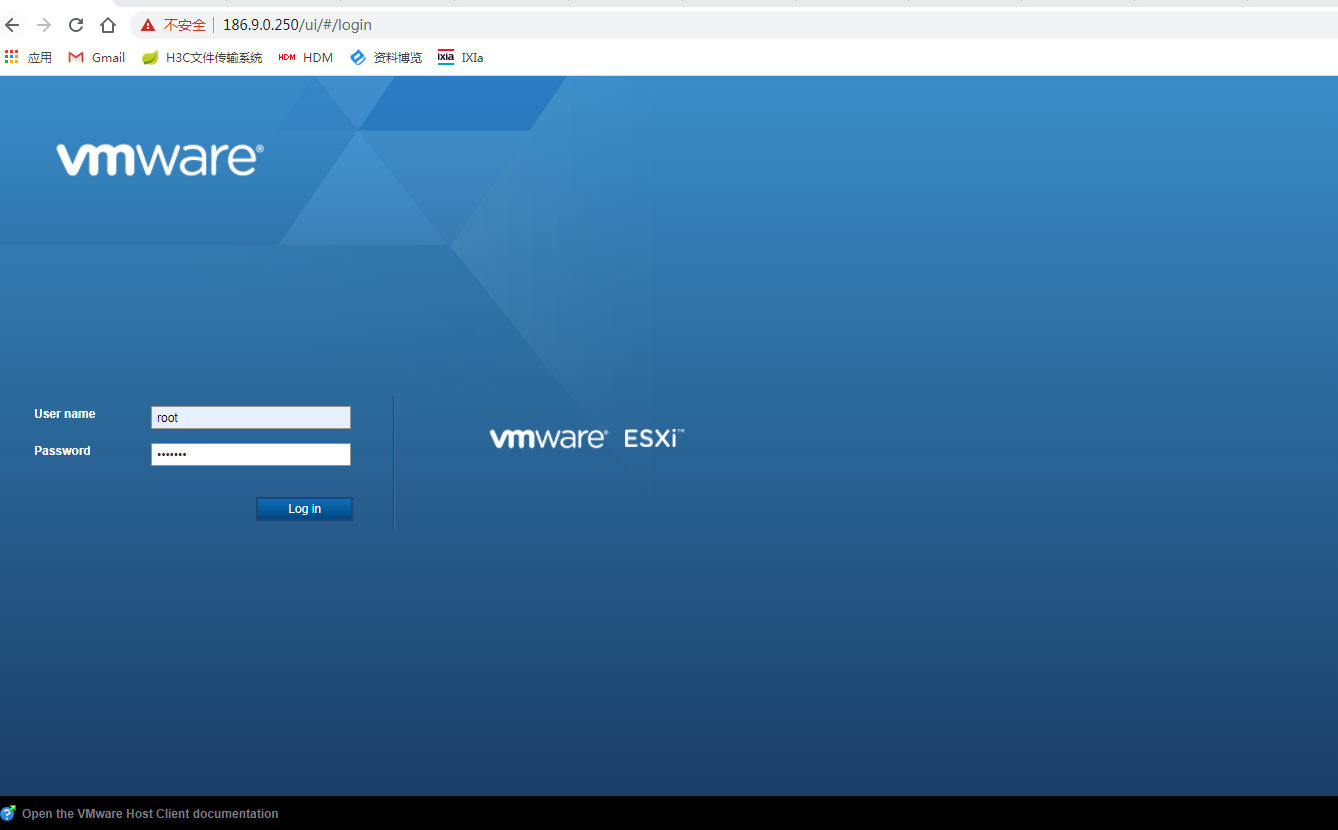

1.     Open VMware vSphere Client, and enter the VMware ESXi address. On the VMware ESXi login page, enter the username and password, and then click Log in.

Figure 1 Logging in to VMware ESXi



To obtain the username and password for logging in to VMware ESXi, contact the server administrator.

A security certificate warning might be displayed during the login process, just ignore it.

2.     The VMware ESXi page as shown in Figure 2 is displayed after a successful login.

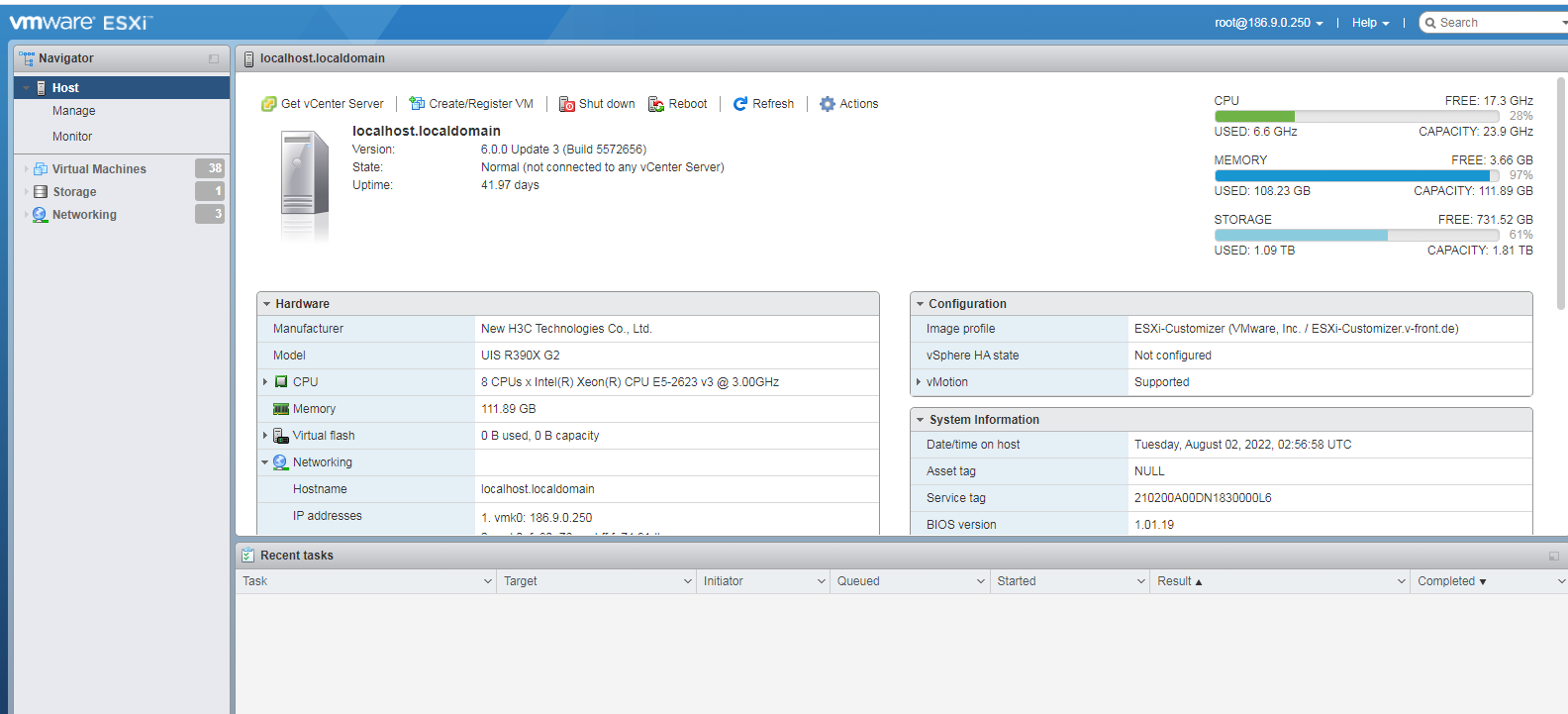

Figure 2 VMware ESXi page



3.     Click the Create/Register VM tab.

The New virtual machine wizard opens.

4.     As shown in Figure 3, select Create a new virtual machine, and then click Next.

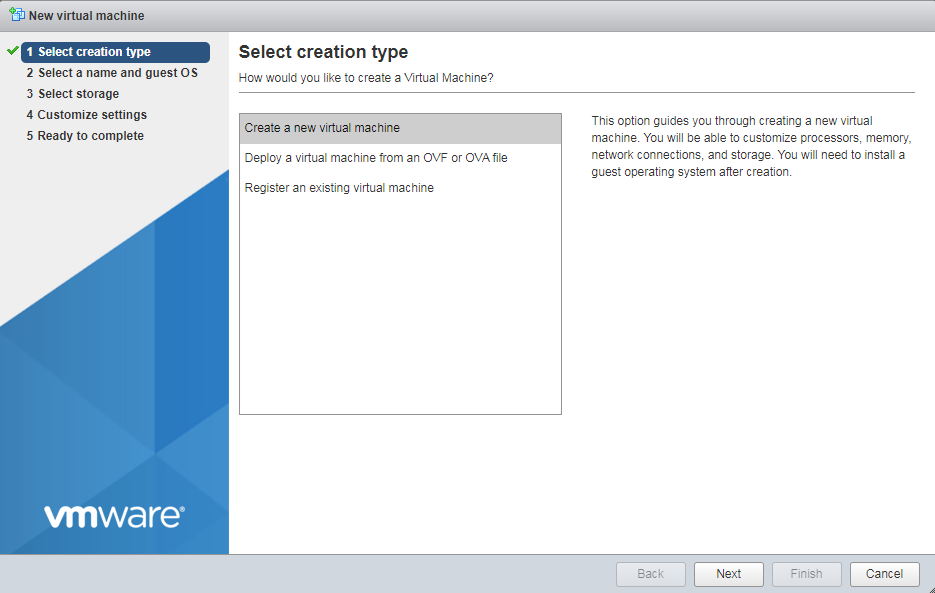

Figure 3 Selecting a creation type

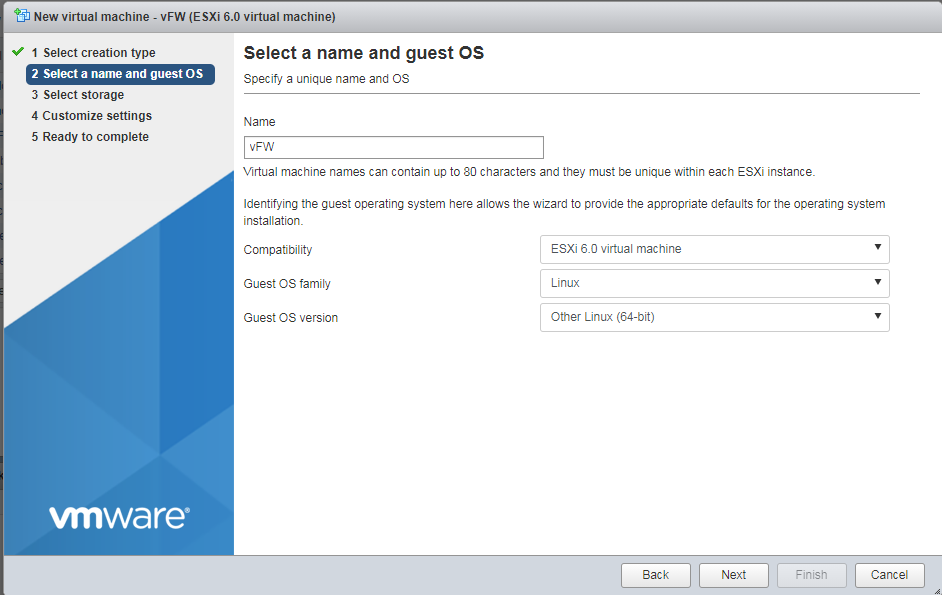

5.     Specify a name for the VM and configure the guest operating system, and then click Next.

Figure 4 Entering a name for the VM

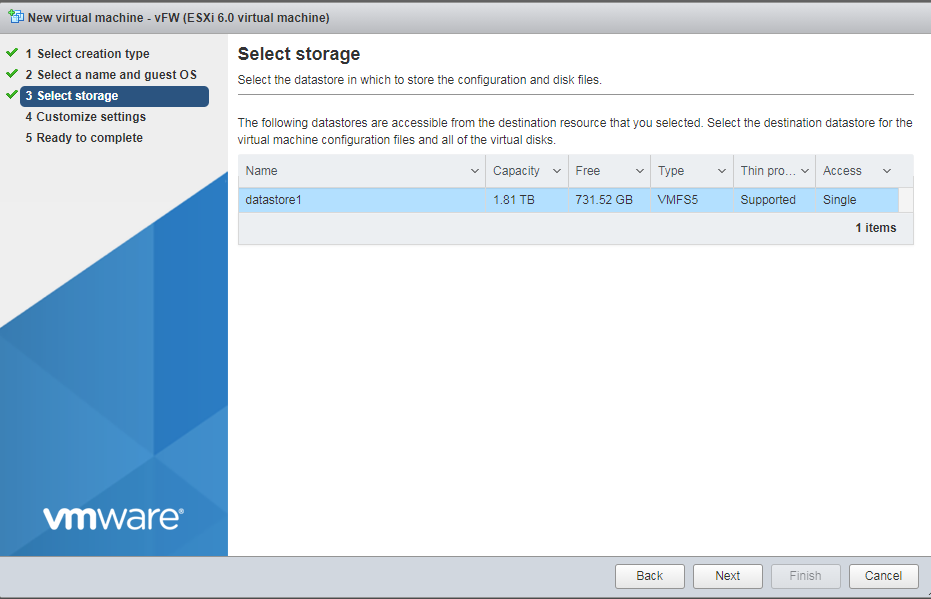

6.     Select the destination storage for the VM files, and then click Next.

Figure 5 Selecting the destination storage for the VM files

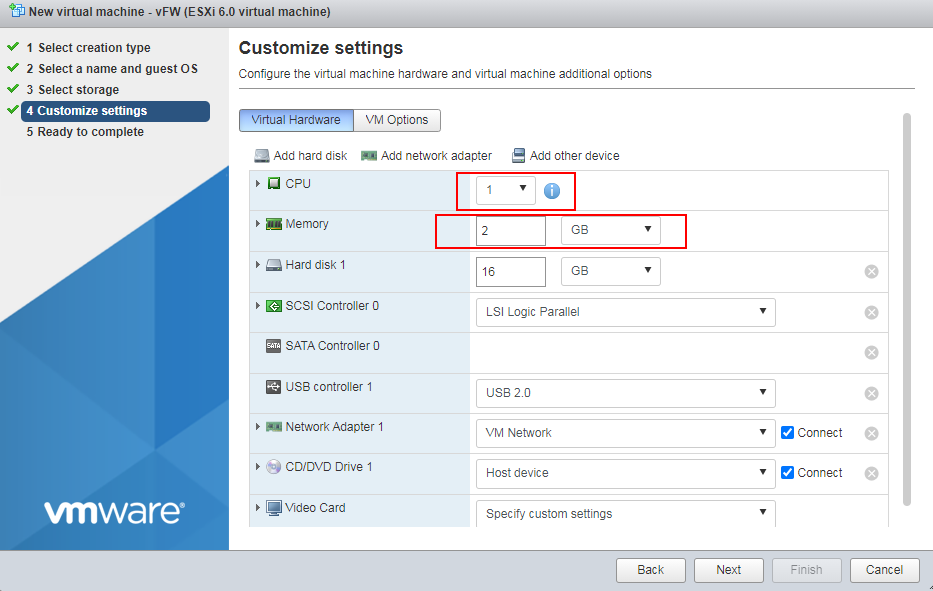

7.     Specify the CPU quantity for the VM, and then click Next.

Assign a minimum of 1 vCPU (2.0 GHz or higher) to the VM. For multiple CPU cores, for example, 4 cores, the 2*2 setting equals to 1*4 setting.

Figure 6 Specifying the CPU quantity for the VM



8.     Set the memory capacity for the VM, and then click Next.

Assign a minimum of 1GB memory to the VM.

Figure 7 Setting the memory capacity for the VM



9.     Specify the vNIC quantity and select the vNICs for the VM, and then click Next.

Assign 2 to 16 vNICs to the VM.

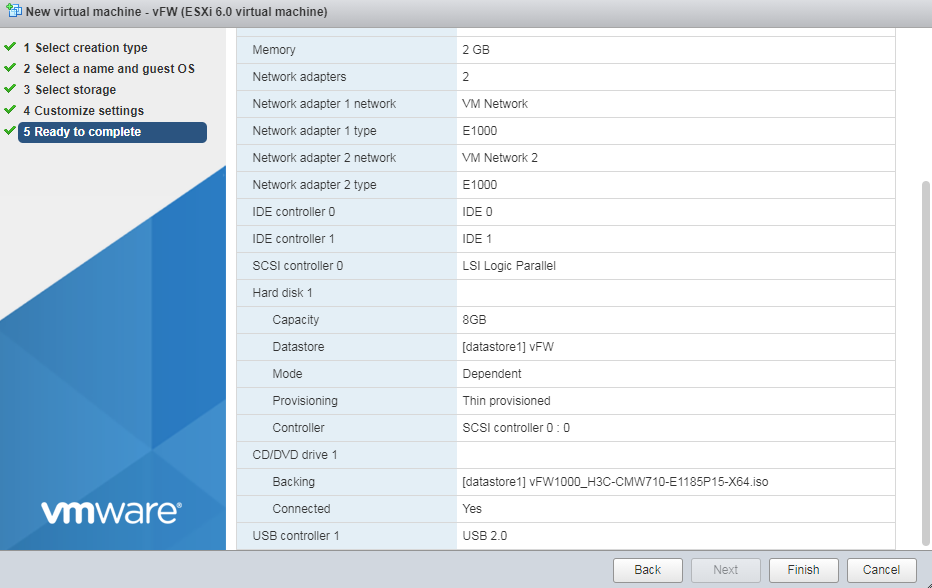

10.     As shown in Figure 8, click Finish. After the VM is created, it is displayed in the left device navigation pane.

Figure 8 Finishing VM creation



Installing vFW1000

a.     Select the newly created VM from the navigation pane and then click Power On. In the window that opens, select Yes.

b.     Select the Console tab and then click Web to start the VM console.

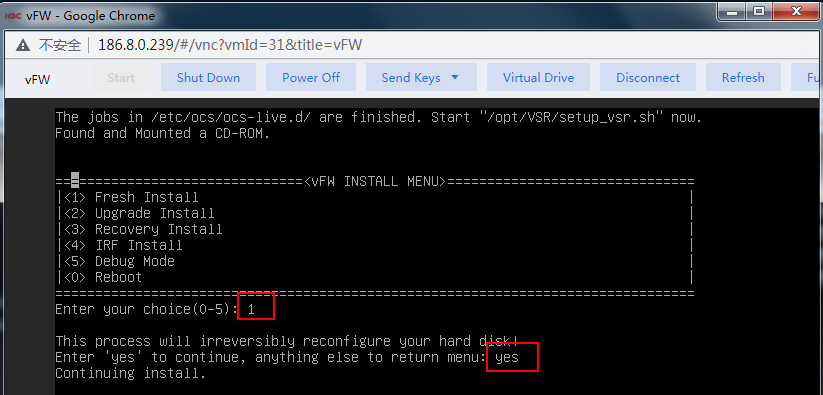

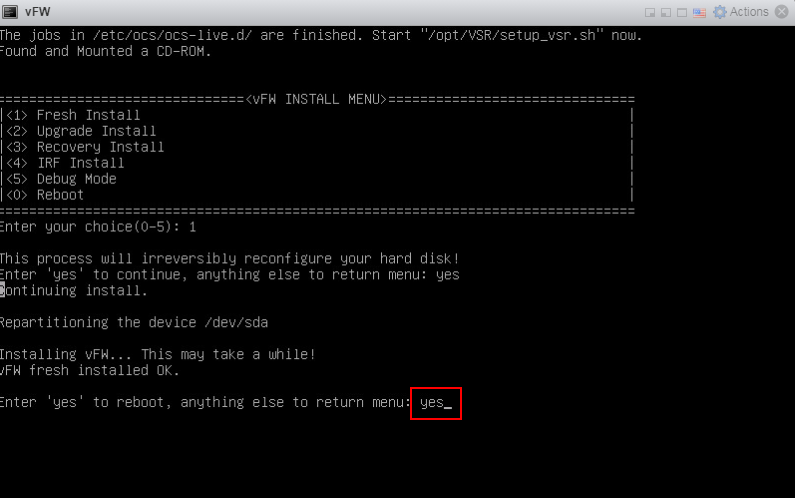

c.     The VM automatically loads and installs the ISO file. On the installation screen, enter 1 to select <1> Fresh Install, and then enter yes. The system will automatically complete installation.

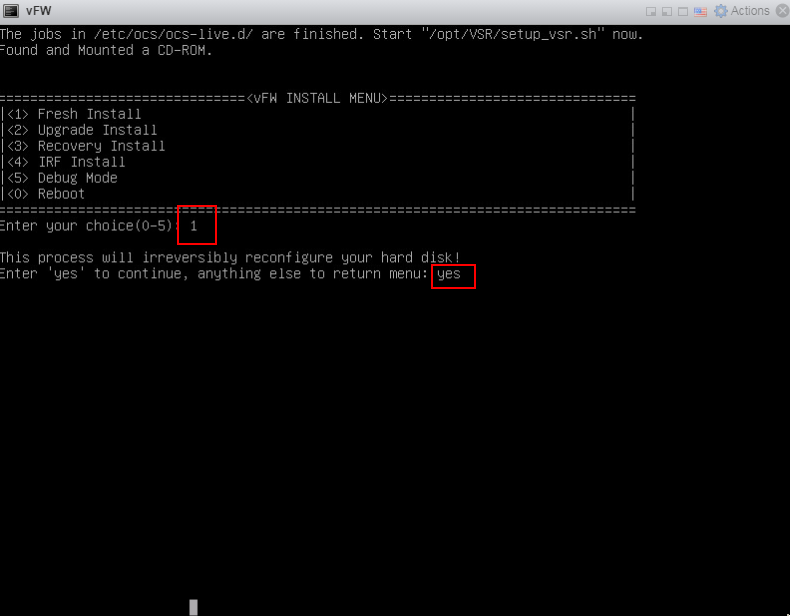

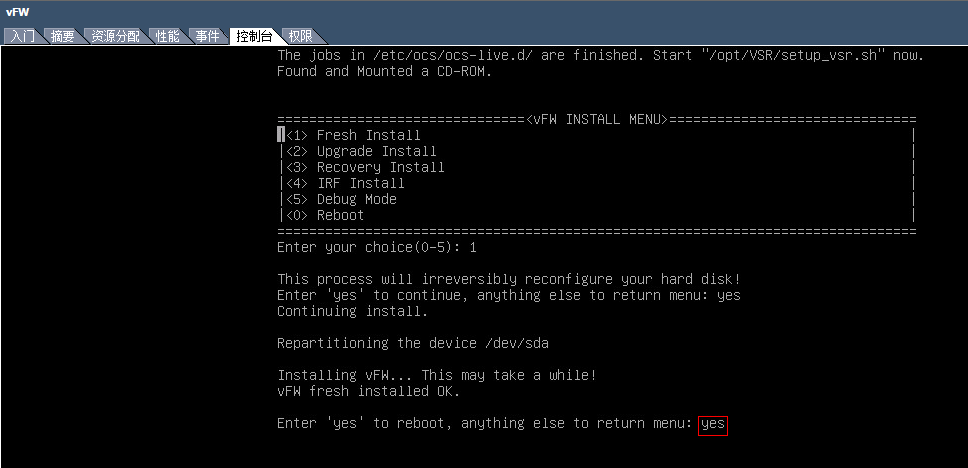

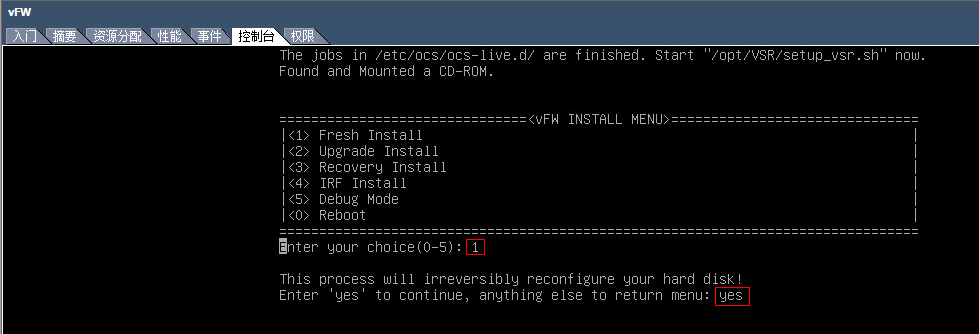

Figure 9 Starting installation



a.     Enter yes to reboot the system. In the next screen that opens, press Enter.

Figure 10 Completing vFW1000 installation



Installing vFW1000 via PXE

This section describes only the installation procedure on the PXE client side. For the PXE server setup procedure, see "Appendix D  Setting up a PXE server."

Creating a VM

For information about creating a VM, see "Creating a VM."

Configuring the VM to boot from the network

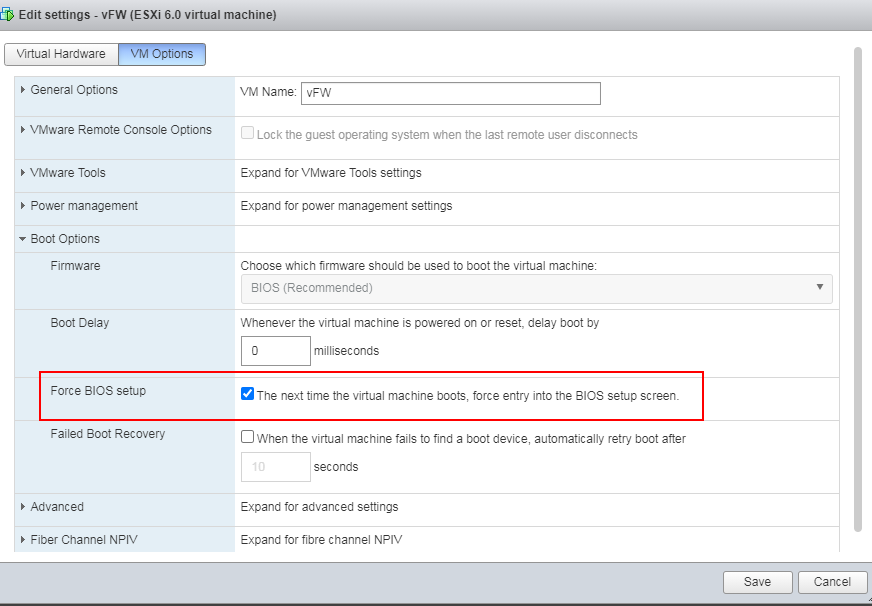

1.     Right click the newly created VM from the left device navigation pane  and select Edit VM Settings. As shown in Figure 11, click the VM Options tab, select Force BIOS Setup, and click Save.

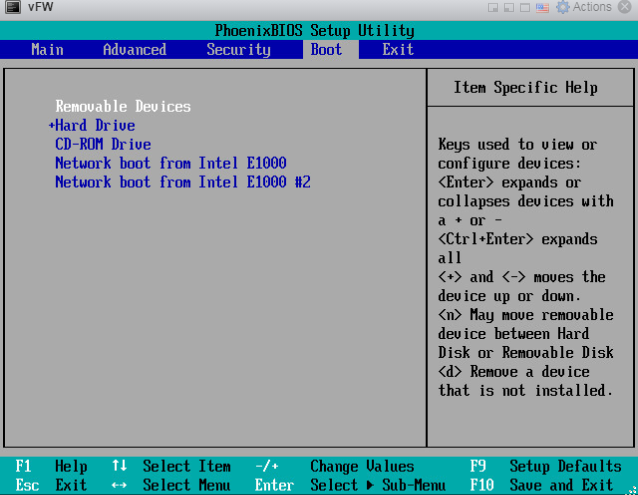

Figure 11 Selecting force BIOS setup



2.     Select the newly created VM from the device navigation pane and click  to start the VM. As shown in Figure 12, click the Boot tab from the console, select Network boot from xx as the second boot option, and then save and exit the console.

Figure 12 Selecting boot from a network interface as the second boot option



IMPORTANT

IMPORTANT:

Make sure the selected interface can reach the PXE server over a physical link.



Installing vFW1000

1.     The VM automatically loads the required files from the PXE server. On the installation screen, Enter 1 to select <1> Fresh Install, and then enter yes. The system will automatically complete the installation.

Figure 13 Selecting the installation method



2.     Enter yes to reboot the system to finish the installation of vFW1000.

Figure 14 Rebooting the system



Installing vFW1000 via unattended PXE

This section describes only the unattended installation procedure on the PXE client side. For information about setting up the PXE server, see "Appendix D  Setting up a PXE server."

When setting up the PXE server, change the value of the Syslinux parameter ocs_live_run to /opt/VFW/setup_vfw_pxe.sh unmanned fresh.

Creating a VM

For information about creating a VM, see "Creating a VM."

Configuring the VM to boot over the network

1.     Right click the newly created VM from the left device navigation pane and select Edit VM Settings. As shown in Figure 15, click the VM Options tab, select Force BIOS Setup, and click Save.

Figure 15 Selecting force BIOS setup



2.     Select the newly created VM from the device navigation pane and click  to start the VM. As shown in Figure 16, click the Boot tab from the console, select Network boot from xx as the second boot option, and then save and exit the console.

Figure 16 Selecting boot from a network interface as the second boot option



IMPORTANT

IMPORTANT:

Make sure the selected interface can reach the PXE server over a physical link.



Installing vFW1000

The VM automatically downloads the required files from the PXE server, and the system will complete the installation automatically.

Installing vFW1000 from an OVA file

The OVA template released for vFW1000 is created based on VMware VM version 8. This VM version is compatible with ESXi 5.0 and higher hosts. To install vFW1000 by using the OVA template, use a host running VMware ESXi 5.0 or higher.

Connecting to the VMware ESXi

Open VMware vSphere Client and connect to VMware ESXi. For more information, see "Creating a VM".

Installing vFW1000

1.     Click the Create/Register VM tab.

The New virtual machine wizard opens.

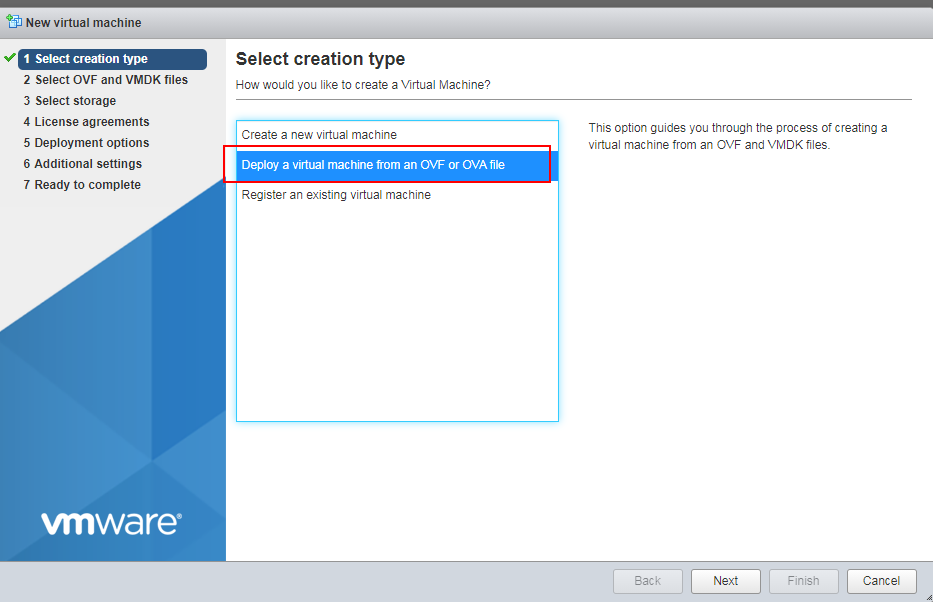

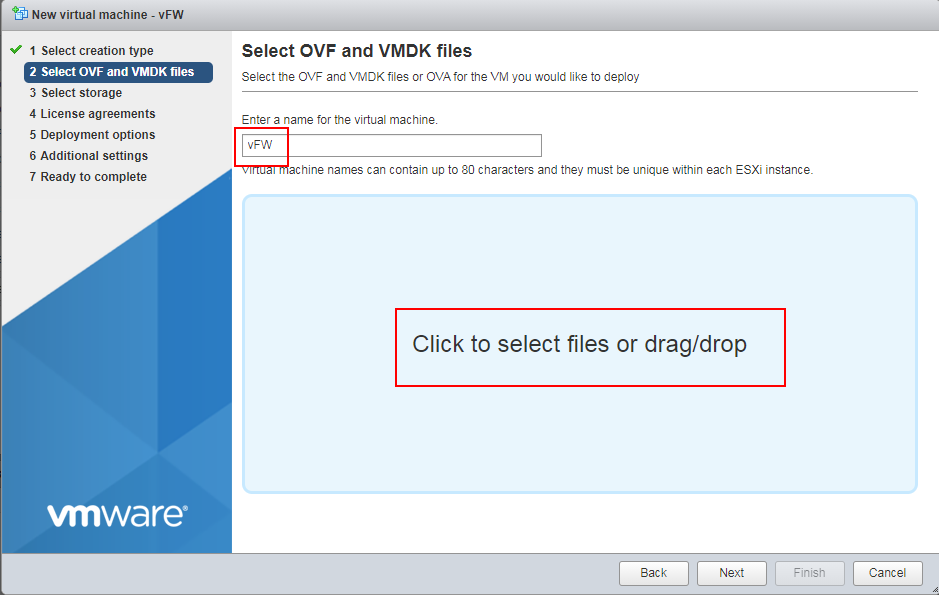

2.     As shown in Figure 3, select Deploy a virtual machine from an OVF or OVA file, and then click Next.

Figure 17 Selecting VM deployment from an OVA file



3.     Enter a name for the VM, select an OAV file, and then click Next.

Figure 18 Entering a name for the VM

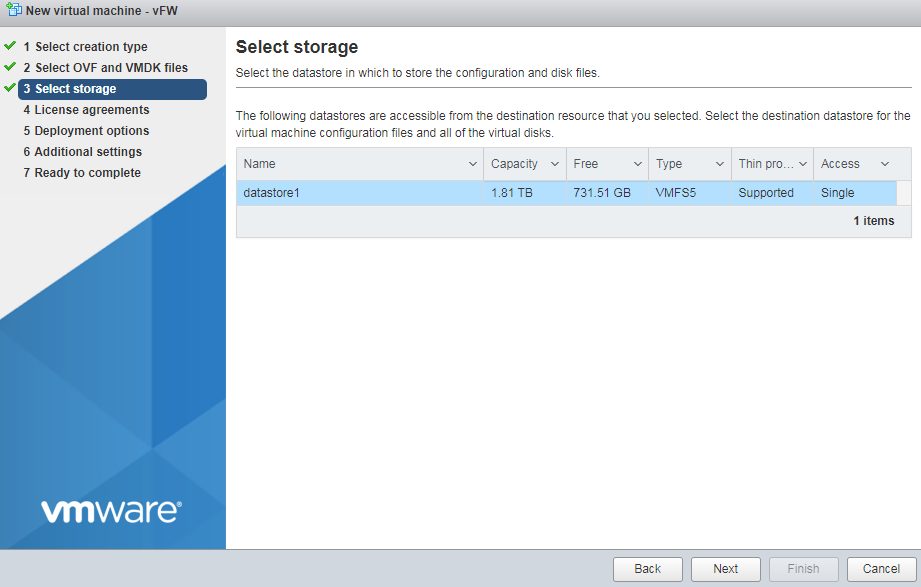

4.     Configure the destination storage for the VM, and then click Next.

Figure 19 Configuring the destination storage

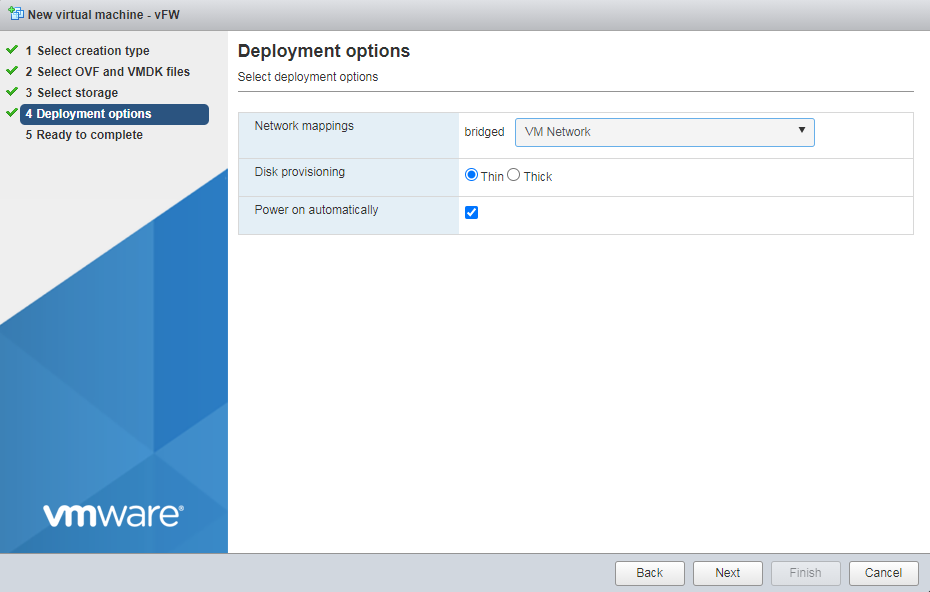

5.     Select the VM Network mapping option, and then click Next.

Figure 20 Selecting the VM network mapping option



6.     Click Finish to finish VM creation.

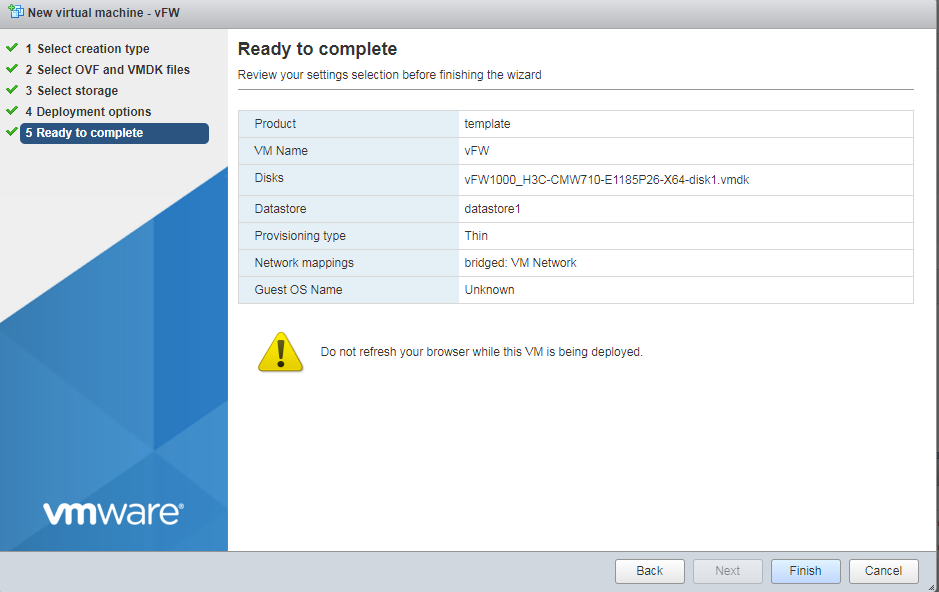

Figure 21 Finishing VM creation

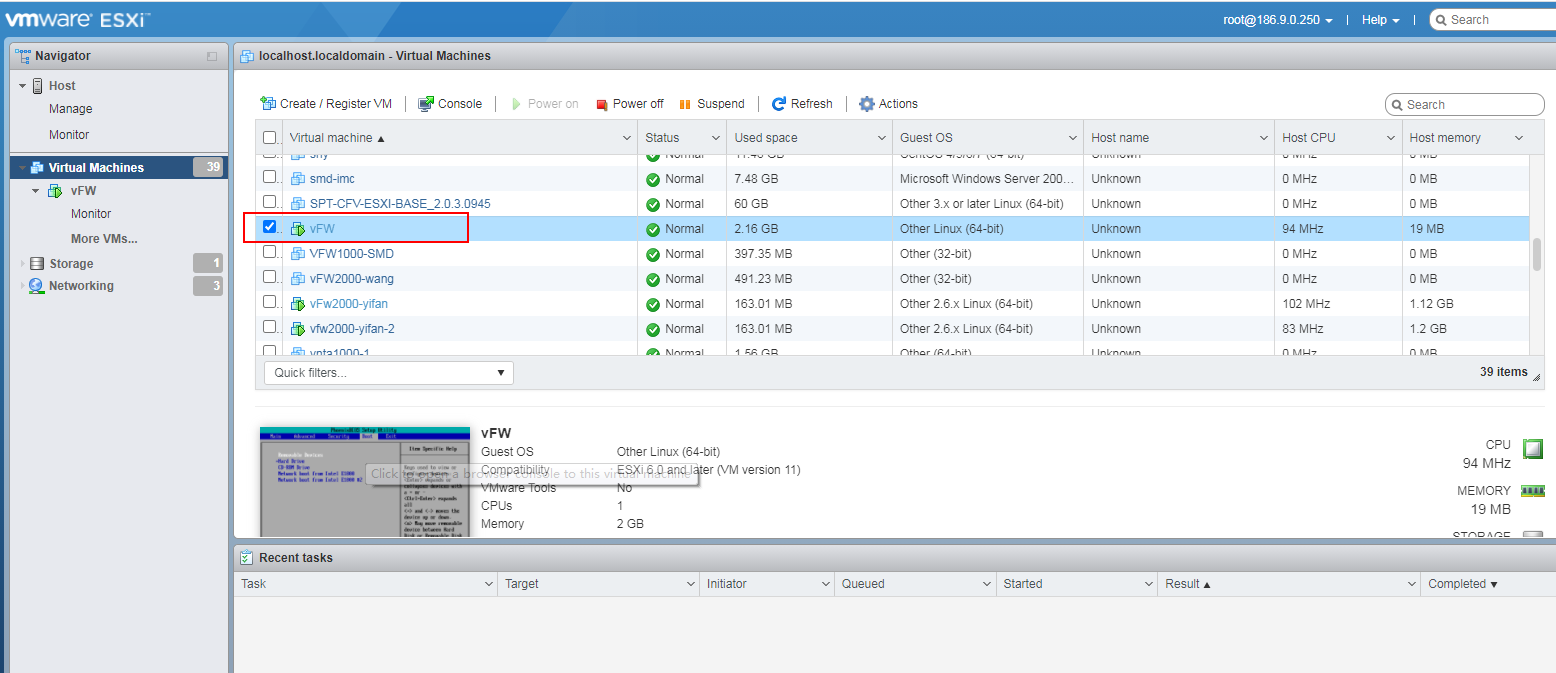

7.     After the VM is created, it is displayed in the left device navigation pane.

Installing vFW1000 from an OVA file by using the auto-deploy tool

Configuration procedure

Use the auto deployment tool vd_ deploy.sh to deploy vFW1000 OVA template to the target vCenter-managed server and configure basic settings for vFW1000.



IMPORTANT

IMPORTANT:

The auto-deploy tool vd_deploy.sh runs only in a Linux environment where OVFTOOL 3.01 or later is installed.





NOTE:

·     OVFTOOL can be downloaded at http://www.vmware.com/.

·     To obtain the username and password for logging in to vCenter, contact the server administrator.



To install vFW1000 from an OVA file by using the auto-deploy tool:

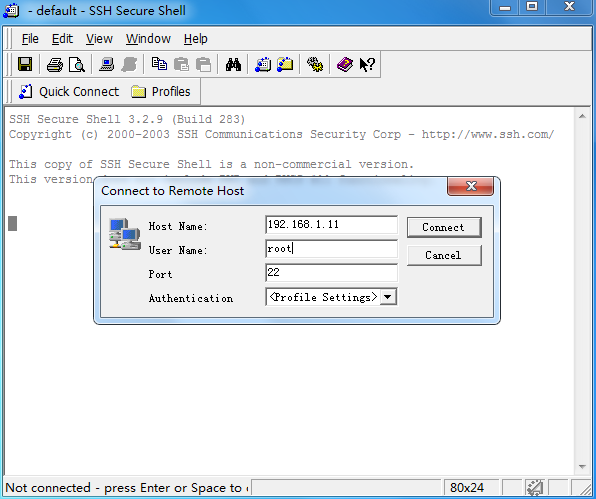

1.     Log in to the Linux server. In this example, the SSH login method is used.

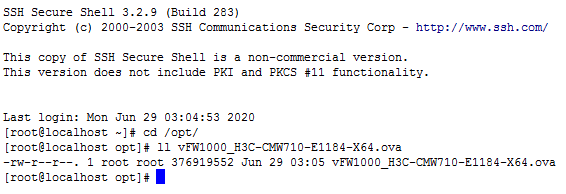

Figure 22 Logging in to the Linux server



# Access the /opt directory where the OAM template resides from the root directory.

Figure 23 Accessing the /opt directory



2.     Use the auto-deploy tool to configure the OVA template parameters as are needed (skip this step if there is no such requirements).

# Use the OVA template named vFW1000_H3C-CMW710-E1184-X64.ova in the current directory to create a new template with 4 CPUs, 2048MB memory, and 2 NICs, and save the template to the /opt/results directory.

[root@localhost opt]# ./vd_deploy.sh -s vFW1000_H3C-CMW710-E1184-X64.ova -o /opt/results -c 4 -m 2048 -ns 2

Generating OVF file with user params

------------------------------------



No ovftool found in your environment, please install 'ovftool' first



ovftool not available; unable to perform validity of OVF check. Continuing.



Generating Manifest

---------------------



Creating OVA package

--------------------



Copying OVA package to output directory

--------------------

'/opt/results/vFW1000_H3C-CMW710-E1184-X64.ova'



Success

3.     Use the auto-deploy tool to install vFW1000 from the OVA template and configure basic settings for vFW1000 as follows.

¡     vFW namevFW1000.

¡     Target hostServer 192.168.1.25 managed by vCenter at 192.168.1.26.

¡     vCenter login usernameroot.

¡     vCenter login passwordvmware.

¡     Destination databasedatastore1.

¡     Connected networkVM Network.

¡     Power supply status of vFW1000Enabled.

¡     IP address of vFW1000172.31.2.222/24.

¡     Default gateway of vFW1000172.31.2.254.

¡     vFW1000 login usernamevfw-user.

¡     vFW1000 login password123456.

¡     SSH statusEnabled.

[root@localhost opt]# ./vd_deploy.sh -s vFW1000_H3C-CMW710-E1184-X64.ova -n vFW -po -ov -d '192.168.1.26/Datacenter-1/host/192.168.1.25' -u root -pw vmware -ds datastore1 -nw 'VM Network' -ip '172.31.2.222/24' -gw '172.31.2.254' -lu 'vfw-user' -lpw '123456' -ssh

/usr/bin/ovftool found...

Generating OVF file with user params

------------------------------------



Validating OVF descriptor

----------------



Generating Manifest

---------------------



Creating OVA package

--------------------



Deploying OVA package to '192.168.1.26/Datacenter-1/host/192.168.1.25'

------------------------------------------

/usr/bin/ovftool --powerOffTarget --diskMode=thick --datastore=datastore1 --overwrite --powerOn --name=vFW vFW.ova vi://root:********@192.168.1.26/Datacenter-1/host/192.168.1.25

Opening OVA source: vFW.ova

The manifest validates

Accept SSL fingerprint (D1:FB:DC:C1:E0:41:89:22:6E:48:F8:D6:03:A7:8B:36:21:E1:55:CF) for host 192.168.1.26 as target type.

Fingerprint will be added to the known host file

Write 'yes' or 'no'

yes

Opening VI target: vi://[email protected]:443/Datacenter-1/host/192.168.1.25

Deploying to VI: vi://[email protected]:443/Datacenter-1/host/192.168.1.25

Transfer Completed

Powering on VM: vFW

Completed successfully



Success

# A vFW named vFW1000 is deployed on server 192.168.1.25.

Figure 24 vFW1000 deployed



Configuration options

Table 3 describes all configuration options with the auto-deploy tool vd_deploy.sh.





NOTE:

No configuration sequence exists between the options.



Table 3 Configuration options

Configuration option

Format

Description

Remarks

Virtual device configuration options (vFW1000 basic settings)

-sn | -sysname

<string>

Enters the sysname, which must be a string of 1 to 64 characters.

vFW1000 system name.

-ip | -ip_address

<address/mask>

Enters the IPv4 address/mask for the first interface, such as '10.1.1.100 255.255.255.0' or '10.1.1.100/24'. You can also specify the string 'dhcp' to use DHCP.

vFW1000 IP address.

-gw | -gateway

<address>

Enters the default IPv4 gateway, such as '1.1.1.1'.

vFW1000 gateway address.

-lu | -login_username

<string>

Enters the login username, which should be a string of 1 to 55 characters, not include \, |, /, :, *, ?, <, >, @, and must not be a, al, all. It must be paired with login_password option.

vFW1000 login username.

-lpw | -login_password

<string>

Enters the login password, which should be a string of 1 to 63 characters. It must be paired with login_username option.

vFW1000 login password.

-ssh

N/A.

If set, enables SSH. This requires that the login_username and login_password also be set.

Enable SSH.

-telnet

N/A.

If set, enables Telnet. This requires that the login_username and login_password also be set.

Enable Telnet.

-netconf_http

N/A.

If set, enables NETCONF over HTTP. This requires that the login_username and login_password also be set.

Enable NETCONF over HTTP.

-netconf_https

N/A.

If set, enables NETCONF over HTTPS. This requires that the login_username and login_password also be set.

Enable NETCONF over HTTPS.

-snmpv2

N/A.

If set, enables SNMPv2. This requires that the ead_community and write_community also be set.

Enable SNMPv2.

-rc | -read_community

<string>

Enters the SNMPv2 read-only access community name, which should be a string of 1 to 32 characters.

SNMPv2 read-only community name.

-wc | -write_community

<string>

Enters the SNMPv2 read and write access community name, which should be a string of 1 to 32 characters.

SNMPv2 read-write community name.

Help

-h | -help

-

Display this help and exit

Displays help information.

Input/output options

-s | -sourcefile

<file>

The OVA file used to deploy the virtual device.

Original OVA template path.

-o | -output

<directory>

Enters the destination output directory of the customized OVA file. If you don't specify the output directory, the file will be deleted after deployed.

Path to save the customized OVA path.

-n | -name

<string>

Enters the VM name which will be deployed. If you don't specify the name, then the source OVA filename will be used.

vFW1000 name or OVA template name.

Virtual Machine Hardware Options

-c | -cpus

<number>

Enters the number of vCPU.

vCPU quantity.

-m | -memory

<MB>

Enters the amount of memory. Minimum size of memory is 1024 MB.

Memory capacity.

-ns | -nics

<number>

Enters the number of vNIC.

vNIC quantity.

-nt | -nic_type

<string>

Enters the vNIC type. Valid values are: E1000 VMXNET3

vNIC type.

-nw | -network

<string>

Enters the network label for all vNICs, or a comma-separated list of one name per vNIC. The network label must exist on the ESXi host.

vNIC settings.

ESXi/vSphere Deploy Options

-d | -deploy

<URL>

Deploys the OVA to the specified ESXi host.

Destination to install vFW1000.

-u | -username

<string>

Enters the ESXi login username.

vCenter username.

-pw | -password

<string>

Enters the ESXi login password.

vCenter password.

-ds | -datastore

<string>

Enters the name of the datastore where the OVA will be deployed. The datastore should exist on the ESXi host.

Destination datastore for vFW1000.

-ov | -overwrite

N/A

Enters the instruction to overwrite an existing VM with the same name.

Overwrites the vFW of the same name.

-po | -poweron

N/A

Enters the instruction to automatically power-on the VM.

Enable startup after installation.



Installing H3C NFV1000 on Linux KVM

The installation procedure on Linux KVM is the same for H3C NFV1000 products. This section uses vFW1000 as an example.

Installing vFW1000 from an ISO file

Prerequisites

The installation requires Virtual Machine Manager, graphic management software optional for Linux OSs. Make sure you have enabled the graphic management interface and installed Virtual Machine Manager at Linux OS installation.

Creating a VM

1.     Run Virtual Machine Manager.

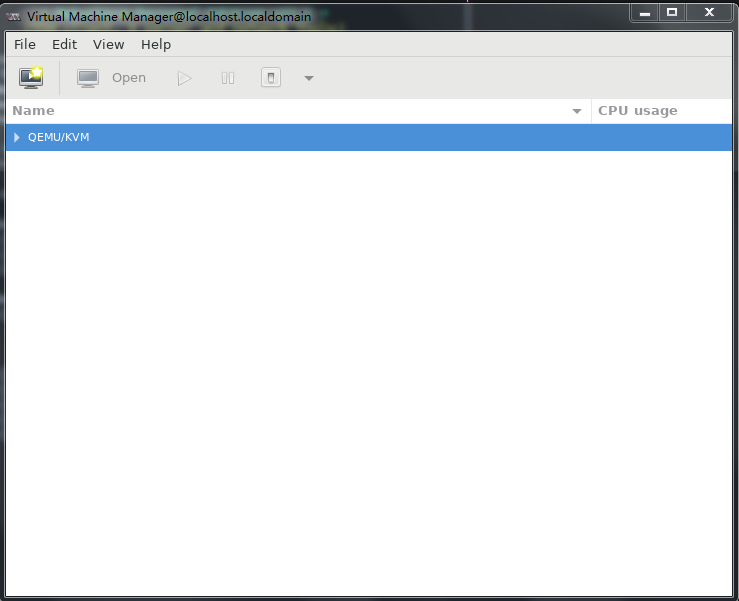

Figure 25 Virtual Machine Manager



2.     Click the  icon to create a VM.

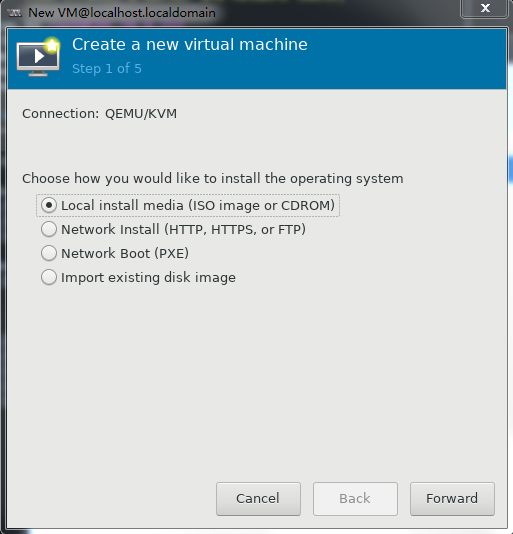

Specify a name for the VM and select Local install media (ISO image or CDROM), and then click Forward.

Figure 26 Creating a VM

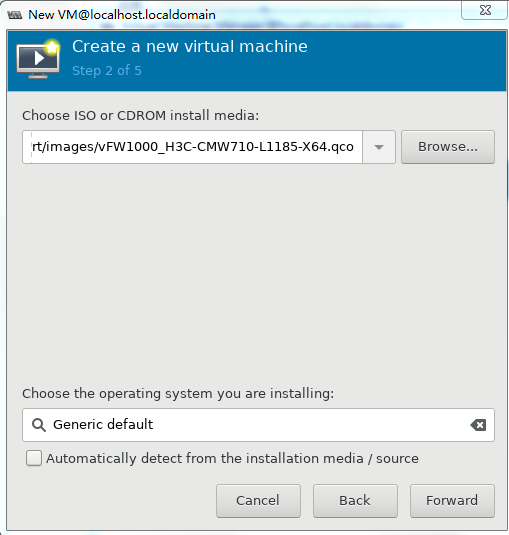

3.     As shown in Figure 27, click Browse, select the ISO file for installing vFW1000, and then click Forward.

Figure 27 Selecting the ISO file for installing vFW1000



4.     Set the memory capacity and CPU quantity for the VM, and then click Forward, as shown in Figure 28.

Specify a minimum of one vCPU (2.0 GHz or higher) and a minimum of 1 GB memory for the VM.

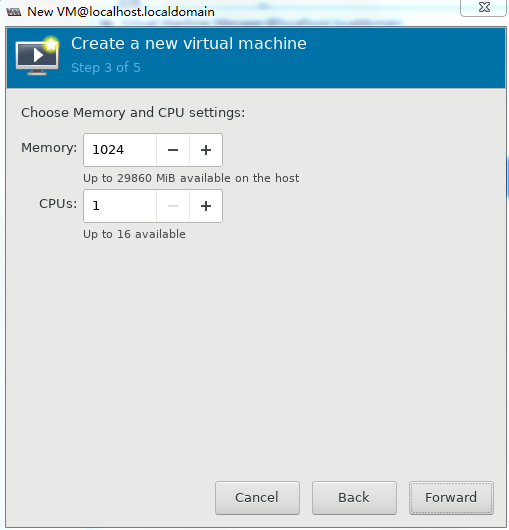

Figure 28 Specifying the vCPU quantity and memory capacity

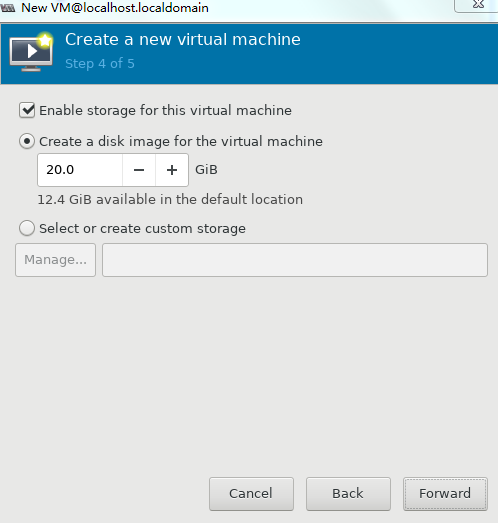

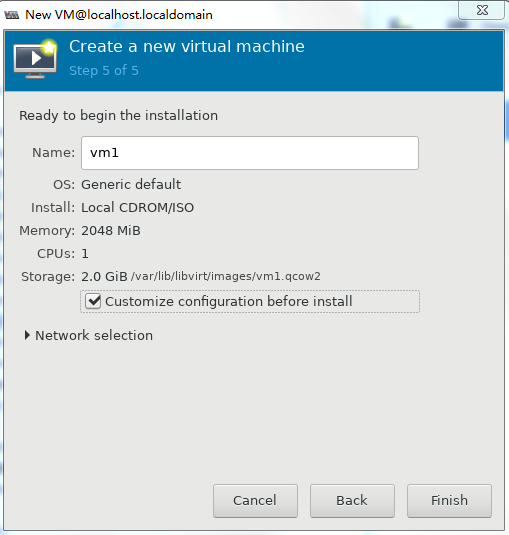

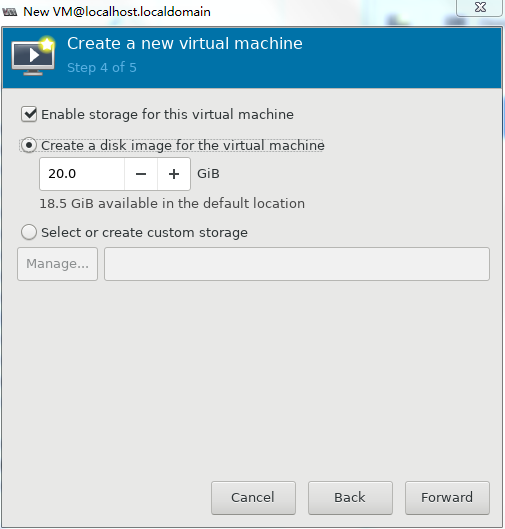

5.     Set the disk quantity and capacity for the VM and then click Forward, as shown in Figure 29.

Assign a minimum of one vHD and a minimum disk capacity of 8 GB to the VM.

Figure 29 Setting the disk quantity and capacity



6.     To configure other advanced options, select Customize configuration before install and then click Finish, as shown in Figure 30.

Figure 30 Configuring other advanced options



7.     If you select Customize configuration before install, the configuration customization page is displayed after you complete basic VM setting.

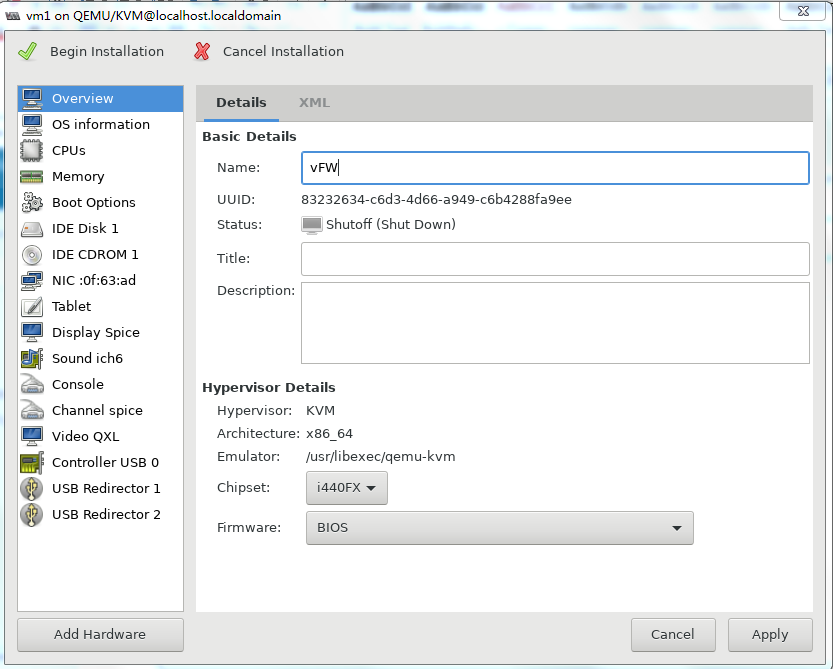

Figure 31 Configuration customization page



8.     Select IDE Disk 1 from the left pane, select IDE from the Bus type field, and then click Apply.

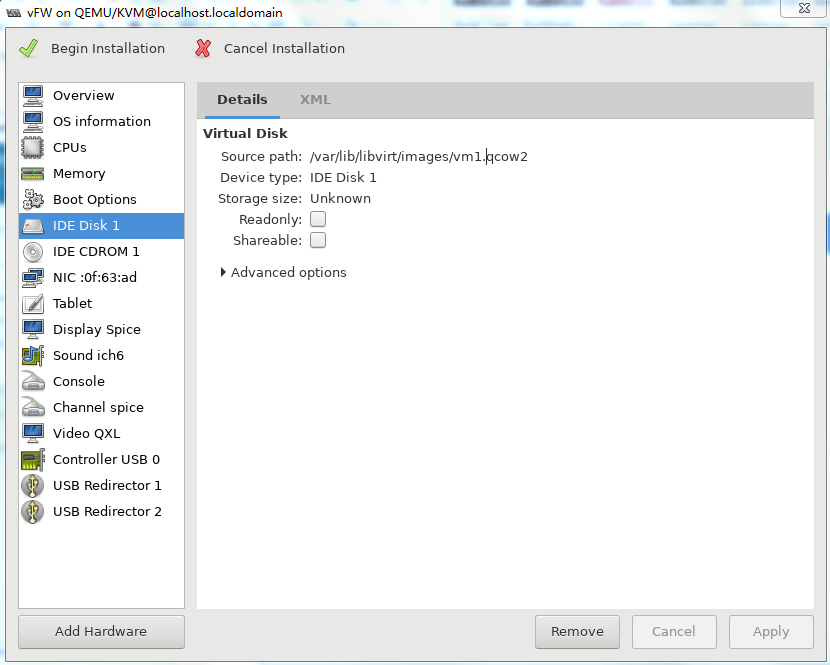

Figure 32 Specifying the disk bus type



9.     Select NIC from the left pane. Two NIC configuration methods as shown in Figure 33 and Figure 34 are available. As a best practice, configure the NIC by using method 2.

For information about creating a bridge, see "Configuring Linux bridges on KVM".

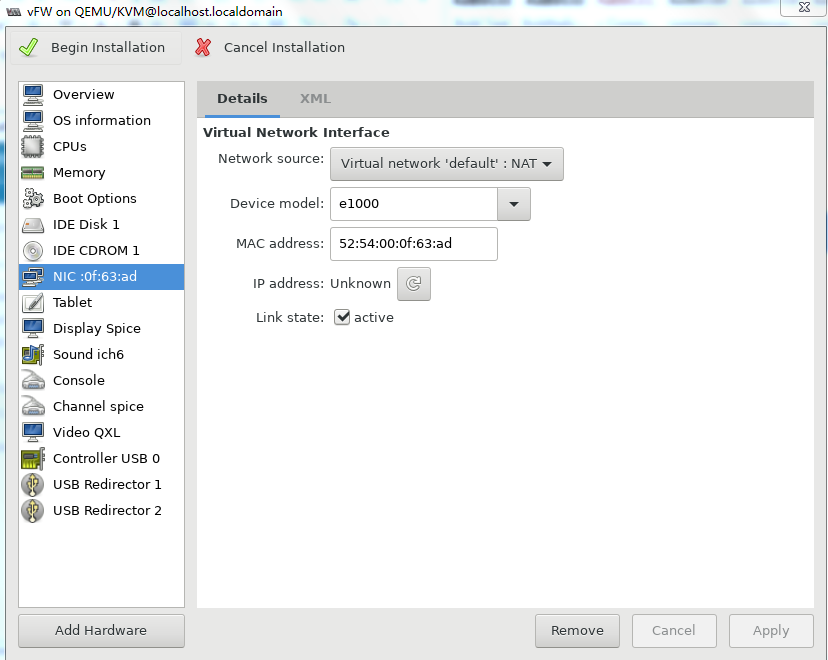

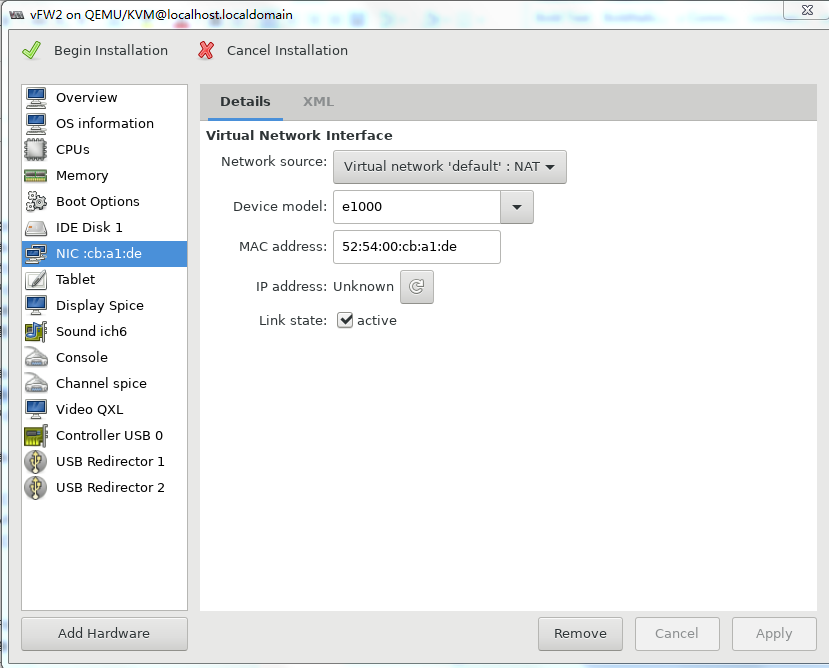

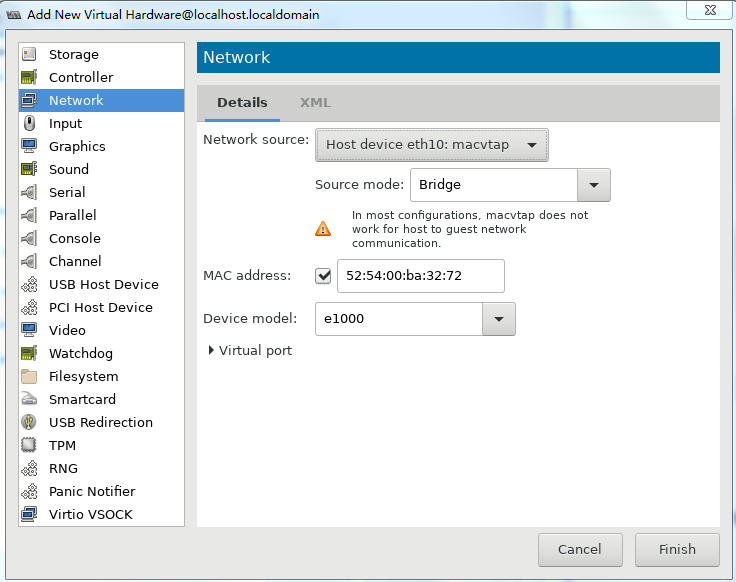

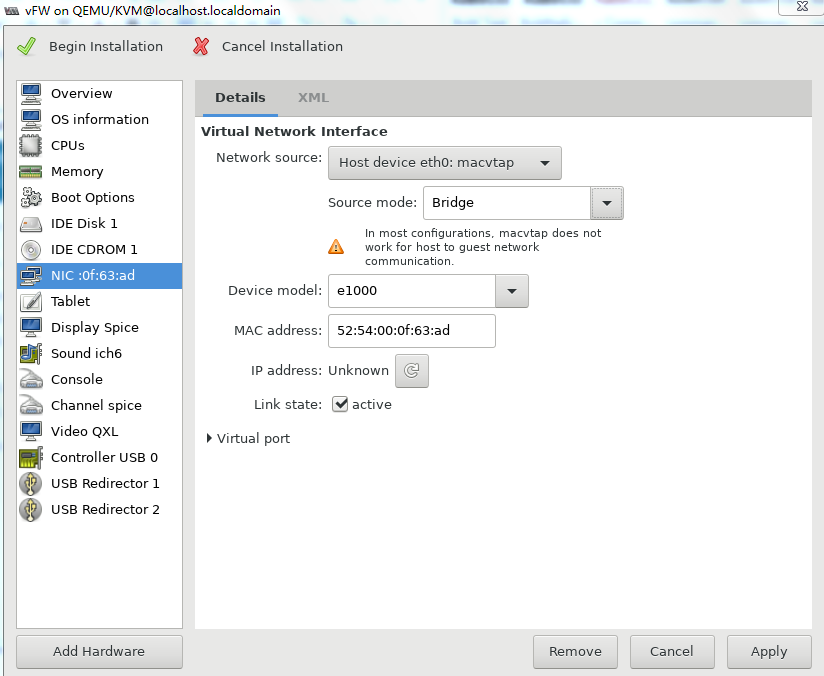

Figure 33 Configuring the virtual network interface (method 1)



Figure 34 Configuring the virtual network interface (method 2)



10.     Two NICs are required for vFW1000 to run correctly. However, the VM has only one NIC. To add a NIC, click Add Hardware in the lower left corner of the configuration customization page, select the new NIC, and then configure the NIC properties, as shown in Figure 35.

Figure 35 Adding a new NIC



11.     Click  to complete VM creation.

The VM will start up automatically and then start vFW1000 installation.

Installing vFW1000

1.     Enter 1 to select <1> Fresh Install, and then enter yes.

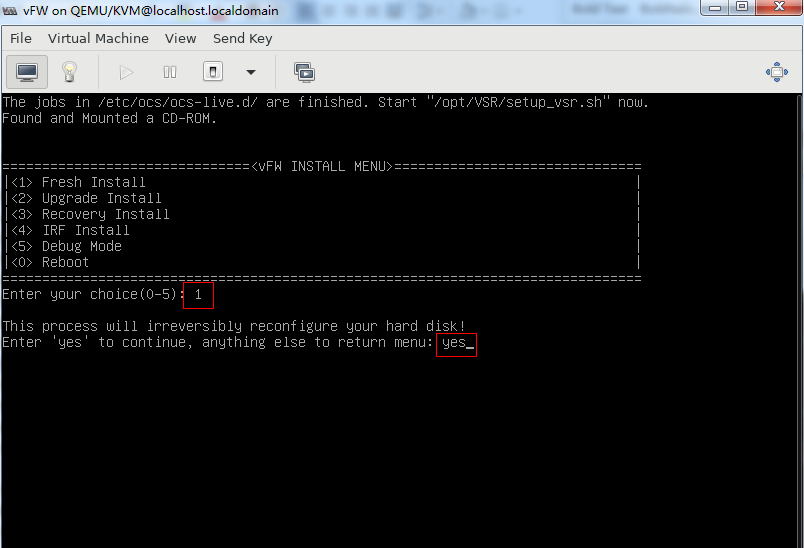

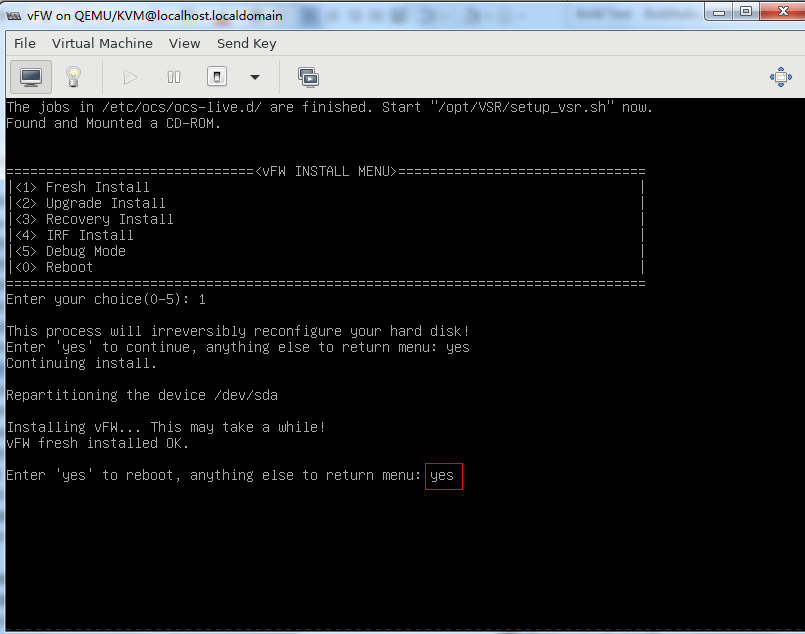

Figure 36 Selecting the installation method



2.     As shown in Figure 37, enter yes to restart the system to finish vFW1000 installation.

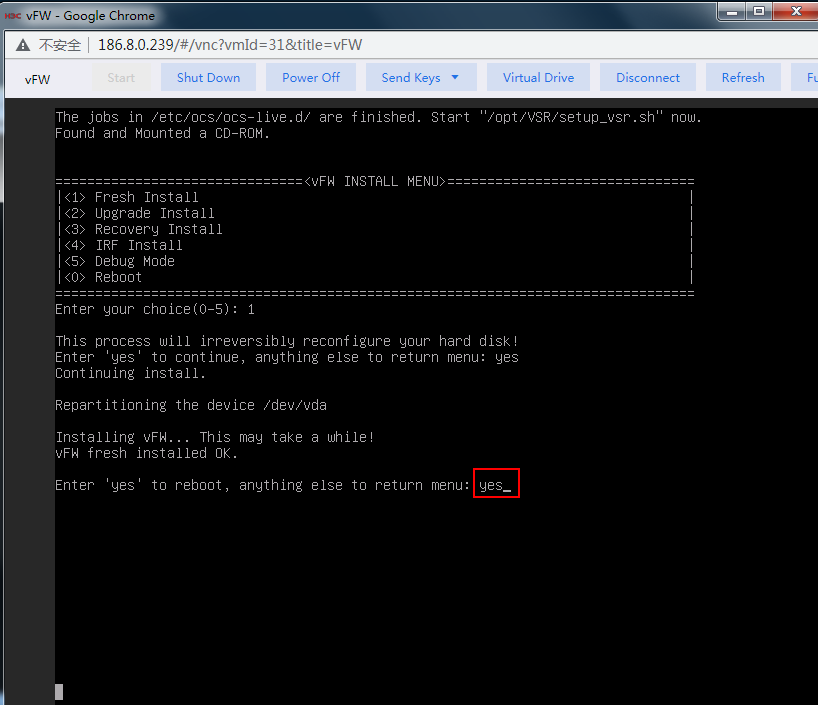

Figure 37 Rebooting the system



Installing vFW1000 via PXE

This section describes only the installation procedure on the PXE client side. For the PXE server setup procedure, see "Appendix D  Setting up a PXE ."

Prerequisites

The installation requires Virtual Machine Manager, graphic management software optional for Linux OSs. Make sure you have enabled the graphic management interface and installed Virtual Machine Manager at Linux OS installation.

Creating a VM

For the VM creation procedure, see "Creating a VM."

Configuring the VM to boot over the network

1.     Run Virtual Machine Manager.

Figure 38 Virtual Machine Manager

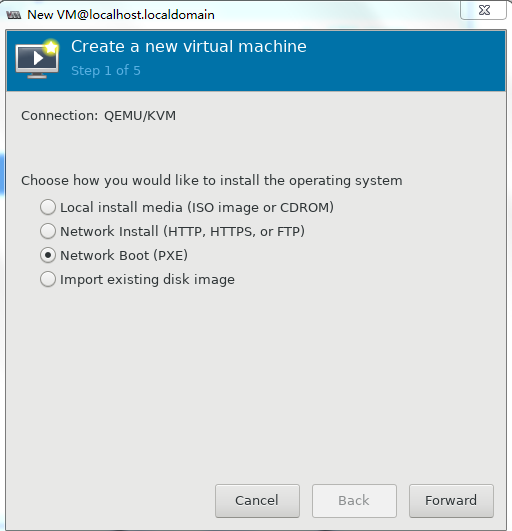

2.     Click the  icon to create a VM. On the configuration page as shown in Figure 39, enter a name for the VM, select Network Boot (PXE), and then click Forward.

Figure 39 Creating a VM

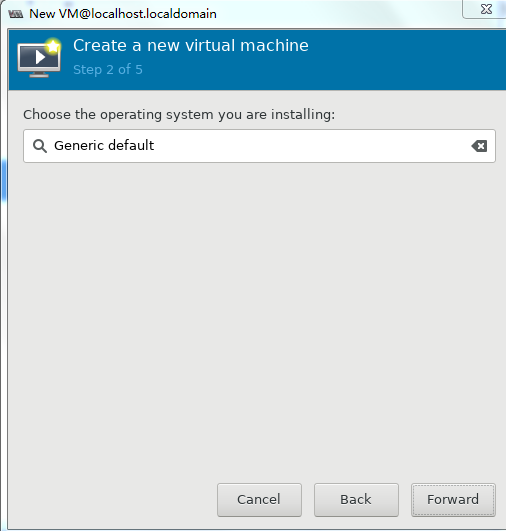

3.     As shown in Figure 40, select the operating system and version then click Forward.

Figure 40 Selecting the operating system



4.     Set the memory capacity and CPU quantity for the VM, and then click Forward.

Specify a minimum of one vCPU (2.0 GHz or higher) and a minimum of 1 GB memory for the VM.

Figure 41 Setting the memory capacity and CPU quantity for the VM



5.     Set the disk quantity and capacity for the VM and then click Forward, as shown in Figure 42.

Assign a minimum of one vHD and a minimum disk capacity of 8 GB to the VM.

Figure 42 Setting the disk quantity and capacity



6.     To configure other advanced options, select Customize configuration before install and then click Finish, as shown in Figure 43.

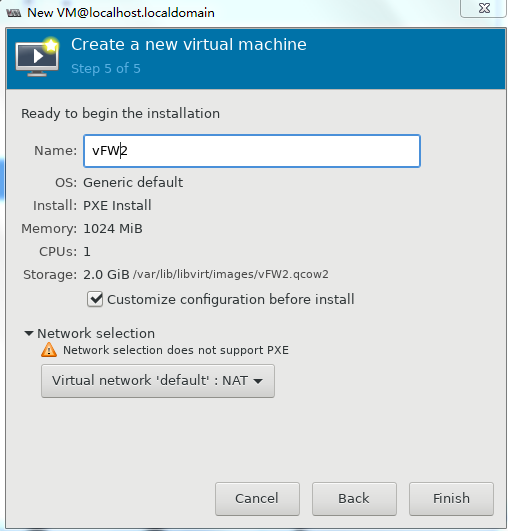

Figure 43 Configuring other advanced options



7.     If you select Customize configuration before install, the configuration customization page is displayed after you complete basic VM setting.

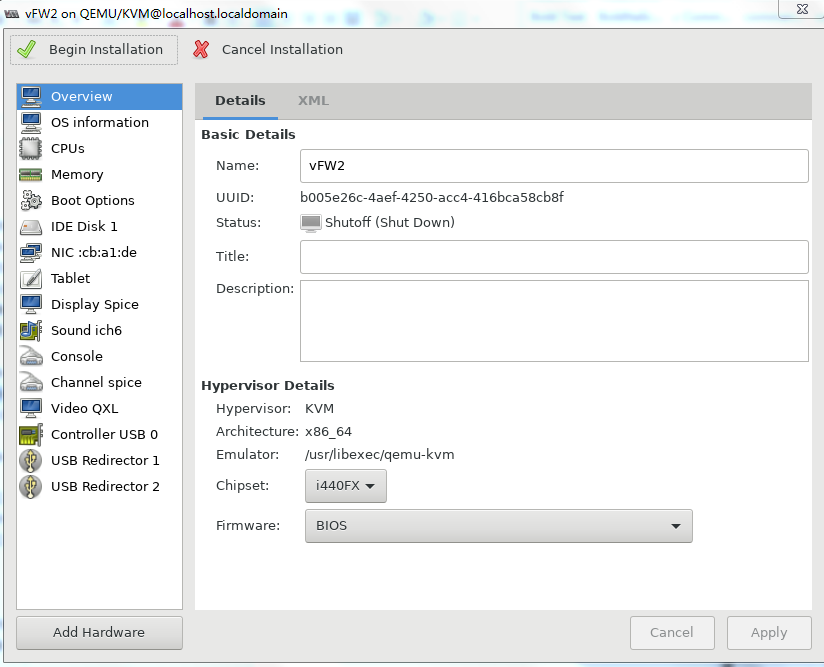

Figure 44 Configuration customization page

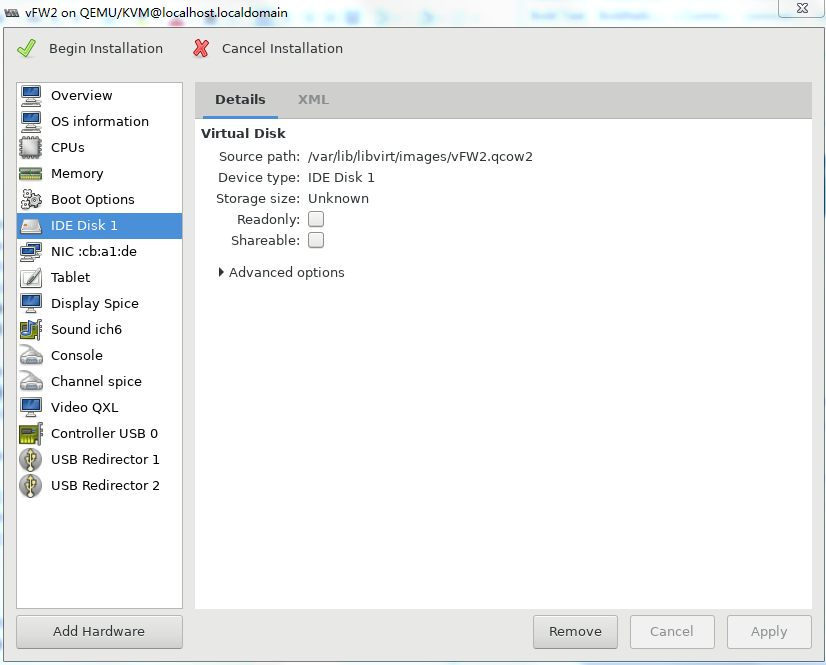

8.     Select IDE Disk 1 from the left pane, select IDE from the Bus type field, and then click Apply.

Figure 45 Specifying the disk bus type



9.     Select NIC from the left pane. Two NIC configuration methods as shown in Figure 46 and Figure 47 are available. As a best practice, configure the NIC by using method 2.

For information about creating a bridge, see "Configuring Linux bridges on KVM".

Figure 46 Configuring the virtual network interface (method 1)



Figure 47 Configuring the virtual network interface (method 2)



10.     Two NICs are required for vFW1000 to run correctly. However, the VM has only one NIC. To add a NIC, click Add Hardware in the lower left corner of the configuration customization page, select the new NIC, and configure the NIC properties, as shown in Figure 48.

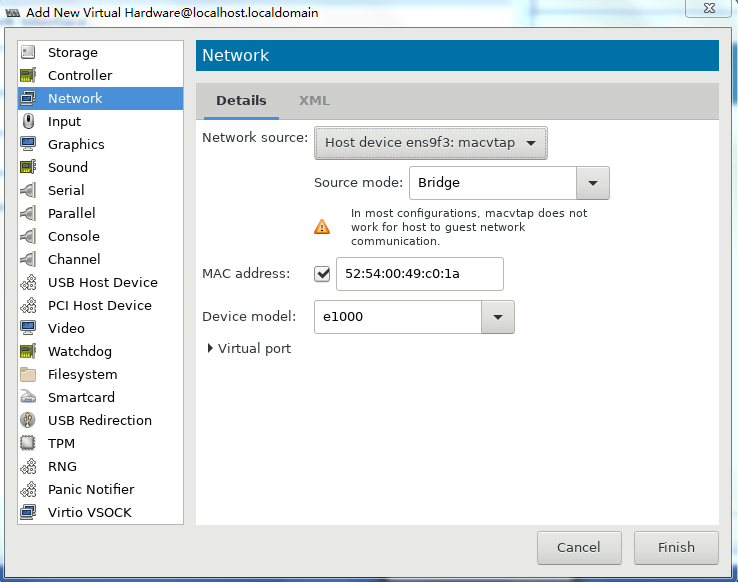

Figure 48 Adding a new NIC



11.     Click  to complete VM creation.

The VM will start up automatically and then start vFW1000 installation.

Installing vFW1000

1.     The VM downloads the required files from the PXE server automatically and enters the installation screen. As shown in Figure 49, enter 1 to select <1> Fresh Install, and then enter yes. The system is installed automatically.

Figure 49 Selecting the installation method



2.     As shown in Figure 50, enter yes to restart the system to finish vFW1000 installation.

Figure 50 Rebooting the system



Installing vFW1000 via unattended PXE

This section describes only the unattended installation procedure on the PXE client side. For the PXE server setup procedure, see "Appendix D  Setting up a PXE server."

When setting up the PXE server, change the value of the Syslinux parameter ocs_live_run to /opt/VFW/setup_vfw_pxe.sh unmanned fresh.

Prerequisites

The installation requires Virtual Machine Manager, graphic management software optional for Linux OSs. Make sure you have enabled the graphic management interface and installed Virtual Machine Manager at Linux OS installation.

Creating a VM

1.     Run Virtual Machine Manager.

Figure 51 Virtual Machine Manager



2.     Click the  icon to create a VM. On the configuration page as shown in Figure 52, enter a name for the VM and select Network Boot (PXE), and then click Forward.

Figure 52 Creating a VM



3.     Click Browse, select the operating system and version, and then click Forward.

Figure 53 Selecting the operating system and version



4.     Set the memory capacity and CPU quantity for the VM, and then click Forward, as shown in Figure 54.

Specify a minimum of one vCPU (2.0 GHz or higher) and a minimum of 1 GB memory for the VM.

Figure 54 Specifying the vCPU quantity and memory capacity



5.     Set the disk quantity and capacity for the VM and then click Forward, as shown in Figure 55.

Assign a minimum of one vHD and a minimum disk capacity of 8 GB to the VM.

Figure 55 Setting the disk quantity and capacity



6.     To configure other advanced options, select Customize configuration before install and then click Finish, as shown in Figure 56.

Figure 56 Configuring other advanced options



7.     If you select Customize configuration before install, the configuration customization page is displayed after you complete basic VM setting.

Figure 57 Configuration customization page



8.     Select IDE Disk 1 from the left pane, select IDE from the Bus type field, and then click Apply.

Figure 58 Specifying the disk bus type



9.     Select NIC from the left pane. Two NIC configuration methods as shown in Figure 59 and Figure 60 are available. As a best practice, configure the NIC by using method 2.

For information about creating a bridge, see "Configuring Linux bridges on KVM".

Figure 59 Configuring the NIC (method 1)



Figure 60 Configuring the NIC (method 2)



10.     Two NICs are required for vFW1000 to run correctly. However, the VM has only one NIC. To add a NIC, click Add Hardware in the lower left corner of the configuration customization page, select the new NIC, and then configure the NIC properties, as shown in Figure 61.

Figure 61 Adding a new NIC



11.     Click  to complete VM creation.

The VM will start up automatically and then start vFW1000 installation.

Installing vFW1000

The VM downloads required files from the PXE server and completes vFW1000 installation automatically.

Installing H3C NFV1000 on H3C CAS

The installation procedure on H3C CAS is the same for H3C NFV1000 products. This section uses vFW1000 as an example.

Installing vFW1000 from an ISO file

Creating a host

1.     Log in to the H3C CAS cloud platform from your browser. As shown in Figure 62, enter the username and password, and then click Log In.

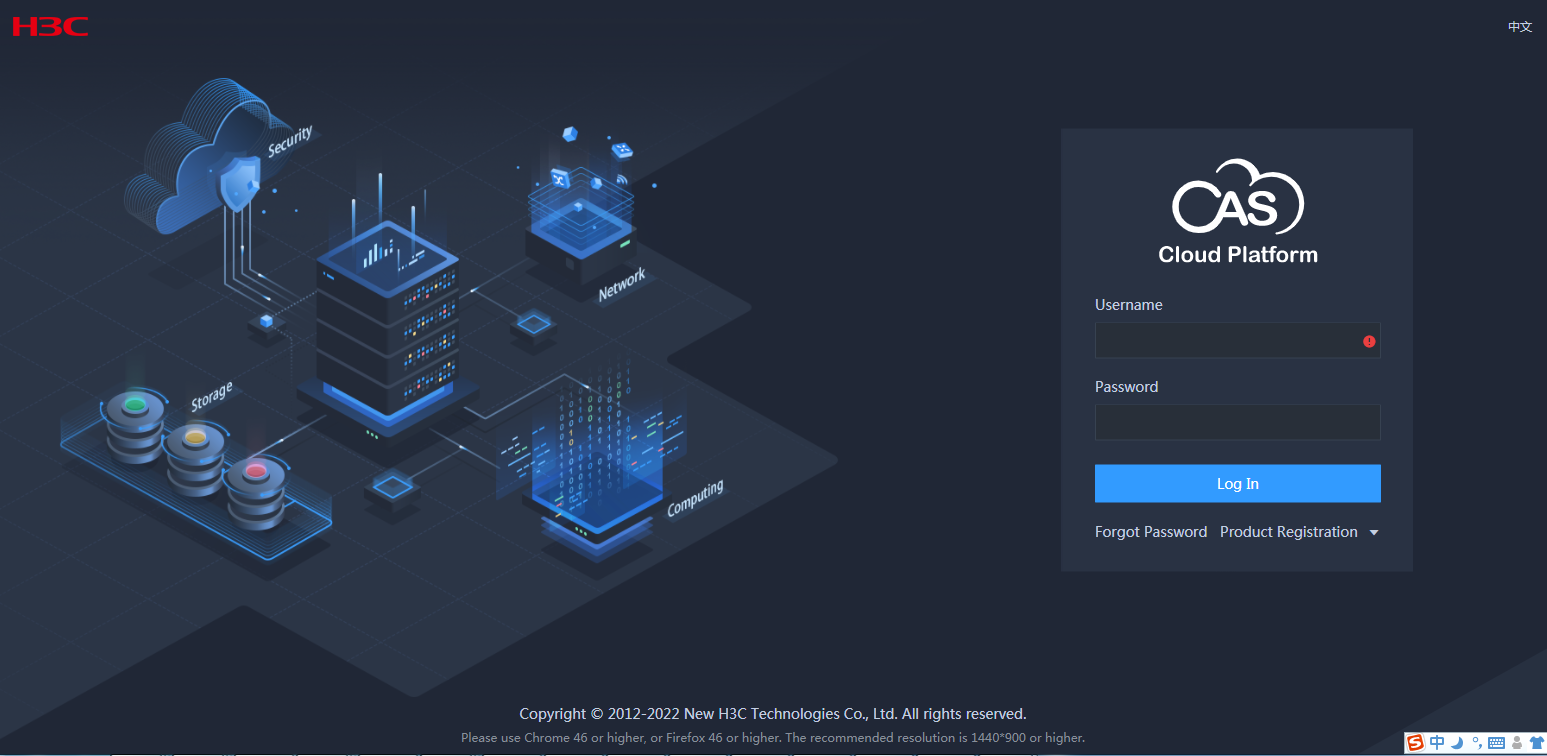

Figure 62 Logging in to the CAS cloud platform



To obtain the username and password for logging in to the CAS cloud platform, contact the administrator of the platform.

After login, the CAS cloud platform home page is displayed.

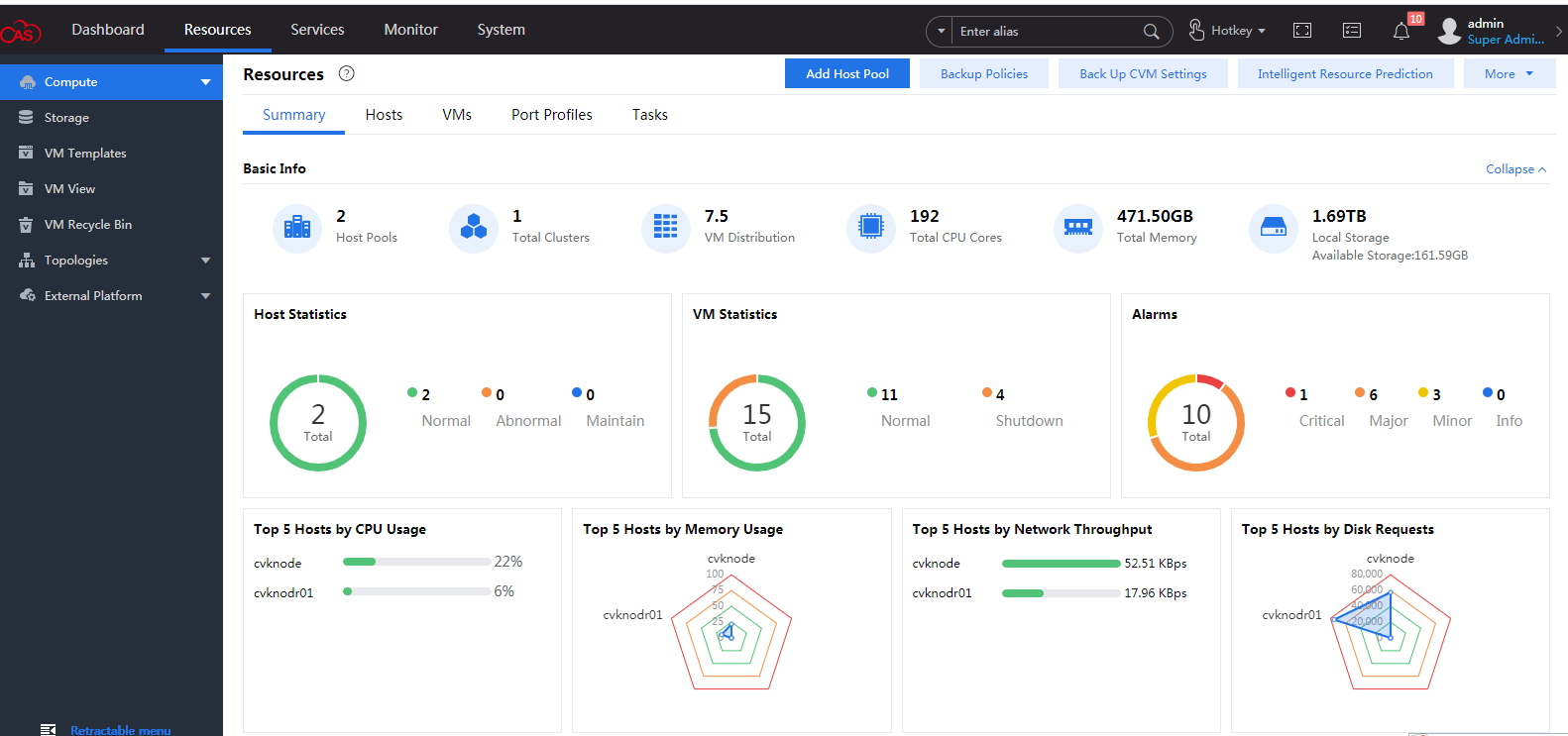

Figure 63 CAS cloud platform home page



2.     Select Resources from the top navigation bar, and then click Add Host Pool. In the dialog box that opens as shown in Figure 64, enter the host pool name and then click OK.

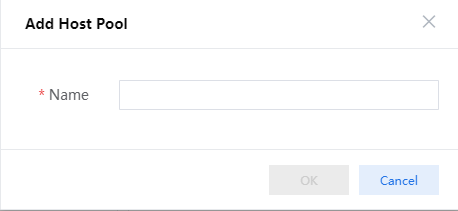

Figure 64 Adding a host pool

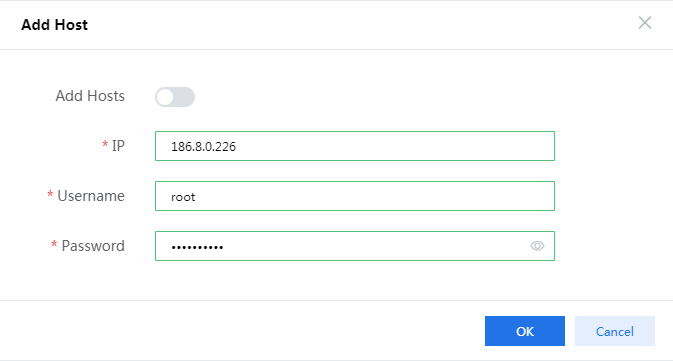

3.     Select the newly created host pool and then click Add Host. In the dialog box that opens as shown in Figure 65, enter the CVK host IP, username, and password, and then click OK.

Figure 65 Adding a host



To obtain the username and password for logging in to the CVK host, contact the server administrator.

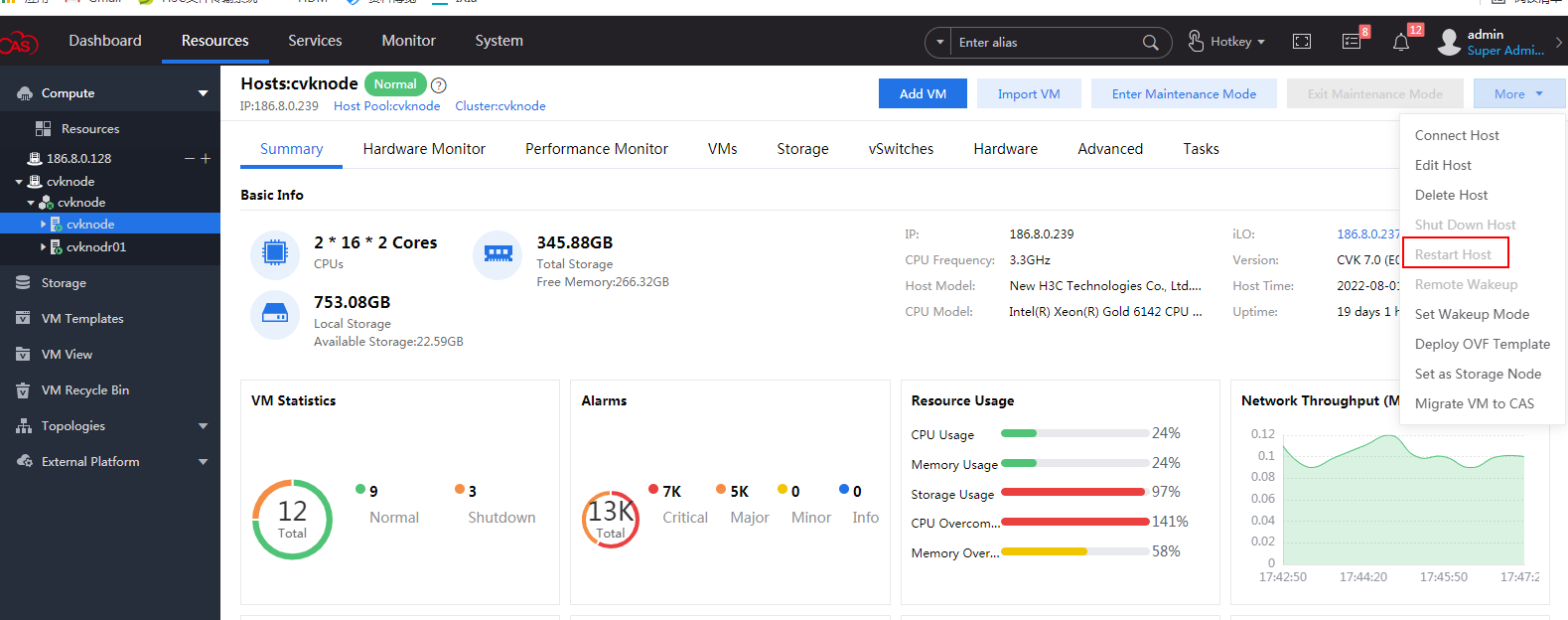

4.     After the host is created, select More > Connect Host. In the dialog box that opens, click OK to connect the CVM to the host.

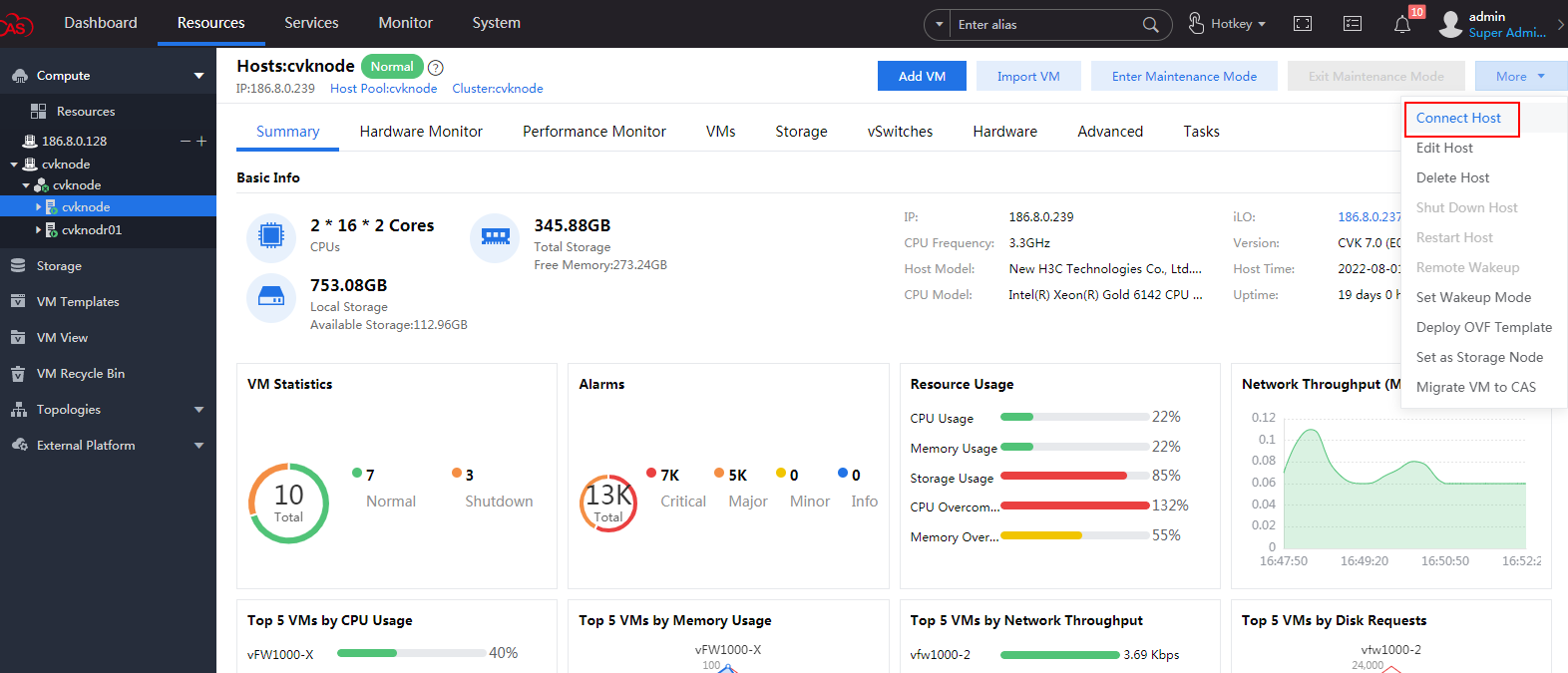

Figure 66 Connecting the host



5.     Select the newly created host from the left navigation pane, and then click the Storage tab. The storage management page as shown in Figure 67 is displayed.

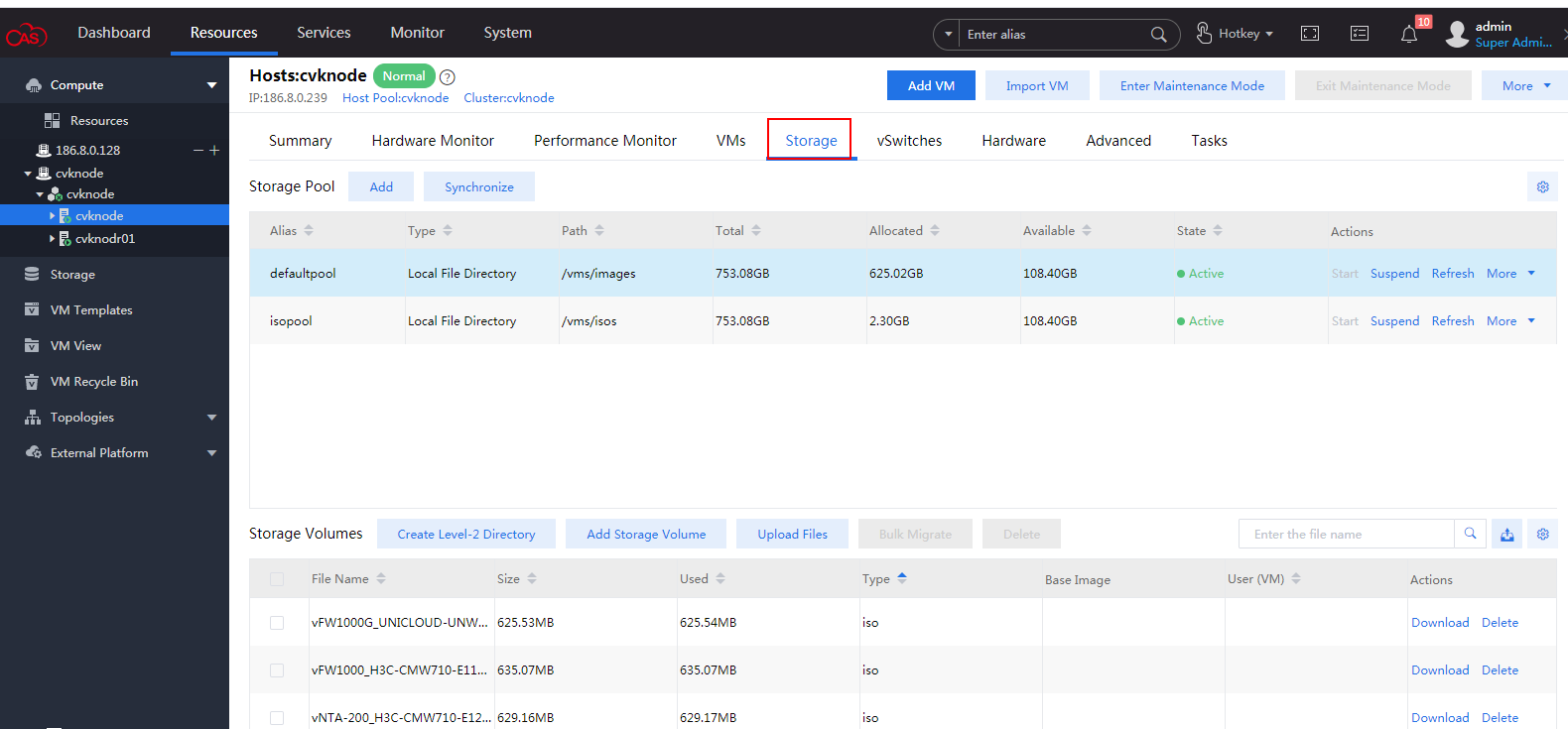

Figure 67 Storage management page



6.     Click Add to create a storage pool to store vFW1000 ISO file.

In the configuration page that opens as shown in Figure 68, enter the storage pool name and then click Next.

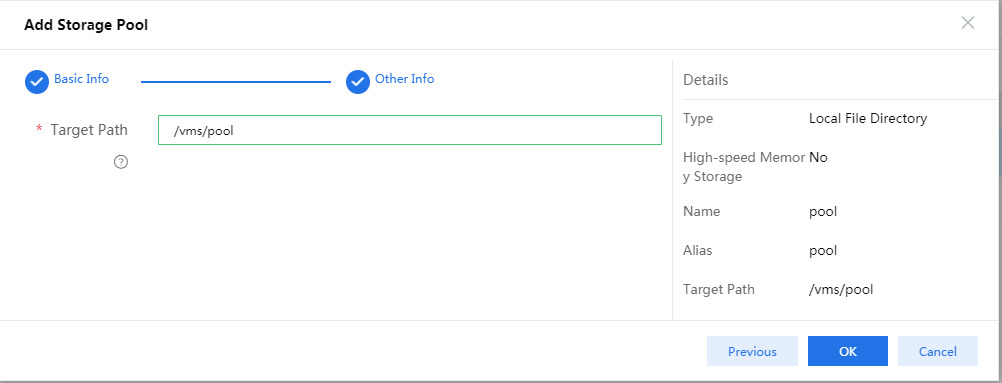

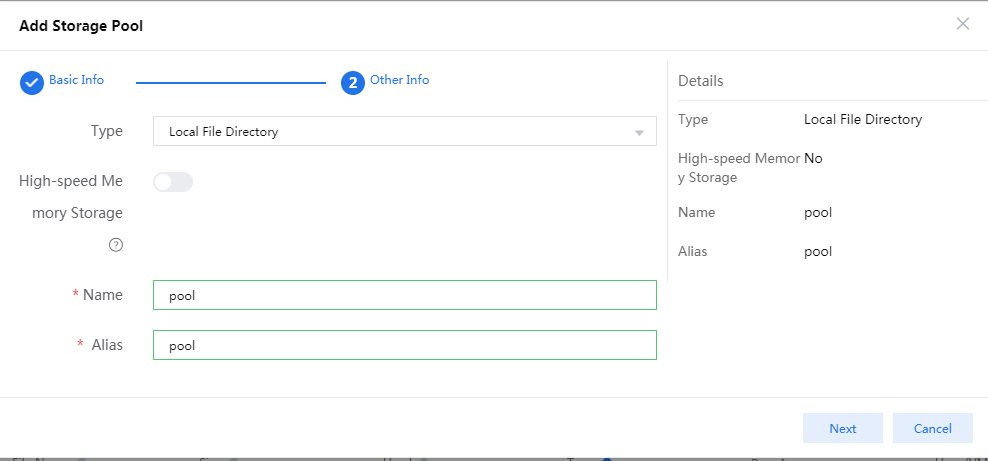

Figure 68 Adding a storage pool



7.     Click OK and then start the storage pool.

Figure 69 Completing storage pool creation



8.     Select the newly created storage pool, and click Upload Files for uploading the vFW1000 ISO file to the CVK host, as shown in Figure 70

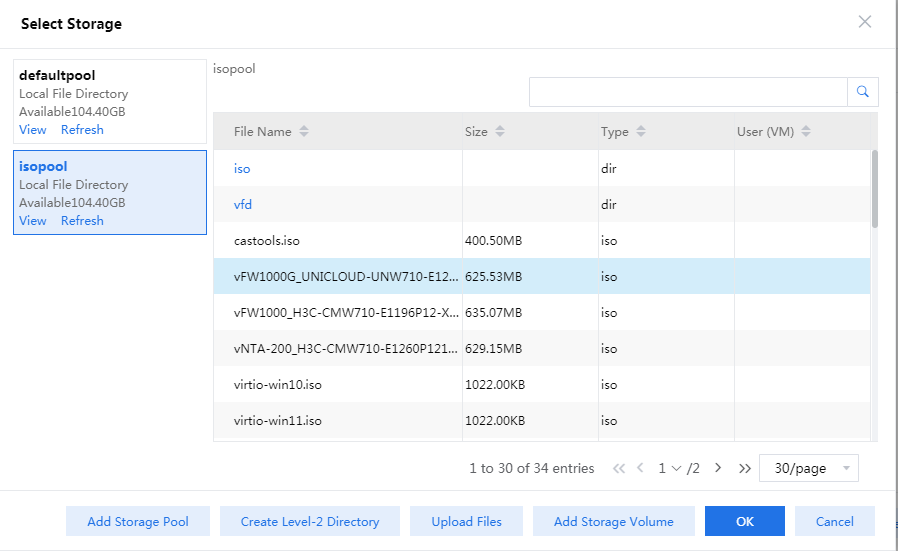

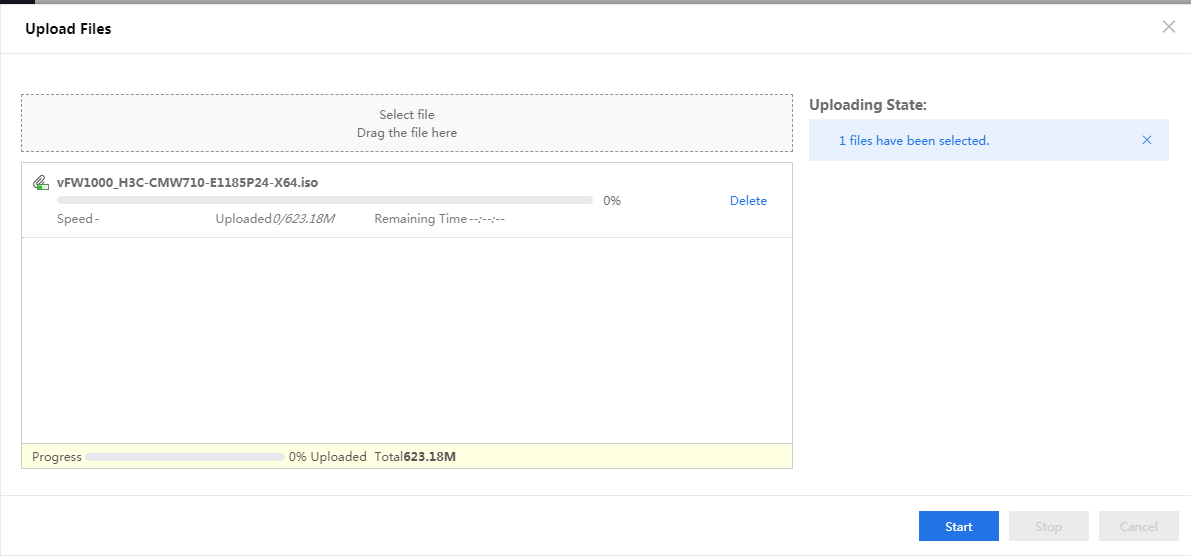

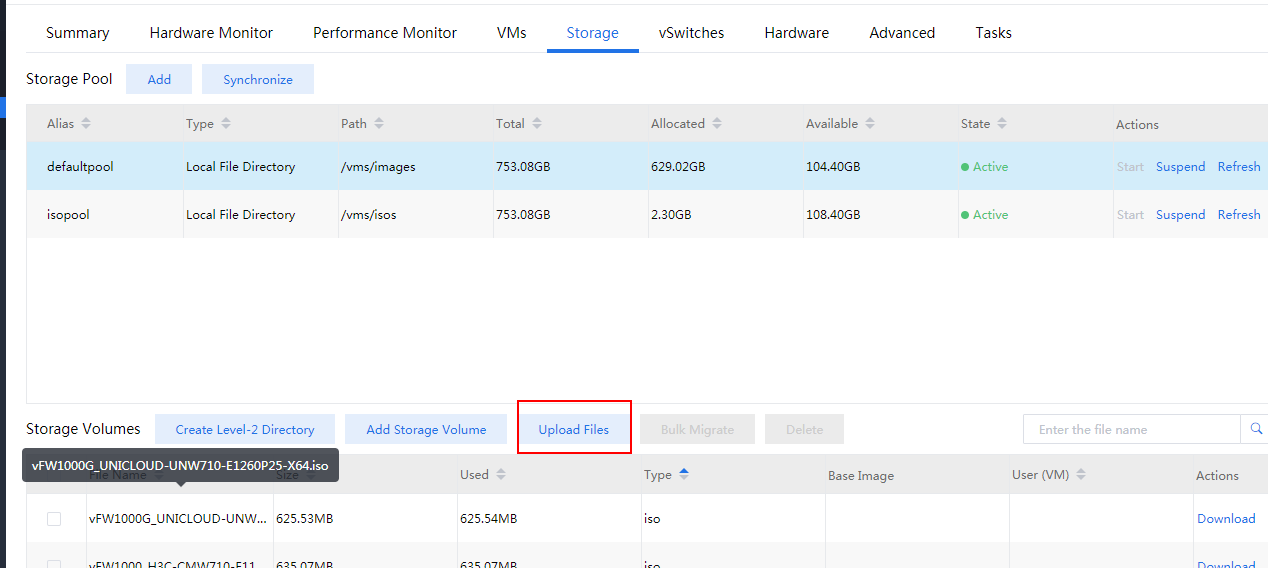

Figure 70 Uploading the vFW1000 ISO file (1)



9.     You can drag the file directly to the file uploading area and then click Start, as shown in Figure 71

Figure 71 Uploading the vFW1000 ISO file (2)



After the file is uploaded, close this window to return to the CAS cloud platform home page.

Creating a VM

1.     Select the newly created host and click Add VM. In the page as shown in Figure 72 that opens, configure basic information for the VM as follows and then click Next.

¡     Enter a name and description for the VM.

¡     Select the Linux operating system.

¡     Select the Other Linux(64bit) version.

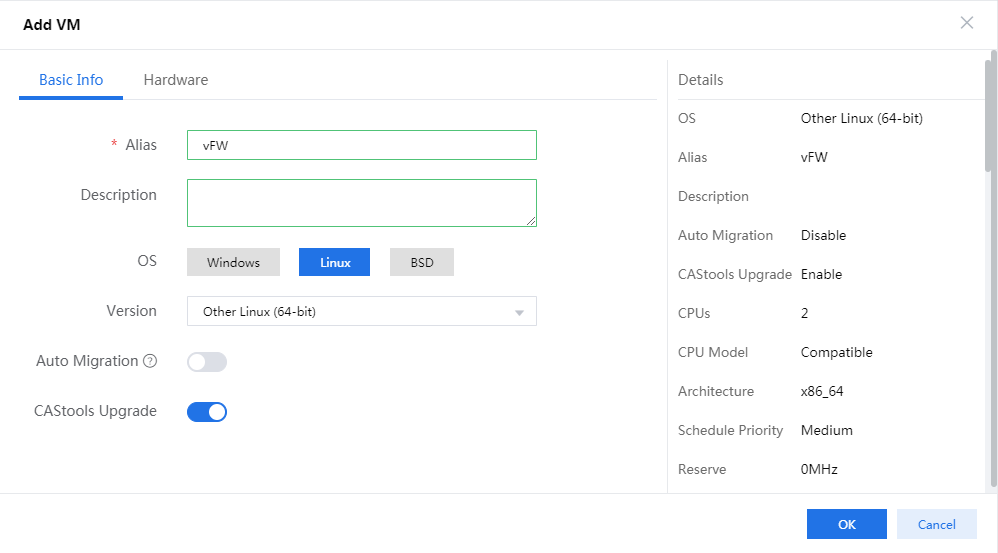

Figure 72 Configuring basic information for the VM



2.     Configure hardware information for the VM and make sure the hardware settings meet the minimum requirements as described in Figure 73. To add a NIC, click Add Hardware and then select NIC.

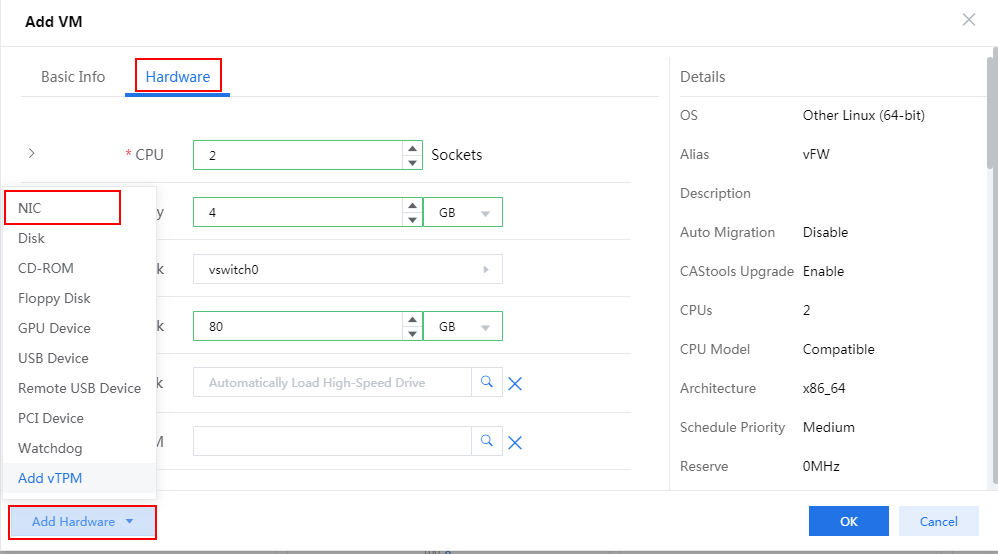

Figure 73 Configuring hardware information

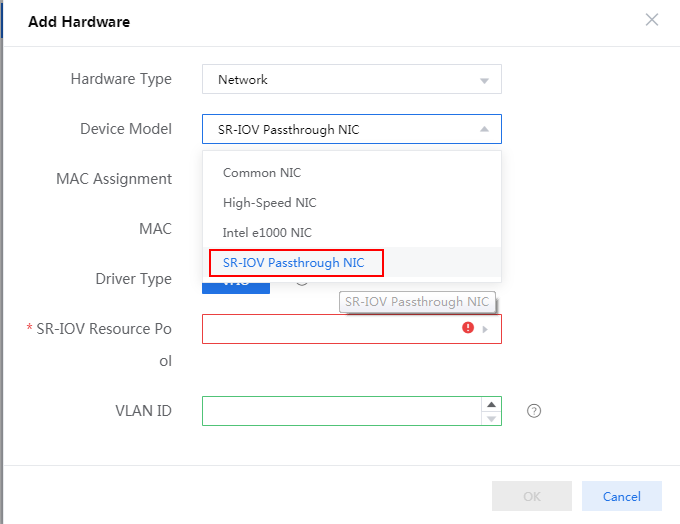

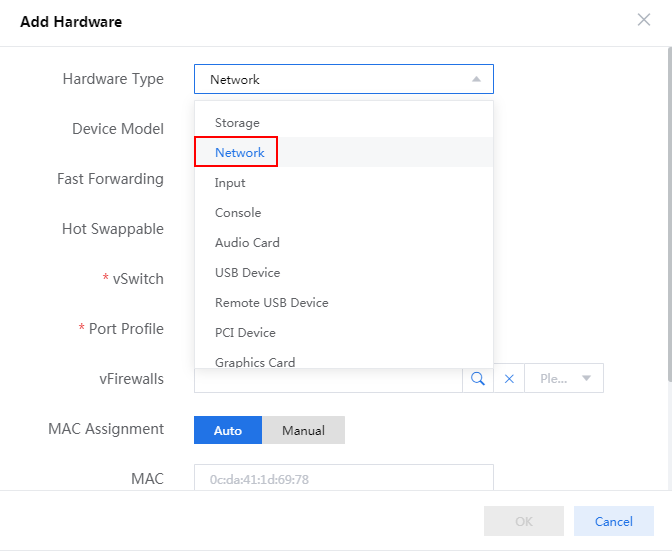

3.     Click the  icon in the Network filed, select a vSwitch for vFW1000 in the page than opens, and then click OK.

For information about creating a vSwitch and configuring its parameters, see the CAS cloud platform online help.

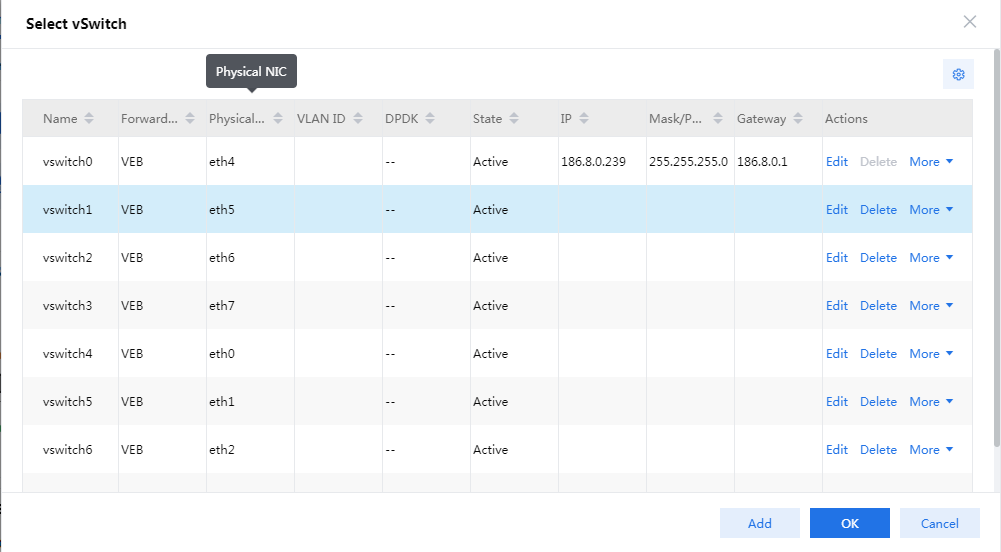

Figure 74 Selecting a vSwitch



4.     Click the  icon for the disk to display advanced settings for the disk, as shown in Figure 75.

Figure 75 Selecting storage



5.     Click the storage pool selection icon , select the storage pool created when creating the host, and then click OK.

Figure 76 Selecting the storage pool

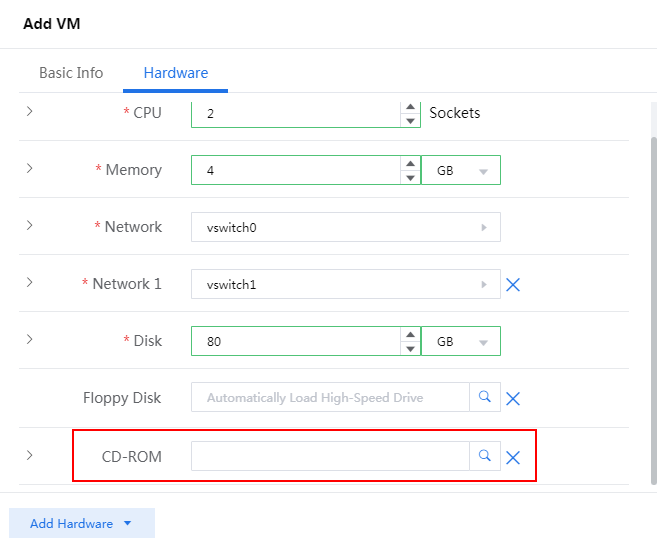

6.     Click the  icon for the CD-ROM field, select vFW1000 ISO file uploaded to the CVK host when creating the host, and then click OK.

Figure 77 Selecting vFW1000 ISO file



7.     Click Finish to complete VM creation. The newly created VM will be listed in the navigation pane.

Figure 78 VM created successfully



Installing vFW1000

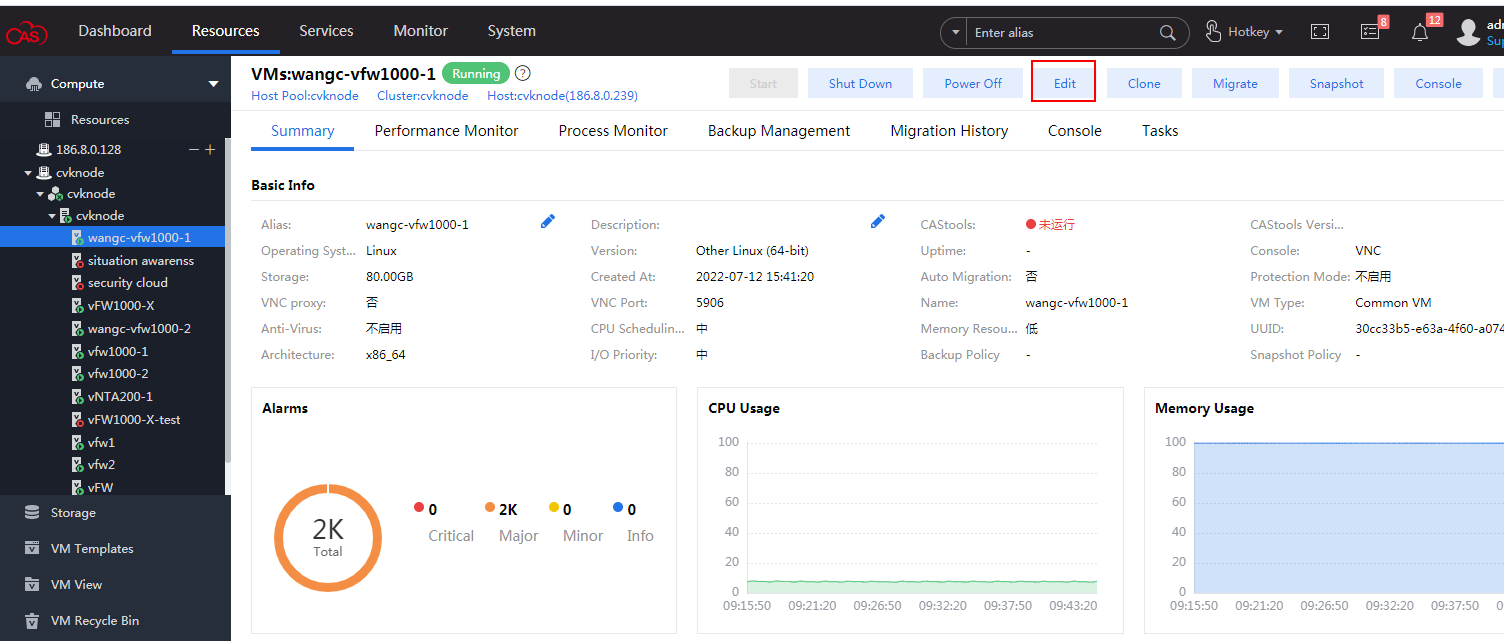

1.     Select the newly created VM from the navigation pane and then click Power On. In the screen that opens, select Yes.

2.     Click the Console tab and then select the Web console to start the VM console.



IMPORTANT

IMPORTANT:

After vFW1000 is installed, access the VM editing page on the CAS cloud platform and disconnect IDE optical drive hdc so that vFW1000 will not start up from the optical drive.



3.     The VM loads the ISO file automatically and enters the installation screen. As shown in Figure 79, enter 1 to select <1> Fresh Install, then enter yes. The system is installed automatically.

Figure 79 Selecting the installation method



4.     Enter yes to restart the system to complete vFW1000 installation, as shown in Figure 80.

Figure 80 Rebooting the system



Deploying H3C NFV1000

The deployment method is the same for H3C NFV1000 products. This section uses vFW1000 as an example.

vFW1000 interface and vNIC mappings

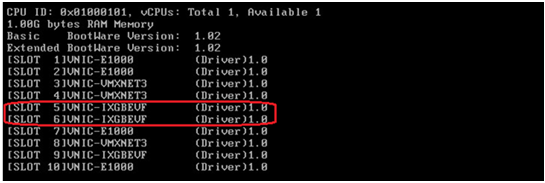

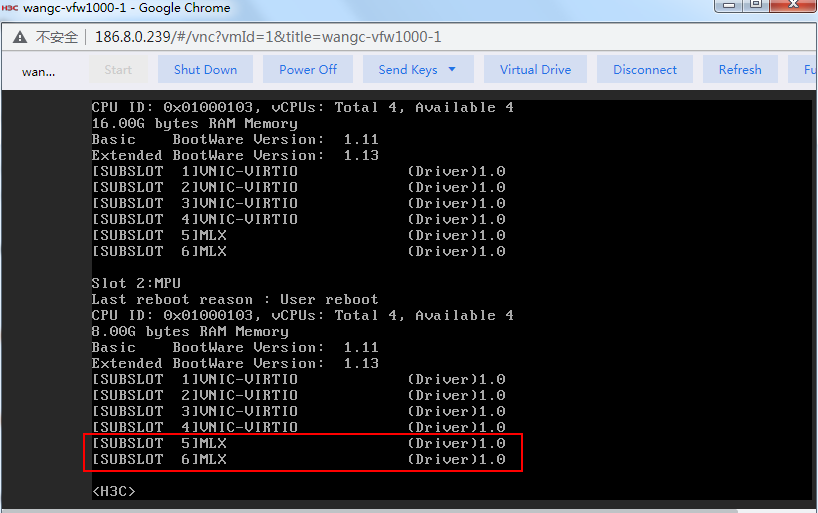

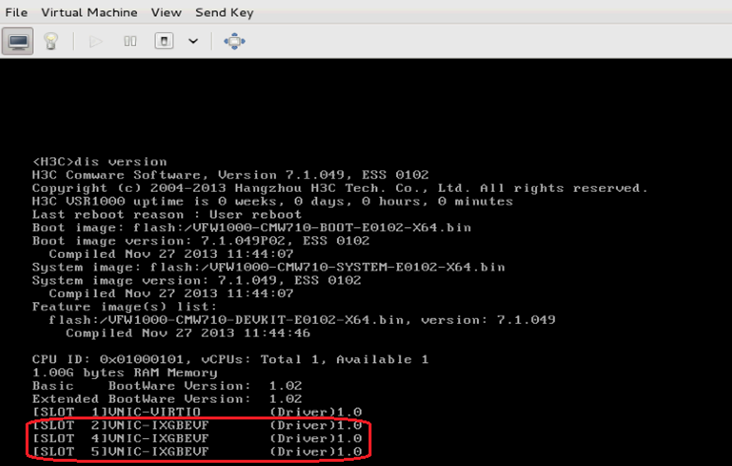

At first startup, VFW1000 scans PCI devices, initializes detected vNICs, records vNICs' MAC addresses, and maps vNICs to empty virtual NIC slots in the order in which the MAC addresses are obtained. The vNIC and slot mappings remain unchanged unless you add or delete vNICs. Figure 81 shows the mapping relations between vFW1000 network interfaces and vNICs.

Figure 81 vFW1000 interface and vNIC mappings



Adding or deleting a vFW1000 interface

To add or delete an Ethernet interface from vFW1000, add or delete a vNIC from the VM. For information about adding or deleting a vNIC, see the VMware document.



CAUTION

CAUTION:

·     vNICs cannot be hot swapped on vFW1000. Before adding or deleting a vNIC, stop vFW1000.

·     If you remove a vNIC, its corresponding slot becomes empty. If you add a vNIC, the system maps the vNIC to the empty slot with the smallest slot number. The add and remove operations do not change mappings between slots and the other vNICs.



vSwitch interface or host physical interface mappings

Mappings on VMware ESXi

On VMware ESXi, vFW1000 interfaces must connect to vSwitch interfaces to receive or transmit traffic. Each vSwitch provides only one interface. You can create a vSwitch for each vFW1000 interface or configure interfaces on a vFW1000 to share one vSwitch interface.

Figure 82, Figure 83, and Figure 84 describe three mapping relations.

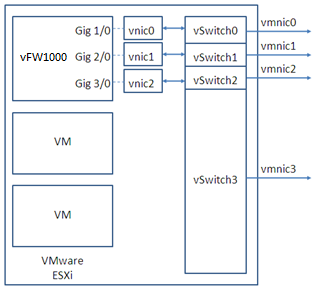

Figure 82 One vSwitch for each vFW1000 interface

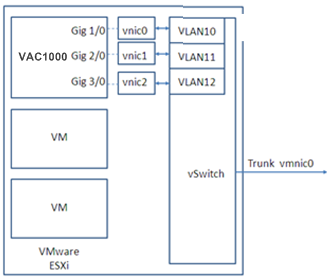

Figure 83 One vSwitch for all vFW1000 interfaces

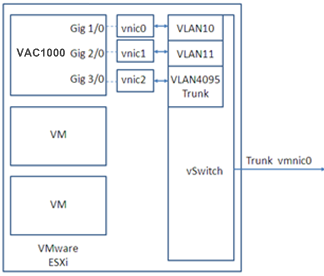

Figure 84 One vSwitch for all vFW1000 interfaces (mapping to a trunk port for vFW1000 to receive packets with VLAN tags)



Mappings on KVM

On KVM, vFW1000 interfaces must connect to physical interfaces to receive or transmit traffic. You can map vFW1000 interfaces to different physical interfaces or configure interfaces on a vFW1000 to share one physical interface.

Figure 85, Figure 86, and Figure 87 describe three mapping relations.

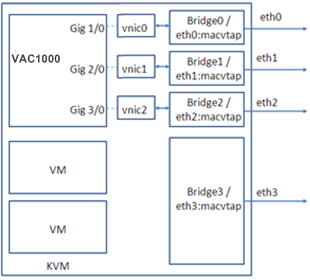

Figure 85 One physical interface for each vFW1000 interface



Figure 86 One physical interface for all vFW1000 interfaces

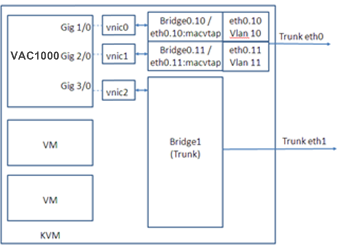

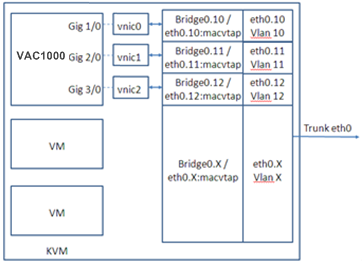

Figure 87 One physical interface for all vFW1000 interfaces (mapping to a trunk port for vFW1000 to receive packets with VLAN tags)





NOTE:

To map a VirtIO vNIC to a trunk port, make sure the KVM platform supports vhost.



Mappings on CAS

On CAS, vFW1000 interfaces must connect to physical interfaces to receive or transmit traffic. You can map vFW1000 interfaces to different physical interfaces or configure interfaces on a vFW1000 to share one physical interface.

Figure 85, Figure 86, and Figure 87 describe three mapping relations.

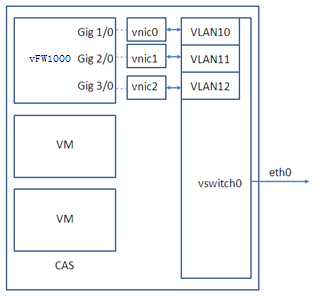

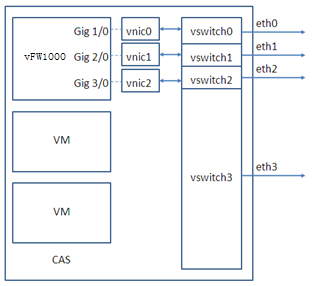

Figure 88 One physical interface for each vFW1000 interface



Figure 89 One physical interface for all vFW1000 interfaces

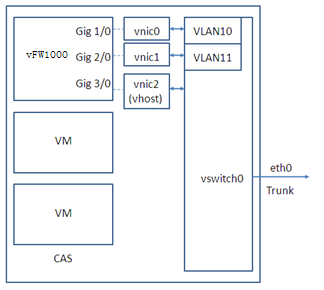

Figure 90 One physical interface for all vFW1000 interfaces (mapping to a trunk port for vFW1000 to receive packets with VLAN tags)



IMPORTANT

IMPORTANT:

For this configuration to take effect, you must load the vhost module on CAS and configure vhost properties for the vNIC.




Upgrading H3C NFV1000

About startup software images

Startup software images are program files used to boot the device and are divided into four categories: Boot image, system image, feature image, and patch image. The device must have a boot image and a system image to run normally. You can select the feature image for the device as required. The patch image is installed for fixing software defects.

Table 4 Software images

Software image

Description

Boot image

Contains the Linux operating system kernel and provides process management, memory management, file system management, and the emergency shell.

System image

Contains the Comware kernel and standard features, including device management, interface management, configuration management, and routing.

Feature image

Contains advanced or customized software features. Whether to support feature images and which feature images to support depend on the device model.

Patch image

Released for fixing software defects and bugs. A patch image does not add or remove features.



The software images of vFW and vLB products can be released in one of the following forms:

·     Separate .bin files. You must verify compatibility between software images.

·     As a whole in one .ipe package file. The images in an .ipe package file are compatible. The system decompresses the file automatically, loads the .bin images and sets them as startup software images.

Typically, the startup file is a .ipe package file.

Upgrade methods

Table 5 Upgrade methods

Upgrade method

Description

Upgrade from the CLI

This method is disruptive. You must reboot the entire device to complete the upgrade.

Upgrade from an ISO file

You must reboot the entire device to complete the upgrade.



Upgrade from the CLI

The upgrade method is the same for H3C NFV1000 products. This section uses vFW1000 as an example.

Preparing for the upgrade

Before upgrading the vFW startup images, set up the upgrade environment as shown in Figure 91.

·     Make sure the file server is reachable to the vFW.

·     Enable TFTP/FTP server on the file server.

·     Log in to the CLI of the vFW from a configuration terminal.

·     Copy the startup images to the file server and configure the TFTP/FTP server access path correctly.

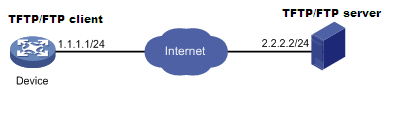

Figure 91 Setting up the upgrade environment for the vFW or vLB product



Upgrading vFW1000 startup images through TFTP

The vFW accesses the specified path on the TFTP file server as a TFTP client and backs up and upgrades the startup images

Backing up the current startup image and configuration file

1.     Execute the save command to save current configuration information.

<Sysname> save

The current configuration will be written to the device. Are you sure? [Y/N]:y

Please input the file name(*.cfg)[flash:/startup.cfg]

(To leave the existing filename unchanged, press the enter key):

flash:/startup.cfg exists, overwrite? [Y/N]:y

 Validating file. Please wait....

 Configuration is saved to device successfully.

<Sysname>

2.     Execute the dir command to verify that the storage space is sufficient for the new startup images.

<Sysname> dir

Directory of flash: (VFAT)

   0 drw-           - Jun 30 2020 05:39:20   diagfile

   1 -rw-          47 Jun 30 2020 06:32:46   ifindex.dat

   2 drw-           - Jun 30 2020 05:47:24   license

   3 drw-           - Jun 30 2020 06:32:46   logfile

   4 -rw-         768 Jun 30 2020 06:33:27   reboot.log

   5 drw-           - Jun 30 2020 05:39:20   seclog

   6 -rw-        2268 Jun 30 2020 06:32:46   startup.cfg

   7 -rw-       31526 Jun 30 2020 06:32:46   startup.mdb

   8 -rw-     8772608 Jun 30 2020 06:32:30   vFW1000-CMW710-BOOT-E1183-X64.bin

   9 -rw-   163973120 Jun 30 2020 06:32:32   vFW1000-CMW710-SYSTEM-E1183-X64.bin

  10 -rw-   172752896 Jun 30 2020 06:31:14   vFW1000_H3C-CMW710-E1184-X64.ipe

  11 -rw-       21016 Jun 30 2020 06:33:33   version.log



7325704 KB total (6988168 KB free)

<Sysname>

3.     Execute the tftp put command to back up the startup images to the TFTP file server.

<Sysname> tftp 2.2.2.2 put vFW1000_H3C-CMW710-E1184-X64.ipe



  File will be transferred in binary mode

  Sending file to remote TFTP server. Please wait... \

  TFTP: 31131648 bytes sent in 70 second(s).

  File uploaded successfully.



<Sysname>

4.     Execute the tftp put command to back up the startup.cfg file to the TFTP file server.

<Sysname> tftp 2.2.2.2 put startup.cfg

  File will be transferred in binary mode

  Sending file to remote TFTP server. Please wait... \

  TFTP:     1694 bytes sent in 0 second(s).

  File uploaded successfully.



<Sysname>

Upgrading the startup images

1.     Execute the tftp get command to import the startup images to the vFW.

<Sysname> tftp 2.2.2.2 get vFW1000_H3C-CMW710-E1185-X64.ipe

  File will be transferred in binary mode

  Downloading file from remote TFTP server, please wait...|

  TFTP: 31131648 bytes received in 70 second(s)

  File downloaded successfully.

<Sysname>

2.     Execute the boot-loader command to specify the main startup images for the vFW.

<Sysname> boot-loader file flash:/vFW1000_H3C-CMW710-E1185-X64.ipe main

Verifying the file flash:/vFW1000_H3C-CMW710-E1185-X64.ipe on the device...Done.

H3C SecPath vFW1000 images in IPE:

  vFW1000-CMW710-BOOT-E1185-X64.bin

  vFW1000-CMW710-SYSTEM-E1185-X64.bin

This command will set the main startup software images. Please do not reboot the

 device during the upgrade. Continue? [Y/N]:y

Add images to the device.

Decompressing file vFW1000-CMW710-BOOT-E1185-X64.bin to flash:/vFW1000-CMW710-BO

OT-E1185-X64.bin...Done.

Decompressing file vFW1000-CMW710-SYSTEM-E1185-X64.bin to flash:/vFW1000-CMW710-

SYSTEM-E1185-X64.bin.....Done.

Verifying the file flash:/vFW1000-CMW710-BOOT-E1185-X64.bin on the device...Done

.

Verifying the file flash:/vFW1000-CMW710-SYSTEM-E1185-X64.bin on the device...Do

ne.

The images that have passed all examinations will be used as the main startup so

ftware images at the next reboot on the device.

Decompression completed.

You are recommended to delete the .ipe file after you set startup software image

s for all slots.

Do you want to delete flash:/vFW1000_H3C-CMW710-E1185-X64.ipe now? [Y/N]:n



<Sysname>

3.     Execute the display boot-loader command to view information about startup software images.

<Sysname> display boot-loader

 Software images on the device:

Current software images:

  flash:/vFW1000-CMW710-BOOT-E1183-X64.bin

  flash:/vFW1000-CMW710-SYSTEM-E1183-X64.bin

Main startup software images:

  flash:/vFW1000-CMW710-BOOT-E1185-X64.bin

  flash:/vFW1000-CMW710-SYSTEM-E1185-X64.bin

Backup startup software images:

  None



<Sysname>

As shown in the command output, the startup software images are vFW1000-CMW710-BOOT-E1183-X64.bin and vFW1000-CMW710-SYSTEM-E1183-X64.bin files in vFW1000_H3C-CMW710-E1185-X64.ipe package.

Upgrading vFW1000 startup images through FTP

The vFW accesses the specified path on the TFTP file server as a TFTP client and backs up and upgrades the startup images.

Backing up the current startup images and configuration file

1.     Execute the save command to save current configuration information.

<Sysname> save

The current configuration will be written to the device. Are you sure? [Y/N]:y

Please input the file name(*.cfg)[flash:/startup.cfg]

(To leave the existing filename unchanged, press the enter key):

flash:/startup.cfg exists, overwrite? [Y/N]:y

 Validating file. Please wait....

 Configuration is saved to device successfully.

<Sysname>

2.     Execute the dir command to verify that the storage space is sufficient for the new startup image files.

<Sysname> dir

Directory of flash: (VFAT)

   0 drw-           - Jun 30 2020 05:39:20   diagfile

   1 -rw-          47 Jun 30 2020 06:32:46   ifindex.dat

   2 drw-           - Jun 30 2020 05:47:24   license

   3 drw-           - Jun 30 2020 06:32:46   logfile

   4 -rw-         768 Jun 30 2020 06:33:27   reboot.log

   5 drw-           - Jun 30 2020 05:39:20   seclog

   6 -rw-        2268 Jun 30 2020 06:32:46   startup.cfg

   7 -rw-       31526 Jun 30 2020 06:32:46   startup.mdb

   8 -rw-     8772608 Jun 30 2020 06:32:30   vFW1000-CMW710-BOOT-E1183-X64.bin

   9 -rw-   163973120 Jun 30 2020 06:32:32   vFW1000-CMW710-SYSTEM-E1183-X64.bin

  10 -rw-   172752896 Jun 30 2020 06:31:14   vFW1000_H3C-CMW710-E1184-X64.ipe

  11 -rw-       21016 Jun 30 2020 06:33:33   version.log



7325704 KB total (6988168 KB free)



<Sysname>

3.     Execute the ftp command to log in to the FTP server and enter the login username and password as prompted.

<Sysname> ftp 2.2.2.2

Press CTRL+C to abort.

Connected to 2.2.2.2 (2.2.2.2).

220 WFTPD 2.0 service (by Texas Imperial Software) ready for new user

User (2.2.2.2:(none)): user001

331 Give me your password, please

Password:

230 Logged in successfully

Remote system type is MSDOS

ftp>

4.     Execute the put command to back up the startup images to the FTP file server.

ftp> putvFW1000_H3C-CMW710-E1184-X64.ipe

227 Entering passive mode (2,2,2,2,209,112)

125 Using existing data connection

................................................................................

................................................................................

................................................................................

................................................................................

..........

226 Closing data connection; File transfer successful.

172752896 bytes sent in 3.508 seconds (46.96 Mbytes/s)



ftp>

5.     Execute the put command to back up the configuration file startup.cfg to the FTP file server.

ftp> put startup.cfg

227 Entering passive mode (2,2,2,2,209,126)

125 Using existing data connection

.

226 Closing data connection; File transfer successful.

2268 bytes sent in 0.010 seconds (214.22 Kbytes/s)



ftp>

Upgrading the startup images

1.     In FTP client view, execute the get command to import the startup images to the vFW.

ftp> get vFW1000_H3C-CMW710-E1185-X64.ipe

227 Entering passive mode (2,2,2,2,209,150)

125 Using existing data connection

................................................................................

................................................................................

................................................................................

................................................................................

.........................

226 Closing data connection; File transfer successful.

181030912 bytes received in 13.071 seconds (13.21 Mbytes/s)



ftp>

2.     Execute the quit command to return to user view.

ftp>quit

221 Service closing control connection

<Sysname>

3.     Execute the boot-loader command to set the next main startup images.

<Sysname> boot-loader file flash:/ vFW1000_H3C-CMW710-E1185-X64.ipe main

Verifying the file flash:/vFW1000_H3C-CMW710-E1185-X64.ipe on the device...Done.

H3C SecPath vFW1000 images in IPE:

  vFW1000-CMW710-BOOT-E1185-X64.bin

  vFW1000-CMW710-SYSTEM-E1185-X64.bin

This command will set the main startup software images. Please do not reboot the

 device during the upgrade. Continue? [Y/N]:y

Add images to the device.

Decompressing file vFW1000-CMW710-BOOT-E1185-X64.bin to flash:/vFW1000-CMW710-BO

OT-E1185-X64.bin...Done.

Decompressing file vFW1000-CMW710-SYSTEM-E1185-X64.bin to flash:/vFW1000-CMW710-

SYSTEM-E1185-X64.bin.....Done.

Verifying the file flash:/vFW1000-CMW710-BOOT-E1185-X64.bin on the device...Done

.

Verifying the file flash:/vFW1000-CMW710-SYSTEM-E1185-X64.bin on the device...Do

ne.

The images that have passed all examinations will be used as the main startup so

ftware images at the next reboot on the device.

Decompression completed.

You are recommended to delete the .ipe file after you set startup software image

s for all slots.

Do you want to delete flash:/vFW1000_H3C-CMW710-E1185-X64.ipe now? [Y/N]:n



<Sysname>

4.     Execute the display boot-loader command to view information about the startup software images.

<Sysname> display boot-loader

 Software images on the device:

Current software images:

  flash:/vFW1000-CMW710-BOOT-E1183-X64.bin

  flash:/vFW1000-CMW710-SYSTEM-E1183-X64.bin

Main startup software images:

  flash:/vFW1000-CMW710-BOOT-E1185-X64.bin

  flash:/vFW1000-CMW710-SYSTEM-E1185-X64.bin

Backup startup software images:

  None

<Sysname>

As shown in the command output, the startup software images are vFW1000-CMW710-BOOT-E1185-X64.bin and vFW1000-CMW710-SYSTEM-E1185-X64.bin files in vFW1000_H3C-CMW710-E1185-X64.ipe package.

Restarting the vFW

After the startup images are upgraded, reboot the device to complete software upgrade.



CAUTION

CAUTION:

During the upgrade process, the services on the device are not available.



To restart the vFW:

1.     Execute the reboot command to restart the vFW.

<Sysname> reboot

Start to check configuration with next startup configuration file, please wait.........DONE!

This command will reboot the device. Continue? [Y/N]:y

Now rebooting, please wait...

2.     Execute the display version command to verify that the vFW starts up with correct startup software image versions.

<Sysname>display version

H3C Comware Software, Version 7.1.064, ESS 1185

Copyright (c) 2004-2020 New H3C Technologies Co., Ltd. All rights reserved.

H3C SecPath vFW1000 uptime is 0 weeks, 0 days, 0 hours, 1 minute

Last reboot reason : User reboot

Boot image: flash:/vFW1000-CMW710-BOOT-E1185-X64.bin

Boot image version: 7.1.064, ESS 1185

  Compiled May 27 2020 15:00:00

System image: flash:/vFW1000-CMW710-SYSTEM-E1185-X64.bin

System image version: 7.1.064, ESS 1185

  Compiled May 27 2020 15:00:00



CPU ID: 0x01000101, vCPUs: Total 1, Available 1

2.00G bytes RAM Memory

Basic    BootWare Version:  1.11

Extended BootWare Version:  1.11

[SLOT  1]VNIC-E1000             (Driver)1.0<Sysname>

Upgrade from an ISO file

The upgrade method is the same for H3C NFV1000 products. This section uses vFW1000 as an example.

The upgrade procedure is the same as installing vFW1000 from the ISO file. For more information, see "Installing H3C NFV1000 on VMware ESXi

", "Installing H3C NFV1000 on Linux " or "Installing H3C NFV1000 on H3C CAS."

1.     Access the INSTALL MENU, enter 2 to select <2> Upgrade Install to upgrade the vFW to the ISO version in the CD-ROM.

Figure 92 Upgrading vFW1000 from the ISO file



2.     After installation, disconnect the system from the CD-ROM and the reboots the system.

3.     After the vFW restarts, verify that the vFW starts up with upgraded startup software image versions.

<Sysname>display version

H3C Comware Software, Version 7.1.064, ESS 1185

Copyright (c) 2004-2020 New H3C Technologies Co., Ltd. All rights reserved.

H3C SecPath vFW1000 uptime is 0 weeks, 0 days, 0 hours, 1 minute

Last reboot reason : User reboot

Boot image: flash:/vFW1000-CMW710-BOOT-E1185-X64.bin

Boot image version: 7.1.064, ESS 1185

  Compiled May 27 2020 15:00:00

System image: flash:/vFW1000-CMW710-SYSTEM-E1185-X64.bin

System image version: 7.1.064, ESS 1185

  Compiled May 27 2020 15:00:00



CPU ID: 0x01000101, vCPUs: Total 1, Available 1

2.00G bytes RAM Memory

Basic    BootWare Version:  1.11

Extended BootWare Version:  1.11

[SLOT  1]VNIC-E1000             (Driver)1.0

<Sysname>




Restoring H3C NFV1000

The restoration method is the same for H3C NFV1000 products. This section uses vFW1000 as an example.

To restore vFW1000 by using the ISO image:

The restoration procedure is the same as the installation procedure. For more information, see "Installing H3C NFV1000 on VMware ESXi

", "Installing H3C NFV1000 on Linux " or "Installing H3C NFV1000 on H3C CAS."

1.     Enter 3 to select <3> Recovery Install from the INSTALL MENU to restore vFW1000 version to the ISO version in the CD-ROM.

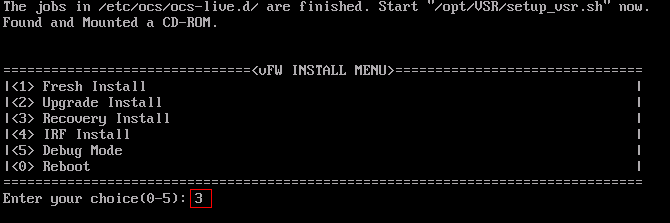

Figure 93 Restoring vFW1000 by using the ISO image



2.     After the installation, disconnect the system from the CD-ROM and then restart the system.


Appendix A  Installing Linux KVM

About Linux KVM

Kernel-based Virtual Machine (KVM) is an open-source full virtualization solution for Linux on x86 hardware. It has been merged into the Linux main releases since Linux 2.6.20, and has become a mainstream Virtual Machine Monitor (VMM).

This chapter installs CentOS 7 as an example to describe KVM installation.

Restrictions and guidelines

Before installing KVM, make sure you PC or server supports hardware virtualization, such as Intel VT technology and AMD V technology.

Prerequisites

Prepare the bootable drive or the network boot environment.

·     To boot the system from a CD/DVD, insert the CentOS 7 optical disk into the optical drive, and configure the server to boot from CD/DVD.

·     To boot the system from the network, prepare the network boot environment, and configure the server to boot from the network.

Procedure

1.     Access the CentOS 7 installation welcome screen as shown in Figure 94, select Install CentOS 7 and press Enter.

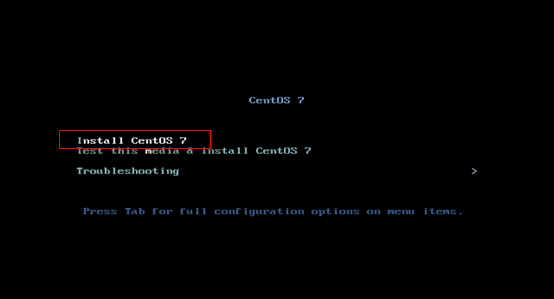

Figure 94 CentOS 7 installation welcome screen



2.     Select a language and then click Continue, as shown in Figure 95.

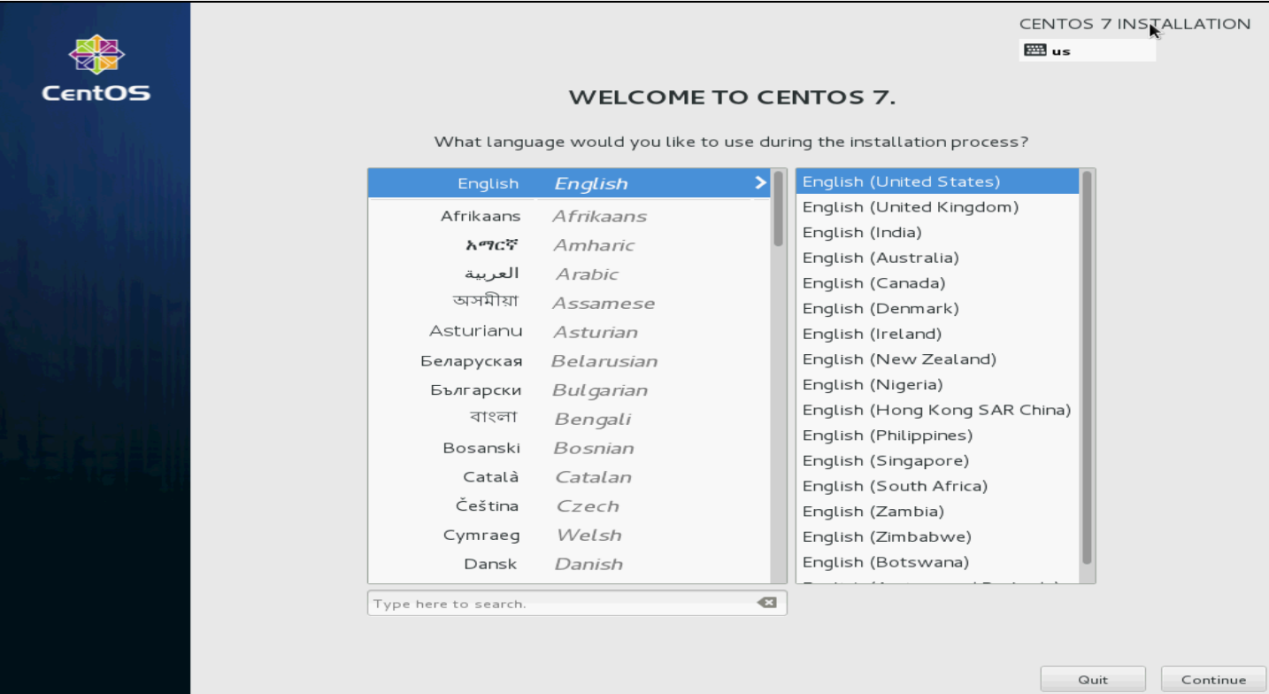

Figure 95 Selecting a language



3.     Select SOFTWARE SELECTION in the SOFTWARE section.

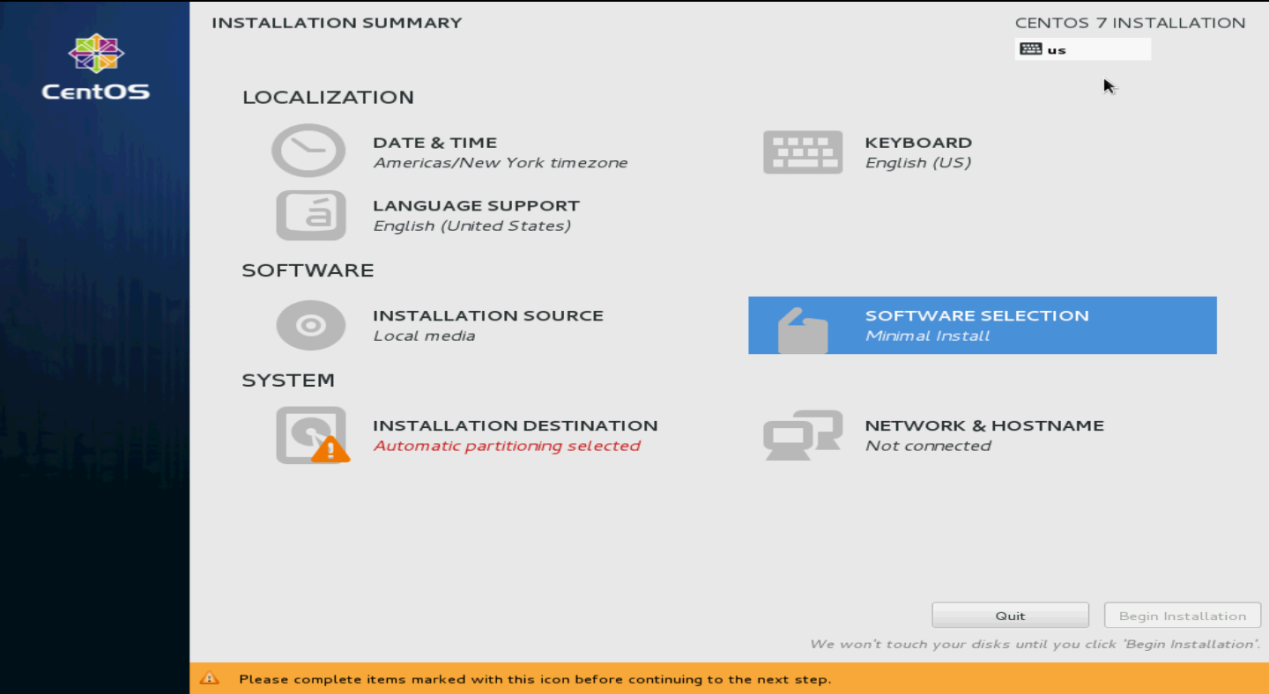

Figure 96 INSTALLATION SUMMARY screen



4.     Select the virtualization components to install.

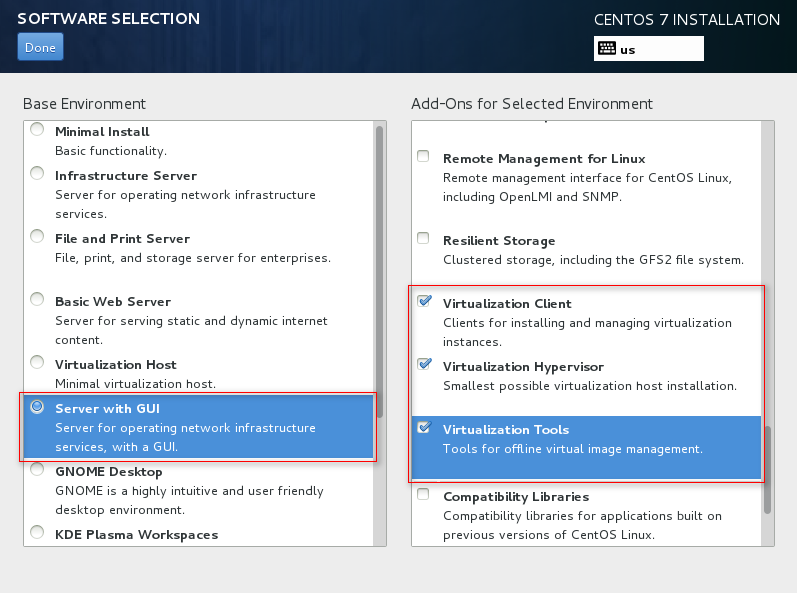

To facilitate management of VMs and ensure correct installation of the virtualization components, select the components marked in the red boxes in Figure 97 to Figure 99 and then click Done.

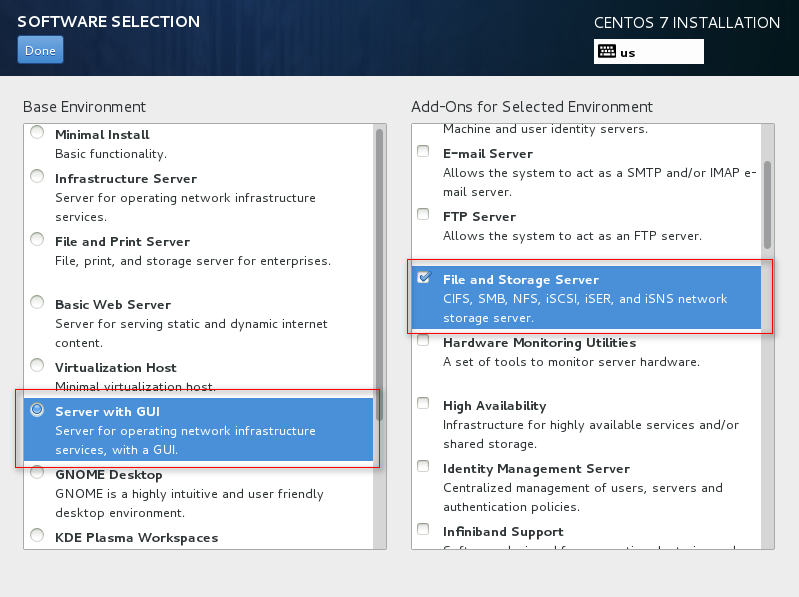

Figure 97 Installing virtualization components (1)



Figure 98 Installing virtualization components (2)

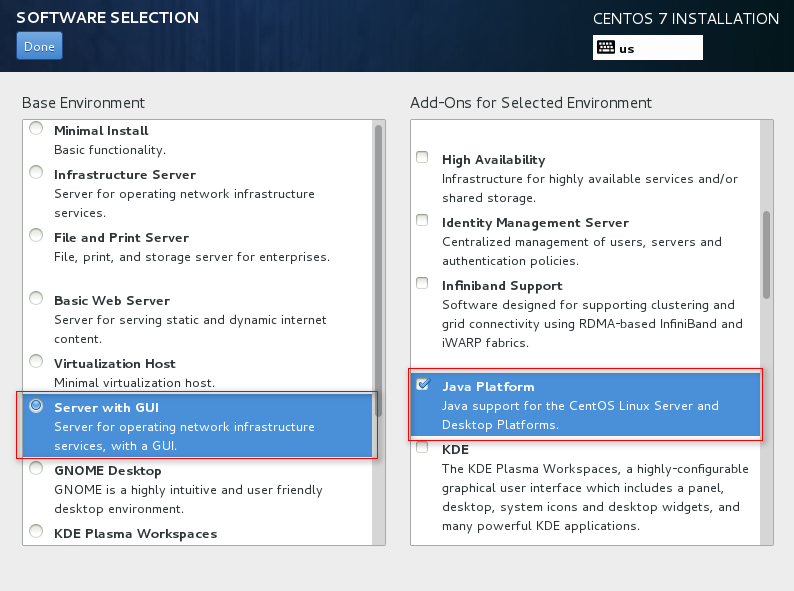

Figure 99 Install virtualization components (3)



5.     Click INSTALLATION DESTINATION. Select the installation destination and select I will configuration partitioning as shown in Figure 100, and then click Done.

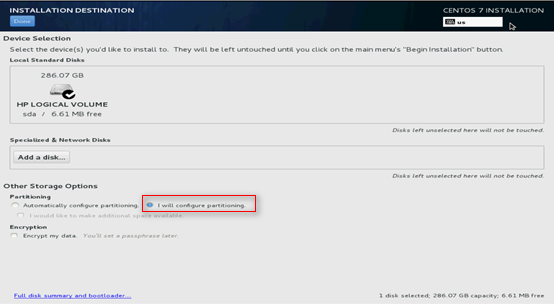

Figure 100 Selecting the installation destination



6.     As shown in Figure 101, select the Unknown space and click to remove the unknown partition. In the confirmation box that opens, select the options as shown in Figure 102 to delete it.

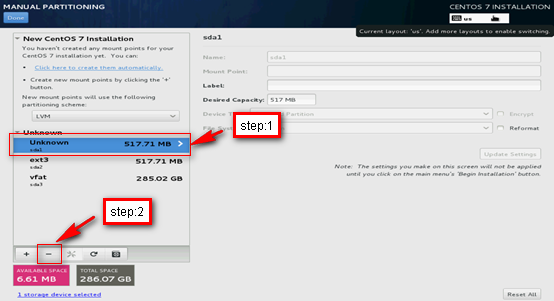

Figure 101 Removing the unknown partition

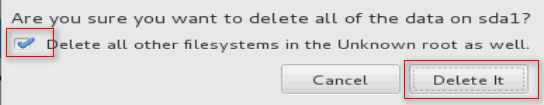

Figure 102 Confirming the deletion



7.     Select Click here to create them automatically.

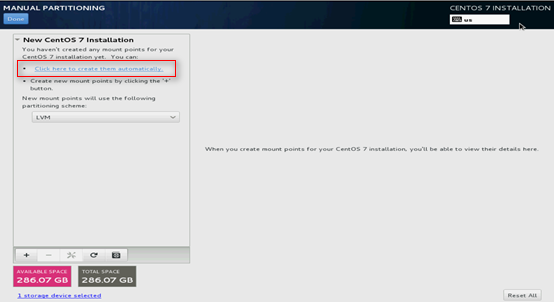

Figure 103 Selecting automatic creation method for mount points



8.     Because the VM image is stored in the /var or /opt subdirectory, the / partition must be large. However, the system allocates a large amount of space to the /home partition automatically. As a best practice, delete the /home partition and add its space to the / partition, and keep other partitions used to store system files unchanged.

¡     To delete the /home partition, perform the steps as shown in Figure 104.

¡     To add space to the / partition, perform the steps as shown in Figure 105.

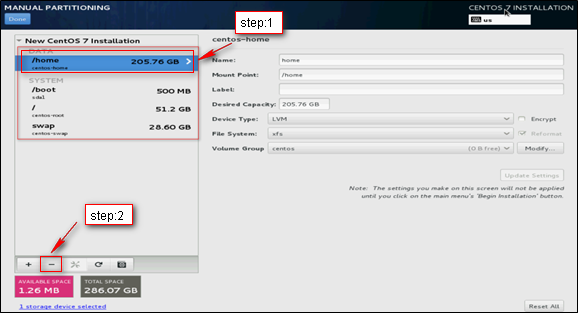

Figure 104 Deleting the /home partition



Figure 105 Adding space to the / partition



IMPORTANT

IMPORTANT:

The system can start up in legacy BIOS mode and UEFI mode. If the system starts up in UEFI mode, do not delete the /boot/efi partition because this partition is bootloaded by the system.



9.     As a best practice to enhance the system stability and reduce the VM image corruption risk in case of a server power outage, modify the Device Type and File System settings for the partitions. As shown in Figure 106, the Device Type and File System settings are changed for the / partition. Change the Device Type and File System settings for the other partitions as shown in Table 6.

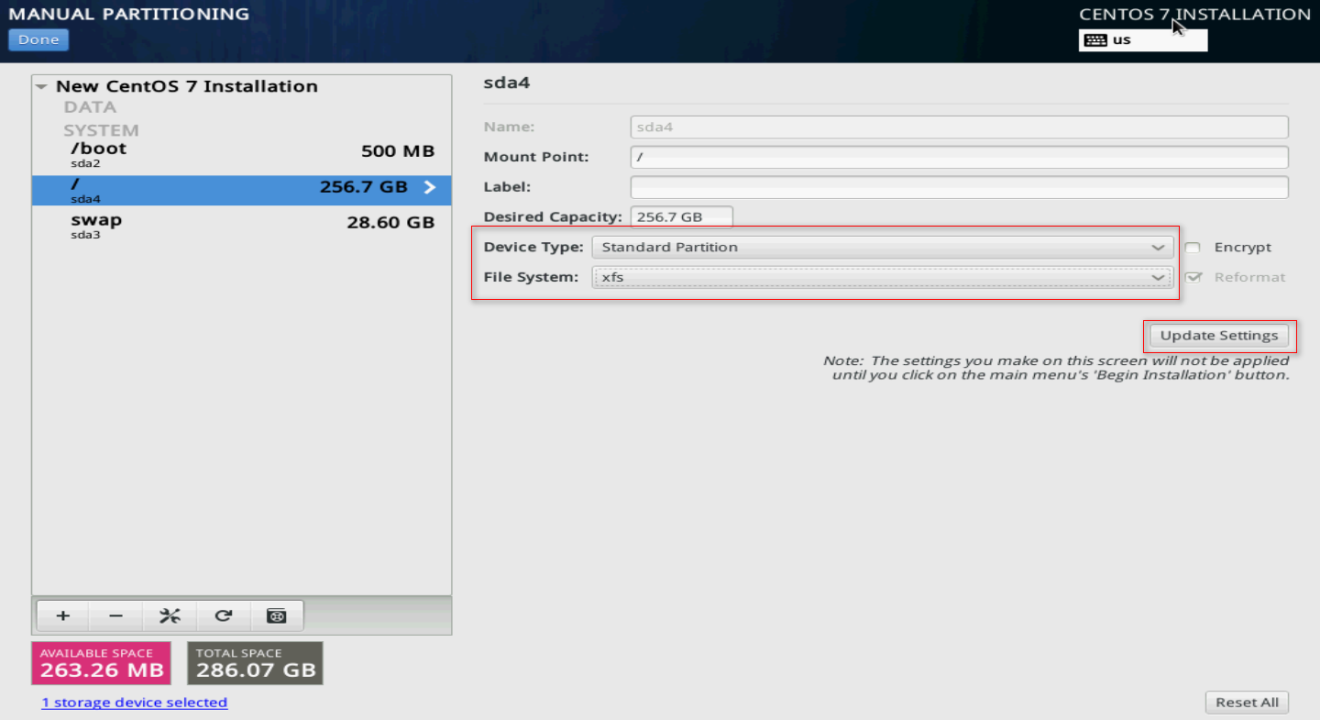

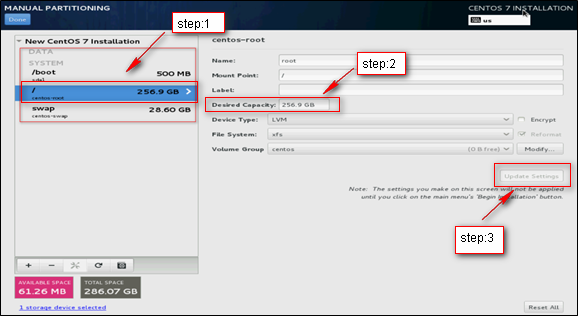

Figure 106 Modifying the / partition settings



Table 6 Changing the partition settings

Partition

Device Type

File System

/boot

Standard Partition

xfs

/boot/efi (available only in UEFI mode)

Standard Partition

EFI System Partition

/

Standard Partition

xfs

swap

Standard Partition

swap



10.     Click Done. In the dialog box that opens, click Accept Changes.

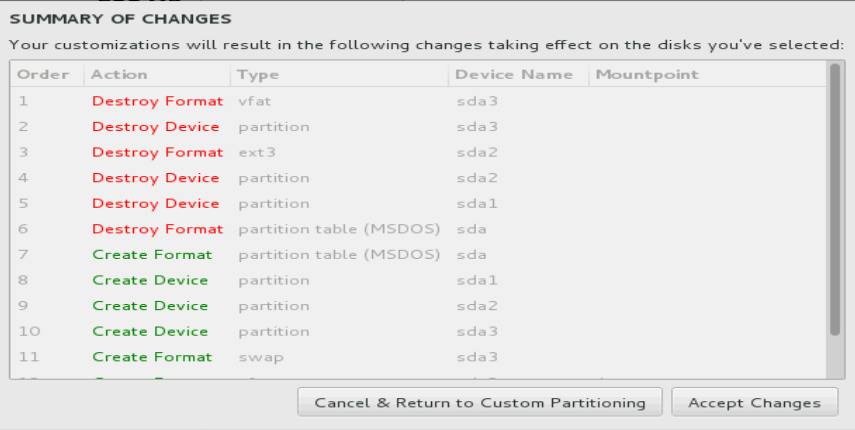

Figure 107 Saving the settings



IMPORTANT

IMPORTANT:

When you add a device file, set Device Type to Standard Partition and File System to xfs to reduce the file corruption probability in case of an unexpected power down of the server.



11.     Click Begin Installation.

12.     Click ROOT PASSWORD.

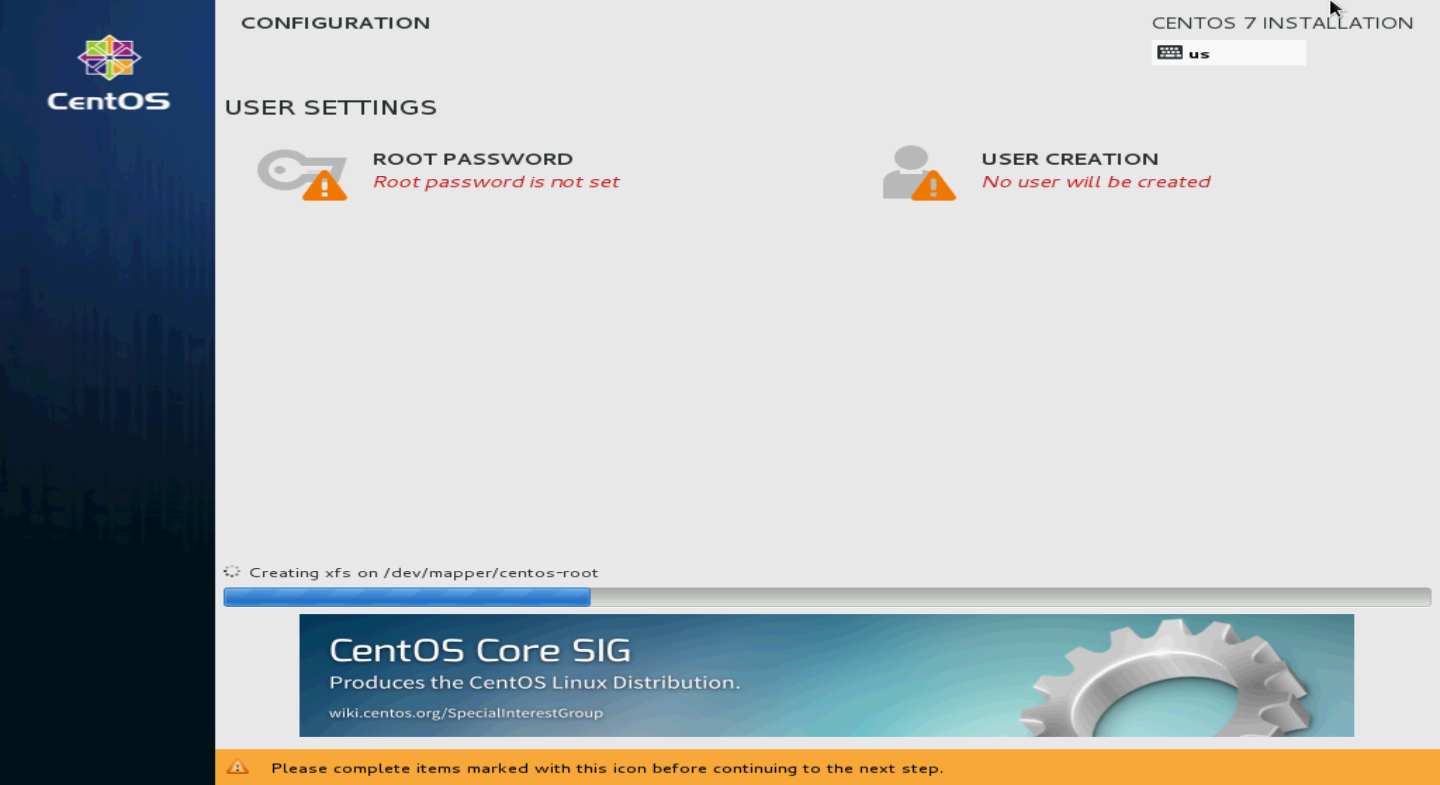

Figure 108 CONFIGURATION screen



13.     Specify the root password, confirm the password, and then click Done.

If the system prompts that the password is too weak, click Done to confirm the password again.

The system returns to the Configuration screen.

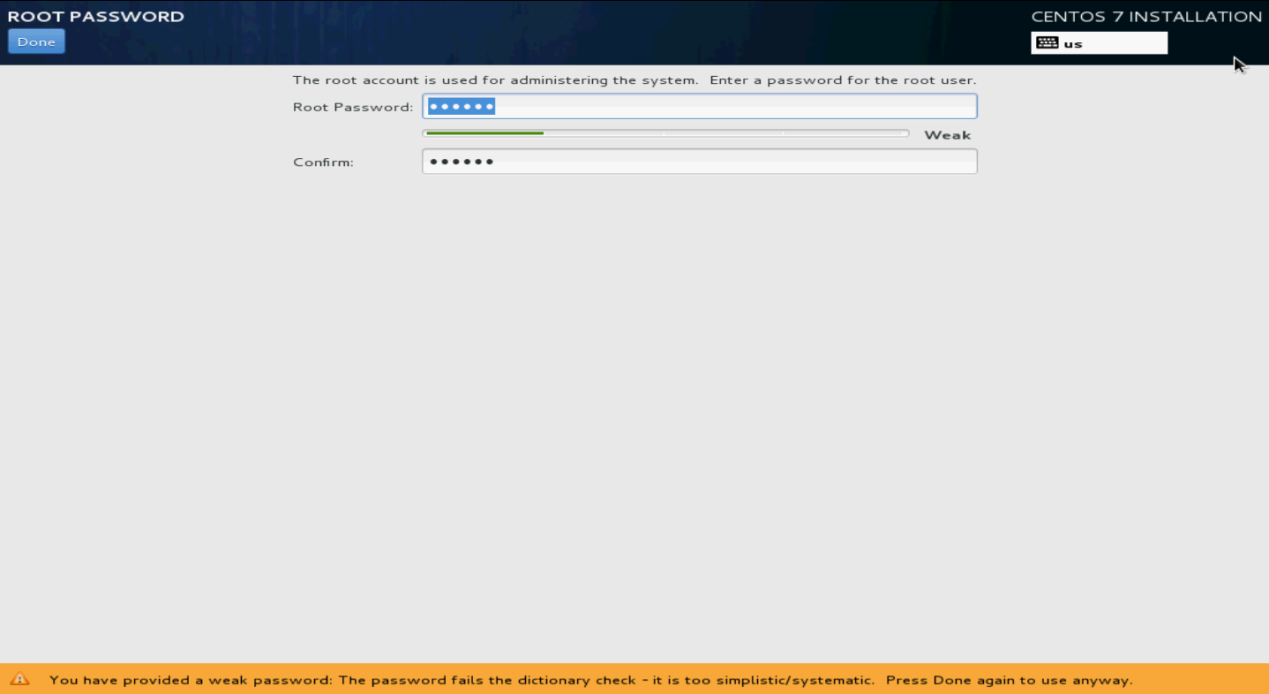

Figure 109 Specifying the root password

14.     Click USER CREATION. Specify the username and password, and then click Done.

You can also use the non-root account created here to log in to the Linux OS.

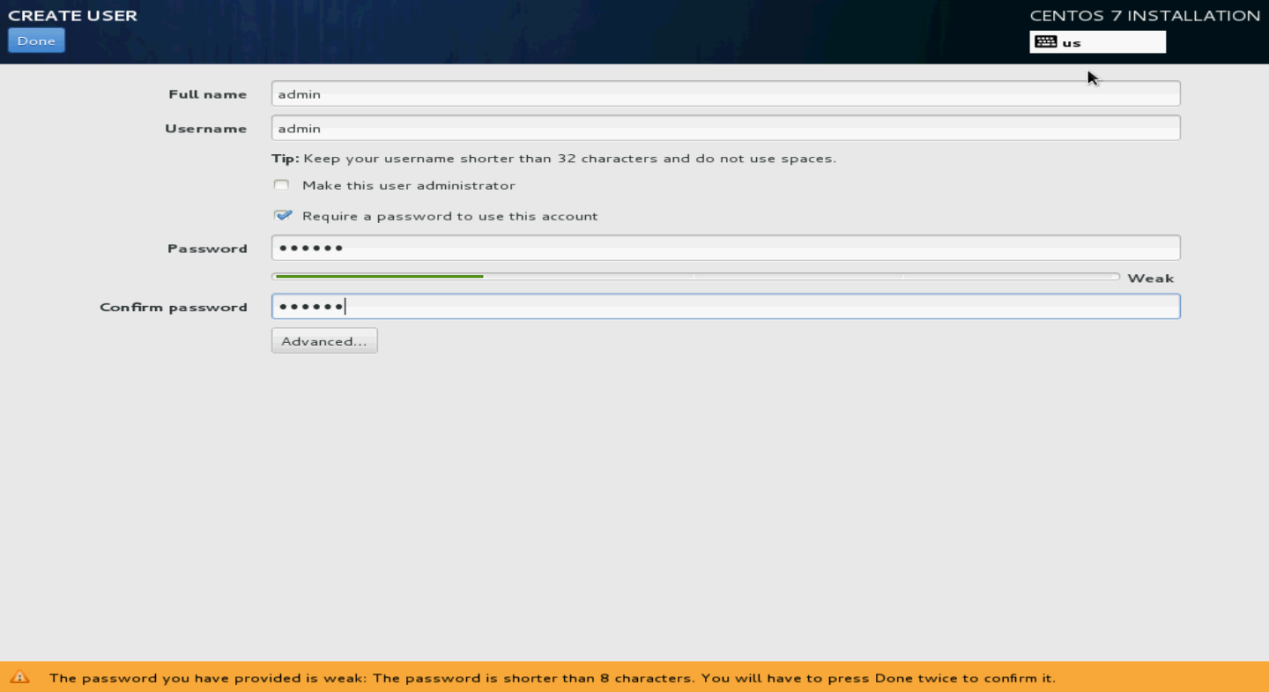

Figure 110 Creating a user account



15.     Click Finish configuration.

The system starts automatic installation.

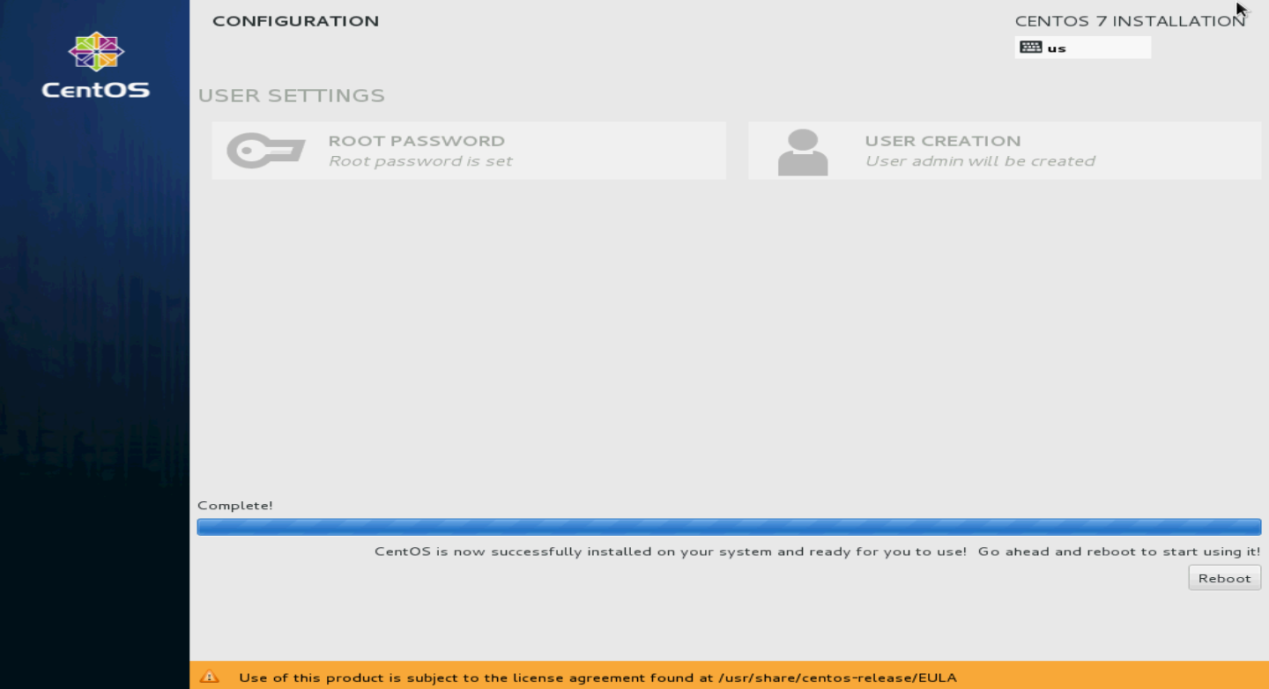

16.     After the installation, click Reboot to reboot the system.

If you use a CD/DVD as the bootable drive, remove the CD/DVD before rebooting the system.

The system enters the INITIAL SETUP screen.

Figure 111 Rebooting the system



17.     On the CentOS main page as shown in Figure 112, click LICENSE INFORMATION to confirm information.

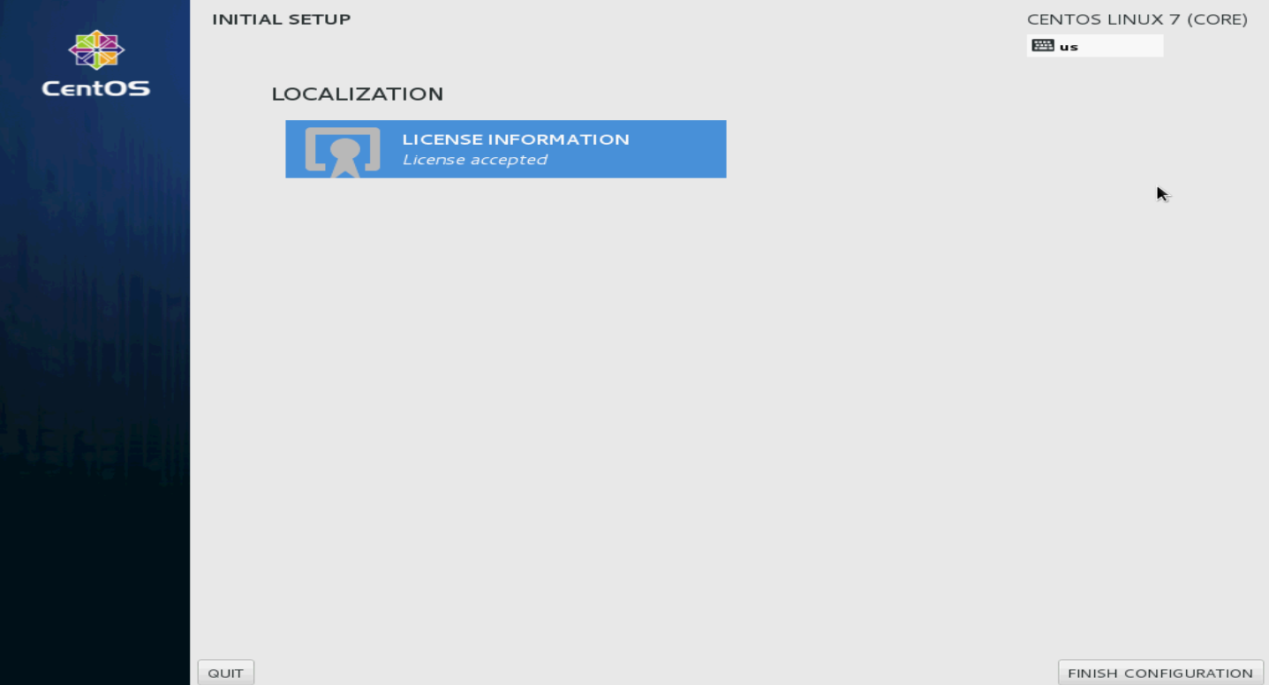

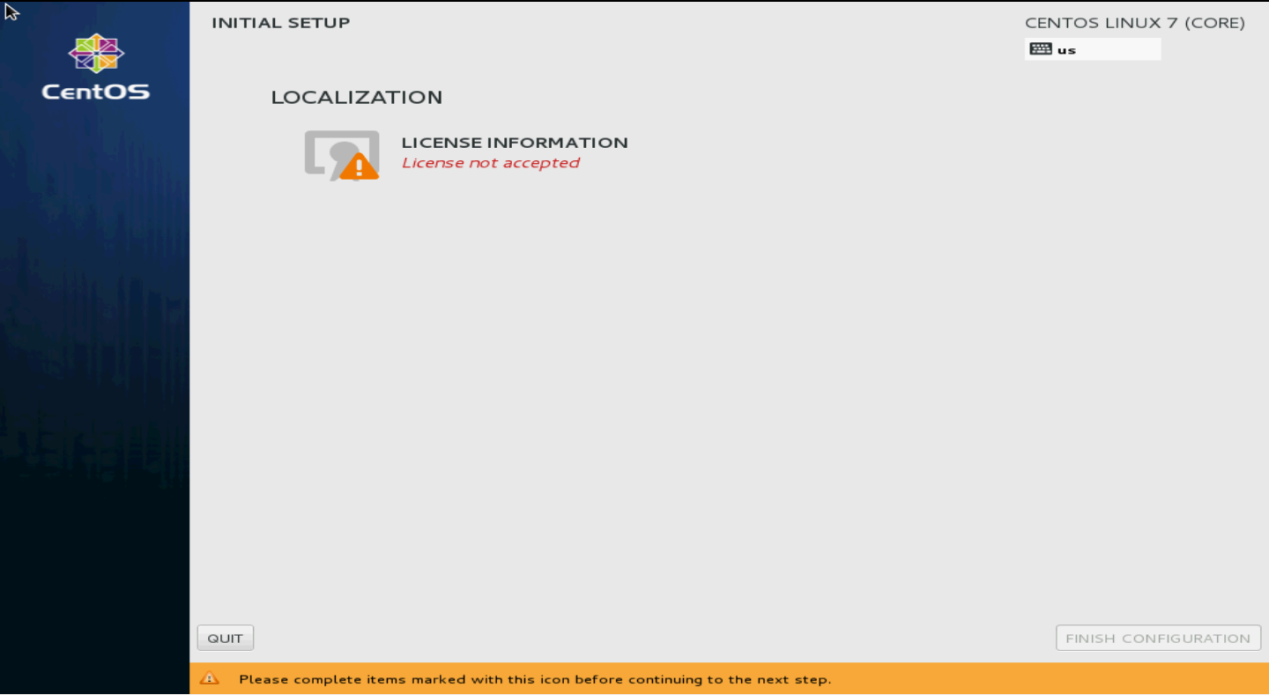

Figure 112 INITIAL SETUP screen



18.     Select I accept the license agreement, and then click Done.

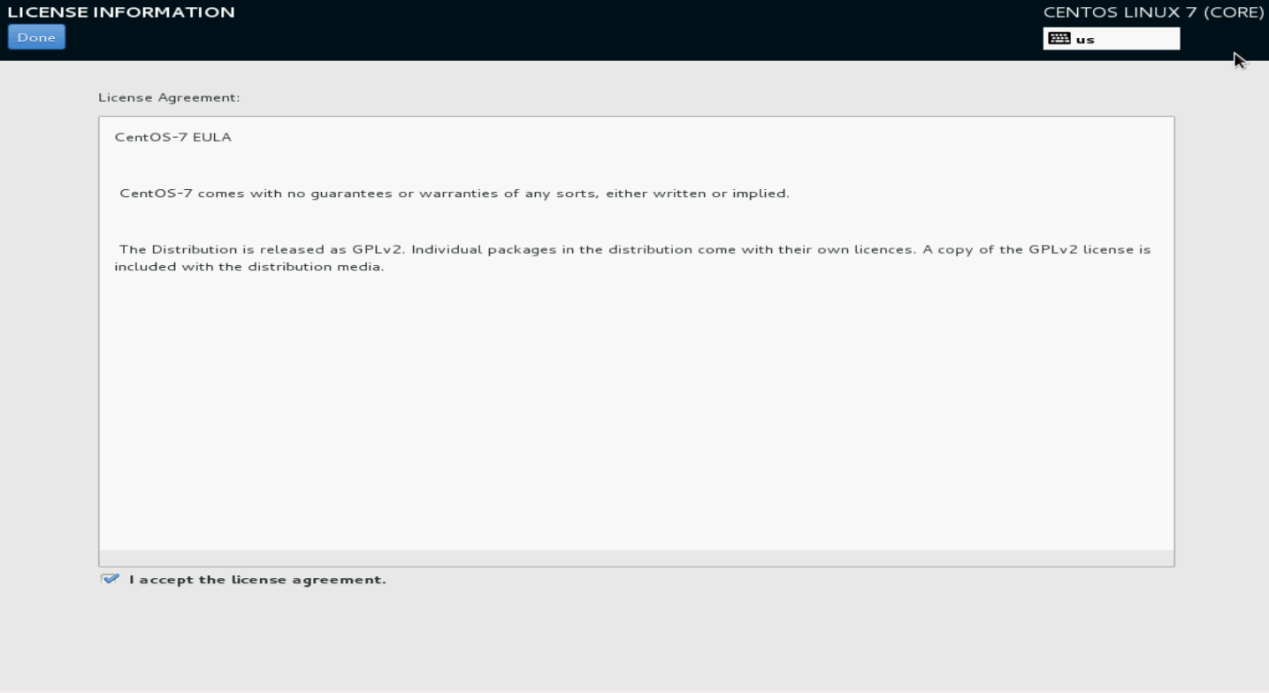

Figure 113 License agreement



19.     Click FINISH CONFIGURATION.

The user login screen opens.

Figure 114 Finishing configuration



20.     Enter the username and password, and then click Sign In.

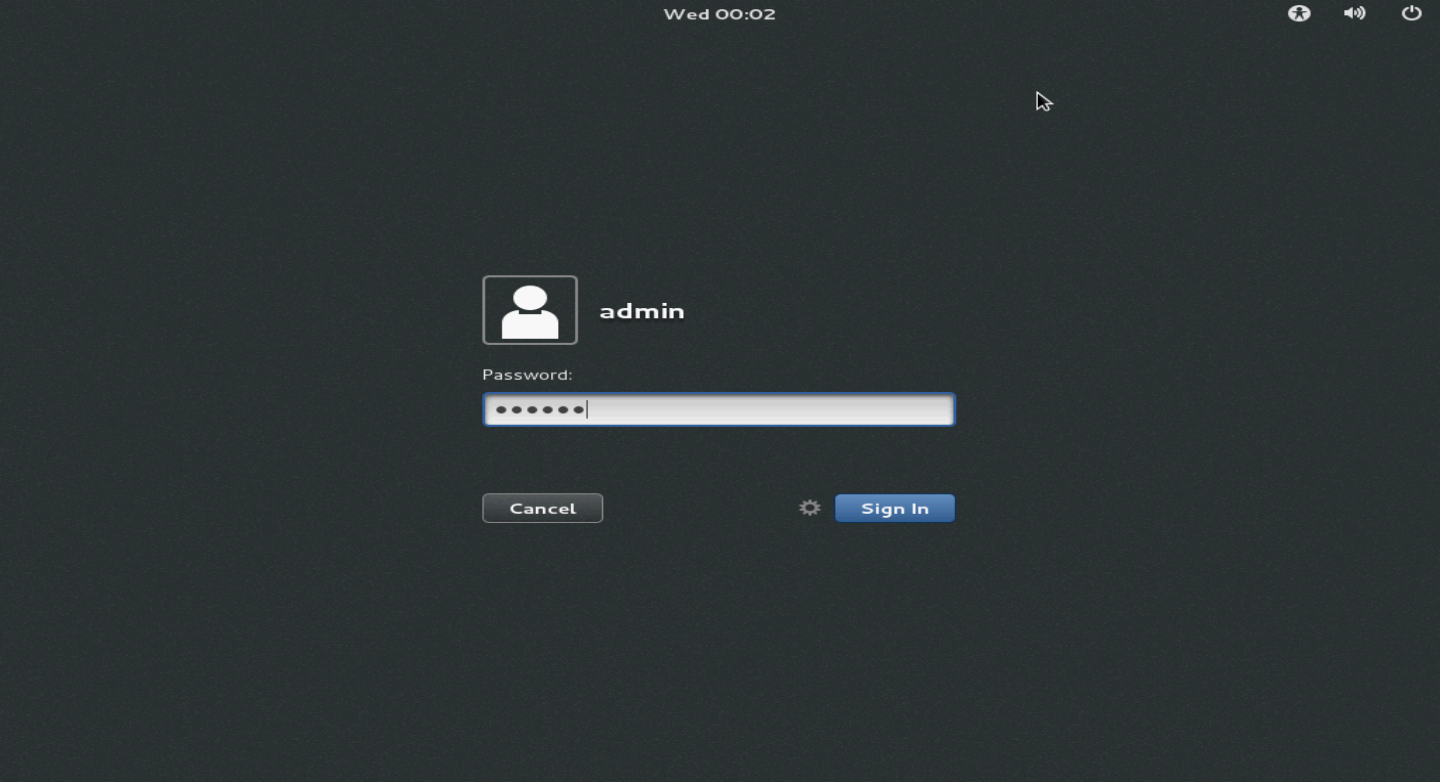

Figure 115 Login screen



21.     Select the language and then click Next.

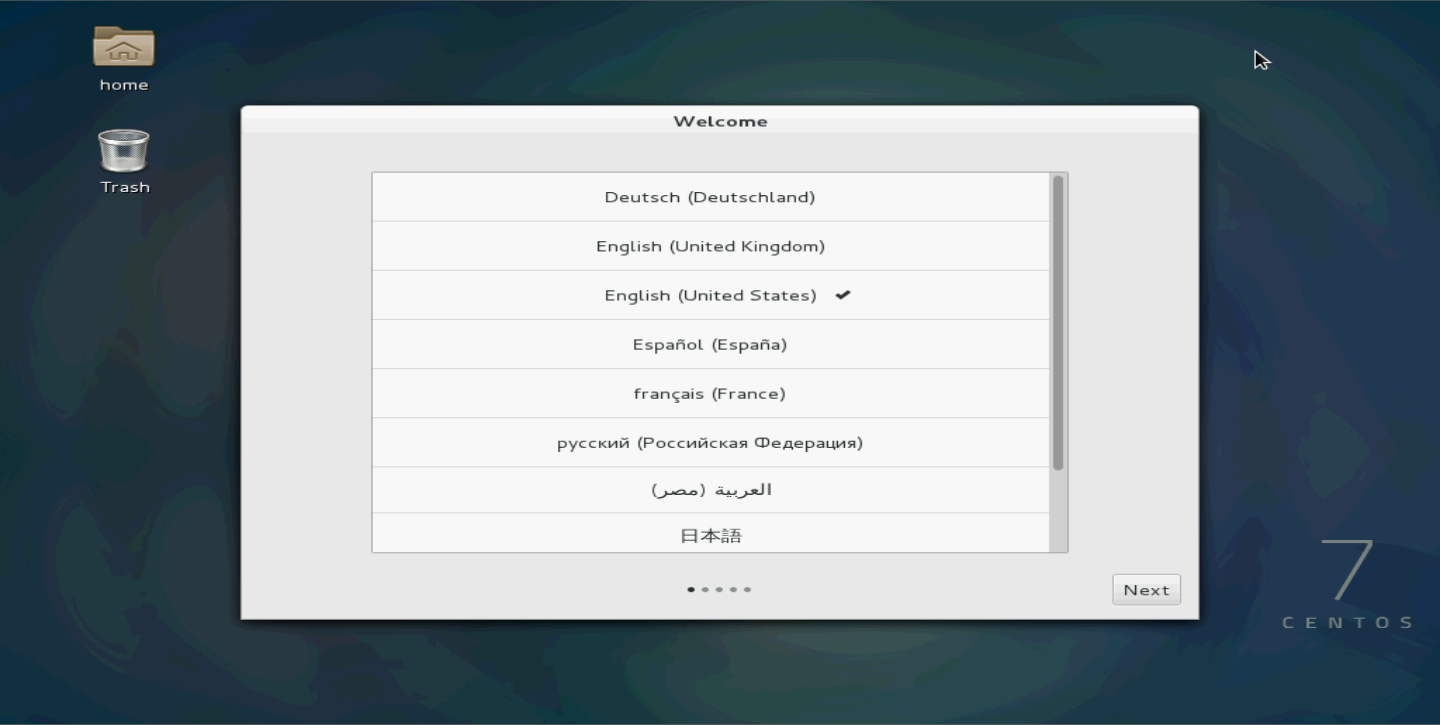

Figure 116 Selecting the language



22.     Select the input sources.

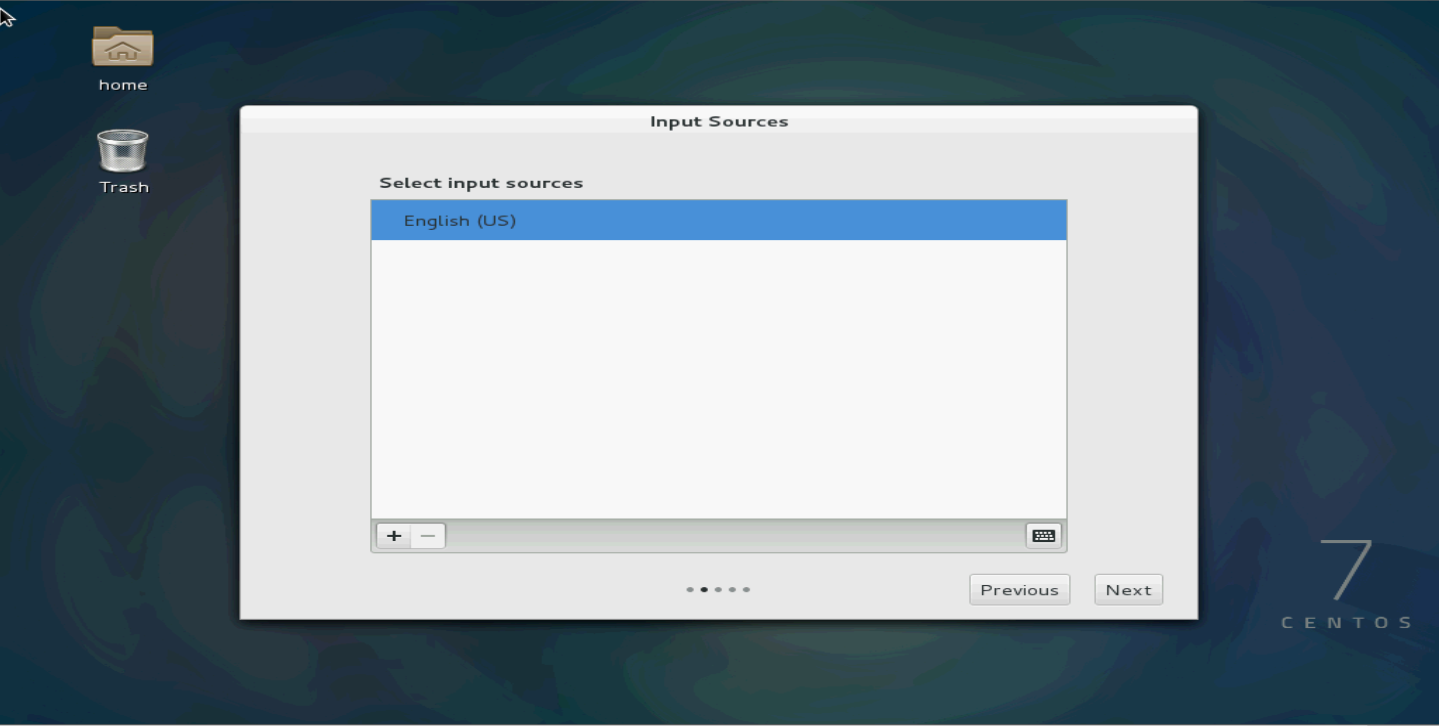

Figure 117 Selecting the input sources



23.     Click Start using CentOS Linux.

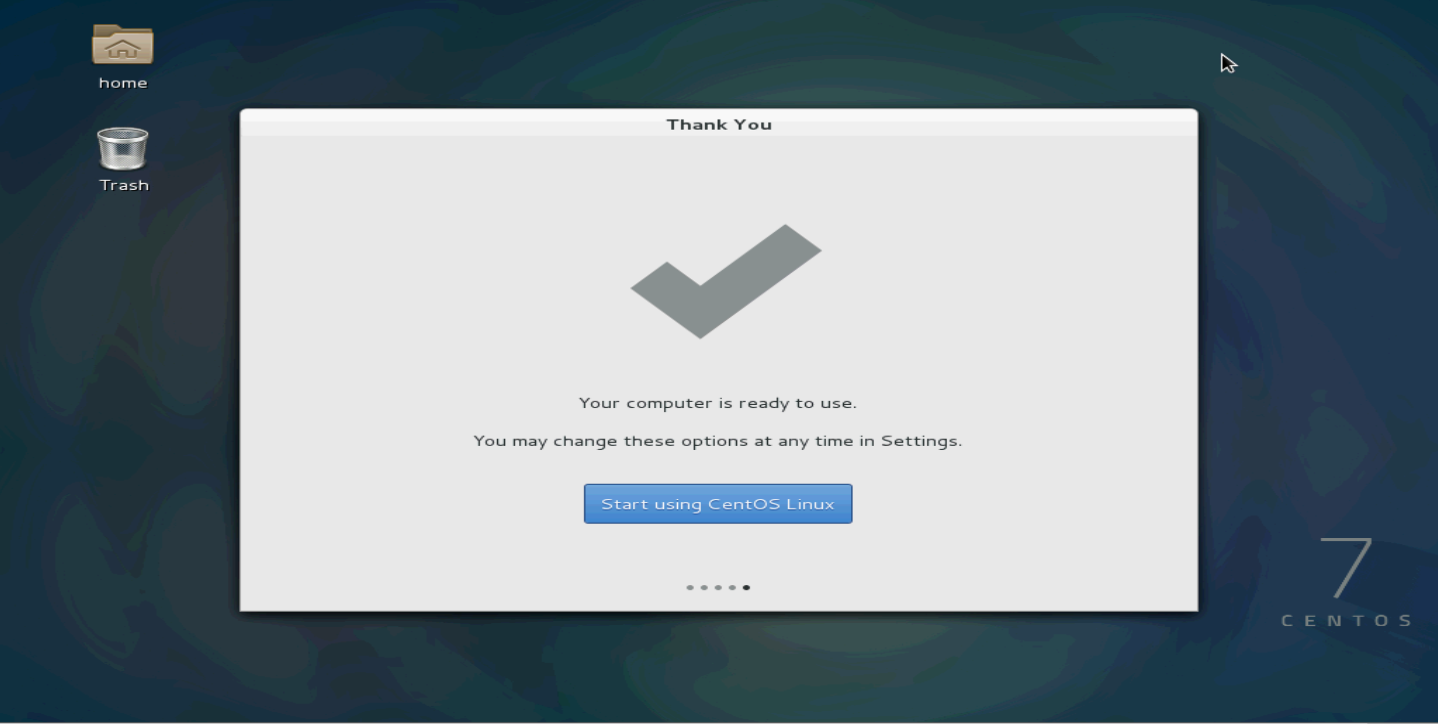

Figure 118 Starting using CentOS Linux



24.     Select Applications > System Tools > Virtual Machine Manager to open the virtual machine manager (KVM).

Root permissions are required for VM-related operations. If you logged in to the Linux OS as a non-root user, the virtual machine manager will require you to enter the root password.

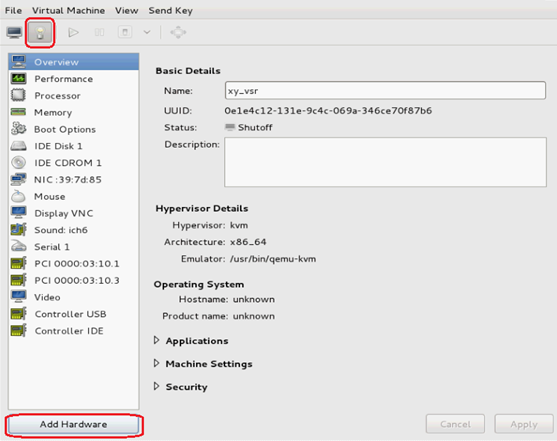

Figure 119 Virtual Machine Manager



Configuring network parameters

After installing CentOS 7, do not configure network parameters directly by clicking the network settings icon in the upper right corner of the GUI. The network parameters configured on the GUI are managed through the NetworkManager service. However, you have to shut down the NetworkManager service when creating a bridge later, which will invalidate the previously configured network parameters. As a best practice, configure the network parameters manually.

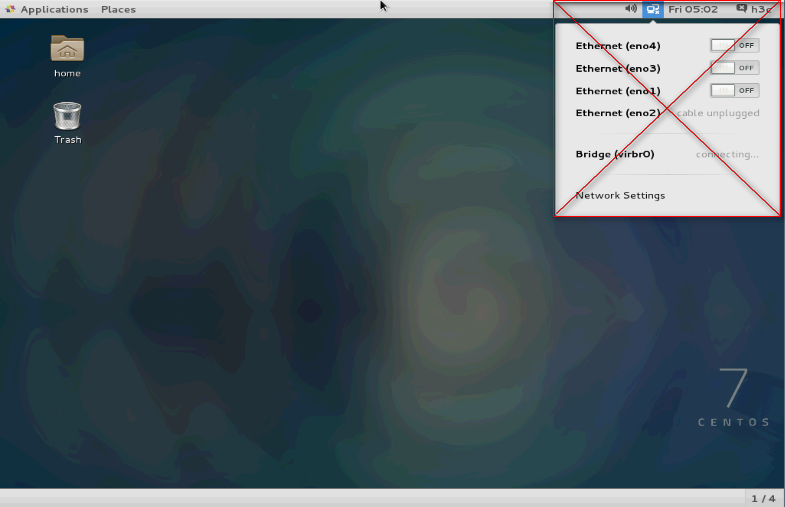

Figure 120 Network parameter configuration from the GUI not allowed



The manual IP configuration method includes temporary configuration and permanent configuration.

Temporary IP address configuration

The IP address configured with this method will be lost after a system reboot.

# Configure IP address 192.168.16.33 with a 16-bit subnet mask for network interface eno1.

ifconfig eno1 192.168.16.33/16

Permanent IP address configuration

The /etc/sysconfig/network scripts/ directory contains a configuration file for each NIC, for example, the ifcfg-eno1 configuration file for NIC eno1. By changing the configuration file, you can modify the network port settings permanently.

To configure a permanent IP address:

1.     Modify the parameters as follows. If you cannot find the parameters, add the parameter settings at the end of the file.

[root@localhost ~]# cd /etc/sysconfig/network-scripts/

[root@localhost network-scripts]# vim ifcfg-eno1

HWADDR=EC:B1:D7:80:50:54

TYPE=Ethernet

BOOTPROTO=static   # Change the value from dhcp to static.

DEFROUTE=yes

PEERDNS=yes

PEERROUTES=yes

IPV4_FAILURE_FATAL=no

IPV6INIT=yes

IPV6_AUTOCONF=yes

IPV6_DEFROUTE=yes

IPV6_PEERDNS=yes

IPV6_PEERROUTES=yes

IPV6_FAILURE_FATAL=no

NAME=eno1

UUID=cbb80618-065f-4272-9fde-39ff9b06e47

ONBOOT=yes     # Change the value from no to yes to activate the device when the system starts up.

IPADDR=192.168.16.33   # IP address of the NIC

NETMASK=255.255.0.0 # Subnet mask of the NIC

2.     Save the configuration and restart the network service.

[root@localhost network-scripts]# systemctl restart network.service

3.     Verify that the NIC configuration has been updated.

[root@localhost network-scripts]# ifconfig eno1

eno1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500

        inet 192.168.16.33  netmask 255.255.0.0  broadcast 192.168.255.255

        inet6 2002:6f01:102:5:eeb1:d7ff:fe80:5054  prefixlen 64  scopeid 0x0<global>

        inet6 fec0::5:eeb1:d7ff:fe80:5054  prefixlen 64  scopeid 0x40<site>

        inet6 2002:8302:101:5:eeb1:d7ff:fe80:5054  prefixlen 64  scopeid 0x0<global>

        inet6 fe80::eeb1:d7ff:fe80:5054  prefixlen 64  scopeid 0x20<link>

        inet6 2002:aca8:284d:5:eeb1:d7ff:fe80:5054  prefixlen 64  scopeid 0x0<global>

        ether ec:b1:d7:80:50:54  txqueuelen 1000  (Ethernet)

        RX packets 291341  bytes 126617361 (120.7 MiB)

        RX errors 0  dropped 178991  overruns 0  frame 0

        TX packets 332  bytes 46253 (45.1 KiB)

        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

        device interrupt 16

Disabling the SELinux service

Edit the /etc/selinux/config file and disable the SELinux service.

[root@CentOS home]# vim /etc/selinux/config

# This file controls the state of SELinux on the system.

# SELINUX= can take one of these three values:

#     enforcing - SELinux security policy is enforced.

#     permissive - SELinux prints warnings instead of enforcing.

#     disabled - No SELinux policy is loaded.

SELINUX=disabled

# SELINUXTYPE= can take one of these two values:

#     targeted. - Targeted processes are protected,

#     mls - Multi Level Security protection.

SELINUXTYPE=targeted

[root@CentOS home]# /usr/sbin/setenforce 0

Configuring Linux bridges on KVM

If the server does not have NICs that support SR-IOV (such as 82599 NIC), or the NIC that supports SR-IOV needs to be used with other NICs, you are required to virtualize the NICs through the Linux bridge technology

1.     Upload the compressed package toMarketToolsV1.x.zip to KVM and decompress the package. Then execute one of the operations as needed:

¡     With NICs that support SR-IOV filtered out.

Access the toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v1/ovs directory and execute the ./bridge-setup.sh -i command to configure Linux bridges.

[root@localhost ~]# unzip toMarketToolsV1.x.zip

[root@localhost ~]# cd toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v1/bridge

[root@localhost bridge]# chmod  777 ./bridge-setup.sh

[root@localhost bridge]# ./bridge-setup.sh -i

Network default destroyed



Network default unmarked as autostarted



network config eno1 to bridge br0 complete.

network config eno2 to bridge br1 complete.

network config eno3 to bridge br2 complete.

network config eno4 to bridge br3 complete.



¡     With NICs that support SR-IOV not filtered out.

Access the toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v2/ovs directory and execute the ./bridge-setup.sh -i command to configure Linux bridges.

[root@localhost ~]# unzip toMarketToolsV1.x.zip

[root@localhost ~]# cd toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v2/bridge [root@localhost bridge]# chmod  777 ./bridge-setup.sh

[root@localhost bridge]# ./bridge-setup.sh -i

Network default destroyed



Network default unmarked as autostarted



network config eno1 to bridge br0 complete.

network config eno2 to bridge br1 complete.

network config eno3 to bridge br2 complete.

network config eno4 to bridge br3 complete.





NOTE:

·     The script file toMarketToolsV1.x.zip for creating Linux bridges is released together with vFW1000 or vLB1000 product version. You can obtain it when obtaining vFW1000 or vLB1000 product version.

·     The chmod 777 ./bridge-setup.sh command is an optional command for changing command permissions. If the system promotes permission denied when you execute the ./bridge-setup.sh –I command, use this command.

·     The difference between Create_Bridge_shell_v1 and Create_Bridge_shell_v2 is that the v1 version filters out NICs that support SR-IOV when creating a bridge or OVS bridge while the v2 version does not filter out NICs that support SR-IOV.



2.     Execute the following command to verify that the bridges are created successfully.

[root@localhost ~]# brctl show

bridge name bridge id       STP enabled interfaces

br0    8000.c4346bb8d138   no      eno1

br1    8000.c4346bb8d139   no      eno2

br2    8000.c4346bb8d13a   no      eno3

br3    8000.c4346bb8d13b   no      eno4

br4    8000.6cc217415ee0   no      ens1f0

br5    8000.6cc217415ee4   no      ens1f1

br6    8000.8cdcd4015950   no      ens2f0

br7    8000.8cdcd4015954   no      ens2f1

virbr0     8000.000000000000   yes

The command output shows the mapping relations between the bridges (except the default bridge virbr0) and physical NICs. The bridges are created successfully.

3.     Verify that the network-scripts configuration file is create

The eno1 and br0 are used in this example.

[root@localhost ~]# cat /etc/sysconfig/network-scripts/ifcfg-br0

DEVICE=br0

TYPE=Bridge

BOOTPROTO=static

ONBOOT=yes

IPADDR=192.168.1.196

NETMASK=255.255.0.0

[root@localhost ~]# cat /etc/sysconfig/network-scripts/ifcfg-eno1

DEVICE=eno1

HWADDR=c4:34:6b:b8:d1:38

BOOTPROTO=none

ONBOOT=yes

BRIDGE=br0

[root@localhost ~]# ifconfig br0

br0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 2000

        inet 192.168.1.196  netmask 255.255.0.0  broadcast 192.168.255.255

        inet6 2002:6100:2f4:b:c634:6bff:feb8:d138  prefixlen 64  scopeid 0x0<global>

        inet6 fec0::5:c634:6bff:feb8:d138  prefixlen 64  scopeid 0x40<site>

        inet6 fec0::b:c634:6bff:feb8:d138  prefixlen 64  scopeid 0x40<site>

        inet6 fe80::c634:6bff:feb8:d138  prefixlen 64  scopeid 0x20<link>

        inet6 2002:aca8:284d:5:c634:6bff:feb8:d138  prefixlen 64  scopeid 0x0<global>

        inet6 2002:6200:101:b:c634:6bff:feb8:d138  prefixlen 64  scopeid 0x0<global>

        ether c4:34:6b:b8:d1:38  txqueuelen 0  (Ethernet)

        RX packets 29465349  bytes 7849790528 (7.3 GiB)

        RX errors 0  dropped 19149249  overruns 0  frame 0

        TX packets 4415  bytes 400662 (391.2 KiB)

        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0



[root@localhost ~]# ifconfig eno1

eno1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 2000

        inet6 fe80::c634:6bff:feb8:d138  prefixlen 64  scopeid 0x20<link>

        ether c4:34:6b:b8:d1:38  txqueuelen 1000  (Ethernet)

        RX packets 31576735  bytes 8896279718 (8.2 GiB)

        RX errors 0  dropped 7960  overruns 0  frame 0

        TX packets 4461  bytes 464952 (454.0 KiB)

        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

        device interrupt 16

Parameters:

¡     DEVICE—Interface name, which must be the same as that in the ifconfig file.

¡     TYPE—interface type, which exists only in the configuration file of the bridge. The value is Bridge.

¡     BOOTPROTOThe options include none, dhcp, and static.

-     noneDo not use any protocol.

-     dhcpUses DHCP to obtain address.

-     staticUses a static IP.

The value is none in the configuration file of a physical interface and static in the configuration file of a bridge.

¡     ONBOOTWhether to active the device during bootloader. Options are yes and no. The value here must be yes.

¡     IPADDR—IP address. The IP address of the physical interface is moved to the bridge, and this option does not exist in the configuration file. The value in the bridge configuration file is the IP configured for the original physical interface, consistent with the inet value in the ifconfig file.

¡     NETMASK—IP subnet mask.

¡     HWADDR—MAC address. It only exists in the configuration file of a physical interface. The value is consistent with that in the ifconfig file.

¡     BRIDGEName of the bridge to which the physical interface is bound, existing only in the configuration file of the physical interface.



IMPORTANT

IMPORTANT:

·     Log in to the device from the access system of the server rather than log in to the server remotely over the network for your operation because the network service will be restarted during the Linux bridge creating process.

·     The virtual interfaces on a Linux bridge do not isolate VLANs. To isolate VLANs, use an OVS bridge instead of a Linux bridge. For information about creating an OVS bridge, see "Appendix B  OVS bridge."






Appendix B  OVS bridge

A Linux bridge does not isolate VLANs. To isolate VLANs, use an OVS bridge instead of a Linux bridge.

Before configuring an OVS bridge, install Open vSwitch. For the Open vSwitch installation method, see the installation guide.

Configuring OVS bridges

1.     Configure OVS bridges.

Upload the toMarketToolsV1.x.zip file to the CentOS 7 server, decompress it, and perform one of the following tasks as needed:

¡     With NICs that support SR-IOV filtered out.

Access the toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v1/ovs directory and execute the ./ovs-setup-deb.sh -i command.

[root@localhost ~]# unzip toMarketToolsV1.x.zip

[root@localhost ~]# cd toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v1/ovs

[root@localhost ovs]# chmod 777 ./ovs-setup-deb.sh

[root@localhost ovs]# ./ovs-setup-deb.sh -i

Network default destroyed



Network default unmarked as autostarted



remove module bridge

openvswitch install complete.

network config ens160 to ovs-bridge br0 complete.



¡     With NICs that support SR-IOV not filtered out.

Access the toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v2/ovs directory and execute the ./ovs-setup-deb.sh -i command.

[root@localhost ~]# unzip toMarketToolsV1.x.zip

[root@localhost ~]# cd toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v2/ovs

[root@localhost ovs]# chmod 777 ./ovs-setup-deb.sh

[root@localhost ovs]# ./ovs-setup-deb.sh -i

Network default destroyed



Network default unmarked as autostarted



remove module bridge

openvswitch install complete.

network config ens160 to ovs-bridge br0 complete.





NOTE:

·     The script file toMarketToolsV1.x.zip for creating OVS bridges is released together with vFW1000 or vLB1000 product version. You can obtain it when obtaining vFW1000 or vLB1000 product version.

·     The chmod 777 ./bridge-setup.sh command is an optional command for changing command permissions. If the system prompts permission denied when you execute the ./bridge-setup.sh –I command, use this command.

·     The difference between Create_Bridge_shell_v1 and Create_Bridge_shell_v2 is that the v1 version filters out NICs that support SR-IOV when creating a bridge or OVS bridge while the v2 version does not filter out NICs that support SR-IOV.



2.     Execute the following command to verify that the bridges are created successfully.

[root@localhost h3c]# ovs-vsctl show

2bc21194-95b8-48df-929f-a2fdc8842723

    Bridge "br0"

        Port "br0"

            Interface "br0"

                type: internal

        Port "eno1"

            Interface "eno1"



    Bridge "br6"

        Port "ens2f0"

            Interface "ens2f0"

        Port "br6"

            Interface "br6"

                type: internal

    ovs_version: "2.3.1"

The command output shows the mapping relations between the bridges and Ports. The bridges are created successfully.

3.     Verify that the network-scripts configuration file is correct.

The eno1 and br0 are used in this example.

[root@localhost h3c]# cat /etc/sysconfig/network-scripts/ifcfg-br0

DEVICE=br0

HWADDR=c4:34:6b:b8:b1:0c

TYPE=Ethernet

BOOTPROTO=static

ONBOOT=yes

IPADDR=192.168.1.25

NETMASK=255.255.0.0



[root@localhost h3c]# cat /etc/sysconfig/network-scripts/ifcfg-eno1

DEVICE=eno1

HWADDR=c4:34:6b:b8:b1:0c

TYPE=Ethernet

BOOTPROTO=static

ONBOOT=yes

[root@localhost h3c]# ifconfig br0

br0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500

        inet 192.168.1.25  netmask 255.255.0.0  broadcast 192.168.255.255

        inet6 2002:6200:101:b:c634:6bff:feb8:b10c  prefixlen 64  scopeid 0x0<global>

        inet6 2002:6100:2f4:b:c634:6bff:feb8:b10c  prefixlen 64  scopeid 0x0<global>

        inet6 fec0::b:c634:6bff:feb8:b10c  prefixlen 64  scopeid 0x40<site>

        inet6 fec0::5:c634:6bff:feb8:b10c  prefixlen 64  scopeid 0x40<site>

        inet6 2002:aca8:284d:5:c634:6bff:feb8:b10c  prefixlen 64  scopeid 0x0<global>

        inet6 fe80::c634:6bff:feb8:b10c  prefixlen 64  scopeid 0x20<link>

        ether c4:34:6b:b8:b1:0c  txqueuelen 0  (Ethernet)

        RX packets 59563399  bytes 14654045807 (13.6 GiB)

        RX errors 0  dropped 27785742  overruns 0  frame 0

        TX packets 954617  bytes 58597317 (55.8 MiB)

        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0



[root@localhost h3c]# ifconfig eno1

eno1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500

        inet6 fe80::c634:6bff:feb8:b10c  prefixlen 64  scopeid 0x20<link>

        ether c4:34:6b:b8:b1:0c  txqueuelen 1000  (Ethernet)

        RX packets 57371550  bytes 14237402755 (13.2 GiB)

        RX errors 0  dropped 430  overruns 0  frame 0

        TX packets 802515  bytes 56395122 (53.7 MiB)

        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

        device interrupt 16



Parameters:

¡     DEVICE—Interface name, which must be the same as that in the ifconfig file.

¡     TYPE—interface type. The value is Ethernet in the configuration files of OVS bridges and physical interfaces.

¡     BOOTPROTOThe options include none, dhcp, and static.

-     noneDo not use any protocol.

-     dhcpUses DHCP to obtain address.

-     staticUses a static IP.

The value is static in the configuration files of both OVS bridges and physical interfaces.

¡     ONBOOTWhether to active the device during bootloader. Options are yes and no. The value here must be yes.

¡     IPADDR—IP address. The IP address of the physical interface is moved to the bridge, and this option does not exist in the configuration file. The value in the OVS bridge configuration file is the IP configured for the original physical interface, consistent with the inet value in the ifconfig file.

¡     NETMASK—IP subnet mask.

¡     HWADDR—MAC address. The value in the configuration files of OVS bridges and physical interfaces is consistent with the ether parameter value in the ifconfig file.



IMPORTANT

IMPORTANT:

Log in to the device from the access system of the server rather than log in to the server remotely over the network for your operation because the network service will be restarted during the Linux bridge creating process.



Configuring the MTU for an OVS NIC

1.     Configure the MTU for an OVS NIC. Perform one of the following tasks as needed:

¡     With NICs that support SR-IOV filtered out.

Access the toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v1/ovs directory and execute the ./setMtu.sh phyNic mtuSize command to configure the MTU for the physical NIC and vNet.

[root@localhost ovs]# chmod 777 ./setMtu.sh

[root@localhost ovs]# ./setMtu.sh eno2 3000

eno2 mtu set to 3000 complete.

¡     With NICs that support SR-IOV not filtered out.

Access the toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v2/ovs directory and execute the ./setMtu.sh phyNic mtuSize command to configure the MTU for the physical NIC and vNet.

[root@localhost ovs]# chmod 777 ./setMtu.sh

[root@localhost ovs]# ./setMtu.sh eno2 3000

eno2 mtu set to 3000 complete.

2.     Verify that the MTU is configured correctly.

eno2 and br1 are used in this example.

[root@localhost ovs]# ifconfig eno2 | grep mtu

eno2: flags=4099<UP,BROADCAST,MULTICAST>  mtu 3000

[root@localhost ovs]# ifconfig br1 | grep mtu

br1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 3000

[root@localhost ovs]# cat /etc/sysconfig/network-scripts/ifcfg-eno1 | grep -i mtu

MTU=1600

Deleting an OVS bridge

·     With NICs that support SR-IOV filtered out.

Access the toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v1/ovs directory and execute the ./ovs-setup-deb.sh –r command to delete the OVS bridge settings.

[root@localhost ovs]# chmod 777 ./ovs-setup-deb.sh

[root@localhost ovs]# ./ovs-setup-deb.sh -r

network unconfig ovs-bridge br0 to ens160 complete.

Stopping openvswitch (via systemctl):                      [  OK  ]

Network default started



Network default marked as autostarted

·     With NICs that support SR-IOV not filtered out.

Access the toMarketTools/Create_Bridge_shell/Create_Bridge_shell_v2/ovs directory and execute the ./ovs-setup-deb.sh –r command to delete the OVS bridge settings.

[root@localhost ovs]# chmod 777 ./ovs-setup-deb.sh

[root@localhost ovs]# ./ovs-setup-deb.sh -r

network unconfig ovs-bridge br0 to ens160 complete.

Stopping openvswitch (via systemctl):                      [  OK  ]

Network default started



Network default marked as autostarted




Appendix C  Loading Intel 82599 VFs

An Intel 82599 NIC supports SR-IOV and can be virtualized into multiple Virtual Function (VF) NICs through hardware virtualization. You can add the VFs as PCI devices to VMs, which will greatly improve VM performance.

The configuration and loading of VFs need to be performed in the server BIOS and the server hypervisor (VMware/KVM/CAS).

Restrictions and guidelines

Before virtualizing Intel 82599 NIC, make sure your server supports VT-d and SR-IOV technologies.

Configuration from the BIOS

This section uses an HP 360Gen8 server to describe the configuration options in the BIOS.

To configure the BIOS for VFs:

1.     Access the System Options > Processor Options screen, and then enable Intel(R) Virtualization Technology and Intel(R) VT-d.

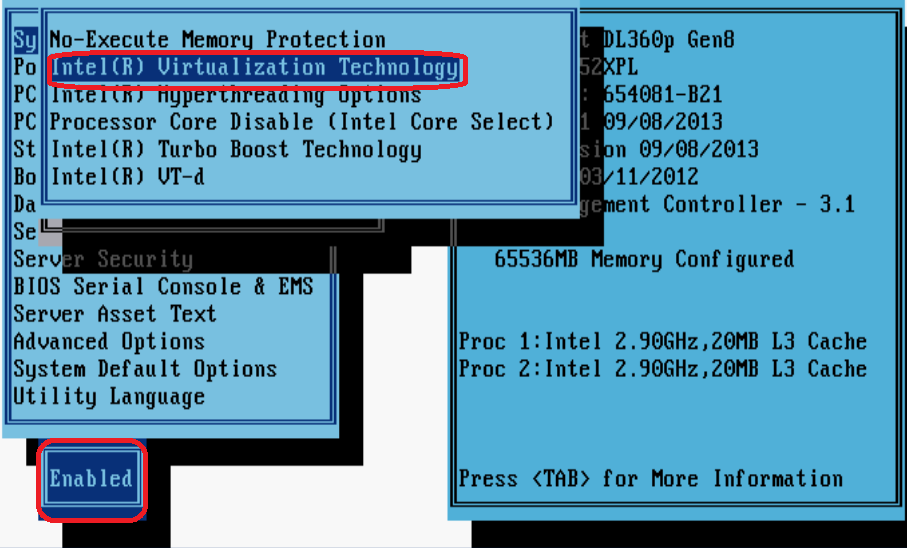

Figure 121 Enabling CPU virtualization



Figure 122 Enabling CPU VT-d



2.     Access the Advanced Options screen, and then enable SR-IOV.

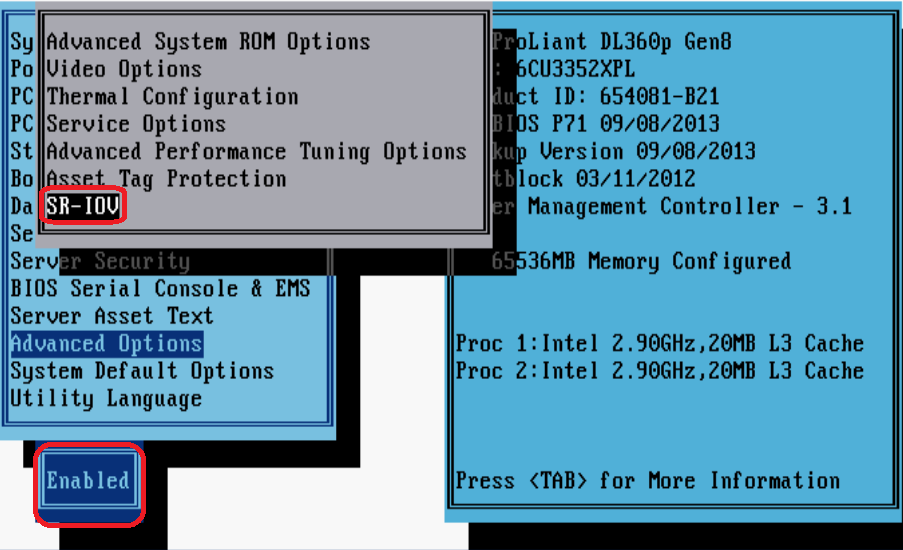

Figure 123 Enabling SR-IOV



Configuration from the hypervisor

Loading Intel 82599 VFs from VMware ESXi

This section uses an HP 360Gen8 server and VMware ESXI 5.1 to describe how to load Intel 82599 VFs.

To load Intel 82599 VFs:

1.     Start the server, access the VMware ESXI 5.1 system, and then enable ESXI Shell.

For more information about enabling ESXI Shell, see the related documents of VMware.

2.     Access the ESXI Shell, and execute the lspci | grep -i intel | grep -i 'ethernet\|network' command to view information about Intel 82599 NICs.

Figure 124 and Figure 125 show two command output examples.

Figure 124 One Intel 82599 NIC (two physical interfaces)



Figure 125 Two Intel 82599 NICs (four physical interfaces)





NOTE:

In Figure 125, interfaces vmnic0 and vmnic1 are numbered 00:03:00.0 and 00:03:00.1, respectively, which indicates that the two interfaces reside on the same physical NIC.



3.     Execute the esxcfg-module ixgbe -s max_vfs=NIC_quantity command to create VFs for each physical interface.

The value of the NIC_quantity argument is a string of comma-separated numbers (for example, 0,10,0,10), with each number representing the number of VFs to create for an interface. The numbers take effect on the interfaces in the order in which they are displayed in the output from the lspci | grep –i intel | grep -i 'ethernet\|network command.

4.     Execute the esxcfg-module -g ixgbe command to verify the VF quantity settings (the max_vfs field). Then, reboot the server.

5.     Verify that the VFs have been created successfully.

Log in to the server through the VMware vSphere Client, and then access the Configuration > Advanced Settings page. Verify that the VFs have been created.

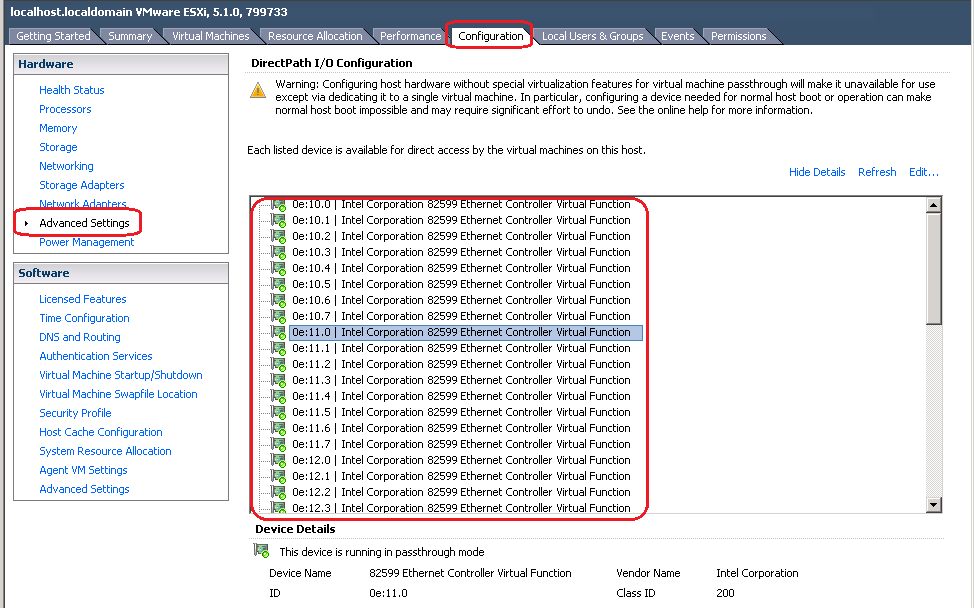

Figure 126 Verifying VF creation



6.     Add VFs for vFW 1000.

a.     Log in to the server through the VMware vSphere Client.

b.     Edit virtual machine settings for the target vFW 1000. In the dialog box that opens, click Add.

c.     Select PCI Device, and then click Next.

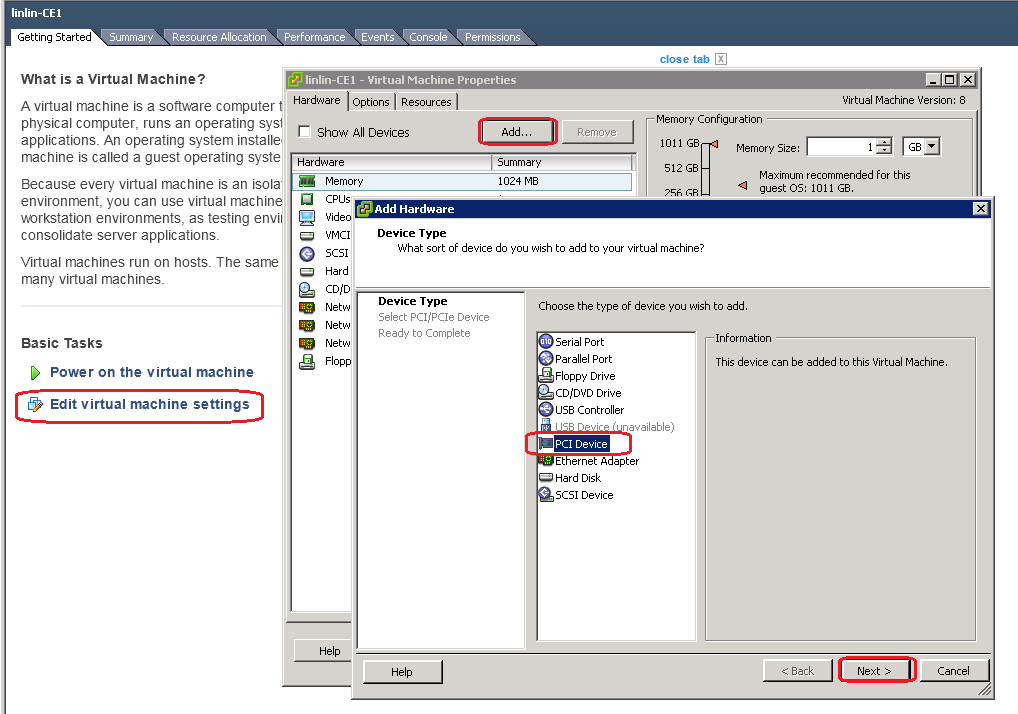

Figure 127 Adding hardware



d.     Select the target VF, click Next, and then click Finish.

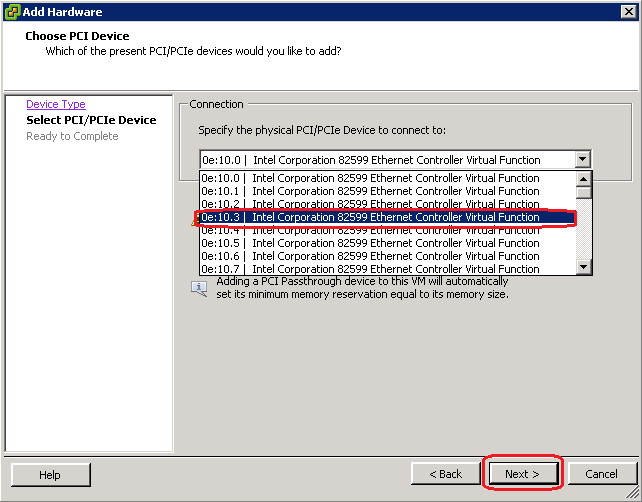

Figure 128 Adding a VF



e.     On the Virtual Machine Properties screen, click OK to save the configuration.

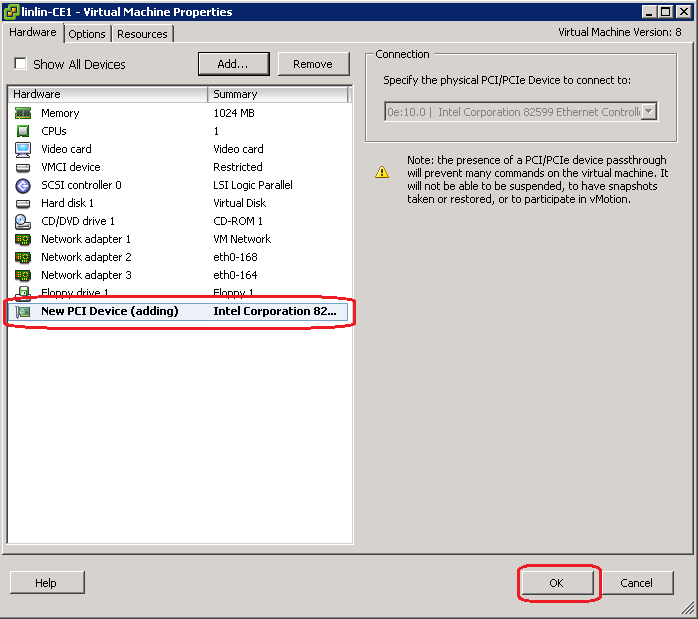

Figure 129 Saving VM property settings



7.     Start vFW 1000, and then execute the display version command to verify that the VF has been added to the VM.

Figure 130 Verifying VF adding



Configuring KVM

Executing the scripts to configure VFs

If the NICs on the server support SR-IOV, you can virtualize the NICs through SR-IOV. To virtualize NICs, upload the toMarketToolsV1.x.zip file to the CentOS 7 server and unzip it, and then access the toMarketTools/Create_VF_shell directory and configure the script parameters as described in Table 7.

Table 7 Script description

Parameter name

Description

-s,--status

Displays information about all SR-IOV NICs supported by the script, including the PCI number, interface name, and driver type.

-h,--help

Displays help information for using the script.

-i,--install

Specifies creation of VF. This parameter needs to be used in conjunction with the -t, --pci, --ifname parameters that follow.

-t,--type

Specify the NIC for VF creation by its driver type.

--pci

Specifies the NIC for VF creation by its PCI number.

--ifname

Specifies the NIC for VF creation by its interface name.

-d

Specifies to use the system's PF driver. By default, the *.rpm file in the toMarketToolsV1.x.zip package is used.

-n,--number

Specifies the number of VFs to be created for each NIC. If you do not specify this parameter, eight VFs are created for each NIC.





NOTE:

The script file for virtualizing NICs are in the toMarketToolsV1.x.zip package, which is released together with vFW1000 or vLB1000 software version. You can obtain the script file when obtaining the H3C NFV1000 product software version.



To configure VFs:

1.     Upload and decompress the toMarketToolsV1.x.zip package.

[root@CentOS-254 ~]# unzip  toMarketToolsV1.x.zip

[root@CentOS-254 ~]# cd toMarketTools/Create_VF_shell

2.     Display information about NICs supported by the script.

[root@CentOS-254 Create_VF_shell]# ./createVf.sh –s

Network devices supported by this script

========================================

0000:08:00.0 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens1f0 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:08:00.1 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens1f1 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:05:00.1 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens2f1 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:05:00.0 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens2f0 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:04:00.0 '82599 10 Gigabit Dual Port Network Connection [10fb]' if=eno49 mtu=1500 numvfs=0 totalvfs=63 driver=ixgbe

0000:04:00.1 '82599 10 Gigabit Dual Port Network Connection [10fb]' if=eno50 mtu=1500 numvfs=0 totalvfs=63 driver=ixgbe

3.     Configure the script parameters.

You can specify the NICs for VF creation by using the –t, --pci, or –ifname parameter. For example, to create 32 VFs for each 82599 NIC, you can use any one of the following methods:

[root@CentOS-254 Create_VF_shell]# ./createVf.sh -i –t ixgbe –n 32

or

[root@CentOS-254 Create_VF_shell]# ./createVf.sh -i –-pci 0000:04:00.0 --pci 0000:04:00.1 –n 32

or

[root@CentOS-254 Create_VF_shell]# ./createVf.sh -i –-ifname eno49 --ifname eno50 –n 32

4.     Display current NIC information again.

[root@CentOS-254 Create_VF_shell]# ./createVf.sh –s

Network devices supported by this script

========================================

0000:08:00.0 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens1f0 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:08:00.1 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens1f1 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:05:00.1 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens2f1 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:05:00.0 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens2f0 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:04:00.0 '82599 10 Gigabit Dual Port Network Connection [10fb]' if=eno49 mtu=1500 numvfs=32 totalvfs=63 driver=ixgbe

0000:04:00.1 '82599 10 Gigabit Dual Port Network Connection [10fb]' if=eno50 mtu=1500 numvfs=32 totalvfs=63 driver=ixgbe

The command output shows that the VF quantity of the ixgbe NIC is 32.

5.     Execute the following commands to verify that the configuration is successful.

[root@localhost h3c]# lspci | grep 82599

03:00.0 Ethernet controller: Intel Corporation 82599 10 Gigabit Dual Port Network Connection (rev 01)

03:00.1 Ethernet controller: Intel Corporation 82599 10 Gigabit Dual Port Network Connection (rev 01)

03:10.0 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)

03:10.1 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)

03:1f.4 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)

03:1f.5 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)

If only PCI information but no VF information is displayed for the NIC, the configuration failed.

[root@localhost h3c]# ip link show

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT

    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

4: eno1: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 3000 qdisc mq state UP mode DEFAULT qlen 1000

    link/ether 38:ea:a7:8b:89:00 brd ff:ff:ff:ff:ff:ff

    vf 0 MAC 74:25:8a:e4:1b:c9, spoof checking on, link-state auto

vf 1 MAC 74:25:8a:e4:1b:ca, spoof checking on, link-state auto

5: eno2: <NO-CARRIER,BROADCAST,MULTICAST,PROMISC,UP> mtu 1500 qdisc mq state DOWN mode DEFAULT qlen 1000

    link/ether 38:ea:a7:8b:89:01 brd ff:ff:ff:ff:ff:ff

    vf 0 MAC 74:25:8a:e4:21:db, spoof checking on, link-state auto

    vf 1 MAC 74:25:8a:e4:21:dc, spoof checking on, link-state auto

Make sure the MAC information of the VF interfaces is correct.



CAUTION

CAUTION:

After you virtualize the Intel 82599 NICs through SR-IOV, NICs other than Intel 82599 NICs cannot be used. To use Intel 82599 NIC and other NICs at the same time, virtualize all the other NICs through the Linux bridge or OVS bridge technology.



Settings the MTU for an Intel 82599 NIC

You might be required to set the MPU for physical NICs. For example, when VXLAN is used on the network, 8-byte VXLAN header + 8-byte UDP header + 20-byte IP header are added to the original packet. The default MTU of 1500 bytes might be smaller for packet transmission.

To set the MTU for an Intel 82599 NIC:

1.     View the current MTUs of the NIC.

[root@CentOS-254 Create_VF_shell]# ./createVf.sh –s

Network devices supported by this script

========================================

0000:08:00.0 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens1f0 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:08:00.1 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens1f1 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:05:00.1 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens2f1 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:05:00.0 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens2f0 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:04:00.0 '82599 10 Gigabit Dual Port Network Connection [10fb]' if=eno49 mtu=1500 numvfs=0 totalvfs=63 driver=ixgbe

0000:04:00.1 '82599 10 Gigabit Dual Port Network Connection [10fb]' if=eno50 mtu=1500 numvfs=0 totalvfs=63 driver=ixgbe

2.     Set the MTU for the NIC.

Access the toMarketTools/Create_VF_shell directory and execute the ./setMtu.sh phyNic mtuSize command to configure the MTU for the NIC.

[root@CentOS-254 Create_VF_shell]# ./setMtu.sh eno49 1600

eno49 mtu set to 1600 complete.

3.     View the MTU of the NIC again.

[root@CentOS-254 Create_VF_shell]# ./createVf.sh –s

Network devices supported by this script

========================================

0000:08:00.0 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens1f0 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:08:00.1 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens1f1 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:05:00.1 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens2f1 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:05:00.0 'Ethernet Controller XXV710 for 25GbE SFP28 [158b]' if=ens2f0 mtu=1500 numvfs=0 totalvfs=64 driver=i40e

0000:04:00.0 '82599 10 Gigabit Dual Port Network Connection [10fb]' if=eno49 mtu=1600 numvfs=0 totalvfs=63 driver=ixgbe

0000:04:00.1 '82599 10 Gigabit Dual Port Network Connection [10fb]' if=eno50 mtu=1500 numvfs=0 totalvfs=63 driver=ixgbe

4.     Execute the following command to verify that the configuration is successful.

[root@CentOS-254 Create_VF_shell]# ifconfig eno49 | grep mtu

Eno49: flags=4355<UP,BROADCAST,PROMISC,MULTICAST>  mtu 1600

[root@CentOS-254 sr-iov-82599]# cat /etc/sysconfig/network-scripts/ifcfg-eno49 | grep -i mtu

MTU=1600



CAUTION

CAUTION:

Do not use the setMtu.sh command to set the MTU for NICs not displayed in the ./createVF.sh –s command output.



Adding a VF to vFW1000

The VF adding method is the same for H3C NFV1000 products. The following procedure use vFW1000 as an example.

1.     As shown in Figure 131, open Virtual Machine Manager in CentOS 7. Click Show virtual hardware details for the target vFW 1000, and then click Add Hardware.

Figure 131 Adding hardware to the VM



b.     In the dialog box that opens, select PCI Host Device, select the target VF, and then click Finish.

Figure 132 Selecting the target VF



Starting vFW1000 to view VF information

Start the vFW 1000, and then execute the display version command to verify that the VF has been added successfully.

Figure 133 Verifying VF adding



Loading Intel 82599 VFs from CAS

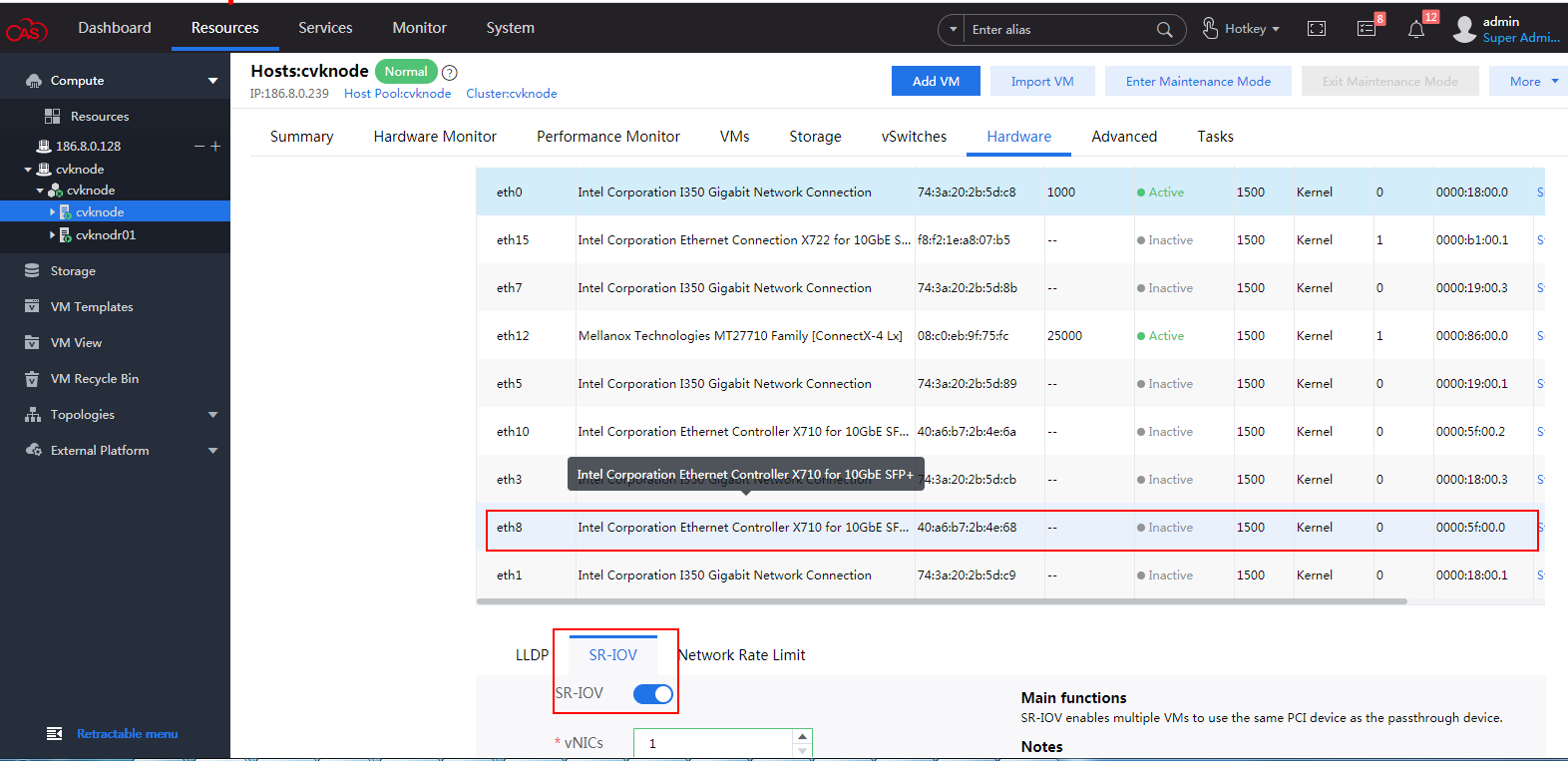

Enabling the Intel 82599 NIC on the host

1.     On the Advanced tab of the host, set the IOMMU status to On and then click OK.

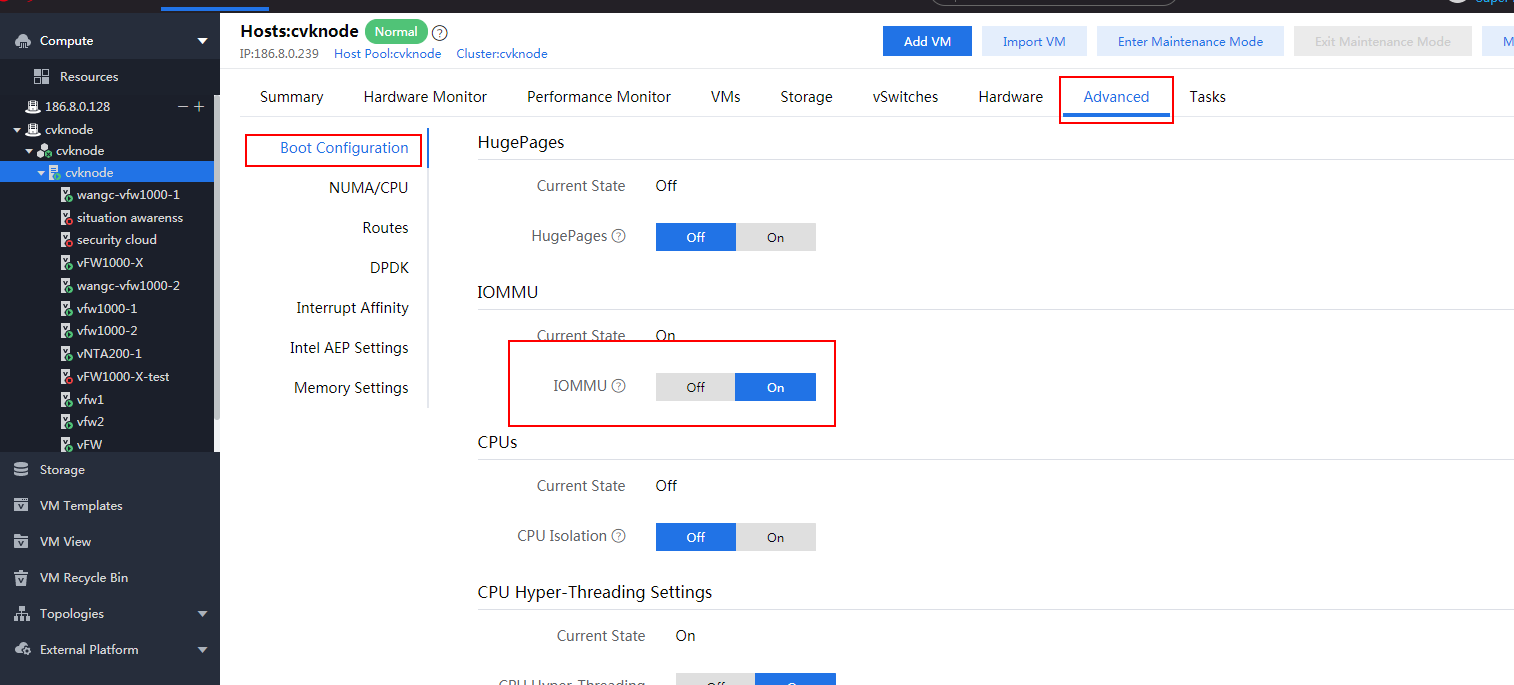

Figure 134 Enabling IOMMU



2.     Click Enter Maintenance Mode.

After modifying the host IOMMU status, you must restart the host for the configuration to take effect. You can restart the host only when the host is in maintenance mode.

If a VM is running or suspended on the host, you must shut down the VM or select the Automatically migrate running or suspended VMs to another host option to enter maintenance mode

Figure 135 Entering maintenance mode



3.     Click More and select Restart Host to restart the host.

Figure 136 Restarting the host



4.     Access the Advanced tab to verify that the IOMMU status is On.

Figure 137 IOMMU turned on the host



Enabling NIC SR-IOV and creating VFs

1.     Click the Hardware tab, select the NIC for SR-IOV configuration, and then enable SR-IOV and enter the vNIC quantity. Then click Save.

In this example, two vNICs will be created.



IMPORTANT

IMPORTANT:

·     You can configure SR-IOV only for non-management active NICs. The management NICs have been used by vSwitches and you cannot configure SR-IOV for them.

·     You cannot configure SR-IOV for inactive physical NICs.



Figure 138 Creating VFs



2.     Click OK to confirm the SR-IOV configuration for the NIC.

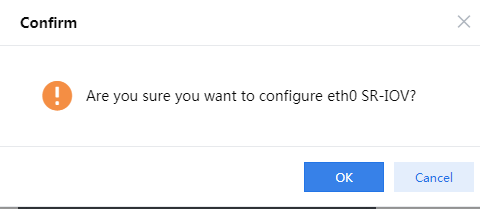

Figure 139 Confirming the SR-IOV configuration for the NIC



Adding a VF to vFW1000

The VF adding method is the same for H3C NFV1000 products. The following procedure uses vFW1000 as an example.

1.     Select vFW1000 to which you are to add a VF and then click Edit.

Figure 140 Editing the VM



2.     Click Add Hardware, select the Network hardware type, and then click Next.

Figure 141 Adding a network



3.     Select the SR-IOV Passthrough NIC device model, VFIO driver type, and the physical NIC for SR-IOV configuration and then click OK.

Figure 142 Adding a VF



4.     After the configuration is complete, you can see the added passthrough network in the More option of the VM.

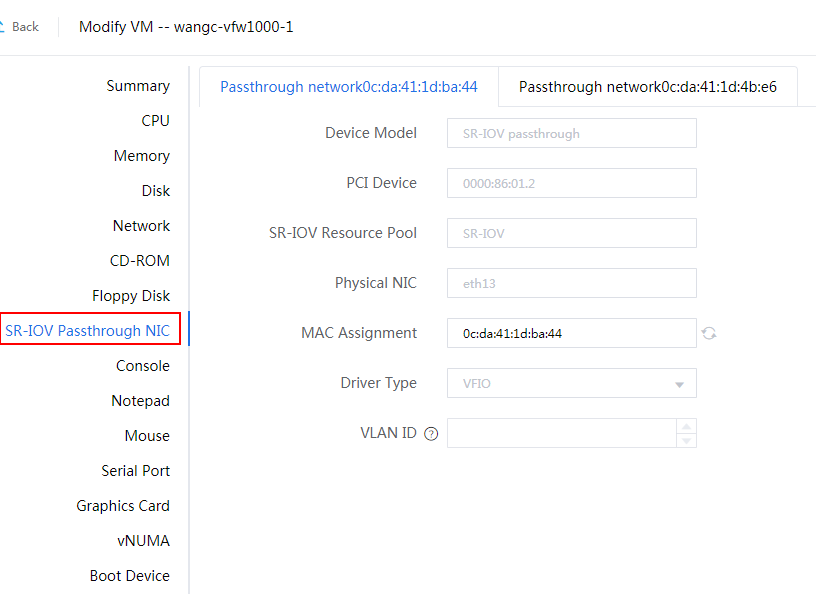

Figure 143 Viewing the passthrough network



Starting vFW1000 to view VF information

Start vFW1000 and then execute the display version command to view system information. The command output in Figure 144 shows that the VF has been loaded.

Figure 144 Verifying VF adding



Appendix D  Setting up a PXE server

Setting up a PXE server in CentOS

This section describes the procedure for setting up a PXE server in the minimal version of the CentOS Linux release 7.1.1503 (Core). The procedure might be slightly different in other CentOS versions.

This section describes the installation with YUM. Use the YUM commands as described in the following if you can connect to the Internet. If you cannot connect to the Internet, use the ISO image as the local YUM source for installation.

To configure the local YUM source:

1.     Upload the ISO image file to the system (or mount it to the device via CD-ROM).

2.     Mount the ISO image file.

[root@localhost ~]# mount /dev/sr0 /media/

mount: /dev/sr0 is write-protected, mounting read-only

In this example, the image file is mounted via CD-ROM. /dev/sr0 is CD-ROM.

3.     Modify the configuration file in the /etc/yum.repos.d/ directory.

# Back up the default repo file.

[root@localhost yum.repos.d]# mkdir bak

[root@localhost yum.repos.d]# mv *.repo bak

# Add a file named myself.repo.

[root@localhost yum.repos.d]# vi myself.repo

# Modify the file as follows:

[base]

name=CentOS-$releasever - Base

baseurl=file:///media/

enabled=1

gpgcheck=0

gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7

# Clear the cache.

[root@localhost yum.repos.d]# yum clean all

[root@localhost yum.repos.d]# yum makecache

Installing and configuring DHCP

You might encounter configuration issues caused by errors such as wrong spelling. Identify the issue and resolve it.

To install and configure DHCP:

1.     Install DHCP.

[root@localhost ~]# yum -y install dhcp

2.     Modify the configuration file vim /etc/dhcp/dhcpd.conf.

[root@localhost ~]# vi /etc/dhcp/dhcpd.conf

#

# DHCP Server Configuration file.

#   see /usr/share/doc/dhcp*/dhcpd.conf.example

#   see dhcpd.conf(5) man page

#

subnet 192.168.1.0 netmask 255.255.255.0{

  range 192.168.1.100 192.168.1.200;

  default-lease-time 600;

  max-lease-time 7200;

  next-server 192.168.1.87;

  filename "pxelinux.0";

}

next-server information is the TFTP server address. (Typically, the TFTP server is configured on the same host, and the address is the interface IP of the host.)

3.     Start or restart the DHCP service.

[root@localhost ~]# systemctl restart dhcpd

# View the DHCP service status.

[root@localhost ~]# systemctl status dhcpd

dhcpd.service - DHCPv4 Server Daemon

Loaded: loaded (/usr/lib/systemd/system/dhcpd.service; disabled)

     Active: active (running) since Fri 2019-08-16 04:31:33 EDT; 40s ago

# The DHCP server can assign IP addresses only to clients that are in the same network as its interface address. Make sure the DHCP configured subnet is on the same network as its interface address.

Installing and configuring TFTP

You might encounter configuration issues caused by errors such as wrong spelling. Identify the issue and resolve it.

To install and configure TFTP:

1.     Install TFTP.

[root@localhost ~]# yum -y install tftp-server

2.     Modify the configuration file.

[root@localhost ~]# vi /etc/xinetd.d/tftp

# default: off

# description: The tftp server serves files using the trivial file transfer \

#       protocol.  The tftp protocol is often used to boot diskless \

#       workstations, download configuration files to network-aware printers, \

#       and to start the installation process for some operating systems.

service tftp

{

        socket_type             = dgram

        protocol                = udp

        wait                    = yes

        user                    = root

        server                  = /usr/sbin/in.tftpd

        server_args             = -s /var/lib/tftpboot -C # Modified.

        disable                 = no               # Modified.

        per_source              = 11

        cps                     = 100 2

        flags                   = IPv4

}

3.     Start/restart the TFTP service.

[root@localhost ~]# systemctl restart xinetd

# View the TFTP status.

[root@localhost ~]# systemctl status xinetd

xinetd.service - Xinetd A Powerful Replacement For Inetd

   Loaded: loaded (/usr/lib/systemd/system/xinetd.service; enabled)

   Active: active (running) since Fri 2019-08-16 04:40:22 EDT; 8s ago

Installing and configuring HTTP

You might encounter configuration issues caused by errors such as wrong spelling. Identify the issue and resolve it.

To install and configure HTTP:

1.     Install HTTP.

[root@localhost ~]# yum -y install httpd

2.     Modify the configuration file.

# The HTTP service configuration file is in the /etc/httpd/conf/httpd.conf directory. The DocumentRoot parameter specifies the HTTP access root directory. The default root directory is /var/www/html.

[root@localhost ~]# cat /etc/httpd/conf/httpd.conf | grep DocumentRoot

# DocumentRoot: The directory out of which you will serve your

DocumentRoot "/var/www/html"

3.     Start/restart the HTTP service.

[root@localhost ~]# systemctl restart httpd

# View the HTTP status.

[root@localhost ~]# systemctl status httpd

httpd.service - The Apache HTTP Server

   Loaded: loaded (/usr/lib/systemd/system/httpd.service; disabled)

   Active: active (running) since Fri 2019-08-16 04:49:51 EDT; 37s ago

Installing and configuring NFS

1.     Installing NFS.

[root@localhost ~]# yum -y install nfs-utils rpcbind

2.     Start the rpcbind and NFS services.

[root@localhost ~]# systemctl start rpcbind

[root@localhost ~]# systemctl start nfs

# View the rpcbind and NFS service status.

[root@localhost ~]# systemctl status rpcbind

rpcbind.service - RPC bind service

   Loaded: loaded (/usr/lib/systemd/system/rpcbind.service; static)

   Active: active (running) since Fri 2019-08-16 05:08:31 EDT; 35s ago

[root@localhost ~]# systemctl status nfs

nfs-server.service - NFS server and services

   Loaded: loaded (/usr/lib/systemd/system/nfs-server.service; disabled)

   Active: active (exited) since Fri 2019-08-16 05:08:38 EDT; 33s ago

Shutting down the firewall

# Shut down the firewall service.

[root@localhost ~]# systemctl stop firewalld

# View the firewall service status.

[root@localhost ~]# systemctl status firewalld

firewalld.service - firewalld - dynamic firewall daemon

   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; enabled)

   Active: inactive (dead) since Fri 2019-08-16 05:11:13 EDT; 23s ago

# The clients cannot access the TFTP service if you do not shut down the firewall. Configure an iptable policy in an environment where security must be guaranteed.

[root@localhost ~]# setenforce 0    # Shut down SELinux.

Installing and configuring Syslinux

1.     Install Syslinux.

[root@localhost ~]# yum -y install syslinux

2.     Copy the boot file and version file.

# Identify and copy the Syslinux pxelinux0 file to the target path /var/lib/tftpboot (path specified by the server_args parameter in the TFTP configuration file) on the TFTP server.

[root@localhost ~]# cp /usr/share/syslinux/pxelinux.0 /var/lib/tftpboot/

# Copy the initrd.img and vmlinuz files in the vFW ISO image to the /var/lib/tftpboot directory. Upload the ISO image to the PXE server, mount the image, and locate the two files in the image.

[root@localhost ~]# mount /home/h3c/vFW1000_H3C-CMW710-E1184-X64.iso /mnt/

mount: /dev/loop0 is write-protected, mounting read-only #iso

[root@localhost ~]# cp /mnt/pxeboot/{initrd.img,vmlinuz} /var/lib/tftpboot

# Copy the versions to the NFS share directory.

[root@localhost ~]# mkdir /var/www/html/vfw1000 #vfw1000 is a self-defined name and can be changed as needed.

[root@localhost ~]# cp -a /mnt/* /var/www/html/fw1000

3.     Configure the NFS share directory.

# Modify the /etc/exports file.

[root@localhost ~]# vi /etc/exports

/var/www/html/vfw1000 192.168.0.0/16(rw,async)

x.x.x.x/x is the network segment of the NFS client, which should be the network segment assigned to the client in dhcpd.conf. (rw,async) is the access right

For the modification to take effect, execute the exportfs -r  command.

# Restart the rpcbind and NFS service.

[root@localhost ~]# systemctl restart rpcbind

[root@localhost ~]# systemctl restart nfs

4.     Configure the files.

# Create a file folder named pxelinux.cfg.

[root@localhost ~]# mkdir /var/lib/tftpboot/pxelinux.cfg

# Copy the boot file.

[root@localhost ~]# cp /mnt/pxeboot/pxelinux.cfg /var/lib/tftpboot/pxelinux.cfg/default

# Modify the default file.

[root@localhost ~]# chmod u+w /var/lib/tftpboot/pxelinux.cfg/default

[root@localhost ~]# vi /var/lib/tftpboot/pxelinux.cfg/default

default Live



# Since no network setting in the squashfs image, therefore if ip=, the network is disabled. That's what we want.

label Live

  kernel vmlinuz

 append initrd=initrd.img boot=live union=overlay username=user config components quiet noswap edd=on nomodeset locales=en_US.UTF-8 keyboard-layouts=NONE ocs_live_run="/opt/VFW/setup_vfw_pxe.sh" ocs_live_extra_param="" ocs_live_batch="no" ocs_final_action="reboot" vga=788 ip= net.ifnames=0  nosplash i915.blacklist=yes radeonhd.blacklist=yes nouveau.blacklist=yes vmwgfx.enable_fbdev=1 fetch=http://192.168.1.87/vfw1000/live/filesystem.squashfs ocs_prerun="mkdir /mnt/cdrom" ocs_prerun1="mount -t nfs 192.168.1.87:/var/www/html/vfw1000 /mnt/cdrom/"

  TEXT HELP

  * Boot menu for BIOS machine

  * Disclaimer: Live system comes with ABSOLUTELY NO WARRANTY

  ENDTEXT

# Modify the settings as follows:

¡     fetch: Specifies the storage path of the filesystem.squashfs file on the PXE server.

¡     ocs_prerun1: Specifies mounting the NFS file system. The path must be the actual shared path of the NFS server.

# If the installation mode is unattended PXE, modify also the following configuration:

Add unattended parameters to the ocs_live_run execution script and modify the ocs_live_run parameter to /opt/VFW/setup_vfw_pxe.sh unmanned fresh.

Setting up the PEX server in Ubuntu

This section describes the PXE server setup procedure in Ubuntu 5.4.0-6ubuntu1 to 16.04.10. The procedure might be slightly different in other Ubuntu versions.

This section describes the installation with apt-ge. Use the apt-ge commands as described in the following for installation if you can connect to the Internet. If you cannot connect to the Internet, use the ISO image as the local image source for installation.

To configure the local image source:

1.     Upload the image file to the system (or mount it to the device via CD-ROM).

2.     Mount the ISO image file locally.

h3c@ubuntu:~$ sudo mount /dev/sr0 /media/cdrom/

mount: /dev/sr0 is write-protected, mounting read-only

In this example, the image file is mounted via CD-ROM. /dev/sr0 is CD-ROM

3.     Modify the configuration files in the /etc/apt/ directory.

# Back up the default repository file.

h3c@ubuntu:/etc/apt$ sudo mkdir bak

h3c@ubuntu:/etc/apt$ sudo mv sources.list bak/

# Re-edit the source.list file.

h3c@ubuntu:/etc/apt$ sudo vi sources.list

# Modify the file content as follows:

[deb file:///media/cdrom/ubuntu xenial main  #xenial is the codename for the Ubuntu distribution version, and main represents the source type as supported open-source software

# Refresh the source.

h3c@ubuntu:/etc/apt$ sudo apt-get update

Installing and configuring DHCP

You might encounter configuration issues caused by errors such as wrong spelling. Identify the issue and resolve it.

1.     Install DHCP.

h3c@ubuntu:/etc/apt$ sudo apt-get -y install isc-dhcp-server

2.     Modify the configuration file.

# Modify the /etc/default/isc-dhcp-server configuration file to specify the DHCP service port.

h3c@ubuntu:~$ sudo vi /etc/default/isc-dhcp-server

# On what interfaces should the DHCP server (dhcpd) serve DHCP requests?

#       Separate multiple interfaces with spaces, e.g. "eth0 eth1".

INTERFACES="ens3" # Use the port based on the actual environment.

# Modify the /etc/dhcp/dhcpd.conf configuration file .

h3c@ubuntu:~$ sudo vi /etc/dhcp/dhcpd.conf

# option definitions common to all supported networks...

# option domain-name "example.org";

# option domain-name-servers ns1.example.org, ns2.example.org; # Comment out these two items



# A slightly different configuration for an internal subnet.

subnet 192.168.1.0 netmask 255.255.255.0 {

  range 192.168.1.100 192.168.1.200;

#  option domain-name-servers ns1.internal.example.org;

#  option domain-name "internal.example.org";

#  option subnet-mask 255.255.255.224;

#  option routers 10.5.5.1;

#  option broadcast-address 10.5.5.31;

#  default-lease-time 600;

#  max-lease-time 7200;

  next-server 192.168.1.88;

  filename "pxelinux.0";

  allow booting;

  allow bootp;  #Add these settings.

}

# Modify only the settings mentioned in the preceding, and leave other settings unchanged.

3.     Start/restart the DHCP service.

h3c@ubuntu:~$ sudo systemctl restart isc-dhcp-server

# View the service status.

h3c@ubuntu:~$ sudo systemctl status isc-dhcp-server

 isc-dhcp-server.service - ISC DHCP IPv4 server

   Loaded: loaded (/lib/systemd/system/isc-dhcp-server.service; enabled; vendor preset: enabled)

   Active: active (running) since Sat 2019-08-17 00:04:30 MST; 20s ago

# The DHCP server can assign IP addresses only to clients that are in the same network as its interface address. Make sure the DHCP configured subnet is on the same network as its interface address.

Installing and configuring TFTP

1.     Installing TFTP.

h3c@ubuntu:~$ sudo apt-get -y install tftpd-hpa

2.     Edit the configuration file.

h3c@ubuntu:~$ sudo vi /etc/default/tftpd-hpa

# /etc/default/tftpd-hpa



TFTP_USERNAME="tftp"

TFTP_DIRECTORY="/var/lib/tftpboot"

TFTP_ADDRESS=":69"

TFTP_OPTIONS="--secure"

Change the TFTP_DIRECTORY parameter as needed.

3.     Start/restart the TFTP service.

h3c@ubuntu:~$ sudo systemctl restart tftpd-hpa

# View the service status.

h3c@ubuntu:~$ sudo systemctl status tftpd-hpa

tftpd-hpa.service - LSB: HPA's tftp server

   Loaded: loaded (/etc/init.d/tftpd-hpa; bad; vendor preset: enabled)

   Active: active (running) since Sat 2019-08-17 00:10:51 MST; 28s ago

Installing and configuring HTTP

You might encounter configuration issues caused by errors such as wrong spelling. Identify the issue and resolve it.

To install and configure HTTP:

1.     Install HTTP.

h3c@ubuntu:~$ sudo apt-get -y install apache2

2.     Configure the files.

# The configuration file of Apache2 is /etc/apache2/sites-available/000-default.conf. DocumentRoot specifies the HTTP access root directory and the default is /var/www/html.

h3c@ubuntu:~$ sudo cat /etc/apache2/sites-available/000-default.conf | grep DocumentRoot

        DocumentRoot /var/www/html

3.     Start/restart the HTTP service.

h3c@ubuntu:~$ sudo systemctl restart apache2

# View the service status.

h3c@ubuntu:~$ sudo systemctl status apache2

apache2.service - LSB: Apache2 web server

   Loaded: loaded (/etc/init.d/apache2; bad; vendor preset: enabled)

  Drop-In: /lib/systemd/system/apache2.service.d

           apache2-systemd.conf

   Active: active (running) since Sat 2019-08-17 00:17:36 MST; 49s ago

Installing and configuring NFS

1.     Install NFS.

The ISO image do not contain the deb nfs-kernel-server package. You can download the deb package from https://pkgs.org and upload it to the server.

h3c@ubuntu:~$ ls

nfs-kernel-server_1.2.8-9ubuntu12_amd64.deb

2.     Install the nfs-server dependencies.

h3c@ubuntu:~$ sudo apt-get -y install nfs-common

3.     Execute the dpkg command to install nfs-kernel-server.

h3c@ubuntu:~$ sudo dpkg --force-depends-version -i nfs-kernel-server_1.2.8-9ubuntu12_amd64.deb

# Because the later downloaded nfs-kernel-server requires nfs-common (= 1:1.2.8-9ubuntu12) while the version the version bundled in the ISO is 1:1.2.8-9ubuntu12.1, the option --force-depends-version is used to force version compatibility.

Configuring the server

1.     Copy the boot file and version file.

# Copy the pxelinux.0 and ldlinux.c32 files in the Ubuntu image to the target directory /var/lib/tftpboot on the TFTP server (directory specified by the server_args parameter in the TFTP configuration file).

h3c@ubuntu:~$ sudo cp /media/cdrom/install/netboot/ubuntu-installer/amd64/pxelinux.0 /var/lib/tftpboot/

h3c@ubuntu:~$ sudo cp /media/cdrom/install/netboot/ubuntu-installer/amd64/boot-screens/ldlinux.c32 /var/lib/tftpboot/

# Copy the initrd.img and vmlinuz files in the vFW ISO image to the /var/lib/tftpboot directory. Upload the ISO image to the PXE server, mount the image, and locate the two files from the image.

h3c@ubuntu:~$ sudo mount vFW1000_H3C-CMW710-E1183-X64.iso /mnt

mount: /dev/loop0 is write-protected, mounting read-only # Use the actual ISO image name.

h3c@ubuntu:~$ sudo cp /mnt/pxeboot/{initrd.img,vmlinuz} /var/lib/tftpboot

# Copy the version files to the NFS share directory.

h3c@ubuntu:~$ sudo mkdir /var/www/html/vfw1000  #vfw1000 is a self-defined name.

h3c@ubuntu:~$ sudo cp -a /mnt/* /var/www/html/vfw1000/

2.     Configure the NSF share directory.

# Modify the /etc/exports file

h3c@ubuntu:~$ sudo vi /etc/exports

/var/www/html/vfw1000 *(ro,async,no_subtree_check)

# * indicates no access control on clients. (ro,async,no_subtree_check) is the access right.

# Restart the nfs-kernel-server service .

h3c@ubuntu:~$ sudo systemctl restart nfs-kernel-server

# View the service status.

h3c@ubuntu:~$ sudo systemctl status nfs-kernel-server

 nfs-server.service - NFS server and services

   Loaded: loaded (/lib/systemd/system/nfs-server.service; enabled; vendor preset: enabled)

   Active: active (exited) since Sat 2019-08-17 01:24:54 MST; 11s ago

3.     Configure the files.

# Create a file folder named pxelinux.cfg.

h3c@ubuntu:~$ sudo mkdir /var/lib/tftpboot/pxelinux.cfg

# Copy the bootloader file.

h3c@ubuntu:~$ sudo cp /mnt/pxeboot/pxelinux.cfg /var/lib/tftpboot/pxelinux.cfg/default

# Modify the default file.

h3c@ubuntu:~$ sudo chmod u+w /var/lib/tftpboot/pxelinux.cfg/default

h3c@ubuntu:~$ sudo vi /var/lib/tftpboot/pxelinux.cfg/default

default Live

# Since no network setting in the squashfs image, therefore if ip=, the network is disabled. That's what we want.

label Live

  kernel vmlinuz

  append initrd=initrd.img boot=live union=overlay username=user config components quiet noswap edd=on nomodeset locales=en_US.UTF-8 keyboard-layouts=NONE ocs_live_run="/opt/VFW/setup_vfw_pxe.sh" ocs_live_extra_param="" ocs_live_batch="no" ocs_final_action="reboot" vga=788 ip= net.ifnames=0  nosplash i915.blacklist=yes radeonhd.blacklist=yes nouveau.blacklist=yes vmwgfx.enable_fbdev=1 fetch=http://192.168.1.87/vfw1000/live/filesystem.squashfs ocs_prerun="mkdir /mnt/cdrom" ocs_prerun1="mount -t nfs 192.168.1.87:/var/www/html/vfw1000 /mnt/cdrom/"

  TEXT HELP

  * Boot menu for BIOS machine

  * Disclaimer: Live system comes with ABSOLUTELY NO WARRANTY

  ENDTEXT

ocs_live_run="/opt/VFW/setup_vfw_pxe.sh unmanned fresh ".

# Modify the settings as follows:

¡     fetch: Specifies the storage path of the filesystem.squashfs file on the PXE Server.

¡     ocs_prerun1: Specifies mounting the NFS file system. The path must be the actual shared path of the NFS server.

# If the installation mode is unattended PXE, modify also the following configuration:

Add unattended parameters to the ocs_live_run execution script and modify the ocs_live_run parameter to /opt/VFW/setup_vfw_pxe.sh unmanned fresh.



  • Cloud & AI
  • InterConnect
  • Intelligent Computing
  • Intelligent Storage
  • Security
  • SMB Products
  • Intelligent Terminal Products
  • Product Support Services
  • Technical Service Solutions
All Services
  • Resource Center
  • Policy
  • Online Help
  • Technical Blogs
All Support
  • Become A Partner
  • Partner Policy & Program
  • Global Learning
  • Partner Sales Resources
  • Partner Business Management
  • Service Business
All Partners
  • Profile
  • News & Events
  • Online Exhibition Center
  • Contact Us
All About Us
新华三官网
