Hardening H3C High-End Routers |
|
|
|
|
|
|
Copyright © 2019-2023 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
The information in this document is subject to change without notice.
Contents
Threats to the management and control planes
Hardening the management plane
Securing NETCONF over SOAP access
User management and access control
Using RBAC to control user access permissions
Using AAA to secure user access and user management
Using command authorization to secure command access
Password control and management
Disabling password recovery capability
Configuring memory alarm thresholds
Securing spanning tree networks
Enabling dynamic ARP entry check
Preventing ARP spoofing attacks
Source MAC-based ND attack detection
Interface-based ND attack suppression
DHCP starvation attack protection
DHCP relay entry management on the DHCP relay agent
DHCP proxy on the DHCP relay agent
Disabling the TCP Timestamps option encapsulation
Hardening IGMP snooping and MLD snooping
Control plane packet rate limiting
Authenticating high availability protocol packets
Securing VRRP packet authentication
BFD control packet authentication
Configuring the NTP access right
Suppressing storms and controlling storms
Configuring storm suppression and storm control
Dropping unknown multicast data packets
MAC address security management
Configuring blackhole MAC address entries
Disabling MAC address learning
Controlling and monitoring MAC address learning
Configuring MRU check for PPP packets
DoS attack detection and defense
About this document
This document helps you improve the overall network security by hardening the Comware 7 network devices.
Audience
This document is intended for:
· Network planners.
· Field technical support and servicing engineers.
· Network administrators.
Port numbering in examples
The port numbers in this document are for illustration only and might be unavailable on your device.
Prerequisites
This document is not restricted to specific software or hardware versions.
The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.
This document provides only generic technical information, some of which might not apply to your devices.
|
|
NOTE: All settings in the examples throughout this document are for illustration only. When you use the commands in the examples to harden your device, change the settings as appropriate to your network security requirements. |
Overview
The functions of Comware 7 network devices are categorized into the management plane, control plane, and data plane. This document helps you improve the overall network security by hardening the security of these three planes.
Security threats
Threats to the management and control planes
The management plane manages administrative access to the device through applications and protocols such as Telnet, SSH, Web, and SNMP. Protecting the management plane against unauthorized access and attacks is essential to the security of the entire network. If the management plane is breached,
The control plane contains applications and protocols that are running between devices to maintain the functionality of the network architecture and facilitate the functions of the data plane. For example, routers run routing protocols such as OSPF or BGP between them to learn about routes and switches run protocols such as spanning tree protocols to learn about various paths.
Security threats to the management and control planes of a network device come from various sources, including malicious users, compromised remote network devices, and an inappropriate security policy.
The following are common security threats to the management and control planes:
· Unauthorized access.
An attacker can gain access to the device by forging the identity of the administrator or launching management session replay attacks or man-in-the-middle attacks.
To protect administrative sessions to the device, configure strong identity authentication, establish secure access channels, and perform anti-replay and message integrity check. In addition, enable operations and security event logging to record and audit administrative behavior of users.
· Weak password.
A weak password is easy to crack. As a best practice, configure a password policy to require strong passwords for administrative access.
· Sensitive information leaking
Important or confidential information might be eavesdropped on the transmission path. Stored contents might be leaked when the storage device is transferred or replaced.
To guarantee the confidentiality of sensitive information:
¡ Avoid establishing insecure administrative sessions to the device by using protocols such as Telnet, FTP, TFTP, or HTTP. Instead, establish secure administrative sessions by using protocols such as SSH, IPsec, SFTP, and HTTPS.
¡ Encrypt the startup configuration file.
¡ Format the removed storage devices before you dispose of them, making sure the removed data cannot be restored.
· Message tampering and forging.
An attacker might tamper with or replay messages on the transmission path to inject malicious data or tamper with data on a network device. For example, attackers can tamper with routing protocol packets to influent the path of packets.
To protect the control plane, configure security services including integrity check and anti-replay.
· Distributed denial of service (DDoS) attacks.
In a DDoS attack, the attacker sends a large number of packets to exhaust the device resources, including CPU, memory, sessions, and bandwidth. Busy with handling illegitimate packets, the victim network device will be unable to provide forwarding services to users.
To protect a network device against DDoS attacks:
¡ Use a whitelist to identify trusted remote devices.
¡ Use a blacklist to block traffic from suspicious remote devices.
¡ Limit the rate at which traffic is sent to the control plane.
· Misconfiguration.
Misconfiguration might result in incorrect access control, permission assignment, or authorization.
To avoid security risks introduced because of misconfiguration:
¡ Verify the configuration before deploying it.
¡ Constantly audit the device behavior after the configuration is deployed, for example, by reviewing the operation log or system log.
Threats to the data plane
The data plane forwards data from source to destination. If the data plane was attacked, the forwarding performance would downgrade significantly and in the worst case, malicious packets would spread in the network.
Common security threats to the data plane include:
· Malformed packet attacks.
Attackers can exploit the packet processing vulnerabilities in the data plane to attack the device, causing the device to malfunction or crash.
To detect and prevent potential malformed packet attacks, enable attack detection and prevention.
· DDoS attacks.
DDoS attack occurs when an attacker sends a large number of packets to exhaust the device resources, including CPU, memory, connections, and bandwidth.
To protect the device against such attacks, configure resource usage thresholds to ensure that the device always has resources for normal services. In addition, authenticate users, identify illegitimate traffic, and limit the traffic of unrecognizable users.
· Identity spoofing.
Identity spoofing is part of many attacks. Identifying spoofed identities can effectively prevent attacks. However, the openness of the network makes this job very difficult, especially on the data plane.
To identify spoofed identifies on the data plane, you can use security features such as IP source guard, SYN Cookie, ARP attack protection, and ND attack defense.
· Message tampering and forging.
Message integrity is critical to network functionality. False data might cause network failure or even network paralysis.
As a best practice, use security protocols such as IPsec and MACsec to protect data flows in the network. Securing mechanisms include integrity check, confidentiality offset, and identity authentication.
Security architecture

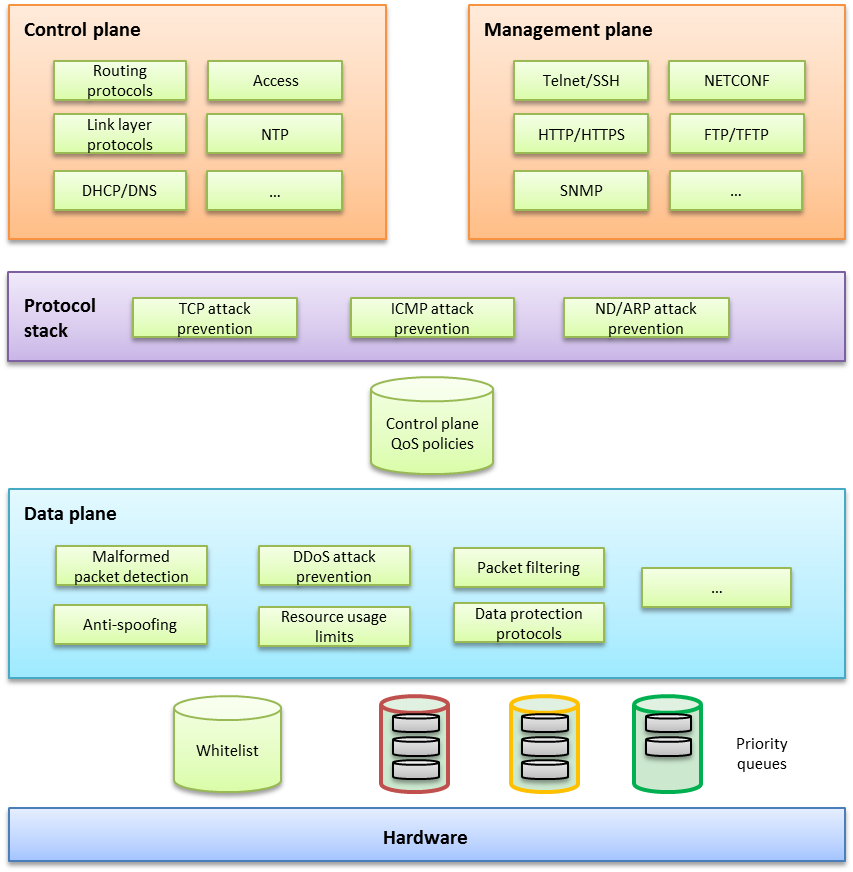

Figure 1 shows the security architecture of Comware.
Figure 1 Comware security architecture
This security architecture offers multilayer protection to ensure overall security.
If a device offers hardware forwarding, its hardware layer uses whitelist and priority queuing mechanisms to protect the control and management planes from DoS or DDoS attacks. These mechanisms handle packets destined for the local device as follows before delivering them from the hardware layer to the CPU:
¡ Whitelist—If a source is trustworthy and a session has been established to it, the source is added to the whitelist. The hardware layer preferentially delivers all its packets to the CPU.
¡ Priority queues—If a packet is not from a source in the whitelist, the hardware layer enqueues the packet in a priority queue depending on its protocol. Packets in any priority queues have lower priority than packets from a whitelist source.
· On the forwarding plane, Comware provides a variety of security features, including:
¡ Malformed packet detection.
¡ Packet filtering.
¡ Anti-spoofing, for example uRPF and IP source guard.
¡ DDoS attack defense.
¡ Resource usage limits, including connection limit and ARP/ND table entry limit.
¡ Data protection protocols, such as IPsec and MACsec.
· On the control and management planes, Comware provides security features including:
¡ QoS policy configurable to limit or filter traffic delivered to the control or management plane. For example, you can limit the rate of traffic sent to the control plane. You can also configure application security features to protect the control plane against attacks such as TCP attacks, ICMP/ICMPv6 attacks, ARP attacks, and ND attacks.
¡ Security protocols or options specific to service modules for enhanced service protection.
Basic hardening principles
Enforcing security features aligned with your network environment, security needs, and protected objects is critical to the effective protection of your network. Hardening a network device with as many security features as you have would increase costs, add configuration complexities, and impact device performance without making it more secure.
To effectively protect a network device:
1. Identify major threats and risks that the network device is facing and sort them by their impact on your business.
2. Select and phase in security features to protect the network device against the identified threats and risks by their significance.
3. Constantly evaluate the protection effect after a security feature or a set of security features is introduced.
4. Depending on the evaluation conclusion, change or phase in security features until the security risks to the business are mitigate to an acceptable or minimum level.
Hardening the management plane
Device access control
Securing console/AUX access
Security threats
(Devices that have both console and AUX ports.) By default, console login and AUX login are both enabled. Console login does not require authentication. AUX login requires password authentication but the password is null, which allows you to log in by pressing Enter at the prompt for a password. The user role is network-admin for a console user and is network-operator for an AUX user.
(Devices that have an AUX port but do not have a console port.) By default, AUX login is enabled and do not require authentication. The user role is network-admin for an AUX user.
Hardening recommendations
Configure one of the following authentication modes in user line view or line class view immediately after you log in to the device for the first time:
· Password authentication—Requires a password for authentication. A user must provide the correct password at login. This authentication mode is not supported in FIPS mode.
· Scheme authentication—Uses the AAA module to provide local or remote login authentication. A user must provide the correct username and password at login.
After configuring password or scheme authentication, keep the password or username and password securely.
Restrictions and guidelines
A console or AUX login configuration change takes effect only on users who log in after the change is made. It does not affect users who are already online when the change is made.
In FIPS mode, the device supports only scheme authentication. You cannot disable authentication or configure password authentication.
Examples
· Secure console login:
# Configure password authentication in console line view.
<Sysname> system-view
[Sysname] line console 0
[Sysname-line-console0] authentication-mode password
# Specify a password.
[Sysname-line-console0] set authentication password simple Plat&0631!
Alternatively:
# Configure scheme authentication in console line view.
<Sysname> system-view
[Sysname] line console 0
[Sysname-line-console0] authentication-mode scheme
[Sysname-line-console0] quit
# Configure authentication methods for login users in ISP domain view.
To use local authentication, configure a local user and set the relevant attributes. To use remote authentication, configure a RADIUS, HWTACACS, or LDAP scheme. For more information, see AAA in Security Configuration Guide.
· Secure AUX login:
# Configure password authentication in AUX line view.
<Sysname> system-view
[Sysname] line aux 0
[Sysname-line-aux0] authentication-mode password
[Sysname-line-aux0] set authentication password simple Plat&0631!
Alternatively:
# Configure scheme authentication in AUX line view.
<Sysname> system-view
[Sysname] line aux 0
[Sysname-line-aux0] authentication-mode scheme
# Configure authentication methods for login users in ISP domain view.
To use local authentication, configure a local user and set the relevant attributes. To use remote authentication, configure a RADIUS, HWTACACS, or LDAP scheme. For more information, see AAA in Security Configuration Guide.
Securing Stelnet access
Security threats
Stelnet users might face the following security threats:
· An attacker might scan for and obtain the SSH service port number, and then try to Stelnet to the device again and again to log in to the device.
· The device supports a limited number of concurrent SSH users. An attacker might use spoofed IP addresses and valid usernames and passwords to Stelnet to the device, making legal users unable to Stelnet to the device.
Hardening recommendations
To protect the device against the security threats, you can use the following security policies:
· Password authentication
The SSH server authenticates a client by using the AAA mechanism. The password authentication process is as follows:
a. The client sends the server an authentication request that includes the encrypted username and password.
b. The server decrypts the request, verifies the username and password locally or through remote AAA authentication, and informs the client of the authentication result.
· Publickey authentication
The SSH server authenticates a client by verifying the digital signature of the client. The publickey authentication process is as follows:
a. The client sends the server a publickey authentication request that includes the username, public key, and public key algorithm name.
If the digital certificate of the client is required in authentication, the client also encapsulates the digital certificate in the authentication request. The digital certificate carries the public key information of the client.
b. The server verifies the client's public key.
- If the public key is invalid, the server informs the client of the authentication failure.
- If the public key is valid, the server requests the digital signature of the client. After receiving the signature, the server uses the public key to verify the signature and informs the client of the authentication result.
· Password-publickey authentication
The SSH server requires SSH2 clients to pass both password authentication and publickey authentication. An SSH1 client only needs to pass either authentication.
· Disabling the Stelnet service
Disable the Stelnet service when it is not required. The SSH service port number is easy to be found by a scanning attacker.
· Changing the SSH service port number to a non-well-known port number
By default, the SSH service port number is well-known port number 22, which is an easy target. Changing the SSH service port number reduces the risk to be attacked.
· Configuring SSH access control
Apply an ACL to control access to the SSH server, so only IPv4 SSH clients permitted by the ACL can access the SSH server.
· Limiting the number of concurrent SSH users
If the maximum number of concurrent SSH users is reached, the SSH server rejects additional connection requests.
Restrictions and guidelines
A Stelnet login configuration change takes effect only on users who log in after the change is made. It does not affect users who are already online when the change is made.
Examples
· # Configure password authentication for an SSH user.
<Sysname> system-view
[Sysname] ssh user client001 service-type stelnet authentication-type password
# For local authentication, configure a local user on the SSH server. For remote authentication, configure an SSH user on a remote authentication server, for example, a RADIUS server. For more information, see AAA in Security Configuration Guide.
· # Configure publickey authentication for an SSH user.
<Sysname> system-view
[Sysname] ssh user client002 service-type stelnet authentication-type publickey assign publickey clientkey
# Create a local user that uses the same username and assign a working directory and user roles to the user. For more information, see AAA in Security Configuration Guide.
· # Disable the Stelnet service.
<Sysname> system-view
[Sysname] undo ssh server enable
· # Change the SSH service port number to a non-well-known port number.
<Sysname> system-view
[Sysname] ssh server port 1025
· # Apply an ACL to permit only SSH access from 1.1.1.1.
<Sysname> system-view
[Sysname] acl basic 2001
[Sysname-acl-ipv4-basic-2001] rule permit source 1.1.1.1 0
[Sysname-acl-ipv4-basic-2001] quit
[Sysname] ssh server acl 2001
· # Set the maximum number of concurrent SSH users.
<Sysname> system-view
[Sysname] aaa session-limit ssh 16
Securing modem dial-in
Security threats
The device supports using a pair of modems to remotely connect the serial port of a PC to the console or AUX port of the device over PSTN. The user lines for modem dial-in users are AUX lines. By default, modem dial-in to the console port is enabled and does not require authentication. Modem dial-in to the AUX port is enabled and requires password authentication. However, the password is null, and you can log in by pressing Enter at the prompt for a password. Attackers might remotely dial in to the device and manage the device.
Hardening recommendations
Configure one of the following authentication modes in console and AUX user line views or line class views immediately after you log in to the device for the first time:
· Password authentication—Requires a password for authentication. A user must provide the correct password at login. This authentication mode is not supported in FIPS mode.
· Scheme authentication—Uses the AAA module to provide local or remote login authentication. A user must provide the correct username and password at login.
After configuring password or scheme authentication, keep the password or username and password securely.
Restrictions and guidelines
An AUX login configuration change takes effect only on users who log in after the change is made. It does not affect users who are already online when the change is made.
In FIPS mode, the device supports only scheme authentication. You cannot disable authentication or configure password authentication.
Examples
# Configure password authentication in AUX line view.
<Sysname> system-view
[Sysname] line aux 0
[Sysname-line-aux0] authentication-mode password
# Specify a password.
[Sysname-line-aux0] set authentication password simple Plat&0631!
Alternatively:
# Configure scheme authentication in AUX line view.
<Sysname> system-view
[Sysname] line aux 0
[Sysname-line-aux0] authentication-mode scheme
# Configure authentication methods for login users in ISP domain view.
To use local authentication, configure a local user and set the relevant attributes. To use remote authentication, configure a RADIUS, HWTACACS, or LDAP scheme. For more information, see AAA in Security Configuration Guide.
Securing RESTful access
Hardening recommendations
As a best practice, use RESTful access over HTTPs, which is more secure than RESTful access over HTTP. To further improve security, you can associate an SSL server policy with the RESTful access over HTTPS service.
Restrictions and guidelines
After you associate an SSL server policy with the RESTful access over HTTPS service, changes to the policy take effect only if you perform the following tasks:
1. Use the undo restful https enable command to disable the RESTful access over HTTPS service.
2. Use the restful https enable command to enable the RESTful access over HTTPS service again.
Examples
# Configure an SSL server policy. (Details not shown. For more information, see SSL configuration in Security Configuration Guide.)
# Associate the SSL server policy with the RESTful access over HTTPS service.
<Sysname> system-view
[Sysname] restful https ssl-server-policy policy1
# Enable the RESTful access over HTTPS service.
[Sysname] restful https enable
Securing NETCONF over SOAP access
Hardening recommendations
As a best practice, use NETCONF over SOAP over HTTPS, which is more secure than NETCONF over SOAP over HTTP. To further improve security, you can associate an SSL server policy with the NETCONF over SOAP over HTTPS service. The device will use the SSL parameters specified in the SSL server policy to ensure the security of NETCONF sessions.
Restrictions and guidelines
After you associate an SSL server policy with the NETCONF over SOAP over HTTPS service, changes to the policy take effect only if you perform the following tasks:
1. Use the undo netconf soap https enable command to disable the NETCONF over SOAP over HTTPS service.
2. Use the netconf soap https enable command to enable the NETCONF over SOAP over HTTPS service again.
Examples
# Configure an SSL server policy. (Details not shown. For more information, see SSL configuration in Security Configuration Guide.)
# Associate the SSL server policy with the NETCONF over SOAP over HTTPS service.
<Sysname> system-view
[Sysname] netconf soap https ssl-server-policy policy1
# Enable the NETCONF over SOAP over HTTPS service.
[Sysname] netconf soap https enable
# Use a custom user interface to establish a NETCONF over SOAP over HTTPS session to the device. (Details not shown. For information about the custom user interface, see the user guide for the interface.)
Securing SNMP access
Security threats
The device might face the following threats when it acts as an SNMP agent:
· An attacker might steal SNMPv1 or SNMPv2c community names and use them to access the device.
· An attacker might eavesdrop on and tamper with SNMP packets.
· Legal users of NMSs might perform tasks mistakenly, causing the device unable to operate correctly.
Hardening recommendations
To protect the device against the security threats, you can use the following security policies:
· Disabling the SNMP agent when it is not required. By default, the SNMP agent is disabled.
· Using SNMPv3, which is more secure than SNMPv1 and SNMPv2c. SNMPv3 uses a user-based security model to secure SNMP communication. You can configure authentication and privacy mechanisms to authenticate and encrypt SNMP packets for integrity, authenticity, and confidentiality.
· Using the following modes to control access to MIB objects:
¡ View-based Access Control Model—VACM mode controls access to MIB objects by assigning MIB views to SNMP communities or users.
¡ Role based access control—RBAC mode controls access to MIB objects by assigning user roles to SNMP communities or users.
RBAC mode controls access on a per MIB object basis, and VACM mode controls access on a MIB view basis. As a best practice to enhance MIB security, use the RBAC mode.
· Applying an ACL to permit only legal NMSs to access the SNMP agent.
· Encapsulating security parameters in notifications to allow only NMSs that satisfy the requirements can receive the notifications.
Restrictions and guidelines
For an NMS to connect to the device, make sure they use the same SNMP version and community name (or username and password).
Examples
· Disable the SNMP agent:
# Disable the SNMP agent.
<Sysname> system-view
[Sysname] undo snmp-agent
· Enable SNMPv3 on the device and use a user role to control access to MIB nodes:
# Enable SNMPv3.
<Sysname> system-view
[Sysname] snmp-agent sys-info version v3
# Configure a user role that has only the following rights:
¡ Read right to objects of node snmpMIB (OID=1.3.6.1.6.3.1) and node system (OID=1.3.6.1.2.1.1).
¡ Read and write rights to objects of node interfaces (OID=1.3.6.1.2.1.2). These rights enable the device to report interface status changes to the NMS.
[Sysname] role name test
[Sysname-role-test] rule 1 permit read oid 1.3.6.1.6.3.1
[Sysname-role-test] rule 2 permit read oid 1.3.6.1.2.1.1
[Sysname-role-test] rule 3 permit read write oid 1.3.6.1.2.1.2
[Sysname-role-test] quit
# Create an SNMPv3 user, assign the configured user role to the user, and specify the authentication and encryption algorithms and passwords.
[Sysname] snmp-agent usm-user v3 RBACtest user-role test simple authentication-mode sha 123456TESTauth&! privacy-mode aes128 123456TESTencr&!
· Apply an ACL to control access to the SNMP agent.
# Create an SNMPv3 group, add a user to the group, and specify the authentication and encryption algorithms and passwords. Configure an ACL to permit only SNMPv3 access from 1.1.1.1.
<Sysname> system-view
[Sysname] acl basic 2000
[Sysname-acl-ipv4-basic-2000] rule permit source 1.1.1.1 0
[Sysname-acl-ipv4-basic-2000] rule deny source any
[Sysname-acl-ipv4-basic-2000] quit
[Sysname] snmp-agent group v3 testGroup authentication
[Sysname] snmp-agent usm-user v3 testUser testGroup simple authentication-mode sha 123456TESTauth&! privacy-mode aes128 123456TESTencr&! acl 2000
· Enable SNMP notifications.
# Enable SNMP notifications, specify the SNMP notification target host and username, and select the authentication with privacy security model.
<Sysname> system-view
[Sysname] snmp-agent trap enable
[Sysname] snmp-agent target-host trap address udp-domain 1.1.1.2 params securityname testUser v3 privacy
Securing file access
Security threats
Commonly used file transfer protocols FTP and TFTP transfer files in plain text. Attackers can capture the transferred packets easily.
Hardening recommendations
To protect the device against the security threat, use Secure FTP (SFTP). Based on SSH2, SFTP uses SSH connections to provide secure file transfer. The device can act as an SFTP server, allowing a remote user to log in to the SFTP server for secure file management and transfer. The device can also act as an SFTP client, enabling a user to log in from the device to a remote device for secure file transfer.
To secure file transfer, SFTP uses the following security policies:
· Password authentication
The SSH server authenticates a client by using the AAA mechanism. The password authentication process is as follows:
a. The client sends the server an authentication request that includes the encrypted username and password.
b. The server decrypts the request, verifies the username and password locally or through remote AAA authentication, and informs the client of the authentication result.
· Publickey authentication
The SSH server authenticates a client by verifying the digital signature of the client. The publickey authentication process is as follows:
a. The client sends the server a publickey authentication request that includes the username, public key, and public key algorithm name.
If the digital certificate of the client is required in authentication, the client also encapsulates the digital certificate in the authentication request. The digital certificate carries the public key information of the client.
b. The server verifies the client's public key.
- If the public key is invalid, the server informs the client of the authentication failure.
- If the public key is valid, the server requests the digital signature of the client. After receiving the signature, the server uses the public key to verify the signature and informs the client of the authentication result.
· Password-publickey authentication
The SSH server requires SSH2 clients to pass both password authentication and publickey authentication. An SSH1 client only needs to pass either authentication.
· Changing the SSH service port number to a non-well-known port number
By default, the SSH service port number is well-known port number 22, which is an easy target. Changing the SSH service port number reduces the risk to be attacked.
· Configuring SSH access control
Apply an ACL to control access to the SSH server, so only IPv4 SSH clients permitted by the ACL can access the SSH server.
· Limiting the number of concurrent SSH users
If the maximum number of concurrent SSH users is reached, the SSH server rejects additional connection requests.
Examples
· # Enable the SFTP server, and configure an SSH user that uses password authentication.
<Sysname> system-view
[Sysname] sftp server enable
[Sysname] ssh user client001 service-type sftp authentication-type password
# For local authentication, configure a local user on the SSH server. For remote authentication, configure an SSH user on a remote authentication server, for example, a RADIUS server. For more information, see AAA in Security Configuration Guide.
· # Enable the SFTP server, and configure an SSH user that uses publickey authentication.
<Sysname> system-view
[Sysname] sftp server enable
[Sysname] ssh user client002 service-type sftp authentication-type publickey assign publickey clientkey
# Create a local user that uses the same username and assign a working directory and user roles to the user. For more information, see AAA in Security Configuration Guide.
· # Change the SSH service port number to a non-well-known port number.
<Sysname> system-view
[Sysname] ssh server port 1025
· # Apply an ACL to permit only SSH access from 1.1.1.1.
<Sysname> system-view
[Sysname] acl basic 2001
[Sysname-acl-ipv4-basic-2001] rule permit source 1.1.1.1 0
[Sysname-acl-ipv4-basic-2001] quit
[Sysname] ssh server acl 2001
· # Set the maximum number of concurrent SSH users.
<Sysname> system-view
[Sysname] aaa session-limit ssh 16
User management and access control
Using RBAC to control user access permissions
Role-based access control (RBAC) controls access permissions of users based on user roles, enabling granular control of access to the device.
With RBAC, you create user roles for different job functions (for example, different security purposes). Then, assign each user role the permission to access a set of features and system resources.
For more information about RBAC, see Fundamentals Configuration Guide.
Using AAA to secure user access and user management
Authentication, Authorization, and Accounting (AAA) provides a uniform framework for implementing network access management. This feature specifies the following security functions:
· Authentication—Identifies users and verifies their validity.
· Authorization—Grants different users different rights, and controls the users' access to resources and services. For example, you can permit office users to read and print files and prevent guests from accessing files on the device.
· Accounting—Records network usage details of users, including the service type, start time, and traffic. This function enables time-based and traffic-based charging and user behavior auditing.
AAA has various implementations, including RADIUS, HWTACACS, and LDAP. RADIUS is most often used.
HWTACACS and RADIUS have many features in common, such as using a client/server model, using shared keys for data encryption, and providing flexibility and scalability. However, HWTACACS has the following advantages compared with RADIUS:
· Uses TCP, which provides reliable network transmission.
· Encrypts the entire packet except for the HWTACACS header.
· Uses complicated protocol packets and separates authorization from authentication. Authentication and authorization can be deployed on different HWTACACS servers.
· Supports authorization of configuration commands. Access to commands depends on both the user's roles and authorization. A user can use only commands that are permitted by the user roles and authorized by the HWTACACS server.
Using command authorization to secure command access
Hardening recommendations
By default, commands available for a user depend only on the user's user roles. When the authentication mode is scheme, you can configure the command authorization feature to further control a user's access to commands.
When command authorization is enabled, a user can use only commands that are permitted by both the AAA scheme and user roles.
Examples
# Enable command authorization.
<Sysname> system-view
[Sysname] line vty 0 4
[Sysname-line-vty0-4] authentication-mode scheme
[Sysname-line-vty0-4] command authorization
# Configure command authorization methods in ISP domain view. The command authorization methods can be the same as or different from the user login authorization methods. For more information about the authorization methods, see AAA configuration in Security Configuration Guide.
Password control
Security threats
A user password on the device might pose security threats in the following situations:
· If the password is short and simple, and the number of login attempts is not limited, the password might be easily cracked through a dictionary attack.
· If the password has no aging time and is idle for a long period, it can be cracked through continuous attempts.
· If the password is the initial password, it will be cracked easily. Because an initial password might be a weak password created by a single rule.
Hardening recommendations
Password control allows you to implement the following features:
· Password length, composition, and complexity.
¡ Minimum password length.
¡ Password composition policy.
¡ Password complexity checking policy.
· Password updating and expiration.
¡ Password updating.
¡ Password expiration.
¡ Early notice on pending password expiration.
¡ Login with an expired password.
¡ Password history.
· User login control.
¡ First login control.
¡ Limit on number of login attempts
¡ Maximum account idle time.
For more information about local users, see AAA in Security Configuration Guide. For information about super passwords, see RBAC in Fundamentals Configuration Guide. For more information about password control, see Security Configuration Guide.
Password control and management
The device supports the following forms of passwords (or keys):
· Plaintext form—Users enter their passwords in plaintext form, and the device stores the passwords in encrypted form or hashed form.
· Encrypted form—Users enter their passwords in encrypted form, and the device stores the passwords in encrypted form.
· Hashed form—Users enter their passwords in encrypted form, and the device stores the passwords in hashed form.
To improve system security and maintainability, follow these password control and management guidelines:
· Use long and complicated passwords instead of weak passwords.
· Use a unique password for each service, preventing one service password compromise from incurring security risks to all services.
· Make sure passwords set in encrypted or hashed form can be decrypted by the device. Typically, passwords in encrypted or hashed form are used for tests or configuration recovery. Do not use passwords in these forms for normal services.
Device management
Disabling password recovery capability
Security threats
By default, password recovery capability is enabled. If you forget the console login password or fails console login authentication, you can press Ctrl+B during device startup to access the BootWare menu and solve the issue. However, attackers can exploit this capability to access the device through the console port.
Hardening recommendations
Disable password recovery capability so console users must restore the factory-default configuration before they can configure new passwords. Restoring the factory-default configuration deletes the next-startup configuration files.
Examples
# Disable password recovery capability.
<Sysname> system-view
[Sysname] undo password-recovery enable
Configuring memory alarm thresholds
Security threats
When the device is running out of memory, features might not be able to install table entries or save important data, affecting correct system operation.
Hardening recommendations for devices
To ensure correct operation and improve memory efficiency, the device monitors the amount of free memory space in real time. If the amount of free memory space reaches the minor, severe, or critical alarm threshold, the system issues an alarm to affected service modules and processes.
As shown in Table 1 and Figure 2, the device supports the following free-memory thresholds:
· Normal state threshold.
· Minor alarm threshold.
· Severe alarm threshold.
· Critical alarm threshold.
Table 1 Memory alarm notifications and memory alarm-removed notifications
|
Notification |
Triggering condition |
Remarks |
|
Minor alarm notification |
The amount of free memory space decreases below the minor alarm threshold. |
After generating and sending a minor alarm notification, the system does not generate and send any additional minor alarm notifications until the minor alarm is removed. |
|
Severe alarm notification |
The amount of free memory space decreases below the severe alarm threshold. |
After generating and sending a severe alarm notification, the system does not generate and send any additional severe alarm notifications until the severe alarm is removed. |
|
Critical alarm notification |
The amount of free memory space decreases below the critical alarm threshold. |
After generating and sending a critical alarm notification, the system does not generate and send any additional critical alarm notifications until the critical alarm is removed. |
|
Critical alarm-removed notification |
The amount of free memory space increases above the severe alarm threshold. |
N/A |
|
Severe alarm-removed notification |
The amount of free memory space increases above the minor alarm threshold. |
N/A |
|
Minor alarm-removed notification |
The amount of free memory space increases above the normal state threshold. |
N/A |

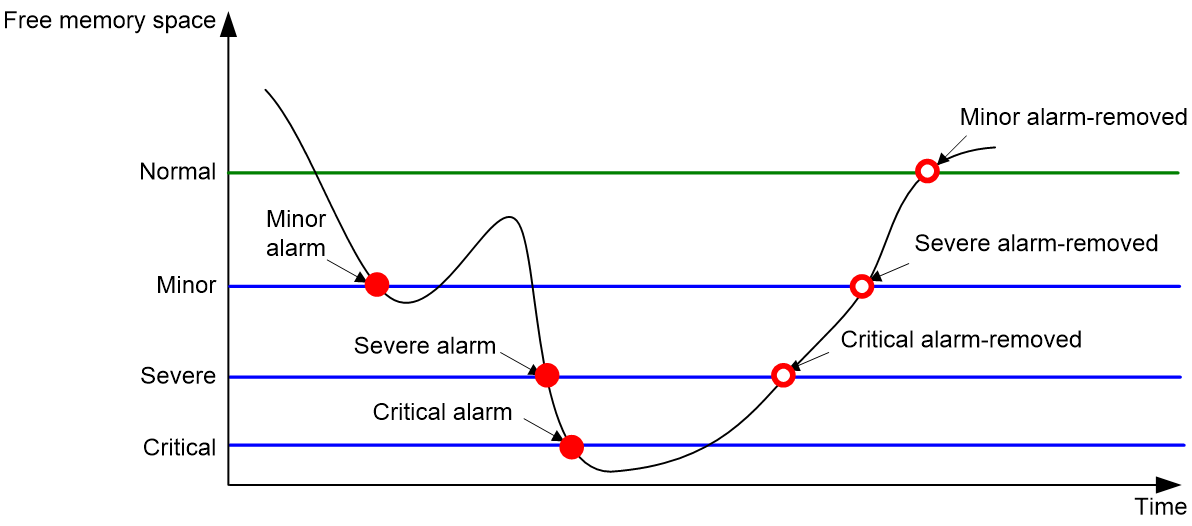

Figure 2 Memory alarm notifications and alarm-removed notifications
Restrictions and guidelines
If a memory alarm occurs, delete unused configuration items or disable some features to increase the free memory space. Because the memory space is insufficient, some configuration items might not be able to be deleted.
Examples
# Set the minor, severe, and critical free-memory alarm thresholds to 3000 MB, 2000 MB, and 1000 MB, respectively. Set the normal state threshold to 3500 MB.
<Sysname> system-view
[Sysname] memory-threshold minor 3000 severe 2000 critical 1000 normal 3500
Configuration encryption
Hardening recommendations
To protect the startup configuration file, use configuration encryption. This feature enables the device to encrypt a startup configuration file automatically when it saves the running configuration to the file. All devices running Comware 7 software use the same private key or public key to encrypt configuration files.
Any devices running Comware 7 software can decrypt the encrypted configuration files. To prevent an encrypted file from being decoded by unauthorized users, make sure the file is accessible only to authorized users.
Restrictions and guidelines
You cannot use the more command or any display commands other than the display saved-configuration command to view the contents of an encrypted configuration file. However, you can use the display saved-configuration command to display the contents of the encrypted next-startup configuration file.
Examples
# Enable the public-key method for configuration encryption.
<Sysname> system-view
[Sysname] configuration encrypt public-key
# Enable the private-key method for configuration encryption.
<Sysname> system-view
[Sysname] configuration encrypt private-key
Security logs
Hardening recommendations
Security logs are very important for locating and troubleshooting network problems. Generally, security logs are output together with other logs. It is difficult to identify security logs among all logs.
To resolve this issue, you can configure the device to save security logs to the security log file. After you configure this feature, the system encapsulates security-related information as both standard system logs and security logs. The standard system logs are sent to console, monitor terminal, log buffer, log host, or other destinations as configured. The security logs are sent only to the security log file.
Restrictions and guidelines
To save security logs to the security log file, configure the following features:
· Enable saving security logs to the security file.
· Set the interval at which security logs are sent to the security log file.
· Set the maximum size of the security log file.
· Set an alarm threshold for the security log file usage ratio.
To manage the security log file, you must have the security-audit user role. This user role has permissions only to security log file management operations, including the following:
· Change the directory of the security log file.
· Manually save the security logs in the security log file buffer to the security log file.
Examples
· Save security logs to the security log file:
# Enable saving security logs to the security log file.
<Sysname> system-view
[Sysname] info-center security-logfile enable
# Set the security log file saving interval to 600 seconds.
[Sysname] info-center security-logfile frequency 600
# Set the maximum size to 2 MB for the security log file.
[Sysname] info-center security-logfile size-quota 2
· Manage the security log file:
# Log in to the device with the security-audit user role.
# Set the security log file directory to flash:/test.
<Sysname> mkdir test
Creating directory flash:/test... Done.
<Sysname> system-view
[Sysname] info-center security-logfile directory flash:/test
[Sysname] quit
# Manually save the security logs in the security log file buffer to the security log file.
<Sysname> security-logfile save
The contents in the security log file buffer have been saved to the file flash:/seclog/seclog.log.
VXLAN
Securing ARP and ND learning
Security threats
If attackers send spoofed or malformed ARP or ND packets in an EVPN VXLAN network, VTEPs and gateways will learn incorrect ARP or ND entries and cannot forward traffic correctly.
Hardening recommendations
To secure ARP or ND learning, you can disable remote ARP or ND learning for VTEPs and gateways to learn ARP or ND information from EVPN MAC/IP advertisement routes.
Restrictions and guidelines
The hardening recommendations only apply to EVPN VXLAN networks.
Examples
# Disable remote ARP learning for VXLANs.
<Sysname> system-view
[Sysname] vxlan tunnel arp-learning disable
# Disable remote ND learning for VXLANs.
<Sysname> system-view
[Sysname] vxlan tunnel nd-learning disable
Hardening the control plane
Layer 2 protocols
Securing spanning tree networks
Security threats
· BPDU attack
Access ports can directly connect to user terminals (such as PCs) or file servers. The access ports are configured as edge ports to allow rapid transition. When these ports receive configuration BPDUs, the system automatically sets the ports as non-edge ports and starts a new spanning tree calculation process. This causes a change of network topology. Under normal conditions, these ports should not receive configuration BPDUs. However, if a malicious user uses configuration BPDUs to attack the devices, the network will become unstable.
· Root bridge attack
Due to possible configuration errors or malicious attacks in the network, the legal root bridge might receive a configuration BPDU with a higher priority. Another device supersedes the current legal root bridge, which causes an undesired change of the network topology. The traffic that should go over high-speed links is switched to low-speed links, resulting in network congestion.
· TC-BPDU attack
If an attacker uses TC-BPDUs to attack the device, the device will receive a large number of TC-BPDUs within a short time. Then, the device is busy with forwarding address entry flushing. This affects network stability.
Hardening recommendations
To secure spanning tree networks, you can use the following features:
· BPDU guard
The BPDU guard feature protects the system against BPDU attacks. When edge ports receive configuration BPDUs on a device with BPDU guard enabled, the device performs the following operations:
¡ Shuts down these ports.
¡ Notifies the NMS that these ports have been shut down by the spanning tree protocol.
· Root guard
The root guard feature keeps the designated role of a port on the root bridge to prevent frequent root bridge changes.
· TC-BPDU guard
TC-BPDU guard allows you to set the maximum number of immediate forwarding address entry flushes performed within 10 seconds after the device receives the first TC-BPDU. For TC-BPDUs received in excess of the limit, the device performs a forwarding address entry flush when the time period expires. This prevents frequent flushing of forwarding address entries.
Examples
· Configure BPDU guard.
# Enable BPDU guard globally.
<Sysname> system-view
[Sysname] stp bpdu-protection
# Enable BPDU guard on an edge port.
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] stp port bpdu-protection enable
· Enable root guard on an interface.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] stp root-protection
· Set the maximum number of forwarding address entry flushes that the device can perform every 10 seconds.
<Sysname> system-view
[Sysname] stp tc-protection threshold 10
ARP attack protection
Enabling dynamic ARP entry check
Security threats
The sender MAC address of valid ARP packets is a unicast address. An attacker can forge ARP packets in which the sender MAC addresses are multicast addresses. If the gateway learns ARP entries for the multicast addresses and then forwards packets based on the ARP entries, the network resources will be heavily occupied.
Hardening recommendations
To avoid such a threat, enable the dynamic ARP entry check feature.
This feature prevents the device from learning dynamic ARP entries for multicast MAC addresses. Additionally, you cannot manually add static ARP entries for multicast MAC addresses.
Examples
# Enable dynamic ARP entry check.
<Sysname> system-view
[Sysname] arp check enable
Preventing ARP flooding
Configuring unresolvable IP attack protection
Security threats
If a device receives a large number of unresolvable IP packets from a host, the following threats occur:
· The device sends a large number of ARP requests, overloading the target subnets.
· The device keeps trying to resolve the destination IP addresses, overloading its CPU.
Hardening recommendations
To protect the device from such IP attacks, you can configure the following features:
· ARP source suppression—Stops resolving packets from an IP address if the number of unresolvable IP packets from the IP address exceeds the upper limit within 5 seconds. The device continues ARP resolution when the interval elapses. This feature is applicable if the attack packets have the same source addresses.
· ARP blackhole routing—Creates a blackhole route destined for an unresolved IP address. The device drops all matching packets until the blackhole route is deleted. A blackhole route is deleted when its aging timer is reached or the route becomes reachable.
After a blackhole route is created for an unresolved IP address, the device immediately starts the first ARP blackhole route probe by sending an ARP request. If the resolution fails, the device continues probing according to the probe settings. If the IP address resolution succeeds in a probe, the device converts the blackhole route to a normal route. If an ARP blackhole route ages out before the device finishes all probes, the device deletes the blackhole route and does not perform the remaining probes.
This feature is applicable regardless of whether the attack packets have the same source addresses.
Examples
· # Enable the ARP source suppression, and set the maximum number to 100 for unresolvable packets that can be processed per source IP address within 5 seconds.
<Sysname> system-view
[Sysname] arp source-suppression enable
[Sysname] arp source-suppression limit 100
· # Enable ARP blackhole routing, set the number of ARP blackhole route probes to 5 for each unresolved IP address, and set the probe interval to 3 seconds.
<Sysname> system-view
[Sysname] arp resolving-route enable
[Sysname] arp resolving-route probe-count 5
[Sysname] arp resolving-route probe-interval 3
Configuring source MAC-based ARP attack detection
Security threats
If the device receives a large number of ARP packets from the same MAC address, resource exhaustion will occur and the device will fail to learn new ARP entries.
Hardening recommendations
To avoid such a threat, enable the source MAC-based ARP attack detection feature.
This feature enables the device to count the number of ARP packets delivered to the CPU. If the number of packets from the same MAC address within 5 seconds exceeds a threshold, the device generates an ARP attack entry for the MAC address.
Restrictions and guidelines
When you change the handling method from monitor to filter, the configuration takes effect immediately. When you change the handling method from filter to monitor, the device continues filtering packets that match existing attack entries.
You can exclude the MAC addresses of the gateways and servers from this detection. The device does not inspect ARP packets from those excluded devices even if they send a large number of ARP packets.
Examples
# Enable source MAC-based ARP attack detection, and specify the handling method as filter.
<Sysname> system-view
[Sysname] arp source-mac filter
To enable source MAC-based ARP attack detection and specify the monitor handling method, use the arp source-mac monitor command.
# Set the threshold for source MAC-based ARP attack detection to 30.
[Sysname] arp source-mac threshold 30
# Set the aging timer for ARP attack entries to 60 seconds.
[Sysname] arp source-mac aging-time 60
# Exclude MAC address 001e-1200-0213 from source MAC-based ARP attack detection.
[Sysname] arp source-mac exclude-mac 001e-1200-0213
Configuring interface-based ARP attack suppression
Hardening recommendations
Use this feature to rate limit ARP requests on each Layer 3 interface to prevent ARP spoofing attacks.
This feature monitors the number of ARP requests that each Layer 3 interface received within the check interval. If the number on an interface exceeds the ARP attack suppression threshold, the device creates an ARP attack suppression entry for the interface. Before the suppression time for the entry times out, the maximum receiving rate for ARP packets is limited on the interface.
During the suppression period, the device monitors the number of received ARP requests on the interface:
· If the number of the received ARP requests is higher than or equal to a calculated value, the device determines that the ARP attack still exists on the interface. When the suppression time expires, the device resets the suppression time for the entry and continues the ARP suppression on the interface.
The calculated value = (suppression time/check interval) × suppression threshold
· If the number of the received ARP requests is lower than the calculated value, the ARP suppression entry is deleted when the suppression time expires.
Examples
# Enable interface-based ARP attack suppression.
<Sysname> system-view
[Sysname] arp attack-suppression enable per-interface
# Set the check interval to 30 seconds for interface-based ARP attack suppression.
[Sysname] arp attack-suppression check-interval 30
# Set the interface-based ARP attack suppression threshold to 1000.
[Sysname] arp attack-suppression threshold 1000
# Set the interface-based ARP attack suppression time to 60 seconds.
[Sysname] arp attack-suppression suppression-time 60
Preventing ARP spoofing attacks
Security threats
An attacker may launch user spoofing attack or gateway spoofing attack.
· User spoofing attack—If an attacker sends a falsified ARP packet that deceives the gateway into adding a false IP-to-MAC address binding for a valid client, the client fails to receive packets from the gateway.
· Gateway spoofing attack—If an attacker sends a falsified ARP packet that deceives valid clients into adding a false IP-to-MAC binding for the gateway, the clients fail to access the gateway.
Enabling ARP safe-guard
Security threats
If the device directly performs dynamic ARP learning upon receiving falsified ARP packets, the device learns incorrect ARP entries.
Hardening recommendations
When ARP safe-guard is enabled, the device operates as follows:
· The device sends replies to all incoming ARP requests but do not generate corresponding ARP entries, which prevents gateway spoofing attacks.
· The device generates ARP entries for incoming ARP replies that the device requests.
· The device drops incoming ARP replies that are not requested by the device, which ensures that the device can learn correct ARP entries.
Examples
# Enable ARP safe-guard on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] arp safe-guard enable
Enabling IP conflict notification
Hardening recommendations
Use the IP conflict notification feature to prevent gateway spoofing attacks.
This feature enables the device to detect and record user IP address conflicts. A conflict occurs if an incoming non-gratuitous ARP packet has the same sender IP address as an existing ARP entry but a different sender MAC address. The device generates a user IP address conflict record, logs the conflict, and sends the log to the information center.
Examples
# Enable IP conflict notification.
<Sysname> system-view
[Sysname] arp ip-conflict log prompt
Enabling ARP packet source MAC consistency check
Hardening recommendations
The ARP packet source MAC consistency check feature filters out ARP packets whose source MAC address in the Ethernet header is different from the sender MAC address in the message body. This feature ensures that the device learns correct ARP entries.
Examples
# Enable ARP packet source MAC consistency check.
<Sysname> system-view
[Sysname] arp valid-check enable
Configuring ARP active acknowledgment
Hardening recommendations
Use the ARP active acknowledgment feature to prevent user spoofing attacks.
This feature enables the device to perform validity checks before creating an ARP entry to prevent the device from generating incorrect ARP entries.
The strict mode enables the device to perform more strict validity checks as follows:
· Upon receiving an ARP request destined for the device, the device sends an ARP reply but does not create an ARP entry.
· Upon receiving an ARP reply, the device determines whether it has resolved the sender IP address:
¡ If yes, the device performs active acknowledgment. When the ARP reply is verified as valid, the gateway creates an ARP entry.
¡ If no, the device discards the packet.
Examples
# Enable strict ARP active acknowledgment in mode.
<Sysname> system-view
[Sysname] arp active-ack strict enable
Configuring authorized ARP
Hardening recommendations
Use the authorized ARP feature to prevent user spoofing attacks and to allow only authorized clients to access network resources.
This feature enables the device to generate authorized ARP entries based on the DHCP clients' address leases on the DHCP server or dynamic client entries on the DHCP relay agent. For more information about DHCP server and DHCP relay agent, see Layer 3—IP Services Configuration Guide.
Examples
# Enable authorized ARP on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] arp authorized enable
Configuring ARP scanning and fixed ARP
Hardening recommendations
ARP scanning is typically used together with the fixed ARP feature in small-scale and stable networks.
ARP scanning automatically creates ARP entries for devices in an address range. The device performs ARP scanning in the following steps:
1. Sends ARP requests for each IP address in the address range.
2. Obtains their MAC addresses through received ARP replies.
3. Creates dynamic ARP entries.
Fixed ARP converts existing dynamic ARP entries (including those generated through ARP scanning) to static ARP entries. These static ARP entries are of the same attributes as the ARP entries that are manually configured. This feature prevents ARP entries from being modified by attackers.
Restrictions and guidelines
You can set the ARP packet sending rate if the scanning range has a large number of IP addresses. This setting can avoid high CPU usage and heavy network load caused by a burst of ARP traffic.
Due to the limit on the total number of static ARP entries, some dynamic ARP entries might fail the conversion.
Examples
# Start an ARP scanning on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] arp scan
[Sysname-GigabitEthernet1/0/1] quit
# Convert existing dynamic ARP entries to static ARP entries.
[Sysname] arp fixup
Configuring ARP gateway protection
Hardening recommendations
To prevent gateway spoofing attacks, configure the ARP gateway protection feature on interfaces that are not connected with a gateway.
When an interface enabled with this feature receives an ARP packet, it checks whether the sender IP address in the packet is consistent with that of any protected gateway. If yes, it discards the packet. If not, it handles the packet correctly.
Restrictions and guidelines
Do not configure both ARP gateway protection and ARP filtering on an interface.
Examples
# Enable ARP gateway protection for the gateway at 1.1.1.1 on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] arp filter source 1.1.1.1
Configuring ARP filtering
Hardening recommendations
To prevent gateway spoofing and user spoofing attacks, enable the ARP filtering feature.
An interface enabled with this feature checks the sender IP and MAC addresses in a received ARP packet against permitted entries. If a match is found, the packet is handled correctly. If not, the packet is discarded.
Restrictions and guidelines
Do not configure both ARP gateway protection and ARP filtering on an interface.
Examples
# Enable ARP filtering and configure an ARP permitted entry on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] arp filter binding 1.1.1.1 0e10-0213-1023
Configuring ARP sender IP address checking
Hardening recommendations
To prevent user spoofing attacks, configure the ARP sender IP address checking on the gateway.
The ARP sender IP address checking feature allows the device to check the sender IP address of an ARP packet in a VLAN before ARP learning. If the sender IP address is within the allowed IP address range, the device continues ARP learning. If the sender IP address is out of the range, the device determines the ARP packet as an attack packet and discards it.
Examples
# Enable the ARP sender IP address checking feature in VLAN 2 and specify the IP address range 1.1.1.1 to 1.1.1.20.
<Sysname> system-view
[Sysname] vlan 2
[Sysname–vlan2] arp sender-ip-range 1.1.1.1 1.1.1.20
ND attack defense
ND snooping
Hardening recommendations
To protect gateways in Layer 2 switching networks, use the snooping feature. This feature learns the source MAC addresses, source IPv6 addresses, input interfaces, and VLANs of arriving ND messages and data packets to build the ND snooping table.
ND snooping entries can be used by ND detection or IPv6 source guard to prevent attacks on gateways.
Examples
# Enable ND snooping in VLAN 10.
<Sysname> system-view
[Sysname] vlan 10
[Sysname-vlan10] ipv6 nd snooping enable global
[Sysname-vlan10] ipv6 nd snooping enable link-local
[Sysname-vlan10] quit
# Allow GigabitEthernet 1/0/1 to learn a maximum of 64 ND snooping entries.
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] ipv6 nd snooping max-learning-num 64
[Sysname-GigabitEthernet1/0/1] quit
# Set the timeout timer to 250 seconds for ND snooping entries in VALID status.
[Sysname] ipv6 nd snooping lifetime valid 250
# Set the interval to 200 milliseconds for retransmitting an NS message for DAD.
[Sysname] ipv6 nd snooping dad retrans-timer 200
Source MAC-based ND attack detection
Security threats
When the device receives excessive ND attack packets with fixed MAC addresses, it creates ND entries for them and cannot learn valid ND entries.
Hardening recommendations
To protect the device against excessive ND attack packets with fixed MAC addresses, use the source MAC-based ND attack detection. This feature checks the number of ND messages delivered to the CPU. If the number of messages from the same MAC address within the check interval exceeds the threshold, the device generates an ND attack entry for the MAC address. The processing of the ND messages sent from the MAC address in this entry depends on the detection mode. With ND logging enabled, source MAC-based ND attack detection processes the messages as follows:
· Filter mode—Filters out subsequent ND messages sent from the MAC address, and generates log messages.
· Monitor mode—Only generates log messages.
During the ND attack defense period, the device monitors the number of dropped packets in an entry within the aging time:
· If the number of dropped packets is higher than or equal to a calculated value, the device resets the aging time for the entry when the entry ages out.
· If the number of dropped packets is lower than the calculated value, the system deletes the entry when the entry ages out and marks MAC address in the entry as a common MAC address.
Restrictions and guidelines
When you change the detection mode from monitor to filter, the filter mode takes effect immediately. When you change the detection mode from filter to monitor, the device continues filtering ND messages that match existing attack entries.
You can exclude certain MAC addresses from source MAC-based ND attack detection on gateways and servers that might receive large numbers of ND messages. Source MAC-based ND attack detection does not drop ND messages sent from the excluded MAC addresses even if it detects attacks launched from these MAC addresses. Please exclude MAC addresses with caution and make sure no attack packets are sent from these MAC addresses.
Examples
# Enable source MAC-based ND attack detection and set the detection mode to monitor.
<Sysname> system-view
[Sysname] ipv6 nd source-mac monitor
To set the filter mode, execute the ipv6 nd source-mac filter command.
# Set the check interval to 30 seconds for source MAC-based ND attack detection.
[Sysname] ipv6 nd source-mac check-interval 30
# Set the threshold to 100 for source MAC-based ND attack detection.
[Sysname] ipv6 nd source-mac threshold 100
# Set the aging time to 100 seconds for source MAC-based ND attack detection entries.
[Sysname] ipv6 nd source-mac aging-time 100
# Exclude the MAC address 001e-1200-0213 from source MAC-based ND attack detection.
[Sysname] ipv6 nd source-mac exclude-mac 001e-1200-0213
# Enable ND logging.
[Sysname] ipv6 nd check log enable
Interface-based ND attack suppression
Hardening recommendations
To rate limit ND requests on each Layer 3 interface to prevent ND spoofing attacks, use the interface-based ND attack suppression. This feature monitors the number of ND requests that each Layer 3 interface received within the check interval. If the number on an interface exceeds the threshold, the device creates an ND attack suppression entry for the interface.
During the suppression period, the device rate limits the number of received ND packets per second on the interface to protect the CPU against ND attack packets.
When the suppression time expires, the system examines the number of received ND messages on the interface within the suppression period:
· If the number of the received ND messages is higher than or equal to a calculated value, the device resets the suppression time for the entry and continues the ND suppression on the interface.
· If the number of the received ND messages is lower than the calculated value, the device deletes the suppression entry.
Examples
# Enable interface-based ND attack suppression.
<Sysname> system-view
[Sysname] ipv6 nd attack-suppression enable per-interface
# Set the check interval to 30 seconds for interface-based ND attack suppression.
[Sysname] ipv6 nd attack-suppression check-interval 30
# Set the threshold to 500 for triggering interface-based ND attack suppression.
[Sysname] ipv6 nd attack-suppression threshold 500
# Set the suppression time to 60 seconds for interface-based ND attack suppression.
[Sysname] ipv6 nd attack-suppression suppression-time 60
Source MAC consistency check
Security threats
When an attacker sends a large number of ND packets to the target device, the CPU of the device will get overloaded.
Hardening recommendations
To prevent ND attack packets with inconsistent source MAC address and the source link-layer address, use the source MAC consistency check feature. The feature is typically configured on gateways.
This feature checks the source MAC address and the source link-layer address for consistency for each arriving ND message.
· If the source MAC address and the source link-layer address are not the same, the device drops the packet.
· If the addresses are the same, the device continues learning ND entries.
The ND logging feature logs source MAC inconsistency events, and it sends the log messages to the information center. The information center can then output log messages from different source modules to different destinations. For more information about the information center, see Network Management and Monitoring Configuration Guide.
Examples
# Enable source MAC consistency check for ND messages.
<Sysname> system-view
[Sysname] ipv6 nd mac-check enable
# Enable ND logging.
[Sysname] ipv6 nd check log enable
Access services
Securing PPP
Configuring PPP authentication
Hardening recommendations
To secure PPP, you can configure PPP authentication. By cooperating with AAA, PPP supports the following authentication methods:
· PAP—PAP is a two-way handshake authentication protocol using the username and password.
PAP sends username/password pairs in plain text over the network. If authentication packets are intercepted in transit, network security might be threatened. For this reason, it is suitable only for low-security environments.
· CHAP—CHAP is a three-way handshake authentication protocol.
CHAP transmits usernames but not passwords over the network. It transmits the result calculated from the password and random packet ID by using the MD5 algorithm. It is more secure than PAP. The authenticator may or may not be configured with a username. As a best practice, configure a username for the authenticator, which makes it easier for the peer to verify the identity of the authenticator.
· MS-CHAP—MS-CHAP is a three-way handshake authentication protocol.
MS-CHAP differs from CHAP in that MS-CHAP provides authentication retry. If the peer fails authentication, it is allowed to retransmit authentication information to the authenticator for reauthentication. The authenticator allows a peer to retransmit a maximum of three times.
· MS-CHAP-V2—MS-CHAP-V2 is a three-way handshake authentication protocol.
MS-CHAP-V2 differs from CHAP as follows:
¡ MS-CHAP-V2 provides two-way authentication by piggybacking a peer challenge on the Response packet and an authenticator response on the Acknowledge packet.
¡ MS-CHAP-V2 supports authentication retry. If the peer fails authentication, it is allowed to retransmit authentication information to the authenticator for reauthentication. The authenticator allows a peer to retransmit a maximum of three times.
¡ MS-CHAP-V2 supports password change. If the peer fails authentication because of an expired password, it will send the new password entered by the user to the authenticator for reauthentication.
Restrictions and guidelines
For local AAA authentication, the username and password of the peer must be configured on the authenticator. For remote AAA authentication, the username and password of the peer must be configured on the remote AAA server.
· PAP
The username and password configured for the peer must be the same as those configured on the peer by using the ppp pap local-user command.
· CHAP authentication (authenticator name is configured)
When you configure the authenticator, the username and password configured for the peer must meet the following requirements:
¡ The username configured for the peer must be the same as that configured on the peer by using the ppp chap user command.
¡ The passwords configured for the authenticator and peer must be the same.
When you configure the peer, the username and password configured for the authenticator must meet the following requirements:
¡ The username configured for the authenticator must be the same as that configured on the authenticator by using the ppp chap user command.
¡ The passwords configured for the authenticator and peer must be the same.
The peer does not support the CHAP authentication password configured by using the ppp chap password command. CHAP authentication (authenticator name is configured) will apply even if the authentication name is configured.
· CHAP authentication (authenticator name is not configured)
The username and password configured for the peer must meet the following requirements:
¡ The username configured for the peer must be the same as that configured on the peer by using the ppp chap user command.
¡ The password configured for the peer must be the same as that configured on the peer by using the ppp chap password command.
· MS-CHAP or MS-CHAP-V2 authentication
The device can only act as an authenticator for MS-CHAP or MS-CHAP-V2 authentication.
L2TP supports only MS-CHAP authentication.
MS-CHAP-V2 authentication supports password change only when using RADIUS.
As a best practice, do not set the authentication method for PPP users to none when MS-CHAP-V2 authentication is used.
The username and password of the peer configured on the authenticator or remote AAA server must be the same as those configured on the peer.
If authentication name is configured, the username configured for the authenticator on the peer must be the same as that configured on the authenticator by using the ppp chap user command.
Examples
· PAP authentication
¡ Configuring the authenticator
# Configure the authenticator to authenticate the peer by using PAP.
<Sysname> system-view
[Sysname] interface virtual-template 1
[Sysname-Virtual-Template1] ppp authentication-mode pap domain system
# Configure local or remote AAA authentication.
For more information about AAA authentication, see Security Configuration Guide.
¡ Configuring the peer
# Configure the PAP username and password sent from the peer to the authenticator when the peer is authenticated by the authenticator by using PAP.
<Sysname> system-view
[Sysname] interface virtual-template 1
[Sysname-Virtual-Template1] ppp pap local-user userb password simple passb&289
· Configuring CHAP authentication (authenticator name is configured)
¡ Configuring the authenticator
# Configure the authenticator to authenticate the peer by using CHAP.
<Sysname> system-view
[Sysname] interface virtual-template 1
[Sysname-Virtual-Template1] ppp authentication-mode chap domain system
# Configure a username for the CHAP authenticator.
[Sysname-Virtual-Template1] ppp chap user usera
# Configure local or remote AAA authentication.
For more information about AAA authentication, see Security Configuration Guide.
¡ Configuring the peer
# Configure a username for the CHAP peer.
<Sysname> system-view
[Sysname] interface virtual-template 1
[Sysname-Virtual-Template1] ppp chap user userb
# Configure local or remote AAA authentication.
For more information about AAA authentication, see Security Configuration Guide.
· Configuring CHAP authentication (authenticator name is not configured)
¡ Configuring the authenticator
# Configure the authenticator to authenticate the peer by using CHAP.
<Sysname> system-view
[Sysname] interface virtual-template 1
[Sysname-Virtual-Template1] ppp authentication-mode chap domain system
# Configure local or remote AAA authentication.
For more information about AAA authentication, see Security Configuration Guide.
¡ Configuring the peer
# Configure a username for the CHAP peer.
<Sysname> system-view
[Sysname] interface virtual-template 1
[Sysname Virtual-Template1] ppp chap user userb
# Set the CHAP authentication password.
[Sysname-Virtual-Template1] ppp chap password simple hello&358
· Configuring MS-CHAP or MS-CHAP-V2 authentication (authenticator name is configured)
¡ Configuring the peer
# Configure the authenticator to authenticate the peer by using MS-CHAP or MS-CHAP-V2.
<Sysname> system-view
[Sysname] interface virtual-template 1
MS-CHAP:
[Sysname-Virtual-Template1] ppp authentication-mode ms-chap domain system
MS-CHAP-V2:
[Sysname-Virtual-Template1] ppp authentication-mode ms-chap-v2 domain system
# Configure a username for the MS-CHAP or MS-CHAP-V2 authenticator.
[Sysname-Virtual-Template1] ppp chap user usera
# Configure local or remote AAA authentication.
For more information about AAA authentication, see Security Configuration Guide.
· Configuring MS-CHAP or MS-CHAP-V2 authentication (authenticator name is not configured)
¡ Configuring the peer
# Configure the authenticator to authenticate the peer by using MS-CHAP or MS-CHAP-V2.
<Sysname> system-view
[Sysname] interface virtual-template 1
MS-CHAP:
[Sysname-Virtual-Template1] ppp authentication-mode ms-chap domain system
MS-CHAP-V2:
[Sysname-Virtual-Template1] ppp authentication-mode ms-chap-v2 domain system
# Configure local or remote AAA authentication.
For more information about AAA authentication, see Security Configuration Guide.
Enhancing management and control for PPP users
Security threats
The following security threats exist in a PPP network:
· An illegal user might use the method of exhaustion to obtain the password.
· An illegal user might send a large number of authentication protocol packets to consume the CPU resources of a device and initiate DoS attacks against the device.
· A user might user illegal IP addresses to access network resources.
Hardening recommendations
To avoid the security threats above, you can configure the following security features on the device to enhance management and control for PPP users:
· PPP user blocking
This feature blocks a PPP user for a period if the user fails authentication consecutively for the specified number of times within the detection period. This feature helps prevent illegal users from using the method of exhaustion to obtain the password, and reduces authentication packets sent to the authentication server. Packets from the blocked users will be discarded during the blocking period, and will be processed when the blocking period expires.
With this feature configured, when the device receives online requests without usernames from PPPoE or L2TP users, the device does not use the user MAC addresses or calling numbers in the requests as usernames for AAA authentication, and the device directly returns authentication failure to users.
The username is in the userid@isp-name format. A username is empty when both userid and isp-name are empty.
· IP segment match for PPP users
This feature enables the local interface to check whether its IP address and the IP address of the remote interface are in the same network segment. If they are not, IPCP negotiation fails.
· PPP access user logging
The PPP user logging feature enables the device to generate PPP logs and send them to the information center. Logs are generated after a user comes online, goes offline, or fails to come online. A log entry contains information such as the username, IP address, interface name, inner VLAN, outer VLAN, MAC address, and failure causes.
Examples
· Configuring PPP user blocking
# Configure the device to block a user for 1000 seconds if the consecutive authentication failures of the user reach 100 times within 500 seconds.
<Sysname> system-view
[Sysname] ppp authentication chasten 100 500 1000
· Specifying that PPP users cannot come online successfully if the online requests do not carry usernames
# Specify that PPP users cannot come online successfully if the online requests do not carry usernames on Virtual-Template 1.
<Sysname> system-view
[Sysname] interface virtual-template 1
[Sysname-Virtual-Template1] ppp username check
· Enabling IP segment match for PPP users
# Enable the IP segment match feature on Virtual-Template 1.
<Sysname> system-view
[Sysname] interface virtual-template 1
[Sysname-Virtual-Template1] ppp ipcp remote-address match
· Enabling PPP access user logging
¡ Method I:
# Enable logging for PPP access users.
<Sysname> system-view
[Sysname] ppp access-user log enable
¡ Method II:
# Enable logging for PPP access users.
<Sysname> system-view
[Sysname] access-user log enable
Enabling fast reply for keepalive packets
Security threats
When the device receives keepalive packets from PPP users, the packets are sent to the CPU. When a large number of keepalive packets are received, a large number of CPU resources are used. If the device is attacked, the device processing capability will become insufficient, and causes DoS attacks.
Hardening recommendations
To prevent DoS attacks, enable this feature, which allows the hardware to automatically identify and reply to incoming keepalive requests.
Examples
# (In standalone mode.) Enable fast reply for keepalive packets on slot 2.
<Sysname> system-view
[Sysname] ppp keepalive fast-reply enable slot 2
# (In IRF mode.) Enable fast reply for keepalive packets on slot 2 of IRF member device 1.
<Sysname> system-view
[Sysname] ppp keepalive fast-reply enable chassis 1 slot 2
Securing PPPoE
Enhancing management and control for PPPoE users
Security threats
The following security threats exist in a PPP network:
· When a large number of users frequently come online and go offline, the device processing performance will be affected.
· A single user establishes a large number of PPPoE sessions, which will occupy too many session resources and cause other users to fail to come online.
· An illegal user might use the method of exhaustion to obtain the password.
Hardening recommendations
To avoid the security threats above, you can configure the following security features on the device to enhance management and control for PPPoE users:
· Limiting the rate at which a user creates PPPoE sessions
This feature limits the rate at which a user (identified by MAC address) can create PPPoE sessions on an interface. If the number of PPPoE requests within the monitoring time exceeds the configured threshold, the device discards the excessive requests, and outputs log messages. If the blocking time is set to 0, the device does not block any requests, and it only outputs log messages.
· Limiting the maximum number of PPPoE sessions
PPPoE can establish a session when none of the following limits are reached:
¡ Limit for a user on an interface.
¡ Limit for a VLAN on an interface.
¡ Limit on an interface.
¡ Limit on a card.
The maximum number of PPPoE sessions on a device or on a card is also limited by the device specification. If the configured number is larger than the device specification, the device specification applies. The device specification varies by device model.
· PPPoE logging
The PPPoE logging feature enables the device to generate PPPoE logs and send them to the information center. Logs are generated when the following requirements are met:
¡ The number of PPPoE sessions reaches the upper limit for an interface, user, VLAN, or the system.
¡ New users request to come online.
A log entry records the interface-based, MAC-based, VLAN-based, or system-based session limit.
· PPPoE session count alarm thresholds
You can use this feature to set the upper alarm threshold and lower alarm threshold for the PPPoE session count. When the PPPoE session count exceeds the upper alarm threshold or drops below the lower threshold, an alarm is triggered automatically. Then, the administrator can promptly know the online user conditions of the network.
· PPPoE user blocking
You can use this feature to prevent multiple PPPoE users from frequently coming online and going offline or prevent protocol packet attacks. After this feature is enabled, users who performs the following operations for the specified number of times within a period will be blocked:
¡ Come online.
¡ Go offline.
¡ Send PPPoE connection requests.
Packets from blocked users will be discarded during the blocking period, and will be processed after the blocking period expires.
Restrictions and guidelines
· Maximum number of PPPoE sessions
PPPoE can establish a session when none of the limits are reached.
If the configured limit is smaller than the number of existing online sessions on the interface, the configuration succeeds. The configuration does not affect the existing online sessions. However, new sessions cannot be established on the interface.
The maximum number of PPPoE sessions supported by a device varies by license or device model.
The total maximum number of PPPoE sessions set for all cards or IRF member devices cannot be greater than the maximum number of PPPoE sessions supported by the device.
· PPPoE session count alarm thresholds
The upper alarm threshold must be greater than the lower alarm threshold.
· PPPoE user blocking
If you enable this feature in system view, the feature applies to all PPPoE users. If you enable this feature in interface view, the feature applies to PPPoE users accessing the interface. If you execute this command in both system view and interface view, a user is monitored by blocking conditions in both views. When the user meets the blocking conditions in any view first, the user is blocked by the blocking settings in the view.
If you enable MAC-based user blocking, the device uniquely identifies a blocked user by using its MAC address, the outermost VLAN ID, and the slot that hosts the access interface.
If you enable option105-based user blocking, the device uniquely identifies a blocked user by using its circuit ID, remote ID, and the slot that hosts the access interface.
Examples
· Limiting the rate at which a user can create PPPoE sessions
# Limit the rate at which a user can create PPPoE sessions on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] pppoe-server throttle per-mac 100 80 10
· Setting the maximum number of PPPoE sessions
¡ Set the maximum number of PPPoE sessions for a user on an interface
# Set the maximum number of PPPoE sessions for a user on GigabitEthernet 3/1/1 to 50.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] pppoe-server session-limit per-mac 50
¡ Setting the maximum number of PPPoE sessions on a VLAN
# Set the maximum number of PPPoE sessions for a VLAN on GigabitEthernet 3/1/1.1 to 50.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1.1
[Sysname-GigabitEthernet3/1/1.1] pppoe-server session-limit per-vlan 50
¡ Setting the maximum number of PPPoE sessions on an interface
# Set the maximum number of PPPoE sessions on GigabitEthernet 3/1/1 to 50.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] pppoe-server session-limit 50
¡ Setting the maximum number of PPPoE sessions on a device
# Set the maximum number of PPPoE sessions on slot 2 to 3000.
[Sysname] pppoe-server session-limit slot 2 total 3000
# (In IRF mode.) Set the maximum number of PPPoE sessions on slot 2 of IRF member device 1 to 3000.
[Sysname] pppoe-server session-limit chassis 1 slot 2 total 3000
· Enabling PPPoE logging
# Enable the PPPoE logging feature.
<Sysname> system-view
[Sysname] pppoe-server log enable
· Setting the PPPoE session count alarm thresholds
# Set the upper online PPPoE session count threshold to 80% and lower online PPPoE session count threshold to 20% on a card.
<Sysname> system-view
[Sysname] pppoe-server session-threshold upper-limit 80
[Sysname] pppoe-server session-threshold lower-limit 20
· Enabling PPPoE user blocking
¡ Enabling MAC-based PPPoE user blocking globally
# Configure the device to block a user for 1000 seconds by its MAC address if the user sends 100 PPPoE connection requests within 500 seconds.
<Sysname> system-view
[Sysname] pppoe-server connection chasten 100 500 1000
¡ Enabling MAC-based PPPoE user blocking on an interface
# Configure the device to block a user for 1000 seconds by its MAC address if the user sends 100 PPPoE connection requests within 500 seconds.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] pppoe-server connection chasten 100 500 1000
¡ Enabling option105-based PPPoE user blocking globally
# Configure the device to block a user for 1000 seconds by its option105 if the user sends 100 PPPoE connection requests within 500 seconds.
<Sysname> system-view
[Sysname] pppoe-server connection chasten option105 100 500 1000
¡ Enabling option105-based PPPoE user blocking on an interface
# Configure the device to block a user for 1000 seconds by its option105 if the user sends 100 PPPoE connection requests within 500 seconds on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] pppoe-server connection chasten option105 100 500 1000
Securing PPPoE protocol packets
Security threats
The following security threats exist in a PPPoE network:
· An illegal user initiates attacks through protocol packets to occupy a large number of system resources, and causes DoS on the device.
· When the device is being rebooted or upgrading the software, some users might fail to come online properly if the online requests from a large number of PPPoE users affects the CPU processing performance of the device.
Hardening recommendations
To avoid the security threats above, you can configure the following security features on the device to enhance security management for PPPoE protocol packets:
· PPPoE protocol packet attack prevention
In the Discovery phase of the PPPoE link establishment process, the PPPoE client sends PADI or PADR packets to find the PPPoE server that can provide the access service. After the PPPoE session is established, the PPPoE client can send PADT packets at any time to terminate the PPPoE session.
To prevent a large number of users frequently coming online and going offline or illegal users from initiating protocol packet attacks, which will occupy a large number of system resources, you can configure the PPPoE protocol packet attack prevention feature. With this feature configured, if the number of protocol packets that the PPPoE server receives within the detection interval exceeds the specified number, the PPPoE protocol packets received from the interface will be rate-limited. During the rate-limiting period, the excess PPPoE protocol packets are dropped. After the rate-limiting period expires, the rate-limiting on the PPPoE protocol packets received from the interface is cancelled.
· PADI packet rate limiting
When device reboot or version update is performed, the burst of online requests might affect the device performance. To avoid device performance degradation and make sure the device can process PADI packets correctly, use this feature to adjust the PADI packet receiving rate limit.
· PADI/PADR packet check
Upon receiving a PADI or a PADR packet from a PPPoE client, the PPPoE server compares its service name with the service-name tag field of the packet. The server accepts the session establishment request only if the field matches the service name.
Table 2 describes different matching rules in different matching modes.
Table 2 Service name matching rules
|
Matching mode |
PPPoE client |
PPPoE server |
Result |
|
Exact match |
No service name is specified. |
The number of configured service names is less than 8. |
Success |
|
The number of configured service names is 8. |
Failure |
||
|
A service name is specified. |
A service name that is the same as that of the client is configured. |
Success |
|
|
A service name that is the same as that of the client is not configured. |
Failure |
||
|
Fuzzy match |
No service name is specified. |
Any configuration. |
Success |
|
A service name is specified. |
A service name that is the same as that of the client is configured, or the number of configured service names is less than 8. |
Success |
|
|
A service name that is the same as that of the client is not configured, or the number of configured service names is 8. |
Failure |
Restrictions and guidelines
You can configure a maximum of 8 service names on an interface.
Examples
· Configuring PPPoE protocol packet attack prevention
# Configure PPPoE protocol attack prevention on GigabitEthernet 3/1/1. When the number of PPPoE protocol packets received from the interface exceeds 1000 within 60 seconds, the packets received from the interface will be rate-limited for 300 seconds.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] pppoe-server connection chasten per-interface 1000 60 300
· Configuring PADI packet rate limiting
# Set the maximum number of PADI packets that slot 3 can receive per second to 100.
<Sysname> system-view
[Sysname] pppoe-server padi-limit slot 3 100
· Configuring PADI/PADR packet check
# Set the service name matching mode to exact match for the PPPoE server on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] pppoe-server service-name-tag exact-match
# Set the service name to pppoes for the PPPoE server on GigabitEthernet 3/1/1.
[Sysname-GigabitEthernet3/1/1] pppoe-server tag service-name pppoes
Securing L2TP
Configuring L2TP user authentication
Hardening recommendations
To secure L2TP, configure L2TP user authentication. By cooperating with AAA, L2TP provides the following security authentication methods for users:
· AAA authentication on an LAC
You can configure AAA authentication an LAC to authenticate the remote dialup users and initiate a tunneling request only for qualified users. A tunnel will not be established for unqualified users.
For local AAA authentication, create a local user and configure a password for each remote user on the LAC. For remote AAA authentication, configure the remote username and password of each user.
· AAA authentication on an LNS
After you configure AAA authentication on an LNS, the LNS can authenticate the usernames and passwords of remote access users. If a user passes AAA authentication, the user can communicate with the LNS to access the private network.
For local AAA authentication, create a local user and configure a password for each remote user on the LAC. For remote AAA authentication, configure the remote username and password of each user.
An LNS can be configured to authenticate a user that has passed authentication on the LAC to increase security. In this case, the user is authenticated once on the LAC and once on the LNS. An L2TP tunnel can be established only when both authentications succeed.
An LNS provides the following authentication methods in ascending order of priority:
¡ Proxy authentication—The LNS uses the LAC as an authentication proxy. The LAC sends the LNS all user authentication information from users and the authentication method configured on the LAC itself. The LNS then checks the user validity according to the received information and the locally configured authentication method.
¡ Mandatory CHAP authentication—The LNS uses CHAP authentication to reauthenticate users who have passed authentication on the LAC.
¡ LCP renegotiation—The LNS ignores the LAC proxy authentication information and performs a new round of LCP negotiation with the user.
Restrictions and guidelines
When you configure AAA authentication on the LNS, follow these restrictions and guidelines:
· The mandatory CHAP authentication and LCP renegotiation methods are effective only on NAS-initiated L2TP tunnels.
· If you configure both LCP renegotiation and mandatory CHAP authentication, the LNS uses LCP renegotiation.
· If you configure neither LCP renegotiation nor mandatory CHAP authentication, the LNS uses the LAC for proxy authentication.
· When you configure mandatory CHAP authentication, follow these restrictions and guidelines
¡ For mandatory CHAP authentication to take effect, you must also configure CHAP authentication for the PPP users on the VT interface of the LNS.
¡ For users that do not support a new round of authentication, as a best practice, do not configure this feature. Otherwise, the L2TP tunnels cannot be established because the users fail to pass CHAP authentication on the LNS.
· With mandatory LCP renegotiation enabled, if the corresponding VT interface is not configured with authentication, the LNS does not perform a new round of authentication for users. In this case, the users are authenticated only once on the LAC.
Examples
· Configuring AAA on an LAC
For more information about configuring AAA authentication, see Security Configuration Guide.
To enable AAA authentication on an LAC, you also need to configure PAP or CHAP authentication for PPP users on the user access interfaces. For information about configuring PAP or CHAP, see Layer 2—WAN Access Configuration Guide.
· Configuring AAA on an LNS
For more information about configuring AAA authentication, see Security Configuration Guide.
¡ Configuring mandatory LCP renegotiation
# Force an LNS to perform LCP negotiation with users.
<Sysname> system-view
[Sysname] l2tp-group 1 mode lns
[Sysname-l2tp1] mandatory-lcp
¡ Configuring mandatory CHAP authentication
# Force the LNS to perform CHAP authentication for users.
<Sysname> system-view
[Sysname] l2tp-group 1 mode lns
[Sysname-l2tp1] mandatory-chap
# Enter VT interface view and configure the interface to authentication PPP users by using CHAP.
For more information about VT interfaces, see Layer 2—WAN Access Configuration Guide.
Securing L2TP tunnel data
Security threats
The following security threats exist in an L2TP network:
· An illegal peer establishes a tunnel to the local end to get internal data of the local end.
· An illegal user gets the AVP data (for example, tunnel negotiation parameters, session negotiation parameters, and user authentication information) transferred in plaintext.
Hardening recommendations
To avoid the security threats above, you can configure the following security features on the device:
· L2TP tunnel authentication
Tunnel authentication allows the LAC and LNS to authenticate each other. Either the LAC or the LNS can initiate a tunnel authentication request. A tunnel can be established between them only when both authentications succeed. To ensure tunnel security, enable tunnel authentication.
· Transferring AVP data in hidden mode
L2TP uses Attribute Value Pairs (AVPs) to transmit tunnel negotiation parameters, session negotiation parameters, and user authentication information. Transferring AVP data in hidden mode can hide sensitive AVP data such as user passwords.
Restrictions and guidelines
· Configuring tunnel authentication
Modifying the tunnel authentication key does not affect the normal communication of current tunnels. The tunnel authentication key change takes effect at next tunnel establishment.
· Transferring AVP data in hidden mode
This configuration takes effect only when the tunnel authentication feature is enabled.
Examples
· Configuring tunnel authentication
# Enable L2TP tunnel authentication.
<Sysname> system-view
[Sysname] l2tp-group 1 mode lns
[Sysname-l2tp1] tunnel authentication
# Specify the tunnel authentication key as &569pass1.
[Sysname-l2tp1] tunnel password simple &569pass1
· Transferring AVP data in hidden mode
# Enable L2TP tunnel authentication.
<Sysname> system-view
[Sysname] l2tp-group 1 mode lac
[Sysname-l2tp1] tunnel authentication
# Specify the tunnel authentication key as &569pass1.
[Sysname-l2tp1] tunnel password simple &569pass1
# Enable transferring AVP data in hidden mode.
[Sysname-l2tp1] tunnel avp-hidden
Securing LAC/LNS device performance
Security threats
In an L2TP network, an LNS might encounter the following security threats:
· If multiple LACs are connected to one LNS, the LACs might send L2TP tunnel establishment requests at the same time. A large number of session establishment requests are also sent through each tunnel. In this situation, users cannot come online because the LNS fails to process request packets correctly.
· When a large number of L2TP users come online, the device performance will be affected.
· When a large number of disordered packets are processed, the device performance will be affected.
· When the number of packets received on the local end exceeds the processing capability of the local end, some users might fail to come online.
Hardening recommendations
To avoid the security threats above, you can configure the following security features on the device to reduce the influence on the device performance and ensure L2TP users can come online stably:
· Setting the maximum number of ICRQ packets that the LNS can process per second
To avoid device performance degradation and make sure the LNS can processes ICRQ requests correctly, use this feature to adjust the ICRQ packet processing rate limit. ICRQ packets exceeding the limit are dropped.
· Setting the maximum number of SCCRQ packets that the LNS can process per second
If multiple LACs are connected to one LNS, the LACs might send L2TP tunnel establishment requests at the same time. A large number of session establishment requests are also sent through each tunnel. In this situation, users cannot come online because the LNS fails to process request packets correctly. To avoid device performance degradation and make sure the LNS can process SCCRQ requests correctly, use this feature to adjust the SCCRQ packet processing rate limit.
· Setting the receiving window size for L2TP
To enable the device to process a larger number of disordered packets, use this feature to enlarge the receiving window size for an L2TP tunnel.
The device uses a receiving window to reorder disordered packets based on packet sequence numbers.
If the sequence number of a packet is within the receiving window but does not equal the minimum value of the window, the device performs the following operations:
a. The device buffers the packet.
b. The minimum value and maximum value of the receiving window increment by one.
c. The device continues to check the next arriving packet.
If the sequence number of a packet equals the minimum value of the receiving window, the device performs the following operations:
a. The device processes the packet.
b. The minimum value and maximum value of the receiving window increment by one.
c. The device checks buffered packets for a packet with the sequence number equal to the new minimum value of the receiving window.
d. If no required packet is found, the device checks the next arriving packet.
If the sequence number of a packet is not within the receiving window, the device drops the packet.
· Setting the sending window size for L2TP
The packet processing capability of a peer end might mismatch the receiving window size of the peer end in some networks. For example, the actual packet processing capability of the peer end is 10, but the receiving window size of the peer end is 20. To ensure stable L2TP services, you can adjust the sending window size for the device to match the actual packet processing capability of the peer end.
Restrictions and guidelines
· Setting the maximum number of SCCRQ packets that the LNS can process per second
The device uses algorithms to gradually increase the SCCRQ packet processing limit from 1 to the configured value. Before the SCCRQ packet processing limit reaches the configured value, SCCRQ packet loss might occur even if the number of received SCCRQ packets is less than the configured limit.
· Setting the receiving window size for L2TP
In the L2TP tunnel establishment process, the device uses the value specified in L2TP group view as the receiving window size. Changing the receiving window size after an L2TP tunnel is established does not affect the established L2TP tunnel.
· Setting the sending window size for L2TP
The sending window size set in L2TP group view is obtained in the L2TP tunnel establishment process.
¡ If the sending window size is 0, the device uses the default sending window size.
¡ If the sending window size is not 0, the device uses the specified value as the sending window size.
Changing the sending window size after an L2TP tunnel is established does not affect the established L2TP tunnel.
Examples
· Setting the maximum number of ICRQ packets that the LNS can process per second
# Set the maximum number of ICRQ packets that the LNS can process per second to 200.
<Sysname> system-view
[Sysname] l2tp icrq-limit 200
· Setting the maximum number of SCCRQ packets that the LNS can process per second
# Set the maximum number of SCCRQ packets that the LNS can process per second to 200.
<Sysname> system-view
[Sysname] l2tp sccrq-limit 200
· Setting the receiving window size for L2TP
# Set the receiving window size for L2TP group 1 to 128.
<Sysname> system-view
[Sysname] l2tp-group 1 mode lac
[Sysname-l2tp1] tunnel window receive 128
· Setting the sending window size for L2TP
# Set the sending window size for L2TP group 1 to 128.
<Sysname> system-view
[Sysname] l2tp-group 1 mode lac
[Sysname-l2tp1] tunnel window send 128
Setting the online L2TP session count alarm thresholds
Hardening recommendations
For the administrator to promptly know the online user conditions of the network, you can use this feature to set the upper alarm threshold and lower alarm threshold for the online L2TP session count. When the online L2TP session count exceeds the upper alarm threshold or drops below the lower threshold, an alarm is triggered automatically.
Restrictions and guidelines
The upper alarm threshold must be greater than the lower alarm threshold.
Examples
# Set the upper online PPPoE session count threshold to 80% and lower online PPPoE session count threshold to 20% on the device.
<Sysname> system-view
[Sysname] l2tp session-threshold upper-limit 80
[Sysname] l2tp session-threshold lower-limit 20
Securing IPoE
Enhancing management and control for IPoE users
Security threats
The following security threats exist in an IPoE network:
· A type of users establish a large number of IPoE sessions and thus occupy too many session resources. As a result, other users cannot come online.
· An illegal user might use the method of exhaustion to obtain the password of a legal user.
· A user uses illegal IP addresses to access network resources.
· When both portal authentication and DHCP packet initiation are configured in an IPoE network, an illegal user triggers IPoE access authentication.
Hardening recommendations
To avoid the security threats above, you can configure the following security features to enhance management and control for IPoE users:
· Maximum number of IPoE sessions
The number of IPoE sessions is limited in different perspectives, and the number of sessions is controlled by both the following limits. A new session can be established only when neither limit is reached.
¡ Maximum number of dynamic sessions
This feature limits the number of dynamic users through configuring the maximum number of dynamic sessions.
¡ Maximum number of individual sessions and leased subuser sessions
This feature controls the maximum number of individual users (including dynamic individual users and static individual users) and leased subusers on an interface.
· IPoE logging
The IPoE logging feature enables the device to generate IPoE logs and send them to the information center. Logs are generated after a user comes online successfully, fails to come online, normally goes offline, or abnormally goes offline. A log entry contains information such as the username, IP address, interface name, inner VLAN, outer VLAN, MAC address, and failure causes.
· IPoE session count alarm threshold
You can use this feature to set the upper alarm threshold and lower alarm threshold for the online IPoE session count. When the online IPoE session count exceeds the upper alarm threshold or drops below the lower threshold, an alarm is triggered automatically. Then, the administrator can promptly know the online user conditions of the network.
· Quiet feature for users
This feature monitors the number of consecutive authentication failures of a user. If this feature is enabled, the quiet timer starts when the number of consecutive authentication failures of a user reaches the limit in the specified period. During the quiet timer period, packets from the user are dropped. After the quiet timer expires, the BRAS performs authentication upon receiving a packet from the user. This feature can prevent password attacks.
· Trusted source IP addresses for unclassified-IP users
This feature checks the source IP addresses of unclassified-IP users. After you configure the trusted source IP addresses for unclassified-IP users, the following rules apply:
Method I:
¡ IPoE authentication is available only for unclassified-IP users who send packets with the trusted source IP addresses.
¡ Packets with untrusted source IP addresses are dropped.
Method II:
¡ When both unclassified-IP packet initiation and portal authentication are enabled on an interface, the following rules apply:
- If unclassified-IP packets from a user match a static IPoE session, the user comes online as a static IPoE user no matter whether the source IP addresses of packets are trusted IP addresses.
- If unclassified-IP packets from a user do not match a static IPoE session, IPoE authentication is available only for unclassified-IP users who send packets with the trusted source IP addresses. Portal authentication is available for unclassified users who send packets with untrusted source IP addresses.
¡ When unclassified-IP packet initiation is enabled but portal authentication is not enabled on an interface, the following rules apply:
- If unclassified-IP packets from a user match a static IPoE session, the user comes online as a static IPoE user no matter whether the source IP addresses of packets are trusted IP addresses.
- If unclassified-IP packets from a user do not match a static IPoE session, IPoE authentication is available only for unclassified-IP users who send packets with the trusted source IP addresses. Unclassified-IP packets with untrusted source IP addresses are dropped.
· Trusted ISP domain for DHCP users
This feature checks the information in options carried in DHCP packets. On an interface with portal authentication and DHCP packet initiation enabled, you can configure the trusted ISP domains for DHCP users. Then, the device checks information in options carried in DHCP packets. Only DHCP packets passing the check can trigger IPoE access authentication. Otherwise, these packets cannot trigger IPoE access and are authenticated by using portal.
Restrictions and guidelines
· Configuring the maximum number of IPoE sessions
¡ Configuring the maximum number of dynamic individual sessions
In a dual-stack IPoE network, as a best practice, make sure the following requirements are met:
- For DHCP users, set the same IPoE session limit for DHCPv4 users and DHCPv6 users.
- For unclassified-IP users, set the same IPoE session limit for unclassified-IPv4 users and unclassified-IPv6 users.
¡ Configuring the maximum number of individual sessions and leased subuser sessions on an interface
The number of IPoE sessions created includes the number of IPv4 single-stack users, the number of IPv6 single-stack users, and the number of dual-stack sessions. A single-stack user occupies one session resource, and a dual-stack user occupies one session resource. If a single-stack user has come online successfully, the other stack of the same user can directly come online, and the two stacks share one session resource.
¡ Common restrictions and guidelines
When the number of sessions on an interface has reached the limit on an interface, new IPoE sessions cannot be established.
You can set a smaller value than the number of existing dynamic individual sessions on an interface. In this scenario, the existing dynamic individual sessions are not affected.
As a best practice, make sure the total dynamic individual session limits of all IPoE interfaces on the device is less than the upper limit of the device. The upper limit supported by a device varies by license and device model. Otherwise, when the device's upper limit is reached, sessions cannot be initiated on an interface even if the interface's limit is not reached.
You can install a license that supports less dynamic individual sessions than the existing dynamic individual sessions. In this scenario, the existing dynamic individual sessions are not affected.
· Setting the IPoE session count alarm thresholds
The upper alarm threshold must be greater than the lower alarm threshold.
· Enabling the quiet feature for IPoE access users
If no dual-stack IPoE session is generated for a dual-stack user, the authentication failures of the two protocol stacks are counted separately. The dual-stack user is quieted only when the number of consecutive authentication failures reaches the limit in the specified period for each protocol stack.
If a dual-stack IPoE session is generated for a dual-stack user, the authentication failures of the two protocol stacks are counted together. The dual-stack user is quieted when the number of consecutive authentication failures reaches the limit in the specified period.
· Setting the trusted source IP addresses for unclassified-IP users
This feature takes effect only unclassified-IP users and leased unclassified-IP subusers.
· Setting the trusted ISP domains for DHCP users
Configure trusted DHCP options Option 60/Option 16/Option 17 before you configure the trusted ISP domains.
Examples
· Setting the IPoE session limits
¡ Setting the IPoE session limit for DHCP packet initiation
IPv4:
# Set the IPoE session limit to 100 for DHCPv4 packet initiation on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber dhcp max-session 100
IPv6:
# Set the IPoE session limit to 100 for DHCPv6 packet initiation on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber dhcpv6 max-session 100
¡ Setting the IPoE session limit for IPv6 ND RS packet initiation
# Set the IPoE session limit to 100 for IPv6 ND RS packet initiation on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber ndrs max-session 100
¡ Setting the IPoE session limit for unclassified-IP packet initiation
IPv4:
# Set the IPoE session limit to 100 for unclassified-IPv4 packet initiation on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber unclassified-ip max-session 100
IPv6:
# Set the IPoE session limit to 100 for unclassified-IPv6 packet initiation on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber unclassified-ipv6 max-session 100
¡ Setting the maximum number of individual sessions and leased subuser sessions
# Set the maximum number of individual sessions and leased subuser sessions on GigabitEthernet 3/1/1 to 100.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber max-session 100
· Enabling IPoE logging
¡ Method I:
# Enable logging for IPoE users.
<Sysname> system-view
[Sysname] ip subscriber access-user log enable
¡ Method II:
# Enable logging for IPoE users.
<Sysname> system-view
[Sysname] access-user log enable
· Setting the IPoE session count alarm thresholds
# Set the upper online IPoE session count threshold to 80% and lower online IPoE session count threshold to 20% on a card.
<Sysname> system-view
[Sysname] ip subscriber session-threshold upper-limit 80
[Sysname] ip subscriber session-threshold lower-limit 20
· Enabling the quiet feature for IPoE users
# Enable the quiet timer and set the quiet timer period to 100 seconds for users on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber timer quiet 100
# Configure GigabitEthernet 3/1/1 to block an IPoE user on the interface for 100 seconds if the user fails authentication for five consecutive times within one minute.
[Sysname-GigabitEthernet3/1/1] ip subscriber authentication chasten 5 60
· Setting the trusted source addresses for unclassified-IP users
¡ IPv4:
# Configure a trusted IPv4 address range of 192.168.1.10 to 192.168.1.100 for IPv4 users on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber unclassified-ip ip match 192.168.1.10 192.168.1.100
¡ IPv6:
# Configure a trusted IPv6 address range of 2001::1:10 to 2001::1:100 for unclassified-IPv6 users on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber unclassified-ip ipv6 match 2001::1:10 2001::1:100
· Setting the trusted ISP domains for DHCP users
¡ IPv4:
# Configure DHCPv4 Option 60 as a trusted option on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber trust option60
# On GigabitEthernet3/1/1, configure trusted ISP domain ipoe to match the string with an offset of 1 and a length of 10 bytes from Option 60.
[Sysname-GigabitEthernet3/1/1] ip subscriber dhcp option60 match ipoe offset 1 length 10
¡ IPv6:
# Configure DHCPv6 Option 16 as a trusted option on GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber trust option16
# On GigabitEthernet3/1/1, configure trusted ISP domain ipoe to match the string with an offset of 1 and a length of 10 bytes from Option 16.
[Sysname-GigabitEthernet3/1/1] ip subscriber dhcpv6 option16 match ipoe offset 1 length 10
Enabling HTTP packet fast reply
Security threats
When a user using a browser to perform Web authentication does not access the portal Web server, the access device will redirect the HTTP requests to the CPU. Then, the CPU pushes the Web authentication page of the portal Web server to the user. If an attacker sends a large number of HTTP requests to the device, the device suffers DoS attacks.
Hardening recommendations
To reduce the workload of the CPU and prevent DoS attacks, enable this feature on an interface. With this feature enabled on an interface, the device uses hardware to recognize HTTP requests and automatically responds with HTTP replies.
Restrictions and guidelines
This feature does not immediately take effect on users that have passed preauthentication and come online before this feature is enabled. This feature takes effect only when these users go offline and come online again after passing preauthentication or return to the preauthentication domain after passing Web authentication.
With both this feature and transparent authentication configured, a user first attempts to come online through transparent authentication. The hardware responds and pushes the Web authentication page if the user fails to come online through transparent authentication for one of the following reasons:
· Transparent authentication binding query request times out.
· The portal server returns a message showing that the user is not bound.
In a control-/data-plane separated network, this feature takes effect only when it is configured on a DP.
Examples
# Enable HTTP packet fast replay on interface GigabitEthernet 3/1/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 3/1/1
[Sysname-GigabitEthernet3/1/1] ip subscriber http-fast-reply enable
Configuring an SSL server policy for HTTPS redirection
Hardening recommendations
To secure HTTPS redirection, you can customize an SSL server policy rather than use the default SSL server policy when a DHCP user uses HTTPS packets to trigger Web authentication.
Restrictions and guidelines
You must install a certificate that the browser trusts. Otherwise, the browser displays the alarm that "The used certificate is insecure" when you set up an SSL connection to the device on the browser.
Examples
# Configure a PKI policy, and successfully apply for or import local certificates and CA certificates.
For more information, see PKI configuration in Security Configuration Guide.
# Configure an SSL server policy named https_redirect, and specify the policy to use an existing PKI domain.
For more information, see SSL configuration in Security Configuration Guide.
Configuring 802.1X
802.1X quiet function
Security threats
The device authenticates clients that have failed 802.1X authentication immediately after they initiate a reauthentication. The device might be overwhelmed if it receives a large number of messages that contain incorrect authentication information (for example, incorrect username or password) in a short time.
Hardening recommendations
To protect the device against malicious 802.1X clients, enable the quiet timer. The quiet timer enables the device to wait a period of time before it processes any reauthentication request from a client that has failed 802.1X authentication.
Set the quiet timer depending on the network conditions.
· In a vulnerable network, set the quiet timer to a high value.
· In a high-performance network with quick authentication response, set the quiet timer to a low value.
Examples
# Enable the quiet timer and set the quiet timer to 100 seconds.
<Sysname> system-view
[Sysname] dot1x quiet-period
[Sysname] dot1x timer quiet-period 100
Online user handshake security
Security threats
Online 802.1X users can use illegal client software to bypass iNode security check, such as proxy detection and dual network interface cards (NICs) detection.
Hardening recommendations
Enable online user handshake security on a port to identify users that are using the iNode client to exchange handshake packets with the device. If a user fails the handshake security checking, the device sets the user to the offline state.
Restrictions and guidelines
To use the online user handshake security feature, you must enable the online user handshake feature.
The online user handshake security feature takes effect only on a network where the iNode client and IMC server are used.
Examples
# Enable online user handshake security on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] dot1x handshake
[Sysname-GigabitEthernet1/0/1] dot1x handshake secure
Securing portal
Controlling portal user access
Security threats
On a portal network, the following security threats might exist:
· If an attacker frequently initiates HTTP or HTTPS requests, the device needs to redirect a large number of HTTP or HTTPS requests, which causes resource insufficiency.
· An invalid user makes exhaustive password cracking attempts to guess the password of valid users.
· An invalid user accesses the network.
Hardening recommendations
To defense against the above security threats, configure the following features on the device:
· Portal HTTP and HTTPS attack defense—This feature counts the number of HTTP and HTTPS requests to be redirected on a per destination IP address basis. If the number of HTTP and HTTPS requests for a destination IP address reaches the blocking threshold within a statistical interval, the device starts a blocking timer for the IP address. Before the blocking timer expires, the device discards all HTTP and HTTPS requests destined for the IP address.
· Blocking portal users that fail portal authentication—This feature blocks a portal user if the user consecutively fails authentication for the specified times within the failure detection period. All authentication requests from the user are dropped by the device till the blocking times out. The blocked portal user can perform portal authentication again when the blocking timeout time expires.
· Allowing only DHCP users to pass portal authentication—This feature allows only users with DHCP-assigned IP addresses to pass portal authentication. Users with static IP addresses cannot pass portal authentication to come online. This feature ensures that only users with valid IP addresses can access the network.
Restrictions and guidelines
The allowing only DHCP users to pass portal authentication feature takes effect only on a network where the access device also acts as the DHCP server.
In an IPv6 portal network, terminal device users might use temporary IPv6 addresses to access the network. To ensure that these IPv6 users can pass portal authentication when only users with DHCP-assigned IP addresses to pass portal authentication is enabled, disable the temporary IPv6 address feature on terminal devices.
Portal preauthentication users will not be blocked even though they consecutively fail authentication for the specified times within the failure detection period.
In wireless networks, the maximum number of portal redirection sessions for a single user takes effect only in centralized forwarding mode.
Examples
· Configure portal HTTP and HTTPS attack defense:
# Enable portal HTTP and HTTPS attack defense.
<Sysname> system-view
[Sysname] portal http-defense enable
# Set portal HTTP and HTTPS attack defense parameters: set the blocking timer to 5 minutes, the statistical interval to 2 minutes, and the blocking threshold to 200 packets.
[Sysname] portal http-defense block-timeout 5 statistics-interval 2 threshold 200
# Set the maximum number of destination IP addresses to 2000 for portal HTTP and HTTPS attack defense.
[Sysname] portal http-defense max-ip-number 2000
· Block portal users that fail portal authentication:
# Configure the device to block a portal user if the user consecutively fails portal authentication twice within 100 minutes.
<Sysname> system-view
[Sysname] portal user-block failed-times 2 period 100
# Set the portal user blocking timeout time to 20 minutes.
[Sysname] portal user-block reactive 20
· Allow only DHCP users to pass portal authentication:
# Allow only users with DHCP-assigned IP addresses on GigabitEthernet 1/0/1 to pass portal authentication.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] portal user-dhcp-only
Limiting the number of portal users
Hardening recommendations
Control the total number of portal users to prevent system resource inefficiency caused by excessive users. When the number of online portal users exceeds the limit, the system denies authentication requests from new users.
Restrictions and guidelines
Make sure the maximum combined number of IPv4 and IPv6 portal users specified on all interfaces or service templates does not exceed the system-allowed maximum number. Otherwise, the exceeding number of portal users will not be able to log in to the device.
Examples
· Limit the global number of portal users:
# Set the maximum number of portal users allowed by the system to 100.
<Sysname> system-view
[Sysname] portal max-user 100
· Limit the number of portal users on an interface:
¡ IPv4:
# Set the maximum number to 100 for IPv4 portal users on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] portal ipv4-max-user 100
¡ IPv6:
# Set the maximum number to 100 for IPv6 portal users on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] portal ipv6-max-user 100
Enabling strict checking on portal authorization information
Hardening recommendations
The strict checking feature allows a portal user to stay online only when the authorization information for the user is successfully deployed. The strict checking fails if the authorized ACL or user profile does not exist on the device or the device fails to deploy the authorized ACL or user profile.
You can enable strict checking on the authorized ACL, authorized user profile, or both. If you enable both ACL checking and user profile checking, the user will be logged out if either checking fails.
Examples
# Enable strict checking on authorized ACLs on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname–GigabitEthernet1/0/1] portal authorization acl strict-checking
Securing HTTPS redirect
Rate limiting HTTPS redirect packets
Security threats
Redirecting a large number of HTTPS requests will overwhelm the CPU and affect other services on the device.
Hardening recommendations
To resolve this issue, you can limit the rate of HTTPS redirect packets sent to the CPU. When the rate of the HTTP redirect packets exceeds the limit, the device drops the exceeding HTTPS redirect packets.
Restrictions and guidelines
The rate limit setting affects the performances of services that need to redirect HTTPS requests, for example, the user online rate of the authentication service. Set a proper HTTPS redirect rate limit according to the network condition.
Examples
# Set the HTTPS redirect rate limit to 200.
<Sysname> system-view
[Sysname] http-redirect https-rate-limit 200
DHCP security
DHCP flood attack defense
Security threats
Excessive DHCP requests sent from attackers consume the CPU resources of the DHCP server and its IP address resources. As a result, valid DHCP clients cannot obtain IP addresses.
Hardening recommendations
· DHCP flood attack protection
To protect the DHCP server or relay agent against flooding attacks, use the DHCP flood attack protection. When the DHCP device receives a DHCP packet from a client on the interface enabled with this feature, it creates a DHCP flood attack protection entry in check state. If the number of incoming DHCP packets from the same MAC address reaches the upper limit in the detection duration, the device determines that the client is launching a DHCP flood attack. The DHCP flood attack protection entry changes to the restrain state, and the device discards the DHCP packets from that client.
When the aging time of the entry is reached, the DHCP server examines the drop rate of DHCP packets sent from the MAC address.
¡ If the packet drop rate is lower than the DHCP flood attack threshold, the DHCP server deletes the entry. If later a DHCP packet from that MAC address arrives, the DHCP server will create a new flood attack protection entry and count the number of incoming DHCP packets for that client again.
¡ If the packet drop rate is equal to or higher than the DHCP flood attack threshold, the DHCP server resets the aging time for the entry.
· Interface-based DHCP attack suppression
To protect the DHCP server or relay agent from flooding attack on an interface, use the interface-based DHCP attack suppression feature. The DHCP device creates a DHCP attack suppression entry in check state for the interface when the interface receives a DHCP packet. If the DHCP packet receiving rate on the interface reaches the threshold, a DHCP attack occurs on the interface. The suppression entry changes to the restrain state. To protect the CPU against DHCP attack packets, the server limits the DHCP packet receiving rate on the interface before the aging time of the suppression entry is reached.
When the aging time of the DHCP attack suppression entry on an interface is reached, the server examines the packet receiving rate on the interface.
¡ If the packet receiving rate is below the suppression threshold, the device deletes the entry. If later a DHCP packet arrives on that interface, the DHCP server will create a new attack suppression entry and count the number of incoming DHCP packets on that interface again.
¡ If the packet receiving rate is above the suppression threshold, the server resets the aging time.
· DHCP packet rate limit
To rate limit DHCP packets on an interface enabled with DHCP server or relay agent, use the DHCP packet rate limit feature. The feature enables the interface to discard DHCP packets that exceed the maximum rate.
Restrictions and guidelines
DHCP flood attack protection and interface-based DHCP attack suppression are supported in both DHCP and DHCPv6 networks.
Examples
· Configure DHCP flood attack protection in a common network
# Configure the device to allow a maximum of two DHCP packets per 9000 milliseconds from each DHCP client.
<Sysname> system-view
[Sysname] dhcp flood-protection threshold 2 9000
# Set the aging time to 90 seconds for DHCP flood attack protection entries.
[Sysname] dhcp flood-protection aging-time 90
# Enable DHCP flood attack protection on GigabitEthernet 1/0/1.
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] dhcp flood-protection enable
· Configure DHCP flood attack protection in a VXLAN network
# Configure the device to allow a maximum of two DHCP packets per 9000 milliseconds from each DHCP client.
<Sysname> system-view
[Sysname] dhcp flood-protection threshold 2 9000
# Set the aging time to 90 seconds for DHCP flood attack protection entries.
[Sysname] dhcp flood-protection aging-time 90
# Enable DHCP flood attack protection in VSI 1.
[Sysname] vsi 1
[Sysname-vsi-1] dhcp flood-protection enable
· Configure DHCPv6 flood attack protection
# Configure the device to allow a maximum of two DHCPv6 packets per 9000 milliseconds from each DHCPv6 client.
<Sysname> system-view
[Sysname] ipv6 dhcp flood-protection threshold 2 9000
# Set the aging time to 90 seconds for DHCPv6 flood attack protection entries.
[Sysname] ipv6 dhcp flood-protection aging-time 90
# Enable DHCPv6 flood attack protection on GigabitEthernet 1/0/1.
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] ipv6 dhcp flood-protection enable
· Configure interface-based DHCP attack suppression
# Set the DHCP packet rate threshold to 2000 DHCP packets per 9000 milliseconds for triggering interface-based DHCP attack suppression.
<Sysname> system-view
[Sysname] dhcp interface-rate-suppression threshold 2000 9000
# Set the aging time to 90 seconds for interface-based DHCP attack suppression entries.
[Sysname] dhcp interface-rate-suppression aging-time 90
# Enable DHCP attack suppression on GigabitEthernet 1/0/1.
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] dhcp interface-rate-suppression enable
· Configure interface-based DHCPv6 attack suppression
# Set the DHCPv6 packet rate threshold to 2000 DHCPv6 packets per 9000 milliseconds for triggering interface-based DHCPv6 attack suppression.
<Sysname> system-view
[Sysname] ipv6 dhcp interface-rate-suppression threshold 2000 9000
# Set the aging time to 90 seconds for interface-based DHCPv6 attack suppression entries.
[Sysname] ipv6 dhcp interface-rate-suppression aging-time 90
# Enable DHCPv6 attack suppression on GigabitEthernet 1/0/1.
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] ipv6 dhcp interface-rate-suppression enable
· Enable DHCP packet rate limit on the DHCP server or relay interface and set the limit value.
# Set the DHCP packet rate limit to 64 Kbps on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] dhcp rate-limit 64
DHCP starvation attack protection
Security threats
A DHCP starvation attack occurs when an attacker constantly sends forged DHCP requests using different MAC addresses in the chaddr field to a DHCP server. This exhausts the IP address resources of the DHCP server so legitimate DHCP clients cannot obtain IP addresses. The DHCP server might also fail to work because of exhaustion of system resources.
Hardening recommendations
To relieve a DHCP starvation attack that uses DHCP packets encapsulated with different source MAC addresses, set the MAC learning limit and disable unknown frame forwarding when the MAC learning limit is reached.
To prevent a DHCP starvation attack that uses DHCP requests encapsulated with the same source MAC address, enable MAC address check on the DHCP device (DHCP server or relay agent). This feature compares the chaddr field of a received DHCP request with the source MAC address in the frame header. If they are the same, the DHCP device verifies this request as legal and processes it. If they are not the same, the device discards the DHCP request.
Examples
# Enable MAC address check on the DHCP server.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] dhcp server check mac-address
# Enable MAC address check on the DHCP relay agent.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] dhcp relay check mac-address
DHCP user class whitelist
Security threats
DHCP supports allocating IP addresses by user class. The DHCP server assigns an IP address in an address range to a client based on the user class of the client. If the client is an attack source, it can initiate an attack after obtaining an IP address.
Hardening recommendations
To allow the DHCP server to process requests only from specific clients, use the DHCP user class whitelist.
Restrictions and guidelines
· If a user class is not on the whitelist, all clients that match the user class cannot obtain IP addresses.
· The whitelist does not take effect on clients who request static IP addresses, and the server always processes their requests.
Examples
· Method I:
# Enable the DHCP user class whitelist in DHCP address pool 0.
<Sysname> system-view
[Sysname] dhcp server ip-pool 0
[Sysname-dhcp-pool-0] verify class
# Add user classes test1 and test2 to the user class whitelist in DHCP address pool 0.
[Sysname-dhcp-pool-0] valid class test1 test2
· Method II:
# Enable the DHCP user class whitelist in IP pool 0.
<Sysname> system-view
[Sysname] ip pool 0
[Sysname-ip-pool-0] verify class
# Add user classes test1 and test2 to the user class whitelist in IP pool 0.
[Sysname-ip-pool-0] valid class test1 test2
DHCP relay entry management on the DHCP relay agent
Security threats
The gateway device cannot work correctly if illegal clients use forged packets to attack it.
Hardening recommendations
· Recording DHCP relay entries
For some security features to use the clients' IP-to-MAC bindings on the DHCP relay agent for security check, use the recording DHCP relay entries. This feature automatically records clients' IP-to-MAC bindings (relay entries) after they obtain IP addresses through DHCP.
Some security features can use the relay entries to check incoming packets and block packets that do not match any entry. In this way, illegal hosts are not able to access external networks through the relay agent. Examples of the security features are ARP address check, authorized ARP, and IP source guard.
· Periodic refresh of dynamic relay entries
To allow the DHCP relay agent to maintain dynamic relay entries in a timely manner, use the periodic refresh of dynamic relay entries. This feature uses the IP address of a relay entry to periodically send a DHCP-REQUEST message to the DHCP server. It maintains the relay entries depending on what it receives from the DHCP server:
¡ If the server returns a DHCP-ACK message or does not return any message within an interval, the DHCP relay agent removes the relay entry. In addition, upon receiving the DHCP-ACK message, the relay agent sends a DHCP-RELEASE message to release the IP address.
¡ If the server returns a DHCP-NAK message, the relay agent keeps the relay entry.
· Client offline detection
To enable the DHCP relay agent to detect the user online status based on the ARP entry, use the client offline detection. When an ARP entry ages out, this feature deletes the relay entry for the IP address and sends a RELEASE message to the DHCP server.
Restrictions and guidelines
As a best practice, do not enable periodic refresh of dynamic relay entries in a BRAS network.
The client offline detection feature does not function if an ARP entry is manually deleted.
Examples
# Enable the relay agent to record relay entries.
<Sysname> system-view
[Sysname] dhcp relay client-information record
# Enable periodic refresh of dynamic relay entries.
[Sysname] dhcp relay client-information refresh enable
# Set the refresh interval to 100 seconds.
[Sysname] dhcp relay client-information refresh interval 100
# Enable client offline detection.
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] dhcp client-detect
DHCP proxy on the DHCP relay agent
Security threats
The DHCP server cannot work correctly when illegal clients send attack packets to it.
Hardening recommendations
To isolate DHCP servers from DHCP clients and protect DHCP servers against attacks, use the DHCP proxy feature.
Upon receiving a response from the server, the DHCP proxy modifies the server's IP address as the relay interface's IP address before sending out the response. The DHCP client takes the DHCP relay agent as the DHCP server.
Examples
# Enable DHCP proxy on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] dhcp select relay proxy
DHCP snooping
DHCP snooping is a security feature for DHCP.
DHCP snooping works between the DHCP client and server, or between the DHCP client and DHCP relay agent. It guarantees that DHCP clients obtain IP addresses from authorized DHCP servers. Also, it records IP-to-MAC bindings of DHCP clients (called DHCP snooping entries) for security purposes.
DHCP snooping defines trusted and untrusted ports to make sure clients obtain IP addresses only from authorized DHCP servers.
· Trusted—A trusted port can forward DHCP messages correctly to make sure the clients get IP addresses from authorized DHCP servers.
· Untrusted—An untrusted port discards received DHCP-ACK and DHCP-OFFER messages to prevent unauthorized servers from assigning IP addresses.
DHCP snooping reads DHCP-ACK messages received from trusted ports and DHCP-REQUEST messages to create DHCP snooping entries. A DHCP snooping entry includes the MAC and IP addresses of a client, the port that connects to the DHCP client, and the VLAN. DHCP snooping entries can be used by ARP detection and IP source guard. For more information about DHCP snooping and DHCPv6 snooping, see Layer 3—IP Services Configuration Guide.
DNS security
Security threats
When an attacker assigns incorrect DNS suffixes and DNS server addresses to the device through DHCP, the device will fail the domain name resolution or get incorrect resolution result.
Hardening recommendations
To protect the device against attackers that act as the DHCP server to assign incorrect DNS suffix and domain name server address, specify a DNS trusted interface. This feature ensures that the device use only the DNS suffix and domain name server information obtained through the trusted interface. Information obtained through untrusted interface cannot be used for domain name resolution.
Examples
# Specify GigabitEthernet 1/0/1 as a DNS trusted interface.
<Sysname> system-view
[Sysname] dns trust-interface gigabitethernet 1/0/1
ICMP security
Security threats
The IP and transport layer protocols use ICMP error messages to report errors. If an attacker uses ICMP error messages to initiate attacks, the forwarding path of packets will be changed.
Hardening recommendations
To prevent ICMP message attacks, disable the device from sending the following ICMP error messages: ICMP redirect messages, ICMP time exceeded messages, and ICMP destination unreachable messages.
Examples
· Configure ICMPv4 security features
# Disable the device from sending ICMP redirect messages.
<Sysname> system-view
[Sysname] undo ip redirects enable
# Disable the device from sending ICMP time exceeded messages.
[Sysname] undo ip ttl-expires enable
# Disable the device from sending ICMP destination unreachable messages.
[Sysname] undo ip unreachables enable
· Configure ICMPv6 security features
# Disable the device from sending ICMPv6 destination unreachable messages.
<Sysname> system-view
[Sysname] undo ipv6 unreachables enable
# Disable the device from sending ICMPv6 time exceeded messages.
[Sysname] undo ipv6 hoplimit-expires enable
# Disable the device from sending ICMPv6 redirect messages.
[Sysname] undo ipv6 redirects enable
TCP security
SYN Cookie
Security threats
In a SYN flood attack, an attacker sends a large number of SYN packets, but they do not respond to the SYN ACK packets from the server. As a result, the server establishes a large number of TCP semi-connections and cannot handle normal services.
Hardening recommendations
SYN Cookie can protect the server from SYN flood attacks. When the server receives a SYN packet, it responds to the request with a SYN ACK packet without establishing a TCP semi-connection.
The server establishes a TCP connection and enters ESTABLISHED state only when it receives an ACK packet from the sender.
Examples
# Enable SYN Cookie.
<Sysname> system-view
[Sysname] tcp syn-cookie enable
Disabling the TCP Timestamps option encapsulation
Security threats
Devices at each end of the TCP connection can calculate the RTT value by using the TCP Timestamps option carried in TCP packets. In some networks, intermediate devices can obtain the option information and learns the time of the connection establishment. The TCP connection is insecure if the attacker is located on an intermediate device.
Hardening recommendations
For security purpose, disable the TCP Timestamps option encapsulation at one end of the TCP connection.
Examples
# Disable the device from encapsulating the TCP Timestamps option in outgoing TCP packets.
<Sysname> system-view
[Sysname] undo tcp timestamps enable
Routing protocols
Securing RIP/RIPng
Security threats
When an attacker acts as a fake RIP/RIPng neighbor or modifies RIP/RIPng routes, incorrect route learning or network interruption might occur.
Hardening recommendations
· Enable zero field check on incoming RIPv1 and RIPng messages.
Some fields in the RIPv1 and RIPng messages must be set to zero. These fields are called "zero fields." If a zero field of a message contains a non-zero value, RIP or RIPng does not process the message if zero field check is enabled.
· Enable source IP address check on incoming RIP updates.
Upon receiving a message on an interface, RIP compares the source IP address of the message with the IP address of the interface. If they are not in the same network segment, RIP discards the message.
· Configure RIPv2 message authentication.

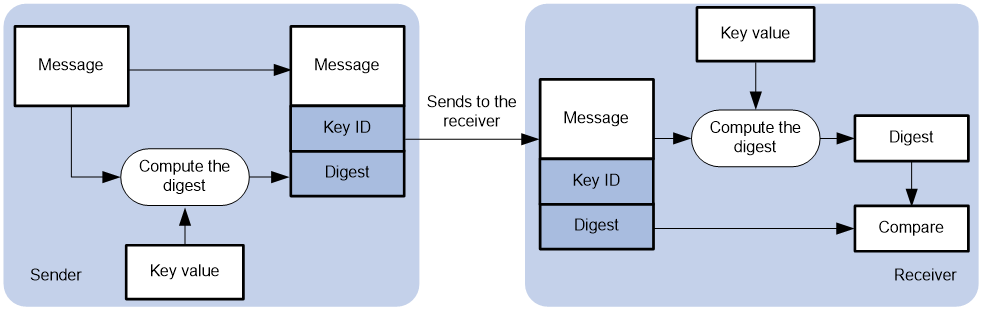

Message authentication enables a RIPv2 router to carry authentication information in outgoing messages and validate authentication information in incoming messages. The router drops the messages that fail the validation to ensure that it receives only the RIPv2 messages from trusted sources.
· Enable RIPng to authenticate packets by using an IPsec profile.
An IPsec profile contains inbound and outbound security parameter indexes (SPIs). RIPng compares the inbound SPI defined in the IPsec profile with the outbound SPI in the received packets. Two RIPng devices accept the packets from each other and establish a neighbor relationship only if the SPIs are the same and the relevant IPsec profiles match. For more information about IPsec profiles, see IPsec configuration in Security Configuration Guide.
Examples
# Enable zero field check on RIPv1 messages for RIP process 1.
<Sysname> system-view
[Sysname] rip
[Sysname-rip-1] checkzero
# Enable source IP address check on inbound RIP routing updates.
<Sysname> system-view
[Sysname-rip] rip 100
[Sysname-rip-100] validate-source-address
# Configure MD5 authentication on GigabitEthernet 1/0/1, and specify a plaintext key 154&rose in the format defined in RFC 2453.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] rip version 2
[Sysname-GigabitEthernet1/0/1] rip authentication-mode md5 rfc2453 plain 154&rose
# Enable zero field check on RIPng packets for RIPng 100.
<Sysname> system-view
[Sysname] ripng 100
[Sysname-ripng-100] checkzero
# Apply IPsec profile profile001 to GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] ripng ipsec-profile profile001
Securing OSPF/OSPFv3
Hardening recommendations
Configure OSPF/OSPFv3 authentication to prevent routing information leakage and attacks on routers. When establishing neighbor relationships, OSPF/OSPFv3 adds authentication information into sent packets and authenticates received packets. Only packets that pass the authentication can be received. An OSPF/OSPFv3 neighbor relationship cannot be established if the exchanged packets fail the authentication.
Configure OSPFv3 packet authentication by using an IPsec profile. For more information about IPsec profiles, see IPsec configuration in Security Configuration Guide.
Examples
# Enable MD5 authentication for OSPF area 0, and set the key ID and plaintext key string to 15 and abc, respectively.
<Sysname> system-view
[Sysname] ospf 100
[Sysname-ospf-100] area 0
[Sysname-ospf-100-area-0.0.0.0] authentication-mode md5 15 plain abc
# Enable MD5 authentication for GigabitEthernet 1/0/1, and set the key ID and plaintext key string to 15 and Ab&123456, respectively.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] ospf authentication-mode md5 15 plain Ab&123456
# Configure OSPFv3 area 1 to use keychain test for packet authentication.
<Sysname> system-view
[Sysname] ospfv3 1
[Sysname-ospfv3-1] area 1
[Sysname-ospfv3-1-area-0.0.0.1] authentication-mode keychain test
# Apply IPsec profile profile001 to area 0 in OSPFv3 process 1.
<Sysname> system-view
[Sysname] ospfv3 1
[Sysname-ospfv3-1] area 0
[Sysname-ospfv3-1-area-0.0.0.0] enable ipsec-profile profile001
Securing IS-IS
Hardening recommendations
Configure IS-IS authentication to add authentication information into sent packets and authenticate received packets. A packet is received only when it passes the authentication. IS-IS authentication includes the following:
· Neighbor relationship authentication—Authenticates hello packets to prevent IS-IS from establishing neighbor relationships with untrusted routers.
· Area authentication—Authenticates Level-1 LSPs, CSNPs, and PSNPs to prevent installing routing information learned from untrusted routers into the Level-1 LSDB.
· Routing domain authentication—Authenticates Level-2 LSPs, CSNPs, and PSNPs to prevent installing routing information learned from untrusted routers into a routing domain.
Examples
# Enable simple authentication for GigabitEthernet 1/0/1, and set the plaintext key string to Ab&123456.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] isis authentication-mode simple plain Ab&123456
# Enable simple authentication for IS-IS process 1, and set the plaintext key string to Ab&123456.
<Sysname> system-view
[Sysname] isis 1
[Sysname-isis-1] area-authentication-mode simple plain Ab&123456
# Enable simple routing domain authentication, and set the plaintext key to Ab&123456.
<Sysname> system-view
[Sysname] isis 1
[Sysname-isis-1] domain-authentication-mode simple plain Ab&123456
Securing BGP
Limiting the number of routes that can be received from a peer or peer group
Security threats
An attacker might send a large number of BGP routes to waste system resources and interrupt the network.
Hardening recommendations
Configure the maximum number of routes that can be received from a peer or peer group and the action to take when the maximum number is reached. The following actions are available:
· Tears down the BGP session to the peer or peer group and does not re-establish the session.
· Retains the session to the peer or peer group, continues to receive routes from the peer or peer group, and generates a log message.
· Retains the session to the peer or peer group, discards excessive routes, and generates a log message.
· Tears down the BGP session to the peer or peer group and re-establishes a BGP session to the peer or peer group after a specific period of time.
Examples
# In BGP IPv4 unicast address family view, set the maximum number of routes that can be received from peer 1.1.1.1 to 10000, and enable the router to tear down the session to the peer if the number is exceeded.
<Sysname> system-view
[Sysname] bgp 109
[Sysname-bgp-default] address-family ipv4 unicast
[Sysname-bgp-default-ipv4] peer 1.1.1.1 route-limit 10000
Establishing reliable BGP sessions
Security threats
An attacker might establish BGP sessions with devices, intercept and tamper with BGP packets, and affect BGP route learning.
Hardening recommendations
Configure MD5 or keychain authentication to enhance the security of the TCP connection established between BGP peers.
With MD5 authentication configured, BGP peers can establish TCP connections only when they use the same password. The MD5 algorithm is used to ensure that packets exchanged over the TCP connection between BGP peers are intact.
With keychain authentication configured, BGP peers can establish TCP connections only when the following conditions are met:
· Keychain authentication is enabled on both BGP peers.
· The keys used by the BGP peers at the same time have the same ID.
· The keys with the same ID use the same authentication algorithm and key string.
Examples
# In BGP instance view, perform MD5 authentication on the TCP connection between local router 10.1.100.1 and peer router 10.1.100.2, and set the authentication password to 358$aabbcc in plaintext form.
<Sysname> system-view
[Sysname] bgp 100
[Sysname-bgp-default] peer 10.1.100.2 password simple 358$aabbcc
# In BGP instance view, enable peer 10.1.1.1 to use keychain abc for authentication.
<Sysname> system-view
[Sysname] bgp 100
[Sysname-bgp-default] peer 10.1.1.1 as-number 100
[Sysname-bgp-default] peer 10.1.1.1 keychain abc
Configuring BGP RPKI
Security threats
The AS_PATH attribute identifies the ASs through which a route has passed, and the AS that originated the route is the origin AS of the route.
An attacker might alter the origin AS of a route, which might result in traffic transmission failure or even network collapse. An attacker might also advertise routes with invalid origin ASs to a device to steal BGP routing information.
Hardening recommendations
Configure Resource Public Key Infrastructure (RPKI) for BGP to validate the origin AS of a route and determine whether to use and advertise the route based on the validation state.
Examples
# Enable BGP RPKI, and set the BGP RPKI server address and port number to 1.1.1.1 and 1234, respectively.
<Sysname> system-view
[Sysname] bgp 100
[Sysname-bgp-default] rpki
[Sysname-bgp-default-rpki] server tcp 1.1.1.1
[Sysname-bgp-default-rpki-server] port 1234
Configuring IPsec for IPv6 BGP
Hardening recommendations
Configure IPsec for IPv6 BGP to prevent routing information leakage and attacks. IPsec can provide privacy, integrity, and authentication for IPv6 BGP packets exchanged between BGP peers.
When two IPv6 BGP peers are configured with IPsec (for example, Device A and Device B), Device A encapsulates an IPv6 BGP packet with IPsec before sending it to Device B. If Device B successfully receives and de-encapsulates the packet, it establishes an IPv6 BGP peer relationship with Device A or learns IPv6 BGP routes from Device A. If Device B receives but fails to de-encapsulate the packet, or receives a packet not protected by IPsec, it discards the packet.
Examples
# Configure an IPsec transform set and a manual IPsec profile. (Details not shown.) For more information, see IPsec configuration in Security Configuration Guide.
# In BGP instance view, apply IPsec profile profile001 to peer group test.
<Sysname> system-view
[Sysname] bgp 100
[Sysname-bgp-default] peer test ipsec-profile profile001
Multicast security
Hardening IGMP snooping and MLD snooping
Configuring a multicast group policy
Security threats
The device cannot provide multicast services to legal users when it has a large number of invalid multicast entries that are created based on IGMP or MLD reports from malicious users.
Hardening recommendations
To control the multicast groups that hosts can join, configure a multicast group policy on the Layer 2 device that is enabled with IGMP snooping or MLD snooping. When a host sends an IGMP or MLD report to request a multicast program, the Layer 2 device uses the multicast group policy to filter the report. The Layer 2 device adds the port of the host to the outgoing port list only if the report is permitted by the multicast group policy.
Examples
# Configure a multicast group policy for VLAN 2 so that hosts in VLAN 2 can join only multicast group 225.1.1.1.
<Sysname> system-view
[Sysname] acl basic 2000
[Sysname-acl-ipv4-basic-2000] rule permit source 225.1.1.1 0
[Sysname-acl-ipv4-basic-2000] quit
[Sysname] igmp-snooping
[Sysname-igmp-snooping] group-policy 2000 vlan 2
# Configure an IPv6 multicast group policy for VLAN 2 so that hosts in VLAN 2 can join only IPv6 multicast group FF03::101.
<Sysname> system-view
[Sysname] acl ipv6 basic 2000
[Sysname-acl-ipv6-basic-2000] rule permit source ff03::101 128
[Sysname-acl-ipv6-basic-2000] quit
[Sysname] mld-snooping
[Sysname-mld-snooping] group-policy 2000 vlan 2
# On GigabitEthernet 1/0/1, configure a multicast group policy for VLAN 2 so that hosts in VLAN 2 can join only multicast group 225.1.1.1.
<Sysname> system-view
[Sysname] acl basic 2000
[Sysname-acl-ipv4-basic-2000] rule permit source 225.1.1.1 0
[Sysname-acl-ipv4-basic-2000] quit
[Sysname] interface gigabitethernet1/0/1
[Sysname-GigabitEthernet1/0/1] igmp-snooping group-policy 2000 vlan 2
# On GigabitEthernet 1/0/1, configure an IPv6 multicast group policy for VLAN 2 so that hosts in VLAN 2 can join only IPv6 multicast group FF03::101.
<Sysname> system-view
[Sysname] acl ipv6 basic 2000
[Sysname-acl-ipv6-basic-2000] rule permit source ff03::101 128
[Sysname-acl-ipv6-basic-2000] quit
[Sysname] interface gigabitethernet1/0/1
[Sysname-GigabitEthernet1/0/1] mld-snooping group-policy 2000 vlan 2
Disabling a port from becoming a dynamic router port
Security threats
A receiver host might send IGMP general queries or PIM hello messages for testing purposes. On the Layer 2 device, the port that receives IGMP general queries or PIM hello messages becomes a dynamic router port. Before the aging timer for the port expires, the following problems might occur:
· All multicast data for the VLAN to which the port belongs flows to the port. Then, the port forwards the data to attached receiver hosts. The receiver hosts will receive multicast data that they do not want to receive.
· The port forwards the IGMP general queries or PIM hello messages to its upstream Layer 3 devices. These messages might affect the multicast routing protocol state (such as the IGMP querier or DR election) on the Layer 3 devices. This might further cause network interruption.
The same security threats also exist in an IPv6 multicast network.
Hardening recommendations
To resolve the issue, disable a port that receives IGMP/MLD general queries or IPv4/IPv6 PIM hello message from becoming a dynamic router port. The port will not become a dynamic router port even if it receives such messages. This feature improves network security and enhances the control over receiver hosts.
Examples
# Disable GigabitEthernet 1/0/1 from becoming a dynamic router port in VLAN 2.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] igmp-snooping router-port-deny vlan 2
# Disable GigabitEthernet 1/0/1 from becoming a dynamic router port in VLAN 2.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] mld-snooping router-port-deny vlan 2
Hardening IGMP and MLD
Enhancing management and control on multicast users
Security threats
Traditional IP multicast services allow users to join any multicast group to receive multicast data. Illegal or unauthorized multicast accesses are not controlled.
Hardening recommendations
To enhance the management and control on multicast users, configure the following features:
· Multicast access control—Enables multicast access control on interfaces of the device where you want to control the downstream users' access to multicast traffic, the device will deny reports from illegal users.
· IGMP or MLD user access policy—Enables the device to filter IGMP or MLD reports by using an ACL that specifies the multicast groups in a user profile. An IGMP or MLD report is permitted only if it matches by the policy.
Restrictions and guidelines
Make sure the device does not run IGMPv1. If the device runs IGMPv1, no IGMP querier will be elected.
The multicast access control feature takes effect only on local online users. Non-local users and offline users are not affected.
The multicast access control feature is supported only on the BRAS.
Examples
· Configure multicast access control
# Enable the multicast access control feature on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] igmp authorization-enable
# Enable the IPv6 multicast access control feature on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] mld authorization-enable
· Configure an IGMP or MLD user access policy
# Configure an IGMP user access policy in user profile abc to authorize IGMP users to join multicast group 225.1.1.2.
<Sysname> system-view
[Sysname] acl basic 2000
[Sysname-acl-ipv4-basic-2000] rule permit source 225.1.1.2 0
[Sysname-acl-ipv4-basic-2000] quit
[Sysname] user-profile abc
[Sysname-user-profile-abc] igmp access-policy 2000
# Configure an MLD user access policy in user profile abc to authorize MLD users to join IPv6 multicast group FF03::101.
<Sysname> system-view
[Sysname] acl ipv6 basic 2000
[Sysname-acl-ipv6-basic-2000] rule permit source ff03::101 128
[Sysname-acl-ipv6-basic-2000] quit
[Sysname] user-profile abc
[Sysname-user-profile-abc] mld access-policy 2000
Defending IGMP attacks
Security threats
For a multicast application in a BRAS system, only online users can join multicast groups to receive multicast data. However, IGMP messages from non-online users are also sent to the CPU for processing. Online users might fail to join multicast groups if non-online users launch IGMP attacks and causes high CPU usage.
Hardening recommendations
To protect the device from IGMP attacks, enable the IGMP attack defense feature. This feature enables the device to process only IGMP messages from online users and to discard IGMP messages from non-online users.
Restrictions and guidelines
This feature takes effect only on IPoE users in a BRAS network. For more information about IPoE, see Layer 2—WAN Access Configuration Guide.
Enable this feature only on an interface that is configured with IPoE access authentication. If an interface is not configured with IPoE authentication, this feature will discard IGMP messages from all users and online users cannot join multicast groups.
Examples
# Enable IGMP attack defense on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] igmp attack-defense
Configuring IGMP and MLD attack suppression
Security threats
When the device receives IGMP or MLD attack packets, the CPU of the device will be largely consumed by these attack packets. The device cannot process valid IGMP and MLD packets normally.
Hardening recommendations
· Source MAC-based IGMP or MLD suppression—The source MAC-based IGMP suppression feature allows the device to create IGMP suppression entries and count the number of received IGMP packets on a per source MAC basis. When the number of IGMP packets from a MAC address exceeds the threshold within the check interval, the device identifies these packets as attack packets. To ensure CPU resource allocation for normal IGMP packets, the device drops the IGMP attack packets from the MAC address.
The source MAC-based MLD suppression feature operates in the same way as the source MAC-based IGMP suppression feature.
· Interface-based IGMP or MLD suppression—The interface-based IGMP suppression feature allows the device to create IGMP suppression entries and count the number of received IGMP packets on a per interface basis. When the number exceeds the threshold within the check interval, the device identifies these packets as attack packets and limits the rate for sending them to the CPU.
The interface-based MLD suppression feature operates in the same way as the interface-based IGMP suppression feature.
Restrictions and guidelines
This feature takes effect only on Layer 3 Ethernet interfaces and Layer 3 Ethernet subinterfaces if you enable IGMP snooping or MLD snooping globally on the device. IGMP or MLD packets received on VLAN interfaces and Layer 2 interfaces (such as Layer 2 aggregate interfaces) are processed at Layer 2.
Examples
· Enable source MAC-based IGMP or MLD suppression.
# Enable source MAC-based IGMP suppression.
<Sysname> system-view
[Sysname] igmp attack-suppression source-mac enable
# Enable source MAC-based MLD suppression.
<Sysname> system-view
[Sysname] mld attack-suppression source-mac enable
· Enable interface-based IGMP or MLD suppression.
# Enable interface-based IGMP suppression.
<Sysname> system-view
[Sysname] igmp attack-suppression per-interface enable
# Enable interface-based MLD suppression.
<Sysname> system-view
[Sysname] mld attack-suppression per-interface enable
Hardening PIM and IPv6 PIM
Configuring a PIM hello policy
Security threats
In a PIM domain, each PIM-enabled interface on the device periodically multicasts PIM hello messages to discover PIM neighbors for maintaining the neighbor relationship and SPT. If the device receives a large number of invalid PIM hello messages, PIM neighbor relationship cannot be correctly established.
Hardening recommendations
To ensure the security of received PIM protocol packets, configure a PIM hello policy. This policy enables the device to filter PIM hello messages by using an ACL that specifies the packet source addresses. Malicious attack PIM packets are dropped.
Examples
# Configure a PIM hello policy on GigabitEthernet 1/0/1 so that only the devices on subnet 10.1.1.0/24 can become PIM neighbors of this device.
<Sysname> system-view
[Sysname] acl basic 2000
[Sysname-acl-ipv4-basic-2000] rule permit source 10.1.1.0 0.0.0.255
[Sysname-acl-ipv4-basic-2000] quit
[Sysname] interface gigabitethernet1/0/1
[Sysname-GigabitEthernet1/0/1] pim neighbor-policy 2000
# Configure an IPv6 PIM hello policy on GigabitEthernet 1/0/1 so that only the devices on subnet FE80:101::101/64 can become IPv6 PIM neighbors of this device.
<Sysname> system-view
[Sysname] acl ipv6 basic 2000
[Sysname-acl-ipv6-basic-2000] rule permit source fe80:101::101 64
[Sysname-acl-ipv6-basic-2000] quit
[Sysname] interface gigabitethernet1/0/1
[Sysname-GigabitEthernet1/0/1] ipv6 pim neighbor-policy 2000
Configuring a PIM or IPv6 PIM join policy
Hardening recommendations
To filter joined multicast sources and groups in PIM join/prune messages, configure a PIM or IPv6 PIM join policy. This policy uses an ACL to identify valid joined multicast source and groups in PIM join/prune messages and filter out invalid joined multicast source and groups. The device creates (*, G) or (S, G) entries only for valid joined multicast sources and groups.
Examples
# On GigabitEthernet 1/0/1, configure a PIM join policy to permit join information only for multicast group addresses in the range of 225.1.1.1/16.
<Sysname> system-view
[Sysname] acl basic 2005
[Sysname-acl-ipv4-basic-2005] rule permit source 225.1.1.1 0.0.255.255
[Sysname-acl-ipv4-basic-2005] quit
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] pim join-policy 2005
# On GigabitEthernet 1/0/1, configure an IPv6 PIM join policy to permit join information only for multicast group addresses in the range of FF25::1/128.
<Sysname> system-view
[Sysname] acl ipv6 basic 2005
[Sysname-acl-ipv6-basic-2005] rule permit source FF25::1 128
[Sysname-acl-ipv6-basic-2005] quit
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] ipv6 pim join-policy 2005
Hardening MSDP
Hardening recommendations
To enhance MSDP security, enable MD5 authentication for both MSDP peers to establish a TCP connection. If the MD5 authentication fails, the TCP connection cannot be established.
Restrictions and guidelines
For the TCP connection to be successfully established, you must configure the same key for MD5 authentication on both MSDP peers.
Examples
# Configure the device to perform MD5 authentication when establishing a TCP connection with MSDP peer 10.1.100.1 and set the key to 850$aabbcc in plaintext on the public network.
<Sysname> system-view
[Sysname] msdp
[Sysname-msdp] peer 10.1.100.1 password simple 850$aabbcc
MPLS
Securing LDP sessions
Security threats
LDP messages are prone to be eavesdropped and tempered with. An attacker might send spoofed LDP messages to the device to establish a TCP connection to the device. The attacker then can capture important information from the device.
Hardening recommendations
To improve security for LDP sessions, you can configure MD5 authentication for the underlying TCP connections to check the integrity of LDP messages.
Examples
# Enable LDP MD5 authentication for peer 3.3.3.3 on the public network, and set key pass in plaintext form.
<Sysname> system-view
[Sysname] mpls ldp
[Sysname-ldp] md5-authentication 3.3.3.3 plain pass
Securing RSVP messages
Hardening recommendations
To prevent fake resource reservation requests from occupying network resources, enable RSVP authentication at both ends of a link. The devices must use the same authentication key in order to exchange RSVP messages successfully.
Restrictions and guidelines
RSVP authentication can be configured in the following views:
· RSVP view—The configuration applies to all RSVP security associations.
· RSVP neighbor view—The configuration applies only to RSVP security associations established with the specified RSVP neighbor.
· Interface view—The configuration applies only to RSVP security associations established on the current interface.
Configurations in RSVP neighbor view, interface view, and RSVP view are in descending order of priority.
Examples
# Enable RSVP authentication globally in RSVP view, and configure the authentication key as plaintext string @aa2019.
<Sysname> system-view
[Sysname] rsvp
[Sysname-rsvp] authentication key plain @aa2019
# Enable RSVP authentication for neighbor 1.1.1.9, and configure the authentication key as plaintext string @aa2019.
<Sysname> system-view
[Sysname] rsvp
[Sysname-rsvp] peer 1.1.1.9
[Sysname-rsvp-peer-1.1.1.9] authentication key plain @aa2019
# Enable RSVP authentication on GigabitEthernet 1/0/1, and configure the authentication key as plaintext string @aa2019.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] rsvp authentication key plain @aa2019
Control plane packet rate limiting
Protocol packet rate limiting
Security threats
The units at the control plane are processing units running most routing and switching protocols. They are responsible for protocol packet resolution and calculation, such as CPUs. The control plane units allow for great packet processing flexibility but have lower throughput. If a large number of protocol packets are sent to the CPU at the same time, the CPU will be busy processing them and cannot process other services. As a result, the device might be overloaded and crash.
Hardening recommendations
To rate limit protocol packets sent to the CPU for correct CPU operation, configure a QoS policy as follows:
1. Define a traffic class and specify the protocol packet match criterion.
2. Configure rate limiting in the traffic behavior.
3. Apply the QoS policy to the control plane.
Examples
The configuration varies by card model. The following methods are only examples.
· Method I:
# Define a match criterion for traffic class c to match DHCP packets on the control plane.
<Sysname> system-view
[Sysname] traffic classifier c
[Sysname-classifier-c] if-match control-plane protocol dhcp
[Sysname-classifier-c] quit
# Create a traffic behavior named b, and set the CIR to 200 kbps and CBS to 51200 bytes.
[Sysname] traffic behavior b
[Sysname-behavior-b] car cir 200 cbs 51200
[Sysname-behavior-b] quit
# Create a QoS policy named p, and associate traffic class c with traffic behavior b in QoS policy p.
[Sysname] qos policy p
[Sysname-qospolicy-p] classifier c behavior b
[Sysname-qospolicy-p] quit
Apply QoS policy p to the control plane of the specified slot.
[Sysname] control-plane slot 1
[Sysname-cp-slot1] qos apply policy p inbound
· Method II:
# Configure an ACL to permit IP packets.
<Sysname> system-view
[Sysname] acl advanced 3000
[Sysname-acl-ipv4-adv-3000] rule permit ip
[Sysname-acl-ipv4-adv-3000] quit
# Create a traffic class named c and specify ACL as the packet match criterion.
[Sysname] traffic classifier c
[Sysname-classifier-c] if-match acl 3000
[Sysname-classifier-c] quit
# Create a traffic behavior named b, and set the CIR to 200 kbps and CBS to 51200 bytes.
[Sysname] traffic behavior b
[Sysname-behavior-b] car cir 200 cbs 51200
[Sysname-behavior-b] quit
# Create a QoS policy named p, and associate traffic class c with traffic behavior b in QoS policy p.
[Sysname] qos policy p
[Sysname-qospolicy-p] classifier c behavior b
[Sysname-qospolicy-p] quit
# Apply QoS policy p to the control plane of the specified slot.
[Sysname] control-plane slot 1
[Sysname-cp-slot1] qos apply policy p inbound
Authenticating high availability protocol packets
DLDP packet authentication
Hardening recommendations
After you configure packet authentication, the receiving side examines received DLDP packets and drops the packets containing different authentication information than the local configuration. Three authentication modes are available: non-authentication, plaintext authentication, and MD5 authentication.
By configuring an appropriate authentication mode, you can prevent network attacks and malicious probes.
Examples
# Configure plaintext authentication and set the password to 1458abc$3 (assuming that Device A and Device B are connected by a DLDP link).
· Configure Device A:
<DeviceA> system-view
[DeviceA] dldp authentication-mode simple
[DeviceA] dldp authentication-password simple 1458abc$3
· Configure Device B:
<DeviceB> system-view
[DeviceB] dldp authentication-mode simple
[DeviceB] dldp authentication-password simple 1458abc$3
Securing VRRP packet authentication
Security threats
An unauthorized user might construct VRRP advertisement packets to attack a VRRP group, causing the VRRP group to operate incorrectly.
Hardening recommendations
To avoid attacks from unauthorized users, VRRP member routers add authentication keys in VRRP packets to authenticate one another. VRRP provides the following authentication methods:
· Simple authentication
The sender fills an authentication key into the VRRP packet, and the receiver compares the received authentication key with its local authentication key. If the two authentication keys match, the received VRRP packet is legitimate. If the keys do not match, the received packet is illegitimate.
· MD5 authentication
The sender computes a digest for the VRRP packet by using the authentication key and MD5 algorithm, and saves the result to the authentication header of the packet. The receiver performs the same operation with the authentication key and MD5 algorithm, and compares the result with the content in the authentication header. If the results match, the received VRRP packet is legitimate. If the results do not match, the received packet is illegitimate.
Restrictions and guidelines
Compared with simple authentication, MD5 authentication provides higher security and requires more system resources for digest computation.
You can configure different authentication modes and authentication keys for VRRP groups on an interface. Members of the same VRRP group must use the same authentication mode and authentication key.
IPv4 VRRPv3 does not support VRRP packet authentication. In VRRPv3, authentication mode and authentication key settings do not take effect.
Examples
# Set the authentication mode to simple and the authentication key to Sysname for VRRP group 1 on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] vrrp vrid 1 authentication-mode simple plain Sysname
BFD control packet authentication
Security threats
If the device receives forged BFD packets, for example, a BFD packet with incorrect state information, the BFD session flaps.
Hardening recommendations
Configure an authentication mode for BFD control packets. The device encapsulates authentication information in BFD control packets. If the authentication information does not match the configured settings on the remote device, the BFD session cannot be established.
Examples
# Enable GigabitEthernet 1/0/1 to perform simple authentication for single-hop BFD control packets, setting the authentication key ID to 1 and plaintext key to &Pk123456.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] bfd authentication-mode simple 1 plain &Pk123456
# Configure the simple authentication mode for multihop BFD control packets, setting the authentication key ID to 1 and key to &Pk123456.
<Sysname> system-view
[Sysname] bfd multi-hop authentication-mode simple 1 plain &Pk123456
NTP/SNTP access control
Configuring the NTP access right
Security threats
On a network that uses NTP for time synchronization, unauthorized time servers can send time synchronization information to the device, causing the device to synchronize to an incorrect time.
Hardening recommendations
To protect the device from synchronizing to an unauthorized time server, configure the NTP access right. The NTP access right associated with ACLs limits the access of peer devices to the NTP services on the local device. The NTP access rights are in the following order, from the least restrictive to the most restrictive:
· Peer—Allows time requests and NTP control queries (such as alarms, authentication status, and time server information) and allows the local device to synchronize itself to a peer device.
· Server—Allows time requests and NTP control queries, but does not allow the local device to synchronize itself to a peer device.
· Synchronization—Allows only time requests and denies control queries.
· Query—Allows only NTP control queries.
When the device receives an NTP request, it matches the request against the access rights in order from the least restrictive to the most restrictive: peer, server, synchronization, and query.
· If no NTP access control is configured, the peer access right applies.
· If the IP address of the peer device matches a permit statement in an ACL, the access right is granted to the peer device. If a deny statement or no ACL is matched, no access right is granted.
· If no ACL is specified for an access right or the ACL specified for the access right is not created, the access right is not granted.
· If none of the ACLs specified for the access rights is created, the peer access right applies.
· If none of the ACLs specified for the access rights contains rules, no access right is granted.
This feature provides minimal security for a system running NTP. A more secure method is NTP authentication.
Examples
# Create and configure an ACL for NTP access control.
For information about configuring an ACL, see ACL and QoS configuration Guide.
# Configure the NTP access right (ACL 2001 for example).
<Sysname> system-view
[Sysname] ntp-service peer acl 2001
Authenticating NTP messages
Security threats
When the device uses NTP for time synchronization, it might get time information from an unauthorized time server and synchronize to an incorrect time.
Hardening recommendations
To protect the device from synchronizing to an unauthorized time server, configure NTP authentication. This feature authenticates the NTP messages for security purposes. The device receives an NTP message and gets time synchronization information from it only when the message is authenticated. If the message fails authentication, the device discards the message. This function ensures that the device does not synchronize to an unauthorized time server.
As shown in Figure 3, NTP authentication proceeds as follows:
1. The sender uses the key identified by the key ID to calculate a digest for the NTP message through the specified algorithm. Then it sends the calculated digest together with the NTP message and key ID to the receiver.
2. Upon receiving the message, the receiver performs the following actions:
a. Finds the key according to the key ID in the message.
b. Uses the key and the specified algorithm to calculate the digest for the message.
c. Compares the digest with the digest contained in the NTP message.
- If they are different, the receiver discards the message.
- If they are the same, the receiver determines whether the sender is allowed to use the authentication ID on the local end. If the sender is allowed to use the authentication ID, the receiver accepts the message. If the sender is not allowed to use the authentication ID, the receiver discards the message
Restrictions and guidelines
You can configure NTP authentication in client/server mode, symmetric active/passive mode, broadcast mode, or multicast mode. To ensure a successful NTP authentication, configure the same authentication key ID, algorithm, and key on the local device and time server. Make sure the time server is allowed to use the key ID for authentication on the local device.
NTP authentication results differ when different settings are configured on the local device and time server, as shown in Table 3, Table 4, Table 5, and Table 6. (N/A in the table means that whether the configuration is performed or not does not make any difference.)
Table 3 Results of NTP authentication in client/server mode
|
Client |
Server |
||||
|
Enable NTP authentication |
Specify the server and key |
Trusted key |
Enable NTP authentication |
Trusted key |
|
|
Successful authentication |
|||||
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
Failed authentication |
|||||
|
Yes |
Yes |
Yes |
Yes |
No |
|
|
Yes |
Yes |
Yes |
No |
N/A |
|
|
Yes |
Yes |
No |
N/A |
N/A |
|
|
Authentication not performed |
|||||
|
Yes |
No |
N/A |
N/A |
N/A |
|
|
No |
N/A |
N/A |
N/A |
N/A |
|
Table 4 Results of NTP authentication in symmetric active/passive peer mode
|
Active peer |
Passive peer |
||||
|
Enable NTP authentication |
Specify the peer and key |
Trusted key |
Stratum level |
Enable NTP authentication |
Trusted key |
|
Successful authentication |
|||||
|
Yes |
Yes |
Yes |
N/A |
Yes |
Yes |
|
Failed authentication |
|||||
|
Yes |
Yes |
Yes |
N/A |
Yes |
No |
|
Yes |
Yes |
Yes |
N/A |
No |
N/A |
|
Yes |
No |
N/A |
N/A |
Yes |
N/A |
|
No |
N/A |
N/A |
N/A |
Yes |
N/A |
|
Yes |
Yes |
No |
Larger than the passive peer |
N/A |
N/A |
|
Yes |
Yes |
No |
Smaller than the passive peer |
Yes |
N/A |
|
Authentication not performed |
|||||
|
Yes |
No |
N/A |
N/A |
No |
N/A |
|
No |
N/A |
N/A |
N/A |
No |
N/A |
|
Yes |
Yes |
No |
Smaller than the passive peer |
No |
N/A |
Table 5 Results of NTP authentication in broadcast mode
|
Broadcast server |
Broadcast client |
|||
|
Enable NTP authentication |
Specify the server and key |
Trusted key |
Enable NTP authentication |
Trusted key |
|
Successful authentication |
||||
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
Failed authentication |
||||
|
Yes |
Yes |
Yes |
Yes |
No |
|
Yes |
Yes |
Yes |
No |
N/A |
|
Yes |
Yes |
No |
Yes |
N/A |
|
Yes |
No |
N/A |
Yes |
N/A |
|
No |
N/A |
N/A |
Yes |
N/A |
|
Authentication not performed |
||||
|
Yes |
Yes |
No |
No |
N/A |
|
Yes |
No |
N/A |
No |
N/A |
|
No |
N/A |
N/A |
No |
N/A |
Table 6 Results of NTP authentication in multicast mode
|
Multicast server |
Multicast client |
|||
|
Enable NTP authentication |
Specify the server and key |
Trusted key |
Enable NTP authentication |
Trusted key |
|
Successful authentication |
||||
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
Failed authentication |
||||
|
Yes |
Yes |
Yes |
Yes |
No |
|
Yes |
Yes |
Yes |
No |
N/A |
|
Yes |
Yes |
No |
Yes |
N/A |
|
Yes |
No |
N/A |
Yes |
N/A |
|
No |
N/A |
N/A |
Yes |
N/A |
|
Authentication not performed |
||||
|
Yes |
Yes |
No |
No |
N/A |
|
Yes |
No |
N/A |
No |
N/A |
|
No |
N/A |
N/A |
No |
N/A |
Examples
· Configuring NTP authentication in client/server mode
The following configuration example uses Device A as the client and Device B as the server.
a. Configure Device A.
# Enable NTP authentication.
<DeviceA> system-view
[DeviceA] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceA] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceA] ntp-service reliable authentication-keyid 42
# Associate key 42 with NTP server 1.1.1.1 (IP address of Device B).
[DeviceA] ntp-service unicast-server 1.1.1.1 authentication-keyid 42
b. Configure Device B.
# Enable NTP authentication.
<DeviceB> system-view
[DeviceB] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceB] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceB] ntp-service reliable authentication-keyid 42
· Configuring NTP authentication in symmetric active/passive mode
The following configuration example uses Device A as the active peer and Device B as the passive peer.
a. Configure Device A.
# Enable NTP authentication.
<DeviceA> system-view
[DeviceA] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceA] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceA] ntp-service reliable authentication-keyid 42
# Associate key 42 with passive peer 1.1.1.1 (IP address of Device B).
[DeviceA] ntp-service unicast-peer 1.1.1.1 authentication-keyid 42
b. Configure Device B.
# Enable NTP authentication.
<DeviceB> system-view
[DeviceB] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceB] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceB] ntp-service reliable authentication-keyid 42
· Configuring NTP authentication in broadcast mode
The following configuration example uses Device A as the broadcast client and Device B as the broadcast server.
a. Configure Device A.
# Enable NTP authentication.
<DeviceA> system-view
[DeviceA] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceA] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceA] ntp-service reliable authentication-keyid 42
b. Configure Device B.
# Enable NTP authentication.
<DeviceB> system-view
[DeviceB] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceB] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceB] ntp-service reliable authentication-keyid 42
# Configure Device B to operate in NTP broadcast server mode and associate key 42 with the broadcast server.
[DeviceB] interface gigabitethernet 1/0/1
[DeviceB-GigabitEthernet1/0/1] ntp-service broadcast-server authentication-keyid 42
· Configuring NTP authentication in multicast mode
The following configuration example uses Device A as the multicast client and Device B as the multicast server.
a. Configure Device A.
# Enable NTP authentication.
<DeviceA> system-view
[DeviceA] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceA] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceA] ntp-service reliable authentication-keyid 42
b. Configure Device B.
# Enable NTP authentication.
<DeviceB> system-view
[DeviceB] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceB] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceB] ntp-service reliable authentication-keyid 42
# Configure Device B to operate in multicast server mode and associate key 42 with the multicast server.
[DeviceB] interface gigabitethernet 1/0/1
[DeviceB-GigabitEthernet1/0/1] ntp-service multicast-server 224.0.1.1 authentication-keyid 42
Authenticating SNTP messages
Security threats
When the device uses SNTP for time synchronization, it might get time information from an unauthorized time server and synchronize to an incorrect time.
Hardening recommendations
To protect the device from an unauthorized time server, configure SNTP authentication. This feature authenticates SNTP messages for security purposes. The device receives an SNTP message and gets time synchronization information from it only when the message is authenticated. If the message fails authentication, the device discards the message. This function ensures that the device does not synchronize to an unauthorized time server.
As shown in Figure 4, SNTP authentication proceeds as follows:
1. The sender uses the key identified by the key ID to calculate a digest for the SNTP message through the specified algorithm. Then it sends the calculated digest together with the SNTP message and key ID to the receiver.
2. Upon receiving the message, the receiver performs the following actions:
a. Finds the key according to the key ID in the message.
b. Uses the key and the specified algorithm to calculate the digest for the message.
c. Compares the digest with the digest contained in the SNTP message.
- If they are different, the receiver discards the message.
- If they are the same, the receiver determines whether the sender is allowed to use the authentication ID on the local end. If the sender is allowed to use the authentication ID, the receiver accepts the message. If the sender is not allowed to use the authentication ID, the receiver discards the message
Restrictions and guidelines
On the SNTP client, associate the specified key with the NTP server. Make sure the server is allowed to use the key ID for authentication on the client.
With authentication disabled, the SNTP client can synchronize with the NTP server regardless of whether the NTP server is enabled with authentication.
Examples
The following configuration example uses Device A as the SNTP client and Device B as the NTP server.
1. Configure Device A.
# Enable SNTP authentication.
<DeviceA> system-view
[DeviceA] sntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey.
[DeviceA] sntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceA] sntp-service reliable authentication-keyid 42
# Specify the NTP server (Device B) and associate key 42 with the NTP server.
[DeviceA] sntp-service unicast-server 1.1.1.1 authentication-keyid 42
2. Configure Device B.
# Enable NTP authentication.
<DeviceB> system-view
[DeviceB] ntp-service authentication enable
# Create a plaintext NTP authentication key, specifying the key ID as 42 and key value as aNiceKey
[DeviceB] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey
# Configure key 42 as a trusted key.
[DeviceB] ntp-service reliable authentication-keyid 42
Hardening the data plane
Security isolation
Configuring port isolation
Security threats
If one of the hosts connected to interfaces of a device has security threats and is attacked, the host might send a large number of unicast, multicast, or broadcast packets and even spread the virus to other hosts in the same VLAN. This will affect other hosts and occupy network bandwidth.
Hardening recommendations
To avoid this security threat, configure port isolation. Port isolation allows you to add interfaces to an isolation group. Interfaces in the same isolation group cannot communicate with each other at Layer 2. Therefore, the attack against an interface is limited to the scope of the interface, and the network security is improved.
For more information about port isolation, see Layer 2—LAN Switching Configuration Guide.
Suppressing storms and controlling storms
Configuring storm suppression and storm control
Security threats
If the device receives traffic, it forwards the traffic to all interfaces except the receiving interface in the broadcast domain. This might cause broadcast storm, which degrades the forwarding performance of the device.
Hardening recommendations
Use storm suppression and storm control to monitor and control incoming broadcast, multicast, or unknown unicast traffic.
The storm suppression feature ensures that the size of a particular type of traffic (broadcast, multicast, or unknown unicast traffic) does not exceed the threshold on an interface. When the broadcast, multicast, or unknown unicast traffic on the interface exceeds this threshold, the system discards packets until the traffic drops below this threshold.
The storm control feature compares broadcast, multicast, and unknown unicast traffic regularly with their respective traffic thresholds. When a particular type of traffic exceeds its upper threshold on an interface, the device can block or shut down the interface and send logs or traps.
Restrictions and guidelines
For the traffic suppression result to be determined, do not configure storm control together with storm suppression for the same type of traffic.
Examples
# On GigabitEthernet 1/0/1, enable broadcast, multicast, and unknown unicast storm suppression, and set the suppression threshold for these types of traffic to 10000 kbps.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] broadcast-suppression kbps 10000
[Sysname-GigabitEthernet1/0/1] multicast-suppression kbps 10000
[Sysname-GigabitEthernet1/0/1] unicast-suppression kbps 10000
# On GigabitEthernet 1/0/1, configure storm control as follows:
· Enable broadcast, multicast, and unicast storm control, and set the upper and lower thresholds for each type of traffic to 2000 kbps and 1500 kbps, respectively.
· Configure GigabitEthernet 1/0/1 to block a specific type of traffic when the type of traffic exceeds the upper storm control threshold.
· Enable GigabitEthernet 1/0/1 to output log messages when it detects storm control threshold events.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] storm-constrain broadcast kbps 2000 1500
[Sysname-GigabitEthernet1/0/1] storm-constrain multicast kbps 2000 1500
[Sysname-GigabitEthernet1/0/1] storm-constrain unicast kbps 2000 1500
[Sysname-GigabitEthernet1/0/1] storm-constrain control block
[Sysname-GigabitEthernet1/0/1] storm-constrain enable log
Dropping unknown multicast data packets
Security threats
Unknown multicast data refers to multicast data for which no forwarding entries exist in the IGMP snooping or MLD snooping forwarding table. If the device receives unknown multicast data, it floods the data in the VLAN or VSI to which the data belongs. This might causes broadcast storm, which degrades the forwarding performance of the device.
Hardening recommendations
To avoid broadcast storm caused by flooding unknown multicast data packets, enable the dropping unknown multicast data packets feature. This feature enables the device to forward unknown multicast data only to the router port. If the device does not have a router port, unknown multicast data will be dropped.
Examples
# In VLAN 2, enable IGMP snooping and dropping unknown multicast data packets.
<Sysname> system-view
[Sysname] igmp-snooping
[Sysname-igmp-snooping] quit
[Sysname] vlan 2
[Sysname-vlan2] igmp-snooping enable
[Sysname-vlan2] igmp-snooping drop-unknown
# In VLAN 2, enable MLD snooping and dropping unknown IPv6 multicast data packets.
<Sysname> system-view
[Sysname] mld-snooping
[Sysname-mld-snooping] quit
[Sysname] vlan 2
[Sysname-vlan2] mld-snooping enable
[Sysname-vlan2] mld-snooping drop-unknown
# In VSI aaa, enable IGMP snooping and dropping unknown IPv4 multicast data packets.
<Sysname> system-view
[Sysname] igmp-snooping
[Sysname-igmp-snooping] quit
[Sysname] vsi aaa
[Sysname-vsi-aaa] igmp-snooping enable
[Sysname-vsi-aaa] igmp-snooping drop-unknown
MAC address security management
Configuring blackhole MAC address entries
Hardening recommendations
To block all frames destined for or sourced from a suspicious MAC address, configure the MAC address as a blackhole MAC address entry. The device drops all frames with a source or destination MAC address that matches a blackhole MAC address entry.
Examples
# Configure 000f-e201-0101 as a blackhole MAC address entry.
<Sysname> system-view
[Sysname] mac-address blackhole 000f-e201-0101 vlan 2
Disabling MAC address learning
Hardening recommendations
MAC address learning is enabled by default. To prevent the MAC address table from being saturated when the device is under attack, disable MAC address learning. For example, you can disable MAC address learning to prevent the device from being attacked by a large number of frames with different source MAC addresses.
Examples
# Disable MAC address learning on VLAN 10.
<Sysname> system-view
[Sysname] vlan 10
[Sysname-vlan10] undo mac-address mac-learning enable
# Disable MAC address learning on GigabitEthernet 1/0/1.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] undo mac-address mac-learning enable
# Disable MAC address learning on VSI vpn1.
<Sysname> system-view
[Sysname] vsi vpn1
[Sysname-vsi-vpn1] undo mac-learning enable
Controlling and monitoring MAC address learning
Security threats
Malicious attackers could launch a source MAC address spoofing attack by flooding packets to a valid unicast destination, each with a different MAC source address. The MAC address table of the device would be quickly saturated with these illegitimate addresses, resulting in degraded forwarding performance and increased floods.
Hardening recommendations
To protect the device and the network from source MAC address spoofing attacks, set the MAC learning limit on ports. When the number of learned MAC address entries reaches the limit on a port, the device stops learning MAC address entries.
In addition, you can configure the actions to take after the MAC learning limit is reached, including:
· Disable forwarding unknown frames after the MAC learning limit is reached. (Unknown frames refer to frames whose source MAC addresses are not in the MAC address table.)
· Enable the MAC learning alarm feature. This feature generates a log message when the number of MAC address entries reaches the maximum or drops below 90% of the maximum.
Examples
# Configure the device to learn a maximum of 600 MAC address entries on interface GigabitEthernet 1/0/1. Disable the device from forwarding unknown frames received on the interface after the MAC learning limit on the interface is reached.
<Sysname> system-view
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] mac-address max-mac-count 600
[Sysname-GigabitEthernet1/0/1] undo mac-address max-mac-count enable-forwarding
# Configure the device to learn a maximum of 600 MAC address entries on VLAN 10. Disable the device from forwarding unknown frames received by interfaces in the VLAN after the MAC learning limit for the VLAN is reached.
<Sysname> system-view
[Sysname] vlan 10
[Sysname-vlan10] mac-address max-mac-count 600
[Sysname-vlan10] undo mac-address max-mac-count enable-forwarding
PPP protocol packets
Configuring MRU check for PPP packets
Security threats
In a PPP network, a fake peer might attack the device by sending a large number of PPP packets with MTUs larger than the negotiated MRU.
Hardening recommendations
To avoid this security threat, you can enable MRU check for PPP packets. With MRU check enabled, the device discards a received PPP packet if the MTU in the packet is larger than the negotiated MRU.
Examples
# Enable MRU check for PPP packets.
<Sysname> system-view
[Sysname] ppp mru-check enable
Data flow protection
Configuring IPsec
IPsec provides interoperable, high-quality, cryptography-based security for IP communications. IPsec is a security framework that includes the following protocols:
· Authentication Header (AH).
· Encapsulating Security Payload (ESP).
· Internet Key Exchange (IKE).
· Internet Key Exchange Version 2 (IKEv2).
AH and ESP are security protocols that provide security services. IKE and IKEv2 implement automatic key exchange. For more information about IPsec, see Security Configuration Guide.
Configuring IP source guard
IP source guard (IPSG) prevents spoofing attacks by using an IPSG binding table to filter out illegitimate packets.
This feature is typically configured on user-side interfaces.
For more information about IPSG, see IP source guard configuration in Security Configuration Guide.
uRPF
Attackers send packets with a forged source address to access a system that uses IPv4-based authentication, in the name of authorized users or even the administrator. Even if the attackers or other hosts cannot receive any response packets, the attacks are still disruptive to the attacked target.
Attackers can also send packets with different forged source addresses or attack multiple servers simultaneously to block connections or even break down the network.
To prevent these source address spoofing attacks, use uRPF. This feature checks whether an interface that receives a packet is the output interface of the FIB entry that matches the source address of the packet. If not, uRPF considers it a spoofing attack and discards the packet.
For more information about uRPF, see Security Configuration Guide.
Connection limits
A connection is an end-to-end flow identified by the quintuple (source IP address, source port number, destination IP address, destination port number, and protocol type). The connection limit feature enables the device to monitor and limit the number of established connections in the following situations:
· An external host initiates a large number of connections to an internal server and occupies server resources. The server cannot provide services for other users.
· An external host initiates a large number of connections to the device, which degrades in performance.
· An internal host initiates a large number of connections to an external server and occupies entry resources (for example, NAT entries) of the gateway device. Other internal hosts cannot communicate with the external network.
The device uses ACLs to define the connection range to limit. In addition, you can use source IP addresses, destination IP addresses, services, or any combination of them to further limit the connections. You can also limit the connection rate.
For more information about connection limits, see Security Configuration Guide.
Attack detection and defense
DoS attack detection and defense
The gateway device deployed on the public network and its downstream hosts and servers are vulnerable to DoS attacks. Victim devices cannot respond to user requests normally.
The device supports prevents the following DoS attacks:
· Single-packet attacks—ICMP redirect, ICMP destination unreachable, ICMP type, ICMPv6 type, Land, large ICMP packet, large ICMPv6 packet, IP options, IP option abnormal, IP fragment, IP impossible packet, tiny fragment, smurf, TCP flag, Traceroute, Winnuke, UDP bomb, UDP snork, UDP fraggle, Teardrop, ping of death, and IPv6 ext-header abnormal.
· Scanning attacks—IP sweep, port scan, and distributed port scan.
· Flooding attacks—SYN flood, ACK flood, SYN-ACK flood, FIN flood, RST flood, DNS flood, DNS reply flood, HTTP flood, SIP flood, ICMP flood, ICMPv6 flood, and UDP flood.
For more information about DoS attack detection and prevention, see Attack Detection and Prevention in Security Configuration Guide.
IP-based attack prevention
Naptha attack prevention
Security threats
Naptha is a DDoS attack that targets operating systems. It exploits the resources consuming vulnerability in TCP/IP stack and network application process. The attacker establishes a large number of TCP connections in a short period of time and leaves them in a state (CLOSING, ESTABLISHED, FIN_WAIT_1, FIN_WAIT_2, or LAST_ACK) without requesting any data. These TCP connections starve the victim of system resources, resulting in a system breakdown.
Hardening recommendations
To protect the device against Naptha attacks, use the Naptha attack prevention feature. This feature periodically checks the number of TCP connections in each state (CLOSING, ESTABLISHED, FIN_WAIT_1, FIN_WAIT_2, and LAST_ACK). If the number of TCP connections in a state exceeds the limit, the device will accelerate the aging of the TCP connections in that state to mitigate the Naptha attack.
Examples
# Enable Naptha attack prevention, set the maximum number of TCP connections in the ESTABLISHED state to 100, and set the interval to 40 seconds for checking the number of TCP connections in each state.
<Sysname> system-view
[Sysname] tcp anti-naptha enable
[Sysname] tcp state established connection-limit 100
[Sysname] tcp check-state interval 40
ICMP attack prevention
Security threats
The ICMP request attack sends excessive number of ICMP request packets, such as ping packets, to a target in a short period of time. Because the CPU of the target device is busy replying to these requests, it is unable to provide services.
Hardening recommendations
To prevent ICMP request attacks, use the ICMP fast reply feature. This feature allows the hardware to reply to the ICMP requests without delivering them to the CPU for processing.
Examples
# Enable the ICMP fast reply feature.
<Sysname> system-view
[Sysname] ip icmp fast-reply enable
TCP SYN flood attack prevention
Security threats
A SYN flood attacker exploits the TCP three-way handshake characteristics and makes the victim unresponsive to legal users. An attacker sends a large number of SYN packets to a server. This causes the server to open a large number of half-open connections and respond to the requests. However, the server will never receive the expected ACK packets. Because all of its resources are bound to half-open connections, the server is unable to accept new incoming connection requests.
Hardening recommendations
To protect the device from TCP SYN flood attacks, use the TCP SYN flood attack prevention feature. With this feature enabled, the device enters attack detection state. When the number of received SYN packets reaches or exceeds the threshold within a check interval, the device changes to prevention state and rate limits or drops subsequent SYN packets. When the prevention duration is reached, the device returns to the attack detection state. TCP SYN flood attack prevention supports the following packet statistics collection methods:
· Interface-based TCP SYN flood attack prevention—Collects statistics for received SYN packets on a per interface basis.
· Flow-based TCP SYN flood attack prevention—Identifies a flow by source IP address, destination port number, VPN instance, and packet type and collects packet statistics on a per flow basis.
Examples
· Configure interface-based TCP SYN flood attack prevention
# Enable interface-based TCP SYN flood attack prevention, set the threshold to 100, attack prevention duration to 5 minutes, and the check interval to 30 seconds.
<Sysname> system-view
[Sysname] tcp anti-syn-flood interface-based enable
[Sysname] tcp anti-syn-flood interface-based threshold 100
[Sysname] tcp anti-syn-flood interface-based duration 5
[Sysname] tcp anti-syn-flood interface-based check-interval 1
· Configure flow-based TCP SYN flood attack prevention
# Enable flow-based TCP SYN flood attack prevention, set the threshold to 100, attack prevention duration to 5 minutes, and the check interval to 1 second.
<Sysname> system-view
[Sysname] tcp anti-syn-flood flow-based enable
[Sysname] tcp anti-syn-flood flow-based threshold 100
[Sysname] tcp anti-syn-flood flow-based duration 5
[Sysname] tcp anti-syn-flood flow-based check-interval 1
Abnormal IP packet attack prevention
Security threats
Network devices might suffer from the following abnormal IP packet attacks:
· LAND attack—An attacker sends the victim a large number of forged SYN packets. In these packets, the victim's IP address is used as the source and destination IP addresses, and the source and destination ports are the same. After receiving the packets, the target host repeatedly sends replies to itself to establish half-open TCP connection. This attack exhausts the resources on the victim and locks the victim's system.
· Null payload IP packet flood attack—An attacker floods packets that contain only IP headers but no payload to the victim, which makes the victim unable to process other services.
· Smurf attack—An attacker broadcasts an ICMP echo request to the target network. These requests contain the victim's IP address as the source IP address. Every receiver on the target networks will send an ICMP echo reply to the victim. The victim will be flooded with replies, and will be unable to provide services.
Hardening recommendations
To protect the device against abnormal IP packet attacks, use the abnormal IP packet attack prevention. This feature enables the device to examine each received packet and drop abnormal IP packets.
Restrictions and guidelines
This feature protects the device against the abnormal IP packet attack but slows down the packet processing speed.
Examples
# Enable abnormal IP packet attack prevention.
<Sysname> system-view
[Sysname] ip abnormal-packet-defend enable
