H3C SecPath Series F1000-AI firewalls bring innovative Artificial Intelligence (AI) capabilities to small and medium enterprises, campus egress, and WAN branches.
H3C SecPath Series F1000-AI meets the requirements of Web 2.0, and supports the following security and network features:
Security protection and access control based on users, applications, time, five tuples, and other elements. Typical security protection features include IPS, AV, and DLP.
VPN services, including L2TP VPN, GRE VPN, IPsec VPN, and SSL VPN.
Routing capabilities, including static routing, RIP, OSPF, BGP, IS-IS, routing policies, and application- and URL-based policy-based routing.
IPv4 and IPv6 dual stacks, and state protection and attack prevention for IPv6.
*H3Care CT Foundation Basic 9X5 NBD-Ship Service(1Y)
F1000-AI-90 Rear View

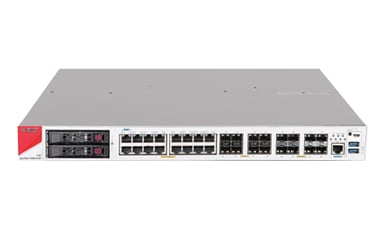

F1000-AI-90 Front View
F1000-AI-80 Rear View

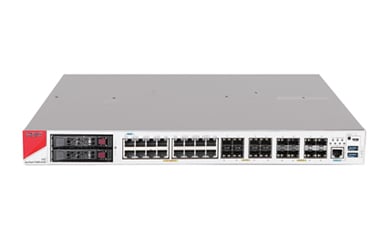

F1000-AI-80 Front View
F1000-AI-75 Rear View

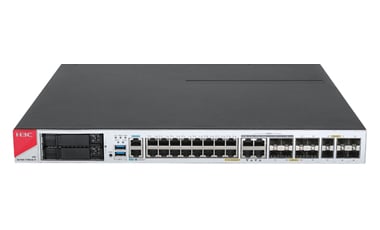

F1000-AI-75 Front View
F1000-AI-65 Rear View

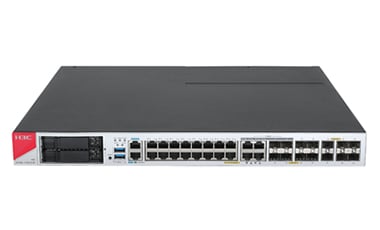

F1000-AI-65 Front View
F1000-AI-60/70 Rear View

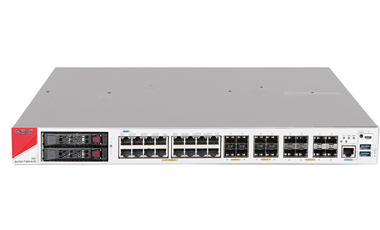

F1000-AI-60/70 Front View
F1000-AI-55 Rear View

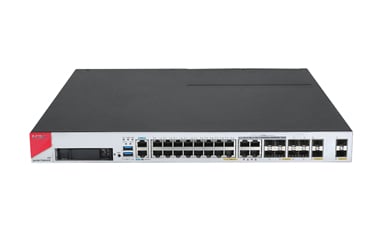

F1000-AI-55 Front View
F1000-AI-35 Rear View

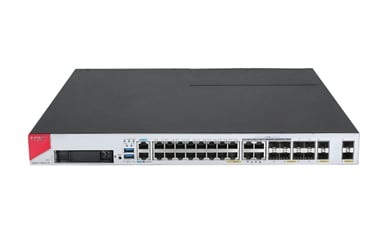

F1000-AI-35 Front View
F1000-AI-25 Rear View

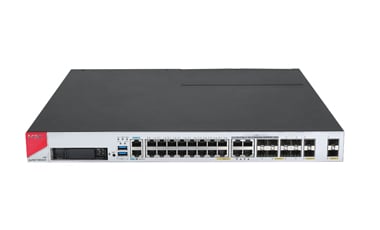

F1000-AI-25 Front View
F1000-AI-10 Rear View
F1000-AI-10 Front View
The following contents are complex, and it is recommended to browse on PC.
Enter c.h3c.com.cn on the PC browser and operate according to the page to synchronize to the PC and continue browsing.
Continue by mobile
The F1000 series uses advanced 64-bit multi-core processors and caches.
Uses H3C proprietary software and hardware platforms that have been proven by Telecom carriers and small- to medium-sized enterprises.
Supports H3C SCF, which can virtualize multiple devices into one device for unified resources management, service backup, and system performance improvement.
Attack protection—Detects and prevents various attacks, including Land, Smurf, Fraggle, ping of death, Tear Drop, IP spoofing, IP fragment, ARP spoofing, reverse ARP lookup, invalid TCP flag, large ICMP packet, IP/port scanning, and common DDoS attacks such as SYN flood, UDP flood, DNS flood, and ICMP flood.
SOP N:1 virtualization—Uses the container-based virtualization technology. An F1000 series firewall can be virtualized into multiple logical firewalls, which have the same features as the physical firewall. Each virtual firewall can have its own security policy and can be managed independently.
Security zone—Allows you to configure security zones based on interfaces and VLANs.
Packet filtering—Allows you to apply standard or advanced ACLs between security zones to filter packets based on information contained in the packets, such as UDP and TCP port numbers. You can also configure time ranges during which packet filtering will be performed.
Access control—Supports access control based on users and applications and integrates deep intrusion prevention with access control.
ASPF—Dynamically determines whether to forward or drop a packet by checking its application layer protocol information and state. ASPF supports inspecting FTP, HTTP, SMTP, RTSP, and other TCP/UDP-based application layer protocols.
AAA—Supports authentication based on RADIUS/HWTACACS+, CHAP, and PAP.
Blacklist—Supports static blacklist and dynamic blacklist.
NAT and VRF-aware NAT.
VPN—Supports L2TP, IPsec/IKE, GRE, and SSL VPNs. Allows smart devices to connect to the VPNs.
Routing—Supports static routing, RIP, OSPF, BGP, routing policies, and application- and URL-based policy-based routing.
Security logs—Supports operation logs, zone pair policy matching logs, attack protection logs, DS-LITE logs, and NAT444 logs.
Traffic monitoring, statistics, and management.
Integrated security service processing platform—Highly integrates the basic and advanced security protection measures to a security platform.
Application layer traffic identification and management.
Uses the state machine and traffic exchange inspection technologies to detect traffic of P2P, IM, network game, stock, network video, and network multi-media applications, such as Thunder, Web Thunder, BitTorrent, eMule, eDonkey, WeChat, Weibo, QQ, MSN, and PPLive.
Uses the deep inspection technology to identify P2P traffic precisely and provides multiple policies to control and manage the P2P traffic flexibly.
H3C SecPath NGFW support over 7,000 protocols and over 6,000 applications, which are updated every 2 weeks.
Highly precise and effective intrusion inspection engine—Uses the H3C-proprietary Full Inspection with Rigorous State Test (FIRST) engine and various intrusion inspection technologies to implement highly precise inspection of intrusions based on application states. The FIRST engine also supports software and hardware concurrent inspections to improve the inspection efficiency.
Realtime virus protection—uses the stream-based antivirus engine to prevent, detect, and remove malicious code from network traffic.
Categorized filtering of massive URLs—uses the local+cloud mode to provide 139 categorized and 130 million URL libraries, and support over 20 million URL filtering rules, provides basic URL filtering blacklist and whitelist and allows you to query the URL category filtering server on line.
Complete and updated security signature database—H3C has a senior signature database team and professional attack protection labs that can provide a precise and up-to-date signature database.
IPv6 stateful firewall.
IPv6 related attack protection.
IPv6 data forwarding, IPv6 static routing and dynamic routing, and IPv6 multicast.
IPv6 transition technologies, including NAT-PT, IPv6 over IPv4 GRE tunnel, manual tunnel, 6to4 tunnel, automatic IPv4-compatible IPv6 tunnel, ISATAP tunnel, NAT444, and DS-Lite.
IPv6 ACL and RADIUS.
Integrated link load balancing feature—Uses link state inspection and link busy detection technologies, and applies to a network egress to balance traffic among links.
Integrated SSL VPN feature—Uses USB-Key, SMS messages, and the enterprise's existing authentication system to authenticate users, providing secure access of mobile users to the enterprise network.
Data leakage prevention (DLP)—Supports email filtering by SMTP mail address, subject, attachment, and content, HTTP URL and content filtering, FTP file filtering, and application layer filtering (including Java/ActiveX blocking and SQL injection attack prevention).
Intrusion prevention system (IPS)—Support real-time active interception of DOS, brute force disassembly, port scanning, sniffing, worms and other network attacks or malicious traffic, protect internal network information from infringement.
Anti-virus (AV)—Uses a high-performance virus detection engine and a daily updated virus signature database to prevent attacks from over 5 million viruses.
Unknown threat prevention—Uses the situation awareness platform to fast detect and locate threats. This ensures that the firewall can take global security measures as soon as a single point is under attack.
Web Application Firewall (WAF)—Deep web security protection. Support fine web application protection. For the most headache CC attacks, abnormal extraneous, SQL injection, HTTP slow attacks, cross site scripts and other common attacks, content detection and verification of various requests from web application clients are carried out to ensure their security and legitimacy, and illegal requests are blocked in real time, So as to effectively protect all kinds of websites.
Intelligent security policy management—Detects duplicate policies, optimizes policy matching rules, detects and proposes security policies dynamically generated in the internal network.
SNMPv3—Compatible with SNMPv1 and SNMPv2.
CLI-based configuration and management.
Web-based management, with simple, user-friendly GUI.
H3C IMC SSM unified management—Collects and analyzes security information, and offers an intuitive view into network and security conditions, saving management efforts and improving management efficiency.
Centralized log management based on advanced data drill-down and analysis technology—Requests and receives information to generate logs, compiles different types of logs (such as syslogs and binary stream logs) in the same format, and compresses and stores large amounts of logs. You can encrypt and export saved logs to external storage devices such as DAS, NAS, and SAN to avoid loss of important security logs.
Abundant reports—Include application-based reports and stream-based analysis reports.
Various exported report formats—Include PDF, HTML, word, and txt.
Report customization through the Web interface—Customizable contents include time range, data source device, generation period, and export format.
Item | F1000-AI-10/15 | F1000-AI-60/70 | F1000-AI-80/90 | F1000-AI-25/35/55 | F1000-AI-65/75 | |
Dimensions (W × D × H) | 440mm×260mm×44.2mm | 440mm×435mm×44.2mm | ||||
USB 3.0 | 2 | 2 | 2 | 2 | 2 | |
rack mounted | Yes | Yes | Yes | Yes | yes | |
Weight | 3.7kg | 10.0kg | 10.0kg | 5.4kg | 5.6kg | |
Power Supply | AC | Dual hot-swappable, AC or DC | Dual hot-swappable, AC or DC | Dual hot-swappable, AC or DC | Dual hot-swappable, AC or DC | |
Power consumption | 39W | 180W | 180W | 23W | 46W | |
MTBF(Year) | 77.36 | 45.39 | 43.2 | 53.38 | 50.31 | |
MTTR(h) | 1 | 1 | 1 | 1 | 1 | |
Ports | 1 × Console port (CON) 2 × Management port 18 × Gigabit Ethernet copper ports 4 × Gigabit Ethernet Bypass ports 8 ×Gigabit Ethernet Combo ports 2 × 10-Gigabit Ethernet fiber ports | 1 × Console port (CON) 2 × Management port 12 × Gigabit Ethernet fiber ports 14 × Gigabit Ethernet copper ports 4 × 10-Gigabit Ethernet fiber ports | 1 × Console port (CON) 2 × Management port 8 × Gigabit Ethernet fiber ports 14 × Gigabit Ethernet copper ports 8 × 10-Gigabit Ethernet fiber ports | 1 × Console port (CON) 1 × Management port 6 × Gigabit Ethernet fiber ports 16 × Gigabit Ethernet copper ports 4 × Gigabit Ethernet Combo ports 2 × 10-Gigabit Ethernet fiber ports | 1 × Console port (CON) 1 × Management port 4 × Gigabit Ethernet fiber ports 16 × Gigabit Ethernet copper ports 4 × Gigabit Ethernet Combo ports 6 × 10-Gigabit Ethernet fiber ports | |
Expansion slots | 0 | 2/4 | 4 | 2 | 2 | |
Interface modules | N/A | 4-port GE PFC interface module 4-port GE fiber interface module 4-port 10-GE fiber interface module 6-port 10-GE fiber interface module | 4-port GE PFC interface module 4-port GE fiber interface module 4-port 10-GE fiber interface module 6-port 10-GE fiber interface module | 4-port GE PFC interface module 4-port GE fiber interface module 4-port 10-GE fiber interface module | 4-port GE PFC interface module 4-port GE fiber interface module 4-port 10-GE fiber interface module 6-port 10-GE fiber interface module | |
Storage | 480G M.2 | 2 × 480G SSD | 2 × 480G SSD | 1 × 480G SSD/ 500G HDD/1TB HDD | 2 × 480G SSD/ 500G HDD/1TB HDD | |
Flash | 4GB | 4GB | 8GB | 4GB | 4GB | |
SDRAM | 2GB | 8G | 16G | 4GB/4GB/8GB | 8G | |
Temperature | Operating: 0°C to 45°C (32°F to 113°F) Storage: –40°C to +70°C (–40°F to +158°F) | |||||
Operation modes | Route, transparent, and hybrid | |||||
AAA | Portal authentication RADIUS authentication HWTACACS authentication PKI/CA (X.509 format) authentication Domain authentication CHAP authentication PAP authentication | |||||
Firewall | SOP virtual firewall technology, which supports full virtualization of hardware resources, including CPU, memories, and storage Security zone allocation Protection against malicious attacks, such as land, smurf, fraggle, ping of death, teardrop, IP spoofing, IP fragmentation, ARP spoofing, reverse ARP lookup, invalid TCP flag, large ICMP packet, address/port scanning, SYN flood, ICMP flood, UDP flood, and DNS query flood Basic and advanced ACLs Time range-based ACL User-based and application-based access control ASPF application layer packet filtering Static and dynamic blacklist function MAC-IP binding MAC-based ACL MAC-Limitation 802.1Q VLAN transparent transmission Bandwidth control | |||||
Antivirus | Signature-based virus detection Manual and automatic upgrade for the signature database Stream-based processing Virus detection based on HTTP, FTP, SMTP, and POP3 Virus types include Backdoor, Email-Worm, IM-Worm, P2P-Worm, Trojan, AdWare, and Virus Virus logs and reports | |||||
Deep intrusion prevention | Prevention against common attacks such as hacker, worm/virus, Trojan, malicious code, spyware/adware, DoS/DDoS, buffer overflow, SQL injection, and IDS/IPS bypass Attack signature categories (based on attack types and target systems) and severity levels (including high, medium, low, and notification) Manual and automatic upgrade for the attack signature database (TFTP and HTTP). P2P/IM traffic identification and control | |||||
Email/webpage/application layer filtering | Email filtering SMTP email address filtering Email subject/content/attachment filtering Webpage filtering HTTP URL/content filtering Java blocking ActiveX blocking SQL injection attack prevention | |||||
NAT | Many-to-one NAT, which maps multiple internal addresses to one public address Many-to-many NAT, which maps multiple internal addresses to multiple public addresses One-to-one NAT, which maps one internal address to one public address NAT of both source address and destination address External hosts access to internal servers Internal address to public interface address mapping NAT support for DNS Setting effective period for NAT NAT ALGs for NAT ALG, including DNS, FTP, H.323, ILS, MSN, NBT, PPTP, and SIP | |||||
VPN | L2TP VPN IPSec VPN GRE VPN SSL VPN | |||||
IPSEC VPN | ESP-DES-CBC/ESP-3DES-CBC/ESP-AES-128-CBC/ESP-AES-192-CBC/ESP-AES-256-CBC/ ESP-AES-128-GCM/ESP-NULL/SM1-cbc-128/SM4-cbc | |||||
IPSEC VPN Authentication Algorithm | MD5/SHA1/SM3 | |||||
IPv6 | IPv6 status firewall IPv6 attack protection IPv6 forwarding IPv6 protocols such as ICMPv6, PMTU, Ping6, DNS6, TraceRT6, Telnet6, DHCPv6 Client, and DHCPv6 Relay IPv6 routing: RIPng, OSPFv3, BGP4+, static routing, policy-based routing IPv6 multicast: PIM-SM, and PIM-DM IPv6 transition techniques: NAT-PT, IPv6 tunneling, NAT64 (DNS64), and DS-LITE IPv6 security: NAT-PT, IPv6 tunnel, IPv6 packet filter, RADIUS, IPv6 zone pair policies, IPv6 connection limit | |||||
IEEE | IEEE 802.1X | |||||
High availability | SCF 2:1 virtualization Active/active and active/standby stateful failover Configuration synchronization of two firewalls IKE state synchronization in IPsec VPN VRRP | |||||
Configuration management | Configuration management at the CLI Remote management through Web Device management through H3C IMC SSM SNMPv3, compatible with SNMPv2 and SNMPv1 Intelligent security policy | |||||
Environmental protection | EU RoHS compliance | |||||
EMC | FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB 9254 GB 17625.1 YD/T 993 | |||||
Safety | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
F1000-AI-10 | F1000-AI-15 | F1000-AI-25 | F1000-AI-35 | F1000-AI-55 | F1000-AI-60 | F1000-AI-70 | F1000-AI-65 | F1000-AI-75 | F1000-AI-80 | F1000-AI-90 | |
Firewall Throughput (1518Bytes) | 1.5Gbps | 2Gbps | 3Gbps | 4Gbps | 6Gbps | 8Gbps | 9Gbps | 10Gbps | 15Gbps | 20Gbps | 25Gbps |
Application layer throughput(DPI) | 600Mbps | 1.5Gbps | 2.5Gbps | 3Gbps | 3.5Gbps | 4.5Gbps | 4.5Gbps | 5Gbps | 5.5Gbps | 6Gbps | 15Gbps |
Application layer throughput(DPI+IPS) | 600Mbps | 1.5Gbps | 2.5Gbps | 3Gbps | 3.5Gbps | 4.5Gbps | 4.5Gbps | 5Gbps | 5.5Gbps | 6Gbps | 14Gbps |
NGFW throughput(DPI+IPS+AV) | 500Mbps | 1.2Gbps | 1.5Gbps | 2Gbps | 2.5Gbps | 4Gbps | 4Gbps | 4.5Gbps | 5Gbps | 5.5Gbps | 14Gbps |
IPSec tunnel (site-to-site) | 750 | 750 | 1000 | 2000 | 3000 | 4000 | 4000 | 4000 | 4000 | 8000 | 8000 |
IPSec throughput | 290M | 300M | 300M | 310M | 310M | 2G | 2G | 3.2G | 3.2G | 3.5G | 7.5G |
SSL VPN users | 750 | 1500 | 4000 | 4000 | 4000 | 6000 | 6000 | 6000 | 6000 | 8000 | 10000 |
SSL VPN throughput | 100M | 150M | 200M | 220M | 220M | 600M | 600M | 800M | 800M | 800M | 1.8G |
Maximum concurrent sessions | 0.9M | 2M | 2.5M | 2.5M | 5M | 5M | 5M | 5M | 5M | 10M | 10M |
Maximum New Connections per second | 15K | 20k | 30K | 40K | 50K | 80K | 80K | 100K | 120K | 150K | 240K |
Latency | <15μs | <15μs | <15μs | <15μs | <15μs | <15μs | <15μs | <15μs | <15μs | <15μs | <15μs |
License | Feature | Before license installation | After license expiration | Validity period |
LIS-F1000-LB | Server load balancing | Server load balancing is not available. | Server load balancing is available. | Permanent |
LIS-F1000-ACG | Application recognition (APR) | Updating APR signature library is not supported. | Updating APR signature library is not supported. | 1 year |
LIS-F1000-AV | Anti-virus | Anti-virus is not available and updating virus signature library is not supported. | Anti-virus is still available, but you cannot update the virus signature library or use the cloud query, enhanced inspection, and sandbox collaboration feature. | 1 year |
LIS-F1000-TI | Threat intelligence (including IP reputation, URL reputation, and domain reputation) | Threat intelligence is not available and updating threat intelligence signature library is not supported. | Threat intelligence is still available, but updating threat intelligence signature library is not supported. | 1 year |
LIS-F1000-IPS | IPS | IPS is not available and updating IPS signature library is not supported. | IPS is still available, but updating IPS signature library is not supported. | 1 year |
LIS-F1000-SSL | SSL VPN | The system supports only the default maximum number of SSL VPN users. | N/A | Permanent |
LIS-F1000-URL | URL filtering | URL cloud query is not available and updating URL signature library is not supported. | URL cloud query is not available and updating URL signature library is not supported. | 1 year |
LIS-F1000-WAF | WAF protection | WAF protection is not available and updating WAF signature library is not supported. | WAF protection is still available, but updating WAF signature library is not supported. | 1 year |
* virtual firewall share same license with physical firewall.
SecPath Series F1000-AI | |
H3C SecPath F1000-AI-10 Firewall Appliance | |
NS-F1000-AI-25 | H3C SecPath F1000-AI-25 Firewall Appliance |
NS-F1000-AI-35 | H3C SecPath F1000-AI-35 Firewall Appliance |
NS-F1000-AI-55 | H3C SecPath F1000-AI-55 Firewall Appliance |
NS-F1000-AI-60 | H3C SecPath F1000-AI-60 Firewall Appliance |
NS-F1000-AI-65 | H3C SecPath F1000-AI-65 Firewall Appliance |
NS-F1000-AI-70 | H3C SecPath F1000-AI-70 Firewall Appliance |
NS-F1000-AI-75 | H3C SecPath F1000-AI-75 Firewall Appliance |
NS-F1000-AI-80 | H3C SecPath F1000-AI-80 Firewall Appliance |
NS-F1000-AI-90 | H3C SecPath F1000-AI-90 Firewall Appliance |
Power Supply |
|
PSR150-A1-B | 150W AC Power Supply |
PSR150-D1-B | 150W DC Power Supply |
PSR250-12A1 | 250W AC Power Supply Module(Air Outlets in Panel) |
PSR450-12D | 450W DC Power Supply Module (Air Outlets in Panel) |
PSR450-12AHD | 450W HVDC Power Supply Module (AC/336V HVDC Input Supported, Air Outlets in Panel) |
Modules |
|
NSQM1GT4PFC | H3C SecPath F1000 Series PFC Card |
NSQM1TG4FBA | H3C SecPath F1000 Series, 4 Ports SFP+ Module |
NSQM1GP4FBA | H3C SecPath F1000 Series, 4 Ports SFP Module |
NSQM1NIMTG6A | H3C SecPath F1000 Series 6-Port Ten-Gigabit Ethernet Optical Interface Module(SFP+) |
Hard Disk |
|
NS-HDD-500G-SATA-SFF | H3C SecPath Series,500GB 2.5inch SATA HDD HardDisk Module |
NS-HDD-1T-SATA-SFF | H3C SecPath Series,1TB 2.5inch SATA HDD HardDisk Module |
NS-SSD-480G-SATA-SFF | H3C SecPath Series,480GB 2.5inch SATA SSD HardDisk Module |
License |
|
LIS-F1000-IPS1-1Y | H3C SecPath F1000,IPS Signature Update Service,1 Year |
LIS-F1000-IPS3-3Y | H3C SecPath F1000,IPS Signature Update Service,3 Years |
LIS-F1000-AV-1Y | H3C SecPath F1000,AV Anti-Virus Security License,1 Year |
LIS-F1000-AV-3Y | H3C SecPath F1000,AV Anti-Virus Security License,3 Years |
LIS-F1000-ACG1-1Y | H3C SecPath F1000,Application Signature Update Service,1 Year |
LIS-F1000-ACG3-3Y | H3C SecPath F1000,Application Signature Update Service,3 Years |
LIS-F1000-LB | H3C SecPath F1000,SLB License, permanent authorization |
LIS-F1000-SSL-25 | H3C SecPath F1000,SSL VPN for 25 Users |
LIS-F1000-SSL-125 | H3C SecPath F1000,SSL VPN for 125 Users |
LIS-F1000-SSL-500 | H3C SecPath F1000,SSL VPN for 500 Users |
LIS-F1000-SSL-1000 | H3C SecPath F1000,SSL VPN for 1000 Users |
LIS-F1000-URL-1Y | H3C SecPath F1000 URL Signature Update Service License,1 Year |
LIS-F1000-URL-3Y | H3C SecPath F1000 URL Signature Update Service License,3 Years |
LIS-IMC7-SVF1KA-25 | H3C iMC-SSL VPN Authentication Client-F1000-25 License |
LIS-IMC7-SVF1KB-125 | H3C iMC-SSL VPN Authentication Client-F1000-125 License |
LIS-IMC7-SVF1KC-500 | H3C iMC-SSL VPN Authentication Client-F1000-500 License |
LIS-IMC7-SVF1KD-1K | H3C iMC-SSL VPN Authentication Client-F1000-1000 License |
LIS-F1000-WAF-1Y | H3C SecPath F1000 WAF Signature Update License,1 Year |
LIS-F1000-WAF-3Y | H3C SecPath F1000 WAF Signature Update License,3 Year |
Transceivers |
|
SFP-GE-SX-MM850-A | 1000BASE-SX SFP Transceiver, Multi-Mode (850nm, 550m, LC) |
SFP-GE-LX-SM1310-A | 1000BASE-LX SFP Transceiver, Single Mode (1310nm, 10km, LC) |
SFP-GE-LH40-SM1310 | 1000BASE-LH40 SFP Transceiver, Single Mode (1310nm, 40km, LC) |
SFP-GE-LH40-SM1550 | 1000BASE-LH40 SFP Transceiver, Single Mode (1550nm, 40km, LC) |
SFP-GE-LH80-SM1550 | 1000BASE-LH80 SFP Transceiver, Single Mode (1550nm, 80km, LC) |
SFP-GE-LH100-SM1550 | 1000BASE-LH100 SFP Transceiver, Single Mode (1550nm, 100km, LC) |
SFP-XG-LX220-MM1310 | SFP+ Module(1310nm,220m,LC) |
SFP-XG-SX-MM850-A | SFP+ Module(850nm,300m,LC) |
SFP-XG-LX-SM1310 | SFP+ Module(1310nm,10km,LC) |
SFP-XG-LH40-SM1550 | SFP+ Module(1550nm,40km,LC) |
Services | |
SV-PS-SES-OS | Oversea Security Expert Service |
