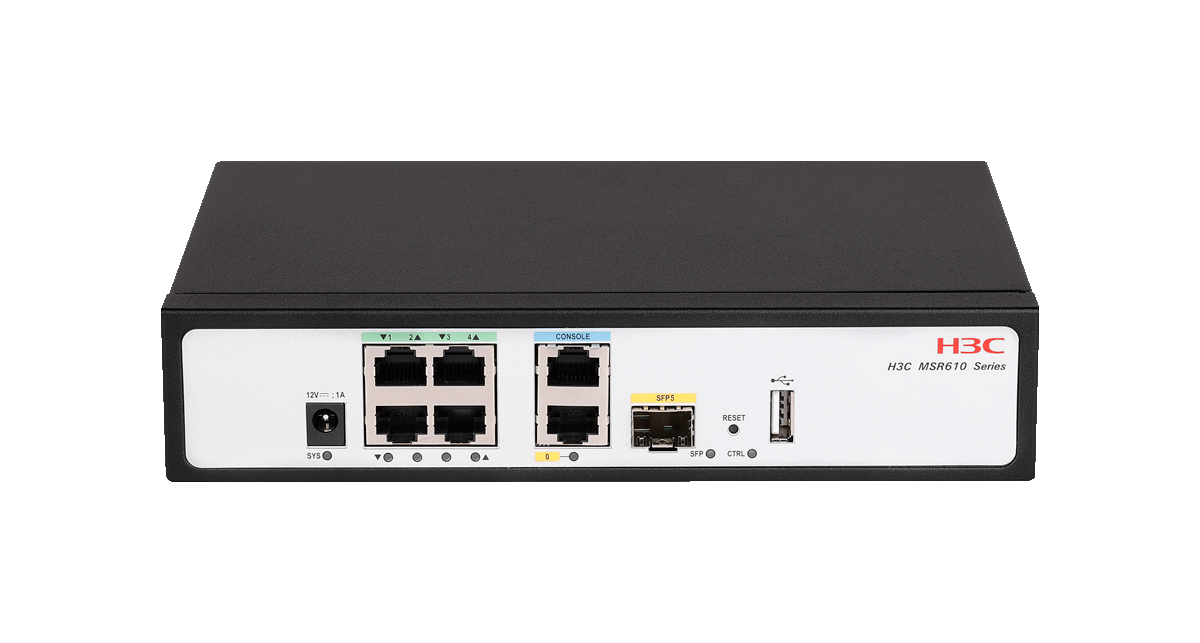

H3C MSR610 Router

Advanced technologies

Uses H3C's leading Comware network operating system to provide intelligent service scheduling management mechanism and supports loose coupling of different service modules as well as the dynamic loading of processes and patches.

Powerful security features

Service security

Packet filtering, including stateful filtering, MAC address filtering, IP and port number filtering, and time range filtering.

Real-time traffic analysis.

Network security

Rich and comprehensive VPN technologies, including IPSec, L2TP, GRE and mix usage of different VPN technologies.

Routing security protection, including OSPF/RIP/IS-IS/BGP dynamic routing protocol IPSec encryption and rich routing policy control functions.

End device access security

Unified endpoint access binding authentication, including EAD secure check authentication, 802.1X authentication, endpoint MAC address authentication, web-based portal authentication, endpoint access static binding, and MAC address auto-learning and binding.

ARP attack prevention, including fixed source MAC address, ARP attack protection, ARP source suppression, ARP detection, source MAC consistency checks and protection, ARP rate limit, and ARP active acknowledgement mechanism.

Equipment management security

Role-based access control that allocates resources based on roles and provides users and roles mapping.

Control plane traffic restriction, traffic control and filtering based on protocol type, queue, known protocol and specific protocol.

Remote security management, such as SNMPv3, SSH, and HTTPS remote management.

Management behavior control and audit, including AAA server central authentication, command line authority and real-time report of operation records.

Granular control

Uses granular identification and control to rate limit and filter application layer services and ensure bandwidth and provides detailed network statistics for network optimization.

Performs load balancing based on bandwidth, user, user group, service, or application by using asymmetric link, traffic load balancing, and multi-topology dynamic routing technologies.

Supports flexible bandwidth sharing based on service, user, user group, link, and user bandwidth.

Intelligent network management

Cloudnet APP management

Comprehensive network management methods—Supports command line and SNMP.

Zero-configuration setup—Enables zero configuration setup, USB-based and URL-based automatic configuration.

Comware embedded EAA function—Monitors the internal events and status of the system's software and hardware components. If a fault occurs, it collects diagnostic information and attempts to make automatic repairs as well as sending the diagnostic information to a specific email address.

High availability

Independent hardware processing module for monitoring and programmable components that supports online upgrade and auto loading to strengthen product reliability.

Millisecond link fault detection technology Bidirectional Forwarding Detection (BFD) and Track between BFD and static routing, RIP/OSPF/BGP/ISIS dynamic routing, or interface backup.

Network quality analyzer (NQA) and Track between NQA and static routing, or interface backup.

Wireless AC function:

Maximum support for 64 APs, suggestion support for 8-16 APs (MSR610 has no license by default, need to purchase). Can configure automatically and plug and play, Support unified management, configuration, and upgrade for wireless AP.

Complete authentication technology for wireless terminals, support 802.1X/MAC/Portal authentication function.

Oasis management platform:

With the Oasis Cloud Management Platform, enterprises can enjoy professional network management and operation and maintenance services without building professional management servers and software, greatly reducing the investment cost of enterprise users' network management and improving the network operation and maintenance management experience.

Hardware specifications

Software specifications

AP management: AP access, AP configuration parameter delivery, AP version upgrade, AP restart, AP information display

Chain enterprises wireless marketing solution

For commercial chain enterprises, MSR610 routers are ideal wireless coverage products for their branches and outlets. One MSR610 router itself can provide network security, routing, and switching services for an outlet, simplifying network deployment and management. The IMC and service platforms deployed at the center perform centralized management for the branches and outlets, improving the network deployment and management efficiency.

One MSR610 itself deployed at the outlet can provide network security, wireless connection, routing, and switching services.

The MSR610 can store PHP dynamic webpages, pictures, flashes, videos, etc. and push the advertising and multimedia contents to the clients if they come online, which avoids occupying the network bandwidth.

The router supports online activity management and audit and performs granular traffic control.

Chain enterprises marketing solution
