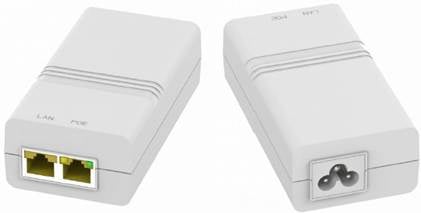

PoE Injector EWPAM1HPOE

Datasheet Download

Learn More

The following contents are complex, and it is recommended to browse on PC.

Enter c.h3c.com.cn on the PC browser and operate according to the page to synchronize to the PC and continue browsing.

Continue by mobile

Features
Resources

Features

Model	EWPAM1HPOE
Dimensions(L,W,H)	107.3mm X 56.0mm X 34.5mm
Weight	157g
AC Power Cord	80cm, deliver according to country or area
Input	100-240Vac, 1.0A, 50/60Hz
POE Output	30.25W, 55V±2% @0.55A
Power Pins	4, 5 (+) and 7, 8 (-)
Connectors	Shielded RJ-45, EIA 568A and 568B
Data Rates	100/1000/2500Mbps
Operating Temperature	-10℃ to 45℃
Operating Humidity	10% to 90%, non-condensation
Storage Temperature	-40℃ to 85℃
Reliability	MTBF: 200,000 hrs @ 25ºC
Operating Altitude	Up to 5000 meters
Surge Protection (both PoE port and Power port)	EN61000-4-5 Perfomance B Common Mode 4KV Difference Mode 2KV
Weather Rating	IP41
Inrush Current	30A MAX, at 115Vac, Cold Start 60A MAX, at 230Vac, Cold Start
Average active efficiency	≥85% （230Vac）
No-load power consumption	0.5W
Output Ripple	<200mV
AC Connector	IEC-320 C6
Certifications	CE, CB, FCC, CCC
