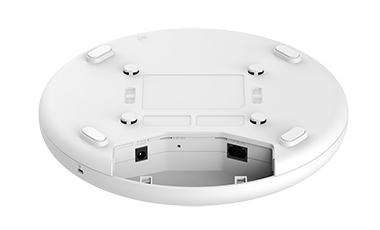

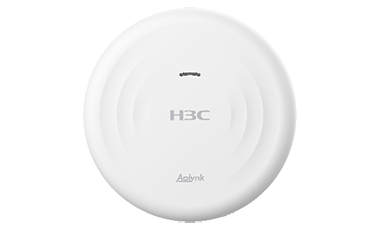

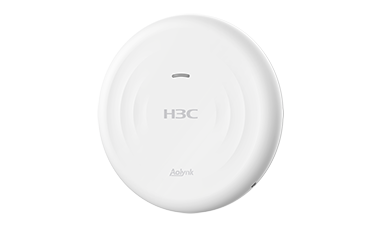

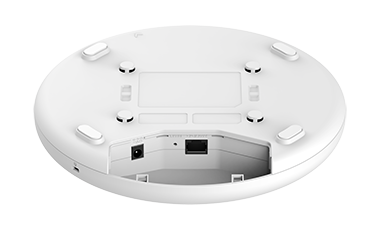

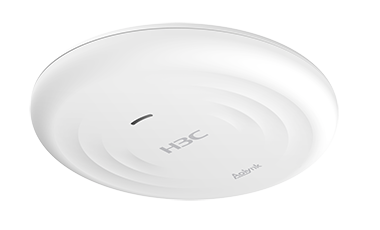

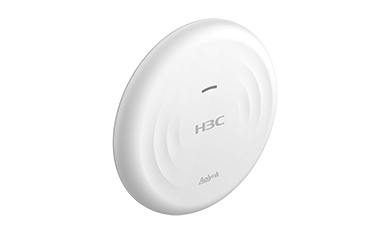

H3C Aolynk UAP622G-AX15 Ceiling-Mounted 802.11ax Wireless Access Point

Supports OFDMA technology

Supports OFDMA (Orthogonal Frequency Division Multiple Access) technology. The AP can subdivide wireless bandwidth and use different subcarriers to transmit data to multiple terminals simultaneously at the same time, reducing the delay caused by air interface resource conflicts and backoff in traditional protocols among multiple users, and improving the user experience of low-latency applications such as voice and video in multi-user scenarios.

Support Spatial Reuse technology

Supports SR (Spatial Reuse) technology and BSS Coloring coloring mechanism. By identifying the color of the message at the link layer to control the terminal to adjust the transmission power, it enhances the channel reuse capability in high-density deployments, alleviates the problem of co-channel interference during multi-user usage, and significantly improves the utilization rate of spectrum resources.

Support TWT technology

Supports TWT (Target Wake Time) technology, allowing the AP to uniformly schedule the wake-up and sleep of terminals. This not only reduces conflicts among terminals but also reduces unnecessary wake-ups of terminals, achieving the purpose of energy conservation.

Plug and play

The UAP622G-AX15 supports plug and play. When connected to cloud platform or Aolynk UR gateways, UAP622G-AX15 provides wireless services after powering on, making it easy to start and expand.

Support Aolynk UR gateway management

UAP622G-AX15 can be managed by the Aolynk UR gateways. It supports various management functions, such as wireless service configuration, RF configuration, firmware update, VLAN modification, and reset.

Support self-organizing network

The self-organizing network feature include fast deployment, fast configure, fast tuning, fats troubleshooting, and fast cloud access. It supports automatic discovery among devices, automatic establishment of topology and management, plug and play of new devices, automatic management, and automatic synchronization of configuration. The self-organizing network feature greatly simplifies user deployment and configuration in small and micro scenarios, improves user experience, provides users with better O&M through edge computing, reduces user costs.

Highly reliability

Highly Reliability is the foundation of good network. UAP622G-AX15 supports customized network link detection and a variety of network analysis tools, including a variety of hang detection and fault detection, so that you can easily find network problems. At the same time, it supports multiple fault recovery mechanisms to ensure stable network operation.

Aolynk Cloud network management platform

With the Aolynk Cloud network management platform, enterprises can enjoy professional network management and operation and maintenance services without having to purchase professional management servers and software, which greatly reduces the cost of network management for enterprise users and improves the network operation and maintenance management experience.

You can remotely log in to the web of device through the Aolynk Cloud network management platform for function configuration and remote diagnosis.
