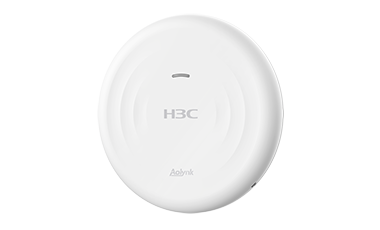

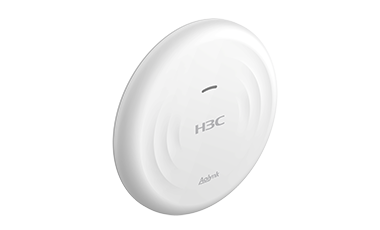

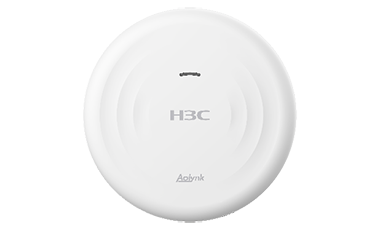

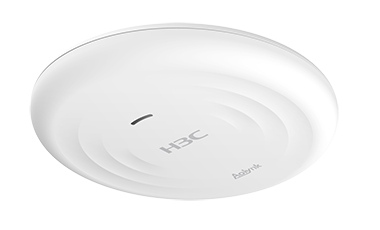

H3C Aolynk UAP522G-AC13 Ceiling-Mounted 802.11ac Wireless Access Point

Datasheet Download

H3C Aolynk UAP522G-AC13 is a Wi-Fi 5 (802.11ac) Ceiling-Mounted AP product developed by New H3C Technologies Co., Ltd. (H3C). The AP adopts a dual-radio and four-stream design, and the maximum access rate is 1267Mbps. The signal coverage quality is superior, meeting the wireless coverage requirements of indoor scenarios such as small, medium and micro enterprises, hospitals, schools, catering, hotels and entertainment.

UAP522G-AC13 provides flexible management mode, which is suitable for different scenarios:

Cloud management mode: With cloud remote management, monitoring, cloud operation and maintenance, network optimization and other industry-leading capabilities. Cloud management mode is the preferred management mode of this device which is suitable for networking requirements of various scales

Local web management mode: Supports Uweb management of Aolynk UR gateway. This mode applies to local web management.

* Note: For the corresponding management relationship with the gateway, refer to the release notes.

Learn More

The following contents are complex, and it is recommended to browse on PC.

Enter c.h3c.com.cn on the PC browser and operate according to the page to synchronize to the PC and continue browsing.

Continue by mobile

Features

Support OFDM technology

Support OFDM (Orthogonal Frequency Division Multiplexing) technology, convert high-speed data signals into parallel low-speed sub-data streams for transmission over different channels, eliminate inter-code crosstalk, and can flexibly allocate sub-channels to different users, achieve multi-user access.

Plug and play

The UAP522G-AC13 supports plug and play. When connected to cloud platform or Aolynk UR gateways, UAP522G-AC13 provides wireless services after powering on, making it easy to start and expand.

Support Aolynk UR gateway management

UAP522G-AC13 can be managed by the Aolynk UR gateways. It supports various management functions, such as wireless service configuration, RF configuration, firmware update, VLAN modification, and reset.

Support self-organizing network

The self-organizing network feature include fast deployment, fast configure, fast tuning, fats troubleshooting, and fast cloud access. It supports automatic discovery among devices, automatic establishment of topology and management, plug and play of new devices, automatic management, and automatic synchronization of configuration. The self-organizing network feature greatly simplifies user deployment and configuration in small and micro scenarios, improves user experience, provides users with better O&M through edge computing, reduces user costs.

Highly reliability

Highly Reliability is the foundation of good network. UAP522G-AC13 supports customized network link detection and a variety of network analysis tools, including a variety of hang detection and fault detection, so that you can easily find network problems. At the same time, it supports multiple fault recovery mechanisms to ensure stable network operation.

Aolynk Cloud network management platform

With the Aolynk Cloud network management platform, enterprises can enjoy professional network management and operation and maintenance services without having to purchase professional management servers and software, which greatly reduces the cost of network management for enterprise users and improves the network operation and maintenance management experience.

You can remotely log in to the web of device through the Aolynk Cloud network management platform for function configuration and remote diagnosis.

Specification

Hardware specifications

Name	UAP522G-AC13
Dimensions	220mm×220mm×35mm
Weight	380g

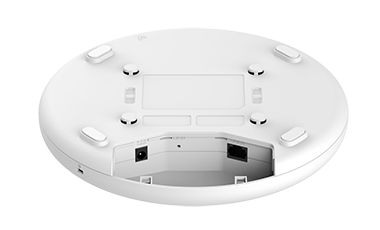

Fixed port	Uplink: 1 10/100/1000Mbps auto-negotiated Ethernet uplink port (PoE powered)
PoE	Support 802.3at power supply
Case color	White
Built-in antenna	Built-in omni-directional antenna (2.4GHz: 3dBi; 5GHz: 4dBi)
Radio frequency&MIMO	Radio1: 5G, 2x2, 866.7Mbps Radio2: 2.4G, 2x2, 400Mbps
Working frequencies	2.400 to 2.4835GHzISM 5.150 to 5.250GHzU - NII - 1 5.250 to 5.350GHzU - NII - 2A 5.470 to 5.725GHzU - NII - 2C 5.725 to 5.850GHzU - NII - 3/ISM Note: The available operating band varies according to the country of use of the device, depending on the country of final use of the device
Modulation technology	OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps
Modulation mode	11b: DSSS: [email protected]/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Transmit power	2.4G: 23.5 dBm 5G: 22.5 dBm Note: Antenna gain is not included, the actual power is adjusted according to different national regulations
Adjustable power granularity	10%
Operating temperature/storage temperature	0ºC ~ 45ºC/-40ºC ~ 70ºC
Operating humidity/storage humidity	5% to 95% (non-condensing)/ 5% to 95% (non-condensing)
Power consumption	≤11.35 W
MTBF	2229720 hrs
Certification	CE, CB, RoHS

Software Specifications

Features	Description
802.11 protocol	802.11 a
	802.11 b
	802.11 d
	802.11 e
	802.11 g
	802.11 h
	802.11 I
	802.11 n
	802.11 ac
	802.11 k
	802.11 v
WLAN security	RSN
	WPA3
	WPA2
	WPA
	TKIP
	CCMP
	Open system
	PSK
	MAC address Blacklist
	MAC address whitelist
	Blacklist of domain names
Wireless services	SSID configuration
	Hide SSID configuration
	RF binding wireless service
	Bind service template to VLAN
	User rate Limiting
	Country code configuration
Radio frequency management	Power Settings
	Channel Settings
	DFS
	RF switch
	RF mode
WRRM	5G first
	802.11g protection
	802.11n protection
RRM	Automatic optimization, manual optimization
User isolation	VLAN-based user isolation
Weak signal optimization	Disable weak signal clients access
Weak signal optimization	Actively triggers re-association of weak-signal clients
Wireless optimization	Roaming sensitivity adjustment
Wireless optimization	Maximum number of clients based on Radio
Network protocols	ARP
	ARP SNOOPING
	ICMP
	NTP client
	DNS client
	TCP/UDP
	DHCP Wi-Fi Server
	DHCP Client
	DHCP option 43
	HTTP
	IPV6 (only support IP address acquisition and data forwarding)
	LLDP
	802.1 q
VLAN	SSID-based VLAN
VLAN	Port-based VLAN
Forwarding	Layer 2 forwarding
Self-organizing network	Self-organizing Network
Maintenance	Firmware brick recovery
	Configuration and log collection
	Port-based rate statistics
	Terminal trend statistics based on wireless services
	Traffic statistics based on wireless services
	Radio-based terminal trend statistics
	Radio-based Wi-Fi channel utilization statistics
	Displays the IP addresses of all VLANs
	PING tool
	Traceroute
	Connectivity Detection
	Quickly detect gateway address
Equipment management	Change login password
	AP indicator switch
	Flashing light for AP
	Configuration Import
	Factory restore
	Reboot
	Timed reboot
	Configure Aolynkcloud address and port
	Self-unbind function
	Set the date time and time zone
	Self-organizing network switch
	Change IP address of VLAN where the management Wi-Fi resides
Firmware upgrade	Online Upgrade
	Offline upgrade
	New firmware alert
User interface	Cloud management
User interface	Local Web management
Performance specifications	Maximum number of wireless terminal access is 256 (theoretical value)
	Maximum SSID supported by all RFs is 8 (including 1 managed Wi-Fi) Radio1: 0~8个；Radio2: 0~8个 Note: Users can freely combine the number of SSIDs supported under each radio frequency according to their actual needs.
	Maximum number of network management devices in Self-organizing network is 32 (TM is AP)

Note: All performance specifications are recommended by comprehensive evaluation in specific laboratory environment. There may be differences based on the actual environment on site.
