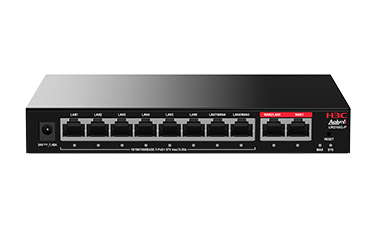

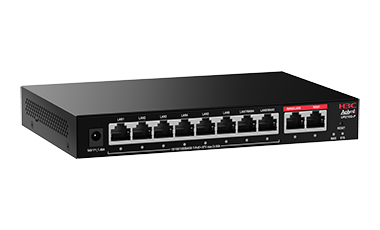

H3C Aolynk UR210G-P high-performance enterprise PoE gateway

High-performance business processing capability

Using high-performance dual-core CPU, combined with H3C's advanced hardware and software technology, to provide gigabit concurrent processing capabilities and excellent network experience

NAT sessions: 40,000

Multiple WAN load balance

2 WANs by default, 2 LAN ports can be switched to WAN ports, up to 4 WANs can be accessed concurrently

Multiple WAN link load balancing modes are supported, such as telecom operator destination address based, WAN link bandwidth based, and policy-based routing

Built-in telecom operator address library, and provide one-click download official website of the latest carrier address library, easy to operate

Behavior control

Support HTTP and HTTPS URL filtering, website blacklist and whitelist, keyword fuzzy matching

Support the firewall function of packet filtering to flexibly define traffic control policies

Support the IP-based network traffic rate limiting mechanism

Network management

Support Uweb management, configuration and upgrade of H3C Aolynk series wireless APs and switches

Zero configuration of AP and switch, plug and play

Enterprise-level VPN

Support IPSec VPN, Support a variety of encryption algorithms, and facilitates enterprises to build virtual private networks over the Internet

Support hardware VPN encryption engine and provides high-speed VPN encryption capability

Support L2TP VPN and LNS and LAC modes

Aolynk Cloud network management platform

With the Aolynk Cloud network management platform, enterprises can enjoy professional network management and operation and maintenance services without having to purchase professional management servers and software, which greatly reduces the cost of network management for enterprise users and improves the network operation and maintenance management experience.

You can remotely log in to the web of device through the Aolynk Cloud network management platform for function configuration and remote diagnosis.

Small and medium sized network egress gateway

UR210G-P, as an gateway for small and medium-sized networks, provides excellent Internet experience through professional software and hardware platforms. And it Support intelligent management and operation and maintenance through Aolynk Cloud network management platform, which reduces the cost of network management and operation and provides a good network management experience.

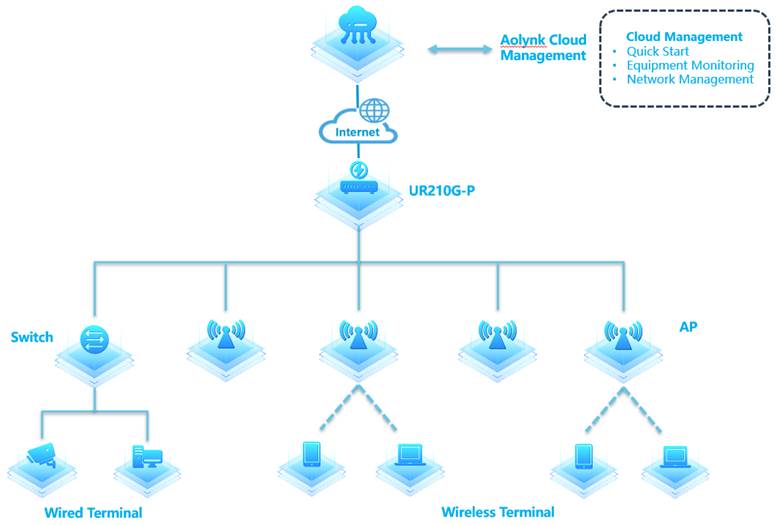

Small and medium-sized network gateway networking diagram

Multi-function integrated device, integrated PoE power supply, can directly power AP and camera, simplify networking. Its small size can adapt to a variety of scenes

Support multiple Ethernet WAN interfaces, which can be connected to multiple lines of the same or different telecom operator for load balancing

Support Uweb network management, and realizes the integrated wired and wireless networking of the enterprise Internet

Support intelligent network management and maintenance through the Aolynk Cloud network management platform, reducing cost and providing network management experience
