Products and SolutionsH3C S6526XE-EI Series Advanced Aggregation 10GE Switches
H3C S6526XE-EI series switches — Industry-leading high performance and scalable 10GE access switching solution with modular dual power, fixed or modular uplinks (10GE/25GE/40GE/100GE) and IRF for resiliency. The series offers OSPF/BGP and multicast, SDN enabled and flexible management.
H3C S6526XE-EI series switches contain the following models:

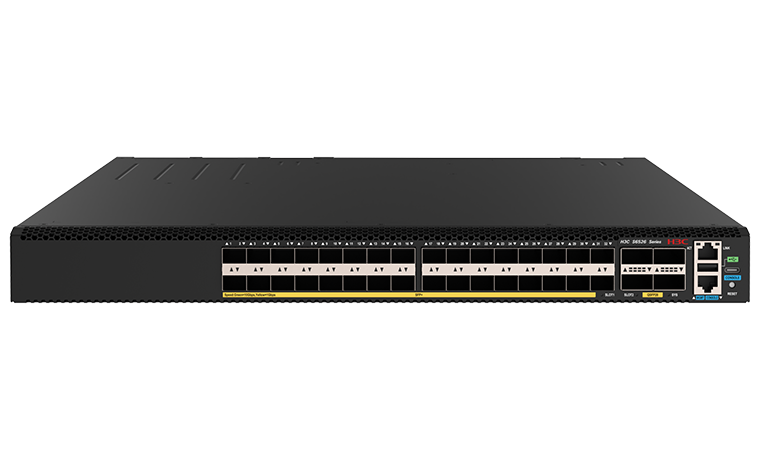

H3C S6526XE-32X4CC-EI: 32 × 1G/10G SFP+ Ports, 4 × 40G/100G QSFP28 Ports, and 2 × Slot

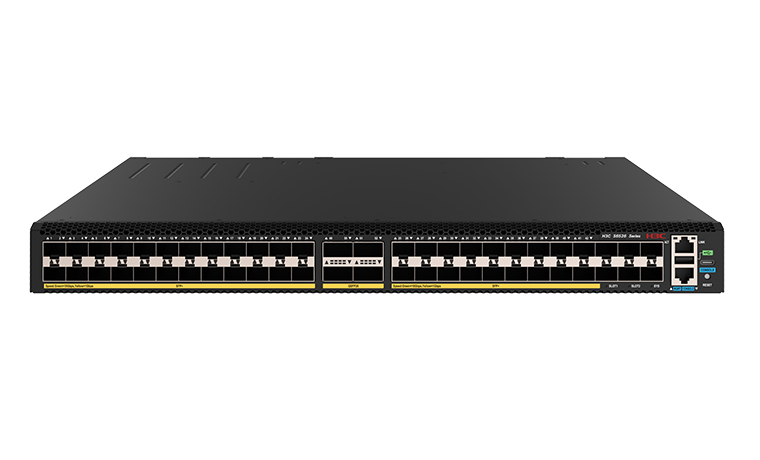

H3C S6526XE-48X4CC-EI: 48 × 1G/10G SFP+ Ports, 4 × 40G/100G QSFP28 Ports, and 2 × Slot
The following contents are complex, and it is recommended to browse on PC.
Enter c.h3c.com.cn on the PC browser and operate according to the page to synchronize to the PC and continue browsing.
Continue by mobile
Open Application Architecture
In H3C open application architecture (OAA), the switch can accommodate high-performance OAP modules to offer dedicated services such as firewall, IPS, or load balancing in addition to conventional forwarding services. By installing OAP modules, the customers can use the switch as a multiservice device without having to buy separate service appliances, such as a firewall device.
High-Density 10GE Forwarding
The switch offers high-density 10GE forwarding and can expand 10GE ports flexibly. It provides 48/32*10/1GE autosensing SFP+ ports, 4*QSFP28 ports with two expansion slots that support up to modules range from GE to 10GE, 25GE, 40GE, 100GE and Multigiga ports. Using a QSFP+ to SFP+ splitter cable, you can split a QSFP+ port into four line-rate 10GE SFP+ ports. Max 72*10GE supported on one single switch.
Embedded Access Controller
H3C S6526XE-EI implements the WLAN function by installing an AC feature pack on the main control unit, thereby implementing both the wired function and the WLAN function on a single device. Embedded AC is a low-cost WLAN solution, save overall investment, improve forwarding capacity, realized a true unified wired and wireless solution in Campus. Max 2K APs supported on one single switches.
H3C Intelligent Resilient Framework 2 (IRF2)
H3C Intelligent Resilient Framework 2 (IRF 2) virtualizes multiple S6526XE-EI switches into one virtual switch and provides the following benefits:
High availability: The H3C proprietary routing hot backup technology ensures redundancy and backup of all information on the control and data planes and non-stop Layer 3 data forwarding in an IRF 2 fabric. It also eliminates single point of failure and ensures service continuity.
Redundancy and load balancing: The distributed link aggregation technology supports load sharing and mutual backup among multiple uplinks, which enhances the network redundancy and improves link resources usage.
Flexibility and resiliency: The switch use standard GE ports instead of specialized ports for IRF links between IRF member devices. This allows customers to assign bandwidth as needed between uplink, downlink, and IRF system connections. In addition, an S6526XE-EI IRF fabric can span a rack, multiple racks, or multiple campuses.
Wide Range of Advanced Features
The switch offers a wide range of features, including:
Modular hardware and software design: The switch uses modular, hot swapping, and redundancy design for hardware, including power modules and fan trays. The switch also uses modular design for software, which enables feature installation and removal on an as-needed basis. Refined physical architecture and optimized software workflows greatly reduce the end-to-end packet processing delay.
Software-defined networking (SDN): An innovative network architecture that separates the control plane from the forwarding plane, typically by using OpenFlow. SDN significantly simplifies network management, reduces maintenance complexities and costs, enables flexible traffic management, and offers a good platform for network and application innovations.
Virtual eXtensible LAN (VXLAN): A MAC-in-UDP technology that provides Layer 2 connectivity between distant network sites across an IP network. VXLAN enables long-distance virtual machine and data mobility and is typically used in data centers and the access layer of campus networks for multitenant services. The H3C implementation of VXLAN supports automatic VXLAN tunnel establishment with EVPN.
Ethernet Virtual Private Network (EVPN): A Layer 2 VPN technology that provides both Layer 2 and Layer 3 connectivity between distant network sites across an IP network. EVPN uses MP-BGP in the control plane and VXLAN in the data plane. EVPN provides the following benefits: Configuration automation; Separation of the control plane and the data plane; Integrated routing and bridging (IRB).
In-Service Software Upgrade (ISSU) and Operation, Administration, and Maintenance (OAM): Ensure business continuity and improve Ethernet management and maintainability.
Comprehensive Security Control Policies
The switch supports AAA authentications (including RADIUS authentication) and dynamic or static binding of user identifiers such as user account, IP address, MAC address, VLAN, and port number. Using the switch in conjunction with H3C IMC, you can manage and monitor online users in real time and take prompt action on illegitimate behaviors.
The switch offers a large number of inbound and outbound ACLs and VLAN-based ACL assignment. This simplifies configurations and saves ACL resources.
High Availability
In addition to node and link protection, the switch offers the following hardware high availability features:
1+1 power module redundancy and 1+1 fan tray redundancy.
Hot-swappable interface modules.
Automatic power and fan tray status monitoring and alarming mechanisms.
Automatic fan speed adjustment based on the change in temperature.
Self-protection mechanisms that protect power modules against overcurrent, overvoltage, and overtemperature conditions.
Outstanding Management Capacity
The switch provides a variety of management features and is easy to manage. It offers the following device management features:
Provides multiple management interfaces, including the console port, Type-C console port, out-of-band management Ethernet port, and USB port.
Supports configuration and management from CLI or H3C IMC Intelligent Management Center.
Supports multiple access methods, including SNMPv1/v2c/v3, Telnet, and more secure SSH 2.0 and SSL.
Uses OAM to enhance system management capability.
Supports FTP for system upgrade.
Smart Management Center (SmartMC)
SmartMC is H3C's latest offering and innovation that helps small and middle size enterprise network to address management issue and is free of charge, easy to use web management tool. SmartMC is embedded network management tool into the switch, it includes commander switches and other access switches.
SmartMC delivers the following benefits:
Intelligent operation: once the switch is powered on and SmartMC function is enabled, topology will be created automatically, and user can go enhanced web GUI to check the latest status.
Centralized management: all management can be achieved via commander switch such as centralized configuration backup, and software version management, increasing working efficiency.
One key device replacement: in case of one switch failure, the new added same type switch can download the same configuration and work as old switch immediately.
Multichassis Link Aggregation Group (M-LAG)
H3C S6526XE-EI series switches support M-LAG, which enables links of multiple switches to aggregate into one to implement device-level link backup. M-LAG is applicable to servers dual-homed to a pair of access devices for node redundancy.
Streamlined topology: M-LAG simplifies the network topology and spanning tree configuration by virtualizing two physical devices into one logical device.
Independent upgrading: The DR member devices can be upgraded independently one by one to minimize the impact on traffic forwarding.
High availability: The DR system uses a keepalive link to detect multi-active collision to ensure that only one member device forwards traffic after a DR system splits.
Visualization Ability
H3C S6526XE-EI series switches support Telemetry technology, which can send the switch's real-time resource information and alarm information to the O&M platform through the gRPC protocol.
The platform can realize network quality backtracking, troubleshooting, risk early warning, architecture optimization and other functions to accurately guarantee user experience by analyzing real-time data.
Hardware Specifications
S6526XE-32X4CC-EI | S6526XE-48X4CC-EI | |
CPU | Quad core, 2GHz | |
Flash/SDRAM | 4GB/4GB | |
Packet Buffer | 32M | |
Port Switching capacity | 2240Gbps | 2560Gbps |
Packet forwarding rate | 1002Mpps | 1002Mpps |
Latency | 10GE:<3 (64byte/us) 100GE:<1 (64byte/us) | |
Dimensions (H × W × D) | 44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in) | |
Weight | ≤ 8.1 kg | ≤ 8.2 kg |
Console ports | 1 RJ45 and 1 Type-C | |
Management Ethernet ports | 1 RJ45 port (Out Of Band) | |
USB ports | 1 | |
SFP+ | 32 | 48 |
QSFP28 | 4 | 4 |
Expansion slots | 2 | 2 |
Input voltage range | AC: Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz | |
HVDC: Rated voltage range: 240V DC Max voltage range: 180V～320V DC | ||
DC: Rated voltage range: –48 to –60 VDC Max voltage range: –36 to –72 VDC | ||
Power Supply slots | 2 hot swappable | |
Fan trays | 2 hot swappable | |
Power consumption (Minimum) | Single AC: 75W Dual AC： 83W Single DC: 74W Dual DC: 82W | Single AC:72W Dual AC：82W Single DC:72W Dual DC: 81W |
Power consumption (30% traffic load, based on Alliance for Telecommunications Industry Solutions (ATIS) | Single AC: 91W Dual AC： 98W Single DC: 94W Dual DC: 101W | Single AC:100W Dual AC：108W Single DC:103W Dual DC: 112W |
Power consumption (100% traffic load, based on Alliance for Telecommunications Industry Solutions (ATIS) | Single AC: 239W Dual AC： 243W Single DC: 249W Dual DC: 250W | Single AC: 275W Dual AC： 277W Single DC: 279W Dual DC: 283W |
Operating temperature | -5ºC to 45ºC (23°F to 113°F) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. | |
Storage temperature | -40℃ to 70℃(-40℉ to 158℉) | |
Operating & storage humidity | 5% RH to 95% RH, non-condensing | |
MTBF(Year) | 41.02 | 39.98 |
MTTR(Hour) | 1 | 1 |
Note:This content is applicable only to regions outside mainland China.H3C reserves the right to interpret the content.
Software Specifications
Feature | S6526XE-EI switch series |
VLAN | VLAN ID range 0 to 4095(Total 4096, 0 and 4095 are reserved) Access/Trunk/Hybrid VLAN port-based VLAN MAC-based VLAN IP subnet-based VLAN protocol-based VLAN IEEE 802.1P(CoS priority) Super VLAN Private VLAN Voice VLAN QinQ (802.1Q-in-802.1Q) Vlan mapping Static/Dynamic/Blackhole/Multiport unicast MAC MAC automatic learning and aging port-based/VLAN-based MAC learning limit MAC filter port isolation Loop detection (VLAN and VXLAN network) MVRP (Multiple VLAN Registration Protocol) GVRP (Generic VLAN Registration Protocol) STP (Spanning tree protocol) RSTP (Rapid Spanning Tree Protocol) MSTP (Multiple Spanning Tree Protocol) PVST (Per-VLAN Spanning Tree) (compatible with PVST+/RPVST+) BPDU/root/loop/TC-BPDU/PVST BPDU/dispute loopback guard BPDU filter role/TC-BPDU transmission restriction LLDP (Link Layer Discovery Protocol) and LLDP-MED DCBX (Data Center Bridging Exchange Protocol) Broadcast/multicast/unknown unicast storm constrain Jumbo frame Store-and-forward (Default) Cut-through-forward |
Ethernet link aggregation | static aggregation dynamic aggregation 10GE/25G/40GE/100GE port aggregation LACP (Link Aggregation Control Protocol) S-MLAG M-LAG (Multichassis Link Aggregation) |
IP Services | Static/Dynamic/Gratuitous/proxy ARP ARP snooping/fast-reply/direct route advertisement/ping ARP attack detection ARP source suppression DHCP (Dynamic Host Configuration Protocol) DHCP Server/relay agent/client/snooping DNS (Domain Name System) DDNS (Dynamic Domain Name System) mDNS (Multicast Domain Name System) IRDP (ICMP Router Discovery Protocol) UDP helper ND (Neighbor Discovery) ND snooping/proxy/direct route advertisement/ping DHCPv6 Server/relay agent/client/snooping/guard GRE (Generic Routing Encapsulation) HTTP redirect GRE tunneling VXLAN tunneling and VXLAN-DCI tunneling IPv4/IPv6 over IPv4 tunneling, and IPv4/IPv6 over IPv6 tunneling IPv4/IPv6 Fast Forwarding |
Routing | Static routing, RIP, OSPF, IS-IS, and BGP IPv4/IPv6 dual stack IPv4/IPv6 ECMP (Equal-cost multi-path routing) IPv4/IPv6 PBR (Policy-based routing) IPv4/IPv6 Routing policy IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+ Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6 Dual-stack PBR |
Multicast | PIM-DM, PIM-SM, PIM-SSM, and Any-RP PIM snooping MSDP (Multicast Source Discovery Protocol) IGMPv1/IGMPv2/IGMPv3 IGMP proxying IGMP Snooping IGMP snooping proxying IGMP Filter and IGMP Fast leave IPv6 PIM-DM, PIM-SM, PIM-SSM, and Any-RP IPv6 PIM snooping MLDv1/MLDV2 MLD proxying MLD Snooping MLD snooping proxying Multicast routing and forwarding Multicast VLAN MVPN (Multicast VPN) Multicast policy and Multicast QoS |
ACL/QoS | ACL (Access Control List) advanced ACL User-defined ACL Ingress and Egress ACL Ingress/Egress CAR Diff-Serv QoS Eight queues on a port 802.1P/DSCP Priority marking and remarking 802.1p, TOS, DSCP, and EXP priority mapping Flexible queue scheduling algorithms including SP, WRR, SP+WRR, WFQ, SP+WRR Traffic shaping Time ranges Traffic classification based on source MAC, destination MAC, source IP, destination IP, port, protocol, and VLAN Congestion avoidance, Tail-Drop, RED (Random Early Detection) and WRED(Weighted Random Early Detection) |
MPLS | Static LSP (label switched path) LDP (Label Distribution Protocol) IPv6 LDP Tunnel policies VRF MPLS L2VPN MPLS L3VPN MPLS Ping/Tracert MCE (Multi-VPN Instance Customer Edge) IPv6 MCE MPLS OAM |
Security | RBAC (Role-based access control) AAA (Authentication, Authorization, and Accounting) RADIUS (Remote Authentication Dial-In User Service) TACACS (Terminal Access Controller Access Control System) HWTACACS (HW Terminal Access Controller Access Control System) (Same authentication processes and implementations with TACACS+) 802.1X authentication Portal authentication MAC authentication Web authentication Triple authentication Port security SSH1.x and SSH2.0 (Secure Shell) SSL (Secure Sockets Layer) HTTPs Public Key Infrastructure (PKI) Control Plane Protection (CoPP), Wireless Intrusion Prevention System (WIPS) Attack detection and prevention TCP attack prevention IPSG (IP source guard) IPv6 RA Guard ARP attack protection ND attack protection uRPF (Unicast Reverse Path Forwarding) MFF (MAC-forced forwarding) SAVI (Source Address Validation Improvement) FIPS (Federal Information Processing Standards) MACsec (Media Access Control Security) Microsegmentation Hierarchical user management and password protection EAD (Endpoint Admission Defense) Basic and advanced ACLs for packet filtering OSPF, RIPv2, BGPv4 plain text and MD5 authentication |
High Availability | Ethernet OAM (IEEE 802.3ah) CFD (Connectivity Fault Detection) (IEEE 802.1ag and ITU-T Y.1731) DLDP (Device Link Detection Protocol) RRPP (Rapid Ring Protection Protocol) ERPS (G.8032 Ethernet Ring Protection Switching) Smart Link Monitor Link VRRPv2(Virtual Router Redundancy Protocol) VRRPv3 BFD (Bidirectional forwarding detection) Hardware BFD BFD for VRRP/BGP/IS-IS/OSPF/RSVP/static routing, with a failover detection time less than 50 milliseconds Track Process redundancy/placement CPU protection Hot patching Link aggregation VCT (virtual cable test) Smart-Link Secure boot ISSU (In-Service Software Upgrade) |
Network Management | NQA (Network quality analyzer) iNQA (Intelligent Network Quality Analyzer) performance management through gRPC or NETCONF NTP (Network Time Protocol) PTP (Precision Time Protocol) IEEE 1588 version 2/IEEE 802.1AS/SMPTE ST 2059-2/AES67-2015 SNMPv1/SNMPv2c/SNMPv3 RMON (Remote Network Monitoring) and groups 1,2,3 and 9 NETCONF/YANG EAA (Embedded Automation Architecture) Port mirroring SPAN (Switch Port Analyzer)/RSPAN (Remote SPAN) Flow mirroring NetStream/IPv6 NetStream sFlow Information center VCF (Virtual Converged Framework) CWMP (CPE WAN Management Protocol/TR-069) Fault alarm and automatic fault recovery System logs Alarming based on severity Power, fan, and temperature alarming Debugging information output Device status monitoring mechanism, including the CPU engine, backplane, chips and other key components Configuration through CLI, Telnet, and console port Zero Touch Provisioning Loading and upgrading through XModem/FTP/TFTP/SFTP/USB Embedded AC, maximum support management 2K AP iMC network management system SmartMC(embedded Smart Graphical Management Center) Support LLDP-MIB Support Entity MIB |
Stacking | Intelligent Resilient Framework 2 (IRF2) (fast convergence within 50ms) Distributed device management Distributed link aggregation Distributed resilient routing Stacking through standard Ethernet ports Local device stacking and remote device stacking LACP-, BFD-, and ARP-based multi-active detection (MAD) |
Automatic Configuration | Server-based automatic configuration USB-based automatic configuration |
Programmability and Automation | Ansible Auto DevOps by using Python, NETCONF, TCL, and Restful APIs for automated network programming |
Visualization | gRPC (Google remote procedure call) INT (Inband Telemetry) Flow group |
OpenFlow | OpenFlow 1.3 Multiple controllers (EQUAL, master/slave） Multiple tables flow Group table |
VXLAN | VXLAN L2 switching VXLAN L3 routing Centralized VXLAN gateway Distributed VXLAN gateway VXLAN M-LAG VXLAN-DCI OVSDB (Open vSwitch Database) VXLAN VTEP MP-BGP EVPN control plane EVPN VXLAN EVPN M-LAG |
Intelligent Lossless Network | PFC (Priority-based Flow Control) ECN (Explicit Congestion Notification) IPCC (Intelligent Proactive Congestion Control) iNOF (Intelligent Lossless NVMe Over Fabric) |
EMC | FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI CLASS A CISPR 32 CLASS A EN 55032 CLASS A CISPR 35 AS/NZS CISPR 32 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 |
Safety | UL 62368-1 CSA C22.2 No. 62368-1-14 IEC 62368-1 EN 62368-1 EN 60825-1 AS/NZS 62368-1 GB 4943.1 |
RoHS | EU RoHS2.0 Directive China RoHS 2.0 |
Performance Specification
Model | S6526XE-EI |
MAC address entries(max) | 281K |
VLAN table | 4K |
VLAN interface | 4K |
IPv4 routing entries(max) | 351K |
IPv4 ARP entries(max) | 170K |
IPv4 multicast L2 entries | 8000 |
IPv4 multicast L3 entries | 16000 |
IPv6 unicast routing entries(max) | 130K |
IPv6 ND entries(max) | 48K |
IPv6 multicast L2 entries | 8000 |
IPv6 multicast L3 entries | 8000 |
QOS forward queue | 8 |
Jumbo frame length | 9216 |
MAX num in one link group | 32 |
Link group num | 128 |
Max Stacking Member | 9 |
Max Stacking Bandwidth | 600Gbps |
Standards and Protocols Compliance
Organization | Standards and Protocols |
IEEE | 802.1x Port based network access control protocol |
802.1ab Link Layer Discovery Protocol | |
802.1ak MVRP and MRP | |
802.1ax Link Aggregation | |
802.1d Media Access Control Bridges | |
802.1p Priority | |
802.1q VLANs | |
802.1s Multiple Spanning Trees | |
802.1ag Connectivity Fault Management | |
802.1v VLAN classification by Protocol and Port | |
802.1w Rapid Reconfiguration of Spanning Tree | |
802.3ad Link Aggregation Control Protocol | |
802.3ah Ethernet in the First Mile | |
802.3x Full Duplex and flow control | |
802.3af Power over Ethernet | |
802.3at Power over Ethernet | |
802.3bt Power over Ethernet | |
802.3az Energy Efficient Ethernet | |
802.3u 100BASE-T | |
802.3ab 1000BASE-T | |
802.3z 1000BASE-X | |
802.3ae 10-Gigabit Ethernet | |
802.3by 25 Gbps | |
802.3ba 40/100G Ethernet | |
IETF | RFC 1213 MIB-2 Stands for Management Information Base |
RFC 2374 An IPv6 Aggregatable Global Unicast Address Format | |
RFC 2570 Introduction to Version 3 of the Internet-standard Network Management Framework | |
RFC 2711 IPv6 Router Alert Option | |
RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol | |
RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers | |
RFC 2918 Route Refresh Capability for BGP-4 | |
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations | |
RFC 2934 Protocol Independent Multicast MIB for IPv4 | |
RFC 3101 OSPF Not-so-stubby-area option | |
RFC 3019 MLDv1 MIB | |
RFC 3046 DHCP Relay Agent Information Option | |
RFC 3056 Connection of IPv6 Domains via IPv4 Clouds | |
RFC 3065 Autonomous System Confederation for BGP | |
RFC 3137 OSPF Stub Router Advertisement sFlow | |
RFC 3376 IGMPv3 | |
RFC 3416 (SNMP Protocol Operations v2) | |
RFC 3417 (SNMP Transport Mappings) | |
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) | |
RFC 3484 Default Address Selection for IPv6 | |
RFC 3509 Alternative Implementations of OSPF Area Border Routers | |
RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines | |
RFC 3587 IPv6 Global Unicast Address Format | |
RFC 3623 Graceful OSPF Restart | |
RFC 3768 Virtual Router Redundancy Protocol (VRRP) | |
RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 | |
RFC 3973 PIM Dense Mode | |
RFC 4022 MIB for TCP | |
RFC 4113 MIB for UDP | |
RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers | |
RFC 4251 The Secure Shell (SSH) Protocol | |
RFC 4252 SSHv6 Authentication | |
RFC 4253 SSHv6 Transport Layer | |
RFC 4254 SSHv6 Connection | |
RFC 4271 A Border Gateway Protocol 4 (BGP-4) | |
RFC 4273 Definitions of Managed Objects for BGP-4 | |
RFC 4291 IP Version 6 Addressing Architecture | |
RFC 4292 IP Forwarding Table MIB | |
RFC 4293 Management Information Base for the Internet Protocol (IP) | |
RFC 4360 BGP Extended Communities Attribute | |
RFC 4419 Key Exchange for SSH | |
RFC 4443 ICMPv6 | |
RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) | |
RFC 4486 Subcodes for BGP Cease Notification Message | |
RFC 4541 IGMP & MLD Snooping Switch | |
RFC 4552 Authentication/Confidentiality for OSPFv3 | |
RFC 4601 PIM Sparse Mode | |
RFC 4607 Source-Specific Multicast for IP | |
RFC 4724 Graceful Restart Mechanism for BGP | |
RFC 4750 OSPFv2 MIB partial support no SetMIB | |
RFC 4760 Multiprotocol Extensions for BGP-4 | |
RFC 4861 IPv6 Neighbor Discovery | |
RFC 4862 IPv6 Stateless Address Auto-configuration | |
RFC 4940 IANA Considerations for OSPF | |
RFC 5059 Bootstrap Router (BSR) Mechanism for PIM, PIM WG | |
RFC 5065 Autonomous System Confederation for BGP | |
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 | |
RFC 5187 OSPFv3 Graceful Restart | |
RFC 5340 OSPFv3 for IPv6 | |
RFC 5424 Syslog Protocol | |
RFC 5492 Capabilities Advertisement with BGP-4 | |
RFC 5519 Multicast Group Membership Discovery MIB (MLDv2 only) | |
RFC 5798 VRRP (exclude Accept Mode and sub-sec timer) | |
RFC 5880 Bidirectional Forwarding Detection | |
RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification（NTPv4） | |
RFC 6620 FCFS SAVI | |
RFC 6987 OSPF Stub Router Advertisement | |
RFC6020 YANG - A Data Modeling Language for the Network Configuration Protocol (NETCONF) | |
RFC7348 Virtual eXtensible Local Area Network (VXLAN): A Framework for Overlaying Virtualized Layer 2 Networks over Layer 3 Networks | |
RFC7432 BGP MPLS-Based Ethernet VPN | |
RFC4664 Framework for Layer 2 Virtual Private Networks (L2VPNs) | |
RFC4665 Service Requirements for Layer 2 Provider Provisioned Virtual Private Networks | |
RFC4761 Virtual Private LAN Service (VPLS) Using BGP for Auto-Discovery and Signaling | |
RFC4762 Virtual Private LAN Service (VPLS) Using Label Distribution Protocol (LDP) Signaling | |
RFC5120 M-ISIS: Multi Topology (MT) Routing in Intermediate System to Intermediate Systems (IS-ISs) | |
RFC5280 Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile | |
RFC5308 Routing IPv6 with IS-IS | |
RFC5381 Experience of Implementing NETCONF over SOAP | |
RFC5415 Control and Provisioning of Wireless Access Points (CAPWAP) Protocol Specification | |
ITU | ITU-T Y.1731 |
ITU-T Rec G.8032/Y.1344 Mar. 2010 |
Product ID | Product Description |
LS-6526XE-32X4CC-EI | H3C S6526XE-32X4CC-EI L3 Ethernet Switch with 32*1G/10G SFP+ Ports, 4*40G/100G QSFP28 Ports, and 2*Slot, Without Power Supplies |
LS-6526XE-48X4CC-EI | H3C S6526XE-48X4CC-EI L3 Ethernet Switch with 48*1G/10G SFP+ Ports, 4*40G/100G QSFP28 Ports, and 2*Slot, Without Power Supplies |
Fan | |
LSPM1FANSA-SN | H3C Fan Module (Fan Panel Side Intake Airflow) |
LSPM1FANSB-SN | H3C Fan Module (Fan Panel Side Exhaust Airflow) |
Power supply | |
PSR450-12A-GL | 450W AC Power Supply Module |
PSR450-12A1-GL | 450W AC Power Supply Module |
PSR450-12D | 450W DC Power Supply Module |
Modules | |
LSWM4SP8PM | 8-Port 10G SFP Plus with MACSec Interface Module |
LSWM2SP8P | 8-Port 10G SFP Plus Interface Module |
LSWM2QP2P | 2-Port 40G QSFP Plus Interface Module |
LSWM2ZSP8P | 8-Port 25G SFP28 Interface Module |
LSWM2ZQP2P | 2-Port 100G QSFP28 Interface Module |
Resource Center
Technical Documents
Software Download- Cloud & AI
- InterConnect
- Intelligent Computing
- Intelligent Storage
- Security
- SMB Products
- Intelligent Terminal Products
- Product Support Services
- Technical Service Solutions
Product Support Services
Technical Service Solutions
- Resource Center
- Policy
- Online Help
- Technical Blogs
Resource Center
Policy
Online Help
- Become A Partner
- Partner Policy & Program
- Global Learning
- Partner Sales Resources
- Partner Business Management
- Service Business
Global Learning
- Profile
- News & Events
- Online Exhibition Center
- Contact Us
