SmartMC (Smart Management Center)
As the network scale increases, many access devices are required at the network edge, which makes the management of these devices very cumbersome. The main purpose of SmartMC is to solve the problem of centralized management of significant scattered network devices. It is designed to solve the switch-based operation and maintenance tasks of small enterprises. SmartMC provides unified operation, maintenance, and management of the network by built-in graphical operation platform.
SmartMC simplifies the operation, maintenance, and management of Small and Medium-sized campuses:
Smart management
Includes device role selection, FTP server configuration, global configuration, and network management port configuration, etc.
Intelligent operation and maintenance
Include group management, equipment, or group upgrade backup, monitoring and equipment failure replacement, etc.
Visualization
Includes networking topology visualization and management, device list display, device ports display, etc.
Smart business
Includes user management, etc. After network access users are created and successfully activated, these users can access the SmartMC network through the one-key-armed port.

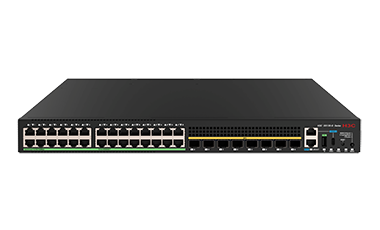

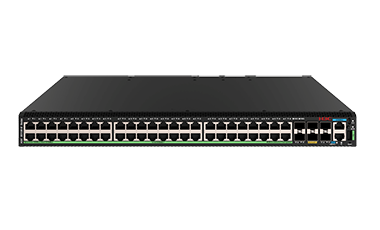

H3C S5130S-EI-G-V2 series switches can be used as the management device of SmartMC. You can log in to the SmartMC network through the S5130S-EI-G-V2 to manage the entire network in a unified manner.
High performance IPv4/IPv6 service capability
H3C S5130S-EI-G-V2 series switches implement a hardware-based IPv4/IPv6 dual-stack platform, support multiple tunnel technologies, rich IPv4 and IPv6 layer3 routing protocols, and multicast technology and policy routing mechanism to provide users with a complete IPv4/IPv6 solution.
Software defined network (SDN)
Software Defined Network (SDN) is an innovative network architecture that simplifies network management and reduces maintenance complexity by separating network control layer and network forwarding layer through OpenFlow. More importantly, it implements flexible network flow control and provides a well-defined network platform for core network application and innovation.
H3C S5130S-EI-G-V2 series switches support a large network flow table. Combined with H3C SDN controller, it can easily implement a two-layer network architecture and quickly add functions in existing network in order to drastically reduce network management complexity while substantially lowers network maintenance cost.
Cloud Management (Cloudnet)
H3C S5130S-EI-G-V2 series switches support cloud management by H3C Cloudnet. H3C Cloudnet is a H3C-proprietary comprehensive operation management and maintenance platform. Based on H3C unified O&M cloud platform (known as U-center), It provides a light-weight and multi-service platform to manage network and a powerful O&M service for small business. It uses Kubernetes for containerized applications and a fully distributed architecture to provide management of networks, terminals, users and service enabling features. With management and monitoring of multiple network services, the platform breaks the data barriers between services caused by isolated and vertical service deployment.H3C Cloudnet supports the delivery model of public clouds and provides customers with comprehensive network solutions to meet the needs of customers from different industries and operators.
IRF2 (intelligent resilient framework 2)
H3C S5130S-EI-G-V2 series switches support IRF2 technology that connects multiple physical devices (up to 9) to a logical device, users can manage and use these devices as a single device. IRF can bring the following benefits to the user:
Simplified management
Any one of the ports can be connected to any of the devices to login to a unified logical device, and to manage the whole system and all the members of the system through the configuration of a single device, without the physical connection to each member of the device.
High scalability
With IRF2, plug-n-play device aggregation can be achieved by adding one or more switches into the IRF2 stack and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost.
High reliability
IRF2 patented 1: N standby technology allows each slave device in the IRF2 stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliability, avoids unplanned business downtime, and serves to improve overall performance. When the master device fails, traffic remains uninterrupted.
Load balancing
IRF2 supports cross-device link aggregation, upstream and downstream can be connected to more than one physical link, which creates another layer of network redundancy and boosts the network resource utilization.
Availability
H3C Implements IRF2 through standard Gigabit Ethernet (1GE) ports or 10 Gigabit Ethernet (10GE) ports which allocates bandwidth for business and application access and reasonably splits local traffic and upstream traffic.
Comprehensive security control
H3C S5130S-EI-G-V2 series switches support innovative single-port multi-authentication function, the access authentication modes supported by different clients are different. For example, some clients can only perform MAC addresses Authentication (such as the printer terminal), and some user host for 802.1X authentication, and some user hosts only want to access through the Web portal authentication. In order to flexibly adapt to the multi-authentication requirements of the network environment, the S5130S-EI-G-V2 switch series support single-port multi-authentication unified deployment.
H3C S5130S-EI-G-V2 series switches support SSH V2 (Secure Shell V2) to secure information security, and strong authentication protect the Ethernet network switch from attacks such as IP address spoofing and clear text interception.
ARP attack and ARP virus are major threats to LAN security, so H3C S5130S-EI-G-V2 series switches come with diverse ARP protection functions such as ARP Detection to challenge the legitimacy of client, validate the ARP packets, and set a speed limit for ARP to prevent ARP swarm attacks from targeting CPU.
H3C S5130S-EI-G-V2 series switches support EAD (End User Admission Domination) function. With the iMC (intelligent Management Centre) system, EAD integrates terminal security policies, such as anti-virus and patch update, network access control and access right control policies to form a cooperative security system. By checking, isolating, updating, managing, and monitoring access terminals, EAD changes to passive mode, single point network protection to active, comprehensive network protection, and changes separate management to centralized management, enhancing the network capability for preventing viruses, worms, and new threats.
MACsec Hardware Encryption
MACsec (Media Access Control Security, MAC security) defines the method of data security communication based on IEEE 802 local area network. MACsec can provide users with secure MAC layer data transmission and reception services, including user data encryption, data frame integrity check and data source authenticity verification.
MACsec is usually used in conjunction with the 802.1X authentication framework. After the 802.1X authentication process is successful, it identifies the message sent by the authenticated device and uses the MKA (MACsec Key Agreement, MACsec Key Agreement) protocol to negotiate the generated key pair Authenticated user data is encrypted and integrity checked to prevent the port from processing packets from unauthenticated devices or tampered with unauthenticated devices.
H3C S5130S-EI-G-V2 series switches support upgraded MACsec encryption technology and use 256-bit encryption algorithm to further improve data security; All ports of the device provide 256-bit MACsec encryption to ensure data security.
High availability
H3C S5130S-EI-G-V2 series switches feature multiple redundancy measures at the device and link levels, support current and voltage surge control, overheat protection, power and fan troubleshooting and alert, as well as fan speed adjustment when the temperature changes.
Apart from device level redundancy, H3C S5130S-EI-G-V2 series switch also provides diverse link redundancy support such as LACP/STP/RSTP/MSTP/Smart Link protocols. It supports IRF2 and 1: N redundancy backup as well as cross-device link aggregation which substantially increases network reliability.
H3C S5130S-EI-G-V2 series switches support M-LAG, which enables links of multiple switches to aggregate into one to implement device-level link backup. M-LAG is applicable to servers dual-homed to a pair of access devices for node redundancy.
Streamlined topology
M-LAG simplifies the network topology and spanning tree configuration by virtualizing two physical devices into one logical device.
Independent upgrading
The DR member devices can be upgraded independently one by one to minimize the impact on traffic forwarding.
High availability
The DR system uses a keepalive link to detect multi-active collision to ensure that only one member device forwards traffic after a DR system splits.
Visualization Ability
H3C S5130S-EI-G-V2 series switches support Telemetry technology, which can send the switch's real-time resource information and alarm information to the O&M platform through the gRPC protocol.
The platform can realize network quality backtracking, troubleshooting, risk early warning, architecture optimization and other functions to accurately guarantee user experience by analyzing real-time data.
Abundant QoS
H3C S5130S-EI-G-V2 series switches support packet filtering at Layer 2 through Layer 4, and traffic classification based on source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UDP port numbers, protocol types, and VLANs. It supports flexible queue scheduling algorithms based on ports and queues, including strict priority (SP), weighted round Robin (WRR) and SP+WRR. H3C S5130S-EI-G-V2 series switches enable committed access rate (CAR) with the minimum granularity of 10 kbps. It supports port mirroring in the outbound and inbound directions, to monitor the packets on the specific ports, and to mirror the packets to the monitor port for network detection and troubleshooting.
Professional surge protection function
H3C S5130S-EI-G-V2 series switches use professional built-in surge protection technology and supports the industry-leading 6KV service port surge protection capability, which greatly reduces the damage rate of surge strikes to equipment even in harsh working environments.
Excellent manageability
H3C S5130S-EI-G-V2 series switches make switch management with ease with the support of SNMPv1/v2/v3, which can be managed by NM platforms, such as Open View and iMC. With CLI and Telnet switch management is made easier. And with SSH 2.0 encryption, switch management security is enhanced.
Al-driven PoE
H3C S5130S-EI-G-V2 series switches support PoE power supply and can remotely power powered devices (PDs) such as APs and cameras. In addition, H3C S5130S-EI-G-V2 series also integrates AI capabilities into PoE technology, allowing PoE switches to support:
Fast PoE
Typically, PIs (power interface) does not deliver power to PDs (powered device) the moment the PSE (power sourcing equipment) is powered on but wait until the PSE completes startup. Fast PoE enables PIs to deliver power to PDs within few seconds after power is supplied to the PSE.
Perpetual PoE
Perpetual PoE continuously monitors the PD states and ensures continued power supply to PDs even when the PSE device is hot rebooting.
PoE watchdog
PoE watchdog function enables the adaptive monitoring network to have a “self-healing” function. When this function is turned on, the system can automatically detect the camera 24 hours. If the camera has no stream output, it is judged that the camera is crashed. The camera is restarted by cutting off the PoE power supply to solve the camera crashed problem. No manual operation is required, which can provide timely and reliable solutions for operation and maintenance.
AI-driven PoE
Innovatively integrating AI technologies into PoE switches, H3C AI-driven PoE enables completely automated, intelligently managed, healed, and optimized PoE, bringing convenient and outstanding PoE experience to users.
Green design
H3C S5130S-EI-G-V2 series switches implement a variety of green energy saving features, including auto-power-down (port automatic energy saving), if the interface status has been down for a period time, the system automatically stops the interface power and the system enters power-saving mode. They also support EEE energy feature, by which if a port stays idle for period, the system will set the port to energy-saving mode. H3C S5130S-EI-G-V2 series switches are also compliant with material environmental protection and the EU RoHS safety standard.
