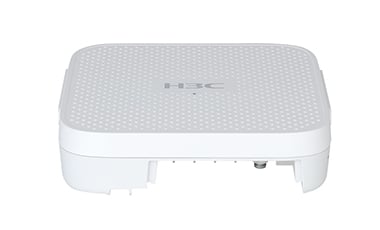

H3C pRRU5202 Pico Remote Radio Unit

Datasheet Download

An H3C 5G expansion pico station consists of a baseband unit (BBU), fiber interface picocell expansion units (FSWs), and pico radio remote units (pRRUs). As network elements of a 5G pico station, pRRU5202 pRRUs work in conjunction with the BBU and FSWs. Compliant with standards including 3GPP and built based on mature software and hardware platforms, the pRRU5202 is mainly applicable to scenarios such as hotels, schools, office buildings, and residential buildings with medium indoor wireless coverage requirements, and scenarios such as factories, parks, and hospitals that use 5G-based dedicated network applications.

Learn More

The following contents are complex, and it is recommended to browse on PC.

Enter c.h3c.com.cn on the PC browser and operate according to the page to synchronize to the PC and continue browsing.

Continue by mobile

Features

Support for the eCPRI protocol

The pRRU5202 supports the evolved Common Public Radio Interface (eCPRI) protocol.

Built-in high-gain antenna

The built-in high-gain omnidirectional linearly polarized antenna improves the cell coverage and capacity.

Networking with hybrid fiber-copper cables

With a hybrid fiber-copper cable, the pRRU5202 can connect to an FSW over a maximum distance of 200 m (656.17 ft).

Green, energy-efficient

Automatically places components that have not been used for a long time in hibernation.

The internal processing modules are built with low-power designs.

Use low-power components.

Cooperate with the BBU for energy conservation and emission reduction at the service layer.

Specification

Hardware specifications

Item	Specifications
Port	1 × SFP+ port 1 × PoE++ port 1 × Management port
Protection rating	IP31
Installation method	Ceiling mounting, wall mounting, and suspended ceiling mounting with the provided installation kit
Heat dissipation	Natural heat dissipation
Typical power consumption	24 W
Power supply	48 VDC PoE input
Weight	1.6kg (3.53 lb)
Dimensions (H × W × D)	45 × 200 × 200 mm (1.77 × 7.87 × 7.87 in)
Relative humidity (noncondensing)	5% to 95%

Software specifications

Item	Specifications
3GPP version	Rel-15
Slicing mode	Option8
Frequency band	N41 2600
Frequency range (MHz)	UL:2515~2675 DL: 2515~2675
Network mode	NR(TDD)
IBW (MHz)	100
Receive and transmit channels	2T2R
Output power	2×250mW
Transmit EVM	QPSK ≤ 17.5% 16QAM ≤ 12.5% 64QAM ≤ 5% 256QAM ≤ 3.5%
Per-antenna receive sensitivity	–94 dBm
Built-in antenna specifications	Gain (dBi)	4
	Polarization	Linear polarization
	Direction	Omni-directional
Network protocols	eCPRI Ethernet_II VLAN TCP/IP
Networking	Star topology	A maximum of eight pRRUs connected to an FSW
	Transmission distance	A maximum of 200 m (656.17 ft) over a hybrid fiber-copper cable
Synchronization	SyncE clock synchronization from the BBU or FSW Phase synchronization from the BBU or FSW
Availability	Failure rate per year	< 2%

Ordering Information

Chassis

As a network element of the H3C 5G UniCell solution, the pRRU5202 must work in conjunction with an H3C BBU5100/5200 and FSW5100.

The pRRU5202 can be mounted on a ceiling or wall.

Item	Description	Remarks
pRRU5202	H3C pRRU5202 Internal Antenna NR2600-100 Pico Remote Radio Unit	Required.

Transceiver modules

Transceiver module type	Transceiver module name	Central wavelength	Connector type	Max transmission distance	Remarks
10G SFP+ transceiver module	SFP-XG-CPRI-IR-SM1310	1310 nm	LC	1.4 km (0.87 miles)	Used for fronthaul ports
