Products & Technology- H3C Magic NX30- H3C

New Vertical design for better coverage

Fuller signal field and 20% more coverage
Collaborate with Qualcomm chipset to
create a household great product

Dual-core CPU + NPU 12-channel dual-band concurrent
3000M wireless rate Faster speed

Wi-Fi 6 new standard to meet the home gigabit broadband
160MHz large bandwidth

Ultra-broadband 5G speed 1X faster

fuller signal field and 20% more coverage

New upright design

Better wireless signal and wider coverage
180° "I" design

Fuller signal field strength and more stable transmission performance
Anti-obscuring design

Hard to block the device better signal
Reasonable layout

Reasonable antenna design Balanced wireless coverage
Stereoscopic heat dissipation

Improve heat dissipation efficiency to ensure stable operation
Aesthetic design

Antenna spacing golden ratio Antenna body isometric design
Rotatable antenna

Easy rotation of antenna for stronger signal
Easy placement

Simple vertical placement Smaller footprint
Stable support

One-piece body shape for more stable placement

The signal field strength is fuller and the transmission performance is more stable.
Adopting "I" design, the antenna is reatively djusted to 180° compared to the traditional
90° "L" which increases the distance between the antenna and the metal PCB board to
reduce the possibility of signal attenuation and effectively improve the signal

The signal field strength is fuller and the transmission performance is more stable. Adopting "I" design, the antenna is reatively djusted to 180° compared to the traditional 90° "L"
which increases the distance between the antenna and the metal PCB board to reduce the possibility of signal attenuation and effectively improve the signal
transmission efficiency

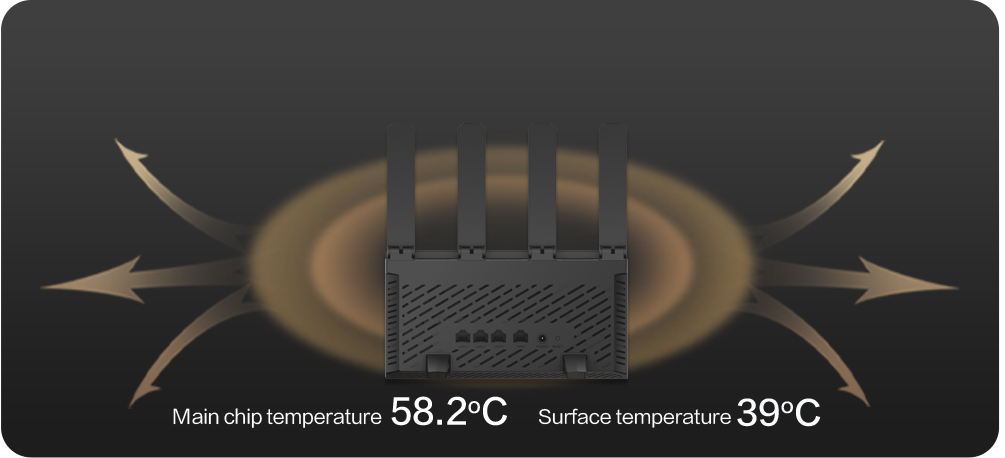

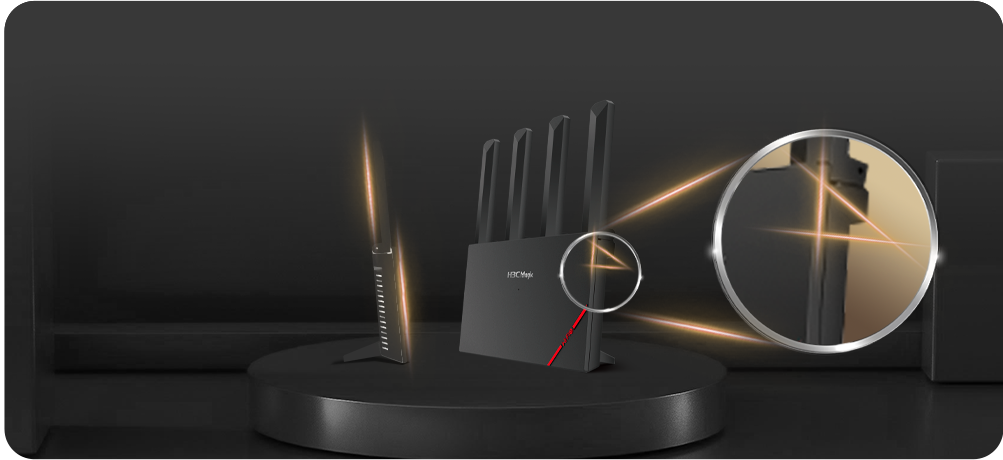

Improve cooling efficiency Adopt three-dimensional transparent cooling design,
back overhang, combined with a large area of air convection.

Ensure stable operation With a large metal heat sink,effectively improve the cooling
efficiency of the machine to ensure stable operation

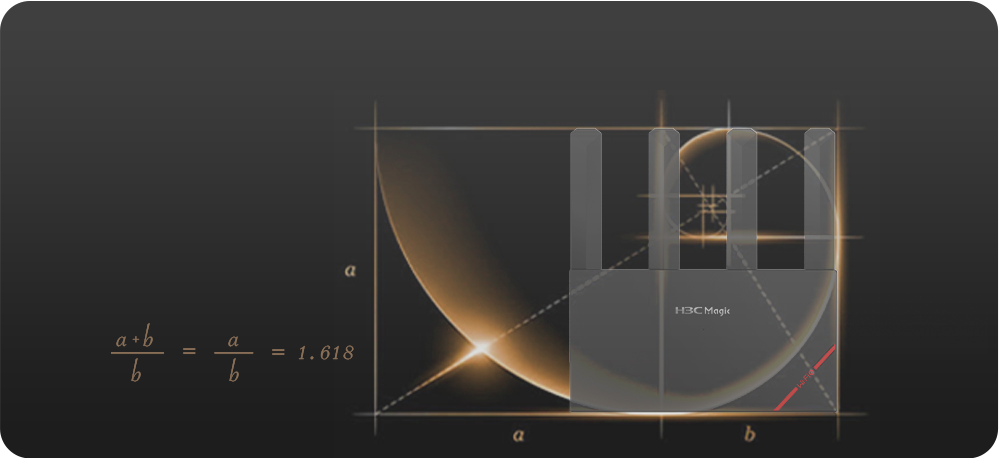

Less interference Antenna spacing using the "1:0.618" golden ratio,
less interference between antennas

More beautiful modeling The length of the antenna and the width of the body are
designed in equal proportion, more beautiful modeling, signal and aesthetics are good

More beautiful modeling The length of the antenna and the width of the body are
designed in equal proportion, more beautiful modeling, signal and aesthetics are good

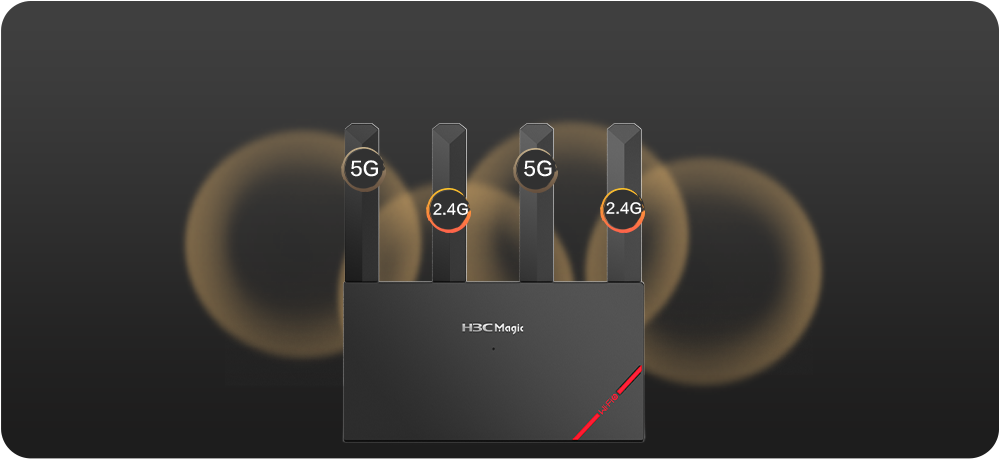

Reasonable layout design Considering the coverage strength and directionality of
dual-band antennas, reasonable antenna layout design is adopted

Balanced wireless coverage Verified by OctoScope international authority test
so that the dual-band can have better directional performance

Reasonable layout design Considering the coverage strength and directionality of
dual-band antennas, reasonable antenna layout design is adopted

Balanced wireless coverage Verified by OctoScope international authority test
so that the dual-band can
have better directional performance

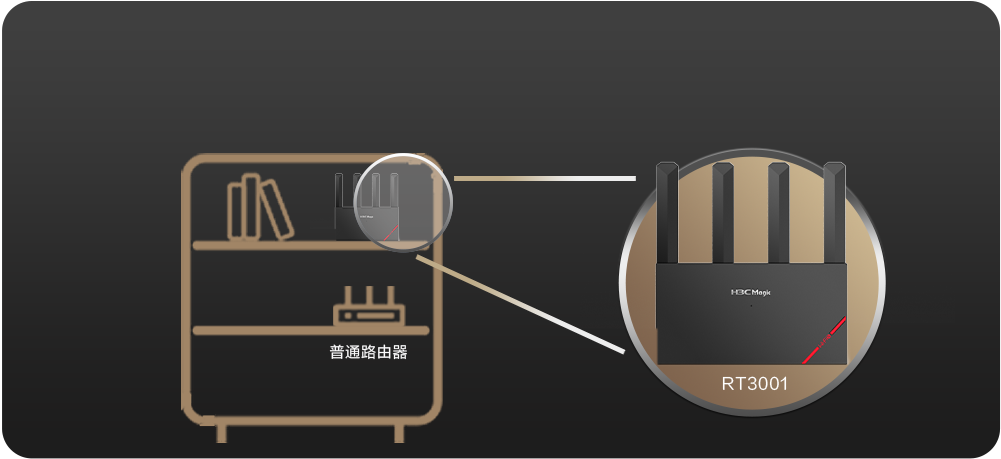

The device is difficult to be blocked Adopt uprignt design, no more stacking of modems

Signal "field of view" is more open The equipment is difficult to be blocked
the signal "field of view" is more open
Easy rotation of the antenna in one direction, the user does not
need to adjust the antenna angle, a wrench to the top, in one step
Vertical placement smaller footprint right-angle simple design,
perfectly fit the corner, refuse to bloat

Easy rotation of the antenna in one direction, the user does not need to adjust the antenna angle, a wrench to the top, in one step

Vertical placement smaller footprint right-angle simple design, perfectly fit the corner, refuse to bloat

Equipped with a new generation dual-core Qualcomm chip 1GHz CPU + NPU
12-channel dual-band concurrent, stronger performance

Network operation remains stable when multiple applications are processed concurrently

Combined with Qualcomm WiFi6 chip 30% more anti-interference capability
Data forwarding speed increased by 10%
Support up to 256 terminals access
Easy to cope with complex environments with multiple people and devices

Adopts independent special NPU (Network Processing Unit) to handle network flow
CPU focuses on handling upper-level application data
Provides higher multi-applications concurrency processing speed

The completed machine concurrent rate is 1.67 times than the ordinary 1800M router wireless rate

5GHz wireless rate up to 2402Mbps
2 times the wireless rate of mainstream AX1800 routers

The completed machine concurrent rate is 1.67 times than the ordinary
1800M router wireless rate

5GHz wireless rate up to 2402Mbps
2 times the wireless rate of mainstream AX1800 routers

High speed: Wi-Fi 6 wireless single stream rate is 3 times higher than Wi-Fi 5
Low latency: Wi-Fi 6 reduces latency by 20ms compared to Wi-Fi 5
Large bandwidth: 5GHz supports 160MHz large bandwidth
Nearly 1X faster channel speed Compatible with 20M/40M/80MHz
bandwidth access

High speed: Wi-Fi 6 wireless single stream rate
is 3 times higher than Wi-Fi 5 Low latency:
Wi-Fi 6 reduces latency by 20ms compared to
Wi-Fi 5 Large bandwidth: 5GHz supports 160MHz
large bandwidth

Allows the router's multiple antennas to serve multiple devices at the same time
Enables each device to be treated with high priority processing
Does not affect the experience of other devices because of some low-speed device
Ensures smoother Internet access

Allows the router's multiple antennas to serve multiple devices
at the same time Enables each device to be treated with
high priority processing Does not affect the experience
of other devicesbecause of some low-speed device
Ensures smoother Internet access

When multiple devices are transmitting data, traditional routers need to take turns to do so
OFDMA technology allows multiple terminals to transmit upstream
and downstream data simultaneously
Transmission efficiency is significantly improved and latency is significantly reduced

When multiple devices are transmitting data, traditional routers need to take turns to do so OFDMA technology allows multiple terminals to transmit upstream and downstream data simultaneously Transmission efficiency is significantly improved and latency is significantly reduced

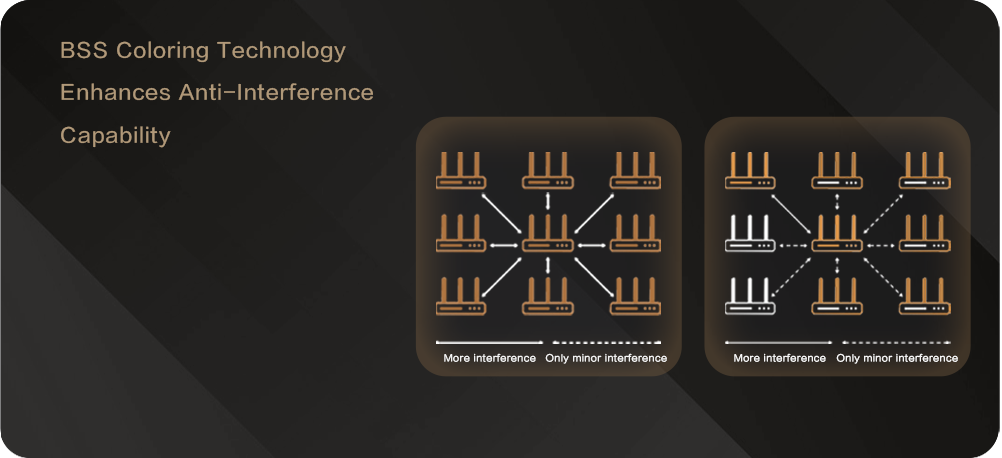

Rational algorithm optimization through BSS Coloring technology
Significantly improve the anti-interference capability of WiFi
Improved communication efficiency No more fear of interference

Rational algorithm optimization
through BSS Coloring technology
Significantly improve the
anti-interference capability of
WiFi Improved communication
efficiency No more fear of
interference

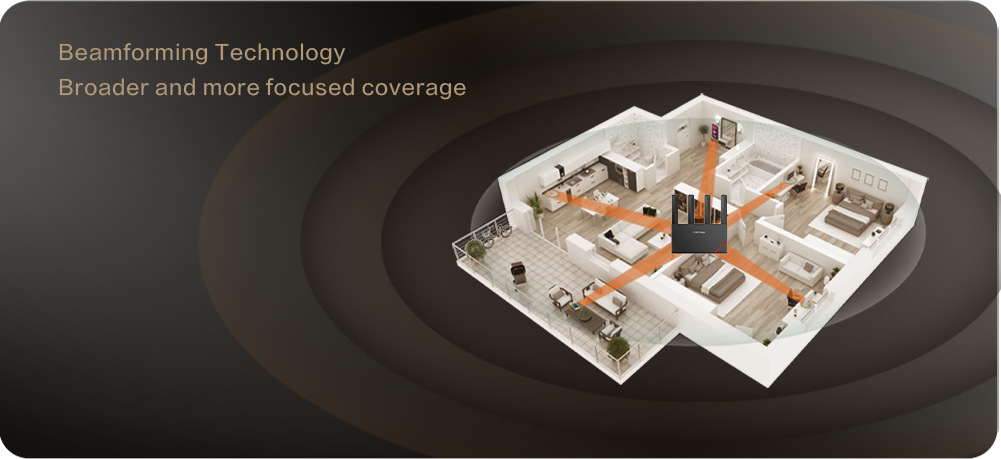

Adopts advanced Beamforming technology
Automatically detects the location of terminals from home
Enhances the signal in your location
Enables wider Wi-Fi coverage and more focused signals

Adopts advanced Beamforming
technology Automatically detects the
location of terminals from home
Enhances the signal in your location
Enables wider Wi-Fi coverage and
more focused signals

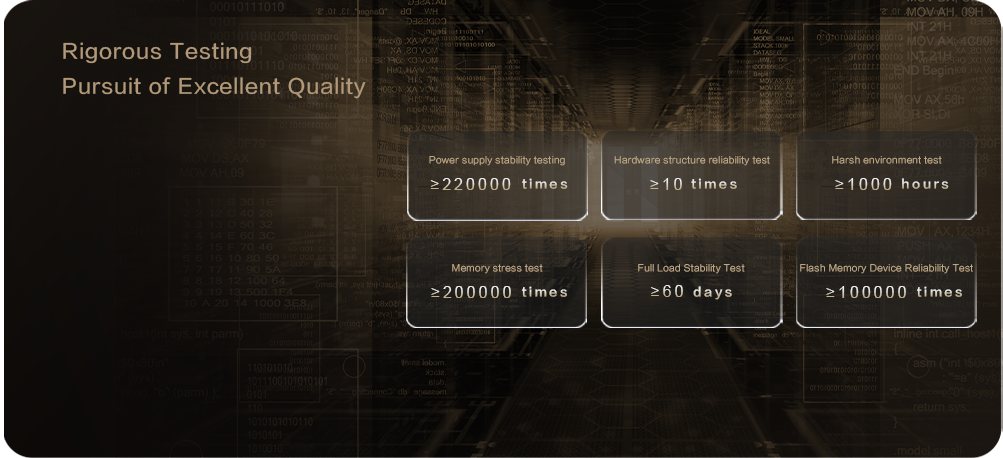

Cooperate with Octoscope, Spirent,Ixia and other
international authoritative test instrument manufacturers
Simulate various home actual scenarios and extreme links
Ensure that the router operates stably under different
conditions and environments

Cooperate with Octoscope, Spirent,
Ixia and other international
authoritative test instrument
manufacturers Simulate various
home actual scenarios and extreme
links Ensure that the router
operates stably under different
conditions and environments

The product pictures and screen contents in the above pages are for illustration only. The actual product effect (including but not limited to appearance, color, size) and screen display contents (including but not limited to background, UI, and matching pictures) may vary slightly,please refer to the actual products.

The data in the above pages are theoretical values, which are obtained from the H3C Intelligent Terminal Laboratory under specific test environments (please see specific descriptions).Actual using may vary slightly due to individual differences in products, software versions, use conditions and environmental factors, please refer to the situation of actual using

Due to real-time changes in product batches and production supply factors, in order to provide accurate product information, specifications and parameters, and product features as much as possible, H3C may adjust and revise the text expressions and picture effects on the above pages in real time to match the actual product performance, specifications, indices, parts and other information.

In the event that the above-mentioned modifications and adjustments are necessary, no special notice will be given.
