1500Mbps Dual-Band Gigabit
Network Port

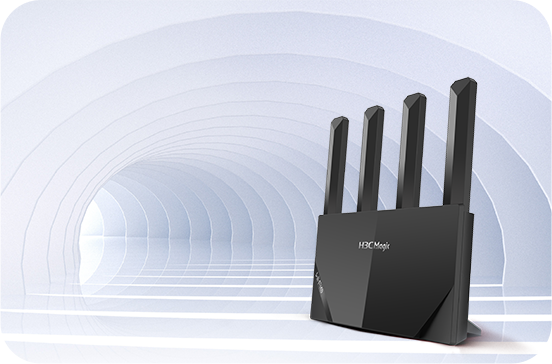

Adopting “I” design, the antenna is creatively adjusted to 180°
compared to the traditional 90° “L”, which increases the distance between the antenna and the metal PCB board to reduce the
possibility of signal attenuation and effectively improve the signal
transmission efficiency
transparent cooling design and back overhang. With a large metal
heat sink, effectively improving the cooling efficiency of the
machine to ensure stable operation
Freedom of movement without fear of dropping connections
Wi-Fi coverage of complex house types and large house types can be expanded through
mesh networking
Internet Access for Peace of Mind
allowlist/denylist, Guest Wi-Fi, Parental control
and more secure network applications
Pursuit of Quality
international authoritative test instrument manufacturers
Simulate various home actual scenarios and extreme links Ensure
that the router operates stably under different
conditions and environments.
-
Power supply stability test≥220000times
-
Hardware structure
reliability test≥69times -
Harsh environment test≥1000hours
-
Memory stress test≥200000times
-
Full load stability test≥60days
-
Flash memory device
reliability test≥100000times
The product pictures and screen contents in the above pages are for illustration only. The actual product effect (including but not limited to appearance, color, size) and screen display contents (including but not limited to background, UI, and matching pictures) may vary slightly,please refer to the actual products.
The data in the above pages are theoretical values, which are obtained from the H3C Intelligent Terminal Laboratory under specific test environments (please see specific descriptions).Actual using may vary slightly due to individual differences in products, software versions, use conditions and environmental factors, please refer to the situation of actual using
Due to real-time changes in product batches and production supply factors, in order to provide accurate product information, specifications and parameters, and product features as much as possible, H3C may adjust and revise the text expressions and picture effects on the above pages in real time to match the actual product performance, specifications, indices, parts and other information.
In the event that the above-mentioned modifications and adjustments are necessary, no special notice will be given.
- Port
- 4 × 10/100/1000BASE-T Ethernet ports
- Antenna
- 4 × external 5 dBi omnidirectional antennas
- LED
- System status LED on the rear
- Dimensions
(H × W × D) - 180 × 195 × 57.3 mm
(7.09 × 7.68 × 2.26 in)
- Power consumption
- ≤ 12 W
- Cooling
- Passive cooling
- Certification
- CE WEEE RoHS
- Wireless protocol
-
2.4GHz: 802.11n/g/b
5GHz: 802.11ax/ac/n/a
- Spatial streams
-
2.4GHz 2×2 MIMO
5GHz 2×2 MIMO
- Wireless bandwidth
-
2.4G HT20/HT40
5G HT20/HT40/HT80
- Wireless rate
- Simultaneous dual-band: 1501 Mbps, including 300Mbps on the 2.4GHz band and 1201 Mbps on the5GHz band.
- Wireless roaming
- IEEE 802.11k/v
- MU-MIMO
- Upstream and downstream MU-MIMO
- Internet connection
-
Routing mode: DHCP/PPPoE/static IP
Bridge mode: Wired repeating/wireless repeating
- Mesh
- Support
- IPv6
- Support
- Security
- WPA3, anti-piggybacking, firewall, DMZ
- Network management
- Guest Wi-Fi, access allowlist and denylist, parental control at multiple time ranges, IP-based traffic control, scheduled Wi-Fi on/off
- Special features
- QoS traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP,DynDNS), VPN(PPTP Client,L2TP Client)
- Management method
- H3C Magic APP management (iOS, Android), Web management
- Fault diagnosis
-
Link detection
Internet access diagnosis
- Operating temperature
- 0°C to 40°C (32°F to 104°F)
- Storage humidity
- 10% to 90% RH, noncondensing
- Packing list
-
Integrated machine
Power adapter
Networking cable
Installation quick start
