35-IPv6 transition technologies configuration
Title Size Download
35-IPv6 transition technologies configuration 97.71 KB

IPv6 transition technologies overview

About IPv6 transition technologies

IPv6 transition technologies enable communication between IPv4 and IPv6 networks.

Tunneling

Tunneling uses one network protocol to encapsulate the packets of another network protocol and transfers them over the network. For example, IPv6 over IPv4 tunneling.

IPv6 over IPv4 tunneling

Implementation

IPv6 over IPv4 tunneling enables isolated IPv6 networks to communicate, as shown in Figure 1.





NOTE:

The devices at both ends of an IPv6 over IPv4 tunnel must support the IPv4/IPv6 dual stack.

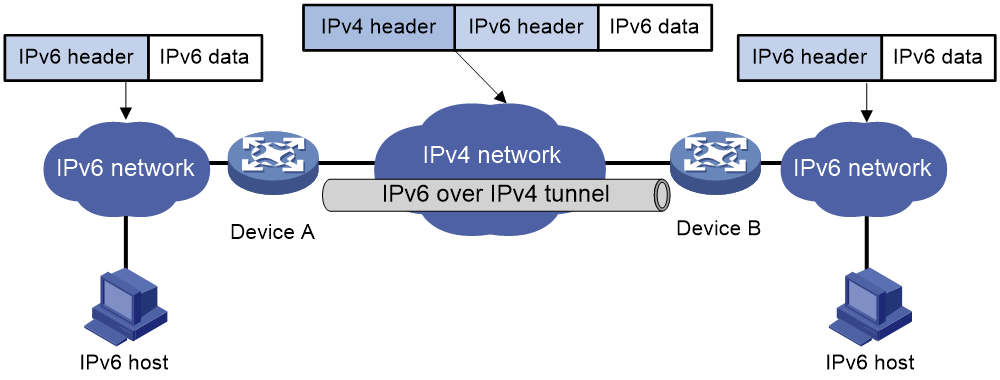

Figure 1 IPv6 over IPv4 tunnel



The IPv6 over IPv4 tunnel processes packets by using the following steps:

1.     A host in the IPv6 network sends an IPv6 packet to Device A at the tunnel source.

2.     After Device A receives the IPv6 packet, it processes the packet as follows:

a.     Searches the routing table to identify the outgoing interface for the IPv6 packet.

The outgoing interface is the tunnel interface, so Device A knows that the packet needs to be forwarded through the tunnel.

b.     Adds an IPv4 header to the IPv6 packet and forwards the packet through the physical interface of the tunnel.

In the IPv4 header, the source IPv4 address is the IPv4 address of the tunnel source, and the destination IPv4 address is the IPv4 address of the tunnel destination.

3.     Upon receiving the packet, Device B de-encapsulates the packet.

4.     If the destination address of the IPv6 packet is itself, Device B forwards it to the upper-layer protocol. If it is not, Device B forwards it according to the routing table.


Configuring IPv6 over IPv4 tunneling

Configuring an IPv6 over IPv4 manual tunnel

Restrictions and guidelines

When you perform tasks in this section, follow these restrictions and guidelines:

·     The tunnel destination address specified on the local device must be identical with the tunnel source address specified on the tunnel peer device.

·     Do not specify the same tunnel source and destination addresses for the tunnel interfaces in the same mode on a device.

·     To ensure correct packet forwarding, identify whether the destination IPv6 network and the IPv6 address of the local tunnel interface are on the same subnet. If they are not, configure a route reaching the destination IPv6 network through the tunnel interface. You can configure the route by using one of the following methods:

¡     Configure a static route, and specify the local tunnel interface as the outgoing interface or specify the IPv6 address of the peer tunnel interface as the next hop.

¡     Enable a dynamic routing protocol on both the local and remote tunnel interfaces.

For more information about route configuration, see Network Connectivity Configuration Guide.

·     IPv6 over IPv4 manual tunnel configuration commands include the following common tunnel interface commands:

¡     interface tunnel.

¡     source.

¡     destination.

¡     tunnel dfbit enable.

For more information about these and more tunnel interface commands, see Interface Command Reference.

Procedure

1.     Enter system view.

system-view

2.     Enter IPv6 over IPv4 manual tunnel interface view.

interface tunnel number [ mode ipv6-ipv4 ]

3.     Specify an IPv6 address for the tunnel interface.

See basic IPv6 settings in Network Connectivity Configuration Guide.

4.     Configure a source address or source interface for the tunnel interface.

source { ipv4-address | interface-type interface-number }

By default, no source address or source interface is configured for the tunnel interface.

If you specify a source address, it is used as the source IP address of tunneled packets.

If you specify a source interface, the primary IP address of this interface is used as the source IP address of tunneled packets.

5.     Configure a destination address for the tunnel interface.

destination ipv4-address

By default, no destination address is configured for the tunnel interface.

The tunnel destination address must be the IP address of the receiving interface on the tunnel peer. It is used as the destination IP address of tunneled packets.

6.     (Optional.) Set the DF bit for tunneled packets.

tunnel dfbit enable

By default, the DF bit is not set for tunneled packets.

Example: Configuring an IPv6 over IPv4 manual tunnel

Network configuration

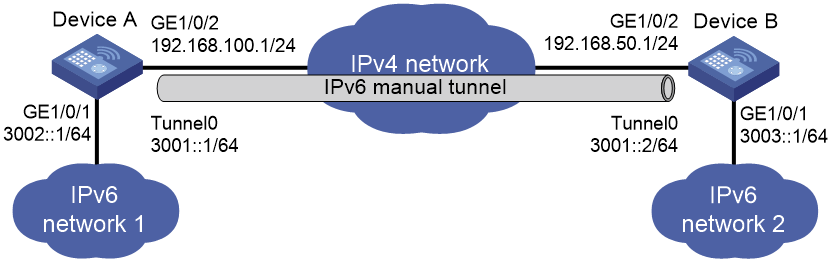

As shown in Figure 2, configure an IPv6 over IPv4 tunnel between Device A and Device B so the two IPv6 networks can reach each other over the IPv4 network. Because the tunnel destination IPv4 address cannot be automatically obtained from the destination IPv6 addresses, configure an IPv6 over IPv4 manual tunnel.

Figure 2 Network diagram

Prerequisites

Make sure Device A and Device B can reach each other through IPv4.

Procedure

1.     Configure Device A:

# Assign an IPv4 address to interface GigabitEthernet 1/0/2.

<DeviceA> system-view

[DeviceA] interface gigabitethernet 1/0/2

[DeviceA-GigabitEthernet1/0/2] ip address 192.168.100.1 255.255.255.0

[DeviceA-GigabitEthernet1/0/2] quit

# Assign an IPv6 address to interface GigabitEthernet 1/0/1.

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] ipv6 address 3002::1 64

[DeviceA-GigabitEthernet1/0/1] quit

# Create IPv6 over IPv4 manual tunnel interface Tunnel 0.

[DeviceA] interface tunnel 0 mode ipv6-ipv4

# Specify an IPv6 address for the tunnel interface.

[DeviceA-Tunnel0] ipv6 address 3001::1/64

# Specify GigabitEthernet 1/0/2 as the source interface of the tunnel.

[DeviceA-Tunnel0] source gigabitethernet 1/0/2

# Specify the IP address of GigabitEthernet 1/0/2 on Device B as the destination address of the tunnel.

[DeviceA-Tunnel0] destination 192.168.50.1

[DeviceA-Tunnel0] quit

# Configure a static route destined for IPv6 network 2 through Tunnel 0.

[DeviceA] ipv6 route-static 3003:: 64 tunnel 0

2.     Configure Device B:

# Assign an IPv4 address to interface GigabitEthernet 1/0/2.

<DeviceB> system-view

[DeviceB] interface gigabitethernet 1/0/2

[DeviceB-GigabitEthernet1/0/2] ip address 192.168.50.1 255.255.255.0

[DeviceB-GigabitEthernet1/0/2] quit

# Assign an IPv6 address to interface GigabitEthernet 1/0/1.

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] ipv6 address 3003::1 64

[DeviceB-GigabitEthernet1/0/1] quit

# Create IPv6 over IPv4 manual tunnel interface Tunnel 0.

[DeviceB] interface tunnel 0 mode ipv6-ipv4

# Specify an IPv6 address for the tunnel interface.

[DeviceB-Tunnel0] ipv6 address 3001::2/64

# Specify GigabitEthernet 1/0/2 as the source interface of the tunnel.

[DeviceB-Tunnel0] source gigabitethernet 1/0/2

# Specify the IP address of GigabitEthernet 1/0/2 on Device A as the destination address of the tunnel.

[DeviceB-Tunnel0] destination 192.168.100.1

[DeviceB-Tunnel0] quit

# Configure a static route destined for IPv6 network 1 through Tunnel 0.

[DeviceB] ipv6 route-static 3002:: 64 tunnel 0

Verifying the configuration

# Use the display ipv6 interface command to display tunnel interface status on Device A and Device B. Verify that interface Tunnel 0 is up. (Details not shown.)

# Verify that Device A and Device B can ping the IPv6 address of GigabitEthernet 1/0/1 of each other. This example uses Device A.

[DeviceA] ping ipv6 3003::1

Ping6(56 data bytes) 3001::1 --> 3003::1, press CTRL_C to break

56 bytes from 3003::1, icmp_seq=0 hlim=64 time=45.000 ms

56 bytes from 3003::1, icmp_seq=1 hlim=64 time=10.000 ms

56 bytes from 3003::1, icmp_seq=2 hlim=64 time=4.000 ms

56 bytes from 3003::1, icmp_seq=3 hlim=64 time=10.000 ms

56 bytes from 3003::1, icmp_seq=4 hlim=64 time=11.000 ms



--- Ping6 statistics for 3003::1 ---

5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss

round-trip min/avg/max/std-dev = 4.000/16.000/45.000/14.711 ms

Configuring an ISATAP tunnel

Restrictions and guidelines

Follow these guidelines when you configure an ISATAP tunnel:

·     You do not need to configure a destination address for an ISATAP tunnel, because the destination IPv4 address is embedded in the ISATAP address.

·     Do not specify the same source addresses for local tunnel interfaces in the same tunnel mode.

·     Because automatic tunnels do not support dynamic routing, configure a static route destined for the destination IPv6 network at each tunnel end. You can specify the local tunnel interface as the egress interface of the route or specify the IPv6 address of the peer tunnel interface as the next hop of the route. For more information about route configuration, see "Configuring IPv6 static routing."

·     ISATAP tunnel configuration commands include the following common tunnel interface commands:

¡     interface tunnel.

¡     source.

¡     tunnel dfbit enable.

For more information about these and more tunnel interface commands, see Interface Command Reference.

Procedure

1.     Enter system view.

system-view

2.     Enter ISATAP tunnel interface view.

interface tunnel number [ mode ipv6-ipv4 isatap ]

3.     Specify an IPv6 address for the tunnel interface.

See "Configuring basic IPv6 settings."

4.     Configure a source address or source interface for the tunnel interface.

source { ipv4-address | interface-type interface-number }

By default, no source address or source interface is configured for the tunnel interface.

If you specify a source address, it is used as the source IP address of tunneled packets.

If you specify a source interface, the primary IP address of this interface is used as the source IP address of tunneled packets.

5.     (Optional.) Set the DF bit for tunneled packets.

tunnel dfbit enable

By default, the DF bit is not set for tunneled packets.

Verifying and maintaining IPv6 over IPv4 tunneling

Displaying IPv6 over IPv4 tunnel interface information

Perform display tasks in any view.

·     Display IPv6 over IPv4 tunnel interface information.

display tunnel-interface [ number ]

For more information about this command, see tunnel interface commands in Interface Command Reference.

·     Display information about IPv6 over IPv4 tunnel interfaces.

display interface [ tunnel [ number ] ] [ brief [ description | down ] ]

For more information about this command, see tunnel interface commands in Interface Command Reference.

·     Display IPv6 information about IPv6 over IPv4 tunnel interfaces.

display ipv6 interface [ tunnel [ number ] ] [ brief ]

For more information about this command, see IPv6 basics in Network Connectivity Command Reference.

Clearing IPv6 over IPv4 tunnel interface information

Perform clear tasks in user view.

·     Clear IPv6 over IPv4 tunnel interface statistics.

reset counters interface [ tunnel [ number ] ]

For more information about this command, see common interface commands in Interface Command Reference.

·     Clear IPv6 statistics on IPv6 over IPv4 tunnel interfaces.

reset ipv6 statistics

For more information about this command, see IPv6 basics in Layer 3—IP Services Command Reference.
