H3C Port Security Configuration Examples























































































Software version: Release 7577P04

Document version: 6W100-20190330



Contents

Introduction· 1

Prerequisites· 1

General restrictions and guidelines· 1

Example: Configuring autoLearn mode· 1

Network configuration· 1

Analysis· 2

Restrictions and guidelines· 2

Procedures· 2

Verifying the configuration· 3

Configuration files· 4

Example: Configuring userLoginWithOUI mode· 4

Network configuration· 4

Analysis· 5

Procedures· 5

Configuring the RADIUS server 5

Configuring the device· 8

Verifying the configuration· 9

Configuration files· 11

Example: Configuring macAddressElseUserLoginSecure mode· 12

Network configuration· 12

Analysis· 12

Procedures· 13

Configuring the RADIUS server 13

Configuring the device· 15

Verifying the configuration· 16

Configuration files· 19

Related documentation· 19



Introduction

This document provides port security configuration examples.

Prerequisites

The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

This document assumes that you have basic knowledge of port security.

General restrictions and guidelines

When you configure port security, follow these restrictions and guidelines:

·          Disable global 802.1X and MAC authentications before you enable port security on a port.

·          Port security automatically modifies the following 802.1X or MAC authentication settings for different security modes:

¡  The status of 802.1X and MAC authentication.

¡  The 802.1X access control method.

¡  The 802.1X port authorization state.

·          You cannot disable port security when online users are present.

·          Port security modes are mutually exclusive with link aggregation and service loopback group.

·          The maximum number of users a port supports equals the smaller value from the following values:

¡  The maximum number of secure MAC addresses that port security allows.

¡  The maximum number of concurrent users the authentication mode in use allows.

For example, if 802.1X allows more concurrent users than port security's limit on the number of MAC addresses on the port in userLoginSecureExt mode, port security's limit takes effect.

·          To change the security mode of a port security-enabled port, you must use the undo port-security port-mode command to set the port in noRestrictions mode first.

Example: Configuring autoLearn mode

Network configuration

As shown in Figure 1, configure port security mode autoLearn on Ten-GigabitEthernet 1/1/1 to meet the following requirements:

·          The device accepts a maximum of 64 users to log in through the port without authentication.

·          After the number of users reaches 64, the port denies any new users to access the Internet.

Figure 1 Network diagram



Analysis

To meet the network requirements, you must perform the following tasks:

·          Configure the autoLearn mode on the port through which the users access the device. The access port is Ten-GigabitEthernet 1/1/1 in this example.

·          Configure an aging timer for the secure MAC addresses, so the device can update its secure MAC address table.

·          Configure Ten-GigabitEthernet 1/1/1 to shut down temporarily for 30 seconds when it receives illegal frames. The device can deny any new users to access the Internet after the number of online users reaches 64.

Restrictions and guidelines

Before you enable the autoLearn mode, set the maximum number of secure MAC addresses that port security allows on the port (by using the port-security max-mac-count command). You cannot change the setting when the port is operating in autoLearn mode.

Procedures

# Enable port security.

<Device> system-view

[Device] port-security enable

# Set the secure MAC aging timer to 30 minutes.

[Device] port-security timer autolearn aging 30

# Set port security's limit on the number of secure MAC addresses to 64 on Ten-GigabitEthernet 1/1/1.

[Device] interface ten-gigabitethernet 1/1/1

[Device-Ten-GigabitEthernet1/1/1] port-security max-mac-count 64

# Set the port security mode to autoLearn.

[Device-Ten-GigabitEthernet1/1/1] port-security port-mode autolearn

# Specify the intrusion protection action as disableport-temporarily.

[Device-Ten-GigabitEthernet1/1/1] port-security intrusion-mode disableport-temporarily

[Device-Ten-GigabitEthernet1/1/1] quit

# Configure the port to be silent for 30 seconds after the intrusion protection feature is triggered.

[Device] port-security timer disableport 30

Verifying the configuration

# Verify that port security is correctly configured.

[Device] display port-security interface ten-gigabitethernet 1/1/1

Global port security parameters:

   Port security          : Enabled

   AutoLearn aging time   : 30 min

   Disableport timeout    : 30 s

   MAC move               : Denied

   Authorization fail     : Online

   NAS-ID profile         : Not configured

   Dot1x-failure trap     : Disabled

   Dot1x-logon trap       : Disabled

   Dot1x-logoff trap      : Disabled

   Intrusion trap         : Disabled

   Address-learned trap   : Disabled

   Mac-auth-failure trap  : Disabled

   Mac-auth-logon trap    : Disabled

   Mac-auth-logoff trap   : Disabled

   OUI value list         :



 Ten-GigabitEthernet1/1/1 is link-up

   Port mode                      : autoLearn

   NeedToKnow mode                : Disabled

   Intrusion protection mode      : DisablePortTemporarily

   Security MAC address attribute

       Learning mode              : Sticky

       Aging type                 : Periodical

   Max secure MAC addresses       : 64

   Current secure MAC addresses   : 5

   Authorization                  : Permitted

   NAS-ID profile                 : Not configured

The port allows for MAC address learning, and you can view the number of learned MAC addresses in the Current secure MAC addresses field.

# Display information about the learned MAC addresses.

[Device] interface ten-gigabitethernet 1/1/1

[Device-Ten-GigabitEthernet1/1/1] display this

#

interface Ten-GigabitEthernet1/1/1

 port link-mode bridge

 port-security intrusion-mode disableport-temporarily

 port-security max-mac-count 64

 port-security port-mode autolearn

 port-security mac-address security sticky 00e0-fc00-5920 vlan 1

 port-security mac-address security sticky 00e0-fc00-592a vlan 1

 port-security mac-address security sticky 00e0-fc00-592b vlan 1

 port-security mac-address security sticky 00e0-fc00-592c vlan 1

 port-security mac-address security sticky 00e0-fc00-592d vlan 1

[Device-Ten-GigabitEthernet1/1/1] quit

# Verify that the port security mode changes to secure after the number of MAC addresses learned by the port reaches 64.

[Device] display port-security interface ten-gigabitethernet 1/1/1

# Verify that the port is disabled after it receives a frame with an unknown MAC address.

[Device] display interface ten-gigabitethernet 1/1/1

# Verify that the interface is re-enabled after 30 seconds.

[Device] display interface ten-gigabitethernet 1/1/1

# Delete several secure MAC addresses.

[Device] interface ten-gigabitethernet 1/1/1

[Device-Ten-GigabitEthernet1/1/1] undo port-security mac-address security sticky 00e0-fc00-5920 vlan 1

[Device-Ten-GigabitEthernet1/1/1] undo port-security mac-address security sticky 00e0-fc00-592a vlan 1

…

# Verify that the port security mode changes to autoLearn and the port can learn MAC addresses again. (Details not shown.)

Configuration files

#

 port-security enable

 port-security timer disableport 30

 port-security timer autolearn aging 30

#

interface Ten-GigabitEthernet1/1/1

 port link-mode bridge

 port-security intrusion-mode disableport-temporarily

 port-security max-mac-count 64

 port-security port-mode autolearn

#

Example: Configuring userLoginWithOUI mode

Network configuration

As shown in Figure 2:

·          Users use the 802.1X client on the host to initiate 802.1X authentication.

·          The device uses the RADIUS server to perform authentication, authorization, and accounting for all users in ISP domain sun.

·          IMC is the RADIUS server.

·          The device and the server use the shared key expert for secure RADIUS communication.

Configure port security mode userLoginWithOUI on the device to meet the following requirements:

·          Permit only one 802.1X user to pass authentication to access the Internet.

·          Permit the printer to access the Internet.

·          Discard all illegal frames without disabling the port security-enabled port.

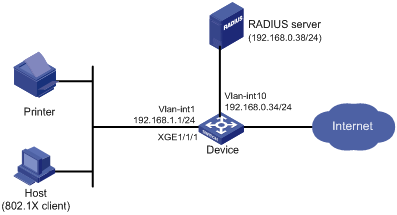

Figure 2 Network diagram



Analysis

To meet the network requirements, you must perform the following tasks:

·          Configure the userLoginWithOUI mode on the port through which the users access the device. The access port is Ten-GigabitEthernet 1/1/1 in this example.

·          Add the printer's OUI to the port security module of the device, so the device can permit the printer to access the Internet in userLoginWithOUI mode. To match the OUIs of different printer vendors, add multiple OUIs to the device.

·          Configure the blockmac intrusion protection on Ten-GigabitEthernet 1/1/1, so the device adds the source MAC addresses of illegal frames to the blocked MAC address list. The device discards all frames sourced from the blocked MAC addresses.

Procedures

Configuring the RADIUS server

In this example, the RADIUS server runs IMC PLAT 7.0 (E0201) and IMC UAM 7.0 (E0201).

1.        Add the device to IMC as an access device:

a.    Click the User tab.

b.    From the navigation tree, select User Access Policy > Access Device Management > Access Device.

c.    Click Add.

The Add Access Device page appears.

d.    In the Access Configuration area, configure the following parameters:

-      Enter 1812 in the Authentication Port field, and enter 1813 in the Accounting Port field.

-      Select LAN Access Service from the Service Type list.

-      Select HP(Comware) from the Access Device Type list.

-      Enter expert in the Shared Key and Confirm Shared Key field.

-      Use the default values for other parameters.

e.    In the Device List area, click Select or Add Manually to add the device at 192.168.0.34 as an access device.

The IP address of the access device specified here must be the same as the source IP address of the RADIUS packets sent from the device. The source IP address is chosen in the following order on the device:

-      IP address specified by the nas-ip command.

-      IP address specified by the radius nas-ip command.

-      IP address of the outbound interface (the default).

f.     Click OK.

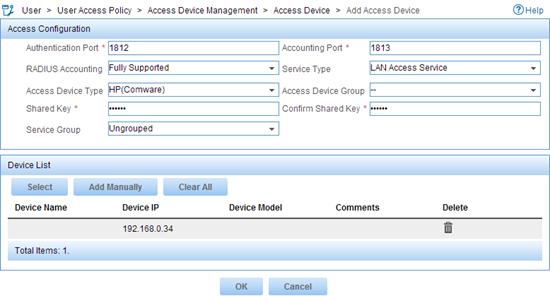

Figure 3 Adding the device as an access device



2.        Add an access policy:

a.    Click the User tab.

b.    From the navigation tree, select User Access Policy > Access Policy.

c.    Click Add.

d.    On the page that appears, configure the following parameters, as shown in Figure 4:

-      Enter 802.1X-auth in the Access Policy Name field.

-      Use the default values for other parameters.

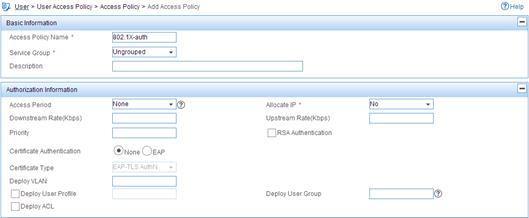

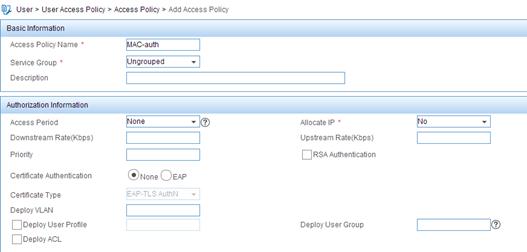

Figure 4 Adding an access policy



e.    Click OK.

3.        Add an access service:

a.    Click the User tab.

b.    From the navigation tree, select User Access Policy > Access Service.

c.    Click Add.

d.    On the page that appears, configure the following parameters, as shown in Figure 5:

-      Enter 802.1X-auth in the Service Name field.

-      Select 802.1X-auth from the Default Access Policy list.

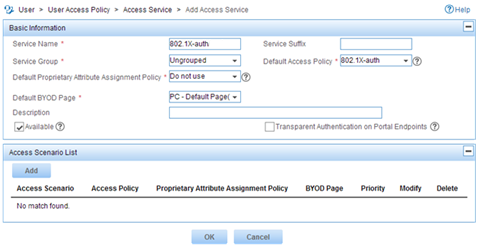

Figure 5 Adding an access service



e.    Click OK.

4.        Add an access user:

a.    Click the User tab.

b.    From the navigation tree, select Access User Management > All Access Users.

The access user list appears.

c.    Click Add.

d.    On the Add Access User page, configure the following parameters, as shown in Figure 6:

-      Click Select or Add User to associate the user with IMC Platform user hello.

-      Enter 802.1X in the Account Name field.

-      Enter 802.1X in the Password and Confirm Password fields.

-      Configure other parameters in the Access Information area as needed.

-      Select 802.1X-auth from the Access Service list.

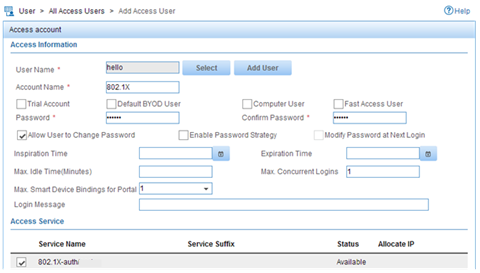

Figure 6 Adding an access user account



e.    Click OK.

Configuring the device

The following steps have AAA RADIUS commands. For more information about the AAA RADIUS commands, see AAA commands in the security command reference for the device.

1.        Assign an IP address to each interface, as shown in Figure 2. Make sure the host, printer, device, and RADIUS server can reach each other. (Details not shown.)

2.        Configure the RADIUS scheme:

# Create RADIUS scheme radsun.

<Device> system-view

[Device] radius scheme radsun

New RADIUS scheme.

# Specify the primary RADIUS authentication server at 192.168.0.38.

[Device-radius-radsun] primary authentication 192.168.0.38

# Specify the primary RADIUS accounting server at 192.168.0.38.

[Device-radius-radsun] primary accounting 192.168.0.38

# Set the authentication shared key to expert in plain text for secure communication between the device and the RADIUS server.

[Device-radius-radsun] key authentication simple expert

# Set the accounting shared key to expert in plain text for secure communication between the device and the RADIUS server.

[Device-radius-radsun] key accounting simple expert

# Set the response timeout time of the RADIUS server to 5 seconds.

[Device-radius-radsun] timer response-timeout 5

# Set the maximum number of RADIUS packet retransmission attempts to 5.

[Device-radius-radsun] retry 5

# Set the real-time accounting interval to 15 minutes.

[Device-radius-radsun] timer realtime-accounting 15

# Exclude domain names from the usernames sent to the RADIUS server.

[Device-radius-radsun] user-name-format without-domain

[Device-radius-radsun] quit

# Create ISP domain sun and enter ISP domain view.

[Device] domain sun

# Configure ISP domain sun to use RADIUS scheme radsun for authentication, authorization, and accounting of all LAN users.

[Device-isp-sun] authentication lan-access radius-scheme radsun

[Device-isp-sun] authorization lan-access radius-scheme radsun

[Device-isp-sun] accounting lan-access radius-scheme radsun

[Device-isp-sun] quit

# Configure domain sun as the default domain.

[Device] domain default enable sun

3.        Set the 802.1X authentication method to CHAP. By default, the authentication method for 802.1X is CHAP.

[Device] dot1x authentication-method chap

4.        Configure port security:

# Add five OUI values.

[Device] port-security oui index 1 mac-address 1234-0100-1111

[Device] port-security oui index 2 mac-address 1234-0200-1111

[Device] port-security oui index 3 mac-address 1234-0300-1111

[Device] port-security oui index 4 mac-address 1234-0400-1111

[Device] port-security oui index 5 mac-address 1234-0500-1111

# Set the port security mode to userLoginWithOUI.

[Device] interface ten-gigabitethernet 1/1/1

[Device-Ten-GigabitEthernet1/1/1] port-security port-mode userlogin-withoui

# Configure port Ten-GigabitEthernet 1/1/1 to perform the blockmac intrusion protection action.

[Device-Ten-GigabitEthernet1/1/1] port-security intrusion-mode blockmac

[Device-Ten-GigabitEthernet1/1/1] quit

# Enable port security.

[Device] port-security enable

Verifying the configuration

# Display RADIUS scheme radsun.

[Device] display radius scheme radsun

RADIUS scheme name: radsun

  Index: 0

  Primary authentication server:

    IP   : 192.168.0.38                             Port: 1812

    VPN  : Not configured

    State: Active

    Test profile: Not configured

    Weight: 0

  Primary accounting server:

    IP   : 192.168.0.38                             Port: 1813

    VPN  : Not configured

    State: Active

    Weight: 0

  Accounting-On function                     : Disabled

    extended function                        : Disabled

    retransmission times                     : 50

    retransmission interval(seconds)         : 3

  Timeout Interval(seconds)                  : 5

  Retransmission Times                       : 5

  Retransmission Times for Accounting Update : 5

  Server Quiet Period(minutes)               : 5

  Realtime Accounting Interval(seconds)      : 900

  Stop-accounting packets buffering          : Enabled

    Retransmission times                     : 500

  NAS IP Address                             : Not configured

  VPN                                        : Not configured

  User Name Format                           : without-domain

  Data flow unit                             : Byte

  Packet unit                                : One

  Attribute 15 check-mode                    : Strict

  Attribute 25                               : Standard

  Attribute Remanent-Volume unit             : Kilo

  server-load-sharing                        : Disabled

  Attribute 31 MAC format                    : hh:hh:hh:hh:hh:hh.

# Display port security configuration on Ten-GigabitEthernet 1/1/1.

[Device] display port-security interface ten-gigabitethernet 1/1/1

Global port security parameters:

   Port security          : Enabled

   AutoLearn aging time   : 0 min

   Disableport timeout    : 20 s

   MAC move               : Denied

   Authorization fail     : Online

   NAS-ID profile         : Not configured

   Dot1x-failure trap     : Disabled

   Dot1x-logon trap       : Disabled

   Dot1x-logoff trap      : Disabled

   Intrusion trap         : Disabled

   Address-learned trap   : Disabled

   Mac-auth-failure trap  : Disabled

   Mac-auth-logon trap    : Disabled

   Mac-auth-logoff trap   : Disabled

   OUI value list         :

       Index :  1       Value : 123401

       Index :  2       Value : 123402

       Index :  3       Value : 123403

       Index :  4       Value : 123404

       Index :  5       Value : 123405



 Ten-GigabitEthernet1/1/1 is link-up

   Port mode                      : userLoginWithOUI

   NeedToKnow mode                : Disabled

   Intrusion protection mode      : BlockMacAddress

   Security MAC address attribute

       Learning mode              : Sticky

       Aging type                 : Periodical

   Max secure MAC addresses       : Not configured

   Current secure MAC addresses   : 0

   Authorization                  : Permitted

   NAS-ID profile                 : Not configured

After an 802.1X user comes online, the number of secure MAC addresses saved by the port is 1.

# Display 802.1X information.

[Device] display dot1x interface ten-gigabitethernet 1/1/1

# Verify that Ten-GigabitEthernet 1/1/1 allows a user whose MAC address has an OUI from the specified OUIs to pass authentication.

[Device] display mac-address interface ten-gigabitethernet 1/1/1

MAC Address      VLAN ID     State            Port/NickName            Aging

1234-0300-0011  1            Learned          XGE1/1/1                 Y

Configuration files

#

 port-security enable

 port-security oui index 1 mac-address 1234-0100-0000

 port-security oui index 2 mac-address 1234-0200-0000

 port-security oui index 3 mac-address 1234-0300-0000

 port-security oui index 4 mac-address 1234-0400-0000

 port-security oui index 5 mac-address 1234-0500-0000

#

interface Ten-GigabitEthernet1/1/1

 port link-mode bridge

port-security port-mode userlogin-withoui

port-security intrusion-mode blockmac

#

radius scheme radsun

 primary authentication 192.168.0.38

 primary accounting 192.168.0.38

 key authentication cipher $c$3$s9TAYm34R8sS5k/Cylg2sDm69ZRupMvGJg==

 key accounting cipher $c$3$UaUPGk8AfZAQLHFlbKNcEoM2HXGiuWowBQ==

 retry 5

 timer response-timeout 5

 timer realtime-accounting 15

 user-name-format without-domain

#

domain sun

 authentication lan-access radius-scheme radsun

 authorization lan-access radius-scheme radsun

 accounting lan-access radius-scheme radsun

#

domain default enable sun

#

Example: Configuring macAddressElseUserLoginSecure mode

Network configuration

As shown in Figure 7, the device uses the RADIUS server to perform authentication, authorization, and accounting for all users in domain sun.

Configure port security mode macAddressElseUserLoginSecure on the device to meet the following requirements:

·          Allow only one 802.1X user to pass authentication, and allow multiple MAC authentication users to pass authentication.

·          Perform MAC authentication first for an 802.1X user, and then 802.1X authentication if the user fails MAC authentication.

·          Use shared user account with username aaa and password 123456 for MAC authentication users.

·          Allow a maximum of 64 authenticated users.

·          Prevent frames from being sent to unknown MAC addresses.

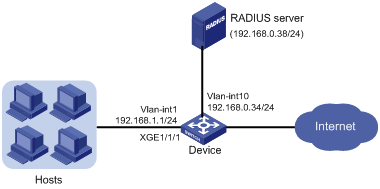

Figure 7 Network diagram



Analysis

To meet the network requirements, you must perform the following tasks:

·          Configure the macAddressElseUserLoginSecure mode on the port through which the users access the device. The access port is Ten-GigabitEthernet 1/1/1 in this example.

·          Set the NTK mode to ntkonly, so the device will prevent frames from being sent to unknown MAC addresses. In this mode, the device permits only unicast frames that are destined for the authenticated MAC addresses.

Procedures

Configuring the RADIUS server

In this example, the RADIUS server runs IMC PLAT 7.0 (E0201) and IMC UAM 7.0 (E0201).

1.        Add the device to IMC as an access device in the same way the device is added to IMC in "Example: Configuring userLoginWithOUI mode."

2.        Add an access policy, an access service, and an access user for 802.1X authentication in the same way they are added in "Example: Configuring userLoginWithOUI mode."

3.        Add an access policy for MAC authentication:

a.    Click the User tab.

b.    From the navigation tree, select User Access Policy > Access Policy.

c.    Click Add.

d.    On the page that appears, configure the following parameters, as shown in Figure 8:

-      Enter MAC-auth in the Access Policy Name field.

-      Use the default values for other parameters.

Figure 8 Adding an access policy



e.    Click OK.

4.        Add an access service for MAC authentication:

a.    Click the User tab.

b.    From the navigation tree, select User Access Policy > Access Service.

c.    Click Add.

d.    On the page that appears, configure the following parameters, as shown in Figure 9:

-      Enter MAC-auth in the Service Name field.

-      Select MAC-auth from the Default Access Policy list.

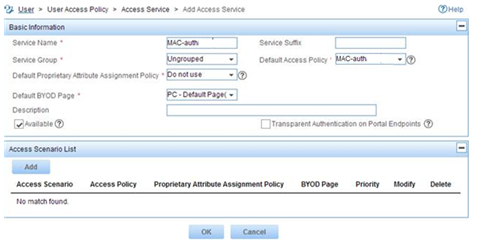

Figure 9 Adding an access service



e.    Click OK.

5.        Add an access user for MAC authentication:

a.    Click the User tab.

b.    From the navigation tree, select Access User Management > All Access Users.

The access user list appears.

c.    Click Add.

d.    On the Add Access User page, configure the following parameters, as shown in Figure 10:

-      Click Select or Add User to associate the user with IMC Platform user hello2.

-      Enter aaa in the Account Name field.

-      Enter 123456 in the Password and Confirm Password fields.

-      Configure other parameters in the Access Information area as needed.

-      Select MAC-auth from the Access Service list.

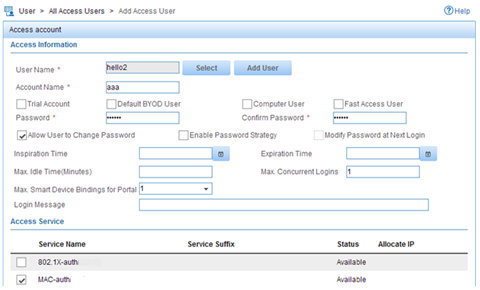

Figure 10 Adding an access user account



e.    Click OK.

Configuring the device

1.        Assign an IP address to each interface, as shown in Figure 7. Make sure the hosts, device, and RADIUS server can reach each other. (Details not shown.)

2.        Configure the RADIUS scheme:

# Create RADIUS scheme radsun.

<Device> system-view

[Device] radius scheme radsun

New RADIUS scheme.

# Specify the primary RADIUS authentication server at 192.168.0.38.

[Device-radius-radsun] primary authentication 192.168.0.38

# Specify the primary RADIUS accounting server at 192.168.0.38.

[Device-radius-radsun] primary accounting 192.168.0.38

# Set the authentication shared key to expert in plain text for secure communication between the device and the RADIUS server.

[Device-radius-radsun] key authentication simple expert

# Set the accounting shared key to expert in plain text for secure communication between the device and the RADIUS server.

[Device-radius-radsun] key accounting simple expert

# Set the response timeout time of the RADIUS server to 5 seconds.

[Device-radius-radsun] timer response-timeout 5

# Set the maximum number of RADIUS packet retransmission attempts to 5.

[Device-radius-radsun] retry 5

# Set the real-time accounting interval to 15 minutes.

[Device-radius-radsun] timer realtime-accounting 15

# Exclude domain names from the usernames sent to the RADIUS server.

[Device-radius-radsun] user-name-format without-domain

[Device-radius-radsun] quit

# Create ISP domain sun and enter ISP domain view.

[Device] domain sun

# Configure ISP domain sun to use RADIUS scheme radsun for authentication, authorization, and accounting of all LAN users.

[Device-isp-sun] authentication lan-access radius-scheme radsun

[Device-isp-sun] authorization lan-access radius-scheme radsun

[Device-isp-sun] accounting lan-access radius-scheme radsun

[Device-isp-sun] quit

# Specify ISP domain sun as the default domain.

[Device] domain default enable sun

3.        Configure MAC authentication:

# Configure a shared account for MAC authentication users, and set the username to aaa and password to plaintext string of 123456.

[Device] mac-authentication user-name-format fixed account aaa password simple 123456

# Specify domain sun as the global MAC authentication domain.

[Device] mac-authentication domain sun

4.        Set the 802.1X authentication method to CHAP. By default, the authentication method for 802.1X is CHAP.

[Device] dot1x authentication-method chap

5.        Configure port security:

# Set port security's limit on the number of secure MAC addresses to 64 on Ten-GigabitEthernet 1/1/1.

[Device] interface ten-gigabitethernet 1/1/1

[Device-Ten-GigabitEthernet1/1/1] port-security max-mac-count 64

# Set the port security mode to macAddressElseUserLoginSecure.

[Device-Ten-GigabitEthernet1/1/1] port-security port-mode mac-else-userlogin-secure

# Set the NTK mode of the port to ntkonly.

[Device-Ten-GigabitEthernet1/1/1] port-security ntk-mode ntkonly

[Device-Ten-GigabitEthernet1/1/1] quit

# Enable port security.

[Device] port-security enable

Verifying the configuration

# Verify that port security is correctly configured.

[Device] display port-security interface ten-gigabitethernet 1/1/1

Global port security parameters:

   Port security          : Enabled

   AutoLearn aging time   : 0 min

   Disableport timeout    : 20 s

   MAC move               : Denied

   Authorization fail     : Online

   NAS-ID profile         : Not configured

   Dot1x-failure trap     : Disabled

   Dot1x-logon trap       : Disabled

   Dot1x-logoff trap      : Disabled

   Intrusion trap         : Disabled

   Address-learned trap   : Disabled

   Mac-auth-failure trap  : Disabled

   Mac-auth-logon trap    : Disabled

   Mac-auth-logoff trap   : Disabled

   OUI value list         :



 Ten-GigabitEthernet1/1/1 is link-up

   Port mode                      : macAddressElseUserLoginSecure

   NeedToKnow mode                : NeedToKnowOnly

   Intrusion protection mode      : NoAction

   Security MAC address attribute

       Learning mode              : Sticky

       Aging type                 : Periodical

   Max secure MAC addresses       : 64

   Current secure MAC addresses   : 0

   Authorization                  : Permitted

   NAS-ID profile                 : Not configured

# Verify that port Ten-GigabitEthernet 1/1/1 allows multiple MAC authentication users to be authenticated.

[Device] display mac-authentication interface ten-gigabitethernet 1/1/1

Global MAC authentication parameters:

   MAC authentication           : Enabled

   Username format              : Fixed account

           Username              : aaa

           Password              : ******

   Offline detect period       : 300 s

   Quiet period                  : 60 s

   Server timeout               : 100 s

   Reauth period                : 3600 s

   Authentication domain      : sun

 Online MAC-auth wired user   : 3



 Silent MAC users:

          MAC address       VLAN ID  From port               Port index



 Ten-GigabitEthernet1/1/1  is link-up

   MAC authentication         : Enabled

   Carry User-IP              : Disabled

   Authentication domain      : Not configured

   Auth-delay timer           : Disabled

   Periodic reauth            : Disabled

   Re-auth server-unreachable : Logoff

   Guest VLAN                 : Not configured

   Guest VLAN auth-period     : 30

   Critical VLAN              : Not configured

   Critical voice VLAN        : Disabled

   Host mode                  : Single VLAN

   Offline detection          : Enabled

   Authentication order       : Default



   Max online users           : 4294967295

   Authentication attempts    : successful 0, failed 0

   Current online users       : 3

          MAC address       Auth state

          1234-0300-0011   authenticated

          1234-0300-0012   authenticated

          1234-0300-0013   authenticated

# Verify that Ten-GigabitEthernet 1/1/1 allows only one 802.1X user to be authenticated.

[Device] display dot1x interface ten-gigabitethernet 1/1/1

Global 802.1X parameters:

   802.1X authentication      : Enabled

   CHAP authentication        : Enabled

   Max-tx period               : 30 s

   Handshake period           : 15 s

   Quiet timer                 : Disabled

       Quiet period            : 60 s

   Supp timeout                : 30 s

   Server timeout             : 100 s

   Reauth period              : 3600 s

   Max auth requests          : 2

   SmartOn supp timeout       : 30 s

   SmartOn retry counts       : 3

   EAD assistant function     : Disabled

       EAD timeout            : 30 min

   Domain delimiter           : @

 Online 802.1X wired users    : 1



 Ten-GigabitEthernet1/1/1  is link-up

   802.1X authentication      : Enabled

   Handshake                  : Enabled

   Handshake reply            : Disabled

   Handshake security         : Disabled

   Unicast trigger            : Disabled

   Periodic reauth            : Disabled

   Port role                  : Authenticator

   Authorization mode         : Auto

   Port access control        : MAC-based

   Multicast trigger          : Enabled

   Mandatory auth domain      : Not configured

   Guest VLAN                 : Not configured

   Auth-Fail VLAN             : Not configured

   Critical VLAN              : Not configured

   Critical voice VLAN        : Disabled

   Re-auth server-unreachable : Logoff

   Max online users           : 4294967295

   SmartOn                    : Disabled

   Add Guest VLAN delay       : Disabled

   User IP freezing           : Disabled

   Reauth period              : 0 s

   Send Packets Without Tag   : Disabled

   Max Attempts Fail Number   : 0



   EAPOL packets: Tx 0, Rx 0

   Sent EAP Request/Identity packets : 0

        EAP Request/Challenge packets: 0

        EAP Success packets: 0

        EAP Failure packets: 0

   Received EAPOL Start packets : 0

            EAPOL LogOff packets: 0

            EAP Response/Identity packets : 0

            EAP Response/Challenge packets: 0

            Error packets: 0

   Online 802.1X users: 1

# Verify that frames with an unknown destination MAC address, multicast address, or broadcast address are discarded. (Details not shown.)

Configuration files

#

 mac-authentication domain sun

 mac-authentication user-name-format fixed account aaa password cipher $c$3$HAlQ

nyXOwZXTgiOBPd7+kSPClKm7JbZ1Rw==

#

 port-security enable

#

interface Ten-GigabitEthernet1/1/1

 port link-mode bridge

 port-security ntk-mode ntkonly

 port-security max-mac-count 64

 port-security port-mode mac-else-userlogin-secure

#

radius scheme radsun

 primary authentication 192.168.0.38

 primary accounting 192.168.0.38

 key authentication cipher $c$3$s9TAYm34R8sS5k/Cylg2sDm69ZRupMvGJg==

 key accounting cipher $c$3$UaUPGk8AfZAQLHFlbKNcEoM2HXGiuWowBQ==

 retry 5

 timer response-timeout 5

 timer realtime-accounting 15

 user-name-format without-domain

#

domain sun

 authentication lan-access radius-scheme radsun

 authorization lan-access radius-scheme radsun

 accounting lan-access radius-scheme radsun

#

domain default enable sun

#

Related documentation

·          H3C S7500E-XS Switch Series Security Configuration Guide-R757X

·          H3C S7500E-XS Switch Series Security Command Reference-R757X
