H3C S7500X-G series is a family of high-end multiservice routing switches intended for multiservice networks. It runs an operating system that boasts virtualization technologies such as Intelligent Resilient Framework 2 (IRF 2) and is fully compatible with 40G/100G Ethernet standards. It uses MPUs in redundancy and delivers a variety of high-availability features such as NSF, ISSU, graceful restart, and RRPP. Along with improved performance and efficiency, it maximizes the system uptime, significantly reducing the TCO for customers.

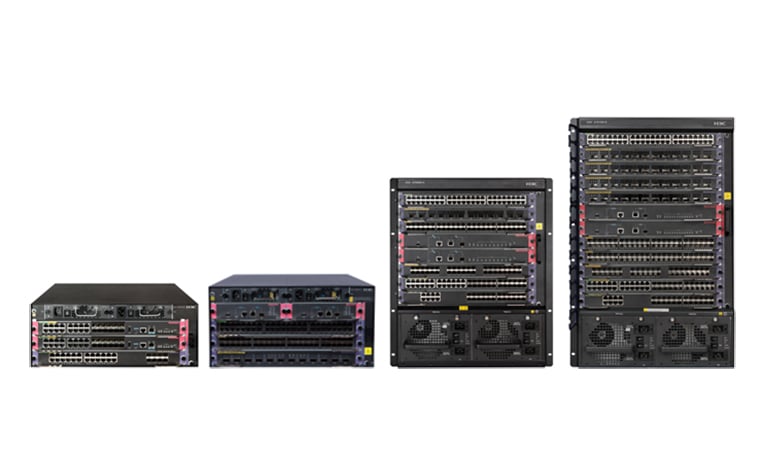

H3C S7500X-G series includes the S7510X-G, S7506X-G, S7503X-G, and S7503X-M-G models. These models can be used in various network environments such as metropolitan area networks and campus network core and aggregation layers, to deliver customers a wide range of solutions, including the security and switching integrated solution and wired and wireless unified solution.
The following contents are complex, and it is recommended to browse on PC.
Enter c.h3c.com.cn on the PC browser and operate according to the page to synchronize to the PC and continue browsing.
Continue by mobile
With the IRF 2 technology embedded in the operating system, H3C S7500X-G keeps pace with the continually evolving data center technologies. IRF 2 virtualizes multiple physical devices at the same layer into one virtual fabric to provide data center class availability and scalability. IRF virtualization technology offers processing power, interaction, unified management, and uninterrupted maintenance of multiple devices.
IRF 2 has not only become the main technology to improve performance and enable virtualization for data center switching devices but also increases the profit margins of customers thanks to the high service availability and uninterrupted upgrade and scaling it brings to traditional network applications.
IRF2 can be implemented over a distance of 80 km (49.71 miles) by using ordinary 10-GE optical fibers.
H3C S7500X-G supports IPv4/IPv6 dual stack, multiple IPv6 transition tunneling technologies, and IPv4/IPv6 multicast technologies, and can provides users with complete IPv4/IPv6 solutions.
With a distributed architecture, H3C S7500X-G can achieve wire-speed non-blocking forwarding of IPv4/IPv6 services.
H3C S7500X-G has passed the IPv6 network access certification and is a mature commercial IPv6 product.
H3C S7500X-G is integrated with a wireless control module to delivers rich services, including refined user control and management, complete RF management and security control, fast roaming, outstanding QoS capability, and IPv6. The module can collaborate with a security policy server to control endpoint access, which enhances entire network security.
H3C S7500X-G adopts a chip design that supports access controller functions, providing customers with more options for building wired and wireless integrated networks.
With a great portal authentication capacity, H3C S7500X-G can be used as an EAD gateway to provide EAD security authentication on a LAN with thousands of users. It can also provide portal authentication for authentication and accounting in the dormitory area in a medium- to large-sized campus network while delivering aggregation and core device services simultaneously.
H3C S7500X-G supports a variety of access authentication methods, and can be used as an authentication gateway to provide security authentication on a LAN with thousands of users. It provides basic network architecture for BYOD mobile office solution, convenient for you to expand BYOD applications such as mobile ERP, OA, and UC&C.
H3C S7500X-G provides security assurance on all the three planes: control, management, and forwarding planes.
Control plane—The embedded protocol packet attack recognition module prevents attacks from Topology Change Notification (TCN), Address Resolution Protocol (ARP), and other protocol packets. Use of the MD5 algorithm for the OSPF/BGP/IS-IS routing protocols prevents network breakdown caused by illegitimate route update packets.
Management plane—Use of SNMPv3, SSHv2, 802.1X and AAA/RADIUS user authentication, role-based user permission management ensures device access and management security.
Forwarding plane—By binding IP address, VLAN ID, MAC address, port number, and any combinations of them and using uRPF that prevents illegitimate traffic from accessing the network and longest matching packet-by-packet forwarding, the forwarding plane can effectively defend against virus attacks.
The switch offers strong ACL power. It supports:
Standard and extended ACLs.
VLAN-based ACLs, which facilities user configuration and saves ACL resources.
ACLs in both the inbound and outbound directions, well-suited for industries such as finance that have strict access control requirements.
The design of H3C S7500X-G eliminates single point of failures.
All critical parts, including the MPUs, power supplies, and fan trays, are used in redundancy.
The passive backplane eliminates single point of failures in the chassis.
All modules and power supplies are hot swappable.
H3C S7500X-G series can operate in extreme environment reliably for a long time, with a carrier-grade reliability of 99.999%.
H3C S7500X-G provides the following features to enable multiple services to run reliably and simultaneously without stop:
NSF and graceful restart, enabling millisecond-level service switching.
ECMP load balancing to load balance and provide redundancy for services over equal cost routes.
Rapid Ring Protection Protocol (RRPP) for Ethernet rings.
Smart Link to ensure millisecond service switchover between dual uplinks.
IRF 2 can virtualize multiple S7500X-G switches into one virtual fabric that can be used and configured as one device but offers the combined port quantity and switching capacity of the virtualized devices. The devices on the IRF fabric back up each other, which enhances the system availability and enables millisecond-level link convergence.
IRF 2 simplifies the management process, reduces management costs, and allows smooth network scaling as needed. Employing rich hardware-based OAM fault detection features, it can detect link faults within milliseconds.
Multi-chassis link aggregation (MLAG, originated from DRNI) virtualizes two physical devices into a logical device at the forwarding plane while keeping separation of the device control planes, taking the benefits of link aggregation from the card level to the device level.
Features | S7503X-M-G | S7503X-G | S7506X-G S7506X-G-PoE | S7510X-G S7510X-G-PoE |
Switching Capacity* | 4.75Tbps | 6.72Tbps | 13.44Tbps | 22.40Tbps |
Forwarding Capacity* | 2120Mpps | 3000Mpps | 6000Mpps | 10000Mpps |
MPU* Slots | 1~2 | 2 | 2 | 2 |
LPU Slots | 1~2 | 3 | 6 | 10 |
LSCM2CGP24TSSC0 LSCM2CGT24TSSC0 LSCM2CTGS12GPSC0 LSCM2CTGS12GTSC0 | LSCM2SUP03B0 LSCM3SUP03A0 | LSCM2MPUS06AS0 LSCM3MPUS06A0 LSCM2SRP6C4Y06A0 LSCM3SRP6C4Y06A0 | LSCM3MPUS10B0 | |
MPU Console Ports | 1x RJ-45 1x mini USB console | 1x RJ-45 1x mini USB console | 1x RJ-45 1x mini USB console | 1x RJ-45 1x mini USB console |
MPU MGMT Ports | 1x 10/100/1000M RJ45 | 1x 10/100/1000M RJ45 1x 1000M SFP | 1x 10/100/1000M RJ45 1x 1000M SFP | 1x 10/100/1000M RJ45 1x 1000M SFP |
Operating Environment | Temperature: 0°C to 45°C (32°F to 113°F) Humidity: 5% to 95% (non-condensing) | |||
Input Voltage | DC: –48V to –60V AC: 100V to 240V | |||
Dimension (H x W x D) | 175mm×436mm×420mm (6.89 × 17.17 × 16.54 in); (4U) | 216mm×436mm×420mm (8.50 × 17.17 × 16.54 in); (5U) | 575mm×436mm×420mm (22.64 × 17.17 × 16.54 in); (13U) | 708mm×436mm×420mm (27.87 × 17.17 × 16.54 in); (16U) |
Fully Loaded Weight (kg) | <28KG <61.73LB | <35KG <77.16LB | S7506X-G: <75KG/<165.34LB S7506X-G-PoE: <80KG/<176.37LB | S7510X-G: <95KG/<209.44LB S7510X-G-PoE: <100KG/<220.46LB |
Availability | 99.999% | 99.999% | 99.999% | 99.999% |
MTBF (yrs) | 175.5 | 205.2 | 64.8 | 59.2 |
MTTR (hrs) | 1 | 1 | 1 | 1 |
Note:This content is applicable only to regions outside mainland China.H3C reserves the right to interpret the content.
* MPU: Main Processing Unit integrating switching fabric
Features | S7503X-M-G | S7503X-G | S7506X-G S7506X-G-PoE | S7510X-G S7510X-G-PoE |
Ethernet | IEEE 802.1p (CoS priority) IEEE 802.1Q (VLAN) (up to 4K VLANs) IEEE 802.1D (STP)/802.1w (RSTP)/802.1s (MSTP)/PVST/PVST+ STP Root Guard BPDU guard, BPDU filter IEEE 802.1ad (QinQ), selective QinQ, VLAN mapping IEEE 802.3x (full-duplex flow control) IEEE 802.3ad (link aggregation), cross-card link aggregation Port isolation RRPP Cross-card port mirroring/flow mirroring RSPAN, ERSPAN Broadcast/multicast/unknown unicast storm suppression on an interface Jumbo frame (13312) Port-based VLAN, Protocol-based VLAN, IP subnet-based VLAN, MAC-based VLAN Super VLAN PVLAN (not support on SE card) Guest VLAN Voice VLAN Single VLAN cross connect, dual VLAN cross connect MVRP(IEEE802.1ak) GVRP LLDP Max. 720,896 MAC entries | |||
Routing | ARP proxy ARP snooping DHCP client, DHCP server, DHCP relay, DHCP snooping, DHCP option82 DHCPv6 client, DHCPv6 server, DHCPv6 relay, DHCPv6 snooping, DHCPv6 option82 Static routing RIPv1/v2 OSPF IS-IS BGPv4 OSPF/IS-IS/BGP GR (Graceful Restart) IPv4/IPv6 ECMP IPv4/IPv6 Policy-based routing IPv4/IPv6 Routing policy ICMPv6 ICMPv6 redirection ACLv6 OSPFv3 RIPng BGP4+ IS-ISv6 Manual tunneling GRE ISATAP 6to4 tunneling Dual stack (IPv4 and IPv6) Max. 96,230 ARP entries Max. 81,350 ND entries Max. 780,288 IPV4 routing entries Max. 278,528 IPV6 routing entries | |||
Multicast | IGMPv1/v2/v3 IGMPv1/v2/v3 snooping IGMP filter IGMP fast leave Multicast VLAN PIM-SM/PIM-DM/PIM-SSM PIM snooping, IPv6 PIM-snooping MSDP Anycast RP MLD V1/V2, MLD V1/V2 Snooping PIM-SMv6, PIM-DMv6, PIM-SSMv6 Multicast policy and Multicast QoS | |||
ACL/QoS | Basic and advanced ACL VLAN-based ACL Global ACL Ingress/Egress ACL Diff-Serv QoS Ingress/Egress CAR, at a granularity of 8 Kbps Traffic shaping 802.1P/DSCP priority marking Queue scheduling algorithms: SP, WRR, SP+WRR, WFQ Congestion avoidance techniques, including tail drop and WRED Ingress/Egress counting COPP | |||
SDN/ OpenFlow | Support SDN solution (AD-Campus) OpenFlow 1.3 Multi-controller (EQUAL mode, active/passive mode) Multi-flow table pipeline Group table Two-level meter | |||
VXLAN | VXLAN and EVPN are not support on SE card VXLAN L2 switching VXLAN L3 routing VXLAN VTEP L2 VxLAN gateway, L3 VxLAN gateway Distributed VxLAN gateway, Centrilized VxLAN gateway IPv4/IPv6 VxLAN tunnel IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane, EVPN-DCI OpenFlow+Netconf centralized control plane | |||
MPLS/VPLS | L3 MPLS VPN L2 VPN: VLL (Martini, Kompella) MCE MPLS OAM VPLS, VLL P/PE function LDP | |||
Multiservice Convergence | Unified Wireless Access Controller (LSCM2MPUS06AS0, LSCM2CTGS12GPSC0, LSCM2CTGS12GTSC0, LSCM2CGP24TSSC0, LSCM2CGT24TSSC0 not support integrated AC) AP Auto Registration Wireless User WPA2 + PSK Authentication Wireless User Portal Authentication | |||
Security | Hierarchical user management and password protection EAD Port security Portal authentication MAC authentication IEEE 802.1x and IEEE 802.1x SERVER AAA/Radius TACACS+ HWTACACS (HW Terminal Access Controller Access Control System) (Same authentication processes and implementations with TACACS+) SSHv1.5/SSHv2 Basic and advanced Access Control Lists for packet filtering OSPF, RIPv2, BGPv4 pain text and MD5 authentication IP address, VLAN ID, MAC address multiple binding combination uRPF Active/standby data backup CPU DoS Protection ARP Attack Protection, ND attack defense Macsec, (Macsec is not support on SE card) HTTPS SSL PKI Secure boot Micro-segmentation (not support on SE card) | |||
System Management | IMC network management system Loading and upgrading through XModem/FTP/TFTP SNMP v1/v2/v3 sFlow, NetStream, (NetStream is not support on SE card) NQA (Network Quality Analysis) gRPC Telemetry Stream, (Telemetry Stream is support on SF card) RMON and groups 1, 2, 3 and 9 NTP, PTP (1588v2), (PTP is not support on SE card) ZTP Ping, Tracert, VxLAN ping and VxLAN tracert Fault alarm and automatic fault recovery System logs Device status monitoring mechanism, including the CPU engine, backplane, chips and other key components Cloud management Intelligent power management, 802.3az EEE Online monitoring of the device and key components, including the MPUs, backplane, chips, and storage components Telemetry INT, (INT is support on SF card) MOD (Mirror on drop), (MOD is not support on SE card) Packet capture INQA, (INQA is not support on SE card) Built-in intelligent management module, enabling one-key deployment of device configuration and commands and intelligent version upgrade from the GUI interface SmartMC eMDI, (eMDI is support on SF card) | |||
Programmability | Using Ansible for automated configuration management and bulk configuration deployment Using Python/NETCONF/Tcl for automated network orchestration and automated DevOps | |||
HA | 1+1 redundancy for key components such as MPUs (MPU includes CPU + Switching Fabric) 1+1 redundancy for power modules Passive backplane Hot swapping for all components Real-time data backup on active/standby MPUs CPU protection IP source guard VRRP, VRRPv3 Loop detection Hot patching NSR (Nonstop Routing)/GR (Graceful Restart) for OSFP/BGP/IS-IS/RSVP Port aggregation and multi-card link aggregation, LACP BFD for VRRP, BGP/BGPv4, IS-IS/IS-ISv6, PIM/PIM for IPV6, OSPF/OSPFv3, RSVP, static routing, with a failover detection time less than 50 milliseconds Ethernet OAM Hardware BFD RRPP/ERPS DLDP VCT Track Monitor Link Smart-Link ISSU (In-service Software Upgrade) IRF M-LAG S-MLAG MDC (S7503X-G, S7503X-M-G, LSCM2SRP6C4Y06A0, LSCM3SRP6C4Y06A0 not support) Loopback detection +/–8 KV lightning protection | |||
EMC | FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 | |||
Environmental Standards Compliance | RoHS REACH WEEE | |||
Safety | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
Product ID | Product Description |
Chassis | |
LS-7503X-M-G | H3C S7503X-M-G Ethernet Switch Chassis |
LS-7503X-G | H3C S7503X-G Ethernet Switch Chassis |
LS-7506X-G | H3C S7506X-G Ethernet Switch Chassis |
LS-7506X-G-PoE | H3C S7506X-G Ethernet Switch Chassis, PoE |
LS-7510X-G | H3C S7510X-G Ethernet Switch Chassis |
LS-7510X-G-PoE | H3C S7510X-G Ethernet Switch Chassis, PoE |
Supervisor Engine | |
LSCM2CTGS12GPSC0 | H3C S7503X-M-G Main Processing Unit with Switching and Routing, with 16*1000BASE Ethernet Optical Interfaces(SFP,LC)+ 12*10G Ethernet Optical Interfaces(SFP+,LC)(SC) |
LSCM2CTGS12GTSC0 | H3C S7503X-M-G Main Processing Unit with Switching and Routing, with 16*10/100/1000BASE-T Ethernet Copper Interfaces(RJ45)+ 12*10G Ethernet Optical Interfaces(SFP+,LC)(SC) |
LSCM2CGP24TSSC0 | H3C S7503X-M-G Main Processing Unit with Switching and Routing,with 24*1000BASE Ethernet Optical Interfaces(SFP,LC)+ 4*10G Ethernet Optical Interfaces(SFP+,LC)(SC) |
LSCM2CGT24TSSC0 | H3C S7503X-M-G Main Processing Unit with Switching and Routing, with 24*10/100/1000BASE-T Ethernet Copper Interfaces(RJ45)+ 4*10G Ethernet Optical Interfaces(SFP+,LC)(SC) |
LSCM2SUP03B0 | H3C S7503X-G Supervisor Engine Unit, Type B |
LSCM3SUP03A0 | H3C S7503X-G Supervisor Engine Unit,Type A |
LSCM2MPUS06AS0 | H3C S7506X-G Main Processing Unit with Switching, Type AS |
LSCM3MPUS06A0 | H3C S7506X-G Main Processing Unit with Switching, Type A |
LSCM3SRP6C4Y06A0 | H3C S7506X-G Main Processing Unit with Switching and Routing, with 6-port 100GE(QSFP28) and 4-port 25GE(SFP28), Type A |
LSCM2SRP6C4Y06A0 | H3C S7506X-G Main Processing Unit with Switching and Routing, with 6-port 100GE(QSFP28) and 4-port 25GE(SFP28), Type A |
LSCM3MPUS10B0 | H3C S7510X-G Main Processing Unit with Switching, Type B |
Line Card | |
LSCM2GT48SD0 | H3C S7500X-G 48-Port 10/100/1000BASE-T Ethernet Copper Interface Module (RJ45)(SD) |
LSCM2GP48SD0 | H3C S7500X-G 48-Port 1000BASE Ethernet Optical Interface Module (SFP, LC) (SD) |
LSCM2GV48SD0 | H3C S7500X-G 48-Port 10/100/1000BASE-T Ethernet Copper Interface Module (RJ45)(SD),PoE Plus |
LSCM2GT24GPSD0 | H3C S7500X-G 24-Port 10/100/1000BASE-T Ethernet Copper Interface(RJ45)+8-Port 1000BASE Ethernet Optical Interface Module (SFP,LC)(SD) |
LSCM2GP24GTSD0 | H3C S7500X-G 24-Port 1000BASE Ethernet Optical Interface(SFP,LC)+8-Port 10/100/1000BASE-T Ethernet Copper Interface Module (RJ45)(SD) |
LSCM2GT24TSSD0 | H3C S7500X-G 24-Port 10/100/1000BASE-T Ethernet Copper Interface(RJ45) + 4-Port 10G Ethernet Optical Interface Module (SFP+)(SD) |
LSCM2GT24GPTSSD0 | H3C S7500X-G 24-Port 10/100/1000BASE-T Ethernet Copper Interface(RJ45)+20-Port 1000BASE Ethernet Optical Interface(SFP,LC)+4-Port 10G Ethernet Optical Interface Module (SFP+,LC)(SD) |
LSCM2GP40TS8SD0 | H3C S7500X-G 40-Port 1000BASE Ethernet Optical Interface(SFP) + 8-Port 10G Ethernet Optical Interface Module (SFP+)(SD) |
LSCM2TGS16GPSD0 | H3C S7500X-G 16-Port 10G Ethernet Optical Interface(SFP+,LC)+24-Port 1000BASE Ethernet Optical Interface Module (SFP,LC)(SD) |
LSCM2TGS16GP32SD0 | H3C S7500X-G 32-Port 1000BASE Ethernet Optical Interface(SFP,LC)+16-Port 10G Ethernet Optical Interface Module (SFP+,LC)(SD) |
LSCM3TGS32GP16SF0 | H3C S7500X-G 32-Port 10G Ethernet Optical Interface(SFP+) + 16-Port 1000BASE Ethernet Optical Interface Module (SFP)(SF) |
LSCM3TGS48SE0 | H3C S7500X-G 48-Port 10G Ethernet Optical Interface Module(SFP+,LC)(SE) |
LSCM2TGS48SF0 | H3C S7500X-G 48-Port 10G Ethernet Optical Interface Module (SFP+,LC)(SF) |
LSCM3TGS48SF0 | H3C S7500X-G 48-Port 10G Ethernet Optical Interface Module (SFP+)(SF) |
LSCM2YGS16TS8SF0 | H3C S7500X-G 16-Port 25G Ethernet Optical Interface(SFP28)+8-Port 10G Ethernet Optical Interface Module (SFP+,LC)(SF) |
LSCM2YGS32TS16SF0 | H3C S7500X-G 32-Port 25G Ethernet Optical Interface(SFP28)+16-Port 10G Ethernet Optical Interface Module (SFP+,LC)(SF) |
LSCM3QGS8CSSE0 | H3C S7500X-G 8-Port 40G Ethernet Optical Interface(QSFP+)+4-Port 100G Ethernet Optical Interface Module(QSFP28)(SE) |
LSCM2CGS8QS8SF0 | H3C S7500X-G 8-Port 40G Ethernet Optical Interface(QSFP+)+8-Port 100G Ethernet Optical Interface Module (QSFP28)(SF) |
LSCM3CGS8QS8SF0 | H3C S7500X-G 8-Port 100G Ethernet Optical Interface(QSFP28)+8-Port 40G Ethernet Optical Interface Module (QSFP+)(SF) |
Power Supply Module | |
LSQM1PWRSPB | Power Adapter Module |
LSQM2AC300-GL | H3C 300W AC Power Supply Module |
LSQM2AC650-GL | H3C 650W AC Power Supply Module |
LSQM1DC650-GL | H3C 650W DC Power Supply Module |
PSR650C-12A-GL | H3C 650W AC Power Supply Module |
PSR650C-12D-GL | H3C 650W DC Power Supply Module |
LSQM2AC1400-GL | H3C 1400W AC Power Supply Module |
PSR2500-12AHD-GL | H3C 2500W AC Power Supply Module, HVDC Supported |
PSR2500-12D-GL | H3C 2500W DC Power Supply Module |
LSQM1AC2800-GL | H3C 2800W AC PoE Power Supply Module |
