As shown in Figure 1, a BRAS connects hosts over IPoE connections, and provides AAA, security, and DHCP services for the hosts. This solution does not require the hosts to install any client software.

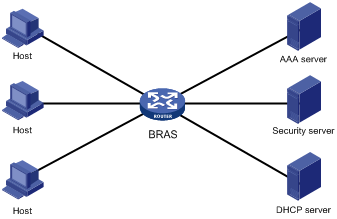

Figure 1 IPoE network diagram

IPoE access modes

IPoE supports Layer 2 and Layer 3 access modes.

· Layer 2 access mode

Hosts directly access the BRAS. The hosts connect to the BRAS directly or through Layer 2 devices. The BRAS uses MAC addresses to identify the hosts.

· Layer 3 access mode

Hosts use routing to access the BRAS. The hosts connect to the BRAS directly or through Layer 3 devices. When a Layer 3 device resides between the hosts and the BRAS, the source MAC address of packets received by the BRAS is the MAC address of the Layer 3 device. Therefore, the BRAS uses IP addresses or VLAN IDs to identify hosts.

IPoE users

IPoE users include individual users and leased users.

Individual users

Individual users use independent IPoE services. The BRAS authenticates, authorizes, and bills individual users based on user location and packet information. Individual users include dynamic and static individual users.

· Dynamic individual users

IPoE defines the following dynamic individual users:

¡ DHCP user—Sends DHCP packets to trigger IPoE session establishment.

¡ IPv6-ND-RS user—Sends IPv6 ND RS packets to trigger IPoE session establishment.

¡ Unclassified-IP user—Sends packets other than DHCP and IPv6 ND RS packets to trigger IPoE session establishment.

· Static individual users

Static individual users trigger IPoE session establishment by sending IP packets. If an IP packet matches a manually configured IPoE session, the BRAS authenticates the user and establishes an IPoE session.

Leased users

Leased users include interface-leased users and subnet-leased users.

· Interface-leased user—Represents hosts that rent the same interface.

· Subnet-leased user—Represents hosts that rent a subnet of an interface.

The BRAS uses the credentials configured for a leased user to perform authentication upon receiving the first packet on the interface or subnet. After the authentication succeeds, the BRAS will not authenticate subsequent packets on the interface or subnet.

IPoE session

IPoE sessions include dynamic and static sessions.

Dynamic IPoE session

IPoE sessions established for dynamic individual users are dynamic IPoE sessions.

The BRAS disconnects a dynamic IPoE session in one of the following cases:

· The AAA-authorized service expires.

· The AAA server logs out the user.

· The user traffic is less than the authorized traffic during the idle-timeout time.

· The BRAS cannot detect the user after the number of detection attempts reaches the maximum.

· The IP address lease expires.

· The IPoE session is restarted.

· The access interface goes down.

Static IPoE session

IPoE sessions established for static individual users, interface-leased users, and subnet-leased users are static IPoE sessions.

The BRAS creates a static IPoE session based on configured information after you enable IPoE on an interface. Once the interface receives an IP packet from a host, the BRAS uses the IP or MAC addresses in the packet to match the IPoE session. If a match is found, the BRAS initiates a user authentication based on the configured username and password.

Static IPoE sessions can only be deleted manually at the CLI.

IPoE addressing

IPoE addressing varies with user types.

· DHCP users obtain IP addresses in the following sequence:

¡ Obtain IP addresses from the AAA-authorized IP address pool.

¡ Obtain IP addresses from the IP address pool configured in the ISP domain if the AAA server does not authorize any IP address pools.

¡ Obtain IP addresses in the same network segment as the interface IP address if no IP address pool is configured in the ISP domain.

· IPv6-ND-RS users obtain the AAA-authorized IPv6 prefix from IPoE, and generate an IPv6 address based on the prefix. If no AAA-authorized IPv6 prefix exists, the user adopts the first 64-bit IPv6 prefix of the interface to generate an IPv6 address.

· Other users adopt static IP addresses or obtain IP addresses from the DHCP server without using IPoE.

IPoE access procedure

IPoE access includes the following steps:

1. The BRAS initiates authentication.

The BRAS obtains information from user packets or IPoE sessions statically configured, and sends authentication requests.

2. The AAA server authenticates users.

The AAA server completes user authentication and sends the result to the BRAS. The security server, if configured, completes security authorization and sends the result to the BRAS.

3. (Optional.) DHCP allocates IP addresses and IPoE allocates IPv6 prefixes.

The DHCP server assigns an IP address to a DHCP user and the IPoE assigns an IPv6 prefix to an IPv6-ND-RS user.

4. The BRAS performs access control.

The BRAS permits the user to get online and performs access control and billing based on the authorized result.

Access procedure for DHCP users

This section uses a DHCPv4 user as an example to illustrate the access procedure for DHCP users. The BRAS operates as a DHCP relay.

Figure 2 Access procedure for a DHCPv4 user

1. The DHCP client sends a DHCP-DISCOVER message to the BRAS.

2. The BRAS inserts Option 82 in the DHCP-DISCOVER message, and creates an IPoE session.

3. The BRAS sends the AAA server an access request that includes user information, such as the client ID and source MAC address.

4. The AAA server returns an access accept that contains authorization information to the BRAS if the authentication succeeds. If the authentication fails, the AAA server returns a reject message.

5. The BRAS marks the IPoE session state as success and forwards the DHCP-DISCOVER message to the DHCP server if the authentication succeeds. If the authentication fails, the BRAS marks the session as failure and discards the DHCP-DISCOVER message.

6. The DHCP server sends a DHCP-OFFER message to the BRAS.

7. The BRAS forwards the DHCP-OFFER message to the DHCP client.

8. The DHCP client sends a DHCP-REQUEST message to the BRAS.

9. The BRAS forwards the DHCP-REQUEST message to the specified DHCP sever.

10. The DHCP server sends a DHCP-ACK message containing the assigned IP address to the BRAS.

11. The BRAS performs the following:

a. Obtains address information from the DHCP-ACK message.

b. Assigns a user profile.

c. Updates the IPoE session information.

d. Forwards the DHCP-ACK message to the client.

e. Marks the session state as online.

If the authentication fails, the BRAS marks the session as failure and discards the DHCP-DISCOVER message.

12. The DHCP client obtains configuration information from the DHCP-ACK message.

13. The BRAS sends the AAA server a message to start accounting.

Access procedure for IPv6-ND-RS users

This example uses a Layer 2 device as the BRAS.

Figure 3 Access procedure for IPv6-ND-RS users

1. The host sends an IPv6 ND RS packet to the BRAS.

2. The BRAS initiates an IPoE session and sends the AAA server an access request that contains user information, such as the source MAC address.

3. The AAA server returns an access accept that contains authorization information to the BRAS if the authentication succeeds. If the authentication fails, the AAA server returns a reject message.

4. The BRAS performs the following:

a. Generates an IPv6 address based on the host's MAC address and the IPv6 prefix.

b. Updates the IPoE session information.

c. Marks the session as success.

If the authentication fails, the BRAS marks the session as failure and discards the IPv6 ND RS packet.

5. The BRAS assigns a user profile and sends the host an IPv6 ND RA packet containing the IPv6 prefix.

6. The host generates an IPv6 address based on the received IPv6 prefix.

7. The BRAS sends the AAA server a message to start the service accounting.

Access procedure for unclassified-IP users

Figure 4 Access procedure for unclassified-IP users

1. The host sends an IP packet to the BRAS.

2. The BRAS obtains user information from the IP packet, and matches the user information against existing IPoE sessions.

¡ If no match is found, the BRAS initiates an IPoE session for the user. (This section uses this case as an example.)

¡ If the information matches an authenticated session, the BRAS forwards the IP packet.

¡ If the information matches an unauthenticated session, the BRAS discards the IP packet.

3. The BRAS sends the AAA server an access request containing the obtained information, such as the source IP address or source MAC address.

4. The AAA server returns an access accept that contains authorization information if the authentication succeeds. If the authentication fails, the AAA server returns a reject message.

5. The BRAS assigns a user profile and marks the IPoE session state as online.

6. The BRAS sends the AAA server a message to start the service accounting.

Access procedure for static and leased users

1. The user statically configures an IPoE session at the CLI on the BRAS.

2. The user sends an IP packet to the BRAS.

3. The BRAS obtains user information from the IP packet, and sends the AAA server an access request containing configured IPoE session information.

4. The AAA server returns an access accept that contains authorization information if the authentication succeeds. If the authentication fails, the AAA server returns a reject message.

5. The BRAS assigns the user profile and marks the IPoE session state as online.

6. The host receives the user profile.

7. The BRAS sends the AAA server a message to start the service accounting.

Support for MPLS L3VPN

IPoE supports MPLS L3VPN. It uses AAA to authorize VPNs for users. Before you bind a VPN instance to an interface, you must delete existing IPoE sessions on the interface for the users to communicate in their authorized VPNs.

NOTE:

Leased users do not support AAA-authorized VPNs through ISP domains or AAA servers. For more information about VPN authorization through ISP domains, see Security Configuration Guide.

IPoE configuration task list

Tasks at a glance	Remarks
(Required.) Enabling IPoE and setting the IPoE access mode	N/A
(Required.) Configure users: · Configuring dynamic individual users · Configuring static individual users · Configuring interface-leased users · Configuring subnet-leased users	Individual users and leased users cannot be configured on the same interface. Dynamic and static individual users can be configured on the same interface. Interface-leased users and subnet-leased users cannot be configured on the same interface.
(Optional.) Configuring service-specific ISP domains	N/A
(Optional.) Configuring the quiet timer for users	N/A
(Optional.) Configuring NAS-Port-Type for an interface	N/A
(Optional.) Configuring NAS-Port-ID formats	N/A

Configuration preparations

Complete the following configuration as required:

· Configure the DHCP server.

· Enable the DHCP relay agent on the BRAS.

· Configure the RADIUS server and client. For more information about how to configure a RADIUS client, see Security Configuration Guide.

· Configure security policies on the H3C IMC security server and configure the security server's IP address on the BRAS. For more information about how to configure a security server, see Security Configuration Guide.

· Configure local user accounts on the BRAS if local authentication is used. For more information about how to configure a local user account, see Security Configuration Guide.

· Make sure the hosts, BRAS, and servers can reach each other.

Enabling IPoE and setting the IPoE access mode

You must enable IPoE for all IPoE configurations to take effect.

To enable IPoE and set the IPoE access mode:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Enable IPoE and set the IPoE access mode.	· Enable IPoE and set the IPoE access mode on an IPv4 interface: ip subscriber { l2-connected \| routed } enable · Enable IPoE and set the IPoE access mode on an IPv6 interface: ipv6 subscriber { l2-connected \| routed } enable	By default, IPoE is disabled. To change the IPoE access mode, disable access IPoE, and then set the new IPoE mode when you enable IPoE.

Configuring dynamic individual users

Dynamic user configuration task list

Tasks at a glance
(Required.) Enabling dynamic individual users
(Required.) Configuring authentication user naming conventions for dynamic individual users
(Required.) Configuring passwords for dynamic individual users
(Optional.) Configuring ISP domains for dynamic individual users
(Optional.) Configuring the maximum number of dynamic IPoE sessions
(Optional.) Configuring online detection for dynamic individual users
(Optional.) Configuring trusted DHCP options for dynamic individual users

Enabling dynamic individual users

Dynamic individual users include the unclassified-IP user, IPv6-ND-RS user, and DHCP user. You can enable multiple dynamic individual users on an interface.

Follow these guidelines when you enable dynamic individual users:

· The IPv6-ND-RS user supports only hosts that use layer-2 access mode. It requires the BRAS to send IPv6 ND RA packets. The interval for sending IPv6 ND RA packets should be no less than 6 minutes.

· As a best practice, configure both the unclassified-IP user and IPv6-ND-RS user for an IPv6 interface. PCs running Windows generate IPv6 addresses randomly or using the EUI-64 method. The unclassified-IP user supports packets with randomly-generated IPv6 addresses. The IPv6-ND-RS user supports packets with EUI-64-generated IPv6 addresses.

To enable dynamic individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Enable dynamic individual users.	· Enable the IPv4 dynamic individual user: ip subscriber initiator { dhcp \| unclassified-ip } enable · Enable the IPv6 dynamic individual user: ipv6 subscriber initiator { dhcp \| ndrs \| unclassified-ip } enable	By default, no dynamic individual users are enabled.

Configuring authentication user naming conventions for dynamic individual users

Usernames configured for dynamic individual users must be the same as those configured on the AAA server.

Configuring authentication user naming conventions for IPv4 dynamic individual users

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure authentication user naming conventions for IPv4 dynamic individual users.	· Configure an authentication user naming convention for DHCP users: ip subscriber dhcp username include { circuit-id [ separator separator ] \| client-id [ separator separator ] \| nas-port-id [ separator separator ] \| port [ separator separator ] \| remote-id [ separator separator ] \| second-vlan [ separator separator ] \| slot [ separator separator ] \| source-mac [ address-separator address-separator ] [ separator separator ] \| subslot [ separator separator ] \| sysname [ separator separator ] \| vendor-class [ separator separator ] \| separator vendor-specific [ separator separator ] \| vlan [ separator separator ] } * · Configure an authentication user naming convention for unclassified-IP users: ip subscriber unclassified-ip username include { nas-port-id [ separator separator ] \| port [ separator separator ] \| second-vlan [ separator separator ] \| slot [ separator separator ] \| source-ip [ address-separator address-separator ] [ separator separator ] \| source-mac [address- separator address-separator ] [ separator separator ] \| subslot [ separator separator ] \| sysname [ separator separator ] \| vlan [ separator separator ] } *	By default, usernames for DHCP users are source MAC addresses, and usernames for unclassified-IP users are source IP addresses.

Configuring authentication user naming conventions for IPv6 dynamic individual users

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure authentication user naming conventions for IPv6 dynamic individual users.	· Configure an authentication user naming convention for DHCPv6 users: ipv6 subscriber dhcp username include { circuit-id [ separator separator ] \| client-id [ separator separator ] \| nas-port-id [ separator separator ] \| port [ separator separator ] \| remote-id [ separator separator ] \| second-vlan [ separator separator] \| slot [ separator separator] \| source-mac [ address-separator address-separator ] [ separator separator ] \| subslot [ separator separator ] \| sysname [ separator separator ] \| vendor-class [ separator separator ] \| vendor-specific [ separator separator ] \| vlan [ separator separator ] } * · Configure an authentication user naming convention for IPv6-ND-RS users: ipv6 subscriber ndrs username include { nas-port-id [ separator separator ] \| port [ separator separator ] \| second-vlan [ separator separator ] \| slot [ separator separator ] \| source-mac [ address-separator address-separator ] [ separator separator ] \| subslot [ separator separator ] \| sysname [ separator separator ] \| vlan [ separator separator ] } * · Configure an authentication user naming convention for unclassified-IP users: ipv6 subscriber unclassified-ip username include { nas-port-id [ separator separator ] \| port [ separator separator ] \| second-vlan [ separator separator ] \| slot [ separator separator ] \| source-ip [ address-separator address-separator ] [ separator separator ] \| source-mac [ address-separator address-separator ] [ separator separator ] \| subslot [ separator separator ] \| sysname [ separator separator ] \| vlan [ separator separator ] } *	By default, usernames for DHCPv6 and IPv6-ND-RS users are source MAC addresses, and usernames for unclassified-IP users are source IP addresses.

Configuring passwords for dynamic individual users

Passwords configured for dynamic individual users must be the same as those configured on the AAA server.

If you configure multiple passwords for an DHCP user, the passwords are used in the following order:

1. Password specified in Option 60 or Option 16 if the BRAS trusts Option 60 or Option 16.

2. Password specified the ip subscriber password or ipv6 subscriber password command.

3. Default system password.

To configure a password for a dynamic individual user:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure a password for dynamic individual users.	· Configure a password for IPv4 dynamic individual users: ip subscriber password { ciphertext \| plaintext } string · Configure a password for IPv6 dynamic individual users: ipv6 subscriber password { ciphertext \| plaintext } string	The default password for dynamic individual users is vlan.
4. (Optional.) Specify a string from the DHCP option as the password for DHCP users.	· Specify a string from the Option 60 as the password for IPv4 dynamic individual users: ip subscriber dhcp password option60 [ offset offset ] [ length length ] · Specify a string from the Option 16 as the password for IPv6 dynamic individual users: ip subscriber dhcp password option16 [ offset offset ] [ length length ]	Configure DHCP Option 60 or Option 16 as the trusted DHCP options for the password specified by this command to take effect. By default, the BRAS does not use the password specified in Option 60 or Option 16 for DHCP users.

Configuring ISP domains for dynamic individual users

The following table shows how the BRAS selects ISP domains for dynamic individual users.

Dynamic individual users	Order in selecting an ISP domain
DHCP user	· Option 60 in DHCPv4 packets or Option 16 in DHCPv6 packets if the BRAS trusts Option 60 or Option 16 · Interface-specific domain · Default system domain
IPv6-ND-RS user	· Interface-specific domain · Default system domain
Unclassified-IP user	· Service-specific domain · Interface-specific domain · Default system domain

For more information about how to configure trusted DHCP options, see "Configuring trusted DHCP options for dynamic individual users." For more information about how to configure the default system domain, see Security Configuration Guide. For more information about how to configure service-specific ISP domains, see "Configuring service-specific ISP domains."

To configure an interface-specific ISP domain for dynamic individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure an ISP domain for dynamic individual users.	· Configure an ISP domain for IPv4 dynamic individual users: ip subscriber { dhcp \| unclassified-ip } domain domain-name · Configure an ISP domain for IPv6 dynamic individual users: ipv6 subscriber { dhcp \| ndrs \| unclassified-ip } domain domain-name	By default, dynamic individual users use the default system domains.

Configuring the maximum number of dynamic IPoE sessions

This feature limits the total number of dynamic IPoE sessions on an interface.

If the number of dynamic IPoE sessions reaches the upper limit on an interface or reaches the upper limit supported by the device, you cannot establish any additional IPoE sessions on the interface or on the device.

When you configure this feature, follow these restrictions and guidelines:

· You can set a smaller value than the number of existing dynamic IPoE sessions on an interface. In this scenario, the existing dynamic IPoE sessions are not affected.

· Make sure the total maximum number of dynamic IPoE sessions for all interfaces on the device is less than the upper limit of the device.

To configure the maximum number of dynamic IPoE sessions:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure the maximum number of dynamic IPoE sessions.	· Configure the maximum number of IPv4 IPoE sessions: ip subscriber { dhcp \| unclassified-ip } max-session max-number · Configure the maximum number of IPv6 IPoE sessions: ipv6 subscriber { dhcp \| ndrs \| unclassified-ip } max-session max-number	By default, the maximum number of dynamic IPoE sessions is not configured.

Configuring online detection for dynamic individual users

Online detection enables the BRAS to periodically detect the status of a user. It uses ARP and ICMP requests to detect IPv4 users, and uses NS packets of the ND protocol and ICMPv6 requests to detect IPv6 users.

After you configure online detection, the BRAS starts a detection timer to detect online users. If the BRAS does not receive user packets from a user when the detection timer expires, it sends a detection packet to the user and performs the following operations:

· If the BRAS receives user packets within the maximum number of detection attempts, the BRAS assumes that the user is online. It resets the detection timer, and starts the next detection attempt.

· If the BRAS does not receive user packets within the maximum number of detection attempts, the BRAS assumes that the user is offline and deletes the user session.

To configure online detection for dynamic individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure online detection for dynamic individual users.	· Configure online detection for IPv4 dynamic individual users: ip subscriber user-detect { arp \| icmp } retry retries interval interval · Configure online detection for IPv6 dynamic individual users: ipv6 subscriber user-detect { icmpv6 \| nd } retry retries interval interval	By default, the online detection feature is disabled.

Configuring trusted DHCP options for dynamic individual users

This feature enables a BRAS to obtain user access information from trusted DHCP options when the BRAS acts as a DHCP relay. The BRAS includes the obtained user access information in the RADIUS attributes sent to the RADIUS server based on the following matrix.

RADIUS attributes	Associated DHCP options
NAS-PORT-ID	· DHCPv4 Option 82 Suboption Circuit-ID · DHCPv6 Option 18
DSL_AGENT_CIRCUIT_ID	· DHCPv4 Option 82 Suboption Circuit-ID · DHCPv6 Option 18
DSL_AGENT_REMOTE_ID	· DHCPv4 Option 82 Suboption Remote-ID · DHCPv6 Option 37

If the BRAS trusts DHCPv4 Option 60 and DHCPv6 Option 16, the DHCPv4 users and DHCPv6 users use the ISP domains specified in DHCPv4 Option 60 and DHCPv6 Option 16, respectively.

To configure trusted DHCP options for dynamic individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure trusted DHCP options for dynamic individual users.	· Configure trusted DHCP options for IPv4 dynamic individual users: ip subscriber trust { option60 \| option82 } · Configure trusted DHCP options for IPv6 dynamic individual users: ipv6 subscriber trust { option16 \| option18 \| option37 }	By default, the BRAS does not trust options.

Configuring static individual users

Static individual user configuration task list

Tasks at a glance
(Required.) Enabling static individual users
(Required.) Configuring static IPoE sessions
(Required.) Configuring authentication user naming conventions for static individual users
(Required.) Configuring passwords for static individual users
(Optional.) Configuring ISP domains for static individual users
(Optional.) Configuring online detection for static individual users

Enabling static individual users

This feature enables configured static IPoE sessions information to match IP packets.

To enable static individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Enable static individual users.	· Enable IPv4 static individual users: ip subscriber initiator unclassified-ip enable · Enable IPv6 static individual users: ipv6 subscriber initiator unclassified-ip enable	By default, no static individual user is enabled.

Configuring static IPoE sessions

After the configured session information matches a user, the BRAS establishes a static IPoE session for the user.

To configure a static IPoE session:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure a static IPoE session.	· Configure a static IPv4 IPoE session: ip subscriber session static ip ip-address [ mac mac-address ] [ vlan vlan-id [ second-vlan vlan-id ] ] [ domain domain-name ] · Configure a static IPv6 IPoE session: ipv6 subscriber session static ipv6 ipv6-address [ mac mac-address ] [ vlan vlan-id [ second-vlan vlan-id ] ] [ domain domain-name ]	By default, no static IPoE session is configured. Only subinterfaces support parameters vlan and second-vlan.

Configuring authentication user naming conventions for static individual users

Usernames configured for static individual users must be the same as those configured on the AAA server.

To configure authentication user naming conventions for static individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure authentication user naming conventions for static individual users.	· Configure an authentication user naming convention for IPv4 static individual users: ip subscriber unclassified-ip username include { nas-port-id [ separator separator ] \| port [ separator separator ] \| second-vlan [ separator separator ] \| slot [ separator separator ] \| source-ip [ address-separator address-separator ] [ separator separator ] \| source-mac [address-separator address-separator ] [ separator separator ] \| subslot [ separator separator ] \| sysname [ separator separator ] \| vlan [ separator separator ] } * · Configure an authentication user naming convention for IPv6 static individual users: ipv6 subscriber unclassified-ip username include { nas-port-id [ separator separator ] \| port [ separator separator ] \| second-vlan [ separator separator ] \| slot [ separator separator ] \| source-ip [ address-separator address-separator ] [ separator separator ] \| source-mac [ address-separator address-separator ] [ separator separator ] \| subslot [ separator separator ] \| sysname [ separator separator ] \| vlan [ separator separator ] } *	The default username is the source IP address of packets sent by users.

Configuring passwords for static individual users

Passwords configured for static individual users must be the same as those configured on the AAA server.

To configure passwords for static individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure passwords for static individual users.	· Configure a password for IPv4 static individual users: ip subscriber password { ciphertext \| plaintext } string · Configure a password for IPv6 static individual users: ipv6 subscriber password { ciphertext \| plaintext } string	The default password for a static individual user is vlan.

Configuring ISP domains for static individual users

The BRAS selects ISP domains for static individual users in the following order:

· Domain configured in the static IPoE session

· Service-specific domain

· Interface-specific domain

· Default system domain

For more information about how to configure a domain in the static IPoE session, see "Configuring static IPoE sessions." For more information about how to configure service-specific ISP domains, see "Configuring service-specific ISP domains." For more information about how to configure the default system domain, see Security Configuration Guide.

To configure an interface-specific ISP domain for static individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure an ISP domain for static individual users.	· Configure an ISP domain for static IPv4 individual users: ip subscriber unclassified-ip domain domain-name · Configure an ISP domain for static IPv6 individual users: ipv6 subscriber unclassified-ip domain domain-name	By default, static individual users use the default system domain.

Configuring online detection for static individual users

After you configure online detection, the BRAS starts a detection timer to detect online users. If the BRAS does not receive user packets from a user before the detection timer expires, it sends a detection packet to the user and performs the following operations:

· If the BRAS receives user packets within the maximum number of detection attempts, the BRAS assumes that the user is online. It resets the detection timer, and starts the next detection attempt.

· If the BRAS does not receive user packets within the maximum number of detection attempts, the BRAS assumes that the user is offline and deletes the user session.

To configure online detection for static individual users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure online detection for static individual users.	· Configure online detection for IPv4 dynamic individual users: ip subscriber user-detect { arp \| icmp } retry retries interval interval · Configure online detection for IPv6 dynamic individual users: ipv6 subscriber user-detect { icmpv6 \| nd } retry retries interval interval	By default, the online detection feature is disabled.

Configuring leased users

Leased user configuration task list

Tasks at a glance	Remarks
(Required.) Configuring leased users: · Configuring interface-leased users · Configuring subnet-leased users	Interface-leased users and subnet-leased users cannot be configured on the same interface.
(Optional.) Configuring ISP domains for leased users	N/A

Tasks at a glance

Remarks

(Required.) Configuring leased users:

· Configuring interface-leased users

· Configuring subnet-leased users

Interface-leased users and subnet-leased users cannot be configured on the same interface.

(Optional.) Configuring ISP domains for leased users

N/A

Configuring interface-leased users

You can configure up to one IPv4 interface-leased user and one IPv6 interface-leased user on an interface.

To configure interface-leased users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure interface-leased users.	· Configure an IPv4 interface-leased user: ip subscriber interface-leased username name password { ciphertext \| plaintext } string [ domain domain-name ] · Configure an IPv6 interface-leased user: ipv6 subscriber interface-leased username name password { ciphertext \| plaintext } string [ domain domain-name ]	By default, no interface-leased user is configured.

Configuring subnet-leased users

You can configure multiple subnet-leased users on an interface. Different subnets must have the same mask length. Each subnet can be bound to only one subnet-leased user.

To configure subnet-leased users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure subnet-leased users.	· Configure an IPv4 subnet-leased user: ip subscriber subnet-leased ip ip-address { mask \| mask-length } username name password { ciphertext \| plaintext } string [ domain domain-name ] · Configure an IPv6 subnet-leased user: ipv6 subscriber subnet-leased ipv6 ipv6-address prefix-length username name password { ciphertext \| plaintext } string [ domain domain-name ]	By default, no subnet-leased user is configured.

Configuring ISP domains for leased users

The BRAS selects ISP domains for leased users in the following order:

· Domains configured for each interface-leased user and each subnet-leased user

· Service-specific domain

· Domain configured for leased users

· Default system domain

For more information about domains configured for each interface-leased user and each subnet-leased user, see "Configuring interface-leased users" and "Configuring subnet-leased users," respectively. For more information about how to configure service-specific ISP domains, see "Configuring service-specific ISP domains." For more information about how to configure the default system domain, see Security Configuration Guide.

To configure ISP domains for leased users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure ISP domains for leased users.	· Configure a domain collectively for IPv4 leased users: ip subscriber unclassified-ip domain domain-name · Configure a domain collectively for IPv6 leased users: ipv6 subscriber unclassified-ip domain domain-name	By default, leased users use the default system ISP domain.

Configuring service-specific ISP domains

This task enables you to assign ISP domains to users based on services. You can classify services by VLAN ID, 802.1P, and DSCP carried in packets from users.

You must specify an identifier for a service before you bind an ISP domain to the service. Otherwise, the binding does not take effect.

To configure service-specific ISP domains for IPv4 users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure a service identifier.	· ip subscriber service-identify { 8021p { second-vlan \| vlan } \| dscp \| second-vlan \| vlan }	By default, no service identifier is configured. Only subinterfaces support parameters 8021p, second-vlan and vlan.
4. Configure service-specific ISP domains for IPv4 users.	· Bind an ISP domain to a VLAN list: ip subscriber vlan vlan-list domain domain-name · Bind an ISP domain to an 802.1p list: ip subscriber 8021p 8021p-list domain domain-name · Bind an ISP domain to a DSCP list: ip subscriber dscp dscp-value-list domain domain-name	By default, no service-specific ISP domains are configured. Only subinterfaces support commands ip subscriber vlan and ip subscriber 8021p.

To configure service-specific ISP domains for IPv6 users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure a service identifier.	· ipv6 subscriber service-identify { 8021p { second-vlan \| vlan } \| dscp \| second-vlan \| vlan }	By default, no service identifier is configured. Only subinterfaces support parameters 8021p, second-vlan and vlan.
4. Configure service-specific ISP domains for IPv6 users.	· Bind an ISP domain to a VLAN list: ipv6 subscriber vlan vlan-list domain domain-name · Bind an ISP domain to an 802.1p list: ipv6 subscriber 8021p 8021p-list domain domain-name · Bind an ISP domain to a DSCP list: ipv6 subscriber dscp dscp-value-list domain domain-name	By default, no service-specific ISP domains are configured. Only subinterfaces support commands ipv6 subscriber vlan and ipv6 subscriber 8021p.

Configuring the quiet timer for users

IPoE starts the quiet timer after a user fails authentication. It discards packets from the user during the quiet time. After the quiet timer expires, IPoE performs authentication upon receiving a packet from the user.

To configure the quiet timer for users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure the quiet timer for users.	· Configure the quiet timer for IPv4 users: ip subscriber timer quiet time · Configure the quiet timer for IPv6 users: ipv6 subscriber timer quiet time	By default, no quite timer is configured.

Configuring NAS-Port-Type for an interface

The NAS-Port-Type attribute carries information about the access interface. The BRAS includes the configured NAS-Port-Type in RADIUS requests sent to the RADIUS server.

To configure NAS-Port-Type for an interface:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure NAS-Port-Type.	· Configure the IPv4 NAS-Port-Type:: ip subscriber nas-port-type { 802.11 \| adsl-cap \| adsl-dmt \| async \| cable \| ethernet \| g.3-fax \| hdlc \| idsl \| isdn-async-v110 \| isdn-async-v120 \| isdn-sync \| piafs \| sdsl \| sync \| virtual \| wireless-other \| x.25 \| x.75 \| xdsl } · Configure the IPv6 NAS-Port-Type: ipv6 subscriber nas-port-type { 802.11 \| adsl-cap \| adsl-dmt \| async \| cable \| ethernet \| g.3-fax \| hdlc \| idsl \| isdn-async-v110 \| isdn-async-v120 \| isdn-sync \| piafs \| sdsl \| sync \| virtual \| wireless-other \| x.25 \| x.75 \| xdsl }	The default NAS-Port-Type is Ethernet.

Configuring NAS-Port-ID formats

The NAS-Port-ID RADIUS attribute specifies access location of a user. The BRAS supports the following formats for NAS-Port-ID:

· version 1.0—Format for China Telecom.

· version 2.0—Format specified in YDT 2275-2011 Subscriber Access Loop (Port) Identification in Broadband Access Networks.

You can configure the following settings if version 2.0 is used when the BRAS acts as a DHCP relay:

· Configure DHCPv4 Option 82 or DHCPv6 Option 18 as a trusted DHCP option and obtain information from the trusted option.

· Include the NAS information and obtained option information in NAS-Port-ID.

To configure NAS-Port-ID formats:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This feature supports the following interfaces: · Layer 3 Ethernet interface and subinterface. · Layer 3 aggregate interface and subinterface. · L3VE interface.
3. Configure NAS-Port-ID formats.	· Configure the NAS-Port-ID format for IPv4 users: ip subscriber nas-port-id format cn-telecom { version1.0 \| version2.0 } · Configure the NAS-Port-ID format for IPv6 users: ipv6 subscriber nas-port-id format cn-telecom { version1.0 \| version2.0 }	The default format is version1.0.
4. (Optional.) Configure trusted DHCP options.	· Configure a trusted DHCP option for IPv4 users: ip subscriber trust option82 · Configure a trusted DHCP option for IPv6 users: ipv6 subscriber trust option18	By default, the BRAS does not trust Option 82 or Option 18.
5. (Optional.) Include the NAS information and DHCP option information in NAS-Port-ID.	· For IPv4 users: ip subscriber nas-port-id nasinfo-insert · For IPv6 users: ipv6 subscriber nas-port-id nasinfo-insert	By default, the BRAS includes only information obtained from the trusted option in NAS-Port-ID.

Displaying and maintaining IPoE

Execute display commands in any view and reset commands in user view.

Task	Command
Display IPoE session information for individual users (in standalone mode).	· For IPv4 individual users: display ip subscriber session [ interface interface-type interface-number ] [ domain domain-name \| ip ip-address [ vpn-instance vpn-instance-name ] \| mac mac-address \| static \| username name ] [ slot slot-number ] [ verbose ] · For IPv6 individual users: display ipv6 subscriber session [ interface interface-type interface-number ] [ domain domain-name \| ipv6 ipv6-address [ vpn-instance vpn-instance-name ] \| mac mac-address \| static \| username name ] [ slot slot-number ] [ verbose ]
Display IPoE session information for individual users (in IRF mode).	· For IPv4 individual users: display ip subscriber session [ interface interface-type interface-number ] [ domain domain-name \| ip ip-address [ vpn-instance vpn-instance-name ] \| mac mac-address \| static \| username name ] [ chassis chassis-number slot slot-number ] [ verbose ] · For IPv6 individual users: display ipv6 subscriber session [ interface interface-type interface-number ] [ domain domain-name \| ipv6 ipv6-address [ vpn-instance vpn-instance-name ] \| mac mac-address \| static \| username name ] [ chassis chassis-number slot slot-number ] [ verbose ]
Display IPoE session information for interface-leased users (in standalone mode).	· For IPv4 interface-leased users: display ip subscriber interface-leased [ interface interface-type interface-number ] [ slot slot-number ] · For IPv6 interface-leased users: display ipv6 subscriber interface-leased [ interface interface-type interface-number ] [ slot slot-number ]
Display IPoE session information for interface-leased users (in IRF mode).	· For IPv4 interface-leased users: display ip subscriber interface-leased [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ] · For IPv6 interface-leased users: display ipv6 subscriber interface-leased [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ]
Display IPoE session information for subnet-leased users (in standalone mode).	· For IPv4 subnet-leased users: display ip subscriber subnet-leased [ interface interface-type interface-number ] [ slot slot-number ] · For IPv6 subnet-leased users: display ipv6 subscriber subnet-leased [ interface interface-type interface-number ] [ slot slot-number []
Display IPoE session information for subnet-leased users (in IRF mode).	· For IPv4 subnet-leased users: display ip subscriber subnet-leased [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ] · For IPv6 subnet-leased users: display ipv6 subscriber subnet-leased [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ]
Display IPoE session statistics for individual users (in standalone mode).	· For IPv4 individual users: display ip subscriber session statistics [ session-type { dhcp \| static \| unclassified-ip } ] [ interface interface-type interface-number ] [ slot slot-number ] · For IPv6 individual users: display ipv6 subscriber session statistics [ session-type { dhcp \| ndrs \| static \| unclassified-ip } ] [ interface interface-type interface-number ] [slot slot-number ]
Display IPoE session statistics for individual users (in IRF mode).	· For IPv4 individual users: display ip subscriber session statistics [ session-type { dhcp \| static \| unclassified-ip } ] [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ] · For IPv6 individual users: display ipv6 subscriber session statistics [ session-type { dhcp \| ndrs \| static \| unclassified-ip } ] [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ]
Display IPoE session statistics for interface-leased users (in standalone mode).	· For IPv4 interface-leased users: display ip subscriber interface-leased statistics [ interface interface-type interface-number ] [ slot slot-number ] · For IPv6 interface-leased users: display ipv6 subscriber interface-leased statistics [ interface interface-type interface-number ] [ slot slot-number ]
Display IPoE session statistics for interface-leased users (in IRF mode).	· For IPv4 interface-leased users: display ip subscriber interface-leased statistics [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number] ] · For IPv6 interface-leased users: display ipv6 subscriber interface-leased statistics [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ]
Display IPoE session statistics for subnet-leased users (in standalone mode).	· For IPv4 subnet-leased users: display ip subscriber subnet-leased statistics [ interface interface-type interface-number ] [ slot slot-number] · For IPv6 subnet-leased users: display ipv6 subscriber subnet-leased statistics [ interface interface-type interface-number ] [ slot slot-number ]
Display IPoE session statistics for subnet-leased users (in IRF mode).	· For IPv4 subnet-leased users: display ip subscriber subnet-leased statistics [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ] · For IPv6 subnet-leased users: display ipv6 subscriber subnet-leased statistics [ interface interface-type interface-number ] [ chassis chassis-number slot slot-number ]
Display offline statistics for users.	· For IPv4 users: display ip subscriber offline statistics [ interface interface-type interface-number ] · For IPv6 users: display ipv6 subscriber offline statistics [ interface interface-type interface-number ]
Delete dynamic IPoE sessions.	· For IPv4 sessions: reset ip subscriber session [ interface interface-type interface-number ] [ domain domain-name \| ip ip-address [ vpn-instance vpn-instance-name ] \| mac mac-address \| username name ] · For IPv6 sessions: reset ipv6 subscriber session [ interface interface-type interface-number ] [ domain domain-name \| ipv6 ipv6-address [ vpn-instance vpn-instance-name ] \| mac mac-address \| username name ]
Delete offline statistics for users.	· For IPv4 users: reset ip subscriber offline statistics [ interface interface-type interface-number ] · For IPv6 users: reset ipv6 subscriber offline statistics [ interface interface-type interface-number ]

IPoE configuration examples

Unclassified-IP user configuration example

Network requirements

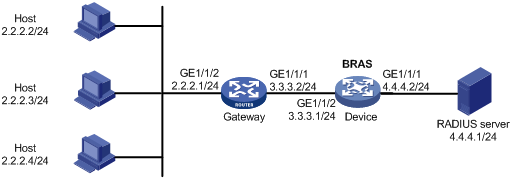

As shown in Figure 5, the host accesses the BRAS as an unclassified-IP user. The BRAS performs AAA for the host through the RADIUS server.

Figure 5 Network diagram

Configuration procedure

1. Configure the RADIUS server: (This section uses the Linux Free RADIUS server as an example.)

# Add BRAS IP address 4.4.4.2 and secret radius to the clients.conf file.

client 4.4.4.2/32 {

ipaddr = 4.4.4.2

netmask=32

secret=radius

}

# Add the username and password to the users user information file. The username is the host IP address, and the password is radius.

2.2.2.2 Cleartext-Password :="radius"

2. Configure the BRAS:

a. Configure IP addresses for interfaces. (Details not shown.)

b. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

<Device> system-view

[Device] radius scheme rs1

# Configure primary servers and keys for authentication and accounting.

[Device-radius-rs1] primary authentication 4.4.4.1

[Device-radius-rs1] primary accounting 4.4.4.1

[Device-radius-rs1] key authentication simple radius

[Device-radius-rs1] key accounting simple radius

# Exclude the ISP name from the username sent to the RADIUS server.

[Device-radius-rs1] user-name-format without-domain

[Device-radius-rs1] quit

c. Configure the ISP domain:

# Create an ISP domain named dm1 and enter its view.

[Device] domain dm1

# Configure dm1 to use RADIUS scheme rs1.

[Device-isp-dm1] authentication ipoe radius-scheme rs1

[Device-isp-dm1] authorization ipoe radius-scheme rs1

[Device-isp-dm1] accounting ipoe radius-scheme rs1

[Device-isp-dm1] quit

d. Configure IPoE:

# Enable IPoE and configure Layer 3 access mode on GigabitEthernet 1/1/2.

[Device] interface gigabitethernet 1/1/2

[Device–GigabitEthernet1/1/2] ip subscriber routed enable

# Enable the unclassified-IP user.

[Device–GigabitEthernet1/1/2] ip subscriber initiator unclassified-ip enable

# Specify dm1 as the ISP domain.

[Device–GigabitEthernet1/1/2] ip subscriber unclassified-ip domain dm1

# Configure plaintext password radius for authentication.

[Device–GigabitEthernet1/1/2] ip subscriber password plaintext radius

[Device–GigabitEthernet1/1/2] quit

Verifying the configuration

# Display IPoE session information to verify that the host has come online.

[Device] display ip subscriber session

Type: D-DHCP S-Static U-Unclassified-IP

Interface IP address MAC address Type State

--------------------------------------------------------------------------------

GE1/1/2 2.2.2.2 000c-29a6-b656 U Online

DHCP user configuration example

Network requirements

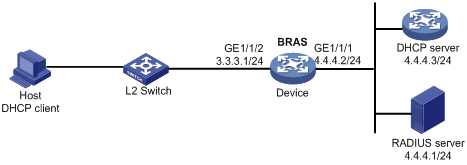

As shown in Figure 6, the host accesses the BRAS as a DHCP user. It obtains configuration information from the DHCP server. The BRAS performs AAA for the host through the RADIUS server.

Figure 6 Network diagram

Configuration procedure

1. Configure the RADIUS server: (This section uses the Linux Free RADIUS server as an example.)

# Add BRAS IP address 4.4.4.2 and secret radius to the clients.conf file.

client 4.4.4.2/32 {

ipaddr = 4.4.4.2

netmask=32

secret=radius

}

# Add the username and password to the users user information file. The username is the host MAC address and the password is radius.

000c29a6b656 Cleartext-Password :="radius"

2. Configure the DHCP server:

# Enable DHCP.

<DHCP-server> system-view

[DHCP-server] dhcp enable

# Create an IP address pool named pool1 and enter its view.

[DHCP-server] dhcp server ip-pool pool1

# Configure network segment 3.3.3.0/24 to the pool, and configure IP address 3.3.3.1 as unavailable.

[DHCP-server-pool-pool1] network 3.3.3.0 24

[DHCP-server-pool-pool1] forbidden-ip 3.3.3.1

[DHCP-server-pool-pool1] quit

3. Configure the BRAS:

a. Configure IP addresses for interfaces. (Details not shown.)

b. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

<Device> system-view

[Device] radius scheme rs1

# Configure primary servers and keys for authentication and accounting.

[Device-radius-rs1] primary authentication 4.4.4.1

[Device-radius-rs1] primary accounting 4.4.4.1

[Device-radius-rs1] key authentication simple radius

[Device-radius-rs1] key accounting simple radius

# Exclude the ISP name from the username sent to the RADIUS server.

[Device-radius-rs1] user-name-format without-domain

[Device-radius-rs1] quit

c. Configure the ISP domain: (This example assumes that the DHCP packets do not contain option 60.)

# Create an ISP domain named dm1 and enter its view.

[Device] domain dm1

# Configure dm1 to use RADIUS scheme rs1.

[Device-isp-dm1] authentication ipoe radius-scheme rs1

[Device-isp-dm1] authorization ipoe radius-scheme rs1

[Device-isp-dm1] accounting ipoe radius-scheme rs1

[Device-isp-dm1] quit

d. Configure the DHCP relay:

# Enable DHCP.

[Device] dhcp enable

# Enable the DHCP relay and specify the DHCP server 4.4.4.3 on GigabitEthernet 1/1/2.

[Device] interface gigabitethernet 1/1/2

[Device–GigabitEthernet1/1/2] dhcp select relay

[Device–GigabitEthernet1/1/2] dhcp relay server-address 4.4.4.3

e. Configure IPoE:

# Enable IPoE and configure Layer 2 access mode on GigabitEthernet 1/1/2.

[Device–GigabitEthernet1/1/2] ip subscriber l2-connected enable

# Enable the DHCP user.

[Device–GigabitEthernet1/1/2] ip subscriber initiator dhcp enable

# Specify dm1 as the ISP domain.

[Device–GigabitEthernet1/1/2] ip subscriber dhcp domain dm1

# Configure plaintext password radius for authentication.

[Device–GigabitEthernet1/1/2] ip subscriber password plaintext radius

[Device–GigabitEthernet1/1/2] quit

Verifying the configuration

# Display IPoE session information to verify that the host has come online.

[Device] display ip subscriber session

Type: D-DHCP S-Static U-Unclassified-IP

Interface IP address MAC address Type State

--------------------------------------------------------------------------------

GE1/1/2 3.3.3.2 000c-29a6-b656 D Online

IPv6-ND-RS user configuration example

Network requirements

As shown in Figure 7, the host accesses the BRAS as an IPv6-ND-RS user. The BRAS performs AAA for the host through the RADIUS server.

Figure 7 Network diagram

Configuration procedure

1. Configure the RADIUS server: (This section uses the Linux Free RADIUS server as an example.)

# Add BRAS IP address 4.4.4.2 and secret radius to the clients.conf file.

client 4.4.4.2/32 {

ipaddr = 4.4.4.2

netmask=32

secret=radius

}

# Add the username, password, and authorized IPv6 prefix to the users user information file. The username is the host MAC address, the password is radius, and the IPv6 prefix is 10::10/64.

000c29a6b656 Cleartext-Password :="radius"

Framed-IPv6-Prefix =10::10/64

2. Configure the BRAS:

a. Configure IP addresses for interfaces. (Details not shown.)

b. Enable GigabitEthernet 1/1/2 to support IPv6-ND-RA messages.

<Device> system-view

[Device] interface gigabitethernet 1/1/2

[Device–GigabitEthernet1/1/2] undo ipv6 nd ra halt

[Device–GigabitEthernet1/1/2] quit

c. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

[Device] radius scheme rs1

# Configure primary servers and keys for authentication and accounting.

[Device-radius-rs1] primary authentication 4.4.4.1

[Device-radius-rs1] primary accounting 4.4.4.1

[Device-radius-rs1] key authentication simple radius

[Device-radius-rs1] key accounting simple radius

# Exclude the ISP name from the username sent to the RADIUS server.

[Device-radius-rs1] user-name-format without-domain

[Device-radius-rs1] quit

d. Configure the ISP domain:

# Create an ISP domain named dm1 and enter its view.

[Device] domain dm1

# Configure dm1 to use RADIUS scheme rs1.

[Device-isp-dm1] authentication ipoe radius-scheme rs1

[Device-isp-dm1] authorization ipoe radius-scheme rs1

[Device-isp-dm1] accounting ipoe radius-scheme rs1

[Device-isp-dm1] quit

e. Configure IPoE:

# Enable IPoE and configure Layer 2 access mode on GigabitEthernet 1/1/2.

[Device] interface gigabitethernet 1/1/2

[Device–GigabitEthernet1/1/2] ipv6 subscriber l2-connected enable

# Enable the IPv6-ND-RS user.

[Device–GigabitEthernet1/1/2] ipv6 subscriber initiator ndrs enable

# Specify dm1 as the ISP domain.

[Device–GigabitEthernet1/1/2] ipv6 subscriber ndrs domain dm1

# Configure plaintext password radius for authentication.

[Device–GigabitEthernet1/1/2] ipv6 subscriber password plaintext radius

[Device–GigabitEthernet1/1/2] quit

Verifying the configuration

# Display IPoE session information to verify that the host has come online.

[Device] display ipv6 subscriber session

Type: D-DHCP S-Static U-Unclassified-IP N-NDRS

Interface IP address MAC address Type State

--------------------------------------------------------------------------------

GE1/1/2 10::2c:29ff:fea6:b656 000c-29a6-b656 N Online

Subnet-leased user configuration example

Network requirements

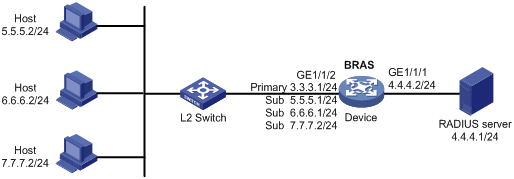

As shown in Figure 8, three hosts access the BRAS as subnet-leased users. The BRAS performs AAA for the hosts through the RADIUS server.

Figure 8 Network diagram

Configuration procedure

1. Configure the RADIUS server: (This section uses the Linux Free RADIUS server as an example.)

# Add BRAS IP address 4.4.4.2 and secret radius to the clients.conf file.

client 4.4.4.2/32 {

ipaddr = 4.4.4.2

netmask=32

secret=radius

}

# Add usernames and passwords to the users user information file. Usernames for the three subnet user groups are us1, us2, and us3. Passwords for the three subnet user groups are pw1, pw2, and pw3.

us1 Cleartext-Password :="pw1"

us2 Cleartext-Password :="pw2"

us3 Cleartext-Password :="pw3"

2. Configure the BRAS:

a. Configure IP addresses for interfaces. (Details not shown.)

b. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

<Device> system-view

[Device] radius scheme rs1

# Configure primary servers and keys for authentication and accounting.

[Device-radius-rs1] primary authentication 4.4.4.1

[Device-radius-rs1] primary accounting 4.4.4.1

[Device-radius-rs1] key authentication simple radius

[Device-radius-rs1] key accounting simple radius

# Exclude the ISP name from the username sent to the RADIUS server.

[Device-radius-rs1] user-name-format without-domain

[Device-radius-rs1] quit

c. Configure the ISP domain:

# Create an ISP domain named dm1 and enter its view.

[Device] domain dm1

# Configure dm1 to use RADIUS scheme rs1.

[Device-isp-dm1] authentication ipoe radius-scheme rs1

[Device-isp-dm1] authorization ipoe radius-scheme rs1

[Device-isp-dm1] accounting ipoe radius-scheme rs1

[Device-isp-dm1] quit

d. Configure IPoE:

# Enable IPoE and configure Layer 2 access mode on GigabitEthernet 1/1/2.

[Device] interface gigabitethernet 1/1/2

[Device–GigabitEthernet1/1/2] ip subscriber l2-connected enable

# Configure three subnet-leased users and specify their usernames, passwords, and ISP domains.

[Device–GigabitEthernet1/1/2] ip subscriber subnet-leased ip 5.5.5.0 24 username us1 password plaintext pw1 domain dm1

[Device–GigabitEthernet1/1/2] ip subscriber subnet-leased ip 6.6.6.0 24 username us2 password plaintext pw2 domain dm1

[Device–GigabitEthernet1/1/2] ip subscriber subnet-leased ip 7.7.7.0 24 username us3 password plaintext pw3 domain dm1

[Device–GigabitEthernet1/1/2] quit

Verifying the configuration

# Display IPoE session information to verify that the host has come online.

[Device] display ip subscriber subnet-leased

Basic:

Access interface : GE1/1/2

VPN instance : N/A

Username : us1

Network : 5.5.5.0/24

User ID : 0x38020000

State : Online

Service node : Slot 1 CPU 0

Domain : dm1

Online time (hh:mm:ss) : 00:16:37

AAA:

IP pool : N/A

Session idle time : N/A

Session duration : N/A, remaining: N/A

Remaining traffic : N/A

Max multicast addresses : 4

Multicast address list : N/A

QoS:

User profile : N/A

Session group profile : N/A

Inbound CAR : N/A

Outbound CAR : N/A

Flow statistic:

Uplink packets/bytes : 223423/28598144

DownLink packets/bytes : 5802626/742736000

Basic:

Access interface : GE1/1/2

VPN instance : N/A

Username : us2

Network : 6.6.6.0/24

User ID : 0x38020001

State : Online

Service node : Slot 1 CPU 0

Domain : dm1

Online time (hh:mm:ss) : 00:10:37

AAA:

IP pool : N/A

Session idle time : N/A

Session duration : N/A, remaining: N/A

Remaining traffic : N/A

Max multicast addresses : 4

Multicast address list : N/A

QoS:

User profile : N/A

Session group profile : N/A

Inbound CAR : N/A

Outbound CAR : N/A

Flow statistic:

Uplink packets/bytes : 223423/28598144

DownLink packets/bytes : 5802626/742736000

Basic:

Access interface : GE1/1/2

VPN instance : N/A

Username : us3

Network : 7.7.7.0/24

User ID : 0x38020002

State : Online

Service node : Slot 1 CPU 0

Domain : dm1

Online time (hh:mm:ss) : 00:16:03

AAA:

IP pool : N/A

Session idle time : N/A

Session duration : N/A, remaining: N/A

Remaining traffic : N/A

Max multicast addresses : 4

Multicast address list : N/A

QoS:

User profile : N/A

Session group profile : N/A

Inbound CAR : N/A

Outbound CAR : N/A

Flow statistic:

Uplink packets/bytes : 223423/28598144

DownLink packets/bytes : 5802626/742736000

Interface-leased user configuration example

Network requirements

As shown in Figure 9, three hosts access the BRAS as one interface-leased user. The BRAS performs AAA for the hosts through the RADIUS server.

Figure 9 Network diagram

Configuration procedure

1. Configure the RADIUS server: (This section uses the Linux Free RADIUS server as an example.)

# Add BRAS IP address 4.4.4.2 and secret radius to the clients.conf file.

client 4.4.4.2/32 {

ipaddr = 4.4.4.2

netmask=32

secret=radius

}

# Add host username and password to the users user information file. The username is us1 and the password is pw1.

us1 Cleartext-Password :="pw1"

2. Configure the BRAS:

a. Configure IP addresses for interfaces. (Details not shown.)

b. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

<Device> system-view

[Device] radius scheme rs1

# Configure primary servers and keys for authentication and accounting.

[Device-radius-rs1] primary authentication 4.4.4.1

[Device-radius-rs1] primary accounting 4.4.4.1

[Device-radius-rs1] key authentication simple radius

[Device-radius-rs1] key accounting simple radius

# Exclude the ISP name from the username sent to the RADIUS server.

[Device-radius-rs1] user-name-format without-domain

[Device-radius-rs1] quit

c. Configure the ISP domain:

# Create an ISP domain named dm1 and enter its view.

[Device] domain dm1

# Configure dm1 to use RADIUS scheme rs1.

[Device-isp-dm1] authentication ipoe radius-scheme rs1

[Device-isp-dm1] authorization ipoe radius-scheme rs1

[Device-isp-dm1] accounting ipoe radius-scheme rs1

[Device-isp-dm1] quit

d. Configure IPoE:

# Enable IPoE and configure Layer 3 access mode on GigabitEthernet 1/1/2.

[Device] interface gigabitethernet 1/1/2

[Device–GigabitEthernet1/1/2] ip subscriber routed enable

# Configure the interface-leased user and specify its username, password, and ISP domain.

[Device–GigabitEthernet1/1/2] ip subscriber interface-leased username us1 password plaintext pw1 domain dm1

[Device–GigabitEthernet1/1/2] quit

Verifying the configuration

# Display IPoE session information to verify that the host has come online.

[Device] display ip subscriber interface-leased

Basic:

Access interface : GE1/1/2

VPN instance : N/A

Username : us1

User ID : 0x30000000

State : Online

Service node : Slot 1 CPU 0

Domain : dm1

Online time (hh:mm:ss) : 00:16:37

AAA:

IP pool : N/A

Session idle time : N/A

Session duration : N/A, remaining: N/A

Remaining traffic : N/A

Max multicast addresses : 4

Multicast address list : N/A

QoS:

User profile : N/A

Session group profile : N/A

Inbound CAR : N/A

Outbound CAR : N/A

Flow statistic:

Uplink packets/bytes : 16734145/2141970560

DownLink packets/bytes : 22314327/2856233728

VPN DHCP user configuration example

Network requirements

As shown in Figure 10, the host in a VPN accesses the BRAS as a DHCP user. The BRAS performs AAA for the host through the RADIUS server.

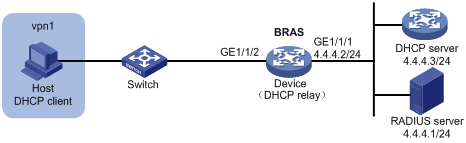

Figure 10 Network diagram

Configuration procedure

1. Configure the RADIUS server: (This section uses the Linux Free RADIUS server as an example.)

# Add BRAS IP address 4.4.4.2 and secret radius to the clients.conf file.

client 4.4.4.2/32 {

ipaddr = 4.4.4.2

netmask=32

secret=radius

}

# Add host username, password, VPN, and address pool to the users user information file. The username is the host MAC address, the password is radius, the VPN is vpn1, and the address pool is pool1.

000c29a6b656 Cleartext-Password :="radius"

Huawei-VPN-Instance :="vpn1",

Framed-Pool := " pool1"

2. Configure the DHCP server:

# Enable DHCP.

<DHCP-server> system-view

[DHCP-server] dhcp enable

# Create an IP address pool named pool1 and enter its view.

[DHCP-server] dhcp server ip-pool pool1

# Configure network segment 3.3.3.0/24 to the pool.

[DHCP-server-pool-pool1] network 3.3.3.0 24

# Configure IP address 3.3.3.1 as unavailable.

[DHCP-server-pool-pool1] forbidden-ip 3.3.3.1

[DHCP-server-pool-pool1] quit

# Configure a static IP address to specify the next hop for destination IP address 3.3.3.0.

[DHCP-server] ip route-static 3.3.3.0 24 4.4.4.2

3. Configure the BRAS:

a. Configure IP addresses for interfaces. (Details not shown.)

b. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

<Device> system-view

[Device] radius scheme rs1

# Configure primary servers and keys for authentication and accounting.

[Device-radius-rs1] primary authentication 4.4.4.1

[Device-radius-rs1] primary accounting 4.4.4.1

[Device-radius-rs1] key authentication simple radius

[Device-radius-rs1] key accounting simple radius

# Exclude the ISP name from the username sent to the RADIUS server.

[Device-radius-rs1] user-name-format without-domain

[Device-radius-rs1] quit

c. Configure the ISP domain:

# Create an ISP domain named dm1 and enter its view.

[Device] domain dm1

# Configure dm1 to use RADIUS scheme rs1.

[Device-isp-dm1] authentication ipoe radius-scheme rs1

[Device-isp-dm1] authorization ipoe radius-scheme rs1

[Device-isp-dm1] accounting ipoe radius-scheme rs1

[Device-isp-dm1] quit

d. Configure the DHCP relay:

# Enable DHCP.

[Device] dhcp enable

[Device] interface gigabitethernet 1/1/2

# Enable the DHCP relay on GigabitEthernet 1/1/2.

[Device–GigabitEthernet1/1/2] dhcp select relay

[Device–GigabitEthernet1/1/2] quit

# Create an address pool named pool1 and assign pool1 to vpn1.

[Device] dhcp server ip-pool pool1

[Device-dhcp-pool-pool1] vpn-instance vpn1

# Configure a gateway IP address for the host and enable route exporting. Route exporting automatically adds the gateway IP address and related static IP address to the routing table of vpn1.

[Device-dhcp-pool-pool1] gateway-list 3.3.3.1 export-route

# Configure an IP address for the DHCP sever

[Device-dhcp-pool-pool1] remote-server 4.4.4.3

e. Configure IPoE:

# Enable IPoE and configure Layer 2 access mode on GigabitEthernet 1/1/2.

[Device] interface gigabitethernet 1/1/2

[Device–GigabitEthernet1/1/2] ip subscriber l2-connected enable

# Enable the DHCP user.

[Device–GigabitEthernet1/1/2] ip subscriber initiator dhcp enable

# Specify dm1 as the ISP domain.

[Device–GigabitEthernet1/1/2] ip subscriber dhcp domain dm1

# Configure plaintext password radius for authentication.

[Device–GigabitEthernet1/1/2] ip subscriber password plaintext radius

[Device–GigabitEthernet1/1/2] quit

f. Configure a static route to direct the DHCP request from vpn1 to the DHCP server.

[Device] ip route-static vpn-instance vpn1 4.4.4.0 24 4.4.4.3 public

g. Configure a policy-based route to direct the traffic from the DHCP server to vpn1:

# Configure a policy named to_vpn1 with a node number of 0 and match mode of permit, and specify packets to be transmitted in vpn1.

[Device] policy-based-route to_vpn1 permit node 0

[Device-pbr-to_vpn1-0] apply access-vpn vpn-instance vpn1

[Device-pbr-to_vpn1-0] quit

# Apply to_vpn1 to GigabitEthernet 1/1/1.

[Device] interface gigabitethernet 1/1/1

[Device–GigabitEthernet1/1/1] ip policy-based-route to_vpn1

[Device–GigabitEthernet1/1/1] quit

Verifying the configuration

# Display IPoE session information to verify the configuration.

[Device] display ip subscriber session verbose

Basic:

Username : 000c29a6b656

Domain : dm1

VPN instance : vpn1

IP address : 3.3.3.2

MAC address : 000c-29a6-b656

Service-VLAN/Customer-VLAN : -/-

Access interface : GE1/1/2

User ID : 0x380800b5

VPI/VCI(for ATM) : -/-

DHCP lease : 86400 sec

DHCP remain lease : 18400 sec

Online time (hh:mm:ss) : 00:16:37

Service node : Slot 1 CPU 0

Type : DHCP

State : Online

AAA:

IP pool : pool1

Session idle time : N/A

Session duration : N/A, remaining: N/A

Remaining traffic : N/A

Max multicast addresses : 4

Multicast address list : N/A

QoS:

User profile : N/A

Session group profile : N/A

Inbound CAR : N/A

Outbound CAR : N/A

Flow statistic:

Uplink packets/bytes : 594341/76075648

DownLink packets/bytes : 0/0

Online detection configuration example

Network requirements

As shown in Figure 11, three hosts access the BRAS as unclassified-IP users. The BRAS performs AAA for the host through the RADIUS server.

Figure 11 Network diagram

Configuration procedure

1. Configure the RADIUS server: (This section uses the Linux Free RADIUS server as an example.)

# Add BRAS IP address 4.4.4.2 and secret radius to the clients.conf file.

client 4.4.4.2/32 {

ipaddr = 4.4.4.2

netmask=32

secret=radius

}

# Add the usernames and passwords to the users user information file. The usernames are the host IP addresses and the plaintext password is radius.

2.2.2.2 Cleartext-Password :="radius"

2.2.2.3 Cleartext-Password :="radius"

2.2.2.4 Cleartext-Password :="radius"

2. Configure the BRAS:

a. Configure IP addresses for interfaces. (Details not shown.)

b. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

<Device> system-view

[Device] radius scheme rs1

# Configure primary servers and keys for authentication and accounting.

[Device-radius-rs1] primary authentication 4.4.4.1

[Device-radius-rs1] primary accounting 4.4.4.1

[Device-radius-rs1] key authentication simple radius

[Device-radius-rs1] key accounting simple radius

# Exclude the ISP name from the username sent to the RADIUS server.

[Device-radius-rs1] user-name-format without-domain

[Device-radius-rs1] quit

c. Configure the ISP domain:

# Create an ISP domain named dm1 and enter its view.

[Device] domain dm1

# Configure dm1 to use RADIUS scheme rs1.

[Device-isp-dm1] authentication ipoe radius-scheme rs1

[Device-isp-dm1] authorization ipoe radius-scheme rs1

[Device-isp-dm1] accounting ipoe radius-scheme rs1

[Device-isp-dm1] quit

d. Configure IPoE:

# Enable IPoE and configure Layer 3 access mode on GigabitEthernet 1/1/2.

[Device] interface gigabitethernet 1/1/2

[Device–GigabitEthernet1/1/2] ip subscriber routed enable

# Enable the unclassified-IP user.

[Device–GigabitEthernet1/1/2] ip subscriber initiator unclassified-ip enable

# Specify dm1 as the ISP domain.

[Device–GigabitEthernet1/1/2] ip subscriber unclassified-ip domain dm1

# Configure plaintext password radius for authentication.

[Device–GigabitEthernet1/1/2] ip subscriber password plaintext radius

# Configure online detection:

- Use ICMP detection mode.

- Set the maximum number of detection attempts to 2.

- Set the detection interval to 30 seconds.

[Device–GigabitEthernet1/1/2] ip subscriber user-detect icmp retry 2 interval 30

[Device–GigabitEthernet1/1/2] quit

Verifying the configuration

Use the display ip subscriber session command to verify that the BRAS deletes the IPoE session after the user goes offline.

Troubleshooting IPoE

DHCP clients failed to come online

Symptom

DHCP clients cannot come online, although network connections and interface IPoE configurations are correct.

Analysis

By default, DHCPv4 and DHCPv6 clients use ISP domains specified in Option 60 and Option 16, respectively. If the DHCP packets do not carry the options, the DHCP client uses the ISP domain specified in the IPoE configuration on the interface. If the specified ISP domain does not exist on the BRAS, the DHCP client cannot come online.

Solution

To solve the problem:

1. Use debug commands or a packet analyzer to check DHCP packets from the DHCP client.

2. If the DHCPv4 packet carries Option 60 or the DHCPv6 packet carries Option 16, verify that the ISP domain in the option exists on the BRAS.

3. If the DHCP packet does not carry Option 60 or Option 16, verify that the ISP domain specified on the interface exists on the BRAS.

4. If the problem persists, contact H3C Support.

Inter-slot traffic statistics failure on an aggregate interface

Symptom

Network connections and interface IPoE configurations are correct and traffic statistics can be performed correctly for an aggregate interface with member ports on different slots. Traffic statistics fails after the member port on the initially accessed slot goes down and the user accesses the member port on another slot.

Analysis

Traffic statistics is performed on the slot that the user initially accessed. When a member port on the initially accessed slot becomes down, the user traffic is redirected to the member port on another slot. If no traffic exists on the initially accesses slot, traffic statistics cannot be performed.

Solution

Use the service command to specify a service slot for traffic statistics. Traffic will be forwarded to the specified service card for statistics.

To avoid interrupting traffic statistics, make sure the specified service slot is present.

05-Layer 2 - WAN Access Configuration Guide

Configuring IPoE

Individual users

Leased users

Dynamic IPoE session

Static IPoE session

Access procedure for DHCP users

Access procedure for IPv6-ND-RS users

Access procedure for unclassified-IP users

Access procedure for static and leased users

Configuration preparations

Enabling IPoE and setting the IPoE access mode

Dynamic user configuration task list

Enabling dynamic individual users

Configuring authentication user naming conventions for IPv4 dynamic individual users

Configuring authentication user naming conventions for IPv6 dynamic individual users

Configuring passwords for dynamic individual users

Configuring ISP domains for dynamic individual users

Configuring the maximum number of dynamic IPoE sessions

Configuring online detection for dynamic individual users

Configuring trusted DHCP options for dynamic individual users

Configuring static individual users

Configuring online detection for static individual users

Displaying and maintaining IPoE

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Interface-leased user configuration example

Network requirements

Configuration procedure

Verifying the configuration

VPN DHCP user configuration example

Network requirements

Configuration procedure

Verifying the configuration

Online detection configuration example

Network requirements

Configuration procedure

Verifying the configuration

Troubleshooting IPoE

Symptom

Analysis

Solution

Symptom

Analysis

Solution

Cloud & AI

InterConnect

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Resources

Partner Business Management

Company Information

News & Events

Contact Us
