Configuring security zones

1. On the top navigation bar, click Network. From the left navigation pane, select Security Zones. Click Create to create a security zone named wan.

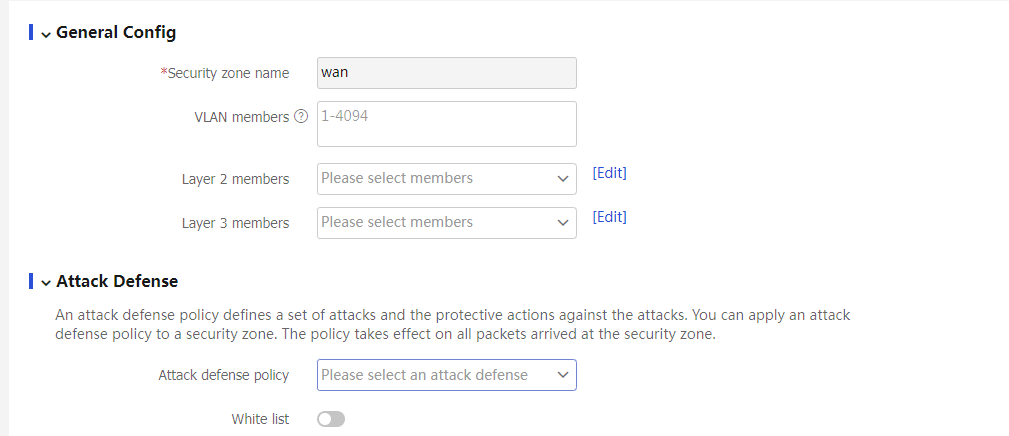

   Figure-1 Creating the wan security zone



2. Create a security zone named lan.

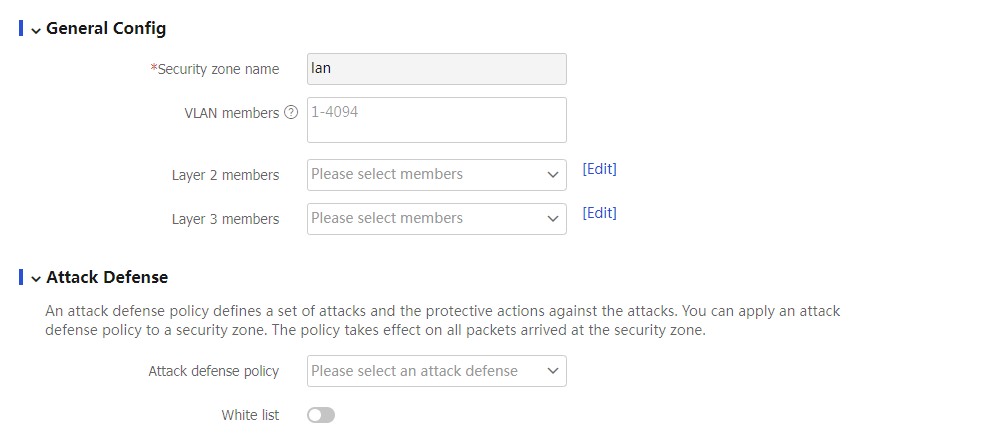

   Figure-2 Creating the LAN security zone
