Configuring the DHCP address pool

1. On the top navigation bar, click Network. In the left navigation pane, select DHCP > Services. Select Enable for the DHCP service.

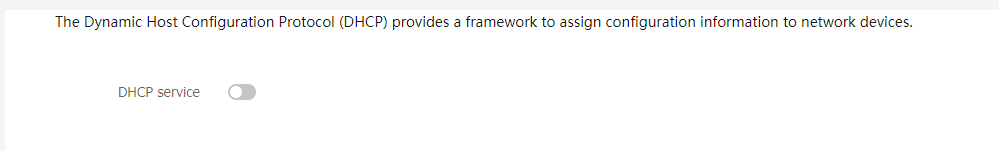

   Figure-1 Enabling the DHCP service



2. In the left navigation pane, select DHCP > DHCP Address Pools. Click Create address pool to create a DHCP server address pool named poolforap as follows:

   • Configure the subnet for dynamic allocation as 192.168.10.0/24 and the excluded address range as 192.168.10.1.

   • Click the Address Pool Options tab, and then click Create to create a gateway. Configure the gateway address as 192.168.10.1 and then click OK.

   • Click OK.

   Figure-2 Creating a DHCP server address pool named poolforap



   Figure-3 Configuring the address pool subnet



   Figure-4 Configuring the gateway



3. Click Create address pool to create a DHCP server address pool named poolforsta as follows:

   • Configure the subnet for dynamic allocation as 192.168.20.0/24 and the excluded address range as 192.168.20.1.

   • Click the Address Pool Options tab, and then click Create in the Gateways area to create a gateway. Configure the gateway address as 192.168.20.1. Click Create in the DNS servers area to create a DNS server. Configure the DNS server address as 114.114.114.114 (specify the DNS server address for wireless clients according to your actual network configuration). Click OK.

   • Click OK.

   Figure-5 Create a DHCP server address pool named poolforsta



   Figure-6 Configuring the address pool subnet



   Figure-7 Configuring the gateway and DNS server
