Terminal identification

Introduction

Identifying IoT terminals, such as cameras and sensors, is fundamental to establish secure Internet of Things (IoT) connections.

When the terminal traffic passes through a device, the device performs the following tasks:

• Analyzes and extracts the terminal information, such as the vendor, model, and MAC address of the terminal.

• Generates a log when a terminal is identified for the first time or the terminal information changes.

Basic concepts

Terminal

You can predefine terminals in the device characteristics library to identify the terminal characteristics.

To enable terminal identification, select Objects > APP Security > Terminal Identification > Terminals, and then click Enable terminal identification logging.

Terminal group

You can add terminals sharing similar characteristics to a terminal group. The device can provide the same DPI service for packets of the same terminal group.

Object group for terminal identification

You can configure object groups for accurate terminal address identification. The device supports the following address object groups:

• Terminal address object group—A set of terminal IP addresses. If the packet source or destination IP address matches this group, the source or destination IP address is the terminal IP address.

• Manager address object group—A set of terminal manager IP addresses. If the packet source or destination IP address matches this group, the destination or source IP address is the terminal IP address.

Terminal identification whitelist

The device permits the traffic of a terminal if the IP address of the terminal is in the terminal identification whitelist. Otherwise, the device drops the traffic of a terminal. The terminal identification whitelist supports the following actions:

• Permit—Permits the traffic of a terminal all the time.

• Block—Drops the traffic of a terminal all the time only after the terminal information changes.

Operating mode

Terminal identification supports the following operating modes:

• Alarm—In this mode, the system permits traffic of all terminals. When the system identifies a terminal for the first time or detects a terminal information change, it sends a log message to the user. This mode is applicable to scenarios that do not have strict security requirements.

• Whitelist—In this mode, the system permits traffic of only terminals in the whitelist. When the system detects a terminal information change, it sends a log message to the user. This mode is applicable to scenarios that have strict security requirements.

To set an operating mode, select Objects > APP Security > Terminal Identification > Terminals, click Operating mode, and select an operating mode.

Workflow

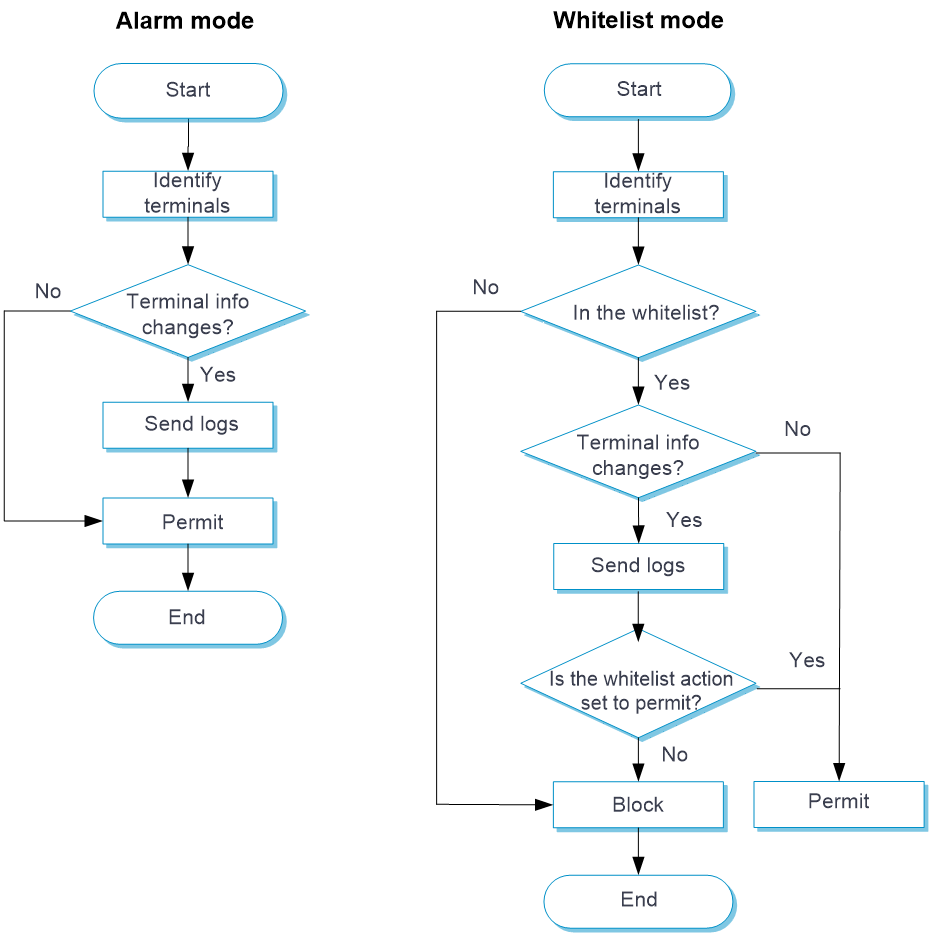

Figure-1 Terminal identification workflow

Terminal identification works as follows:

• Alarm mode—The system identifies each terminal and permits traffic of all terminals. When the system detects a terminal for the first time or detects that the information about an existing terminal changes, the system sends a log message.

• Whitelist mode

  1. The system identifies each terminal and checks whether the IP address of each terminal (including terminals classified as other category) is in the whitelist. An unidentifiable terminal is classified as other category.

  2. If the IP address of a terminal is not in the whitelist, the system drops the traffic of the terminal. If the IP address of a terminal is in the whitelist, the system checks whether the terminal information changes. If the terminal information does not change, the system permits the traffic.

  3. If the terminal information changes, the system sends a log message and check whether the whitelist action is permit.

  4. If the whitelist action is permit, the system permits the traffic. Otherwise, the system drops the traffic.

vSystem support information

Support of non-default vSystems for this feature depends on the device model. This feature is available on the Web interface only if it is supported.

Licensing requirements

To use terminal identification, you must purchase and install the required license. After the license expires, terminal identification can still use the existing APR signature library but cannot update the signature library. For more information about licensing, see the license management help.

Restrictions and guidelines

In whitelist mode with the block action, the system drops traffic of a terminal in the whitelist when the terminal comes online for the first time. To permits the traffic of the terminal, click Approve for the terminal.

If you configure both a manager address object group or a terminal address object group, the manager address object group has higher priority.

Configure terminal identification

Prerequisites

Complete the following tasks before you configure this feature:

• Assign IP addresses to interfaces on the Network > Interface Configuration > Interfaces page.

• Configure routes on the Network > Routing page. Make sure the routes are available.

• Create security zones on the Network > Security Zones page.

• Add interfaces to security zones. You can add interfaces to a security zone on the Security Zones page or select a security zone for an interface on the Interfaces page.

• Configure security policies to permit the target traffic on the Policies > Security Policies page.

Configure whitelist-mode terminal identification

In whitelist mode, the system permits traffic of only terminals in the whitelist. When the system detects a terminal information change, such as a vendor, model, or MAC address change, it sends a log message to the log host by using the fast log output feature. This mode is applicable to scenarios that have strict security requirements.

Configure the operating mode

1. Click the Objects tab.

2. In the navigation pane, select APP Security > Terminal Identification > Terminals.

3. Click Operating mode.

   Figure-2 Clicking Operating mode



   Figure-3 Selecting an operating mode



4. Select Whitelist, and specify an action.

5. Click OK.

Configure object groups for terminal identification

1. Click the Objects tab.

2. In the navigation pane, select APP Security > Terminal Identification > Terminals.

3. Click Configure object groups for terminal identification.

4. Configure address object groups.

   Figure-4 Clicking Configure object groups for terminal identification

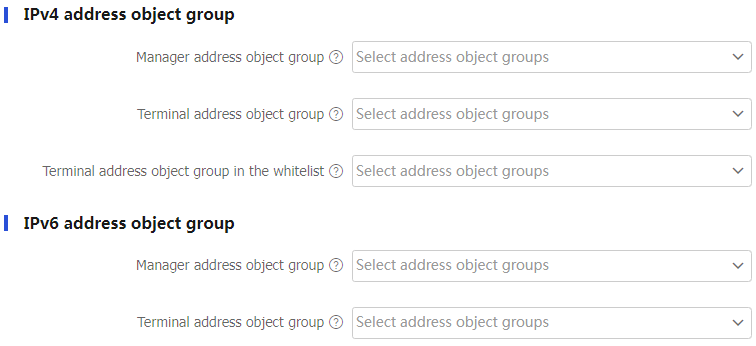

   Figure-5 Configuring object groups for terminal identification



   Table-1 Object group configuration items

   	Item	Description
   IPv4 address object group	Manager address object group	Select a manager address object group.
   	Terminal address object group	Select a terminal address object group.
   	Terminal address object group in the whitelist	Select a terminal address object group in the whitelist. The object group is used to filter terminal traffic. The system permits the traffic of a terminal if the IP address of the terminal is in the terminal identification whitelist. Otherwise, the system drops the traffic of a terminal.
   IPv6 address object group	Manager address object group	Select a manager address object group.
   	Terminal address object group	Select a terminal address object group.

5. Click OK.

Configure alarm-mode terminal identification

In alarm mode, the system permits traffic of all terminals. When the system identifies a terminal for the first time or detects a terminal information change, it sends a log message to the log host by using the fast log output feature. This mode is applicable to scenarios that do not have strict security requirements.

Configure the operating mode

1. Click the Objects tab.

2. In the navigation pane, select APP Security > Terminal Identification > Terminals.

3. Click Operating mode.

   Figure-6 Clicking Operating mode



   Figure-7 Selecting an operating mode



4. Select Alarm.

5. Click OK.

Configure object groups for terminal identification

Configure a minimum of one address object group (manager address object group or terminal address object group). For more information, see "Configure object groups for terminal identification."

Configure a terminal group

You can add multiple terminals sharing similar characteristics to a terminal group. A terminal group can be used in a security policy.

To configure a terminal group:

1. Click the Objects tab.

2. In the navigation pane, select APP Security > Terminal Identification > Terminal Groups.

3. Click Add.

4. Select terminals from the Available Terminals pane and click Select to add them to the terminal group.

   Figure-8 Clicking Add



   Figure-9 Adding a terminal group



   Table-2 Terminal group configuration items

   Item	Description
   Terminal group name	Enter a name for the terminal group.
   Description	Enter a description for the terminal group.
   Available Terminals	Terminals that can be added to the terminal group.
   Selected Terminals	Terminals that have been added to the terminal group.

5. Click OK.
