IPv4 (NAT44)

Introduction

Network Address Translation (NAT) translates an IP address in the IP packet header to another IP address. Typically, NAT is configured on gateways to enable private hosts to access external networks and external hosts to access private network resources such as a Web server.

Dynamic NAT

Dynamic NAT uses an address pool to translate addresses. It applies to the scenario where a large number of internal users access the external network.

• NO-PAT

  Not Port Address Translation (NO-PAT) translates a private IP address to an IP public address. The public IP address cannot be used by another internal host until it is released.

  NO-PAT supports all IP packets.

• PAT

  Port Address Translation (PAT) translates multiple private IP addresses to a single public IP address by mapping the private IP address and source port to the public IP address and a unique port. PAT supports TCP and UDP packets, and ICMP request packets.

  A NAT address group is a set of address ranges. The source address in a packet destined for an external network is translated into an address in one of the address ranges.

NAT Server

The NAT Server feature maps a public address and port number to the private IP address and port number of an internal server. This feature allows servers in the private network to provide services for external users. The following table describes the address-port mappings between an external network and an internal network for NAT Server.

Table-1 Address-port mappings for NAT Server

You can add multiple internal servers to an internal server group for load sharing so that these servers provide the same service for external hosts. The NAT device chooses one internal server based on the weight and number of connections of the servers to respond to a request from an external host to the public address of the internal server group.

Static NAT

Static NAT creates a fixed mapping between a private address and a public address. It supports connections initiated from internal users to external network and from external users to the internal network. Static NAT applies to regular communications.

NAT advanced settings

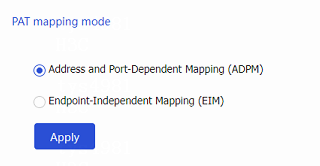

PAT mapping modes

The following PAT mapping modes are supported:

• Endpoint-Independent Mapping (EIM)—Uses the same IP and port mapping (EIM entry) for packets from the same source IP and port to any destinations. EIM allows external hosts to initiate connections to the translated IP addresses and ports of internal hosts. It allows internal hosts behind different NAT gateways to access each other.

• Address and Port-Dependent Mapping (APDM)—Uses different IP and port mappings for packets from the same source IP and port to different destination IP addresses and ports. APDM allows an external host to initiate connections to an internal host only under the condition that the internal host has previously accessed the external host. It is secure, but it does not allow internal hosts behind different NAT gateways to access each other.

NAT DNS mappings

With NAT DNS mappings, a user in the internal network can access internal servers by using their domain names when the DNS server is located on the public network. The NAT DNS mapping works in conjunction with NAT server mappings. A NAT DNS mapping maps the domain name of an internal server to the public IP address, public port number, and protocol type of the internal server. A NAT server mapping maps the public IP and port to the private IP and port of the internal server.

The DNS reply from the external DNS server contains only the domain name and public IP address of the internal server in the payload. The NAT interface might have multiple NAT server mappings with the same public IP address but different private IP addresses. DNS ALG might find an incorrect internal server by using only the public IP address. If a NAT DNS mapping is configured, DNS ALG can obtain the public IP address, public port number, and protocol type of the internal server by using the domain name. Then it can find the correct internal server by using the public IP address, public port number, and protocol type of the internal server.

NAT hairpin

NAT hairpin allows internal hosts to access each other through NAT. The source and destination IP address of the packets are translated on the interface connected to the internal network. NAT hairpin works in conjunction with NAT Server and outbound dynamic or static NAT. To provide service correctly, you must configure NAT hairpin on the same interface module as its collaborative NAT feature.

NAT hairpin includes C/S and P2P modes:

• C/S—Allows internal hosts to access internal servers through NAT addresses. The destination IP address of the packet going to the internal server is translated by matching the NAT Server configuration. The source IP address is translated by matching the outbound dynamic or static NAT entries.

• P2P—Allows internal hosts to access each other through NAT. The internal hosts first register their public addresses to an external server. Then, the hosts communicate with each other by using the registered IP addresses. To configure the P2P mode, you must configure outbound PAT on the interface connected to the external network and enable the EIM mapping mode.

NAT global settings

On a WAN network where two output interfaces of the NAT device are in the same security zone, if the link of one interface fails, traffic is switched to the link of the other interface. The NAT device retains old session entries after link switchover. Internal users cannot access the external network because the NAT device uses old session entries to match the user traffic. To avoid this issue, enable NAT session recreation to ensure availability of NAT services. The device will recreate NAT sessions when user traffic arrives.

vSystem support information

Support of non-default vSystems for this feature depends on the device model. This feature is available on the Web interface only if it is supported.

Restrictions and guidelines

General restrictions and guidelines

• Policy NAT has higher priority than interface NAT for the traffic that matches both of them.

• A NAT or NAT444 address group cannot be used by both PAT and NO-PAT modes.

• As a best practice, configure inbound static NAT with outbound dynamic NAT, NAT Server, or outbound static NAT to implement bidirectional NAT.

• If you perform different translation methods on an interface, the NAT rules are sorted in the following descending order:

  1. NAT Server.

  2. Static NAT.

  3. Dynamic NAT.

• When you add address ranges to a NAT address group, make sure address ranges do not overlap.

Restrictions and guidelines: Dynamic NAT

You can configure multiple outbound dynamic NAT rules on an interface.

• A NAT rule with an ACL takes precedence over a rule without any ACL.

• If two ACL-based dynamic NAT rules are configured, the rule with the higher ACL number has higher priority.

Restrictions and guidelines: Static NAT

• When you specify object groups for a static mapping, follow these restrictions and guidelines:

  • The public or private IPv4 address object group can contain only one IPv4 address object.

  • The quantity of IPv4 addresses in the private IPv4 address object group cannot be larger than that in the public IPv4 address object group.

  • The object in the public IPv4 address object group cannot be an address range.

  • An address object cannot have excluded addresses. Otherwise, the mapping does not take effect.

  • The modification to an address object group will directly take effect on the static NAT mapping that references the address object group.

• You must specify a VRF if you deploy outbound static NAT in VPN networks. The specified VRF must be the VRF to which the NAT interface belongs.

• When you specify an ACL, follow these restrictions and guidelines:

  • If you do not specify an ACL, the source addresses of all outgoing packets and the destination addresses of all incoming packets are translated.

  • If you specify an ACL and do not specify the reverse address translation, the source addresses of outgoing packets permitted by the ACL are translated. The destination addresses of packets are not translated for connections actively initiated by external hosts to the internal hosts.

  • If you specify both an ACL and the reverse address translation, the source addresses of outgoing packets permitted by the ACL are translated. If packets of connections actively initiated by external hosts to the internal hosts are permitted by ACL reverse matching, the destination addresses are translated. ACL reverse matching works as follows:

    • Compares the source IP address/port of a packet with the destination IP addresses/ports in the ACL.

    • Translates the destination IP address of the packet according to the mapping, and then compares the translated destination IP address/port with the source IP addresses/ports in the ACL.

Restrictions and guidelines: NAT Server

• When you configure a load shared NAT server mapping, you must make sure a user uses the same public address and public port to access the same service on an internal server. For this purpose, make sure value N in the following mappings is equal to or less than the number of servers in the internal server group:

  • One public address and N consecutive public port numbers are mapped to one internal server group.

  • N consecutive public addresses and one public port number are mapped to one internal server group.

• An internal server with a larger weight receives a larger percentage of connections in the internal server group.

• You must specify a VRF if you configure NAT server mappings in VPN networks. The specified VRF must be the VRF to which the NAT interface belongs.

• When you configure object group-based NAT server mappings, object groups for matching public addresses can only be IPv4 address object groups configured with subnets, IP address ranges, or host addresses. The IPv4 address object groups cannot have excluded IPv4 addresses.

Configure NAT

NAT can be performed in the inbound or outbound direction.

• Inbound NAT—Performs address translation for packets received on an interface, as shown in Figure-1.

• Outbound NAT—Performs address translation for packets sent out of an interface, as shown in Figure-2.

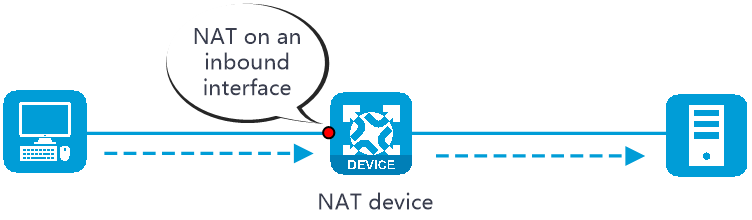

Figure-1 Inbound NAT

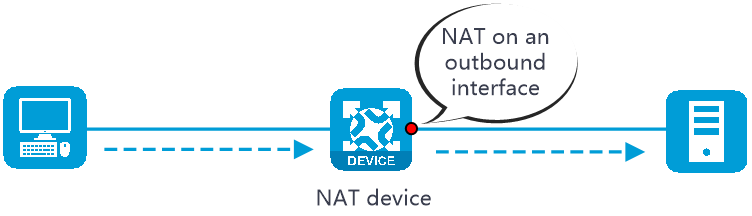

Figure-2 Outbound NAT

Prerequisites

Complete the following tasks before you configure this feature:

• Assign IP addresses to interfaces on the Network > Interface Configuration > Interfaces page.

• Configure routes on the Network > Routing page. Make sure the routes are available.

Configure dynamic NAT

Dynamic NAT uses an address pool to translate addresses. It applies to the scenario where a large number of internal users access the external network.

Only outbound dynamic NAT is supported in the current software version. You can configure ACL-based outbound dynamic NAT or object group-based outbound dynamic NAT. Figure-3 shows the configuration procedure for dynamic NAT.

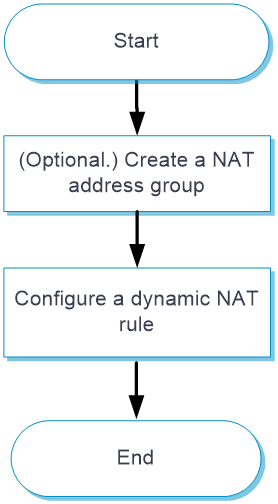

Figure-3 Dynamic NAT configuration procedure

Procedure

1. (Optional.) Create a NAT address group.

   1. Click the Objects tab.

   2. In the navigation pane, select Object Groups > NAT Address Groups.

   3. Click Create. For more information, see "Object groups."

   4. Click Apply.

2. Configure ACL-based dynamic NAT.

   1. Click the Network tab.

   2. In the navigation pane, select Interface NAT > IPv4.

   3. Click the Outbound Dynamic NAT (ACL-Based) tab.

   4. Click Create.

   5. Create an ACL-based outbound dynamic NAT rule, as shown in Table-2.

      Figure-4 Clicking Create

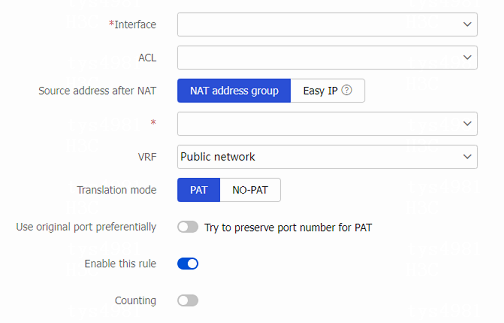

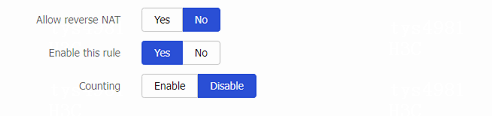

      Figure-5 Creating an ACL-based outbound dynamic NAT rule



      Table-2 Configuration items for ACL-based outbound dynamic NAT

      Item	Description
      Interface	Interface to which the NAT rule is applied. Outbound dynamic NAT is typically configured on the interface connected to the external network.
      ACL	ACL for packet matching. If you specify an ACL, NAT translates the source IP addresses of outgoing packets permitted by the ACL. If you do not specify an ACL, NAT translates all packets.
      Source address after NAT	Select the NAT address for address translation: NAT address group—IP addresses in the NAT address group are used for address translation. Easy IP—The IP address of the specified interface is used for address translation. An address group cannot be used by both PAT and NO-PAT modes.
      VRF	VRF to which the source addresses belong after translation. The default setting is Public network. You must specify this parameter if you deploy outbound dynamic NAT for VPNs. The specified VRF must be the VRF to which the specified interface belongs.
      Translation mode	Dynamic NAT translation mode: PAT—Uses the IP addresses in the address group or the IP address of the interface to translate IP addresses of the matching packets. Source ports in the matching packets are also translated. NO-PAT—Uses the IP addresses in the address group to translate IP addresses of the matching packets. Source ports in the matching packets are not translated.
      Use original port preferentially	Try to preserve port number for PAT. This option is available only when the translation mode is set to PAT.
      Allow reverse NAT	Enable reverse address translation. Reverse address translation uses existing NO-PAT entries to translate the destination address for connections actively initiated from the external network to the internal network. This option is available only when the translation mode is set to NO-PAT.
      Enable this rule	Enable this NAT rule.
      Counting	Enable hit counting for the NAT rule. After you enable this feature, you can view the hit count of the NAT rule.

   6. Click Apply.

3. Configure object group-based dynamic NAT.

   1. Click the Network tab.

   2. In the navigation pane, select Interface NAT > IPv4.

   3. Click the Outbound Dynamic NAT (Object Group-Based) tab.

   4. Click Create.

   5. Create an object group-based outbound dynamic NAT rule, as shown in Table-3.

      Figure-6 Clicking Create

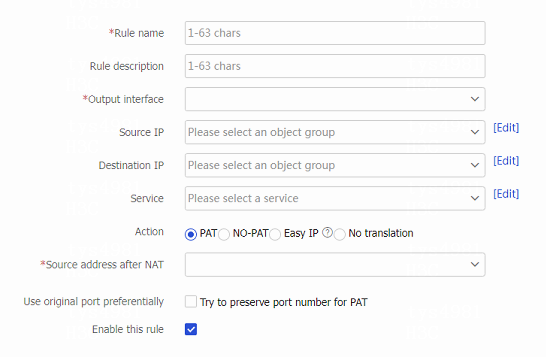

      Figure-7 Creating an object group-based outbound dynamic NAT rule



      Table-3 Configuration items for object group-based outbound dynamic NAT

      Item	Description
      Rule name	Enter the name of a NAT rule.
      Rule description	Enter the description of the NAT rule.
      Output interface	Interface to which the NAT rule is applied. Outbound dynamic NAT is typically configured on the interface connected to the external network.
      Source IP	Source IP address object group for the NAT rule. You can configure multiple source IP address object groups for a NAT rule. Each source IP object group is an independent packet match criterion.
      Destination IP	Destination IP address object group for the NAT rule. You can configure multiple destination IP address object groups for a NAT rule. Each destination IP object group is an independent packet match criterion.
      Service	Service object group for the NAT rule. You can configure multiple service object groups for a NAT rule. Each service object group is an independent packet match criterion. If you configure service object groups, source IP object groups, and destination object groups for a NAT rule, only packets with matching service type, source IP address, and destination IP address are translated.
      Action	Dynamic NAT translation mode: PAT—Uses the IP addresses in the address group or the IP address of the interface to translate IP addresses of the matching packets. Source ports in the matching packets are also translated. NO-PAT—Uses the IP addresses in the address group to translate IP addresses of the matching packets. Source ports in the matching packets are not translated. Easy IP—Uses the IP address of the specified interface for address translation. No translation—Does not translate matching packets.
      Source address after NAT	NAT address group for source address translation. An address group cannot be used by both PAT and NO-PAT modes.
      Use original port preferentially	Try to preserve port number for PAT. This option is available only when the translation mode is set to PAT or Easy IP.
      Allow reverse NAT	Enable reverse address translation. Reverse address translation uses existing NO-PAT entries to translate the destination address for connections actively initiated from the external network to the internal network. This option is available only when the translation mode is set to NO-PAT.
      Enable this rule	Enable this NAT rule.

   6. Click Apply.

Configure NAT Server

The NAT Server feature maps a public address and port number to the private IP address and port number of an internal server. This feature allows servers in the private network to provide services for external users.

Procedure

1. Configure a NAT server rule.

   1. Click the Network tab.

   2. In the navigation pane, select Interface NAT > IPv4.

   3. Click the NAT Servers tab.

   4. Click Create.

   5. Create a NAT server rule, as shown in Table-4.

      Figure-8 Clicking Create

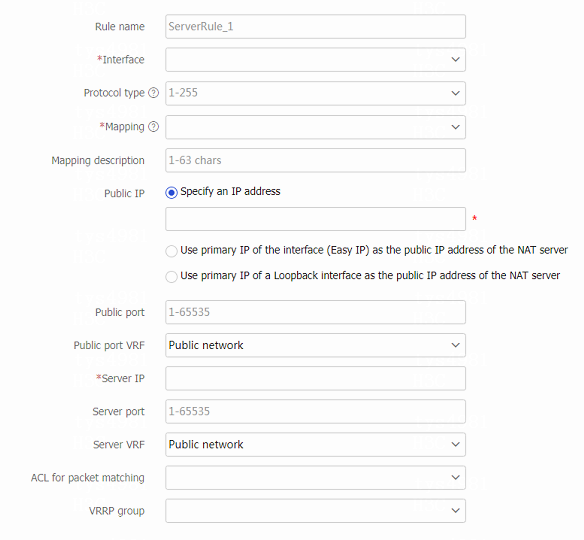

      Figure-9 Creating a NAT server rule





      Table-4 NAT server configuration items

      Item		Description
      Rule name		Enter the name of a NAT server rule.
      Interface		Interface to which the NAT server rule is applied. The NAT server rule is typically configured on the interface connected to the external network.
      Protocol type		Specify a protocol type. If you do not specify a protocol type, the configuration applies to packets of all protocols.
      Mapping		Select an address-port mapping. For more information, see Table-1.
      Mapping description		Mapping description for identification when a large number of NAT mappings exist.
      Public IP	Specify an IP address	Specify an IP address provided by the internal server for external network access.
      	Use primary IP of the interface (Easy IP) as the public IP address of the NAT server	Specify the IP address of the current interface as the public IP address of the internal server.
      	Use primary IP of a Loopback interface as the public IP address of the NAT server	Specify the IP address of a loopback interface as the public IP address of the server.
      Public port		Public port number or port range, depending on the mapping method. When you specify a port range, make sure the end port is greater than the start port.
      Public port VRF		VRF to which the advertised public IP addresses belong. The default setting is Public network.
      Server IP		Private IP address or address range, depending on the mapping method. In the address range, the end address must be greater than the start address. The number of addresses in the range must equal the number of ports in the public port range.
      Server port		Private port number or port range, depending on the mapping method. When you specify a port range, make sure the end port is higher than the start port.
      Server VRF		VRF to which the NAT server belongs. The default setting is Public network.
      ACL for packet matching		If you specify an ACL, NAT translates packets permitted by the ACL. If you do not specify an ACL, NAT translates all packets.
      VRRP group		Specify a VRRP group for high availability purposes. The master device in the VRRP group uses the virtual IP address and virtual MAC address to answer ARP requests. Support for the VRRP group feature depends on the device model.
      Allow reverse NAT		Allow reverse address translation. Reverse address translation applies to connections actively initiated by internal servers to the external network. It translates the private IP addresses of the internal servers to their public IP addresses. This option is available only when the mapping type is set to One single public address with one single or no public port.
      Enable this rule		Enable this NAT server rule.
      Counting		Enable hit counting for the NAT server rule. After you enable this feature, you can view the hit count of the NAT server rule.

   6. Click Apply.

Configure static NAT

Static NAT creates a fixed mapping between a private address and a public address. It supports connections initiated from internal users to external network and from external users to the internal network.

Only outbound static NAT is supported in the current software version. Configure static NAT as shown in Figure-10.

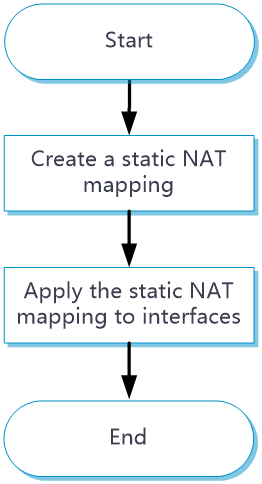

Figure-10 Static NAT configuration procedure

Procedure

1. Click the Network tab.

2. In the navigation pane, select Interface NAT > IPv4.

3. Click the Static NAT tab.

4. Click Create.

5. Create a static NAT mapping.

   Figure-11 Clicking Create

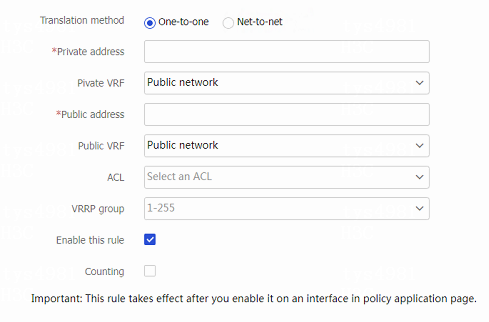

   Figure-12 Creating a static NAT mapping



   Table-5 Static NAT configuration items

   Item	Description
   Translation method	Select an address translation method: One-to-one—Performs address translation from a private IP address to a public IP address. Net-to-net—Performs address translation from a private network to a public network
   Private address	Private IP address. The parameter setting depends on the translation method.
   Private VRF	VRF to which the private IP address belongs. The default setting is Public network.
   Public address	Public IP address. The parameter setting depends on the translation method.
   Public VRF	VRF to which the public IP address belongs. The default setting is Public network.
   ACL	Specify an ACL to define the destination IP addresses that internal hosts can access.
   VRRP group	Specify a VRRP group for high availability purposes. The master device in the VRRP group uses the virtual IP address and virtual MAC address to answer ARP requests. Support for the VRRP group feature depends on the device model.
   Allow reverse NAT	Allow reverse address translation. Reverse address translation applies to connections actively initiated by external hosts to the internal host. It uses the mapping to translate the destination address for packets of these connections if the packets are permitted by ACL reverse matching.
   Enable this rule	Enable this static NAT rule.
   Counting	Enable hit counting for the static NAT rule. After you enable this feature, you can view the hit count of the static NAT rule.

6. Click Apply.

7. Click Policy Apply.

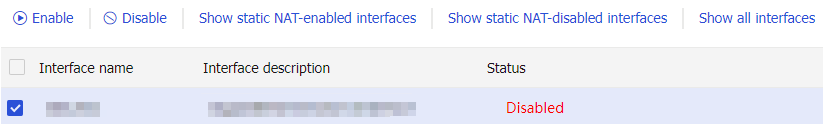

   Figure-13 Clicking Policy Apply



   Figure-14 Policy application page



8. Select one or multiple interfaces.

9. Click Enable.

Configure advanced NAT settings

Configure NAT DNS mappings

With NAT DNS mappings, a user in the internal network can access internal servers by using their domain names when the DNS server is located on the public network.

1. Click the Network tab.

2. In the navigation pane, select Interface NAT > IPv4.

3. Click the NAT DNS Mappings tab.

4. Click Create to add a new mapping entry for a domain name to the internal server.

   Figure-15 Clicking Create

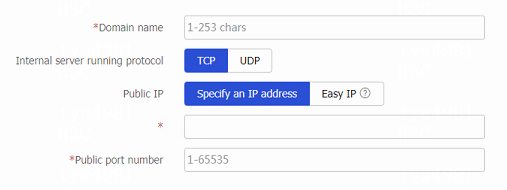

   Figure-16 Creating a NAT DNS mapping



   Table-6 NAT DNS mapping configuration items

   Item		Description
   Domain name		Specify a domain name for the internal server.
   Internal server running protocol		Select a running protocol for the internal server: TCP. UDP.
   Public IP	Specify an IP address	Specify an IP address provided by the internal server for external network access.
   	Easy IP	Specify the IP address of a loopback interface as the public IP address of the internal server.
   Public port number		Specify a public port number for the internal server.

5. Click Apply.

Configure NAT Hairpin

Enable NAT hairpin on the interface connected to the internal network to allow internal hosts to access each other through NAT.

1. Click the Network tab.

2. In the navigation pane, select Interface NAT > IPv4.

3. Click the NAT Hairpin tab.

4. Select an interface.

5. Click Enable to enable NAT Hairpin on the selected interface.

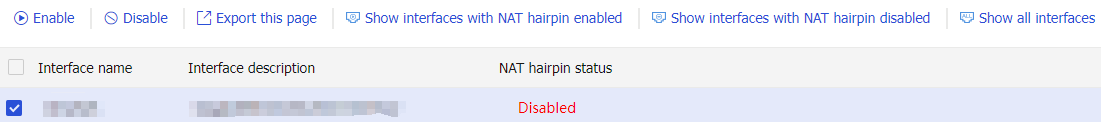

   Figure-17 Enabling NAT hairpin on the selected interface



Configure general settings

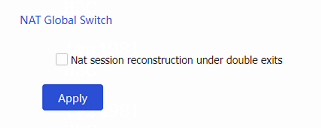

On a WAN network where two output interfaces of the NAT device are in the same security zone, if the link of one interface fails, traffic is switched to the link of the other interface. The NAT device retains old session entries after link switchover. Internal users cannot access the external network because the NAT device uses old session entries to match the user traffic. To avoid this issue, enable NAT session recreation to ensure availability of NAT services. The device will recreate NAT sessions when user traffic arrives.

1. Click the Network tab.

2. In the navigation pane, select Interface NAT > IPv4.

3. Click the General Settings tab.

4. Select Nat session reconstruction under double exists.

5. Click Apply.

   Figure-18 Enabling NAT session recreation



Configure PAT mode

1. Click the Network tab.

2. In the navigation pane, select Interface NAT > IPv4.

3. Click the General Settings tab.

4. Select a PAT mapping mode. Options include Address and Port-Dependent Mapping (APDM) and Endpoint-Independent Mapping (EIM).

5. Click Apply.

   Figure-19 Selecting a PAT mapping mode
