Web example: Providing FTP service from an IPv6 network to the IPv4 Internet (policy-based NAT)

Network configuration

As shown in Figure-1, a company upgrades the network to IPv6, and it has an IPv4 address 10.1.1.1.

To allow the IPv6 FTP server to provide FTP services to IPv4 hosts, configure the following AFT policies on the device:

Map the IPv6 FTP server's IPv6 address and port number to the company's IPv4 address and port number.
Configure a NAT64 prefix to translate source IPv4 addresses of IPv4 packets to IPv6 addresses.

Figure-1 Network diagram

Software versions used

This configuration example was created and verified on R9900P2705 of the F5000-AI-55-G device.

Procedure

Assign IP addresses to interfaces and add the interfaces to security zones.
# On the top navigation bar, click Network.
# From the navigation pane, select Interface Configuration > Interfaces.
# Click the Edit icon for GE1/0/1.
# In the dialog box that opens, configure the interface as follows:
- From the Security zone list, select Untrust.
- On the IPv4 Address tab, set the IP address/mask length to 10.1.1.2/24.
- Use the default settings for other parameters.
# Click Apply.
# Add GE1/0/2 to the Trust security zone and set its IPv6 address to 2013::1/96 in the same way you configure GE1/0/1.
Configure settings for routing:
This example configures a static route. If dynamic routes are required, configure a dynamic routing protocol.
# On the top navigation bar, click Network.
# From the navigation pane, select Routing > Static Routing.
# On the IPv4 Static Routing tab, click Create.
# In the dialog box that opens, perform the following tasks:
- Specify the destination IP address as 20.1.1.0.
- Set the mask length to 24.
- Specify the next-hop address as 10.1.1.100.
- Use the default settings for other parameters.
# Click Apply.
Configure security policies:
# On the top navigation bar, click Policies.
# From the navigation pane, select Security Policies.
# On the Security Policies tab, click Create.
# On the page that opens, perform the following tasks to create the following security policies:
- IPv4 security policy:
  - In the Name field, enter aftlocalin.
  - From the Source zone list, select Untrust.
  - From the Destination zone list, select Local.
  - Select IPv4 for the Type field.
  - Select Permit for the Action field.
  - Specify the destination IPv4 address as 10.1.1.1.
  - Use the default settings for other parameters.
  - Click Apply.
- IPv6 security policy 1:
- In the Name field, enter aftlocalout.
- From the Source zone list, select Local.
- From the Destination zone list, select Trust.
- Select IPv6 for the Type field.
- Select Permit for the Action field.
- Specify the source IPv6 address as 2012::96.
- Specify the destination IPv6 address as 2013::102.
- Use the default settings for other parameters.
- Click Apply.
- IPv6 security policy 2:
  - In the Name field, enter trust-untrust.
  - From the Source zone list, select Untrust.
  - From the Destination zone list, select Trust.
  - Select IPv6 for the Type field.
  - Select Permit for the Action field.
  - Specify the source IPv6 address as 2012:: 96.
  - Specify the destination IPv6 address as 2013::102.
  - Use the default settings for other parameters.
  - Click Apply.
Create a policy-based NAT rule.
# Configure an AFT mapping for the IPv6 server so that IPv4 users can access the IPv6 server by using the IPv4 address and port specified in the AFT mapping.
# On the top navigation bar, click Policies.
# From the navigation pane, select Policy-based NAT.
# Click the chevron icon next to Create SNAT, select Create SNAT+DNAT, and then click the NAT64 tab.
# Select the V4toV6 translation method.

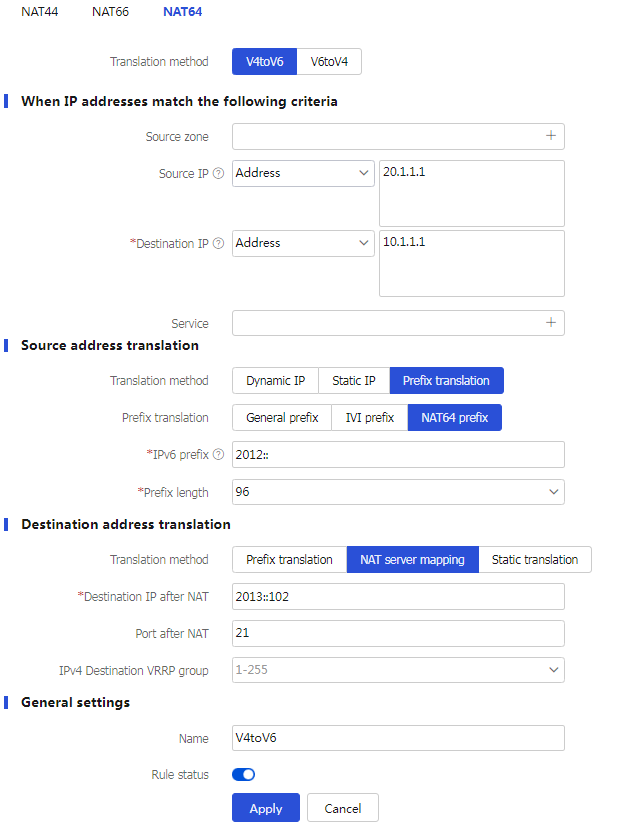

# Create a policy-based NAT rule, as shown in Figure-2.
Figure-2 Creating a policy-based NAT rule

# Click Apply.
Enable AFT on the interfaces connected to the IPv4 Internet and IPv6 network, respectively.
# Access the CLI of the device, enter the view of each interface, and then execute the aft enable command on each interface.

Verifying the configuration

# Verify that IPv4 hosts can use FTP to access the IPv6 FTP server. (Details not shown.)

# Display detailed information about IPv4 AFT sessions on the device.

[Device] display aft session ipv4 verbose

Initiator:

Source IP/port: 20.1.1.1/11025

Destination IP/port: 10.1.1.1/21

DS-Lite tunnel peer: -

VPN instance/VLAN ID/Inline ID: -/-/-

Protocol: TCP(6)

Inbound interface: GigabitEthernet1/0/1

Source security zone: Untrust

Responder:

Source IP/port: 10.1.1.1/21

Destination IP/port: 20.1.1.1/11025

DS-Lite tunnel peer: -

VPN instance/VLAN ID/Inline ID: -/-/-

Protocol: TCP(6)

Inbound interface: GigabitEthernet1/0/2

Source security zone: Local

State: TCP_ESTABLISHED

Application: FTP

Rule ID: -/-/-

Rule name:

Start time: 2014-03-13 09:07:30 TTL: 3577s

Initiator->Responder: 3 packets 124 bytes

Responder->Initiator: 2 packets 108 bytes

Total sessions found: 1

# Display detailed information about IPv6 AFT sessions on the device.

[Device] display aft session ipv6 verbose

Initiator:

Source IP/port: 2012::1401:0101/1029

Destination IP/port: 2013::102/21

VPN instance/VLAN ID/Inline ID: -/-/-

Protocol: TCP(6)

Inbound interface: GigabitEthernet1/0/1

Source security zone: Local

Responder:

Source IP/port: 2013::102/21

Destination IP/port: 2012::1401:0101/1029

VPN instance/VLAN ID/Inline ID: -/-/-

Protocol: TCP(6)

Inbound interface: GigabitEthernet1/0/2

Source security zone: Trust

State: TCP_ESTABLISHED

Application: FTP

Rule ID: 0

Rule name: aftlocalout

Start time: 2014-03-13 09:07:30 TTL: 3582s

Initiator->Responder: 3 packets 184 bytes

Responder->Initiator: 2 packets 148 bytes

Total sessions found: 1
