Web example: Configuring basic Layer 7 server load balancing

Network configuration

As shown in Figure-1, an enterprise uses Server A, Server B, and Server C to provide HTTP services. Configure server load balancing to load balance HTTP requests from Host. The device assigns requests whose URLs contain sports, government, and news to Server A; assigns requests whose URLs contain finance, technology, and shopping to Server B; and assigns other requests to Server C.

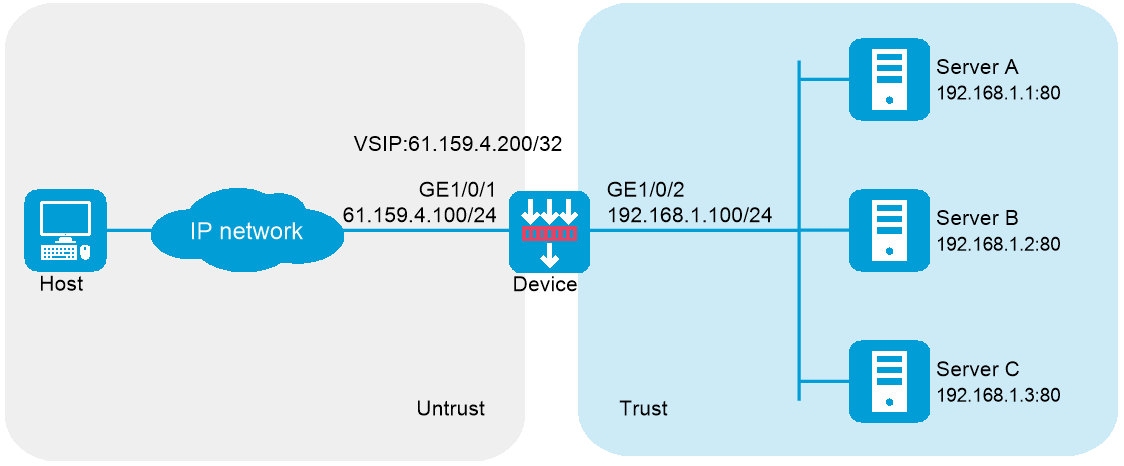

Figure-1 Network diagram

Software versions used

This configuration example was created and verified on R9900P2705 of the F5000-AI-55-G device.

Procedure

  1. Assign IP addresses to interfaces and add the interfaces to security zones.

    # On the top navigation bar, click Network.

    # From the navigation pane, select Interface Configuration > Interfaces.

    # Click the Edit icon for GE 1/0/1.

    # In the dialog box that opens, configure the interface:

    • Select the Untrust security zone.

    • On the IPv4 Address tab, enter the IP address and mask length of the interface. In this example, enter 61.159.4.100/24.

    • Use the default settings for other parameters.

    • Click OK.

    # Add GE 1/0/2 to the Trust security zone and set its IP address to 192.168.1.100/24 in the same way you configure GE 1/0/1.

  2. Configure security policies.

    # On the top navigation bar, click Policies.

    # From the navigation pane, select Security Policies > Security Policies.

    # Click Create.

    # In the dialog box that opens, configure a security policy named Untrust-to-Local:

    • Enter policy name Untrust-to-Local.

    • Select type IPv4.

    • Select source zone Untrust.

    • Select destination zone Local.

    • Enter destination IPv4 address 61.159.4.0/24.

    • Select action Permit.

    • Use the default settings for other parameters.

    • Click OK.

    # Configure a security policy named Local-to-Trust:

    • Enter policy name Local-to-Trust.

    • Select type IPv4.

    • Select source zone Local.

    • Select destination zone Trust.

    • Enter destination IPv4 address 192.168.1.0/24.

    • Select action Permit.

    • Use the default settings for other parameters.

    • Click OK.

  3. Create an ICMP-type probe template.

    # On the top navigation bar, click Objects.

    # From the navigation pane, select Load Balancing > Health Monitoring.

    # Click Create to configure the probe template t1 as shown in Figure-2.

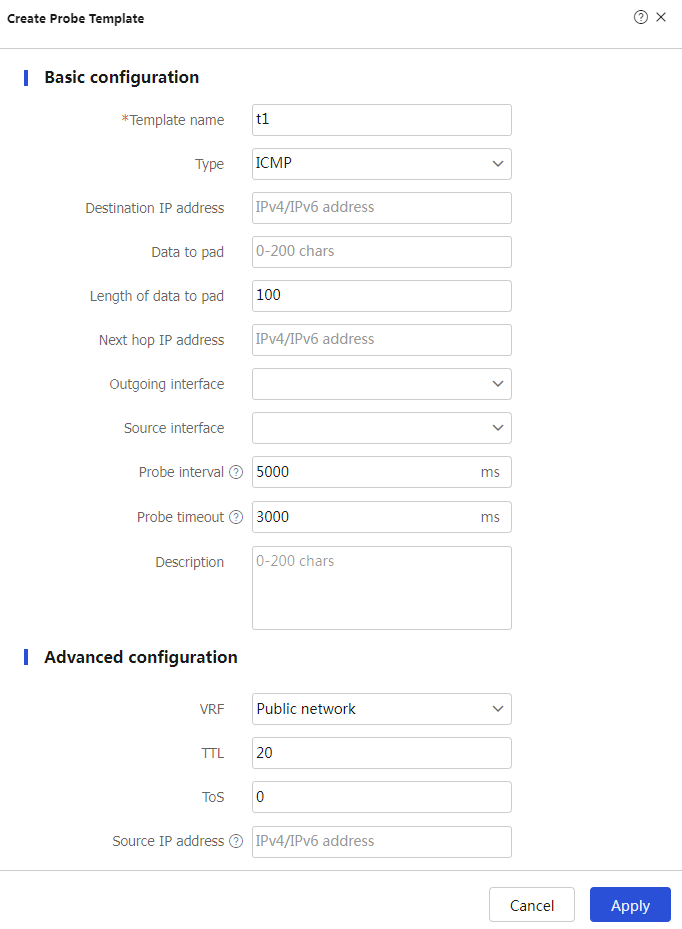

    Figure-2 Creating probe template t1

    # Click Apply.

  4. Create an HTTP cookie sticky group.

    # On the top navigation bar, click Objects.

    # From the navigation pane, select Load Balancing > Sticky Groups.

    # Click Create to configure the sticky group sticky_group as shown in Figure-3.

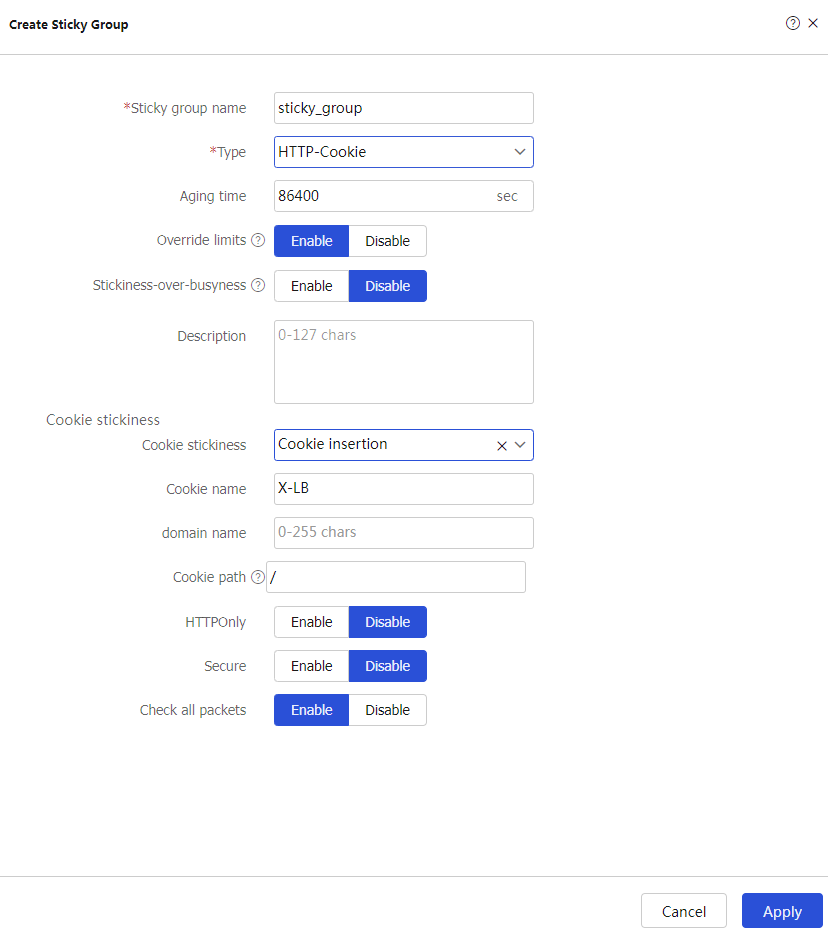

    Figure-3 Creating sticky group sticky_group

    # Click Apply.

  5. Create real servers.

    # On the top navigation bar, click Policies.

    # From the navigation pane, select LB Policy > Server Load Balancing > Real Servers.

    # Click Create to configure the real server rs_a as shown in Figure-4.

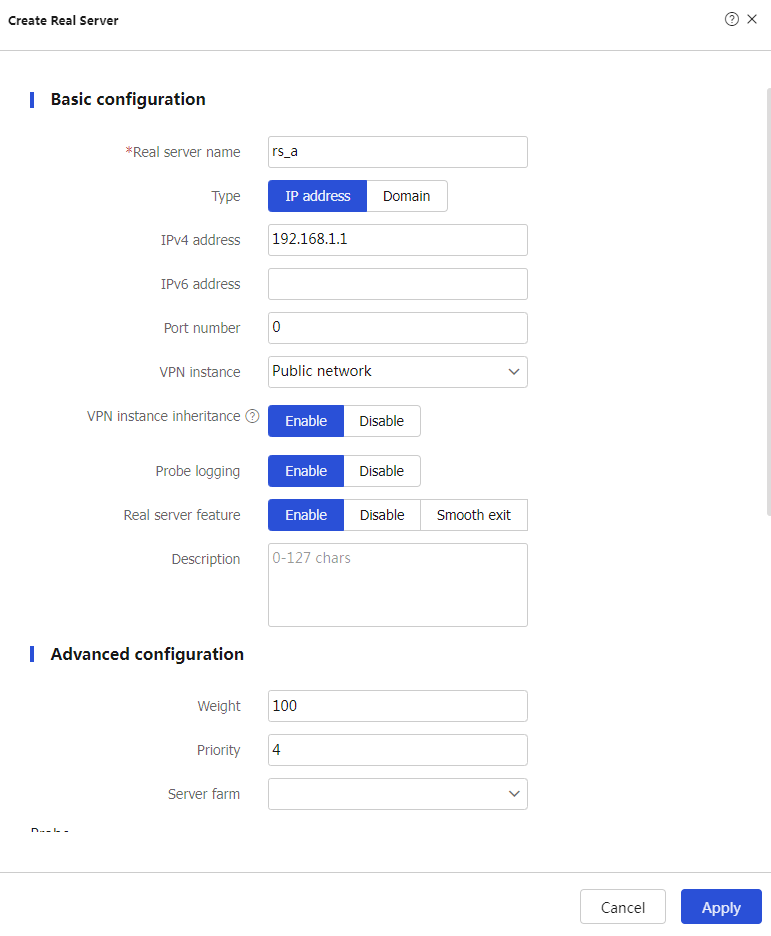

    Figure-4 Creating real server rs_a

    # Click Apply.

    # Configure real server rs_b and set its IP address to 192.168.1.2 in the same way you configure real server rs_a.

    # Configure real server rs_c and set its IP address to 192.168.1.3 in the same way you configure real server rs_a.

    # Display the configured real servers as shown in Figure-5.

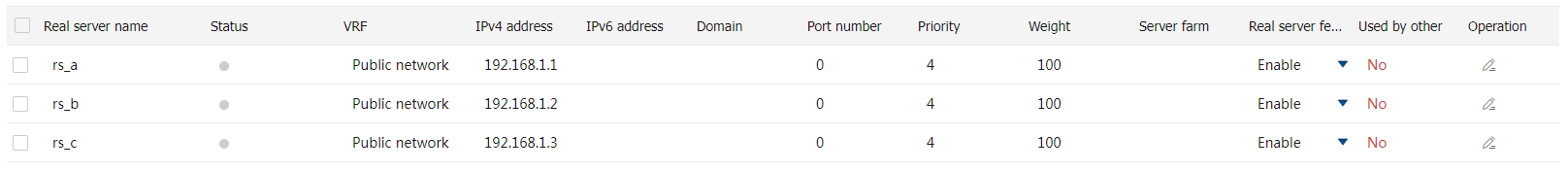

    Figure-5 Displaying the configured real servers

  6. Create server farms.

    # On the top navigation bar, click Policies.

    # From the navigation pane, select LB Policy > Server Load Balancing > Server Farms.

    # Click Create to configure the server farm sf1 as shown in Figure-6.

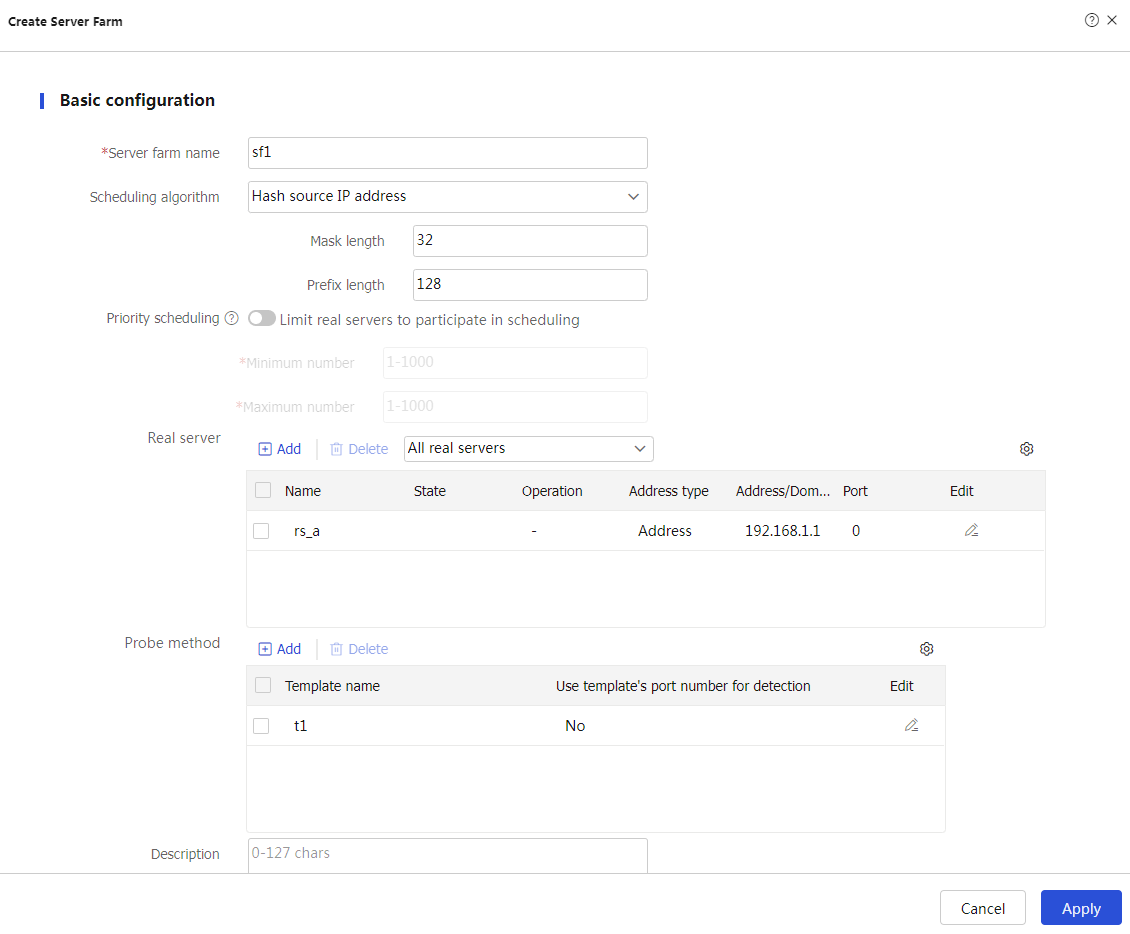

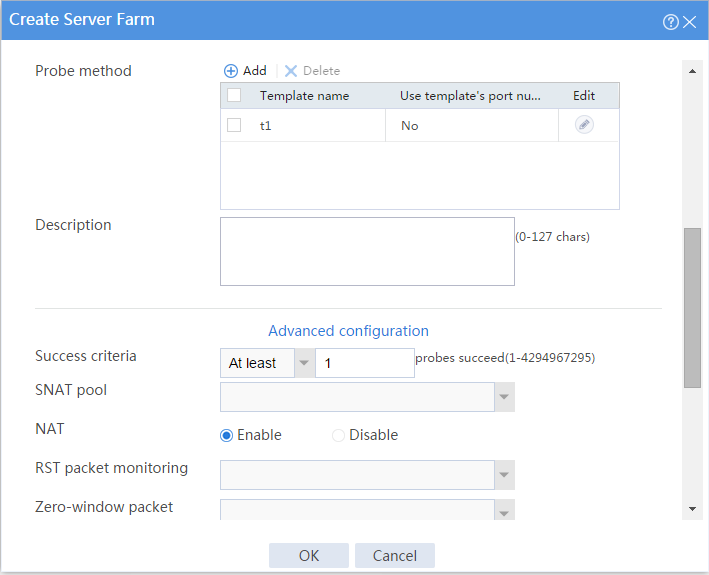

    Figure-6 Creating server farm sf1

    # Click Apply.

    # Configure server farm sf2 and specify real server rs_b in the same way you configure server farm sf1.

    # Configure server farm sf3 and specify real server rs_c in the same way you configure server farm sf1.

    # Display the configured server farms as shown in Figure-7.

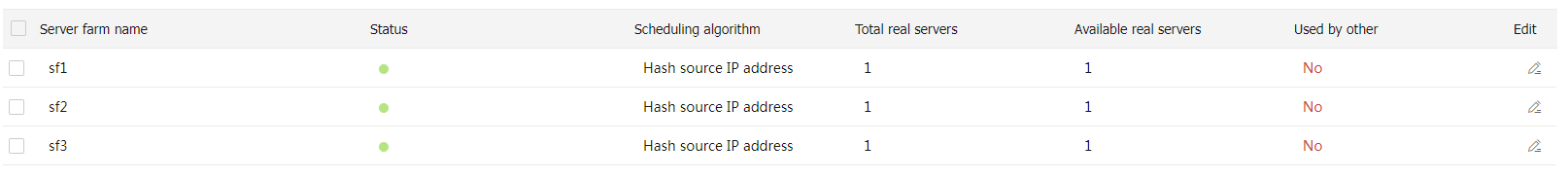

    Figure-7 Displaying the configured server farms

  7. Create classes.

    # On the top navigation bar, click Policies.

    # From the navigation pane, select LB Policy > Server Load Balancing > Advanced Policies.

    # Click the Class tab.

    # Click Create to configure the class cls_1 as shown in Figure-8.

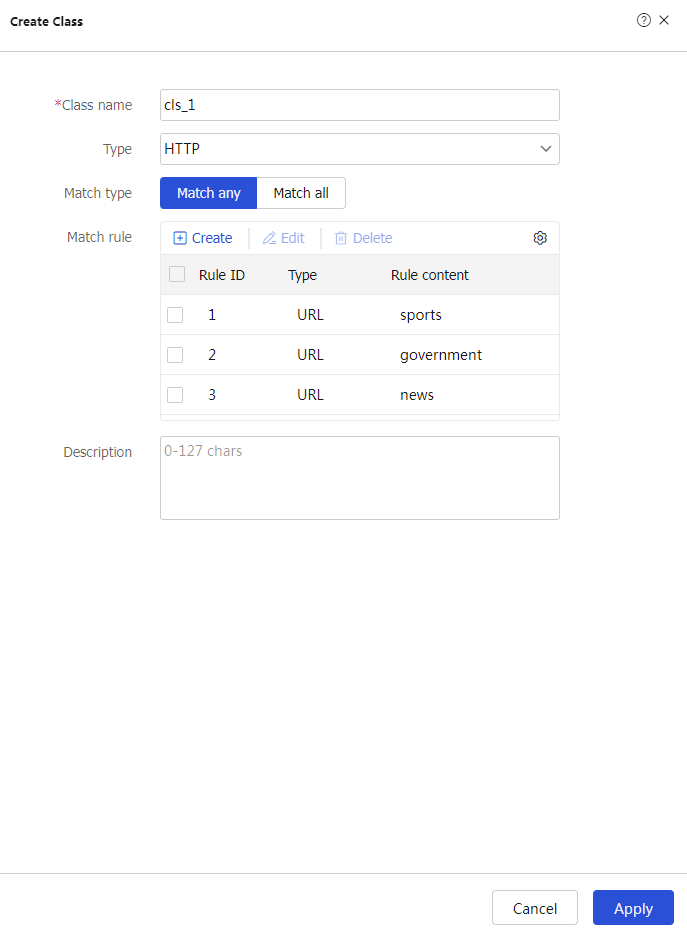

    Figure-8 Creating class cls_1

    # Click Apply.

    # Click Create to configure the class cls_2 as shown in Figure-9.

    Figure-9 Creating class cls_2

    # Click Apply.

  8. Create actions.

    # On the top navigation bar, click Policies.

    # From the navigation pane, select LB Policy > Server Load Balancing > Advanced Policies.

    # Click the Action tab.

    # Click Create to configure the action act_1 as shown in Figure-10.

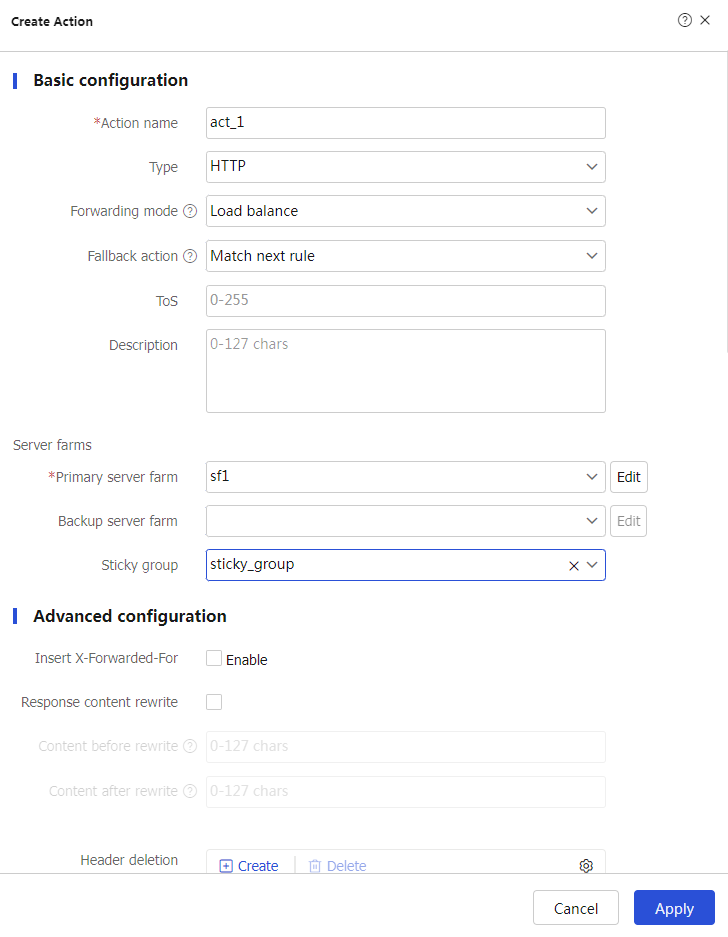

    Figure-10 Creating action act_1

    # Click Apply.

    # Configure action act_2 and specify primary server farm sf2 in the same way you configure action act_1.

    # Configure action act_3 and specify primary server farm sf3 in the same way you configure action act_1.

    # Display the configured actions as shown in Figure-11.

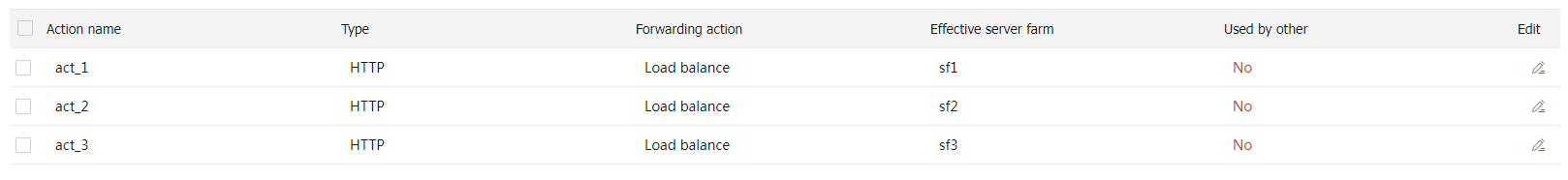

    Figure-11 Displaying the configured actions

  9. Create a load balancing policy.

    # On the top navigation bar, click Policies.

    # From the navigation pane, select LB Policy > Server Load Balancing > Advanced Policies.

    # Click the Load Balancing Policy tab.

    # Click Create to configure the load balancing policy loadbalance_policy as shown in Figure-12.

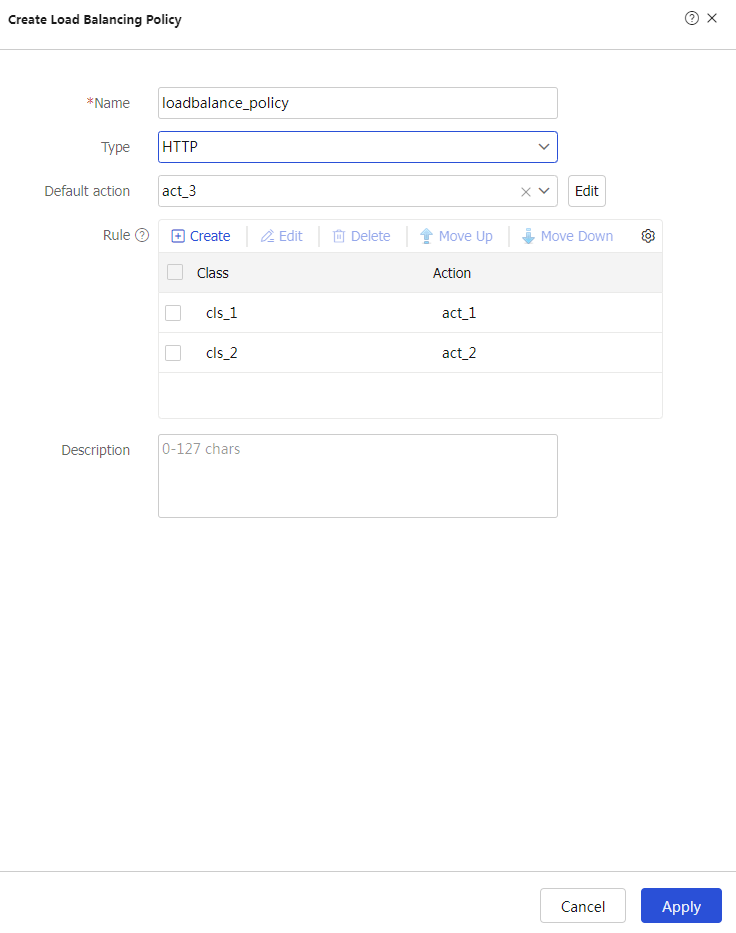

    Figure-12 Creating load balancing policy loadbalance_policy

    # Click Apply.

  10. Create an HTTP-type parameter profile.

    # On the top navigation bar, click Policies.

    # From the navigation pane, select LB Policy > Server Load Balancing > Parameter Profiles.

    # Click Create to configure the parameter profile loadbalance_profile as shown in Figure-13.

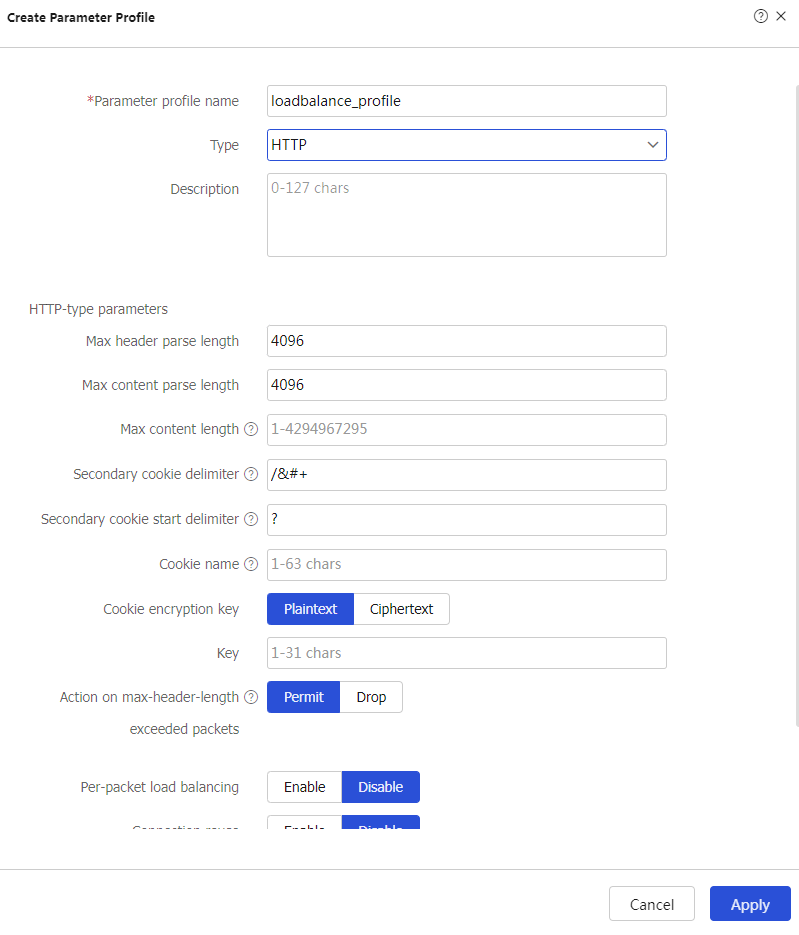

    Figure-13 Creating parameter profile loadbalance_profile

    # Click Apply.

  11. Create a virtual server.

    # On the top navigation bar, click Policies.

    # From the navigation pane, select LB Policy > Server Load Balancing > Virtual Servers.

    # Click Create to configure the virtual server vs as shown in Figure-14 and Figure-15.

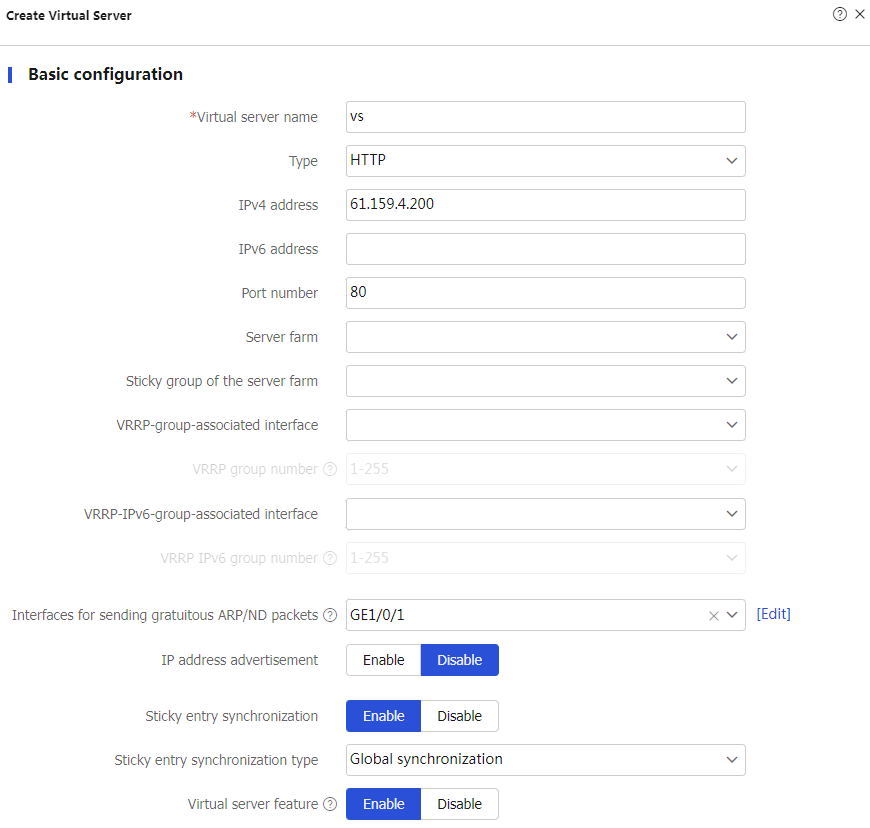

    Figure-14 Creating virtual server vs

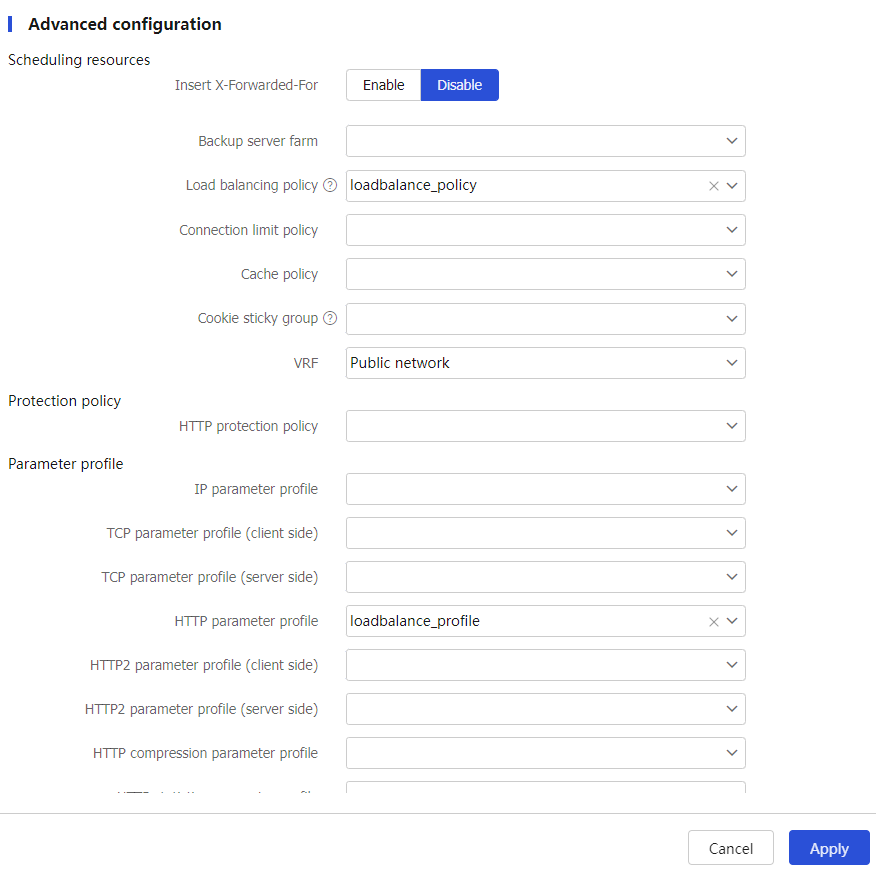

    Figure-15 Creating virtual server vs (advanced configuration)

    # Click Apply.

Verifying the configuration

  1. Verify that the device assigns Sever A the HTTP request with URL http://61.159.4.200/sports/.

    # Access http://61.159.4.200/sports/ on Host.

    # On the top navigation bar, click Monitor.

    # From the navigation pane, select LB Monitor > Server LB Statistics > Virtual Servers.

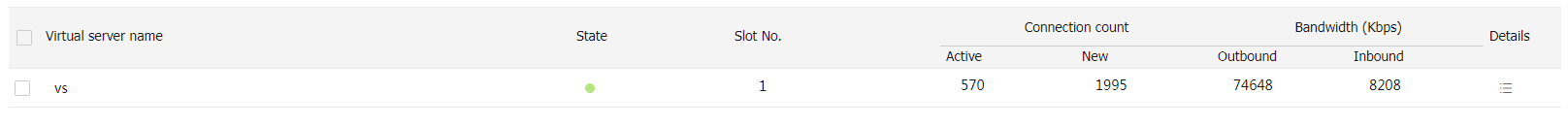

    Figure-16 Displaying virtual server statistics

    # On the top navigation bar, click Monitor.

    # From the navigation pane, select LB Monitor > Server LB Statistics > Servers Farms. You can see that the device assigns the HTTP request containing URL http://61.159.4.200/sports/ to server farm sf1.

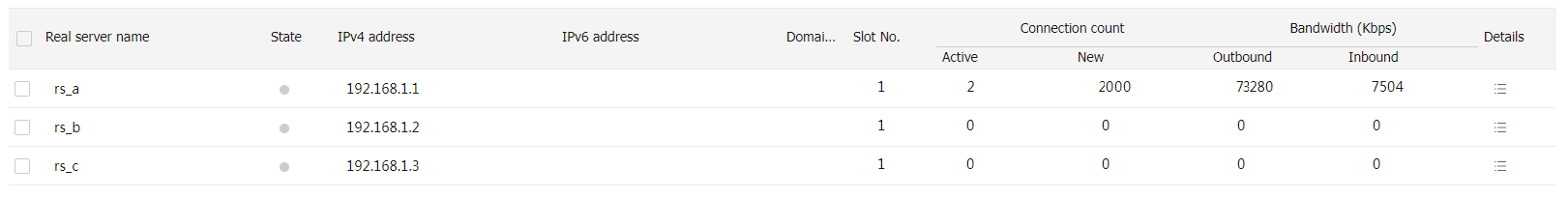

    Figure-17 Displaying server farm statistics

  2. Verify that the device assigns Sever B the HTTP request with URL http://61.159.4.200/finance/.

  3. Verify that the device assigns Sever C the HTTP request with URL http://61.159.4.200/education/.
