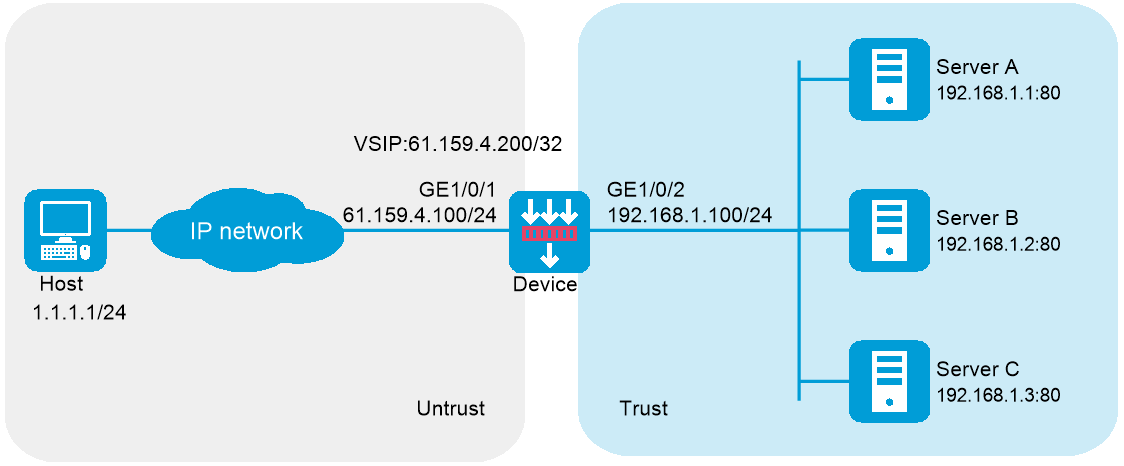

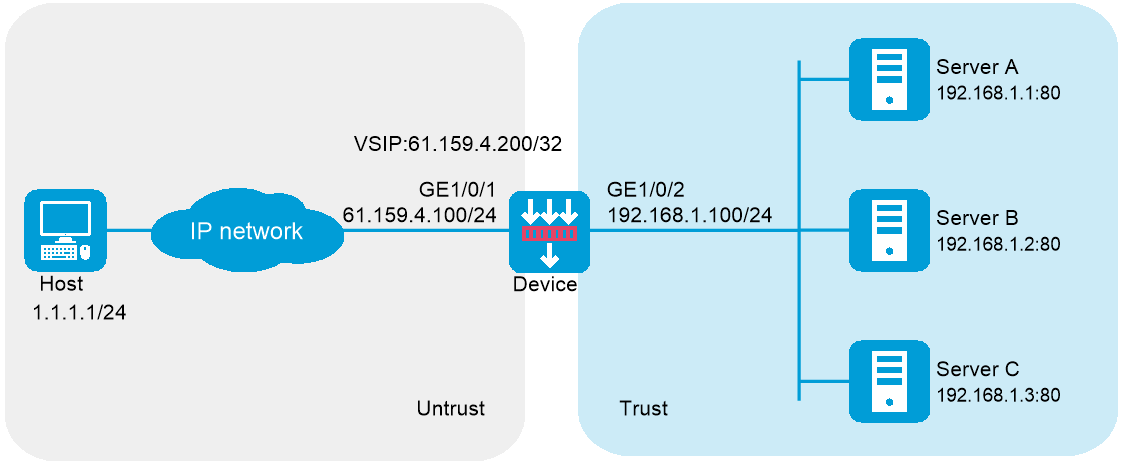

In Figure 1, physical servers Server A, Server B, and Server C provide HTTP services, and are in descending order of hardware configuration.
Configure server load balancing on the device to distribute user requests among the servers based on their hardware performance, and use health monitoring to monitor reachability of the servers.
The device establishes an HTTPS connection encrypted by SSL with the host, and establishes HTTP connections with the servers. The device must terminate the SSL session with the host before establishing a TCP connection with a server.
This configuration example was created and verified on F9900 of the F5000-AI120 device.
1. Assign IP addresses to interfaces:
# Assign an IP address to interface GigabitEthernet 1/0/1.
<Device> system-view
[Device] interface gigabitethernet 1/0/1
[Device-GigabitEthernet1/0/1] ip address 61.159.4.100 255.255.255.0
[Device-GigabitEthernet1/0/1] quit
# Assign IP addresses to other interfaces in the same way. (Details not shown.)
2. Configure settings for routing.
This example configures a static route, and the next hop in the route is 61.159.4.1.
[Device] ip route-static 1.1.1.1 24 61.159.4.1
3. Add interfaces to security zones.
[Device] security-zone name untrust
[Device-security-zone-Untrust] import interface gigabitethernet 1/0/1
[Device-security-zone-Untrust] quit
[Device] security-zone name trust
[Device-security-zone-Trust] import interface gigabitethernet 1/0/2
[Device-security-zone-Trust] quit
4. Configure a security policy:
Configure rules to permit traffic from the Untrust security zone to the Local security zone and traffic from the Local security zone to the Trust security zone, so the users can access the servers:
# Configure a rule named lblocalin to allow the users to send packets to the device.
[Device] security-policy ip
[Device-security-policy-ip] rule name lblocalin
[Device-security-policy-ip-1-lblocalin] source-zone untrust
[Device-security-policy-ip-1-lblocalin] destination-zone local
[Device-security-policy-ip-1-lblocalin] destination-ip-subnet 61.159.4.0 255.255.255.0
[Device-security-policy-ip-1-lblocalin] action pass
[Device-security-policy-ip-1-lblocalin] quit
# Configure a rule named lblocalout to allow the device to send packets to the servers.
[Device-security-policy-ip] rule name lblocalout
[Device-security-policy-ip-2-lblocalout] source-zone local
[Device-security-policy-ip-2-lblocalout] destination-zone trust
[Device-security-policy-ip-2-lblocalout] destination-ip-subnet 192.168.1.0 255.255.255.0
[Device-security-policy-ip-2-lblocalout] action pass
[Device-security-policy-ip-2-lblocalout] quit
[Device-security-policy-ip] quit
5. Configure a server farm.
# Create the SSL-type NQA template t1.
[Device] nqa template ssl t1
[Device-nqatplt-ssl-t1] quit
# Create the server farm sf, and specify the scheduling algorithm as weighted round robin and health monitoring method as t1.
[Device] server-farm sf
[Device-sfarm-sf] predictor round-robin
[Device-sfarm-sf] probe t1
[Device-sfarm-sf] quit
6. Configure an SSL server policy:
# Configure PKI domain 1. (For more information about configuring a PKI domain, see Security Configuration Guide.)
[Device] pki domain 1
# Create an SSL server policy named ssp.
[Device] ssl server-policy ssp
# Specify PKI domain 1 for SSL server policy ssp.
[Device-ssl-server-policy-ssp] pki-domain 1
# Enable client authentication.
[Device-ssl-server-policy-ssp] client-verify enable
[Device-ssl-server-policy-ssp] quit
# Apply SSL server policy ssp to control HTTPS access.
[Device] ip https ssl-server-policy ssp
# Enable the HTTPS service.
[Device] ip https enable
# Create a local user named usera, set the password to 123456TESTplat&! in plaintext form, specify the service type as HTTPS, and specify the user role for the local user as network-admin.
[Device] local-user usera
[Device-luser-usera] password simple 123456TESTplat&!
[Device-luser-usera] service-type https
[Device-luser-usera] authorization-attribute user-role network-admin
7. Configure real servers.
# Create the real server rs1 with IPv4 address 192.168.1.1, port number 8080, and weight 150, and add it to the server farm sf.
[Device] real-server rs1
[Device-rserver-rs1] ip address 192.168.1.1
[Device-rserver-rs1] port 8080
[Device-rserver-rs1] weight 150
[Device-rserver-rs1] server-farm sf
[Device-rserver-rs1] quit
# Create the real server rs2 with IPv4 address 192.168.1.2, port number 8080, and weight 120, and add it to the server farm sf.
[Device] real-server rs2
[Device-rserver-rs2] ip address 192.168.1.2
[Device-rserver-rs2] port 8080
[Device-rserver-rs2] weight 120
[Device-rserver-rs2] server-farm sf
[Device-rserver-rs2] quit
# Create the real server rs3 with IPv4 address 192.168.1.3, port number 8080, and weight 80, and add it to the server farm sf.
[Device] real-server rs3
[Device-rserver-rs3] ip address 192.168.1.3
[Device-rserver-rs3] port 8080
[Device-rserver-rs3] weight 80
[Device-rserver-rs3] server-farm sf
[Device-rserver-rs3] quit
8. Configure a virtual server.
# Create the HTTP virtual server vs with VSIP 61.159.4.200 and port number 443, and specify its default master server farm sf.
[Device] virtual-server vs type http
[Device-vs-http-vs] virtual ip address 61.159.4.200
[Device-vs-http-vs] port 443
[Device-vs-http-vs] default server-farm sf
# Specify the SSL server policy ssp for the virtual server.
[Device-vs-http-vs] ssl-server-policy ssp
# Enable the virtual server.
[Device-vs-http-vs] service enable
# Specify an interface for sending gratuitous ARP packets and ND packets (if the interface IP address on the device and the VSIP belong to the same subnet).
[Device-vs-http-vs] arp-nd interface gigabitethernet 1/0/1
[Device-vs-http-vs] quit
# Specify the default gateway 192.168.1.100 for physical servers Server A, Server B, and Server C. (Details not shown.)
# Display brief information about all real servers.
[Device] display real-server brief
Real server Address Port State VPN instance Server farm
rs1 192.168.1.1 8080 Active sf
rs2 192.168.1.2 8080 Active sf
rs3 192.168.1.3 8080 Active sf
# Display detailed information about all server farms.
[Device] display server-farm
Server farm: sf
Description:
Predictor: Round robin
Proximity: Disabled
NAT: Enabled
SNAT pool:
Failed action: Keep
Active threshold: Disabled
Slow-online: Disabled
Selected server: Disabled
Total real server: 3
Active real server: 3
Real server list:
Name State VPN instance Address Port Weight Priority
rs1 Active 192.168.1.1 8080 150 4
rs2 Active 192.168.1.2 8080 120 4
rs3 Active 192.168.1.3 8080 80 4
# Display detailed information about all virtual servers.
[Device] display virtual-server
Virtual server: vs
Description:
Type: HTTP
State: Active
VPN instance:
Virtual IPv4 address: 61.159.4.200/32
Virtual IPv6 address: --
Port: 443
Default server farm: sf (in use)
Backup server farm:
Sticky:
LB policy:
HTTP parameter profile:
Connection limit: --
Rate limit:
Connections: --
Bandwidth: --
Inbound bandwidth: --
Outbound bandwidth: --
SSL server policy: ssp
SSL client policy:
Redirect relocation:
Redirect return-code: 302
Connection synchronization: Disabled
Sticky synchronization: Disabled
Bandwidth busy protection: Disabled
Interface bandwidth statistics: Disabled
Route advertisement: Disabled
#
interface GigabitEthernet1/0/1
ip address 61.159.4.100 255.255.255.0
#
interface GigabitEthernet1/0/2
ip address 192.168.1.100 255.255.255.0
#
security-zone name Untrust
import interface GigabitEthernet1/0/1
#
security-zone name Trust
import interface GigabitEthernet1/0/2
#
security-policy ip
rule 1 name lblocalin
action pass
source-zone untrust
destination-zone local
source-ip-subnet 61.159.4.0 255.255.255.0
rule 2 name lblocalout
action pass
source-zone local
destination-zone trust
destination-ip-subnet 192.168.1.0 255.255.255.0
#
nqa template ssl t1
#
pki domain 1
#
ssl server-policy ssp
pki-domain 1
client-verify enable
version ssl3.0 disable
version tls1.0 disable
#
ip https ssl-server-policy ssp
ip https enable
#
local-user usera class manage
password hash $h$6$7BCXaYHRvhC/EbM2$ZKy8ygvBKEQQALSRtyAsSw+QvWDRCcYg57HxOZxLzr4
IjqS1LhglFsxWnVc3vtbZ+4X7gk8erwRl2uCpAfN2/g==
service-type https
authorization-attribute user-role network-admin
authorization-attribute user-role network-operator
#
server-farm sf
probe t1
#
real-server rs1
ip address 192.168.1.1
port 21
weight 150
server-farm sf
#
real-server rs2
ip address 192.168.1.2
port 8080
weight 120
server-farm sf
#
real-server rs3
ip address 192.168.1.3
port 8080
weight 80
server-farm sf
#
virtual-server vs type http
port 443
virtual ip address 61.159.4.200
default server-farm sf
ssl-server-policy ssp
arp-nd interface GigabitEthernet1/0/1
service enable
